Type	Tumble drier
Brand	Omega
Model	OCD7HP
Rated Drying Capacity	7.0 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	650 W
Refrigerant	R134a
Overall Size (W×D×H)	595 × 622 × 845 mm
Net Weight	52 kg
Ambient Temperature Range	+5 °C to +35 °C
Drying Programmes	Cotton (Extra Dry, Cupboard Dry, Iron), Synthetic (Extra Dry, Cupboard Dry, Iron), Delicate, Wool, Jeans, Mix, Sports, Shirts, My Cycle, Time, Cool, Refresh
Functions	Delay (0-24 h), Time adjustment (10-150 min in 10 min steps), Intensity (4 dryness levels), Lamp, Signal (buzzer on/off), Anti-Crease (30 or 120 min), Child Lock

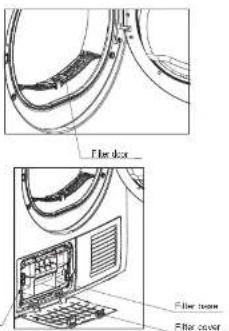

Filter System	Filter door, filter base, heat exchanger
Water Container	Removable, capacity for condensed water
Drain Hose	Optional for direct drainage
Energy Efficiency Class	Not specified in manual
Noise Level	Not specified in manual (normal compressor and pump noise)
Safety Features	Child lock, overheat protection, auto shut-off
Installation Requirements	Level surface, clear air circulation, indoor use only

Frequently Asked Questions - OCD7HP OMEGA

What is the maximum drying capacity of the Omega OCD7HP?

The maximum drying capacity is 7.0 kg for cotton and linen items.

How do I clean the lint filter?

Open the door and remove the filter door. Wipe off the lint from the filter door. Also clean the filter base by opening the filter cover, unscrewing the locking levers, cleaning the base, and reassembling. Always unplug the appliance before cleaning.

What does the 'Anti-Crease' function do?

After the drying cycle, the tumble drier rotates periodically for 30 minutes (default) or 120 minutes (selected) to prevent creases. You can remove laundry during this phase.

How do I use the Delay start function?

Select a programme, press the Delay button repeatedly to set the delay time (0-24 hours), then press Start/Pause. The programme will start after the set delay.

Can I dry wool items in this dryer?

Yes, use the Wool programme (max 1.0 kg). This programme provides fluffy and fresh wool clothing. Remove items immediately after the cycle ends and air dry them.

What should I do if the display shows 'E32'?

Error code E32 indicates a humidity sensor failure. Please contact an authorised service centre for repair.

How often should I empty the water container?

Empty the water container after each use. If the container becomes full during a cycle, the programme pauses and the icon flashes. Empty it and press Start/Pause to resume.

What is the 'My Cycle' function?

You can save your favourite programme and settings. Select a programme, press and hold the Intensity button for 3 seconds until the display flashes. Then turn the programme selector to My Cycle to use it.

Is it safe to install the dryer in a cold room?

No. Do not install in a room where frost may occur. Ambient temperature must be between +5 °C and +35 °C. Frozen condensed water can damage the pump and hoses.

How do I enable the Child Lock?

While the dryer is running, press and hold the Anti-Crease and Signal buttons simultaneously for at least 3 seconds. The display shows 'on'. To unlock, repeat the same action.

USER MANUAL OCD7HP OMEGA

Before using your tumble dryer, please read this manual carefully and keep it for future reference.

Tumble Dryer

OWNER'S MANUAL

Read This Manual

Inside you will find many helpful hints on how to use and maintain your tumble dryer properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your tumble

Catalogue

Safety information....1

Installation....6

Attention and advice....7

Part description....8

Description of controls....10

Operation instruction....12

Programme table....13

Specialty drying function....14

Cleaning and routine maintenance....16

Error codes, solutions and precautions....17

Technical specifications....18

Safety information

Laundry Symbols

Before placing clothes in this dryer, check for laundry symbols which may indicate the suitability of using this appliance:

Dry	Normal	Not tumble dry normal	De dry dry
Line dry hang to dry
	Dry dry		In the shade
Dry clean De no dry clean		Dry your normal body of dry clothes	Dry your normal body of clothes on dark cloth

Safety notes

To prevent damage to your appliance and preven personal injury, please read and follow the following safety information.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. In certain circumstances electrical appliances may be a danger hazard. Check the conformity of voltage and power settings, which are specified on the information plate attached to the appliance and/or packaging, with the usage conditions available.

3. Do not place heavy objects in or on these appliances, or use for storage, or let children play or swing from the door. Do not use the appliances until fully installed.

Safety information

Safety information

Safety information

1. If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. This appliance is for indoor use only.
3. The openings must not be obstructed by a carpet.
4. Children of less than 3 years should be kept away unless continuously supervised.
5. If the appliance appear high temperature abnormally, please draw the mail plug immediately.
6. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.(This warning is not for EUROPEAN market)

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take

Safety information

Electric shock hazard

1. Do not draw the power cord forcefully to pull out the mains plug.
2. Please do not plug/draw the mains plug with wet hands.
3. Do not damage the power cord and the power plug.

Injury danger

1. Do not disassemble and install the dryer under no instruction or supervision.
2. Do not stack this dryer on washing machine without stacking kits. (if want stacking on washing machine, please purchase the Independent parts and it must be installed by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.)
3. Do not lean on the opened door of the dryer.
4. Do not put any pyrotoxin on the dryer, such as the candle, electric cooker.

Damage danger

1. Do not dry over the rated capacity.
2. Do not operate the dryer without the filter door and filter base.
3. Do not dry the clothes before being spun.
4. Do not expose the dryer directly under the sun, and indoor use only.
5. Do not install the dryer in the humid and drenching environment.
6. At the cleaning and maintenance, please do remember to pull out the power plug and do not directly wash the dryer with water.

Installation

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine door can not be used as the handle for delivery. If the dryer can't be transported erect, the dryer could be slant to right less than 30°.

Installation Position

1. It is recommended that, for your convenience, the machine is positioned close to your washing machine.
2. The tumble dryer must be installed in a clean place, where dirt does not build up. Air must be able to circulate freely all round the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.
3. To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm and level surface.
4. The feet must never be removed. Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

Three identical diagrams showing a circular object placed on a textured surface, with no text or symbols present.

Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool.

Power Supply Connection

1. Make sure that the voltage of the power supply is the same as the electric specification of the dryer.
2. Do not connect the dryer with the power connection board, the universal plug or socket.

Attention and Advice

Attention

Leave it to stand for 2 hours after transporting. Before first use, please use the soft fabric to clean the inside drum.

a) Put some clean rags into the drum.

d) After finishing this programme, please follow the "cleaning and routine maintenance" (refer to page 15) to clean the filter door.

During drying, the compressor and the water pump generate some noise which is entirely normal.

Advice

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.
2. For uniform drying result, sort the laundry according to fabric type and drying programme.
3. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4. Do not over dry the clothes, because over dried clothes can easily get creases or shrinkage.
5. Do not dry the articles containing rubber or similar plastic materials such as raincoals, bicycle covers and etc.
6. The door can be opened only after the programme of the drying machine is completed. Do not open the door before the boarding finished as hardside.
7. Clean the lint filter and empty container after each use to avoid extension of drying time and energy consumption.
8. Please choose the related programme when deal with wool material clothes, to make the cloth more fresh and fluffy.
9. The weight references as follows:

	Blended Crude (about 500g)		Markets about 100g in order	(YAZK)	Junction Timbers (about 200g)	(CK3A)	Trained Crude (about 500g in order)
[MRCC]	Bicycle Brands (about 600g in order)		Work Cuts, approx. about 1120g in order	(WG48)	Pavance (about 200g)	[A80K]	BNPs (about 500g in order)
						(X72C)
		[H72Z]		(YHCT)		(YTA2T)
(DYZT)	Undercarls (about 100g in order)	(HYAG)	Undercarls about 70g in order	(KBWSK)	As labert 50g in (BWKS) (slad minder)	(WYTW)

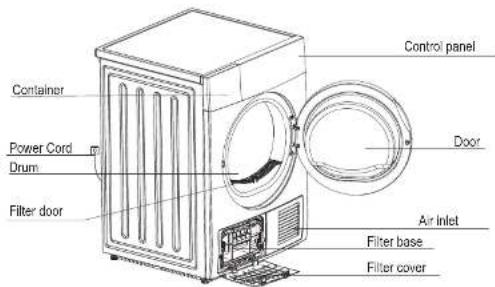

Part description

Part Description

Accessories

The following parts are optional for specific models. If your dryer has following parts, please the inst of following the below.

Installation step:

Step 1: removing the drain hose from the hose connector using plier.

Part description

Step 3: put the hose holder on the washing basin or any other sink.

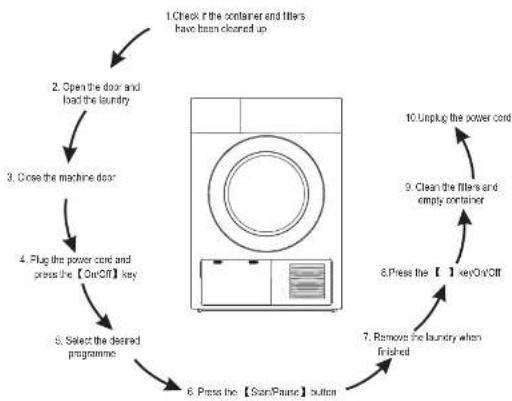

Quick start


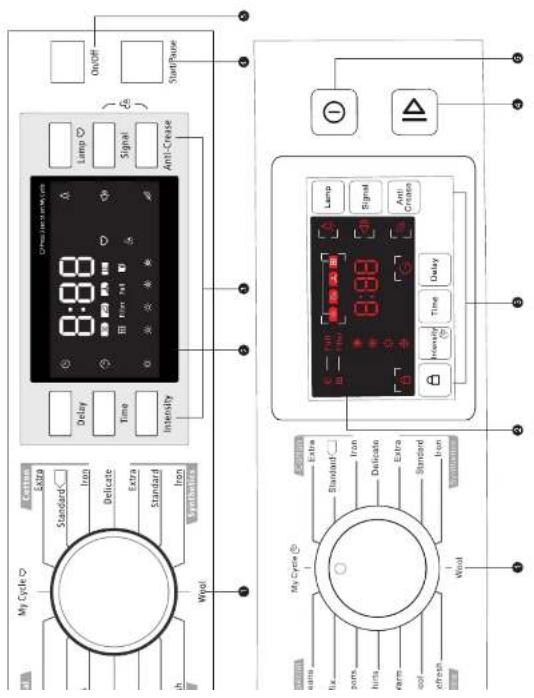

Description of controls

1. Programme Selection knob

2.Display

3.Specialty function buttons ( Delay, Time, Intensity, Lamp, Signal, Anti-Crease, Childlock )

4.Start/Pause button

5.On/Off button

Display

	Delay start
	Time
	Child lock
	Remaining Time indicator/Error message
	Cycle phase status
Filter	Clean filters (warning)
Full Full	Empty water container (warning)
	Dryness level (four grades)
	Drum lamp indicator
	Signal indicator
	Anti-crease mode

Operation instruction

Select the programme

1. Press the 【On/Off 】 key when the LED display screen brighten up, rotate the programme knob to select the desired programme.

2. Select the 【Delay】, 【Time】, 【Intensity】, 【Signal】 or 【Anti-Crease】 functions for additional option.

3. Press the 【Start/Pause】 key.

Programme start

The drum will keep rotating after the programme start, the state light in the display area will flash in sequence, the remaining time displayed will change automatically. Note:

Occasionally, the drum might suspend about 40 seconds during the drying procedure, but the screen displays normal. The dryer is automatic adjustment in this time and will continue operation.

Programme end

1. The drum will stop running after the programme ends, the display will show

toen

last cycle phase status light will flash. The dryer will start Anti-please doesn't remove the load in time (refer to page 13). Please press tout off power and pull the plug out.

】 function if

1. Deal with the problem according to "Malfunction display and solutions, if there is a unexpected stop during the drying procedure and the dryer show information (refer to page 16).

me table

me	Weight (max)	Application/Properties	Delay	Time
colloins and coloureds made of cotton or linen.
ra	7.0kg	To dry cotton pieces of clothing. Drying level: extra dry.	Y	N
ncard		To dry cotton pieces of clothing. Drying level: cupboard dry.
i		To dry cotton pieces of clothing. Drying level: applicable to iron.	Y	N
icate	1.0kg	To dry delicate laundry that is suitable for drying or laundry which is advised to be hand washed at a lower temperature.	Y	N
non-iron washing made of synthetic and blended fabrics.cotton.
ra	3.5kg	To dry thick or multi-layered synthetic fabrics. Drying level: extra dry.	Y	N
ncard		To dry thin synthetic fabrics which are not ironed, such as easy care shirts, table linen, baby clothes, socks.
i		To dry thin synthetic fabrics which are also to be ironed, such as knimanear, shirts.
ol	1.0kg	For a fluffy and fresh wool clothing. Cannot be used for drying wood clothing. When the cycle is done, takes out the clothes at once, let them dry in the air.	Y	N
ins	5.0kg	To dry jeans or leisure clothes that are spun at high speeds in the washing machine.	Y	N
:	3.5kg	If you can not determine what the clothing's material is, please choose mix.
ons	3.0kg	To dry sportswear, thin fabrics, polyester, which are not ironed.
ns	1.0kg	For easy care clothes such shirts and blouses with and crease mechanism for minimum ironing effort. Place clothes loosely in the dryer. Once dried, hang it on a clothes hinge.
Cycle	—	Define and save you favorable programme.	—	—
m	—	To warm clothes from minimum 10 min to maximum 120 min (in 10 min, steps).	Y	Y
oi	—	To air clothes without blowing hot air from minimum 10 min to maximum 30 min (in 10 min, steps).
fresh	1.0kg	To refresh the clothes that have best kept to closed environment for a long time from minimum 20 min. to maximum 150 min in 10 min steps.

Extra is for AS/NZS energy program.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specialty drying function

Specialty drying function

1. Instruction to the drying procedure 【Delay】

To delay the drying programme from 0 hour to 24 hours. The delay time means the programme will start after x hours. When the delay programme starts, the time starts to decrease on the display and the Ⓐ icon blinks.

Steps in details

(1). Load your laundry and make sure the machine door is closed.
(2).Press the 【On/Off】button,then to turn the programme selector knob and select a desired programme.
(3). You can select the 【Anti-Crease】 or 【Signal】 functions according to your need.
(4). To press the 【Delay】 key.
(5). Continue to press the 【Delay】 to select the delay time.
(6). After the 【Start/Pause】 key is pushed, the dryer is at the run condition. The drying procedure will be automatically performed when the delay time is over.
(7). If you push the 【Slart/Pause】 button again, the delay function will be paused.
(B). If you want to cancel the "Delay" function, please press the 【On/Off】 button.

1. Instruction of the Time function 【】

When the time programme is selected, the 【Time】 button can be used to adjust the drying time in 10 min. steps. The maximum time is 150 min.

1. Instruction of the 【Intensity】 function

Used to adjust the dryness level of the laundry. The level has four grades ****. The drying time increases 3 minutes in every grade.

(1). The intensity function can be activated only before the programme start.
(2).Press the 【Intensity】 button repeatedly to select the drying time.
(3). Except the 【Cotton Iron】【Delicate】【Synthetic Iron】【Wool】【Time】, all the other programmes can be setted the 【Intensity】 function.

1. Instruction of the function 【My Cycle】

Used to define and save your favorite proragmmes that are used frequently.
(1). Use the programme selector to select the required programme and other drying functions.
(2).Press and hold the 【Intensity】 button for 3 seconds until the display flashing and the required programme has been saved.
(3). Turn the programme selector to the 【My Cycle】 position, you can start your favorite proragmmes. If you want to change the 【My Cycle】 settings, repeat the steps (1) and (2).

Specialty drying function

1. Instruction of the 【Lamp】

The lamp inside the drum will lighten about 3 minutes when the button pressed or 1 minute the door opened.

6.【Signal】

Set up the buzzer on or off. In general condition, the buzzer is on. Please press it if needed. When the buzzer on:

(1) The dryer will give the leading sound if press the extra function buttons.
(2) If the dryer is running, rotate the function choosing knob, the dryer will remind the operator it is an invalid choose.
(3) When the drying programme is done, the buzzer will also remind the user.

1. Instruction of the 【Anti-Crease】 function

At the end of the drying cycle, the anti-crease operation time is 30 minutes (default) or 120 minutes (selected).

The 【Anti-Crease】 light shall illuminate when the anti-crease function is selected. This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except 【Cool】, 【Refresh】 and 【Wool】, all the other programmes have this function.

1. Instruction of the 【Child Lock】 feature

(1). This machine incorporates a special child safety lock, which can prevent children from carelessly pressing keys or making the faulty operation.
(2). When the dryer is at the operation state, press the 【Anti-Crease】 and 【Signal】 buttons at the same time for over 3 seconds to start child lock function. When child lock function is set, the display will show “on” icon and no key can effect to the dryer except. 【On/Off】 button. Under the start state of the child lock, the 【Anti-Crease】 and 【Signal】 buttons shall be pressed at the same time for over 3 seconds to release the child lock function.

Cleaning and routine maintenance

Empty the water container

1. Hold and pull out the water container with two hands:
2. Tilt the water container, pour out the condensed water into basin;
3. Install the water container.

WARNING:

1. Empty the water container after each use, the programme will be paused and the * icon will flash if the water container is full during the drying process. After the container emptyed, the dryer can be restarted by pressing 【Start/Pause】 button.
   2.Do not drink the condensed water
2. Do not use the dryer without the water container

Clean the filter door

1.Open the door.
2. Take out the filler door.
3. Clean the filter door; wipe off the scrap threads accumulated on the filter door.
4. Reinstall the filter door.

Clean filter base

1.Open the filter cover.
2. Unscrew both locking levers toward as each other.
3. Clean the filter base completely.
4. Re-insert the filter basel
5.Screw both locking levers.
6. Close the filter cover flap until it locks into position.

NOTE!

1. The fluff accumulated on the filter will block the air circulation,
   which will cause the extension of drying time and energy consumption;
2. Do disconnect the power cord before cleaning!
   3.Do not operate the dryer without the filter!
3. Clean the filter after each use to prevent lint accumulation inside the dryer.

Clean heat exchanger

Locking lever

Malfunction display and solutions and Precautions

Malfunction display and solutions

Display	Reason	Solutions
* "Is on	Container is full	Empty container
	Water pump failure or water level sensor failure	P lease contact your local service center if the problem persists
* "E32	Humidity sensor failure
* "E33	Temperature sensor failure

Precautions

Only authorised technicians can carry out repairs.

Before you call customer service, please check if you have deal with the fault by yourself or if you have follow the user instructions.

A technician will charge you for advice, even during the warranty period.

Problem	Solution
●Display does not light up	●Check if the main plug is inserted. ●Check if the programme is selected. ●Check the main power supply.
●Dryer does not start	●Check if the start button is pushed. ●Check if the door is entirely closed.
●Door is open by itself	●Press door until it "clicks" into position. ●Check if the clothes is overload.
●Degree of dryness is not reached or drying time too long	●Clean the filter door and filter base. ●Use the appropriate programme. ●keep the Air inlet clear.

If you cannot deal with the faulty by yourself and need help:

2.Pull out the mains plug and call the service.

Technical specifications

Specification

Power supply	220-240V~ 50Hz
Rated power	650W
Refrigerant	R134a
Ambient temperature	+5c ~+35c
Overall Size	595×622×845(mm)
Rated Drying Capacity	7.0kg
Net Weight	52kg

Contains fluorinated greenhouse gases covered by the Kyoto Protocol.

Hermetically sealed

Date: The total value in the previous year, net of the underlying value is calculated by the previous term.

The rated capex is the maximum capex, that are sure that the only studies which are found to be applicable as the forward line rated capex each line.
2. Do not install the tumble dryer in a room when there is a risk of frost occurring. All temperatures around freezing point the
In this order may not be able to operate properly.
3. There is a risk of damage if the condensed water is allowed to freeze in the pump, hoses and/or condensed water container.
