Product Type	Car Speaker
Model	ACS-656
Speaker Size	6.5 inches
Speaker Type	4-way
Frequency Response	70 Hz - 21 kHz
Sensitivity	89 dB/W/m
Maximum Power Handling	200 W
Impedance	4 ohms
Magnet Weight	219 g
Voice Coil Diameter	25 mm
Midrange Driver	40 mm Mylar dome
Tweeter 1	40 mm Mylar dome
Tweeter 2	2 x 15 mm Piezo
Connection Type	Wired, polarity sensitive
Installation	Car stereo compatible
Disposal	Do not dispose as household waste; recycle at collection centers

Frequently Asked Questions - ACS-656 AKAI

How do I connect the AKAI ACS-656 speakers?

Connect the speakers to your car stereo following the wiring diagram. Ensure correct polarity: red to positive (+), black to negative (-). Left speaker to left channel, right speaker to right channel.

What is the power handling of the ACS-656?

The maximum power handling is 200W. For best performance, use an amplifier that provides adequate power without exceeding the speaker's limits.

What is the impedance of these speakers?

The impedance is 4 ohms, standard for most car audio systems.

Can I use these speakers in my home audio system?

While designed for car use, they can be used in home systems with appropriate amplification. However, the 4-ohm impedance may require compatible amplifiers.

How do I clean the AKAI ACS-656 speakers?

Gently wipe the grille and cone with a soft, dry cloth. Avoid using liquids or cleaners that could damage the materials.

What components make up the 4-way design?

The 4-way system includes a 6.5" woofer, a 40mm Mylar dome midrange, a 40mm Mylar dome tweeter, and two 15mm piezo tweeters for extended high-frequency response.

Is the ACS-656 compatible with my car?

These 6.5" speakers are a standard size and fit most cars with factory speaker openings. Check mounting depth and clearance before installation.

What tools do I need for installation?

Basic tools: screwdriver, wire strippers, crimp connectors, and possibly a drill for custom mounting. Always follow the manual for safe installation.

What is the frequency response of the ACS-656?

The frequency response is 70 Hz to 21 kHz, covering deep bass to high treble.

How should I dispose of old speakers?

Do not throw them in household trash. Take them to a designated electronic waste collection center for recycling, as indicated by the crossed-out bin symbol.

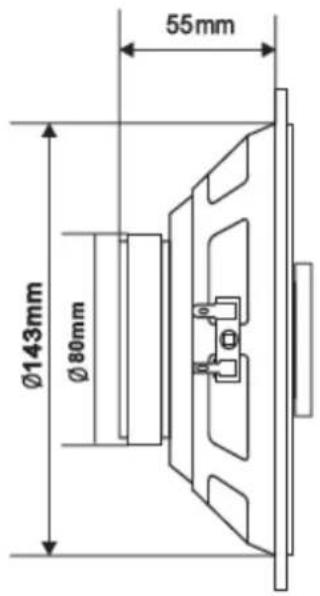

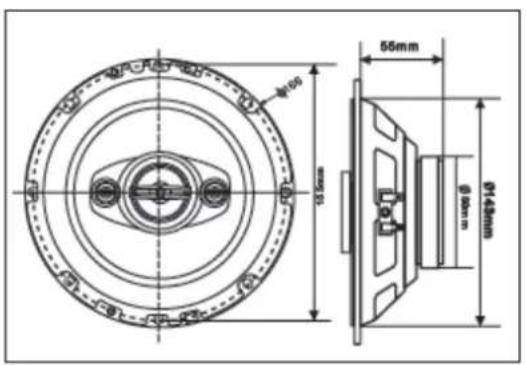

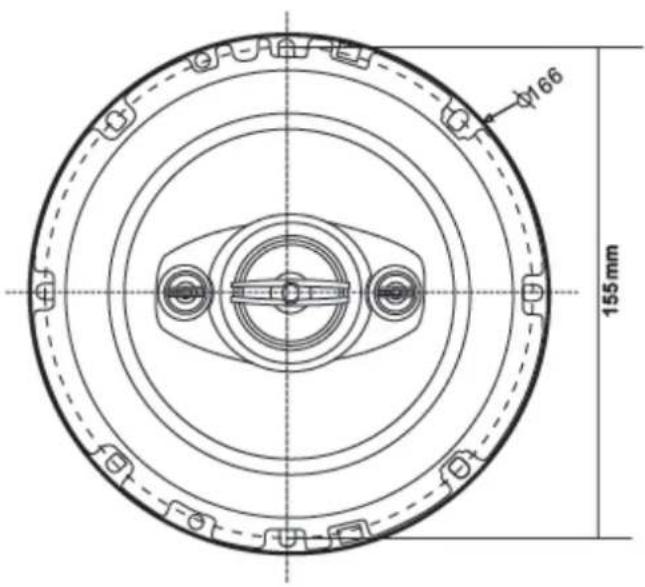

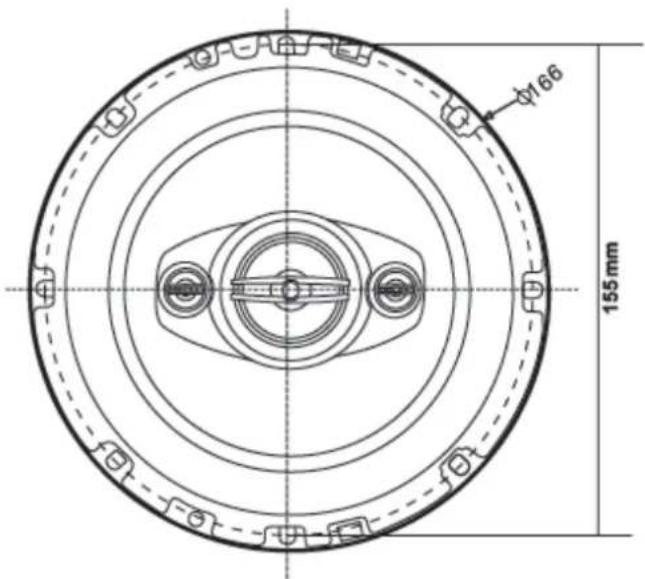

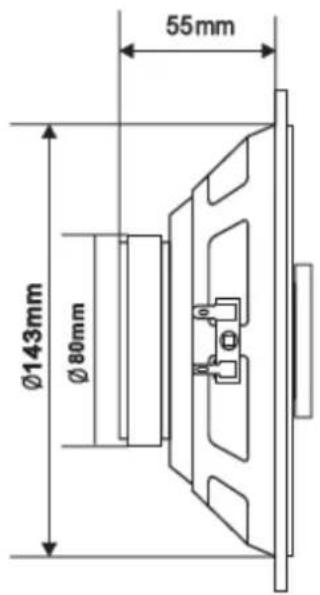

USER MANUAL ACS-656 AKAI

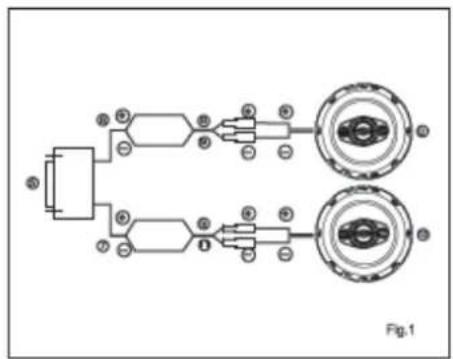

■ WIRING CONNECTION (Fig. I) Please watch for polarity

⑤ Car stereo

⑥ Left

⑦ Right

⑧ Red

⑨ Black

⑩ Red

⑪ Black

⑫ Left speaker (4 ohms)

⑬ Right speaker (4 ohms)

■ CONNECTION DIAGRAM

■ CONNECTION DIAGRAM

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product or packaging means that the product should not be treated as household waste. Do not throw garbage at the end of its life, but take it to a collection center for recycling. in this way you will help to protect the environment and be able to prevent any negative consequences that it would have on the environment and human health.

To find your nearest collection center:

-Contact local authorities

- Access the website: www.mmediu.ro

- Request additional information from the store where you purchased the product.

IMPORTATOR: SC INTERVISION TRADING-RO SRL

Bld. I.C Bratianu, nr. 48-52, corp A, etaj. 5,

camera 504-505, oras Pitesti, judet Arges, Romania

Cod postal: 110121

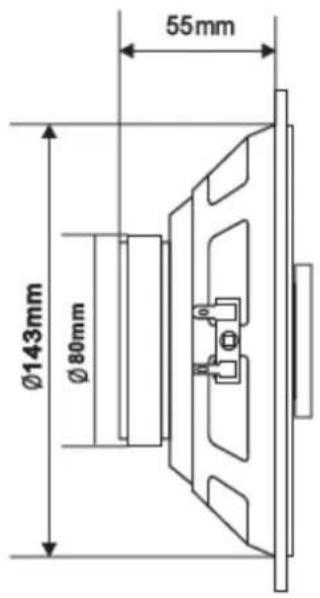

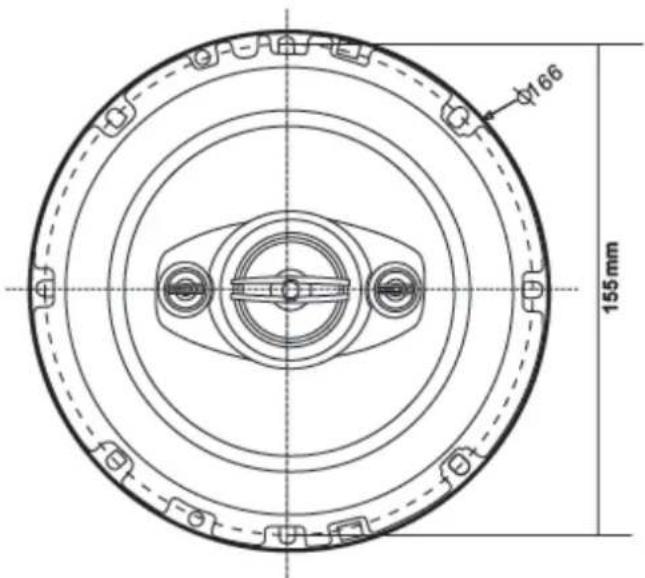

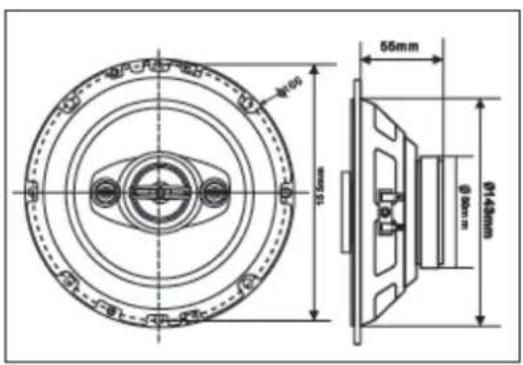

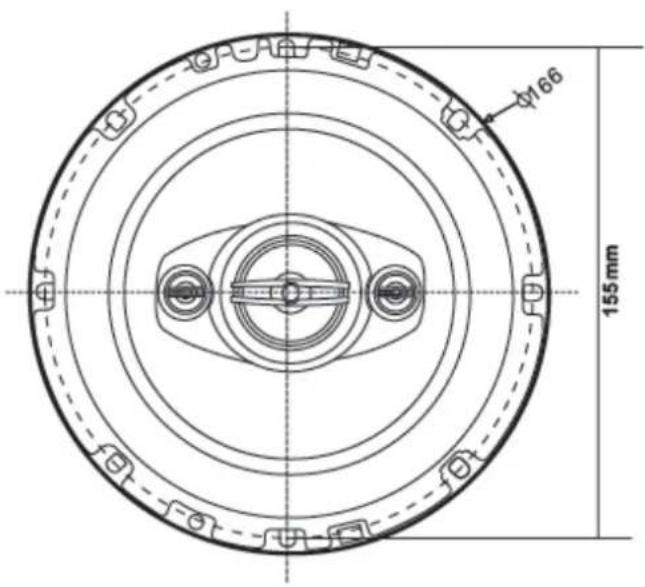

ACS-656 GHID DE UTILIZARE

AKAI

DIFUZOARE DE 6.5" - 4 CĂI

■ FRECVENTĂ: 70-21KHZ

■ SENSIBILITATE: 89dB/W/M

- PUTERE MAXIMĂ: 200W

■ MAGNET: 219 GRAME

■ BOBINĂ VOCALĂ: 25MM

- MIDRANGE ŞI TWEETER: 40MM MYLAR

DOME TWEETER ŞI 2x15MM PIEZO TWEETER

■ CONTINUT

DEZAFECTAREA ECHIPAMENTELOR ELECTRICE ŞI ELECTRONICE UZATE

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

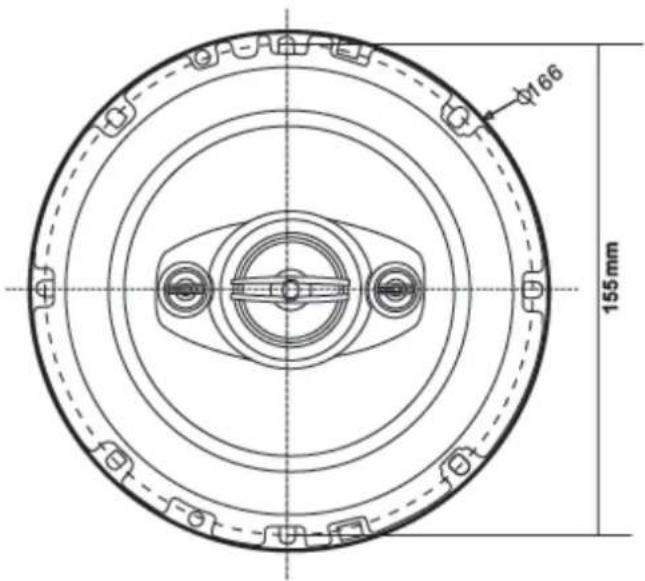

A HASZNÁLT ELEKTROMOS ÉS ELEKTRONIKUS KÉSZÜLÉKEK ÚJRAHASZNOSÍTÁSA

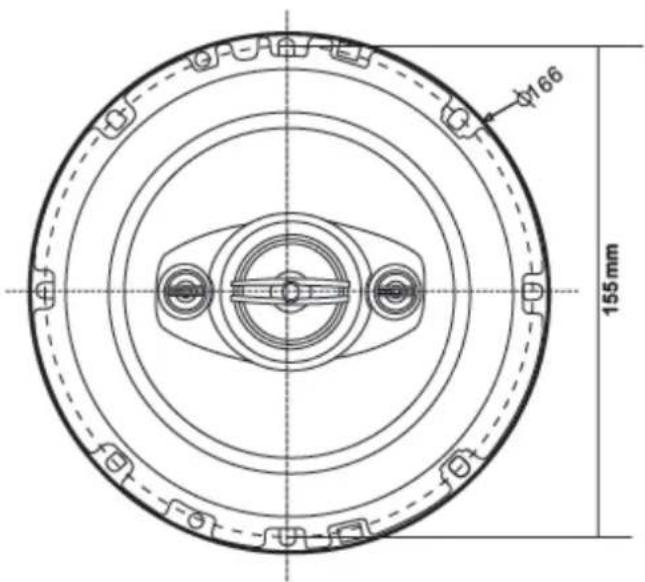

OPĚTOVNĚ POUŽITÍ ELEKTRICKÝCH A ELEKTRONICKÝCH ZAŘÍZENÍ

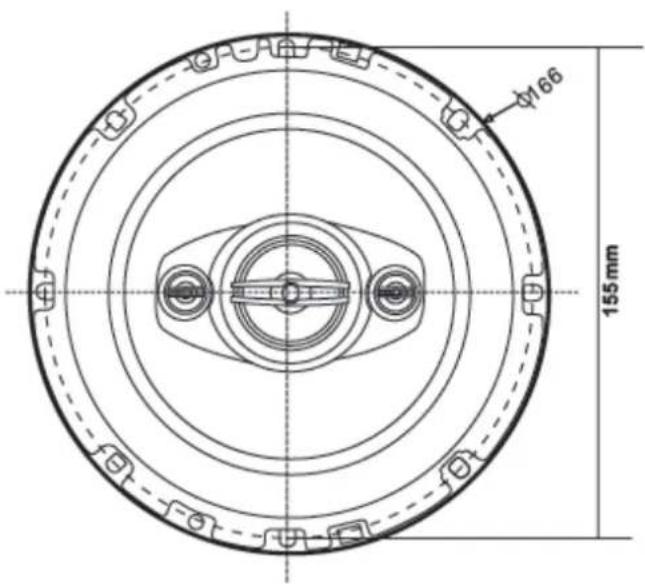

■ KÁBLOVÉ PRIPOJENIE (Obr.I) Dbajte prosím na polaritu

⑤ Autorádio
⑥ Vl'avo
⑦ Vpravo
⑧ Červené
⑨ Čierné
⑩ Červené
⑪ Čierné
⑫ L'avý reproduktor (4 ohmy)
⑬ Pravý reproduktor (4 ohmy)

■ SCHÉMA PRIPOJENIA

■ SCHÉMA PRIPOJENIA

OPATOVNĚ POUŽITIE ELEKTRICKÝCH A ELEKTRONICKÝCH ZARIADENIÍ
