WMF 9714L AWD3 - Washing machine LERAN - Free user manual and instructions

Product Type	Washing Machine
Brand	LERAN
Model	WMF 9714L AWD3
Capacity	9 kg
Maximum Spin Speed	1400 rpm
Energy Efficiency Class	A+++
Wash Programs	Cotton, Synthetics, Delicates, Wool, Quick 15', Eco 40-60, Rinse & Spin, Drum Clean
Display	LED
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	70 kg
Water Consumption per Cycle	50 L
Noise Level (Wash/Spin)	56 dB / 76 dB
Safety Features	Child Lock, Overflow Protection, Unbalanced Load Detection
Maintenance	Clean pump filter monthly, clean detergent drawer regularly, run Drum Clean program
Power Supply	220-240 V, 50 Hz
Spare Parts Availability	Yes, through authorized service centers
Repairability Index	8.2 / 10

Frequently Asked Questions - WMF 9714L AWD3 LERAN

How do I install the washing machine?

Remove all transit bolts, connect the water inlet hose to a cold water supply with a 3/4-inch threaded tap, and attach the drain hose to a standpipe or sink outlet. Ensure the machine is level using the adjustable feet. Refer to the user manual for detailed steps.

What should I do if the machine doesn't start?

Check that the door is fully closed, the power cord is plugged in, and the water supply is turned on. Also, ensure the program selector is not in a pause position. If the issue persists, check the fuse or circuit breaker.

How do I clean the pump filter?

Unplug the machine, open the lower access panel, place a towel underneath, and turn the filter counterclockwise. Remove any debris or coins, then reinsert and tighten. Run a rinse cycle afterward to ensure proper drainage.

What does error code E01 mean?

Error E01 indicates a problem with the door lock. Ensure the door is properly closed and the lock engages. If the error persists, the door lock assembly may need replacement. Contact a qualified technician.

Can I use a longer inlet hose?

Yes, you can purchase an extended inlet hose (max 5 m) from the manufacturer or a compatible brand. Ensure the connections are secure and the hose is not kinked.

How often should I run the Drum Clean program?

Run the Drum Clean program every 2-3 months, or more frequently if you notice odors or residue. Use a suitable drum cleaner tablet or a cup of white vinegar in the detergent drawer.

Why is the machine vibrating excessively?

Ensure all transit bolts are removed, the machine is level on a solid floor, and the load is balanced. Avoid washing heavy items like rugs alone; mix with other clothes. Check that the feet are firmly adjusted.

What is the maximum load for a delicate cycle?

For delicate fabrics, reduce the load to 2-3 kg to prevent damage. Always check garment labels for washing instructions.

How do I adjust the spin speed?

After selecting a program, press the Spin Speed button repeatedly to cycle through options (e.g., No Spin, 400, 800, 1000, 1400 rpm). The selected speed will be displayed.

Where can I buy spare parts?

Contact LERAN customer service or visit the official website for spare parts. Authorized service centers stock belts, filters, heating elements, and door seals. Use only genuine parts for warranty compliance.

USER MANUAL WMF 9714L AWD3 LERAN

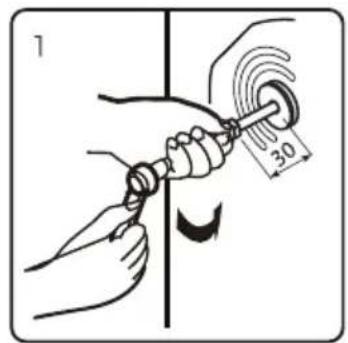

Гаечный ключ

2

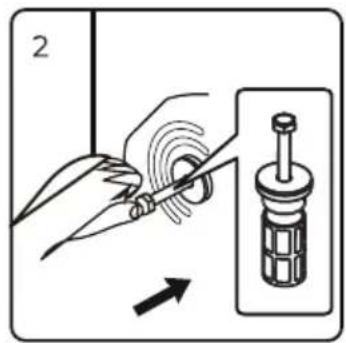

Фильтр

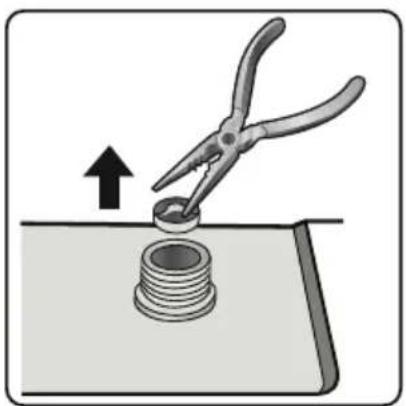

Шланг подачи воды

Таблица неполадок
