KA52DCCFLRA - Household Fan Kogan - Free user manual and instructions

Product Type	DC Ceiling Fan
Model	KA52DCCFLRA
Brand	Kogan
Blade Span	52 inches (132 cm)
Motor Type	DC (Direct Current)
Power Consumption	35 Watts (max)
Airflow	5,000 CFM (approx.)
Number of Speeds	6 speeds
Remote Control	Infrared remote included
Reverse Function	Yes (cooling/winter mode)
Installation	Standard ceiling mount (up to 10° slope)
Dimensions (Height)	30 cm (from ceiling to bottom)
Net Weight	6.2 kg
Material	ABS plastic, metal motor housing
Energy Rating	High (DC motor)
Warranty	1 year
Cleaning	Wipe with dry or damp cloth; do not use water directly
Safety	Indoor use only; ensure proper electrical connection
Spare Parts	Available through Kogan support
Repairability	Professional repair recommended

Frequently Asked Questions - KA52DCCFLRA Kogan

How do I install the Kogan KA52DCCFLRA ceiling fan?

Installation should be done by a qualified electrician. Ensure the ceiling outlet box is rated for fan support. Follow the manual for wiring and blade assembly. Use the included mounting bracket.

How do I pair the remote control?

Insert batteries into the remote. Turn off the wall switch, then turn it on. Within 30 seconds, press the 'Pair' button on the remote (or hold the 'Fan Off' button for 5 seconds) until the fan light flashes.

How do I change the fan direction?

Use the reverse button on the remote or wall control. In summer, rotate blades counter-clockwise for cooling breeze. In winter, rotate blades clockwise to circulate warm air.

What is the recommended cleaning method?

Turn off the fan and wait for blades to stop. Use a soft, dry cloth or a damp cloth with mild soap. Do not spray water directly on the motor or electrical components.

Why is my fan making noise?

Check for loose blade screws or unbalanced blades. Tighten all screws. If noise persists, ensure the mounting bracket is secure. A slight hum from the DC motor is normal.

Can I use this fan outdoors?

No, this fan is rated for indoor use only. Exposure to moisture or extreme temperatures may damage the motor and void the warranty.

What is the maximum ceiling slope for installation?

The fan can be installed on ceilings with a slope of up to 10 degrees. For steeper slopes, an angled mounting kit may be required.

Does the fan come with a light kit?

No, the KA52DCCFLRA is a fan-only model. It does not include a light fixture. However, some compatible light kits may be available separately.

What type of bulb does the remote use?

The remote uses 2 x AAA batteries (not included). Remove the battery cover on the back to insert batteries.

How do I reset the fan to factory settings?

Turn off the wall switch and wait 10 seconds. Turn it back on. Within 30 seconds, press and hold the 'Fan Off' button on the remote for 10 seconds. The fan will beep to confirm reset.

USER MANUAL KA52DCCFLRA Kogan

White double-decker ceiling fan with four blades, no text or symbols visible

Kogan SmarterHome™ 132cm DC Motor Ceiling Fan

with LED Light

KA52DCCFLRA

Safety & Warnings 3

Components 6

Installation 7

Connect to SmarterHome™ App 20

Google Home 23

Amazon Alexa 26

Operation 30

Cleaning & Care 33

Specifications 33

Troubleshooting 34

Notes 37

Safety & Warnings

IMPORTANT: For your safety, this product must be installed by a licensed electrical contractor.

• Read all safety notes and instructions before first use even if you are familiar with this product. Retain this user guide for future reference.
• Use the product only as described in this user guide.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance.
• Check the power cord regularly for visible damage. If the cord is damaged, cease use immediately and contact help.Kogan.com for support, to avoid danger.

Do not use the appliance if its cord, plug or housing is damaged or if it malfunctions or has been dropped or damaged in any way.

• Do not use the appliance in confined spaces with explosive or toxic vapours.
• The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8 if they are given continuous supervision.
• This appliance is not intended to be used by persons with reduced physical, sensory, or mental capabilities or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and understand the hazards involved.
• Supervise young children to ensure that they do not play with the appliance.
• Close supervision is necessary when the appliance is being used by or near children.
• Keep the appliance and its cord out of reach of children under the age of 8.
• Do not attempt to repair the appliance yourself. Contact help.Kogan.com for support.
• Cleaning and maintenance must be carried out according to this user guide to ensure the appliance functions properly.
  • Always turn off and disconnect the appliance from the power supply before cleaning.
• Cleaning and maintenance tasks must not be performed by children.
• Ensure the fan is not placed near drapes, curtains, or any object that may be drawn into the blades.
• Never attach the fan to a power point; it must be installed directly to the ceiling.

• The minimum distance between the fan blades and the floor must be 2.1m.

• The minimum carrying capacity of the outlet box from which the fan is hung must be 45kg.

• Ensure you install an all-poles disconnection switch with a minimum distance of 3mm between poles in the supply wiring to the ceiling fan.
• Ensure the installation site will not allow the rotating fan blades to contact any objects and that there is a minimum distance of 150mm from the blade tip to the wall or ceiling.
• Switch off the power before connecting the fan.
• The electrical wiring must be in accordance with local regulations.
• The fan must be properly grounded to avoid the risk of electric shocks.
• Never mount the fan in a moist or wet room.
• This appliance must be installed in accordance with national electrical installation regulations.
• To ensure child safety, please keep all packaging including plastic bags, boxes, and polystyrene out of their reach.
• Shut off the main electric switch during installation or maintenance.
• Do not use outdoors. The product must be installed in a dry place where it is not exposed to water or moisture.
• Do not connect the fan motor to a dimmer switch as this could result in malfunction or motor damage.
• It is not recommended that ceiling fans and gas appliances operate in the same room at the same time.
• The fan must be completely turned off and stopped before reversing the fan direction to prevent motor and controller damage.
• Do not insert any object into the fan blades during operation. This will damage the blades and upset the balance of the fan, causing the unit to wobble.
• After the fan is completely installed, ensure all base and fan blade fixings are secured and tightened to prevent any problems.
• Check the support connections, brackets, and blade attachments twice a year to ensure they remain secured. If any are loose, tighten them.
• Do not touch the appliance with wet hands or feet.
• Never expose the appliance to atmospheric conditions such as rain or direct sun.
• Do not use the device next to potentially explosive or flammable liquids or gases.

• This product is intended for household use only and not for commercial, industrial, or outdoor use.

• Keep batteries out of the reach of children and animals as they could cause damage if swallowed. If swallowed, contact a doctor immediately.

• If any visible signs of damage, holes, or deterioration are observed, avoid direct contact between batteries and skin or eyes.
• If batteries leak and contact your eyes, immediately wash them with clean water and contact your doctor.
• Do not over-tighten when installing the glass shade.
• To avoid potential electric shock, ensure the electricity is turned off at the main fuse box before wiring.

Cyber Security

• To view the cyber security Statement of Compliance, search for the model number at help.kogan.com.
  • To report a cyber security vulnerability, visit help.kogan.com/s/product-cybersecurity.

Components

Technical line drawing of a mechanical bracket assembly (no text or symbols)

1 Mounting Bracket

Simple line drawing of a cylindrical object with a central hole and two small protrusions (no text or symbols)

3 Canopy

Simple line drawing of a bowl with a central plate and two side bowls (no text or symbols)

5 LED Light

Simple line drawing of a cylindrical object with four small dots on its side (no text or symbols)

7 Fan Blades (x4)

9 Mounting Hardware *

2 Extended Downrod

Technical line drawing of a mechanical component with no visible text or symbols

4 Motor Housing

Simple line drawing of a circular object with a handle and small protrusion (no text or symbols)

6 Light Diffuser

Simple line drawing of a conical frustum (no text or symbols)

8 Decorative Cover

Line drawings of remote control devices including a remote and a handheld device (no text or symbols)

10 Remote Control Kit

Tools Required (not included)

Line drawing of a screwdriver with a flat blade and handle (no text or symbols)

Phillips Head Screwdriver

Line drawing of a screwdriver with a flat head and threaded shaft (no text or symbols)

Flat Blade Screwdriver

Line drawing of an adjustable wrench with a screw and handle (no text or symbols)

Adjustable Wrench

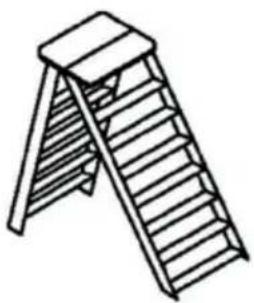

Simple line drawing of a ladder structure with no text or symbols

Step Ladder

Line drawing of a pair of pliers (no text or symbols)

Wire Cutter

Illustration of a rolled-up sheet of paper or tape (no text or symbols)

Electrical Tape

Installation

IMPORTANT:

• For your safety, this product must be installed by a licensed electrical contractor.
• The ceiling structure must be able to withstand 10 times the static weight of the fan (minimum 45kg).
• Ensure a minimum distance of 2.1m from the floor to the blades and 150mm from the blade tips to any walls.

Unpack your ceiling fan carefully, remove all parts and components and lay on a cloth or soft surface to avoid damage. Do not lay the motor housing on its side, the housing may get damaged. Before commencing installation, check that all parts are included.

WARNING: All electrical tasks should only be undertaken after disconnection of electricity by removing fuses or turning off the circuit breaker to avoid the risk of electric shock.

Mounting Bracket

The mounting bracket must be secured to a firm, flat surface. The structure must be capable of withstanding ten times the static weight of the fan.

Wooden Surface

1. Attach the mounting bracket using the x4 self-tapping screws.
2. Ensure the mounting bracket is properly secured to prevent the fan from falling.
3. Once the mounting bracket is installed, drill a ∅10mm hole next to the bracket.
4. Install the expansion screw hook in the ∅10mm hole.

Notes:

• Self-tapping screws are only suitable for wooden ceilings.
• Be cautious when drilling the 10mm hole to avoid hitting any electrical wiring.

Concrete Surface

1. Drill 2 holes using an ∅8mm drill.
2. Attach the mounting bracket using the x2 M6 expansion bolts.
3. Once the mounting bracket is installed, drill a 10mm hole next to the bracket.
4. Install the expansion screw hook in the 10mm hole.

Note:

Be cautious when drilling the holes to avoid hitting any electrical wiring.

Assembling the Downrod and Hanger Ball

1. Loosen the hanger ball by unscrewing the set screws on the downrod.
2. Remove the stop pin from the downrod and remove the hanger ball.
3. Remove the clevis pin and hairpin clip from the base of the downrod.

Hanger Ball

Technical line drawing of two cylindrical mechanical components with mounting holes and a handle, showing assembly or assembly process (no text or symbols)

Stop Pin

Note:

For installation in higher ceilings, you may require the extended down rod. Transfer the hanger ball on it and make sure to move the earth wire from one to the other. Pass the electrical supply leads from the top of the motor all the way through the down rod until they come out the other end.

1. Insert the down rod into the motor housing's hole and align the holes on both sides with the holes on the down rod.
2. Carefully insert the clevis pin through the holes so that it passes through the down rod. Secure the clevis pin in place using the hairpin clip.

Line drawing of a funnel with a central rod and circular base (no text or symbols)

Technical line drawing of a lamp with conical shade and base, showing internal components and wiring (no text or symbols)

1. Install the hanger ball onto the down rod.
2. Insert the stop pin in the down rod and lift the hanger ball.
3. Tighten all the screws firmly so that all the components are properly secured.

IMPORTANT: Ensure all screws are fastened properly Loose screws will cause; the motor to oscillate excessively, damage to the fan or fatal injuries.

Hanging The Fan to The Mounting Bracket

1. Lift the fan assembly up to the mounting bracket. Insert the hanger ball into the bracket opening and allow it to rest carefully.
2. Rotate the assembly until the tab on the mounting bracket aligns with the slot on the hanger ball.
3. When properly aligned, the fan will sit in its correct position and will not rotate during operation. Ensure the canopy does not press against the antenna or any other wires, as this may cause a short-circuit or wire damage.

Note:

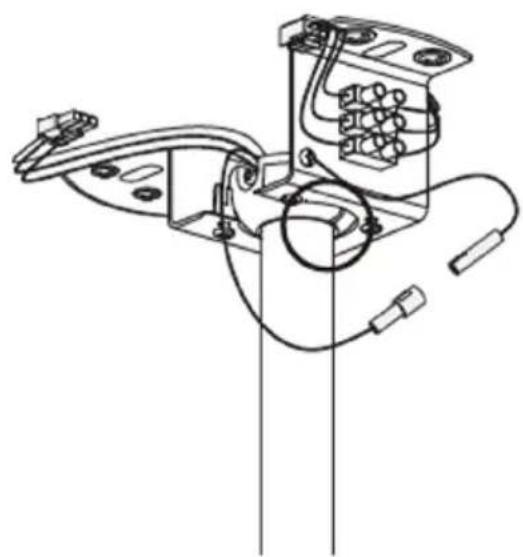

Ensure the canopy does not press against the antenna or any other wires, as this may cause a short-circuit or wire damage.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

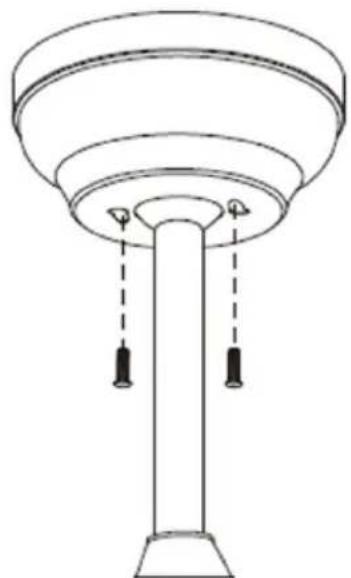

Install the Canopy

Push the canopy upward and tighten the screws.

Line drawing of a ceiling lamp with three hanging weights (no text or symbols)

Fan Blade Assembly

1. Remove the x3 screws and the lamp holder from the fixing panel.
2. Insert each blade through the side slots of the motor housing and align them with the 3 holes.
3. Secure each blade using x3 blade screws and x3 washers. Tighten the screws securely but do not over-tighten, as this may damage the blades.

Note:

Do not over-tighten the screws as this may damage the blades.

Technical line drawing of a mechanical assembly with no visible text or symbols

Note:

If installing multiple fans, do not mix blades and screws between units.

Installing the LED Light and Diffuser

1. Align the lamp holder screw holes with the motor and attach using the provided screws.

2. Connect the LED light wires to the fan motor wires using the push connectors.

Technical line drawing of a ceiling fan assembly with a circular component and a circular base (no text or symbols)

1. Carefully install the diffuser into the main body and turn it clockwise until it locks into place. Do not over-tighten the diffuser.

Line drawing of a four-blade ceiling fan with a central hub and a circular base, showing no text or symbols.

Note:

Do not over-tighten the diffuser.

Remote Receiver and Wiring Instruction

1. Place the remote receiver through the mounting bracket with the flat side facing upwards.
2. Connect the wires following the designated colour codes.

Notes:

• Refer to the 'Wiring Diagram' section for more detailed information.
- Ensure the ground wire is connected correctly, otherwise it will cause the fan or light to malfunction.

1. Connect the 220-240V mains power from the dwelling to the terminal block on the mounting bracket.
2. Plug the 3P connector from the mounting bracket into the 'AC POWER INPUT' socket on the receiver.
3. Connect the 3P motor connector and the 2P light connector from the fan assembly into the corresponding sockets on the receiver. Insert the 3P motor connector from the fan motor assembly into the 3P MOTOR socket on the receiver.

WARNING: To avoid potential electric shock, ensure the electricity is turned off at the main fuse box before wiring.

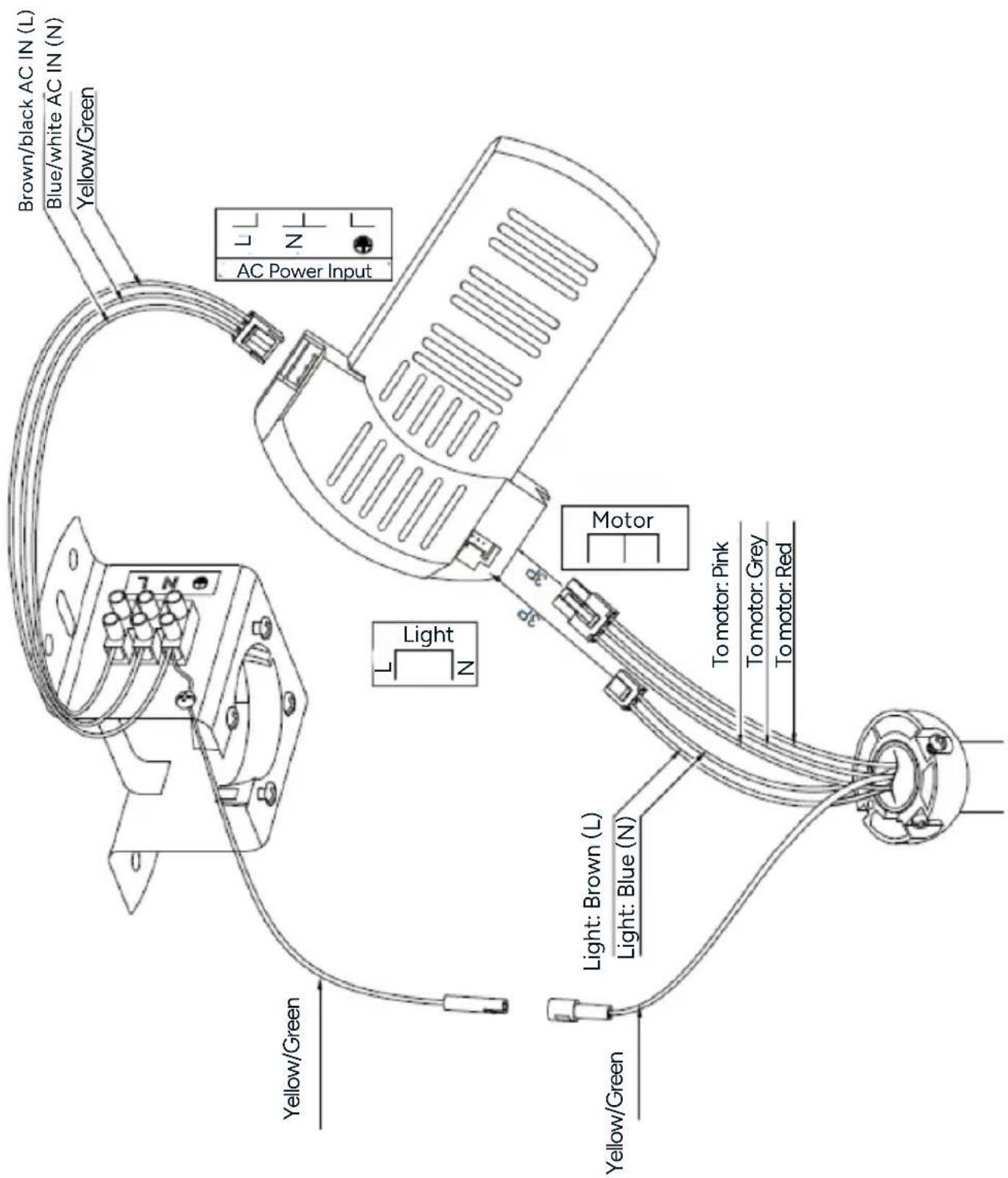

Wiring Diagram

L – Live wire

N – Null line

- Earth wire

Pairing the Remote to the Receiver

1. Turn on the power supply and within 30 seconds, press and hold the 'Power' button on the remote for 5 seconds.
2. The appliance will emit a long beep to indicate that pairing is successful.

Note:

The appliance will exit learning mode once the power supply has been active for longer than 30 seconds.

1. If pairing fails, verify the following:

2. Ensure all wiring is correct and secure.

3. Confirm that x2 1.5V AAA batteries are installed with the correct polarity (+/-) and are not flat.
4. Check for similar remote-controlled products nearby, as devices using the same frequency may cause interference.
5. Replace the batteries if the indicator flashes, as low power will affect signal reception and sensitivity.

6. Remove the batteries if the remote will not be used for an extended period to prevent damage.

7. If the remote control or receiver are damaged, contact help.Kogan.com for support.

8. The remote control can be used from any angle of the receiver.
9. With the memory function, the controller can save the status (light and direction) while the supply power is OFF and will resume after turning the power supply back ON.

Balancing Kit

The Balancing Kit should only be used if there is an unacceptable amount of fan wobble after completing the previous installation steps.

1. Turn the fan on and set the speed control setting to a speed at which the wobble is the greatest.
2. Turn off the fan and allow it to come to a complete stop. Select one blade and place the balance clip on it, halfway between the blade holder and the blade tip on the trailing edge of the blade.
3. Turn the fan on. Note whether the wobble has increased or decreased. Turn the fan off, move the clip to another blade and retest. Repeat this procedure on all blades noting the blade on which the greatest improvement is achieved.
4. Move the clip back to the blade that showed the greatest improvement. Move the clip inward and outward on this blade and operate the fan to find the position where the clip gives the greatest improvement.
5. Remove the clip and install a balancing weight to the top of the blade along the centreline near the point where the clip was positioned.
6. If the fan wobble problem has not been corrected, you may wish to try to improve the balancing further by using the balancing clip and additional weights.

Note:

This image is for illustrative purposes only. Actual fan blades may differ in appearance.

Connect to the SmarterHome™ App

Install the App

Download the Kogan SmarterHome™ app from the Apple App Store (iOS) or the Google Play Store (Android).

App Store (iOS)

Play Store (Android)

Log In or Sign Up

1. If you already have a SmarterHome account, tap 'Log In'. To register a new account, tap 'Sign Up'.
2. The app will automatically recognise your country. If needed, you can manually select your country from the drop down menu. Enter your email address, agree to the Privacy Policies and User Agreement, and tap 'Get Verification Code' to continue.

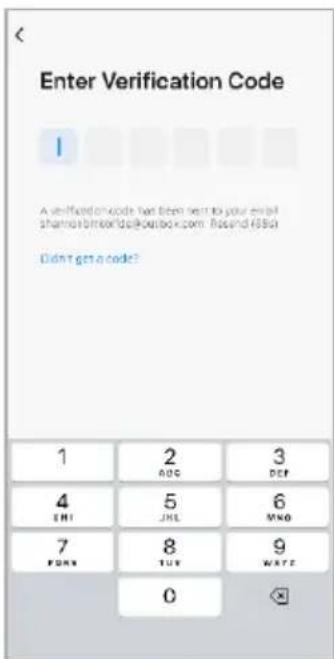

3. A 6-digit code will be sent to the submitted email address. Enter the code before the one-minute timer expires.

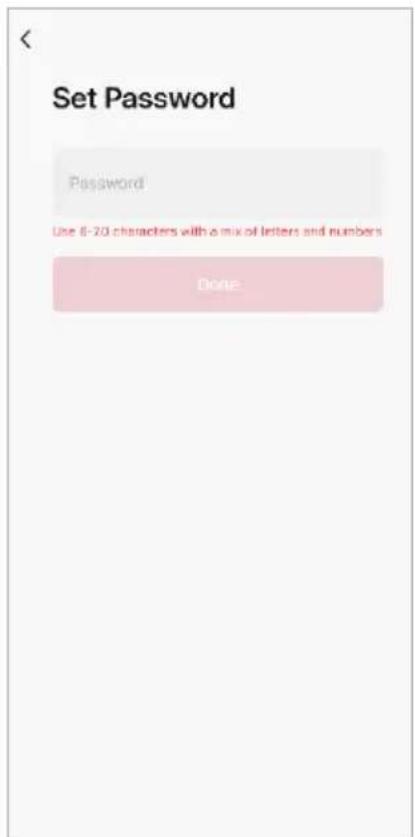

1. Enter a password that uses 6-20 characters with a mix of letters and numbers and tap 'Done'.

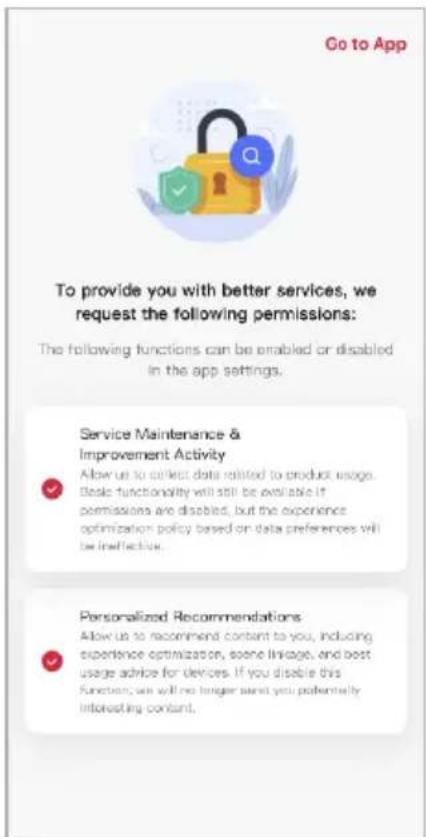

2. Enable the permissions and tap 'Go to App'.

Set the Device in Pairing Mode

When the device is first turned on, it may automatically enter pairing mode (unit will emit a beeping sound).

If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the '4H' button on the remote control for 5 seconds until the unit beings beeping.

Add the Device to the App

1. Open the SmarterHome™ app.

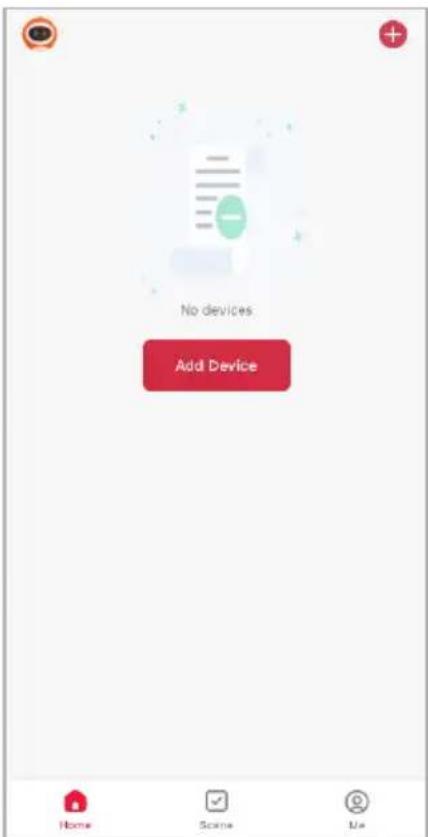

2. Tap the '+' icon in the top right corner of the screen and then tap 'Add Device'.
3. Tap 'Add' when the device appears. Alternatively, select the product type from the list of options in the app (Heating & Cooling → Ceiling Fan).
4. Follow the prompts to add your device to the app.

Notes:

• The device and the app must use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.

Connectivity Support

Scan the QR code below or go to https://help.kogan.com/s/article/Kogan-SmarterHome-App-Connectivity-Support and follow the pairing instructions for EZ mode.

Google Home

1. Ensure you are logged into the Kogan SmarterHome™ app.
2. Open the Google Home app.

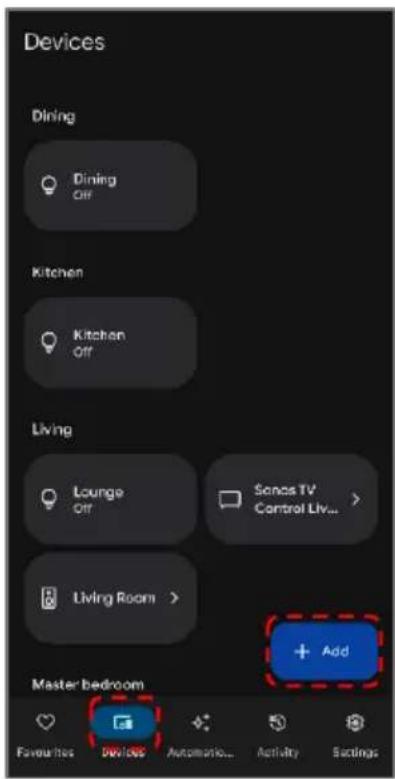

3. Go to the devices tab and tap the '+ Add' button in the lower right corner.
4. Tap 'Works with Google Home'.
5. Search for 'Smarter Home' in the search bar and select 'Smarter Home' from the results.

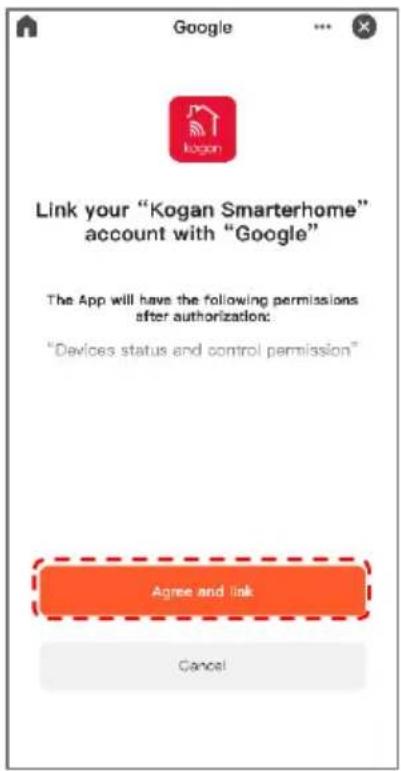

1. Tap the 'Agree and link' button.
2. Search for 'Smarter Home' in the search bar and select 'Smarter Home' from the results.
3. Once linked, a 'Smarter Home is linked' pop-up will appear at the bottom of the screen.

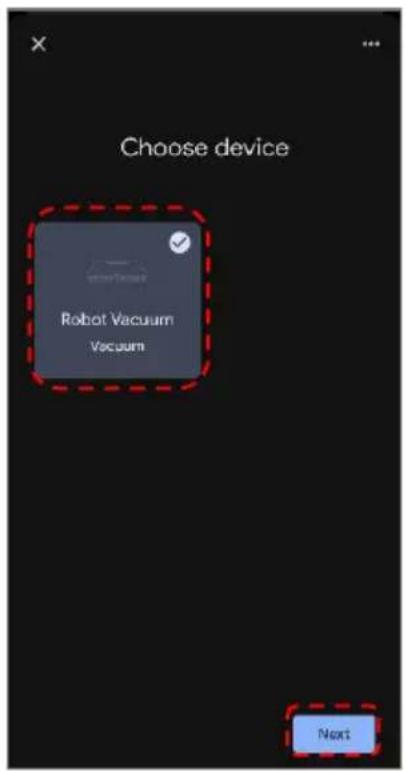

4. Tap your device and then tap the 'Next' button.

1. Select the home you wish to add the device to and tap the 'Next' button.
2. Select the room your device is in and tap the 'Next' button.

Amazon Alexa

1. Ensure you are logged into the Kogan SmarterHome™ app.
2. Open the Amazon Alexa app.
3. Go to the 'More' tab and tap 'Skills & Games'.

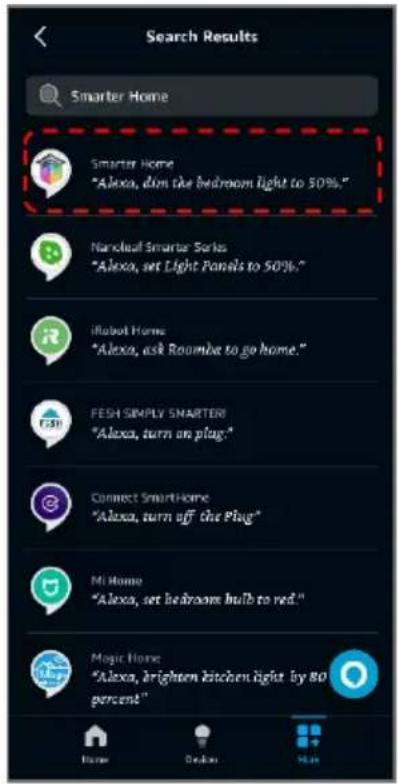

4. Search for 'Smarter Home' in the search bar and select 'Smarter Home' from the results.
5. Tap the 'ENABLE TO USE' button.

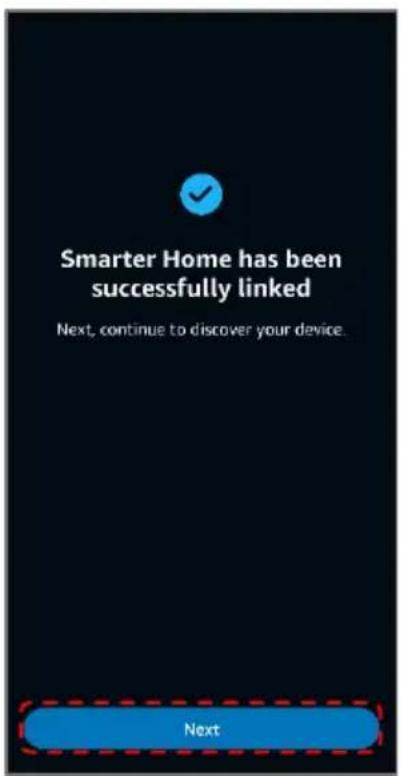

1. Tap the 'Agree and link' button.

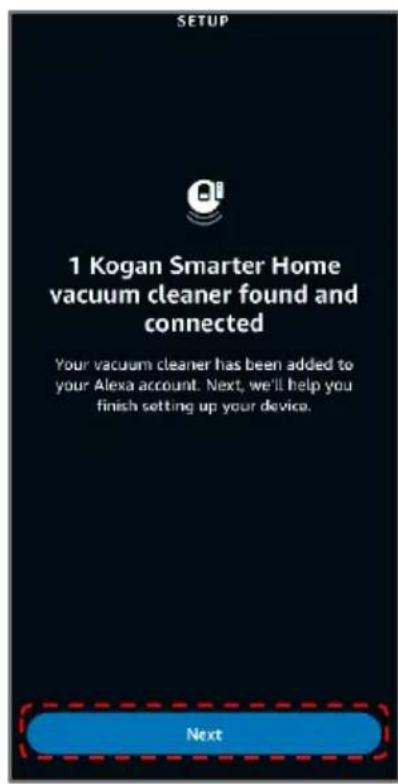

2. Once linked, tap 'Next'. Alexa will search for any compatible devices.

1. Once your device has been found, tap 'Next'.
2. Rename the device to your desired name and tap 'Update Name'.
3. Select the room your device is in and tap 'Add To Group'

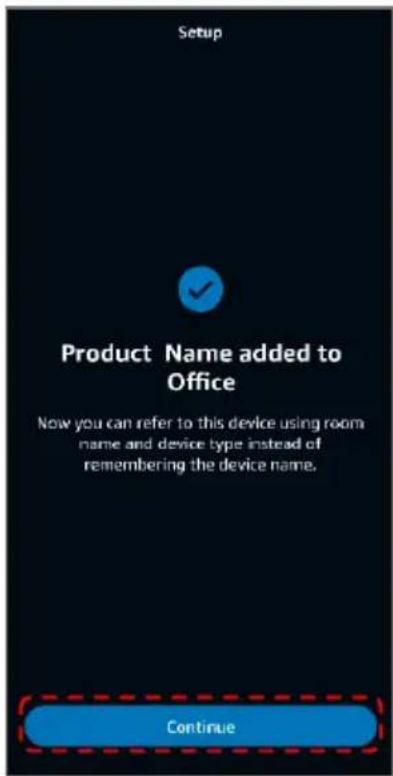

1. Once the device has been successfully added to your desired room, tap 'Continue'.

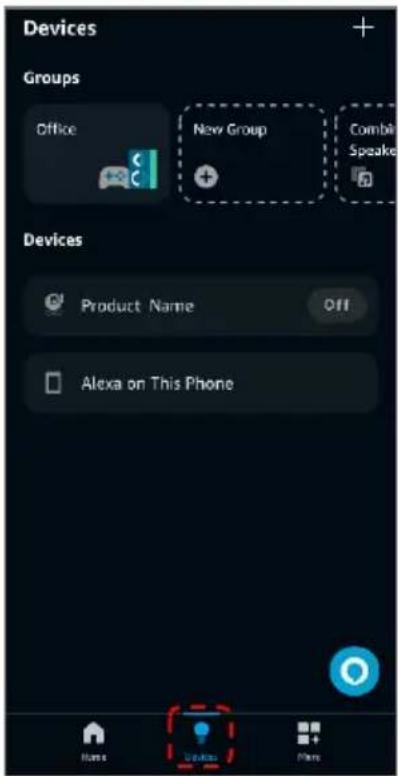

2. You can view and manage your device from the 'Devices' tab.

Operation

Remote Control

Power Button	Turns the fan on/off.
Fan Speed Buttons	Adjust the fan speed (6 levels).
Direction Button	Press to switch the direction of the fan.Forward: Summer mode (default setting).Reverse: Winter mode.
Light On Button	Turns the light on.
Light Off Button	Turns the light off.
Brightness Button	Adjusts the brightness of the light.
Colour Button	Adjusts the colour of the light.
Timer Buttons	1H: Sets the operation time for 1 hour.2H: Sets the operation time for 2 hours.4H: Sets the operation time for 4 hours.

Remote Batteries

• Remove the batter cover and install x2 1.5V AAA batteries into the remote control. Pay attention to the orientation of the polarity symbols (+, -).
• If not using for long periods of time, remove the battery to prevent damage to the remote control and store the remote control away from excess heat or humidity.

Notes:

• Do not mix old and new batteries.
  • Do not mix different kinds of batteries.

Fan Direction (Summer/Winter Mode)

Press the 'Direction' button on the remote to switch the rotation of the blades to improve comfort in different seasons.

• Summer Mode: Pushes air downward, creating a cooling breeze that helps lower the perceived room temperature.
• Winter Mode: Draws cool air upward and pushes warm air near the ceiling back down into the room, helping distribute heat more evenly.

App Operation

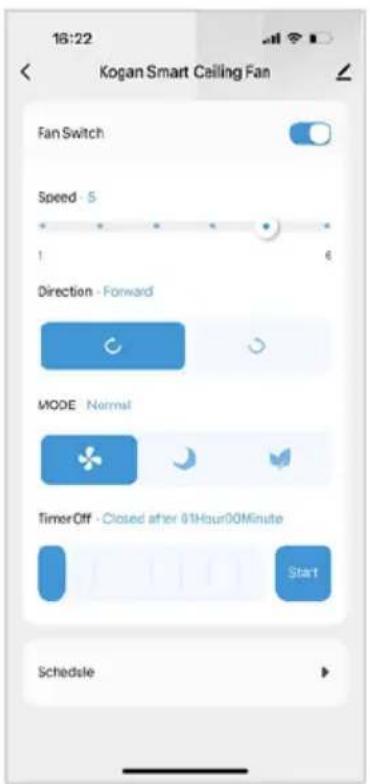

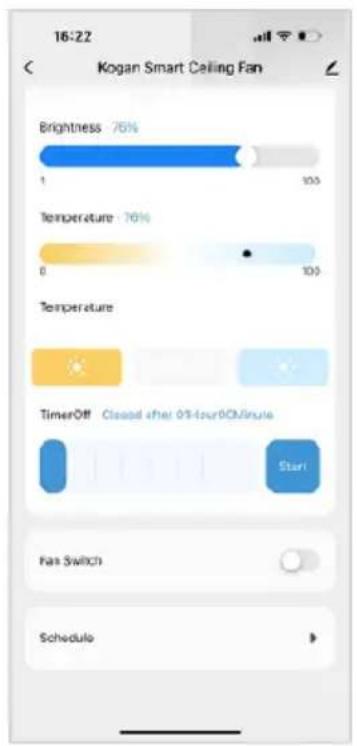

1. After successfully pairing the fan with the SmarterHome™ app, use your phone to control the fan and light.

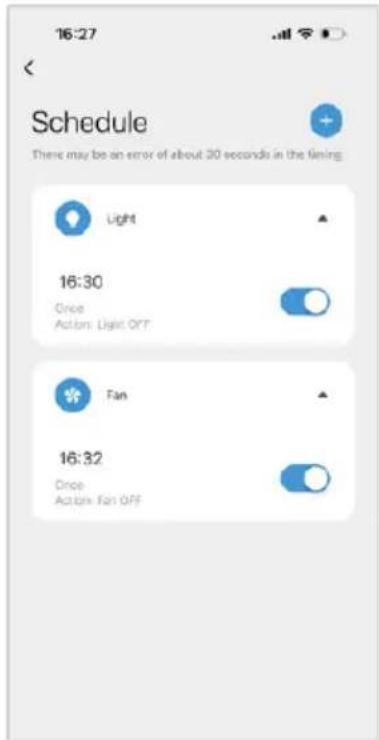

2. Use the app to setup schedules for the fan.

Cleaning & Care

Always turn the fan off and disconnect it from the power supply and allow it to stop before cleaning it.

• Clean the outside surface with a soft damp cloth.
• Do not immerse then fan in water.
• Never use scouring pads, abrasive or chemical cleaners.
• Clean your fan periodically. Use only a cloth or brush.
  • Metal finishes are finished with a lacquer to prevent tarnishing.

- Do not allow the inner parts of the fan to get wet (especially the circuit board). Doing so may cause an electric shock and damage the fan.

- While the product is not in use, make sure it is unplugged from the power supply. To store it, place it in its original box in a safe and dry location until it is used again.

- In case of fault or damage, do not try to repair the fan by yourself to avoid risk of fire or electric shock. Cease use immediately and contact help.Kogan.com for support.

Specifications

Voltage	220~240V
Fan	40W
Lamp	20W

Troubleshooting

If the problem persists after performing the below checks, contact help.Kogan.com for further support.

Problem	Possible Cause	Solution
The fan does not start up.	Fuse or circuit breaker has tripped.	Check all the fuses or circuit breakers.
	Loose or disconnected wiring.	Turn off the electrical power and check all wire connections.
The fan emits noises.	New fan components settling during initial use.	Allow a few days of break-in time by operating the fan at medium or high speed.
	Loose screws in fan assembly or light kit.	Ensure all screws in the fan assembly and light kit are tight and properly threaded. Retighten if required.
	Light kit or glass components not secured.	Ensure the light kit is securely fastened to the fan and the glass screws are finger tightened only.
	Mounting bracket not secured to junction box.	Ensure the mounting bracket is installed snugly to the junction box.
	Wire nuts inside the housing rattling.	Ensure wire nuts inside the switch housing or canopy are not rattling. Wrap with electrical tape if necessary.
	Canopy touching the ceiling.	Ensure the canopy is not touching the ceiling.
	Blade holder screws loose.	Ensure the screws fastening the blade holders to the motor are tight and lock washers are used.
The fan does not produce much air.	Fan is running in reverse direction.	Switch the fan direction so that air is directed downward.
	Objects in the room obstruct airflow.	Remove or reposition items that may obstruct airflow.
	Fan size too small for the room.	Install a larger fan suitable for the room size.
Fan wobbling.	Mounting bracket not firmly secured.	Ensure the mounting bracket is fixed tightly to the ceiling and tighten screws if necessary.
	Blade screws or blade support screws loose.	Ensure all screws holding the blades to the blade supports and the blade supports to the motor are tight.
	Light kit or glass screws loose.	Ensure the light kit and glass screws are securely tightened.

Note:

A small amount of wobble is considered acceptable and should not be considered a defect.

Notes

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.

kogan.com
