USER MANUAL CS-15 ROLAND
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.
USING THE UNIT SAFELY
INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
About ⚠ WARNING and ⚠ CAUTION Notices
| WARNING | Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly. |
| CAUTION | Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets. |
About the Symbols
| △ | The △ symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used or general contions, warnings, or alerts to danger. |
| ⊗ | The ⊗ symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled. |
| € | The △ symbol alerts the user to things that must be carried out (are forbidden). It is due to being allowed by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet. |
ALWAYS OBSERVE THE FOLLOWING
WARNING
- Before using this unit, make sure to read the instructions below, and the Owner's Manual.
- Do not open or perform any internal modifications on the unit.
- Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.
- In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.
- Protect the unit from strong impact. (Do not drop it!)
CAUTION
- Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.
- If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following precautions.
- Carefully follow the installation instructions for batteries, and make sure you observe the correct polarity.
- Remove the batteries whenever the unit is to remain unused for an extended period of time.
• Even if the battery has not been used, it may have become naturally discharged. In this case, please replace it with a new battery.
- If the battery runs down, the volume may decrease or the audio quality may be impaired. If this occurs, replace the battery with a new one.
- If liquid should leak from the battery, use a soft cloth to carefully wipe clean the battery compartment, then install a new battery.
CAUTION
- Your eyes may be damaged if the alkaline liquid from a battery should get into them. If this should occur, don't rub your eyes; wash them with clean water and immediately seek care from a physician.
- Skin damage may result if the alkaline liquid from a battery comes into contact with your skin or clothing. If such contact occurs, use plenty of clean water to wash off the affected areas immediately.
- Don't short-circuit a battery. Doing so may cause the battery to leak, become excessively hot, or burst.
- Don't put a battery into fire or water, subject it to heat, or disassemble it. Doing so may cause the battery to leak, become excessively hot, or burst. If you notice an unusual smell, this indicates a risk that the electrolyte may ignite; immediately move the battery away from any fire or source of ignition.
• Used batteries must be disposed of in compliance with whatever regulations for their safe disposal that may be observed in the region in which you live.
- You must use only the specified type of battery (LR44).
- Keep the included screws and the screw adaptor in a safe place out of children's reach, so there is no chance of them being swallowed accidentally.
IMPORTANT NOTES
- Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.
- Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
- Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
- When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
Maintenance
- For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
- Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.
Additional Precautions
- When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements. Also, do not grasp the cord and pull on it to pick up the microphone.
EDIROL by Roland
CS-15
Stereo Microphone Owner's Manual
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES." These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.
Features
• One-point stereo microphone that allows stereo capture of the sound in the direction you aim the microphone
• Electret condenser design for high audio quality
- Two-way power; use plug-in power (takes priority) or an L.R44 battery
- Compact and light-weight for excellent portability; ideal for field recording
• Large windscreen included for good rejection of wind noise
• Tabletop stand and grip-type microphone holder also included

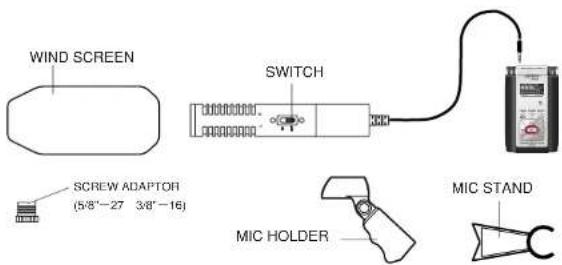

Operation
* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.
1. This microphone will operate using plug-in power or an LR44 battery (plug-in power takes priority).
* If the device to which the microphone is connected has a plug-in power switch, turn the switch on. The LRA4 battery is unnecessary if you're using plug-in power, but the microphone will operate without problems even if an LRA4 battery is installed in the battery compartment.
2. Turn on the microphone's power switch.
3. When you've finished using the microphone, be sure to turn off the power switch.
Polar Patterns
Frequency Response
line
FREQUENCY RESPONSE | Frequency (Hz) | 0° (dB) | 180° (dB) | |---|---|---| | 54 | ~0.8 | ~0.6 | | 70 | ~0.6 | ~0.5 | | 90 | ~0.7 | ~0.4 | | 120 | ~0.8 | ~0.3 | | 140 | ~0.8 | ~0.2 | | 16 | ~0.8 | ~0.1 | | 26 | ~0.8 | ~0.2 | | 36 | ~0.8 | ~0.3 | | 48 | ~0.8 | ~0.4 | | 60 | ~0.8 | ~0.5 | | 72 | ~0.7 | ~0.6 | | 84 | ~0.6 | ~0.7 | | 96 | ~0.5 | ~0.8 | | 108 | ~0.4 | ~0.9 | | 120 | ~0.3 | ~1.0 | | 132 | ~0.2 | ~1.1 | | 144 | ~0.1 | ~1.2 | | 156 | ~0.05 | ~1.3 | | 168 | ~-0.05 | ~1.4 | | 180 | ~-0.1 | ~1.5 | | 192 | ~-0.15 | ~1.6 | | 204 | ~-0.2 | ~1.7 | | 216 | ~-0.25 | ~1.8 | | 228 | ~-0.3 | ~1.9 | | 240 | ~-0.35 | ~2.0 | | 252 | ~-0.4 | ~2.1 | | 264 | ~-0.45 | ~2.2 | | 276 | ~-0.5 | ~2.3 | | 288 | ~-0.55 | ~2.4 | | 300 | ~-0.6 | ~2.5 | | 312 | ~-0.65 | ~2.6 | | 324 | ~-0.7 | ~2.7 | | 336 | ~-0.75 | ~2.8 | | 348 | ~-0.8 | ~2.9 | | 360 | ~-0.85 | ~3.0 | | 372 | ~-0.9 | ~3.1 | | 384 | ~-0.95 | ~3.2 | | 396 | ~-1.0 | ~3.3 | | 408 | ~-1.05 | ~3.4 | | 420 | ~-1.1 | ~3.5 | | 432 | ~-1.15 | ~3.6 | | 444 | ~-1.2 | ~3.7 | | 456 | ~-1.25 | ~3.8 | | 468 | ~-1.3 | ~3.9 | | 480 | ~-1.35 | ~4.0 | | 492 | ~-1.4 | ~4.1 | | 504 | ~-1.45 | ~4.2 | | 516 | ~-1.5 | ~4.3 | | 528 | ~-1.55 | ~4.4 | | 540 | ~-1.6 | ~4.5 | | 552 | ~-1.65 | ~4.6 | | 564 | ~-1.7 | ~4.7 | | 576 | ~-1.75 | ~4.8 | | 588 | ~-1.8 | ~4.9 | | 600 | ~-1.85 | ~5.0 | | 612 | ~-1.9 | ~5.1 | | 624 | ~-1.95 | ~5.2 | | 636 | ~-2.0 | ~5.3 | | 648 | ~-2.05 | ~5.4 | | 660 | ~-2.1 | ~5.5 | | 672 | ~-2.15 | ~5.6 | | 684 | ~-2.2 | ~5.7 | | 696 | ~-2.25 | ~5.8 | | 708 | ~-2.3 | ~5.9 | | 720 | ~-2.35 | ~6.0 | | 732 | ~-2.4 | ~6.1 | | 744 | ~-2.45 | ~6.2 | | 756 | ~-2.5 | ~6.3 | | 768 | ~-2.55 | ~6.4 | | 780 | ~-2.6 | ~6.5 | | 792 | ~-2.65 | ~6.6 | | 804 | ~-2.7 | ~6.7 | | 816 | ~-2.75 | ~6.8 | | 828 | ~-2.8 | ~6.9 | | 840 | ~-2.85 | ~7.0 | | 852 | ~-2.9 | ~7.1 | | 864 | ~-2.95 | ~7.2 | | 876 | ~-3.0 | ~7.3 | | 888 | ~-3.05 | ~7.4 | | 900 | ~-3.1 | ~7.5 | | 912 | ~-3.15 | ~7.6 | | 924 | ~-3.2 | ~7.7 | | 936 | ~-3.25 | ~7.8 | | 948 | ~-3.3 | ~7.9 | | 960 | ~-3.35 | ~8.0 | | 972 | ~-3.4 | ~8.1 | | 984 | ~-3.45 | ~8.2 | | 996 | ~-3.5 | ~8.3 | | 1008++∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞∞Installing the battery
- Turn the portion marked by the circle in the direction indicated by the arrow, and remove the cover.
- Insert the battery as shown on the label affixed to the microphone.
Removing the battery
- By inserting a small screwdriver or similar object, push on the battery through the two holes at the back of the battery compartment, so the battery pops out.
Main Specifications
Element: Electret Condenser
Polar Pattern Uni Directional x 2
Frequency Response: 200-17,000 Hz
Open Circuit Sensitivity:
-41.5±4 dB
(0dB=1V/1Pa,1kHz) (at battery use)
Impedance:
1,300 Ω (at battery use)
Maximum Input S.P.L:
119 dB SPL (at 1kHz, 3% THD)
Power Requirements:
2-10 V DC Plug In Power
Battery: 1.5 V
Battery Current0.6 mA
Battery Life:
200 Hours (continuous use)
Dimensions (Diameter x Length):
21×118mm
7/8 x 4-11/16 inches
Weight: 118 g / 5 oz
Cord: 1.8 m / 70 inches
Plug: Stereo mini
Accessories:
Wind screen, Carrying case,
Mic stand, Mic holder, Screw adaptor,
LR44 battery
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
