Type of Product	Portable Power Bank
Brand	Maglite
Model	AX64338
Battery Capacity	5000 mAh
Input Port	USB-C (5V/2A)
Output Port(s)	USB-A (5V/2.1A), USB-C (5V/2.1A)
Dimensions (Approx.)	2.5 x 1.0 x 4.0 in (6.35 x 2.54 x 10.16 cm)
Weight	5.6 oz (159 g)
Housing Material	Aluminum alloy with rubberized ends
LED Indicator	Yes (4-level battery status)
Charging Time (Approx.)	3-4 hours via USB-C
Compatible Devices	Smartphones, tablets, headphones, and other USB devices
Safety Features	Overcharge, over-discharge, short-circuit, and temperature protection
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Warranty	2 years limited
Certifications	FCC, CE, RoHS

Frequently Asked Questions - AX64338 Maglite

How long does it take to fully charge the power bank?

The Maglite AX64338 power bank takes approximately 3-4 hours to fully charge using a USB-C charger with 5V/2A output.

Can I charge two devices at the same time?

Yes, you can charge two devices simultaneously using the USB-A and USB-C output ports. The total output is limited to 2.1A shared.

Is the power bank compatible with my iPhone?

Yes, it is compatible with iPhones and other devices that charge via USB. You may need a Lightning cable for iPhone.

Does the power bank support fast charging?

No, the output is standard 5V/2.1A max, which is suitable for normal charging but not fast charging protocols like Qualcomm Quick Charge.

How do I know the battery level?

Press the power button to check the battery status. The 4 LED indicators show approximate charge level: 25%, 50%, 75%, 100%.

Can I carry this power bank in checked luggage?

Power banks with capacities up to 100Wh are allowed in carry-on luggage only. The 5000 mAh (approx 18.5Wh) model is safe for carry-on.

What should I do if the power bank gets wet?

Discontinue use immediately and allow it to dry completely. Do not attempt to charge or use if wet. Contact Maglite support if needed.

How should I clean the power bank?

Use a soft, dry cloth to wipe the exterior. Do not use solvents, abrasives, or water. Keep ports dry and free of debris.

Does the power bank come with a charging cable?

Yes, it includes a short Micro-USB cable for charging the power bank itself. You may need your own cables to charge devices.

What is the warranty period?

Maglite offers a 2-year limited warranty against defects in materials and workmanship. Register your product on their website.

USER MANUAL AX64338 Maglite

MagCharger® PowerBank™ - For Your Safety Please Read the following.

Keep this manual for future reference. It contains important information about safe operation and maintenance of the product.

SAFETY INSTRUCTIONS:

The safety instructions in this manual have been classified according to the seriousness of the risk, as follows:

WARNING": Indicates a hazardous situation that, if not avoided, could result in serious injury or death.

"CAUTION": Indicates a hazardous situation that, if not avoided could result in minor or moderate injury.

NOTICE": Indicates information considered important that relates to avoiding risk of damage to the MagCharger® PowerBank™ or other property.

WARNINGS:

• Do NOT expose your MagCharger® PowerBank™ to liquids or wet/moist environments.
• Do NOT expose your MagCharger® PowerBank™ to extreme temperatures or fire.
• Do NOT disassemble or attempt to repair your MagCharger® PowerBank™.
• Do NOT allow the external +/- terminals to be shorted together.
• Do NOT drop your MagCharger® PowerBank™ on hard surfaces (concrete, tile, asphalt, etc).
• Li-Ion batteries may leak harmful chemicals which may damage eyes, skin, clothing, or the inside of other devices. To avoid risk of injury, do not let any material leaked from a battery come in contact with eyes or skin. In the event of contact with eyes or skin, wash the affected area immediately and obtain prompt medical attention.
• Discontinue use immediately if you notice changes in the battery such as swelling, discoloration or leakage.
• Failure to comply with these warnings may cause the battery to leak, rupture or explode.

CAUTIONS:

• Charge temperature: 32^ - 113^ (0 - 45°C)
  • Discharge temperature: -4^-140^ (-20 - 60°C)
  • Storage temperature: -4^-122^ (-20 - 50°C)
  • USB-C Charging & Discharging: 5V/1A
• External (+/- terminal) Charging: Constant Current/Constant Voltage algorithm 2000mA (max) /4.2V/.01C cut-off
• External (+/- terminal) Discharging: 4000mA (max) /2.5V cut-off

NOTICES:

• It is important to use/cycle your MagCharger® PowerBank™ to keep the battery cell healthy
  • Perform a Charge/Discharge cycle at least once every 2 to 3 months
• Use the provided USB-C cable and adapters for best performance
• Never pull on the USB-C cable when unplugging it. Grasp the plug end directly.
• Always use the provided end cap when not in use to keep the USB-C port free from dirt and debris
• Do not insert tools or cleaning instruments into the USB-C port, If the USB-C port becomes dirty, use a can of compressed air to clean the port
• For prolonged storage, remove the MagCharger® PowerBank™ from any device and store it separately in a non-conductive wrapping, such as a plastic bag.
• 1-year limited warranty, Call MAGLITE® tech support for warranty issues [phone], e-mail: [e-mail].

PROTECTION OF CHILDREN

• This product is not a toy, and is not intended or recommended for use by children.
• Keep the MagCharger® PowerBank™ and all accessories out of the reach of small children – especially the small USB adapters that might present a choking hazard.

BATTERY DISPOSAL

• Cover the external +/- terminals with insulating tape before disposal, to prevent accidental short-circuiting.
• Never dispose of a Li-Ion battery by throwing it into a fire. Battery explosion could result.
• Never discard a Li-Ion battery with ordinary solid wastes, as it contains toxic substances.
• The sealed Li-Ion battery inside your MagCharger® PowerBank™ must be recycled or disposed of properly. Contact your local solid waste authority for proper recycling or disposal information.

GETTING STARTED:

Your new MagCharger® PowerBank™ is specifically designed as a companion to the following MAGLITE® products: MAG-TAC® Rechargeable, ML50L/LX 2 CELL and ML25 2 CELL.

• The MagCharger® PowerBank™ is also designed to function as a stand-alone powerbank accessory for all compatible USB products (flashlights, Bluetooth speakers/headsets, smartphones, smartwatches, etc)
• Charging the battery is supported from USB-C or Legacy USB-A port on any USB, DCP, QC ^® , BC 1.2 and USB-PD compatible devices such as AC/DC wall adapters, desktop PC, laptop and integrated automotive USB ports.
• External charging is supported across the battery terminals from a stand-alone Li-Ion battery charger (within specifications below).
  • Capacity: 3.7V/3400mAh/12.6Wh
  • Physical Dimensions: 2.8 x 0.74" (71 x 19mm)

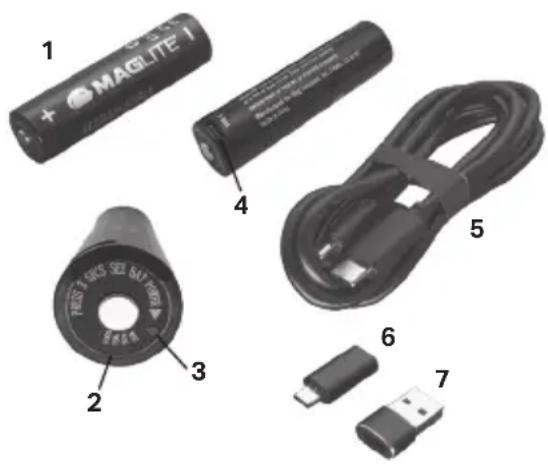

1 MAGLITE I 2 3 4 5 6 7

1. Li-Ion 3400mAh PowerBank

2. Charge Indication fuel gauge: 25%,
   50%, 75%, 100%
   Blinking = Charging
   Solid = Charged
   OFF = Depleted battery

3. Reset Button

4. USB-C Charge/Discharge Port
5. USB-C to USB-C charging cable
6. USB-C to USB-MicroB adapter
7. USB-C to USB-A adapter

*QC (QuickCharge) is a registered trademark of Qualcomm.
