Product Type	Security Camera
Brand	Sony
Model	EVI-HD3V
Image Device	1/3 type CMOS
Lens	10x optical zoom, 40x digital zoom, f=3.4-33.9 mm, F1.8-F2.1
Horizontal Viewing Angle	8° (tele) to 70° (wide)
Minimum Illumination	15 lux (F1.8, 50 IRE)
Shutter Speed	1/50 to 1/10000 sec
Video Output	DVI-I (digital and analog component)
Video Formats	1280x720p/59.94, 1280x720p/50, 1280x720p/29.97, 1280x720p/25, 640x480p/59.94 (LB), VISCA CONTROL

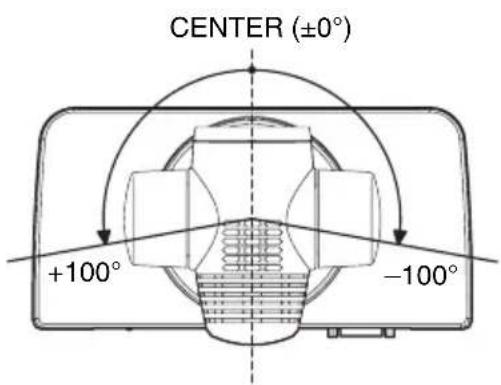

Pan/Tilt Range	Pan: ±100°, Tilt: ±25°
Pan/Tilt Speed	Pan: up to 300°/sec, Tilt: up to 125°/sec
Control Interface	RS-232C (VISCA protocol), Infrared remote commander
Power Supply	12 V DC (10.8-13.0 V), 2.2 A max

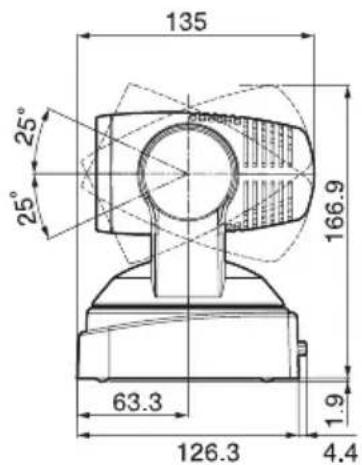

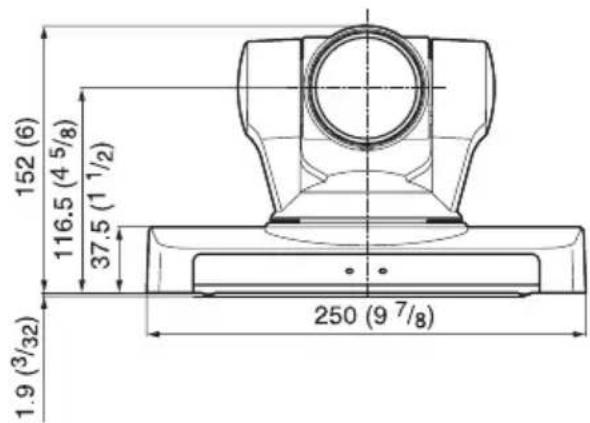

Dimensions (W x H x D)	250 x 152 x 135 mm (camera only)
Weight	Approx. 1.5 kg (camera only)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Supplied Accessories	AC power adaptor, AC power cord, remote commander, operating instructions
Key Features	Silent high-speed pan/tilt, DVI-I output, VISCA protocol, multiple video formats, preset positions
Cleaning	Use a soft cloth with diluted neutral detergent, no solvents
Safety/Compliance	FCC Class A, ICES-003, CE (Class A)

Frequently Asked Questions - EVI-HD3V SONY

What video formats does the Sony EVI-HD3V support?

The EVI-HD3V supports 1280x720p at 59.94, 50, 29.97, and 25 Hz, 640x480p at 59.94 Hz (letterbox), and VISCA CONTROL mode. Select the format using the SYSTEM SELECT switch on the rear of the camera.

How do I connect the camera to a monitor?

Use the DVI-I (VIDEO OUT) connector. For analog component, use a DVI-to-component adapter cable. For analog RGB, use a DVI-to-RGB adapter cable. For digital, use a DVI cable. Ensure the COLOR SYSTEM is set to RGB or YPbPr as needed.

How can I control the camera remotely via computer?

Connect an RS-232C cross cable from the computer to the VISCA IN connector on the camera. Use VISCA commands. Set the baud rate using BOTTOM switch 2 (ON for 38400 bps, OFF for 9600 bps). The SYSTEM SELECT switch must be set to a video output position or VISCA CONTROL.

What is the maximum pan/tilt speed?

Pan: up to 300 degrees per second. Tilt: up to 125 degrees per second.

How do I store camera positions?

Adjust the camera position, zoom, focus, and backlight, then hold the PRESET button and press one of the POSITION buttons (1-6). To recall, press the corresponding POSITION button. To clear, hold RESET and press the position button.

What should I do if the remote commander does not work?

Ensure the CAMERA SELECT button matches the IR SELECT switch setting on the camera. Check that the IR-RECEIVE in the SYSTEM menu is ON. Replace batteries if needed. Avoid interference from inverter lighting.

How do I change the video format?

Set the SYSTEM SELECT switch on the rear of the camera to the desired position before powering on or in standby. Use a Phillips-head screwdriver. Refer to the table in the manual for switch positions and supported formats.

What is the minimum illumination for the camera?

15 lux at F1.8 with 50 IRE.

Can I use the camera on a tripod?

Yes. Attach a tripod to the tripod screw hole (1/4-20UNC) on the bottom. Ensure the tripod is on a flat surface and screws are tightened firmly. Do not install on ceilings using tripod screws.

What maintenance is required?

Clean the body with a soft cloth moistened with diluted neutral detergent and wrung dry. Do not use solvents. Periodical maintenance by a Sony dealer is recommended to maintain performance.

USER MANUAL EVI-HD3V SONY

HD Color Video Camera

取扱説明書 2ページ

Operating Instructions Page 47

AC 電源アダプター (1)

電源コード (1)

リモコン (1)

取扱説明書（1）

各部の名称と働き

カメラ本体

前面

①レンズ

光学 10 倍ズームレンズです。

②リモコン受光部

付属のリモコンの受光部です。

③POWER ランプ

希望の映像出力方式に合わせる。

単 3 形乾電池 2 個（別売り）

ご注意

ご注意

ご注意

三脚に取り付ける

PICTURE —— APERTURE —— MIN,1,2,3,4,5,6,7,8,9,10,11,12,13,14,MAX

(21 ページ)

プリセット項目

プリセットできる項目 プリセットポジション番号

E

X

P

O

S

U

R

E

M

O

D

E

A

E

G

A

I

N

L

I

M

T

S

P

E

E

D

◎

○

○

○

○

○

I

R

I

S

◎

○

○

○

○

○

G

A

I

N

◎

○

○

○

○

○

B

R

I

G

H

T

L

E

V

E

L

◎

E

X

-

C

O

M

P

O

N

/

O

F

E

X

-

C

O

M

P

L

EV

E

L

W

H

I

T

E

B

A

L

A

N

C

E

M

A

N

U

A

L

R

/

B

G

A

O

N

E

P

U

S

H

W

B

R

/

A

P

E

R

T

U

R

E

◎

○

○

○

P

A

N

/

T

I

L

T

L

I

M

T

D

-

Z

O

O

M

L

I

M

I

T

D

I

S

P

L

A

Y

I

N

F

○

C

O

L

O

R

S

Y

S

T

E

M

• Focus Near Limit
• IR Receive
• IR Receive Return

EVI-HD3V:1280 × 720p/

正面 側面

底面

The model and serial numbers are located on the bottom. Record these numbers in the spaces provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. Serial No.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

WARNING

This unit has no power switch.

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

WARNING

Using this unit at a voltage other than 120 V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

IMPORTANT

The nameplate is located on the bottom.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of part 15 of FCC Rules.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-003.

For the customers in Europe, Australia and New Zealand

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

In the case that interference should occur, consult your nearest authorized Sony service facility.

For the customers in Europe

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan.

The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.

This apparatus shall not be used in the residential area.

For the customers in the U.S.A. SONY LIMITED WARRANTY - Please visit http://www.sony.com/psa/warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Canada SONY LIMITED WARRANTY - Please visit http://www.sonybiz.ca/solutions/Support.do for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Europe

Sony Professional Solutions Europe - Standard Warranty and Exceptions on Standard Warranty. Please visit http://www.pro.sony.eu/warranty for important information and complete terms and conditions.

For the customers in Korea SONY LIMITED WARRANTY - Please visit http://bpeng.sony.co.kr/handler/BPAS-Start for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

AVERTISSEMENT

Phenomena Specific to CMOS Image Sensors ....52

Overview

Features 53

Supplied Accessories ....53

Location and Functions of Parts and Controls ....54

Camera 54

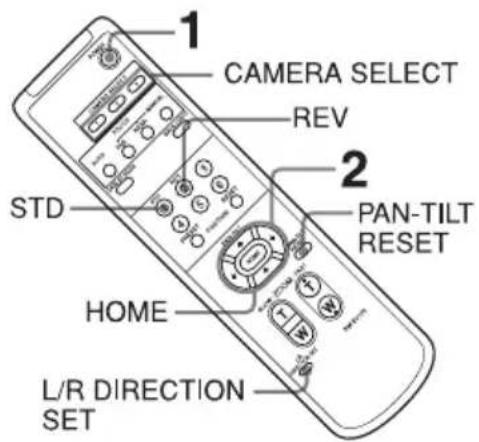

Remote Commander (supplied) ....57

Adjusting and Setting with Menus

About On-Screen Menus...... 60

Main Menu 60

Setting Menus ....60

Control Button Display Section ....60

Operating the Camera Using Menus ....61

EXPOSURE Menu ....63

WHITE BALANCE Menu ......64

PICTURE Menu ....64

PAN TILT ZOOM Menu ......65

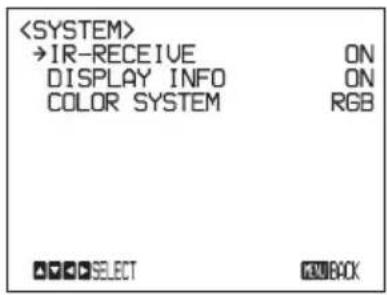

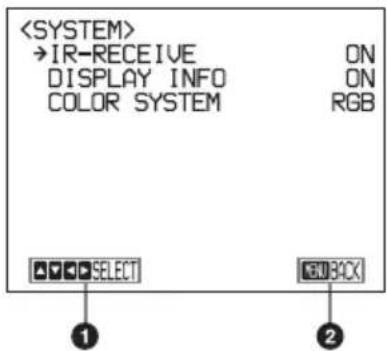

SYSTEM Menu ......66

STATUS Menu 67

Operation Using the Supplied Remote Commander

Before Operating.... 68

Turning on the Power ......68

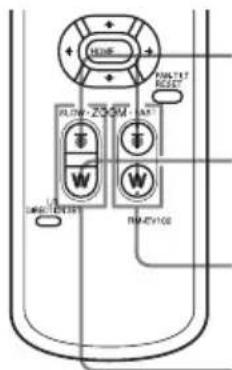

Pan/Tilt and Zoom Operation ......69

Panning and Tilting 69

Zooming 70

Operating Multiple Cameras with the Remote Commander .... 71

Adjusting the Camera 71

Focusing on a Subject 71

Shooting with Back Lighting ..... 71

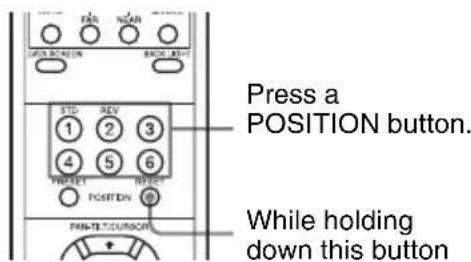

Storing the Camera Settings in Memory — the Presetting Feature ...... 72

Installation and Connection

Installing the Camera.... 74

Installing the Camera on a Desk 74

Attaching the Camera to a Tripod 74

Installing the Camera Using the M3 Fixing Screw Holes ...... 74

Connections 75

Connecting to an AC Outlet ..... 75

Connecting a Computer .... 75

Connecting a Video Monitor, etc., Equipped with an Analog Component Input Connector 76

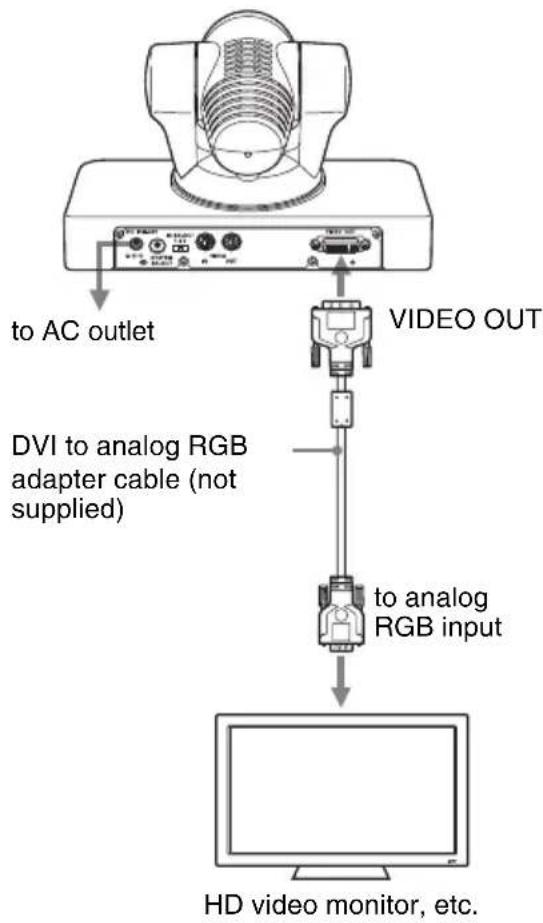

Connecting a Video Monitor, etc., Equipped with an Analog RGB Input Connector ..... 76

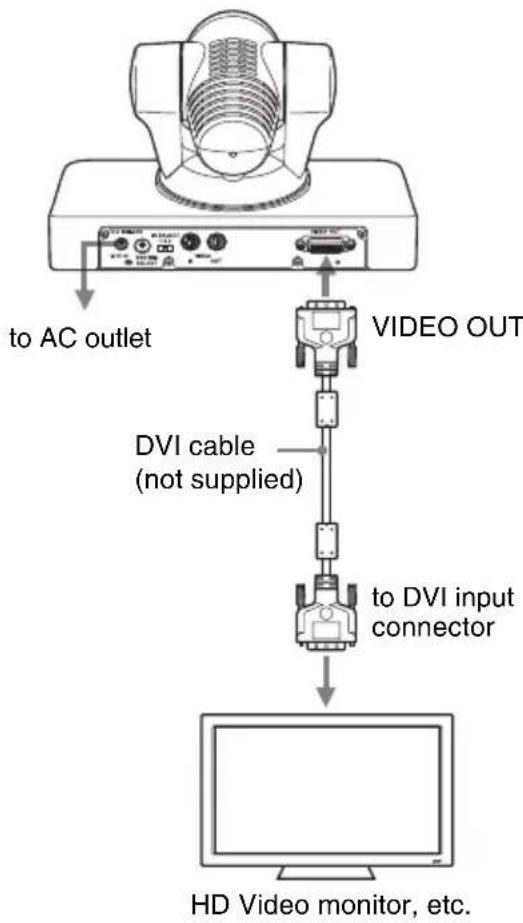

Connecting a Video Monitor, etc., Equipped with a DVI Input Connector 77

Appendix

Message List.... 78

Troubleshooting.... 79

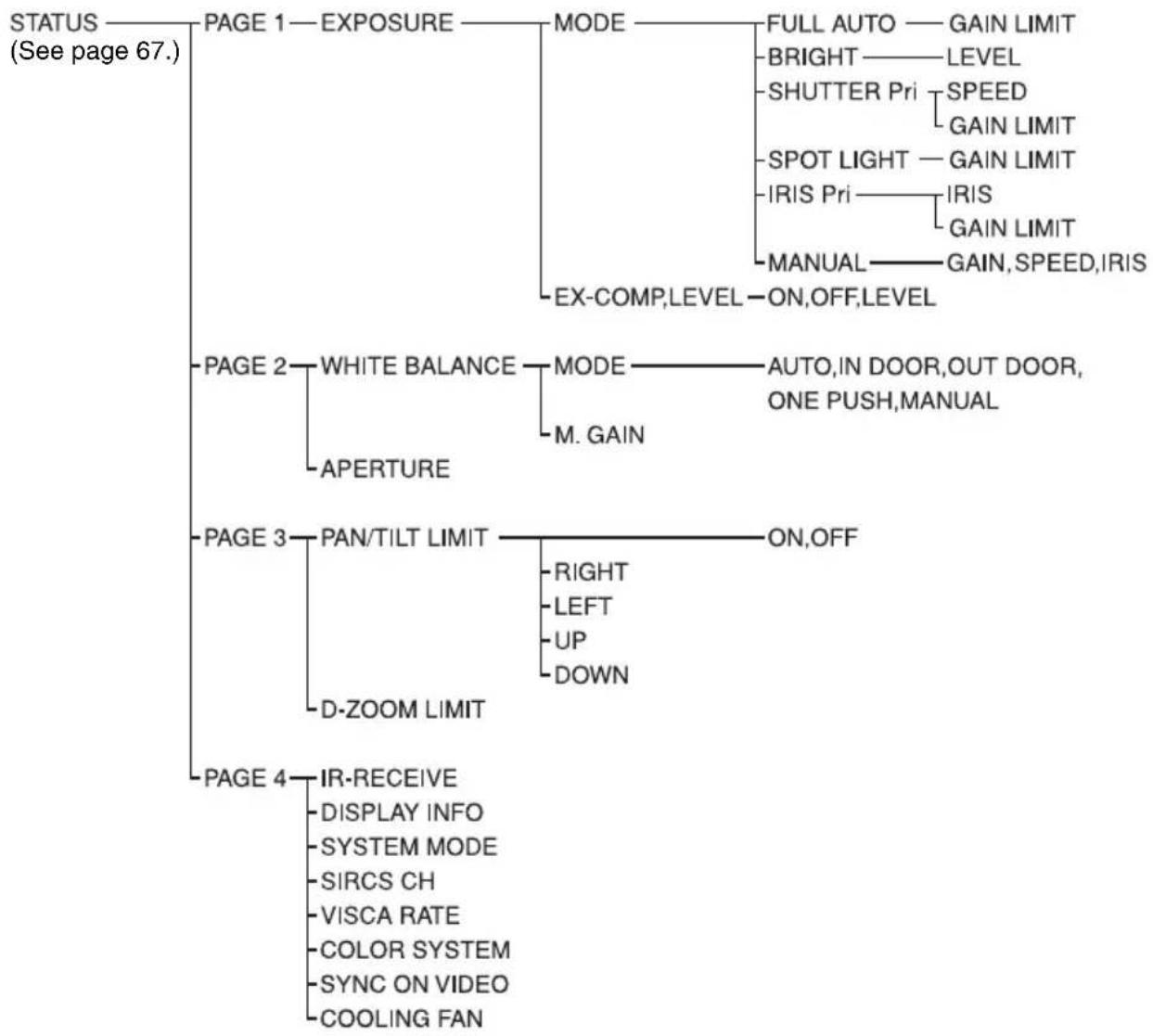

Menu Configuration 81

Preset Items 84

Specifications 86

Precautions

Operating or storage location

Operating or storing the camera in the following locations may cause damage to the camera:

• Extremely hot or cold places (Operating temperature: 0°C to 40°C [32°F to 104°F])
• Exposed in direct sunlight for a long time, or close to heating equipment (e.g., near heaters)
• Close to sources of strong magnetism
• Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
• Locations subject to vibration or shock

Ventilation

To prevent heat buildup, do not block air circulation around the camera.

Transportation

When transporting the camera, repack it as originally packed at the factory or in materials equal in quality.

Cleaning the main unit

• When the body of the camera is dirty, clean it with a soft cloth that is soaked with a diluted neutral detergent and tightly wrung. Then finish with a dry cloth.
• Do not use any type of solvents, which may damage the finish.
• When you use a chemical cloth, follow its instructions.
• Do not sprinkle volatile matter such as pesticide over your camera nor allow rubber or vinyl to come in contact with the camera for a long period of time. Doing so may damage the finish.

Replacing the batteries of the Remote Commander

If the remote commander does not operate from a long distance, the batteries may be worn out. Replace the batteries with new ones (AA × 2).

Maintenance

The camera mechanism may cause abnormal noise due to wear and lubrication loss after a long period of use. To maintain optimum performance, we recommend periodical maintenance. If abnormal noise occurs, consult your Sony dealer.

Note on laser beams

Laser beams may damage the CMOS. If you shoot a scene that includes a laser beam, be careful not to let a laser beam become directed into the CMOS of the camera.

Phenomena Specific to CMOS Image Sensors

The following phenomena that may appear in images are specific to CMOS (Complementary Metal Oxide Semiconductor) image sensors. They do not indicate malfunctions.

White flecks

Although the CMOS image sensors are produced with high-precision technologies, fine white flecks may be generated on the screen in rare cases, caused by cosmic rays, etc. This is related to the principle of CMOS image sensors and is not a malfunction.

White flecks tend to be seen particularly in the following cases:

• during operation at a high environmental temperature
- when you have raised the gain (sensitivity)

This phenomena may be improved by turning the camera off and then on again.

Aliasing

When fine patterns, stripes, or lines are shot, they may appear jagged or flicker.

Features

CMOS camera with high image quality

The CMOS image sensor allows high-definition shooting with superior picture quality.

Silent, high-speed pan and tilt action

By adopting the DD motor mechanism, in addition to high-speed pan/tilt action, improvement of the noise reduction mechanism lets you use the camera for a variety of purposes.

Video format compatible with 60/50 Hz progressive scan

The EVI-HD7V camera allows you to shoot moving objects in Full HD progressive scan for high-resolution image output. The EVI-HD7V also allows output in the interlaced format used in HDTV broadcasts. Including 59.94 Hz and 50 Hz frequencies, the EVI-HD7V camera is compatible with a total of 11 video formats, while the EVI-HD3V is compatible with a total of 5 video formats.

DVI-I video output

The DVI-I (VIDEO OUT) connector supports both digital and analog output.

VISCA camera protocol supported

The camera is equipped with an RS-232C communication interface. You can select the baud rate of either 38,400 bps or 9,600 bps. This allows you to remotely control the camera at a high communication speed.

Supplied Accessories

When you unpack, check that all the supplied accessories are included.

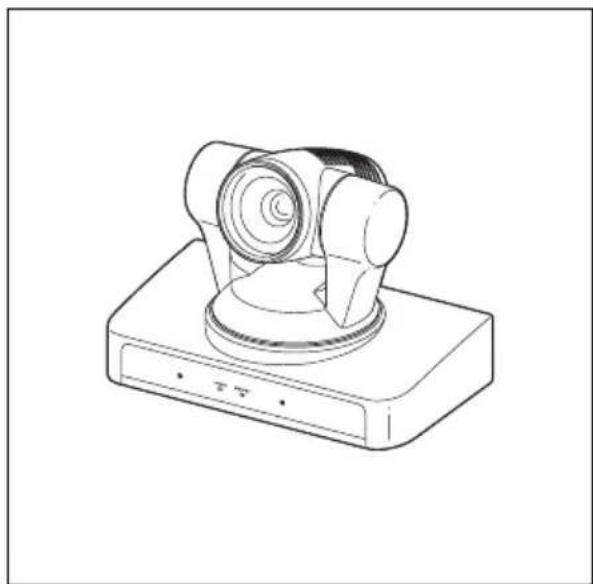

Camera (1)

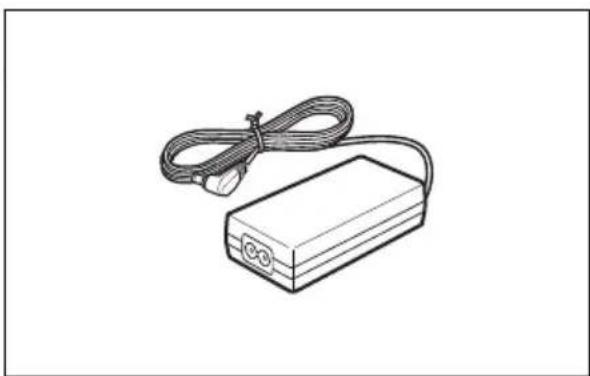

AC power adaptor (1)

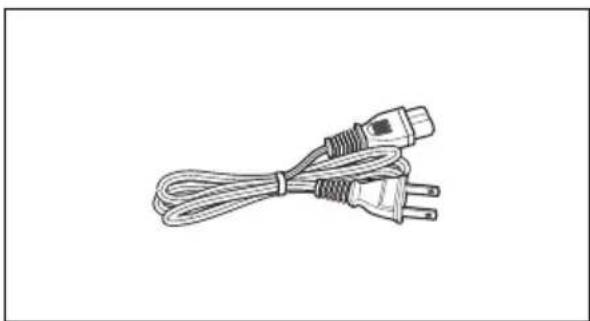

AC power cord (1)

USA and Canadian model

European model

Remote commander (1)

Operating Instructions (1)

Location and Functions of Parts and Controls

Camera

Front

1 Lens

This is a 10-magnification optical zoom lens.

2 Remote sensors

These are sensors for the supplied remote commander.

3 POWER lamp

Lights when the camera is connected to an AC outlet using the supplied AC power adaptor and AC power cord. Flashes in green when the camera receives an operation command from the supplied remote commander.

4 STANDBY lamp

Lights when the camera is turned off using the remote commander.

Rear

5 DC IN 12 V connector

Connect the supplied AC power adaptor.

6 SYSTEM SELECT switch

Used for selecting the video format of the signal to be output from the VIDEO OUT connectors.

For details, see "Setting of the SYSTEM SELECT switch" (page 55).

7 IR SELECT switch

Select the camera number when you operate multiple cameras with the same remote commander.

8 VISCA IN connector

Connect to a computer via an RS-232C interface. When you connect multiple cameras, connect it to the VISCA OUT connector of the previous camera in the daisy chain connection.

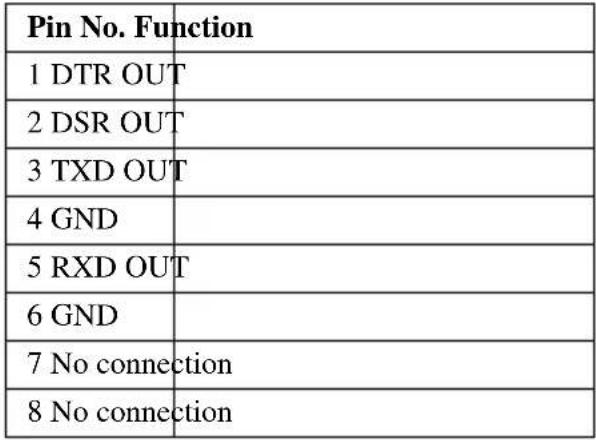

9 VISCA OUT connector

When you connect multiple cameras, connect it to the VISCA IN connector of the next camera in the daisy chain connection.

10VIDEO OUT connector

Supplies the images as an analog component signal. Digital signals are also output from this connector.

Bottom

11 BOTTOM switches

Used for RS-232C baud rate selection, turning the remote control signal output on/off, and selecting whether to add sync.

For details, see "Setting of the BOTTOM switches" (page 57).

12 Tripod screw holes (1/4-20UNC)

When you install the camera to a tripod, secure the tripod to these screw holes.

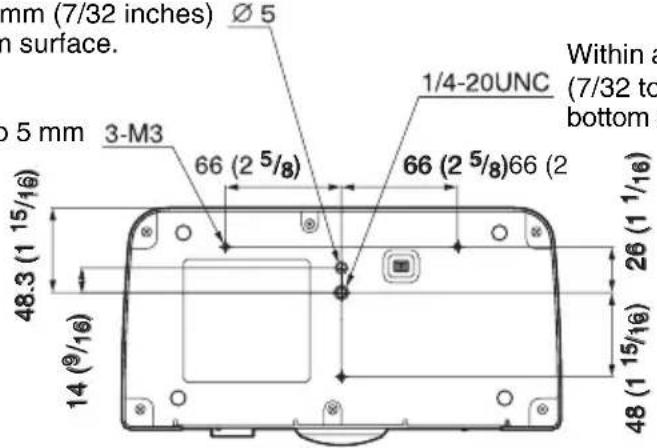

13 Fixing screw holes (M3)

Used for fixing the camera to a fitting using M3 screws.

Setting of the SYSTEM SELECT switch

This switch allows you to select the video format of the signal to be output from the VIDEO OUT connectors.

Notes

- Be sure to set this switch before you turn on the power of the camera. You can also set this switch in the standby mode of the camera. After completing the setting, turn on the power of the camera by connecting it to an AC outlet using the supplied AC power adaptor and AC power cord, or by using the VISCA command. When you set this switch in the standby mode, press the POWER switch of the remote commander. This switch setting becomes effective.

• Be sure to use a Phillips-head screwdriver when changing the switch position. If you use a tool other than the designated screwdriver, the crossed groove may be damaged.
• This camera does not include a function that automatically selects video output signals based on the DVI monitor's resolution. Be sure to configure settings based on the monitor manually.
• HDTV video signal outputs display without distortion on monitors with 16:9 aspect ratios.

Switch position	Video format	EVI-HD7V support	EVI-HD3V support
0	1920×1080p/59.94	Yes No		59.94 Hz system
1	1920×1080p/29.97	Yes No
2	1920×1080i/59.94	Yes No
3	1280×720p/59.94	Yes Yes
4	1280×720p/29.97	Yes Yes
5	640×480p/59.94(LB)	Yes Yes
6	No output	-	-	-
7	VISCA CONTROL	Yes Yes-

Switch position	Video format	EVI-HD7V support	EVI-HD3V support
8	1920×1080p /50	Yes No		50 Hz system
9	1920×1080p /25	Yes No
A	1920×1080i /50	Yes No
B	1280×720p/ 50	Yes Yes
C	1280×720p/ 25	Yes Yes
D	No output	-	-	-
E	No output	-	-	-
F	No output	-	-	-

Yes: Outputs the image signal.

No: Does not output the image signal.

LB: Abbreviation of LETTER BOX. A video signal with the 16:9 aspect ratio is output by adding a blank area (no signal, black) top and bottom to display the image without distortion on a monitor that uses the 4:3 aspect ratio.

Notes

• If the switch position is set to “no output,” the POWER lamp and STANDBY lamp will both remain lit. In such cases, control via the remote commander and VISCA commands is disabled.
• The VISCA CONTROL switch position allows you to configure the video format via external communication. However, video output will take longer compared to other switch positions.

For detailed information, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

Setting of the BOTTOM switches

①Switch 1 (infrared remote commander signal output switch)

Set to ON to enable output of the receiver signals, that are transmitted from the remote commander, from the VISCA IN connector (page 88), or set it to OFF to disable the output.

②Switch 2 (Communication baud rate selector)

Set to ON for 38,400 bps, or OFF for 9,600 bps.

Note

Set the communication baud rate before turning on the power. If you set the communication baud rate after turning on the power, the setting is ignored.

③Switch 3 (sync switch)

Select whether to add sync to the analog video signals output from the VIDEO OUT connector. Use this when analog input monitors are connected. In particular, add sync during non-HD/-VD connections.

④Switch 4 (Not used)

Be sure to set this switch to OFF.

Remote Commander (supplied)

1 CAMERA SELECT buttons

Press the button corresponding to the camera you want to operate with the remote commander.

The camera number can be set using the IR SELECT switch on the rear of the camera.

Note

If two or more cameras are adjacent and have the same camera number, they are operated simultaneously with the same remote commander. When you install the cameras close to each other, set different camera numbers.

For the camera number setting, see "Operating Multiple Cameras with the Remote Commander" (page 71).

2 FOCUS buttons

Used for focus adjustment. Press the AUTO button to adjust the focus automatically. To adjust the focus manually, press the MANUAL button, and adjust it with the FAR and NEAR buttons.

Note

Press the MANUAL button and adjust the focus manually when shooting the following objects.

• White walls and other objects without contrast
• Objects behind glass
• Objects with horizontal stripes
• Objects on which bright lights are cast or reflected
  • Nightscapes and other dark objects with blinking lights
• Lit objects shot with darkened exposure adjustment or exposure compensation settings

3 DATA SCREEN button

Press this button to display the main menu. Press it again to turn off the menu. If you press the button when a lower-level menu is selected, the display goes back to a higher-level menu.

Note

Pan/tilt operations are disabled when the menu is displayed.

4 PAN-TILT buttons

Press the arrow buttons to perform panning and tilting. Press the HOME button to face the camera back to the front. When the menu is displayed, use ↑ or ↓ to select the menu items and ← or → to change the set values. The selected setting menu is displayed, by pressing the HOME button when the main menu is displayed.

5L/R DIRECTION SET button

Hold down this button and press the REV button to change the direction of the camera movement opposite to that indicated by the arrow of the ◀/► buttons. To reset the direction of the camera movement, press the STD button while holding down this button.

6 POWER switch

Press this button to turn on/off the camera when the camera is connected to an AC outlet.

7 BACK LIGHT button

Press this button to enable the backlight compensation. Press it again to disable the backlight compensation.

8 POSITION buttons

Hold down the PRESET button and press button 1 to 6 to store the current camera direction, zooming, focus adjustment and backlight compensation in the memory of the pressed number button.

To erase the memory contents, hold down the RESET button and press button 1 to 6.

9PAN-TILT RESET button

Press this button to reset the pan/tilt position.

10 ZOOM buttons

Use the SLOW button to zoom slowly, and the FAST button to zoom quickly. Press the T (telephoto) side of the button to zoom in, and the W (wide angle) side to zoom out.

To install batteries

Two R6 (size AA) batteries (not supplied)

CAUTION

• To avoid risk of explosion, use R6 (size AA) manganese or alkaline batteries.
• Danger of explosion if battery is incorrectly replaced.
  Replace only with the same or equivalent type recommended by the manufacturer. When you dispose of the battery, you must obey the law in the relative area or country.

ATTENTION

You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected monitor.

This section explains how to read the on-screen menus before starting menu operations.

For the overall menu configurations, see "Menu Configuration" (page 81).

Note

You cannot perform pan/tilt operations while the menu is displayed.

Main Menu

To display the main menu, press the DATA SCREEN button on the supplied remote commander.

① Cursor

Selects a setting menu.

Move the cursor up or down by pressing the ↑ or ↓ button on the remote commander.

②Menu items

To display a setting menu, select one using the ↑ or ↓ button on the remote commander and press the HOME button on the remote commander.

Setting Menus

The setting menu selected on the main menu is displayed.

①Setting menu

The name of the setting menu currently selected is displayed here.

②Cursor

Selects a setting item.

Move the cursor up or down by pressing the ↑ or ↓ button on the remote commander.

③Setting items

The setting items for this setting menu are displayed.

Select the setting item using the ↑ or ↓ button on the remote commander.

④Set value

The currently set values are displayed. To change a set value, use the ◀ or ➡ button on the remote commander.

For the default value of each setting item, see “Menu Configuration” (page 81).

Control Button Display Section

Names of buttons displayed on the monitor are different from buttons on the remote commander to be used.

Use the proper buttons on the remote commander, referring to the following pictures.

Main menu

① Indicates that you should use the ↑ or ↓ button on the remote commander to select the setting menu.
②Indicates that you can move to the next layer (setting menu) by pressing the HOME button.
③Indicates that you can return to the normal display by pressing the DATA SCREEN button.

Setting menu

①Indicates that you can select the setting item by using the ↑ or ↓ button and you can change the set value by using the ← or → button.
②Indicates that you can return to the main menu by pressing the DATA SCREEN button.

Operating the Camera Using Menus

This section explains how to perform operations using the supplied remote commander.

For details on each menu, see page 63 to page 67.

1 Press the DATA SCREEN button. The main menu appears.

2 Move the cursor to the menu item to be set by pressing the ↑ or ↓ button.

3 Press the HOME button. The selected menu appears.

4 Move the cursor to the setting item to be changed by pressing the ↑ or ↓ button.

5 Change the value by pressing the ⇔ or → button.

Note

When you are operating the menu using the supplied remote commander, you cannot set IR-RECEIVE in the SYSTEM menu to OFF. To set IR-RECEIVE to OFF, use the appropriate VISCA command.

For detailed information on how to connect and VISCA command list, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

To return to the main menu

Press the DATA SCREEN button.

To return to the normal display

Press the DATA SCREEN button when the main menu is displayed.

EXPOSURE Menu

The EXPOSURE menu is used to set the items related to the exposure.

MODE (exposure mode)

FULL AUTO: The exposure is adjusted automatically using the sensitivity, electronic shutter speed, and iris.

BRIGHT: Adjust the brightness level (LEVEL) manually.

SHUTTER Pri: Shutter Priority mode. The exposure is adjusted automatically using the sensitivity and iris. Adjust the electronic shutter speed (SPEED) manually.

SPOT LIGHT: Allows exposure adjustment at darker levels if a portion of the object to be shot is illuminated.

IRIS Pri: Iris Priority mode. The exposure is adjusted automatically using the sensitivity and electronic shutter speed. Adjust the iris (IRIS) manually.

MANUAL: Adjust the sensitivity (GAIN), electronic shutter speed (SPEED) and iris (IRIS) manually.

When you select one from among the various exposure modes, some of the following setting items that are required for the selected mode appear.

GAIN: Select the gain from among the following:

-3,0,3,6,9,12,15,18 dB

SPEED: Select the electronic shutter speed from among the following:

For the 59.94/29.97 video format: 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 sec.

For the 50/25 video format:

1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750, 1/2500, 1/3500, 1/6000, 1/10000 sec.

IRIS: Select the iris from among the following:

CLOSE, F26, F22, F19, F16, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.8

LEVEL: Select the brightness level from among 0 to 23.

GAIN LIMIT: Select the upper limit of the gain rise in FULL AUTO, SHUTTER Pri, SPOT LIGHT, and IRIS Pri modes. Select from among 0, 3, 6, 9, 12, 15, or 18 dB.

EX-COMP (exposure compensation)

When MODE is set to one of FULL AUTO, SHUTTER Pri, SPOT LIGHT or IRIS Pri, set this item to ON to enable exposure compensation.

When you set EX-COMP to ON, LEVEL appears and you can select the exposure compensation level from among the following:

- 7, - 6, - 5, - 4, - 3, - 2, - 1, 0, + 1, + 2, + 3, + 4, + 5, + 6, + 7

If you set the level to 0, exposure compensation will be disabled. Level +7 is the brightest and -7 is the darkest compensation value.

When EX-COMP is set to OFF, exposure compensation does not function.

WHITE BALANCE Menu

The WHITE BALANCE menu is used to select the white balance mode.

MODE (white balance mode)

Select the white balance mode from among the following:

AUTO, INDOOR, OUTDOOR, ONE PUSH, MANUAL

When you select MANUAL, R.GAIN (red gain) and B. GAIN (blue gain) appear. You can select each item in the range from -128 to +127.

When you select the ONE PUSH mode

Perform the following operation.

1 Zoom in on a white subject in the center of the screen.
2 Press the HOME button of the supplied remote commander. The one-push white balance adjustment is activated.

When DISPLAY INFO (page 66) is set to ON on the SYSTEM menu, the result of the white balance adjustment is displayed on the monitor.

PICTURE Menu

APERTURE (aperture compensation)

Select the aperture compensation level from among MIN, 1 to 14 and MAX.

PAN TILT ZOOM Menu

The PAN TILT ZOOM menu is used to select the pan/tilt/zoom mode.

PAN/TILT LIMIT

When you set PAN/TILT LIMIT to ON, you can select the limit of pan/tilt operation. You can select the following values:

RIGHT: +100° to -100°, selectable with an interval of 1°

LEFT: -100° to +100° , selectable with an interval of 1°

UP: +25° to -25°, selectable with an interval of 1°

DOWN: -25° to +25° , selectable with an interval of 1°

Setting the range of LEFT/RIGHT movement

Note

The limit of pan/tilt operation becomes effective promptly after you set the range of PAN/TILT LIMIT. When you want to make the camera start with the ranges set, before

turning off the power, store those values in POSITION 1.

For details, see "Storing the Camera Settings in Memory — the Presetting Feature" (page 72).

Setting the range of UP/DOWN movement

Note

When you turn the camera to the right or left beyond the 25° with the camera pointed downward by 25° , the camera may be caught on the lens, depending on the zoom position of the lens.

D-ZOOM LIMIT (digital zoom limit)

You can select the magnification of the electronic zoom from among ×4, ×2, or ×1.5. When you select ×1, digital zoom does not operate. Only the optical zoom operates. The electronic zoom (×4, ×2 or ×1.5) operates after the optical zoom (×10), giving ×40 zooming as a maximum.

SYSTEM Menu

IR-RECEIVE (infrared signal reception)

When this is set to OFF, the camera does not receive the signal from the supplied remote commander.

Be sure to keep it set to ON when you use the supplied remote commander.

Note

You cannot set IR-RECEIVE to OFF when you operate the menu using the supplied remote commander. To set it to OFF, use the appropriate VISCA command.

For detailed information on how to connect and VISCA command list, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

DISPLAY INFO

When this item is set to ON, the message automatically appears for about 3 seconds on the monitor screen, when you perform the following operations using the supplied remote commander.

Message When
PRESET n : OK (“n” is a preset position number between 1 and 6)	You have stored the camera settings to POSITION 1 to 6.
RECALL n : OK (“n” is a recall position number between 1 and 6)	You have recalled the camera settings stored in POSITION 1 to 6.

Message When
RESET n : OK(“n” is a reset position number between 1 and 6)	You have reset the camera settings stored in POSITION 1 to 6 to the default settings.
One push WB : OP	During the white balance adjustment in the ONE PUSH white balance mode, the message blinks on the screen.
One push WB : OK	When the white balance adjustment has been done correctly in the ONE PUSH white balance mode, the message is lit on the screen.
One push WB : NG	When the white balance adjustment has failed in the ONE PUSH white balance mode, the message blinks on the screen.

COLOR SYSTEM

Select the color format for video output from the VIDEO OUT connector.

Select from RGB or YPbPr based on the specifications of the monitor connected.

STATUS Menu

The STATUS menu is used to display the settings selected with the menus.

The STATUS menu consists of PAGE1 to PAGE4. This menu only displays the current menu settings, and you cannot change them with this menu.

PAGE1: Shows the settings selected with the EXPOSURE menu.

PAGE2: Shows the settings selected with the PICTURE menu and the WHITE BALANCE menu.

PAGE3: Shows the settings selected with the PAN TILT ZOOM menu.

PAGE4: Shows the settings selected with the SYSTEM menu and the currently selected video output format, remote commander channel, VISCA communication baud rate, COLOR SYSTEM, SYNC ON VIDEO, and cooling fan status.

Note

SYNC TYPE of the SYSTEM menu appears only when you select the video format for the HD signal output using the SYSTEM SELECT switch on the camera.

The current video format and the VISCA baud rate communication for the camera are displayed. Even if you change the settings after turning on the power, those settings are ignored and are not changed on the display.

Before Operating

Before operating the camera, check that the camera and peripheral devices are properly installed and connected.

For details, see “Setting of the SYSTEM SELECT switch” (page 55), “Installing the Camera” (page 74) and “Connections” (page 75).

Notes

• The supplied remote commander may not work correctly near the inverter lighting fixtures. In such a case, try to install the camera far from the inverted luminaire.
• You can check whether or not the installed location is good for the usage of the remote commander.

For detailed information on how to check, refer to the Technical Manual. For details on obtaining a Technical Manual, consult your Sony dealer.

Turning on the Power

1 Connect the camera to an AC outlet using the supplied AC power adaptor and power cord.

The power is turned on and the POWER lamp lights.

The camera will automatically pan and tilt and be reset to the position stored in POSITION 1 (Pan/tilt reset action).

2 Turn on the peripheral devices.

To turn on/off the camera using the remote commander

As long as the camera is connected to an AC outlet, you can turn the camera on or off with the POWER switch on the remote commander.

When you turn the power off using the remote commander, the POWER lamp turns

off and the STANDBY lamp lights on the camera.

Pan/Tilt and Zoom Operation

Panning and Tilting

1 Press the POWER switch.

The camera will turn on and perform the pan/tilt reset operation automatically.

2 Press the arrow button to pan or tilt the camera.

While checking the picture on the screen, press the desired arrow button.

To move the camera little by little, press the button just for a moment.

To move the camera in a wide range, press and hold the button.

To move the camera diagonally, press the ◀ or ➤ button while holding down the ↑ or ↓ button.

To face the camera back to the front

Press the HOME button.

If you accidentally move the camera with your hand and the STANDBY lamp flashes

Press the PAN-TILT RESET button to perform the pan/tilt reset operation.

If the camera moves in a different direction from the one you intended

The camera is preset so that the image output from the camera is rotated toward the right whenever you press the → button.

To face the camera toward the opposite direction:

You might wish to face the camera toward the opposite direction from that of the button you pressed, for example, when you change the direction of the camera while checking the picture on the screen. In such a case, press the 2 (REV) button while holding down the L/R DIRECTION SET button.

Arrow button	Movement of the camera	Setting
		While holding downPress

To reset the setting

To reset the setting, press the 1 (STD) button while holding down the L/R DIRECTION SET button.

Arrow button	Movement of the camera	Setting
		While holding downPress

Note

The setting above only changes the signal emitted from the remote commander, and does not change the setting of the camera itself. Therefore, repeat the setting for each remote commander if you are using more than one remote commander.

If the STANDBY lamp of the camera flashes

When the camera is moved or turned by hand or by external shock, the microcomputer inside the camera may not be able to memorize the pan/tilt position properly and the camera may stop. To reset the pan/tilt position, press the PAN-TILT RESET button or turn the power of the camera off and, then turn it on again.

Zooming

Press either of the ZOOM buttons.

Subject appears closer. (Telephoto)

Subject appears farther away. (Wide angle)

Zooms in or out fast (FAST side)

Zooms in or out slowly (SLOW side)

Note

When you perform pan/tilt operation while the camera is in the telephoto mode, the moving speed of the image on the screen may be a little jerky.

Operating Multiple Cameras with the Remote Commander

1 Set the IR SELECT switch on the rear of the camera you want to operate to 1, 2 or 3.

2 Press the CAMERA SELECT button on the remote commander that corresponds to the number set in step 1.

Then, you can operate the camera(s) specified by number. Every time you operate the camera(s) using the remote commander, the CAMERA SELECT button pressed in step 2 lights.

Adjusting the Camera

Focusing on a Subject

Focusing the camera on a subject automatically

Press the AUTO button. The camera focuses on the subject at the center of the screen automatically.

Focusing the camera on a subject manually

After pressing the MANUAL button, press either the FAR or the NEAR button to have the camera focus on the subject.

Shooting with Back Lighting

When you shoot a subject with a light source behind it, the subject becomes dark. In such a case, press the BACK LIGHT button.

To cancel the function, press the BACK LIGHT button again.

Note

The BACK LIGHT function is not effective if MODE is set to MANUAL in the EXPOSURE menu of the camera.

Storing the Camera Settings in Memory — the Presetting Feature

Up to six combinations of settings (six positions) including camera position, zooming, focusing, and backlighting, can be preset.

For details of the camera settings to be preset, see "Preset Items" (page 84).

1 Press the PAN-TILT RESET button to reset the pan/tilt position.
2 Adjust the position, zooming, focusing and backlighting of the camera (page 69 to page 71).
3 While holding down the PRESET button, press any of the POSITION buttons, 1 to 6, in which you want to store the settings.

When you set DISPLAY INFO to ON on the SYSTEM menu, the message "PRESET n : OK" automatically appears for about 3 seconds on the monitor screen.

Recalling the stored settings

Press any of the POSITION buttons, 1 to 6, in which you have stored the settings. When you set DISPLAY INFO to ON on the SYSTEM menu, the message "RECALL n : OK" automatically appears for about 3 seconds on the monitor screen.

Cancelling the preset memory

While holding down the RESET button, press the POSITION button from which you want to cancel the settings.

When you set DISPLAY INFO to ON on the SYSTEM menu, the message "RESET n : OK" automatically appears for about 3 seconds on the monitor screen.

Notes

• When the power is turned on, the camera starts with the settings stored in POSITION 1.

• If you want to retain the previous pan and tilt positions, etc. before the power is turned off and turned on again, store those positions in POSITION 1.

• Storing or cancelling the settings in POSITION 1 takes about 2 seconds longer than those of other positions.

• When you are storing or cancelling the settings in one POSITION, you cannot call up, store or cancel the settings in another POSITION.
• When the menu is displayed on the screen, you cannot perform the operation for storing, recalling, or cancelling the setting. Be sure to return to the normal display before starting these operations.
• Storing or cancelling the settings in POSITION 1 takes about 2 seconds longer than those of other positions.
• When you are storing or cancelling the settings in one POSITION, you cannot call up, store or cancel the settings in another POSITION.
• When the menu is displayed on the screen, you cannot perform the operation for storing, recalling, or cancelling the setting. Be sure to return to the normal display before starting these operations.

Installing the Camera

Installing the Camera on a Desk

Place the camera on a flat surface. If you have to place the camera on an inclined surface, make sure that the inclination is less than ±15 degrees to guarantee pan/tilt performance, and take measures to prevent it from falling.

Notes

• Do not grasp the camera head when carrying the camera.
• Do not turn the camera head by hand. Doing so may result in a camera malfunction.

Attaching the Camera to a Tripod

Attach a tripod to the screw hole used for attaching a tripod on the bottom of the camera.

The tripod must be set up on a flat surface and its screws tightened firmly by hand. Use a tripod with screws of the following specifications.

= 5. 5 mm = 7 / 3 2 inches

Caution

Installation of the camera using the tripod screws and screw holes should not be done for installation on a ceiling or a shelf, etc., in a high position.

Installing the Camera Using the M3 Fixing Screw Holes

Attach the camera using 3 M3 fixing screw holes located on the bottom of the camera. Attach the camera to a fitting with a flat surface using M3 screws with the following specifications.

= 3 - 5 mm = 1 / 8 - 7 / 3 2 inches

Connections

Connecting to an AC Outlet

Use the supplied AC power adaptor and AC power cord to connect the camera to an AC outlet.

Connecting a Computer

Note

When you connect a computer to the camera using the VISCA cable (RS-232C cross cable), you can control the camera from a computer instead of the supplied remote commander.

To obtain a cable, consult your Sony dealer. For detailed information on how to connect the camera and the VISCA command list, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

Connecting a Video Monitor, etc., Equipped with an Analog Component Input Connector

Note

Configure the COLOR SYSTEM, VIDEO FORMAT, and sync switch (BOTTOM switch 3) based on the specifications of the HD monitor.

Connecting a Video Monitor, etc., Equipped with an Analog RGB Input Connector

Note

Configure the COLOR SYSTEM, VIDEO FORMAT, and sync switch (BOTTOM switch 3) based on the specifications of the HD monitor.

Connecting a Video Monitor, etc., Equipped with a DVI Input Connector

Notes

• Configure the COLOR SYSTEM and VIDEO FORMAT based on the specifications of the HD monitor.
• Depending on the performance capabilities of the DVI cable, some picture noise may occur. In particular, be sure to use a cable for which performance is guaranteed when using 1920 × 1080p/59.94 or 1920 × 1080p/50 video output format.

Message List

The following messages and indications may appear for this camera. Perform the following as necessary.

Lamp display

Lamp Meaning and solution
The STANDBY lamp and POWER lamp flash slowly in alternation.	Operating the camera in this state may result in malfunction. In this case, “COOLING FAN:NG” appears on PAGE4 of the STATUS menu. Turn off the camera, and consult your Sony dealer.
The STANDBY lamp and POWER lamp are lit.	The SYSTEM SELECT switch is set to “no output” (page 55).

Screen display

Message Meaning and solution
CAUTION COOLING FAN STOPPED!(appears immediately after startup)	Operating the camera in this state may result in malfunction. Turn off the camera, and consult your Sony dealer.
PRESET n:OK(“n” is a preset position number between 1 and 6)	This message appears for about 3 seconds when you store camera settings to POSITION 1 to 6.
RECALL n:OK(“n” is a recall position number between 1 and 6)	This message appears for about 3 seconds when you recall camera settings stored in POSITION 1 to 6.
RESET n:OK(“n” is a reset position number between 1 and 6)	This message appears for about 3 seconds when you reset camera settings stored in POSITION 1 to 6.
One Push WB:OP During the white balance adjustment in the ONE PUSH white balance mode, this message blinks on the screen.
One Push WB:OK When the white balance adjustment has been done correctly in the ONE PUSH white balance mode, this message is lit on the screen.
One Push WB:NG When the white balance adjustment has failed in the ONE PUSH white balance mode, this message blinks on the screen.

Troubleshooting

Before bringing in your camera for service, check the following as a guide to troubleshooting the problem. If the problem cannot be corrected, consult your Sony dealer.

Symptom Cause Remedy
The power of the camera is not turned on.	The AC power adaptor is not connected to the DC IN 12 V jack firmly.	Insert the power cord firmly as far as it will go.
	The AC power cord is not inserted firmly into the AC power adaptor or the AC outlet.	Insert the power cord firmly as far as it will go.
The picture is not displayed on the video monitor connected to the camera.	The video cable is not connected properly.	Check the connection between the camera and video monitor.
	The exposure is not set correctly on the camera.	Set the exposure correctly on the EXPOSURE menu (page 63).
	The SYSTEM SELECT switch on the rear of the camera is not set correctly.	Check the selected output signal format of the camera and the input signal format of the connected monitor.
	The sync is not configured according to the monitor specifications during analog component connection.	Change the setting for BOTTOM switch 3 (page 57).
Color reproduction is not correct.	The COLOR SYSTEM is not configured according to monitor specifications.	Change the COLOR SYSTEM setting on the SYSTEM menu (page 66).
	The sync is not configured according to the monitor specifications during analog RGB connection.	Change the setting for BOTTOM switch 3 (page 57).
Pan, tilt, or zoom cannot be operated.	A menu is displayed on the monitor screen.	Press the DATA SCREEN button on the supplied remote commander to remove the menu from the monitor screen.
	The panning or tilting range is limited.	Change the PAN/TILT LIMIT setting on the PAN TILT ZOOM menu (page 65).
The remote commander does not work.	The CAMERA SELECT button you pressed on the remote commander does not match the number set with the IR SELECT switch on the camera.	Press the CAMERA SELECT button corresponding to the IR SELECT switch setting on the camera (page 71).
The VISCA control is not available with a computer connected to the camera.	The computer is not correctly connected to the camera.	Make sure the connection between the computer and camera is made correctly.
		Check that the baud rate setting (9,600 bps or 38,400 bps) is properly made with the BOTTOM switch on the bottom of the camera (page 57).
		Check that the SYSTEM SELECT switch (page 55) is set to a position in which video signals are output.
The camera cannot be operated at all.	- Pull out the plug of the power	cord from the AC outlet, then reinsert it into the AC outlet after waiting a while.

Menu Configuration

The menus of the camera are configured as described below.

The initial settings of each item are in bold.

PICTURE —— APERTURE —— MIN,1,2,3,4,5,6,7,8,9,10,11,12,13,14,MAX (See page 64.)

Preset Items

The following items set by using the remote commander and menu items can be stored in the memory of the camera.

Items adjusted with the remote commander

• :Setting items retained in memory when the power is turned off and then on again. The camera starts with these settings stored in POSITION 1.
  ○ :Setting items retained in memory when the power is turned off and then on again. – :Setting items cleared from the memory when the power is turned off and then on and reset to the initial settings.

For detailed information on POSITION 1, see “Storing the Camera Settings in Memory — the Presetting Feature” (page 72).

You can store the following items in the memory (POSITION 1), but you can set them only by using the appropriate VISCA command.

• Focus Near Limit
• IR Receive
• IR Receive Return

For detailed information on the VISCA command list, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

Specifications

System

Video signal EVI-HD7V: 1920×1080p/59.94, 1920×1080p/50, 1920×1080p/29.97, 1920×1080p/25, 1920×1080i/59.94, 1920×1080i/50, 1280×720p/59.94, 1280×720p/50, 1280×720p/29.97, 1280×720p/25, 640×480p/59.94 (LB), VISCA CONTROL (switched with the SYSTEM SELECT switch) EVI-HD3V: 1280×720p/59.94, 1280×720p/50, 1280×720p/29.97, 1280×720p/25, 640×480p/59.94 (LB), VISCA CONTROL (switched with the SYSTEM SELECT switch)

Synchronization Internal synchronization Image device 1/3 type (6 mm), CMOS Lens 10× (optical), 40× (digital) f = 3.4 - 33.9 mm, F1.8 - F2.1 Horizontal angle: 8 (TELE end) to 70 degrees (WIDE end) Minimum object distance 100 mm (4 inches) (WIDE end) Minimum illumination 15 lux (F1.8) with 50 IRE Shutter speed 1/50, 1/60 to 1/10,000 sec. Video S/N 50 dB Pan/tilt action Horizontal: ±100 degrees Maximum panning speed: 300 degrees/sec. Vertical: ±25 degrees Maximum tilting speed: 125 degrees/sec.

Input/output connectors

Video output

COMPONENT (VIDEO OUT): DVI-I connector Y: 1 Vp-p (sync, at 75-ohm termination) Pb/Pr: ±350 mVp-p, 75-ohm terminated HD/VD Sync: 3.3 Vp-p DVI Digital VIDEO (VIDEO OUT): DVI-I connector

Control input/output VISCA IN: Mini DIN 8-pin type, RS-232C

VISCA OUT: Mini DIN 8-pin

type, RS-232C

Power connector

JEITA type4 (DC IN 12 V)

General

Input voltage 12 V DC (10.8 to 13.0 V DC)

Current consumption

2.2 A max. (at 12 V DC)

Operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage temperature

-20°C to +60°C (-4°F to 140°F)

Dimensions Video camera: 250 × 152 ×

135 mm (9 7/8 × 6 ×

5 3/8 inches) (w/h/d)

Remote Commander: 56 × 26 ×

210 mm (2 1/4 × 1 1/16 ×

8 3/8 inches) (w/h/d)

Mass Video camera: Approx. 1.5 kg

(3 lb 5 oz)

Remote Commander: 109 g

(3.8 oz)

Installation angle

Less than ±15 degrees to the

horizontal surface

Supplied accessories

AC power adaptor (1)

AC power cord (1)

Remote Commander (1)

Operating Instructions (1)

Design and specifications are subject to change without notice.

Note

Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Dimensions

Top Back

Front Side

Bottom

Within a depth from 5 mm (7/32 inches) or less from the bottom surface.

Within a depth from 3 to 5 mm 3-M3 (1/8 to 7/32 inches) from the bottom surface.

Within a depth from 5 to 7 mm (7/32 to 9/32 inches) from the bottom surface.

Unit: mm (inches)

Pin assignments

VISCA IN connector (mini-DIN 8-pin, female)

VISCA IN

Pin No. Function
1	D	T	R
2	D	S	R
3 TXD IN
4 GND
5 RXD IN
6 GND
7 IR OUT (R)*
8 IR OUT (L)*

* The IR OUT function of pins 7 and 8 is selectable with the BOTTOM switch on the bottom of the camera.

VISCA OUT connector (mini DIN 8-pin, female)

VISCA OUT

VIDEO OUT connector (DVI 29-pin)

Pin No. Function
1 Data_2	-
2 Data_2+
3 Shield (2, 4)	N
4 No connection	N
5 No connection
6 No connection
7 No connection
8 Analog Vertical Sync
9 Data_1	-
10 Data_1+
11 Shield (1, 3)
12 No connection
13 No connection
14 Power_+5 V
15 GND
16 Hot Plug
17 Data_0	-
18 Data_0+
19 Shield (0, 5)
20 No connection
21 No connection
22 Shield Clock
23 Clock+
24 Clock	-
C1 Analog	Red/Pr*
C2 Analog	Green/Y*
C3 Analog	Blue/Pb*
C4 Analog	Horizontal Sync
C5 Analog	GND

* The signals for pins C1, C2, and C3 can be changed with the COLOR SYSTEM setting (page 66).

Appendix

Appendix

この説明書は、再生紙を使用しています。

Printed on recycled paper.

お問い合わせは
