Motion Foundation F1 - Pregnant Martin Logan - Free user manual and instructions

Product Type	Bookshelf Speaker
Model	Motion Foundation F1
Brand	Martin Logan
Driver Complement	1 x 1.25” Folded Motion Tweeter, 1 x 5.25” Aluminum Cone Woofer
Frequency Response	50 Hz – 25 kHz (±3dB)
Sensitivity	92 dB (2.83V @ 1m)
Impedance	4 Ohms (Compatible with 4-8 Ohm amplifiers)
Recommended Amplifier Power	20 – 120 Watts per channel
Dimensions (H x W x D)	12.5” x 7.5” x 9.5” (31.8 x 19.1 x 24.1 cm)
Weight (each)	12 lbs (5.4 kg)
Finish	Available in Black, White, Walnut
Binding Posts	Gold-plated, 5-way bi-wire capable
Grille	Magnetic, cloth-covered
Mounting	Keyhole bracket for wall mounting (sold separately)
Cleaning	Wipe with a dry or slightly damp cloth. Avoid abrasive cleaners.
Safety	Place on a stable surface. Do not expose to moisture or extreme temperatures.
Break-in Period	Recommended 50-100 hours of moderate use for optimal performance.
Spare Parts	Contact Martin Logan authorized service center for replacement drivers or parts.

Frequently Asked Questions - Motion Foundation F1 Martin Logan

What is the recommended amplifier power for the Motion Foundation F1?

The F1 is designed for amplifiers rated between 20 and 120 watts per channel. With a sensitivity of 92 dB, even modest amplifiers can drive them to satisfying levels.

Can I use the F1 as a center channel or surround speaker?

The F1 is primarily a stereo bookshelf speaker, but it can be used as a surround speaker in a home theater setup. For a center channel, Martin Logan offers dedicated center speakers like the Motion Foundation C1.

How should I position the speakers for best sound?

Place the speakers at ear height when seated, at least 6-12 inches from the rear wall. Angle them slightly towards the listening position (toe-in). Avoid corners to prevent bass boom.

Is there a break-in period for the F1?

Yes, Martin Logan recommends a break-in period of 50-100 hours at moderate volume. During this time, the suspension of the drivers will loosen, allowing the speaker to perform at its best.

Can I bi-wire or bi-amp the F1?

Yes, the F1 features dual binding posts that allow for bi-wiring or bi-amping. Remove the jumper plates between the posts to separate the tweeter and woofer circuits.

What is the Folded Motion Tweeter technology?

The Folded Motion Tweeter uses an ultra-thin diaphragm that squeezes air, producing a larger sound wave than a conventional dome tweeter. It results in faster, more detailed highs with less distortion.

How do I clean the speakers?

Use a soft, dry cloth to remove dust. For stubborn marks, slightly dampen the cloth with water. Do not use any chemical cleaners or abrasives that may damage the finish.

What is the warranty on the Motion Foundation F1?

Martin Logan offers a 5-year limited warranty on the speaker drivers and crossover, and a 1-year warranty on the cabinet and finish. Proof of purchase is required.

Can I mount the F1 on a wall?

Yes, the F1 has a keyhole bracket on the back for wall mounting. Use a sturdy wall mount screw and ensure the wall can support the weight. Alternatively, use bookshelf stands.

What gauge speaker wire should I use?

For distances up to 10 feet, 16-gauge wire is sufficient. For longer runs (20-30 feet), use 14-gauge or 12-gauge for minimal resistance and loss.

USER MANUAL Motion Foundation F1 Martin Logan

Diagram of a vertical tower with three circular ovals and a rectangular top panel, no text or symbols present.

F1

Diagram of a vertical speaker tower with three circular speakers and a central screen (no text or symbols)

F2

Simple line drawing of a speaker with two circular components and a rectangular top (no text or symbols)

Simple diagram of three circles with a central square and arrow, no text or symbols present.

B2B1C1

WARNING!

• Refer servicing to a qualified technician.

• To prevent fire or shock hazard, do not expose this module to moisture.
- Turn amplifier off should any abnormal conditions occur.
- Do not drive speaker beyond its rated power.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of potentially "dangerous voltage" within the product's enclosure that may be sufficient to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you.

To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

Connection 6

Single Wire Connection

(F2/F1/B2/B1/C1)....6

Placement

(F2/F1/B2/B1) 7

Frequently Asked Questions....8

Troubleshooting 9

Contacting Customer Service 9

General Information 10

Warranty Information 10

Serial Number....10

Service 10

Specifications 11

Dimensional Drawings....15

Serial Number:

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located near the binding posts and on the product carton.

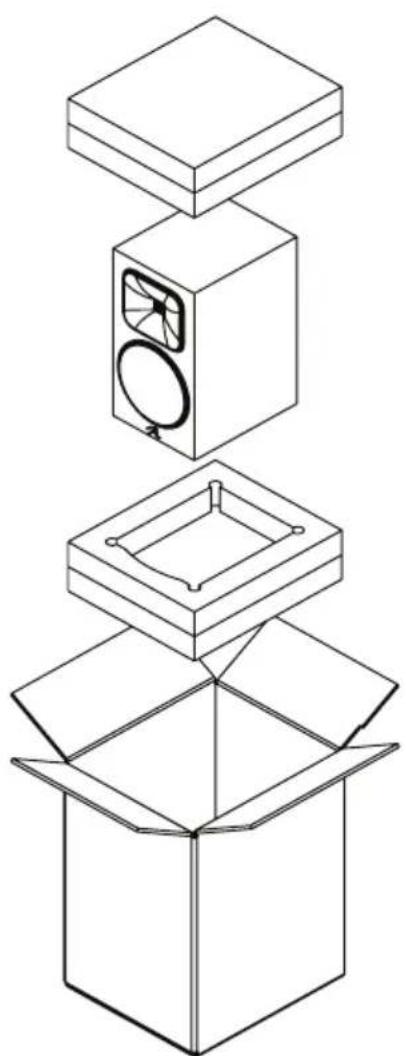

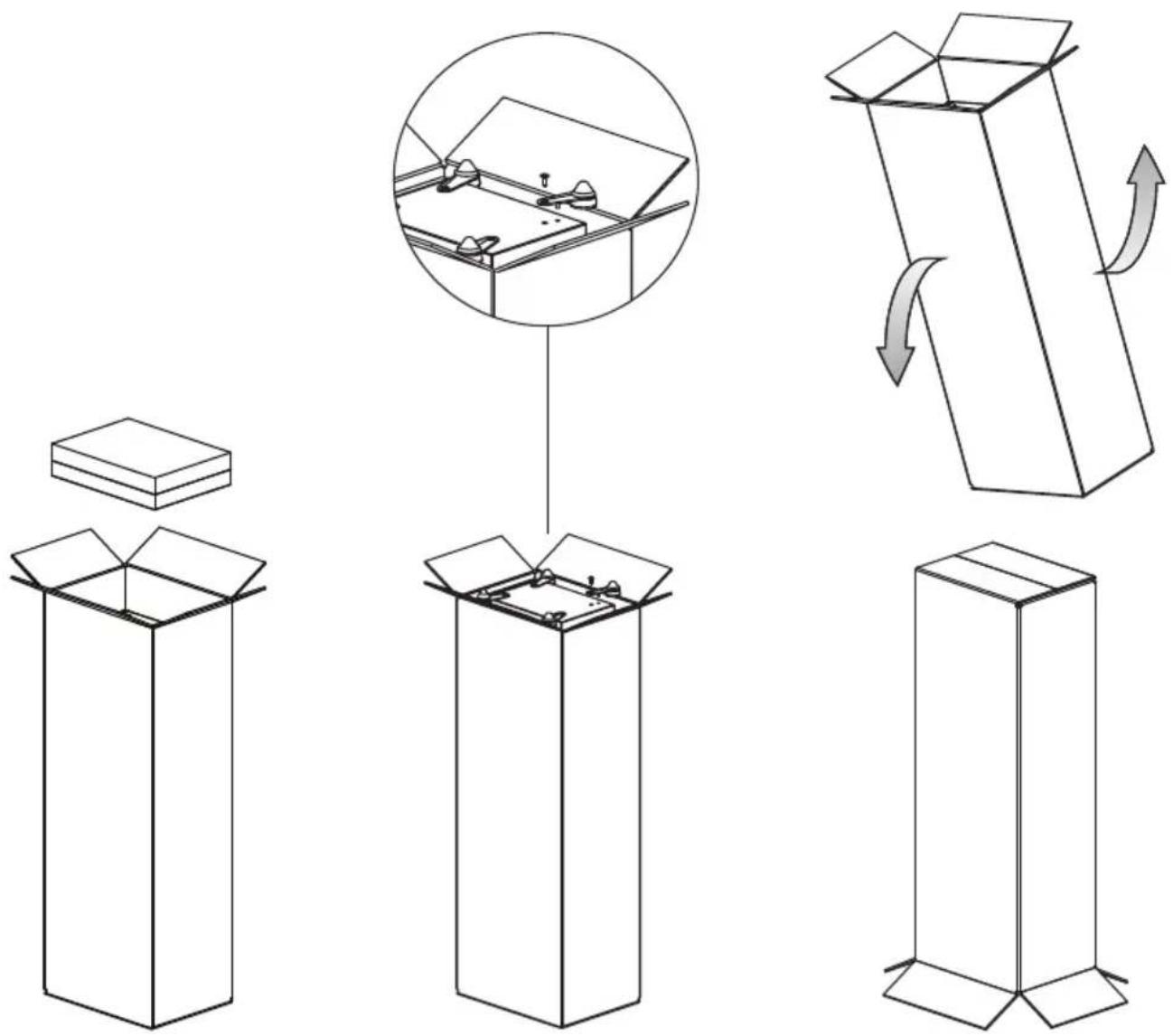

Foundation® F2/F1

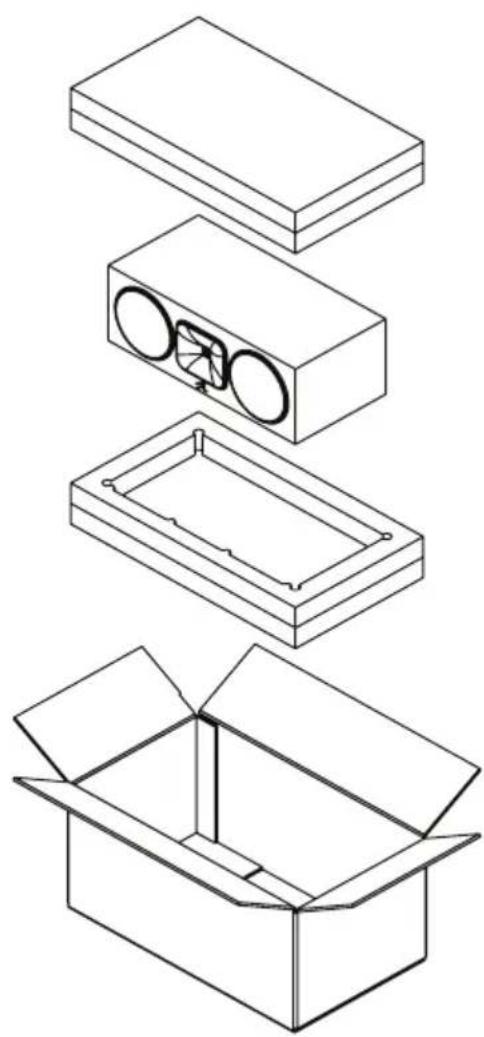

Isometric line drawing of a box with open and closed sections, showing internal components (no text or symbols)

Technical line drawing of a box with open and closed views, showing internal components (no text or symbols)

CONNECTION

WARNING! Turn your amplifier off before making or breaking any signal connections!

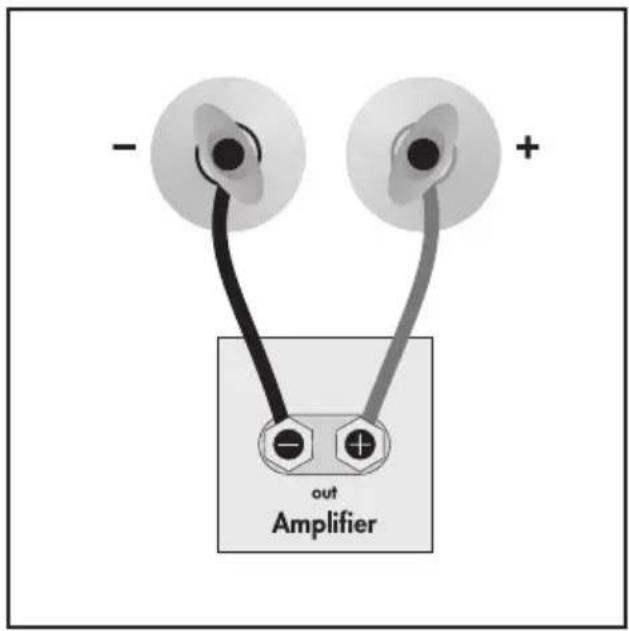

SINGLE WIRE CONNECTION (F2/F1/B2/B1/C1)

- + out Amplifier

PLACEMENT

BREAK IN

72 hrs

Allow approximately 72 hours of break-in at 90 dB (moderate listening levels) before any critical listening.

PLACEMENT

F2/F1/B2/B1 >24" (>61cm) >24" (>61cm) 2x

FREQUENTLY ASKED QUESTIONS

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers. Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Could you suggest a list of suitable electronics and cables ideal for MartinLogan speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Will exposure to sunlight affect the life or performance of my speakers?

We recommend against placing any loudspeaker in direct sunlight. Ultraviolet (UV) rays from the sun can cause deterioration of cabinet, speaker cones, etc. Small exposures to UV will not cause a problem. Filtering of UV rays through glass will greatly reduce the negative effects.

Should I use a 4, 6, or 8 Ohm rated amplifier with my speakers?

All of our Motion ^® series speakers are compatible with 4, 6 or 8 Ohm output audio amplifiers and receivers. Many of the most popular brands of AV receivers and amplifiers with 4, 6 and 8 Ohm output ratings have been thoroughly tested with all of our products and we have found no compatibility issues except under extreme listening conditions. For the best performance and sonic purity when using our Motion ^® series products use of an amplifier or AV receiver with either a 4 or 6 Ohm output is recommended!

TROUBLESHOOTING

No Output

• Check that all system components are turned on and source material is playing.

• Check speaker wires and connections.

• Check all interconnecting cables.

• If you are unable to resolve your problem, please contact your dealer or MartinLogan customer service (see below).

CONTACTING CUSTOMER SERVICE

Phone

[phone]

Monday - Friday

8 AM - 5 PM CT

Email

[e-mail]

Social Media

GENERAL INFORMATION

WARRANTY INFORMATION

Your speakers are provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive a Limited 5 Year Warranty coverage. To obtain the Limited 5 Year Warranty coverage you need to complete and return the Certificate of Registration to MartinLogan within 30 days of purchase. For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file! If you did not receive a Certificate of Registration with your new speakers you cannot be assured of having received new units. If this is the case, please contact your authorized MartinLogan dealer.

SERIAL NUMBER

The serial number is located on back of the speaker, directly beneath the binding posts. The serial number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.

2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner of the MartinLogan product.

3 If, after owning your speaker for six months, you relocate to a country other than the one in which you purchased your speaker, your warranty may be transferable. Contact MartinLogan for details.

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion® Waveguide Enhanced

Tweeter Dispersion (VxH) ....

Sensitivity (2.83 volts/meter) ....

Impedance

Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight.

Dimensions (HxWxD)

Floorstanding model dimensions include the feet.

Depth for all models include the binding posts.

Finishes ....

*Specifications are subject to change without notice.

Foundation® F2

Floorstanding

36 Hz - 23kHz

90^ (vertical) x 90^ (horizontal)

92 dB

4 ohms

330 Hz, 3600 Hz

1" (vertical) x 0.94" (horizontal)

5.5"

6.5"

Rear Ported

15 - 200 watts

5-way Binding Posts (Non Bi-Wire)

52.5lbs / 23.81kg

44.41" × 8.75" × 16.02"

112.8cm × 22.22cm × 40.69cm

Black, Walnut, and Satin White

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion® Waveguide Enhanced

Tweeter Dispersion (VxH) ....

Sensitivity (2.83 volts/meter) ....

Impedance

Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight.

Dimensions (HxWxD)

Floorstanding model dimensions include the feet.

Depth for all models include the binding posts.

Finishes ....

*Specifications are subject to change without notice.

Foundation® F1

Floorstanding

41 Hz - 23 kHz

90^ (vertical) x 90^ (horizontal)

92 dB

4 ohms

240 Hz, 3700 Hz

1" (vertical) x 0.94" (horizontal)

5.5"

5.5"

Rear Ported

15 - 200 watts

5-way Binding Posts (Non Bi-Wire)

46.5lbs / 21.09kg

41.42" × 8.27" × 14.43"

105.2cm × 21cm × 36.65cm

Black, Walnut, and Satin White

Foundation® B2

Bookshelf

42 Hz - 23 kHz

90^ (vertical) x 90^ (horizontal)

90 dB

5 ohms

3800 Hz

1" (vertical) x 0.94" (horizontal)

N/A

N/A

Rear Ported

15 - 100 watts

5-way Binding Posts (Non Bi-Wire)

15lbs / 6.8kg

15.01" × 7.75" × 11.49"

38.12cm × 19.68cm × 29.18cm

Black, Walnut, and Satin White

Foundation® B1

Bookshelf

48 Hz - 23k Hz

90^ (vertical) x 90^ (horizontal)

89 dB

5 ohms

3400 Hz

1" (vertical) x 0.94" (horizontal)

N/A

N/A

Rear Ported

15 - 100 watts

5-way Binding Posts (Non Bi-Wire)

11.5lbs / 5.2kg

13.64" × 7.25" × 9.47"

34.64cm × 18.41cm × 24.05cm

Black, Walnut, and Satin White

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion® Waveguide Enhanced

Tweeter Dispersion (VxH) ....

Sensitivity (2.83 volts/meter) ....

Impedance

Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight.

Dimensions (HxWxD)

Floorstanding model dimensions include the feet.

Depth for all models include the binding posts.

Finishes ....

*Specifications are subject to change without notice.

Foundation® C1

Center Channel

53 Hz - 23 kHz

90^ (vertical) x 90^ (horizontal)

91 dB

4 ohms

2900 Hz, 3200 Hz

1" (vertical) x 0.94" (horizontal)

N/A

N/A

Rear Ported

15 - 150 watts

5-way Binding Posts (Non Bi-Wire)

18lbs / 8.16kg

7.57" × 20" × 10.02"

19.22cm × 50.8cm × 25.45cm

Black, Walnut, and Satin White

F2

FOUNDATION®

by MARTIN LOGAN®

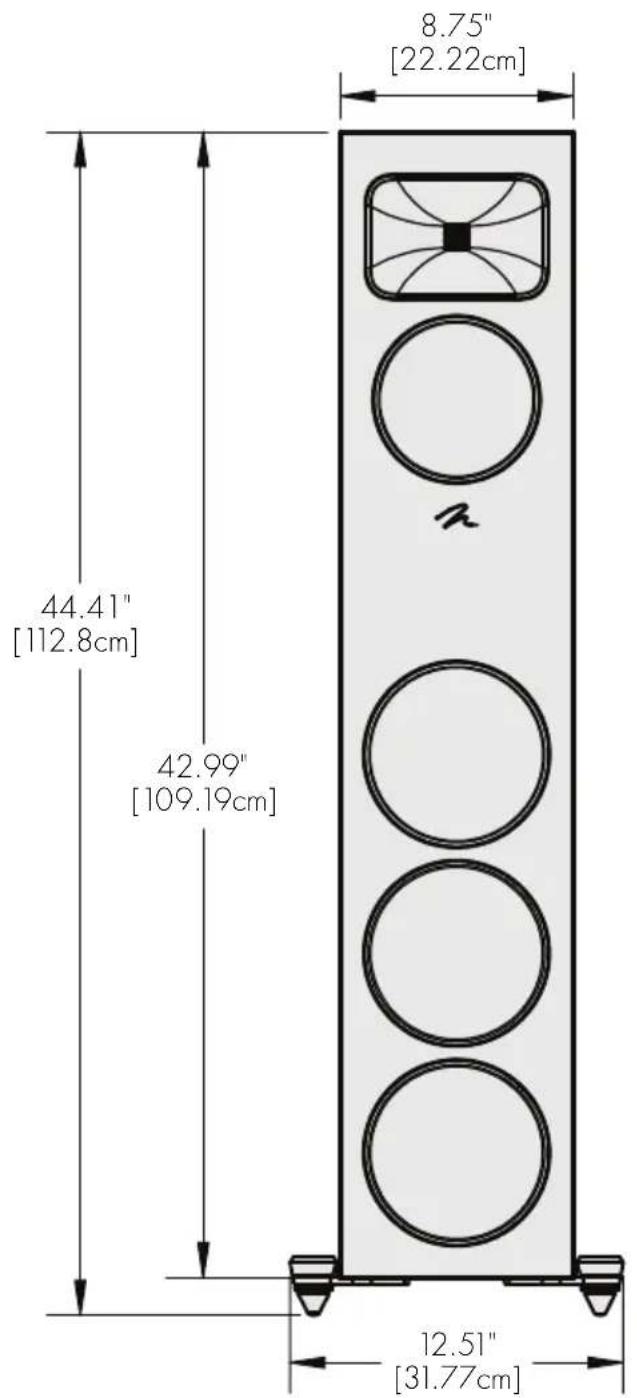

8.75" [22.22cm] 44.41" [112.8cm] 42.99" [109.19cm] 12.51" [31.77cm]

FRONT VIEW

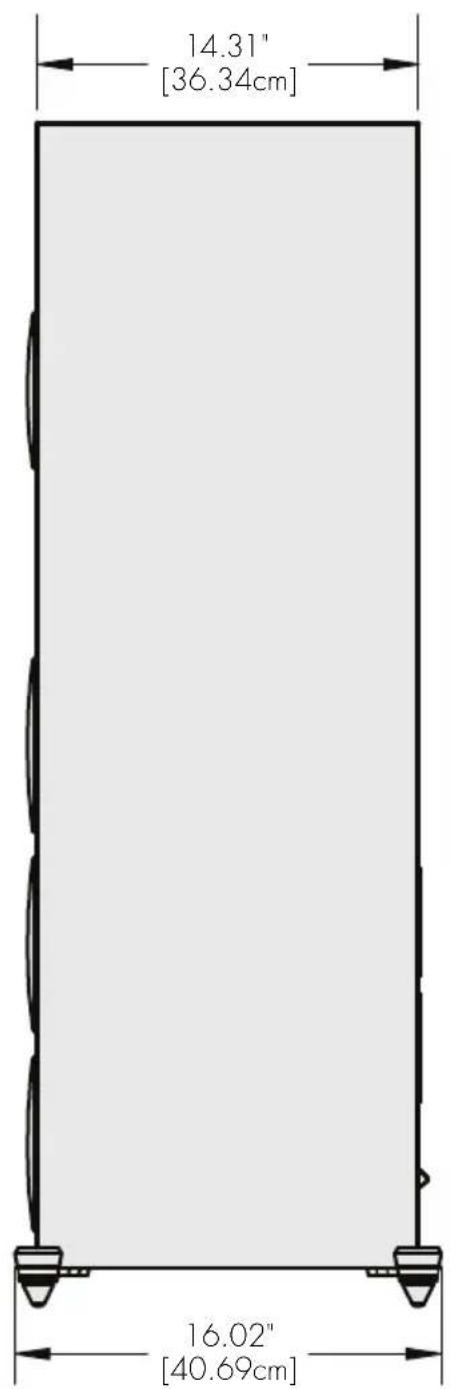

14.31" [36.34cm] 16.02" [40.69cm]

SIDE VIEW

F!

FOUNDATION®

by MARTIN LOGAN®

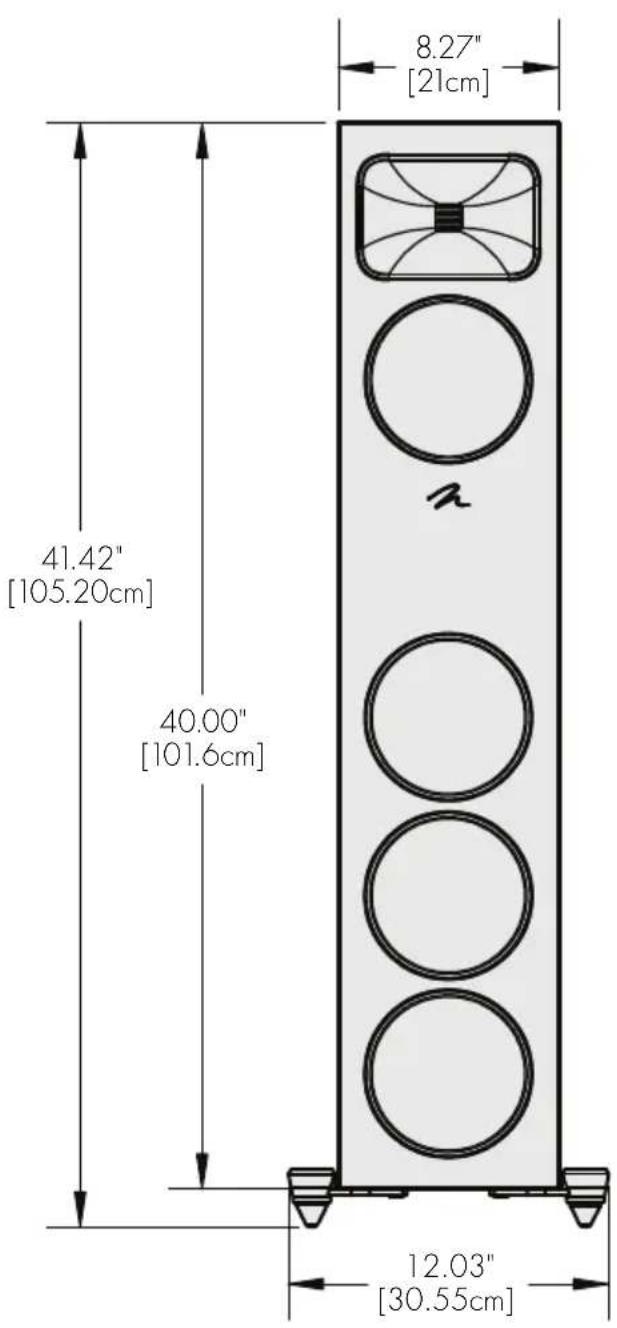

8.27" [21cm] 41.42" [105.20cm] 40.00" [101.6cm] 12.03" [30.55cm]

FRONT VIEW

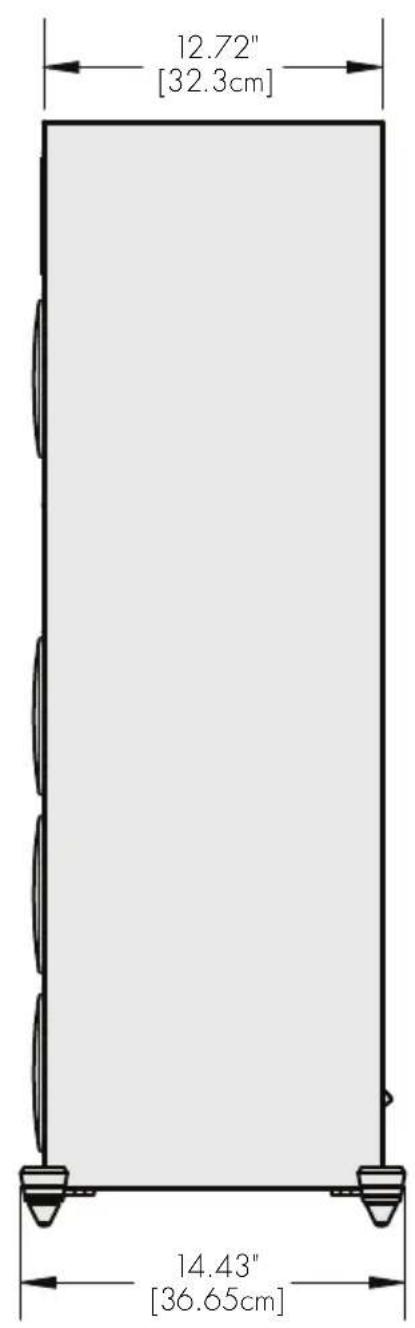

12.72" [32.3cm] 14.43" [36.65cm]

SIDE VIEW

B2

FOUNDATION®

by MARTIN LOGAN®

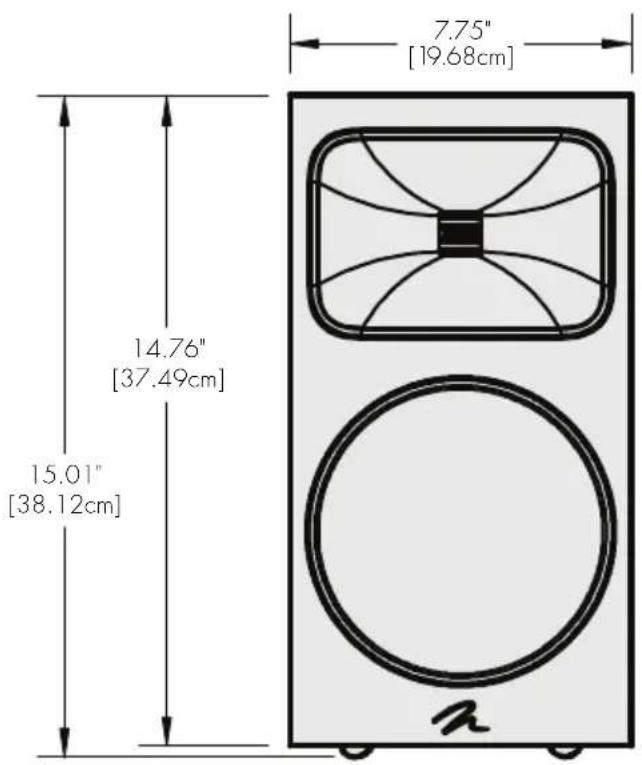

7.75" [19.68cm] 14.76" [37.49cm] 15.01" [38.12cm]

FRONT VIEW

11.13" [28.27cm] 11.49" [29.18cm]

SIDE VIEW

B!

FOUNDATION®

by MARTIN LOGAN®

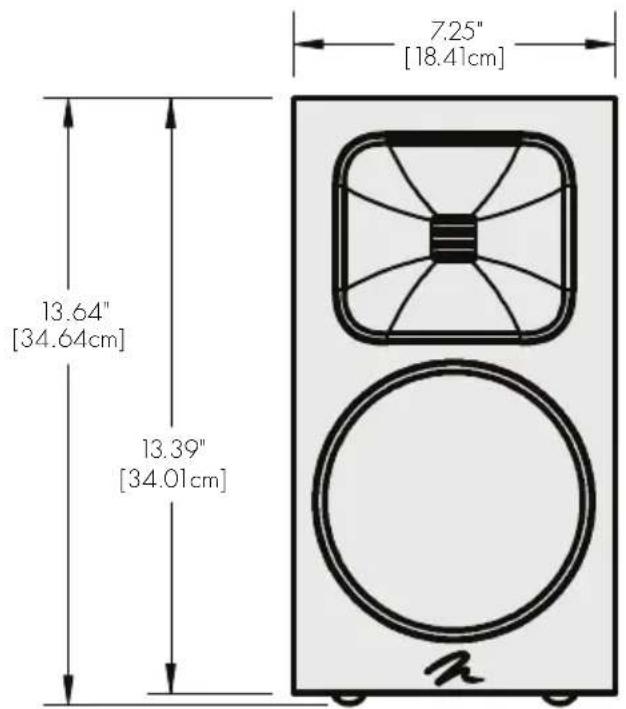

7.25" [18.41cm] 13.64" [34.64cm] 13.39" [34.01cm]

FRONT VIEW

9.12" [23.16cm] 9.47" [24.05cm]

SIDE VIEW

C1

FOUNDATION®

by MARTIN LOGAN®

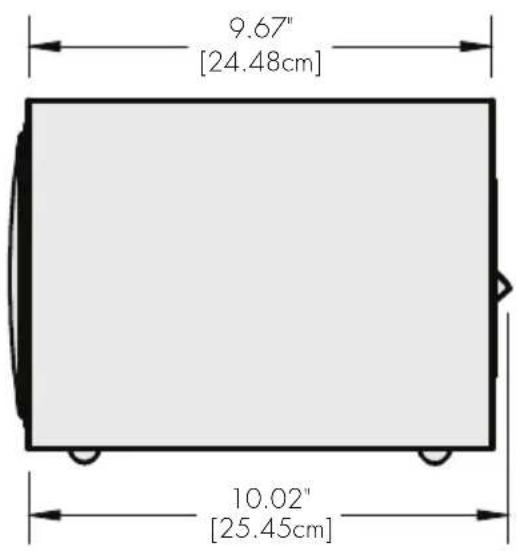

20.00" [50.8cm] 7.25" [18.41cm] 7.57" [19.22cm]

FRONT VIEW

9.67" [24.48cm] 10.02" [25.45cm]

SIDE VIEW

n

MARTIN LOGAN®

Lawrence, Kansas, USA tel. [phone] fax [phone] www.martinlogan.com
