USER MANUAL Motion XT MPlO Martin Logan

Diagram of a device with a labeled component and directional arrow (no text or symbols)

2

1

20°

2

Mounting Screws Required (Not Included):
Please select appropriate mounting screws for your wall material and thickness.

Diagram of a door with a vent and arrow indicating direction (no text or symbols)

2

Line drawing of a human profile viewed from the side, showing head, shoulders, and collar (no text or symbols)

3

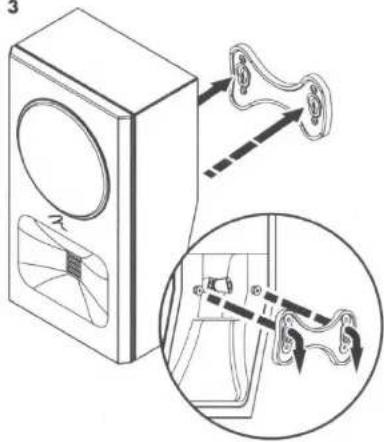

Technical diagram showing a device with labeled components and a close-up of its internal structure, likely illustrating a mechanical or electrical assembly.

n

MARTIN LOGAN®

C10 C100MP10

WARNING!

• Refer servicing to a qualified technician.

• To prevent fire or shock hazard, do not expose this module to moisture.
- Turn amplifier off should any abnormal conditions occur.
- Do not drive speaker beyond its rated power.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of potentially "dangerous voltage" within the product's enclosure that may be sufficient to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you.

To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

Connection 6

Single Wire Connection

(C10/B10/MP10)....6

Single Wire Connection

(F200/F100/C100/B100/F20/F10) . . . 6

Jumper Clips

(F200/F100/C100/B100/F20/F10) . . . 6

Bi-Wire Connection

(F200/F100/C100/B100/F20/F10) . . . 6

Passive Bi-Amplification

(F200/F100/C100/B100/F20/F10) . . . 7

Active Bi-Amplification....7

Placement

(F200/F100/B100/F20/F10/B10) ..... 8

Frequently Asked Questions....9

Troubleshooting.... 10

Contacting Customer Service ..... 10

General Information.... 11

Warranty Information 11

Serial Number....11

Service 11

Specifications 12

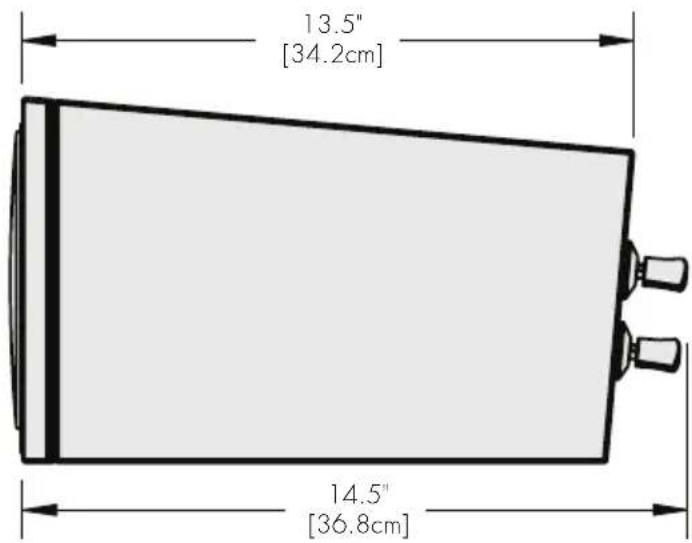

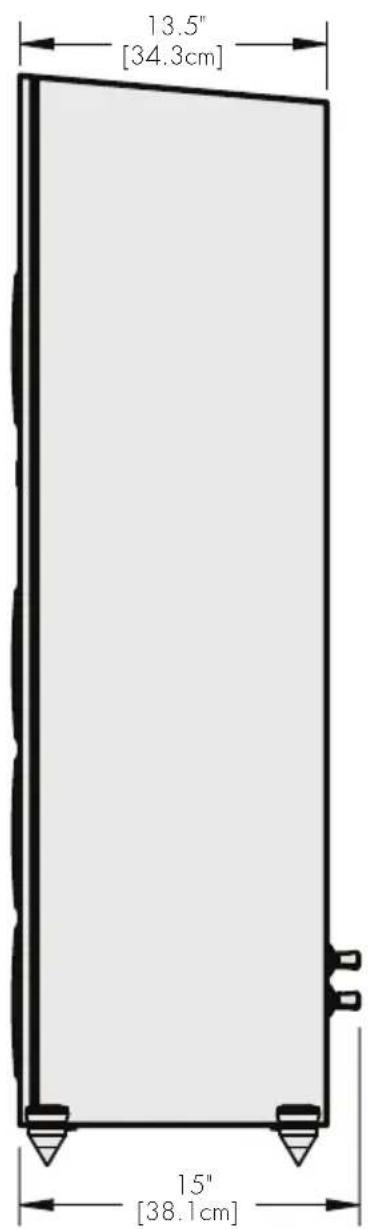

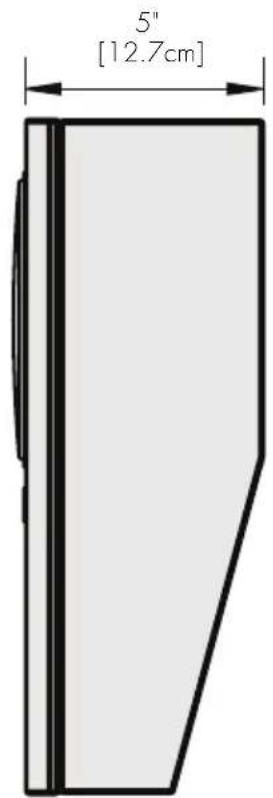

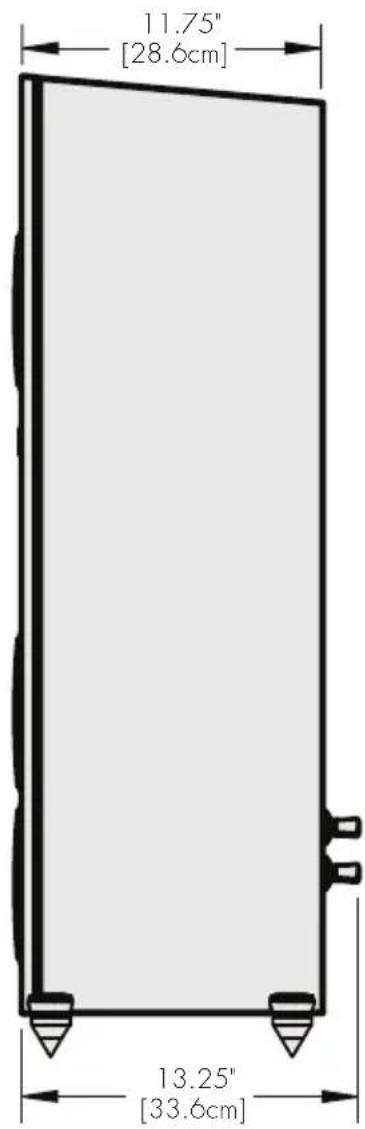

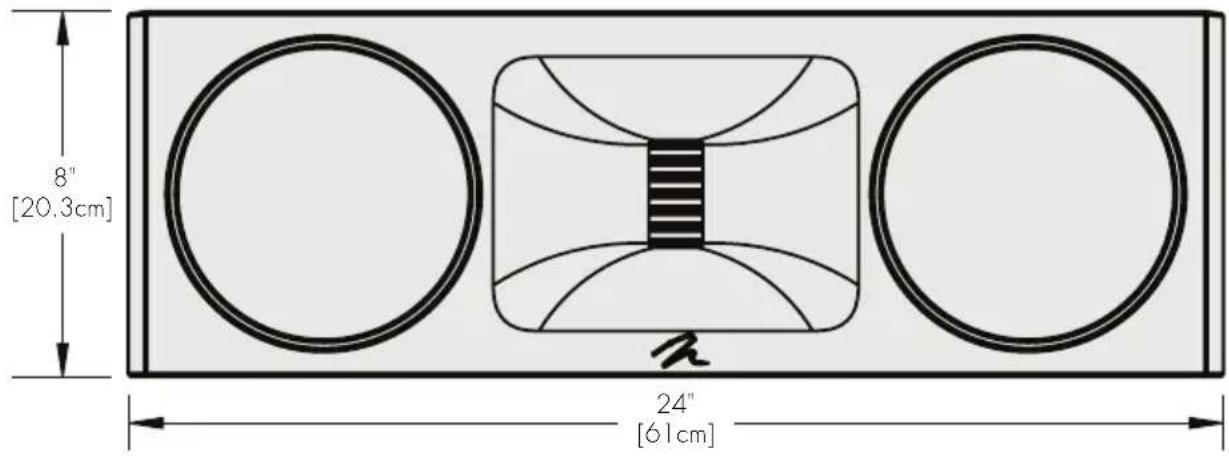

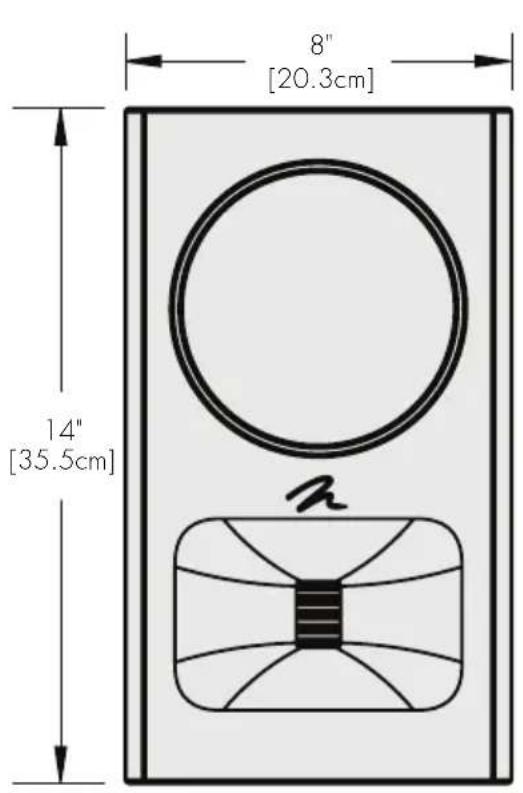

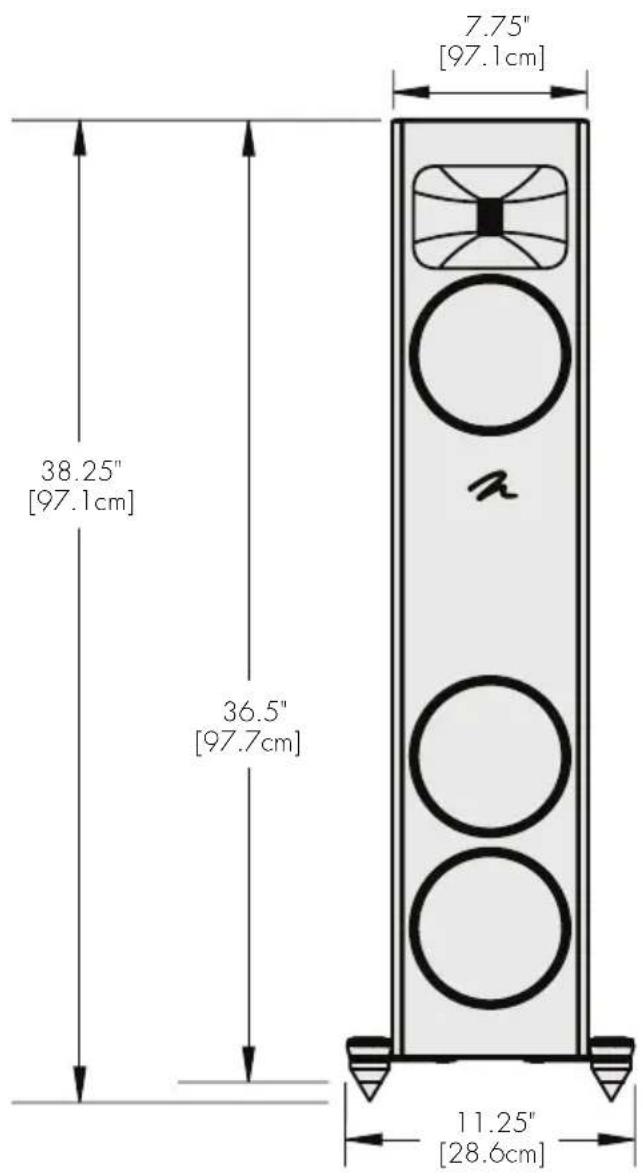

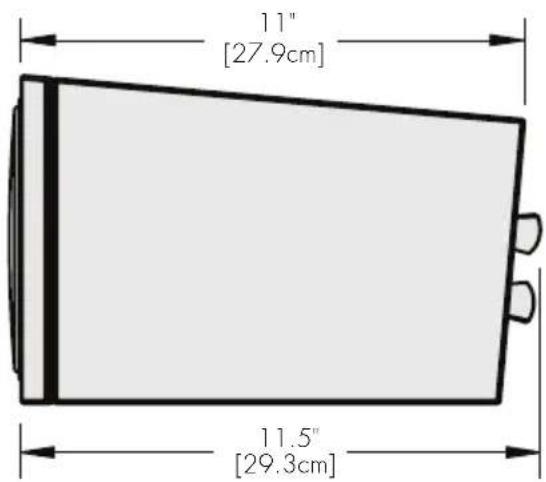

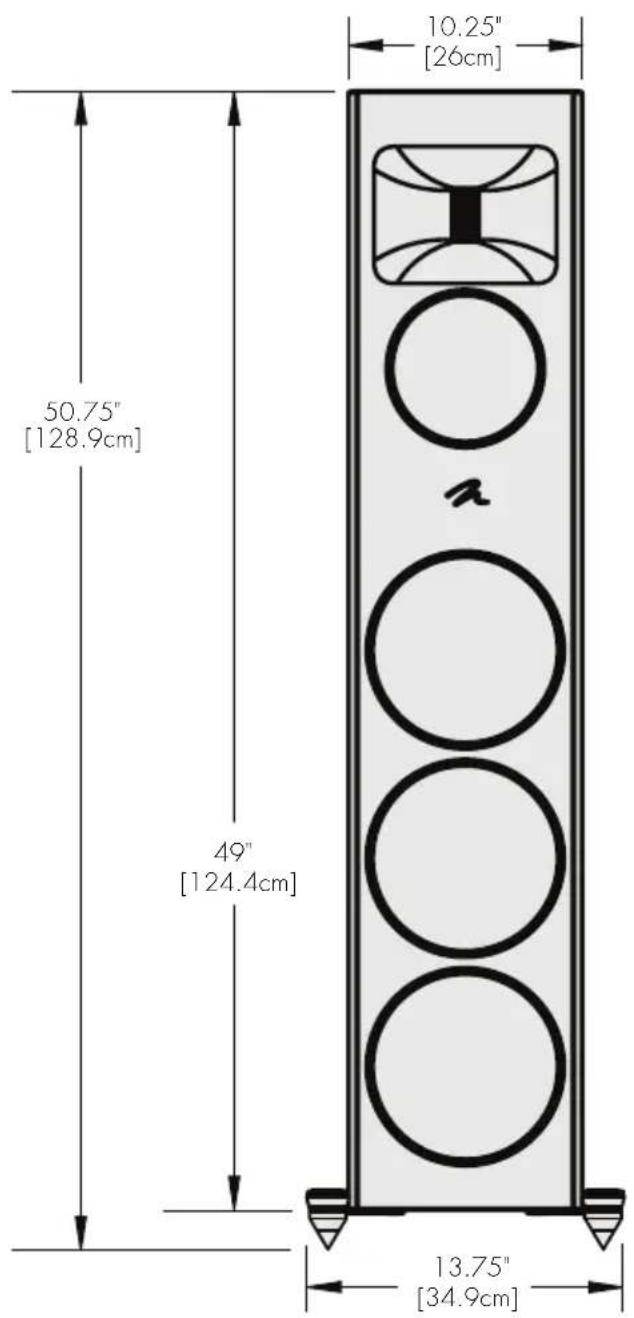

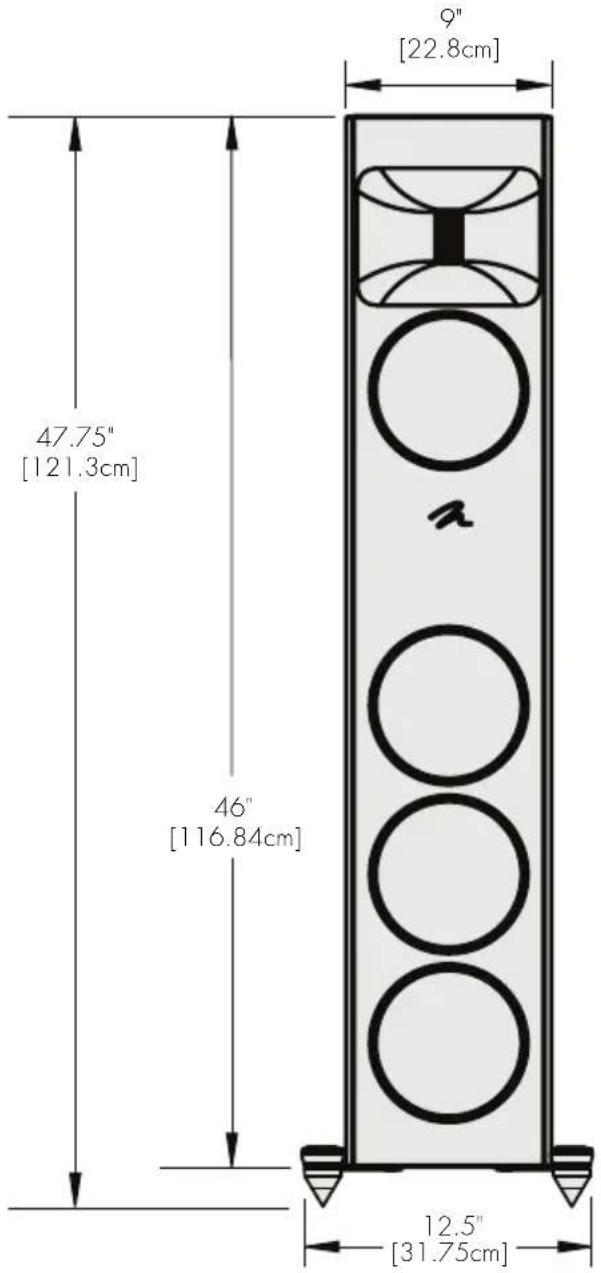

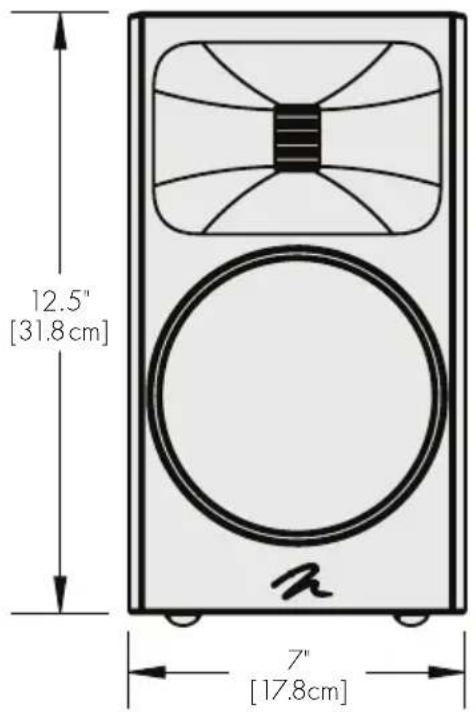

Dimensional Drawings....18

Serial Number: ____

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located near the binding posts and on the product carton.

Motion XT F200/F100

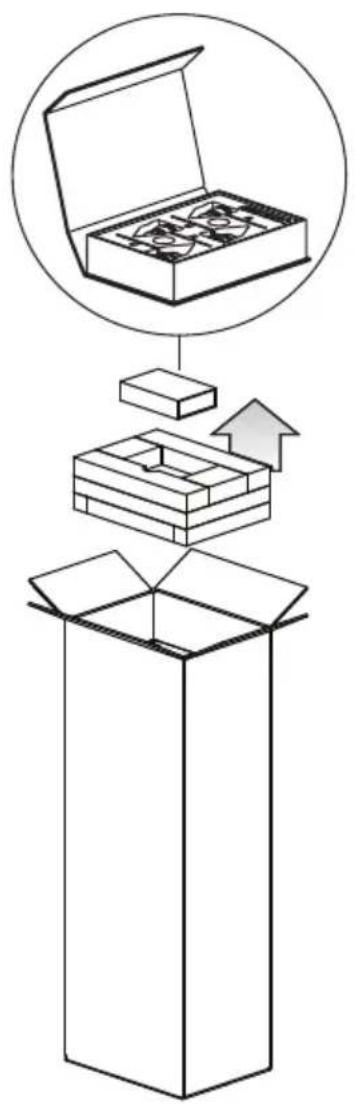

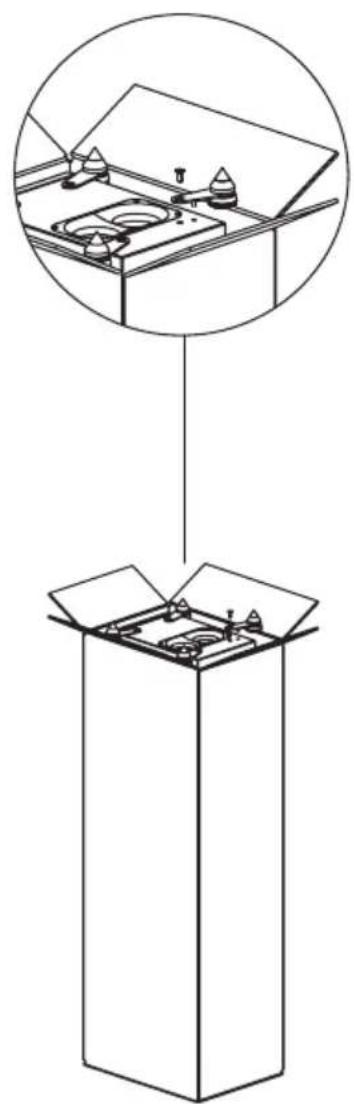

Motion F20/F10

Diagram illustrating the step of adding a box into an open box, showing internal components and an upward arrow.

Diagram showing a box with internal electrical components and a magnified inset of the top view (no text or symbols)

Diagram showing a 3D box being rotated by a curved arrow, with no text or symbols present.

Motion XT B100 Motion B10

Isometric line drawing of a multi-tiered cardboard box assembly (no text or symbols)

Motion XT C100 Motion C10

Isometric line drawing of a cardboard box with internal components, no text or symbols present

Motion MP10

Line drawings of open and closed boxes with internal compartments (no text or symbols)

CONNECTION

WARNING! Turn your amplifier off before making or breaking any signal connections!

SINGLE WIRE CONNECTION (C10/B10/MP10)

- + out Amplifier

JUMPER CLIPS (F200/F100/C100/B100/F20/F10)

WARNING! Only after jumper clips are removed may you connect individual runs of speaker cable from your amplifiers to the high-frequency and low-frequency signal input binding posts. Damage will occur to your amplifiers if the jumper clips are not removed.

In some countries federal law prohibits MartinLogan from supplying jumper clips. If none are found installed under your speakers binding posts, please refer to 'Bi-Wire Connection' for connection instructions.

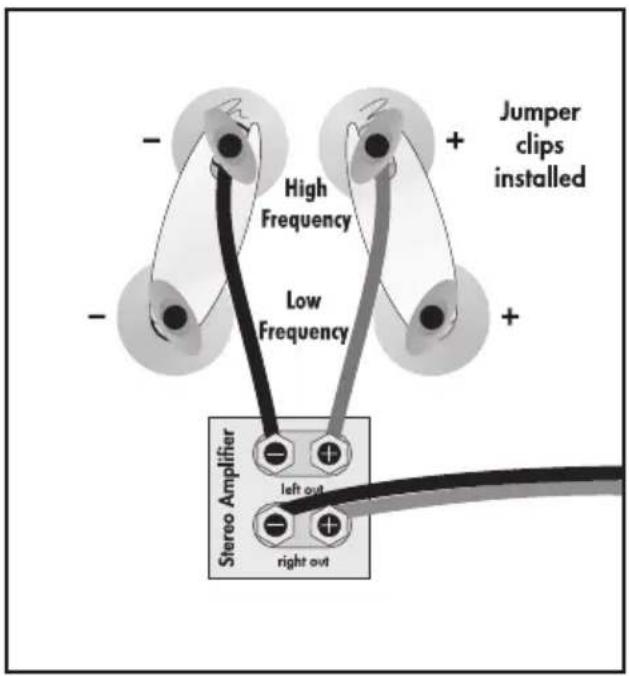

SINGLE WIRE CONNECTION (F200/F100/C100/B100/F20/F10)

Jumper clips installed High Frequency Low Frequency Stereo Amplifier left out right out

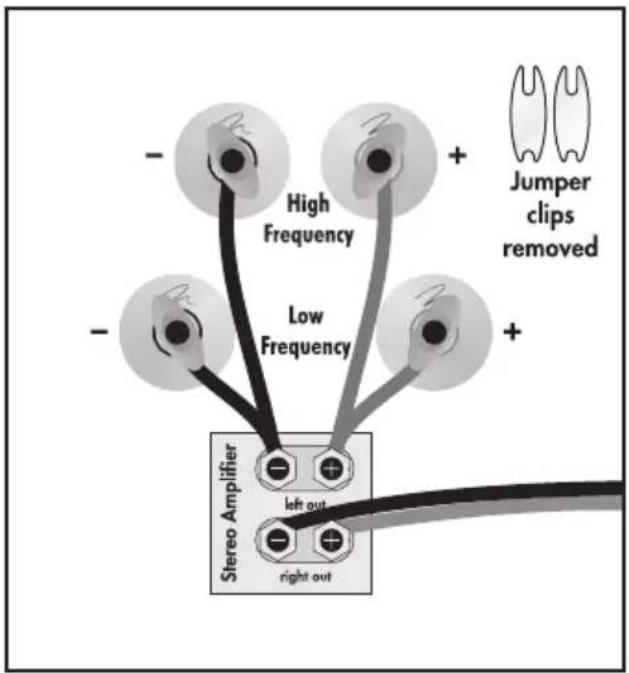

BI-WIRE CONNECTION (F200/F100/C100/B100/F20/F10)


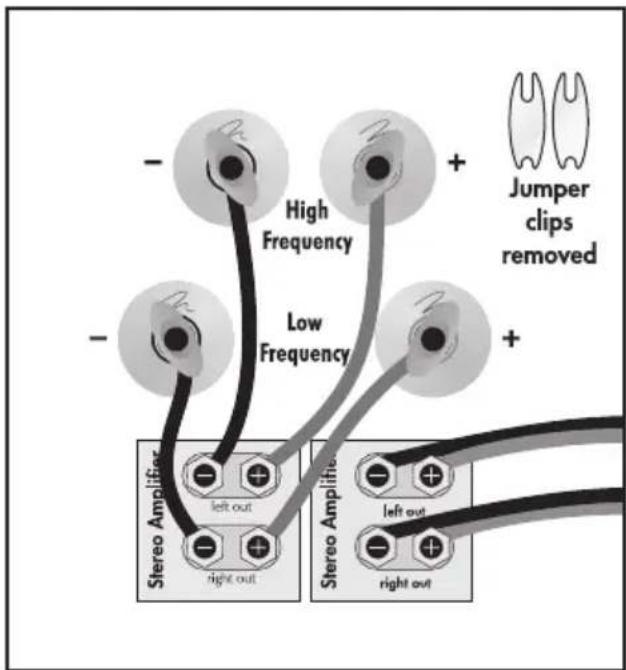

PASSIVE BI-AMPLIFICATION (F200/F100/C100/B100/F20/F10)

Horizontal Passive Bi-Amplification

Vertical Passive Bi-Amplification

High Frequency Low Frequency Jumper clips removed Stereo Amplifier left out right out Stereo Amplifier left out right out

ACTIVE BI-AMPLIFICATION

We do not recommend active bi-amplification. The internal crossover can not be bypassed. This connection method seriously degrades performance.

PLACEMENT

BREAK IN

72 hrs

Allow approximately 72 hours of break-in at 90 dB (moderate listening levels) before any critical listening.

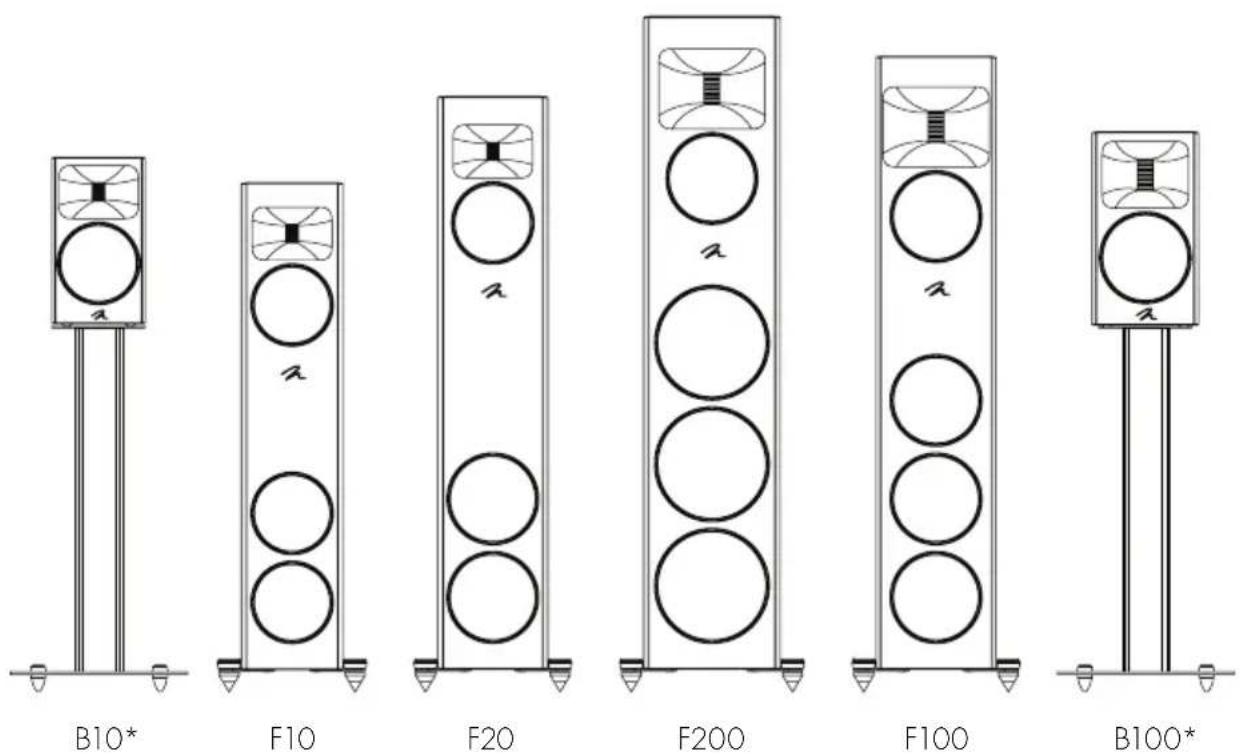

PLACEMENT

F200/F100/B100/F20/F10/B10 >24" (>61cm) >24" (>61cm) 2x

FREQUENTLY ASKED QUESTIONS

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers. Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Could you suggest a list of suitable electronics and cables ideal for MartinLogan speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Is there likely to be any interaction between my speakers and the television in my A/V system?

Yes. These speakers are not shielded and should be kept at least 2 feet away from a CRT television.

Will exposure to sunlight affect the life or performance of my speakers?

We recommend against placing any loudspeaker in direct sunlight. Ultraviolet (UV) rays from the sun can cause deterioration of cabinet, speaker cones, etc. Small exposures to UV will not cause a problem. Filtering of UV rays through glass will greatly reduce the negative effects.

Should I use a 4, 6, or 8 Ohm rated amplifier with my speakers?

All of our Motion series speakers are compatible with 4, 6 or 8 Ohm output audio amplifiers and receivers. Many of the most popular brands of AV receivers and amplifiers with 4, 6 and 8 Ohm output ratings have been thoroughly tested with all of our Motion series products and we have found no compatibility issues except under extreme listening conditions. For the best performance and sonic purity when using our Motion series products use of an amplifier or AV receiver with either a 4 or 6 Ohm output is recommended!

TROUBLESHOOTING

No Output

• Check that all system components are turned on and source material is playing.

• Check speaker wires and connections.

• Check all interconnecting cables.

• If you are unable to resolve your problem, please contact your dealer or MartinLogan customer service (see below).

CONTACTING CUSTOMER SERVICE

Phone

[phone]

Monday - Friday

8 AM - 5 PM CT

Email

[e-mail]

Social Media

GENERAL INFORMATION

WARRANTY INFORMATION

Your speakers are provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive a Limited 5 Year Warranty coverage. To obtain the Limited 5 Year Warranty coverage you need to complete and return the Certificate of Registration to MartinLogan within 30 days of purchase. For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file! If you did not receive a Certificate of Registration with your new speakers you cannot be assured of having received new units. If this is the case, please contact your authorized MartinLogan dealer.

SERIAL NUMBER

The serial number is located on back of the speaker, directly beneath the binding posts. The serial number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.

2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner of the MartinLogan product.

3 If, after owning your speaker for six months, you relocate to a country other than the one in which you purchased your speaker, your warranty may be transferable. Contact MartinLogan for details.

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion Waveguide Enhanced Tweeter Dispersion (VxH) ....

Sensitivity (2.83 volts/meter) ....

Impedance Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight....

Dimensions (HxWxD) Floorstanding model dimensions include the feet. Depth for all models include the binding posts.

Finishes ....

Motion XT F200

Floorstanding

27 Hz - 25k Hz ± 3 dB

45^ × 90^

92 dB

4 ohms

300Hz, 2600Hz (3-way)

1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm

6.5" (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction.

3x 8" (20.3cm)aluminum cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction

Bottom Ported

20 - 600 watts

Custom bi-amp/bi-wire capable 5-way binding posts

86lbs / 39kg

50-3/4" × 13-3/4" × 16-1/2" 14.6cm × 34.9cm × 41.9cm

Gloss Black, Walnut, and Satin White

Motion XT F100

Floorstanding

$$ 3 1 \mathrm{Hz} - 2 5 \mathrm{kHz} \pm 3 \mathrm{dB} $$

$$ 4 5 ^ {\circ} \times 9 0 ^ {\circ} $$

92 dB

4 ohms

280 Hz, 2600 Hz (3-way)

1.25" x 2.4" (3.2 x 6.1 cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm

6.5" (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction.

3x 6.5" (16.5cm) aluminum cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.

Bottom Ported

20 - 450 watts

Custom bi-amp/bi-wire capable 5-way binding posts

76lbs / 34.5kg

$$ \begin{array}{l} 4 7 - 3 / 4 ^ {\prime \prime} \times 1 2 - 1 / 2 ^ {\prime \prime} \times 1 3 - 1 / 2 ^ {\prime \prime} 1 2 1. 3 \mathrm{cm} \times \ 8 8. 6 \mathrm{cm} \times 3 4. 3 \mathrm{cm} \end{array} $$

Gloss Black, Walnut, and Satin White

Motion XT C100

Center Channel

$$ 4 2 \mathrm{Hz} - 2 5 \mathrm{kHz} \pm 3 \mathrm{dB} $$

$$ 4 5 ^ {\circ} \times 9 0 ^ {\circ} $$

93 dB

5 ohms

1,300 Hz, 2,500 Hz (2.5-way)

1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm

2x 6.5" (16.5cm) Nomex Reinforced Kevlar ^® cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction. Anti-lobing 2.5-way crossover design.

一

Rear Ported

20 - 300 watts

Custom bi-amp/bi-wire capable 5-way binding posts

34lbs / 15.4kg

$$ 8 ^ {\prime \prime} \times 2 4 ^ {\prime \prime} \times 1 4 - 1 / 2 ^ {\prime \prime} 2 0. 3 \mathrm{cm} \times 6 1 \mathrm{cm} \times 3 6. 8 \mathrm{cm} $$

Gloss Black, Walnut, and Satin White

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion Waveguide Enhanced Tweeter Dispersion (V×H) ....

Sensitivity (2.83 volts/meter) ....

Impedance Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight....

Dimensions (HxWxD) Floorstanding model dimensions include the feet. Depth for all models include the binding posts.

Finishes ....

Motion XT B100

Bookshelf

45 Hz - 25 kHz ± 3 dB

45^ × 90^

93 dB

4 ohms

2,600 Hz (2-way)

1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm

6.5" (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Unibody cone construction.

Rear Ported

20 - 250 watts

Custom bi-amp/bi-wire capable 5-way binding posts

20.5lbs / 9.3kg

14-1/2" × 8" × 12-1/2"

36.8cm × 20.3cm × 31.8cm

Gloss Black, Walnut, and Satin White

Motion F20

Floorstanding

$$ 3 5 \mathrm{Hz} - 2 5 \mathrm{kHz} \pm 3 \mathrm{dB} $$

$$ 9 0 ^ {\circ} \times 9 0 ^ {\circ} $$

92 dB

4 ohms

230 Hz, 2,600 Hz (3-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm

5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non-resonant sealed chamber format. Unibody cone construction.

2x 6.5" (16.5cm) aluminum cones with cast polymer baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.

Bottom Ported

20 - 300 watts

Custom bi-amp/bi-wire capable 5-way binding posts

60lbs / 27.2kg

$$ 4 4 - 3 / 4 ^ {\prime \prime} \times 1 1 - 3 / 4 ^ {\prime \prime} \times 1 4 - 1 / 4 ^ {\prime \prime} $$

$$ 1 1 2. 7 \mathrm{cm} \times 2 9. 8 \mathrm{cm} \times 3 6. 2 \mathrm{cm} $$

Gloss Black, Walnut, and Satin White

Motion F10

Floorstanding

$$ 3 8 \mathrm{Hz} - 2 5 \mathrm{kHz} \pm 3 \mathrm{dB} $$

$$ 9 0 ^ {\circ} \times 9 0 ^ {\circ} $$

92 dB

4 ohms

280 Hz, 3,000 Hz (3-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) dia-phragm

5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non-resonant sealed chamber format. Unibody cone construction.

2x 5.5" (14cm) aluminum cones with cast polymer baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.

Bottom Ported

20 - 250 watts

Custom bi-amp/bi-wire capable 5-way binding posts

50.5lbs / 22.9kg

$$ 3 8 - 1 / 4 ^ {\prime \prime} \times 1 1 - 1 / 4 ^ {\prime \prime} \times 1 3 - 1 / 4 ^ {\prime \prime} 9 7. 1 \mathrm{cm} \times $$

28.6cm × 7.6cm

Gloss Black, Walnut, and Satin White

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion Waveguide Enhanced Tweeter Dispersion (V×H) ....

Sensitivity (2.83 volts/meter) ....

Impedance Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight....

Dimensions (HxWxD) Floorstanding model dimensions include the feet. Depth for all models include the binding posts.

Finishes ....

*Specifications are subject to change without notice.

Motion C10

Center Channel

63 Hz - 25 kHz ± 3 dB

90^ × 90^

93 dB

4 ohms

1000 Hz, 2,000 Hz (2.5-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm

2x 5.5" (14cm) Woven Fiberglass cones with cast polymer baskets. Non-resonant sealed chamber format. Unibody cone construction. Anti-lobing 2.5-way crossover design.

Rear Ported

20 - 200 watts

Custom 5-way binding posts

23.5lbs / 10.7kg

7-1/4" × 19" × 11-1/2"

18.4cm × 48.3cm × 29.3cm

Gloss Black, Walnut, and Satin White

Motion B10

Bookshelf

$$ 5 6 \mathrm{Hz} - 2 5 \mathrm{kHz} \pm 3 \mathrm{dB} $$

$$ 9 0 ^ {\circ} \times 9 0 ^ {\circ} $$

92 dB

5 ohms

2,370 Hz (2-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm

5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Unibody cone construction.

Rear Ported

20 - 200 watts

Custom 5-way binding posts

14.5lbs / 6.6kg

12-1/2" × 7" × 9-3/4"

31.8cm × 17.8cm × 24.8cm

Gloss Black, Walnut, and Satin White

Motion MP10

Multi-Purpose

$$ 8 1 \mathrm{Hz} - 2 5 \mathrm{kHz} \pm 3 \mathrm{dB} $$

$$ 9 0 ^ {\circ} \times 9 0 ^ {\circ} $$

9

2 dB

5 ohms

2,100 Hz (2-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) dia-phragm

5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Unibody cone construction.

Stealth Rear Ported

20 - 200 watts

Custom 5-way binding posts

9.7lbs / 4.4kg

14" × 8" × 5"

Gloss Black, Walnut, and Satin White

F200

MOTION XT®

by MARTIN LOGAN®

50.75" [128.9cm] 49" [124.4cm] 13.75" [34.9cm] 10.25" [26cm]

FRONT VIEW

15" [38.1cm] 16.5" [41.9cm]

EW

F100

MOTION XT®

by MARTIN LOGAN®

47.75" [121.3cm] 46" [116.84cm] 9" [22.8cm] 12.5" [31.75cm]

FRONT VIEW

13.5" [34.3cm] 15" [38.1cm]

SIDE VIEW

C100

MOTION XT®

by MARTIN LOGAN®

8" [20.3cm] 24" [61cm]

FRONT VIEW

13.5" [34.2cm] 14.5" [36.8cm]

SIDE VIEW

B100

MOTION XT®

by MARTIN LOGAN®

14.5" [36.8cm] 8" [20.3cm]

FRONT VIEW

11" [27.9cm] 12.5" [31.8cm]

SIDE VIEW

F20

MOTION®

by MARTIN LOGAN®

44.75" [112.7cm] 43" [109.2cm] 8.25" [20.9cm] 11.75" [29.8cm]

FRONT VIEW

12.75" [32.3cm] 14.25" [36.2cm]

SIDE VIEW

F10

MOTION®

by MARTIN LOGAN®

38.25" [97.1cm] 36.5" [97.7cm] 7.75" [97.1cm] 11.25" [28.6cm]

FRONT VIEW

11.75" [28.6cm] 13.25" [33.6cm]

SIDE VIEW

C10

MOTION®

by MARTIN LOGAN ^®

7.25" [18.4cm] 19" [48.3cm]

FRONT VIEW

11" [27.9cm] 11.5" [29.3cm]

SIDE VIEW

B10

MOTION®

by MARTIN LOGAN®

12.5" [31.8cm] 7" [17.8cm]

FRONT VIEW

9.5" [24.1cm] 9.75" [24.8cm]

SIDE VIEW

MP10

MOTION®

by MARTIN LOGAN®

8" [20.3cm] 14" [35.5cm]

FRONT VIEW

5" [12.7cm]

SIDE VIEW

n

MARTIN LOGAN®

Lawrence, Kansas, USA tel. [phone] fax [phone] www.martinlogan.com
