Product Type	Air Fryer
Brand	Electroline
Model	ELNEXTAIRFRYER385BTR
Capacity	5.5 L
Power	1500 W
Voltage	220-240 V
Frequency	50/60 Hz
Temperature Range	80°C - 200°C
Timer	0-60 minutes
Dimensions (L x W x H)	30 x 30 x 35 cm
Weight	5.2 kg
Functions	Air frying, roasting, baking, reheating
Presets	8 automatic programs
Material	Stainless steel body, non-stick basket
Cleaning	Dishwasher-safe basket, wipe-clean interior
Safety Features	Auto shut-off, overheat protection, cool-touch handle
Spare Parts Available	Yes, via manufacturer
Repairability	Modular design, service centers available

Frequently Asked Questions - ELNEXTAIRFRYER385BTR Electroline

How to preheat the Electroline ELNEXTAIRFRYER385BTR?

Select the desired temperature and let the air fryer run empty for 3-5 minutes before adding food.

Can I use aluminum foil or parchment paper in the air fryer?

Yes, but ensure it does not block airflow. Use only in the basket, not touching the heating element.

What is the maximum capacity for frying frozen fries?

Do not fill the basket more than half full for even cooking. Recommended 500g of frozen fries.

How do I clean the air fryer basket?

The basket is dishwasher safe. Hand wash with warm soapy water and a non-abrasive sponge if preferred.

Why is my air fryer smoking?

Excess oil or food residue can cause smoke. Clean thoroughly and avoid overfilling with oily foods.

Can I cook multiple batches without cooling down?

Yes, the air fryer can be used continuously. Allow a 30-second cooldown between batches for safety.

What does the ELNEXTAIRFRYER385BTR model number mean?

It indicates the series (ELNEXTAIRFRYER) and specific features (385BTR). Refer to the manual for details.

How to adjust cooking time and temperature manually?

Use the +/- buttons to set time (0-60 min) and temperature (80-200°C). The display shows current settings.

Is the air fryer noisy?

It operates at around 50-60 dB, similar to a microwave. Fan noise is normal.

What spare parts are available for this model?

Replacement baskets, racks, and power cords are available from Electroline's official spare parts service.

USER MANUAL ELNEXTAIRFRYER385BTR Electroline

Abstract white curved line on black background, resembling a stylized 'E' or logo (no text or symbols)

electroline

Line drawing of a modern air fryer with control panel and side arm (no text or symbols)

1,8 litri

Capacità

60'

Timerfino a

1000W

Potenza

Fig. 1

Fig.2

Line drawing of a kitchen blender with a side panel and handle (no text or symbols)

Fig. 3

Diagram showing a coffee maker being processed from a stand mixer (no text or symbols present)

Fig. 4

Fig. 5

Fig. 6

Fig.7

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Thank you very much for purchasing our product.

We kindly ask you to read and save this instruction manual carefully as it provides important information on safe use and maintenance.

INDEX

1 Safety warning
2 Product Description
3 Before first use
4 Operation
5 Cleaning and maintenance
6 Troubleshooting
7 Technical specifications
8 Dispose
9 Warranty and Compliance

1 Safety warning

Warning:

• After the operation is completed, when pulling out the basket, pull the handle directly, place the basket on the table, pour out the ingredients, and allow it to cool for a period of time.

- Be sure to place the food on the rack without exceeding the edge of the basket to avoid contact with the heating element.

When in use, do not cover its air inlet and outlet. Do not pour oil into the basket, as this is a fire hazard.

- Before connecting the product to the power supply, please check whether the voltage marked on the product matches the local power supply voltage; if the plug, power cord or the product itself is damaged, do not use the product.

- If the power cord is damaged, it must be repaired by professionals.

• This equipment is not intended to be operated by people without experience or knowledge

(including children) unless they have been given supervision or someone is responsible for their safety when using the equipment.

- Keep the power cord away from hot surfaces.

- The product must be plugged into a grounded outlet and be sure it is plugged in correctly.

- This device emits heat while in use; ensure that there is plenty of space around the device when in use, and do not place near other items or appliances.

- Do not use this product for any other purpose beyond the scope of this manual.

- Do not use this product near curtains and other combustible materials (or under cupboards), due to the risk of fire.

- Caution of surface temperature to prevent burns.

• This product is for indoor use only.

- This product should only be repaired by authorized professionals. Do not attempt to repair the product yourself.

- This product is designed to be used in an ambient temperature between 5°C and 40°C.

• Always unplug the product after use.
- When turning food, avoid touching the basket and the product heating area to prevent burns.
- The product needs to be cooled to room temperature before handling or cleaning.
• After cooking, dispose of all remaining food items from the basket.
- When using the product for the first time, there will be a slight smell or light smoke.
- When cooking food with a high oil content, a small amount of smoke may appear, and the surface of the product may be hotter than normal.

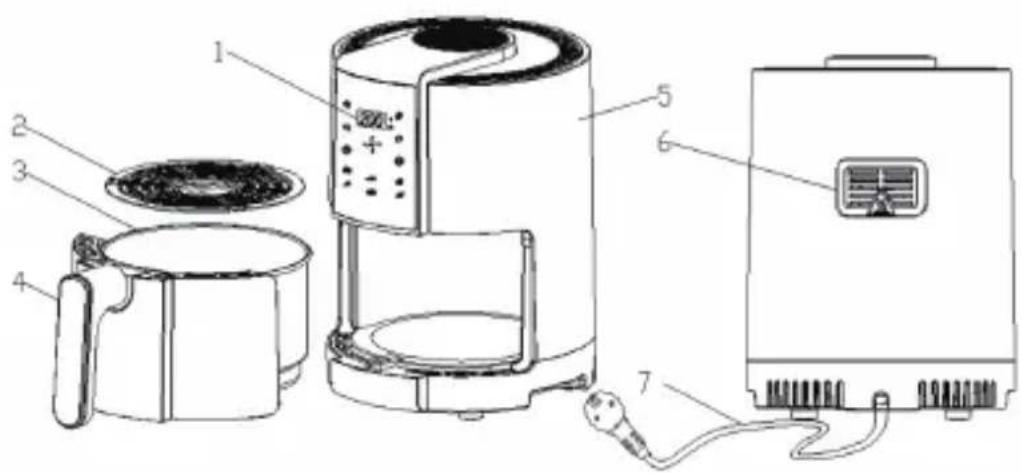

2 Product description

Fig. 1

1. Control Panel
2. Tray
   3.Basket
3. Handle
   5.Main body
4. Air outlet
   7.power cable

3 Before first use

• Make sure the device is placed on a flat and stable surface.

- Before connecting the product to the power supply, please check whether the voltage marked on the product matches the local power supply voltage. If the plug, power cord or the product itself is damaged, do not use the product.

• If the power cord is damaged, it must be repaired by authorized professionals.

- This product is not intended to be operated by people without experience or knowledge of use (including children) unless supervised.

- Keep the power cord away from hot surfaces.

- The product must be plugged into a grounded outlet and be sure it is plugged in correctly.

- The unit will give off some heat. Leave enough space around the device when using it, and do not place it near other items or electrical appliances.

• Do not use this product for any other purpose

other than its intended use.

- Do not use this product under curtains and other combustible materials (or under cupboards), due to fire risk.

- This is an oil-free product that uses hot air. Please do not pour oil or frying grease into the basket.

4 Operation

Fig. 2

Line drawing of a kitchen blender with a side panel and handle (no text or symbols)

Fig. 3

Line drawing of a coffee maker with a lid and fan, showing the process from being opened (no text or symbols present)

Fig.4

Fig. 5

Diagram of a kitchen appliance with a handle and side panel, showing a directional arrow (no text or symbols)

Fig. 6

• Plug the power plug into a grounded wall outlet.
• Carefully pull the basket out of the body (Picture 3)

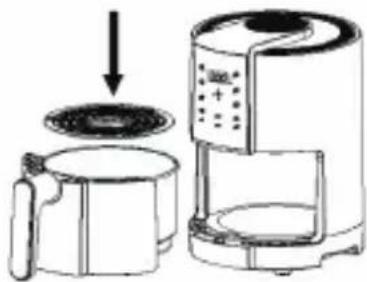

• Place the tray into the basket (Picture 4)
• Put the ingredients into the basket (Picture 5)
• Push the basket into the main body (Figure 6), making sure it is aligned with the guide rails in

the product.

- Note: The temperature of the basket is high during use and for a short time after use. Please do not touch it to avoid burns.

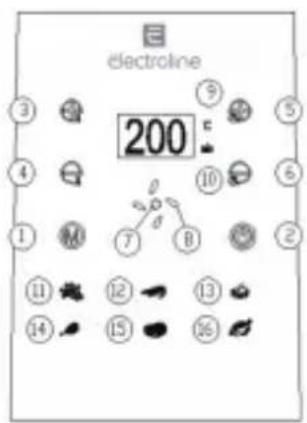

Control panel instructions

Fig.7

• Tasto predefinito

Default key" "You can scroll to select 6 preset dishes. After the selection is completed, the cooking time and temperature will be automatically set.

- Power button

Once the basket is correctly placed in the product, the power button will light up. Press

and hold the power button for 3 seconds to start the device and the default mode. The default temperature is 200 degrees, and the time is 15 minutes. Pressing the power button again will start cooking. Pressing and holding the power button for 3 seconds during cooking will turn off the entire device. All lights will go out and the fan will stop.

Note: During cooking, you can touch the button to control the pause and start of cooking.

• The temperature will increase.

- Reducing the temperature.

The + and - symbols can increase or decrease the cooking temperature by 5°C at a time. Press and hold the button to quickly change the temperature. The temperature control range is 80°C-200°C.

• To increase the cooking time

- To reduce the cooking time The + and - symbols can increase or decrease 1 minute at a time. Press and hold the button to quickly change the time. The time control

range is: 1-60 minutes.

• Heating indicator
- Fan indicator.
• Temperature indicator
• Time indicator
- Default dish indicator.

Set up

The table below will help you choose settings for your ingredients.

Ingredients	Min-Max quantity (G)	Time (minute)	Temperature (°C)	shake?	additional information
Potatoes and chips
Thin frozen French fries	130-180	15-18	200	Shake
Thick frozen fries	130-180	18-23	200	Shake
Thick frozen fries	150-180	18-20	200	Shake
Meat and poultry
Steak	100-180	10-15	180
Pork Chops	100-180	10-15 180
Hamburger	100-180	10-15	180
Sausage rolls	100-180	13-15	200
Chicken Leg	100-180	15-20	200
Chicken breast	100-180	15-20	180
Snack
Spring rolls	100-180	8-10	200	Shake
Frozen chicken nuggets	100-180	6-10	200	Shake
Frozen fish cubes	100-180	6-10	200
Frozen cheese snacks	100-180	8-10	180
Stuffed vegetables	100-180	10	160
Bake
Cake	100-150	20-25	160		Use a baking tin
Egg pancake	150	20-22 180			Use baking pan/grill pan
Muffin	150	15-18	200		Use a baking tin
Sweets	150	20 160			Use baking pan/grill pan

Note: Please remember that these settings are for reference only.

5 Cleaning and Maintenance

- Unplug the plug and wait until the product cools down completely.

- Clean the basket and stand with warm water and mild detergent. Rinse with water and dry completely. Do not use steel wool/wire brushes or strong kitchen detergents to clean the basket and plastic base. The stand and basket can be placed in the dishwasher. cleaning.

- Never immerse the main body in water or any other liquid, and do not clean it in the dishwasher. The outer housing can only be cleaned with a damp cloth.

• After each use, there may be a small amount of food residue, then wipe it clean with a damp cloth.

6 Troubleshooting

Question	Possible reason	Solution
Air fryer not working	The device is not plugged in or has no power	Plug the power plug into a grounded outlet. Check power supply
	The power button has not been turned on	Turn on the power button
The ingredients are not cooked well	There are too many ingredients in the basket.The set temperature is too low	Place the appropriate amount of food and / or cook in small batches more evenly.Use the +/- keys to adjust to the desired temperature and setting (please refer to the "4. Operation" section in the instruction manual)
	Heating time is too short	Use the +/- keys to adjust to the desired time and setting (please refer to the "4. Operation" section in the manual)
The basket cannot be pushed into the main body	There are too many ingredients in the basket	The ingredients in the basket cannot exceed the "Max" line
	The basket is not seated correctly in the body.	Push the basket into the body until you hear a click
The device emits white smoke.	The food is greasyThe basket contains residual grease from last use	When frying oily ingredients, a large amount of oil will leak into the pan, and may produce white smoke, which will not affect the product functionalityMake sure to clean the product properly after each use
Fresh fries are not crispy when they come out of the air fryer	The crispness of the fries depends on the amount of oil and water in the fries	Make sure the potato fries are properly dry before adding oil
		Cut the potato strips smaller for a crispier result
		Add a little more oil for a crispier result
Product overheated	Exhaust air is blocked	Leave enough space around the device when using it, and do not place it near other items or electrical appliances

7 Technical specifications

Voltage 220-240V\~50/60Hz

power 1000W

Dimensions(mm) 210 x 275 x 284

capacity 1.8L

The main material ABS

Default menu type 6 types

temperature range 80-200°C

time limit 1-60 mins

net weight 2.6kg

8 Disposal

Processing of electric and electronic equipment at the end of their service life (applicable in member countries of the European Union and other European countries operating a selective waste collection system).

This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources. For further information regarding the recycling of this product, please contact your municipality, local waste disposal centre or the store where the product was purchased.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

In accordance with Legislative Decree of March 14, 2014, No. 49, "Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)"he crossed-out wheeled bin symbol on the appliance or its packaging indicates that the product must be collected separately from other waste at the end of its life. Therefore, the user should dispose of the end-of-life appliance at the appropriate collection points for electronic and electrical waste or return it to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Proper separate collection for the subsequent disposal, treatment, and environmentally friendly disposal of the discarded appliance helps to prevent potential negative effects on the environment and health and promotes the recycling of the materials the appliance is composed of. Unauthorized disposal of the product by the user may result in the application of administrative sanctions provided by current regulations.

9 Warranty and Compliance

This Electroline Warranty applies only to Electroline products purchased for personal use and not those intended for resale.

Your Electroline product is warranted in accordance with the terms and conditions of this warranty against defects in workmanship and conformity for a period of a 2 years, and that period begins upon delivery of the item, if purchased from an official dealer.

The warranty will not be valid if the product has been opened, in the presence of physical damage, damage resulting from incorrect use, modifications, repairs by unauthorized persons, negligence and in the event that the product has been used for purposes other than those for which it was intended; furthermore, the legal guarantee will not apply if the purchase methods or other circumstances demonstrate, with reasonable certainty, that

the purchase itself is not exclusively aimed at private consumption .

In the event that the product is defective, it can be returned to the retailer along with a description of the type of malfunction, proof of purchase, and any accessories.

If the product is still under warranty, you will receive a replacement product (if available) from the dealer.

These are not covered by the warranty:

- Accidental damage or damage resulting from incorrect or improper use, contact with liquids; damage caused by accidents or force majeure events such as fire, earthquake, flood, vandalism, theft or other external cause.

- Cosmetic damage such as scratches, dents, or other breakage of plastic parts, caused by handling errors.

• Defects resulting from normal product wear

and tear (product aging).

- Incompatibility with other hardware/software products not listed in the minimum system requirements.

- Consumable accessories such as batteries, protective covers, and fuses, which normally wear out over time. Problems due to noncompliance related to labour or materials are excluded.

In no event shall the manufacturer be liable for incidental or consequential damages, including any loss of business profits or other commercial damages resulting from the use of the product.

Due to the rapidly evolving nature of our products, the content of this manual may be subject to change without prior notice.

Made in China

electroline

Manufactured and imported by Exertis Supply Chain Services Limited. Unit 21 Fonthill Business Park, Clondalkin. Dublin 22, D22 FR82, Dublin, Ireland

"Electroline" used under license from Unieuro
