WMS 87149 AWD3 - Washing machine LERAN - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	LERAN
Model	WMS 87149 AWD3
Capacity (kg)	8 kg
Maximum Spin Speed (rpm)	1400 rpm
Energy Efficiency Class	A+++
Dimensions (H x W x D)	85 x 60 x 55 cm
Weight	Approx. 70 kg
Power Consumption (kWh/cycle)	0.8 kWh (cotton 60°C)
Water Consumption (L/cycle)	48 L (cotton 60°C)
Noise Level (dB(A))	Wash: 48 dB, Spin: 76 dB
Programs	Cotton, Synthetics, Delicates, Quick 30', Eco, Wool, Hand Wash, Rinse & Spin, Spin & Drain
Display	LED Digital Display
Child Lock	Yes
Delay Start	Up to 24 hours
Drum Material	Stainless Steel
Door Opening	Left hinged (reversible)
Connection Type	220-240 V, 50 Hz, 10 A
Water Inlet	Cold water only
Detergent Compartment	3 compartments: prewash, main wash, fabric softener
Self-Cleaning	Drum Self-Clean program

Frequently Asked Questions - WMS 87149 AWD3 LERAN

How do I clean the detergent drawer?

Remove the drawer by pressing the release lever. Rinse under warm water and use a brush to remove deposits. Dry thoroughly before reinserting.

What should I do if the machine does not start?

Check that the door is fully closed, the water supply is open, and the machine is plugged in. Also ensure the program is selected correctly.

How often should I clean the filter?

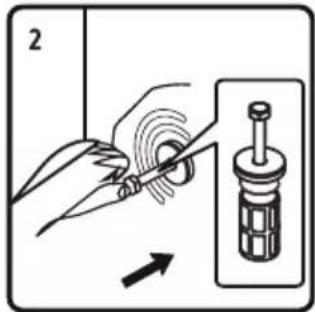

Clean the drain filter every 3 months or if the machine fails to drain. Turn off the machine, open the filter cover, and remove any debris.

Can I wash delicate fabrics in this machine?

Yes, use the 'Delicates' or 'Hand Wash' program. Place small items in a laundry bag and select a low spin speed.

What does the error code E01 mean?

E01 indicates a door lock issue. Ensure the door is closed properly. Restart the machine; if it persists, contact service.

How do I prevent limescale buildup?

Use a descaling product monthly or run a hot cycle with vinegar. Follow the descaling instructions in the manual.

What is the maximum load for a quick wash?

For Quick 30' program, load up to 3 kg of lightly soiled clothes for best results.

How to activate the child lock?

Press and hold the 'Child Lock' button for 3 seconds. A lock icon appears on the display. Repeat to deactivate.

Why is the drum not spinning?

Check for unbalanced loads. Redistribute clothes evenly. Also ensure the machine is level and the spin speed is not set to zero.

Can I install the machine myself?

Yes, but follow the installation instructions carefully. Remove transit bolts, connect hoses, and level the machine. For safety, hire a professional if unsure.

USER MANUAL WMS 87149 AWD3 LERAN

Illustration of two hands holding a transparent container with liquid, no text or symbols present

Four identical gray spherical objects with radial slots, arranged in a 2x2 grid (no text or symbols)

Technical line drawing of a curved mechanical component (no text or symbols)

3D rendering of a rectangular electronic component with metallic pins (no visible text or symbols)

Pure diagram of a U-shaped pipe with two connectors (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a screwdriver to adjust a mechanical component (no text or symbols present)

Illustration of a hand holding a ball with an arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with a wrench and nut, showing a rotating mechanism (no text or symbols)

Illustration of a hand using a tool to press or mark a small object on a surface (no text or symbols present)

Illustration of a hand pressing down on a textured surface within a rectangular frame (no text or symbols)

B

D

Simple line drawing of a hand touching a circular object on a horizontal surface with a pointer (no text or symbols)

Diagram of a device interior with labeled components and an arrow indicating direction (no text or symbols present)

A

Illustration of a hand holding a flexible hose with threaded end (no text or symbols)

B

Technical line drawing of a three-tiered industrial or mechanical device with no visible text or symbols

Diagram of a hand inserting a device into a container with arrows indicating direction (no text or symbols)

Cross-sectional diagram of a multi-chamber industrial or electrical device (no text or symbols visible)

Фильтр

Simple line drawing of a hand pressing down on a curved surface with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical device with a curved component and a rotating arm, no text or symbols present

Simple diagram of a circular object with an arrow pointing to it, no text or symbols present.

Illustration of a hand holding a ball near a curved surface, with an arrow indicating direction (no text or symbols)

Diagram of a pipe being inserted into a bolt, showing fluid flow direction (no text or symbols)

Illustration of a pliers applying material to a bolt on a base (no text or symbols)

Illustration of two hands holding a small object with a brush, no text or symbols present

Illustration of a hand pressing down on a mechanical component with a threaded base (no text or symbols)

Illustration of a hand pouring liquid into a bolted nut (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
