S10P - Subwoofer Proel - Free user manual and instructions

Product Type	Subwoofer
Model	S10P
Brand	Proel
Woofer Size	10 inches (254 mm)
Power Handling (RMS)	400 W
Power Handling (Peak)	800 W
Impedance	8 ohms
Frequency Response	40 Hz - 200 Hz
Sensitivity	97 dB (1W/1m)
Enclosure Type	Bass reflex (ported)
Construction Material	Plywood with black textured paint
Dimensions (H x W x D)	520 x 320 x 400 mm
Weight	22 kg
Connection Type	Speakon NL4 (1+ / 1-)
Finish	Black textured paint
Grille	Perforated metal with acoustic foam
Pole Mount	Yes, M20 threaded insert
Protection Features	Overload protection via internal limiter (estimated)

Frequently Asked Questions - S10P Proel

What is the power handling of the Proel S10P?

The Proel S10P handles 400 W RMS and 800 W peak. Ensure your amplifier can deliver this power at 8 ohms.

What is the impedance of the S10P?

The impedance is 8 ohms, making it suitable for most professional amplifiers.

Can I use the S10P with a home theater receiver?

Yes, if your receiver has a subwoofer output and can drive an 8-ohm passive subwoofer. You may need an external amplifier for best performance.

What type of amplifier is recommended?

A professional amplifier capable of delivering 400-800 W at 8 ohms is ideal. Look for models with built-in high-pass filters.

Does the S10P have a pole mount?

Yes, it features a M20 threaded insert for mounting on a speaker pole or subwoofer stand.

How should I clean the subwoofer?

Use a soft dry cloth to remove dust. Avoid water or cleaning solvents that could damage the finish or electronics.

Is the S10P suitable for live sound applications?

Absolutely, it is designed for portable PA systems and live music, providing powerful low-frequency reinforcement.

Can I use the S10P outdoors?

Yes, but protect it from direct rain and extreme humidity. The cabinet is robust but not weatherproof.

How do I connect multiple S10P subwoofers?

Use Speakon cables to daisy-chain them. Ensure total impedance does not drop below your amplifier's minimum rating.

What is the warranty on the Proel S10P?

Typically 2 years for manufacturing defects. Check with your dealer for specific terms.

USER MANUAL S10P Proel

Line drawing of three different metal enclosure units with mounting holes and internal compartments (no text or symbols)

ENGLISH

ITALIANO

SUMMARY - ENGLISH

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT 4

GENERAL SAFETY INSTRUCTIONS....4

IN CASE OF FAULT 4

PACKAGING, SHIPPING AND COMPLAINT 4

WARRANTY AND PRODUCTS RETURN....4

MAINTENANCE AND DISCLAIMER ....5

POWER SUPPLY 5

CONFORMITY 5

INTRODUCTION 6

DESCRIPTION....6

INSTRUCTIONS 6

1. INPUT (SPEAKON)......6

2. LINK (SPEAKON)....7

3. CHOOSE THE AMPLIFIER POWER....7

4. TECHNICAL SPECIFICATION 8

5. ACCESSORIES....8

Mechanical Dimensions....15

S10P....15

S15P 15

S18P....16

Configurations 17

Connectors 17

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their

local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

GENERAL SAFETY INSTRUCTIONS

• CAUTION - Before using this product read carefully the following safety instructions. Take a look of this manual entirely and preserve it for future reference. When using any electric product, basic precautions should always be taken, including the following:
  • To reduce the risk, close supervision is necessary when the product is used near children.
• Protect the apparatus from atmospheric agents and keep it away from water, rain and high humidity places.
• This product should be site away from heat sources such as radiators, lamps and any other device that generate heat.
• Care should be taken so that objects and liquids do not go inside the product.
• The product should be connected to a power supply only of the type described on the operating instructions or as marked on the product.

IN CASE OF FAULT

- In case of fault or maintenance this product should be inspected only by qualified service personnel when:

• Liquids have spilled inside the product.
• The product has fallen and been damaged.
- The product does not appear to operate normally or exhibits a marked change in performance.

- Do not operate on the product, it has no user-serviceable parts inside.

• Refer servicing to an authorized maintenance centre.

PACKAGING, SHIPPING AND COMPLAINT

• This unit package has been submitted to ISTA 1A integrity tests. We suggest you control the unit conditions immediately after unpacking it.
• If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow inspection.
  • Proel is not responsible for any damage that occurs during shipment.
• Products are sold "delivered ex warehouse" and shipment is at charge and risk of the buyer.
• Possible damages to unit should be immediately notified to forwarder. Each complaint for manumitted package should be done within eight days from product receipt.

WARRANTY AND PRODUCTS RETURN

• Proel products have operating warranty and comply their specifications, as stated by manufacturer.
- Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect

detailed description. This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage" or "indirect damage" caused by product defectiveness.

MAINTENANCE AND DISCLAIMER

• Clean only with dry cloth.
• Proel products have been expressly designed for audio application, with signals in audio range (20Hz to 20kHz). Proel has no liability for damages caused in case of lack of maintenance, modifications, improper use or improper installation non-applying safety instructions.
  • Proel S.p.A. reserves the right to change these specifications at any time without notice.
• Proel S.p.A. declines any liability for damages to objects or persons caused by lack of maintenance, improper use, installation not performed with safety precautions and at the state of the art.

POWER SUPPLY

- No direct power supply from mains line is required from this apparatus to operate, instead it requires to be connected to a specified audio power amplifier, please check further instructions.

CONFORMITY

- The product is in compliance with CE Directive LVD 2014 / 35 / CE as stated in EN 60065 standard.

- The product is in compliance with CE Directive EMC 2014 / 30 / CE as stated in EN 55103-1 and EN 55103-2 standards.

FCC COMPLIANCE NOTICE

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

INTRODUCTION

Thank you for choosing this PROEL product and for your trust in our brand, synonymous of professionalism, accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in professional applications.

DESCRIPTION

S Series is new range of compact and powerful sub-woofers designed to complement PROEL full-range passive or active speakers. The variety of size, applicable power and SPL offered by the three passive S models provides the perfect low extension solution for any speaker model available in the PROEL range.

All the S models feature high-excision woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.

The cabinets are built with 15 / 18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).

INSTRUCTIONS

1. INPUT (SPEAKON)

External amplifier power input: this is the connector where you plug in the power cable coming from your power amplifier or powered mixer. The powered signal is NOT filtered by an internal passive crossover, so to obtain the optimal coupling with external satellite speakers you must use an external analog or digital loudspeaker processor or an amplifier with a built-in crossover filter (see the examples section for further details).

The suggested filtering frequency must be in the range of 80-160 Hz. The INPUT speakon has this pin connection:

PIN1+: positive power signal (usually red wire)

PIN1-: negative power signal (usually black wire)

2. LINK (SPEAKON)

Output of the power signal to be sent to another loudspeaker. The connector has the same pin out as specified above.

3. CHOOSE THE AMPLIFIER POWER

We give you three power numbers: continuous, program and peak.

These data suggest you can use any amplifier with a power capability in the range between continuous and program, but this rule is valid only if the amplifier never clips.

In order to prevent loudspeaker damages caused by clipping, that is likely the number one cause of damage, and assuming that you want to use the full capability of the loudspeaker, we recommend the use of an amplifier with a built-in limiter to prevent clipping: in this case the rated power capability must be in the range between continuous and program power rating of the loudspeaker, with the same nominal impedance (typically 4 or 8 ohms):

S10P

• For powering two units (with an impedance of 8 ohm each), we suggest the use of PROEL DPX1000 amplifier in a standard stereo configuration.
• For powering four units connected in parallel two by two (with a resulting impedance of 4 ohm for each channel), we suggest the use of PROEL DPX1000 amplifier in a double stereo configuration.
• For powering two units with two respective full range speakers, we suggest the use of two PROEL DPX1000 amplifiers, one for each channel, set in BI-AMP/PAR mode.

S15P

• For powering two units (with an impedance of 8 ohm each), we suggest the use of PROEL DPX1500 amplifier in a standard stereo configuration.
• For powering four units connected in parallel two by two (with a resulting impedance of 4 ohm for each channel), we suggest the use of PROEL DPX1500 amplifier in a double stereo configuration.
• For powering two units with two respective full range speakers, we suggest the use of two PROEL DPX1500, one for each channel, set in BI-AMP/PAR mode.

S18P

• For powering two units (with an impedance of 8 ohm each), we suggest the use of PROEL DPX2000 amplifier in a standard stereo configuration.
• For powering four units connected in parallel two by two (with a resulting impedance of 4 ohm for each channel), we suggest the use of PROEL DPX2000 amplifier in a double stereo configuration.
• For powering two units with two respective full range speakers, we suggest the use of two PROEL DPX2000, one for each channel, set in BI-AMP/PAR mode.

IMPORTANT: Clipping occurs when the signal at the output of any device in the system (not just the amplifier) reaches its maximum level. Proper operation of a sound system includes being aware of the types of audio signals being reproduced, controlling the output levels accordingly, and operating all the devices in the system so that no clipping occurs within the signal chain.

1. TECHNICAL SPECIFICATION

	S10P	S15P	S18P
System type	Hybrid Band Pass	Hybrid Band Pass	Hybrid Band Pass
	Subwoofer	Subwoofer	Subwoofer
Loudspeaker	10" woofer with 2" VC	15" woofer with 3" VC	18" woofer with 4" VC
Power Continuous (AES)	200 W	400 W	500 W
Power Program	400 W	800 W	1000 W
Power Peak	800 W	1600 W	2000 W
Frequency Response	46 Hz - 160 Hz	40 Hz - 160 Hz	36 Hz - 160 Hz
Sensitivity	95 dB @ 1W/1m	97 dB @ 1W/1m	98 dB @ 1W/1m
Connectors	2 x NEUTRIK SPEAKON(IN/LINK)	2 x NEUTRIK SPEAKON(IN/LINK)	2 x NEUTRIK SPEAKON(IN/LINK)
Cabinet	15/18 mm plywoodBlack anti-scratch paint1.5 mm metal grille2 handles1 x pole socket	15/18 mm plywoodBlack anti-scratch paint1.5 mm metal grille2 handles1 x pole socket4 x 75 mm wheels	15/18 mm plywoodBlack anti-scratch paint1.5 mm metal grille2 handles1 x pole socket4 x 75 mm wheels
Dimensions (W x H x D)	315x420x495mm	435x570x560mm435x570x660mm (wheels)	508x630x645mm508x630x745mm (wheels)
Weight	12.8 kg (28.2 lb)	25.1 kg (55.3 lb)	34.8 kg (76.7 lb)

5. ACCESSORIES

KP210 - Adjustable speaker pole for speaker-subwoofer separation with terminal pieces ∅ 35 mm. Supplied with a bolt locking mechanism incorporating a steel pin for extra safety. Adjustment: 825 - 1320 mm.

SOMMARIO - ITALIANO

TRATTAMENTO DEL DISPOSITIVO ELETTRICO OD ELETTRONICO A FINE VITA....10

AVVERTENZE PER LA SICUREZZA....10

IN CASO DI GUASTO 10

IMBALLAGGIO, TRASPORTO E RECLAMI 10

GARANZIE E RESI 10

1. INPUT (ingresso SPEAKON)

Simple line drawing of a square frame with a central square containing two small leaf-like symbols (no text or labels)

Simple diagram of a rectangular plate with four circular holes and a central circular feature (no text or symbols)

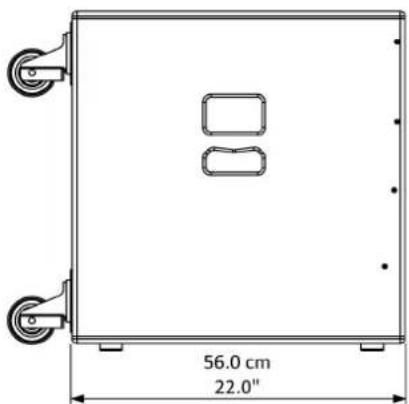

S15P

Technical drawing of a rectangular enclosure with two side compartments and wheels, dimensioned in centimeters (no text or symbols)

Technical line drawing of a square frame with four corner supports and a central square containing two small leaf-like symbols (no text or labels)

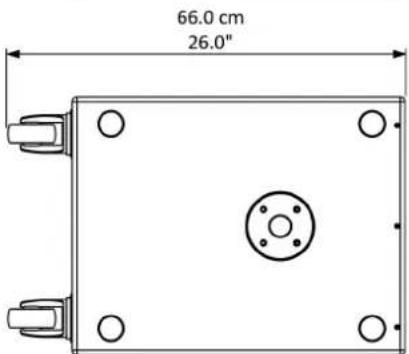

S18P

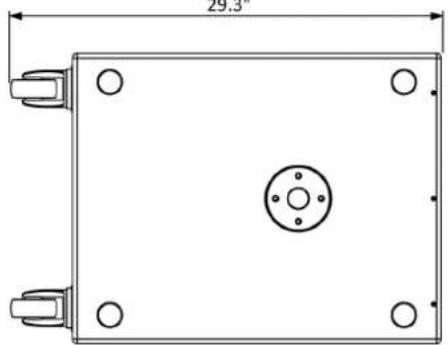

74.5 cm 29.3"

Pure technical diagram of a rectangular frame with corner brackets and central square (no text or symbols)

Configurations – Configurazioni

Connectors - Connettori

Cross-sectional diagram of a mechanical component with internal structure and mounting features (no text or symbols)

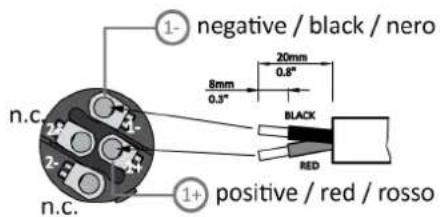

SPEAKER INPUT/LINK
Neutrik NL4 Speakon Cable Connector

PROEL code - NL4FX
