Product Type	Dynamic Microphone
Brand	Eikon
Model	DM580
Polar Pattern	Cardioid
Frequency Response	50 Hz – 16 kHz
Sensitivity	-52 dB
Impedance	400 ohms
Maximum SPL	137 dB
Equivalent Noise Level	20 dB-A
Connector	XLR 3-pin
Weight	301 g
Dimensions	H 164 x ∅ 51 mm
Capsule Type	Dynamic
Application	Live performance, studio, stage vocals
Special Features	Flat wide frequency response, natural bass roll-off, high feedback rejection, high SPL handling, tailored for female vocals
Included Accessories	Microphone holder
Color	Black
Material	Metal mesh grille, durable body
Power Requirement	No external power (dynamic, passive)
Maintenance	Wipe with dry cloth; avoid moisture and dust
Safety	Do not expose to rain or extreme temperatures; store in a dry environment
Reparability	No user-serviceable parts; contact qualified service for repairs

Frequently Asked Questions - DM580 Eikon

What is the polar pattern of the Eikon DM580?

The DM580 features a cardioid polar pattern, which isolates vocals from background noise on stage or in studio.

Is the DM580 suitable for female vocals?

Yes, it is particularly tailored for female vocal applications thanks to its frequency response and natural bass roll-off.

What is the frequency response of the DM580?

The frequency response is 50 Hz to 16 kHz, providing a flat and wide range for clear reproduction.

Does the DM580 require phantom power?

No, it is a dynamic microphone and does not require phantom power or any external power source.

What is the maximum SPL the DM580 can handle?

The maximum SPL is 137 dB, allowing it to handle high sound pressure levels without distortion.

What type of connector does the DM580 use?

It uses a standard XLR 3-pin connector for balanced audio output.

Is a microphone holder included with the DM580?

Yes, a microphone holder is included in the package for convenient mounting.

How much does the DM580 weigh?

The weight is 301 grams, making it lightweight and easy to handle.

Can the DM580 be used for live performances?

Absolutely, it is engineered for on stage performance with resistance to feedback and high SPL handling.

How should I clean the DM580 microphone?

Clean it by wiping with a dry cloth. Avoid moisture and harsh chemicals to protect the capsule.

USER MANUAL DM580 Eikon

Black EIKON audio recording device with mesh grille and labeled DMS80 (no additional text or symbols visible)

ENGLISH

General

Specifically engineered for on stage performance, this mic offers flat and wide Frequency Response.

The cardioid polar pattern isolates the vocals from the background noise on stage or in studio.

Used on live or studio applications, the DM580 cardioid microphone is the right choice for clarity, resistance to feedback and ability to handle SPL without distortion.

Features

• Professional vocal microphone with dynamic capsule
  ○ High applicable SPL
• Cardioid Polar Pattern and reduced sensitivity for the use with high stage monitor levels
• Frequency Response and natural bass roll-off for close vocal miking and reducing handling noise
• Particularly tailored for female vocal applications
  ○ Microphone holder included

Specifications

Model.....DM580

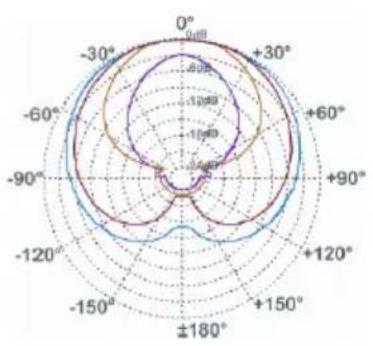

Polar Pattern....cardioid

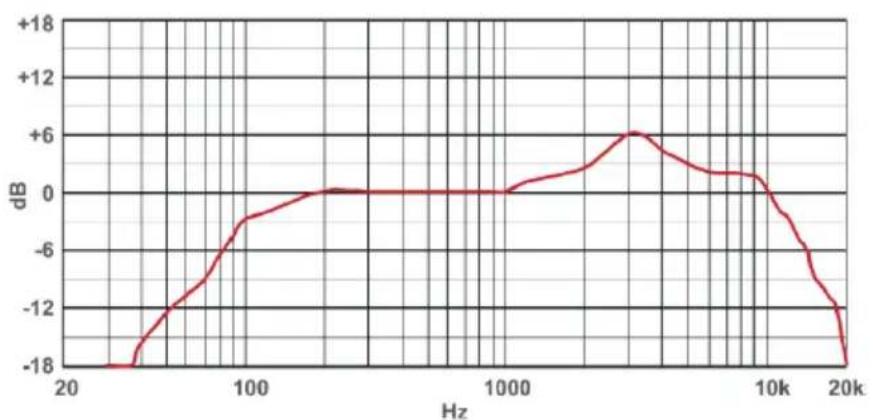

Frequency response.... 50Hz- 16Kh

Sensitivity.... - 52 dB

Nominal Impedance.... 400 ohms

Equivalent Noise Level.... 20db-A

Max imput Spl.... 137db

Connector....xlr 3 Pin

Weight....301 gr.

Dimensions.... H 164 x ∅ 51 mm

EIKON

is a brand of

PROEL S.p.A.

(World Headquarters - Factory)

Via all a Ruenia 37/43

64027 Sant'Omero (Te) – Italy
