PICKIT21RD - Camera SereneLife - Free user manual and instructions

Product Type	Portable Photo Printer
Brand	SereneLife
Model	PICKIT21RD
Connectivity	WiFi, WiFi Direct, NFC
Mobile App	Pickit Printer (iOS and Android)
Print Technology	Dye-sublimation (4-pass YMCG)
Paper Type	Special photo paper (YMCG layers)
Recommended Image Size	1280 x 2748 pixels minimum
Power Source	Built-in rechargeable battery
Charging Time	Approximately 2 hours
Battery Life	Up to 20 prints per charge (estimated)
Operating Temperature	32 - 104°F (0 - 40°C)
Dimensions	Approx. 5.1 x 3.1 x 0.8 inches (130 x 80 x 20 mm)
Weight	Approx. 0.5 lbs (230 g)
Paper Jam Recovery	Power off and on; paper ejects automatically
Reset Method	Press reset button with a sharp object
Compliance	FCC Part 15, FCC SAR
Recommended Care	Do not touch paper during printing; avoid humidity and extreme temperatures

Frequently Asked Questions - PICKIT21RD SereneLife

How do I install the Pickit Printer app?

For Android, go to Google Play Store and search 'Pickit Printer'. For iOS, go to App Store and search 'Pickit Printer'. Install the app on your smartphone.

How do I connect my phone to the printer via WiFi?

Turn on WiFi on your phone. Go to WiFi settings and find the network named 'Direct-Cube-XXXX' (XXXX varies). Enter password 12345678. Then open the app to print.

How do I connect using NFC?

Ensure NFC is enabled on your phone. Tap your phone on the NFC mark on the printer (top center). The app should automatically connect via WiFi Direct within 20 seconds. A green mark indicates successful connection.

What should I do if there is a paper jam?

Power off the printer and then power it on again. The paper should be automatically rejected. If not, contact customer service.

Why is the print quality poor?

Print quality is affected by the resolution of your source image. Use images with a resolution of at least 1280 x 2748 pixels for best results. Low-resolution images will appear grainy.

What do the LED indicators mean?

White: Power on/standby. White flickering: Printing. Pink flickering: Firmware upgrade. Red flickering: No cartridge or error (paper jam). Green: Battery fully charged. Red: Charging.

How do I reset the printer?

Use a sharp tool like a pin to press the reset button located on the printer.

Can I use any type of paper?

No, this printer requires special photo paper with YMCG layers (Yellow, Magenta, Cyan, Overcoating). Do not use regular paper.

How long does the battery last?

The built-in battery provides approximately 20 prints per full charge. Charging time is about 2 hours.

Is the printer safe to use?

Yes, it complies with FCC Part 15 and FCC SAR requirements. Do not disassemble, expose to extreme temperatures, or use near water.

USER MANUAL PICKIT21RD SereneLife

Download on the App Store

Google play

Step 2 App Installation

1. Android Device

A TYPE *NFC Support Android Device ONLY
1. Turn NFC on in your smart phone.
2. Tap the phone on the top of Pickit printer.
Google Play Store app installation page will show up.
3. Install the app into your smartphone from the store.

B TYPE

1. Go to Google Play Store in your smartphone.
2. Search "Pickit Printer"
3. Install "Pickit Printer" into your smartphone.

2. Apple Device

1. Go to Appstore in your iPhone, iPod touch or iPad.
2. Search "Pickit Printer"
3. Install "Pickit Printer" Application into your device.

Step 3 Connecting

1. WiFi Access Point (AP) *Apple and Android Devices.

2. Turn WiFi on in your smartphone.

3. Go to WiFi setting and find "Direct-Cube-XXXX".
   * Printer names are vary and 4 digits. The 4 digits are combination of
   number and alphabet.
4. Password is "12345678".

5. Select the WiFi network to connect the printer.

6. NFC and WiFi Direct *NFC. WiFi Direct support devices ONLY

7. Turn NFC and WiFi on in your smartphone.
   *Set the NFC setting as P2P mode.

8. Tap your device on the center of the printer where
   the NFC mark is.
   Within 20 seconds, the app will automatically
   connect to WiFi Direct
   When the printer is connected to WiFi Direct, green

mark will be shown in the app.


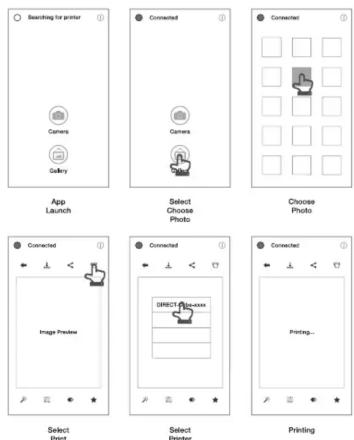

Step 4 Printing in the App

Select Print
Select Printer
* In case of multiple printers are available

Power and active status

Status	* 🔒
Power ON	White
Power OFF (2sec)	Off
Printing	White Flickering
F/W Upgrade	Pink Flickering
No Cartridge	Red Flickering
Error (Paper Jam, etc.)	Red Flickering
Waiting/Cooling	White

Battery Status

Status	·
Charging	Red
Charging Complete	Green

Troubleshooting

Symptom	CAUSE / SOLUTION
Paper Jam	Power OFF and Power ON again. Paper will be automatically ejected. If not, please contact customer service.
Image quality is not good	Print quality could be less if your photo source has low resolution. Over 1280 x 2448 pixel is recommended for best image quality
Printer is not responding	Press Reset button with sharp tool like pin.

Step 6 Note and FCC

Note

• Photo Paper will go in and out 4 times (YMCO, Yellow. Magenta.

Cyan, Overcoating). Do NOT touch the paper during printing

process for best image quality.

- Do not pull paper out by force during printing.

- Do not place an object in front of the paper exit slot.

- Use the latest Pickit application for law print quality. Check the latest app

version from Google Play Store and Apple Appstore.

- Printer has Built-In Battery. Charge the printer before using.

- Handle with care during charging to prevent electric shock.

- Do not disassemble or deform.

- Avoid too high or low temperature or humidity.

- If NFC tag is not read, check its position on the printer and smartphone.

Then try again.

• The higher resolution the image has, the higher quality the printed

photo has. Recommended image size is 1280 * 2448 pixel.

- Operating Temperature: 32\~104°F

FCC (Federal Communications Commission)

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: 1. This device may not say

1. This device may not cause harmful interference, and
2. This device must accept any Interference received, including Interference that

may cause undesired operation.

CAUTION: Any changes or modifications to the equipment not expressly approved by the

party responsible responsible for compliance could void user's authority to operate the equipment.

This device (FCCID: PO5M1) complies with FCC SAR requirement.
