CMP 520L - Computer Case COOLER MASTER - Free user manual and instructions

Type of product	Computer Case (Mid Tower)
Dimensions (W x H x D)	198 mm x 465 mm x 440 mm
Weight	Approximately 5.5 kg (12.1 lbs)
Motherboard support	ATX, Micro-ATX, Mini-ITX
Power supply support	Standard ATX PS2 (not included), bottom mount
Expansion slots	7
Drive bays	2 x 3.5" internal, 2 x 2.5" internal
Front I/O ports	2 x USB 3.0, Audio In/Out
Cooling support	Front: 3x 120mm or 2x 140mm; Rear: 1x 120mm; Top: 2x 120mm
Radiator support	Front: up to 240mm/280mm; Rear: 120mm; Top: 240mm
Graphics card clearance	Up to 380 mm
CPU cooler clearance	Up to 160 mm
Side panel	Tempered glass (left side)
Material	Steel, plastic, tempered glass
Maintenance and cleaning	Removable dust filters on front, top and bottom; clean with dry cloth
Safety	Keep away from moisture and heat sources; ensure proper ventilation
Spare parts and repairability	Cooler Master offers spare parts; refer to official website for availability
General information	Brand: Cooler Master | Model: CMP 520L | Category: Computer Case

Frequently Asked Questions - CMP 520L COOLER MASTER

What motherboard sizes are compatible with the Cooler Master CMP 520L?

The CMP 520L supports ATX, Micro-ATX, and Mini-ITX motherboards.

Does the case come with a power supply?

No, the power supply is not included. You need to purchase a standard ATX PS2 unit separately.

What is the maximum graphics card length supported?

The CMP 520L can accommodate graphics cards up to 380 mm in length.

How many fans can be installed in this case?

You can install up to 6 fans: 3 front (120mm or 2x140mm), 1 rear (120mm), and 2 top (120mm).

Is the side panel tempered glass?

Yes, the left side panel is made of tempered glass for a clear view of your components.

What are the dimensions of the case?

The dimensions are 198 mm x 465 mm x 440 mm (width x height x depth).

Does it have dust filters?

Yes, there are removable dust filters on the front, top, and bottom panels for easy cleaning.

Can I install a liquid cooling radiator?

The case supports radiators: front 240mm/280mm, top 240mm, and rear 120mm.

What is the maximum CPU cooler height?

The maximum CPU cooler height is 160 mm.

How many drive bays are available?

The case has 2 x 3.5-inch internal and 2 x 2.5-inch internal drive bays.

USER MANUAL CMP 520L COOLER MASTER

COOLER MASTER

Make It Yours.

CMP 520L

A

x16

B

x8

C

x8

D

x1

E

x10

EN	Package Content	HU	A csomag tartalma
AR	низمة المحتوى	ID	Isi Paket
BG	Съдържание на пакета	IT	Contenuto della scatola
CHS	零件包	JP	パッケージ内容物
CHT	零件包	KR	구성품
CS	Obsah balení	NL	Verpakkingsinhoud

DE	Verpackungsinhalt
EL	Περιεχόμενα Συσκευασίας
ES	Contenido Paquete
FR	Contenu de l'emballage
FA	محتويات

PL	Zawartość opakowania
PT	Conteúdo da embalagem
RU	Комплектация
SR	Saržaj pakovanja
TR	Paket içeriği

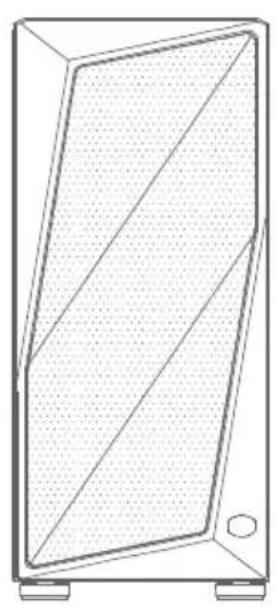

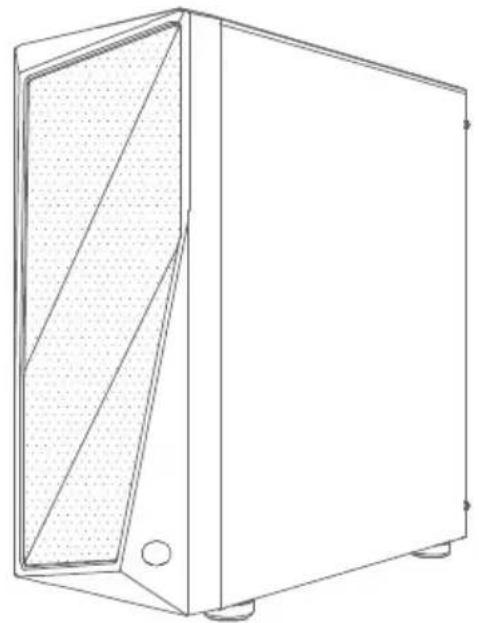

Line drawing of a computer tower case with front panel and side legs (no text or symbols)

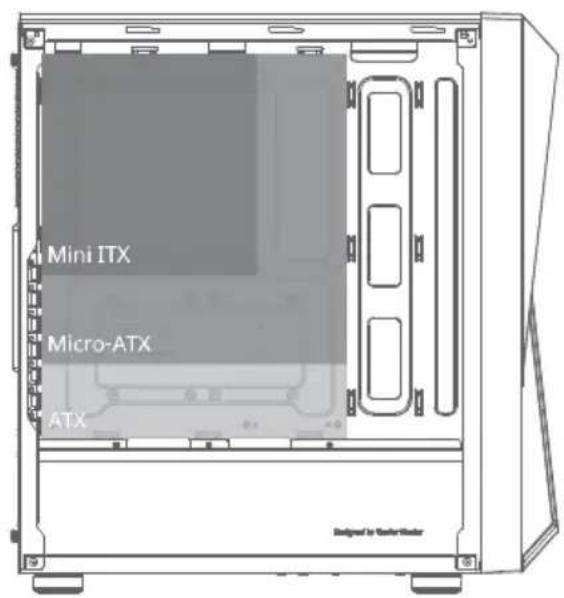

Mini ITX Micro-ATX ATX Designed by Colorator

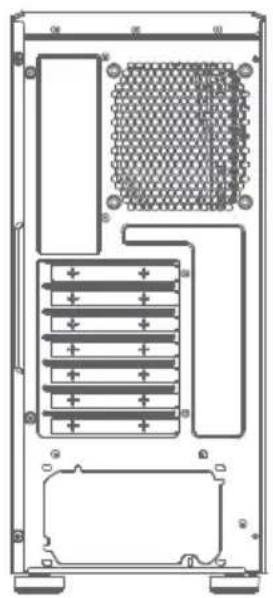

Line drawing of a rectangular electronic device with a grid-patterned panel and base (no text or symbols)

Technical line drawing of a computer chassis with internal components and mounting brackets (no text or symbols)

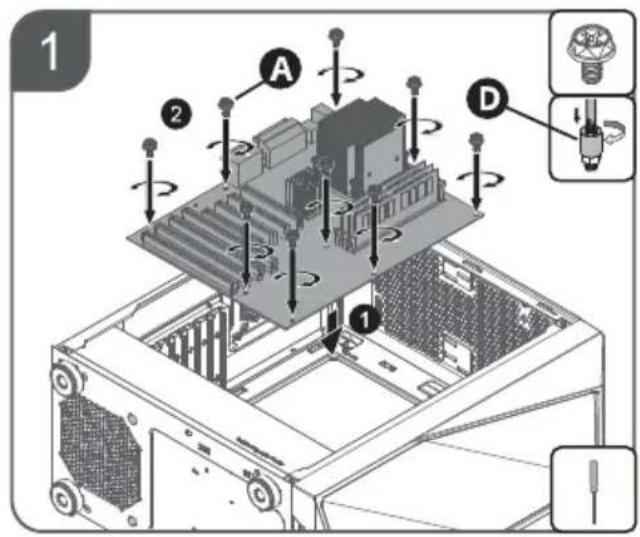

1

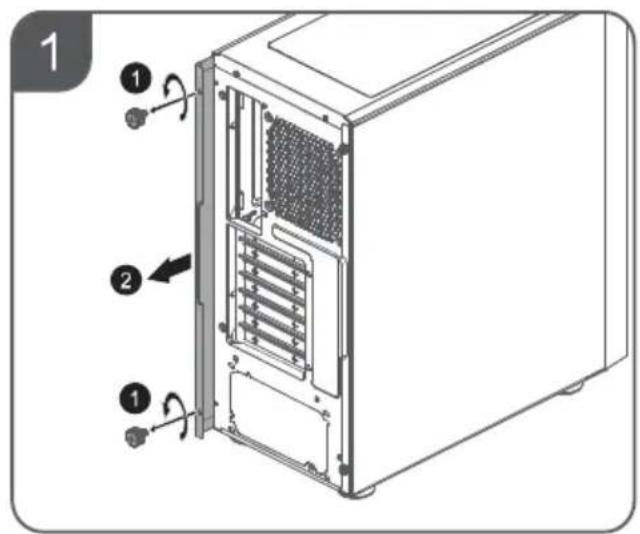

Diagram of a computer tower case with labeled components and directional arrows indicating internal structure.

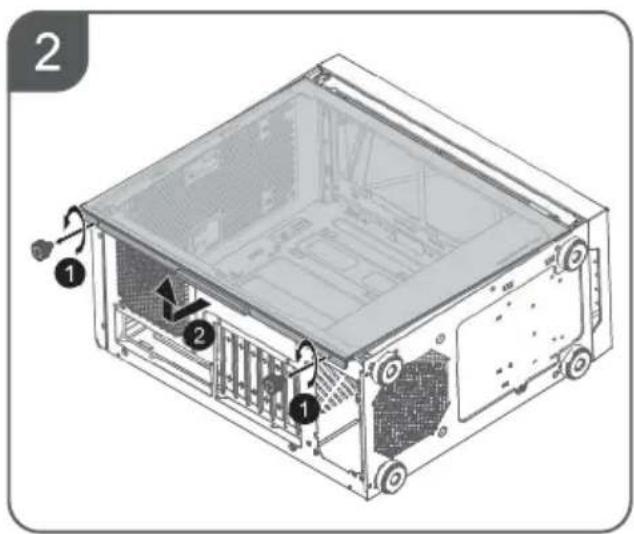

Technical diagram of an internal device with numbered components and directional arrows indicating assembly or movement.

OR

Technical diagram of an electronic device with labeled components and directional arrows indicating motion or flow.

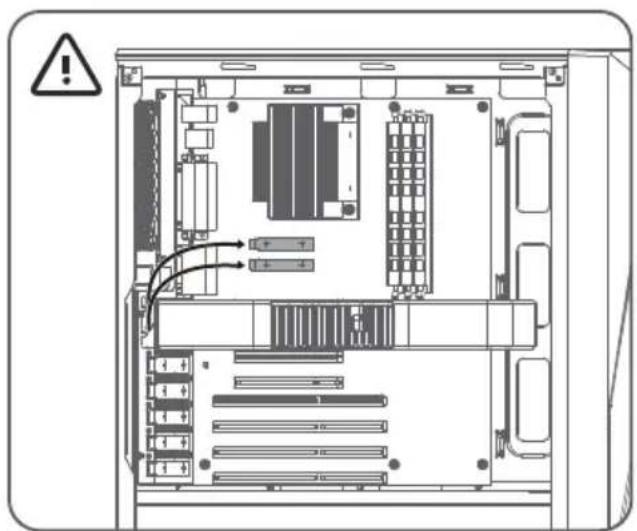

Diagram of an internal server rack with labeled connectors and warning symbol (no text or labels present)

Technical diagram of a computer tower case with labeled components and parts, including a base case and screwdriver.

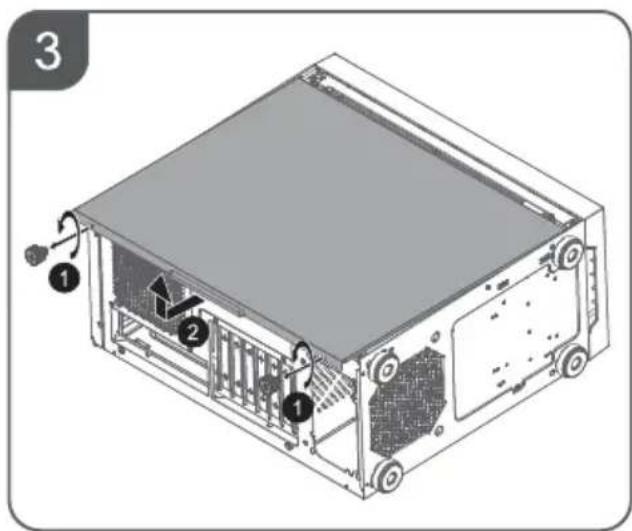

3

Technical diagram of a computer tower with labeled components and exploded view, showing internal structure and assembly steps.


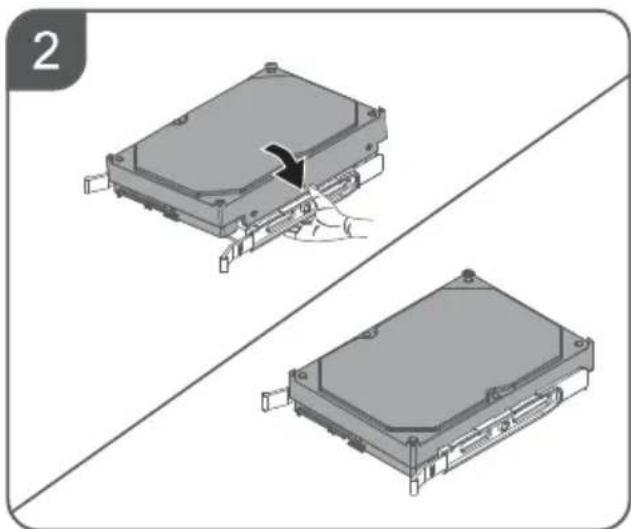

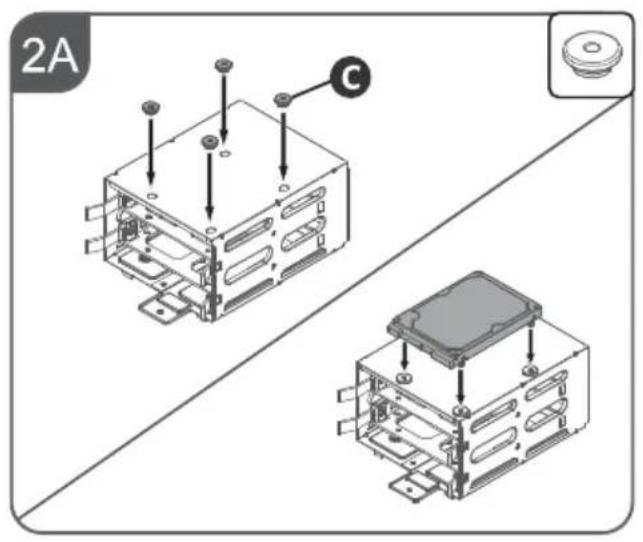

2A G

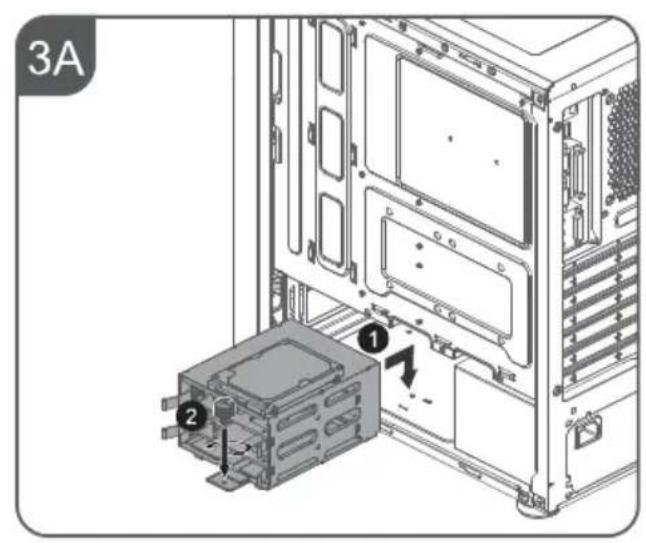

3A 1 2

OR

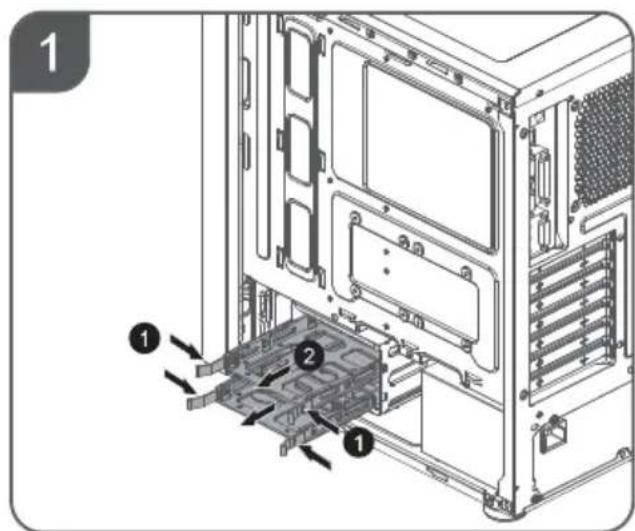

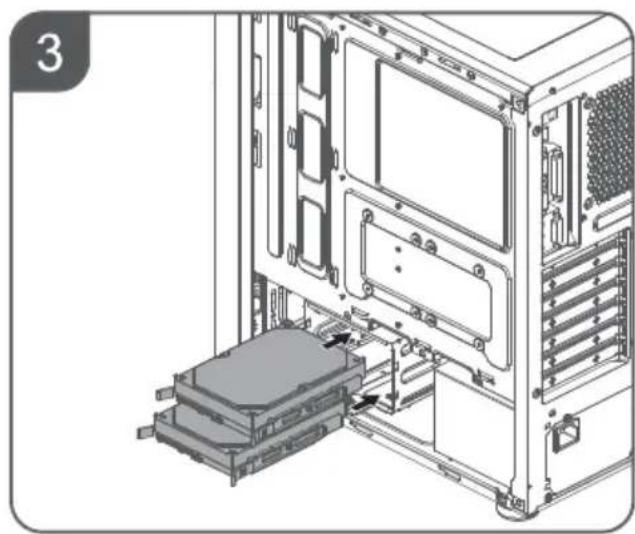

Technical diagram of a computer tower internal structure showing drive bays and mounting hardware (no text or labels)

Technical line drawing of a server rack with internal components and mounting holes (no text or symbols)

3.5"

Technical diagram of a computer tower internal structure with numbered annotations indicating component locations

Two 3D mechanical components with mounting holes and a directional arrow indicating rotation (no text or symbols)

Technical illustration of a desktop computer tower with an internal rack and drive unit (no text or symbols)

7

120/140mm

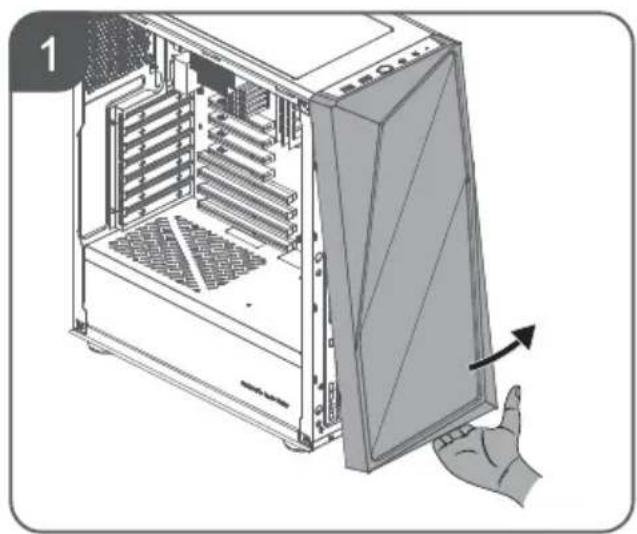

Illustration of a computer tower case with a hand inserting a device into the front panel (no text or symbols visible)

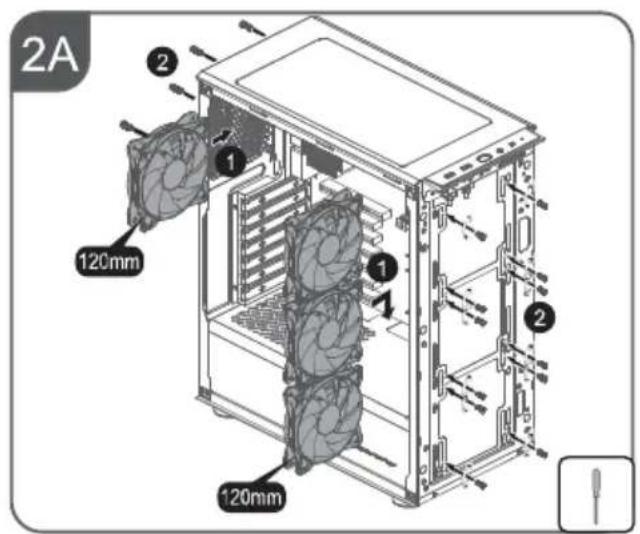

2A 120mm 120mm

OR

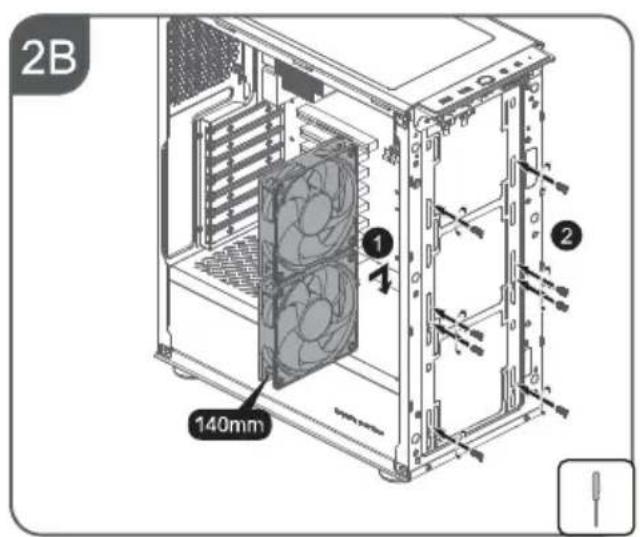

2B 140mm

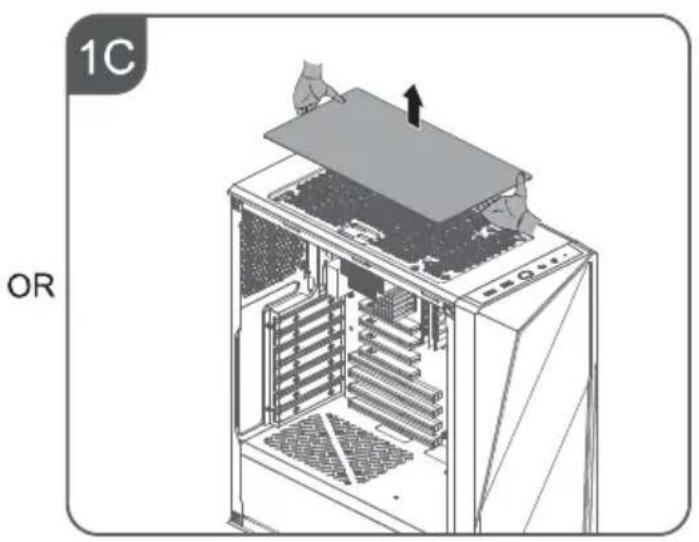

1C OR

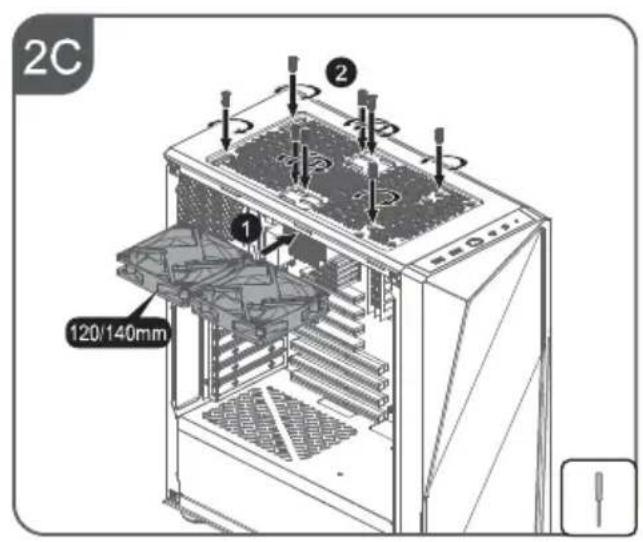

2C 120/140mm

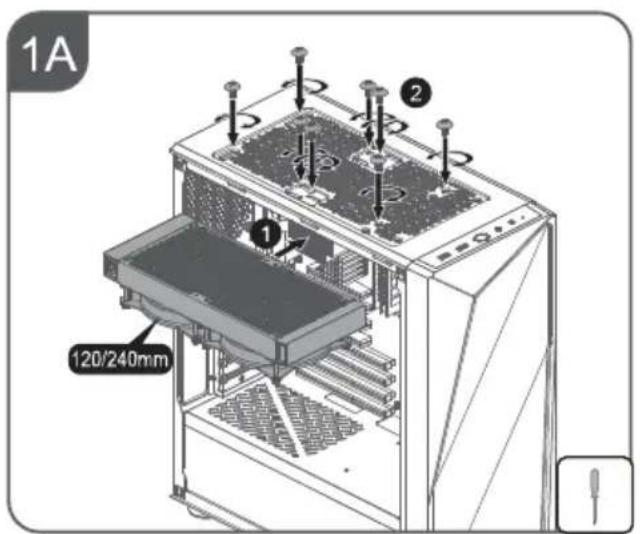

1A 120/240mm

OR

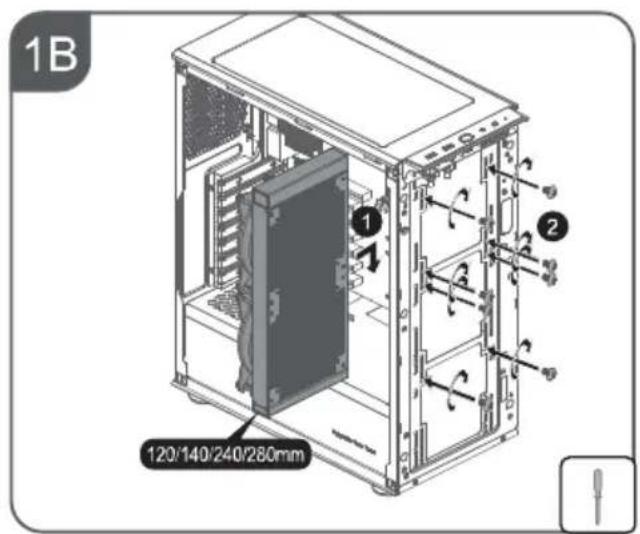

1B 120/140/240/280mm

OR

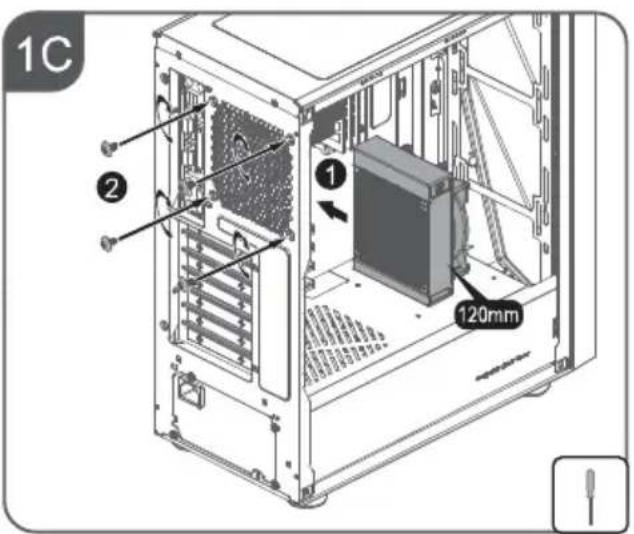

1C ① ② 120mm

Warranty information

English (EN)

Cooler Master guarantees that this device is free of defect in material and workmanship, and provides a two-year limited hardware warranty for the device commencing from the date of purchase. Please keep your receipt for proof of purchase. This product is designed for computer usage only. Using this device in any other capacity voids the warranty. If you are not familiar with computer hardware installation, please ask for professional assistance.

The warranty offered covers normal use. Defect or damage that result from improper operation, storage, misuse or abuse, accident or neglect, which are not the fault of Cooler Master, are exclude from warranty coverage.

Note: the warranty is voided by removal or alternation of product or parts identification labels.

*All OEM/bulk packaging product come with one year limited warranty

*In case of conflict between the warranty provided by the country of point of sale and this manual, the warranty of the actual country of point of sale shall be the prevailing document.

*In case of malfunction of electronic components or need of accessories purchase during the warranty period, please return to the original store of purchase.

简体中文(ZHS)

Note: The form is only applied to China law.

Türkçe (TR)

Cooler Master Products: Limited Warranty

This document describes the warranty terms for all Cooler Master product sold in Australia

For Australia only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. (Cooler Master Technology Inc., 7-F., No. 398, Xinhui 1st Rd., Neihu Dist., Taipei City 114065, Taiwan (R.O.C.).)

Telephone: [phone] (standard international call charges apply.)

Who the Warranty Protects: This Warranty is valid to the original purchaser only.

What the warranty protects:

This warranty is valid only for the Cooler Master Products distributed by authorized dealer(s) in Australia. Please contact Cooler Master for warranty information and services:

• Cooler Master Support: account.coolermaster.com

What Is and Is Not Covered

It is important to note that our warranty is not an unconditional guarantee for the duration of the Program. Any replaced parts become the property of Cooler Master. The Program does not apply to the software component of a product or a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications.

The Program does not cover any events such as below:

• Any damages unrelated to manufacturing defects.

• Any unsuitable environment or use of the product in Cooler Master Opinion.

• Any product which has been modified without official permission from Cooler Master, or on which the serial number or warranty sticker has been defaced, modified, or removed.

Damage, deterioration or malfunction resulting from:

- Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, commercial or industrial use, unauthorized product modification or failure to follow instructions included with the product.

- Third party products using Cooler Master Components will not be covered by warranty. See your vendor or the manufacturer for information about servicing.

• Repair or attempted repair by anyone not authorized by Cooler Master, Inc.

• Any shipment damages (claims must be made with the carrier).

- Unauthorized repairs to a Cooler Master product will void the warranty offered by the Program. Cooler Master reserves the right to refuse to service any product which has been altered, modified or repaired by non-Cooler Master Service personnel.

• Cooler Master does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product

for your purpose.

- Removal or installation charges.

- You are responsible for the cost of shipping the product to Cooler Master. Cooler Master pays the cost of returning a product to you.

• Cooler Master reserves the right to replace the product with a service product at their sole discretion at any time.

• Product malfunction or damage resulting from liquids or moisture.

• All accessories that malfunction due to physical damage such as: USB cables, extension cables, adapter cables, adapters, power cords, screws,

retention brackets, ear cups, and all other similar accessories.

Limitation of implied warranties:

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of damages

COOLER MASTER'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. COOLER MASTER SHALL NOT BE LIABLE FOR:

• DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECT IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THEIR POSSIBILITY OF SUCH DAMAGES.

• ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE

• ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY

Warranty Information:

If the goods is found with reasonable defect within the period of (refer to Table A.,) starting on the first day of purchase (with proof of invoice), this is what you must do, to claim the warranty from the above address.

Procedures:

1. Consumers should return to the shop where he/she has bought the goods, After confirming with the shop with a valid invoice, they may approach the distributor for RMA claim.

2. After confirmed by the distributor that the goods was damaged due to natural causes, replacement and repair will be done by distributor (including brand new or refurbished goods)

3. All faulty goods must return to the distributor, expenses for returning the faulty goods will be covered by the consumer, and distributor will cover the cost involved in the transporting of parts or repaired goods to the consumer.

Regarding all the expenses incurred in making the claim, and this is how you would claim:

1. Within the valid warranty date, starting from the first day of issuing invoice, Retail shops will assist in confirmation with distributor for the consumer for the following.

A. If the damage was caused by the consumer, then the consumer should cover all expenses in fixing the product, if the product still can't be fixed, we would suggest consumer in buying a brand new product.

B. Product defect caused under natural use, expenses will be covered by the distributor.

1. Faulty products with expired warranty dates, we would suggest consumer to purchase a brand new products, without undergoing for repairs.

Table A:

Cooler Master Products

Please check your user manual for the exact warranty period terms for products that are not shown below.

For more warranty information, please visit our official website: http://www.coolermaster.com/service/warranty.html

Chassis

Product Name	Warranty Term
All Chassis Series (Only Electronic Parts)	2 year
C+P ( Chassis + PSU )	1 year
