USER MANUAL MPV31 Minuteman

Exterior view of a Minuteman air conditioner (MPV 31) with brown body and handle, no visible text or symbols on the device itself.

Parts and Instruction Manual

MPV31 Wide Area Vacuum

This manual is furnished with each new MINUTEMAN MPV-31. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine.

This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below:

• Operate the machine with reasonable care.
• Follow the manufacturers suggested maintenance instructions as provided in this booklet.
• Use original Minuteman supplied parts.

TECHNICAL SPECIFICATIONS

Model MPV-31

Model No. C27120-00 (120 Volt / 60Hz) C27230-00 (230 Volt / 50Hz)

Sound Level 72dB

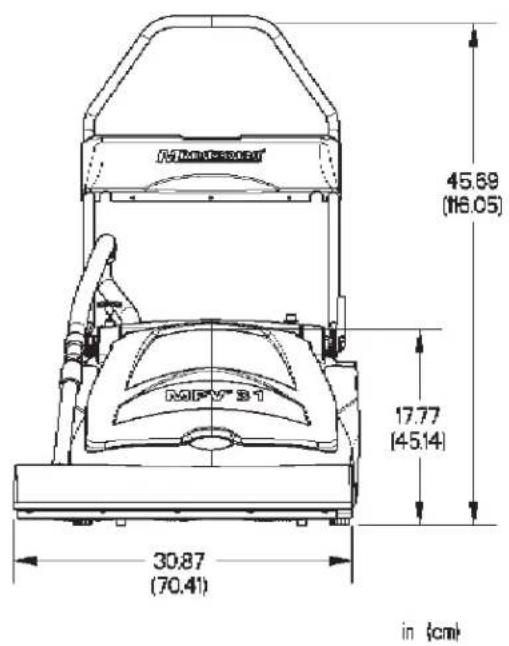

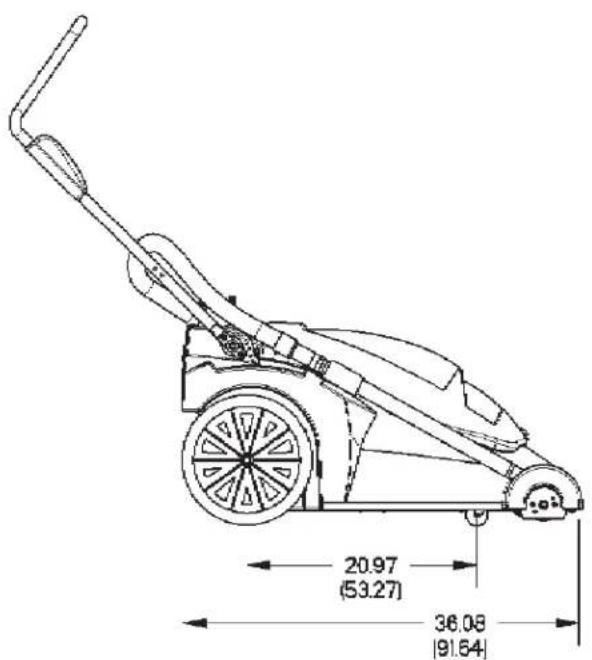

Dimensions (LxWxH) 37" x 31" x 18" (94cm x 79cm x 46cm)

Gross Weight 100 lbs. (45 kg)

Brush 30" (76cm)

Brush Speed 1550 RPM

Air Flow 212 CFM (100 ltr/sec)

Waterlift 63" (1600mm)

Bag Volume 1.2 Bushels

Wheels-Front

Table of Contents

Technical Specifications....2

Safety Instructions 4

Operating Instructions 5

Inspection 5

Electrical - 115 Volt....5

Electrical - 240 Volt....5

Grounding Instructions 5

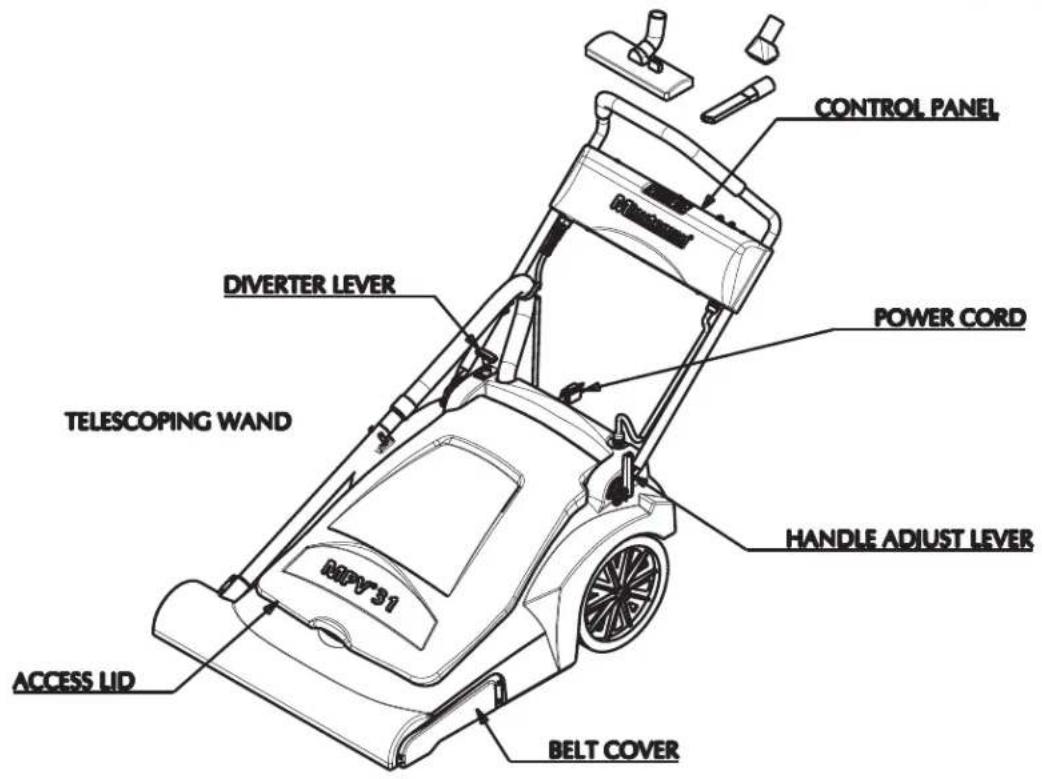

Machine Overview 6

Control Panel....6

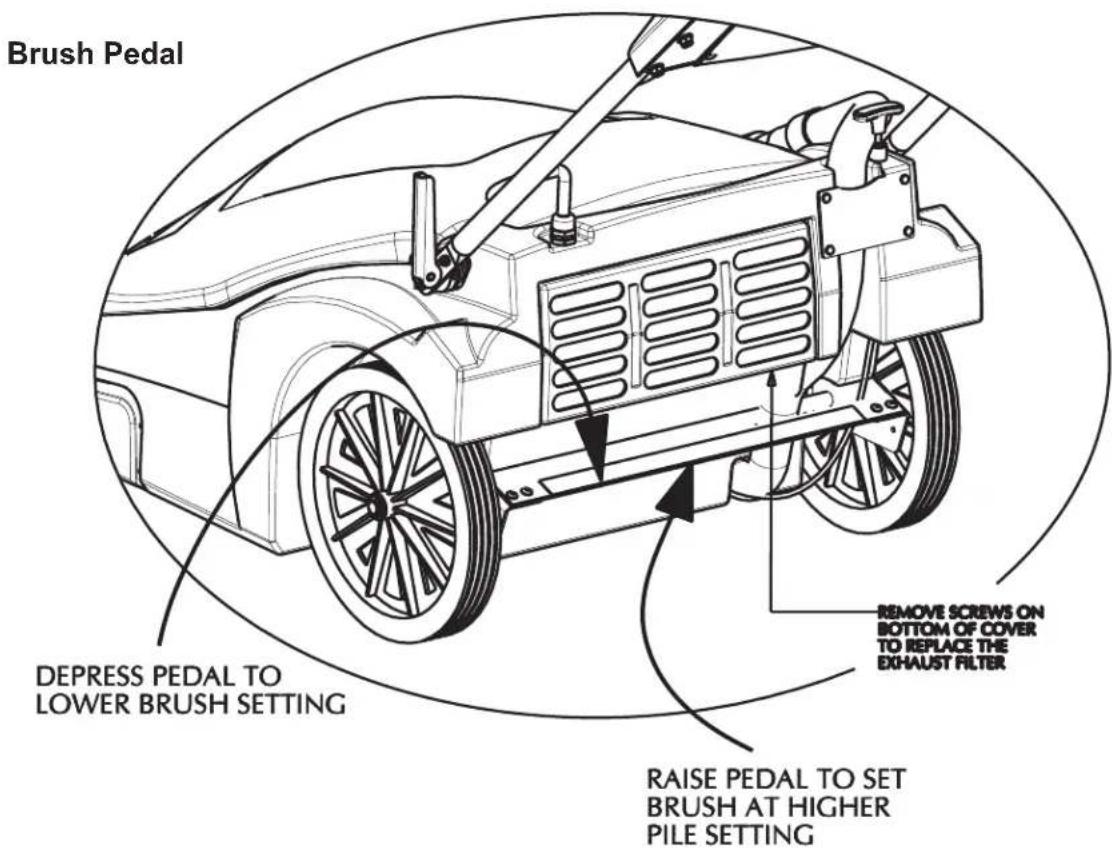

Brush Pedal....7

Off-Aisle Wand 7

Operation....8

Operating Instructions 8

Maintenance 9

Daily: 9

Monthly: 9

Brush Adjustment/Replacement 9

Adjustment: 9

Replacement: 9

Exploded Views 10

Main Assembly Front....10

Main Assembly Front BOM....11

Main Assembly Rear 12

Main Assembly Rear BOM 13

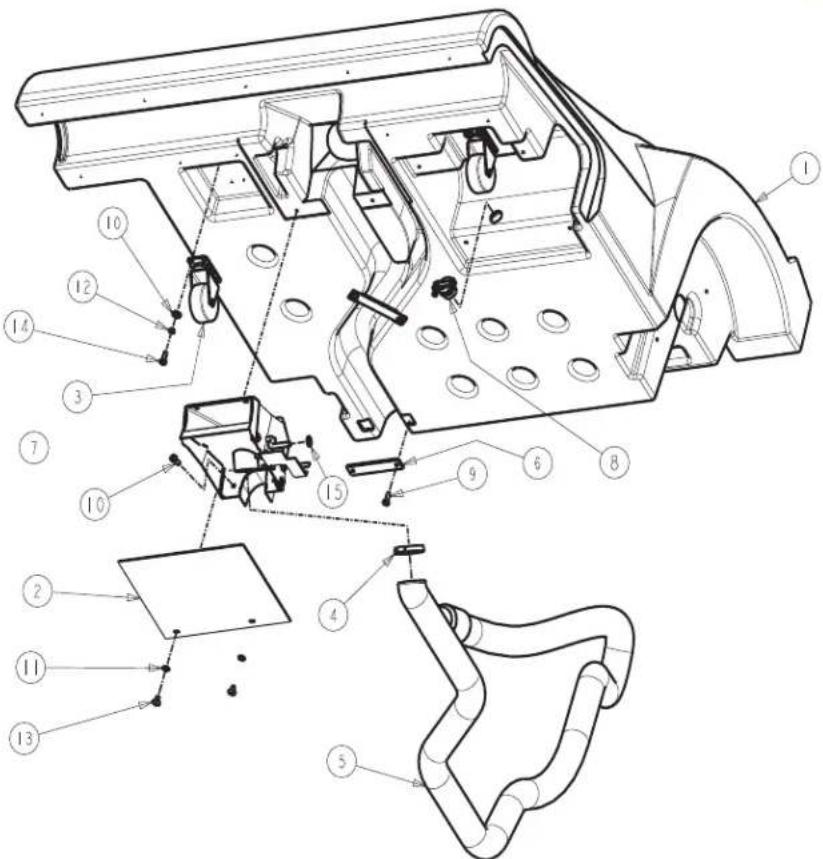

Main Assembly Bottom 14

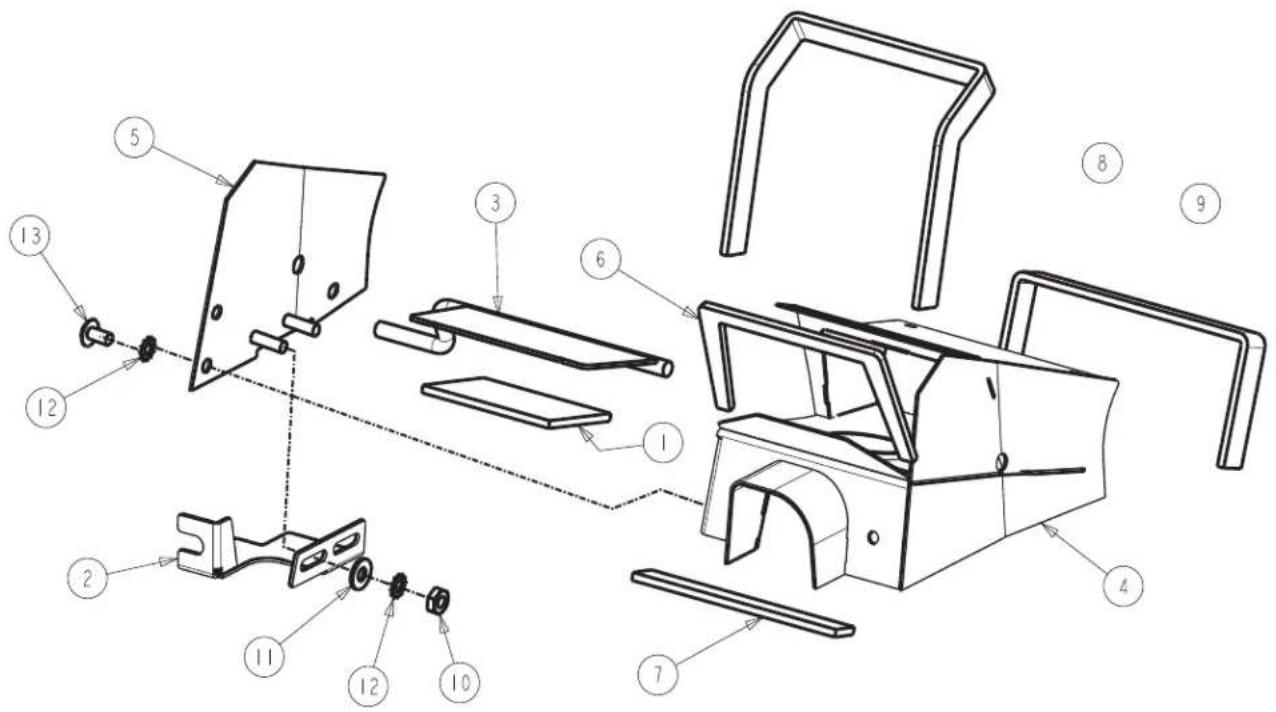

Diverter Assembly 15

115V Handle Assembly 16

115V Handle Assembly BOM 17

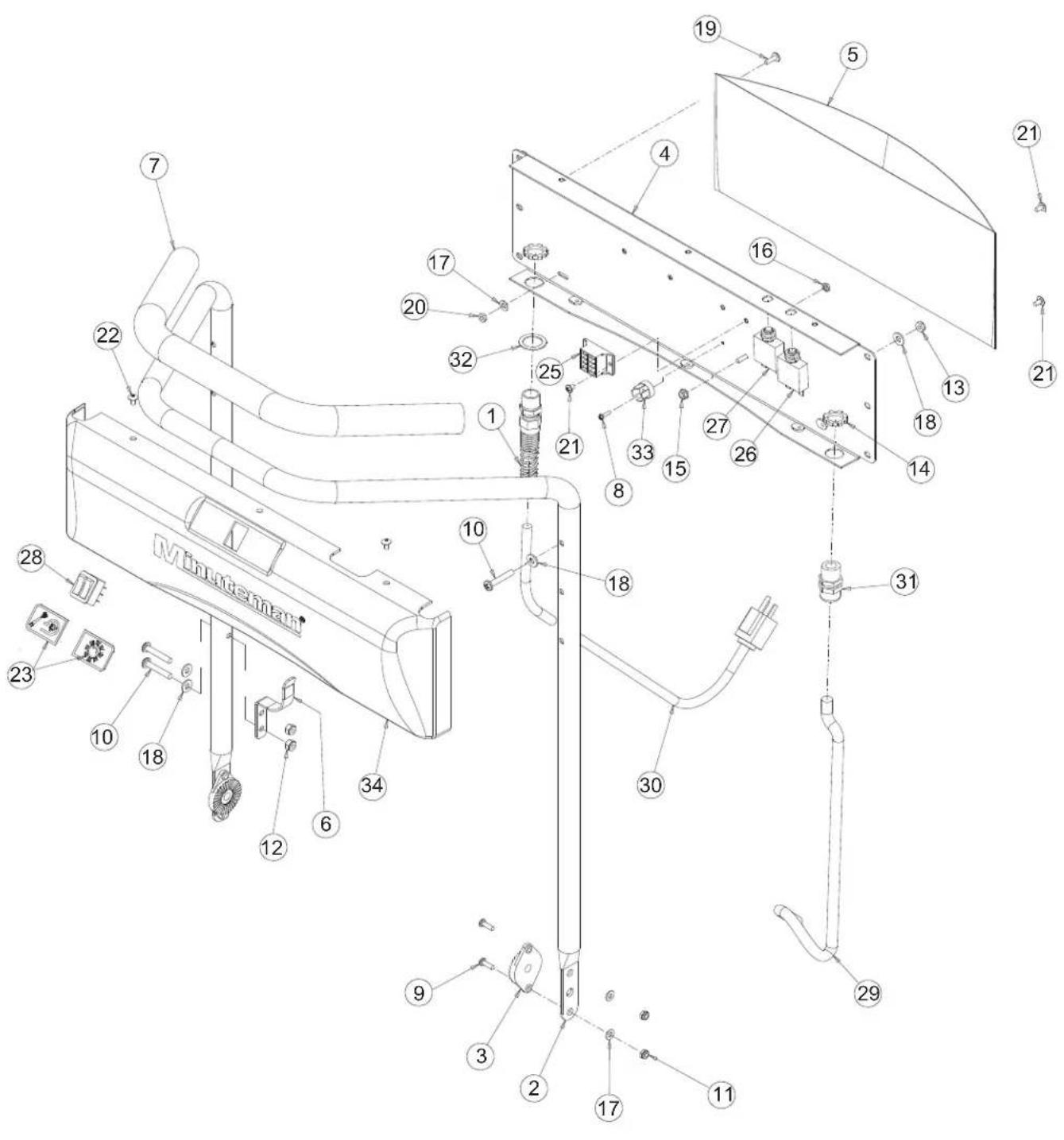

230V Handle Assembly 18

230V Handle Assembly BOM 19

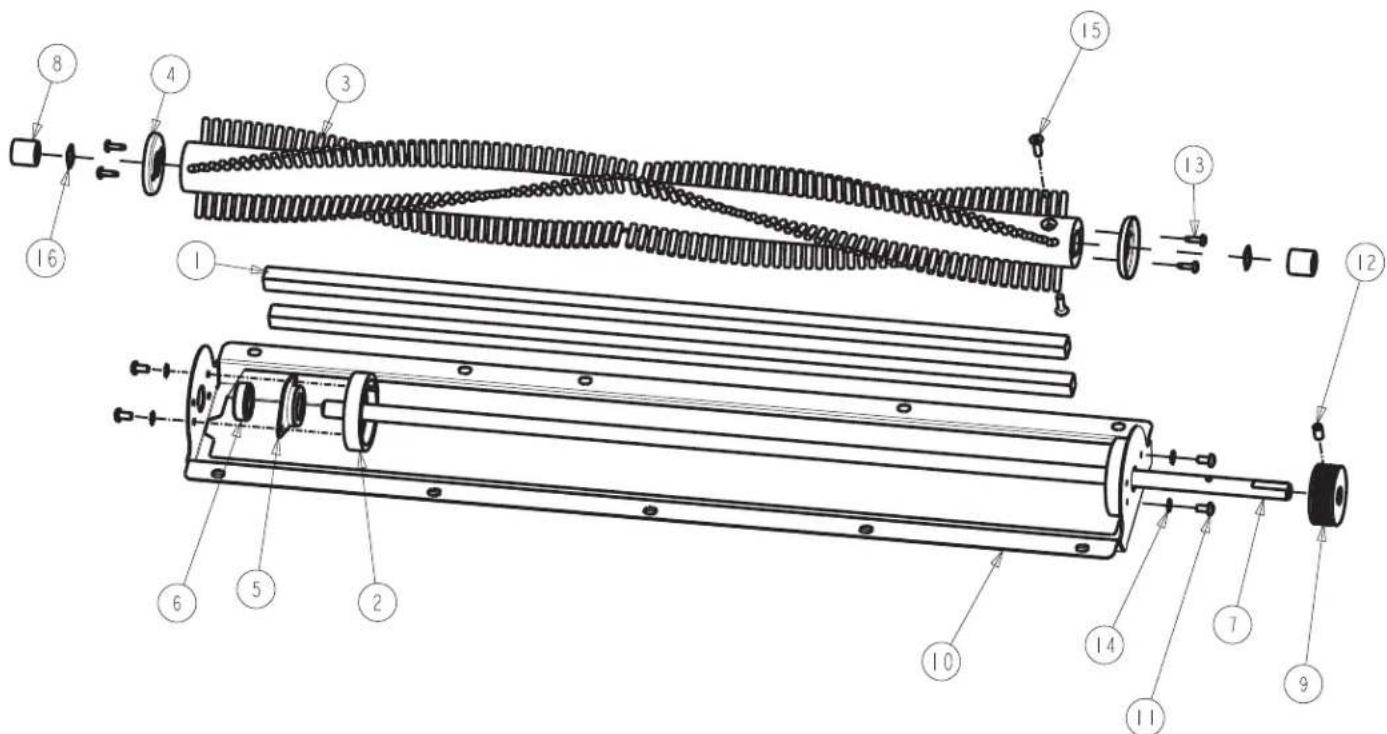

Brush Assembly....20

Replacement Parts and Accessories....21

Warranty 22

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

WARNING - To reduce the risk of fi re, electric shock or injury:

Do not leave appliance plugged in. Unplug from outlet when not in use and before servicing.

WARNING

To avoid electric shock, use indoors only.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- Use only as described in this manual. Use only manufacturer's recommended attachments.

- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Do not handle plug or appliance with wet hands.

- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

- Do not use without dustbag and/or fi Iters in place.

- Turn off all controls before unplugging.

- Use extra care when cleaning on stairs.

- Do not use to pick up fl ammable or combustible liquids such as gasoline or use in areas where they may be present.

- Connect to a properly grounded outlet only. See grounding instructions.

- Stop only on level surfaces.

SAVE THESE INSTRUCTIONS

Operating Instructions

Inspection

Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivering carrier who should be notified immediately. Read all instructions carefully before operating.

WARNING

To avoid electric shock, use indoors only.

- Electrical motors can cause explosions when operating near explosive materials or vapors. Do not operate this machine near fl ammable materials such as solvents, thinners, fuels, grain dust, etc.

Electrical - 115 Volt

This machine is designed to operate on a standard 15 amp. 115 volt, 60 Hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor.

Electrical - 240 Volt

This machine is designed to operate on a standard 16 amp. type L fused 230 volt, 50 Hz, AC circuit. Voltages below 200 volts AC or above 250 volts AC could cause serious damage to the motor. I.E.C. Class 1.

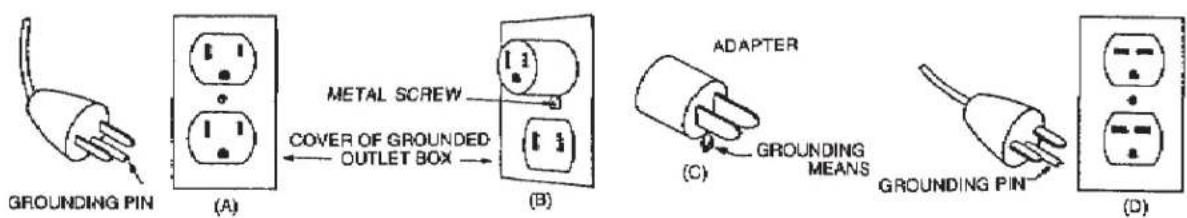

Grounding Instructions

To protect the operator from electrical shock, this machine must be grounded while in use. This machine is equipped with an approved three-conductor power cord and grounding type plug to fi t the proper grounding type receptacle.

This machine is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in sketch A. Make sure that the machine is connected to an outlet having the same configuration as the plug. No adapter should be used with this machine.

For equipment rated 150-250 volts: If the machine is provided with an attachment plug as shown in sketch below, it is intended for use on a 240 volt (nominal circuit.) No adapter is available for this plug.

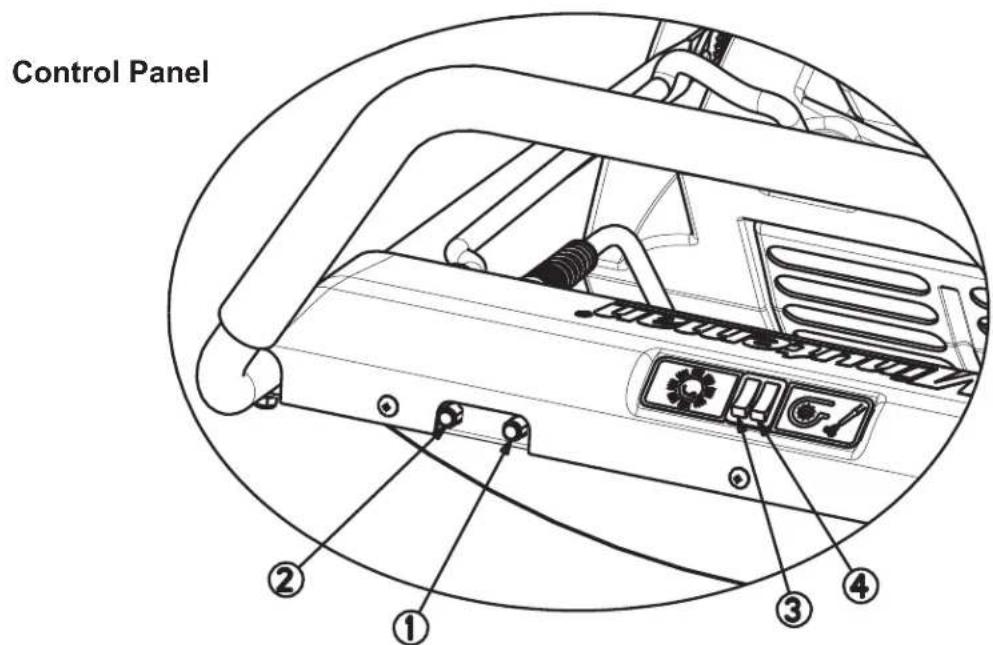

1. CIRCUIT BREAKER - BRUSH MOTOR - 3A (120 VAC) - 1.5A (240 VAC)
2. CIRCUIT BREAKER - VAC MOTOR - 15A (120 VAC) - 10A (240 VAC)
3. BRUSH POWER SWITCH
4. VACUUM POWER SWITCH

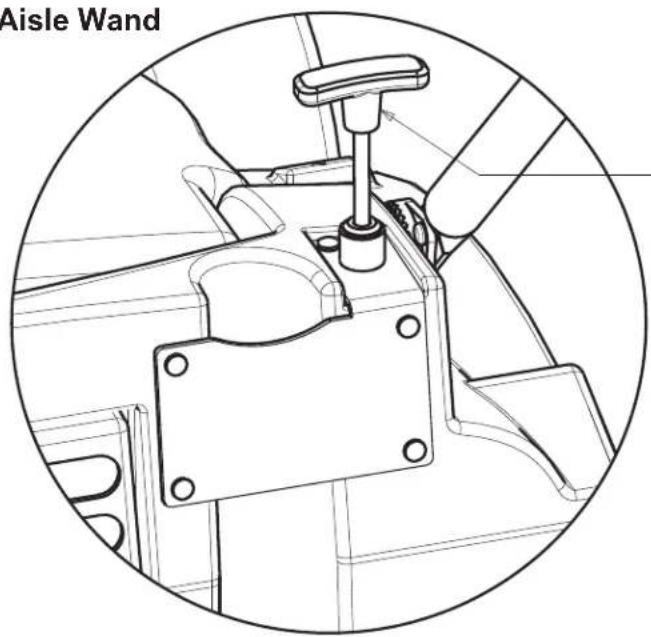

Off -Aisle Wand

-TURN AND LIFT HANDLE FOR OFF-AISLE WAND USE

OFF-AISLE WAND USAGE

1. TWIST HANDLE 1/2 TURN COUNTER-CLOCKWISE, TO UN-LOCK CABLE
2. LIFT HANDLE UP (ABOUT 1" OF TRAVEL)
3. TWIST HANDLE 1/2 TURN CLOCKWISE TO LOCK

The MPV-31 is designed primarily for use on carpet, although it also performs very well on hard surface floors. Sand, dust, paper, etc. are readily vacuumed from these types of floors. However, it is not recommended that this machine be used to vacuum metal slugs, shavings, or similar type of debris from floors, carpeted or otherwise.

Inspect MPV-31 carton for shipping damage when received. Report any damage to delivering freight carrier immediately.

Operating Instructions

Before starting, familiarize yourself with machine and controls (see ‘Machine Overview’ and ‘Control Panel’ diagrams). Large debris such as paper cups, plates, etc. should be picked up before starting the cleaning process. To operate machine, do the following:

1. Make sure unit is used only on voltage shown on nameplate.
2. From storage position (handles folded), position machine so all four wheels are on floor.
3. Adjust handle to a desired and comfortable position by lifting up on adjustment lever located on left side of machine at base of metal handle. After desired handle position is set, lock in place by closing adjustment lever.
4. Install paper and/or cloth bags inside main compartment by pushing rubber collar onto flanged bag adaptor.
5. If using both bags, install cloth bag as described above, unzip it, and place paper bag inside. Push rubber gasket seal over adaptor. Zip up cloth bag and make sure there is no damage to paper bag. Close lid.
6. There are four (4) brush settings for different carpet piles. This can be adjusted by either depressing foot pedal (lowest level) for short naps, such as indoor/outdoor carpeting, or by lifting pedal for taller naps (highest setting). Set brush height to lightly hit carpet surface.
7. Turn on vacuum and brush switch (see control panel). Keep machine moving while brush is activated. Damage to carpet could occur if brush is kept in same spot.
8. The rate at which the operator pushes machine depends on debris load, type of debris, and carpet nap length. In areas where large amounts of 'tracked in' sand are present, carpets should be vacuumed with a double pass (forward and backward pass made without turning machine around at the end of one pass). A slow, moderate walking pace by the operator normally gives a good cleaning result.
9. To use off -aisle wand, turn off brush power switch, pull up and twist to lock control cable (see machine overview) to divert air from main nozzle to auxiliary hose.
10. For storage, handle may be folded over and machine parked is an upright position to increase closet space. To fold for storage, unlock handle adjustment lever when the machine is on all four wheels, push handle forward as far as it will go and relock the handle adjustment lever. Tilt machine back on large wheels until it is in an upright position and ready to be stored.

Periodic maintenance should be followed for good performance and longer machine life. Unplug power cord from electrical source before making any repairs or adjustments to machine.

Daily:

For cloth bags, shake down bag daily. For paper bags, check if full and replace as necessary.

Check power cord for damaged or frayed insulation.

Return machine to 'storage' position when not in use.

Check and remove any string, lint, or debris from around brush and brush housing.

Monthly:

Remove rear wheels and clean axle. Apply thin coat of silicone lubricant on each wheel axle and front casters. This should be done at least twice a year.

The cloth fi Iter bag can be washed twice before losing its fi Itering capabilities. Wash with mild detergent and cool water, drip dry. Make sure bag is totally dry before reinstalling to machine, otherwise electrical shock may occur.

Inspect all hoses, cables, fi Iters, and gaskets. Clogged fi Iters and damaged hoses and gaskets can result in loss of vacuum.

Brush Adjustment/Replacement

Inspect brush for wear. Adjust or replace brush when necessary.

Adjustment:

1. The brush housing is set up so you can change the brush position to extend the brush life. When bristles are worn down enough so there is no contact with floor on lowest setting, you may reposition brush as described:
2. Unplug power cord from electrical source.
3. Remove belt cover by removing three #10 Hi/Lo screws.
4. Remove the two #10-32 screws and washers from each end of brush housing (it may be necessary to remove housing assembly for easier access).
5. Rotate bearing retainer ring and bearing support ring so that they line up with second set of mounting holes, which lowers the brush by 1/16".

Replacement:

1. Unplug power cord from electrical source.
2. Remove belt cover by removing three #10 Hi/Lo screws.
3. Loosen brush motor plate and roll belt off brush pulley.
4. Remove the ten screws securing brush housing assembly from main body.
5. Loosen set screw, remove pulley from shaft.
6. Remove the two screws and washers from each end of brush assembly.
7. Remove the two fl athead screws that attach brush to shaft, slide shaft out of brush core.
8. Inspect bearings; make sure to remove the two bushings at each brush end to replace them on new brush.
9. Install new brush to shaft and assemble accordingly.
10. When attaching bearing retainer and supporting ring, make sure screws and washers are placed on normal (horizontal) position otherwise machine will not function right.
11. After reinstalling brush housing assembly check for proper belt tension.

Exploded Views

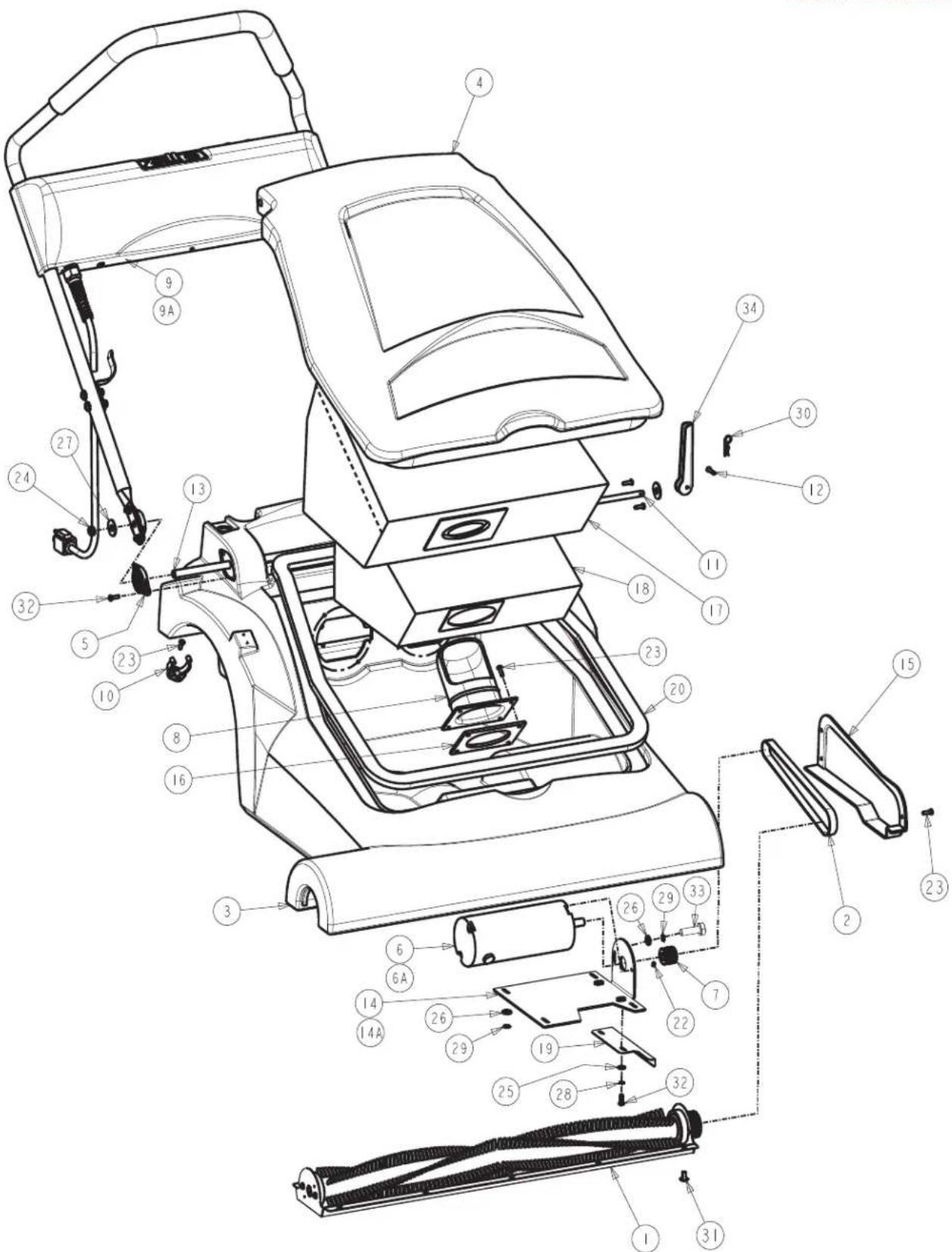

Main Assembly Front

Minuteman®

Excellence Meets Clean

BILL OF MATERIAL
ITEM	PART NO. QTY	DESCRIPTION
1 270	101 1 BRUSH M	MAIN ASSY
2 270	112 1 BELT, BRUSH DRIVE
3 270	125B 1 BODY WIDE AREA VAC, BLUE
4 270	126B 1 LID, WIDE AREA VAC, BLUE
5 270	143 2 HANDLE	PIVOT JAW
6	270144-1	1BRUSH MOTOR (240V)	BRUSH MOTOR (115V)
	270144-240-1		OR (240V)
7 270	145 1 PULLEY, BRUSH MOTOR
8 270	146B 1 BAG ADAPTER FLANGE, BLUE
9	270159	1ANDLE ASSY	HANDLE ASSY WAV (115V)
	270159-230 H		WAV (240V)
10	270161 1 TOOL CLIP
11	270163 1 HANDLE TENSION ROD
12	270164 1 CLEVIS PIN, .188 X .875
13	270166 1 HANDLE ADJUST TUBE
14	270173 1 BRUSH MOTOR BRACKET
15	270174 1 BELT COVER
16	270181 1 GASKET, NOZZLE ADAPTER
17	270182 1 FILTER BAG, CLOTH (OPTIONAL)
18	270183 1 FILTER BAG, PAPER
19	270187 1 BELT GUARD, REAR
20	270193 1 GASKET, LID
21	361218 2 CABLE TIE, BLACK
22	711003 2 SCR-SK 10-32 X .25
23	711161	9 SCR HI/LO #10 3/4 PL
24	711375 1 NUT-NYLOC 3/8-16 X 1/2 NUT
25	711503 2 WSR, FLAT #10
26	711505 6 WSR-FLAT 1/4
27	711507 2 WSR-FLAT .37 X 1.12 X .06
28	711534 2 WSR-EXTERNAL LOCK #10
29	711564 6 WSR-EXTERNAL LOCK 1/4
30	711808 1 OTTER PIN-HAIR #13
31	712560	10	SCR-MCH 1/4-20 X .50 SS NYL
32	712812 6 SCR-MC 10-24 X .62 PPH ST PL
33	713002 6 BLT-HH 1/4-20 X 3/4 #5
34	270178MCH 1 LEVER, KICK, W/HOLE

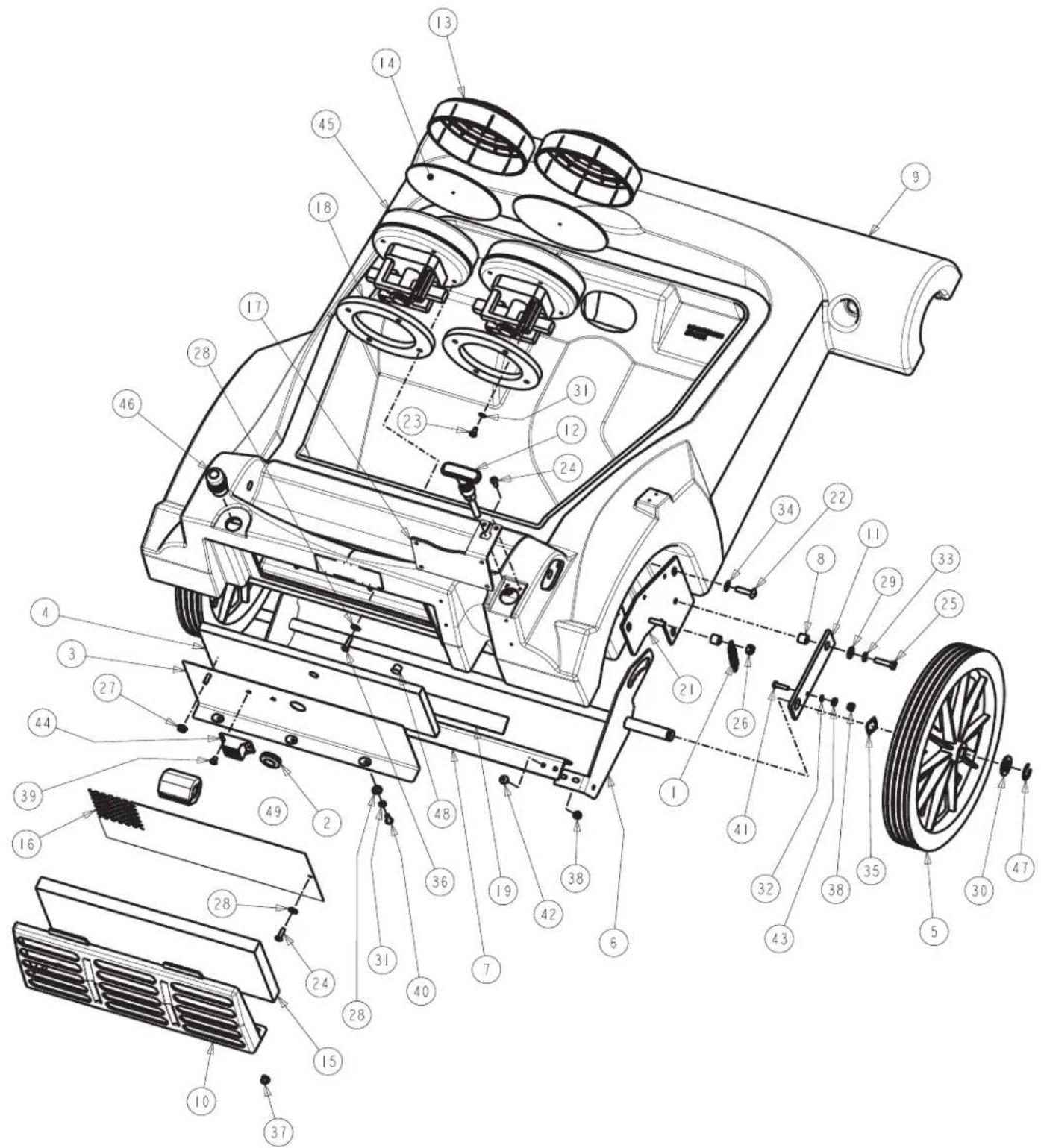

BILL OF MATERIAL
ITEM	PART # QTY	DESCRIP TION	ITEM PART # QTY D	DESCRIPTION
1 210	413 2 SPR	ING, EX	TENSION 26 711373 2 NUT-HEX 1/4-20
2 260	274 1 GRO	MMET Z-421 27 711427	1 NUT-FLANGED WIZZ 10-32
3	270115	1	SOUND ISOL. PLT - WMT	28	711503	13	WSR-FLAT #10
4	270116	1	SOUND ISOLATION FELT	29	711505	2	WSR-FLAT 1/4
5	270117	2	WHEEL, REAR	30	711527	2	WSR-FLAT .63 X 1.12 X .09
6	270118	1	REAR AXLE WELDMENT	31	711534	5	WSR-EXTERNAL LOCK #10
7 270	122 1 FOO	T ADJ	ST BAR 32 711543 2 W	SR-HELICAL #10
8 270	124 4 WHE	EL RO	LLER TUBE 33 711544 2 W	SR-HELICAL 1/4
9	270125B	1	BDY, WD AREA VAC, BLUE	34	711565	6	WSR-EXTERNAL LOCK 5/16
10	270127	1	EXHAUST FILTER COVER	35	711583	2	WSR-WAVE .78 X 1.00 X .02
11	270133	2	OFFSET ARM	36	712131	8	SCR-TR 10-24 X .75 - TORX
12	270138	1	REM. CBL ASSY, DIVERTER	37	712540	2	SCR-MC 10-24 X .37 SS TH
13	270147	2	DOME FILTER	38	712638	6	NUT, HEX 10-24 SS NYLOC
14	270148	2	POST FILTER, DOME	39	712800	2	SCR-MC 10-24 X .24 ST PL
15	270168	1	EXHAUST FILTER	40	712812	3	SCR-MC 10-24 X .62 PPH
16	270186	1	EXHAUST FLTR SUPPORT	41	712813	2	SCR-MC 10-24 X .75 STPL
17	270189	1	HOSE RETAINER - LARGE	42	712822	4	SCR-MC 10-24 X .50 TH SS
18	270210	2	SEAL W/MTG HOLES	43	712900	2	NUT-HEX 10-24 STPL
19	270215	1	NON-SLIP STRIP	44	741300	1	TERMINAL BLOCK C=2 P=4
20	270218 1	WHEEL BCK PLT WMT - LF		45	746004	2	VAC MTR ASSY WAV (115V)
21	270219	1	WHEEL BCK PLT WMT - RT		746027		VAC MTR ASSY WAV (240V)
22	710182	6	SCR-MC 1/4-20 X 1.00 STPL	46	746033	1	HEYCO 3200, STRN RELIEF
23	711124	2	PAN HEAD ST #10 X .37 IN	47	808756	2	E RING .62 5133-62
24	711161	8	SCR-HI/LO #10 X 3/4 PL	48	830804	5	HOLE PLUG - HEYCO BLK
25	711207	2 BLT-HH 1/4-20 X 1.00 STPL

BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION
1 270	125B 1 BODY,	WIDE AREA	VAC, BLUE
2 270	134 1 DIVERTER BASE PLATE
3 270	141 2 CASTER - 2.00" DIA JARVIS
4 270	142 1 CRIMP CLAMP 1-5/8 DIA (410R)
5 270	160 1 HOSE AND CUFF ASSY
6 829	565MCH 1 TELESCOPING WAND
7 270	188 3 HOSE RETAINER - SMALL
8 270	204 1 DIVERTER ASSY
9 270	217 1 STRAIN RELIEF, ROMEX 1/2"
10 711	161 8 SCR HI/LO #10 X 3/4 PL
11 711	503 8 WSR, FLAT #10
12	711534	2 WSR-EXTERNAL LOCK #10
13	711543	8 WSR-HELICAL #10
14	712540 2 SCR-MC 10-24 X .37 SS TH
15	712812 8 SCR-MC 10-24 X .62 PPH ST PL
16	75-89-A	1 SPEED NUT

BILL OF MATERIAL
ITEM	PART NO.	QTY	DESCRIPTION
1	270	190 1	DIVERTER FLAP GASKET
2	270	191 1	DIVERTER CABLE ADJ BRACKET
3	270	196 1	DIVERTER FLAP SUB-ASSY
4	270	197 1	DIVERTER BASE ASSY
5	270	202 1	DIVERTER WALL -RIGHT
6	270	208 1	DIVERTER FLAP SEAL
7	270	211 1	DIVERTER SEAL - REAR
8	270	212 1	DIVERTER SEAL - TOP
9	270	213 1	DIVERTER SEAL - FRONT
10	711	310 2	NUT, HEX 10-32 ST PL
11	711	503 2	WSR, FLAT #10
12	711	534 5	WSR-EXTERNAL LOCK #10
13	712	540 3	SCR-MC 10-24 X .37 SS TH

BILL OF MATERIAL - 270159
ITEM	PART NO. QTY	DESCRIPTION
1 150	003 1 RELIEF,	STRAIN 100 X 50
2 270	113 1 HANDLE,	WIDE AREA VAC
3 270	143 2 HANDLE	PIVOT JAW
4 270	154 1 TOOL C	ADDY WELDMENT
5 270	167 1 TOOL NET,	MESH
6 270	216 1 HANG-UP HOOK
7 360	108 1 HANDLE,	SLEEVE
8 710	303 1 SCR-MC	6-32 X .50 ST PL PAN HD
9 710	356 4 SCR-MC	10-32 X .62 PAN HD
10 710	385 8 SCR-MC	1/4-20 X 1.50 ST NI
11 711	350 4 NUT NYLOC	10-32
12 711	373 2 NUT-NLOC	1/4-20
13 711	387 6 NUT-NYLOC	1/4-20 1/2 NUT
14 711	400 2 NUT-PIPE LOCK	1/2"
15 711	427 1 NUT-FL	ANGED WIZZ	10-32
16 711	435 1 NUT-FL	ANGED WIZZ	6-32
17 711	503 6 WSR, FLAT #10
18 711	505 14 WSR-FLAT	1/4
19 712	536 2 SCR-MC	10-24 X .62 SS
20 712	638 2 NUT, HEX	10-24 SS NYLOC
21 712	800 4 SCR-MC	10-24 X .25 ST PL
22 712	816 8 SCR-MC	10-24 X .37 STPL
23 715	428 1 DECAL,	BRUSH/VACUUM
24 740	099 2 CABLE	TIE - SMALL
25 741	300 1 TERMINAL BLOCK C=2 P=4
26 746	005 1 CIRCUIT BREAKER - 15A
27 746	006 1 CIRCUIT BREAKER - 3A
28 746	007 1 SWITCH, DREEFS DUAL 25A ILLUMINATED
29 746	019 1 CORD ASSY 14/5 SJT
30 746	021 1 CORD ASSY 12/3 X 75'
31 746	033 1 HEYCO	3200, STRAIN RELIEF
32 829	720 1 WASHER
33 831	261 1 RECTIFIER 12A 400V
34	270155SP	1 TOOL CADDY TOP - PRINTED

BILL OF MATERIAL - 270159-230
ITEM P	PART NO. QTY	DESCRIPTION
1 150	004 1 STRAIN	RELIEF, (PIG	TAIL CORD GRIP)
2 270	113 1 HANDLE	WIDE AREA	VAC
3 270	143 2 HANDLE	PIVOT JAW
4 270	154 1 TOOL C	ADDY, BOTTOM
5 270	167 1 BAG, M	ESH TOOL NET
6 270	216 1 HANG-UP HOOK
7 360	108 1 SLEEVE-HANDLE
8 710	303 1 SCR-PH	MS 6-32 X .50	ZP
9 710	356 4 SCR-RH	MS 10-32 X .62	ZP
10 710	385 8 SCR-RH	IMS 1/4-20 X	1.50 NICKEL
11 711	350 4 NUT-NY	LOC 10-32 ZP
12 711	373 2 NUT-NY	LOC 1/4-20 ZP
13 711	387 6 NUT-JAM	1/4-20 ZP	NYLOC
14 711	400 2 NUT-LO	CK 1/2 ELECTRICAL NUT
15 711	427 1 NUT-FL	ANGED WIZZ	10-32 ZP
16 711	435 1 NUT-FL	ANGED WIZZ	6-32 ZP
17 711	503 4 WASHER	R-FLAT #10 X .50	ZP
18 711	505 14	WASHER-FLAT 1/4 ZP
19 711	534 2 WASHER	R-EXT LOCK	#10 ZP
20 712	800 4 SCR-RH	IMS 10-24 X .25	ZP
21 712	816 8 SCR-TH	MS 10-24 X .37	ZP
22 715	428 1 DECAL	BRUSH / VACUUM
23 740	099 2 CABLE	TIE-SMALL
24 741	300 1 TERMINAL	BLOCK-C=2 P=4
25 741	400 1 CIRCUIT	BREAKER 10A PUSH BUTTON
26 742	256 1 RFI FILTER	CORCOM 10VS1
27 746	007 1 SW-DRE	EFS DUAL 25A ILLUMINATED 125V LAMP
28 746	019 1 CORD-1	4GA-5 52IN BLACK
29 746	032 1 CORD, EUROPEAN 1.5MM-3 25M (82FT) GREY
30 746	033 1 STRAIN	RELIEF-HEY CO 1/2"
31 746	035 1 CIRCUIT	BREAKER-2.0AMP PUSH BUTTON
32 829	720 1 WASHER	FLAT .908 X 1.215 X .058 SS
33 831	261 1 RECTIFIER-12AMP 400V PY40F
34	270155SP	1	TOOL CADDY TOP, W/SCREE

BILL OF MATERIAL - 270101
ITEM	PART NO. QTY	DESCRIPTION
1 150	209 2 FOAM TAPE 25"
2 270	102 2 BEARING SUPPORT	RING - MAIN BROOM
3 270	103 1 BROOM - MAIN
4 270	104 2 DUST CAP - MAIN BROOM BEARING
5 270	105 2 BEARING RETAINER	RING
6 270	106 2 RADIAL BALL BEARING
7 270	107 1 MAIN BROOM SHAFT
8 270	108 2 BUSHING - MAIN BROOM SPACER
9 270	109 1 BRUSH PULLEY
10 270	110 1 BRUSH SHOE
11 710	353 4 SCR-MC RD HD 10-32 X .37 STL
12 711	1016 1 SCR-SK 1/4-20 X .50 - CUP PT. SET SCR
13 711	181 4 SCR-ST-B HI-LO #8 X .50 PL
14 711	534 4 WSR-EXTERNAL LOCK #10
15 712	826 2 SCR-FHMS 10-32 X .625
16 827	903 2 WASHER

	270147 Dome Filter
	270148PKG Post Filter, Dome (Qty 10/Pkg)
	270182 Filter Bag, Cloth
	270183PKG Filter Bag, Paper (Qty 10/Pkg)
	270168 Exhaust Filter, Foam
	829561 Combination Floor Tool 1-1/4"
	829562 Crevice Tool 1-1/4"
	829563 Dust Bush 1-1/4"

Minuteman International Made Simple Commercial Limited Warranty

REVISION O EFFECTIVE 4/1/2016

Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair stations.

This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belts, cords, switches, hoses, rubber parts, electrical motor components or adjustments. Parts manufactured by Minuteman are covered by and subject to the warranties and/or guarantees of their manufacturers. Please contact Minuteman for procedures in warranty claims against these manufacturers.

Special warning to purchaser -- Use of replacement filters and/or pre-filters not manufactured by Minuteman or its designated licensees, will void all warranties expressed or implied. A potential health hazard exists without original equipment replacement.

All warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be.

Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose. Minuteman assumes no responsibility for any special, incidental or consequential damages.

This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this product. Customers outside the U.S.A. and Canada should contact their local distributor for export warranty policies. Minuteman is not responsible for costs or repairs performed by persons other than those specifically authorized by Minuteman. This warranty does not apply to damage from transportation, alterations by unauthorized persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of income due to malfunctions of the product.

If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions and limitations may not apply to you.

Model Parts Labo		r	Poly Travel**
Cord Electric Group 5yrs		3yrs	12yrs	90 days
Battery Operated Group	5yrs	3yrs	12yrs	90 days

Exceptions.....

Model Parts Labo		r Poly Travel**
Port A Scrub, all models	1yr	6months	12yrs	90 days
A3S Blower	1yr	1yr	0	0
Phenom Dual Motor Upright Vacuums	2yrs	2yrs	0	0
Explosion Proof Vacuum	1yr	1yr	0	0
Propane Burnisher	1yr	1yr	0	90 days
**Travel, 2 hours max

Stand-alone Battery Chargers:	One year
Replacement Parts:	Ninety days
Batteries:	0-3 months full replacement, 4-12 months pro-rate
Polypropylene Plastic Tanks:	12yr warranty, no additional labor

"Excellence Meets Clean"

Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities.

14N845 U.S. Route 20, Pingree Grove, IL 60140 USA

Phone [phone] - www.minutemanintl.com

A Member of the Hako Group
