USER MANUAL CSZ71TKEW PANASONIC

Outdoor Unit Single Split (R32)

CU-3E18PBE

CU-4E23PBE

CU-4E27PBE

CU-5E34PBE

CU-2E12SBE

CU-2E15SBE

CU-2E18SBE

CU-3E23SBE

Multi Split (R32) Model No. Indoor Unit 16-29 Español Before operating the unit, please read these operating instructions thoroughly and keep them for future reference. The included Installation Instructions should be kept and read by the installer before installation. Remote control is packaged in the indoor unit and removed by the installer before installation. Italiano Operating Instructions 2-15 72-85 Operating Instructions Air Conditioner ACXF55-04930 ACXF55-04930_01EN.indd 1 12/22/2016 9:08:05 AM Provides maximum comfort and clean air with optimal energy saving methods. Multi air conditioner system Multi air conditioner systems save space by letting you connect multiple indoor units to a single outdoor unit. For complete product features, please refer catalogue. Use remote control within 8 m from the remote control receiver of the indoor unit. Quick Guide

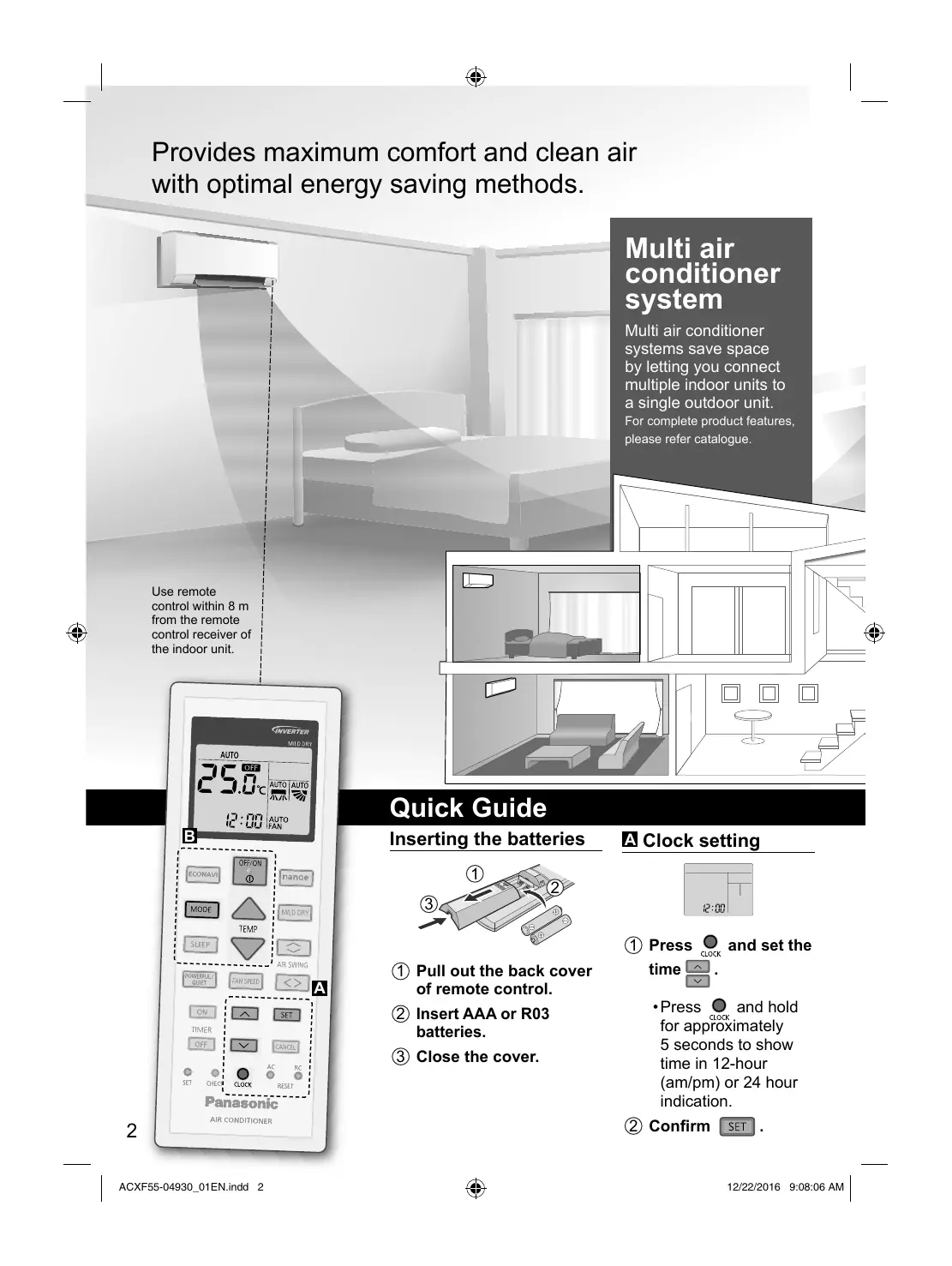

Inserting the batteries

ACXF55-04930_01EN.indd 2

1 Pull out the back cover of remote control. 2 Insert AAA or R03 batteries. A Clock setting 1 Press time and set the

• Press and hold for approximately 5 seconds to show time in 12-hour (am/pm) or 24 hour indication. 2 Confirm

12/22/2016 9:08:06 AM Thank you for purchasing Panasonic Air Conditioner. Sunlight sensor

• Sunlight Detection Econavi The intelligent human activity and sunlight sensors monitor human location, movements, absence and sunlight intensity. English Table of contents Human activity sensor See “To learn more...” for details. Accessories
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control holder × 2 The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement. B Basic operation 1 Press to select stop the operation. 3 Select the desired temperature. Down POWER
• Please note that the indication is on display to start the unit. Selection range:

16.0 °C ~ 30.0 °C /

• Press and hold approximately 10 seconds to switch the temperature indication in °C or °F.

ACXF55-04930_01EN.indd 3 12/22/2016 9:08:08 AM Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below: This appliance is not intended for accessibility by the general public. For appliance filled with R32 (mild flammable refrigerant). If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. WARNING This sign warns of death or serious injury. CAUTION This sign warns of injury or damage to property. The instructions to be followed are classified by the following symbols: This symbol denotes an action that is PROHIBITED. These symbols denote actions COMPULSORY. Power supply Indoor unit Air inlet Air outlet Remote control Indoor unit and outdoor unit This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire. Confirm with authorised dealer or specialist on usage of any specified refrigerant type. Using refrigerant type other than the specified may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire. Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock. Air inlet Outdoor unit WARNING Air outlet

ACXF55-04930_01EN.indd 4 12/22/2016 9:08:09 AM Remote control Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries. Power supply Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire. To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug. It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire. To prevent overheating, fire or electric shock:
• Insert the power plug properly.
• Dust on the power plug should be periodically wiped with a dry cloth. English Do not sit or step on the unit, you may fall down accidentally. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard. Safety precautions Do not expose yourself directly to cold air for a long period to avoid excess cooling. Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it is switched on for operation.
• The fan does not stop even if the operation is stopped. Contact your local dealer immediately for maintenance/ repair. This equipment must be earthed to prevent electrical shock or fire. Prevent electric shock by switching off the power supply and unplug: -Before cleaning or servicing, -When extended non-use, or -During abnormally strong lightning activity.

ACXF55-04930_01EN.indd 5 12/22/2016 9:08:09 AM Safety precautions WARNING Precaution for appliance filled with R32 Pay careful attention to the following points when operating the appliances and dealing with different refrigerants. The appliance shall be installed, and/or operated in a room with floor area larger than Amin (m²) and keep away from ignition sources, such as heat/sparks/ open flame or hazardous areas such as gas appliances, gas cooking, reticulated gas supply systems or electric cooking appliances, etc. (Refer to Table A of Installation instructions table for Amin (m²)) Be aware that refrigerant may not contain an odour, highly recommended to ensure suitable flammable refrigerant gas detectors are present, operating and able to warn of a leak. Since the working pressure is higher than that of refrigerant R22 models, some of the piping and installation and service tools are special. Especially, when replacing a refrigerant R22 model with a new refrigerant R32 model, always replace the conventional piping and flare nuts with the R32 and R410A piping and flare nuts on the outdoor unit side. The R32 flare nut and pipe on the outdoor unit side can also be used for a R410A model. Models that use refrigerant R32 and R410A have a different charging port thread diameter to prevent erroneous charging with refrigerant R22 and for safety. Therefore, check beforehand. [The charging port thread diameter for R32 and R410A is

12.7 mm (1/2 inch).]

Be extra careful so that foreign matter (oil, water, etc.) does not enter the piping. Also, when storing the piping, securely seal the opening by pinching, taping, etc. (Handling of R32 is similar to R410A.) This appliance shall be stored in a well ventilated area. This appliance shall be stored in a room without continuously operating open flames and ignition sources. This appliance shall be stored so as to prevent mechanical damage from occurring. Do not use means to accelerate the defrosting process or to clean, other than those recommended by manufacturer. Any unfit method or using incompatible material may cause product damage, burst and serious injury. Do not pierce or burn as the appliance is pressurized. Do not expose the appliance to heat, flame, sparks, or other sources of ignition. Else it may explode and cause injury or death.

ACXF55-04930_01EN.indd 6 12/22/2016 9:08:09 AM Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit. Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc. Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation. Do not expose plants or pet directly to airflow to avoid injury, etc. Do not touch the sharp aluminium fin, sharp parts may cause injury. Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit. Do not install the unit in oily and smoky areas to prevent damage to the unit. Do not dismantle the unit for cleaning purpose to avoid injury. After a long period of use or use with any combustible equipment, aerate the room regularly. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. English Indoor unit and outdoor unit Prevent water leakage by ensuring drainage pipe is: -Connected properly, - Kept clear of gutters and containers, or -Not immersed in water Safety precautions CAUTION Remote control Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control. To prevent malfunction or damage of the remote control:

• Remove the batteries if the unit is not going to be used for a long period of time.
• New batteries of the same type must be inserted following the polarity stated. Power supply Do not disconnect the plug by pulling the cord to prevent electric shock. Do not step onto an unstable bench when cleaning the unit to avoid injury. Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock. Do not open window or door for long time during operation, it may lead to inefficient power usage and uncomfortable temperature changes.

ACXF55-04930_01EN.indd 7 12/22/2016 9:08:09 AM How to use Indicator POWER To adjust airflow direction TIMER Upper direction ECONAVI nanoe AIR SWING Lateral direction

• Do not adjust the flap by hand.

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode. To switch between powerful/quiet Not used in normal operations. Press to restore the remote control to default setting. POWERFUL: To reach the preset temperature quickly
• This operation stops automatically after 20 minutes. QUIET: To enjoy quiet operation
• This operation reduces airflow noise. To maximise comfort while sleeping This operation provides you with a comfortable environment while sleeping. It will automatically adjust the sleep pattern temperature during the activation period. The indoor unit indicator will dim when this operation is activated. This is not applicable if the indicator brightness has been manually dimmed.
• This operation can be set together with timer. SLEEP Sleep operation has the priority over OFF (Cancel) timer.
• This operation can be cancelled by pressing This operation is incorporated with the the respective button when the sleep timer activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9 reaches 0.0h. hours).

ACXF55-04930_01EN.indd 8 12/22/2016 9:08:10 AM See "To learn more..." for details.

SET TIMER OFF CANCEL 1 Select ON or OFF timer

• Each time pressed: Example: OFF at 22:00 Cancel 2 Set the time

• To cancel ON or OFF timer, press to select respective or then press

• If timer is cancelled manually or due to power failure, you can restore the timer again by pressing to select respective or then press

• The nearest timer setting will be displayed and will activate in sequence.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick Guide. How to use 2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset times. English To set the timer 3 Confirm To improve humidity and moisture level (Not applicable for Multi split system)
• This operation reduces air dryness during COOL mode only. To save energy To purify the air

• When manual AIR SWING is selected, the ECONAVI operations will be cancelled.

• See “To learn more...” for details. Note SLEEP

• Can be activated in all modes and can be
• Cannot be selected at the same time. cancelled by pressing the respective button • Cannot be activated during MILD DRY. again.

ACXF55-04930_01EN.indd 9 12/22/2016 9:08:10 AM To learn more... Operation mode AUTO : During operation, the POWER indicator will blinks at initial.

• Unit selects operation mode every 10 minutes according to the setting and room temperatures. Unit selects operation mode every 3 hours according to setting temperature, Multi outdoor temperature and room temperature.
• It is possible to operate the indoor units individually or simultaneously. The priority of operation is placed on the first unit that turned on.
• During operation, HEAT and COOL modes cannot activate at the same time for different indoor units.
• The power indicator blinks to indicate the indoor unit is standing by for different operation mode. HEAT : The POWER indicator blinks at the initial stage of this operation. Unit takes a while to warm up.
• For system which HEAT mode has been locked, if operation mode other than Multi HEAT is selected, the indoor unit stops and the POWER indicator blinks. Single COOL : Provides efficient comfort cooling to suit your needs. DRY : Unit operates at low fan speed to give a gentle cooling operation. Energy saving temperature setting Operating the unit within the recommended temperature range may save energy. HEAT : 20.0 °C ~ 24.0 °C / 68 °F ~ 75 °F. COOL: 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F. Air flow direction In COOL/DRY mode: If AUTO is set, the flap swings left/right and up/down automatically. In HEAT mode: If AUTO is set, the horizontal flap is fixed at the predetermined position. The vertical flap swings left/right after the temperature rises. In MILD DRY (Not applicable for Multi split system): When vertical airflow direction is set to AUTO, it stops at lower position to avoid cold air contact. However, you can adjust the flap direction manually. Auto restart control If power is resumed after a power failure, the operation will restart automatically after a period of time with previous operation mode and airflow direction.
• This control is not applicable when TIMER is set. nanoe ■ To enjoy freshness and cleaner environment This operation provides clean air, moisturises your skin and hair, reduces and neutralises odours in the room.

ACXF55-04930_01EN.indd 10 12/22/2016 9:08:11 AM ■ Econavi with intelligent eco sensors Intelligent eco sensors detect potential waste of energy using the human activity sensor and sunlight sensor. English ECONAVI

• Based on area activeness, flap will adjust its position automatically.
• The human activity sensor is influenced by the location of the indoor unit, the movement speed of human/non-human activity, temperature range, etc.
• The human activity sensor may mistakenly detect non-human activity and source of heat, such as pets, or may not detect the human activity or source of heat if the person stays motionless.
• Do not place large objects near the sensor and keep away heating units or humidifier from the sensor’s detections area. The sunlight sensor detects changes in sunlight intensity in the room. It reduces the waste of energy under less sunlight conditions. To learn more... The human activity sensor scans areas of heat source and movement in a room. 5 Features

Sunlight detection 120º

Rhythmic temperaturecontrolled pattern to save energy without sacrificing comfort. Human activity sensor detects presence/absence of human beings and the movement speed of human activities minimising the required amount of energy. Adjusts power to changes in sunlight intensity. Operating conditions Use this air conditioner in the temperature range indicated in the table. Single split outdoor unit *1 Multi split outdoor unit *2 DBT WBT DBT WBT DBT WBT Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8) 46 (114.8) 26 (78.8) COOL Min. 16 (60.8) 11 (51.8) -10 (14.0) -10 (14.0) Max. 30 (86.0) 24 (75.2) 18 (64.4) 24 (75.2) 18 (64.4) HEAT Min. 16 (60.8) -15 (5.0) -16 (3.2) -15 (5.0) -16 (3.2) DBT: Dry bulb temperature, WBT: Wet bulb temperature Temperature °C (°F) Indoor *1 CU-Z20TKE, CU-Z25TKE, CU-Z35TKE, CU-Z42TKE, CU-Z50TKE, CU-Z71TKE *2 CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E23SBE, CU-2Z35TBE, CU-2Z41TBE, CU-2Z50TBE, CU-3Z52TBE, CU-3Z68TBE, CU-4Z68TBE, CU-4Z80TBE, CU-5Z90TBE

ACXF55-04930_01EN.indd 11 12/22/2016 9:08:11 AM Cleaning instructions To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see error code “H 99”. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household detergent.
• Do not use water hotter than 40 °C / 104 °F. Indoor unit Aluminium fin Front panel Air filters Human activity sensor Air filters Wipe the unit gently with a soft, dry cloth. Human activity sensor Do not hit or violently press or poke it with a sharp object. This can lead to damage and malfunction. Outdoor unit Indoor unit Once every 2 weeks
• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Dry the filters thoroughly under shade, away from fire or direct sunlight.
• Replace any damaged filters. Remove air filter Attach air filter Make sure the air outlet of the outdoor unit is not blocked by fallen leaves or snow. Clear any blockage from the drain pipe. Insert into the unit Front panel Wash gently and dry. Remove the front panel 2 Pull out and lift up. Close it securely 2 Push in. 1 Insert at both sides. 1 Release the hooks at both ends. 3 Close down. 4 Press both ends and center of the front panel.

ACXF55-04930_01EN.indd 12 12/22/2016 9:08:12 AM Cause Mist emerges from indoor unit. Water flowing sound during operation. The room has a peculiar odour.

• Condensation effect due to cooling process.
• Refrigerant flow inside the unit.
• This may be due to damp smell emitted by the wall, carpet, furniture or clothing. Indoor fan stops occasionally during automatic • This helps to remove the surrounding odour. fan speed setting. Airflow continues even after operation has
• Extraction of remaining heat from the indoor unit stopped. (maximum 30 seconds). Operation is delayed a few minutes after
• The delay is a protection to the unit’s compressor. restarting. Outdoor unit emits water/steam.
• Condensation or evaporation occurs on pipes. TIMER indicator is always on.
• The timer setting repeats daily once set. POWER indicator blinks during HEAT mode
• The unit is in defrost mode (and AIR SWING is set to with no warm air supply (and flap is closed). AUTO). Indoor fan stops occasionally during heating
• To avoid unintended cooling effect. operation. POWER indicator blinks before the unit is
• This is a preliminary step in preparation for the switched on. operation when the ON timer has been set. When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time. Cracking sound during operation.
• Changes of temperature caused the expansion/ contraction of the unit. Splashing sound during operation.
• Generating the nanoe on the unit. Dusts accumulated on the wall.
• Due to air circulation or static electricity generated by the air conditioner. Some types of wall paper may collect dusts easily (recommended to clean the area around the air conditioner frequently). During COOL/DRY mode, the indoor unit
• The system has locked to operate in HEAT model only. stops and POWER indicator blinks. Discoloration of some plastic parts.
• Discoloration is subject to material types used in plastic parts, accelerated when exposed to heat, sun light, UV light or environmental factor. Check the following before calling for servicing. Symptom Cleaning instructions / Troubleshooting The following symptoms do not indicate malfunction. Symptom English Troubleshooting Check Operation in HEAT/COOL mode is not working • Set the temperature correctly. efficiently.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents. Noisy during operation.
• Check if the unit has been installed at an incline.
• Close the front panel properly.
• Insert the batteries correctly. Remote control does not work. (Display is dim or transmission signal is weak.) • Replace weak batteries. The unit does not work.
• Check if the circuit breaker is tripped.
• Check if timers have been set. The unit does not receive the signal from the
• Make sure the receiver is not obstructed. remote control.
• Certain fluorescent lights may interfere with signal transmitter. Please consult authorised dealer.

ACXF55-04930_01EN.indd 13 12/22/2016 9:08:13 AM Troubleshooting When... ■The remote control is missing or a malfunction has occurred AUTO OFF/ON 1.Raise the front panel. 2.Press the button once to use in AUTO mode. 3.Press and hold the button until you hear 1 beep, then release to use in forced COOL mode. 4.Repeat step 3. Press and hold the button until you hear 2 beeps, then release to use in forced HEAT mode. 5.Press the button again to turn off. ■The indicators are too bright

• To dim or restore the unit’s indicator brightness, press and hold for 5 seconds. ■Conducting a seasonal inspection after extended non-use
• Check the remote control batteries.
• Check that there is no obstruction around the air inlet and outlet vents.
• Use Auto OFF/ON button to select COOL/HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between the air inlet and outlet vents:

COOL: ≥ 8 °C / 14.4 °F

■The units are not going to be used for a long period of time

• Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF THE POWER SUPPLY AND UNPLUG then please consult an authorised dealer when in following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.

ACXF55-04930_01EN.indd 14 12/22/2016 9:08:13 AM Troubleshooting

Press for 5 seconds Press for 5 seconds to quit checking Press until you hear beep sound, then write down the error code

Turn the unit off and reveal the error code to authorised dealer TIMER OFF

SET CHECK CLOCK

• For certain errors, you may restart the unit for limited operation if there are 4 beeps when operation starts. Diagnostic display Abnormality/Protection control Diagnostic display Abnormality/Protection control H 37 Outdoor liquid pipe temperature sensor abnormality H 38 Indoor/outdoor mismatch (brand code) Indoor intake air temperature sensor abnormality H 39 Abnormal indoor operating unit or standby units H 15 Outdoor compressor temperature sensor abnormality H 41 Abnormal wiring or piping connection H 16 Outdoor current transformer (CT) abnormality H 59 Eco sensor abnormality H 19 Indoor fan motor mechanism lock H 64 Outdoor high pressure sensor abnormality H 21 Indoor float switch operation abnormality H 67 nanoe abnormality H 70 Light sensor abnormality H 23 Indoor heat exchanger temperature sensor 1 abnormality H 97 Outdoor fan motor mechanism lock Indoor heat exchanger temperature sensor 2 abnormality H 98 Indoor high pressure protection H 99 Indoor operating unit freeze protection H 00 No memory of failure H 11 Indoor/outdoor abnormal communication H 12 Indoor unit capacity unmatched H 14 H 24 F 11 4-way valve switching abnormality H 25 Indoor ion device abnormality H 27 Outdoor air temperature sensor abnormality F 17 Indoor standby units freezing abnormality H 28 Outdoor heat exchanger temperature sensor abnormality F 90 Power factor correction (PFC) circuit protection H 30 Outdoor discharge pipe temperature sensor abnormality F 91 Refrigeration cycle abnormality Outdoor heat exchanger temperature sensor 2 abnormality F 93 H 32 Outdoor compressor abnormal revolution F 94 H 33 Indoor/outdoor misconnection abnormality Compressor discharge pressure overshoot protection F 95 H 34 Outdoor heat sink temperature sensor abnormality Outdoor cooling high pressure protection F 96 H 35 Indoor/outdoor water adverse current abnormality Compressor overheating protection H 36 Outdoor gas pipe temperature sensor abnormality F 98 Total running current protection F 99 Outdoor direct current (DC) peak detection Troubleshooting If the unit stops and the TIMER indicator blinks, use the remote control to retrieve the error code. English How to retrieve error codes

ACXF55-04930_01EN.indd 15 12/22/2016 9:08:13 AM *1 CU-Z20TKE, CU-Z25TKE, CU-Z35TKE, CU-Z42TKE, CU-Z50TKE, CU-Z71TKE *2 CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E23SBE, CU-2Z35TBE, CU-2Z41TBE, CU-2Z50TBE, CU-3Z52TBE, CU-3Z68TBE, CU-4Z68TBE, CU-4Z80TBE, CU-5Z90TBE

ACXF55-04930_02FR.indd 25 12/22/2016 9:08:49 AM

SET CHECK CLOCK

ACXF55-04930_02FR.indd 29 12/22/2016 9:08:51 AM *1 CU-Z20TKE, CU-Z25TKE, CU-Z35TKE, CU-Z42TKE, CU-Z50TKE, CU-Z71TKE *2 CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E23SBE, CU-2Z35TBE, CU-2Z41TBE, CU-2Z50TBE, CU-3Z52TBE, CU-3Z68TBE, CU-4Z68TBE, CU-4Z80TBE, CU-5Z90TBE

ACXF55-04930_03ES.indd 39 12/22/2016 9:09:01 AM

SET CHECK CLOCK

RESET *1 CU-Z20TKE, CU-Z25TKE, CU-Z35TKE, CU-Z42TKE, CU-Z50TKE, CU-Z71TKE *2 CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E23SBE, CU-2Z35TBE, CU-2Z41TBE, CU-2Z50TBE, CU-3Z52TBE, CU-3Z68TBE, CU-4Z68TBE, CU-4Z80TBE, CU-5Z90TBE

ACXF55-04930_04DE.indd 53 12/22/2016 9:09:12 AM

SET CHECK CLOCK

ACXF55-04930_04DE.indd 57 12/22/2016 9:09:14 AM *1 CU-Z20TKE, CU-Z25TKE, CU-Z35TKE, CU-Z42TKE, CU-Z50TKE, CU-Z71TKE *2 CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E23SBE, CU-2Z35TBE, CU-2Z41TBE, CU-2Z50TBE, CU-3Z52TBE, CU-3Z68TBE, CU-4Z68TBE, CU-4Z80TBE, CU-5Z90TBE

ACXF55-04930_05IT.indd 67 12/22/2016 1:52:58 PM

SET CHECK CLOCK

RESET In verticale richting In horizontale richting *1 CU-Z20TKE, CU-Z25TKE, CU-Z35TKE, CU-Z42TKE, CU-Z50TKE, CU-Z71TKE *2 CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE, CU-2E18SBE, CU-3E23SBE, Meer weten...

SET CHECK CLOCK

RESET Beveiliging totale stroom F 99 Information English Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. This air conditioner incorporates a biocidal product. Ionized air generated by a device incorporated in the air conditioner deactivates bacteria and viruses in the air, and on surfaces, and inhibits mould growth on surfaces. Active substances: hydroxyl radicals generated from ambient air

ACXF55-04930_INFO.indd 86 12/22/2016 9:09:43 AM Panasonic Corporation 1006 Kadoma, Kadoma City, Osaka, Japan Website: http://www.panasonic.com © Panasonic Corporation 2016 Printed in Malaysia ACXF55-04930_INFO.indd 92 Authorised representative in EU Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany
