Product Type	Network Switch
Model	SW16
Brand	TOTOLINK
Number of Ports	16
Port Type	10/100 Mbps RJ-45
Switching Capacity	3.2 Gbps
MAC Address Table	8K
Dimensions (W x D x H)	17.5 x 11 x 4.5 cm
Weight	0.8 kg
Power Supply	External power adapter, AC 100-240V, 50/60Hz
Power Consumption	≤ 6W
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% non-condensing
Standards	IEEE 802.3, 802.3u, 802.3x
Key Features	Plug and play, auto MDI/MDIX, store-and-forward switching, fanless design
LED Indicators	Power, Link/Act per port
Maintenance	Clean with a dry cloth; avoid liquids
Safety	Keep away from moisture and heat sources
Spare Parts	Not applicable; no user-serviceable parts
Warranty	1 year limited

Frequently Asked Questions - SW16 Totolink

How do I set up the TOTOLINK SW16 switch?

What is the maximum speed per port on the SW16?

Can I connect the SW16 to a router?

Does the SW16 support PoE (Power over Ethernet)?

What do the LED indicators mean?

Is the SW16 suitable for home or office use?

Can I mount the SW16 on a wall?

What type of Ethernet cable should I use?

My computer does not get an IP address when connected to the SW16. What should I do?

What is the warranty period for the TOTOLINK SW16?

USER MANUAL SW16 Totolink

SW16 is a Fast Ethernet Switch that designed for large home, SMB (Small and Medium Business) or workgroup users.

All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.

Moreover, 19-inch rack-mountable steel case makes the device an ideal solution for business and office use.

Features

• 16 10/100Mbps auto-negotiated RJ45 ports.
• Supports IEEE 802.3x flow control for Full Duplex
  mode and backpressure for Half Duplex mode.
• 4K entry MAC address table and automatic address learning.
• Auto-MDI/MDIX eliminates the need for crossover cables.
• Store- and-Forward Switching scheme.
• Performs non-blocking full wired speed.
• Standard 19-inch rack-mountable steel case.

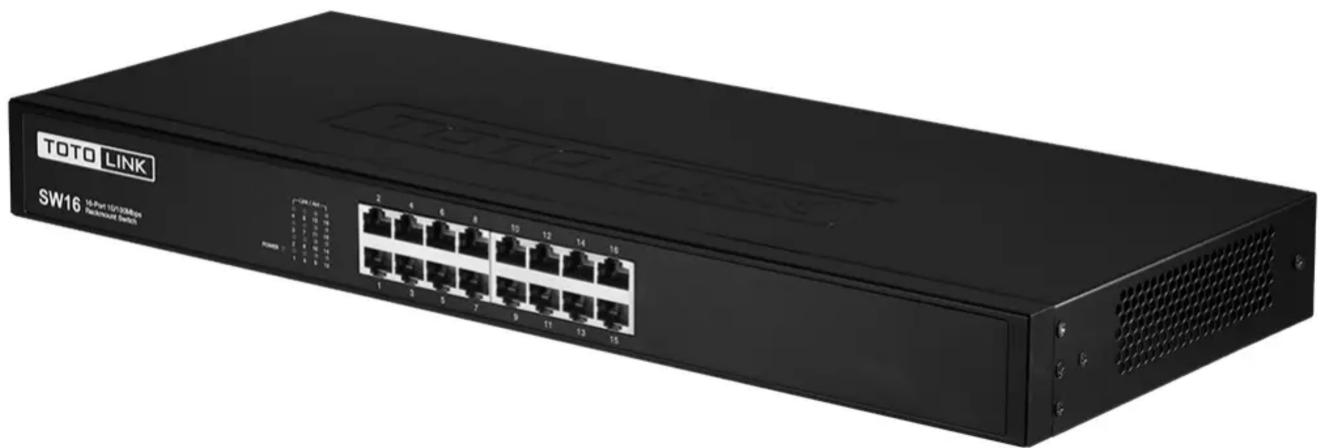

Black TOTO LINK 16-Port 10/108Mbps rack-mounted network switch (no visible text or symbols on device body)

Exterior view of a TOTO LINK network switch with multiple Ethernet ports and ventilation slots (no readable text or symbols beyond branding)

Specification

General

Standards	- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interface	- 16*10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Power Supply	- AC 100-240V 50/60Hz
LED	- 1*Power, Link/Act (1~16)
Dimensions(L x W x H)	- 17.3 x 7.1 x 1.7in. (440 x 180 x 44mm)
MAC Address Learning	- Auto-learning, auto update
MAC Address Table	- 4K
Network Media	- 10BASE-T: UTP Cat 3, 4, 5 cable
	- 100BASE-TX: UTP Cat 5, 5e or above cable
Backup Bandwidth	- 3.2Gbps
Transmission Method	- Store-and-forward

Others

Package Contents	- SW16 Rackmount Switch- Power Cord- Rackmount Kit- Quick Installation Guide
Environment	- Operating Temperature: 0 °C~50 °C (32 F ~122 F)- Storage Temperature: -40 °C~70 °C (-40 °F ~158 F)- Operating Humidity: 5%~95% non-condensing- Storage Humidity: 5%~95% non-condensing
