USER MANUAL 62R APPA

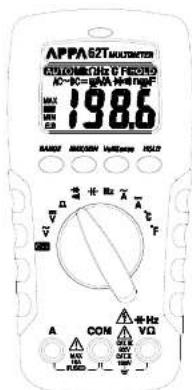

APPA 61/62/62T /62R Digital Multimeter

Instruction Card

Read First

Safety Information

Understand and follow operating instructions carefully. Use the meter only as specified in this manual, otherwise, the protection provided by the meter may be impaired.

A WARNING

• When using test loads or probes, keep your fingers behind the finger guards.
• Remove test lead from Meter before opening the battery door or Meter case.
• Use the Meter only as specified in this manual or the protection by the Meter might be impaired.
• Always use proper terminals, switch position, and carpal for current currents.
• Never attempt a voltage measurement with the test load injected into the A input terminal.
• Verify the Motor's operation by measuring a known voltage. If in-sight, have the Motor required
  • Do not apply more than the rated voltage, as
• Do not attempt a current measurement when the open voltage is above the fuse protection rating. Suspected open circuit voltage can be checked with voltage function.
• Only replace the brown fuse with the proper rating as specified in this manual.
• Use caution with voltages above 30 Vdc rms. 42 Vdc peak, or 60 Vdc. These voltages pose a shock hazard.
  • To avoid false readings that can lead to electric shock and injury, replace battery as soon as low
  • Disconnect circuit cover and discharge at high-
  voltage capacitors before testing resistance, continuity, diodes, or capacitance.
• Do not use motor around explosive gas or vapor
• To reduce the risk of line or electric shock do not expose this product to rain or moisture.

Caution

• Disconnect the test leads from the test points before changing the position of the function rotary switch.
• Never connect a source of voltage with the function rotary switch in → = \~A / + Hz position.
• Do not expose Meter to extremes in temperature or high humidity.
• Never set the motor in = A function to measure the voltage of a power supply circuit in equipment that could result in damage the meter and the equipment under test.

Symbols as marked on the meter and Instruction card

▲	Risk of electric shock
△	See instruction card
■	DC measurement.
□	Equipment protected by double or reinforced installation
●	Battery.
→	Fuse.
↓	Earth.
↔	AC measurement
CE	Conforme to EU directives
E	Do not discard this product or throw away

Maintenance

Do not attempt to repair this Meter. It contains no user serviceable parts. Repair or servicing should only be performed by qualified personnel.

Cleaning

Periodically wipe the case with a dry cloth and detergent. Do not use abrasives or solvents.

Measuring AC/DC Voltage And Frequency

Testing for Continuity and Diode

Resistance and Capacitance (Capacitance for 62, 62T, 62R only)

Note - To improve the measurement accuracy of small value capacitor, record the reading with the test leads open then subtract the readual capacitance of the Meter and leads from measurement. C_cav = C_cave

MIN MAX Record (For 62, 62T, 62R only)

Measuring DC / AC Current (For 62, 62T, 62R only)

Temperature °C, °F

Display Hold

Manual Ranging and Auto Ranging

Auto Power Off (Battery Saver)

Disable Auto Power Off

Non-Contact Voltage (Volt sense)

1. Volt sense switch will be activated on any function or at OFF status.
2. Test leads are not used for the Volt sense test. 3. Press the Volt sense button. The display goes black, a tone sounds and the red LED lights up to verify the instrument is operational. The Volt sense button must be held down to detect the presence of voltage without use of the leads.
4. If a voltage of 50V to 600V (50 to 500Hz) is detected near the top of meter a continuous tone sounds and the red LED near the top of meter illuminates.

Fuse Replacement (For 62, 62T, 62R only)
Refer to the following figure to replace fuse :

Caution
- Use only a fuse with the emperage, interrupt, voltage, and speed rating specified.
+ Fuse rating : 10A, 500V

Battery Replacement
Refer to the following figure to replace the batteries:

Caution
- Replace the batteries as soon as the low batteries indicator "a" appears, to avoid false reading. - Datteries 1.5V x 2

Specifications

General Specifications

Display: 2000 counts.

Polarity Indication : Automatic, positive implied

negative indicated.

Overrange Indication : "OL" or "OL"

Batteries Life : Alkaline 250 hours

Low Batteries Indication: "a" is displayed when

the batteries voltage drops below operating voltage

Auto Power Off : Approx 10 minutes.

Operating Ambient: Non-condensing ≤ 50°F.

51.8E×96%≤80% BHI 87.8E×104%≤75% BHI

165.0%E - 120%E (or 45% D)

62.51 - 122.7 (43418)

Storage Temperature: 4°F to 140°F, 0 to 80%.

R.H. when battery removed from Meter

Altitude: 6561.7 ‡ (2000m)

Safety: Complies with EN61010-1, UL61010-1.

IFC 61010-1

V/Ω : CAT.III 600V, CAT.II 1000V.

A: CATJII, 500V (for 62/62T/52R only)

Pollution degree : 2

Power Requirements

1.5V x 2 IEC LR09, AM4 or AAA size

Dimensions (W x H x D) : 74cm x 156mm x 44mm

Weight : (320m) including battery

Weight (kg): Holding octory. Accessories: Battery (installer). Test loads and

user manual

Electrical Specifications

Accuracy is +(% reading + number of digits) at

23℃ ± 5℃ < 50%RH.

DC:AC Volts

Range AC Accuracy
200.0mV * Unspecified
2.000V *	± 1.5% + 5 dgt 50Hz ~ 300Hz
20.00V ~ 200.0V *	± 1.5% + 5 dgt 50Hz ~ 500Hz *
750V AC : 1000V DC

DC Accuracy : ±(0.5% + 2dgu)

Over voltage protection : 100kV DC or 750 V AGms

Input impedance: (100) / task than 100P. * CMRR / NMRB : (Common Mode Rejection Ratio)

CAINT + NIAINT . (Common Mode Rejection Ratio) (Normal Mode Rejection Ratio)

V _A : CMRR > 60dB at DC, 50Hz / 60Hz

V_DC : CMRR > 100dB at DC, 50Hz / 60Hz

NMRR > 50dB at DC, 50Hz / 60Hz

AC Conversion Type

Average serving time indication.

AC conversions are ac-coupled, true rna responding

calibrated to the sine wave input.

* The minimum LCD reading is 1400 count in Auto Davage Mode

Ranging mode.

Credit Factor, C.P. = Peak Price

1.5% addition error for C.F. from 1 to 3 +3% addition error for C.F. from 3 to 4

1. In addition, in the case 1 of the

DC : AC Current (For 62, 62T, 62R only)

Range	DC Accuracy	AC Accuracy	Voltage Burden
2.000A	( 1.0% + 3ngf)	( 1.5% - 5dgi) 50Hz - 500Hz	2V max
10.00A

Overload Protection

A input: 10A (500V) fast blow fuse

* AC Conversion Type : Conversion type and

additional specification are same as DC/AC Voltage.

** Ampere Testing Duty Ratio Table

* The minimum LCD reading is 1400 count in

Auto Ranging Mode.

Diode Check and Continuity

Range Resolution Accuracy
	10 mV	±1.5% + 5 deg/°

*For 0.4V \~ 0.8V

Max.Test Current : 1.5mA

Max. Open Circuit Voltage : 2V

Overload Protection : 600V rms.

Frequency (For 62, 62T, 62R only)

Range Sensitivity Accuracy
2000Hz -200.0KHz	>1.5 Vac rms, <5 Vac rms	Frequency: 0.81% at height
2.000MHz ~ 20.000MHz	>2 Vac rms, <5 Vac rms

Overload Protection : 600V mm

Minimum pulse width : >25 ns Duty cycle limits : >50% and <70%

(2) 3.000 million USD (except 4.000 million USD)
Capacitance (For 62, 62T, 62R only)

Range Accuracy		Overload Protection
2.000mF ~ 200.0μF	1;1.9% + 8 deg)	600V rms
2.000mF*

< 10 dgt of reading rolling.

Temperature (°C) (For 62T only)

Temperature	Accuracy	Overload Protection
20°C~30°C	(1.2% + 4^)	800V rms
1°C~100°C	(1.1% + 3^)
101°C~500°C	(±2% + 3^)
501°C~800°C	(±3% + 2^)

Temperature (°F) (For 62T only)

Temperature Accuracy		Overload Protection
-4°F ~ 32°F	±2% + 8°F	600V m/s
33°F ~ 212°F	±1% + 6°F
213°F ~ 932°F	t(2% + 8°F)
933°F ~ 1472°F	±3% + 4°F

Limited Warranty

This thermometer is warranted to the original purchaser against defects in material and workmanship for 1 year from the date of purchase. During the warranty period, manufacturer will, at this option, replace or repair the defective unit, subject to verification of the defect or malfunction. This warranty does not cover disposable batteries, or damage from above, neglect, accident, unauthorized repair, alteration, contamination, or abnormal conditions of operation or handling. Any implied warranties arising out of the sale of this product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above. The manufacturer shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss or for any claim or claims for such damage, expense or economic loss. Some states or countries laws vary, as the above limitations or exclusions may not apply to you

APPA TECHNOLOGY CORP.

9F, 119-1 Pao-Zong Rd.

Shin-Tien, Taipei, 23115, Taiwan.

P.O.Box. 12-24 Shin-Tien, Taiwan.

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

http://www.appatech.com
