USER MANUAL SWR2311P-10G YAMAHA

The above warning is located on the top of the unit.

ATTENTION RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR ATTENTION : POUR RÉDUIRE LES RISQUES D'ÉLECTROCUTION, NE PAS RETIRER LE CAPOT (OU LE DOS). NE CONTIENT PAS DE PIÈCES NÉCESSITANT L'INTERVENTION DE L'UTILISATEUR. POUR TOUTE INTERVENTION, FAIRE APPEL À DES PROFESSIONNELS QUALIFIÉS.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

PRÉCAUTIONS CONCERNANT LA SÉCURITÉ

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

1. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

2. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "A" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product, in a commercial environment, will not result in harmful interference with other electronic devices. However, operation of this product in a residential area is likely to cause interference in some form. In this case you, the user, bear the responsibility of correcting this condition.

This product generates/uses radio frequencies and, if not installed and used according to the instructions found in the

users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the product "OFF" and "ON", please try to eliminate the problem by using one of the following measures:

Relocate either the product generating the interference or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer that is authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620 The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

(class A)

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

If you notice any abnormality

• If any of the following problems occur, immediately turn off the power switch and disconnect the electric plug from the outlet.
• The power cord or plug becomes frayed or damaged.
• Unusual smells or smoke are emitted.
• Some object, or water has been dropped into the product.
• There is a sudden loss of sound during use of the product.
• Cracks or other visible damage appear on the product.
  Then have the product inspected or repaired by qualified Yamaha service personnel.

Power supply/power cord

- Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone

could walk on, trip over, or roll anything over it.

• Only use the voltage specified as correct for the product. The required voltage is printed on the name plate of the product.
• Use only the supplied power cord/plug. If you intend to use the product in an area other than in the one you purchased, the included power cord may not be compatible. Please check with your Yamaha dealer.
• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.
• Make sure to fully insert the electric plug to prevent electric shocks or fire.
• When setting up the product, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the plug from the outlet. Even when the power switch is turned off, as long as the power cord is not unplugged from the wall AC outlet, the product will not be disconnected from the power source.
• Remove the electric plug from the outlet when the product is not to be used for extended periods of time.
• Do not touch the product or the electric plug during an electrical storm.
• Be sure to connect to an appropriate outlet with a protective grounding connection. Improper grounding can result in electrical shock, fire, or damage.
• If you plan to connect a powered device that complies with the IEEE802.3at standards, use a CAT5e or higher-grade cable. Failure to observe this precaution could result in a fire or malfunction.

Do not open

- This product contains no user-serviceable parts. Do not attempt to disassemble the internal parts or modify them in any way.

Water warning

• Do not expose the product to rain, use it near water or in damp or wet conditions, or place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings.
• Never insert or remove an electric plug with wet hands.
• Do not place any burning items or open flames near the product, since they may cause a fire.

Hearing loss

- When turning on the AC power in your audio system, always turn on the power amplifier LAST, to avoid hearing loss and speaker damage. When turning the power off, the power amplifier should be turned off FIRST for the same reason.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the product or other property. These precautions include, but are not limited to, the following:

Power supply/power cord

- When removing the electric plug from the product or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it.

Location and connection

• Do not place the product in an unstable position where it might accidentally fall over and cause injuries.
• Keep the device and small parts out of reach of children, to keep them from putting their fingers into openings on the product and accidentally being injured. There is a danger that children might swallow small parts. This product is not suitable for use in locations where children are likely to be present.
• Do not block the vents. This product has ventilation holes at the top/front/rear/sides to prevent the internal temperature from becoming too high. In particular, do not place the product on its side or upside down. Inadequate ventilation can result in overheating, possibly causing damage to the product(s), or even fire.

• When installing the product:

• Do not cover it with any cloth.

• Do not install it on a carpet or rug.
• Make sure the top or side surface faces up; do not install on its front, rear, or upside down.

• Do not use the product in a confined, poorly-ventilated location.

• Inadequate ventilation can result in overheating, possibly causing damage to the product(s), or even fire. If this product is to be used in a small space other than an EIA-standard rack, make sure that there is adequate space around the product: at least 2.5cm above, and 10cm behind.

• Do not use the separately sold WK-SWR wall mount accessory to attach the unit to a ceiling that is higher than 2 meters. If the unit falls, injury or damage might occur.
• If the product is mounted in an EIA standard rack, carefully read the section "Please read before mounting the unit into a rack" on page 20. Inadequate ventilation can result in overheating,

possibly causing damage to the product(s), malfunction, or even fire.

• Do not place the product in a location where it may come into contact with corrosive gases or salt air. Doing so may result in malfunction.
• Before moving the product, remove all connected cables.

• Always consult qualified Yamaha service personnel if the product installation requires construction work, and make sure to observe the following precautions.

• Choose mounting hardware and an installation location that can support the weight of the product.

• Avoid locations that are exposed to constant vibration.
• Use the required tools to install the product.
• Inspect the product periodically.

Maintenance

- Remove the power plug from the AC outlet when cleaning the product.

Handling caution

• Do not insert your fingers or hands in any gaps or openings on the product (vents, ports, panel, etc.).
• Do not rest your weight on the product or place heavy objects on it.
• Do not look into the optical emitter when a separately sold SFP module (SFP-SWRG-LX, SFP-SWRG-SX) is installed.
  The separately sold SFP modules are class 1 laser devices. They may emit laser beams invisible to the eye. If the laser beam enters your eye, your eyesight might be damaged.

Backup battery

- Do not replace the backup battery by yourself. Doing so may cause an explosion and/or damage to the product(s). When the backup battery needs to be replaced, contact your Yamaha dealer and have qualified Yamaha service personnel replace the backup battery.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the product, or data that is lost or destroyed.

To avoid the possibility of malfunction/ damage to the product, damage to data, or damage to other property, follow the notices below.

Handling and maintenance

• Do not touch any port with your fingers or anything metallic. Failure to observe this precaution could result in damage to the product.
• Do not expose the product to excessive dust or vibration, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day), in order to prevent the possibility of panel disfiguration, unstable operation, or damage to the internal components.
• Condensation can occur in the product due to rapid, drastic changes in ambient temperature—when the product is moved from one location to another, or air conditioning is turned on or off, for example. Using the product while condensation is present can cause damage. If there is reason to believe that condensation might have occurred, leave the product for several hours without turning on the power until the condensation has completely dried out.
• Do not place vinyl, plastic or rubber objects on the product, since this might discolor the panel.
• When cleaning the product, use a dry and soft cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.
• Be sure to earth (ground) any static electricity from your body or clothing before touching the product. Failure to observe this precaution could result in damage to the product.

• Do not install the product in a location where magnetic fields are strong. Otherwise, it might cause the product to malfunction.

• Do not connect any noise generating devices on the same power line as the product. Failure to observe this precaution could result in a malfunction or damage to the product.

• Do not locate any connected LAN cables close to the power cord. Otherwise, high voltage might be induced, resulting in malfunction.
• A 1000BASE-T connection will require an Enhanced Category 5 (CAT5e) or better LAN cable.

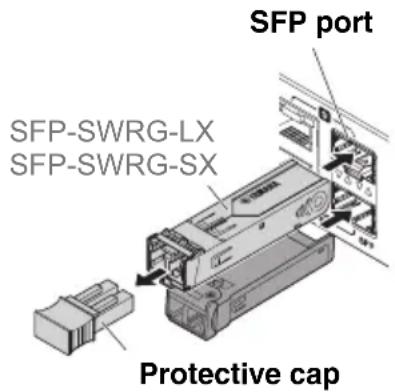

• Do not install any SFP module other than the separately sold SFP-SWRG-LX or SFP-SWRG-SX in an SFP port. Operation cannot be guaranteed if any SFP module other than the above is installed.
• Attach the dust cover to SFP ports that are not in use. Failing to do so could allow foreign objects to enter, causing malfunctions. Keep the dust cover in a safe place so that it is not lost.

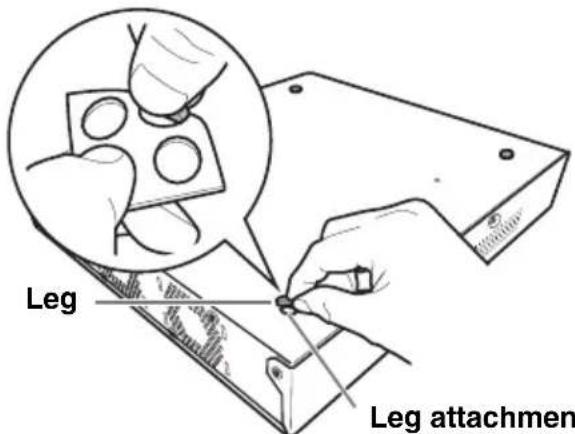

• The rubber feet included in this package can be attached to the product to prevent slippage when it is to be used on a slippery surface.
• Do not connect this product to public Wi-Fi and/or Internet directly. Only connect this product to the Internet through a router with strong password-protections. Consult your router manufacturer for information on security best practices.

Saving data

- This unit has a built-in backup battery that maintains time information for the data. When the backup battery runs down, the time information will be initialized, causing incorrect time information to be recorded in the log. If this occurs, contact your dealer or a Yamaha customer service center to have the backup battery replaced. The life span of the backup battery is approximately 10 years, but this may vary depending on the conditions of use. Set the clock after replacing the battery.

Data maintained by the backup battery:

- Time information.

About functions/data bundled with the product

- This is a class A product. Operation of this product in a residential environment could cause radio interference.

About this manual

• The illustrations as shown in this manual are for instructional purposes only.
• Windows is a registered trademark of Microsoft® Corporation in the United States and other countries.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.
• Software may be revised and updated without prior notice.

The model number, serial number, power requirements, etc., may be found on or near the name plate, which is at the top of the unit. You should note this serial number in the space provided below and retain this manual as a permanent record of your purchase to aid identification in the event of theft.

Model No.

Serial No.

About disposal

- This product contains recyclable components. When disposing of this product, please contact the appropriate local authorities.

Open Source Software Used in this Product

- Please refer to Yamaha Pro Audio website for the details of licensing article. https://www.yamahaproaudio.com/

(top_en_01)

• Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75.
• The device can only be used in a fixed location such as a telecommunication centre, a dedicated computer room. When you install the device, ensure that the protective earthing connection of the socket-outlet is verified by a skilled person.

Particular usage in this manual

The following company and product names will be abbreviated as below in this manual.

• Yamaha L2 Switch SWR2311P-10G: This product
• 10BASE-T/100BASE-TX/1000BASE-T cable: LAN cable

廢電池請回收

COTENTS

PRECAUTIONS 4

NOTICE 7

Introduction....10

Features....10

Separately sold items....10

Related software and documents ....10

Controls and Connectors....11

Front Panel 11

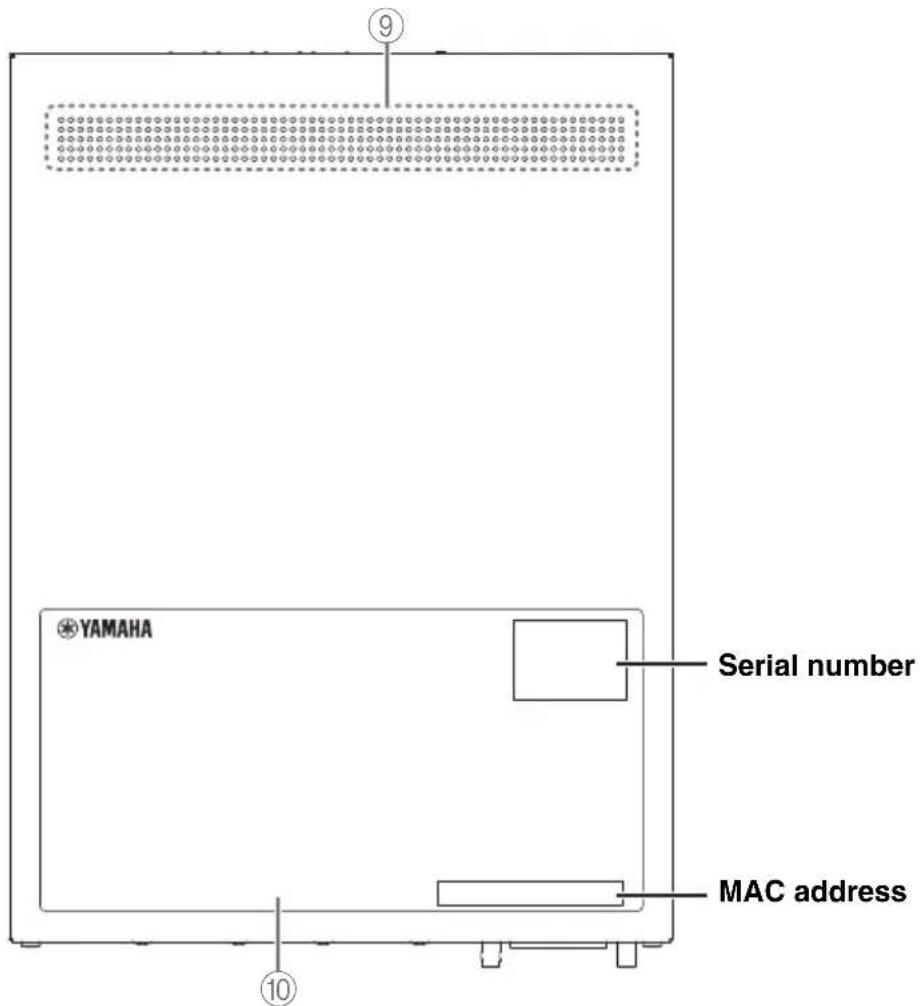

Top panel....13

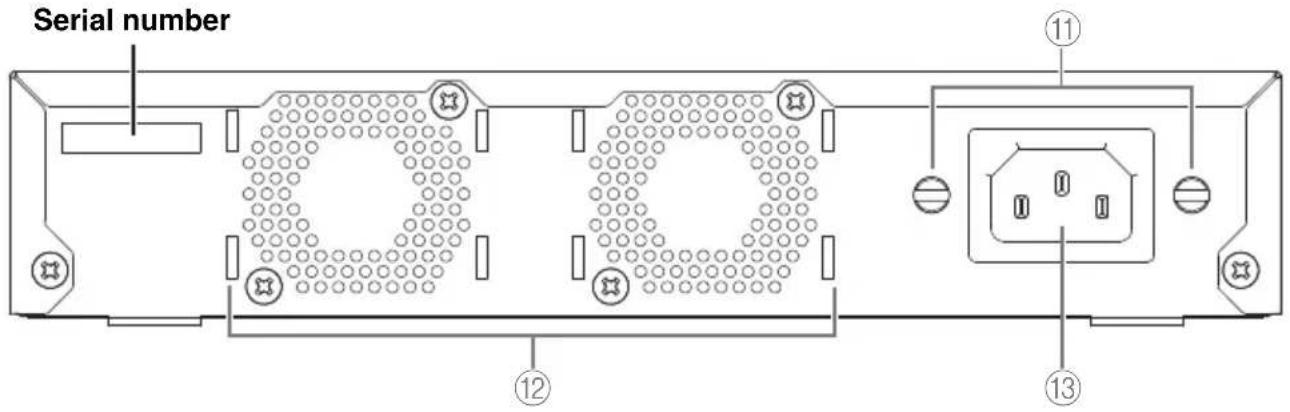

Rear panel 14

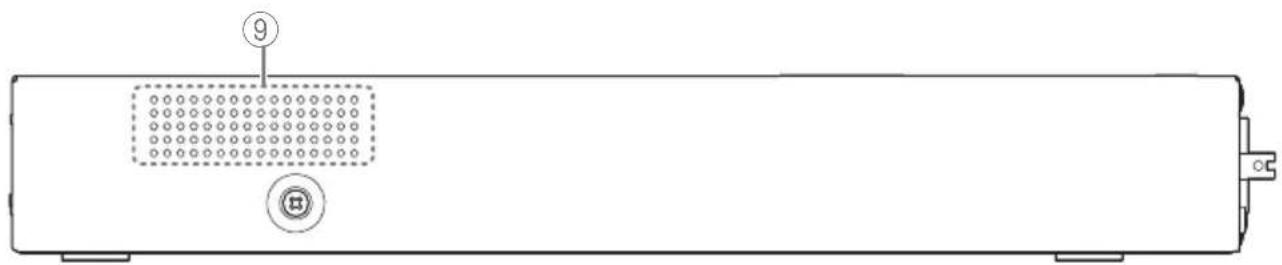

Side panel....14

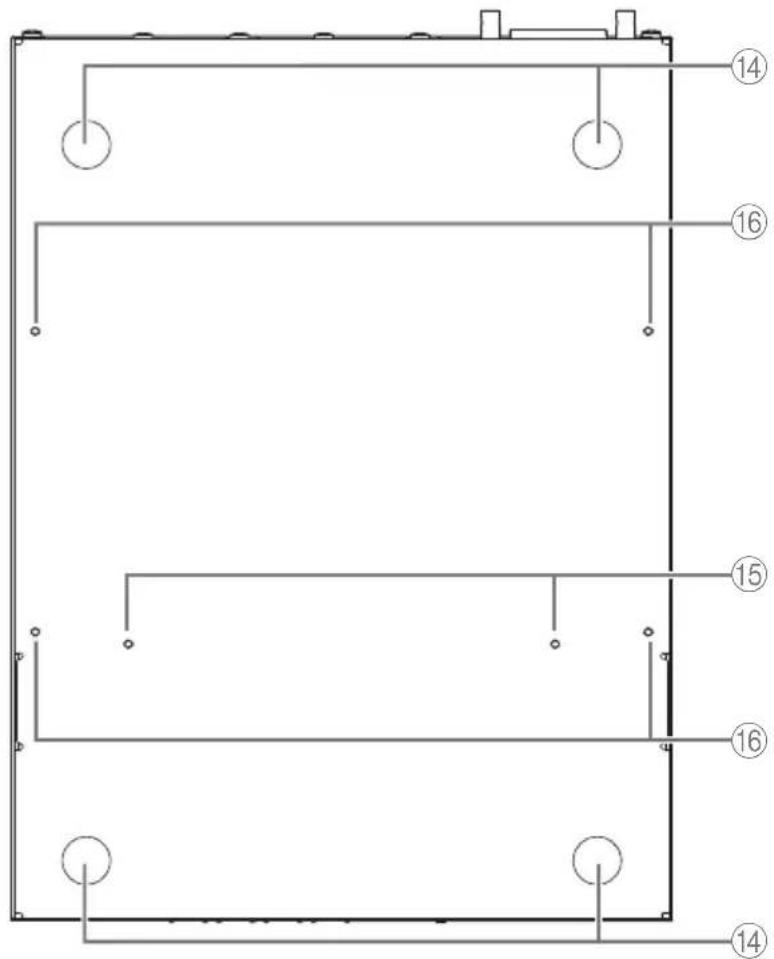

Bottom panel....15

Switching the display mode 16

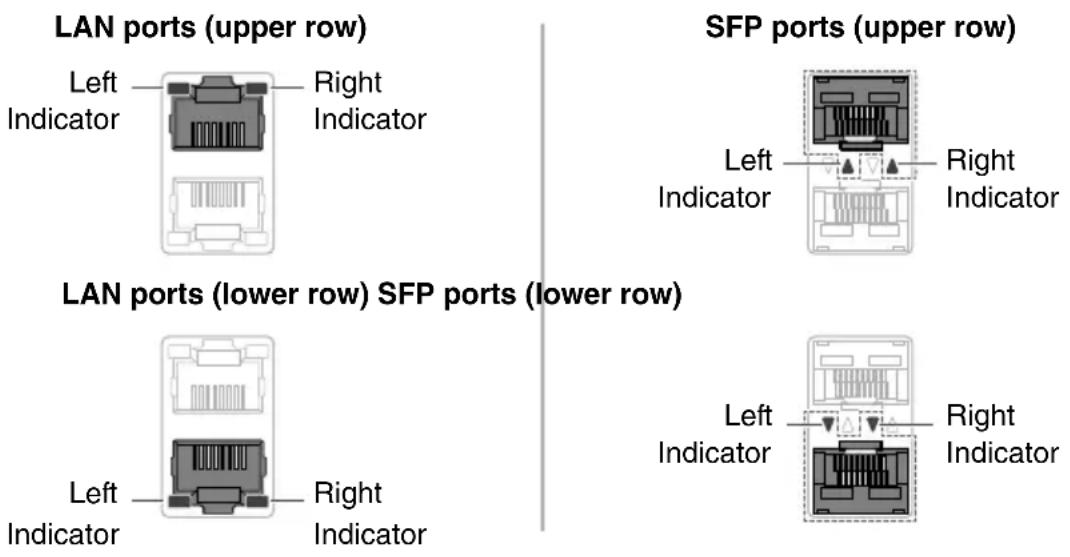

Port indicators....17

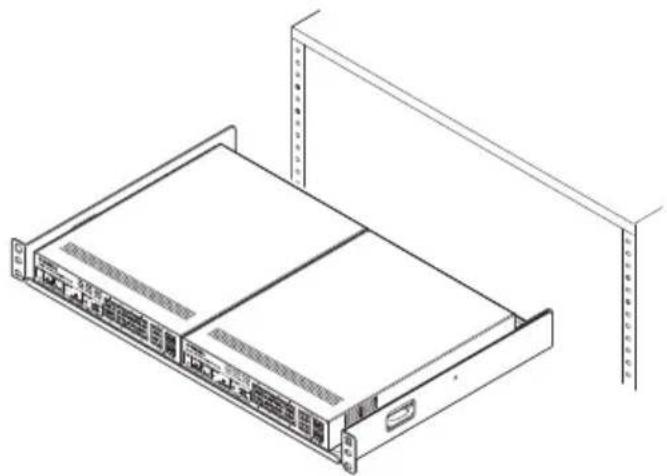

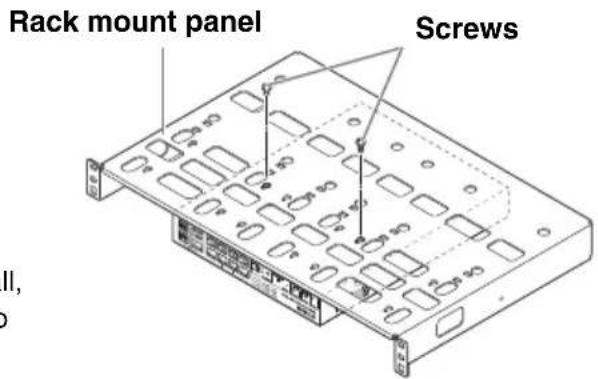

Installation in a rack.... 20

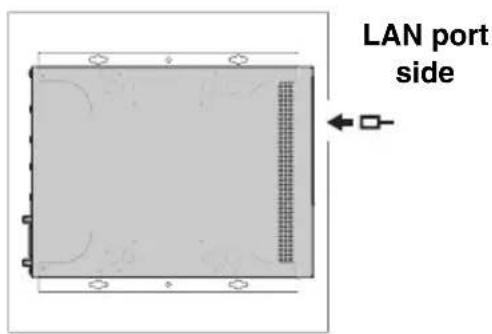

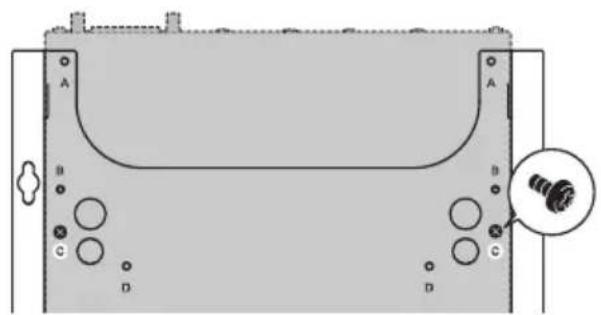

Installation on a wall or ceiling.... 22

Settings.... 25

Making settings using the Web GUI 26

Making settings from the command line using the CONSOLE port.... 27

Connections 30

Initialization 33

Appendix.... 36

Hardware specifications.... 36

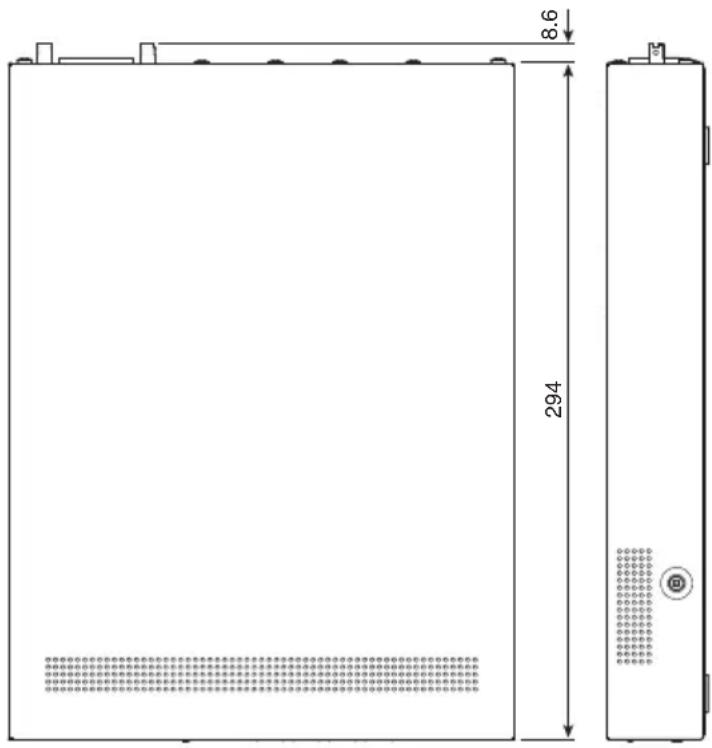

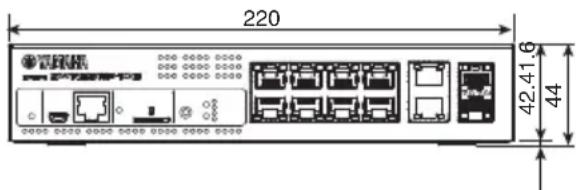

Dimensional diagram 37

RJ-45/DB-9 console cable pin configuration 38

Software license agreement 38

Index.... 39

Accessories

Please ensure that you have all of the following accessories.

• Owner's Manual (this manual)
  • Power Cord
• Power Cord Clamp (used only for the included dedicated power cord)
• Leg (Rubber feet) (x4)

Introduction

Thank you for purchasing the Yamaha SWR2311P-10G intelligent L2 switch.

This product supplies power to PoE powered devices on the network.

This owner's manual is intended for installers and facility designers, and explains installation methods and settings.

Please be sure to read this manual before you start using the product to take full advantage of its features.

Please retain this manual in a safe location for future reference.

Features

• Recommended settings for stable operation of a Dante network (such as QoS, EEE, and IGMP Snooping) can be made easily.
• Up to 30W of power can be simultaneously supplied to each port that supports PoE power supply.
• A function is provided to automatically reset a device that is being powered from this unit by turning its power supply on/off if an abnormality is detected in that device.
• The PoE supply status can be checked or turned on/off via Yamaha LAN Monitor.

Separately sold items

• RK-SWR rack mount accessory: This is required when installing the unit in a 19-inch rack.
• WK-SWR wall mount accessory: This is required when installing the unit on a wall or on a ceiling less than 2 meters high.
• SFP-SWRG-LX or SFP-SWRG-SX SFP module: This is required when connecting via 1000BASE-LX or 1000BASE-SX.

Related software and documents

• Yamaha LAN Monitor/Yamaha LAN Monitor User Guide
  This is a Windows application used to monitor this unit's information and the entire network including all Dante devices on the Dante network, and the user guide for this application.
• Yamaha Network USB Serial Driver/Yamaha Network USB Serial Driver Installation Guide
  This is a Windows driver that allows communication when the mini-USB CONSOLE port is connected via a USB cable to a computer, and the installation guide for this driver.

- Command Reference

This explains the commands used when using the command line to make settings from a computer.

• Technical Reference

This describes details of the SWR2311P-10G's functions.

This software and these documents can be downloaded from the following website. https://www.yamahaproaudio.com/

Controls and Connectors

Front Panel

YAMAHA L2 SWITCH SWR2311P-10G POWER CONSOLE microSD LED MODE USB ①②③④⑤⑥⑦⑧ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ 1 3 5 7 2 4 6 8 9 SFP

① POWER indicator

Lights when power is provided to the unit.

POWER indicator	Status
Unlit	Power off
Flashing (green)	Power on, starting up
Lit (green)	Power on, normal
Lit (orange)	Power on, error occurred

Caution

When one of the following problems occurs, the POWER indicator is lit orange. Verify the status of the problem, and take the appropriate action. Refer to the Web GUI to determine which specific problem has occurred.

- Fan stopped

The fan that exhausts the heat dissipated by this unit has stopped.

You must immediately stop using the unit, and contact a Yamaha service center listed at the end of this manual to have the unit repaired or inspected.

• Abnormal temperature inside this unit.

The temperature inside this unit is abnormal.

Reconsider the environment in which this unit is installed, and correctly install this unit so that its internal temperature is appropriate.

②mini-USB CONSOLE port

This is a mini-USB port for making settings. Use a USB cable to connect it to the USB port of a computer. Use a USB cable equipped with a USB Type A connector and a mini-USB Type B (5-pin) connector.

Notice

Use a cable that supports data transfer. Charge-only cables cannot be used.

Controls and Connectors

③RJ-45 CONSOLE port

This is an RJ-45 port for making settings. Use an RJ-45/DB-9 console cable to connect it to the RS-232C connector (COM port) of the computer. Use an RJ-45/DB-9 serial cable that is wired as described in “Appendix.”

④microSD indicator

Indicates the connected and operating status of the microSD card.

microSD indicator Status
Unlit No microSD card is inserted in the slot.
Flashing (green) The microSD card is being accessed.
Lit (green) A microSD card is inserted in the slot.

Caution

Do not remove the microSD card if this indicator is flashing green.

Doing so will damage the data.

⑤microSD slot

A microSD card can be inserted in this slot.

⑥MODE button and MODE indicator

When you press the MODE button, the display mode of the port indicators is switched in the following sequence, allowing you to check the current status by the upper and lower MODE indicators.

- When the initial display mode is LINK/ACT [LINK/ACT] ▶ [PoE] ▶ [VLAN] ▶ [STATUS] ▶ [OFF] ▶ back to [LINK/ACT].

- For details on the MODE button that switches modes and the MOD indicator, refer to "Switching the display mode" (page 16).

- For details on the port indicators in each selected mode, refer to “Port indicators” (page 17).

⑦ LAN ports

These ports can supply PoE and are compatible with 10BASE-T, 100BASE-TX, and 1000BASE-T.

PoE supply is compliant with IEEE 802.3at, and can supply up to 30W to all ports.

⑧LAN/SFP combo ports

These can be used either as LAN ports or SFP ports.

LAN ports are 1000BASE-T uplink ports. They do not have power supply capability.

SFP ports are for installing a separately sold SFP module (SFP-SWRG-LX or SFP-SWRG-SX).

For details on installing an SFP module, refer to “Installing an SFP module” (page 30) in “Connections.”

Caution

Do not connect a cable to both the LAN port and the SFP port of the same port number.

Doing so might cause a malfunction.

⑨Cooling vents

External air is taken in through these cooling vents.

Warning

Do not block the cooling vents or place objects near them.

Doing so could cause fire or malfunctions.

Top panel

YAMAHA Serial number MAC address ⑨ ⑩

⑩Product label

This lists the model name, serial number, and MAC address etc. of this unit.

Rear panel

Serial number ⑪ ⑫ ⑬ ⑭

⑪ Power cord clamp attachment holes

The included power cord clamp (C-shaped) can be attached here.

Refer to "Connecting the power cord" (page 32) for information on how to install the unit.

⑫Fans

These forcibly exhaust the heat that is generated inside the unit.

When a problem is detected, the POWER indicator is lit orange.

Caution

Do not block the fan vents or place objects near them.

Doing so could cause fire or malfunctions.

⑬Power supply inlet (three-pin connector, C14 type)

Insert the included power supply cord here. Connect it to an electrical outlet of the appropriate voltage for the unit.

Side panel

Technical line drawing of a rectangular device with a dotted patterned interior and numbered label (9), no readable text or symbols present.

Bottom panel

Technical diagram of a structural frame with numbered components and connection points

⑭Leg attachment guides

These indicate the locations at which the legs are to be attached when the unit is installed in a horizontal position.

If the unit is to be installed in a horizontal position, attach the included legs as shown in the illustration.

Leg Leg attachmen

YAMAHA SWR23HP-10G 1 2 3 4 5 6 7 B 1 2 3 4 5 6 Leg

⑮Rack mount accessory attachment holes

Use these holes to attach the RK-SWR rack mount accessory.

Refer to "Installation in a rack" (page 20) for information on how to install the unit.

Controls and Connectors

⑯Wall mount accessory attachment holes

Use these holes to attach the WK-SWR wall mount accessory.

Refer to "Installation on a wall or ceiling" (page 22) for information on how to install the unit.

Switching the display mode

Each time you press the MODE button, the display mode of the port indicators is switched. The lit status and color of the upper and lower MODE indicators shows the selected display mode.

Unlit: Lit(green): Lit (orange):

(when the initial display mode is LINK/ACT)

Mode name Lit state of the mode indicators Explanation
1 LINK/ACT		Upper Lit (green)Lower Unlit	The left indicator of the LAN port or SFP port shows the link status, and the right indicator shows the connection speed.
2 PoE		Upper Lit (orange)Lower Unlit	Indicates the power supply sta-tus of the LAN port.
3 VLAN	LED MODELINL/ACTPoEVLANSTATUS	Upper UnlitLower Lit (green)	Indicates the VLAN ID specified for the LAN port or SPF port.
4 STATUS	LED MODELINL/ACTPoEVLANSTATUS	Upper UnlitLower Lit (orange)	Indicates the error status of the LAN port or SFP port.
5 OFF	LED MODELINL/ACTPoEVLANSTATUS	Upper UnlitLower Unlit	Turns off the indicators of the LAN ports and SFP ports.

3 VLAN

Upper UnlitLower Lit (green)

Indicates the VLAN ID specified for the LAN port or SPF port.

4 STATUS

Upper UnlitLower Lit (orange)

Indicates the error status of the LAN port or SFP port.

5 OFF

Upper UnlitLower Unlit

Turns off the indicators of the LAN ports and SFP ports.

① Back to LINK/ACT

Port indicators

These are indicators for the LAN ports and SFP ports, and indicate the state of each port in each mode.

■LINK/ACT mode

The indicators show the link status and connection speed of the LAN port or SFP port.

LAN ports

Left indicator	Link status
Unlit	The link is lost.(unavailable)
Lit (green)	A link is established.(available)
Flashing (green)	Data is flowing.

Right indicator	Connection speed
Unlit	Not connected.Alternatively, connected by 10BASE-T.
Lit (orange)	Connected by 100BASE-TX.
Lit (green)	Connected by 1000BASE-T.

SFP ports

Left indicator	Link status
Unlit	The link is lost.(unavailable)
Lit (green)	A link is established.(available)
Flashing (green)	Data is flowing.

Right indicator	Connection speed
Unlit	Not connected.
Lit (green)	Connected by 1000BASE-LX or 1000BASE-SX.

■PoE mode

Indicates the power supply status.

Left indicator Power supply status
Unlit	Not supplying power.
Lit (green)	Supplying power.

The right indicator is unlit.

■VLAN mode

Indicates the VLAN membership status of the LAN port or SFP port.

Left indicator Right indicator VLAN ID			Indicator assignment order
Unlit Unlit		No ID	-
Lit (green) Unlit		Lowest-numbered VLAN ID	1
Lit (orange) Unlit		The lit pattern is assigned in ascending order of the VLAN ID number.	2
Unlit Lit (green) 3
Unlit Lit (orange) 4
Lit (green) Lit (orange) 5
Lit (orange) Lit (green) 6
Lit (green)*1	Lit (green)*1	7th and subsequent VLAN ID	7
Lit (orange) Lit (orange)		Membership in more than one VLAN	-

*1 Indicators whose VLAN ID is number 7 or later will have the same lit status.

NOTE

The default VLAN (ID=1) is not shown as a member VLAN.

■STATUS mode

Indicates the error status of the LAN port or SFP port.

When the following errors are detected, the unit forcibly enters STATUS mode.

• Loop detected
• SFP optical input level abnormality detected
• PoE supply stoppage or receiving device error detected

LAN ports

Left indicator Right indicator Error information
Unlit Unlit Normal
Flashing (orange) Unlit		A loop was detected.The port has been blocked or shut down.
Lit (orange) Unlit		A fault has occurred in the device receiving power, and power is not being supplied.
Unlit Flashing (orange)		Because the maximum total electrical power that this unit can supply has been exceeded, power supply to this port was stopped.Since the total supplied electrical power has exceeded the safety margin, it is not possible to add more devices that receive electrical power.*1
Unlit Lit (orange)		Power supply is suspended because the power output at the port has exceeded the maximum power supply allowed per port. The maximum power supply allowed per port varies depending on the power consumption class of the connected powered device.

*1 This unit can supply a total of 240W. For details on the safety margin, refer to the technical documentation of the SWR2311P-10G.

SFP ports

Left indicator Status
Unlit Normal
Flashing (orange)	A loop or an SFP optical input level abnormality was detected.

The right indicator is unlit.

For details, refer to the page for this unit on the Yamaha Pro Audio website.

https://www.yamahaproaudio.com/

NOTE

• The error causes can be determined by using the show error port-led command.
• You can forcibly reset the error status by long-pressing (three seconds) the MODE button.
• When all errors are cleared, or when the error status is forcibly reset by long-pressing the MODE button, the unit automatically returns to the initial display mode.

■OFF mode

Turns off the indicators of the LAN ports and SFP ports.

Installation in a rack

This section explains how to attach an optional RK-SWR rack mount accessory to the unit.

Please read before mounting the unit into a rack

This unit is warranted to operate in an ambient temperature range of 0–40 °C. If you install this unit along with other devices into an EIA-standard or JIS-standard rack, the temperature inside the rack may rise due to heat released from the other devices, resulting in poor performance of the unit. To prevent the temperature inside the unit from rising, mount the unit in the rack in accordance with the requirements below.

• If you plan to rack-mount the unit along with a device that tends to generate heat, such as an amplifier (excluding an XMV series), be sure to leave a gap of 1U or more from such devices. Also, be sure to maintain sufficient ventilation in this space by installing a ventilation panel or leaving it open.
• Open the rear panel of the rack, place the rack 10cm (about four inches) away from the walls and ceiling to keep sufficient ventilation. If you cannot open the rear panel of the rack, install a commercially-available forced ventilation device, such as a fan kit. If you install a fan kit, closing the rear panel may work better for heat dissipation purposes. For more information, refer to the owner's manual for the rack and/or fan kit.

Caution

If you plan to relocate the rack, be sure to first remove this unit from the rack.

If you move the unit while it is still installed in the rack, vibration or physical shock might deform or damage the rack mount accessory, causing injury. This might also cause the unit to malfunction.

[Installation]

This section explains how to attach the unit in the middle block of a rack mount panel. If you plan to attach the unit in the left or right block, follow the same procedure below.

Notice

If the supplied feet have already been attached to the unit, remove them.

1. Attaching the rack mount panel to the unit

Use two screws (supplied with the rack-mount accessory) to attach and secure the rack mount panel to the bottom panel of the unit.

Warning

Use only the specified screws that were included.

Failure to do so might allow the unit to fall, causing injury or damage. This could also cause electric shock or malfunctions.

Rack mount panel Screws

2. Installing the rack mount panel to the 19-inch rack

Using the four screws included with the 19-inch rack, attach the rack mount panel. Be sure to tighten the screws so that they will not get loosened.

Screws supplied with the 19-inch rack 19-inch rack Rack mount panel

You can also mount two units as shown in the figure below.

Line drawing of a server rack unit with two vertical racks and a front panel (no text or symbols)

Installation on a wall or ceiling

Use the separately sold WK-SWR wall mount accessory to install the unit.

If attaching this unit to a ceiling, invert the top and bottom of the unit.

You will need to obtain six screws that fit the holes described in step 1 and are appropriate for the material and thickness of the wall or ceiling.

Carry out the installation completely, all the way to step 7.

Warning

Do not attach this unit to a ceiling that is higher than 2 meters.

If the unit falls, injury or damage might occur.

Caution

- When attaching or removing this unit, you must disconnect the unit's power plug from the power outlet.

Failing to do so could cause electrical shock or malfunctions.

• Installation must be performed by a qualified installer.

During installation, pay attention to the following points.

• Choose hardware and a location that is well able to support the weight of this unit
• Avoid locations that are subject to sustained vibration
• You must use the specified installation accessory
• Perform periodic maintenance checks

Notice

The mounting accessory has a surface to which the SWR2311P-10G must be attached and a surface that must be attached to the wall.

If these two surfaces are confused, it will not be possible to attach the mounting accessory to the SWR2311P-10G. To distinguish the surfaces, refer to the illustrations for step 1 and step 3.

1. Place the mounting accessory against the wall, and mark the installation location.

SWR2311P-10G Attachment surface (not stamped) Mark the wall Wall installation surface (stamped) WK-SWR 2-R2.5 ø10 2-ø 5.5

Wall installation methods (two types)

The SWR2311P-10G can be installed on a wall in the following two ways.

Warning

Do not install with the LAN ports facing upward or downward.

Doing so could cause fire or malfunctions.

LAN port side

LAN port side

2. Provisionally attach four commercially available screws to the locations that you marked in step 1.

At this time, leave approximately 2 mm between the head of the screw and the surface of the wall, allowing room for the mounting accessory to engage the screws. (illustration at right)

Approximately 2 mm

Warning

You must use screws that are appropriate for the material of the wall.

If the unit falls, injury or damage might occur.

3. Align the unit with the mounting accessory (illustration at right).

Notice

If the supplied feet have already been attached to the unit, remove them.

Isometric diagram of a server rack with a downward arrow indicating compression or disassembly (no text or symbols present)

Installation on a wall or ceiling

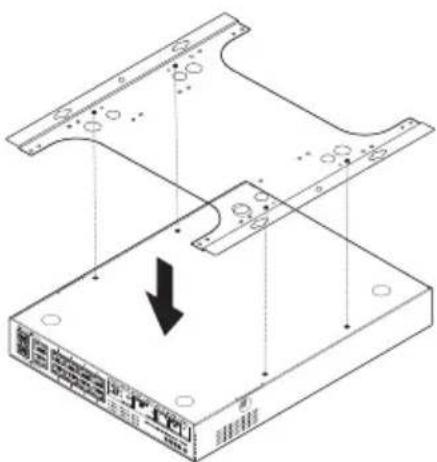

1. Using four screws included with the mounting accessory, attach it to the SWR2311P-10G.

Fasten it securely.

A B C D A B C D

Warning

- Use only the specified screws that were included.

If the unit falls, injury or damage might occur. This could also cause electric shock or malfunctions.

• Take care when letting your hand or finger contact the corners of the mounting accessory. Inattention might cause injury.

Notice

The screw holes to use are stamped with a "C" on the mounting accessory.

The screws to use are the small black M3 × 4 screws for the metal chassis.

1. Engage the assembled mounting accessory onto the commercially available screws that you provisionally attached in step 2, and slide it to the side.

Warning

Do not drop the unit.

If the unit falls, injury or damage might occur.

Notice

When installing the SWR2311P-10G, engage the mounting accessory onto the screws that you provisionally attached in step 2, and slide it either to the left or the right.

[Installing in left horizontal orientation] [Installing in right horizontal orientation]

Screw hole for fastening (step 7)

Screw hole for fastening (step 7)

Top-down schematic of a rectangular device with internal components and directional arrows indicating flow or movement (no text or symbols)

Top-down schematic of a rectangular device with directional arrows indicating flow or movement (no text or symbols)

Screw hole for fastening (step 7) Screw hole for fast

1. Further tighten the commercially available screws that you provisionally attached in step 2, fastening the mounting accessory.

2. Install two commercially available screws in the fastening screw holes (two locations) of the mounting accessory.

Warning

You must use screws that are appropriate for the material of the wall.

If the unit falls, injury or damage might occur.

Settings for this unit can be made in the following ways.

• Make settings using the Web GUI
• Make settings from the command line using the CONSOLE port
• Make settings from the command line using Telnet
• Make settings from the command line using SSH

This document explains “Making settings using the Web GUI” (page 26) and “Making settings from the command line using the CONSOLE port” (page 27).

You can log in to this unit either as a standard user or as an administrative user. This document explains how to log in as an administrative user.

Different users are permitted to log in depending on the firmware used. If the product is configured with factory settings, then the following users can log in.

Firmware User (Given Factory Settings) Remarks
Rev.2.02.24 or later	Initial administrative user name “admin” (initial password “admin”)	After logging in, the password must be changed to something other than “admin”.
Rev.2.02.23 or earlier	Unnamed user (both the user name and pass-word fields are blank)

The rest of this chapter describes the login procedure when using Rev.2.02.24 or a later version of firmware is used.

Notice

If the firmware is updated from Rev.2.02.23 or earlier to Rev.2.02.24 or later while operating the product, then the user settings might be updated automatically in some cases.

• If updated with no administrative user registered:
  The initial administrative user name “admin” is automatically added, which requires entering “admin” to log in the first time.
• If updated with no user password specified:
  Login is possible using the same password as the user name. (For security reasons, the password should be changed after login.)

For more details, refer to the SWR2311P-10G "Technical Reference".

For details on the commands used by this unit, refer to the Command Reference.

The Command Reference is available on the Yamaha Pro Audio website.

https://www.yamahaproaudio.com/

Making settings using the Web GUI

Here we explain the procedure for logging in to this unit using the Web GUI.

You will use Yamaha LAN Monitor to log in to the Web GUI, so install Yamaha LAN Monitor before you continue.

Before you log in, connect your computer to the same network.

If the date and time are incorrect, set the date and time either in the Web GUI's "Management" tab - "Device settings" page.

For details on supported web browsers, refer to the Yamaha Pro Audio website.

https://www.yamahaproaudio.com/

■Logging in to this unit using a web browser

1. Start Yamaha LAN Monitor.

2. Select the device for which you want to make settings, and click the "Web GUI" button in the "Device Details" view.

When access is successful, a dialog box appears where you can enter a user name and password.

1. Enter the user name and password. Then click the "Login" button.

If settings are set to factory settings, enter "admin" as the initial administrative user and "admin" as the password.

If settings are set to factory settings, a language selection screen is displayed after successfully logging in.

Notice

If an incorrect user name or password is entered three consecutive times, logging in to the product is disabled for one minute thereafter. If that occurs, wait at least one minute before trying again from step 3.

1. Select the language to use.

If factory settings are specified, a screen for changing the password is displayed after login.

Notice

The user language can also be changed via the Web GUI after login.

1. Enter the new password in both fields and then click the "Save" button.

If the password was successfully changed, the top screen of the Web GUI is displayed.

Making settings from the command line using the CONSOLE port

Here we explain the cable, driver, software, and settings that are necessary in order to use the CONSOLE port.

If the date and time are incorrect, set the date and time either in "clock set" command / "clock timezone" command.

For details on the commands used by this unit, refer to the Command Reference.

The Command Reference is available on the Yamaha Pro Audio website.

https://www.yamahaproaudio.com/

■Preparing a console cable

• Connect the computer to the CONSOLE port of this unit using a USB cable or an RJ-45/DB-9 console cable.
• As the USB cable connected to the mini-USB CONSOLE port, use a USB cable that is equipped with a USB Type A connector and a mini-USB Type B (5-pin) connector, and that supports data communication. Charge-only cables cannot be used.

■Installing the USB serial driver

• In order to use the mini-USB CONSOLE port, the USB serial driver must first be installed in the computer.
• For details on installing the USB serial driver, refer to the “Yamaha Network USB Serial Driver Installation Guide.”

The Yamaha Network USB Serial Driver Installation Guide and the installer can be downloaded from the Yamaha Pro Audio website.

https://www.yamahaproaudio.com/

■Preparing the computer

You will need terminal software that controls the serial (COM) port of the computer.

Set the parameters of the terminal software as follows.

Parameter Value
Data transmission speed 9600 bps
Character bit length 8
Parity check None
Number of stop bits 1
Flow control Xon/Xoff

If the computer is connected to both the RJ-45 CONSOLE port and the mini-USB CON-SOLE port, only the terminal software that uses the mini-USB CONSOLE port can make settings.

The messages that are output from this unit are output to both CONSOLE ports.

■Logging in from a computer connected to the CONSOLE port

1. Using a console cable, connect this unit to the computer.

Connect the computer to the CONSOLE port of this unit using a USB cable or an RJ-45/DB-9 console cable.

Notice

• The LAN ports and the RJ-45 CONSOLE port all use the same 8-pin connector. If you connect these wrongly, hardware damage or malfunction might occur.
  Take care when making connections.
• If you use the mini-USB CONSOLE port, do not use a USB hub. If multiple Yamaha switches are connected to one computer, the COM port numbers assigned to the connection might be inadvertently exchanged. Take care that you are not changing the settings of an unintended unit.

2. Check the power supply of this unit.

If this unit is not powered-on, turn on the power as described in “Connecting the power cord” (page 32). When this unit powers-on and the command line is usable, a startup message appears in the console screen of the computer.

If the power is already on, a startup message does not appear.

SWR2311P-10G Rev.2.02.24 (Fri Jul 15 09:36:55 2022)
Copyright (c) 2022 Yamaha Corporation. All Rights Reserved.

3. Press the key.

The system will wait for a user name to be entered.

4. Enter the user name and press the key.

If factory settings are specified, enter the initial administrative user name "admin".

Username: admin

The system will wait for a password to be entered.

5. Enter the user password specified in step 4 and press the key.

If factory settings are specified, enter the initial administrative password "admin".

Password:

Notice

• Character strings entered in the password field are not displayed on the console screen.
  (The same thing applies in the steps below.)
• If an incorrect password is entered three consecutive times, logging in to the product is disabled for one minute thereafter. If that occurs, wait at least one minute before trying again from step 4.

Before changing the initial password for the initial administrative user name:

When the password is successfully authenticated, the system will wait for a new password to be entered.

Skip to step 6 and change the password.

SWR2311P-10G Rev.2.02.24 (Fri Jul 15 09:36:55 2022)
Copyright (c) 2022 Yamaha Corporation. All Rights Reserved.
Please change the default password for admin.
New Password:

After changing the initial password for the initial administrative user name:

After the password is successfully authenticated, the command prompt appears to enable entering commands. That completes the login process. (The remaining steps are not necessary.)

SWR2311P>

6. Enter the new password and press the key.

New Password:

The system will wait for the new password to be re-entered.

7. Re-enter the same password as in step 6 and press the key.

New Password(Confirm):

If the password is successfully changed, the command prompt will appear and entering commands is enabled.

Saving ...
Succeeded to write configuration
SWR2311P>

For details on the commands, refer to the command reference.

■Connecting network devices, PoE powered devices, or a computer

Using LAN cables, connect the LAN port of each device to the LAN ports of this unit.

If using fiber optic cables to make connections, install an SFP module in an SFP port. For the installation procedure, refer to “Installing an SFP module” (page 30).

Warning

If you plan to connect a powered device that complies with the IEEE802.3at standards, use a CAT5e or higher-grade cable.

Failure to use a standards-compliant cable for connection could result in a fire or malfunction.

Notice

The LAN ports and the RJ-45 CONSOLE port all use the same 8-pin connector.

If you connect these wrongly, hardware damage or malfunction might occur. Take care when making connections.

■Installing an SFP module

The SFP ports accept installation of an SFP module (SFP-SWRG-LX, SFP-SWRG-SX).

NOTE

For details on installation, removal, and points of caution, refer to the "SFP-SWRG-LX SFP-SWRG-SX Owner's Manual" included with the SFP module.

1. Remove the dust cover that is affixed to this unit's SFP port, and insert the SFP module.

NOTE

Since this unit supports hot-swapping, an SFP module can be installed without turning the power off.

1. Remove the protective cap from the SFP module.

SFP port SFP-SWRG-LX SFP-SWRG-SX Protective cap

Caution

Do not look into the optical emitter when the SFP module is installed.

The separately sold SFP modules are class 1 laser devices. They may emit laser beams invisible to the eye. If the laser beam enters your eye, your eyesight might be damaged.

1. To the connector, connect a fiber optic cable that is suitable for each module.

Connector Fiber optic cable

■Removing an SFP module

Secure this unit so that it will not move, and while grasping the lever of the SFP module, pull it slowly toward yourself to remove the module from the SFP port.

NOTE

For details on installation, removal, and points of caution, refer to the "SFP-SWRG-LX SFP-SWRG-SX Owner's Manual" included with the SFP module.

1. Detach the fiber optic cable.

Connector Fiber optic cable

1. If the SFP module is connected to the upper row of ports, lower the SFP module's lever.

If it is connected to the lower row of ports, raise the lever.

Lever

Caution

Do not look into the optical emitter when the SFP module is installed.

The separately sold SFP modules are class 1 laser devices. They may emit laser beams invisible to the eye. If the laser beam enters your eye, your eyesight might be damaged.

1. Grasp the lever and pull out the SFP module.

NOTE

Since this unit supports hot-swapping, an SFP module can be removed without turning the power off.

Connections

■Connecting the power cord

1. Attach the included power cord clamp.

Notice

• We recommend that you attach the supplied power cord clamp to prevent the power cord from accidentally being disconnected.

- This clamp is used only for the supplied power cord. If you use the clamp for other power cords, they might be damaged or might not secure properly.

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Insert the included clamp from the inside of the holes in the unit.

2. Connect the included power cord to the power inlet, and secure it with the clamp.

Diagram illustrating the step-by-step installation of an electrical plug, showing component positioning and connection to a cable.

2-1 Raise the clamp. 2-2 Connect the power cord.
2-3 Press down on the clamp to secure the power cord.

3. Connect the power cord to an electrical outlet.

The POWER indicator flashes green, and after startup is completed, is lit green.

Caution

If the POWER indicator is lit orange, the fans have stopped or the temperature inside the unit is abnormal. Verify the status of the problem, and take the appropriate action.

- Fan stopped

The fan that exhausts the heat dissipated by this unit has stopped.

You must immediately stop using the unit, and contact a Yamaha service center listed at the end of this manual to have the unit repaired or inspected.

• Abnormal temperature inside this unit.

Reconsider the environment in which this unit is installed, and correctly install this unit so that its internal temperature is appropriate.

4. Check the port indicators.

Using the MODE button, switch the display mode and check the port indicators.

For details on switching the display mode, the connection status, and the power supply status, refer to "Switching the display mode" (page 16) and "Port indicators" (page 17).

This unit can be restored to its factory-set state in the following ways.

• Using the Web GUI to restore the factory settings (page 33)
• Using the cold start command to restore the factory settings (page 34)
• Entering the <l> (uppercase I) key during startup to restore the factory settings (page 35)

Notice

When restoring the factory settings, note the following points.

• All communication is halted immediately after execution.
• When you execute this, the settings will also return to their factory-set state. If necessary, use external memory to save the settings before you proceed with initialization. For details on how to export settings to external memory, refer to the SWR2311P-10G's "Technical Reference."

NOTE

For login instructions after restoring factory settings, see "Settings" (page 25).

■Using the Web GUI to restore the factory settings

This unit can be restored to its factory-set state by making settings from the Web GUI.

Notice

This step cannot be executed if the initial administrative password is specified. Change the administrative password in advance.

Log in to the Web GUI from Yamaha LAN Monitor.

1. Choose "Management" tab – "Maintenance" – "Restart and initialize."

The "Restart or Initialize" screen appears.

1. In the "Initialize" section, click the "Next" button.

The "Initialize" screen appears.

1. Enter the administrative password, and click the "OK" button.

The "Check executed content" screen appears.

1. Verify the content, and click the "Execute" button.

The unit is returned to its factory-set state. Then, the “Initialization” dialog box appears, and the unit restarts.

Initialization

5. After this unit has finished restarting, access the Web GUI once again from Yamaha LAN Monitor.

NOTE

During restart, the computer on which the Web GUI is open will be unable to communicate with the unit (the status indication of the computer's network adapter will be "Network cable is not connected"), but the communication status will recover when restart is completed. After this unit's POWER indicator has finished flashing, verify that communication has been restored for the computer on which the Web GUI is open, and then click the "Web GUI" button in the "Device Details" view.

■Using the cold start command to restore the factory settings

You can return the unit to its factory settings by using a command line setting via the CON-SOLE port, Telnet, or an SSH client.

Notice

This step cannot be executed if the initial administrative password is specified. Use the “enable password” command to change the administrative password in advance.

Here we assume that you are logged in as described in “Logging in from a computer connected to the CONSOLE port” (page 28).

1. Enter enable, and press the key.

You are now in privileged EXEC mode.

SWR2311P>enable
SWR2311P#

2. Enter the cold start command, and press the key.

You will be asked to enter the administrative password.

SWR2311P#cold start
Password:

3. Enter the administrative password and press the key.

The unit returns to the factory-set state, and then restarts.

■Entering the (uppercase I) key during startup to restore the factory settings

The unit can be restored to its factory settings by entering an uppercase when the unit is starting up. This explanation uses the method of disconnecting and reconnecting the power cord. The procedure is also the same when using the reload command to restart this unit.

Notice

Here we assume that you are logged in as described in “Logging in from a computer connected to the CONSOLE port” (page 28).

1. Disconnect and then reconnect the power cord of this unit.
2. During restart, enter an uppercase within one second after the BootROM Ver (see below) appears on the console screen.

SWR2311P BootROM Ver.1.00

1. When a screen asks you whether to execute initialization, press the key to execute initialization.

Initialize or not ?(y/n)

Initialization is executed.

Ready to Initialize
....

Hardware specifications

Item Specifications
Dimensions(not including protrusions and feet)		220 mm (W) x 294 mm (D) x 42.4 mm (H)
Weight (without accessories) 2.3 kg
Power supply voltage and frequency AC100-240 V, 50/60 Hz
Maximum power consumption 280 W
LAN ports equipped with PoE supply capability	Standard IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T)
	Number of ports 8 ports
	Communication mode	Auto negotiation
	Connector type RJ-45
	MAC address Printed on top surface label
	Polarity Straight/cross automatic detection
Combo ports	LAN ports	IEEE 802.3 (1000BASE-T)2 ports (use is mutually exclusive with SPF ports)
	SFP ports	SFP (Small Form-factor Pluggable)
		2 ports (use is mutually exclusive with LAN ports)
PoE	Standard IEEE 802.3at
	Power supply system	Alternative A
	Maximum power supply	30 W / port, 240 W / entire unit
microSD slot	Standard SD/SDHC
	Number of slots 1 slot
CONSOLE port	Standard RS-232C, USB 2.0
	Connector type RJ-45, USB mini-B (5-pin)
	Data transmission speed	9600 bit/s
Indicators POWER, microSD, LED MODE, LAN port, SFP port
Operating environment conditions	Ambient temperature	0–40 °C
	Ambient humidity 15–80%, non-condensing
Storage environment conditions	Ambient temperature	-20–50 °C
	Ambient humidity 10	-90%, non-condensing
Energy conservation regulatory items	Category name A
	Energy consumption efficiency	1.2 W/(Gbit/s)
	Maximum effective communication speed	10.0 Gbit/s
	Measured port speed (number of ports)	1 Gbit/s (10 ports)
Accessories		Owner's Manual; power cord (3-prong); power cord clamp; legs

The explanations in this document use the current specifications as of the date of publication. The latest version can be downloaded from the Yamaha website.

https://www.yamahaproaudio.com/

Dimensional diagram

8.6 294

220 42.41.6 44

Units: mm

RJ-45/DB-9 console cable pin configuration

Console (RS-232C)

* These signals are not used by the SWR2311P-10G.

Software license agreement

The product firmware revision number can be updated.

Updating the firmware revision is considered an indication of agreement to the Yamaha network product software license agreement. Before updating the firmware revision, be sure to carefully read the Yamaha network product software license agreement.

If you cannot agree to the terms in the Yamaha network product software license agreement, do not update the firmware revision. Even in the case of negligence, Yamaha accepts no responsibility for any customer losses caused by the software, unless such disclaimer is specifically prohibited by an applicable law or regulation.

Yamaha Network Product Software License Agreement

http://www.rtpro.yamaha.co.jp/RT/docs/firmware/license/LICENSE

A

Administrative password .... 33, 34

C

Command line.... 27

CONSOLE port 27

Cooling vents 13

D

Display mode 16

LINK/ACT mode.... 17

OFF mode.... 19

PoE mode 18

STATUS mode.... 18

VLAN mode.... 18

F

Fans 14

|

Initial administrative user 25

Initial password 25

Initialization 33

L

LAN ports.... 12

LAN/SFP combo ports 12

Leg.... 15

Leg attachment guides.... 15

M

microSD indicator.... 12

microSD slot.... 12

mini-USB CONSOLE port 11, 27

MODE button 12

MODE indicator.... 12

P

Password 28

Power cord clamp 32

Power cord clamp attachment holes ..... 14

POWER indicator 11

Power supply inlet.... 14

Product label 13

R

Rack mount accessory attachment holes.... 15

RJ-45 CONSOLE port.... 12

RK-SWR.... 20

S

SFP module 30

U

User name.... 28

W

Wall mount accessory attachment holes... 16

Web GUI 26

WK-SWR.... 22

Y

Yamaha LAN Monitor.... 10

Yamaha Network USB Serial Driver ... 10, 27

Important Notice: Guarantee Information for customers in European Economic Area (EEA) and Switzerland

Important Notice: Guarantee Information for customers in EEA* and SwitzerlandFor detailed guarantee information about this Yamaha product, and Pan-EERa und Switzerland warranty service, please either visit the website address below (Printable file is available at our website) or contact the Yamaha representative office for your country. * EEA: European Economic Area	English
Wichtiger Hinweis: Garantie-Information für Kunden in der EWR* und der SchweizFür nähere Garantie-Information über dieses Produkt von Yamaha, sowie über den Pan-EWR* und Schweizer Garantieservice, besuchen Sie bitte entweder die folgend angegebene Internetadresse (eine druckfähige Version befindet sich auch auf unserer WeSeite), oder wenden Sie sich an den für Ihr Land zuständigen Yamaha-Vertrieb. * EWR: Europäischer Wirtschaftsraum	Deutsch
Remarque importante: Informations de garantie pour les clients de l'EEE et la SuissePour des informations plus détaillées sur la garantie de ce produit Yamaha et sur le service de garantie applicable dans l'ensemble de l'EEE ainsi qu'en Suisse, consultez notre site Web à l'adresse ci-dessous (le fichier imprimable est disponible sur notre site Web) ou contactez directement Yamaha dans votre pays de résidence. * EEE: Espacie Economique Européen	Français
Belangrijke mededeling: Garantie-informatie voor klanten in de EER* en ZwitserlandVoor gedetailleerde garantie-informatie over dit Yamaha-product en de garantieservice in heel de EER* en Zwitserland, gaat u naar de onderstaande website (u vind een afdrukbaar bestand op onze website) of neemt u contact op met de vertegenwoordiging van Yamaha in uw land. * EER: Europese Economische Ruimte	Nederlands
Aviso importante: información sobre la garantia para los clientes del EEE* y SuizaPara una información detallada sobre este producto Yamaha y sobre el soporte de garantía en la zona EEE* y Suiza, visite la dirección web que se incluye más abajo (la version del archivo para imprimir esta disponible en nuestro sitio web) o póngase en contacto con el representante de Yamaha en su país. * EEE: Espacio Económico Europeo	Español
Avviso importante: informazioni sulla garanzia per i clienti residenti nell'EEA* e in SvizzeraPer informazioni dettagliate sulla garanzia relativa a questo prodotto Yamaha e l'assistenza in garanzia nei paesi EEA* e in Svizzera, potete consultare il sito Web all'indirizzo riportato di seguito (à disponibile il file in formato stampable) oppure contattare l'ufficio di rappresentanza locale della Yamaha. * EEA: Area Economica Europea	Italiano
Aviso importante: informações sobre as garantias para clientes da AEE* e da SuíçaPara obter uma informação pormenorizada sobre este produto da Yamaha e sobre o serviço de garantia na AEE* e na Suíça, visite o site a seguir (o arquivo para impressão está disponível no nosso site) ou entre em contato com o escritório de representação da Yamaha no seu país. * AEE: Área Econômica Européia	Português
ΕλληνικάΕτια λεπτομερείς πληροφορίες εγγύησης σχητικά με το παρόν προϊόν της Yamaha και την κόλυψη εγγύησης σε όλες τις χώρες του ΕΟΧ και την Ελβετία, επισκερτείε την παροκάτω ιστοσελίδα (Εκτυπώστωη μορή) ελναι διαθέσωην στην κτοσελίδα μας) ή απευδυνθείτε στην αντηροσωπεία της Yamaha στη χώρα σας. * ΕΟΧ: Ευρωπαϊκός Οικονομικός Χιώρος	Svenska
Viktigt: Garantinformation kör kunder i EES-området* och SchweizFör detaljerad information om denna Yamahaprodukt samt garantiservice i hela EES-området* och Schweiz kan du antingen besöka nedanstående webbaddress (en utskriftsvänlig fil finns på webbplatsen) eller kontakta Yamahas officiella representant i ditt land. * EES: Europeiska Ekonomiska Samarbetsområdet	Norsk
Viktig merknad: Garantiinformasjon for kunder i EOS* og SveitsDetafert garantiinformasjon om dette Yamaha-produktet og garantiservice for hele EOS-området* og Sveits kan fås enten ved å besøke nettadressen nedenfor (utskriftsvensjon finnes på våre nettsider) eller kontakte kontakte Yamaha-kontoret i landet der du bor. *EOS: Det europeiske ekonomiske samarbeidsområdet	Dansk
Vigtig oplysning: Garantioplysninger til kunder i EOO* og SchweizDe kan finde detajerede garantioplysninger om dette Yamaha-produktet og den fælles garantiserviceordning for EOO* (og Schweiz) ved at besøge det websted, der er angivet nedenfor (der findes en fil, som kan udskrives, på vores websted), eller ved at kontakte Yamahas nationale repræsentationskontor i det land, hvor De bor. * EOO: Det Europæiske Škonomiske Område	Suomi
Tärkeä Ilmoitus: Takuutiedot Euroopan talousalueen (ETA)* ja Sveitsin asiakkailleTämän Yamaha-tuolteen sekä ETA-alueen ja Sveitsin takuuta koskevat yksitylskohtaiset tiedot saattie alla olevasta nettiosoitteesta. (Tulostettava tiedosto saatavissa sivustollamme.) Voitte myös ottaa yhteyttä paikalliseen Yamaha-edustajaan. *ETA: Euroopan talousalue	Polski
Waźne: Warunki gwarancyjne obowiązujące w EOG* i SzwajcariiAby dowiedzieć się więcej na temat warunków gwarancyjnych tego produktu firmy Yamaha i serwisu gwarancyjnego w całym EOG* i Szwajcarii, należy odwiedzić wskazaną ponizej stronę internetową (Plik gotowy do wydruku znajduje się na naszej stronie internetowej) lub kontaktować się z przedstawicielstwem firmy Yamaha w swoim kraju. * EOG — Europejski Obszar Gospodarczy	Česky
Düležité oznámeni: Záruční informace pro zákazníky v EHS* a ve ŠvýcarskuPodrobné záruční informace o tomio produktu Yamaha a záručním servisu v celém EHS* a ve Švýcarsku naleznete na niže uvedené webové adrese (soubor k tisku je dostupný na našich webových stránkách) nebo se můžete obrátit na zastoupení firmy Yamaha ve své zemi. * EHS: Evropsky hospodářský prostor	Magyar
Fontos figyelmeztefés: Garancia-informaciók az EGT* területén és Svájcban élő vásárlók számáraA jelen Yamaha termékre vonatkozó részletes garancia-informaciók, valamint az EGT*-re és Svájcra kiterjedő garanciális szolgáltatás tekintetében keresse fel webhelyünket az alábbi cimen (a webhelyen nyomtatható fájtí is talál), vagy pedig lépjen kapcsolatba az országában működő Yamaha képviseleti irodával. * EGT: Európai Gazdasági Térseg	Eesti keel
Oluline márkus: Garantiiteave Euroopa Majanduspiirkonna (EMP)* ja Šveitsi klientideleTápsema teabe saamiseks selle Yamaha toote garantii ning kogu Europa Majanduspiirkonna ja Šveitsi garantiiteeninduse kohta, külastage patun veebisati alljärgneval aadressil (miele saidil on saadaval prinditav fail) või põörduge Tele regioni Yamaha esinduse poole. * EMP: Euroopa Majanduspiirkond	Latviešu
Svarigs pazipojums: garantijas informacija klientiem EEZ* un ŠveicėLai saņemtu detalžētu garantijas informaciju par šo Yamaha produktu, kā arī garantijas apkalpošanu EEZ* un Šveicė, lõdzu, apmekléjiet zemäk norădīto īimekja vietnes adresi (tīimekja vietne ir pieejams drukăjams fails) vai sazinieties ar jūsu valsti apkalpojošo Yamaha pärstávniecību. * EEZ: Europas Ekonomikas zona	Latviešu
Dèmesio: informacija dél garantijos pirkëjams EEE* ir ŠveicariijojeJei reiklia išsamios informacijos apie šļ „Yamaha” produktą ir jo techninę priežliņra visoje EEE* ir Šveicarijoje, apsilankykite mūsų svetainėje toliau nurodytu adresu (svetainėje yra spausdintinas failas) arba kreipkitės į „Yamaha” atstovybę savo šalią. * EEE— Europos ekonominė erdvė	Lietuvlu kalba
Dôležité upozornenie: Informácie o záruke pre zákazníkov v EHP* a ŠvajčiarskuPodrobné informácie o záruke týkajúce sa lohto produktu od spoločnosti Yamaha a garančnom servise v EHP* a Švajčiarsku nájdete na webovej stránke uvedenej nižáie (na našej webovej stránke je k dispozícii súbor na tlač) alebo sa obrätte na zástupcu spoločnosti Yamaha vo svojej krajine. * EHP: Európsky hospodářsky priestor	Slovenčina
Pomembno obvestlio: Informacije o garanciji za kupce v EGP* in ŠviciZa podrobnješje informacije o tem Yamahinem izdelku ter garancijskem servisu v celotnem EGP in Švici, obiščite spletno mesto, ki je navedeno spodaj (natisljiva datoteka je na voljo na našem spletnem mestu), ali se obrnite na Yamahinega predstavnika v svoji državi. * EGP: Evropski gospodarski prostor	Slovenčina
Bажно съобщение: Информация за гаранцията за клиенти в ЕИП* и ШвейцарияЗа подробна информация за гаранцията за този продукт на Yamaha и гаранционното обслужване в паневропейската зона на ЕИП* и Швейцария или посетете посочения по-долу уеб сайт (на нашия учеб сайт има файл за печат), или се свържете с представителния офис на Yamaha във вашата страна. * ЕИП: Европейско ikonomическо пространство	Български език
Notificare importante: Informații despre garantie pentru clienti din SEE* și ElvetiaPentru informații detaliate privind acest produs Yamaha și serviciul de garantie Pan-SEE* și Elvetia, vizilatți site-ul la adresa de mai jos (figierul imprimabil este disponibil pe site-ul nostru) sau contactați biroul reprezentanței Yamaha din jara dumneavoastră. * SEE: Spațiul Economic European	Limba română
Važna obavijest: Informacije o jamstvu za države EGP-a Švicarske	Hrvatski
Za detaljne informacije o jamstvu za ovaj Yamahin proizvod te jamstvenom servisu za cijeli EGP i Švicarsku, molimo Vas da posjetite web-stranicu navedenu u nastavku ili kontaktirate ovlaštenog Yamahinog dobavljača u svojoj zemlji. * EGP: Europski gospodarski prostor

https://europe.yamaha.com/warranty/

Information for users on collection and disposal of old equipment:

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union:

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

(weee_eu_en_02)

Yamaha Canada Music Ltd.

135 Milner Avenue, Toronto, Ontario,

M1S 3R1. Canada

Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Avenue, Buena Park, CA

90620, U.S.A.

Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Praça Professor José Lannes, 40-Cis 21 e 22,

Brooklin Paulista Novo CEP 04571-100 – São

Paulo – SP, Brazil

Tel: [phone]

ARGENTINA

Yamaha Music Latin America, S.A..

Sucursal Argentina

Olga Cossettini 1553, Piso 4 Norte,

Madero Este-C1107CEK,

Buenos Aires, Argentina

Tel: [phone]

PANAMA AND OTHER LATIN

AMERICAN/CARIBBEAN REGIONS

Yamaha Music Latin America, S.A.

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, U.K.

Tel: [phone]

GERMANY

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Tel: [phone]

Switzerland in Thalwil

Seestrasse 18a, 8800 Thalwil, Switzerland

Tel: [phone]

AUSTRIA/BULGARIA/

CZECH REPUBLIC/HUNGARY/

ROMANIA/SLOVAKIA/SLOVENIA

Yamaha Music Europe GmbH

Branch Austria

Schleiergasse 20, 1100 Wien, Austria

Tel: [phone]

POLAND

Yamaha Music Europe

Valletta Road, Mosta MST9010, Malta

Tel: [phone]

NETHERLANDS/BELGIUM/

LUXEMBOURG

Yamaha Music Europe Branch Benelux

Wattbaan 1 3439ML Nieuwegein, The Netherlands

Tel: [phone]

FRANCE

Yamaha Music Europe

Yamaha Music Europe GmbH, Branch Italy

Via Tinelli N.67/69 20855 Gerno di Lesmo (MB), Italy

Tel: [phone]

SPAIN/PORTUGAL

Yamaha Music Europe GmbH Ibérica, Sucursal en España

Ctra. de la Coruña km. 17,200, 28231

Las Rozas de Madrid, Spain

19th klm. Leof. Lavriou 190 02 Peania – Attiki, Greece

Tel: [phone]

SWEDEN/FINLAND/ICELAND

Yamaha Music Europe GmbH Germany Filial Scandinavia

JA Wettergrensgata 1, 400 43 Göteborg, Sweden

Tel: [phone]

DENMARK

Yamaha Music Denmark,

Fillial of Yamaha Music Europe GmbH, Tyskland

Generatorvej 8C, ST. TH., 2860 Søborg, Denmark Tel: [phone]

NORWAY

Yamaha Music Europe GmbH Germany -

Norwegian Branch

c/o Box 30053, 400 43 Göteborg, Sweden

Tel: [phone]

CYPRUS

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Tel: [phone]

RUSSIA

Yamaha Music (Russia) LLC.

Room 37, entrance 7, bld. 7, Kievskaya street,

Moscow, 121059, Russia

Tel: [phone]

OTHER EUROPEAN REGIONS

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Tel: [phone]

AFRICA

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328,

Jebel Ali FZE, Dubai, UAE

Tel: [phone]

MIDDLE EAST

TURKEY

Ertekin Electronik tlc. ve san. as

Kagithane Ofis ParkBaglar Cad.

No: 14 D/6 Kagithane 34406

ISTANBUL / TÜRKİYE

Tel: [phone]

OTHER REGIONS

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328,

Jebel Ali FZE, Dubai, UAE

Tel: [phone]

ASIA

MAINLAND CHINA

Yamaha Music & Electronics (China) Co., Ltd.

2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,

Shanghai, China

Tel: [phone]

INDIA

Yamaha Music India Private Limited

P-401, JMD Megapolis, Sector-48, Sohna Road,

Gurugram-122018, Haryana, India

Tel: [phone]

INDONESIA

PT Yamaha Musik Indonesia Distributor

Yamaha Music Center Bldg. Jalan Jend. Gatot

Subroto Kav. 4, Jakarta 12930, Indonesia

Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

11F, Prudential Tower, 298, Gangnam-daero,

Gangnam-gu, Seoul, 06253, Korea

Tel: [phone]

MALAYSIA

Yamaha Music (Malaysia) Sdn. Bhd.

No.8, Jalan Perbandaran, Kelana Jaya, 47301

Petaling Jaya, Selangor, Malaysia

Tel: [phone]

SINGAPORE

Yamaha Music (Asia) Private Limited

Block 202 Hougang Street 21, #02-00,

Singapore 530202, Singapore

Tel: [phone]

TAIWAN

Yamaha Music & Electronics Taiwan Co., Ltd.

2F., No.1, Yuandong Rd., Bangiao Dist.,

New Taipei City 22063, Taiwan

3, 4, 15, 16th Fl., Siam Motors Building,

891/1 Rama 1 Road, Wangmai,

Pathumwan, Bangkok 10330, Thailand

Tel: [phone]

VIETNAM

Yamaha Music Vietnam Company Limited

15th Floor, Nam A Bank Tower, 201-203 Cach

Mang Thang Tam St., Ward 4, Dist.3

Ho Chi Minh City, Vietnam

Tel: [phone]

OTHER ASIAN REGIONS

http://asia.yamaha.com/

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 80 Market Street, South Melbourne.

VIC 3205, Australia

Tel: [phone]

REGIONS AND TRUST TERRITORIES

IN PACIFIC OCEAN

http://asia.yamaha.com/

Yamaha Pro Audio global website https://www.yamahaproaudio.com/

Yamaha Downloads

https://download.yamaha.com/

© 2018 Yamaha Corporation

Published 11/2022

IPES-B0
