Product Type	Effects Pedal
Brand	Pigtronix
Model	Octava Micro
Effect Type	Octave (up/down)
Controls	Volume, Octave Up, Octave Down, Blend
Inputs	1 x 1/4" TS
Outputs	1 x 1/4" TS
Power Supply	9V DC (center negative), 2.1mm barrel, ~50mA
Battery Option	No (DC only)
Dimensions (HxWxD)	2.2 x 2.5 x 4.5 inches (56 x 64 x 114 mm)
Weight	0.5 lbs (227 g)
Housing Material	Aluminum
True Bypass	Yes
LED Indicator	Red LED when active
Compatibility	Electric guitar, bass, keyboard
Cleaning	Dry cloth; avoid liquids
Storage Temperature	-20°C to 50°C
Safety Warnings	Use only specified power supply; do not disassemble
Spare Parts Availability	Contact manufacturer or authorized dealers
Repairability	Designed for professional repair; no user-serviceable parts

Frequently Asked Questions - Octava Micro Pigtronix

How do I power the Octava Micro?

Use a standard 9V DC power supply with center negative polarity and 2.1mm barrel jack. The pedal draws approximately 50 mA.

Does the Octava Micro support battery power?

No, this pedal does not have a battery compartment. It requires an external 9V DC power source.

What controls are on the Octava Micro?

The pedal features four knobs: Volume (output level), Octave Up, Octave Down, and Blend (mix between dry and effected signal).

Is the Octava Micro true bypass?

Yes, it has true bypass switching, ensuring your guitar signal remains pure when the effect is off.

Can I use the Octava Micro with bass guitar?

Yes, it works well with both electric guitar and bass, tracking low frequencies accurately.

What type of input/output jacks does it have?

It has standard 1/4 inch TS jacks for input and output.

How do I clean the pedal?

Use a soft, dry cloth to wipe the surface. Avoid using liquids, solvents, or abrasive cleaners.

What are the dimensions of the Octava Micro?

Approximately 2.2 x 2.5 x 4.5 inches (56 x 64 x 114 mm), making it compact for pedalboards.

Does the pedal have an LED indicator?

Yes, there is a red LED that lights up when the effect is engaged.

Where can I get spare parts or repairs?

Contact Pigtronix support or an authorized service center. The pedal should only be repaired by qualified technicians.

USER MANUAL Octava Micro Pigtronix

Explanation of Controls

05

Warranty

07

Contact Information

RIPPING RIFF MODE OCTAVATED.

Octava is an all-analog octave fuzz / frequency doubler featuring an on-board low pass Filter control that allows you to achieve singing octave up tones anywhere on the neck, without adjusting your guitar's tone control. A front-end Drive and gushing Fuzz circuit add signal power and easily convert Octava to shoegazey fuzz pedal capable of producing devastating, full-wave rectified distortion. Use the Blend knob to mix the octave up effect on top of your dialed-in drive.

Illustration of a cartoon astronaut riding a green flying saucer with a rainbow trail, set against a dark starry background with decorative purple patterns (no text or symbols)

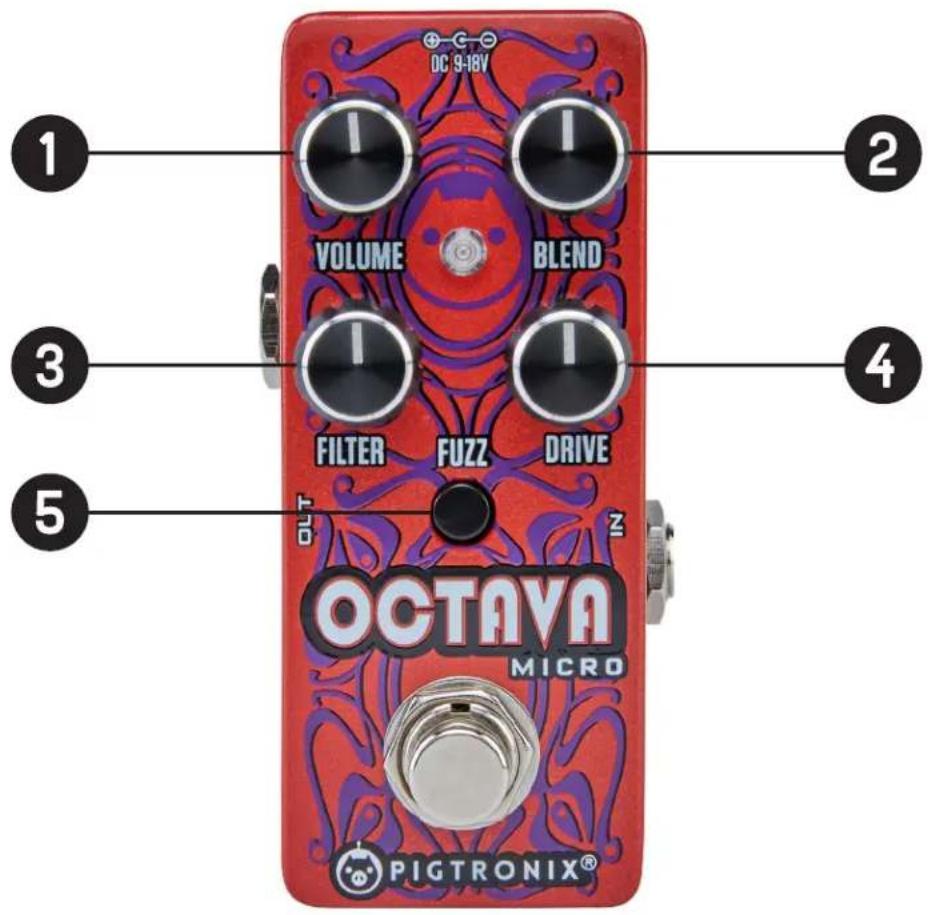

EXPLANATION OF CONTROLS

DC 9-18V VOLUME BLEND FILTER FUZZ DRIVE OCTAVA MICRO PIGTRONIX®

1

Volume: Sets the overall output volume.

2

Blend: Mixes in the octave-up effect.

3

Filter: A low-pass filter tone knob. Sets the cutoff frequency of the low pass filter on the input of the Octave circuit.

4

Drive: Mixes in warm front-end overdrive by increasing the gain of the J-FET preamp stage.

Octava requires a negative tip, 9VDC power supply. Octava does not take batteries.

PIGTRONIX LIMITED WARRANTY

Your new Pigtronix product is warranted to be free from defects in materials and workmanship for 1 year from the original date of purchase. Warranty applies only to the original retail purchaser of a registered Pigtronix product, subject to the limitations contained in this warranty.

THIS WARRANTY IS EXTENDED TO THE ORIGINAL RETAIL PURCHASER OF PIGTRONIX PRODUCTS BOUGHT ON OR AFTER JANUARY 1, 2020 ONLY AND MAY NOT BE TRANSFERRED OR ASSIGNED TO SUBSEQUENT OWNERS. IN ORDER TO VALIDATE YOUR WARRANTY, AND AS A CONDITION PRECEDENT TO WARRANTY COVERAGE HEREUNDER, YOU MUST REGISTER YOUR PRODUCT WITHIN THIRTY (30) DAYS FOLLOWING THE ORIGINAL DATE OF PURCHASE. YOUR PROOF OF PURCHASE OR SALES RECEIPT MUST ACCOMPANY ALL REQUESTS FOR WARRANTY COVERAGE—YOU MAY SUBMIT YOUR RECEIPT ON THE REGISTRATION FORM. IF YOU DO NOT REGISTER THE PRODUCT WITHIN 30 DAYS OF PURCHASE, YOUR PRODUCT WILL NOT BE SERVICED UNDER WARRANTY.

If your product is destroyed, lost or damaged beyond repair while in the possession of Pigtronix for repair, Pigtronix will replace that product with one of the same or most similar style of a value not in excess of the original purchase price of your pedal. Any insurance covering the pedal, including but not limited to collector's value insurance, must be carried by you at your expense.

This warranty covers the cost of both labor and materials on repairs deemed necessary by our Customer Service Representative.

THIS WARRANTY DOES NOT COVER:

• Any product that has been altered or modified in any way or upon which the serial number has been tampered with or altered.
• Any product whose warranty has been altered or upon which false information has been given.
• Any product that has been damaged due to misuse, negligence, accident, or improper operation.
• The subjective issue of tonal characteristics.
• Shipping damages of any kind.
• Any product that has been subjected to extremes of humidity or temperature
• Normal wear and tear
• Any product that has been purchased from an unauthorized dealer, or upon which unauthorized repair or service has been performed.

PIGTRONIX MAKES NO OTHER EXPRESS WARRANTY OF ANY KIND WHATSOEVER. ALL IMPLIED, WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF THIS WARRANTY ARE HEREBY DISCLAIMED AND EXCLUDED FROM THIS WARRANTY. SOME STATES AND/OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES SO THAT THE ABOVE MAY NOT APPLY TO YOU. PIGTRONIX SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT CONSEQUENTIAL, INCIDENTAL OR OTHER SIMILAR DAMAGES SUFFERED BY THE PURCHASER OR ANY THIRD PARTY, INCLUDING, WITHOUT LIMITATION. DAMAGES FOR LOSS OF PROFITS OR BUSINESS OR DAMAGES RESULTING FROM USE OR PERFORMANCE OF THE PRODUCT, WHETHER IN CONTRACT OR IN TORT, EVEN IF PIGTRONIX OR ITS AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND PIGTRONIX SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING.

Steps To File for Warranty Coverage:

1. Register your new guitar at http://pigtronix.com/warranty
2. Complete the warranty request form available at http://pigtronix.com/support and we will handle it from there!

CONTACT INFORMATION

Address

Bond Audio LLC

141 W 28th St, Floor 4

New York, NY, 10001

Phone

631-331-7447

Email

[e-mail]

Warranty Service Email

[e-mail]

Warranty Contact Form

pigtronix.com/warranty

Website

pigtronix.com

YouTube

youtube.com/pigtronix

Product manuals are offered digitally in an attempt to be mindful of our environment.

We ask that you consider the same before printing at home. Thank you!

All contents © Bond Audio LLC 2021
