Product Type	Compact Analog Phaser Pedal
Model	Constellator Micro
Brand	Pigtronix
Dimensions	2.5 x 4.5 x 1.5 inches (6.4 x 11.4 x 3.8 cm)
Weight	0.3 lbs (136 g)
Power Supply	9V DC (center negative), 2.1mm barrel
Current Draw	50 mA
Battery Type	9V alkaline (not included)
Bypass Type	True Bypass
Controls	Rate, Depth, Feedback, Blend
Stages	4-stage phaser
LED Indicator	Status LED (on/off)
Input Impedance	1 MΩ
Output Impedance	10 kΩ
Chassis Material	Aluminum die-cast
Connectors	1/4" instrument input and output jacks
Maintenance	Clean with a dry cloth; avoid liquids
Safety	Use only specified power supply; avoid moisture
Spare Parts	Contact Pigtronix for replacement knobs, switches, and jacks
General Information	Designed for guitar and bass; compact size for pedalboards

Frequently Asked Questions - Constellator Micro Pigtronix

What power supply does the Constellator Micro use?

It uses a standard 9V DC center-negative power supply with a 2.1mm barrel connector. Current draw is 50 mA.

Is the Constellator Micro true bypass?

Yes, it features true bypass switching, ensuring no signal degradation when the effect is off.

Can I use a battery with this pedal?

Yes, it can be powered by a 9V alkaline battery (not included). Note that the battery may drain faster with continuous use.

What are the main controls?

The pedal has four knobs: Rate (speed of phasing), Depth (intensity), Feedback (resonance), and Blend (mix of dry and wet signal).

Does the pedal work with bass guitar?

Yes, the Constellator Micro is designed for both guitar and bass, with a wide frequency response.

How do I clean the pedal?

Use a dry, soft cloth to wipe the exterior. Avoid using any liquids or solvents that could damage the finish or electronics.

What is the warranty period?

Pigtronix offers a 1-year limited warranty against defects in materials and workmanship. Register online for details.

Can I daisy-chain power with other pedals?

Yes, as long as the total current draw does not exceed the power supply's capacity. The Constellator Micro draws 50 mA.

What is the size of the pedal?

It measures 2.5 x 4.5 x 1.5 inches (6.4 x 11.4 x 3.8 cm), making it a compact addition to any pedalboard.

Where can I find the user manual?

The manual is available for free download on the official Pigtronix website or through the product page at notice-facile.com.

USER MANUAL Constellator Micro Pigtronix

Explanation of Controls

05

Warranty

07

Contact Information

Constellator is an all-analog delay pedal capable of producing up to 600ms of lush echo with adjustable modulation and a comprehensive sound palette. From percussive slapback and doubler sounds to chorused-out, long delays with endless repeats, the Constellator's MN3005 bucket brigade chips provide superior overall headroom and tape-like saturation when pushed to the limit. The Feel toggle switch adjusts several parameters simultaneously for an additional coloring of LFO modulation. With the Feedback control maxed out, the Constellator is capable of self-oscillation which can be pitched up or down by turning the Time knob. Runs on standard 9VDC.

Illustration of a purple spherical object with a stick and star-shaped antenna, set against a starry night sky (no text or symbols)

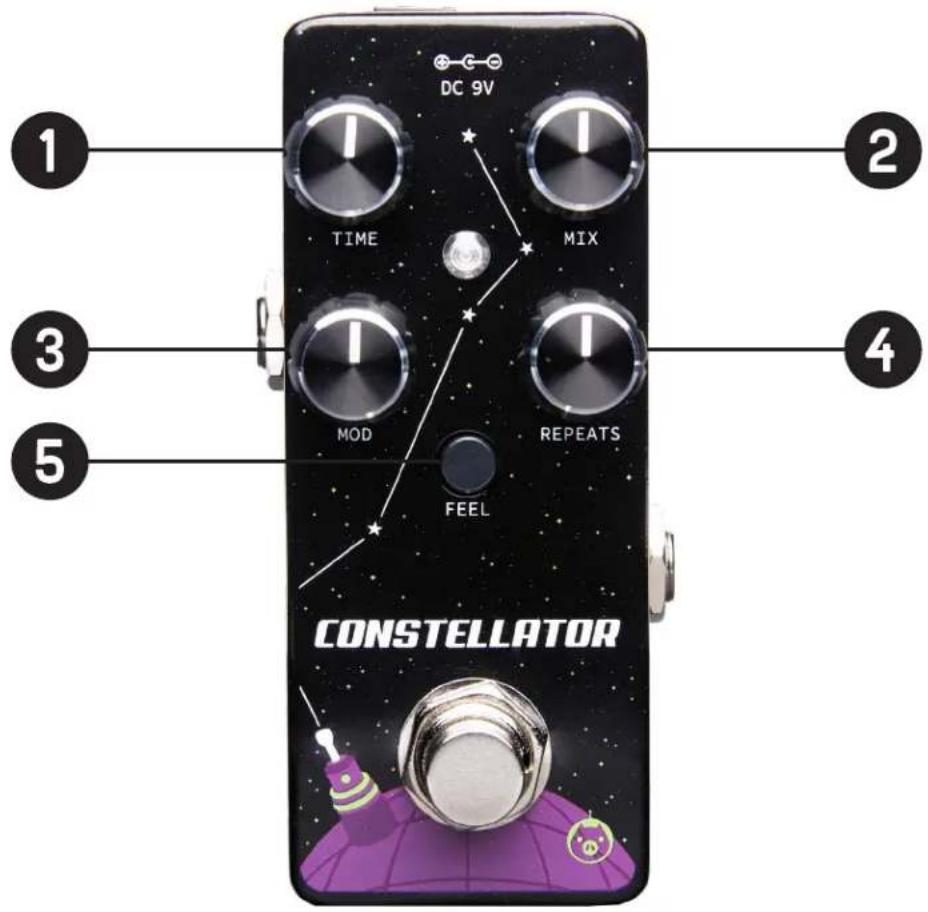

EXPLANATION OF CONTROLS

DC 9V TIME MIX MOD REPEATS FEEL CONSTELLATOR 1 2 3 4 5

1

Time: Sets your delay time. Clockwise for slower, counter-clockwise for faster.

2

Mix: Controls your dry/wet balance.

3

Mod: Controls the modulation depth. Adds color and warp.

4

Repeats: Sets the amount of feedback in the delay line.

Feel: Selects between two distinct modulation types. When the switch is pushed in, a chorus effect is selected. When the switch is not pushed in, a vibrato effect is selected.

Constellator requires a negative tip, 9VDC power supply. Constellator does not take batteries.

PIGTRONIX LIMITED WARRANTY

Your new Pigtronix product is warranted to be free from defects in materials and workmanship for 1 year from the original date of purchase. Warranty applies only to the original retail purchaser of a registered Pigtronix product, subject to the limitations contained in this warranty.

THIS WARRANTY IS EXTENDED TO THE ORIGINAL RETAIL PURCHASER OF PIGTRONIX PRODUCTS BOUGHT ON OR AFTER JANUARY 1, 2020 ONLY AND MAY NOT BE TRANSFERRED OR ASSIGNED TO SUBSEQUENT OWNERS. IN ORDER TO VALIDATE YOUR WARRANTY, AND AS A CONDITION PRECEDENT TO WARRANTY COVERAGE HEREUNDER, YOU MUST REGISTER YOUR PRODUCT WITHIN THIRTY (30) DAYS FOLLOWING THE ORIGINAL DATE OF PURCHASE. YOUR PROOF OF PURCHASE OR SALES RECEIPT MUST ACCOMPANY ALL REQUESTS FOR WARRANTY COVERAGE—YOU MAY SUBMIT YOUR RECEIPT ON THE REGISTRATION FORM. IF YOU DO NOT REGISTER THE PRODUCT WITHIN 30 DAYS OF PURCHASE, YOUR PRODUCT WILL NOT BE SERVICED UNDER WARRANTY.

If your product is destroyed, lost or damaged beyond repair while in the possession of Pigtronix for repair, Pigtronix will replace that product with one of the same or most similar style of a value not in excess of the original purchase price of your pedal. Any insurance covering the pedal, including but not limited to collector's value insurance, must be carried by you at your expense.

This warranty covers the cost of both labor and materials on repairs deemed necessary by our Customer Service Representative.

THIS WARRANTY DOES NOT COVER:

• Any product that has been altered or modified in any way or upon which the serial number has been tampered with or altered.
• Any product whose warranty has been altered or upon which false information has been given.
• Any product that has been damaged due to misuse, negligence, accident, or improper operation.
  • The subjective issue of tonal characteristics.
• Shipping damages of any kind.
• Any product that has been subjected to extremes of humidity or temperature
• Normal wear and tear
• Any product that has been purchased from an unauthorized dealer, or upon which unauthorized repair or service has been performed.

PIGTRONIX MAKES NO OTHER EXPRESS WARRANTY OF ANY KIND WHATSOEVER. ALL IMPLIED, WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF THIS WARRANTY ARE HEREBY DISCLAIMED AND EXCLUDED FROM THIS WARRANTY. SOME STATES AND/OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES SO THAT THE ABOVE MAY NOT APPLY TO YOU. PIGTRONIX SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT CONSEQUENTIAL, INCIDENTAL OR OTHER SIMILAR DAMAGES SUFFERED BY THE PURCHASER OR ANY THIRD PARTY, INCLUDING, WITHOUT LIMITATION. DAMAGES FOR LOSS OF PROFITS OR BUSINESS OR DAMAGES RESULTING FROM USE OR PERFORMANCE OF THE PRODUCT, WHETHER IN CONTRACT OR IN TORT, EVEN IF PIGTRONIX OR ITS AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND PIGTRONIX SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING.

Steps To File for Warranty Coverage:

1. Register your new guitar at http://pigtronix.com/warranty
2. Complete the warranty request form available at http://pigtronix.com/support and we will handle it from there!

CONTACT INFORMATION

Address

Bond Audio LLC

141 W 28th St, Floor 4

New York, NY, 10001

Phone

631-331-7447

Email

[e-mail]

Warranty Service Email

[e-mail]

Warranty Contact Form

pigtronix.com/warranty

Website

pigtronix.com

YouTube

youtube.com/pigtronix

Product manuals are offered digitally in an attempt to be mindful of our environment.

We ask that you consider the same before printing at home. Thank you!

All contents © Bond Audio LLC 2021
