Product Type	Wi-Fi and Bluetooth USB Adapter
Brand	ViewSonic
Model	LB-WIFI-001
Wi-Fi Standards	802.11 a/b/g/n/ac
Bluetooth Support	Bluetooth 2.1/3.0/4.0 BLE
Frequency Bands	2.4 GHz and 5 GHz
Security Protocols	WPA, WPA2, WEP, 802.1X
Power Supply	5V DC (via USB)
Power Consumption	< 2.5W
Dimensions (W x H x D)	99 x 11 x 77 mm
Weight	30 g
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% ~ 90% non-condensing
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Humidity	10% ~ 90% non-condensing
Certifications	FCC, IC, CE, RoHS2, WEEE
Compatible Systems	Windows, Android (viewboard compatible)
Interface	USB
Antenna	Internal
LED Indicators	Power/Activity LED (assumed)

Frequently Asked Questions - LB-WIFI-001 VIEWSONIC

How do I install the ViewSonic LB-WIFI-001?

Insert the adapter into an available USB port on your device. The device should be automatically detected. If drivers are required, they can be found on the included CD or downloaded from the ViewSonic support website.

Is this adapter compatible with Windows 10?

Yes, the LB-WIFI-001 is compatible with Windows 10, as well as earlier versions. For best performance, ensure you have the latest drivers installed.

Can I use this adapter with my Android tablet?

Yes, it works with Android devices that support USB OTG and have the necessary drivers. It is specifically used with ViewSonic viewboard devices.

How do I connect to a Wi-Fi network?

After installation, click on the network icon in the system tray, select your Wi-Fi network, enter the password, and connect. The adapter supports WPA/WPA2/WEP security.

What should I do if the adapter is not recognized?

Try plugging it into a different USB port. Restart your computer. If the issue persists, download and install the latest drivers from ViewSonic's support page.

Does this adapter support the 5 GHz band?

Yes, it supports both 2.4 GHz and 5 GHz bands, providing dual-band connectivity for faster speeds and less interference.

Can I use Bluetooth and Wi-Fi simultaneously?

Yes, the adapter supports both Wi-Fi and Bluetooth (2.1/3.0/4.0 BLE) at the same time. Bluetooth functionality requires proper drivers.

What is the maximum range of the Wi-Fi adapter?

Range depends on environmental factors. Typically, it can reach up to 100 meters outdoors and 30 meters indoors with standard routers.

How do I reset the adapter?

Unplug the adapter from the USB port, wait 10 seconds, and plug it back in. If software issues occur, restart your computer.

Is this adapter compatible with video game consoles?

It may work with consoles that support USB Wi-Fi adapters (e.g., PlayStation 4/5 with system updates). However, ViewSonic primarily supports Windows and Android.

USER MANUAL LB-WIFI-001 VIEWSONIC

NOTE: This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

Contains FCC ID: 2AFG6-SI01

IC ID: 22166-SI01

CE Conformity for European Countries

CE The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. and Radio Equipment Directive 2014/53/EU

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India) This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Lead in glass of cathode ray tubes
2. Copper alloy containing up to 4% lead by weight
3. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)
4. Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Brazil Compliance

2

Diagram of a door handle mechanism with arrows indicating left-hand movement (no text or symbols)

4

Technical line drawing of a door handle assembly with lever and lock (no text or symbols)

5

Settings

SureMDM Nix

vBoard Lite

vCastReceiver

6

Settings

Wireless & networks

Wi-Fi

Ethernet

Wireless hotspot

BT

More

7

Wi-Fi

Off

8

9

10

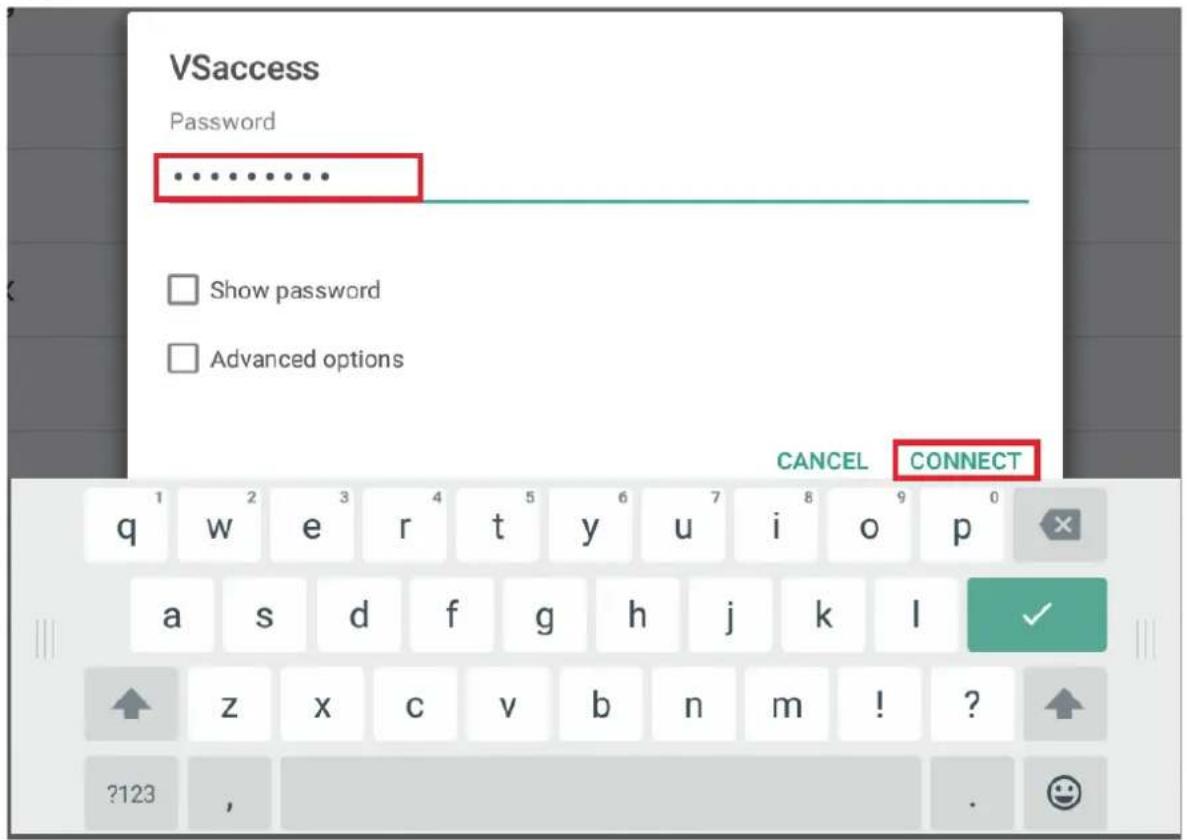

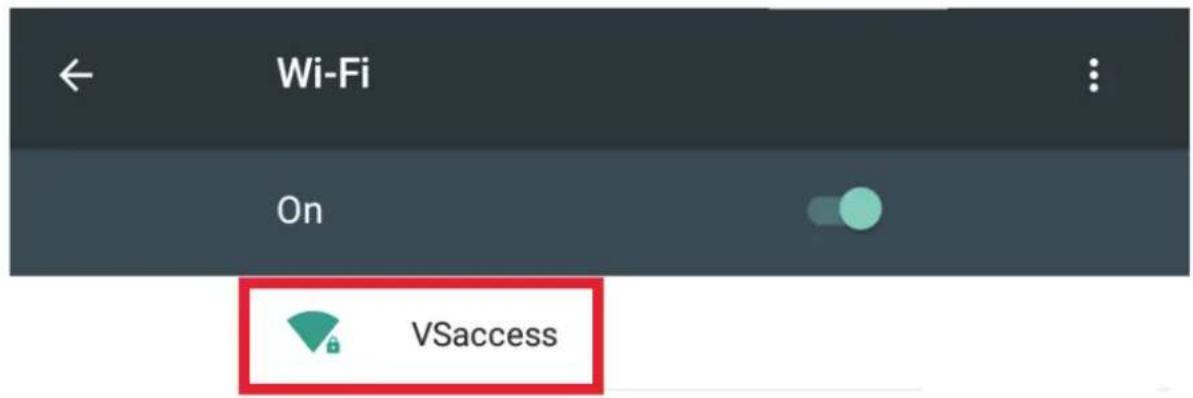

Wi-Fi

On

VSaccess

Connected

Specifications

Wifi-Standard Support 802.11 a/b/g/n/ac
BT Support BT 2.1/3.0/4.0 BLE
Operating FrequencyWPA, WPA-2, WEP, 802.1X		2.4G & 5G
Power 5V DC
Operation Conditions	Temperature Humidity	32°F to 104°F (0°C to 40°C)10% ~ 90% non-condensing
Storage Conditions	Temperature Humidity	-4°F to 140°F (-20°C to 60°C)10% ~ 90% non-condensing
Dimensions Physical(mm)	99x11x77
Weight Physical(g) 30
Power consumption <2.5W

Customer Support

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product serial number.

Country/ Region Website Country/Region Website
Asia Pacific & Africa
Australia www.viewsonic.com	/au/ Bangladesh www.viewsonic.com/bd/
中国 (China) www.viewsonic.com.cn		香港(繁體中文)	www.viewsonic.com/hk/
Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/
Indonesia www.viewsonic.com/id/ Israel www.viewsonic.com/il/
日本 (Japan) www.viewsonic.com/jp/ Korea www.viewsonic.com/kr/
Malaysia www.viewsonic.com/my/ Middle East www.viewsonic.com/me/
Myanmar www.viewsonic.com/mm/ Nepal www.viewsonic.com/np/
New Zealand	www.viewsonic.com/nz/	Pakistan	www.viewsonic.com/pk/
Philippines	www.viewsonic.com/ph/	Singapore	www.viewsonic.com/sg/
臺灣 (Taiwan)	www.viewsonic.com/tw/	ประเทศไทย	www.viewsonic.com/th/
Việt Nam	www.viewsonic.com/vn/	South Africa & Mauritius	www.viewsonic.com/za/
Americas
United States	www.viewsonic.com/us	Canada	www.viewsonic.com/us
Latin America	www.viewsonic.com/la
Europe
Europe	www.viewsonic.com/eu/	France	www.viewsonic.com/fr/
Deutschland	www.viewsonic.com/de/	Қазақстан	www.viewsonic.com/kz/
Россия	www.viewsonic.com/ru/	España	www.viewsonic.com/es/
Türkiye	www.viewsonic.com/tr/	Україна	www.viewsonic.com/ua/
United Kingdom	www.viewsonic.com/uk/
