SC-MC410S28 - Multicooker Scarlett - Free user manual and instructions

Product Type	Multicooker
Brand	Scarlett
Model	SC-MC410S28
Capacity	5 liters
Power Consumption	700 W
Voltage	220-240 V ~ 50 Hz
Dimensions (W x D x H)	30 x 25 x 25 cm
Weight	3.5 kg
Control Type	Electronic with LED display
Functions	Rice, stew, steam, slow cook, bake, porridge, soup, etc.
Inner Pot Material	Non-stick coated aluminum
Accessories Included	Steamer basket, measuring cup, spatula, rice paddle
Cleaning and Maintenance	Remove inner pot and wash with soft sponge; wipe exterior with damp cloth
Safety Features	Automatic shut-off, overheat protection, cool-touch handles
Spare Parts Availability	Inner pot, sealing ring, steam valve, power cord
Warranty	2 years
Country of Origin	China
Certifications	CE, RoHS

Frequently Asked Questions - SC-MC410S28 Scarlett

How do I start cooking with the Scarlett SC-MC410S28?

Plug in the multicooker, add ingredients to the inner pot, select a program using the Menu button, then press Start. The device will automatically begin cooking.

What is the maximum capacity for rice?

You can cook up to 5 cups of uncooked rice (about 1 liter) safely. Do not exceed the marked lines inside the pot.

Can I use the multicooker without the lid?

No, the lid must be closed during cooking to maintain pressure and temperature. The safety interlock prevents operation without proper lid closure.

How do I clean the inner pot?

Remove the inner pot after cooling. Wash it with warm water and a soft sponge using mild detergent. Avoid abrasive cleaners that may damage the non-stick coating.

Why does the display show 'E1' error?

The 'E1' error indicates a temperature sensor issue. Unplug the device, let it cool, and ensure the inner pot is properly seated. If the error persists, contact customer service.

Can I delay the start of cooking?

Yes, press the Timer button to set a delay of up to 24 hours. The device will start cooking at the scheduled time. Not all programs support delay.

Is the multicooker suitable for baking cakes?

Yes, select the Cake program. Grease the inner pot with butter or oil, pour in the batter, and cook as directed. Check doneness with a toothpick.

What should I do if the steam valve is blocked?

Turn off the device and allow it to cool. Remove the steam valve assembly carefully and rinse under water to clear any blockage. Reattach before next use.

How do I store the multicooker when not in use?

Clean and dry all parts thoroughly. Store with the lid slightly ajar to prevent odor buildup. Keep in a dry place away from direct sunlight.

Where can I purchase spare parts?

Spare parts like the inner pot, sealing ring, and steam valve are available from Scarlett authorized service centers or online retailers. Check the user manual for part numbers.

USER MANUAL SC-MC410S28 Scarlett

Black and silver SCARLETT rice cooker with digital display and control buttons (no visible text or symbols on body)

www.scarlett.ru

GB DESCRIPTION

1. Body

2. Control panel

3. Display

4. Cover

5. Lid release button

6. Baking pan

7. Steamer

8. Measuring cup

9. Ladle

10. Viewing window

11. Power Cord

12. Handle

13. Holder for spoons

UA ОПИС

220-240 V~ 50 Hz

900W

5 L

1.9//2.16 kg

mm

GB INSTRUCTION MANUAL IMPORTANT SAFEGUARDS

• Please read these operating instructions carefully before connecting your kettle to the power supply, in order to avoid damage due to incorrect use.
• Incorrect use of the device may damage the device and harm the user.
• Before switching on the appliance for the first time please check if the technical specifications indicated on the unit correspond to the mains parameters.

CAUTION! The plug of the power cord is grounding type and has a wire. Plug the device only into the corresponding grounded sockets.

- The appliance is intended for use only in domestic aims. The unit is not intended for industrial and commercial use, and also for use in:

- kitchen area for the stuff of shops, offices and the other industrial places

- farm houses

– hotels, motels, rest homes and other similar places by residents.

- Do not use outside.

• Always unplug the device from the socket before cleaning the device or if You are not using the device.

- The appliance is not intended for use for physically, sensory or mental disabled person (including children) or for person with lack of life experience or knowledge, if only they are under supervision or have been instructed about the use of the unit by responsible person.

- Children must be under control in order not to be allowed to play with the appliance.

- Do not leave switched-on device unattended.

- Do not use the parts which are not included in the package.

- In case of power cord is damaged, it should be replaced into the special cord from manufacture or the service department.

- Do not submerge the device or the power cord in water or other liquids. However, if this happened unplug the device from the socket immediately and before using the device again have qualified specialists check the operability of the device.

- Make sure that the power cord doesn't touch sharp edges and hot surfaces.

- Do not pull the power cord and do not twist or wrap the cord around the device.

- The multicooker is to be used only for cooking food. Never use the multicooker for drying clothes, paper and other items.

- Do not turn the multicooker when the pot is empty.

- Do not use the multicooker without the pot.

- Do not put the foodstuffs on the bottom of the multicooker, always use the pot.

- Do not replace the pot with any other container.

- Do not use metal items which may scratch the pot.

- The inner coating of the pot may initially wear off, therefore be careful when using the pot.

- Follow cooking recipes.

- Do not let water get into the vent holes in order to avoid short circuit.

- If using an extension cord make sure that maximum capacity of the cord corresponds to the capacity of the device.

- Caution! The device becomes hot during operation! If you need to touch the multicooker when it is operating use tacks or cooking gloves.

- Protect your face and hands from the steam coming out of the valve.

- Do not insert metal and other items into the outlet hole or into any other parts of the device.

- Do not cover the cover of the multicooker with the towels or other items.

- Do not attempt to repair, adjust or replace parts in the appliance. Repair the malfunctioning appliance in the nearest service center.

- If the product has been exposed to temperatures below 0^ C for some time it should be kept at room temperature for at least 2 hours before turning it on.

- The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

• Production date mentioned on the unit and/or on the packing materials and documentations.

INSTALLATION

- Make sure that there is no packaging material or any other items inside the multicooker.

- Check whether the following remained undamaged during the transportation: the cover; the casing; additional appliances; the removable pot. In case you notice any defects do not turn on the device and contact the salesperson or the service center.

- Place the device on a dry, even and heat-proof surface, at least 30 cm from the edge of the work surface.

- Do not place the device close to combustible materials, explosives and self-igniting gases.

- Do not place the device close to a gas or electric stove or any other sources of heat.

- Do not place the device very close to walls or furniture.

- Do not put anything on top of the multicooker. Do not cover the vent holes.

- Do not place the multicooker in a kitchen cabinet. For proper operation the device needs free space for ventilation: at least 20 cm from the top, 10 cm from the back and 5 cm from the sides.

- Before first use wipe the removable pot, the steamer, the measuring cup, the spoon, the inside and the outside surface of the multicooker with a clean wet cloth.

- The inside surface of the pot contains a conventional scale for cereal and water: the scale on the right marks the number of cups for rice (1 cup -160 ml), the scale on the left marks liters of water. The maximum amount of cereal to be cooked – 10 cups and 1.8 liters of liquid.

OPERATION

• Before initial use, wipe the cooking pot, the surface of heating element and internal surface of the universal cooker.
• Filling the bowl multivarki water, do not exceed the level MAX.
• Put water and food in the cooking pot. DO NOT fill the cooker more than to 3/5 of its capacity. During cooking food products that expand in hot water (rice, dry vegetables) or foam, do not fill the pot more than to the half of its capacity. At that, the entire volume of food products and water should not exceed 1/5 of the total pot capacity.
• Put the pot inside the outer body of the universal cooker.
• Close the lid until the click is heard.
• Connect the universal cooker to mains. The display will show 88:88.
• The universal cooker provides 10 cooking programs. These subprograms are described in more detail in the table.

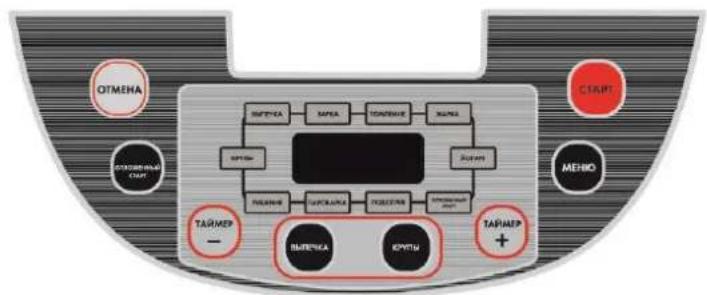

BUTTONS

«MEHIO» (MENU) BUTTON

- Choose the necessary cooking program with preset cooking time by pressing «MEHIO» (MENU) button several times. Indicator light will be displayed next to selected program.

«CTAPT» (START) BUTTON

- After the desired program is chosen by «MEHIO» (MENU) button, press «CTAPT» (START) button to start cooking.

- If the multicooker is currently not working on any cooking program, it will switch to keep warm mode by pressing «OTMEHA» (CANCEL) button.

- If the multicooker is working on cooking program, by pressing «OTMEHA» (CANCEL) the program will be canceled and the appliance will switch to standby mode.

«ТАЙМЕР» (TIMER) BUTTON

• After the desired program is chosen by «МЕНЮ» (MENU) button, press «ТАЙМЕР» (TIMER), «ВРЕМЯ +» (TIME+) or «ВРЕМЯ -» (TIME-) button to set start delay (the cooking will start after set time). Delayed start time can be adjusted from 0.5 to 24 hours. Delayed start time will be shown on the display.
• Programs «ЙОГУРТ» (YOGHURT), « ВЫПЕЧКА » (DESSERT), ЖАРКА (FRY) can not use delayed start function.

«ВРЕМЯ +» (TIME+) and «ВРЕМЯ -» (TIME-) BUTTONS

«ВРЕМЯ +» (TIME+) and «ВРЕМЯ -» (TIME-) buttons are used to change the delayed start time after pressing «ТАЙМЕР» (TIMER) button, or to set custom cooking time after choosing the necessary program.

OPERATION

• After first connecting the multicooker to electric mains there should be a short beep sound and 88:88 which appears one second after all the programs are shown on the display. After that the appliance will switch to standby mode. The display will show “____”, after that you can chose necessary cooking program by pressing «MEHIO» (MENU) button.
• Choose the necessary cooking program with preset cooking time by pressing «MEHIO» (MENU) button several times.
• ТУШЕНИЕ (STEW) —>ПАРОВАРКА (STEAM)—>ПОДОГРЕВ (KEEP WARM)—>ЙОГУРТ (YOGHURT)—>ЖАРКА (FRY)—>ТОМЛЕНИЕ(SLOW COOK)—>ВАРКА(BOIL)—>ВЫПЕЧКА (DESSERT)—>КРУПЫ (CEREALS)
• Indicator light will be displayed next to selected program, and the display will show preset cooking time for selected program. If no other actions are performed, the appliance will start working automatically after 5 seconds.
• When cooking time for selected program is displayed, you can change it by pressing buttons «ВРЕМЯ +» (TIME+) and «ВРЕМЯ -» (TIME-). Please refer to the table to check the possible adjustment time and intervals. Time can not be changed after the program starts working.
• Press «CTAPT» (START) button to start cooking.
• Programs «ЙОГУРТ» (YOGHURT) and «ВЫПЕЧКА» (DESSERT), ЖАРКА (FRY) can not use delayed start function and start cooking immediately.
• To cancel settings or to stop cooking press «OTMEHA» (CANCEL) button.

FINISHING COOKING

- After the cooking time is over, triple beep sound will be heard. The multicooker will turn off automatically for all programs except «ЙОГУРТ» (YOGHURT), after that program multicooker will switch to standby mode.

IM019

	Program	Program	Preset cooking time	Temperature	Adjustment of cooking time (step)	Keep warm temperature
1	cereals	крупы	25 min	95°C	5min~99min (5min)	75°C
2	dessert	выпечка	45 min	130°C	10min~99min(10min)	75°C
3	boil	варка	2 hours	100°C	10min~4hour(10min)	75°C
4	slow cook	томление	1.5 hours	1st step (7 min) - 100°C, 2^nd step (from 8^th minute till the end of cooking) - 65c	30min~8hour(30 min)	75°C
5	fry	жарка	10 min	130°C	5 min~1 hour (5 min)	75°C
6	yoghurt	йогурт	8 hours	38°C	2h30min~16hour(30min)	no
7	steam	пароварка	45 min	100°C	10 min~99min(10min)	75°C
8	stew	тушение	2 hours	1st step (7 min) - 100°C, 2^nd step (from 8^th minute till the end of cooking - 65-70°C	30min~4hour(10min)	75°C
9	keep warm	подогрев	24 hours			no
10	timer	отложенный старт	30 min – 24 hours			no

ADVANTAGES

• Multifunctional programs.
• Automatic control of the whole process.
- Delayed cook start
• High heat efficiency, saving 40% of energy and 60% of time.
- Fully sealed structure for nutrients preservation, flavor retention and making food tender
- Easy-to-clean cooking pot with double non-stick coating
- Transparent cover allows you to monitor the cooking process and can be easily cleaned.
- Reliable safety devices:

Safety temperature limiter. It automatically stops heating in case the cooking pot is empty or if the cooking pot is not in place.

CLEANING AND MAINTENANCE

• The device needs to be cleaned regularly; remove all of the food residue from the surface of the multicooker
• Before cleaning turn off the multicooker and unplug it from the socket. Let the device cool off completely.
• Wipe the control panel, the outer and the inner surfaces of the multicooker with a wet cloth and detergent, wipe dry.
• Wash the pot in warm water with detergent and wipe dry. You should wash the pot immediately after you finished cooking.
• Do not use aggressive substances or abrasive materials.

STORAGE

• Make sure that the device is unplugged from the socket and is completely cooled off.
• Follow all of the steps mentioned in "CLEANING AND MAINTENANCE" section.
• Store the multicooker with the cover half open in a dry and clean place.

ERRORS ON DISPLAY

Error code	Possible reason
E1	Lower sensor fault (not detected)
E2	Lower sensor fault (short-circuit fault)
E3	Upper sensor fault (not detected)
E4	Upper sensor fault (short-circuit fault)

TROUBLESHOOTING

- In case the display shows failure code, please, switch the universal cooker off the mains and wait until it cools down. In case after you switch it again the failure indication won't be gone, please, contact the service center.

The symbol on the unit, packing materials and/or documentations means used electrical and electronic units and battery's should not be toss in the garbage with ordinary household garbage. These units should be pass to special receiving point.

For additional information about actual system of the garbage collection address to the local authority. Valid utilization will help to save valuable resources and avoid negative work on the public health and environment which happens with incorrect using garbage.
