TMX125α (2015) - Motorcycle Honda - Free user manual and instructions

Product Type	Motorcycle
Brand	Honda
Model	TMX125α
Year	2015
Category	Standard / Naked
Engine Type	Air-cooled, 4-stroke, single cylinder
Displacement	124.9 cc
Power	Approx. 9.5 hp (7 kW)
Torque	Approx. 10 Nm
Transmission	4-speed manual
Fuel System	Carburetor
Starting	Electric and kick
Fuel Tank Capacity	9.5 liters
Fuel Type	Unleaded gasoline (minimum 91 RON)
Weight (wet)	Approx. 125 kg
Length	1980 mm
Width	750 mm
Height	1070 mm
Seat Height	770 mm
Ground Clearance	150 mm
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.75-18
Rear Tire	3.00-18
Front Suspension	Telescopic fork
Rear Suspension	Swingarm with twin shocks
Oil Capacity (engine)	1.0 liter (with filter change)
Spark Plug	NGK D8EA or equivalent
Battery	12V 5Ah

Frequently Asked Questions - TMX125α (2015) Honda

What type of fuel should I use for the Honda TMX125α?

Use unleaded gasoline with a minimum octane rating of 91 RON. Avoid using leaded fuel or E85 ethanol blends.

How often should I change the engine oil?

Change the engine oil every 3,000 km or every 6 months, whichever comes first. Use 10W-40 or 20W-50 motorcycle oil (API SG or higher).

What is the recommended tire pressure?

Front tire: 25 psi (1.7 bar). Rear tire: 28 psi (1.9 bar). Check when tires are cold.

How do I adjust the drive chain?

The chain should have about 20-30 mm of slack at the midpoint. Loosen the rear axle nut and adjust the chain adjusters evenly. Retighten to torque specification: rear axle nut 60 Nm.

What spark plug does the TMX125α use?

Use NGK D8EA or equivalent. Gap: 0.7-0.8 mm. Replace every 6,000 km.

How do I check the battery?

The battery is a 12V 5Ah lead-acid type. Keep terminals clean and check electrolyte level (if accessible). Use a trickle charger if storing for long periods.

What is the recommended engine oil viscosity?

Use 10W-40 for temperatures above 10°C, or 20W-50 for hot climates. Do not use automotive oil with friction modifiers.

How do I adjust the carburetor idle speed?

Warm up the engine, then turn the idle adjustment screw to achieve 1,200-1,400 rpm. The pilot air screw should be set to 1.5 turns out from fully closed.

What is the correct way to store the motorcycle for winter?

Fill the tank and add fuel stabilizer. Change the oil. Remove the battery and store it charged. Apply rust preventive spray on metal parts. Inflate tires to recommended pressure and place on stands to avoid flat spots.

Why won't my motorcycle start?

Common causes: dead battery, lack of fuel (check petcock), clogged carburetor, spark plug fouled, or kill switch off. Check each item systematically.

USER MANUAL TMX125α (2015) Honda

DAPAT SA SUBOK NA!

CCG125M 2021

CCG125WHF 2015

CCG125WH; 2018

PARTS CATALOGUE

3

© Honda Motor Co., Ltd. 2020

CCG125M21YM	CCG125WHJ18YM	CCG125WHF15YM
Candy Ruby Red (R-4C)	Candy Ruby Red (R-4C)	Candy Ruby Red (R-4C)
Black (NH-1)	Black (NH-1)	Black (NH-1)
Mat armored Silver Metallic (NH-B89M)	Spectrolite Blue Metallic (PB-373M)	Spectrolite Blue Metallic (PB-373M)

FOREWORD INDEX

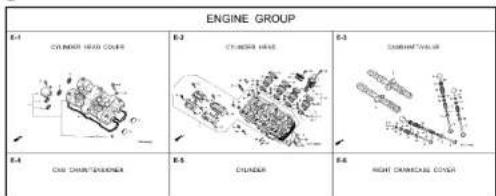

ENGINE GROUP

FRAME GROUP

PART NUMBER INDEX

PART NAME INDEX

Instruction for use of parts catalogue

• This parts catalogue has been created as of October 10, 2020.

• Since this date, the sales practice for repair parts may have been changed or the parts may have been eliminated (listed for those not for sale).
• The modified information is reflected on the latest Electronic Parts Catalogue (EPC). Also, refer to the parts catalogue news for any change.
  • See the parts catalogue news for any revision that is made after October 10, 2020.

• Always specify the part number when ordering a part.

• Check the model, type, serial numbers, color, maker, and the size as needed before ordering a part.
• Note that the illustrations (part drawings) can differ from the actual parts in shape. They are given just to help you to refer to the parts.

- When modifications or additions to this parts catalogue are made, a revised edition will be issued at an appropriate time, with successively progressing revision numbers on the cover. We recommend obtaining such revisions in order to keep your parts catalogue up-to-date at all times. To check whether a parts catalogue revision has been issued, please contact your Honda distributor.

Initial version issue date

September 10, 2014

Honda Motor Co., Ltd.

CONTENTS

Page

• Instruction for use of parts catalogue....1
  ●How to refer to the part information .... 2
  ●Part catalogue structure....3
• When the parts were revised.... 5
  ●Abbreviations used in the parts catalogue....5

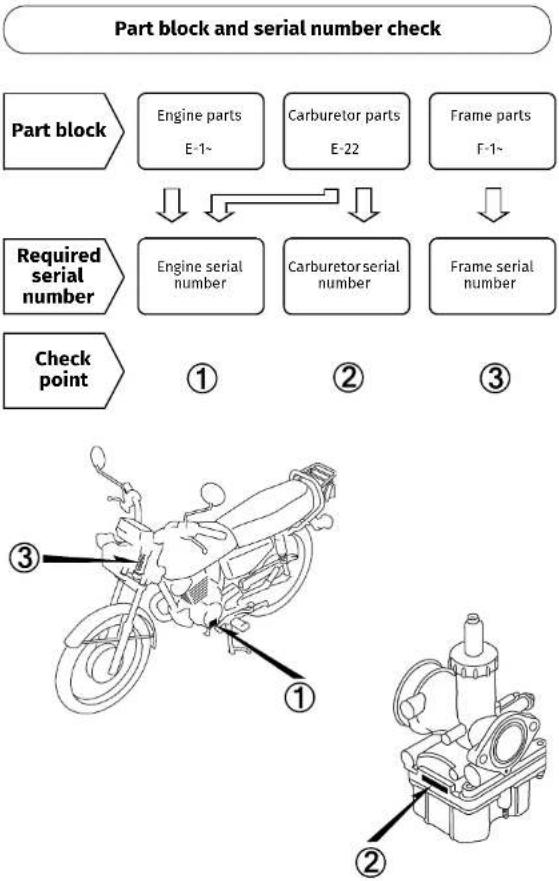

  ● Part block and serial number check....6
  ● Models, parts catalogue codes and applicable serial numbers....7
  ●Color chart....8

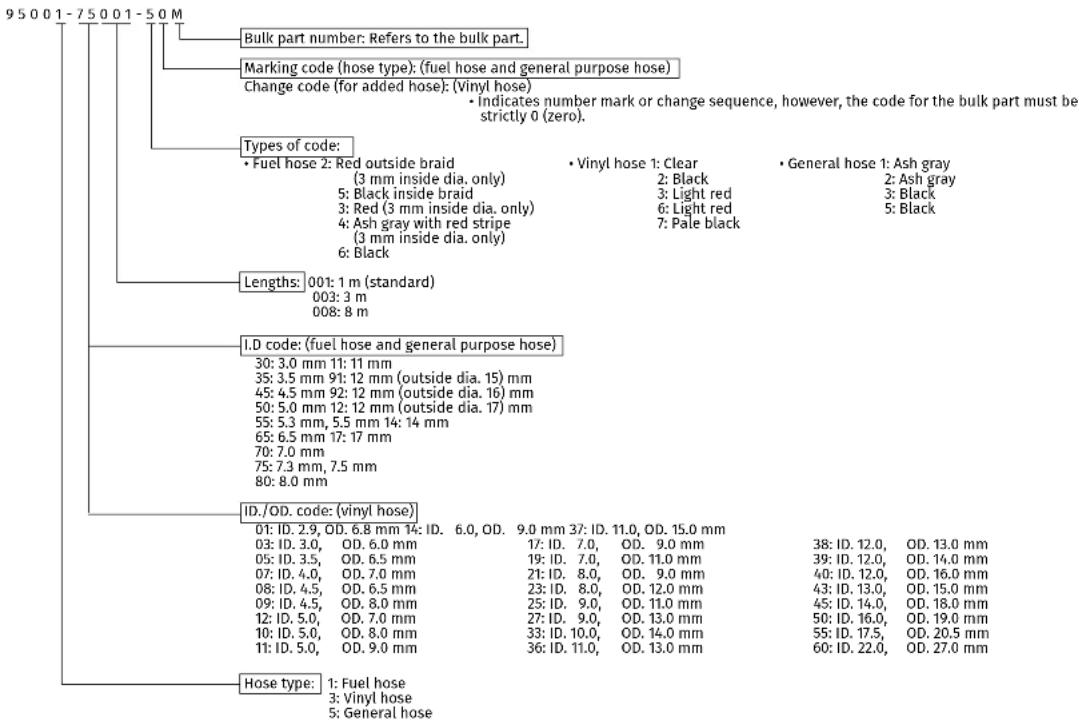

  ● Fuel hose, general purpose hoses and vinyl hose....11
  ●FLAT RATE SERVICE TIME ....15
  ●Illustrated index....20
  ●ENGINE GROUP 26
  ●FRAME GROUP 47
  ●PART NO. INDEX....90
  ●PART NAME INDEX....94

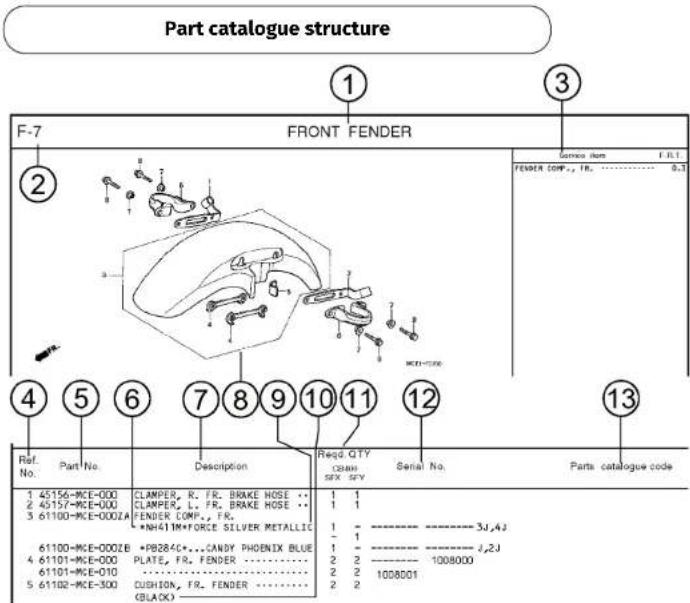

How to refer to the part information

Reference with "Illustrated index"

Reference with "Part number index"

PART NO. INDEX
Part Location	Page No			Part Location	Page No
04000				13323-MW-751	28 10
				13324-MW-791	28 10
04911-MCE-000	26	1		13325-MW-751	28 10
				13327-MW-751	28 10
06000				14000
06405-M5-100	67	3
06408-M5-110	67	3		14100-MCE-000	15 2
06410-MW-560	56	1		14200-MCE-000	15 3
06432-MCE-000	56	1		14212-MCE-000	15 2
06431-146-425	51	2		14401-MCE-003	16 3
06431-144-425	51	2		14510-MB-000	16 4
06431-144-425	51	2		14520-MB-000	16 5
06435-MCE-006	51	3		14524-MB-280	16 6
				14546-MCE-000	16 7
11000				14620-MW-691	16 8
				14711-MCE-000	15 4
11210-MCE-000	25	1		14712-MCE-000	15 3
11330-MCE-325	35	1		14721-MCE-000	15 6
11331-MCE-000	35	1		14722-MCE-000	15 7
11335-MCE-000	35	2		14730-MCE-000	15 8
11360-MCE-000	23	1		14731-ML-000	15 9
11360-146-425	21	1		14732-ML-000	15 10
11396-MW-000	33	5		14731-KYZ-000	15 11
11631-MCE-000	21	1		14733-ME-000	15 12
11681-MW-000	21	2		14761-ME-000	15 13

Reference with "Part name index"

PART NAME INDEX
	Part name	Page	Fuel
	[ E 3 ]
	ADJUSTER, CHAIN	87	5
	AWR COMP., GEAR CHANGE	64	3
	AWR, L. MAIN STEP	63	8
	AWR, P. FILLION STEP	65	12
	AWR, R. MAIN STEP	65	5
	AWR, S. PELLION STEP	65	11
	AUTO ONION ASSY., FUEL	58	2
	AKLE, FL. WHIL	52	3
	AKLE, RR. WHIL	56	3
	[ B 3 ]
	BAG, AIR PRESSURE HAUGE	77	4
	BAG, ICE CREAM	77	7
	BAG, TOOL	77	3
	BAIL, STELL	63	20
	BANB A., INSULATOR	11	11
	BANB B., INSULATOR	11	12
	BANB, AIR CLIMATE CONNECTING
	TUBE	62	22
	BANB, U-LOCK	70	5
	BANB, WIRE	70	16
		43	21

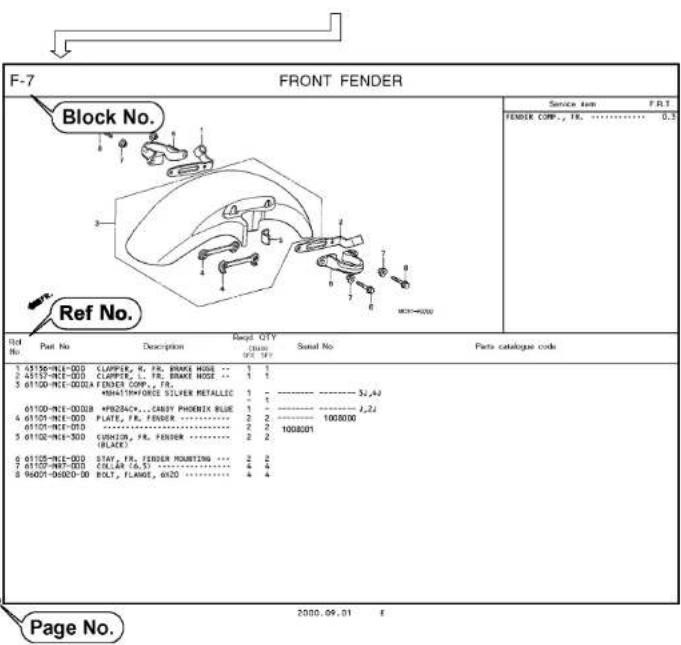

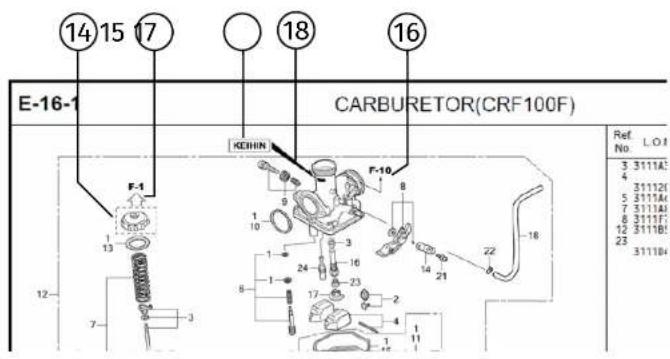

① Block title ② Block number
③Service item/Flat rate time
④ Reference number

• Title number marked with the parenthesis or parentheses indicates that it continues from the previous page.

⑤Part number Honda color code
⑦Description
⑧ Assemblies

- Sections framed with broken lines in the exploded view drawings are available as complete assemblies. (Their individual parts can also be obtained.)

⑨ Color description
⑩Note

- Notes are shown with the parentheses in the part name column.

⑪ Required quantity

- Reqd. QTY shown in the parenthesis or parentheses indicates the optional part.

• Reqd. QTY marked with "N" indicates the optional part that should be selected as needed.
• Reqd. QTY indicates the number of the part used in the block.

⑫ Serial number
⑬ Parts catalogue code

- When the parts catalogue code column is blank, it indicates that the part is applicable to all codes.

- Parts enclosed within a dotted line are covered in a different block.

- A hollow arrow indicates the block No. for the parts enclosed within a dotted line

- A solid arrow ← indicates the block No. the part in question is connected to.

⑰ Replacement Identification Information for Designated Part No.

⑱ Location of Replacement Identification Information for Designated Part No.

• If an arrow mark is indicated in 18, the part is incompatible with a different part No.
• Make sure to order the part of the same manufacture, including the component part.
• To make an order, indicate the part No., which includes the symbol displayed on the applicable section of the part to be replaced.

When the parts were revised

Ref. No.	Part No.	Description	Reqd. QTY		Serial No.
			CB400
			BFX	SFY
1	45156-MCE-000	CLAMPER, R. FR. BRAKE HOSE ...	1	1
2	45157-MCE-000	CLAMPER, L. FR. BRAKE HOSE ...	1	1
3	61100-MCE-000ZA	FENDER COMP., FR. *NH41M*FORCE SILVER METALLIC	1	-	3J,4J
			-	1
	61100-MCE-000ZB	*PB284C*...CANDY PHOENIX BLUE	1	-	J,2J
4	61101-MCE-000	PLATE, FR. FENDER (###)......	2	2
	61101-MCE-010	......	2	2	1008000
5	61102-MCE-300	CUSHION, FR. FENDER (BLACK)	2	2
6	61105-MCE-000	STAY, FR. FENDER MOUNTING ...	2	2
7	61107-MR7-000	COLLAR (6.5) ......	4	4
8	96001-06020-00	BOLT, FLANGE, 6X20 ......	4	4

The number has been used from the initial model without revision. When shown at the left side, it is applicable to the models of No.1008001 and the subsequent numbers. When shown at the right side, it is applicable to the models up to No.1008000.
- The parts listed with "###" at the end of the parts name have limited supply period (parts not for sale).

Abbreviations used in the parts catalogue

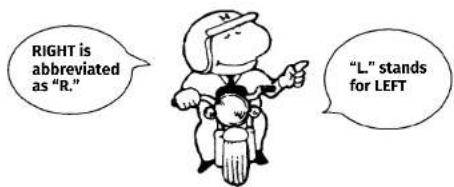

* "L." or "R." in the description of a part stands for the LEFT hand side or the RIGHT hand side. Determine the left or right as if you were in the motorcycle seat.

• The following abbreviations are used in this parts catalogue.

A ......Ampere

ABS ......Anti-lock brake system

A.C. ......Alternating current

A.M. .......Attaching mark

ASSY. ......Assembly

C.D.I. .....Capacitive discharge ignition

COMP.....Complete

D.C. ....Direct current

EX. ....Exhaust

FR. ......Front

G ......Gram

HEX. ......Hexagonal

IN. ....Inlet

KPH .....Kilometers per hour

L. ....Left

L (100L) ...Link (100 Links)

L.E.D. .....Light emitted diode

MM ......Millimeter

TCS ....Traction control system

T.M. ......Transcript mark

V.....Volt

W ......Watt

WL ......With labelling

WOL ......Without labelling

Models, parts catalogue codes and applicable serial numbers

Models, parts catalogue codes and applicable serial Nos. given in this parts catalogue can be identified as follows.

Parts with parts catalogue codes are exclusive for models destined for countries designated.

If no area codes are listed, parts are for common use.

Model	Parts catalogue code	Type	Applicable engine serial No.	Applicable frame serial No.	Applicable carburetor serial No.
CCG125M	2PH Philippines	KSWW0E000001~ KSWW0000001~ PDCDH A
CCG125WHF	PH	Philippines	KSW00E0000013~0999999	KSW0000013~0999999	PDCDG A
CCG125WHJ	PH	Philippines	KSW10E000001~099999	KSW10000001~10999999	PDCDH A

* Of carburetor/throttle body identification numbers, only the portions underlined in the example below are used for registration.

PDCDH AKC 7

Color chart

- When ordering a colored part, refer to the chart below and use a part number consisting of the relevant basic part number to which has been added a part color code.

CCG125 (CCG125M)

No.	MODEL		CCG125M
	COLOR		BlackNH-1 NH	Mat armored silver metallicB89M R-4C	Candy ruby red	Applicable model		Applicable block No.	Ref. No.
	CODE
	Name of colored parts Basic part No	NH1 NHB89 R4				Initial applicable model	Final applicable model
1	COVER SET, L. SIDE 83620-KSW-G30 ZB	ZA ZC F-24 4
2	COVER SET, R. SIDE 83520-KSW-G30 ZB	ZA ZC F-24 2
3	COVER, L. FR. FORK	51606-KSW-G30	ZA	ZA	ZA			F-11	15
4	COVER, MUFFLER	18355-KSW-G30	ZA	ZA	ZA			F-27	11
5	COVER, R. FR. FORK 51602-KSW-G30 ZA	ZA ZA		F-11	14
6	FENDER COMP., FR.	61100-KSW-G30	ZA	ZA	ZA			F-10	1
7	FENDER COMP., RR.	80100-KSW-G30	ZA ZA ZA F-34 6
8	HUB SUB ASSY., FR.	44653-KSW-G00	ZA	ZA	ZA			F-14-10	5
9	HUB SUB ASSY., RR.	42635-KSW-G00	ZA	ZA	ZA			F-19-10	6
10	MARK, L. WING	86202-KSW-G30	ZB	ZA	ZC			F-50	4
11	MARK, R. WING	86201-KSW-G30	ZB	ZA	ZC			F-50	3
12	PANEL SUB COMP., FR. BRAKE	45010-KSW-G00	ZA	ZA	ZA			F-13	3
13	PLATE, FR. ENGINE HANGER	50351-KCS-W20	ZA	ZA	ZA			F-39	2
14	STRIPE, L. SIDE COVER	86832-KSW-G30	ZB	ZA	ZC			F-50	8
15	STRIPE, R. SIDE COVER	86831-KSW-G30 ZB	ZA ZC F-50 7
16	TANK SET, FUEL	17520-KSW-G30	ZB	ZA	ZC			F-21	8
17	WHEEL SUB ASSY., FR.	44650-KSW-G00	ZA	ZA	ZA			F-14-10	4
18	WHEEL SUB ASSY., RR.	42650-KSW-G30	ZA	ZA	ZA			F-19-10	7

CCG125WH (CCG125WHF)

No. No.	MODEL		CCG125WHF
	COLOR		BlackNH-1 PB-373M R-4C	Spectrolite blue metallic	Candy ruby red	Applicable model		Applicable block No.	Ref. No.
	CODE
	Name of colored parts Basic part No.	NH1 PB373 R4				Initial applicable model	Final applicable model
1 COVER SUB ASSY., L. SIDE 83620-KSW-G00 ZB ZA ZC F-24 4
2 COVER SUB ASSY., R. SIDE 83520-KSW-G00 ZB ZA ZC F-24 2
3	HUB SUB ASSY., FR.	44653-KSW-G00	ZA	ZA	ZA			F-14-10	5
4	HUB SUB ASSY., RR.	42635-KSW-G00	ZA	ZA	ZA			F-19-10	6
5	MARK, L. WING	86202-KSW-G00	ZB	ZA	ZC			F-50	4
6	MARK, R. WING	86201-KSW-G00	ZB	ZA	ZC			F-50	3
7	PANEL SUB COMP., FR. BRAKE	45010-KSW-G00	ZA	ZA	ZA			F-13	3
8	PLATE, FR. ENGINE HANGER	50351-KCS-W20	ZA	ZA	ZA			F-39	2
9	STRIPE, L. FUEL TANK	86172-KSW-G00	ZB	ZA	ZC			F-50	2
10	STRIPE, L. SIDE COVER	86832-KSW-G00	ZB	ZA	ZC			F-50	6
11	STRIPE, R. FUEL TANK	86171-KSW-G00	ZB	ZA	ZC			F-50	1
12	STRIPE, R. SIDE COVER	86831-KSW-G00	ZB	ZA	ZC			F-50	5
13	TANK SUB ASSY., FUEL	17520-KSW-G00	ZB	ZA	ZC			F-21	8
14	WHEEL SUB ASSY., FR.	44650-KSW-G00	ZA	ZA	ZA			F-14-10	4
15	WHEEL SUB ASSY., RR.	42650-KSW-G00	ZA	ZA	ZA			F-19-10	7

CCG125WH (CCG125WH)

No. No.	MODEL		CCG125WHJ
	COLOR		BlackNH-1 PB-373M R-4C	Spectrolite blue metallic	Candy ruby red	Applicable model		Applicable block No.	Ref. No.
	CODE
	Name of colored parts Basic part No.	NH1 PB373 R4				Initial applicable model	Final applicable model
1 COVER SUB ASSY., L. SIDE 83620-KSW-G00 ZB ZA ZC F-24 4
2 COVER SUB ASSY., R. SIDE 83520-KSW-G00 ZB ZA ZC F-24 2
3	HUB SUB ASSY., FR.	44653-KSW-G00	ZA	ZA	ZA			F-14-10	5

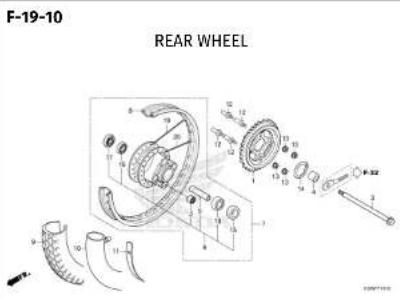

4	HUB SUB ASSY., RR.	42635-KSW-G00	ZA	ZA	ZA			F-19-10	6
5	MARK, L. WING	86202-KSW-G00	ZB	ZA	ZC			F-50	4
6	MARK, R. WING	86201-KSW-G00	ZB	ZA	ZC			F-50	3
7	PANEL SUB COMP., FR. BRAKE	45010-KSW-G00	ZA	ZA	ZA			F-13	3
8	PLATE, FR. ENGINE HANGER	50351-KCS-W20	ZA	ZA	ZA			F-39	2
9	STRIPE, L. FUEL TANK	86172-KSW-G00	ZB	ZA	ZC			F-50	2
10	STRIPE, L. SIDE COVER	86832-KSW-G00	ZB	ZA	ZC			F-50	6
11	STRIPE, R. FUEL TANK	86171-KSW-G00	ZB	ZA	ZC			F-50	1
12	STRIPE, R. SIDE COVER	86831-KSW-G00	ZB	ZA	ZC			F-50	5

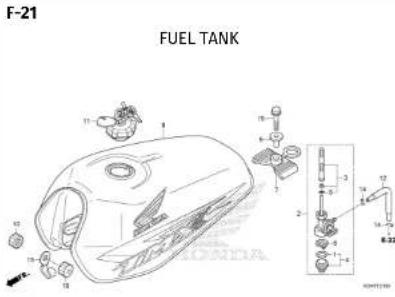

13	TANK SUB ASSY., FUEL	17520-KSW-G10	ZB	ZA	ZC			F-21	8
14	WHEEL SUB ASSY., FR.	44650-KSW-G00	ZA	ZA	ZA			F-14-10	4
15	WHEEL SUB ASSY., RR.	42650-KSW-G00	ZA	ZA	ZA			F-19-10	7

Fuel hose, general purpose hoses and vinyl hose

- The standard part fuel hose, general purpose hose and vinyl hose may be substituted by the coiled bulk part.

- When ordering the standard part fuel hose, general purpose hose and vinyl hose use the bulk part number written in the parts catalogue in brackets ( ) underneath the part name, or use the catalogue below.

(The bulk part standard length is 1 m, however, those displayed in the catalogue < > are available in 3 m and 8 m lengths.)

- When exchanging the hose, cut and use at the specified length as mentioned in the part name.

(For the method of cutting the bulk part, and method of filling out orders etc., please refer to the service manual and the instructions issued with the bulk part.)

• The list below is a catalogue of the standard part numbers and bulk part numbers. Note that those numbers are applicable to the listed replacement parts only.

Fuel hoses/Tubes
Standard part No. Bulk part No.		Bulk part
		Inner diameter (mm)	Length (m)
95001-30xxx-2x 95001-30001-20M 3.0 1
95001-30xxx-3x 95001-30001-30M 3.0 1
95001-30xxx-4x 95001-30001-40M 3.0 1
95001-35xxx-2x	95001-35001-50M<95001-35003-50M>	3.5	13
95001-35xxx-3x	95001-35001-60M<95001-35003-60M>	3.5	13
95001-35xxx-4x	95001-35001-60M<95001-35003-60M>	3.5	13
95001-35xxx-5x	95001-35001-50M<95001-35003-50M>	3.5	13
95001-35xxx-6x	95001-35001-60M<95001-35003-60M>	3.5	13
95001-45xxx-2x	95001-45001-50M<95001-45003-50M>	4.5	13
95001-45xxx-3x	95001-45001-60M<95001-45003-60M><95001-45008-60M>	4.5	138
95001-45xxx-4x	95001-45001-60M<95001-45003-60M><95001-45008-60M>	4.5	138
95001-45xxx-5x	95001-45001-50M<95001-45003-50M>	4.5	13
95001-45xxx-6x	95001-45001-60M<95001-45003-60M><95001-45008-60M>	4.5	138
95001-55xxx-2x	95001-55001-50M<95001-55003-50M><95001-55008-50M>	5.5	138

Fuel hoses/Tubes
Standard part No.	Bulk part No.	Bulk part
		Inner diameter (mm)	Length (m)
95001-55xxx-3x	95001-55001-60M<95001-55003-60M><95001-55008-60M>	5.5	138
95001-55xxx-4x	95001-55001-60M<95001-55003-60M><95001-55008-60M>	5.5	138
95001-55xxx-5x	95001-55001-50M<95001-55003-50M><95001-55008-50M>	5.5	138
95001-55xxx-6x	95001-55001-60M<95001-55003-60M><95001-55008-60M>	5.5	138
95001-75xxx-2x	95001-75001-50M<95001-75003-50M>	7.5	13
95001-75xxx-3x	95001-75001-60M<95001-75003-60M><95001-75008-60M>	7.5	138
95001-75xxx-4x	95001-75001-60M<95001-75003-60M><95001-75008-60M>	7.5	138
95001-75xxx-5x	95001-75001-50M<95001-75003-50M>	7.5	13
95001-75xxx-6x	95001-75001-60M<95001-75003-60M><95001-75008-60M>	7.5	138
95001-80xxx-2x 95001-80001-50M 8.0 1
95001-80xxx-3x 95001-80001-60M 8.0 1
95001-80xxx-4x 95001-80001-60M 8.0 1
95001-80xxx-5x 95001-80001-50M 8.0 1
95001-80xxx-6x 95001-80001-60M 8.0 1

Vinyl tube
Standard part No.	Bulk part No.	Bulk part
		Inner dia-meter (mm)	Outer dia-meter (mm)	Length (m)
95003-01xxx-3x	95003-01001-6OM<95003-01003-6OM>	2.9 6.8		13
95003-01xxx-60	95003-01001-6OM<95003-01003-6OM>	2.9 6.8		13
95003-03xxx-3x	95003-03001-6OM<95003-03003-6OM>	3.0 6.0		13
95003-03xxx-60	95003-03001-6OM<95003-03003-6OM>	3.0 6.0		13
95003-05xxx-3x	95003-05001-6OM<95003-05003-6OM> <95003 05008 6OM>	3.5 6.5		138
95003-05xxx-60	95003-05001-6OM<95003-05003-6OM> <95003-05008-6OM>	3.5 6.5		138
95003-07xxx-1x	95003-07001-1OM<95003-07003-1OM> <95003-07008-1OM>	4.0 7.0		138
95003-07xxx-70	95003-07001-1OM<95003-07003-1OM> <95003-07008-1OM>	4.0 7.0		138
95003-07xxx-3x	95003-07001-6OM<95003-07003-6OM> <95003-07008-6OM>	4.0 7.0		138
95003-07xxx-60	95003-07001-6OM<95003-07003-8OM> <95003-07008-6OM>	4.0 7.0		138
95003-07xxx-7x	95003-07001-7OM<95003-07003-7OM> <95003-07008-7OM>	4.0 7.0		138
95003-08xxx-1x	95003-08001-1OM<95003-08003-1OM> <95003-08008-1OM>	4.5 6.5		138
95003-09xxx-3x	95003-09001-6OM<95003-09003-6OM>	4.5 8.0		13
95003-09xxx-60	95003-09001-6OM<95003-09003-6OM>	4.5 8.0		13
95003-10xxx-1x	95003-10001-1OM<95003-10003-1OM>	5.0 8.0		13
95003-10xxx-20	95003-10001-1OM<95003-10003-1OM>	5.0 8.0		13
95003-10xxx-3x	95003-10001-6OM<95003-10003-6OM>	5.0 8.0		13
95003-10xxx-60	95003-10001-6OM<95003-10003-6OM>	5.0 8.0		13
95003-11xxx-3x	95003-11001-6OM<95003-11003-6OM> <95003-11008-6OM>	5.0 9.0		138
95003-11xxx-60	95003-11001-6OM<95003-11003-6OM> <95003-11008-6OM>	5.0 9.0		138
95003-12xxx-1x	95003-12001-1OM<95003-12003-1OM> <95003-12008-1OM>	5.0 7.0		138
95003-12xxx-20	95003-12001-1OM<95003-12003-1OM> <95003-12008-1OM>	5.0 7.0		138

Vinyl tube
Standard part No.	Bulk part No.	Bulk part
		Inner dia-meter (mm)	Outer dia-meter (mm)	Length (m)
95003-14xxx-1x	95003-14001-10M<95003-14003-10M>	6.0 9.0		13
95003-14xxx-20	95003-14001-10M<95003-14003-10M>	6.0 9.0		13
95003-14xxxx-3x	95003-14001-60M<95003-14003-60M>	6.0 9.0		13
95003-17xxx-1x	95003-17001-10M<95003-17003-10M>	7.0 9.0		13
95003-18xxx-1x	95003-19001-10M<95003-19003-10M>95003-19008-10M>	7.0 11.0		138
95003-19xxx-20	95003-19001-10M<95003-19003-10M>95003-19008-10M>	7.0 11.0		138
95003-19xxx-2x	95003-19001-60M<95003-19003-60M>95003-19008-60M>	7.0 11.0		138
95003-19xxx-6D	95003-19001-60M<95003-19003-60M>95003-19008-60M>	7.0 11.0		138
95003-21xxx-1x	95003-21001-10M<95003-21003-10M>	8.0 9.0		13
95003-21xxx-20	95003-21001-10M<95003-21003-10M>	8.0 9.0		13
95003-23xxx-1x	95003-23001-10M<95003-23003-10M>	8.0 12.0		13
95003-23xxx-20	95003-23001-10M<95003-23003-10M>	8.0 12.0		13
95003-23xxx-3x	95003-23001-60M<95003-23003-60M>95003-23008-60M>	8.0 12.0		138
95003-23xxx-60	95003-23001-60M<95003-23003-60M>95003-23008-60M>	8.0 12.0		138
95003-25xxx-1x	95003-25001-10M<95003-25003-10M>	9.0 11.0		13
95003-25xxx-20	95003-25001-10M<95003-25003-10M>	9.0 11.0		13
95003-25xxx-3x	95003-25001-60M<95003-25003-60M>	9.0 11.0		13
95003-25xxx-7x	95003-25001-70M<95003-25003-70M>	9.0 11.0		13
95003-27xxx-1x	95003-27001-10M<95003-27003-10M>	9.0 13.0		13
95003-27xxx-20	95003-27001-10M<95003-27003-10M>	9.0 13.0		13
95003-27xxx-3x	95003-27001-60M<95003-27003-60M>	9.0 13.0		13
95003-27xxx-60	95003-27001-60M<95003-27003-60M>	9.0 13.0		13
95003-33xxx-1x	95003-33001-10M<95003-33003-10M>	10.0 14.0		13
95003-33xxx-20	95003-33001-10M<95003-33003-10M>	10.0 14.0		13

Vinyl tube
Standard part No.	Bulk part No.	Bulk part
		inner dia-meter (mm)	Outer dia-meter (mm)	Length (m)
95003-36xxx-1x	95003-36001-10M<95003-36003-10M> <95003-35008-10M>	11.0 13.0		138
95003-36xxx-20	95003-36001-10M<95003-36003-10M> <95003-36008-10M>	11.0 13.0		138
95003-37xxx-3x	95003-37001-60M95003-37003-60M>	11.0 15.0		13
95003-37xxx-60	95003-37001-60M<95003-37003-60M>	11.0 15.0		13
95003-38xxx-1x	95003-38001-10M<95003-38003-10M>	12.0 13.0		13
95003-38xxx-20	95003-38001-10M<95003-38003-10M>	12.0 13.0		13
95003-39xxx-1x	95003-39001-10M<95003-39003-10M>	12.0 14.0		13
95003-39xxx-20	95003-39001-10M<95003-39003-10M>	12.0 14.0		13
95003-40xxx-20	95003-40001-10M<95003-40003-10M>	12.0 16.0		13
95003-40xxx-3x	95003-40001-60M<95003-40003-60M>	12.0 16.0		13
95003-40xxx-60	95003-40001-60M<95003-40003-60M>	12.0 16.0		13
95003-43xxx-1x	95003-43001-10M<95003-43003-10M> <95003-43008-10M>	13.0 15.0		138
95003-43xxx-20	95003-43001-10M<95003-43003-10M> <95003-43008-10M>	13.0 15.0		138
95003-45xxx-1x	95003-45001-10M<95003-45003-10M> <95003-45008-10M>	14.0 18.0		138
95003-45xxx-20	95003-45001-10M<95003-45003-10M> <95003-45008-10M>	14.0 18.0		138
95003-50xxx-1x	95003-50001-10M<95003-50003-10M>	16.0 19.0		13
95003-50xxxx-20	95003-50001-10M<95003-50003-10M>	16.0 19.0		13
95003-50xxxx-3x	95003-50001-60M<95003-50003-60M>	16.0 19.0		13
95003-55xxx-1x	95003-55001-10M<95003-55003-10M>	17.5 20.5		13
95003-55xxx-20	95003-55001-10M<95003-55003-10M>	17.5 20.5		13
95003-60xxx-1x	95003-60001-10M<95003-60003-10M>	22.0 27.0		13
95003-60xxx-20	95003-60001-10M<95003-60003-10M>	22.0 27.0		13
95003-60xxx-3x	95003-60001-60M<95003-60003-60M>	22.0 27.0		13
95003-60xxx-60	95003-60001-60M<95003-60003-60M>	22.0 27.0		13

General purpose hoses
Standard part No. Bulk part No.		Bulk part
		Inner diameter (mm)	Length (m)
95005-11xxx-3x 9500	05-11001-30M 11.0 1
95005-11xxx-5x 9500	05-11001-50M 11.0 1
95005-12xxx-1x	95005-12001-10M<95005-12003-10M>	12.0	13
95005-12xxx-2x 9500	05-12001-20M 12.0 1
95005-12xxx-3x 9500	05-12001-30M 12.0 1
95005-12xxx-5x 9500	05-12001-50M 12.0 1
95005-14xxx-1x 9500	05-14001-10M 14.0 1
95005-14xxx-2x	95005-14001-20M<95005-14003-20M>	14.0	13
95005-14xxx-3x 9500	05-14001-30M 14.0 1
95005-14xxx-5x 9500	05-14001-50M 14.0 1
95005-17xxx-1x 9500	05-17001-10M 17.0 1
95005-17xxx-2x 9500	05-17001-20M 17.0 1
95005-17xxx-3x 9500	05-17001-30M 17.0 1
95005-17xxx-5x 9500	05-17001-50M 17.0 1
95005-30xxx-3x 9500	05-30001-30M 3.0 1
95005-30xxx-5x 9500	05-30001-50M 3.0 1
95005-35xxx-1x	95005-35001-10M<95005-35003-10M><95005-35008-10M>	3.5	138
95005-35xxx-2x 9500	05-35001-20M 3.5 1
95005-35xxx-3x 9500	05-35001-30M 3.5 1
95005-35xxx-4x	95005-35001-10M<95005-35003-10M><95005-35008-10M>	3.5	138
95005-35xxx-5x 9500	05-35001-50M 3.5 1
95005-45xxx-1x	95005-45001-10M<95005-45003-10M><95005-45008-10M>	4.5	138
95005-45xxx-2x 9500	05-45001-20M 4.5 1
95005-45xxx-3x 9500	05-45001-30M 4.5 1

General purpose hoses
Standard part No. Bulk part No.		Bulk part
		Inner diameter (mm)	Length (m)
95005-45xxx-4x	95005-45001-10M<95005-45003-10M><95005-45008-10M>	4.5	138
95005-45xxx-5x 95005-45001-50M 4.5 1
95005-50xxx-3x	95005-50001-30M<95005-50003-30M>	5.0	13
95005-50xxx-5x 95005-50001-50M 5.0 1
95005-55xxx-1x	95005-55001-10M<95005-55003-10M><95005-55008-10M>	5.3	138
95005-55xxx-2x	95005-55001-20M<95005-55003-20M>	5.3	13
95005-55xxx-4x	95005-55001-10M<95005-55003-10M><95005-55008-10M>	5.3	138
95005-65xxx-1x	95005-65001-10M<95005-65003-10M>	6.5	13
95005-65xxx-2x 95005-65001-20M 6.5 1
95005-70xxx-3x	95005-70001-30M<95005-70003-30M>	7.0	13
95005-70xxx-5x 95005-70001-50M 7.0 1
95005-75xxx-1x	95005-75001-10M<95005-75003-10M>	7.3	13
95005-75xxx-2x 95005-75001-20M 7.3 1
95005-80xxx-1x	95005-80001-10M<95005-80003-10M>	8.0	13
95005-80xxx-2x 95005-80001-20M 8.0 1
95005-80xxx-3x 95005-80001-30M 8.0 1
95005-80xxx-5x 95005-80001-50M 8.0 1
95005-91xxx-3x 95005-91001-30M 12.0 1
95005-91xxx-5x 95005-91001-50M 12.0 1
95005-92xxx-3x 95005-92001-30M 12.0 1
95005-92xxx-5x 95005-92001-50M 12.0 1

NOTE: X is displayed to represent the omitted numerals and letters of the roman alphabet.

☐ CAUTION: It is DANGEROUS to confuse the fuel hose with the general purpose hose or vinyl hose.

Never use a general purpose hose or vinyl hose in place of a fuel hose or vice versa. Always use the correct bulk part in the parts catalogue, according to the service manual or the instructions issued with the bulk part.

- Bulk part number of fuel hose, general purpose hose and vinyl hose.

(Example)

ENGINE GROUP
E-1CYLINDER HEAD COVER	E-2CYLINDER HEAD	E-3CAMSHAFT/VALVE
E-5CYLINDER	E-6RIGHT CRANKCASE COVER	E-8CLUTCH
E-9STARTING GEAR	E-10LEFT CRANKCASE COVER	E-11GENERATOR
E-13 STARTING MOTOR	E-14 OIL PUMP	E-15 CRANKCASE
E-16 CRANKSHAFT/PISTON	E-17 TRANSMISSION	E-19 GEARSHIFT DRUM
E-20 KICK STARTER SPINDLE	E-22 CARBURETOR

2020.10.10 E

FRAME GROUP
	F-18 REAR BRAKE PANEL

FRAME GROUP
F-29PEDAL/KICK STARTER ARM	F-30STEP	F-31STAND
F-32SWINGARM	F-33REAR CUSHION	F-34REAR FENDER
F-35WINKER(CCG125WHF)	F-35-1WINKER(CCG125M/CCG125WHI)	F-36TAILLIGHT

2020.10.10 E

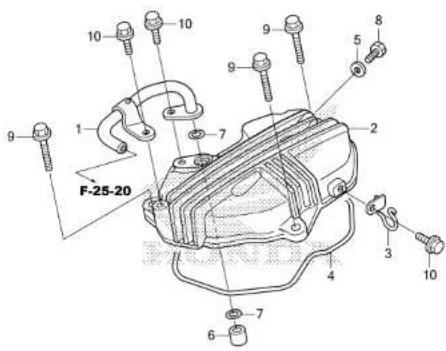

E-1 CYLINDER HEAD COVER

KSWFE0100

Ref.No. Part No. Description Reqd. QTY125 125WJ Serial No. Parts catalogue code

1 11105-KRF-B40 PIPE COMP., AIR SUCTION.... 1 1 12 12311-KRF-C30 COVER, CYLINDER HEAD.... 1 1 13 12315-KRF-C30 GUIDE, TUBE(PB).... 1 1 14 12391-KSW-G00 PACKING, CYLINDER HEAD COVER 1 1 15 98441-KRH-900 WASHER, SEALING, 6MM.... 1 1 16 98703-KVC-900 DOWEL PIN, 10X14.... 1 1 17 91305-KFN-900 O-RING, 9.8X1.9.... 2 2 28 92101-06012-0A BOLT, HEX., 6X12.... 1 1 19 95701-06030-00 BOLT, FLANGE, 6X30.... 3 3 310 96001-06016-00 BOLT, FLANGE, 6X16.... 3 3 3

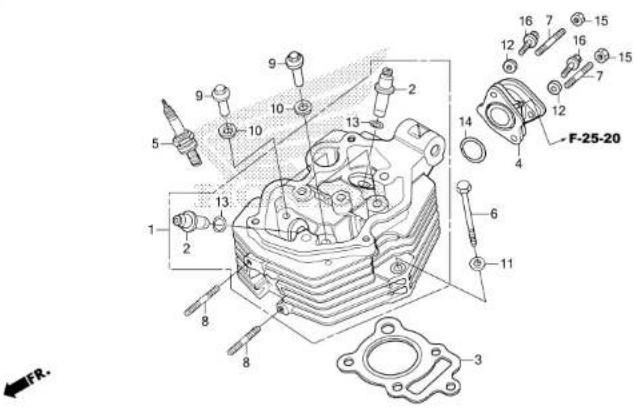

E-2 CYLINDER HEAD

KSWFE0200

Ref. No. Part No. Description Reqd. QTYCCG125 125WJ Serial No. Parts catalogue codeM F J

1 12200-KSW-G00 HEAD COMP., CYLINDER.... 1 1 12 12204-KSW-305 GUIDE, VALVE(O.S.).... 2 2 23 12251-KY0-891 GASKET, CYLINDER HEAD.... 1 1 14 16210-KSW-G00 INSULATOR, CARBURETOR.... 1 1 15 98069-58926 PLUG, SPARK(X24EPR-U9)(DENSO) 1 1 198069-59916 PLUG, SPARK(DPR9EA-9)(NGK)... (1) (1) (1)98069-59926 PLUG, SPARK(X27EPR-U9)(DENSO) (1) (1) (1)31918-HM5-630 PLUG, SPARK, 58.... - 1 -31919-HM5-630 PLUG, SPARK, 59.... - (1) -6 98027-KSW-G00 BOLT, HEX., 8X79.... 1 1 17 98035-KSW-G00 BOLT, STUD, 6X19.... 2 2 28 98036-KSW-G00 BOLT, STUD, 6X38.... 2 2 29 98206-KSW-G00 NUT, CYLINDER HEAD.... 4 4 410 90484-KPT-A08 WASHER, PLAIN, 12MM.... 4 4 411 90442-KPS-908 WASHER, SEALING, 8AM.... 1 1 112 90582-198-908 WASHER, BRAKE ROD.... 2 2 213 91381-KTJ-C18 O-RING, 10X1.6.... 2 2 214 91384-KVC-908 O-RING, 33.5X3.... 1 1 115 94058-06000 NUT, FLANGE, 6AM.... 2 2 216 96081-06025-88 BOLT, FLANGE, 6X25.... 2 2 2

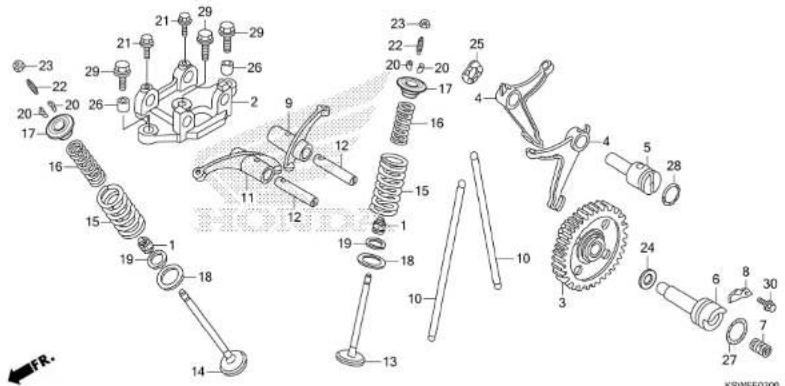

E-3 CAMSHAFT/VALVE
Ref.No.	Part No. Description	Reqd. QTY			Serial No. Parts catalogue code
		125M	CCG125W1F	J
1	12208-413-803 SEAL, VALVE STEM(ARAI)······· 2 - 2
	12208-KCS-920 SEAL, VALVE STEM······· - 2 -
2	12210-KY0-890 HOLDER, ROCKER ARM······· 1 1 1
3	14100-KSW-G00 CAMSHAFT COMP.(44T)······· 1 1 1
4	14421-KSW-G00 FOLLOWER, CAM······· 2 2 2
5	14422-KSW-G00 SHAFT, CAM FOLLOWER······· 1 1 1
6	14423-KSW-G00 SHAFT, CAM GEAR······· 1 1 1
7	14425-KSW-G00 SPRING, CAMSHAFT······· 1 1 1
8	14426-KSW-G00 PLATE, SPRING STOPPER······· 1 1 1
9	14431-397-310 ARM, IN. VALVE ROCKER······· 1 1 1
10	14448-KRH-900 ROD, PUSH······· 2 2 2
11	14441-397-310 ARM, EX. VALVE ROCKER······· 1 1 1
12	14451-KYB-898 SHAFT, ROCKER ARM······· 2 2 2
13	14711-KSW-G00 VALVE, IN.······· 1 1 1
14	14721-KSW-G00 VALVE, EX.······· 1 1 1
15	14751-324-008 SPRING, VALVE OUTER······· 2 2 2
16	14761-KSW-G00 SPRING, VALVE INNER······· 2 2 2
17	14771-KSW-G10 RETAINER, VALVE SPRING······· 2 - 2
	14771-KGA-B01······· 2 -
18	14775-KSW-G00 SEAT, VALVE SPRING OUTER······· 2 2 2
19	14776-KSW-G00 SEAT, VALVE SPRING INNER······· 2 2 2
20	14781-KSW-G00 COTTER, VALVE······· 4 4 4
21	90002-KY8-890 BOLT, FLANGE, 6X16······· 2 2 2
22	90012-KK3-830 SCREW, TAPPET ADJUSTING······· 2 2 2
23	90286-258-008 NUT, TAPPET ADJUSTING······· 2 2 2

E-3 CAMSHAFT/VALVE

Ref. No. Part No. Description Req'd. QTY 125 CCG 125M125M1 Serial No. Parts catalogue code

24 90428-KRH-900 WASHER B, THRUST, 14MM······· 1 1 125 90444-397-000 WASHER, WAVE, 12MM······· 1 1 126 90783-KVC-900 DOWEL PIN, 10X14······· 2 2 227 91318-KSW-G00 O-RING, 20X2.5······· 1 1 128 91333-567-010 O-RING, 17.0X2.5······· 1 1 129 95781-08830-08 BOLT, FLANGE, 8X38······· 3 3 330 96081-06814-08 BOLT, FLANGE, 6X14······· 1 1 1

Part No. Description

Reqd. QTY

125 125M

Serial No. Parts catalogue code

1 31200-KSW-G11 MOTOR ASSY., STARTING…… 1 - 1
31200-KSW-601 - 1 -
2 31201-KSW-G01 TERMINAL SET, BRUSH.... 1 1 1
3 31205-KSW-G01 BOLT, SETTING.... 2 2 2
4 31207-KSM-G01 KING 2 2 2 5 98071-K28-910 NUT-WASHER 6MM 1 1 1
© 30071 RES. 916 NOT WASHER, ON
6 91309-KSW-G01 O-RING. 24.4X3.1.... 1 1 1
7 94050-06000 NUT, FLANGE, 6MM....111
8 95/01-06028-00 BOLT, FLANGE, 6X28 2 2 2

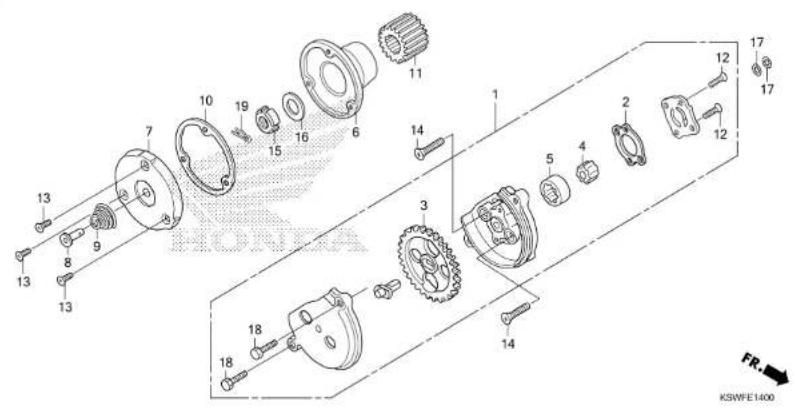

E-14 OIL PUMP
Ref.No. Part No. Description Reqd. QTYCCG125 125WJ Serial No. Parts catalogue codeM F J
1 15100-KSW-G00 PUMP ASSY., OIL............ 1 1 12 15126-KVC-900 GASKET, OIL PUMP............ 1 1 13 15131-KVC-900 GEAR, OIL PUMP DRIVE(39T).... 1 1 14 15331-KVC-900 ROTOR, OIL PUMP INNER............ 1 1 15 15332-KVC-900 ROTOR, OIL PUMP OUTER............ 1 1 16 15430-KVC-900 ROTOR COMP., OIL FILTER............ 1 1 17 15436-KRM-840 CAP, OIL FILTER ROTOR............ 1 1 18 15441-KCS-650 THROUGH, OIL............ 1 1 19 15446-107-000 SPRING, OIL THROUGH............ 1 1 110 15459-KSW-G30 GASKET, OIL FILTER CAP............ 1 - -15459-KWK-900............ - 1 111 23121-KVC-900 GEAR, PRIMARY DRIVE(18T).... 1 1 112 90051-KSW-G00 SCREW, FLAT, 4X12............ 2 2 213 90052-KSW-G00 SCREW, FLAT, 5X12............ 3 3 314 90053-KSW-G00 SCREW, FLAT, 6X30............ 2 2 215 90231-KSW-G00 NUT, LOCK, 16AM............ 1 1 116 90434-KVC-900 WASHER, 16MM............ 1 1 117 91384-KK3-830 O-RING, 9.4X2.4............ 2 2 218 92101-05820-8A BOLT, HEX., 5X20............ 2 2 219 94251-08800 PIN, LOCK, 8MM............ 1 1 1

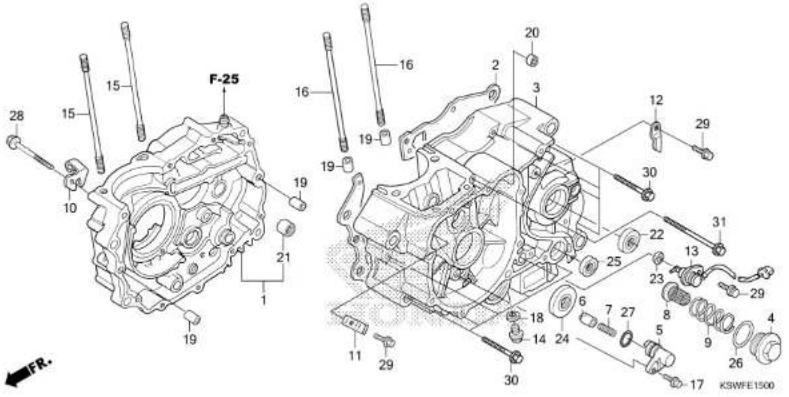

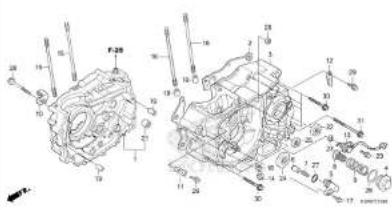

E-15 CRANKCASE
Ref.No. Part No. Description	Reqd. QTYCCG125 125WJ M F J Serial No. Parts catalogue code
1 11100-KSW-G00 CRANKCASE COMP., R....... 1 1 12 11191-KSW-G30 GASKET, CRANKCASE...... 1 - -11191-KSW-G00 ...... - 1 13 11200-KSW-G00 CRANKCASE COMP., L....... 1 1 14 12361-KSW-G00 CAP, HOLE, 36WN...... 1 1 15 14511-KSW-G00 HOLDER, PUSH PLUG...... 1 1 16 14521-KSW-G00 PLUG, BEARING PUSH...... 1 1 17 14531-KSW-G00 SPRING, BEARING PUSH...... 1 1 18 15421-KVC-900 SCREEN, OIL FILTER...... 1 1 19 15426-KVC-900 SPRING, OIL FILTER SCREEN.... 1 1 110 22838-KSW-G00 HOLDER, CLUTCH WIRE ...... 1 1 111 28117-KSW-G00 PLATE, GEAR SETTING...... 1 1 112 32976-KRF-S00 CLAMPER, WIRE HARNESS...... 1 1 113 35759-KSW-G11 SWITCH ASSY., CHANGE...... 1 - 135759-KSW-G01 ...... - 1 -14 90031-KSW-G00 BOLT, DRAIN PLUG, 12MM...... 1 1 115 90032-KSW-G00 BOLT'A, CYLINDER STUD, 8X122· 2 2 216 90034-KSW-G00 BOLT B, CYLINDER STUD, 8X130· 2 2 217 90044-KSW-G00 BOLT, FLANGE, 6X25...... 1 1 118 90401-KSW-G00 WASHER, DRAIN PLUG, 12MM...... 1 1 119 90783-KVC-900 DOWEL PIN, 10X14...... 4 4 420 91021-KTJ-C10 BEARING, NEEDLE(HK1018)...... 1 1 121 91106-KRH-900 BEARING, NEEDLE, 15MM...... 1 1 122 91202-KSW-G11 OIL SEAL, 20X34X7...... 1 - 191202-KSW-G01 ...... - 1 -
E-15 CRANKCASE
Ref.No. Part No. Description			Reqd. QTY
			CCG125 M	125WJF	Serial No. Parts catalogue code
23 91203-KSW-G11 OIL SEAL, 14X22X5·········································································································································································································			1	-	1
24 91203-KSW-G01 ·······································································································································································································			1	-	1
25 91206-KSW-G11 OIL SEAL, 14X28X7······································································································································································································			1	-	1
26 91305-KSW-G00 D-RING, 35X3······································································································································································································...			1	1	1
27 91335-KSW-G00 D-RING, 13X2.5·····································································································································································································
28 92301-06055-0A BOLT, RECESSED, 6X55····································································································································································································..			1	1	1
29 96001-06014-00 BOLT, FLANGE, 6X14······································································································································································································..
30 96001-06050-00 BOLT, FLANGE, 6X50······································································································································································································.
31 96001-06095-00 BOLT, FLANGE, 6X95····································································································································································································.			1	1	1

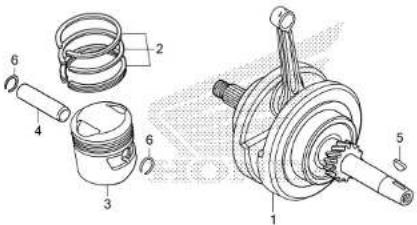

E-16 CRANKSHAFT/PISTON

KSWFE1600

Ref. No. Part No. DescriptionReqd. QTYCCG125 125M1 Serial No. Parts catalogue codeM F J

1 13000-KSW-G10 CRANKSHAFT COMP....... 1 - 113000-KSW-G00............ - 1 -2 13011-KPN-901 RING SET, PISTON(STD.)...... 1 1 113021-KPN-900 RING SET, PISTON(0.25)...... (1) (1) (1)13021-KPN-901............ (1) (1) (1)13031-KPN-900 RING SET, PISTON(0.50)...... (1) (1) (1)13031-KPN-901............ (1) (1) (1)13041-KPN-900 RING SET, PISTON(0.75)...... (1) (1) (1)13041-KPN-901............ (1) (1) (1)13051-KPN-900 RING SET, PISTON(1.00)...... (1) (1) (1)13051-KPN-901............ (1) (1) (1)3 13101-KRF-C30 PISTON(STD.)............ 1 1 113102-KCS-W01 PISTON(0.25)............ (1) (1) (1)13103-KCS-W01 PISTON(0.50)............ (1) (1) (1)13104-KCS-W01 PISTON(0.75)............ (1) (1) (1)13105-KCS-W01 PISTON(1.00)............ (1) (1) (1)4 13111-KSW-G00 PIN, PISTON............ 1 1 15 98741-KSW-G00 KEY, WOODRUFF, 25X14X4............ 1 1 16 94601-15000 CLIP, PISTON PIN, 15MM............ 2 2 2

Ref.No.

Part No. Description

Reqd. QTYCCG125 125WJ

Serial No. Parts catalogue code

1	16010-364-771	GASKET SET······	1	1	1
2	16012-KSW-611	NEEDLE SET, JET······	1	-	1
	16012-KSW-831	······	-	1	-
3	16013-439-921	FLOAT SET······	1	1	1
4	16014-KRF-B41	TOP SET······	1	1	1
5	16016-KTA-921	SCREW SET A······	1	-	1
	16016-KRF-B41	······	-	1	-

6	16022-KWK-901	VALVE SET, THROTTLE......	1	1	1
7	16025-KRF-B41	LEVER SET, CHOKE......	1	1	1
8	16028-KEB-G01	SCREW SET B......	1	1	1
9	16045-399-014	CHAMBER SET, FLOAT......	1	1	1
10	16048-KRF-B41	VALVE SET, AIR CUT......	-	1	-

11	16075-GHB-B78	O-RING, 2.4X29......	1	1	1
12	16188-KSW-G01	CARBURETOR ASSY.(PDCDG A)....	-	1	-
13	16119-KRF-B41	PLATE, SETTING......	1	1	1
14	16148-KB1-921	CAP, CABLE SEALING......	1	1	1
15	16155-KJ9-751	VALVE COMP., FLOAT......	1	1	1

16	16165-KCS-W01	HOLDER, NEEDLE JET......	1	1	1
17	16199-KCP-J01	TUBE, AIR VENT......	-	1	-
18	16199-KY0-680	TUBE......	-	1	-
19	93892-04810-10	SCREW-WASHER, 4X10......	-	2	-
20	93892-04810-18	SCREW-WASHER, 4X10......	1	1	1

21	93892-04016-08	SCREW-WASHER, 4X16········· 3 - 3
	93892-04016-18	·········································································································································································································
22	95082-02889	CLIP, TUBE(B1 B)······································································································································································································

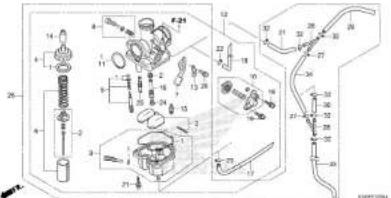

E-22 CARBURETOR
Ref. No. Part No. Description Req'd. QTY CCG 125 125M1 Serial No. Parts catalogue codeM F J
23 95082-02659 CLIP, TUBE(B6.5).... - 1 -24 99181-GHB-0828 JET, MAIN, #82.... 1 1 125 99183-MT2-0388 JET, SLOW, #38.... 1 1 126 16188-KSW-G12 CARBURETOR ASSY.(PDCDH A).... 1 - -16100-KSW-611.... - 127 16163-GHB-600 CLIP, TUBE.... 2 - 228 16188-KYY-901 JOINT, 3WAY.... 2 - 229 16195-KSW-G11 TUBE.... 1 - 130 16196-KSW-G11 TUBE.... 1 - 131 16197-KSW-G12 TUBE.... 1 - -16197-KSW-G11.... - 132 95082-02889 CLIP, TUBE(B1 8).... 6 - 633 95085-45350-58 TUBE, 4.5X350(95005-45001-10M) 1 - 134 95085-58150-58 TUBE, 5X150(95085-58001-58M)- 1 - 1

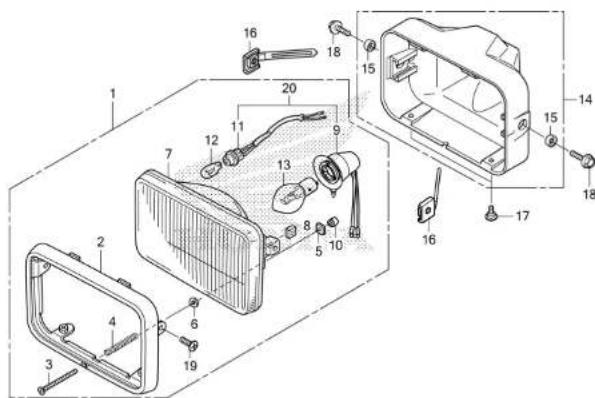

F-1 HEADLIGHT
KSWFF0100B
Ref. No. Part No. Description	Reqd. QTYCCG125 125WI Serial No. Parts catalogue code
1 33100-KSW-G31 HEADLIGHT ASSY.(12V 35/35W)··· 1 - -33100-KSW-G01 HEADLIGHT ASSY.·········································································································································································································	1 - -33100-KSW-G11······································································································································································································	Serial No. Parts catalogue code
2 33101-KSW-G12 RIM COMP., HEADLIGHT······································································································································································································
3 33102-KSW-G12 SCREW, BEAM ADJUST······································································································································································································ ·······································································································································································································..
4 33107-KSW-G12 SPRING, BEAM ADJUST·····························································································································································································
5 33117-KSW-G12 NUT, BEAM ADJUSTING······································································································································································································...
6 33119-KSW-G12 WASHER, BEAM ADJUSTING···························································································································································································
7 33120-KSW-G12 HEADLIGHT UNIT······································································································································································································.
8 33128-KSW-G12 NUT, UNIT HOLDER······································································································································································································-1
9 33130-KSW-G01 SOCKET COMP., HEADLIGHT···· · 1 - 1
10 33136-KSW-G12 COVER, SCREW · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · .
11 33150-KSW-G01 SOCKET COMP., POSITION LIGHT · · 1 - 1
12 34903-K03-C21 BULB, POSITION LIGHT(W5W) · · · 1 - -
33301-KZG-901 BULB, POSITION LIGHT(12V W5W) - 1 1
13 34901-KSW-G11 BULB, HEADLIGHT(S2)(12V 35/35W) 1 - -
34901-KSW-G01 BULB, HEADLIGHT(12V 35/35W) · · - 1 1

F-1 HEADLIGHT
KSWFF0100B
Ref. No. Part No. Description		Reqd. QTY			Serial No. Parts catalogue code
		125 M	CCG 125M1 F	J
14 61381-KYB-988 CASE, HEADLIGHT.... 1 1 1
15 61382-964-000 COLLAR A, HEADLIGHT CASE....		2	2	2
16 61383-KSW-G00 NUT, HEADLIGHT CASE....		2	2	2
17 90183-KSW-G00 BOLT, STATOR COVER SETTING...		2	-	2
90018-ZA5-800....
18 95781-08820-08 BOLT, FLANGE, 8X20....		2	-	-
90119-383-800....
19 90182-KSW-G12 SCREW, PAN, 5X14....		2	-	-
90102-KSW-G01 SCREW, PAN, 5X10....		2	-	-
20 33130-KSW-G31 SOCKET COMP., HEADLIGHT....		1	-	-
33130-KSW-G11....

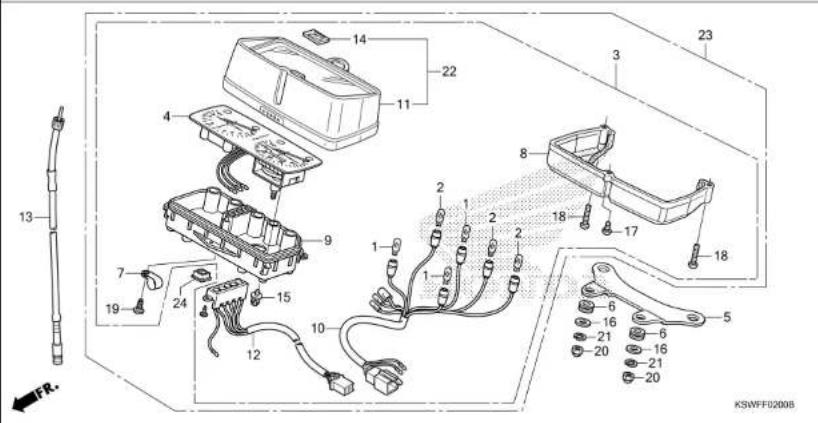

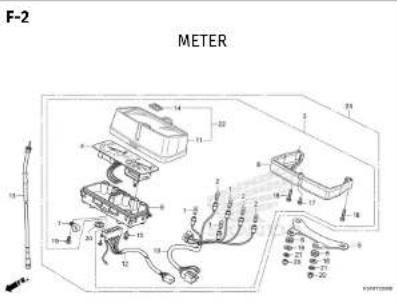

F-2

METER

Ref. No. Part No. Description

Reqd. QTY CCG 125 125MMI Serial No. Parts catalogue code M F J

1 34910-GFM-901 BULB, WEDGE BASE(T10)
34908-GFM-901 BULB, WEDGE BASE

2 34908-KYA-601 BULB, WEDGE BASE(T10)

34909-GFM-901 BULB. WEDGE BASE(T6.5 14V 3W) - 3 -

3 37100-KSW-601 METER ASSY., COMBINATION(KPH) - 1 -

4 37200-KSW-G01 METER ASSY., SPEED TACHO.... 1 1 1 5 37212-KSW-G10 PLATE METER SETTING.... 1 - 1

37212-KSW-G00 - 1 -

6 37214-KSW-G10 GROMMET, METER PLATE....2 - 2

37214-KSW-G00 - 2 -

7 37215-KVJ-911 CLAMP, CORD.... 1 1 1

8 37617-KSW-970 COVER, METER.... 1 1 1 9 37618-KSW-G01 CASE ASSY.... 1 1 1

.0 37619-KSW-G11 SOCKET COMP.... 1 - 1

37619-KSW-601 - 1 -

11 37628-KSW-970 CASE, METER UPPER - 1 -

37621-KSW-G11 INDICATOR COMP., GEAR POSITION 1 - 1

1. 4/839-KSW-G31 CABLE ASSY SPEEDOMETER ..... 1

44830-KSW-G01 - 1 -

44830-KSW-611 - - 1

14 86150-KTJ-C60 EMBLEM, PRODUCT(SHINKO)…… 1 1 1

15 90035-GFM-901 SCREW-MASHER, SPECIAL, 4X12... 4 4 4

F-2 METER
Ref. No. Part No. Description Reqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J
16 90545-323-708 WASHER, 6.5X18········ 2 2 217 93981-24320 SCREW, TAPPING, 4X12········ 1 - 193500-64018-OH SCREW, PAN, 4X10········ - 1 -18 93981-24720 SCREW, TAPPING, 4X38········ 2 - 293500-64038-OH SCREW, PAN, 4X30········ - 2 -19 93983-24320 SCREW, TAPPING, 4X12········ 1 1 120 94021-06800-8S NUT, CAP, 6MM·········································································································································································································	2 2 293500-64018-OH SCREW, PAN, 4X10········ - 1 -18 93981-24720 SCREW, TAPPING, 4X38········ 2 - 293500-64038-OH SCREW, PAN, 4X30········ - 2 -19 83983-24320 SCREW, TAPPING, 4X12········ 1 1 120 94021-06800-8S NUT, CAP, 6MM·······················································································
21 94111-06800 WASHER, SPRING, 6MW········ 2 2 222 37628-KSW-G11 CASE, METER UPPER······································································································································································································	2 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 22 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 24 37214-KPN-J01 PLUG······································································································································································································ · 1 - 124 37214-KPN-J01 PLUG········································································································································································· 1 - 124 37214-KPN-J01 PLUG······························································································································································· KSWFF0200B

F-3 MIRROR

←IFR.KSWFF0300A

Ref. No. Part No. DescriptionReqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J

1 88113-KYA-B10 CAP, LOCK NUT....2 - 288113-GN5-900....2 -2 88210-KSW-G00 MIRROR COMP., BACK....2 -3 94001-10000-05 NUT, HEX., 10MM....2 2 24 88210-KVM-710 MIRROR COMP., R....1 - 15 88220-KVM-710 MIRROR COMP., L....1 - 1

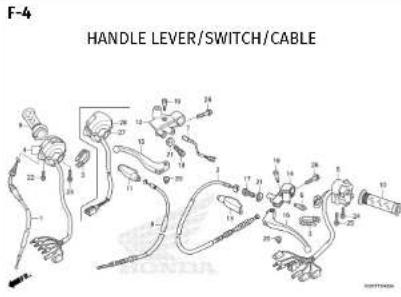

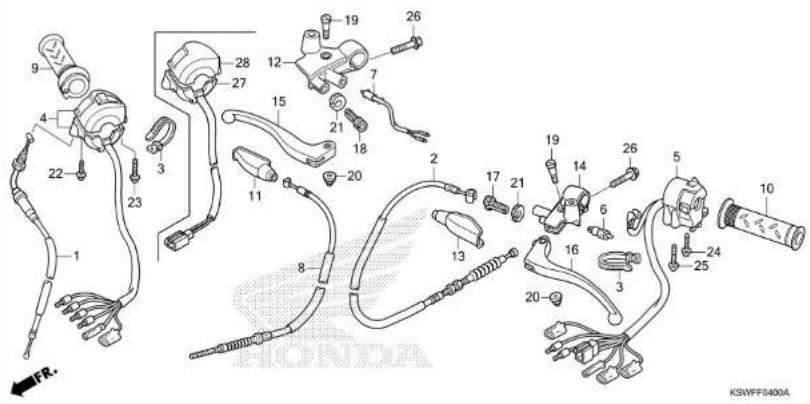

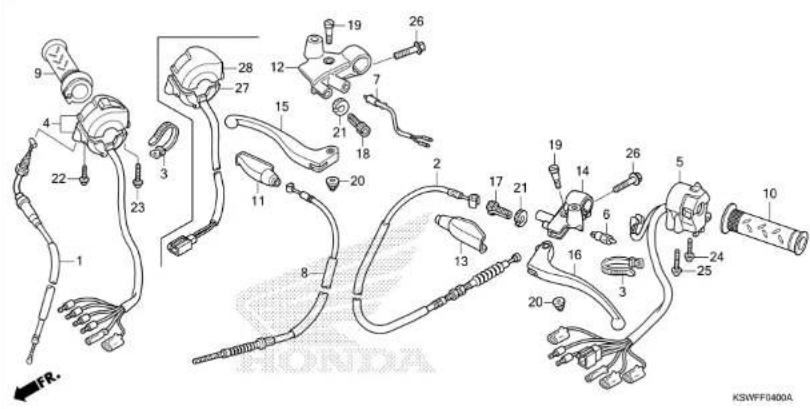

F-4 HANDLE LEVER/SWITCH/CABLE
Ref. No. Part No. Description Reqd. QTY CCG 125 125WI Serial No. Parts catalogue codeM F J
1 17910-KSW-G31 CABLE COMP., THROTTLE······· 1 - -17910-KSW-G01·········································································································································································································17910-KSW-G11·····································································································································································································22870-KSW-G31 CABLE COMP., CLUTCH······································································································································································································ · 22870-KSW-G01···························································································································································································32161-404-800 BAND B1, WIRE······································································································································································································..35152-KSW-G01 SWITCH COMP., STARTER······································································································································································································.35150-KSW-G11 SWITCH ASSY., LIGHTING & STARTER - - 15 35200-KSW-G11 SWITCH ASSY., WINKER·····································································································································································································35201-KSW-G01 SWITCH COMP., WINKER·······························································································································································································35330-KWK-901 SWITCH COMP., FR. LEVER······· 1 1 17 35340-KWK-901 SWITCH ASSY., FR. STOP······· 1 1 18 45450-KSW-G31 CABLE COMP., FR. BRAKE······· 1 - -45450-KSW-970 ·······································································································································································································...53140-KTT-900 GRIP COMP., THROTTLE······· 1 1 110 53166-KTT-900 GRIP, L. HANDLE······· 1 1 111 53171-402-700 COVER, R. HANDLE LEVER······· 1 1 112 53171-KSW-G00 BRACKET, R. HANDLE LEVER····· 1 1 113 53172-402-700 COVER, L. HANDLE LEVER····· 1 1 114 53172-KNK-900 BRACKET, L. HANDLE LEVER····· 1 1 115 53175-KNK-900 LEVER, R. STEERING HANDLE····· 1 1 116 53178-KWK-900 LEVER, L. STEERING HANDLE····· 1 1 117 53192-KTJ-900 BOLT, WIRE ADJUSTING····· 1 1 1
Ref.No. Part No. Description			Reqd. QTY		Serial No. Parts catalogue code
			125M	CCG125MWJ
18 53193-KTJ-908	BOLT, CABLE ADJUST········	1	1	1
19 90113-422-008	BOLT, L. STEERING HANDLE LEVERPIVOT 2 2 2
20 90202-KTJ-908	NUT, CAP, 6MM········	2	2	2
21 90321-KTJ-908	NUT, FIXING········ 2 2 2
22 93508-05020-0G	SCREW, PAN, 5X20········	1	1	1
23 93508-05028-0G	SCREW, PAN, 5X28········	1	1	1
24 93508-05035-0G	SCREW, PAN, 5X35········	1	1	1
25 93508-05045-0G	SCREW, PAN, 5X45········	1	1	1
26 96001-06022-07	BOLT, FLANGE, 6X22········	2	2	2
27 3S151-KSW-G31	SWITCH COMP., START········	1	-	-
28 3S152-KVC-678	CASE, R. UPPER········	1	-	-

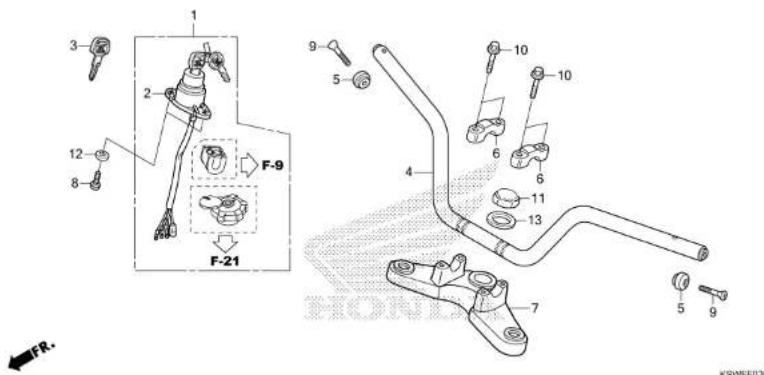

F-7 HANDLE PIPE/TOP BRIDGE
Ref. No. Part No. Description Reqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J
1 35010-KSW-G10 KEY SET·········································································································································································································1 - 135010-KSW-G00······································································································································································································ ·······································································································································································································
6 53131-KSW-G10 HOLDER, HANDLE UPPER······································································································································································································	53105-KWK-900 WEIGHT, HANDLE······································································································································································································

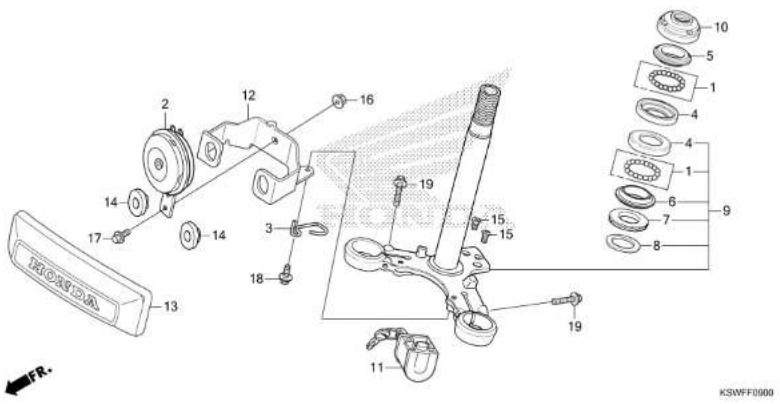

F-9 STEERING STEM
Ref. No. Part No. Description Req'd. QTY CCG 125 125M1 Serial No. Parts catalogue code
1 86530-KRF-H70 BALL ASSY., STEEL, #6X21······ 2 2 22 38110-KSW-G11 HORN ASSY.(HIGH)········ 1 - 138110-KSW-G01········ - 13 45465-KCS-W20 GUIDE, BRAKE CABLE········ 1 1 14 50301-KCS-W60 RACE, STEERING BALL········ 2 2 25 53211-KCS-W60 RACE, STEERING TOP CONE······ 1 1 16 53212-KCS-W60 RACE, STEERING BOTTOM CONE··· 1 1 17 53214-001-010 DUST SEAL, STEERING HEAD······ 1 1 153214-GJG-C20········ - 1 18 53215-001-000 WASHER, STEERING HEAD DUST SEAL 1 1 19 53219-KSW-970 STEM SUB ASSY., STEERING······ 1 1 110 53228-074-000 THREAD COMP., STEERING HEAD TOP 1 1 111 53688-KFJ-911 LOCK, STEERING HANDLE······ 1 1 112 61312-KCS-V60 STAY, HORN········ 1 1 113 61401-KCS-W60 COVER, FR········ 1 1 114 83542-KPN-900 GROMMET, SIDE COVER········ 2 2 215 90164-028-000 SCREW, U-LOCK FLAT, 6X12······ 2 2 216 94058-06020 NUT, FLANGE, 6AM········ 1 1 117 95781-06012-02 BOLT, FLANGE, 6X12······ 1 1 118 95781-06016-00 BOLT, FLANGE, 6X16······ 2 2 219 95881-08032-00 BOLT, FLANGE, 8X32······ 2 2 2

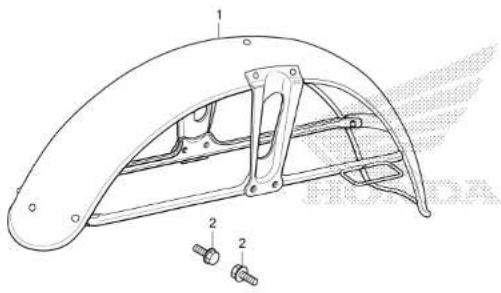

F-10 FRONT FENDER

←FR.KSWFF1000

Ref. No. Part No. DescriptionReqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J

1 61100-KSW-G30ZA FENDER COMP., FR.+NH35M*.CLOUD SILVER METALLIC 1 - -61100-KSW-G00 ··········································································································································································································4 4 4

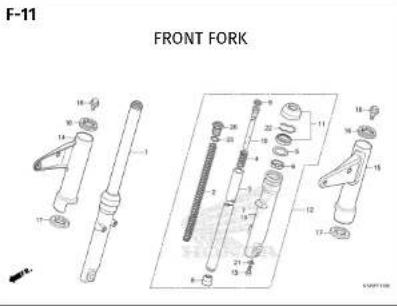

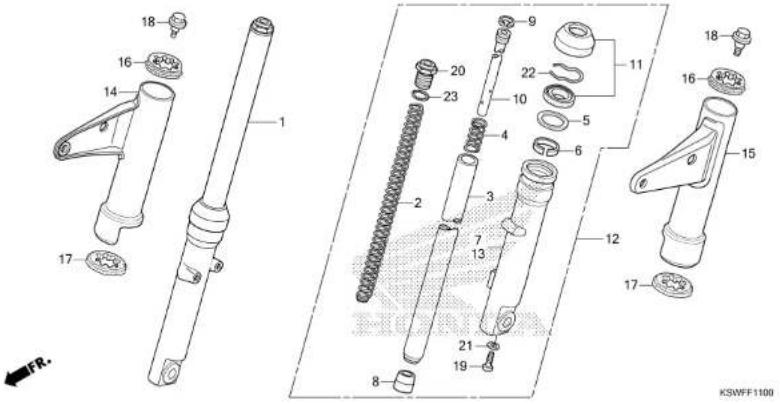

F-11 FRONT FORK

Ref. No. Part No. Description Req'd. QTY CCG 125 125WI Serial No. Parts catalogue code

1 51400-KSW-G01 FORK ASSY., R. FR. ........... 1 1 12 51401-KSW-G01 SPRING, FR. FORK...... 2 2 23 51410-KSW-G01 PIPE COMP., FR. FORK...... 2 2 24 51412-KSW-971 SPRING, REBOUND...... 2 2 25 51413-KSW-971 RING, BACK UP...... 2 2 26 51414-KSW-971 BUSH, GUIDE...... 2 2 27 51420-K08-901 CASE, R. BOTTOM...... 1 1 18 51432-KZL-842 PIECE, OIL LOCK(CHUANNAN ABSORBER) 2 2 29 51437-KSW-971 RING, PISTON...... 2 2 210 51448-KSW-G01 PIPE, SEAT...... 2 2 211 51498-KSW-971 SEAL SET, FR. FORK...... 2 2 212 51588-KSW-G01 FORK ASSY., L. FR. ...... 1 1 113 51528-K88-901 CASE COMP., L. BOTTOM...... 1 1 114 51682-KSW-G3BZA COVER, R. FR. FORK*NHI*......BLACK 1 - -51602-KSW-G00 ......BLACK 1 - -51602-KSW-G10 ...... - - 115 51606-KSW-G30ZA COVER, L. FR. FORK*NHI*......BLACK 1 - -51606-KSW-G00 ...... - - 151606-KSW-G10 ...... - - 116 51621-107-000 MOUNT, FORK COVER UPPER...... 2 2 217 51622-397-710 MOUNT, FORK COVER UNDER...... 2 2 218 90112-KCS-650 BOLT, FR. FORK...... 2 2 2

F-11 FRONT FORK
Ref. No. Part No. Description Reqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J
19 90116-KRF-H71 BOLT, SOCKET, 8X30(CHUANNAN ABSORBER) 2 2 220 90123-KSW-971 BOLT, FR. FORK·········································································································································································································

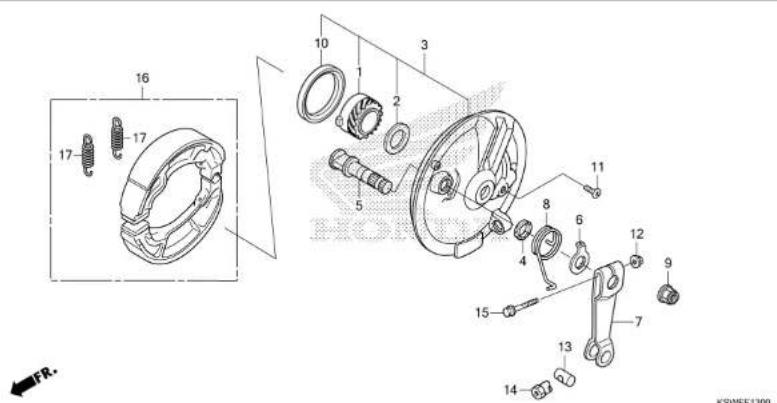

[F-13] FRONT BRAKE PANEL
Ref. No.Part No. DescriptionReqd.QTYCCG125 125WI Serial No. Parts catalogue codeM F J
1 44806-KSW-G01 GEAR, SPEEDOMETER(21T)······· 1 1 12 44808-KSW-G00 WASHER, SPEEDOMETER GEAR······· 1 1 13 45010-KSW-G00ZA PANEL SUB COMP., FR. BRAKE+NH35M*.CLOUD SILVER METALLIC 1 1 14 45134-250-000 DUST SEAL, BRAKE CAM········· 1 1 15 45141-KVX-600 CAM, FR. BRAKE········· 1 1 16 45145-KRF-B40 INDICATOR, FR. BRAKE······· 1 1 17 45410-KVX-600 ARM, FR. BRAKE········· 1 1 18 45435-121-010 SPRING, FR. BRAKE ARM RETURN· 1 1 19 90306-KCS-690 NUT, SPECIAL FLANGE, 12MM····· 1 1 110 91251-GK4-003 OIL SEAL, 47X60X7(ARAI)······· 1 1 191251-GK4-005 OIL SEAL, 47X60X7(NOK)······· 1 1 111 93788-05816-BA SCREM, OVAL, 5X18········· 1 1 112 94058-06800 NUT, FLANGE, 6AM········· 1 1 113 95015-32801 JOINT B, BRAKE ARM········· 1 1 114 43459-GW5-760 NUT, BRAKE ROD ADJUSTING····· 1 - -95015-42080 NUT B, BRAKE ROD ADJUSTING··· - 1 115 95781-06832-00 BOLT, FLANGE, 6X32········· 1 1 116 06438-KSW-G30 SHOE SET, BRAKE········· 1 - -06430-KRF-B80 SHOE SET, BRAKE(JB)········· - 1 117 43151-KCM-870 SPRING, BRAKE SHOE········· 2 2 2

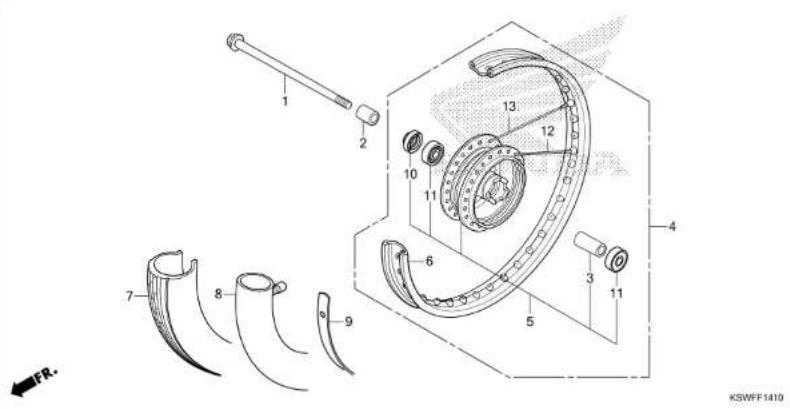

F-14-10 FRONT WHEEL
Ref. No. Part No. Description Reqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J
1 44301-KSW-G30 AXLE, FR. WHEEL...... 1 - -44301-KSW-B00 ...... 1 12 44311-229-800 COLLAR, FR. WHEEL SIDE ...... 1 1 13 44620-KSW-970 COLLAR, FR. AXLE DISTANCE ...... 1 1 14 44650-KSW-G00ZA WHEEL SUB ASSY., FR.*NH35M*.CLOUD SILVER METALLIC 1 1 15 44653-KSW-G00ZA HUB SUB ASSY., FR.*NH35M*.CLOUD SILVER METALLIC 1 1 16 44701-KEW-920 RIM, FR. WHEEL...... 1 1 17 44711-KSW-G01 TIRE, FR.(CST)(2.50-18 40L).. 1 1 144711-KSW-G11 TIRE, FR.(YUANXING)(2.50-18 40L) 1 - 144711-KSW-G30 TIRE, FR.(MBP)(2.50-18 40L).. 1 - -8 44712-KSW-G01 TUBE, TIRE(2.50-18)...... 1 1 144712-K08-901 TUBE, TIRE...... 1 - 144712-KSW-G30 TUBE, TIRE(MBP)...... 1 - -9 44713-KWK-B21 FLAP, TIRE...... 1 1 142713-KYY-B71 FLAP, TIRE(YUANXING)...... 1 - 142713-KSW-G30 FLAP, TIRE(MBP)...... 1 - -10 90755-229-003 OIL SEAL, 21X37X7(ARAI)...... 1 1 198755-229-805 OIL SEAL, 21X37X7(NOK)...... 1 1 111 96148-63810-10 BEARING, RADIAL BALL, 6301U.. 2 2 212 97178-41164-R0 SPOKE SET(A10X162)...... (OUTSIDE) 18 18 1813 97662-41163-R0 SPOKE SET(A10X161.5)...... (INSIDE) 18 18 18

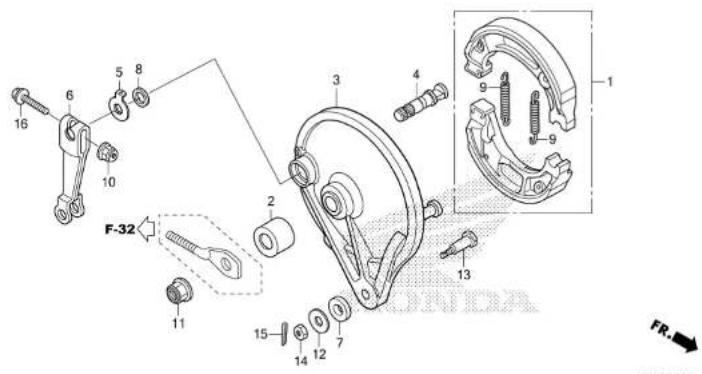

F-18 REAR BRAKE PANEL
KSWFF1800
Ref. No. Part No. Description	Reqd. QTYCCG125 125WI Serial No. Parts catalogue code
1 86431-KSW-G30 SHOE SET, BRAKE...... 1 - -86430-KSY-900 SHOE SET, BRAKE(JB)...... - 1 12 42313-074-010 COLLAR, RR. BRAKE PANEL SIDE · 1 1 13 43100 KCS-650 PANEL COMP., RR. BRAKE...... 1 1 14 43141-400-810 CAM, RR. BRAKE...... 1 1 15 43145-KC1-800 INDICATOR, RR. BRAKE...... 1 1 16 43410-KCS-W20 ARM, RR. BRAKE...... 1 1 17 43434-ME1-670 RUBBER, STOPPER ARM...... 1 1 18 45134-250-000 DUST SEAL, BRAKE CAM...... 1 1 19 45151-GCC-000 SPRING, BRAKE SHOE(JB)(BLACK) 2 2 210 90382-KYA-601 NUT, FLANGE, 6MM(PT)...... 1 1 111 90385-KCS-928 NUT, SPECIAL, 14MM...... 1 1 112 90585-KEJ-900 WASHER, 8MM...... 1 1 113 92811-18800 BOLT A, BRAKE STOPPER...... 1 1 114 94081-08800-85 NUT, HEX., 8MM...... 1 1 115 94281-20150 PIN, SPLIT, 2.8X15...... 1 1 116 95781-06835-88 BOLT, FLANGE, 6X35...... 1 1 1

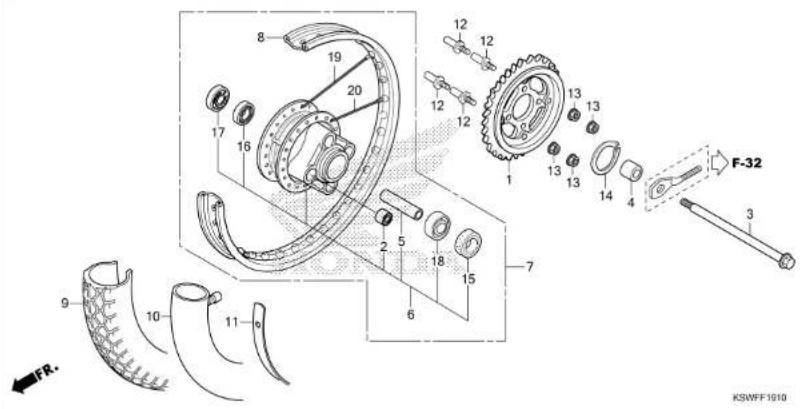

F-19-10 REAR WHEEL

Ref.No. Part No. Description Reqd. QTY125 125WJ M F J Serial No. Parts catalogue code

1 41200-KSW-G00 SPROCKET COMP., FINAL DRIVEN(38T) 1 1 12 41241-KSW-G01 BUSH, RR. WHEEL DAMPER...... 4 4 43 42301-KCS-650 AXLE, RR. WHEEL...... 1 1 14 42312-KEJ-900 COLLAR, RR. WHEEL SIDE...... 1 1 15 42620-KSW-970 COLLAR, RR. AXLE DISTANCE...... 1 1 16 42635-KSW-G00ZA HUB SUB ASSY., RR.*NH35M*.CLOUD SILVER METALLIC 1 1 17 42650-KSW-G30ZA WHEEL SUB ASSY., RR.*NH35M*.CLOUD SILVER METALLIC 1 - -42650-KSW-G00ZA *NH35M*.CLOUD SILVER METALLIC - 1 18 42701-KSW-G30 RIM, RR. WHEEL...... 1 - -42701-KSW-G00...... - 1 19 42711-KSW-G01 TIRE, RR.(CST)(2.75-18 48P)·· 1 1 142711-KSW-G11 TIRE, RR.(YUANXING)(2.75-18 48P) 1 - 142711-KSW-G30 TIRE, RR.(MBP)(2.75-18 48P)·· 1 - -10 42712-KSW-G01 TUBE, TIRE(CST)(2.75-18)······ 1 1 142712-KSW-G11 TUBE, TIRE(YUANXING)······ 1 - 142712-KSW-G30 TUBE, TIRE(MBP)······ 1 - -11 42713-KWK-B21 FLAP, TIRE...... 1 1 142713-KYY-B71 FLAP, TIRE(YUANXING)······ 1 - 142713-KSW-G30 FLAP, TIRE(MBP)······ 1 - -12 00128-KE2-940 BOLT, DRIVEN SPROCKET FIXING· 4 4 413 00308-KSW-970 NUT, U, 18MM...... 4 4 414 00664-216-000 CIRCLIP, 58MW...... 1 1 115 91257-230-003 OIL SEAL, 28X42X7(ARAI)······ 1 1 1

Ref.No. Part No. Description Reqd. QTY125 125WJ Serial No. Parts catalogue codeM F J

15) 91257-230-005 OIL SEAL, 28X42X7(NOK)······· 1 1 116 96108-60020-18 BEARING, RADIAL BALL, 6002··· 1 1 117 96148-62020-18 BEARING, RADIAL BALL, 6202U··· 1 1 118 96148-63020-18 BEARING, RADIAL BALL, 6302U··· 1 1 119 97568-69183-R0 SPOKE SET(BS 8X171.5)·······(INSIDE) 18 18 1820 97684-69182-R0 SPOKE SET(BS 8X171)·······(OUTSIDE) 18 18 18

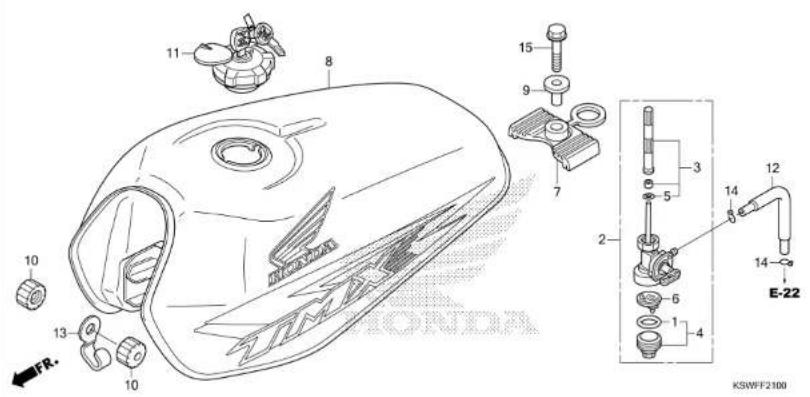

F-21 FUEL TANK

Ref.No. Part No. Description Reqd. QTY125 125WJ Serial No. Parts catalogue codeM F J

1 16173-KEJ-900 O-RING....1 1 12 16950-KWK-901 COCK ASSY., FUEL....1 - 116950-KWK-900 ....- 1 -3 16952-KWK-900 SCREEN SET, FUEL STRAINER....1 - 14 16953-KWK-900 CUP SET, FUEL STRAINER....1 - 15 16958-KEJ-900 O-RING....1 1 16 16959-KEJ-900 FILTER, CUP....1 1 17 17508-KSW-970 CUSHION, RR. FUEL TANK....1 1 18 17520-KSW-G30ZA TANK SET, FUEL(WL)*TYPE3*....1 - -17520-KSW-G30ZB *TYPE2*....1 - -17520-KSW-G30ZC *TYPE1*....1 - -17520-KSW-G00ZA TANK SUB ASSY., FUEL(WL)*TYPE3*....- 1 - -17520-KSW-G00ZB *TYPE2*....- 1 - -17520-KSW-G00ZC *TYPE1*....- 1 - -17520-KSW-G10ZA *TYPE3*....- 1 - -17520-KSW-G10ZB *TYPE2*....- 1 - -17520-KSW-G10ZC *TYPE1*....- 19 17525-KE2-940 COLLAR, FUEL TANK MOUNTING...1 1 110 17611-K08-900 CUSHION, FR. FUEL TANK(PD)...2 2 211 17628-KSW-B01 CAP COMP., FUEL FILLER....1 1 112 17681-KSW-970 TUBE, FUEL....1 1 113 32173-KSW-G00 CLIP C, WIRE HARNESS....1 1 114 05002-02080 CLIP, TUBE(B8)....2 2 215 05701-08025-8B BOLT, FLANGE, 8X25....1 1 1

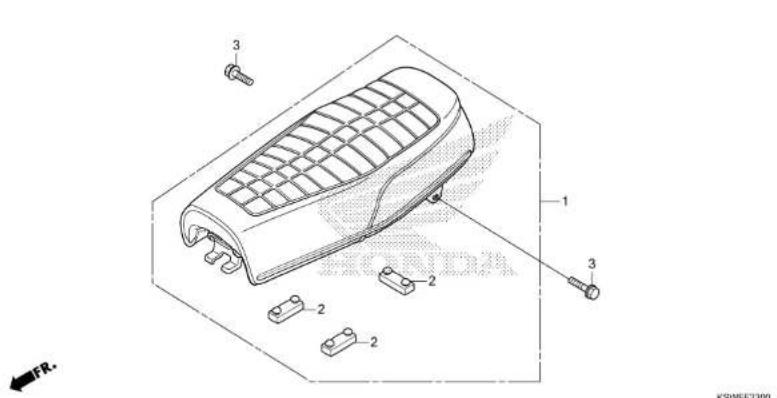

F-23 SEAT

Ref. No. Part No. Description Reqd. QTY CCG 125 125WI Serial No. Parts catalogue codeM F J

1 77200-KSW-G30 SEAT ASSY., DOUBLE········ 1 - -77200-KSW-G00 ··········································································································································································································

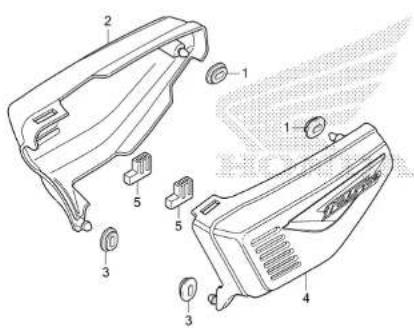

F-24SIDE COVER
KSWFF2400
Ref.No. Part No. DescriptionReqd. QTY125 125WJ Serial No. Parts catalogue codeM F J
1 17247-303-000 GROMMET A, AIR CLEANER CASE - 2 2 22 83520-KSW-G30ZA COVER SET, R. SIDE(WL) *TYPE3*....1 --83520-KSW-G30ZB *TYPE2*....1 --83520-KSW-G30ZC *TYPE1*....1 --83520-KSW-G00ZA COVER SUB ASSY., R. SIDE *TYPE3*-1 183520-KSW-G00ZB *TYPE2*-1 183520-KSW-G00ZC *TYPE1*-1 13 83551-300-000 GROMMET, AIR CLEANER CASE - 2 2 24 83620-KSW-G30ZA COVER SET, L. SIDE(WL) *TYPE3*....1 --83620-KSW-G30ZB *TYPE2*....1 --83620-KSW-G30ZC *TYPE1*....1 --83620-KSW-G00ZA COVER SUB ASSY., L. SIDE *TYPE3*-1 183620-KSW-G00ZB *TYPE2*....1 183620-KSW-G00ZC *TYPE1*-1 15 83622-KSW-970 GROMMET A, SIDE COVER - 2 2 2

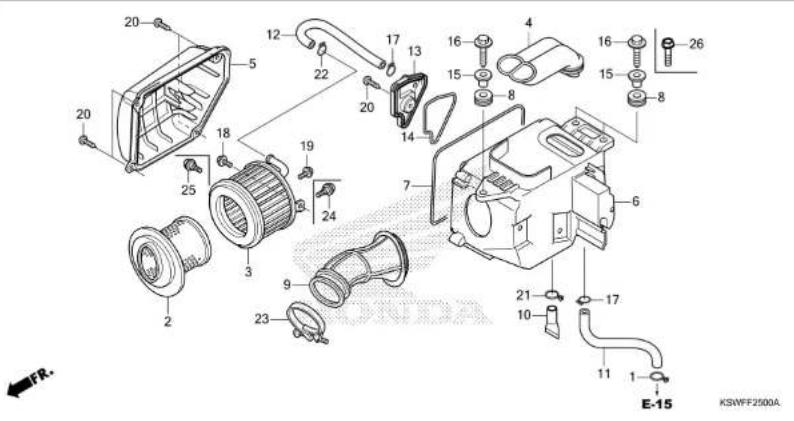

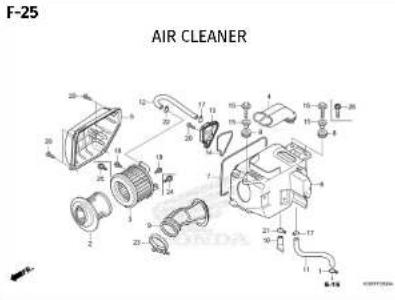

F-25 AIR CLEANER
Ref. No. Part No. Description Req'd. QTY CCG 125 125WJ Serial No. Parts catalogue code
1 15772-KCS-W00 CLIP, BREATHER TUBE········· 1 - 115772-KSW-G00 CLIP, TUBE········· - 1 -2 17213-KSW-830 HOLDER COMP., ELEMENT······· 1 1 13 17214-KSW-630 ELEMENT COMP., AIR CLEANER········· 1 - -17214-KSW-970 ···················· - 1 14 17218-KSW-E01 DUCT, AIR CLEANER INTAKE······· 1 1 15 17220-KSW-E01 COVER, AIR CLEANER········· 1 1 16 17221-KSW-E01 CASE, AIR CLEANER········· 1 1 17 17222-KSW-E01 SEAL, AIR CLEANER CASE······· 1 1 18 17245-107-010 RUBBER, AIR CLEANER CASEMOUNTING 3 3 39 17253-KSW-G01 TUBE, AIR CLEANER CONNECTING· 1 1 110 17261-KSW-E01 TUBE, VINYL, BX12X40········· 1 1 111 17265-KCS-W00 TUBE A, BREATHER········· 1 - 117265-KSW-970 TUBE, BREATHER A········· - 1 -12 17266-KCS-W00 TUBE B, BREATHER········· 1 1 113 17552-KSW-E01 COVER, TANK STORAGE········· 1 1 114 17554-KSW-E01 SEAL, TANK STORAGE········· 1 1 115 61184-357-000 COLLAR, FR, FENDER········· 3 3 316 90111-171-000 BOLT-WASHER, 6X25········· 1 3 317 90602-KJ9-670 CLIP, TUBE········· 2 2 218 93891-06012-08 SCREW-WASHER, 6X12········· - 1 119 93892-05008-08 SCREW-WASHER, 5X8········· - 1 120 93903-25380 SCREW, TAPPING, 5X16········· 5 5 521 95002-02120 CLIP, TUBE(B12)········· 1 1 1

F-25 AIR CLEANER
Ref. No. Part No. Description Reqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J
22 95082-80000 CLIP, TUBE(C12)............ 1 1 123 95018-46250 BAND, AIR CLEANER CONNECTING TUBE(46) 1 1 124 91589-GE2-768 SCREW, PAN, 5X11.5............ 1 - -25 91589-K52-900 SCREW, PAN, 6X11.5............ 1 - -26 95781-06025-88 BOLT, FLANGE, 6X25............ 2 - -

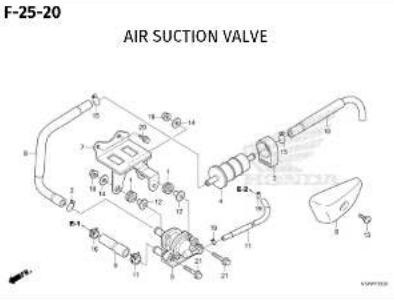

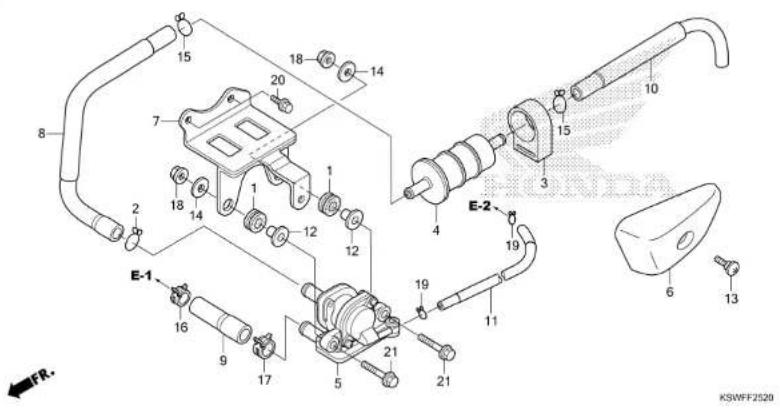

F-25-20 AIR SUCTION VALVE
Ref. No. Part No. Description	Reqd. QTY CCG 125 125WI Serial No. Parts catalogue code
1 11344-MB0-800 GROMMET A, RR. COVER(8X16X6.6) 2 2 22 15771-KV6-800 CLIP, OIL DRAIN TUBE········ 1 1 13 16905-MG7-800 CUSHION, FUEL STRAINER······ 1 1 14 17260-KPH-C00 FILTER COMP., AIR········ 1 1 15 18600-KSW-631 VALVE ASSY., AIR SUCTION······ 1 - -18600-KRF-B41········ - 1 16 18615-KEW-960 COVER, AIR SUCTION VALVE······ 1 1 17 18620-KSW-830 STAY COMP., AIR SUCTION VALVE 1 1 18 18652-KSW-G10 TUBE A, AIR SUCTION VALVE······ 1 - 118652-KSW-830········ - 1 -9 18653-KSH-930 TUBE B, AIR SUCTION VALVE······ 1 1 110 18654-KSW-830 TUBE C, AIR SUCTION VALVE······ 1 1 111 18655-KSW-G08 TUBE, AIR SUCTION VALVE(PB)·· 1 1 112 83119-GT4-008 COLLAR, METER········ 2 2 213 90381-KEW-960 SCREW, SPECIAL, 6X13········ 1 1 114 90458-ZAB-008 WASHER, PLAIN, 6X16······ 2 2 215 90682-KJ9-678 CLIP, TUBE········ 2 2 216 90678-MN5-008 CLIP, FUEL HOSE········ 1 1 117 91405-MF5-860 CLAMP, TUBE(D17)········ 1 1 118 94058-06000 NUT, FLANGE, 6AM········ 2 2 219 95002-02070 CLIP, TUBE(B7)········ 2 2 220 95781-06016-00 BOLT, FLANGE, 6X16········ 2 2 221 96001-06028-00 BOLT, FLANGE, 6X28········ 2 2 2

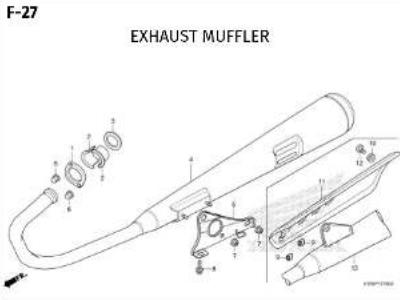

[F-27]

Ref.No. Part No. Description Reqd. QTY125 125WJ Serial No. Parts catalogue codeM F J

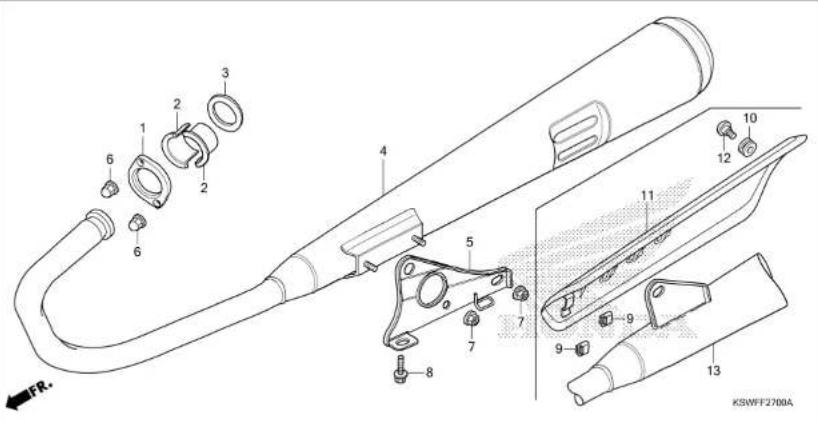

1 18231-365-670 JOINT, EX. PIPE.... 1 - 118231-402-730 ....... - 1 -2 18233-KTJ-D00 COLLAR, EX. PIPE JOINT.... 2 2 -18233-KC5-800 ....... - 23 18291-MN5-650 GASKET, EX. PIPE.... 1 1 14 18300-KSW-G00 MUFFLER COMP., EX.... - 1 -5 18353-KCS-W20 BRACKET, MUFFLER.... - 1 -6 98394-438-800 NUT, CAP, 6MM.... 2 2 27 94050-68080 NUT, FLANGE, 8MM.... - 2 -8 95701-68016-08 BOLT, FLANGE, 8X16.... - 1 -9 18293-MCA-A20 RUBBER, PROTECTOR PACKING.... 2 - 210 18345-MBT-610 RUBBER, PROTECTOR MOUNTING.... 1 - 111 18355-KSW-G30ZA COVER, MUFFLER*NH35M•.CLOUD SILVER METALLIC 1 - -18355-KSW-610 ....... - 112 90113-KTA-928 SCREW, PAN, 6X12.... 1 - 198113-KYJ-710 ....... - 113 18318-KSW-G30 MUFFLER COMP., EX.... - 118310-KSW-610 ....... - 1

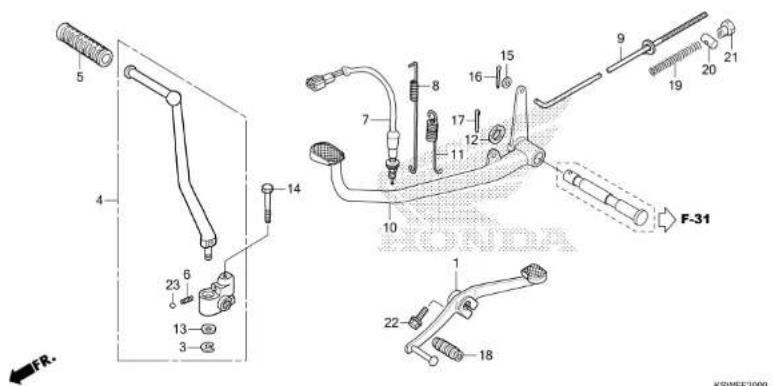

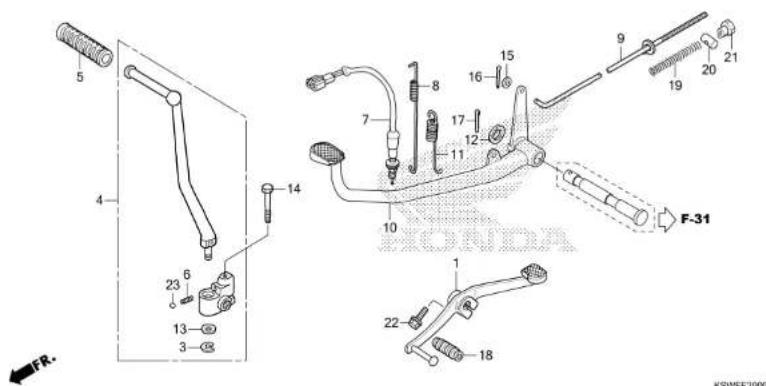

F-29 PEDAL/KICK STARTER ARM

Ref. No. Part No. Description Req'd. QTY CCG 125 125MM Serial No. Parts catalogue codeM F J

1 24701-KSW-G10 PEDAL, GEAR CHANGE.... 1 - 124701-KSW-G00 ....... - 1 -3 28293-333-800 CLIP, KICK STARTER ARM.... 1 1 14 28300-KSW-G10 ARM ASSY., KICK STARTER.... 1 - 128300-KSW-G00 ....... - 15 28311-KC5-800 RUBBER, KICK STARTER.... 1 1 16 28333-KSW-G10 SPRING, KICK STARTER.... 1 - 128333-124-800 SPRING, KICK STARTER STOPPER.. - 1 -7 35350-KSW-G31 SWITCH ASSY., RR. STOP.... 1 - -35350-KSW-G01 ....... - 1 -35350-KSW-G11 ....... - 18 35357-KSW-G00 SPRING, STOP SWITCH.... 1 1 19 43451-KSW-970 ROD COMP., RR. BRAKE.... 1 1 110 46598-KSW-G18 PEDAL COMP., BRAKE.... 1 - 146500-KSW-G00 ....... - 1 -11 46514-KC5-W68 SPRING, BRAKE PEDAL.... 1 1 112 90582-KC5-W28 WASHER, SPECIAL, 17.2X22.... 1 1 113 90585-116-670 WASHER, 13X28.... 1 1 114 92181-08840-0A BOLT, HEX., 8X40.... 1 1 115 94181-05800 WASHER, PLAIN, 5MM.... 1 1 116 94281-20150 PIN, SPLIT, 2.8X15.... 1 1 117 94281-30250 PIN, SPLIT, 3.0X25.... 1 1 118 95011-40800 RUBBER, CHANGE PEDAL.... 1 1 119 95014-73100 SPRING A, BRAKE ROD.... 1 1 120 95015-32801 JOINT B, BRAKE ARM.... 1 1 1

F-29 PEDAL/KICK STARTER ARM

Ref. No. Part No. Description Reqd. QTY 125 125WJ Serial No. Parts catalogue code

21 43459-GN5-768 NUT, BRAKE ROD ADJUSTING.... 1 - -95015-42080 NUT B, BRAKE ROD ADJUSTING... - 1 122 95781-06820-80 BOLT, FLANGE, 6X28...... 1 1 123 96211-08000 BALL, STEEL, #8(1/4)...... 1 1 1

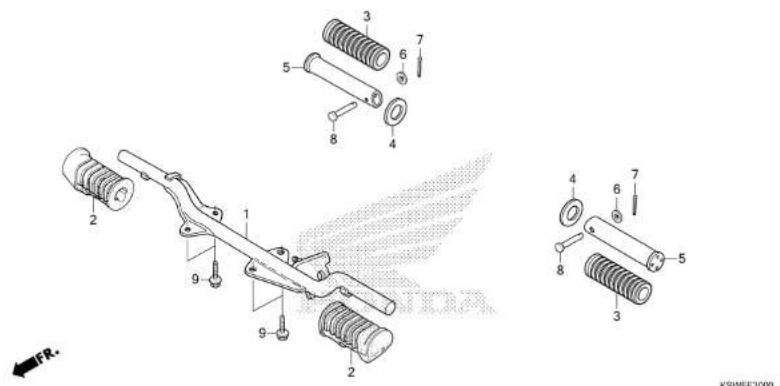

F-30 STEP

Ref. No. Part No. Description Reqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J

1 58610-KSW-G10 BAR COMP., STEP.... 1 - 158610-KSW-G00 ....... - 1 -2 58661-KSW-G10 RUBBER, STEP.... 2 - 258661-383-670 ....... - 2 -3 58710-405-000 RUBBER, PILLION STEP.... 2 2 24 58712-405-000 WASHER, PILLION STEP.... 2 2 25 58715-KSW-B00 BAR, PILLION STEP.... 2 2 26 94101-06000 WASHER, PLAIN, GMM.... 2 2 27 94201-16150 PIN, SPLIT, 1.6X15.... 2 2 28 95015-81000 PIN A, PILLION STEP.... 2 2 29 95701-08020-00 BOLT, FLANGE, BX20.... 4 - -95701-08020-08 ....... - 4 4

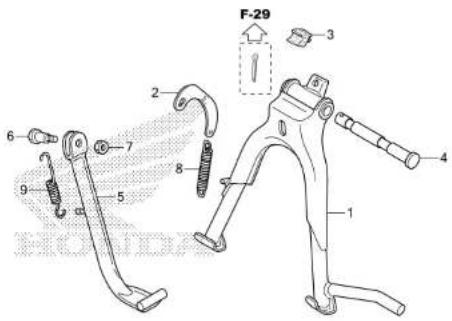

F-31 STAND

←FR.KSWFF3100

Ref.No. Part No. Description Reqd. QTYCCG125 125MM Serial No. Parts catalogue codeM F J

1 58500-KSW-G00 STAND COMP., MAIN········ 1 1 12 58523-KSW-G00 HOOK, MAIN STAND SPRING······ 1 1 13 58524-KTJ-D00 RUBBER, STAND STOPPER······ 1 1 14 58526-KCS-W20 SHAFT, MAIN STAND PIVOT······ 1 1 15 58530-KSW-G00 BAR COMP., SIDE STAND······ 1 1 16 98109-KSW-G00 SCREW, SIDE STAND PIVOT······ 1 1 17 94001-10080-0S NUT, HEX., 10MM········ 1 1 18 95014-71202 SPRING B, MAIN STAND······ 1 1 19 95014-72102 SPRING A, SIDE STAND······ 1 1 1

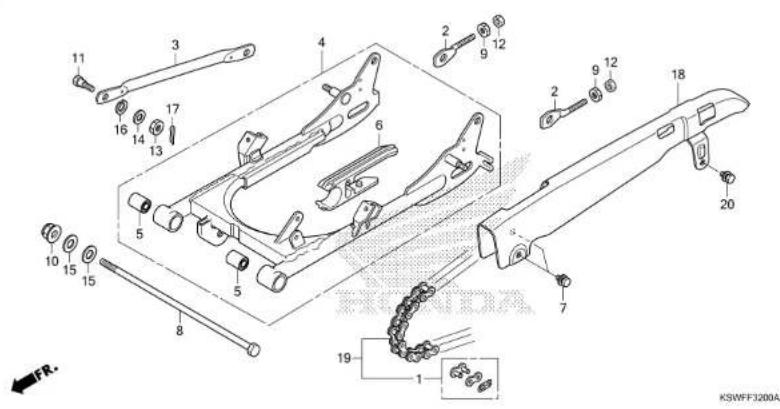

F-32 SWINGARM

Ref.No. Part No. Description Reqd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J

1 48531-KSW-G01 JOINT, DRIVE CHAIN(RK).... 1 1 148531-KWK-B01 JOINT, DRIVE CHAIN(KMC).... 1 1 12 48543-KSW-970 ADJUSTER, CHAIN.... 2 2 23 43431-397-000 ARM, RR. BRAKE STOPPER.... 1 - 143431-KCS-W60 ........ - 1 -4 52100-KSW-G10 SWINGARM ASSY., RR.... 1 - 152100-KSW-G00 ........ - 1 -5 52147-028-300 BUSH, SWINGARM PIVOT.... 2 2 26 52170-KSW-G00 SLIDER, DRIVE CHAIN.... 1 1 17 98119-KTT-900 BOLT, FLANGE, 6MM.... 2 - 298118-383-000 BOLT-WASHER, 6X6.... - 2 -8 98121-107-780 BOLT, RR. FORK PIVOT.... 1 1 19 98302-KRS-830 NUT, SPECIAL, 6MM.... 2 2 210 98306-KCS-690 NUT, SPECIAL FLANGE, 12MM.... 1 1 111 92812-10800 BOLT A, STOPPER ARM.... 1 1 112 94081-06800-8S NUT, HEX., 6MM.... 2 2 213 94081-08800-8S NUT, HEX., 8MM.... 1 1 114 94181-08800 WASHER, PLAIN, 8MM.... 1 1 115 94181-12800 WASHER, PLAIN, 12MM.... 2 2 216 94111-10800 WASHER, SPRING, 10MW.... 1 1 117 94281-20150 PIN, SPLIT, 2.8X15.... 1 1 118 40518-KSW-618 CASE, DRIVE CHAIN.... 1 - 148510-KSW-G00 ........ - 1 -19 40538-KSW-G01 CHAIN, DRIVE(KMC428HDF-104L). 1 1 148530-KSW-G02 CHAIN, DRIVE(RK-M428H-104RJ). 1 1 120 90119-KTT-900 BOLT, FLANGE, 6MM.... 1 - 195701-06008-00 BOLT, FLANGE, 6X8.... - 1 -

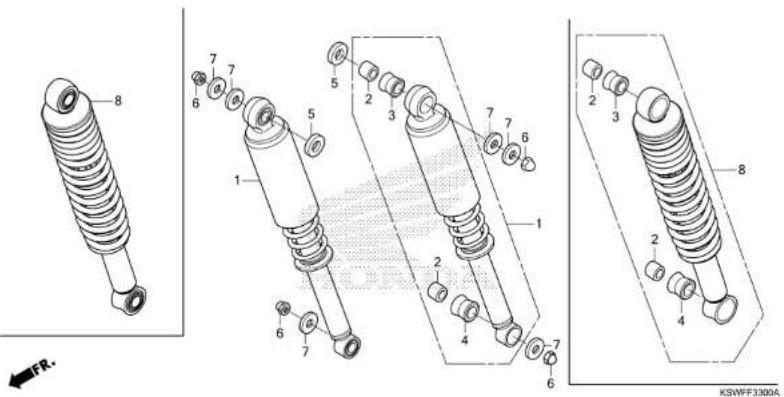

F-33 REAR CUSHION

Ref. No. Part No. Description Reqd. QTY 125 125MM CG Serial No. Parts catalogue code

1 52400-KSW-G01 CUSHION ASSY., RR...... - 2 22 52486-KSW-971 COLLAR, RUBBER BUSH UPPER.... 4 4 43 52488-KSW-971 BUSH, RUBBER UPPER.... 2 2 24 52489-KZV-T01 BUSH, RUBBER.... 2 2 25 98401-383-670 WASHER, PLAIN, 12MM.... 2 2 26 94021-10008-0S NUT, CAP, 10MM.... 4 - -94021-10028-0S ........ 4 47 94103-10000 WASHER, PLAIN, 10MM.... 6 6 68 52400-KSW-G31 CUSHION ASSY., RR.... 2 - -

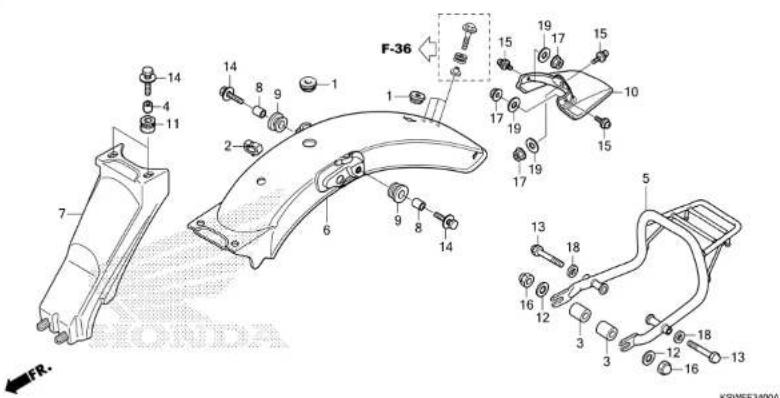

F-34 REAR FENDER

Ref. No. Part No. Description Req'd. QTY CCG 125 125MM Serial No. Parts catalogue codeM F J

1 32983-028-800 GROMWET, WIRE HARNESS.... - 2 22 32985-KY0-980 GROMWET, WIRE CORD.... 1 1 13 50135-KSW-600 COLLAR, RR. PIPE.... 2 2 24 50324-300-800 COLLAR, BATTERY BOX.... 2 2 25 50410-KSW-630 PIPE COMP., RR.... 1 - -50410-KSW-600.... - 1 1

6 80100-KSW-G30ZA FENDER COMP., RR.*NH35M*.CLOUD SILVER METALLIC 1 - -80100-KSW-600.... - 1 17 80101-KSW-970 FENDER B, RR.... 1 1 18 80108-028-800 COLLAR A, RR. FENDER.... 2 2 29 80110-107-780 CUSHION A, RR. FENDER.... 2 2 210 80121-KE2-940 MUDGUARD, RR. FENDER.... 1 1 1

11 84985-118-000 RUBBER, NUMBER PLATE BRACKET CUSHION 2 2 212 90521-427-778 WASHER, 10.3MM.... 2 2 213 92581-08875-8A BOLT, CAP, 8X75.... 292501-08075-0B.... - 2 214 93484-06825-80 BOLT WASHER, 6X25.... 4 4 415 93891-05814-80 SCREW WASHER, 5X14.... 3 3 316 94021-10800-0S NUT, CAP, 10MM.... 294021-10028-0S.... - 2 217 94058-05800 NUT, FLANGE, 5AM.... 3 3 318 94181-08000 WASHER, PLAIN, 8MM.... 2 2 219 94183-05800 WASHER, PLAIN, 5MM.... 3 3 3

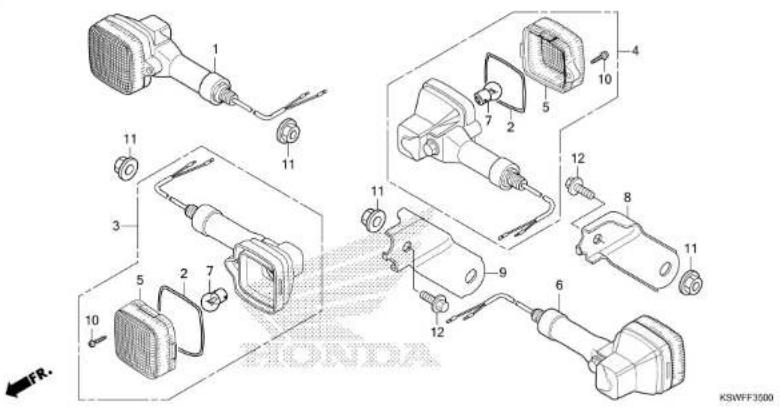

F-35 WINKER(CCG125WHF)
Ref.No. Part No. Description Reqd. QTY125 125WJ Serial No. Parts catalogue codeM F J
1 33400-KSW-G01 WINKER ASSY., R. FR.(12V 10W) - 1 -2 33407-KSW-B01 GASKET, LENS·········································································································································································································4 - 3 33450-KSW-G01 WINKER ASSY., L. FR.(12V 10W) - 1 -4 33600-KSW-G01 WINKER ASSY., R. RR.(12V 10W) - 1 -5 33602-KSW-B01 LENS, WINKER······································································································································································································ ·4 -6 33650-KSW-G01 WINKER ASSY., L. RR.(12V 10W) - 1 -7 34907-KSW-971 BULB, WINKER(12V 10W)······································································································································································································..4 -8 58186-KSW-G00 BRACKET COMP., R. RR. WINKER · - 1 -9 58187-KSW-G00 BRACKET COMP., L. RR. WINKER · - 1 -10 93901-14480 SCREW, TAPPING, 4X16······································································································································································································

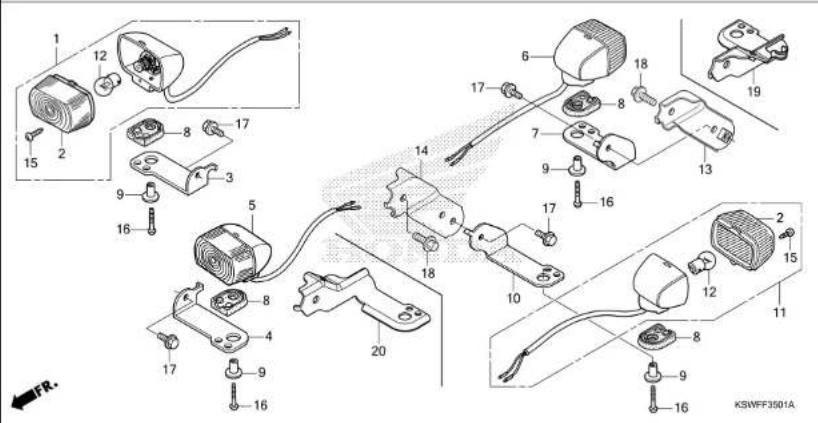

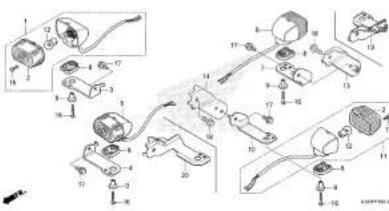

F-35-1
WINKER(CCG125M/CCG125WHJ)

Ref.No.	Part No. Description		Reqd. QTY			Serial No. Parts catalogue code
			125M	CCG125W	J
1	33400-KSW-G11	WINKER ASSY., R. FR.(12V 10W)	1	-	1
2	33402-KSW-G11	LENS, WINKER········ 4 - 4
3	33407-KSW-G10	BRACKET, R. FR. WINKER······	1	-	1
4	33408-KSW-G10	BRACKET, L. FR. WINKER······	1	-	1
5	33450-KSW-G11	WINKER ASSY., L. FR.(12V 10W)	1	-	1
6	33600-KSW-G31	WINKER ASSY., R. RR.(12V 10W)	1	-	-
	33600-KSW-G11	········ 1
7	33610-KSW-G10	BRACKET, R. RR. WINKER······	-	-	1
8	33611-KAE-000	RUBBER, WINKER······ 4 - 4
9	33612-KSW-G10	COLLAR, WINKER······ 4 - 4
10	33615-KSW-G10	BRACKET, L. RR. WINKER······	-	-	1
11	33658-KSW-G31	WINKER ASSY., L. FR.(12V 10W)	1	-	-
	33650-KSW-G11	WINKER ASSY., L. RR.(12V 10W)	-	-	1
12	34987-KSW-G11	BULB, WINKER LIGHT(12V 10W)	4	-	4
13	50186-KSW-G10	BRACKET COMP., R. RR. WINKER	-	-	1
14	50187-KSW-G10	BRACKET COMP., L. RR. WINKER	-	-	1
15	90184-KSW-G10	SCREW, TAPPING, 2.9X14······	4	-	4
16	90148-KAE-000	SCREW, PAN, 4X26········	4	-	4
17	95781-06812-07	BOLT, FLANGE, 6X12········	2	-	4
18	95781-08818-00	BOLT, FLANGE, 8X18········	2	-	2
19	50186-KSW-G30	BRACKET, R. RR. WINKER······	1	-	-
20	50187-KSW-G30	BRACKET, L. RR. WINKER······	1	-	-

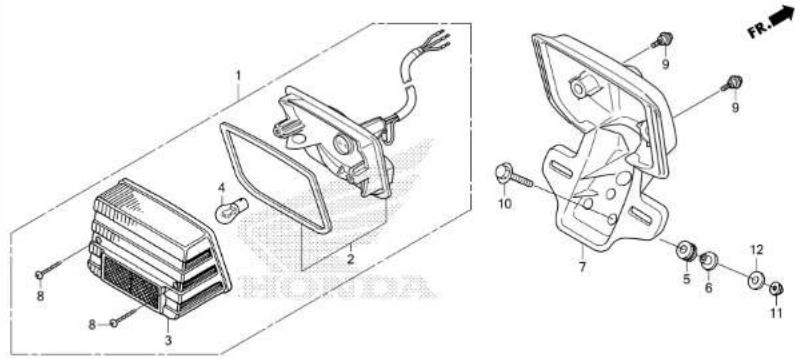

F-36 TAILLIGHT

KSNFFJ600A

Ref. No. Part No. DescriptionReqd. QTYCCG125 125WIM F J Serial No. Parts catalogue code

1 33701-KSW-G31 TAILLIGHT UNIT(P21/5W)...... 1 - -33701-KSW-G01 TAILLIGHT UNIT(12V 21/5W)...... - 1 12 33710-KSW-G31 BASE COMP., TAILLIGHT...... 1 - -33710-KSW-G01 ...... - 1 13 33720-KSW-G11 LENS COMP., TAILLIGHT...... 1 - -33720-KSW-G01 ...... - 1 14 34903-K09-C01 BULB, STOP & TAILLIGHT(P21/5W) 1 - -34906-447-711 BULB, TAIL & STOP LIGHT(12V 21/5W)(STANLEY) - 1 15 61103-357-000 RUBBER, FR. FENDER MOUNTING.. 3 3 36 61104-357-000 COLLAR, FR. FENDER...... 3 3 37 84701-KSW-G30 BRACKET, NUMBER PLATE...... 1 - -84701-KCS-V60 ...... - 1 18 98101-KSW-G11 SCREW, TAPPING, 4.2X25...... 2 - -98101-KSW-G01 SCREW, TAPPING, 4X30...... - 2 29 98117-KCS-650 SCREW, PAN, 5X13...... 2 2 210 90122-369-008 BOLT, FLANGE, 6X25...... 3 3 311 94058-06880 NUT, FLANGE, 6MM...... 3 3 312 94101-06000 WASHER, PLAIN, 6MM...... 3 - -

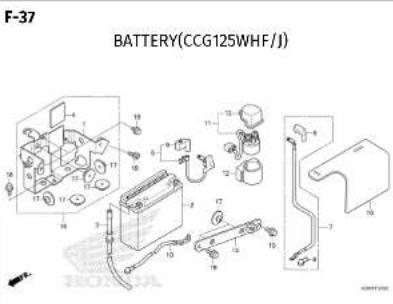

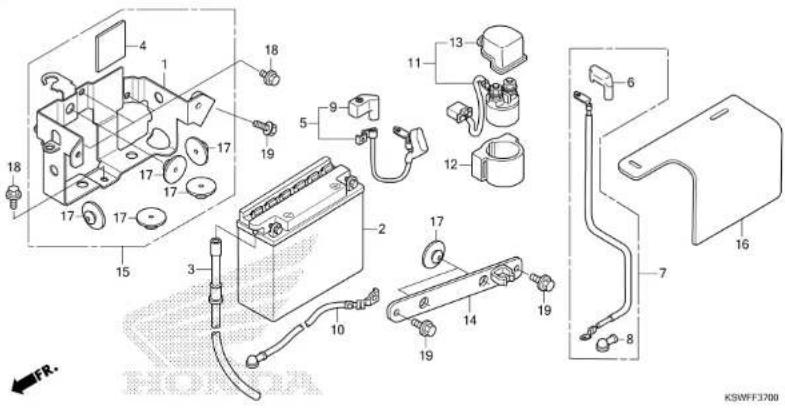

F-37 BATTERY(CCG125WHF/J)

Ref. No. Part No. Description Req'd. QTY CCG 125 125M1 Serial No. Parts catalogue code

1 17230-KSW-E01 STAY COMP., BATTERY········ - 1 12 31500-KYY-G31 BATTERY(12M7A-3A)(YUSAN) (ENGLISH) - 1 -31500-KSW-G11 BATTERY(YB7BL-A)········ - 13 31502-KSW-G00 TUBE, BATTERY BREATHER······ - 131502-KSW-G10········ - 14 31511-KCS-W60 RUBBER, BATTERY CUSHION······ - 1 15 32401-KSW-G00 CABLE, STARTER MAGNETIC BATTERY - 1 16 32406-KEH-660 COVER B, STARTER MAGNETIC TERMINAL - 1 17 32410-KSW-G00 CABLE, STARTING MOTOR······ - 1 18 32411-253-800 COVER, STARTER MOTOR TERMINAL - 1 19 32414-KSW-970 COVER, BATTERY TERMINAL······ - 1 110 32681-KSW-G08 CABLE, BATTERY EARTH······ - 1 111 35858-KSW-971 SWITCH ASSY., STARTER MAGNETIC - 1 112 35856-KWK-900 RUBBER A, SHOCK······ - 1 113 35857-KVX-601 RUBBER B, SHOCK······ - 1 114 50327-KCS-W60 BAND, BATTERY······ - 1 115 50388-KSW-G01 STAY ASSY., BATTERY······ - 1 116 50383-KCS-W60 GUARD, BATTERY······ - 1 117 83618-323-000 RUBBER, BATTERY BOX······ - 7 718 90187-KSW-970 BOLT, FLANGE, 6X9······ - 4 419 95781-06012-08 BOLT, FLANGE, 6X12······ - 3 3

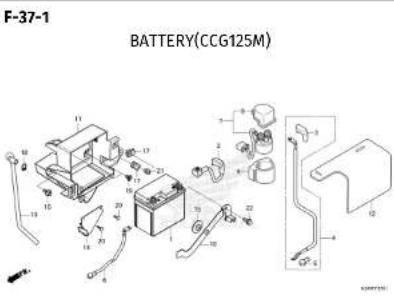

[F-37-1] BATTERY(CCG125M)
Ref. No. Part No. Description Req'd. QTY CCG 125 125WJ Serial No. Parts catalogue code
1 31500-KWN-902 BATTERY(YTZ6V)(YUASA)...... 1 - -2 32401-KSW-G30 CABLE, STARTER MAGNETIC BATTERY 1 - -3 32406-KEH-660 COVER B, STARTER MAGNETIC TERMINAL 1 - -4 32410-KSW-G00 CABLE, STARTING MOTOR...... 1 - -5 32411-253-800 COVER, STARTER MOTOR TERMINAL 1 - -6 32601-KSW-G30 CABLE, BATTERY EARTH...... 1 - -7 35850-KSW-G31 SWITCH ASSY., STARTER MAGNETIC 1 - -8 35856-KSW-G31 RUBBER, SHOCK...... 1 - -9 35857-KSW-G31 RUBBER B, SHOCK...... 1 - -10 50327-KSW-G30 BAND, BATTERY...... 1 - -11 50388-KSW-G30 BOX, BATTERY...... 1 - -12 50383-KCS-W60 GUARD, BATTERY...... 1 - -13 50388-KSW-G30 TUBE, BATTERY DRAIN...... 1 - -14 83502-KSW-G30 CAP, TOOL BOX...... 1 - -15 83618-323-000 RUBBER, BATTERY BOX...... 1 - -16 90111-162-000 BOLT, FLANGE, 6MM...... 1 - -17 90311-KSH-900 NUT, CLIP, 6MW...... 2 - -18 90654-GFM-970 CLIP, TUBE(B12.5)...... 1 - -19 91589-K52-900 SCREW, PAN, 6X11.5...... 2 - -20 93903-34420 SCREW, TAPPING, 4X16...... 2 - -21 95701-06012-08 BOLT, FLANGE, 6X12...... 1 - -22 95701-06016-08 BOLT, FLANGE, 6X16...... 1 - -

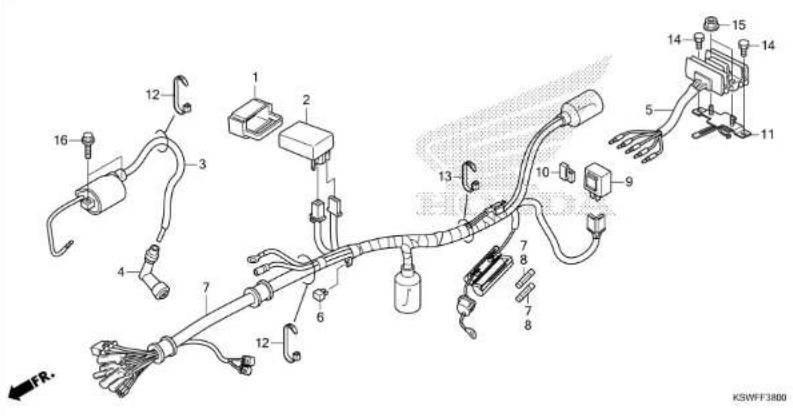

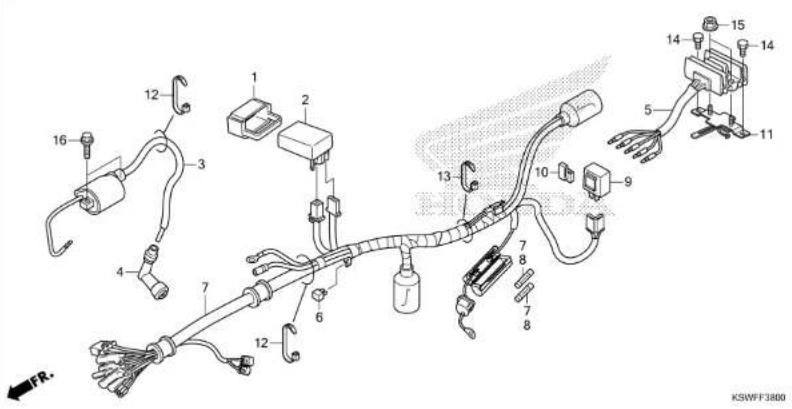

F-38 WIRE HARNESS
Ref. No. Part No. Description Req'd. QTY CCG 125 125WI Serial No. Parts catalogue codeW F J
1 38401-KSW-G31 CUSHION, C.D.I. UNIT········ 1 - -38401-KSW-G01 ··········································································································································································································1 - -38401-KSW-G11 ····································································································································································································1 1 138410-KSW-G31 C.D.I. UNIT······································································································································································································ ······································································································································································································ 1 1 138410-KSW-G01 ····························································································································································································1 - -38500-KSW-G11 COIL ASSY., IGNITION······································································································································································································..1 1 138500-KSW-G01 ··························································································································································································1 - -38700-KYY-901 CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAPASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASS Y, NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY., NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESSOR···CAP ASSY.,NOISE SUPPRESS ORCOPSOPPENSION,WINKER RELAY···1 - 138306-KWK-900 ····································································································································································································· · 1 1 138306-KTW-900 ····························································································································································································· · 1 1 - 150120-KSW-G00 ··································································································································································································1 2 2 212 90628-KRF-T00 BAND,WIRE,235MM ·····································································································································································································

F-38 WIRE HARNESS
Ref. No. Part No. Description Reqd. QTY CCG 125 125WJ Serial No. Parts catalogue code
15 94058-06880 NUT, FLANGE, 6AM········· 2 2 216 95781-06820-88 BOLT, FLANGE, 6X28········· 2 2 2

2020.10.10 E

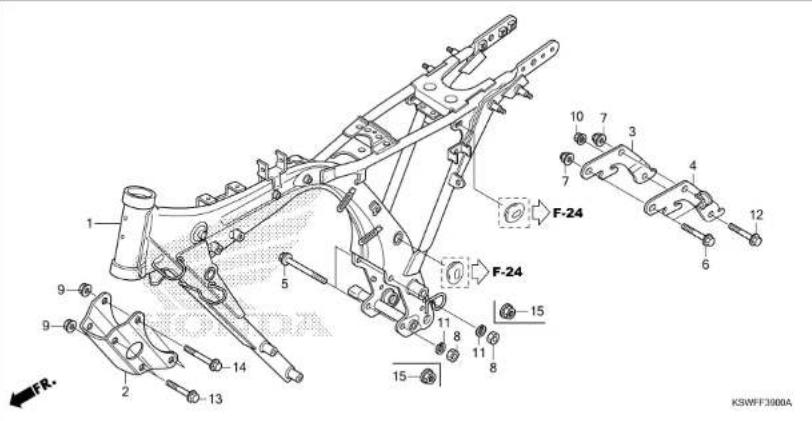

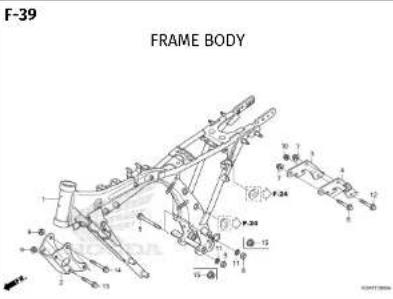

F-39 FRAME BODY

Ref. No. Part No. Description Req'd. QTY CCG 125 125MM Serial No. Parts catalogue codeM F J

1 58108-KSW-G10 BODY COMP., FRAME·········· 1 - 158108-KSW-G00·········· - 1 -2 58351-KCS-W20ZA PLATE, FR. ENGINE HANGER *NHI*.·········· BLACK 1 1 13 58353-KCS-W00 PLATE, R. ENGINE UPPER HANGER 1 1 14 58354-KCS-W60 PLATE, L. ENGINE UPPER HANGER 1 1 15 98019-399-810 BOLT, FLANGE, 10X110········ · 2 2 26 98127-KRF-B40 BOLT, SPECIAL FLANGE, 8X68··· 2 2 27 98310-KPN-J00 NUT, FLANGE CAP, 8MM········ · 2 2 28 94001-10200-0S NUT, HEX., 10MM········ · - 2 -9 94050-08000 NUT, FLANGE, 8MM········ · 4 4 410 94058-08800 NUT, FLANGE, 8MM········ · 1 - -94050-08000········ · - 1 111 94111-18800 WASHER, SPRING, 10MM········ - 2 -12 95881-08865-80 BOLT, FLANGE, 8X65········ · 1 1 113 95881-08870-80 BOLT, FLANGE, 8X78········ · 2 2 214 95881-08890-80 BOLT, FLANGE, 8X98········ · 2 2 215 94058-10800 NUT, FLANGE, 10MM········ · 2 - 2

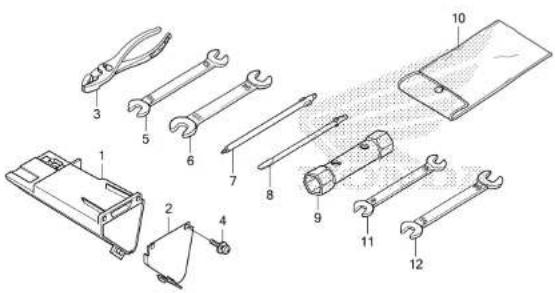

F-48 TOOLS
KSWFF4800A
Ref. No. Part No. Description Req'd. QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J
1 83501-KSW-E01 BOX, TOOL·········································································································································································································
6 99001-14170 SPANNER, 14X17······································································································································································································

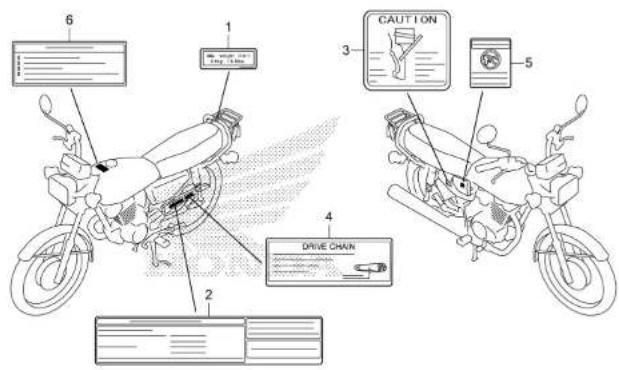

F-49CAUTION LABEL
KSWFF4000
Ref. No.Part No. DescriptionReqd.QTY CCG 125 125WJ Serial No. Parts catalogue codeM F J
1 81220-KRF-N10 LABEL, RR. CARRIER...... 1 1 12 87505-KSW-G30 LABEL, TIRE...... 1 - -87505-KSW-G00 ...... - 1 -87505-KSW-G10 ...... - - 13 87506-KSW-G00 MARK, BATTERY CAUTION...... - 1 14 87507-KSW-G30 LABEL, DRIVE CHAIN...... 1 - -87507-KEN-900 ...... - 1 15 87509-KWP-900 LABEL, AIR CLEANER ELEMENTNOTICE 1 1 16 87560-GB5-790 MARK, DRIVE CAUTION...... 1 1 1

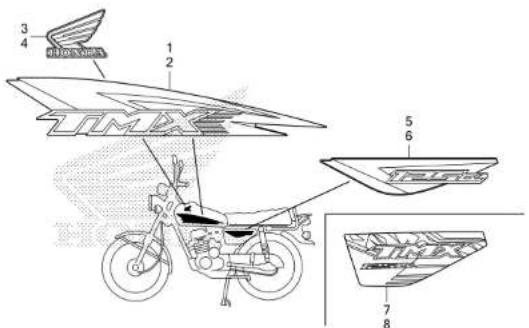

F-50MARK/STRIPE

KSNFFS1000A

Ref.No. Part No. DescriptionReqd. QTYCCG125 125WJ Serial No. Parts catalogue codeM F J

1 86171-KSW-G00ZA STRIPE, R. FUEL TANK+TYPE3*....- 1 186171-KSW-G00ZB +TYPE2*....- 1 186171-KSW-G00ZC +TYPE1*....- 1 12 86172-KSW-G00ZA STRIPE, L. FUEL TANK+TYPE3*....- 1 186172-KSW-G00ZB +TYPE2*....- 1 186172-KSW-G00ZC +TYPE1*....- 1 13 86201-KSW-G30ZA MARK, R. WING(118MM)+TYPE3*....- 1 - -86201-KSW-G30ZB +TYPE2*....- 1 - -86201-KSW-G30ZC +TYPE1*....- 1 - -86201-KSW-G00ZA MARK, R. WING(85AM)+TYPE3*....- 1 186201-KSW-G00ZB +TYPE2*....- 1 186201-KSW-G00ZC +TYPE1*....- 1 14 86202-KSW-G30ZA MARK, L. WING(118MM)+TYPE3*....- 1 - -86202-KSW-G30ZB +TYPE2*....- 1 - -86202-KSW-G30ZC +TYPE1*....- 1 - -86202-KSW-G00ZA MARK, L. WING(85AM)+TYPE3*....- 1 186202-KSW-G00ZB +TYPE2*....- 1 186202-KSW-G00ZC +TYPE1*....- 1 15 86831-KSW-G00ZA STRIPE, R. SIDE COVER+TYPE3*....- 1 186831-KSW-G00ZB +TYPE2*....- 1 186831-KSW-G00ZC +TYPE1*....- 1 1

6 86832-KSW-G00ZA STRIPE, L. SIDE COVER+TYPE3*....- 1 186832-KSW-G00ZB +TYPE2*....- 1 186832-KSW-G00ZC +TYPE1*....- 1 17 86831-KSW-G30ZA STRIPE, R. SIDE COVER+TYPE3*....- 1 - -86831-KSW-G30ZB +TYPE2*....- 1 - -86831-KSW-G30ZC +TYPE1*....- 1 - -8 86832-KSW-G30ZA STRIPE, L. SIDE COVER+TYPE3*....- 1 - -86832-KSW-G30ZB +TYPE2*....- 1 - -86832-KSW-G30ZC +TYPE1*....- 1 - -

PART NO. INDEX
Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number
06000			13051-KPN-901	40	2	16014-KRF-B41	45	4	17520-KSW-G10ZB	64	8	23000		28311-KC5-000	71	5
			13101-KRF-C30	40	3	16016-KRF-B41	45	5	17520-KSW-G10ZC	64	8			28333-124-000	71	6
06430-KRF-B80	59	16	13102-KCS-W01	40	3	16016-KTA-921	45	5	17520-KSW-G30ZA	64	8	23121-KVC-900	37	11	28333-KSN-G10	71	6
06430-KSN-G30	59	16	13103-KCS-W01	40	3	16022-KNW-901	45	6	17520-KSW-G30ZB	64	8	23211-KVC-900	41	1
06430-KSY-900	61	1	13104-KCS-W01	40	3	16025-KRF-B41	45	7	17520-KSW-G30ZC	64	8	23221-KSW-G00	41	2	30000
06431-KSN-G30	61	1	13105-KCS-W01	40	3	16028-KEB-G01	45	8	17525-KE2-940	64	9	23426-KSH-900	41	3
06530-KRF-H70	55	1	13111-KSW-G00	40	4	16045-399-814	45	9	17552-KSW-E01	67	13	23427-KVC-900	41	4	30401-KSN-G01	83	1
						16048-KRF-B41	45	10	17554-KSW-E01	67	14	23431-KVC-900	41	5	30401-KSN-G11	83	1
11000			14000			16075-GHB-B70	45	11	17611-K08-900	64	10	23441-KSW-G00	41	6	30401-KSN-G31	83	1
						16100-KSW-G01	45	12	17620-KSW-B01	64	11	23451-KSW-G00	41	7	30410-KSN-G01	83	2
11100-KSW-G00	38	1	14100-KSW-G00	28	3	16100-KSW-G11	46	26	17622-GB7-900	34	7	23461-KSH-900	41	8	30410-KSN-G11	83	2
11105-KRF-B40	26	1	14421-KSW-G00	28	4	16100-KSW-G12	46	26	17681-KSW-970	64	12	23471-KSH-900	41	9	30410-KSN-G31	83	2
11191-KSW-G00	38	2	14422-KSW-G00	28	5	16119-KRF-B41	45	13	17910-KSW-G01	52	1	23481-KSW-900	41	10	30500-KSN-G01	83	3
11191-KSW-G30	38	2	14423-KSW-G00	28	6	16148-KB1-921	45	14	17910-KSW-G11	52	1	23491-KSH-900	41	11	30500-KSN-G11	83	3
11200-KSW-G00	38	3	14425-KSW-G00	28	7	16155-KJ9-751	45	15	17910-KSW-G31	52	1	23501-KSH-900	41	12	30700-KYY-901	83	4
11330-KSW-G00	31	1	14426-KSW-G00	28	8	16163-GHB-600	46	27				23511-KSH-900	41	13
11330-KSW-G30	31	1	14431-397-310	28	9	16165-KCS-W01	45	16	18000			23528-KSW-G00	41	14	31000
11340-KSW-G00	34	1	14448-KRH-900	28	10	16173-KEJ-900	64	1				23531-KSW-G00	41	15
11340-KSW-G30	34	1	14443-397-310	28	11	16180-KYY-901	46	28	18231-365-670	78	1	23801-KSW-G00	41	16	31110-KSN-G01	35	3
11344-M80-800	69	1	14451-KY0-890	28	12	16195-KSW-G11	46	29	18231-402-730	78	1	23811-KR3-600	41	17	31120-KSN-G01	35	4
11355-KSW-G00	34	2	14511-KSW-G00	38	5	16196-KSW-G11	46	30	18233-KC5-000	78	2				31200-KSN-G01	36	1
11360-KSW-G10	34	22	14521-KSW-G00	38	6	16197-KSW-G11	46	31	18233-KTJ-D00	78	2	24000			31200-KSN-G11	36	1
11360-KSW-G30	34	22	14531-KSW-G00	38	7	16197-KSW-G12	46	31	18291-MN5-650	78	3				31201-KSN-G01	36	2
11361-KRF-B40	34	3	14711-KSW-G00	28	13	16199-KCP-301	45	17	18293-MCA-A20	78	9	24211-KVC-900	43	1	31205-KSN-G01	36	3
11363-437-620	34	4	14721-KSW-G00	28	14	16199-KYB-680	45	18	18300-KSW-G00	78	4	24221-KSW-G00	43	2	31207-KSN-G01	36	4
11370-KRF-C30	34	5	14751-324-000	28	15	16210-KSW-G00	27	4	18310-KSW-G10	78	13	24231-KVC-900	43	3	31500-KSN-G11	81	2
11393-KSW-G00	31	2	14761-KSW-G00	28	16	16905-MG7-800	69	3	18310-KSW-G30	78	13	24241-KSW-G00	43	4	31500-KNN-902	82	1
11393-KSW-G30	31	2	14771-KGA-B01	28	17	16950-KNW-900	64	2	18345-MBT-610	78	10	24301-KSW-G00	43	5	31500-KYY-G31	81	2
11395-KSW-G00	34	6	14771-KSW-G10	28	17	16950-KNW-901	64	2	18353-KCS-W20	78	5	24411-KSW-G00	43	6	31502-KSN-G00	81	3
11395-KSW-G30	34	6	14775-KSW-G00	28	18	16952-KCS-W20	64	3	18355-KSW-G10	78	11	24438-KSW-G00	43	7	31502-KSN-G10	81	3
			14776-KSW-G00	28	19	16952-KNW-900	64	3	18355-KSW-G30ZA	78	11	24435-KSW-G00	43	8	31511-KCS-N60	81	4
12000			14781-KSW-G00	28	20	16953-KEJ-900	64	4	18600-KRF-B41	69	5	24610-KSW-G00	43	9	31600-KSW-G01	83	5
						16953-KNW-900	64	4	18600-KSW-G31	69	5	24610-KSW-G30	43	9	31600-KSW-G11	83	5
12100-KSW-G00	38	1	15000			16958-KEJ-900	64	5	18615-KEW-900	69	6	24621-KSW-G00	43	10	31600-KSW-G31	83	5
12191-KSW-G00	38	2				16959-KEJ-900	64	6	18620-KSW-830	69	7	24631-KVC-900	43	11	31700-KVX-781	83	6
12191-KSW-G30	38	2	15108-KSW-G00	37	1				18652-KSW-830	69	8	24651-KSW-G00	43	12	31918-HM5-630	27	5
12200-KSW-G00	27	1	15126-KVC-900	37	2				18652-KSW-G10	69	8	24701-KSW-G00	71	1	31919-HM5-630	27	5
12204-KSW-385	27	2	15131-KVC-900	37	3				18653-KSH-930	69	9	24701-KSW-G10	71	1
12208-413-883	28	1	15331-KVC-900	37	4				18654-KSW-830	69	10				32000
12208-KCS-920	28	1	15332-KVC-900	37	5				18655-KSW-G00	69	11
12210-KY0-890	28	2	15421-KVC-900	38	8
12251-KY0-891	27	3	15426-KVC-900	38	9
12311-KRF-C30	26	2	15438-KVC-900	37	6
12315-KRF-C30	26	3	15436-KRM-840	37	7
12361-KSW-G00	38	4	15441-KCS-650	37	8
12391-KSW-G00	26	4	15446-107-000	37	9
			15459-KSW-G30	37	10
			15459-KWK-900	37	10
			15459-KWK-900	37	10
			15459-KWK-900	37	10
			15459-KWK+900	37	10
			15459-KWK+900	37	10
			15459-KWK+900	37	10
			15459-439-921	45	3
PART NO. INDEX
Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number
32985-KY0-980	77	2	34983-K03-C21	47	12	38800			72	21	50324-308-000	77	4	52488-KSW-971	76
			34983-K09-C01	80	4						50327-KCS-W60	81	14	52489-KZV-T01	76
33000			34986-447-711	80	4	38110-KSN-G01	55	2	44000		50327-KSW-G30	82	10
			34987-KSW-971	78	7	38110-KSW-G11	55	2			50351-KCS-W20ZA	85	2	53000
33100-KSN-G01	47	1	34987-KSW-G11	79	12	38301-KPN-A31	83	9	44301-KSW-B00	68	1	50353-KCS-W00	85	3
33100-KSN-G11	47	1	34988-GFM-961	49	1	38301-KVX-681	83	9	44301-KSW-G30	68	1	50354-KCS-W60	85	4	53100-KSN-G00
33100-KSN-G31	47	1	34988-KYA-661	49	2	38306-KTJ-D00	83	10	44311-229-000	68	2	50380-KSW-G01	81	15	53105-KWK-900
33101-KSN-G01	47	2	34989-GFM-961	49	2	38306-KNK-900	83	10	44620-KSW-970	68	3	50380-KSW-G30	82	11	53131-KCS-W60
33101-KSN-G11	47	2	34910-GFM-961	49	1				44650-KSW-G00ZA	68	4	50383-KCS-W60	81	16	53131-KSN-G10
33101-KSN-G12	47	2				40000			44653-KSW-G00ZA	68	5		82	12	53140-KTT-900
33102-KSN-G01	47	3	35000						44701-KEW-920	68	6	50388-KSW-G30	82	13	53166-KTT-900
33102-KSN-G12	47	3				40510-KSW-G00	75	18	44711-KSW-G01	68	7	50410-KSW-G00	77	5	53171-402-700
33107-KSW-G01	47	4	35010-KSW-G00	54	1	40510-KSW-G10	75	18	44711-KSW-G11	68	7	50410-KSW-G30	77	5	53171-KSW-G00
33107-KSW-G12	47	4	35010-KSW-G10	54	1	40530-KSW-G01	75	19	44711-KSW-G30	68	7	50500-KSW-G00	74	1	53172-402-700
33117-KSW-G01	47	5	35100-KSW-G01	54	2	40530-KSW-G02	75	19	44712-K08-901	68	8	50523-KSW-G00	74	2	53172-KWK-900
33117-KSW-G12	47	5	35100-KSW-G11	54	2	40531-KSW-G01	75	1	44712-KSW-G01	68	8	50524-KTJ-D00	74	3	53175-KWK-900
33119-KSW-G01	47	6	35121-KSW-G00	54	3	40531-KNW-G01	75	1	44712-KSW-G30	68	8	50526-KCS-W20	74	4	53178-KWK-900
33119-KSW-G12	47	6	35122-KSW-G00	54	3	40543-KSW-970	75	2	44713-KWK-B21	68	9	50530-KSW-G00	74	5	53192-KTJ-900
33120-KSW-G01	47	7	35150-KSW-G11	52	4				44806-KSW-G01	59	1	50610-KSW-G00	73	1	53193-KTJ-900
33120-KSW-G12	47	7	35151-KSW-G31	53	27	41000			44808-KSW-G00	59	2	50610-KSW-G10	73	1	53211-KCS-W60
33128-KSW-G01	47	8	35152-KSW-G01	52	4				44830-KSW-G01	49	13	50661-383-670	73	2	53212-KCS-W60
33128-KSW-G12	47	8	35152-KVC-670	53	28	41200-KSW-G00	62	1	44830-KSW-G11	49	13	50661-KSW-G10	73	2	53214-001-010
33130-KSW-G01	47	9	35200-KSW-G11	52	5	41241-KSW-G01	62	2	44830-KSW-G31	49	13	50710-485-000	73	3	53214-GJG-C20
33130-KSW-G11	48	20	35201-KSW-G01	52	5						50712-485-000	73	4	53215-001-000	55
33130-KSW-G31	48	20	35330-KWK-901	52	6	42000			45000		50715-KSW-B00	73	5	53219-KSW-970	55
33136-KSN-G01	47	10	35340-KWK-901	52	7									53220-074-000	55
33136-KSN-G12	47	10	35350-KSW-G01	71	7	42301-KCS-650	62	3	45010-KSW-G00ZA	59	3		51000		53230-KCS-W60
33150-KSN-G01	47	11	35350-KSW-G11	71	7	42312-KEJ-900	62	4	45134-250-000	59	4				53230-KSN-G10
33301-KZG-981	47	12	35350-KSW-G31	71	7	42313-874-810	61	2		61	8	51400-KSW-G01	57	1	53600-KFJ-911
33400-KSW-G11	78	1	35357-KSW-G00	71	8	42620-KSW-970	62	5	45141-KVX-600	59	5	51401-KSW-G01	57	2
33400-KSW-G11	79	1	35759-KSW-G01	38	13	42635-KSW-G00ZA	62	6	45145-KRF-B40	59	6	51410-KSW-G01	57	3
33402-KSW-G11	79	2	35759-KSW-G11	38	13	42650-KSW-G00ZA	62	7	45151-GCC-000	61	9	51412-KSW-971	57	4
33407-KSW-B81	78	2	35858-KSW-971	81	11	42650-KSW-G30ZA	62	7	45410-KVX-600	59	7	51413-KSW-971	57	5
33407-KSW-G10	79	3	35858-KSW-G31	82	7	42701-KSW-G00	62	8	45435-121-010	59	8	51414-KSW-971	57	6
33408-KSW-G10	79	4	35856-KSW-G31	82	8	42701-KSW-G30	62	8	45450-KSW-970	52	8	51420-KB8-901	57	7
33450-KSW-G11	79	5	35856-KWK-900	81	12	42711-KSW-G01	62	9	45450-KSW-G11	52	8	51432-KZL-842	57	8
33450-KSW-G11	79	5	35857-KSW-G31	82	9	42711-KSW-G11	62	9	45450-KSW-G31	52	8	51437-KSW-971	57	9
33600-KSW-G01	78	4	35857-KVX-601	81	13	42711-KSW-G30	62	9	45465-KCS-W20	55	3	51440-KSW-G01	57	10
33600-KSW-G11	79	6				42712-KSW-G01	62	10				51490-KSW-971	57	11
33600-KSW-G31	79	6	37000			42712-KSW-G11	62	10				51500-KSW-G01	57	12
33602-KSW-B81	78	5				42712-KSW-G30	62	10				51528-KB8-901	57	13
33610-KSW-G10	79	7	37100-KSW-G01	49	3	42713-KSW-G30	60	9	46500-KSW-G00	71	10	51602-KSW-G00	57	14
33611-KAE-800	79	8	37100-KSW-G11	50	23			62	46500-KSW-G10	71	10	51602-KSW-G10	57	14
33612-KSW-G10	79	9	37200-KSW-G01	49	4
33615-KSW-G10	79	10	37212-KSW-G00	49	5
33650-KSW-G01	78	6	37212-KSW-G10	49	5
33650-KSW-G11	79	11	37214-KPN-J01	50	24
33650-KSW-G31	79	11	37214-KSW-G00	49	6
33701-KSN-G01	80	1	37214-KSW-G10	49	6
33701-KSN-G31	80	1	37215-KVJ-911	49	7
33710-KSN-G01	80	2	37617-KSW-970	49	8
33710-KSN-G31	80	2	37618-KSW-G01	49	9
33720-KSW-G01	80	3	37619-KSW-G01	49	10
33720-KSW-G11	80	3	37619-KSW-G11	49	10

PART NO. INDEX
Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number
81000			86831-KSW-G30ZB	89 7		90101-KSW-G11	80 8		98451-KVC-900	41 18		91202-KSW-G11	38 22		93892-04010-18 45 19
			86831-KSW-G30ZC	89 7		90102-KSW-G01	48 19		98452-KVC-900	41 19		91203-KSW-G01	39 23		93892-04010-18 45 20
81220-KRF-N10 87 1			86832-KSW-G00ZA	89 6		90102-KSW-G12	48 19		98453-KVC-900	41 20		91203-KSW-G11	39 23		93892-04010-88 45 21
			86832-KSW-G00ZB	89 6		90103-KSW-G00	48 17		98454-KVC-900	41 21		91204-KSW-G01	31 9		93892-04010-18 45 21
83000			86832-KSW-G00ZC	89 6		90104-KSW-G10	79 15		98455-KVC-900	41 22		91204-KSW-G11	31 9		93892-05008-88 67 19
			86832-KSW-G30ZA	89 8		90107-KSW-830	54 8		98457-KVC-900	41 23		91205-KSW-G01	39 24		93901-14480 78 10
83119-GT4-000 69 12			86832-KSW-G30ZB	89 8		90107-KSW-970	81 18		98458-KSW-G00	44 9		91205-KSW-G11	39 24		93901-24320 58 17
83501-KSW-F81 86 1			86832-KSW-G30ZC	89 8		90108-KWK-900	54 9		98458-KVC-900	43 15		91206-KSW-G01	39 25		93901-24720 58 18
83502-KSW-E81 86 2						90109-KSW-G00	74 6		98459-KSW-G00	44 18		91206-KSW-G11	39 25		93903-24320 58 19
83502-KSW-G30 B2 14			87000			90111-162-800	82 16		98461-KVC-900	32 11		91251-GK4-003	59 10		93903-25380 67 20
83520-KSW-G80ZA 66 2						90111-171-800	67 16		98462-KSW-G00	44 11		91251-GK4-005	59 10		93903-34420 82 20
83520-KSW-G80ZB 66 2			87505-KSW-G00	87 2		90112-KCS-650	57 18		98463-KSW-G00	44 12		91256-KSW-971	58 23
83520-KSW-G80ZC 66 2			87505-KSW-G10	87 2		90113-422-800	53 19		98474-KSW-G00	33 5		91257-238-003	62 15		94000
83520-KSW-G30ZA 66 2			87505-KSW-G30	87 2		90113-KTA-920	70 12		98502-198-900	27 12		91257-238-005	63 15
83520-KSW-G30ZB 66 2			87506-KSW-G00	87 3		90113-KYJ-710	70 12		98502-KCS-W20	71 12		91301-KTJ-C10	27 13		94001-06000-85 75 12
83520-KSW-G30ZC 66 2			87507-KEW-900	87 4		90116-KRF-H71	58 19		98502-KEZ-900	34 11		91304-KGA-940	34 14		94001-08000-85 61 14
83542-KPN-900 55 14			87507-KSW-G30	87 4		90117-383-800	54 10		98503-011-000	54 13		91304-KK3-830	37 17		75 13
83551-300-000 66 3			87509-KWP-900	87 5		90117-KCS-650	80 9		98505-116-670	71 13		91304-KVC-900	27 14		94001-10000-85 51 3
83618-323-000 81 17			87560-GB5-790	87 6		90118-383-800	75 7		98505-KEJ-900	61 12		91305-KFN-900	26 7		94001-10000-85 74 7
		82 15				90119-383-800	48 18		98521-427-770	77 12		91305-KSW-G00	39 26		94001-10200-85 85 8
83620-KSW-G80ZA 66 4			88000			90119-KTT-900	75 7		98544-KRF-H71	58 21		91307-835-000	31 10		94021-06000-85 50 20
83620-KSW-G80ZB 66 4								28		98545-323-700	58 16		91308-KVR-C00	34 15	94021-10000-85 76 6
83620-KSW-G80ZC 66 4			88113-GN5-900	51 1		90121-187-780	75 8		98602-KJ9-670	67 17		91309-KSW-G01	36 6		77 16
83620-KSW-G30ZA 66 4			88113-KYA-B10	51 1		90122-369-800	80 10			69 15		91312-KMW-C00	34 16		94021-10020-85 76 6
83620-KSW-G30ZB 66 4			88218-KSW-G00	51 2		90123-KSN-971	58 20		98602-KPT-900	44 13		91318-KSW-G00	29 27		77 16
83620-KSW-G30ZC 66 4			88218-KVM-710	51 4		90127-KRF-B40	85 6		98605-KVC-900	41 24		91333-S67-610	29 28		94050-05080 77 17
83622-KSW-970 66 5			88220-KVM-710	51 5		90128-KE2-940	62 12			44 14		91335-KSW-G00	39 27		94050-06000 27 15
		84000				90140-KAE-800	79 16		98606-KVC-900	43 16		91405-MF5-860	69 17		36 7
						90164-828-800	55 15		98607-KVC-900	43 17		91509-GE2-760	68 24		59 12
						90202-KTJ-900	53 20		98620-KRF-T00	83 12		91509-KS2-900	68 25		69 18
84701-KCS-V60 88 7			89213-KWK-900	86 3		90206-258-800	28 23		98651-KRF-T00	83 13			82 19	94050-06020 55 16
84701-KSW-G30 88 7						90206-KSW-G00	27 9		98654-GFM-970	82 18				94050-06080 88 11
84905-118-000 77 11			90000			90231-KSW-G00	32 9		98657-KSW-971	58 22		92000			84 15
		86000						37 15		98664-216-000	62 14			94050-08000 85 9
			90002-KYE-890	28 21		90302-KRS-830	75 9		98678-MM5-000	69 16		92101-05820-6A	37 18		18
			90012-KK3-830	28 22		90302-KYA-601	61 10		98762-KRM-840	31 6		92101-06810-6A	42 28		94050-08080 78 7
86150-KTJ-C60 49 14			90018-ZA5-000	48 17		90304-159-800	54 11		98763-KRH-900	31 7		92101-06812-6A	26 8		85 10
86171-KSW-G80ZA 88 1			90019-399-010	85 5		90304-438-800	70 6		98763-KVC-900	26 6			83 14		94050-10000 78 11
86171-KSW-G80ZB 88 1			90022-KSW-G00	43 13		90305-KCS-920	61 11			29 26		92101-08840-6A	71 14		85 15
86171-KSW-G80ZC 88 1			90023-KSW-G00	35 5		90306-KCS-690	59 9			34 12		92381-06855-6A	39 28		94101-05000 71 15
86172-KSW-G80ZA 88 2			90027-KSW-G00	27 6			75 10			38 19		92501-08875-6A	77 13		94101-06000 73 6
86172-KSW-G80ZB 88 2			90031-KSW-G00	38 14		90308-KSW-970	62 13		98764-KPS-900	38 3		92501-08875-6B	77 13		80 12
86172-KSW-G80ZC 88 2			90032-KSW-G00	38 15		90310-KPN-300	85 7		98741-KSW-G00	48 5		92811-10800 61 13			94101-08000 75 14
86201-KSW-G80ZA 88 3			90034-KSW-G00	38 16		90311-KSH-900	82 17		98755-229-003	68 18		92812-10800 75 11			77 18
86201-KSW-G80ZB 88 3			90035-GFM-901	49 15		90321-KTJ-900	53 21		98755-229-005	68 18				94101-12000 75 15
86201-KSW-G80ZC 88 3			90035-KSW-G00	27 7		90381-KEN-960	69 13					93000			94103-05800 77 19
86201-KSW-G30ZA 88 3			90036-KSW-G00	27 8		90401-383-670	76 5		91000					94103-10000 76 7
86201-KSW-G30ZB 88 3			90044-KSW-G00	38 17		90401-KSW-G00	38 18					93101-06825-6A	43 19		94111-06000 58 21
86201-KSW-G30ZC 88 3			90058-357-000	32 8		90404-KPT-A80	27 10		91083-KRH-991	41 25		93484-06825-6B	77 14		94111-10000 75 16
86202-KSW-G80ZA 88 4			90051-KSW-G00	37 12		90408-KWI-980	43 14		91084-KRH-991	42 26		93508-04810-6H	50 17		85 11
86202-KSW-G80ZB 88 4			90052-KSW-G00	37 13		90417-841-800	34 10		91088-KKK-600	32 12		93508-04830-6H	50 18		94201-16150 73 7
86202-KSW-G80ZC 88 4			90053-KSW-G00	37 14		90428-KRH-900	29 24		91166-KTT-991	42 27		93508-05820-6G	53 22		94201-20150 61 15
86202-KSW-G30ZA 88 4			90071-K28-910	36 5		90434-KVC-900	32 10		91021-KTJ-C10	34 13		93508-05828-6G	53 23		71 16
86202-KSW-G30ZB 88 4			90084-KTT-900	34 8			37 16			38 20		93508-05835-6G	53 24		75 17
86202-KSW-G30ZC 88 4			90085-KTT-900	35 6		90439-MBO-800	54 12		91162-KRH-990	43 18		93508-05845-6G	53 25		94201-30250 71 17
86831-KSW-G80ZA 88 5			90087-KWW-CO0	34 9		90441-KRH-960	26 5		91166-KRH-990	38 21		93708-05816-6A	59 11		94251-08000 37 19
86831-KSW-G80ZB 88 5			90089-KAS-900	35 7		90442-KPS-960	27 11		91261-148-003	31 8		93891-05814-6D	77 15		94601-15000 48 6
86831-KSW-G80ZC 88 5			90092-KE5-000	35 8		90444-397-800	29 25		91261-KSW-G11	31 8		93891-05816-6B	86 4
86831-KSW-G30ZA 89 7			90101-KSW-G01	80 8		90450-ZAO-800	69 14		91262-KSW-G01	38 22		93891-06812-6B	67 18

PART NO. INDEX
Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.	Part Number	Page	Ref.
95000			96001-06022-07	53	26
95002-02078	69	19	96001-06025-00	27	16
95002-02088	64	14	96001-06028-00	34	18
95002-02089	45	22	96001-06030-00	34	19
95002-02128	67	21	96001-06040-00	31	21
95002-02659	46	23	96001-06050-00	34	23
95002-80000	68	22	96001-06095-00	39	30
95005-45350-50	46	33	96100-60020-10	63	31
95005-50150-50	46	34	96140-62020-10	63	16
95011-40000	71	18	96140-63010-10	60	17
95014-71202	74	8	96140-63020-10	63	18
95014-72102	74	9	96211-08000	72	23
95014-73100	71	19	97000
95014-75110	32	13	97170-41164-R0	60	12
95015-32001	59	13	97560-69183-R0	63	19
95015-42000	59	14	97662-41163-R0	60	13
95015-81000	73	8	97684-69182-R0	63	28
95018-46250	68	23	98000
95701-06008-00	75	20	98869-58926	27	5
95701-06012-02	55	17	98869-59916	27	5
95701-06012-07	79	17	98869-59926	27	5
95701-06012-08	81	19	98200-21500	83	8
95701-06016-00	55	18	99000
95701-06028-00	72	22	99001-08120	86	11
95701-06028-08	84	16	99001-10120	86	5
95701-06025-00	68	26	99001-10140	86	12
95701-06028-00	36	8	99001-14170	86	6
95701-06030-00	26	9	99003-10000	86	7
95701-06032-00	59	15	99003-30000	86	8
95701-06035-00	61	16	99004-18190	86	9
95701-08016-00	78	8	99008-01600	86	10
95701-08018-00	78	12	99101-GHB-0820	46	24
95701-08020-00	48	18	99103-MT2-0380	46	25
95701-08028-00	73	9	99103-MT2-0380	46	25
95701-08025-00	65	3	99103-MT2-0380	46	25
95701-08025-08	64	15	99103-MT2-0380	46	25
95701-08030-00	29	29	99103-MT2-0380	46	25
95801-08032-00	55	19	99103-MT2-0380	46	25
95801-08065-00	85	12	99103-MT2-0380	46	25
95801-08070-00	85	13	99103-MT2-0380	46	25
95801-08090-00	85	14	99103-MT2-0380	46	25
96000
96001-06014-00	29	30	99103-MT2-0380	46	25
96001-06016-00	26	39	99103-MT2-0380	46	25
96001-06020-00	34	17	99103-MT2-0380	46	25
96001-06022-00	30	4	99103-MT2-0380	46	25

PART NAME INDEX
Part name	Page	Ref.	Part name	Page	Ref.	Part name	Page	Ref.
[ A ]			BOLT, FLANGE, 6X12 ········ 55 17			BOLT, L. STEERING HANDLE LEVERPIVOT 53 19
ADJUSTER, CHAIN ········ 75 2				79 17		BOLT, RECESSED, 6X55 ········ 39 28
ARM ASSY., KICK STARTER ········ 71 4				81 19		BOLT, ROTOR SETTING ········ 35 5
ARM, EX. VALVE ROCKER ········ 28 11			BOLT, FLANGE, 6X14 ········ 29 30			BOLT, RR. FORK PIVOT ········ 75 8
ARM, FR. BRAKE ········ 59 7				39 29		BOLT, SETTING ········ 36 3
ARM, IN. VALVE ROCKER ········ 28 9			BOLT, FLANGE, 6X16 ········ 26 10			BOLT, SOCKET, 6MM ········ 35 6
ARM, RR. BRAKE ········ 61 6				28 21		BOLT, SOCKET, 8X38 ········ 58 19
ARM, RR. BRAKE STOPPER ········ 75 3				55 18		BOLT, SPECIAL FLANGE, 6X22 ········ 32 8
AXLE, FR. WHEEL ········ 60 1				56	2	BOLT, SPECIAL FLANGE, 8X68 ········ 85 6
AXLE, RR. WHEEL ········ 62 3				69 20		BOLT, STATOR COVER SETTING ········ 48 17
[ B ]			BOLT, FLANGE, 6X20 ········ 34 17			BOLT, STOPPER TENSIONER SHAFT · 35 8
BAG, TOOL, 160MM ········ 86 10				72 22		BOLT, STUD, 6X19 ········ 27 7
BALL ASSY., STEEL, #6X21 ········ 55 1				84 16		BOLT, STUD, 6X38 ········ 27 8
BALL, STEEL, #8 ········ 72 23			BOLT, FLANGE, 6X22 ········ 30 4			BOLT, TORX, 6X16 ········ 54 8
BAND B1, WIRE ········ 52 3			BOLT, FLANGE, 6X25 ········ 27 16			BOLT, WIRE ADJUSTING ········ 52 17
BAND, AIR CLEANER CONNECTINGTUBE 68 23				34 18		BOX, BATTERY ········ 82 11
BAND, BATTERY ········ 81 14				38 17		BOX, TOOL ········ 86 1
BAND, WIRE, 165MM ········ 83 13			BOLT, FLANGE, 6X28 ········ 34 19			BRACKET COMP., L. RR. WINKER ········ 78 9
BAND, WIRE, 235MM ········ 83 12				36	8	BRACKET COMP., R. RR. WINKER ········ 78 8	79 14
BAR COMP., SIDE STAND ········ 74 5				54 10		BRACKET, L. FR. WINKER ········ 79 4
BAR COMP., STEP ········ 73 1				69 21		BRACKET, L. HANDLE LEVER ········ 52 14
BAR, PILLION STEP ········ 73 5			BOLT, FLANGE, 6X30 ········ 26 9			BRACKET, L. RR. WINKER ········ 79 10
BASE COMP., TAILLIGHT ········ 80 2			BOLT, FLANGE, 6X32 ········ 59 15			BRACKET, MUFFLER ········ 70 5
BATTERY ········ 81 2			BOLT, FLANGE, 6X35 ········ 61 16			BRACKET, NUMBER PLATE ········ 80 7
BEARING, NEEDLE ········ 34 13			BOLT, FLANGE, 6X40 ········ 31 11			BRACKET, REGULATOR ········ 83 11
BEARING, NEEDLE, 15MM ········ 38 20			BOLT, FLANGE, 6X50 ········ 34 21			BRACKET, R. FR. WINKER ········ 79 3
BEARING, RADIAL BALL, 16003 ······ 32 12			BOLT, FLANGE, 6X8 ········ 75 20			BRACKET, R. HANDLE LEVER ········ 52 12
BEARING, RADIAL BALL, 6002 ······ 63 16			BOLT, FLANGE, 6X9 ········ 81 18			BRACKET, R. RR. WINKER ········ 79 7
BEARING, RADIAL BALL, 6006 ······ 42 26			BOLT, FLANGE, 6X95 ········ 39 31			BRIDGE, FORK TOP ········ 54 7
BEARING, RADIAL BALL, 6202U ······ 63 17			BOLT, FLANGE, 8X16 ········ 70 8			BULB, HEADLIGHT ········ 47 13
BEARING, RADIAL BALL, 6202Z ······ 41 25			BOLT, FLANGE, 8X18 ········ 78 12			BULB, POSITION LIGHT ········ 47 12
BEARING, RADIAL BALL, 6204 ······ 42 27			BOLT, FLANGE, 8X20 ········ 48 18			BULB, STOP & TAILLIGHT ········ 80 4
BEARING, RADIAL BALL, 6301U ······ 60 11			BOLT, FLANGE, 8X25 ········ 64 15			BULB, TAIL & STOP LIGHT ········ 80 4
BEARING, RADIAL BALL, 6302U ······ 63 18			BOLT, FLANGE, 8X30 ········ 29 29			BULB, WEDGE BASE ········ 49 1
BODY COMP., FRAME ········ 85 1			BOLT, FLANGE, 8X32 ········ 55 19			BULB, WINKER ········ 78 7
BOLT-WASHER, 6X25 ········ 67 16			BOLT, FLANGE, 8X35 ········ 85 12			BULB, WINKER LIGHT ········ 79 12
BOLT-WASHER, 6X6 ········ 75 7			BOLT, FLANGE, 8X30 ········ 85 13			BUSH, GUIDE ········ 57 6
BOLT A, BRAKE STOPPER ········ 61 13			BOLT, FLANGE, 8X30 ········ 57 18			BUSH, RR. WHEEL DAMPER ········ 62 2
BOLT A, CYLINDER STUD, 8X122 ······ 38 15			BOLT, FLANGE, 8X32 ········ 58 20			BUSH, RUBBER ········ 76 4
BOLT A, STOPPER ARM ········ 75 11			BOLT, FLANGE, 8X35 ········ 55 19			BUSH, RUBBER UPPER ········ 76 3
BOLT B, CYLINDER STUD, 8X130 ······ 38 16			BOLT, FLANGE, 8X35 ········ 55 12			BUSH, SWINGARM PIVOT ········ 75 5
BOLT, CABLE ADJUST ········ 53 18			BOLT, FLANGE, 8X30 ········ 85 13			[C]
BOLT, CAP, 8X75 ········ 77 13			BOLT, FR. FORK ········ 57 18			CABLE ASSY., SPEEDOMETER ········ 49 13
BOLT, DRAIN PLUS, 12MM ········ 38 14			BOLT, HEX., 5X20 ········ 37 18			CABLE COMP., CLUTCH ········ 52 2
BOLT, DRIVEN SPROCKET FIXING ········ 62 12			BOLT, HEX., 6X10 ········ 42 28			CABLE COMP., FR. BRAKE ········ 52 8
BOLT, FLANGE SOCKET, 5X14 ········ 35 7			BOLT, HEX., 6X12 ········ 26 8			CABLE COMP., THROTTLE ········ 52 1
BOLT, FLANGE, 16X110 ········ 85 5			BOLT, HEX., 6X25 ········ 43 19			CABLE, BATTERY EARTH ········ 81 10
BOLT, FLANGE, 6MM ········ 75 7			BOLT, HEX., 8X40 ········ 71 14			CABLE, STARTER MAGNETIC BATTERY 81 5
BOLT, FLANGE, 6MM ········ 82 16			BOLT, HEX., 8X79 ········ 27 6			BOLT, WINKER ········ 78 7
CABLE, STARTING MOTOR	81 7		COLLAR A, RR. FENDER	77 8		CUSHION, RR. FUEL TANK	64 7
	82	4	COLLAR, BATTERY BOX	77 4		CYLINDER COMP.	30 1
CANSHAFT COMP.	28 3		COLLAR, COUNTERSHAFT LOW GEAR	41 4		C.D.I. UNIT	83 2
CAN, FR. BRAKE	59 5		COLLAR, CUSHION RUBBER	34 11
CAN, GEARSHIFT	43 6		COLLAR, EX. PIPE JOINT	78 2		[ D ]
CAN, RR. BRAKE	61 4		COLLAR, FR. AXLE DISTANCE	60 3
CAP ASSY., NOISE SUPPRESSOR	83 4		COLLAR, FR. FENDER	67 15		DISK, CLUTCH FRICTION	32 3
CAP COMP., FUEL FILLER	64 11				6	DOWEL PIN, 10X14	26 6
CAP, 14MM	34 8		COLLAR, FR. WHEEL SIDE	60 2			29 26
CAP, 38MM	34 9		COLLAR, FUEL TANK MOUNTING	64 9			34 12
CAP, CABLE SEALING	45 14		COLLAR, IDLE STARTER GEAR	41 5			38 19
CAP, HOLE, 36MM	38 4		COLLAR, KICK SPINDLE	44 6		DOWEL PIN, 10X20	30 3
CAP, LOCK NUT	51 1		COLLAR, METER	69 12		DOWEL PIN, 8X14	31 6
CAP, OIL FILTER ROTOR	37 7		COLLAR, RR. AXLE DISTANCE	62 5		DRIVER 1, PLUS SCREW	86 7
CAP, TOOL BOX	82 14		COLLAR, RR. BRAKE PANEL SIDE	61	2	DRIVER 3, MINUS SCREW	86 8
	86	2	COLLAR, RR. PIPE	77 3		DRUM, GEARSHIFT	43 5
CARBURETOR ASSY.	45 12		COLLAR, RR. WHEEL SIDE	62 4		DUCT, AIR CLEANER INTAKE	67 4
	46 26		COLLAR, RUBBER BUSH UPPER	76 2		DUST SEAL, BRAKE CAM	59 4
CASE ASSY.	49 9		COLLAR, WINKER	79 9			61	8
CASE COMP., L. BOTTOM	57 13		COTTIER, VALVE	28 20		DUST SEAL, STEERING HEAD	55 7
CASE, AIR CLEANER	67 6		COUNTERSHAFT, TRANSMISSION	41 2
CASE, DRIVE CHAIN	75 18		COVER B, STARTER MAGNETIC			[ E ]
CASE, HEADLIGHT	48 14		TERMINAL	81 6
CASE, METER UPPER	49 11				3	ELEMENT COMP., ATR CLEANER	67 3
	50 22		COVER COMP., L. CRANKCASE	34 1		EMBLEM, PRODUCT	49 14
CASE, R. BOTTOM	57 7		COVER COMP., L. RR.	34 22
CASE, R. UPPER	53 28		COVER COMP., L. RR. CRANKCASE	34 22		[ F ]
CENTER COMP., CLUTCH	32 2		COVER COMP., R. CRANKCASE	31 1
CHAIN, DRIVE	75 19		COVER SET, L. SIDE	66 4		FENDER B, RR.	77 7
CHAMBER SET, FLOAT	45 9		COVER SET, R. SIDE	66 2		FENDER COMP., FR.	56 1
CIRCLIP, 58MM	62 14		COVER SUB ASSY., L. SIDE	66 4		FENDER COMP., RR.	77 6
CIRCLIP, EXTERNAL, 12MM	43 16		COVER SUB ASSY., R. SIDE	66 2		FILTER COMP., AIR	69 4
CIRCLIP, EXTERNAL, 14MM	43 17		COVER, ATR CLEANER	67 5		FILTER, CUP	64 6
CIRCLIP, EXTERNAL, 16MM	44 13		COVER, ATR SUCTION VALVE	69 6		FLAP, TIRE	60 9
CLAMPER, WIRE HARNESS	38 12		COVER, BATTERY TERMINAL	81 9
CLAMP, CORD	49 7		COVER, CYLINDER HEAD	26 2		FLOAT SET	45 3
CLAMP, TUBE	69 17		COVER, FR.	55 13		FLYWHEEL COMP.	35 3
CLIP, C. WIRE HARNESS	64 13		COVER, L. FR. FORK	57 15		FOLLOWER, CAM	28 4
CLIP, BREATHER TUBE	67 1		COVER, L. HANDLE LEVER	52 13		FORK ASSY., L. FR.	57 12
CLIP, FUEL HOSE	69 16		COVER, L. RR. CRANKCASE	34 3		FORK ASSY., R. FR.	57 1
CLIP, KICK STARTER ARM	71 3		COVER, METER	49 8		FORK, CENTER GEARSHIFT	43 3
CLIP, OIL DRAIN TUBE	69 2		COVER, MUFFLER	78 11		FORK, L. GEARSHIFT	43 2
CLIP, PISTON PIN, 15MM	48 6		COVER, REDUCTION GEAR	34 2		FORK, R. GEARSHIFT	43 1
CLIP, TUBE	45 22		COVER, R. FR. FORK	57 14		FUSE B	83 8
	46 23		COVER, R. HANDLE LEVER	52 11		FUSE,	83 8
		27	COVER, SCREW	47 10
		32	COVER, STARTER MOTOR TERMINAL	81 8		[ G ]
	64 14				5
	67	1	COVER, TANK STORAGE	67 13		GASKET SET	45 1
		17	CRANKCASE COMP., L.	38 3		GASKET, CRANKCASE	38 2
		21	CRANKCASE COMP., R.	38 1		GASKET, CYLINDER	30 2
			CRANKSHAFT COMP.	40 1		GASKET, CYLINDER HEAD	27 3
			CUP SET, FUEL STRainer	64 4		GASKET, EX. PIPE	70 3
		19	CUSHION ASSY., RR.	76 1		GASKET, LENS	78 2
					8	GASKET, L. CRANKCASE COVER	34 6
CLUTCH, ONE WAY	35 1		CUSHION A, RR. FENDER	77 9		GASKET, OIL FILTER CAP	37 10
COCK ASSY., FUEL	64 2		CUSHION, C.D.I. UNIT	83 1		GASKET, OIL PUMP	37 2
COIL ASSY., IGNITION	83 3		CUSHION, FR. FUEL TANK	64 10		GASKET, R. CRANKCASE COVER	31 2
COLLAR A, HEADLIGHT CASE	48 15		CUSHION, FUEL STRainer	69 3		GAUGE, OIL LEVEL	31 3

PART NAME INDEX
Part name	Page	Ref.	Part name	Page	Ref.	Part name	Page	Ref.
GEAR COMP., REDUCTION 33 2			[J]			NUT, BRAKE ROD ADJUSTING 59 14
GEAR COMP., STARTER 41 14			JET, MAIN, #82 46 24			NUT, CAP, 10MM 76 6
GEAR ONLY, IDLE STARTER 41 15			JET, SLON, #38 46 25			NUT, CAP, 6MM 50 20
GEAR, COUNTERSHAFT FIFTH 41 13			JOINT B, BRAKE ARM 59 13				53 20
GEAR, COUNTERSHAFT FOURTH 41 11				71 20			78	6
GEAR, COUNTERSHAFT LOW 41 3			JOINT, 3WAY 46 28			NUT, CLTP, 6MM 82 17
GEAR, COUNTERSHAFT SECOND 41 7			JOINT, DRIVE CHAIN 75 1			NUT, CYLINDER HEAD 27 9
GEAR, COUNTERSHAFT THIRD 41 9			JOINT, EX. PIPE 70 1			NUT, FIXING 53 21
GEAR, MAINSHAFT FIFTH 41 12						NUT, FLANGE CAP, 8MM 85 7
GEAR, MAINSHAFT FOURTH 41 10						NUT, FLANGE, 10MM 78 11
GEAR, MAINSHAFT SECOND 41 6			[K]				85 15
GEAR, MAINSHAFT THIRD 41 8			KEY SET 54 1			NUT, FLANGE, 5MM 77 17
GEAR, OIL PUMP DRIVE 37 3			KEY, BLANK 54 3			NUT, FLANGE, 6MM 27 15
GEAR, PRIMARY DRIVE 37 11			KEY, WOODRUFF, 25X14X4 40 5				36	7
GEAR, SPEEDOMETER 59 1							55 16
GRIP COMP., THROTTLE 52 9							59 12
GRIP, L. HANDLE 52 10			[L]				61 10
GROMMET A, AIR CLEANER CASE 66 1			LABEL, AIR CLEANER ELEMENT				69 18
GROMMET A, RR. COVER 69 1			NOTICE 87 5				88 11
GROMMET A, SIDE COVER 66 5			LABEL, DRIVE CHAIN 87 4				84 15
GROMMET, AIR CLEANER CASE 66 3			LABEL, RR. CARRIER 87 1
GROMMET, METER PLATE 49 6			LABEL, TIRE 87 2			NUT, FLANGE, 8MM 70 7
GROMMET, SIDE COVER 55 14			LENS COMP., TAILLIGHT 88 3				85	9
GROMMET, WIRE CORD 77 2			LENS, WINKER 78 5					10
GROMMET, WIRE HARNESS 77 1				79 2		NUT, HEADLIGHT CASE 48 16
GUARD, BATTERY 81 16			LEVER COMP., CLUTCH 31 4			NUT, HEX., 10MM 51 3
GUIDE COMP., DRIVE CHAIN 34 5			LEVER SET, CHOKE 45 7				74	7
GUIDE, BRAKE CABLE 55 3			LEVER, L. STEERING HANDLE 52 16				85	8
GUIDE, TUBE 26 3			LEVER, R. STEERING HANDLE 52 15			NUT, HEX., 6MM 75 12
GUIDE, VALVE 27 2			LOCK, STEERING HANDLE 55 11			NUT, HEX., 8MM 61 14
[H]			[M]			NUT, LOCK, 16MM 32 9
HARNESS, WIRE 83 7			MAINSHAFT, TRANSMISSTON 41 1			NUT, SPECIAL FLANGE, 12MM 59 9
HEADLIGHT ASSY. 47 1			MARK, BATTERY CAUTION 87 3				75 10
HEADLIGHT UNIT 47 7			MARK, DRIVE CAUTION 87 6			NUT, SPECIAL, 14MM 61 11
HEAD COMP., CYLINDER 27 1			MARK, L. WING 88 4			NUT, SPECIAL, 6MM 75 9
HOLDER COMP., ELEMENT 67 2			MARK, R. WING 88 3			NUT, STEERING STEM 54 11
HOLDER, CLUTCH WIRE 38 10			METER ASSY., COMBINATION 49 3			NUT, TAPPET ADJUSTING 28 23
HOLDER, HANDLE UPPER 54 6			METER ASSY., SPEED TACHO 49 4			NUT, UNIT HOLDER 47 8
HOLDER, NEEDLE JET 45 16			MIRROR COMP., BACK 51 2				62 13
HOLDER, PUSH PLUG 38 5			MIRROR COMP., L. 51 5
HOLDER, ROCKER ARM 28 2			MIRROR COMP., R. 51 4
HOOK, MAIN STAND SPRING 74 2			MOTOR ASSY., STARTING 36 1			[0]
HORN ASSY. 55 2			MOUNT, FORK COVER UNDER 57 17			OIL SEAL, 12X22X5 31 8
HUB SUB ASSY., FR. 68 5			MOUNT, FORK COVER UPPER 57 16			OIL SEAL, 14X22X5 39 23
HUB SUB ASSY., RR. 62 6			MUDGUARD, RR. FENDER 77 18			OIL SEAL, 16X28X7 39 25
[I]			MUFFLER COMP., EX. 70 4			OIL SEAL, 16X28X7 31 9
						OIL SEAL, 26X34X7 38 22
						OIL SEAL, 21X37X7 60 10
						OIL SEAL, 28X42X7 62 15
						OIL SEAL, 34X50X7 39 24
INDICATOR COMP., GEAR POSITION 49 12			[N]			OIL SEAL, 47X60X7 59 10
INDICATOR, FR. BRAKE 59 6			NEEDLE SET, JET 45 2			O-RING 58 23
INDICATOR, RR. BRAKE 61 5			NUT-WASHER, 6MM 36 5				64	1
INSULATOR, CARBURETOR 27 4			NUT B, BRAKE ROD ADJUSTING 59 14					5
						O-RING, 10X1.6 27 13
O-RING, 13X2.5	39	27	PLUG, SPARK, 59	27	5	SCREW-WASHER, 4X18	45	19
O-RING, 13.8X2.5	34	15	PUMP ASSY., OIL	37	1			20
O-RING, 17.0X2.5	29	28				SCREW-WASHER, 4X16	45	21
O-RING, 18X3	31	18	[R]			SCREW-WASHER, 5X14	77	15
O-RING, 20X2.5	29	27				SCREW-WASHER, 5X16	86	4
O-RING, 24.4X3.1	36	6	RACE, STEERING BALL	55	4	SCREW-WASHER, 5X8	67	19
O-RING, 2.4X29	45	11	RACE, STEERING BOTTOM CONE	55	6	SCREW-WASHER, 6X12	67	18
O-RING, 30MM	34	16	RACE, STEERING TOP CONE	55	5	SCREW-WASHER, SPECIAL, 4X12	49	15
O-RING, 33.5X3	27	14	RATCHET, KICK STARTER	44	2	SCREW SET A	45	5
O-RING, 35X3	39	26	RECTIFIER ASSY., REGULATOR	83	5	SCREW SET B	45	8
O-RING, 63X3	34	14	RECTIFIER ASSY., SILICON	83	6	SCREW, BEAM ADJUST	47	3
O-RING, 9.4X2.4	37	17	RELAY COMP., WINKER	83	9	SCREW, FLAT, 4X12	37	12
O-RING, 9.8X1.9	26	7	RETainer, STARTER SPRING	44	7	SCREW, FLAT, 5X12	37	13
OUTER COMP., CLUTCH	32	1	RETainer, VALVE SPRING	28	17	SCREW, FLAT, 6X30	37	14
OUTER, STARTING CLUTCH	35	2	RIM COMP., HEADLIGHT	47	2	SCREW, OVAL, 5X16	59	11
			RIM, FR. WHEEL	68	6	SCREW, OVAL, 6X35	54	9
			RIM, RR. WHEEL	62	8	SCREW, PAN, 4X10	50	17
			RING	36	4	SCREW, PAN, 4X28	79	16
[ P ]			RING SET, PISTON	48	2	SCREW, PAN, 4X30	50	18
PACKING, CYLINDER HEAD COVER	26	4	RING, BACK UP	57	5	SCREW, PAN, 5X10	48	19
PANEL COMP., RR. BRAKE	61	3	RING, OIL SEAL STOPPER	58	22	SCREW, PAN, 5X11.5	68	24
PANEL SUB COMP., FR. BRAKE	59	3	RING, PISTON	57	9	SCREW, PAN, 5X13	80	9
PEDAL COMP., BRAKE	71	10	ROD COMP., RR. BRAKE	71	9	SCREW, PAN, 5X14	48	19
PEDAL, GEAR CHANGE	71	1	ROD, CLUTCH LIFTER	32	7	SCREW, PAN, 5X20	53	22
PIECE, OTL LOCK	57	8	ROD, PUSH	28	18	SCREW, PAN, 5X28	53	23
PINION, KICK STARTER	44	1	ROLLER, 4X10	43	18	SCREW, PAN, 5X35	53	24
PIN A, PILION STEP	73	8	ROTOR COMP., OIL FILTER	37	6	SCREW, PAN, 5X45	53	25
PIN, LOCK, 8MM	37	19	ROTOR, OIL PUMP INNER	37	4	SCREW, PAN, 6X11.5	68	25
PIN, PISTON	40	4	ROTOR, OIL PUMP OUTER	37	5			82
PIN, SPLIT, 1.6X15	73	7	RUBBER A, SHOCK	81	12	SCREW, PAN, 6X12	70	12
PIN, SPLIT, 2.0X15	61	15	RUBBER B, SEAT SETTING	65	2	SCREW, SIDE STAND PIVOT	74	6
			RUBBER B, SHOCK	81	13	SCREW, SPECIAL, 6X13	69	13
						SCREW, TAPPET ADJUSTING	28	22
PIN, SPLIT, 3.0X25	71	17	RUBBER, AIR CLEANER CASE		82	SCREW, TAPPING, 2.9X14	79	15
PIN, SPRING, 3X10	31	7	MOUNTING 67	8
PIPE COMP., AIR SUCTION	26	1	RUBBER, BATTERY BOX	81	17	SCREW, TAPPING, 4X12	50	17
PIPE COMP., FR. FORK	57	3	82	15
PIPE COMP., RR.	77	5				SCREW, TAPPING, 4X16	78	10
PIPE, SEAT	57	10	RUBBER, BATTERY CUSHION	81	4			82
PIPE, STEERING HANDLE	54	4	RUBBER, CHANGE PEDAL	71	18	SCREW, TAPPING, 4X30	50	18
PISTON	40	3	RUBBER, CUSHION	34	7			80
PIVOT, SHIFT DRUM STOPPER	43	13	RUBBER, FR. FENDER MOUNTING	88	5	SCREW, TAPPING, 4.2X25	80	8
PLATE A2, FIXING	41	17	RUBBER, KICK STARTER	71	5	SCREW, TAPPING, 5X16	67	20
PLATE COMP., RATCHET GUIDE	44	8	RUBBER, NUMBER PLATE BRACKET			SEAL SET, FR. FORK	55	15
PLATE, CLUTCH	32	4	CUSHION 77	11
PLATE, CLUTCH LIFTER	32	6	RUBBER, PILLION STEP	73	3	SEAL, AIR CLEANER CASE	67	7
PLATE, CLUTCH PRESSURE	32	5	RUBBER, PROTECTOR MOUNTING	78	10	SEAL, TANK STORAGE	67	14
PLATE, FR. ENGINE HANGER	85	2	RUBBER, PROTECTOR PACKING	78	9	SEAL, VALVE STEM	28	1
PLATE, GEARSHIFT	43	10	RUBBER, RR. COVER MOUNTING	34	4	SEAT ASSY., DOUBLE	65	1
PLATE, GEAR SETTING	38	11	RUBBER, SHOCK	82	8	SEAT, VALVE SPRING INNER	28	19
PLATE, L. ENGINE UPPER HANGER	85	4	RUBBER, STAND STOPPER	74	3	SEAT, VALVE SPRING OUTER	28	18
PLATE, METER SETTING	49	5	RUBBER, STEP	73	2	SET RING, 20MM	41	24
PLATE, R. ENGINE UPPER HANGER	85	3	RUBBER, STOPPER ARM	61	7
PLATE, SETTING	45	13	RUBBER, WINKER	79	8	SHAFT, CAM FOLLOWER	28	5
PLATE, SPRING STOPPER	28	8				SHAFT, CAM GEAR	28	6
PLIERS	86	3	[S]
PLUG	50	24				SHAFT, GEARSHIFT FORK	43	4
PLUG, BEARING PUSH	38	6				SHAFT, MAIN STAND PIVOT	74	4
PLUG, SPARK	27	5				SHAFT, REDUCTION	33	3
PLUG, SPARK, 58	27	5				SHAFT, ROCKER ARM	28	12
						SHAFT, STARTER GEAR	33	4

PART NAME INDEX
Part name	Page	Ref.	Part name	Page	Ref.	Part name	Page	Ref.
SHOE SET, BRAKE**********	59 16		STRIPE, R. SIDE COVER**********	88 5		VALVE, IN.**********	28 13
	61	1	SUSPENSION, WINKER RELAY**********	89	7	[ W ]
SLIDER, DRIVE CHAIN**********	75 6		SWINGARM ASSY., RR.**********	75 4
SOCKET COMP.**********	49 10		SWITCH ASSY., CHANGE**********	38 13		WASHER A, SPLINE, 20MM**********	41 22
SOCKET COMP., HEADLIGHT**********	47 9		SWITCH ASSY., COMBINATION**********	54 2		WASHER A, THRUST, 16MM**********	44 11
SOCKET COMP., POSITION LIGHT**********	47 11		SWITCH ASSY., FR. STOP**********	52 7		WASHER B, SPLINE, 20MM**********	41 20
SPANNER, 18X12**********	86 5		SWITCH ASSY., LIGHTING & STARTER	52	4	WASHER B, THRUST, 14MM**********	29 24
SPANNER, 18X14**********	86 12		SWITCH ASSY., RR. STOP**********	71 7		WASHER B, THRUST, 16MM**********	44 9
SPANNER, 14X17**********	86 6		SWITCH ASSY., STARTER MAGNETIC	81 11		WASHER B, THRUST, 20MM**********	41 21
SPANNER, 8X12**********	86 11		SWITCH ASSY., WINKER**********	82	7	WASHER C, THRUST, 20MM**********	44 12
SPINDLE COMP., GEARSHIFT**********	43 9		SWITCH ASSY., FR. LEVER**********	52 6		WASHER, 10.3MM**********	77 12
SPINDLE, KICK STARTER**********	44 3		SWITCH COMP., START**********	53 27		WASHER, 10.5MM**********	33 5
SPOKE SET**********	60 12		SWITCH COMP., STARTER**********	52 4		WASHER, 13X20**********	71 13
		13	SWITCH COMP., WINKER**********	52 5		WASHER, 16MM**********	32 10
		20	SWITCH COMP., WINKER**********	52 5				37 16
SPRING A, BRAKE ROD**********	71 19		[T ]			WASHER, 6MM**********	43 14
SPRING A, SIDE STAND**********	74 9		TAILLIGHT UNIT**********	88 1		WASHER, 6.5X18**********	50 16
SPRING B, MAIN STAND**********	74 8		TANK SET, FUEL**********	64 8		WASHER, 8MM**********	61 12
SPRING, BEAM ADJUST**********	47 4		TANK SUB ASSY., FUEL**********	64 8		WASHER, BEAM ADJUSTING**********	47 6
SPRING, BEAM ADJUSTING**********	47 4		TERMINAL SET, BRUSH**********	36 2		WASHER, BRAKE ROD**********	27 12
SPRING, BEARING PUSH**********	38 7		THREAD COMP., STEERING HEAD TOP	55 10		WASHER, DRATN PLUG, 12MM**********	38 18
SPRING, BRAKE PEDAL**********	71 11		TUBE**********	45 4		WASHER, GEARSHTF DRUM SIDE ***	34 10
SPRING, BRAKE SHOE**********	59 17		TUBE**********	45 18		WASHER, PILLION STEP**********	73 4
		9	TUBE**********	46 29		WASHER, PLAIN, 18AM**********	76 7
SPRING, CAMSHAFT**********	28 7		TUBE A, AIR SUCTION VALVE**********	69	8	WASHER, PLAIN, 12AM**********	27 10
SPRING, CLUTCH**********	32 13		TUBE A, BREATHER**********	67 11				75 15
SPRING, CLUTCH LEVER**********	31 5		TUBE B, AIR SUCTION VALVE**********	69	9	WASHER, PLAIN, 5MA**********	71 15		5
SPRING, FR. BRAKE ARM RETURN**	59	8	TUBE B, BREATHER**********	67 12		WASHER, PLAIN, 6MA**********	77 19
SPRING, FR. FORK**********	57 2		TUBE C, AIR SUCTION VALVE**********	69	10	WASHER, PLAIN, 6X16**********	69 14
SPRING, GEARSHIFT PLATE**********	43 11		TUBE, 4.5X350**********	46 33		WASHER, PLAIN, 8MA**********	75 14
SPRING, GEARSHIFT RETURN**********	43 12		TUBE, 5X150**********	46 34		WASHER, PEERGMENTGROMMET**********	77 18
SPRING, KICK STARTER**********	44 5		TUBE, AIR CLEANER CONNECTING**********	67 9		WASHER, SEALING, 6MM**********	26 5
		6	TUBE, AIR SUCION VALVE**********	69 11		WASHER, SEALING, 8MM**********	27 11
SPRING, KICK STARTER RATCHET***	44 4		TUBE, AIR VENT**********	45 17		WASHER, SPECIAL, 17.2X22**********	71 12
SPRING, KICK STARTER STOPPER****	71 6		TUBE, BATTERY BREATHER**********	81 3		WASHER, SPECIAL, 8MM**********	58 21
SPRING, OIL FILTER SCREEN**********	38 9		TUBE, BATTERY DRAIN**********	82 13		WASHER, SPEEDOMETER GEAR**********	59 2
SPRING, OIL THROUGH**********	37 9		TUBE, BREATHER A**********	67 11		WASHER, SPRING, 18MM**********	75 16
SPRING, REBOUND**********	57 4		TUBE, FUEL**********	64 12		WASHER, SPRING, 6AM**********	50 21
SPRING, SHIFT DRUM STOPPER****	43 8		TUBE, TIRE**********	60 8		WASHER, STEERING HEAD DUSTSEAL 55 8
SPRING, STOP SWITCH**********	71 8				62 10
SPRING, VALVE INNER**********	28 16		TUBE, VINYL, 8X12X40**********	67 10		WASHER, STEERING STEM**********	54 13
SPRING, VALVE OUTER**********	28 15					WASHER, THRUST, 12MM**********	44 10
SPROCKET COMP., FINAL DRIVEN****	62 1					WASHER, THRUST, 14MM**********	43 15
SPROCKET, DRIVE**********	41 16					WASHER, THRUST, 15MM**********	41 18
STAND COMP., MAIN**********	74 1		TUBE, BREATHER A**********	67 11					23
STATOR COMP.**********	35 4		TUBE, FUEL**********	64 12		WASHER, THRUST, 16.5MA**********	41 19
STAY ASSY., BATTERY**********	81 15		TUBE, TIRE**********	60 8		WASHER, WAVE, 12MA**********	29 25
STAY COMP., ATR SUCTION VALVE**********	69	7				WEIGHT, HANDLE**********	54 5
STAY COMP., BATTERY**********	81 1					WHEEL SUB ASSY., FR.**********	60 4
STAY, HORN**********	55 12					WHEEL SUB ASSY., RR.**********	62 7
STEM SUB ASSY., STEERING**********	55 9		[ V ]
STOPPER COMP., GEARSHIFT DRUM****	43 7		VALVE ASSY., AIR SUCTION**********	69 5
STRIPE, L. FUEL TANK**********	88 2		VALVE COMP., FLOAT**********	45 15
STRIPE, L. SIDE COVER**********	89 6		VALVE SET, AIR CUT**********	45 10
		8	VALVE SET, THROTTLE**********	45 6
STRIPE, R. FUEL TANK**********	88 1		VALVE EX.**********	28 14

PART NAME INDEX
Part name	Page	Ref.	Part name	Page	Ref.	Part name	Page	Ref.
WINKER ASSY., L. FR. 78 379 511
WINKER ASSY., L. RR. 78 679 11
WINKER ASSY., R. FR. 78 179 1
WINKER ASSY., R. RR. 78 479 6
WRENCH, BOX 86 9

2020.10.10 E

1 FOREWORD INDEX

2 ENGINE GROUP

FRAME GROUP

4 PART NUMBER INDEX

5 PART NAME INDEX

HONDA

The Power of Dreams

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd.

Service Division Service Information Dept.

PARTS CATALOGUE - CORRECTED

Printed in Japan

November 13, 2020

CODE NO.	18KSWFP3
PARTSCATALOGUENEWS	CCG125 / CCG125WHCCG125MCCG125WH F / J
NEWS NO.	001

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Serial No.	Parts catalogue code
					125 W	CGG F	125MI J
E-5	2	E	12191-KSW-G30	*PART NO. DELETION
		A	12191-KSW-G01	GASKET, CYLINDER....	1	-	-
E-6	2	E	11393-KSW-G30	*PART NO. DELETION
		A	11393-KSW-G01	GASKET, R. CRANKCASE COVER...	1	-	-
E-10	6	E	11395-KSW-G30	*PART NO. DELETION
		A	11395-KSW-G01	GASKET, L. CRANKCASE COVER...	1	-	-
E-15	2	E	11191-KSW-G30	*PART NO. DELETION
		A	11191-KSW-G01	GASKET, CRANKCASE....	1	-	-
F-14-10	7	E	44711-KSW-G30	*PART NO. DELETION
		A	44711-KSW-G31	TIRE, FR. (MBP) (2.50-18 40L)...	1	-	-
	8	E	44712-KSW-G30	*PART NO. DELETION
		A	44712-KSW-G31	TUBE, TIRE(MBP)....	1	-	-
	9	E	42713-KSW-G30	*PART NO. DELETION
		A	44713-KSW-G31	FLAP, TIRE(MBP)....	1	-	-
F-19-10	9	E	42711-KSW-G30	*PART NO. DELETION

NOTE A: PART NO. CHANGE D: NENLY PROVIDED E: PART NO. DELETION K: REQUIRED NO. CORRECTION L: APPLICATION SERIAL NO. CORRECTION M: PART DESCRIPTION CORRECTION T: APPLICATION CORRECTION Z: REMARKS CHANGE

PARTS CATALOGUE NEWS

BOOKNo.:18KSWFP3
Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Serial No. Parts catalogue code
					125 W	CGF 125MI F	J
		A	42711-KSW-G31	TIRE, FR. (MBP) (2.75-18 48P)...	1	-	-
	10	E	42712-KSW-G30	*PART NO. DELETION
		A	42712-KSW-G31	TUBE, TIRE(MBP)....	1	-	-
	11	E	42713-KSW-G30	*PART NO. DELETION
		A	42713-KSW-G31	FLAP, TIRE(MBP)....	1	-	-
F-25	16	T	90111-171-000	BOLT-WASHER, 6X25....	-	3	3
	26	K	95701-06025-00	BOLT, FLANGE, 6X25....	3	-	-
F-37-1	21	E	95701-06012-08	*PART NO. DELETION
		A	95701-06016-08	BOLT, FLANGE, 6X16....	1	-	-

NOTE A: PART NO. CHANGE D: NEWLY PROVIDED E: PART NO. DELETION K: REQUIRED NO. CORRECTION L: APPLICATION SERIAL NO. CORRECTION M: PART DESCRIPTION CORRECTION T: APPLICATION CORRECTION Z: REMARKS CHANGE

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd.

Service Division Service Information Dept.

PARTS CATALOGUE - CORRECTED

Printed in Japan

December 03, 2020

CODE NO.	18KSWFP3
PARTSCATALOGUENEWS	CCG125 / CCG125WHCCG125MCCG125WHFCCG125WHJ
NEWS NO.	002

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Serial No.	Parts catalogue code
					125 W	125MI F	J
F-37-1	16	E	90111-162-000	*PART NO. DELETION
		A	90116-KVB-900	BOLT, FLANGE, 6MM......	1	-	-

NOTE A: PART NO. CHANGE D: NENLY PROVIDED E: PART NO. DELETION K: REQUIRED NO. CORRECTION L: APPLICATION SERIAL NO. CORRECTION M: PART DESCRIPTION CORRECTION T: APPLICATION CORRECTION Z: REMARKS CHANGE
