Product Type	Thin Client
Brand	Acer
Model	Aspire V5-552PG
Dimensions (W x D x H)	381.6 x 262.8 x 25.4 mm
Weight	2.4 kg
Power Supply	65 W AC adapter
Processor	AMD A8-5545M (quad-core, 1.7 GHz)
Memory	4 GB DDR3
Storage	500 GB HDD
Display	15.6" LED, 1366x768, touchscreen
Connectivity	USB 3.0, HDMI, VGA, Ethernet, Wi-Fi 802.11b/g/n, Bluetooth 4.0
Operating System	Windows 8 (64-bit)
Main Functions	Cloud computing access, remote desktop, web browsing, multimedia playback, office applications
Maintenance and Cleaning	Wipe with soft dry cloth; avoid liquids; clean vents with compressed air
Safety	Use only supplied power adapter; avoid overheating; do not disassemble
Spare Parts and Repairability	Contact Acer service center; RAM and HDD user-replaceable
General Information	Designed for enterprise virtualized environments; 1-year limited warranty

Frequently Asked Questions - Aspire V5-552PG ACER

How do I connect the thin client to a network?

Connect an Ethernet cable to the RJ-45 port or use the built-in Wi-Fi by clicking the network icon in the taskbar and selecting your network.

Can I upgrade the memory or storage?

Yes, the RAM and hard drive are user-replaceable. Refer to the user manual for access procedure. Ensure you use compatible components.

What operating system does the Aspire V5-552PG run?

It comes with Windows 8 (64-bit) preinstalled. It can also run other operating systems compatible with the hardware.

How do I reset the device to factory settings?

Press Alt + F10 during boot to access Acer Recovery Management. Follow on-screen instructions to restore the factory image.

Is the touchscreen functional?

Yes, this model includes a touchscreen display. You can use gestures and tap to interact with the system.

What should I do if the device overheats?

Ensure vents are not blocked, clean dust with compressed air, and place on a hard surface. If issue persists, contact support.

Can I use this thin client for gaming?

It is not designed for gaming; it is intended for cloud computing and light applications. Integrated graphics may run basic games.

How do I clean the screen?

Turn off the device and wipe the screen gently with a soft, lint-free cloth. Do not use any liquids or cleaners.

What accessories are included?

The package includes the thin client, AC power adapter, and user manual. Additional accessories may vary by region.

How long is the warranty?

Acer typically offers a 1-year limited warranty. Check your region for specific terms and extensions.

USER MANUAL Aspire V5-552PG ACER

Aspire V7-581P / V7-582P / V5-573P / V5-572P / V5-552P

Quick Guide

Product registration

When using your product for the first time, it is recommended that you immediately register it. This will give you access to some useful benefits, such as:

- Faster service from our trained representatives.

- Membership in the Acer community: receive promotions and participate in customer surveys.

•The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit www.acer.com. Select your country, click PRODUCT REGISTRATION and follow the simple instructions.

You will also be asked to register your product during the setup process, or you can double-click the Registration icon on the desktop.

After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place.

Obtaining Acer accessories

We are happy to inform you that Acer's warranty extension program and Notebook accessories are available online. Come and visit our online shop and find what you need at store.acer.com.

The Acer store is being progressively rolled out, and, unfortunately may not be available in some regions. Please check back regularly to see when it will be available in your country.

© 04/2013. All Rights Reserved.

Aspire V7-581P / V7-582P / V5-573P / V5-572P / V5-552P

Quick Guide

This revision: April 2013

Model number:

Serial number:

Date of purchase:

Place of purchase:

ENVIRONMENT

Temperature:

• Operating: 5 °C to 35 °C
• Non-operating: -20 °C to 65 °C

Humidity (non-condensing):

• Operating: 20% to 80%
• Non-operating: 20% to 80%

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Setup Guide helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new computer.

For more on how your computer can help you to be more productive, please refer to the Aspire V7-581P / V7-582P / V5-573P / V5-572P / V5-552P User's

Manual. The Aspire V7-581P / V7-582P / V5-573P / V5-572P / V5-552P

User's Manual contains useful information applying to your new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook.

Follow these steps to access it:

1 Type 'User' from Start.

2 Click on Acer User's Manual.

Your Acer notebook tour

After setting up your computer as illustrated in the Setup Guide, let us show you around your new Acer computer.

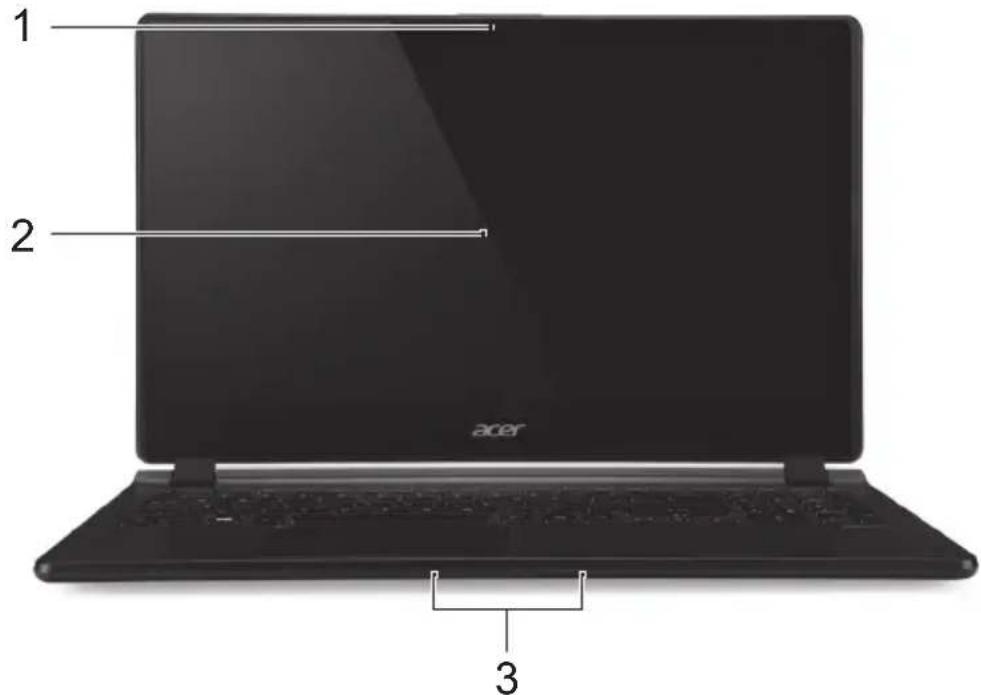

Screen view

Icon Item Description

1 Webcam	Web camera for video communication.A light next to the webcam indicates that the webcam is active.
2 Touchscreen	Displays computer output, supports multi-touch input.
3 Microphones	Internal stereo microphones for sound recording.Note: Only the V7-582P has dual microphones, other models have a single microphone beneath the touchpad.

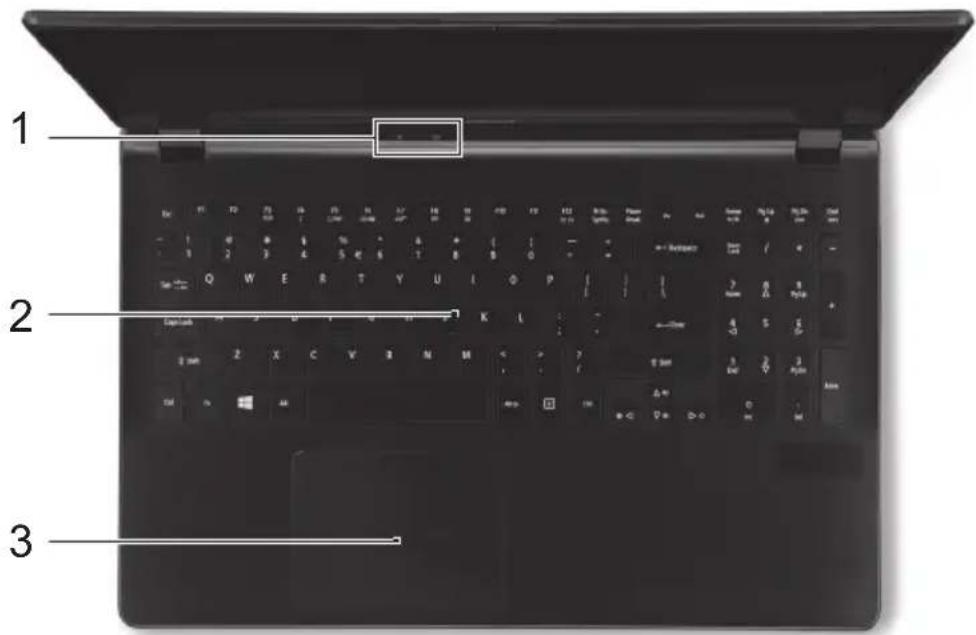

Keyboard view

Icon Item Description

1	Power indicator Indicates the computer's power status.
	Battery indicator	Indicates battery status.Charging: The light is amber when the battery is charging.Fully charged: The light is blue.
2 Keyboard		For entering data into your computer.See "Using the keyboard" on page 8.Caution: Do not use a keyboard protector or similar cover as the keyboard includes ventilation intakes for cooling.
3 Touchpad		Touch-sensitive pointing device.The touchpad and selection buttons form a single surface.Press down firmly on the touchpad surface to perform a left click.Press down firmly on the lower right corner to perform a right click.

Left view

Close-up of a black electronic device's back panel with labeled ports 1 and 2 (no additional text or symbols)

# Icon Item Description

1 USB port Connects to USB devices.

2 Power button Turns the computer on and off.

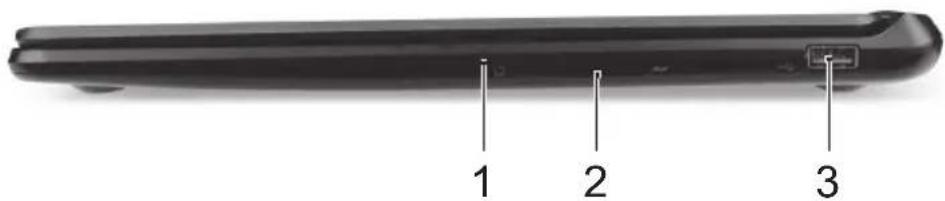

Right view

# Icon Item Description

1		Headset/speaker jack	Connects to audio devices (e.g.,speakers, headphones) or a headset withmicrophone.
2		SD card reader	Accepts one Secure Digital card (SD orSDHC).Note:To remove the card, simply pull itfrom the slot.Warning:The card sticks out from theside of the computer.Ensure you don’tdamage your card.
3		USB port Connects to USB devices.

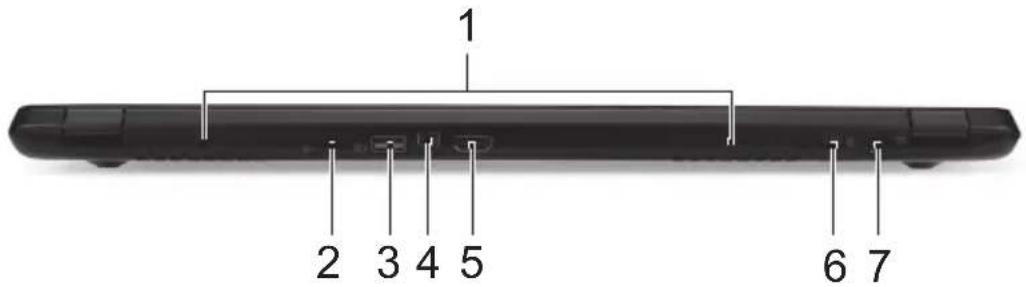

Rear view

Icon Item Description

1		Ventilation and cooling fan	Allows the computer to stay cool.Do not cover or obstruct the openings.
2		Ethernet (RJ-45) port	Connects to an Ethernet 10/100/1000-based network.Note: Pull the lip down to open the port fully.
3		USB port with power-off charging	Connects to USB devices.
4		Acer Converter Port	Connects to the Acer Converter cable,allowing for easy connection to a LAN,an external display or an additional USB device.Note: There are different cables available.Please check with your retailer to see which are compatible with your computer.
5	HDMI	HDMI port	Supports high-definition digital video connections.
6		Kensington lock slot	Connects to a Kensington-compatible computer security lock.Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer.Insert the lock into the notch and turn the key to secure the lock.Keyless models are also available.
7		DC-in jack Connects to an AC adapter.

Information on USB 3.0

• USB 3.0 compatible ports are blue.
• Compatible with USB 3.0 and earlier devices.
• For optimal performance, use USB 3.0-certified devices.
• Defined by the USB 3.0 specification (SuperSpeed USB).

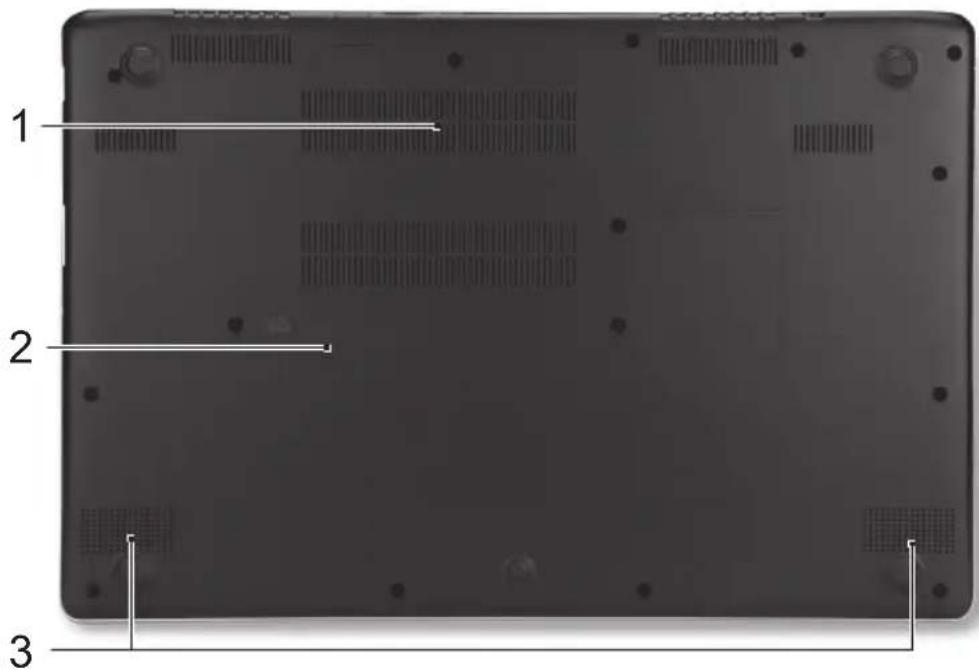

Base view

Icon Item Description

1		Ventilation and cooling fan	Allows the computer to stay cool.Do not cover or obstruct the openings.
2	[γxhw]	Battery reset pinhole	Insert a paperclip into the hole and press for four seconds to reset the computer (simulates removing and reinstalling the battery).
3	Speakers Deliver stereo audio output.

Using the keyboard

The keyboard has full-sized keys and a numeric keypad, separate cursor, lock, Windows, function and special keys.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

HotkeyIconFunctionDescription
	+		Airplane mode
	+		Sleep
	+	□|□	Display toggle
	+		Display off
	+		Touchpad toggle
	+		Speaker toggle
	+		Keyboard backlight
	+ < ▷		Brightness up
	+ < ▷		Brightness down Decreases the screen brightness.
	+ < ▷		Volume up Increases the sound volume.
	+ < ▷		Volume down Decreases the sound volume.
	+		Play/Pause
	+		Stop
	+	[6422]	Previous
	+	[260K]	Next
