USER MANUAL Aspire V5-123 ACER

Product registration

When using your product for the first time, it is recommended that you immediately register it. This will give you access to some useful benefits, such as:

• Faster service from our trained representatives.
• Membership in the Acer community: receive promotions and participate in customer surveys.
  •The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit www.acer.com. Select your country, click PRODUCT REGISTRATION and follow the simple instructions.

You will also be asked to register your product during the setup process, or you can double-click the Registration icon on the desktop.

After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place.

Obtaining Acer accessories

We are happy to inform you that Acer's warranty extension program and Notebook accessories are available online. Come and visit our online shop and find what you need at store.acer.com.

The Acer store is being progressively rolled out, and, unfortunately may not be available in some regions. Please check back regularly to see when it will be available in your country.

© 07/2013. All Rights Reserved.

Aspire V5-123

Quick Guide

This revision: July 2013

Model number:

Serial number:

Date of purchase:

Place of purchase:

ENVIRONMENT

Temperature:

• Operating: 5 °C to 35 °C
• Non-operating: -20 °C to 65 °C

Humidity (non-condensing):

• Operating: 20% to 80%
• Non-operating: 20% to 80%

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Setup Poster helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new computer.

For more on how your computer can help you to be more productive, please refer to the User's Manual. The User's Manual contains useful information applying to your new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook.

Follow these steps to access it:

1 Type 'User' from Start.

2 Click on Acer User's Manual.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer computer.

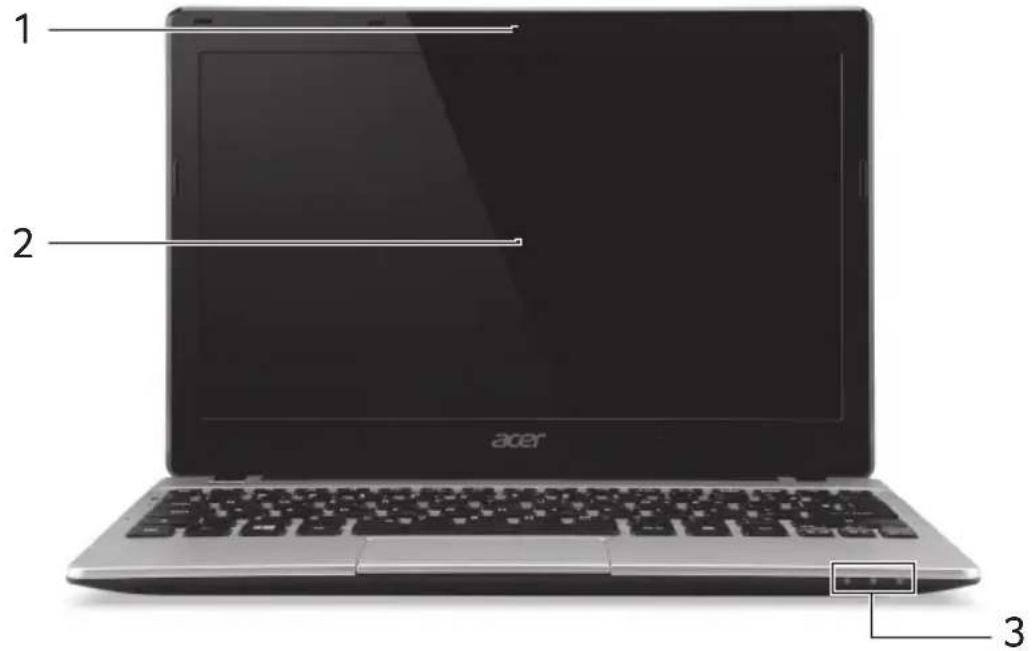

Screen view

Icon Item Description

1 Webcam			Web camera for video communication.A light next to the webcam indicates that the webcam is active.
2 Screen Displays computer output.
3		Power indicator Indicates the computer's power status.
		Battery indicator	Indicates the computer's battery status.Charging: The light is amber when the battery is charging.Fully charged: The light is blue when plugged in.
		Communication indicator	Indicates the computer's wireless connectivity device status.

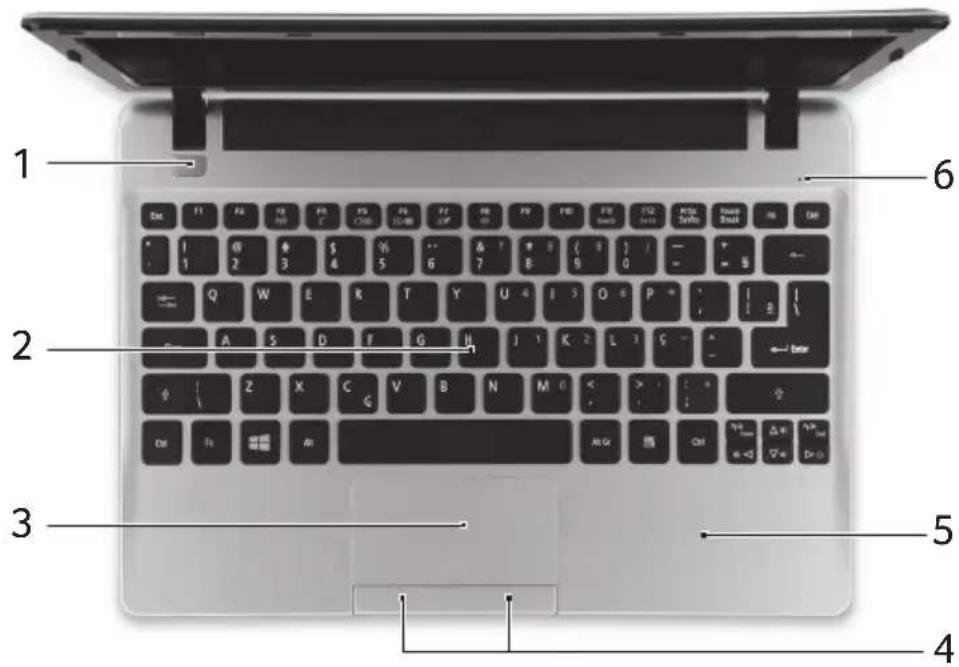

Keyboard view

# Icon Item Description

1 Power button Turns the computer on and off.

2 Keyboard		For entering data into your computer. See "Using the keyboard" on page 7.
3 Touchpad		Touch-sensitive pointing device which functions like a computer mouse.
4	Click buttons (left and right)	The left and right side of the button function as left and right selection buttons.
5 Palmrest		Comfortable support area for your hands when you use the computer.
6 Micr	ophone Internal microphone for sound recording.

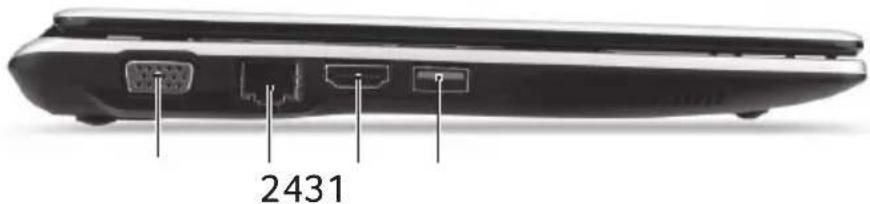

Left view

# Icon Item Description

1

External display (VGA) port

Connects to a display device (e.g., external monitor, LCD projector).

Icon Item Description

2 Ethernet (RJ-45) port	Connects to an Ethernet 10/100/1000-based network.
3 HDMI port	Supports high-definition digital video connections.
4 USB port Connects to USB devices.

Information on USB 3.0

• USB 3.0 compatible ports are blue.
• Compatible with USB 3.0 and earlier devices.
• For optimal performance, use USB 3.0-certified devices.
• Defined by the USB 3.0 specification (SuperSpeed USB).

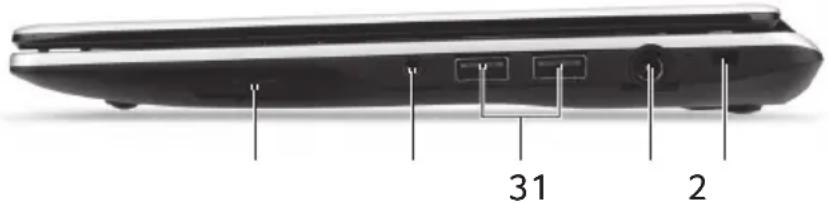

Right view

Icon Item Description

1 SD card reader	Accepts one Secure Digital (SD or SDHC) card.Note: Push to remove/install the card.
2 Heads eaker jack	Connects to audio devices (e.g.,speakers, headphones) or a headset with microphone.
3 USB ports Connect to USB devices.
4 DC-in connects to an AC adapter.

5		Kensington lock slot	Connects to a Kensington-compatible computer security lock. Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Keyless models are also available.

Information on USB 3.0

• USB 3.0 compatible ports are blue.
• Compatible with USB 3.0 and earlier devices.
• For optimal performance, use USB 3.0-certified devices.
• Defined by the USB 3.0 specification (SuperSpeed USB).

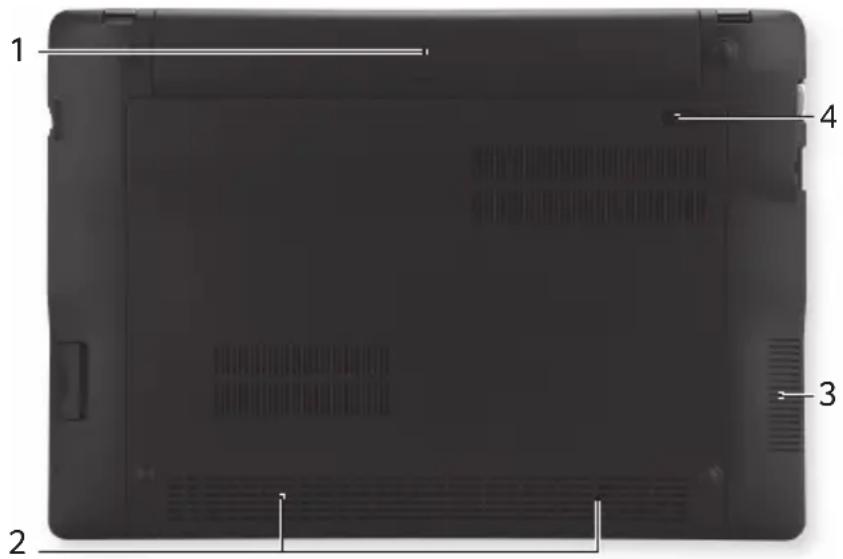

Base view

Icon Item Description

1 Battery bay Houses the computer's battery pack.
2 Speakers Deliver stereo audio output.
3	Ventilation and cooling fan	Allows the computer to stay cool.Do not cover or obstruct the openings.
4 Battery release latch		Releases the battery for removal. Insert a suitable tool and slide to release.

Note: For models with an AMD processor and a single memory module: If you replace the memory module, the new module must go into the same slot occupied by the module that was removed.

Using the keyboard

Your computer has a compact keyboard with an embedded numeric keypad. The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps.

To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access Num Lock on Num Lock off

Number keys on embedded keypad	Type numbers in a normal manner.
Cursor-control keys on embedded keypad	Holdwhile using cursor-control keys.	Holdwhile using cursor-control keys.
Main keyboard keys	Holdwhile typing letters on embedded keypad.	Type the letters in a normal manner.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey Icon Function Description

		Airplane mode	Turns on / off the computer's network devices.(Network devices vary by configuration.)
		Sleep	Puts the computer in Sleep mode.
		Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
		Display off	Turns the display screen backlight off to save power. Press any key to return.
		Touchpad toggle	Turns the built-in touchpad on and off.
		Speaker toggle	Turns the speakers on and off.
	NumLk	Number Lock	Turns the embedded numeric keypad on or off.
	Scr Lk	Scroll Lock	Turns Scroll Lock on or off.
	[40AT]	Brightness up	Increases the screen brightness.
		Brightness down	Decreases the screen brightness.

HotkeyIconFunctionDescription

	+ < ≥	Volume up Increases the sound volume.
	+ < >	Volume down Decreases the sound volume.
