Product Type	Vehicle-specific radio installation kit with steering wheel control retention
Model	SWRTY-61S
Brand	CRUX
Compatibility	Select vehicles (refer to CRUX fit guide)
Dimensions (Kit Box)	Approx. 8 x 6 x 2 inches
Weight	Approx. 0.5 lbs
Power Supply	12V DC vehicle electrical system
Main Functions	Retains factory steering wheel audio controls; provides wiring interface for aftermarket radio
Input Connections	Vehicle-specific harness (brown, gray, blue, etc.)
Output Connections	Standard aftermarket radio harness (ISO/JIS)
Installation	Plug-and-play, no cutting of factory wires required
Maintenance	Keep dry; disconnect battery before installation
Safety	Designed to maintain factory safety features; professional installation recommended
Spare Parts	Contact CRUX customer support for replacement harnesses
Reparability	Repairs only by authorized CRUX technicians
Included Accessories	Kit includes harness, control module, and instructions
Warranty	1 year limited warranty

Frequently Asked Questions - SWRTY-61S CRUX

What vehicles are compatible with the CRUX SWRTY-61S?

The SWRTY-61S is designed for select vehicles. Please check the CRUX fit guide on their website for specific makes and models. Common applications include Chevrolet, GMC, and some GM trucks.

Does this kit retain steering wheel controls?

Yes, the SWRTY-61S is specifically designed to retain factory steering wheel audio controls when installing an aftermarket radio.

Is the installation plug-and-play?

For most vehicles, yes. The kit uses vehicle-specific connectors that plug directly into the factory harness without cutting wires. Some vehicles may require additional adapters.

Do I need any special tools for installation?

Basic installation tools such as wire strippers, crimpers, and trim removal tools may be required. Refer to the manual for details.

Can I use this kit with any aftermarket radio?

The SWRTY-61S is compatible with most aftermarket radios that have a standard ISO/JIS harness. Some radios may require additional adapters for features like chimes.

Does the kit support amplified systems?

This kit is designed for non-amplified systems. If your vehicle has a factory amplifier, you may need a separate interface (e.g., CRUX SWR-AMP).

What should I do if my steering wheel controls don't work after installation?

First, double-check all connections. Ensure the kit is properly programmed (if required). Refer to the manual for programming steps or consult CRUX support.

Is there a warranty on the SWRTY-61S?

Yes, CRUX offers a 1-year limited warranty against defects in materials and workmanship.

Can I return the kit if it doesn't fit my vehicle?

Return policies vary by retailer. Ensure you verify compatibility before purchase using CRUX's official fit guide.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com. Search for model SWRTY-61S.

USER MANUAL SWRTY-61S CRUX

• Retains factory features in select Toyota vehicles while functioning with an aftermarket radio.
• Pre-programmed to retain factory Steering Wheel Controls.
• iPhone Voice Recognition (VR) feature from SWC on select radios.
• Supports BT-HF/A2DP/AVRCP profile on select aftermarket radio models.
• Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRCP Track, Seek.
• Retains factory Aux Input.
• EIA color coded wiring for easy installation.

PARTS INCLUDED:

SWRTY-61S MODULE SWRTY-61S HARNESS SWC CABLE

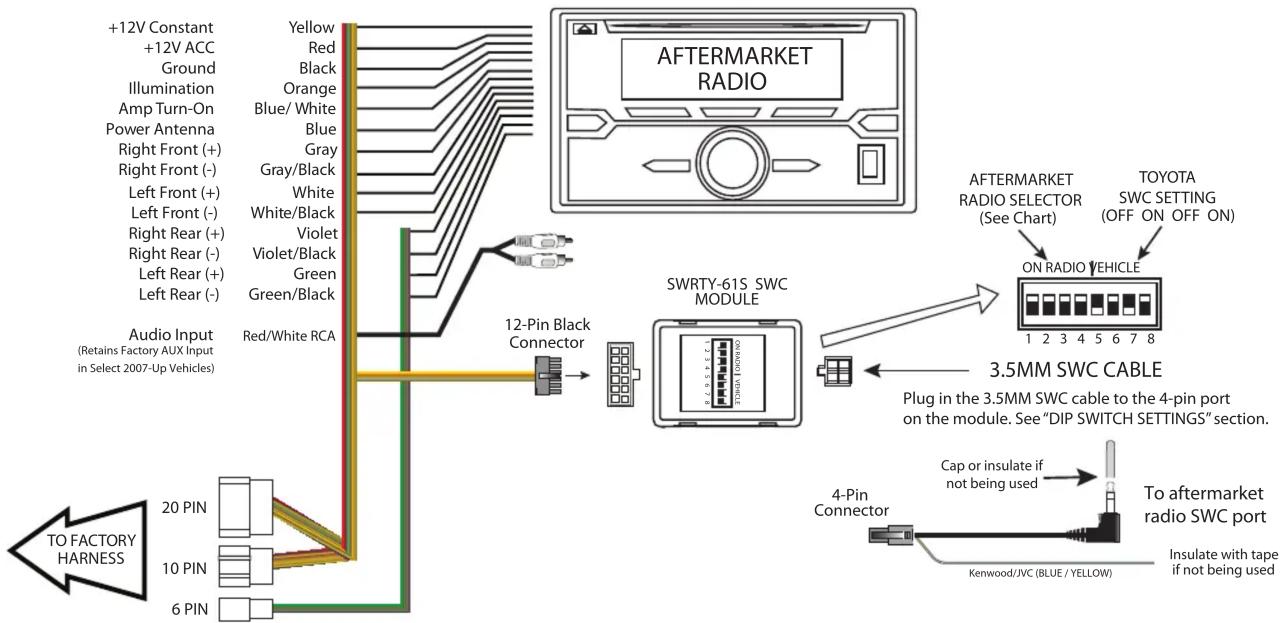

INSTALLATION DIAGRAM:
LED TROUBLESHOOTING ON MODULE

LED LIGHT	LED MODULE FEEDBACK
BLUE LED OFF	NO POWER	CHECK VOLTAGE
RED LED FLASHES	WHEN PRESSING SWC BUTTONS

1 of 2

rev. 081022

DIP SWITCH SETTINGS:

AFTERMARKET RADIO DIP SWITCH SETTINGS:

RADIO BRAND: DIP: 1 2 3 4

Atoto, Dual, Farenheit, Jensen, Pioneer	OFF	OFF	ON	ON
Power Acoustik, Soundstream	OFF	OFF	ON	ON
Blaupunkt, Most off-brand Radios	OFF	OFF	ON	ON
Alpine	OFF	OFF	OFF	OFF
Clarion	OFF	ON	ON	OFF
Kenwood	OFF	ON	ON	ON
JVC	OFF	ON	OFF	ON
Boss, Old Sony	OFF	ON	OFF	OFF
New Sony	OFF		OFF	ON	OFF

SWC MODULE

NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most off-brand radios, check the aftermarket radio's manual to see if the SWC buttons need to be programmed.

TOYOTA STEERING WHEEL CONTROL DIP SWITCH SETTING:

	DIP:	5	6	7	8
Toyota		OFF	ON	OFF	ON

SWC MODULE

3.5MM SWC CABLE

Plug in the 3.5MM to 4-Pin SWC cable and set the DIP switches to the aftermarket radio you are using.

NOTE: Insulate the Blue/Yellow wire or the 3.5mm plug if not being used.

For aftermarket radios that have wires for SWC connections, cut off the 3.5mm plug on the Crux SWC Cable and connect the SWC wires as follows:

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.

VEHICLE APPLICATIONS:

SCION		TOYOTA
2005 - 2011	tC	2003 - 2013	4Runner	2006 - 2011	RAV4
2004 - 2007	xA	2005 - 2011	Avalon	2003 - 2011	Sequoia
2004 - 2011	xB	2007 - 2011	Camry	2004 - 2014	Sienna
2008 - 2011	xD	2004 - 2008	Camry Solara	2005 - 2012	Tacoma
		2007 - 2010	FJ Cruiser	2003 - 2013	Tundra (2013 early production)
		2008 - 2012	Highlander	2009 - 2011	Venza
		2005 - 2011	Matrix	2008 - 2011	Yaris
