Product Type	Car Stereo Receiver
Brand	JVC
Model	KD-R497
Dimensions (W x H x D)	Approx. 178 x 50 x 165 mm (7 x 2 x 6.5 inches)
Weight	Approx. 1.2 kg (2.6 lbs)
Power Supply	12V DC (car battery), negative ground
Maximum Power Output	50 W x 4 channels (Peak)
Continuous Power Output (RMS)	22 W x 4 channels (RMS, 4 ohms, 1% THD)
Audio Compatibility	CD, CD-R/RW, MP3, WMA, WAV, FLAC via USB
Tuner Bands	FM (87.5-108 MHz), AM (531-1611 kHz)
Bluetooth	Built-in, hands-free calling and audio streaming
USB Port	Front USB, supports up to 32 GB
AUX Input	Front 3.5 mm auxiliary input
Display	LCD dot matrix, multi-color illumination
Equalizer	3-band parametric EQ (Bass, Mid, Treble)
Remote Control	Included wired remote (optional wireless)
Detachable Faceplate	Yes, removable for theft prevention
Maintenance	Clean faceplate with soft dry cloth; avoid solvents
Safety Certifications	CE, FCC, RoHS compliant
Spare Parts	Available through JVC service centers (faceplate, trim ring, wiring harness)
Reparability	Serviceable by qualified technicians; self-service limited to fuse replacement
Supported Languages	English, Spanish, French, German, Italian, Portuguese

Frequently Asked Questions - KD-R497 JVC

Does the JVC KD-R497 support Bluetooth?

Yes, the KD-R497 has built-in Bluetooth for hands-free calling and audio streaming. Pair your phone via the device menu.

What file formats are supported via USB?

The USB port supports MP3, WMA, WAV, and FLAC files. The drive should be formatted as FAT32 and up to 32 GB.

How do I remove the faceplate?

Press the release button (usually on the bottom left) and pull the faceplate straight off. Store it in the provided case.

Can I connect an external amplifier?

Yes, the receiver has front, rear, and subwoofer preamp outputs (2V) for connecting external amplifiers.

What are the dimensions of the KD-R497?

The unit is standard 1-DIN size: approximately 178 x 50 x 165 mm (7 x 2 x 6.5 inches).

Does it have a CD player?

Yes, it plays CDs, CD-R/RW discs, as well as MP3/WMA/WAV files burned to disc.

How do I reset the unit?

Press the reset button (small hole) with a pen tip, or disconnect the car battery for a few minutes.

Is the faceplate detachable?

Yes, the faceplate is detachable to deter theft. Remove and carry it with you.

What is the power output?

The maximum output is 50W x 4 channels, with RMS output of 22W x 4 channels at 4 ohms (1% THD).

Does it support steering wheel controls?

The KD-R497 has a wired remote input; you may need an adapter (sold separately) to connect steering wheel controls.

USER MANUAL KD-R497 JVC

CLASS 1 LASER PRODUCT

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

Declaration of Conformity with regard to the RE Directive 2014/53/EU Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, JAPAN

EU Representative:

Hereby, JVCKENWOOD declares that the radio equipment "KD-R497" is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.jvc.net/cs/car/eudoc/

Français

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.

▲ Warning

- Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

How to read this manual

• Operations are explained mainly using buttons on the faceplate of KD-R497.
• English indications are used for the purpose of explanation. You can select the display language from the menu. (5)
  • [XX] indicates the selected items.
• (→XX) indicates references are available on the stated page.

BASICS

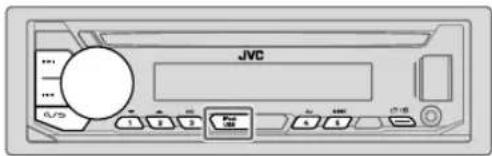

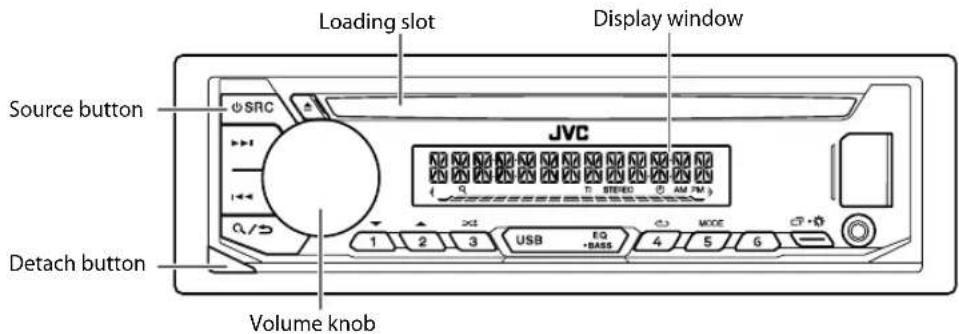

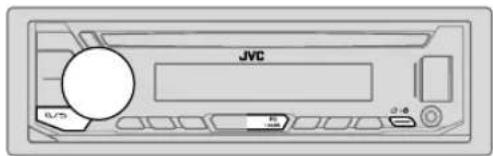

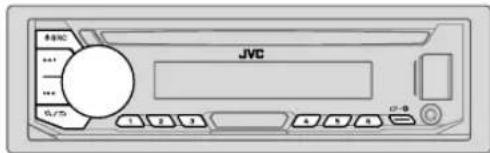

Faceplate for KD-R497

Attach

Detach

How to reset

Your preset adjustments will be erased except stored radio stations.

To On the faceplate

Turn on the power	Press ⬆SRC.• Press and hold to turn off the power.
Adjust the volume Turn the volume knob.
	Press the volume knob to mute the sound or pause playback.• Press again to cancel. The volume level returns to the previous level before muting or pause.
Select a source	• Pres ⬆SRC repeatedly.• Pres ⬆SRC, then turn the volume knob within 2 seconds.
Change the display information	Press ⬆⋯ repeatedly. (4)

GETTINGSTARTED

1 Cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: "CANCEL DEMO" → PRESS" → VOLUME KNOB"

1 Press the volume knob. [YES] is selected for the initial setup.
2 Press the volume knob again. "DEMO OFF" appears.

2 Set the clock and date

1 Press and hold
2 Turn the volume knob to select [CLOCK], then press the knob.
3 Turn the volume knob to select [CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Hour → Minute
5 Turn the volume knob to select [CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.

To adjust the clock

To set the date

7 Turn the volume knob to select [DATE SET], then press the knob.
8 Turn the volume knob to make the settings, then press the knob. Day → Month → Year

9 Press to exit.

To return to the previous setting item, press / .

4 ENGLISH

3 Set the basic settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press Q/3.

Default: XX

SYSTEM
KEY BEEP ON	____: Activates the keypress tone. ; OFF: Deactivates.
SOURCESELECT
AM SRC*	ON: Enables AM in source selection. ; OFF: Disables. (-5)
BUILT-IN AUX*	ON: Enables AUX in source selection. ; OFF: Disables. (-9)
F/W UPDATE
UPDATE SYSTEM
F/W UP xxxx YES	: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated).For details on how to update the firmware, visit:.

* Not displayed when the corresponding source is selected.

GEKTINGSTARTED

TIME SYNC ON	_: The clock time is automatically set using theClock Time (CT) data in FM Radio Data System signal. ;OFF: Cancels.
CLOCK DISPLAY ON	: The clock time is shown on the display even when theunit is turned off. ;OFF: Cancels.
ENGLISH	Select the display language for menu and musicinformation if applicable.
РУССКИЙ
ESPANOL	By default,РУССКИЙis selected.

RADIO

"ST" or "STEREO" lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press ⬇SRC repeatedly to select FM/FM-LO or AM.

2 Press (or press on the remote control) to search for a station automatically.

(or)

Press and hold (or press and hold on the remote control) until "M" flashes, then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM, 6 stations for FM-LO and 6 stations for AM.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6). (or)

1 Press and hold the volume knob until "PRESET MODE" flashes.

2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and "MEMORY" appears.

Select a stored station

Press one of the number buttons (1 to 6). (or)

1 Press Q/→

2 Turn the volume knob to select a preset number, then press the knob.

RADIO

Other settings

1 Press and hold
2 Perform 'select an item (3 or 4)' operation to select an item (see the following table).
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press 9/3

Default: XX

TUNER SETTING

RADIO TIMER	Turns on the radio at a specific time regardless of the current source.1 ONCE/DAILY/WEEKLY/OFF: Select how often the timer will be turned on.2 FM/AM: Select the band.3 01 to 18 (for FM)/01 to 06 (for FM-LO/AM): Select the preset station.4 Set the activation day*1 and time.“💡” lights up when complete.Radio Timer will not activate for the following cases.• The unit is turned off.• [OFF]is selected for [AM SRC] in [SOURCE SELECT] after Radio Timer for AM is selected. (⇨)
SSM	FM: SSM 01–06 /SSM 07–12; FM-LO: SSM 01–06: Automatic programming of up to 12 FM radio stations and 6 FM-LO radio stations. The text “SSM” stops flashing after the first 6 stations have been stored. Select SSM 07–12 to store the next 6 FM radio stations.
LOCAL SEEK ON	: Searches only FM stations with good reception. ;OFF: Cancels.• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.

IF BAND	AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM/FM-LO stations. (Stereo effect may be lost.) ;WIDE: Subjects to interference noises from adjacent FM/FM-LO stations, but sound quality will not be degraded and the stereo effect will remain.
MONO SET ON	: Improves the FM reception, but the stereo effect will be lost.;OFF: Cancels.
NEWS SET*2	ON The unit will temporarily switch to News Programme if available.;OFF: Cancels.
REGIONAL*2	ON Switches to another station only in the specific region using the "AF" control.;OFF: Cancels.
AF SET*2	ON Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor.;OFF: Cancels.
TI ON	: Allows the unit to temporarily switch to Traffic Information if available ("TI" lights up) while listening to all sources except in AM.;OFF: Cancels.
PTY SEARCH*2	Select a PTY code (see below).If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

*1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1.
*2 Only for FM source.

PTY code

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

CD/USB/ANDROID

Start playback

The source changes automatically and playback starts.

CD

The source changes automatically and playback starts.

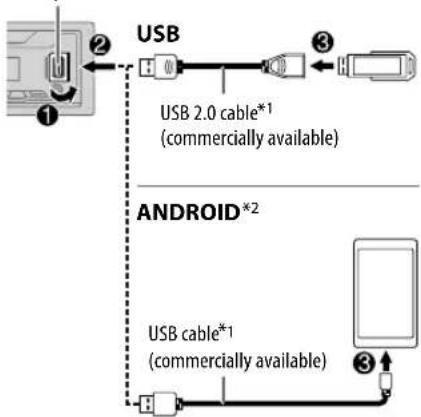

USB input terminal

• To directly select USB/ANDROID source, press USB.

To On the faceplate

Reverse/Fast-forward*3	Press and hold ◀◀/▶▶
Select a track/file Press	|◀◀/▶▶|.
Select a folder*4	Press 2 ▲/1 ▼
Repeat play*3	Press 4 repeatedly.
	TRACK REPEAT/ALL REPEAT	: Audio CD
	TRACK REPEAT/FOLDER REPEAT/ALL REPEAT	: MP3/WMA/WAV/FLAC file
	ONE REPEAT/ALL REPEAT/REPEAT OFF	: ANDROID
Random play*3	Press 3 repeatedly.
	ALL RANDOM/RANDOM OFF	: Audio CD
	FOLDER RANDOM/ALL RANDOM/RANDOM OFF	: MP3/WMA/WAV/FLAC file
	SONG RANDOM/ALL RANDOM/RANDOM OFF	: ANDROID

*1 Do not leave the cable inside the car when not using.
*2 When connecting an Android device, "Press [VIEW] to install JVC MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. For more information, visit http://www.jvc.net/cs/car/.
*3 For ANDROID: Applicable only when [AUTO MODE] is selected. (-8)
*4 For CD: Only for MP3/WMA files. This does not work for ANDROID.

USB/ANDROID

Select control mode

While in ANDROID source, press 5mode.

AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device.

AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

Select music drive

While in USB source, press 5mModedly.

Stored songs in the following drive will be played back.
- Selected internal or external memory of a smartphone (Mass Storage Class).
- Selected drive of a multiple drives device.

Select a file from a folder/list

For ANDROID, applicable only when [AUTO MODE] is selected.

1 Press .Q/→
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

Alphabet search (applicable only for ANDROID source)

You can search for a file according to the first character.

1 Press to enter character search.
2 Turn the volume knob to select the desired character.

^A^ : Upper case letters (A to Z)

_A_: Lower case letters (a to z)
-0- : Numbers (0 to 9)
-OTHERS- : Character other than A to Z, 0 to 9

3 Press the volume knob to start searching.

• To return to the previous setting item, press / .
  • To cancel, press and hold Q/⊃.

AUX

Use a portable audio player

1 Connect a portable audio player (commercially available).

3.5 mm (1/8") stereo mini plug with "L" shaped connector (commercially available)

2 Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (4)
3 Press repeatedly to select AUX.
4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

AUDIOSETTINGS

Select a preset equalizer directly

Press EQ-BASS repeatedly. (or)

Press EQ-BASS, then turn the volume knob within 5 seconds.

Preset equalizer:

FLAT (default)/DRVN 3/DRVN 2/DRVN 1/HARD ROCK/HIP HOP/JAZZ/POP/R&B/TALK/ USER/VOCAL BOOST/BASS BOOST/CLASSICAL/DANCE

- Drive equalizer (DRVN 3 /DRVN 2/DRVN 1) boosts specific frequencies in the audio signal to reduce the noise heard from outside the car or running noise of the tyres.

Store your own sound settings

1 Press and hold EQ-BASS EASY EQ setting.
2 Turn the volume knob to select an item, then press the knob. Refer to [EASY EQ] (▶0) for setting and the result is stored to [USER].
• To return to the previous setting item, press Q/∅.
• To exit, press EQ-BASS.

Other settings

1 Press and hold
2 Turn the volume knob to select an item (10), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press □ to exit.

To return to the previous setting item, press Q/3.

AUDIO SETTINGS

EQSETTING
PRESET EQ	Select a preset equalizer suitable to the music genre. Select [USER] to use the settings made in [EASY EQ] or [PRO EQ].FLAT/DRVN 3/DRVN 2/DRVN 1/HARD ROCK/HIP HOP/JAZZ /POP/R&B/TALK'USER/VOCAL BOOST/BASS BOOST/CLASSICAL/DANCE
EASY EQ	Adjust your own sound settings.The settings are stored to [USER].The settings made may affect the current settings of [PRO EQ].SUB.W SP*1*2:00 to +06 (Default:±03SUB.W*1*3:-08 to+08 00—BASS:LVL-06 to LVL+06LVL 00MID:LVL-06 to LVL+06LVL 00TRE:LVL-06 to LVL+06LVL 00)
PRO EQ	Adjust your own sound settings.The settings are stored to [USER].The settings made may affect the current settings of [EASY EQ].1 BASS/MIDDLE/TREBLE: Select a sound tone.2 Adjust the sound elements of the selected sound tone.BASS Frequency :60HZ /80HZ/100HZ/200HZLevel :LVL-06 to LVL+06Q :Q1.0/Q1.25/Q1.5/Q2.0(Default :80HZ/LVL 00/Q1.0)MIDDLE Frequency :0.5KHZ/1.0KHZ/1.5KHZ/2.5KHZLevel :LVL-06 to LVL+06Q :Q0.75/Q1.0/Q1.25(Default :1.0KHZ/LVL 00/Q1.25)TREBLE Frequency :10.0KHZ/12.5KHZ/15.0KHZ/17.5KHZLevel :LVL-06 to LVL+06Q :Q FIX(Default :10.0KHZ/LVL 00/Q FIX)

AUDIO CONTROL
BASS BOOST LEVEL +01 to LEVEL +05 (LEVEL +01): Selects your preferred bass boost level. ; OFF: Cancels.
LOUDNESS LEVEL 01 __/LEVEL 02: Boosts low or high frequencies to produce a well-balanced sound at low volume. ; OFF: Cancels.
SUB.W LEVEL*1	SPK-OUT*2	SUB.W 00 to SUB.W +06 (SUB.W +03): Adjusts the output level of the subwoofer connected via speaker lead. (-7)
	PRE-OUT*3	SUB.W -08 to SUB.W +08 (SUB.W 00): Adjusts the output level of the subwoofer connected to the lineout terminals (REAR/SW) through an external amplifier. (-17)
SUBWOOFER SET*3	ON: Turns on the subwoofer output. ; OFF: Cancels.
SUBWOOFER LPF*1	FRQ THROUGH: All signals are sent to the subwoofer. ; FRQ 55HZ /FRQ 85HZ FRQ 120HZ: Audio signals with frequencies lower than 55 Hz/85 Hz/120 Hz are sent to the subwoofer.
SUB.W PHASE*4	REVERSE (180°)/NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance.
FADERPOSITION R06 to POSITION F06 (POSITION 00): Adjusts the front and rear speaker output balance.
BALANCE*5	POSITION L06 to POSITION R06(POSITION 00): Adjusts the left and right speaker output balance.

*1 Displayed only when[SUBWOOFER SET] is set to[ON].

*2 Displayed only when[SPK/PRE OUT] is set to [SUB.W/SUB.W].(11)

^*3 Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W] ( 1)

*4 Selectable only if a setting other than [FRQ THROUGH] is selected for [SUBWOOFER LPF].

*5 This adjustment will not affect the subwoofer output.

AUDIO SETTINGS

VOLUME ADJUST LEVEL -15 to LEVEL +06 (LEVEL 00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. ("VOL ADJ FIX" appears if FM is selected.)
AMP GAIN LOW	POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; HIGH POWER: The maximum volume level is 35.
D.T.EXPANDER(Digital Track Expander)	ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; OFF: Cancels.
SPK/PRE OUT	Select the appropriate setting to get the desired output. (-Speaker output settings)

Speaker output settings

Select the output setting for the speakers [SPK/PRE OUT], base on the speaker connection method.

Connection via lineout terminals

For connections through an external amplifier. (17)

Setting on[SPK/PRE OUT]	Audio signal through lineout terminal
	REAR/SW
REAR/REAR	Rear speakers output
REAR/SUB.W (default) Subwoofer output
SUB.W/SUB.W	Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. (47)

Setting on[SPK/PRE OUT]	Audio signal through rear speaker lead
	L (left) R (right)
REAR/REAR	Rear speakers output Rear speakers output
REAR/SUB.W	Rear speakers output Rear speakers output
SUB.W/SUB.W	Subwoofer output (Mute)

If [SUB.W/SUB.W] is selected:

- [FRQ 120HZ] is selected in [SUBWOOFER LPF] and [FRQ THROUGH] is not available. (40)

- [POSITION R01] is selected in [FADER] and selectable range is [POSITION R06] to [POSITION 00]. (-40)

DISPLAYSETTINGS

1 Press and hold .
2 Perform 'select an item (8 or 4)' operation to select an item (see the following table).
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press Q/⊃

Default: XX

DISPLAY
DIMMER	Dim the illumination.OFF: Dimmer is turned off. Brightness changes to [DAY] setting.ON: Dimmer is turned on. Brightness changes to [NIGHT] setting.(→ [BRIGHTNESS])DIMMER TIME: Set the dimmer on and off time.1 Perform 'select an item (→8 or 4)' operation to adjust the[ON] time.2 Perform 'select an item (→8 or 4)' operation to adjust the[OFF] time.(Default: [ON]: 18:00; [OFF]:6:00)DIMMER AUTO: Dimmer turns on and off automatically when you turnoff or on the car headlights.*1

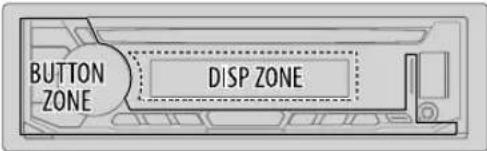

BRIGHTNESS	Set the brightness for day and night separately.1 DAY /NIGHT: Select day or night.2 Select a zone. (See the illustration.)3 LEVEL 00 to LEVEL 31: Set the brightness level.
TEXT SCROLL*2	SCROLL ONCE: Scrolls the display information once.; SCROLL AUTO: Repeats scrolling at 5-second intervals.; SCROLL OFF: Cancels.

*1 The illumination control wire connection is required. (-17)
^*2 Some characters or symbols will not be shown correctly (or will be blanked).

REFERENCES

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

■ More information

For: — Latest firmware updates and latest compatible item list

— Any other latest information

Visit http://www.jvc.net/cs/car/.

General

• This unit can only play the following CDs:

• This unit can play back multi-session discs; however, unclosed sessions will be skipped during playback.
• DualDisc playback: The Non-DVD side of a "DualDisc" does not comply with the "Compact Disc Digital Audio" standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.
• For detailed information and notes about the playable audio files, visit http://www.jvc.net/cs/car/.

playable files

• Playable audio file: For disc: MP3 (.mp3), WMA (.wma) For USB mass storage class device: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)
• Playable disc media: CD-R/CD-RW/CD-ROM
• Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name.
• Playable USB device file system: FAT12, FAT16, FAT32
  Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

Unplayable discs

• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
- Recordable/ReWritable discs that have not been finalized.
- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About Android device

• This unit supports Android OS 4.1 and above.
- Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
- If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

REFERENCES

Source name	Display information (for KD-R499/KD-R494/KD-R492)
FM or AM	Frequency Clock (back to the beginning)
	(For FM Radio Data System stations only)Station name (PS)/Program type (PTY) Radio text Radio text+ Radio text+ title/Radio text+ artist Frequency Clock (back to the beginning)
CD or USB (For CD-DA)	Disc title/Artist Track title/Artist Playing time Clock (back to the beginning)
	(For MP3/WMA/WAV/FLAC files)Song title/Artist Album name/Artist Folder name Filename Playing time Clock (back to the beginning)
ANDROID	When [AUTO MODE] is selected (-8) :Song title/Artist Album name/Artist Playing time Clock (back to the beginning)
AUX	AUX Clock (back to the beginning)

Available Cyrillic letters

Available characters

Display indications

TROUBLESHOOTING

Symptom Remedy
General	Sound cannot be heard.	Adjust the volume to the optimum level.Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected.	Check the [SOURCE SELECT] setting. (→)
Radio	Radio reception is poor.Static noise while listening to the radio.	Connect the antenna firmly.
CD/USB	Disc cannot be ejected.	Press and hold ▲o forcibly eject the disc. Be careful not to drop the disc when it is ejected.
	"IN DISC" appears.	Make sure nothing is blocking the loading slot when you eject the disc.
	"PLEASE EJECT" appears.	Press ▲then insert the disc correctly.
	Playback order is not as intended.	The playback order is determined by the file name (USB) or the order in which files were recorded (disc).
	Elapsed playing time is not correct.	This depends on the recording process earlier.
	"NOT SUPPORT" appears and track skips.	Check whether the track is a playable format. (→3)
	"READING" keeps flashing.	Do not use too many hierarchical levels and folders.Reload the disc or reattach the USB device.
	"CANNOT PLAY" flashes and/or connected device cannot be detected.	Check whether the connected device is compatible with this unit and ensure the files are in supported formats.(→ 3)Reattach the device.

TROUBLESHOOTING

Symptom Remedy
CD/USB/iPod	The iPod/iPhone does not turn on or does not work.	Check the connection between this unit and iPod/iPhone.Disconnect and reset the iPod/iPhone using hard reset.
	Correct characters are not displayed.	This unit can only display uppercase letters, numbers, and a limited number of symbols.Depending on the display language you have selected (-5), some characters may not be displayed correctly.
ANDROID	Sound cannot be heard during playback.Sound output only from the Android device.	Reconnect the Android device.If in [AUDIO MODE], launch any media player application on the Android device and start playback.If in [AUDIO MODE], relaunch the current media player application or use another media player application.Restart the Android device.If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (-3)
	Cannot playback at [AUTO MODE].	Make sure JVC MUSIC PLAY APP is installed on the Android device. (-7)Reconnect the Android device and select the appropriate control mode. (-8)If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (-3)
	"NO DEVICE" or "READING" keeps flashing.	Switch off the developer options on the Android device.Reconnect the Android device.If this does not solve the problem, the connected Android device does not support [AUTO MODE]. (-3)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	"CANNOT PLAY"	Make sure Android device contains playable audio files.Reconnect the Android device.Restart the Android device.

If you still have troubles, reset the unit. (→)

INSTALLATION/CONNECTION

▲ Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
  • To prevent short circuit:
• Insulate unconnected wires with vinyl tape.
• Be sure to ground this unit to the car's chassis again after installation.
• Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. (▶1)
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

INSTALLATION/CONNECTION

Part list for installation

(A) Faceplate

(C) Mounting sleeve

(E) Extraction key

(B) Trim plate

(D) Wiring harness

Basic procedure

1 Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery.
2 Connect the wires properly. See Wiring connection. (47)
3 Install the unit to your car. See Installing the unit (in-dash mounting).
4 Connect the Terminal of the car battery. 5 Detach the faceplate and reset the unit. (→ 3)

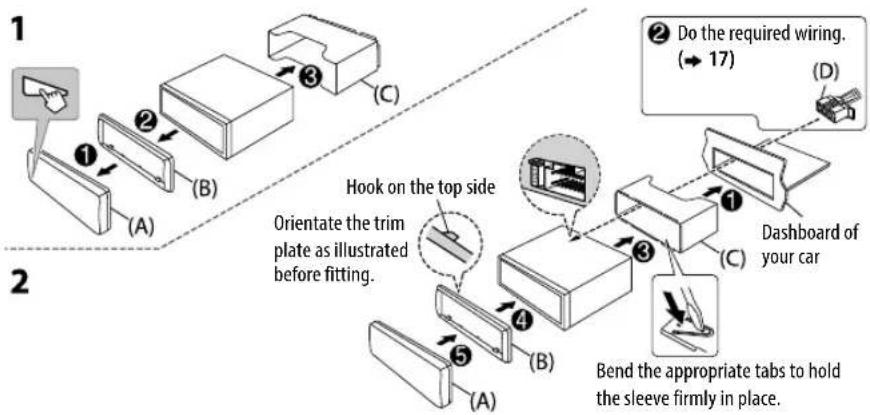

Installing the unit (in-dash mounting)

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).

⚠ Use only the specified screws. Using wrong screws might damage the unit.

How to remove the unitWhen installing

INSTALLATION/CONNECTION

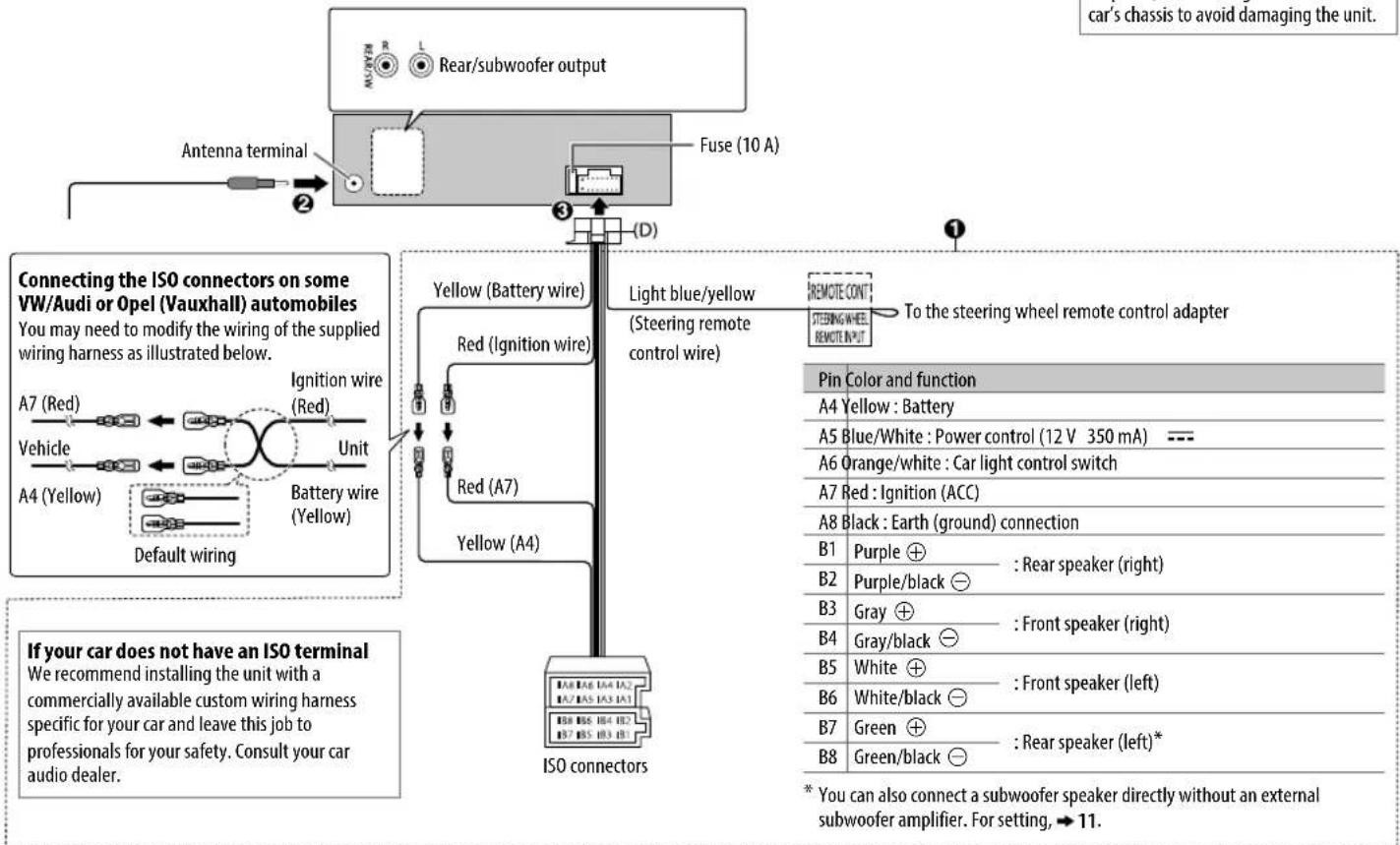

Wiringconnection

When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.

SPECIFICATIONS
Subject to change without notice

Tuner	FM Frequency Range	FM FL-LO	87.9 MHz — 107.9 MHz (200 kHz step)65.0MHz — 74.0 MHz (30 kHz step)
	Usable Sensitivity (S/N = 26 dB)		8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity (DIN S/N = 46 dB)		17.2 dBf (2.0 μV/75 Ω)
	Frequency Response (±3 dB)		30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO)		64 dB
	Stereo Separation (1 kHz)		40 dB
	AM (MW)	Frequency Range 531 kHz — 1 611 kHz (9 kHz step)
		Usable Sensitivity (S/N = 20 dB)	28.2 μV (29 dBμ)
	AM (LW)	Frequency Range 153 kHz — 279 kHz (9 kHz step)
		Usable Sensitivity (S/N = 20 dB)	50 μV (33.9 dBμ)
CD player	Laser Diode		GaAIAs
	Digital Filter (D/A)		8 times over sampling
	Spindle Speed		500 rpm — 200 rpm (CLV)
	Wow & Flutter		Below measurable limit
	Frequency Response (±1 dB)		20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz)		0.01 %
	Signal-to-Noise Ratio (1 kHz)		105 dB
	Dynamic Range		90 dB
	Channel Separation		85 dB
	MP3 Decode		Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode		Compliant with Windows Media Audio

USB	USB Standard	USB 1.1, USB 2.0 (Full speed)
	Compatible Devices	Mass storage class
	File System	FAT12/16/32
	Maximum Supply Current	DC 5 V 1 A---
	D/A Converter	24 Bit
	Frequency Response ( ± 1 dB)	20 Hz — 20 kHz
	Signal-to-Noise Ratio (1 kHz)	105 dB
	Dynamic Range	90 dB
	Channel Separation	85 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	WAV Decode	Linear-PCM
	FLAC Decode	FLAC files

Auxiliary	Frequency Response (±3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 kΩ

Audio	Maximum Output Power	50 W × 4 or50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
	Full Bandwidth Power(at less than 1 % THD)	22 W × 4
	Speaker Impedance	4 Ω — 8 Ω
	Preout Level/Load (CD/USB)	2 500 mV/10 kΩ load
	Preout Impedance	≤ 600 Ω

SPECIFICATIONS

General	Operating Voltage (10.5 V — 16 V allowable)	14.4 V
	Maximum Current Consumption 10 A
	Operating Temperature Range -10°C — +60°C
	Installation Size (W × H × D) 182 mm × 53 mm × 158 mm
	Net Weight (includes Trimplate, Mounting Sleeve)	1.2 kg

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
  • Android is trademark of Google Inc.

libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
