USER MANUAL KD-X155 JVC

Declaration of Conformity with regard to the RE Directive 2014/53/EU

Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, JAPAN

EU Representative:

Hereby, JVCKENWOOD declares that the radio equipment "KD-X155/KD-X153" is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.jvc.net/cs/car/eudoc/

Français

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.

▲ Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.

How to read this manual

• Operations are explained mainly using buttons on the faceplate of KD-X155/ KD-X153.
• English indications are used for the purpose of explanation. You can select the display language from the menu. (4)
  • [XX] indicates the selected items.
• (→ XX) indicates references are available on the stated page.

BASICS

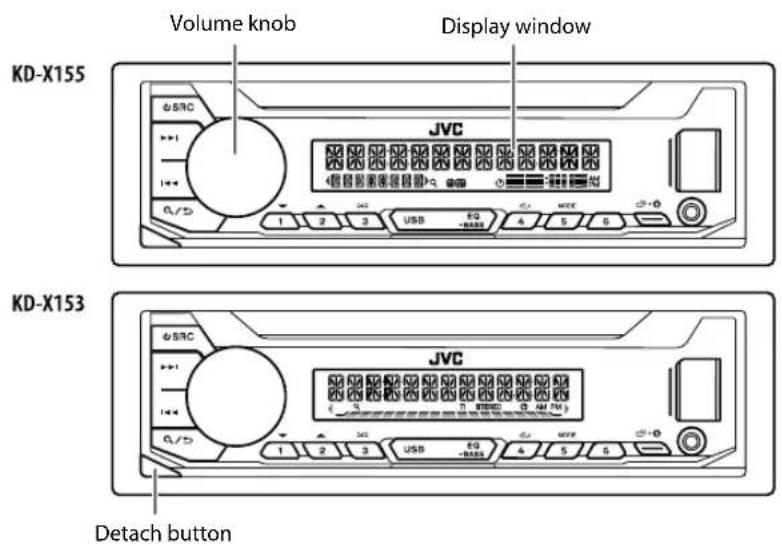

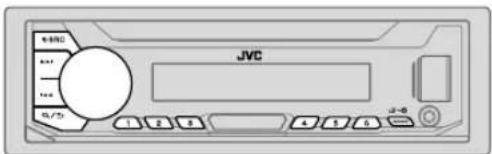

Faceplate

To On the faceplate

Turn on the power	Press ⬇SRC.• Press and hold to turn off the power.
Adjust the volume Turn the volume knob.
	Press the volume knob to mute the sound or pause playback.• Press again to cancel. The volume level returns to the previous level before muting or pause.
Select a source	• Pres ⬇SRC repeatedly.• Pres ⬇SRC, then turn the volume knob within 2 seconds.
Change the display information	Press ⬇⋯ repeatedly. (42,13)

GETTING STARTED

1 Cancel the demonstration

When you turn on the power for the first time (or after you reset the unit), the display shows: "CANCEL DEMO" → "PRESS" → "VOLUME KNOB"

1 Press the volume knob.
[YES] is selected for the initial setup.
2 Press the volume knob again.
"DEMO OFF" appears.

2 Set the clock and date

1 Press and hold
2 Turn the volume knob to select [CLOCK], then press the knob.
To adjust the clock
3 Turn the volume knob to select [CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Hour → Minute
5 Turn the volume knob to select [CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.

To set the date

7 Turn the volume knob to select [DATE SET], then press the knob.

8 Turn the volume knob to make the settings, then press the knob. Day→Month→Year

9 Press to exit.

To return to the previous setting item, press Q/3

4 ENGLISH

3 Set the basic settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press to exit.

To return to the previous setting item, press Q/3

Default: XX

SYSTEM
KEY BEEP ON	: Activates the keypress tone. ; OFF: Deactivates.
SOURCESELECT
AM SRC*	ON Enables AM in source selection. ; OFF: Disables. (-7)
BUILT-IN AUX*	ON Enables AUX in source selection. ; OFF: Disables. (-8)
F/W UPDATE
UPDATE SYSTEM
F/W UP xxxx YES	: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated).For details on how to update the firmware, see:.
CLOCK
TIME SYNC ON	: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; OFF: Cancels.
CLOCK DISPLAY ON	: The clock time is shown on the display even when the unit is turned off. ;OFF: Cancels.
ENGLISH

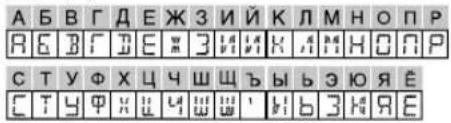

РУССКИЙ	Select the display language for menu and music information if applicable.By default, РУССКИЙ is selected.
ESPANOL

* Not displayed when the corresponding source is selected.

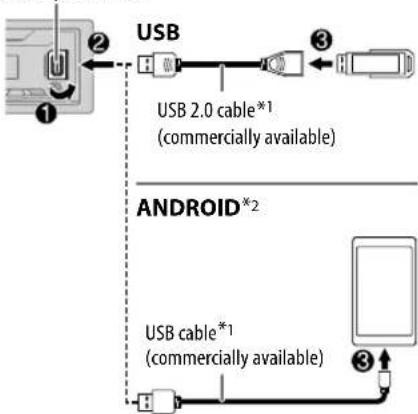

USB/ANDROID

Start playback

The source changes automatically and playback starts.

USB input terminal

To directly select USB/ANDROID source, press USB.

To On the faceplate On the remote control
Reverse/Fast-forward*3	Press and hold ◀◀/▶▶	Press and hold ◀/▶.
Select a file Press	◀◀/▶▶▶	Press ◀/▶.
Select a folder*4	Press 2 Press ▼	▲/▼
Repeat play*3	Press 4 repeatedly.
	TRACK REPEAT/FOLDER REPEAT/ALL REPEAT : MP3/WMA/WAV/FLAC file
	ONE REPEAT/ALL REPEAT/REPEAT OFF : ANDROID
Random play*3	Press 3 repeatedly.
	FOLDER RANDOM/ALL RANDOM/RANDOM OFF : MP3/WMA/WAV/FLAC file
	SONG RANDOM/ALL RANDOM/RANDOM OFF : ANDROID

*1 Do not leave the cable inside the car when not using.
*2 When connecting an Android device, "Press [VIEW] to install JVC MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. For more information, visit http://www.jvc.net/cs/car/.
*3 For ANDROID: Applicable only when [AUTO MODE] is selected. (→ 6)
*4 Only for MP3/WMA/WAV/FLAC files. This does not work for ANDROID.

USB/ANDROID

Select control mode

While in ANDROID source, press 5mode.

AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device.

AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

Select music drive

While in USB source, press 5mModedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drives device.

Select a file from a folder/list

For ANDROID, applicable only when [AUTO MODE] is selected.

1 Press .Q/→
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

Alphabet search (applicable only for ANDROID source)

You can search for a file according to the first character.

1 Press to enter character search.
2 Turn the volume knob to select the desired character.

^A^ : Upper case letters (A to Z)

_A_: Lower case letters (a to z)
-0- : Numbers (0 to 9)
-OTHERS- : Character other than A to Z, 0 to 9

3 Press the volume knob to start searching.

• To return to the previous setting item, press / .
  • To cancel, press and hold Q/⊃.

RADIO

"STEREO" lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press ⓍSRC repeatedly to select FM/FM-LO or AM.
2 Press to search for a station automatically. (or) Press and hold ◀◀/▶▶ until "M" flashes, then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM, 6 stations for FM-LO and 6 stations for AM.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6). (or)

1 Press and hold the volume knob until "PRESET MODE" flashes.
2 Turn the volume knob to select a preset number, then press the knob.
The preset number flashes and "MEMORY" appears.

Select a stored station

Press one of the number buttons (1 to 6). (or)

1 Press Q/→.
2 Turn the volume knob to select a preset number, then press the knob.

Other settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press □ to exit.

To return to the previous setting item, press Q/3

Default: XX

TUNER SETTING

RADIO TIMER

Turns on the radio at a specific time regardless of the current source.1.ONCE/DAILY/WEEKLY/OFF:Select how often the timer will be turned on.2.FM/FM-LO/AM:Select the band.3.01 to 12 (FM)/01 to 06 ( FM-LO/AM): Select the preset station.4. Set the activation day*1 and time. lights up when complete.Radio Timer will not activate for the following cases.The unit is turned off.[OFF] is selected for [AM SRC] in [SOURCE SELECT] after Radio Timer for AM is selected. (→)

SSM

FM:SSM 01-06 /SSM 07-12; FM-LO:SSM 01-06: Automatic programming of up to 12 FM radio stations and 6 FM-LO radio stations. The text “SSM” stops flashing after the first 6 stations have been stored. Select SSM 07-12 to store the next 6 FM radio stations.

*1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1.

RADIO

LOCAL SEEK ON	: Searches only FM stations with good reception. ;OFF: Cancels. · Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.
IF BAND	AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM/FM-LO stations. (Stereo effect may be lost.) ;WIDE: Subjects to interference noises from adjacent FM/FM-LO stations, but sound quality will not be degraded and the stereo effect will remain.
MONO SET ON	: Improves the FM reception, but the stereo effect will be lost. ;OFF: Cancels.
NEWS SET*2	ON: The unit will temporarily switch to News Programme if available. ;OFF: Cancels.
REGIONAL*2	ON: Switches to another station only in the specific region using the “AF” control. ;OFF: Cancels.
AF SET*2	ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ;OFF: Cancels.
TI ON	: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up) while listening to all sources except in AM. ;OFF: Cancels.
PTY SEARCH*2	Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

*2 Only for FM source.

PTY code

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

AUX

Use a portable audio player

1 Connect a portable audio player (commercially available).

3.5 mm stereo mini plug with "L" shaped connector (commercially available)

Portable audio player

2 Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (→4)
3 Press repeatedly to select AUX.
4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

AUDIO SETTINGS

Select a preset equalizer directly

Press EQ-BASS repeatedly. (or)

Press EQ-BASS, then turn the volume knob within 5 seconds.

Preset equalizer.

FLAT (default), DRVN 3, DRVN 2, DRVN 1, HARD ROCK, HIP HOP, JAZZ, POP, R&B, TALK, USER, VOCAL BOOST, BASS BOOST, CLASSICAL, DANCE

Drive equalizer (DRVN 3/ DRVN 2/DRVN 1) boosts specific frequencies in the audio signal to reduce the noise heard from outside the car or running noise of the tyres.

Store your own sound settings

1 Press and hold EQ-BASS EASY EQ setting.
2 Turn the volume knob to select an item, then press the knob. Refer to [EASY EQ] for setting and the result is stored to[USER].
• To return to the previous setting item, press Q/3
• To exit, press EQ-BASS

Other settings

1 Press and hold
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press to exit.

To return to the previous setting item, press Q/3

Default: XX

EQ SETTING
PRESET EQ	Select a preset equalizer suitable to the music genre. Select [USER] to use the settings made in [EASY EQ] or [PRO EQ].FLAT/DRVN 3/ DRVN 2/DRVN 1/HARD ROCK/HIP HOP/JAZZ/POP/R&B/TALK/USER VOCAL BOOST/BASS BOOST/CLASSICAL/DANCE
EASY EQ	Adjust your own sound settings.The settings are stored to [USER].The settings made may affect the current settings of [PRO EQ].SUB.W SP*1*2: 00 to +06 (Default: +03)SUB.W*1*3: -08to +08 00BASS LVL-06 to LVL+06 LVL 00MID: LVL-06 to LVL+06 LVL 00TRE: LVL-06 to LVL+06 LVL 00
PRO EQ	1 BASS/MIDDLE/TREBLE: Select a sound tone.2 Adjust the sound elements of the selected sound tone.The settings are stored to [USER].The settings made may affect the current settings of [EASY EQ].BASS Frequency: 60HZ,80HZ/100HZ/200HZ (Default: 80HZLevel: LVL-06 to LVL+06 LVL 00Q: Q1.0/Q1.25/Q1.5/Q2.0 MIDDLE Frequency: 0.5KHZ/1.0KHZ/1.5KHZ/2.5KHZ (Default: 1.0KHZLevel: LVL-06 to LVL+06 LVL 00Q: Q0.75/Q1.0/Q1.25TREBLE Frequency: 10.0KHZ/12.5KHZ/15.0KHZ/17.5KHZ (Default: 10.0KHZLevel: LVL-06 to LVL+06 LVL 00Q: Q FIX Q FIX)
AUDIO CONTROL
BASS BOOST LEVEL +01 to LEVEL +05(LEVEL +01): Selects your preferred bass boost level.; OFF: Cancels.

*1,*2,*3:(-40)

AUDIO SETTINGS

LOUDNESS LEVEL 01	____/LEVEL 02: Boosts low or high frequencies to produce a well-balanced sound at low volume. ; OFF: Cancels.
SUB.W LEVEL*1	SPK-OUT*2	SUB.W 00 to SUB.W +06 (SUB.W +03): Adjusts the output level of the subwoofer connected via speaker lead. (-46)
	PRE-OUT*3	SUB.W -08 to SUB.W +08 (SUB.W 00): Adjusts the output level of the subwoofer connected to the lineout terminals (REAR/SW) through an external amplifier. (-46)
SUBWOOFER SET*3	ON: Turns on the subwoofer output. ; OFF: Cancels.
SUBWOOFER LPF*1	FRQ THROUGH: All signals are sent to the subwoofer; FRQ 55HZ/FRQ 85HZ/FRQ 120HZ: Audio signals with frequencies lower than 55 Hz/85 Hz/120 Hz are sent to the subwoofer.
SUB.W PHASE*1*4	REVERSE (180°)/NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance.
FADER POSITION R06	to POSITION F06 (POSITION 00): Adjusts the front and rear speaker output balance.
BALANCE*5	POSITION L06 to POSITION R06 (POSITION 00): Adjusts the left and right speaker output balance.
VOLUME ADJUST LEVEL -15	to LEVEL +06 (LEVEL 00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. (“VOL ADJ FIX” appears if FM is selected.)
AMP GAIN LOW POWER	: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; HIGH POWER : The maximum volume level is 35.

*1 Displayed only when [SUBWOOFER SET] is set to [ON].

*2 Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W].

*3 Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W].

*4 Selectable only if a setting other than [FRQ THROUGH] is selected for [SUBWOOFER LPF].

*5 This adjustment will not affect the subwoofer output.

D.T.EXPANDER(Digital Track Expander)	ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression.; OFF: Cancels.
SPK/PRE OUT	Depending on the speaker connection method, select the appropriate setting to get the desired output. (→ Speaker output settings)

Speaker output settings

Select the output setting for the speakers [SPK/PRE OUT], base on the speaker connection method.

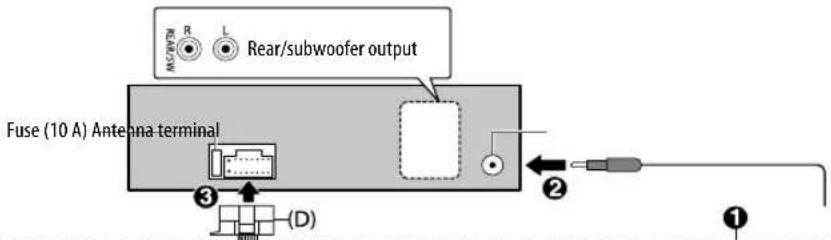

■ Connection via lineout terminals

For connections through an external amplifier. (16)

Setting on [SPK/PRE OUT]	Audio signal through lineout terminal
	REAR/SW
REAR/REAR	Rear speakers output
REAR/SUB.W (default) Subwoofer output
SUB.W/SUB.W	Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. (16)

Setting on [SPK/PRE OUT]	Audio signal through rear speaker lead
	L (left) R (right)
REAR/REAR	Rear speakers output Rear speakers output
REAR/SUB.W	Rear speakers output Rear speakers output
SUB.W/SUB.W	Subwoofer output (Mute)

If [SUB.W/SUB.W] is selected:
- [FRQ 120HZ] is selected in [SUBWOOFER LPF] and [FRQ THROUGH] is not available.
- [POSITION R01] is selected in [FADER] and selectable range is [POSITION R06] to [POSITION 00].

DISPLAY SETTINGS

Default: XX

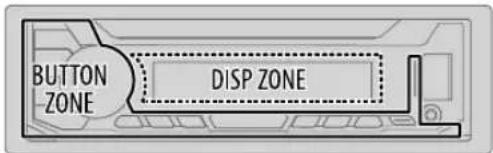

Zone identification for brightness setting

Zone identification for brightness setting (KD-X155)

1 Press and hold .
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press Q/5

*1 The illumination control wire connection is required. (→16)
*2 Some characters or symbols will not be shown correctly (or will be blanked).

[DISPLAY]
[DIMMER]	Dims the illumination.[OFF]: Dimmer is turned off. Brightness changes to [DAY] setting.[ON]: Dimmer is turned on. Brightness changes to [NIGHT] setting.(See the following "[BRIGHTNESS]" settings.)[DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer.1 Turn the volume knob to adjust the [ON] time, then press the knob.2 Turn the volume knob to adjust the [OFF] time, then press the knob.(Default: [ON]: [18:00]; [OFF]: [6:00])[DIMMER AUTO]: Dimmer turns on and off automatically when you turn off or on the car headlights. * 1
[BRIGHTNESS]	Sets the brightness for day and night separately.1 [DAY]/[NIGHT]: Select day or night.2 Select a zone. (See the illustration on the left column.)3 [LEVEL 00] to [LEVEL 31]: Set the brightness level.
[TEXT SCROLL]*2	[SCROLL ONCE]: Scrolls the display information once.;[SCROLL AUTO]: Repeats scrolling at 5-second intervals.; [SCROLL OFF]: Cancels.
[COLOR] (for KD-X155)
[PRESET]	Selects an illumination color for the symbolic button.. [COLOR 01] to [COLOR 49].. [USER]: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown.. [COLOR FLOW01] to [COLOR FLOW03]: Color changes at different speeds.
[DAY COLOR]	Stores your own day and night illumination colors for the symbolic button.1 [RED]/[GREEN]/[BLUE]: Select a primary color.2 [00] to [31]: Select the level.Repeat steps 1 and 2 for all the primary colors.
[NIGHT COLOR]	· Your setting is stored to [USER] in [PRESET].· [NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car's headlights.
[MENU COLOR]	[ON]: The illumination color of the symbolic button changes to white color when settings are performed on menu and list search, except in color setting mode.; [OFF]: Cancels.

REFERENCES

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

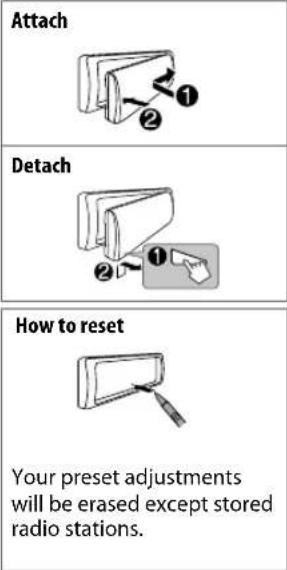

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

■ More information

For: – Latest firmware updates and latest compatible item list – Any other latest information

Visit http://www.jvc.net/cs/car/.

playablefiles

- For detailed information and notes about the playable audio files, visit http://www.jvc.net/cs/car/.

- Playable audio file: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)

- Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

About USB devices

• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About Android device

• This unit supports Android OS 4.1 and above.
- Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
- If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

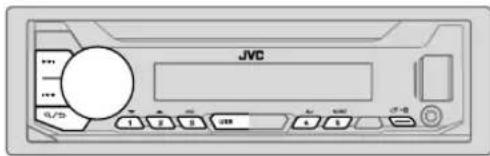

Change the display information

Each time you press the display information changes. - If the information is unavailable or not recorded, "NO TEXT", "NO NAME", or other information (eg. station name) appears or display will be blank.

Source name Display information
FM or AM	Frequency Clock (back to the beginning)
	(For FM Radio Data System stations only)Station name (PS)/Program type (PTY) → Radio text → Radio text+ →Radio text+ title/Radio text+ artist → Frequency → Clock → (back to the beginning)
USB (For MP3/WMA/WAV/FLAC files)Song title/Artist → Album name/Artist Folder name Filename →Playing time Clock (back to the beginning)
ANDROID	When [AUTO MODE] is selected → (6):Song title/Artist → Album name/Artist Playing time Clock (back to the beginning)
AUX	AUX Clock (back to the beginning)

REFERENCES

Source name Display information
FM or AM	Frequency←Clock (back to the beginning)
	(For FM Radio Data System stations only)Station name (PS)/Program type (PTY)→Radio text→Radio text+→Radio text+ title/Radio text+ artist→Frequency→Clock→(back to the beginning)
USB (For MP3/WMA/WAV/FLAC files)Song title/Artist→Album name/Artist Folder name Filename→Playing time←Clock (back to the beginning)
ANDROID	When [AUTO MODE] is selected (→6):Song title/Artist→Album name/Artist Playing time Clock (back to the beginning)
AUX	AUX←Clock (back to the beginning)

Available Cyrillic letters

Symptom Remedy
General	Sound cannot be heard.	Adjust the volume to the optimum level.Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected.	Check the [SOURCE SELECT] setting. (→)
Radio	Radio reception is poor.Static noise while listening to the radio.	Connect the antenna firmly.
USB	Playback order is not as intended.	The playback order is determined by the file name .
	Elapsed playing time is not correct.	This depends on the recording process earlier.
	"NOT SUPPORT" appears and file skips.	Check whether the file is a playable format. (→2)
	"READING" keeps flashing.	Do not use too many hierarchical levels and folders.Reattach the USB device.
	"CANNOT PLAY" flashes and/or connected device cannot be detected.	Check whether the connected device is compatible with this unit and ensure the files are in supported formats. (→2)Reattach the device.
	Correct characters are not displayed.	This unit can only display uppercase letters, numbers, and a limited number of symbols.Depending on the display language you have selected (→), some characters may not be displayed correctly.

TROUBLESHOOTING

Symptom	Remedy
ANDROID	Sound cannot be heard during playback.Sound output only from the Android device.	Reconnect the Android device.If in [AUDIO MODE], launch any media player application on the Android device and start playback.If in [AUDIO MODE], relaunch the current media player application or use another media player application.Restart the Android device.If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (→2)
	Cannot playback at [AUTO MODE].	Make sure JVC MUSIC PLAY APP is installed on the Android device. (→)Reconnect the Android device and select the appropriate control mode. (→)If this does not solve the problem, the connected Android device does not support [AUTO MODE].(→2)
	"NO DEVICE" or "READING" keeps flashing.	Switch off the developer options on the Android device.Reconnect the Android device.If this does not solve the problem, the connected Android device does not support [AUTO MODE].(→2)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	"CANNOT PLAY"	Make sure Android device contains playable audio files.Reconnect the Android device.Restart the Android device.

If you still have troubles, reset the unit. (3)

INSTALLATION/CONNECTION

▲ Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
  • To prevent short circuit:
  — Insulate unconnected wires with vinyl tape.
• Be sure to ground this unit to the car's chassis again after installation.
• Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. (▶1)
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

INSTALLATION/CONNECTION

Part list for installation

(A) Faceplate

(B) Trim plate

(C) Mounting sleeve

(D) Wiring harness

(E) Extraction key

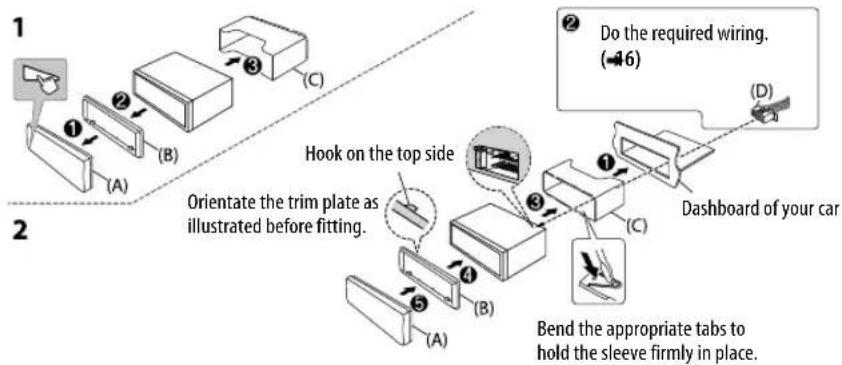

Basic procedure

1 Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery.
2 Connect the wires properly. See Wiring connection. (16)
3 Install the unit to your car. See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Reset the unit. (→)

Installing the unit (in-dash mounting)

sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).

⚠ Use only the specified screws. Using wrong screws might damage the unit.

How to remove the unitWhen installing

INSTALLATION/CONNECTION

Wiringconnection

When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.

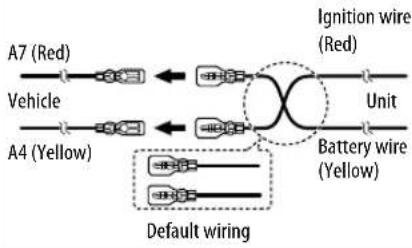

Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles

You may need to modify the wiring of the supplied wiring harness as illustrated below.

If your car does not have an ISO terminal

We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

Yellow (Battery wire)
Red (Ignition wire)
Red (A7)
Yellow (A4)
Light blue/yellow

(Steering remote control wire)

To the steering wheel remote control adapter

Pin Color and function

A4 Yellow : Battery
A5 Blue/White : Power control (12 V === 350 mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1	Purple ⊕	: Rear speaker (right)
B2	Purple/black ⊖
B3	Gray ⊕	: Front speaker (right)
B4	Gray/black ⊖
B5	White ⊕	: Front speaker (left)
B6	White/black ⊖
B7	Green ⊕	: Rear speaker (left)*
B8	Green/black ⊖

* You can also connect a subwoofer speaker directly without an external subwoofer amplifier. For setting, 0.

SPECIFICATIONS

Layer	FM	Frequency Range	FM	87.5MHz — 100.0MHz (50kHz stop)FM LO 65.0MHz — 74.0MHz (30kHz stop)	Frequency Response (±3 dB)	20Hz — 20kHz
					Input Maximum Voltage	1000 hV
		Unable Sensitivity (5/Hz = 26 dB)		0.71μF/75.0 (8.2 dB)	Input Impedance	30kΩ
		Quilting Sensitivity(0dB 5/Hz = 46 dB)		2.0μF/75.0
		Frequency Response (±3 dB)		30 Hz — 15 kHz	Maximum Output Power	50 W × 4 or50 W × 2 + 50 W × 1 (Suborder = 4 Ω)
					Full Bandwidth Power(at less than 1% RIO)	22 W × 4
		Signal-to-Noise Ratio (900Hz)		64 dB	Speaker Impedance	4 Ω — 8 Ω
		Stereo Separation (1 MHz)		40 dB	Prout Level/Load (USB)	2 500 mW/10 MΩ load
	AM(40W)	Frequency Range		531 kHz — 1411 MHz (5kHz stop)	Prout Impedance	≤ 600 Ω
		Unable Sensitivity (5/Hz = 20 dB)		28.2μF (29-80 μ)	Operating Voltage(10.5V — 16V allowable)	14.4V
	AM(3.0)	Frequency Range		153 kHz — 279kHz (9 MHz stop)	Maximum Current Consumption	10 A
		Unable Sensitivity (5/Hz = 20 dB)		50 μF (33.9 dB μ)	Operating Temperature Range	-10°C — +60°C
					Installation Size (W × R × Ω)	182 mm × 53 mm × 100 mm
					Net Weight (includes Template,Mounting Store)	0.6k
USB	USB Standard		USB 1.1, USB 2.0 (Full speed)		Subject to change without notice
	Compatible Devices		Main storage class
	File System		RT12/16/12
	Maximum Supply Current		DCS V=1.1A
	DHA Converter		248bit
	Frequency Response (±1 dB)		20Hz — 20 kHz
	Signal-to-Nurse Ratio (1 kHz)		105 dB
	Dynamic Range		88 dB
	Channel Separation		90 dB
	MPI3 Decode		Compliant with MPPEG 1/2 Audio Layer-1
	WHM Decode		Compliant with Windows Media Audio
	WAV Decode		Linear PCM
	FLAC Decode		FLAC files

B.NC.RD.A100.Q.B1ndd 17

ENGLISH 17

Data Size: 80L (162mm x 1.28mm) Book Size: 81L (162mm x 1.28mm)

咨询电话：[phone]

libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
  • Android is a trademark of Google LLC.
