PTZ-N3A204I-D - Security Camera HiWatch - Free user manual and instructions

Product Type	PTZ Security Camera
Brand	HiWatch
Model	PTZ-N3A204I-D
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	2 MP (1920 x 1080)
Minimum Illumination	Color: 0.05 Lux; B/W: 0.01 Lux
IR Distance	Up to 100 m
Pan Range	360° endless
Tilt Range	-15° to 90°
Zoom	4x optical zoom
Day/Night Function	ICR auto switch
Network Interface	1 x RJ45 10/100M Ethernet
Power Supply	12V DC or PoE (802.3af)
Power Consumption	≤12W (with IR)
Dimensions (Φ × H)	155 mm × 210 mm
Weight	Approx. 1.2 kg
Ingress Protection	IP66
Operating Temperature	-30°C to 60°C
Main Functions	Motion detection, tampering alarm, auto tracking, preset positions, privacy masking, micro SD card slot (up to 256GB)
Maintenance & Cleaning	Clean lens with soft dry cloth; avoid water directly; check cable connections monthly
Safety Warnings	Install by qualified personnel; use certified power adapter; avoid exposure to extreme conditions
Spare Parts & Repairability	Contact HiWatch support; use only authorized replacement parts

Frequently Asked Questions - PTZ-N3A204I-D HiWatch

How do I reset the camera to factory defaults?

Press and hold the reset button (located near the Ethernet port) for 10 seconds using a paperclip. The camera will reboot and restore factory settings.

Can I power the camera using PoE?

Yes, the PTZ-N3A204I-D supports PoE (802.3af) for both power and data transmission, simplifying installation.

What is the maximum microSD card capacity supported?

The camera supports microSD cards up to 256GB. Ensure the card is formatted to FAT32 before use.

How do I set up preset positions?

Use the PTZ control in the web interface or NVR to move the camera to the desired position, then click 'Set Preset' and assign a number. Recall presets quickly.

Is the camera suitable for outdoor use?

Yes, it has an IP66 rating, making it weather-resistant against rain and dust. Operating temperature range is -30°C to 60°C.

How do I enable motion detection?

Via the web interface: go to 'Events' > 'Motion Detection', draw detection areas, adjust sensitivity, and set triggers for recording or alarm output.

What should I do if the camera is not connecting?

Check Ethernet cable connection, ensure PoE or 12V DC power is supplied, and verify the camera's IP address is accessible (use SADP tool from HiWatch).

Can I control the camera with a smartphone?

Yes, download the HiWatch App (iOS/Android), add the camera by scanning its QR code or entering the device ID, and enjoy remote PTZ control and live view.

How do I clean the camera lens?

Use a soft, lint-free cloth slightly dampened with lens cleaning fluid. Gently wipe the lens in a circular motion. Avoid touching the lens with fingers.

Does the camera support audio?

Yes, it has a built-in microphone and speaker, allowing two-way audio communication. Adjust audio settings in the web interface.

USER MANUAL PTZ-N3A204I-D HiWatch

HiWatch

C

C1

C2

Line drawing of a camera with labeled parts (no text or symbols present)

HiWatch

C3

Technical line drawing of a mechanical component with multiple bullet points and internal features (no text or symbols)

C4

C5

Technical line drawing of a device with labeled parts, showing internal components and a numbered annotation (4)

HiWatch

D

1

Diagram showing two mechanical components with arrows indicating assembly or transformation (no text or symbols present)

Diagram showing three stages of a cable or connector assembly, with arrows indicating direction (no text or symbols present)

2

Three-step illustration showing a cable being twisted, with arrows indicating the process (no text or symbols present)

E

English

Product appearance is for reference only and may differ

Cable Description (Page 1 – A)

Notes:

The cables vary depending on different camera models.

1. Power Cord: Supports 12 VDC power supply.
2. Video Cable: Connect BNC Cable to test the video output.
3. RS-485
4. Alarm Cable: Connect terminal ALARM-IN with GND interface, and connect terminal ALARM-OUT with ALARM-COM interface.
5. Audio Cable: Connect terminal AUDIO-IN with GND interface.
6. Network Cable: Connect the network interface with network cable.

Install the Memory Card (Page 1 – B) Install the Camera (Page 2 – C)

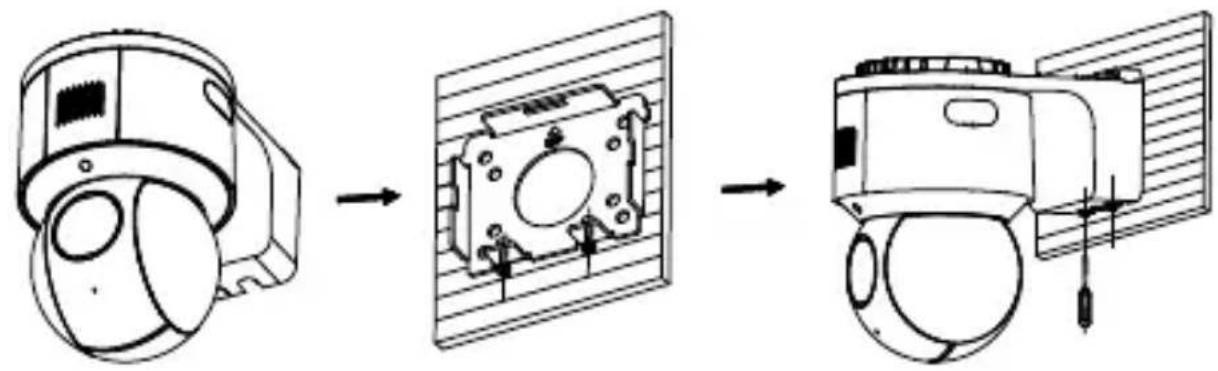

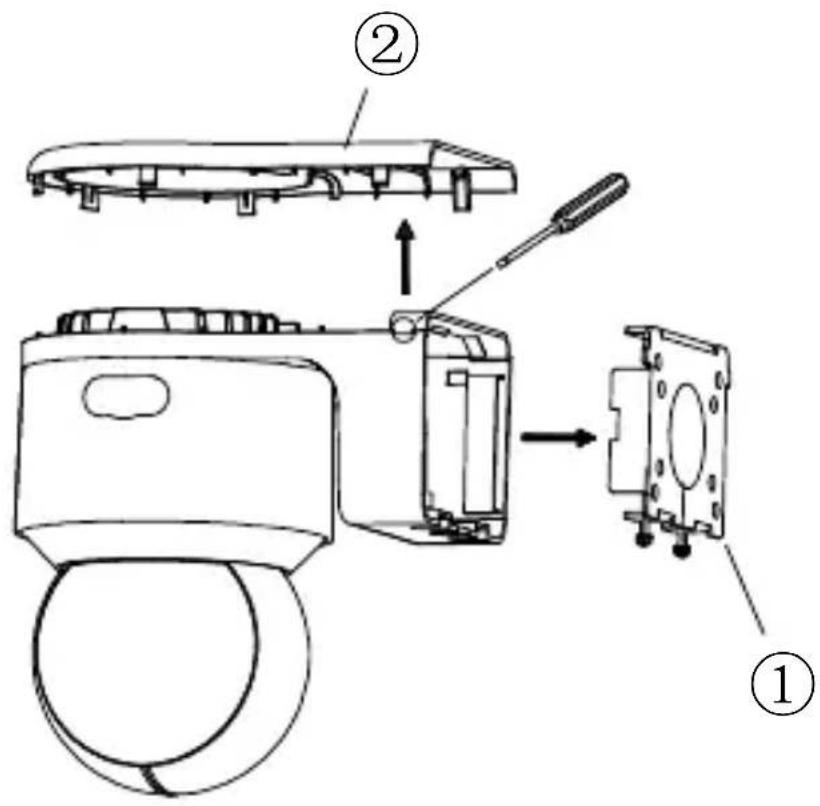

C1. Pull the bracket ① out from the side of the camera, and unclench the decorative cover ②.
C2. Route the cables through the wall (and the hole in the bracket) or on the wall surface (and through the cable slot ③).

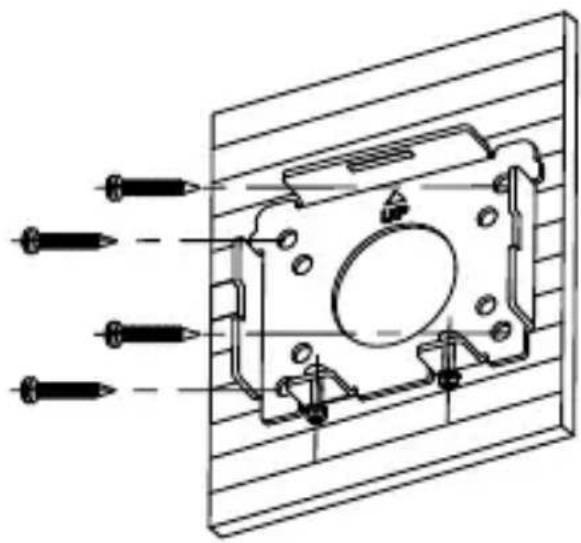

C3. Fix the bracket to the wall with four PA4×25 screws (supplied).

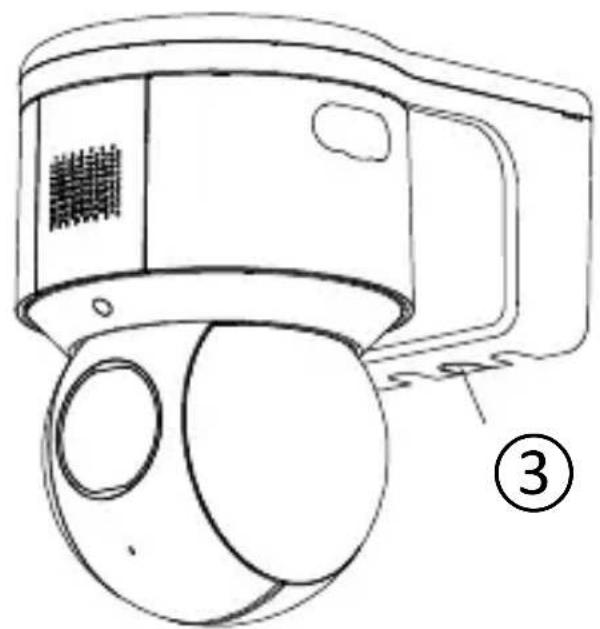

C4. Fix the camera to the bracket.

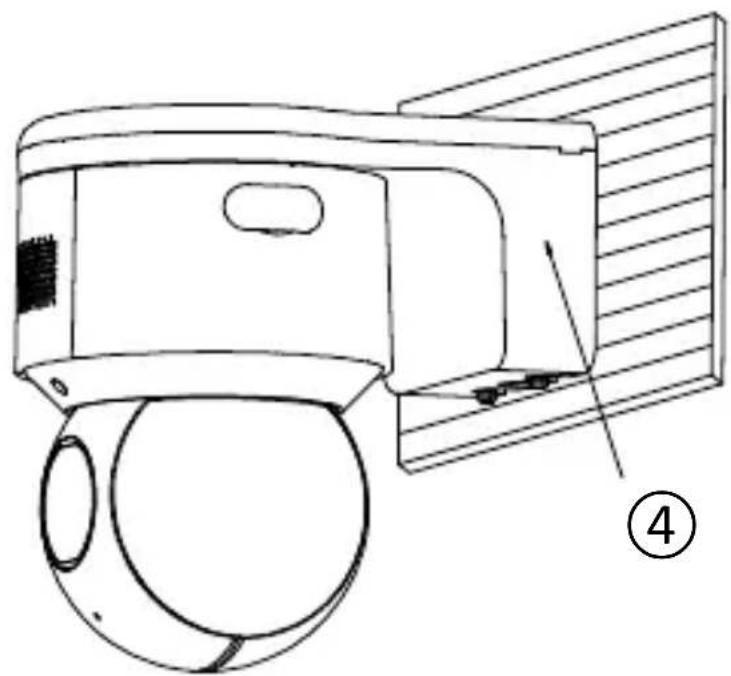

C5. Connect the cables, put them in the back box ④, and close the decorative cover.

Waterproof for Outdoor Installation (Page 4 – D)

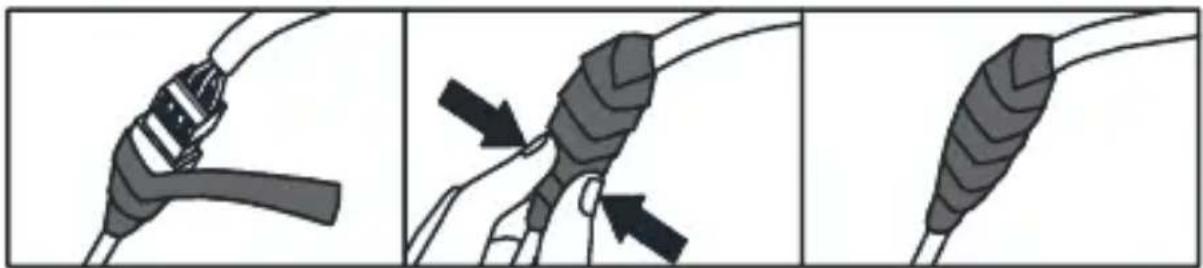

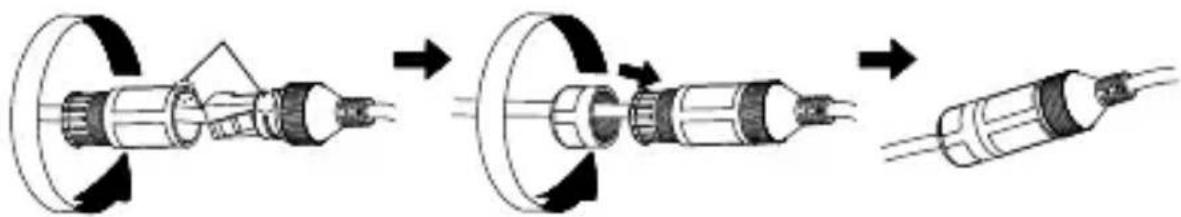

1. Install network cable waterproof jacket.

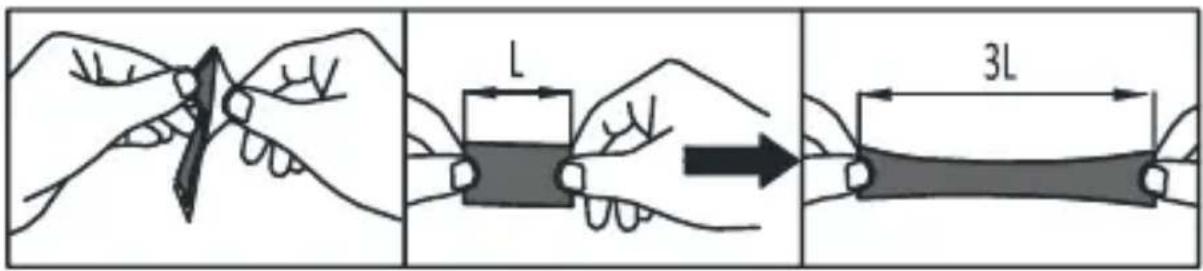

2. Use supplied waterproof tape to protect cable connectors and unused cables.

Alarm Output (Page 5 – E)

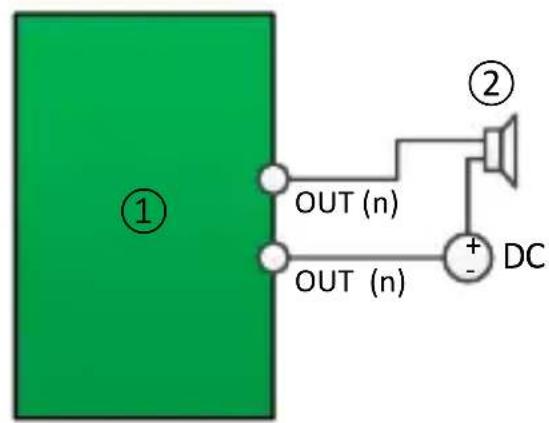

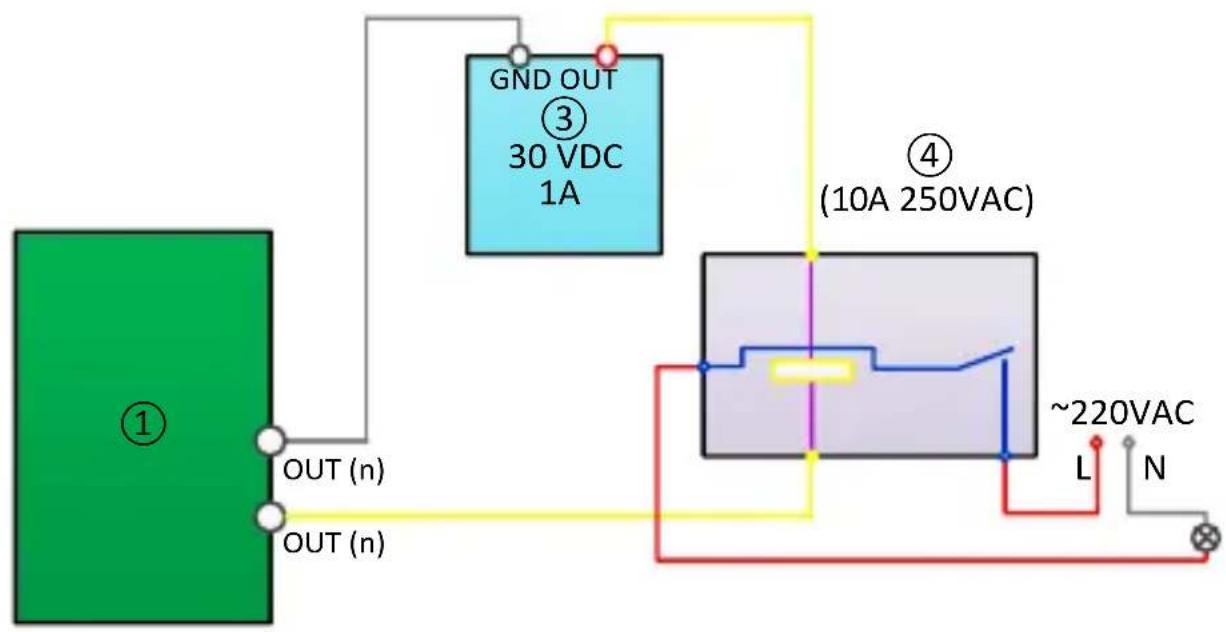

① Relay output
② DC load
③ Power supply
④ JQC-3FG Relay

Protective Measures for Outdoor Installation (Page 5 – F1)

Activate and Access Network Camera (Page 5 – F2)
