USER MANUAL CU3RE18SBE PANASONIC

Operating Instructions Air Conditioner Thank you for purchasing this Panasonic Air conditioner. Installation instructions attached. Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

CU-3RE18SBE

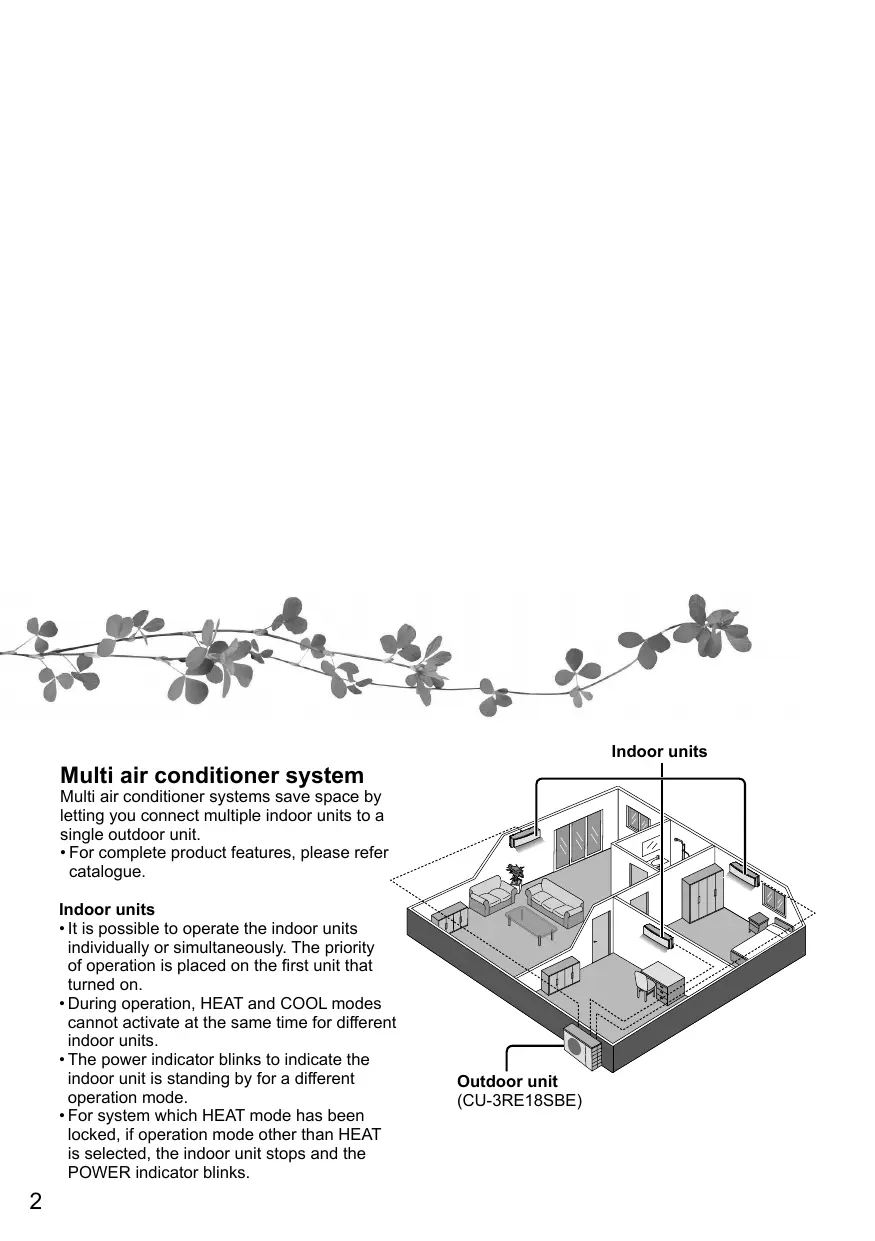

Outdoor Unit Multi Split 10-17 Italiano CS-MRE5SKE Model No. Indoor Unit English 2-9 42-49 Operating Instructions Air Conditioner Indoor units Multi air conditioner system Multi air conditioner systems save space by letting you connect multiple indoor units to a single outdoor unit.

• For complete product features, please refer catalogue. Indoor units
• It is possible to operate the indoor units individually or simultaneously. The priority of operation is placed on the first unit that turned on.
• During operation, HEAT and COOL modes cannot activate at the same time for different indoor units.
• The power indicator blinks to indicate the indoor unit is standing by for a different operation mode.
• For system which HEAT mode has been locked, if operation mode other than HEAT is selected, the indoor unit stops and the POWER indicator blinks.

Outdoor unit (CU-3RE18SBE) Quick guide Table of contents

1 Pull out the back cover of remote control 2 Insert AAA or R03 batteries (can be used ~ 1 year) 3 Close the cover

SET CHECK CLOCK

Safety precautions ...................4-5

2 Set the time Accessories 3 Confirm

• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control holder × 2 RESET Basic operation English Inserting the batteries FAN SPEED AIR SWING DRY COOL 2 Start/stop the operation OFF/ON POWER MODE

TEMP AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

• Please note that the indication is on display to start the unit. 3 Select the desired temperature
• Selection range: 16 °C ~ 30 °C.
• Operating the unit within the recommended temperature range may save energy. HEAT : 20 °C ~ 24 °C. COOL: 26 °C ~ 28 °C. DRY : 1 °C ~ 2 °C lower than room temperature.
• To dim or restore the unit’s indicator brightness, press and hold for 5 seconds.
• Use remote control within 8 m from the remote control receiver of the indoor unit. The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below: WARNING This sign warns of death or serious injury. CAUTION This sign warns of injury or damage to property. The instructions to be followed are classified by the following symbols: This symbol denotes an action that is PROHIBITED. These symbols denote actions COMPULSORY. Power supply Indoor unit Air inlet Air outlet Remote control Air inlet Outdoor unit WARNING Indoor unit and outdoor unit This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire. Confirm with authorised dealer or specialist on usage of any specified refrigerant type. Using refrigerant type other than the specified may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire. Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock. Do not expose yourself directly to cold air for a long period to avoid excess cooling. Do not sit or step on the unit, you may fall down accidentally. Remote control Air outlet Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries. Power supply Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

This equipment must be earthed to prevent electrical shock or fire. Prevent electric shock by switching off the power supply and unplug: - Before cleaning or servicing, - When extended non-use, or - During abnormally strong lightning activity. CAUTION Indoor unit and outdoor unit Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit. Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc. Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation. Do not expose plants or pet directly to airflow to avoid injury, etc. Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit. Do not install the unit in oily and smoky areas to prevent damage to the unit. Do not dismantle the unit for cleaning purpose to avoid injury. Do not step onto an unstable bench when cleaning the unit to avoid injury. Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock. Do not open window or door for long time during COOL/DRY mode operation. Prevent water leakage by ensuring drainage pipe is: - Connected properly, - Kept clear of gutters and containers, or - Not immersed in water After a long period of use or use with any combustible equipment, aerate the room regularly. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. English Do not touch the sharp aluminium fin, sharp parts may cause injury. Safety precautions To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard. It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire. To prevent overheating, fire or electric shock:
• Insert the power plug properly.
• Dust on the power plug should be periodically wiped with a dry cloth. Stop using the product if any abnormality/ failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it is switched on for operation.
• The fan does not stop even if the operation is stopped. Contact your local dealer immediately for maintenance/repair. Remote control Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control. To prevent malfunction or damage of the remote control:
• Remove the batteries if the unit is not going to be used for a long period of time.
• New batteries of the same type must be inserted following the polarity stated. Power supply Do not disconnect the plug by pulling the cord to prevent electric shock.

How to use MODE Multi Multi split system To select operation mode AUTO mode - For your convenience

• During operation mode selection the power indicator blinks.
• Unit selects operation mode every 3 Multi hours according to setting temperature, outdoor temperature and room temperature. HEAT mode - To enjoy warm air
• Unit takes a while to warm up. The power indicator blinks during this operation. COOL mode - To enjoy cool air
• To reduce power consumption during COOL mode, use curtains to screen off sunlight and outdoor heat. DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling operation. POWERFUL/ QUIET QUIET Remote control receiver and indicator POWER (Green) FAN SPEED AIR SWING OFF/ON MODE

TEMP AIR SWING

TIMER (Orange) POWERFUL (Orange) QUIET (Orange) Press and hold for approximately 10 seconds to show temperature setting in °C or °F. To switch between powerful & quiet POWERFUL Remote control display TIMER

NORMAL POWERFUL: To reach temperature quickly POWERFUL SET

SET CHECK CLOCK

• Press the button again or turn OFF the unit to stop this operation. QUIET: To enjoy quiet operation Multi QUIET FAN SPEED

• This operation reduces airflow noise. Press to restore the remote control to default setting. Not used in normal operations. (Remote control display)

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.
• To have low noise priority operation, select the lowest fan speed ( ). To adjust horizontal airflow direction
• Manually adjustable.

Auto OFF/ON button Use when remote control is misplaced or a malfunction occurs. Raise the front panel:

• To use in AUTO mode, press the button once.
• To use in COOL mode, press and hold the button until 1 beep is heard, then release.
• To use in HEAT mode, press and hold the button until 1 beep is heard, then release. And press again until 2 beeps, then release.
• Press the button again to turn off. To set the timer To adjust vertical airflow direction 2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset times.

• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the flap swings up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal flap is fixed at the predetermined position.
• Do not adjust the flap by hand.

OFF English (Remote control display) CANCEL

1 Select ON or OFF timer

• Each time pressed: Example: OFF at 22:00 How to use AIR SWING OFF Cancel 2 Set the time

3 Confirm SET TIMER Note

• To cancel ON or OFF timer, press or OFF to select respective then press CANCEL.
• If timer is cancelled manually or due to power failure, you can restore the timer again by pressing or OFF to select respective SET then press

• The nearest timer setting will be displayed and will activate in sequence.
• When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick guide. POWERFUL/ QUIET

• Can be activated in all modes and can be cancelled by pressing the respective button again.
• Cannot be selected at the same time. Auto Restart Control
• If power is resumed after a power failure, the operation will restart automatically after a period of time with previous operation mode and airflow direction.
• This control is not applicable when TIMER is set. Operation conditions Use this air conditioner under the following temperature range. Temperature (°C) COOL HEAT DBT : Dry bulb temperature Indoor DBT

CU-3RE18SBE

WBT : Wet bulb temperature

Cleaning instructions To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see error code “H99”. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household detergent.
• Do not use water hotter than 40 °C. Indoor unit Front panel Aluminium fin POWER TIMER POWERFUL QUIET Air filters Air Purifying Filter Air filters Indoor unit Every 2 weeks
• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Dry the filters thoroughly under shade, away from fire or direct sunlight.
• Replace any damaged filters. Wipe the unit gently with a soft, dry cloth. Front panel Wash gently and dry. Remove air filter Remove the front panel Attach air filter 2 Pull out 1 Raise Insert into the unit Air Purifying Filter Air Purifying Filter Close it securely 1 Insert at both sides POWER TIMER POWERFUL QUIET 2 Close down 3 Press both ends of the front panel

• Do not wash the air purifying filter.
• Replace the filter every 10 years or replace any damaged filter. Part no.: CZ-SA32P For seasonal inspection after extended non-use
• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select COOL/ HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents: COOL: ≥ 8 °C HEAT: ≥ 14 °C For extended non-use
• Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries. Troubleshooting The following symptoms do not indicate malfunction. Symptom Cause Check the following before calling for servicing. Symptom Cleaning instructions / Troubleshooting

• Condensation effect due to cooling process.
• Refrigerant flow inside the unit.
• This may be due to damp smell emitted by the wall, carpet, furniture or clothing. Indoor fan stops occasionally during automatic • This helps to remove the surrounding odour. fan speed setting. Airflow continues even after operation has
• Extraction of remaining heat from the indoor unit stopped. (maximum 30 seconds). Operation is delayed a few minutes after restarting. • The delay is a protection to the unit’s compressor. Outdoor unit emits water/steam.
• Condensation or evaporation occurs on pipes. TIMER indicator is always on.
• The timer setting repeats daily once set. POWER indicator blinks during HEAT mode
• The unit is in defrost mode (and AIR SWING is set to with no warm air supply (and flap is closed). AUTO). Indoor fan stops occasionally during heating
• To avoid unintended cooling effect. operation. POWER indicator blinks before the unit is
• This is a preliminary step in preparation for the switched on. operation when the ON timer has been set. Cracking sound during operation.
• Changes of temperature caused the expansion/ contraction of the unit. Discoloration of some plastic parts.
• Discoloration is subject to material types used in plastic parts, accelerated when exposed to heat, sun light, UV light, or environmental factor. Cooling/heating capacity reduced during the
• The low fan speed is low noise priority operation, so lowest fan speed setting. cooling/heating capacity may be reduced (depending on the condition). Increase the Fan Speed to increase the capacity. English Mist emerges from indoor unit. Water flowing sound during operation. The room has a peculiar odour. Check Operation in HEAT/COOL mode is not working • Set the temperature correctly. efficiently.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents. Noisy during operation.
• Check if the unit has been installed at an incline.
• Close the front panel properly.
• Insert the batteries correctly. Remote control does not work. (Display is dim or transmission signal is weak.) • Replace weak batteries. The unit does not work.
• Check if the circuit breaker is tripped.
• Check if timers have been set. The unit does not receive the signal from the
• Make sure the receiver is not obstructed. remote control.
• Certain fluorescent lights may interfere with signal transmitter. Please consult authorised dealer.

TURN OFF POWER SUPPLY AND

UNPLUG then please consult authorised dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly. The unit stops and the TIMER indicator blinks. Use remote control to retrieve error code. 1 Press for 5 seconds TIMER

3 Press for 5 seconds to quit checking SET

SET CHECK CLOCK

RESET 2 Press until you hear beep sound, then write down the error code 4 Turn the unit off and reveal the error code to authorised dealer

• For certain errors, you may restart the unit for limited operation with 4 beeps when operation starts.

SET CHECK CLOCK

FAN SPEED AIR SWING DRY COOL

TEMP AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

FAN SPEED AIR SWING OFF/ON MODE

TEMP AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

CU-3RE18SBE

SET CHECK CLOCK

RESET Unidad exterior (CU-3RE18SBE)

SET CHECK CLOCK

FAN SPEED AIR SWING DRY COOL

TEMP AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

TEMP AIR SWING

QUIET FAN SPEED

POWERFUL QUIET FAN SPEED AIR SWING SET

SET CHECK CLOCK

CU-3RE18SBE

SET CHECK CLOCK

SET CHECK CLOCK

Informazioni .............................. 50 2 Impostazione timer

TEMP AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

FAN SPEED AIR SWING per

SET CHECK CLOCK

RESET POWERFUL FAN SPEED AIR SWING TIMER

CU-3RE18SBE

SET CHECK CLOCK

SET CHECK CLOCK

TEMP AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

SET CHECK CLOCK

RESET POWERFUL FAN SPEED AIR SWING TIMER

CU-3RE18SBE

SET CHECK CLOCK

SET CHECK CLOCK

TEMP AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

COOL 2 Включване/спиране

FAN SPEED AIR SWING OFF/ON MODE

TEMP AIR SWING

SET CHECK CLOCK

CU-3RE18SBE

Information/Informations/Información Informazioni/Informação/Информация English Information for Users on Collection and Disposal of Old Equipment and Used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Panasonic Corporation Website: http://www.panasonic.com © Panasonic Corporation 2016 Printed in Malaysia Authorised representative in EU Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany ACXF55-01590 FS0216-0
