Product Type	Water Filter / Purifier
Brand	LG
Model	WW172EP
Purification Method	Reverse Osmosis (RO) with multi-stage filtration

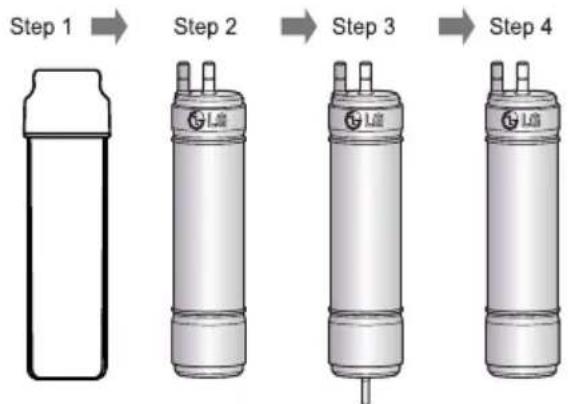

Number of Filtration Stages	4 stages
Filter Types	Out Sediment filter with anti-scalant module, Sedi + Carbon filter, RO Membrane filter (or RO Recovery Plus), Mineral Booster filter
UV Sterilization	Yes (UV LED)
Tank Capacity	Approx. 8 liters
Dimensions (W x D x H) with water tray	365 mm x 295 mm x 500 mm
Net Weight	10.5 kg
Power Supply	230 V, 50 Hz
Power Consumption	40 W (water purifying)
Installation Water Pressure Limit	10 – 860 kPa (0.1 – 8.8 kgf/cm²)
Recommended Input Water TDS	≤ 2000 ppm
Water Level Indicator	3-level indicator
Filter Change Indicator	Yes (amber color indicates need for service)
Dispensing	Touch lever with continuous flow option
Flow Sensor	Yes (protects from running without water)
Drain Hose	Included (blue)
Water Supply Hose	Included (white)
Installation Type	Counter-top or wall-mount (depending on model variant)
Recommended Filter Replacement Period	Out Sediment: 3000 L; Others: 6000 L (approx. depending on water quality)
Warranty	1 year on parts, 9 years additional on stainless steel tank
Safety Features	Auto shut-off on no water, UV auto off when tank cover open

Frequently Asked Questions - WW172EP LG

How often should I replace the filters?

Replace the Out Sediment filter after 3000 liters and other filters (Sedi+Carbon, RO, Mineral Booster) after 6000 liters of purification, or when the filter change indicator turns amber. Actual frequency depends on water quality and usage.

Why does the water taste strange?

If the purifier has not been used for 2 or more days, the water may taste stale. Discharge the tank once. Also check if filters are expired; replace if needed.

What should I do if no water comes out?

Ensure the water supply valve is open, the power plug is connected, and the filters are not clogged. If the issue persists, contact LG service.

How do I clean the water tank?

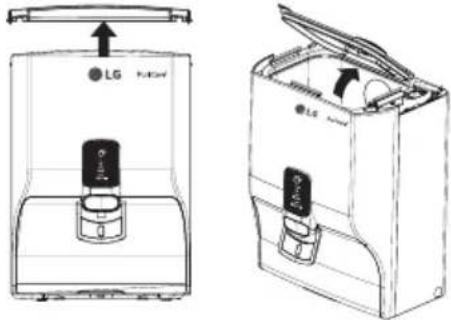

Close the water supply, drain the tank, unplug, open the top cover, wipe with a soft cloth using only purified water (no chemicals), rinse, reassemble, and run a full tank discharge before use.

What does the UV indicator mean?

Blue indicates UV sterilization is ON; white indicates OFF. The UV LED operates for 75 minutes every 6 hours and after power restoration. It automatically turns off when the tank cover is opened.

Can I install the water purifier myself?

Installation should be done by an authorized LG service center. Improper installation may cause electric shock, fire, or water leakage.

What is the recommended water pressure?

Water pressure should be between 10 and 860 kPa (0.1 to 8.8 kgf/cm²). The internal operating pressure is approximately 680 kPa before filtration.

How do I reset the filter change indicator?

After replacing the filter, the indicator may reset automatically. If not, contact LG service. The manual does not specify a manual reset procedure.

What does the flow sensor do?

It detects water flow. If no or low water supply is detected, the purifier stops for 15 minutes and then checks again. To restart immediately, turn power off and on.

Is it safe to use the purifier after a power outage?

Yes. After power returns, the UV LED will operate for 75 minutes to sterilize the water. It is safe to use after the tank is filled and discharged if it has been unused for over 2 days.

USER MANUAL WW172EP LG

Please read this manual carefully before operating your set and retain it for future reference.

This manual may contain images or content in addition to the model purchased.

This manual may be subjected to revision by the manufacturer.

SAFETY INSTRUCTIONS 03

INSTALLATION 06

Parts and Function 06

Notes for Installation 08

Installing water purifier 08

OPERATION 09

Notes for Operation 09

Using Control Panel 09

Operation 10

MANAGEMENT 11

Cleaning 11

Maintaining the filter.... 12

TROUBLESHOOTING 14

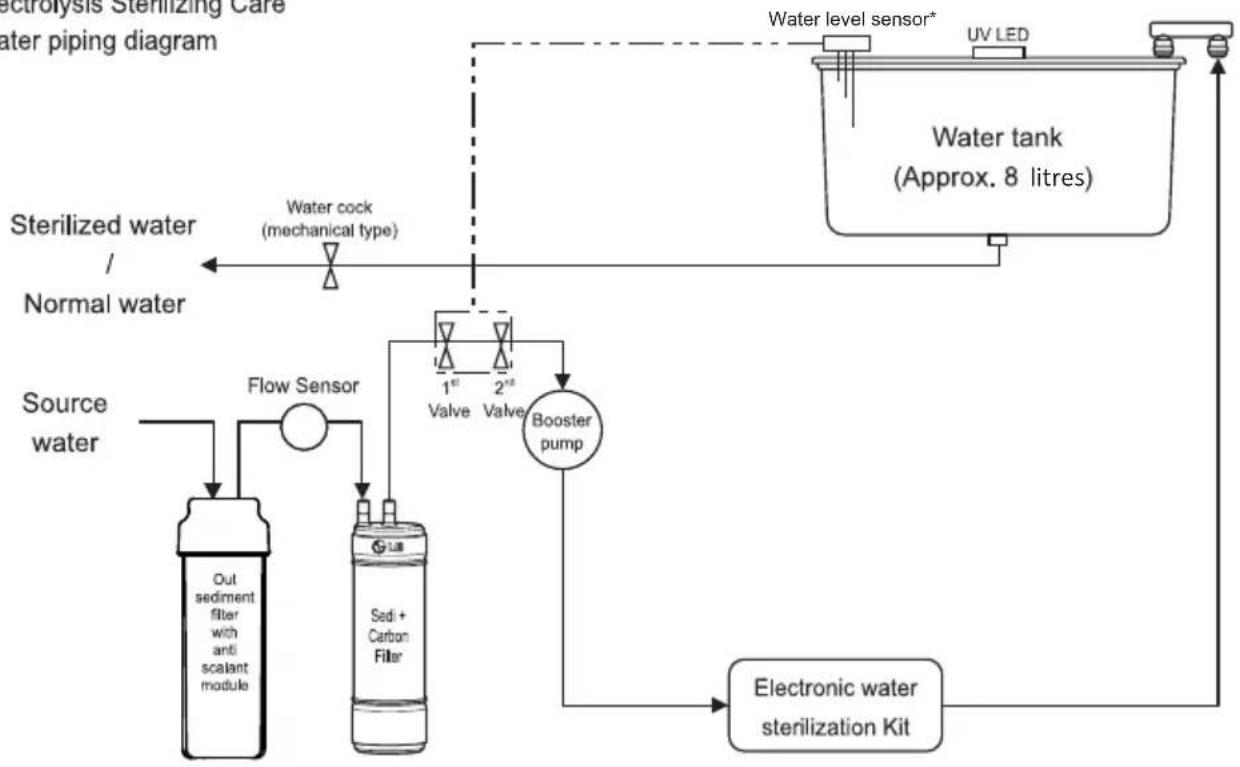

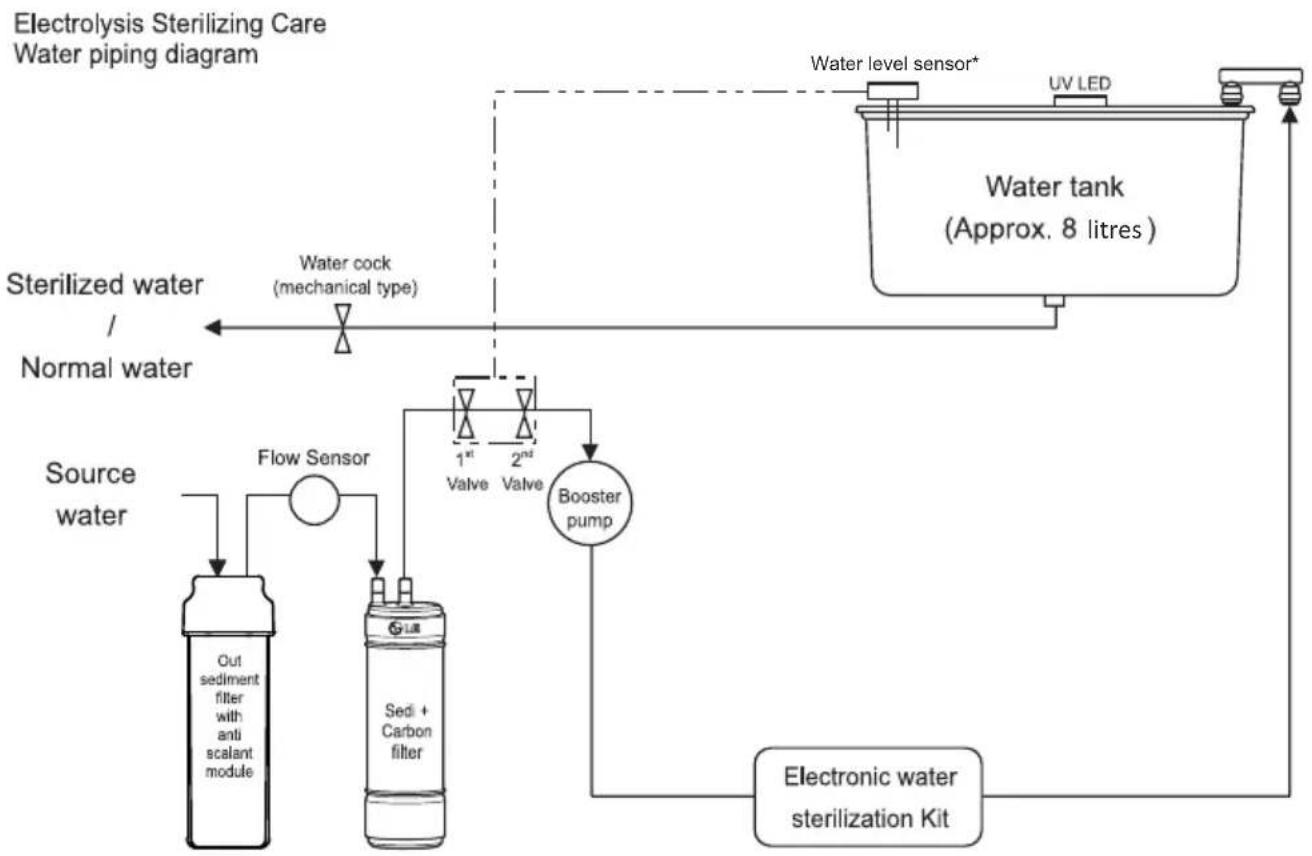

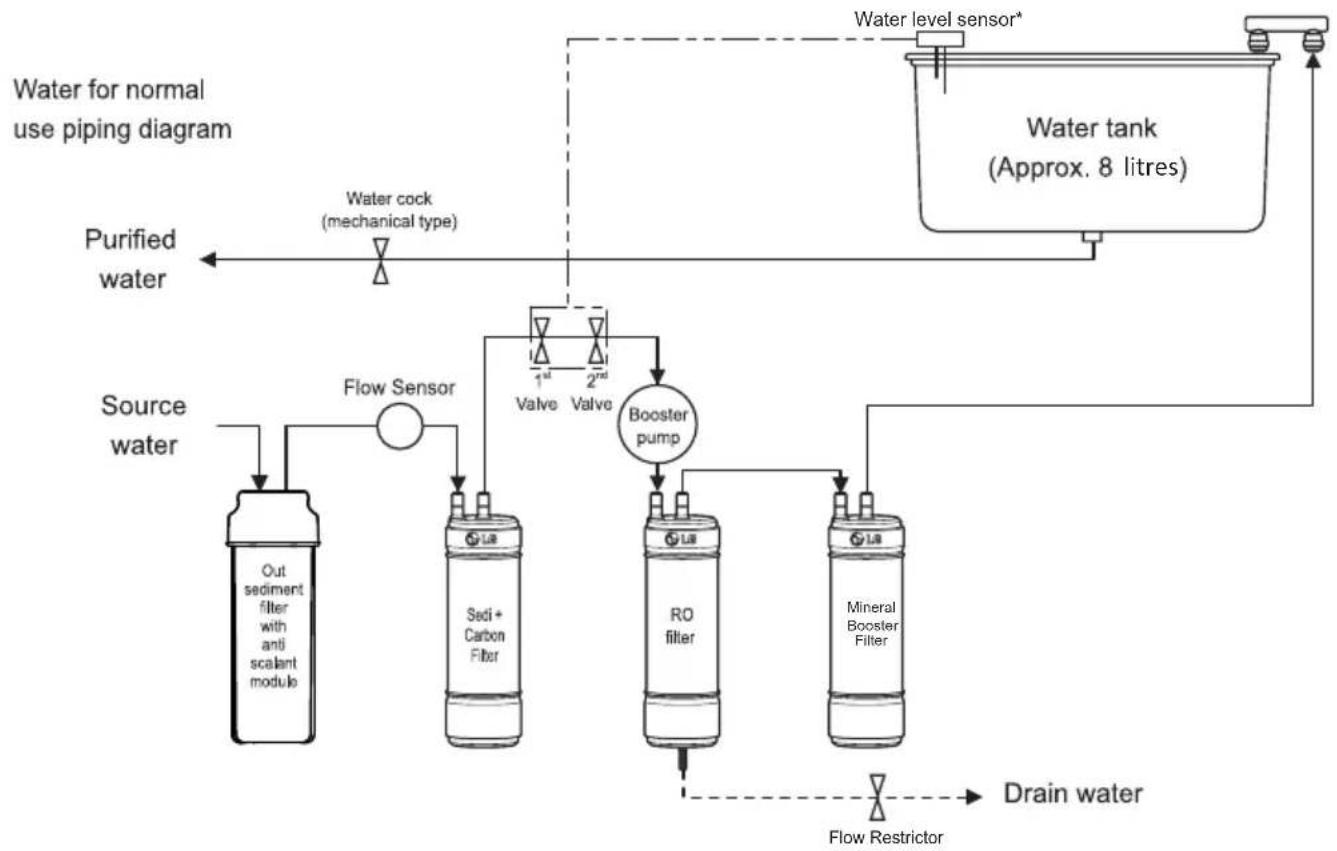

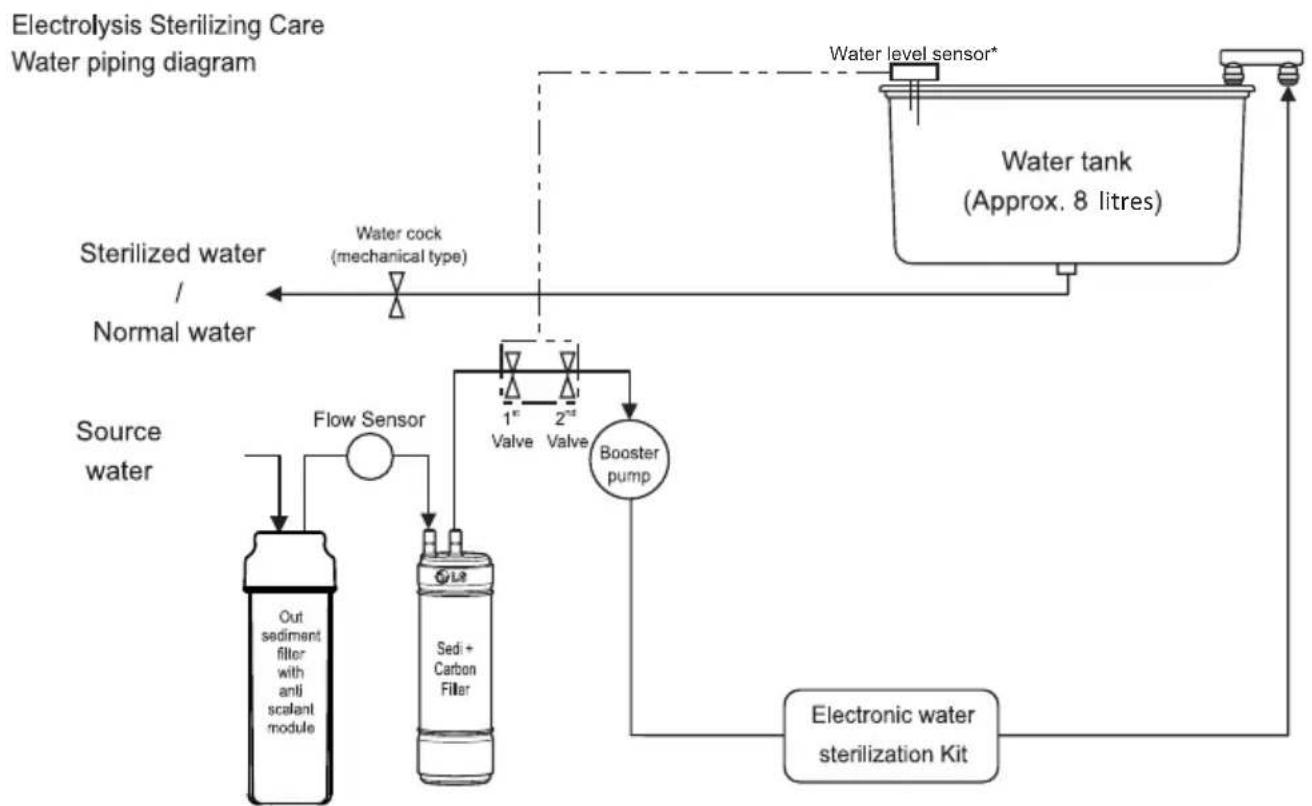

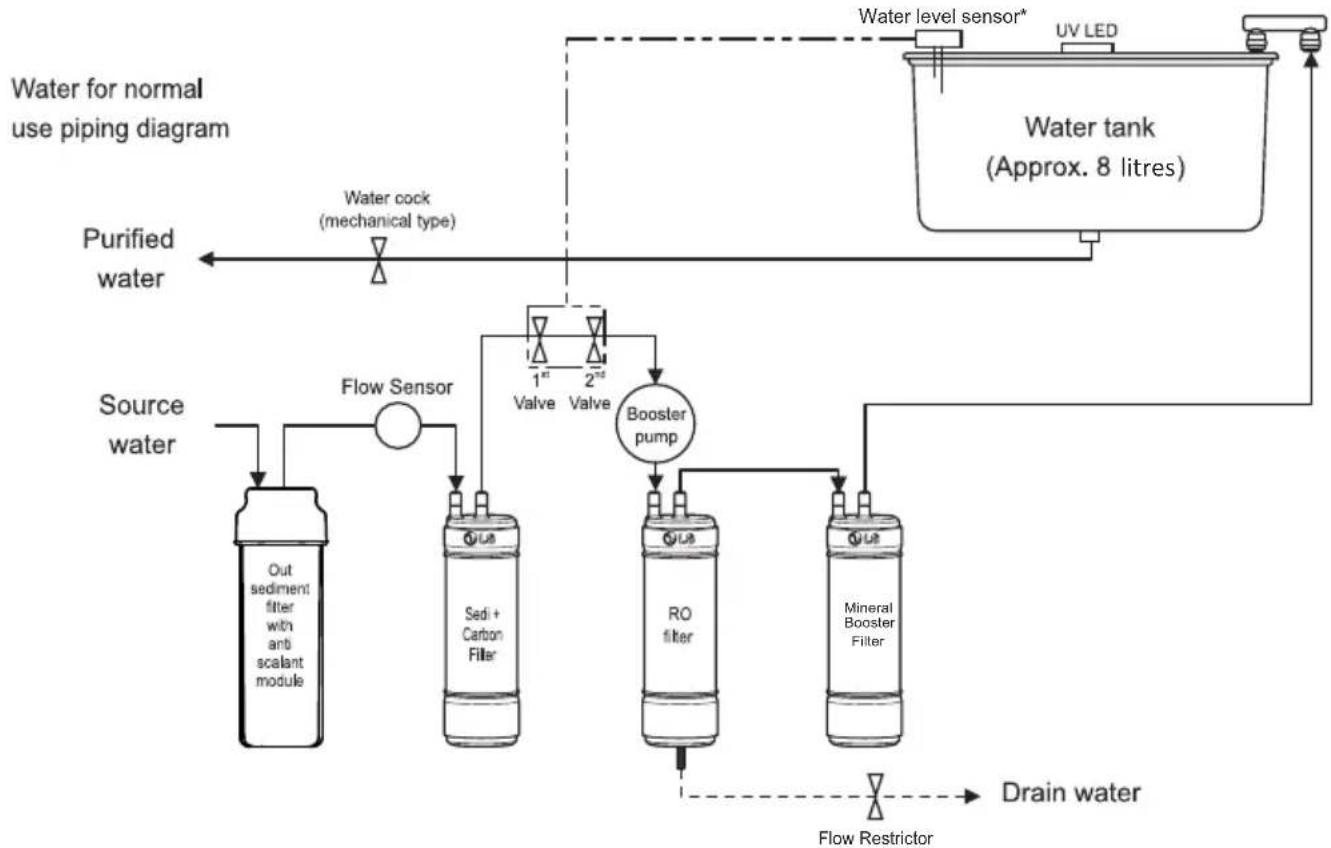

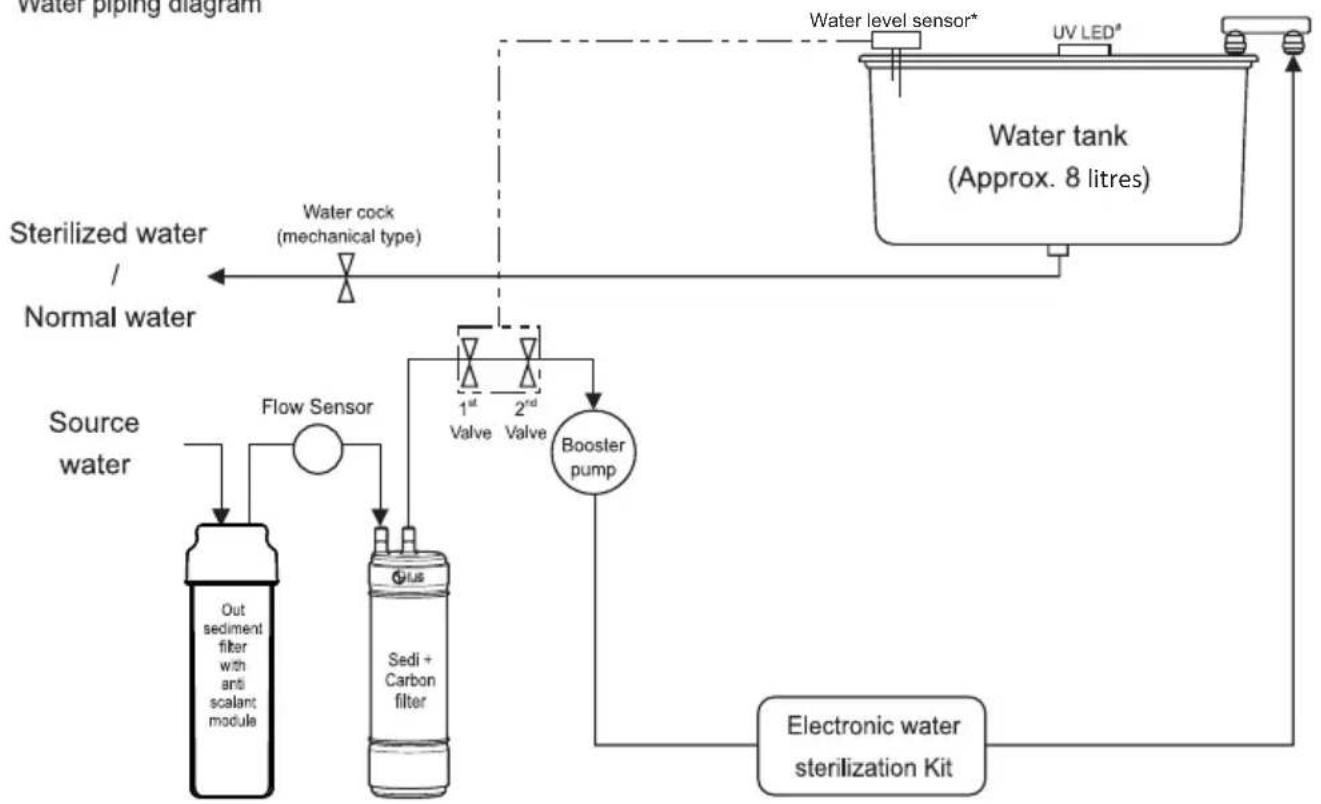

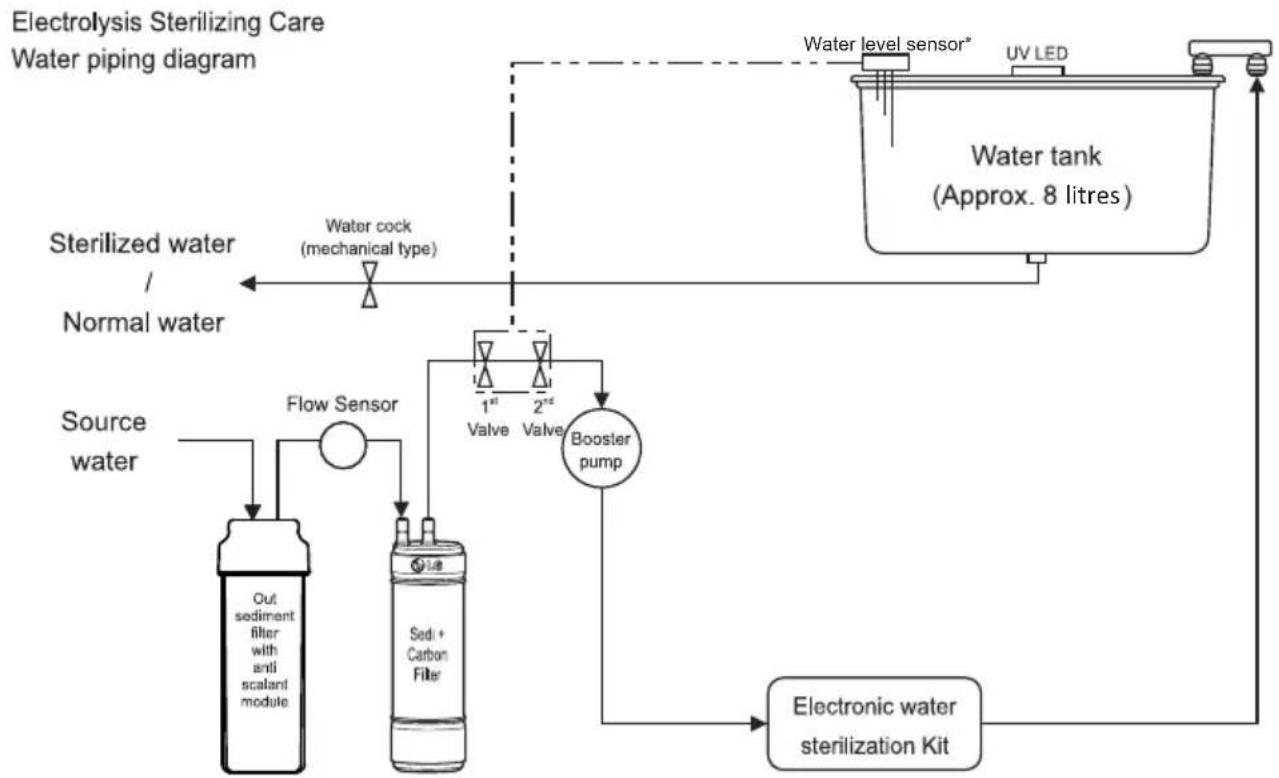

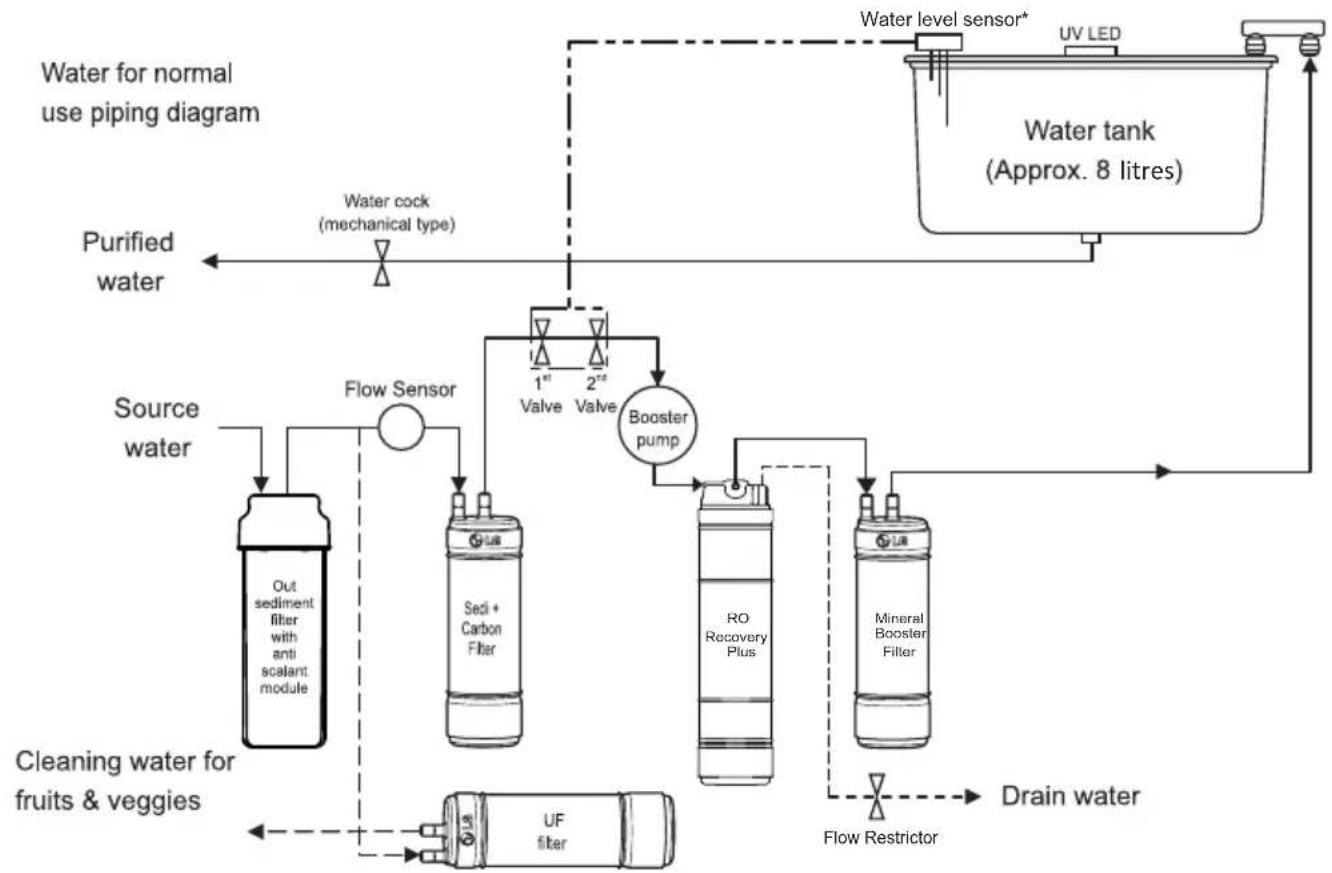

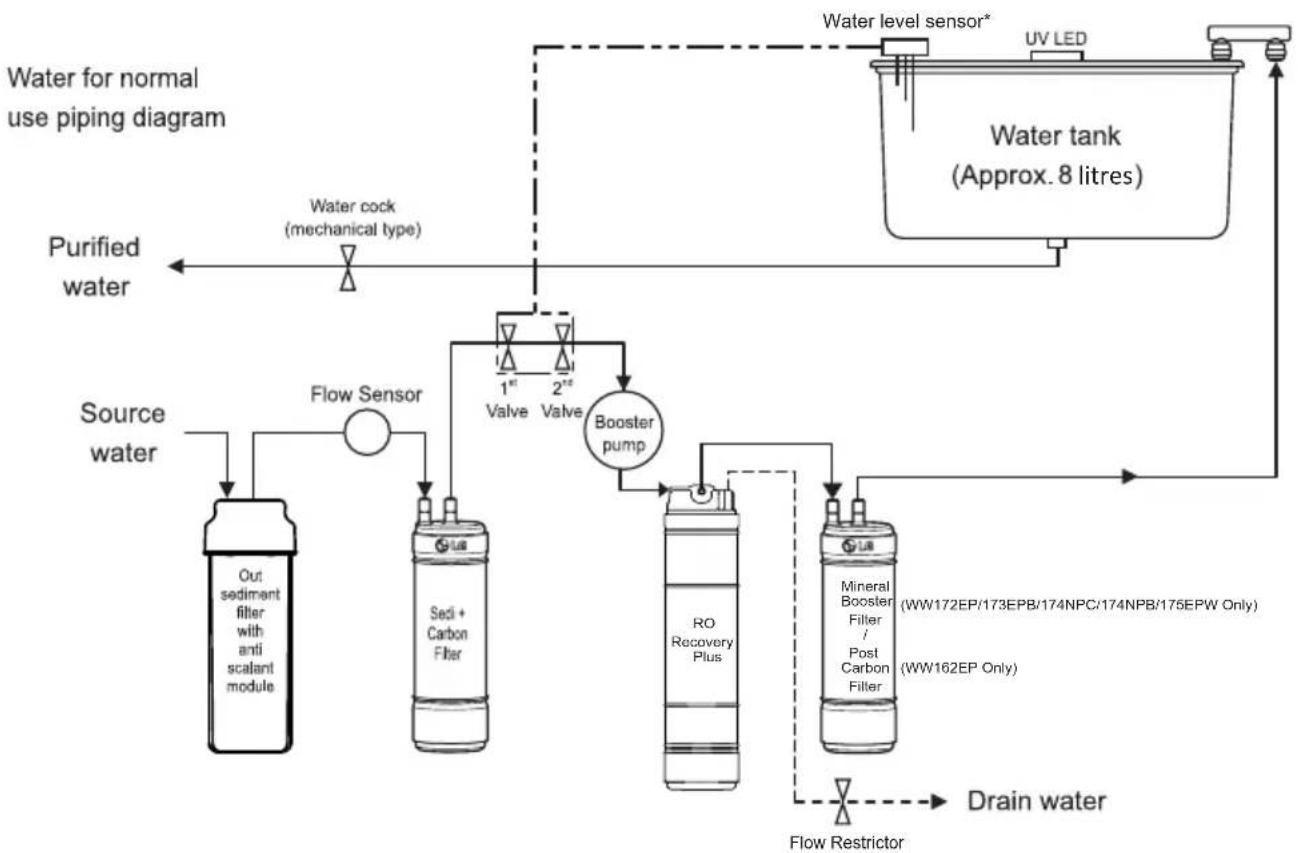

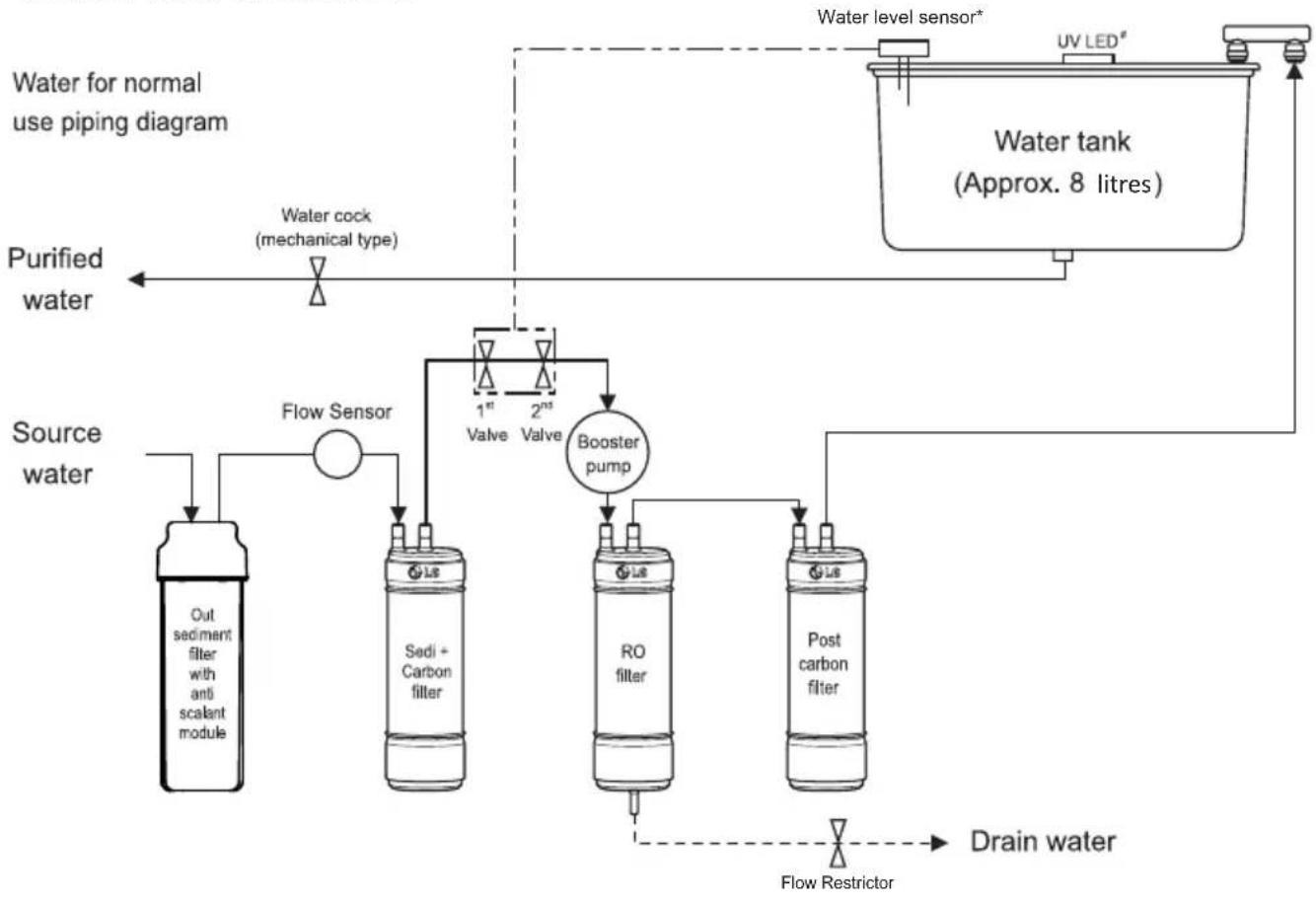

WATER PIPING DIAGRAM 15

PRODUCT SPECIFICATION 20

WARRANTY CARD 21

SAFETY INSTRUCTIONS

Manufacturer is not responsible for accidents caused by the user as a result of not following the Instruction Manual.

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING -This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION- This indicates that the failure to follow the instructions can cause minor injury or damage the product.

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

TECHNICAL SAFETY

- Only an authorized person from LG Electronics service center should install the product. Contact LG Electronics service center if you move the product, improper installation/service may cause injury, electric shock or fire.

Power

- Do not modify Power Cord length. Do not use any extension board or multiple socket outlet. Also, Do not share the same power socket outlet with other appliances. Otherwise it will cause electric shock or fire due to heat generation.

- Do not touch the power plug with wet hands, it may cause electric shock

- Plug the power plug in the outlet tightly after removing the moisture and dust completely. It will cause electric shock or fire due to heat generation.

- When pulling out the power plug from an outlet, hold the power plug, not the cable. It will cause electric shock or fire due to heat generation at damaged supply cord area. If the Power cable or Power Plug is damaged, it must be replaced by a Original Spare part provided by the manufacturer or Contact LG Electronics Service.

- Power Supply cord should not be bend or pressed under heavy object. It may damage the power cord to cause Fire or Electric shock.

- Do not plug and unplug the power plug repeatedly It may loosen the holes of Outlet socket to cause Fire or Electric shock.

Operation

• In case of flood, stop using the product and contact LG Electronics service centre.
• Do not place heavy or fragile objects, liquids, combustible substances, or flammable objects (such as lit candles and lamps) on or inside the product. It may cause fire, injury or damage.
• If moisture penetrates inside the product, unplug the power plug and contact LG Electronics service centre. It may cause electric shock.
• Do not move the product while the product is plugged in. It may damage the Power Supply cord and Cause Electric shock or Injury.
• Do not allow anyone to hang from or climb on the product. Be particularly cautious of children operating the product. It may cause injury
• If water is leaking from the inside of the product or water has collected near the product, close the water supply valve, unplug the power plug, and contact LG Electronics service centre. It may cause electric shock.
• When cleaning the product, unplug the power plug. It may cause electric shock.

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Connect the input water pipe of the product to tap water only. Water other than tap water is not recommended. It may cause health issues.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. This may cause damage or injury.
• Do not clean the product with brushes, cloths or sponges with rough surfaces or which are made of metallic material. It may cause scratches and cracks on the product.
• There can be sharp edges in a disassembled set, special care to be taken while handling. It may cause injury.
• Do not spray/use or store flammable or combustible substance (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics etc.) near/inside the product, it may cause health related issues.
• For counter-top installation, install the product on a solid and horizontally leveled surface. If the product is installed on a non-horizontally leveled surface, it can generate vibrations and noise or cause misalignment of the product.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. This may cause damage.
• Avoid installing the water purifier in outdoor place, damp area and keep away from direct sunlight, dust and direct water splashing. This could cause product malfunctioning.

• For optimum performance of product, installation condition should be followed as per page no. 20.

• Unplug the power plug during thunder or lightning or when not in use for more than 2 days. This could cause product malfunctioning.

• Immediately unplug the power plug and contact LG Electronics service centre if you detect any abnormal noise, odour or smoke.

Operation

• Replace the filter with a LG standard filter periodically according to the replacement period. Older filters can multiply bacteria or change the taste of the water. The filter replacement period varies according to the usage, place of usage, season, and water quality.
  Remarks: Filter to be changed by authorized LG Service personnel only.
• Do not place any article on water tray assembly except water glass. It may fall and cause damage & injury
  • Take care against the possibility of damaging the pipe (inlet, outlet) in order to prevent water leakage. It may cause injury or damage to the product and property.

Disposal of your old appliance (as per e-waste Rules)

Please check whether crossed out wheeled bin symbol is depicted on the product or its parts, if yes, it means the product is covered by e-waste Management and Handling Rules, 2011 and is required to be recycled, dismantled or scraped in the following manner.

1. Do's :

a. The product is required to be handed over only to rized recycler for disposal.

b. Keep the product in isolated area, after it becomes non-functional/un-repairable so as to prevent its accidental breakage.

Don't:

a. The product should not be opened by the user himself/herself, but only by authorized service personnel.
b. The product is not meant for re-sale to an unauthorized agencies/scrap dealer/kabariwalah.
c. The product is not meant for mixing into household waste stream.
d. Do not keep any replaced spare part(s) from the product in exposed area.

1. Any disposal through unauthorized agencies/person is not prescribed by the Environment (Protection) Act 1986.

2. "This product is complied with the requirement of Hazardous Substances as specified under Rule 13 (1) & (2) of the E-Waste (Management & Handling) Rules, 2011".

3. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll Free No. 1800-315-9999 / 1800-180-9999 for details. All collection centre and pick up facilities are done by third parties with LG Electronics India Pvt. Ltd. Merely as a facilitator. For more detailed information, please visit: http://www.lg.com/in

9711709999 (LG WhatsApp No.)

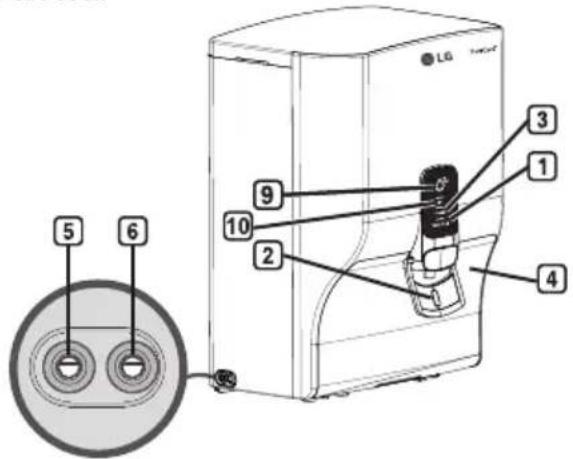

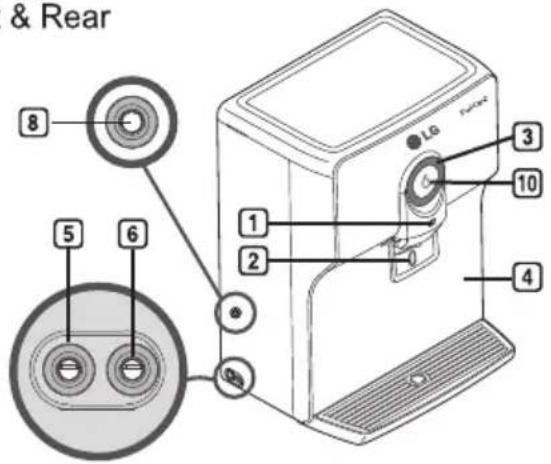

Parts and Function (For WW162/172/173/175/182/183/184 Series)

Front & Rear

① Purified water level indicator

5 Water supply hose

9 Power cord

2 Touch lever

6 Drain hose

10 Filter change indicator ^*

③ UV Sterilizing indicator *

⑦ Top cover (floral pattern*)

④ Filter cover (floral pattern*)

8 Cleaning water for fruits & veggies*

Accessories

Owner's Manual

Owners's Manual

6.35 mm ∅ tube*

Out sediment filter with anti scalant module

Technical line drawing of a mechanical bracket with circular and rectangular features (no text or symbols)

Mounting bracket

Mounting Guide

Mounting Guide

6.35 mm valve*

Mount plate (2 nos.)

Adaptor

QRG

Quick Reference Guide

Water tray

Screw kit : Screw (6 nos.), Anchor (6 nos.) & Teflon tape (1 roll)

Water tray cover

Coiled industrial pipe fitting with connectors and a hook (no text or symbols visible)

Hose assembly : Hose (2 nos.) Connectors (2 nos.) lockers (2 nos.) Connector Pipe (1 no.)

^ Applicable for Out-sediment filter

* For selected models only

INSTALLATION

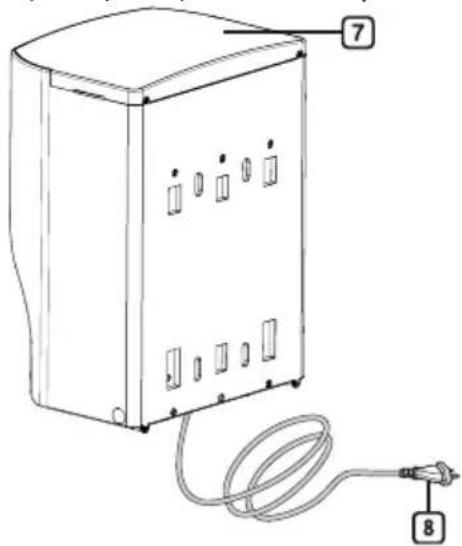

Parts and Function (For WW130/140/145/150/151/152/155/174 Series)

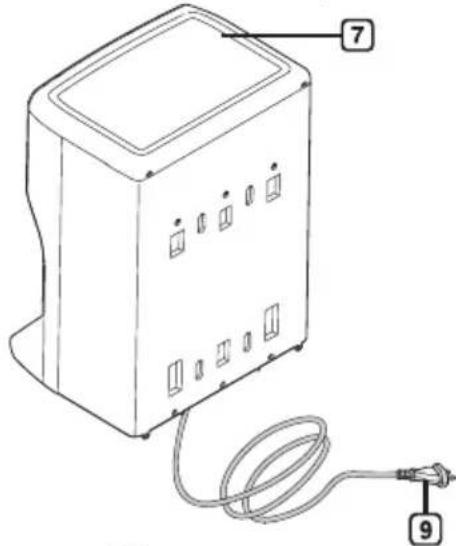

Front & Rear

Line drawing of a portable electronic device with labeled parts (7 and 8), showing internal compartments and a coiled cable (no text or symbols beyond labels)

① Tank full indicator

5 Water supply hose

9 Filter change indicator ^*

② Touch lever

6 Drain hose

10 UV Indicator*

3 Power Indicator

7 Top cover

4 Filter cover

8 Power cord

Accessories

Owner's Manual

Owners's Manual

Technical line drawing of a mechanical bracket with two circular holes (no text or symbols)

Mounting bracket

Mounting Guide

Mounting Guide

Technical line drawing of a valve component (no text or symbols)

Adaptor

QRG

Quick Reference Guide

Out sediment filter with anti scalant module

Mount plate (2 nos.)

Screw kit : Screw (6 nos.), Anchor (6 nos.) & Teflon tape (1 roll)

Technical illustration of a coiled hose and connector assembly (no text or symbols)

Hose assembly : Hose (2 nos.) Connectors (2 nos.) lockers (2 nos.) Connector Pipe (1 no.)#

^ Applicable for Out-sediment filter
* For selected models only

Only for WW174 Series

Notes for Installation

• Keep a distance of 10cm from all sides of the product.
• When connecting the water hose, do not connect it to the hot water pipe. Doing so may cause malfunctions.
• Check the pipe and hose connection for leaks. Water can leak and cause electric shock or injury.
• When transporting the product, do not tilt the product over 30 degrees. Doing so can cause malfunctions.
• For best usage of product, it is recommended to have surrounding temperature range of (4°C to 45°C). Not doing so can cause product malfunctioning.
• Avoid installing the water purifier in a place with a non-leveled horizontal surface, relative humidity of >85% , direct sunlight, dust and direct water splashing.
• Model nos. WW130NP, WW140NP, WW140NPR, WW145NPW, WW150NP, WW151NP, WW151NPR, WW152NP, WW155NPB, WW174NPB, WW174NPC can only be wall mounted and should not be installed on a table/counter top as it may malfunction & warranty may be void.

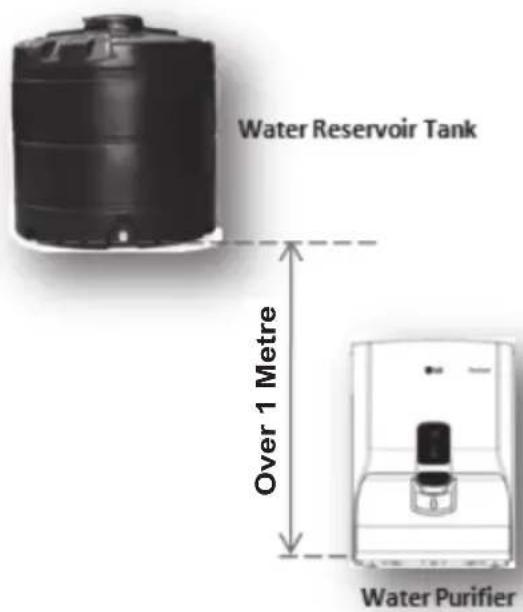

• Height between immediate Water reservoir tank to Water purifier inlet should be more than 1 meter for effective working of the product.

Installing water purifier

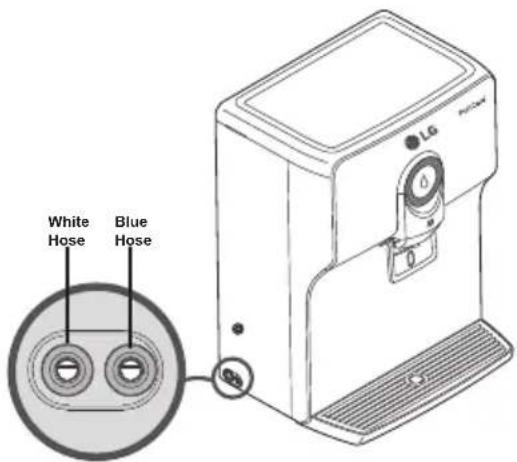

1 Connect the product hoses as shown below.

• Connect the white (water supply) hose to tap water.
  • Install the blue (drain) hose on the sink.

2 Connect the power cord to an appropriate socket.

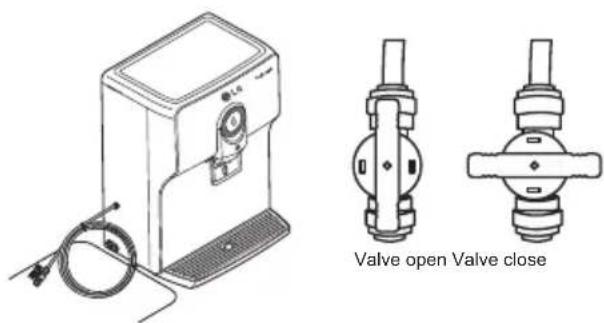

3 Open the water supply valve.
4 After installation, discharge water for the first time when water tank is full. Same process is to be followed after every filter change or digital sterilization. Appropriate time taken to fill the tank to the fullest is 1 hour, depending on water pressure, temperature etc.

CAUTION

Handle all packaging materials (such as plastic bags and thermocol) to keep away from children. The packaging materials can cause suffocation.

Important Note: All models can only be installed with water supply from overhead storage tank. No other water supply should be used for installation of these models.

Notes for Operation

• Open the water supply valve. The water purifier operates normally only when water is supplied properly.
• It is very important to replace the filter periodically in order to drink clean water. When using an expired filter, the performance of water filtration system can deteriorate. Always abide by the filter replacement period.

• If product has not been used for 2 or more days, discharge the stored water from water purifier tank.

- Do not use purified water for replacing water in the humidifier or fishbowl.

- Use the product only after closing the product cover completely. Otherwise, insects or other foreign substances may get in.

Note

• The reverse osmosis contains a replaceable treatment component critical for the effective reduction of total dissolved solids and that product water shall be tested periodically (during service engineer visit) to verify that the system is performing properly.
- Do not use with water that is microbiologically unsafe or of unknown quality, without adequate disinfection before or after the system.

Recommendation (when product not in use)

• If the Product will not be used for 2 or more days, unplug the power plug and close water supply valve before leaving premises and drain the water inside of water filtration(including tank) system completely before consumption of water.

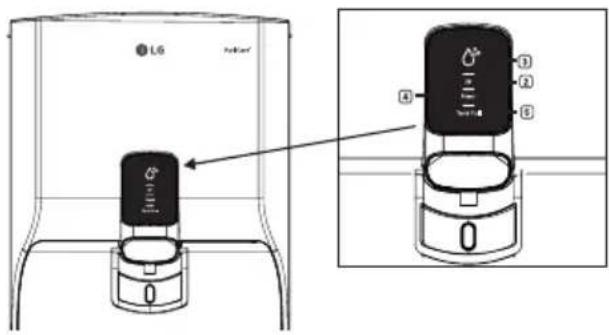

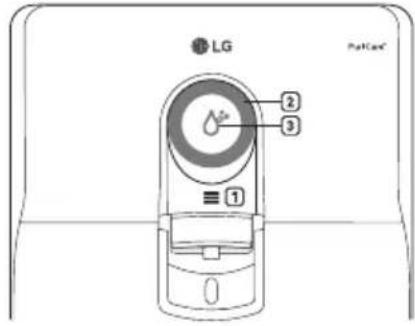

Using Control panel

(For WW162/172/173/175/182/183/184 Series)

(For WW130/140/145/150/151/152/155/174 Series)

① Water level indicator

The water level of the storage tank is displayed in 3 levels.

- The icon is divided into 3 levels according to the water level, and as more indication Light turn on, the water level becomes higher. However, the water level cannot be adjusted discretally.

② UV Sterilizing indicator\*

Purified water is sterilized by the UV LED. Blue color indicates that UV sterilization is ON & White color indicates that UV sterilization is OFF.

For WW145NPW, WW150NP, WW151NP, WW151NPR, WW152NP, WW155NPB, WW174NPC, WW174NPB UV indicator will glow.

(When tank cover is open, UV LED will be automatically turned OFF for your safety.)

NOTE

The UV LED operates in any of the following 2 cases.

• It operates for 75 minutes in every 6 hours.
- It operates for 75 minutes after approximately 2 seconds when power is turned on following a power failure.

3 Filter Change Indicator *^

When the color of indicator changes from blue to amber, this indicates that it is time for preventive maintenance service. Please call LG customer care for service.

4 Power Indicator*

The Power LED glows to indicate ON condition of Water Purifier.

5 Tank Full Indicator*

When the water storage tank gets filled up completely then Tank full indicator will turn ON.

Operation

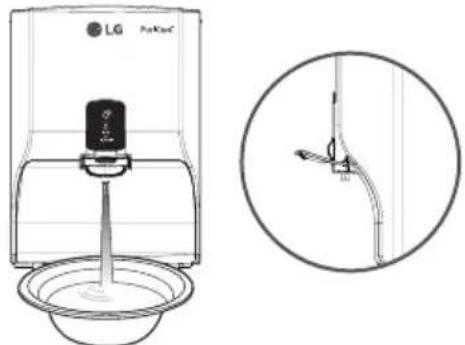

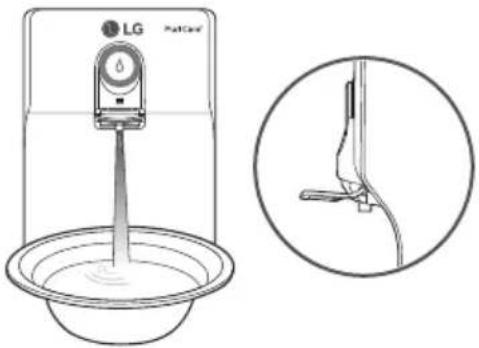

Using purified water

When you press the touch lever, purified water will come out.

NOTE

If you wish to discharge continuously, lift the touch lever upward.

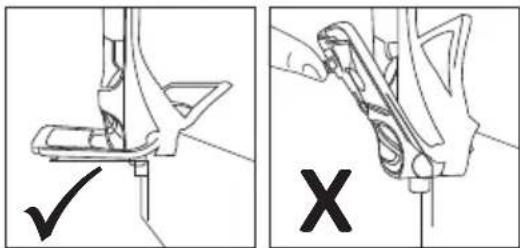

Caution : Open this lever to 90° only.#

Opening more than 90° may cause it to malfunction/damage.

Using the fruit & vegetable cleaning water \*

Open the valve. You can rinse fruits and vegetables and wash the dishes.

The function discharges water while the valve is opened.

NOTE

Do not use this water for drinking and cooking.

Important note for all models:

All models of water purifier comes with a unique flow sensor (To protect the product from running without water supply) which turns on only if there is running water supply to water purifier. If no/lower water supply than specified limit is available, then water purifier will stop for 15 minutes and later, runs again for few seconds to check water supply.

If water supply is detected, then water purifier will work normally otherwise it will repeat to check cycle again. If water supply is available & you want to start water purifier immediately, just turn off the power supply and wait until the Display gets turned off, and turn on the power again.

^Applicable for Out Sediment filter
* For selected models only

Cleaning

How to clean the storage tank

1 Close the water supply valve.

Diagram of a mechanical or electrical component with a lever and curved pipe, no text or symbols present

2 Drain water inside the storage tank completely using the drain hose and the water outlet.

(For WW162/172/173/175/182/183/184 Series)

(For WW130/140/145/150/151/152/155/174 Series)

3 Unplug the power cord.

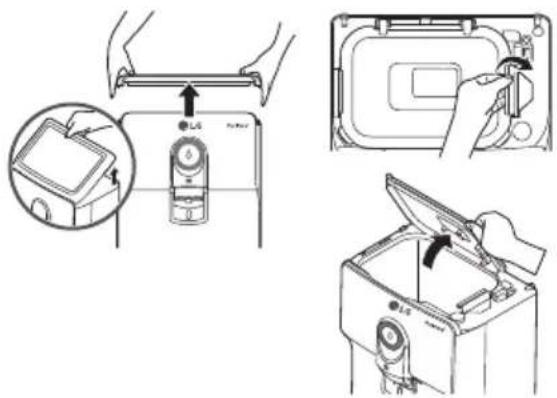

4 Open the top cover by lifting it upward, and then unlock the storage tank cover.

⚠️ CAUTION Handle with care, sharp edges may cause injury.

(For WW162/172/173/175/182/183/184 Series)

(For WW130/140/145/150/151/152/155/174 Series)

Technical line drawings of two LG water purifier devices, showing front and side views with no text or symbols

CAUTION: Do not put pressure or weight on tank cover, it may cause damage or injury.

5 Wipe the surface of the storage tank with soft clean cloth.

CAUTION-Avoid touching any interconnecting part inside water tank. It may cause damage to the product.

Line drawing of a hand cleaning a door panel with a cloth (no text or symbols)

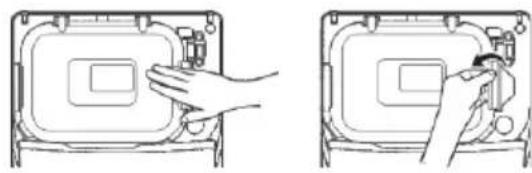

6 Rinse the storage tank with purified water and drain the water completely.

⚠ WARNING- Take care of water spattering, it may cause electric shock.

Line drawing of hands inserting a component into a device casing (no text or symbols)

7 Insert and lock the storage tank cover.

Two-step diagram showing a hand placing a component into a device casing, with no visible text or symbols.

8 Close the top cover, plug in the power cord and open the water supply valve.

Illustration of a hand holding a device with a magnified inset showing the device being inserted (no text or symbols present)

9 After installation, filter change or digital sterilization when tank is full, discharge water for the first time. (approximately time taken to fill the tank to fullest is 1 hour, depending on water pressure, temp etc)

NOTE

• WARNING: Unplug the power cord when cleaning the storage tank. It may cause electric shock.
  • CAUTION: Clean the tank by only using purified water. Do not use chemical or detergent for cleaning the storage tank. Chemical or detergent will not be washed away completely, it can be harmful to the human body.

How to clean water outlet

1 Clean the water outlet periodically using a soft clean brush. Fur or foreign substances may accumulate in the water outlet.

Line drawing of a hand holding a tool near a curved surface (no text or symbols)

* For selected models only

How to clean water tray assembly

1 Separate the Water tray cover by pulling it upwards.
CAUTION: Handle with care, sharp edges may cause injury.

Illustration of hands using a computer to press a keyboard (no text or symbols visible)

2 Separate the Water tray cover by pulling it forward..

Line drawing of hands holding a laptop (no text or symbols)

3 Clean it with water.
4 Wipe the surface of the water tray with a soft clean cloth.
5 Install the water tray on the product.
6 Place the water tray cover on the water tray and attach it to the front of the product closely, and gently push it to install.

Illustration of hands using a laptop to press or install a keyboard (no text or symbols visible)

NOTE

- Caution should be taken. If a large amount of water is in the water tray, water can spill out when separating the water tray.

Note- Clean the water tray assembly periodically.

Maintaining the filter

Process of Purification Drinking water

Step 1:

Out sediment filter with anti scalant module

- Removes big particles, rust stains, mud etc. and reduces input water hardness to enhance filter life.

Step 2:

Sedi + Carbon filter

• Removes unseen dregs and other contamination & removes invisible fine particles, residual chlorine, VOC (Volatile Organic Compounds) etc.

Step 3:

RO membrane filter* / RO recovery plus*

- Removes dissolved impurities and removes heavy metals, bacteria, viruses, VOC etc. from water.

• TDS Reduction upto 90% ppm of Source Water.

Step 4:

(For WW130/145/150/152/162 models)

Post-carbon filter

- Removes odour & improves taste of water.

(For WW140/151/155/172/173/174/175/182/183/184 models) Mineral booster filter

- Removes odour, add minerals in the purified water without mixing impure water.

Cleaning water for fruits & veggies\*

(Only with WW182EP/WW183EPR/WW184EPB/WW184EPC)

Step 1:

Out sediment Filter with antiscalant module:

- Removes big particles, rust stains, mud etc. and reduces input water hardness to enhance filter life.

Step 2:

UF membrane filter*

- Removes only bacteria and fine particle substance.

NOTE

• Do not use water drained from the product for drinking or cooking.
• Use the water instead for cleaning the bathroom and house, gardening or for other various purposes.
• Activated carbon inside the filter may sometimes flow in the storage tank. If so, a fine powder of activated carbon used in the post-carbon filter has come out, and it is harmless to the human body. If found, drain out the water from tank completely.

* For selected models only

** As per LGEIL standard.

Filter replacement period

The filter replacement period refers to the period that the purification performance of the filter is maintained. And, the replacement period is lesser in the case of a place with poor water quality or a large purification amount.

Filter name	Recommended purification amount**(in litres)
Out sediment filter	3000
Anti scalant module	6000
Sedi + Carbon filter*	6000
RO membrane filter*	6000
RO Recovery Plus*
Post-carbon filter*	6000
Mineral booster filter*	6000
UF membrane filter*	6000

WARNING

• Filter replacement and /or AMC request can only be placed via calling LG customer care (Refer last page)
• Warranty shall be void in case of use of Counterfeit (duplicate) filters or replacement of filters from Unauthorized sources.
• Using Counterfeit filters or procuring filters from unauthorized sources may negatively impact or degrade product performance and product life. It may not be safe drinking water and may also impact user's health.
• LG shall not be responsible for any damage arising directly or indirectly out of any defect being noticed in the product due to usage of such Counterfeit filter's.

NOTE

If you wish to replace the filter, contact LG electronics customer care

• After replacing the filter, check if there is a leak from the product.
• After installation, discharge water for the first time when water tank is full. Same process is to be followed after every filter change or digital sterilization. Approximate time taken to fill the tank to the fullest is 1 hour, depending on water pressure, temperature etc.
- For RO Membrane Filter, around 25% of supplied water (based on the tap water pressure of 3.5kgf/cm2 at water temp. of 25°C) will be purified. While for RO Recovery Plus, around 50% (WW162EP/WW172EP/WW173EPB/WW182EP/WW183EPR) / 60% (WW174NPC/WW174NPB/WW175EPW/WW184EPB/WW184EPC) of supplied water (based on tap water pressure of 1.5Kgf/cm2, 750ppm TDS at water temp. of 25°C) will be purified and remainder will be drained.
- CAUTION: Outsediment filter may get choked in abnormal turbidity (Sand & mud) condition, it is suggested to switch ON water purifier after 1-2 hour of overhead tank filling so that sand/mud will get settled. Outsediment filter should be cleaned regularly to prevent choking in above condition for better performance.

TROUBLESHOOTING

Symptoms	Reason	Solution
Water tastes strange.	Have you left the water purifier for a period of 2 or more days without using it?	The taste of water may change as it ages. Contact LG Service.Use the water purifier after discharging the tank one time in case issue persists please contact LG service.
	Has it been a long time since you installed and replaced the filter?	If an expired filter is used, the purification performance may decline.It is recommended to replace the filter according to the filter replacement period.
The purification amount has reduced suddenly.	Is it time to replace the filter?	Request for filter replacement.
	Is the water supply valve closed?	Open the water supply valve.
Water does not come out.	Did you miss the filter replacement period?	Request filter replacement.
	Is the water supply valve closed?	Open the water supply valve.
	Is the power plug unplugged from the outlet?	Plug the power plug in the outlet correctly.
	Does water not come out when you press the discharge lever?	Contact LG Electronics service centre.
The product is noisy and generates abnormal sounds.	Is the product installed on a weak floor or not installed on a stable surface?	Install the product in a place with horizontally leveled surface.
	Is an article placed on top of the product?	Remove the article placed on top of the product.
Fine particles occur in the purified water.	Did water bubbles form?	Water bubbles may form in the draining process. It is safe for you to drink.If fine particles exist continuously after you receive water from the water purifier and several minutes have passed,cut off the tap water supply and power supply and contact LG Electronics service centre.

WATER PIPING DIAGRAM

WW182EP/WW183EPR/WW184EPB/WW184EPC

Electrolysis Sterilizing Care Water piping diagram

*Features & Spec. may vary from model to model

*Features & Spec. may vary from model to model

WW140NP/WW140NPR

*Features & Spec. may vary from model to model

WW151NP/WW151NPR/WW155NPB

*Features & Spec. may vary from model to model

WW130NP/145NPW/150NP/152NP

Electrolysis Sterilizing Care Water piping diagram

# UV LED is only applicable for WW145NPW/WW150NP/WW152NP

*Features & Spec. may vary from model to model

PRODUCT SPECIFICATION

Model name		WW182EPWW183EPRWW184EPBWW184EPC	WW162EPWW172EPWW173EPBWW175EPW	WW174NPCWW174NPB	WW145/150/151/152/155Series	WW140SeriesWW130NP
PurificationMethod	Drinking Water	ReverseOsmosis	ReverseOsmosis	ReverseOsmosis	ReverseOsmosis	ReverseOsmosis
	Fruit & vegetablecleaning water	Ultra-filtration	-	-	-	-
UV Sterilization		Yes	Yes	Yes	Yes	-
Rated Voltage		230 V - 50 Hz
Power Rating		Water purifying : 40W
Volume of Tank		Approx. 8 litres
FilterMaterial	Out Sediment Filter*andAnti scalant module	Polypropylene ModulePolyphosphate module
	Sedi + Carbon Filter*	Polypropylene Module + Activated Carbon
	RO Membrane Filter*RO Recovery Plus*	Polysulfone + Polyamide
	Post Carbon Filter*	Activated Carbon
	Mineral Booster Filter*	Activated Carbon + Mineral Booster
	UF Membrane Filter*	Polysulfone
Dimension		365mm (W) x 295mm (D) x 500mm (H)/ without water tray : 365mm (W) x275mm (D) x 500mm (H)		365mm (W) x 283mm (D) x 506mm (H)
Net Weight		10.5 kg 10 kg 10 kg			9.2 kg
Installation water Pressure limit		10- 860kPa(0.1 - 8.8 kgf/cm2)
Internal Operating Pressure		Min. 140kPa (Avg. 680kPa) (Before filtration)
		Recommended input water quality
Total Dissolved Solids (TDS)		≤ 2000 ppm
Total Hardness		≤ 425 ppm
Turbidity		≤ 5 NTU

* For selected models only.

WARRANTY CARD

The Water Purifier (hereinafter referred as product) comes with 1 year warranty on all parts (except Plastic parts, Consumables, Loose Plastic Parts, Filters, RO Filter) and thereafter a 9 years additional warranty only on the stainless steel tank from the date of purchases on producing the tax paid invoice of the product provided always that the warranty card bears the rubber stamp, date and signature of our authorized dealer.

9 YEAR ADDITIONAL WARRANTY ON THE STAINLESS STEEL TANK

The 9 Year warranty on the Stainless Steel Tank will continue even after the expiry of 1 year period from the date of purchase. This warranty covers Stainless Steel Tank only. However the water tank should be used only for purpose as specified in the user manual. The company's obligation under this warranty shall be limited to repair or providing replacement of defective parts only under the warranty period. During the additional warranty period, it does not cover parts such as PCB/Controller assembly, booster pump, solenoid valve, flow sensor, UV LED lamp, water level sensor, filters, consumable parts, etc. The standard visiting charges will be applicable within municipal limit of town where LG Electronics India Pvt. Ltd. (LGEIL) has its Authorized Service Centre, Service Outside municipal limit will attract to and fro travelling, other incidental expense in addition to standard visiting charges, as per the prevailing from time to time. During the additional warranty period only the parts replaced or repaired shall be free of costs, but service charges shall always be payable by the customer.

Common TERMS & CONDITIONS applicable for warranties as mentioned above:

1. The warranty is confined to the first purchaser of the Water Purifier only & is non-transferable.
2. Repairs & replacements will be carried out through the Authorized Service Centres of LG Electronics India Pvt Ltd. (hereinafter referred as LG or LGEIL). Customer may place their service call through the LG customer care or through the dealer from whom the product has been purchased. In case the customer shifts the place of residence during warranty period, it is advised to contact our helpline.
3. Repair under warranty shall be carried out by an authorized service personnel only. The details of centralized helplines are attached.
4. For units installed beyond municipal limits of the jurisdiction of company's Authorized Service Centre, it is responsibility of the purchaser to contact the nearest authorized service centre and bring the unit to the authorized service at its own cost and risk. All expense incurred in collecting the units or parts thereof from the company's authorized service centre, as well as expenses incurred with deputing of service personnel/technician toward conveyance and other incidentals etc. will be borne by the customer. Local charges for transportation and handling charges may vary from location to location. Customers are advised to verify before. In case the customer desires to bring the unit on its own to the Authorized Service Centre, the same shall be at its own risks & consequences.
5. The concerned authorized service centre will advise the customer whether to effect the repairs at site or at the authorized service centre.
6. Call registered with the centralized helpline/Authorized service centre, wherein only cleaning of the unit/parts in the unit due to dust accumulation on portions of the units are not to be

considered as defects.

1. In case of repairs or replacement of any part/s of the unit, this warranty will thereafter continue and remain in force only for the unexpired period of the warranty. LGEIL may use parts that are new or refurbished and equivalent to new in performance and reliability. Replacement of parts would be purely at the discretion of LGEIL alone. In case the replacement of the entire unit is being made, (subject to the sole discretion of LGEIL), the same model shall be replaced and in the event such model has been discontinued, it shall be replaced with the model price equivalent at the time of purchase.
2. In case of any damage to the product/customer abuse/repairs by un-authorized personnel's/misuse detected/ by the Authorized Service Centre personnel, the warranty conditions are not applicable and repairs will be done subject to availability of parts and on a chargeable basis only.
3. This warranty shall not cover any consequential or resulting liability, damage or loss to property or life arising directly or indirectly out of any defect being noticed in the equipment during warranty period of the Water Purifier. The company's obligation under this warranty shall be limited to repair or providing replacement of defective parts only under the warranty period.
4. The company or its Authorized Service Centre reserves the right to retain any part/s or component replaced its discretion, in the event of defect being noticed in the equipment during warranty period.
5. While the company will make every effort to carry out repairs at the earliest, it however is made expressly clear that the company is under no obligation to do so in a specified period of time.
6. Warranty does not cover accessories external to the equipment supplied by the dealer
7. In the event of any unforeseen circumstance, and spares not being available, the company's prevailing depreciation rules will be binding on the purchaser to accept as a commercial solution in lieu of repairs.
8. If any coloured internal or external components are replaced, there will be commitment to ensure that the shades match with the original or other components. The replaced shades, patterns, tints may vary from the customer's unit due to continuous usage of the unit. Any matching components changed at customer's request will be chargeable basis except the component which actually needed.
9. Free Installation or Demo of the product, can be availed only once & within 3 months from the date of purchase.
10. Any extended warranty offered by LGEIL has to be supported by relevant proof.
11. During 1st year warranty LGEIL recommend hygiene maintenance, provides 3 free scheduled visits for service of the product, for which customer has to contact LG customer care or to confirm in case call received from LGEIL.
12. Warranty shall expire after the warranty period as mentioned above even if the Water Purifier may not be in use for any time during the warranty period for any reason.
13. Only courts in state of Delhi and places where LGEIL has its branch office shall have the

jurisdiction for settling any claims, disputes arising under the warranty.

1. Warranty is not applicable in any of the following cases where :

a) the warranty card is not completed properly at the time of purchase.
b) the completed warranty card is not presented to authorized service personnel at the time of service of the product.
c) the product is not operated according to instructions given in the Operating Instruction Booklet/Owner's Manual.
d) the product is used for commercial purposes
e) the input TDS of source water is more than the specifications as mentioned in the owner's manual.
f) the product has failed under certain conditions like water logging, flood, fire, misuse etc.
g) defects/malfunction are caused by improper or reckless use, which shall be determined by the company personnel.
h) any repair work is carried out by persons other than authorized service personnel.
i) defect/malfunction are caused which are beyond control like lightening, abnormal voltage, Acts of God, virus etc.
j) defects/malfunction caused while in transit to service centre or purchaser's residence.
k) defects caused by rodents bite or by pests and vermin ants/Insects/animals/birds etc.
I) the serial number is deleted, defected or altered.
m) damage is caused to the product or any part/s due to transportation or shifting.
n) any accessory external to the equipment are supplied by dealer or LG.
o) any issue is caused by usage of 3^rd party product like voltage stabilizer, power outlet socket, MCB, extension board etc.

CUSTOMER DETAILS :

MODEL No.:

DATE OF PURCHASE :

Customer's Signature

SERIAL No.:

Dealer's Signature

Technical line drawing of a mechanical bracket with circular and rectangular features (no text or symbols)

माउन्टिंग ब्रैकेट

Technical line drawing of a mechanical bracket or mounting plate (no text or symbols)

माउन्ट फ्लेट (2)

एडेफ्टर

Illustration of a coiled cable with connectors and a hook (no text or symbols)

① टैंक पूर्ण संकेतक

Technical line drawing of a mechanical bracket with two circular holes (no text or symbols)

माउन्टिंग ब्रैकेट

Mounting Guide

माउन्टिंग गाइड

एडेफ्टर

QRG

Technical line drawing of a mechanical bracket or mounting plate (no text or symbols)

माउन्ट फ्लेट (2)

Technical line drawing of a coiled hose and connector (no text or symbols)

Diagram of a mechanical or electrical component being held by a tool, with no visible text or symbols.

Line drawing of a LG water dispenser with a side-view inset showing internal components (no text or symbols)

Line drawing of a hand cleaning a kitchen sink with a cloth (no text or symbols)

Line drawing of hands cleaning a device casing (no text or symbols)

Two-step diagram showing a hand placing a component into a device casing, with no visible text or symbols.

Illustration of a hand holding a device with a magnified inset showing the device being inserted (no text or symbols present)

Line drawing of a hand inserting a plug into a device (no text or symbols)

Illustration of hands using a laptop to press or install a keyboard (no text or symbols visible)

Simple line drawing of hands using a tool to lift or adjust a component on a flat surface (no text or symbols)

Illustration of hands using a laptop to press or install a keyboard (no text or symbols visible)

नोट

LG 24 x 7 CUSTOMER CARE
1800-315-9999 57575541800-180-9999 (Send SMS)(Tell Free)www.lg.com/in/support	LG WhatsApp No.9711709999LG Service India Mobile AppAvailable at Google Play	www.facebook.com/lgindiapage/	To know more about LG,visit www.lg.com/inFor Corporate/Institutional enquiries,please write to [e-mail]
		www.twitter.com/LGIndia
