VH105 - Vacuum Cleaner Vacmaster - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Vacmaster
Model	VH105
Dimensions (L x W x H)	15.7 x 10.6 x 12.2 in (40 x 27 x 31 cm)
Weight	11.0 lb (5.0 kg)
Power Supply	120 V, 60 Hz, 12 A
Power Consumption	1440 W
Suction Power	200 Air Watts
Dust Capacity	2.6 gal (10 L)
Filtration System	HEPA filter, washable foam pre-filter
Cord Length	25 ft (7.6 m)
Cleaning Radius	35 ft (10.7 m)
Attachments Included	Crevice tool, dusting brush, upholstery tool, floor nozzle
Noise Level	72 dB
Canister Material	High-impact plastic
Hose Length	6 ft (1.8 m)
Wand Material	Aluminum
Maintenance	Empty dust bin, clean or replace filters regularly
Safety Features	Thermal overload protection, automatic shut-off
Warranty	2 years limited
Spare Parts Availability	Filters, belts, and accessories available online
Repairability	Modular design; user-replaceable components

Frequently Asked Questions - VH105 Vacmaster

How do I assemble the Vacmaster VH105 vacuum cleaner?

To assemble the Vacmaster VH105, insert the wand into the hose, attach the desired floor nozzle, and connect the hose to the canister. Ensure all connections are secure before use.

What should I do if the vacuum loses suction?

Check for clogs in the hose, wand, or nozzle. Empty the dust bin if full, and clean or replace the filters. Also ensure the HEPA filter is properly seated.

How often should I clean the filters?

Clean the foam pre-filter every 3 months and replace the HEPA filter annually or when visibly dirty. Washable filters should be rinsed with water and dried completely before reuse.

Can I use the Vacmaster VH105 on hardwood floors?

Yes, the hard floor nozzle (included) is safe for hardwood, laminate, and tile floors. Avoid using the beater bar on delicate surfaces.

What is the cord length and cleaning radius?

The cord is 25 ft (7.6 m) long, providing a cleaning radius of approximately 35 ft (10.7 m) when combined with the hose and wand.

How do I replace the belt?

To replace the belt, remove the bottom plate of the floor nozzle, take out the old belt, and install a new Vacmaster VH105 belt. Ensure it is properly aligned before reassembling.

Why does the vacuum shut off automatically?

The thermal overload protection activates if the motor overheats. Turn off the vacuum, unplug it, and let it cool for 30 minutes. Check for blockages that may have caused overheating.

Where can I purchase spare parts?

Spare parts such as filters, belts, and nozzles are available on the Vacmaster website or through authorized retailers. Use the model number VH105 to find compatible parts.

Is the Vacmaster VH105 suitable for pet hair?

Yes, it works well on pet hair. Use the upholstery tool and crevice tool for furniture and corners. The HEPA filter traps allergens effectively.

How do I clean the dust bin?

Press the release button to remove the dust bin, empty it into a trash bag, and rinse with warm water if needed. Ensure it is completely dry before reattaching. Do not use soap.

USER MANUAL VH105 Vacmaster

Blue and black compact vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

1.5 Gallon

Model No.

VH105

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual for future reference.

TABLE OF CONTENTS

SECTION PAGE

Warranty.... 2

Important Safety Instructions.... 3

Double Insulation Instructions.... 4

Extension Cords.... 5

Symbols.... 5

Unpacking & Checking Carton Contents.... 6

General Assembly Instructions.... 7

Dry Vacuum Operation.... 8

Liquid Vacuum Operation.... 9

Maintenance.... 11

Installing & Cleaning Reusable Cloth Filter.... 12

Installing & Cleaning Foam Wet Filter.... 12

Troubleshooting.... 13

Exploded View.... 14

Parts List.... 15

Thank you for purchasing this Vacmaster® wet/dry vacuum cleaner. Feel confident that with Vacmaster® you are obtaining a high quality product engineered for optimal performance. This vacuum is capable of picking up liquids and dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

WARRANTY

We take pride in producing a high quality, durable product. This Vacmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial, or rental use, a 90 day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. For product service call Customer Service at 1-866-384-8432.

Not Covered by Warranty:

• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents, improper maintenance, repairs, or alterations;
• Consumables such as filters and accessories;
• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;
• Normal deterioration of the exterior finish due to use or exposure;
• Any product where serial number/data label is tampered with or removed;
• Any product purchased from an unauthorized retailer.

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

Read and understand this operator's manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this Wet/Dry Vacuum only as described in this manual. To reduce the risk of personal injury or damage to your Wet/Dry Vacuum, use only manufacturer recommended accessories.

For Household Use Only

SAVE THIS MANUAL FOR FUTURE REFERENCE.

When using a vacuum, basic precautions should always be followed including the following:

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• Do not run vacuum unattended.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not vacuum, or use this Wet/Dry vacuum near flammable liquids, gases, or explosive vapors like gasoline or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the motor can ignite flammable vapors or dust.
  • To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
• Do not handle plug or vacuum with wet hands.
• Do not use without dust bag and/or filters in place.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• This vacuum is provided with double insulation. Use only identical replacement parts. See DOUBLE INSULATION INSTRUCTIONS.

CAUTION: To reduce the risk of injury from moving parts - Unplug before servicing.

WARNING: To reduce the risk of electric shock - Unplug before cleaning or cing.

SAVE THESE INSTRUCTIONS

DOUBLE INSULATION INSTRUCTIONS

This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacuum before servicing. Use this Wet/Dry Vacuum as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-DO NOT EXPOSE TO RAIN. STORE INDOORS.

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND OPERATOR'S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

CAUTION: DO NOT VACUUM DRYWALL DUST OR FIREPLACE SOOT OR ASH WITH STANDARD WET/DRY FILTER. THIS TYPE OF DUST IS VERY FINE WHICH MAY NOT BE CAPTURED BY THE FILTER AND CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE DUST USE A FINE DUST FILTER.

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE WORDS 'DOUBLE INSULATED' AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.

EXTENSION CORDS

When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use.

		Length of Extension Cord
120V 25ft (7.62m)		50ft (15.24m) 10	0ft (30.48m) 150	ft (45.72m)
Ampere rating		A.W.G. Wire Size
More than Not more than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not recommended

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL	SIGNAL	MEANING
	DANGER	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
	NOTICE	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

UNPACKING & CHECKING CARTON CONTENTS

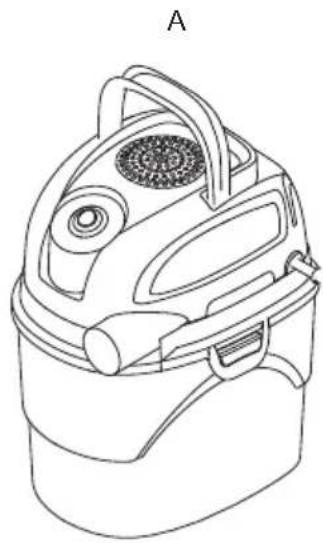

Line drawing of a vacuum cleaner with handle and vent, labeled A (no text or symbols on the device itself)

B C D E F G H

Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list.

Carton Contents List:

Key Description Qty.

A Vac Assembly.... 1
B Hose....1
C Crevice Tool....1
D Utility Nozzle.... 1
E Reusable Cloth Filter.... 1
F Foam Wet Filter.... 1
G Wall Mount Bracket.... 1
H Operator's Manual.... 1

NOTE: The hose and accessories for this vacuum are 1.25" (3.18 cm) diameter.

Handle Power Head On/Off Switch Storage Latch Vacuum Port Collection Tank

GENERAL ASSEMBLY INSTRUCTIONS

Illustration of a plug with a switch and power outlet, showing electrical connections (no text or symbols)

2 1 2

Illustration of a robotic mixer with upward arrows indicating motion (no text or symbols)

Illustration of a hand holding a tool with a hammer and screwdriver, accompanied by a downward arrow (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Diagram of a car interior with a downward arrow indicating motion or force (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a portable vacuum cleaner with handle and control panel (no text or symbols)

Illustration of a mechanical component with a threaded rod and arrow indicating direction (no text or symbols)

Illustration of three cleaning tools: a tool, a brush, and a hair clip, with no visible text or symbols.

WARNING: DO NOT PLUG POWER CORD INTO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the latches (Fig. 2).
3. Lift the power head off the collection tank (Fig. 3).
4. Remove the contents from inside the collection tank; make sure you have all contents as listed on page 6 (Fig. 4).
5. Your vacuum comes ready for dry vacuum cleaning with the supplied reusable cloth filter installed. If the cloth filter is not installed, refer to page 12 for installation instructions (Fig. 5 & 6).
6. For wet vacuum cleaning, remove the reusable cloth filter and install the supplied foam wet filter. See page 12 for the foam wet filter installation instructions (Fig. 7).
7. Place the power head back on the collection tank aligning the top section with the latches, and snap into place (Fig. 8 & 9).
8. Insert the locking end of the hose into the vacuum port on the collection tank and lock into place (Fig. 10).
9. Choose the desired attachment and insert onto the end of the hose (Fig. 11).

For your convenience this vacuum comes with a wall mount bracket for storage.

IMPORTANT!

• Do not mount the bracket over 5 ft / 1.5 m from the floor.
• Do not screw the wall mount bracket to drywall only. Secure the screws to a stud.
• Do not hang from or sit on the vacuum when on wall mount bracket.
• Do not use the vacuum while it is mounted on the wall mount bracket.
  • Empty the collection tank before mounting the vacuum on the wall.

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. Double insulation ☐ eliminates the need for the three wire grounded power cord and grounded power supply system.

Illustration of a plug with a socket and power outlet, showing a downward arrow indicating a drop (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols present)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a portable vacuum cleaner with a handle and spout (no text or symbols)

Illustration of a mechanical component with a threaded rod and arrow indicating direction (no text or symbols)

Illustration of a brush and rod with an arrow indicating direction (no text or symbols)

Abstract line drawing of a stylized eye-like shape with concentric circles and curved segments (no text or symbols)

Illustration of a plug with a wall socket and an arrow indicating power input (no text or symbols)

Line drawing of a medical procedure with a tool inserted into a circular component (no text or symbols)

DRY VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED "IMPORTANT SAFETY INSTRUCTIONS". DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG POWER CORD INTO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

CAUTION: DO NOT VACUUM DRYWALL DUST OR FIREPLACE SOOT OR ASH WITH STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT BE CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE DUST USE A FINE DUST FILTER (SOLD SEPARATELY).

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. In order to prepare your vacuum for dry vacuuming, make sure the filter completely covers the filter cage against the power head. Your wet/dry vacuum comes with the reusable cloth filter pre-installed. For installation instructions, see page 12 (Fig. 2 & 3).
3. Place the power head back on the collection tank and secure it in place using the latches (Fig. 4 & 5).

OPERATING INSTRUCTIONS: DRY VACUUMING

1. Insert the locking end of the hose into the vacuum port on the power head and lock into place (Fig. 6).
2. Push the required attachment onto the free end of the hose (Fig. 7).
3. Verify that the switch is in the 'O' OFF position before plugging into the power supply. Plug the power cord into the outlet (Fig. 8 & 9).
4. Turn the motor on by flipping the switch to the 'I' ON position and begin vacuuming (Fig. 10).
5. Once you have completed vacuuming, flip the switch to the 'O' OFF position and unplug the power cord from the outlet.

$$ O = O F F I = O N $$

DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.

Illustration of a plug with two slots and a power outlet, showing a downward arrow indicating disassembly (no text or symbols present)

Diagram of a mechanical device with a cylindrical component and directional arrow (no text or symbols)

Illustration of a hair clip, brush, and plastic tube with directional arrows (no text or symbols)

Abstract line drawing of a curved mechanical or architectural component with concentric circular features (no text or symbols)

Illustration of a plug with two outlets and a power plug, showing internal circuitry (no text or symbols)

Diagram of a medical or anatomical procedure showing a tool interacting with a circular target (no text or labels)

Illustration of a bucket pouring liquid into a container with a downward arrow (no text or symbols)

LIQUID VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED "IMPORTANT SAFETY INSTRUCTIONS". DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG POWER CORD INTO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is clean and free of dust and dirt (Fig. 1).
2. Remove the reusable cloth filter, then carefully install the foam wet filter over the filter cage and place the power head back on the collection tank. For foam wet filter installation instructions, see page 12 (Fig. 2).

DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.

OPERATING INSTRUCTIONS: WET VACUUMING

1. Push the required attachment onto the free end of the hose (Fig. 3).
2. Verify that the switch is in the 'O' OFF position before plugging the power cord into the power outlet. Plug the power cord into the outlet (Fig. 4 & 5).
3. Turn the motor on by flipping the switch to the 'I' ON position (Fig. 6).
4. Once you have completed vacuuming, flip the switch to the 'O' OFF position and unplug the power cord from the outlet.
5. After use, empty the collection tank, clean and dry the inside and outside before storage (Fig. 7).

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum capacity. You will notice an increase in motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the liquid into a suitable receptacle or drain. To continue vacuuming, refit the collection tank with the drain cap. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the collection tank, clean and dry the inside and outside before storage. REMEMBER! The foam wet filter must be removed after wet vacuuming, and a reusable cloth filter must be installed before dry vacuuming again.

MAINTENANCE

Illustration of a plug and its socket with a separate outlet (no text or symbols)

Illustration of a mechanical component with a threaded rod and arrow indicating direction (no text or symbols)

Diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and airflow direction.

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a container with granular material being poured into a container, with a downward arrow indicating flow (no text or symbols)

Illustration of hands cleaning a container with a submerged object, no text or symbols present

EMPTYING THE COLLECTION TANK

WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE OVING THE POWER HEAD FROM COLLECTION TANK.

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Disconnect the hose from the vacuum (Fig. 2).
3. Undo the latches and remove the power head from the collection tank (Fig. 3 & 4). Place power head on a soft, clean surface upside down.
4. Clear all dirt or debris from the collection tank and hose into a proper waste container (Fig. 5).
5. Clean or replace the filters (Fig. 6).
6. Check the hose, attachments, and power cord to ensure that they have not been damaged.
7. Place the power head back onto the collection tank and secure latches.

IMPORTANT! Clean or change the filter regularly for best performance. ALWAYS USE THE REUSABLE CLOTH FILTER FOR DRY VACUUMING. If the machine is used without the reusable cloth filter, the motor will burn out and the warranty will be voided. Always keep spare filters on hand.

NOTICE! The filters included are made of high quality materials designed to stop small dust particles. The cloth filter should be used for dry pick-up only. A dry cloth filter is necessary to pick up dust. If the cloth filter is wet, it will clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and replacing it. Check the filters for tears or small holes. A small hole can let dust pass through and out of the filter. Do not use a filter with holes or tears; replace it immediately.

STORAGE

Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories should be cleaned and stored so they can be readily available when needed. Store the wet/dry vacuum indoors.

REPAIRS

Repairs for this wet/dry vacuum should be performed only by qualified service personnel using only identical replacement parts.

INSTALLING & CLEANING REUSABLE CLOTH FILTER

Illustration of a plug with a switch and two internal components, no text or symbols present

Diagram of a car with a roof-mounted device and a downward arrow indicating motion (no text or symbols)

Diagram of a car interior with a downward arrow indicating movement or force (no text or symbols present)

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of two hands cleaning a surface with cloth and sand (no text or symbols)

INSTALLING REUSABLE CLOTH FILTER

1. Verify that the power cord is disconnected from the outlet (Fig.1).
2. Remove power head and place in upside down position.
3. Install the reusable cloth filter over the filter cage making sure the cage is completely covered (Fig. 2 & 3).
4. Place the power head back onto the collection tank.

REMOVING & CLEANING REUSABLE CLOTH FILTER

1. With the removed power head in an upside down position, carefully remove the reusable cloth filter from the filter cage (Fig. 4).
2. Clean the reusable cloth filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in living areas. For optimal performance a new filter is recommended.
3. Use a mild soap and water solution to wash reusable cloth filter and rinse with clean water (Fig. 5).
4. Allow the wet filter to air dry for 24 hours before installing onto the filter cage.

INSTALLING & CLEANING FOAM WET FILTER

Illustration of a plug with two outlets and a power plug, showing a disassembly or disassembly process (no text or symbols present)

Diagram of a mechanical device with a cylindrical component and a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a cylindrical component inserted into a housing with an arrow indicating force or motion (no text or symbols present)

Diagram of a mechanical device with a cylindrical component and an upward arrow, no text or symbols present

Illustration of two hands pouring liquid from a container into a bowl (no text or symbols)

INSTALLING FOAM WET FILTER

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove power head and place in upside down position. Follow instructions to remove cloth filter on page 12.
3. Carefully slide the foam wet filter down over the filter cage making sure the cage is completely covered (Fig. 2 & 3).
4. Place the power head onto the collection tank.

CLEANING FOAM WET FILTER

1. With the removed power head in an upside down position, carefully remove the foam wet filter (Fig. 4).
2. Use a mild soap and water solution to wash foam wet filter and rinse with clean water (Fig. 5).
3. Allow the wet filter to air dry for 24 hours before installing onto the filter cage.

TROUBLESHOOTING

WARNING! TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE JUBLESHOOTING.

PROBLEM POSSIBLE CAUSE	SOLUTION
The wet/dry vacuum will not operate.	No power supply.	Check the power supply, cord, breakers, and fuses.
	Faulty power cord.	Unplug and check the power cord. If damaged, have it repaired by a professional.
	Collection tank is full. Empty the	collection tank.
	Switch in the wrong position.	Press the ON 'I' button on the power head.
The dust comes out from the motor cover.	The reusable cloth filter is missing or damaged.	Attach or replace the reusable cloth filter.
	Vacuum has been used to collect fine dust, such as dry wall dust, fireplace soot, or ash, without a fine dust filter.	Remove the standard cloth filter and install the appropriate fine dust filter.
Reduced efficiency and motor/ speed vibration.	There are blockages in the nozzle, hose, or the collection tank inlets.	Unplug and check nozzle, hose and collection tank inlets for blockages.
	The reusable cloth filter is clogged by fine dust.	Take off the filter and clean it or install a new reusable cloth filter.
No suction function after the machine shaken slightly during vacuuming.	The air inlet of the power head is blocked by the float.	Flip the switch to the 'O' OFF position. Wait for 3-5 seconds or when you hear the sound of float falling down, then re-start the machine.

EXPLODED VIEW

PARTS LIST

PART	DRAWING NUMBER	DESCRIPTION QUANTITY
1 55	1386101 Handle 1
2 Power Head 1
3 Collection Tank 1
4 55	1092104 Wall Mount Bracket 1
5 55	1081106 Hose 1
6 55	1004113 Utility Nozzle	1
7 55	1012109 Crevice Tool 1
8 55	1081109 Foam Wet Filter	1
9 55	1012110 Reusable Cloth Filter	1
