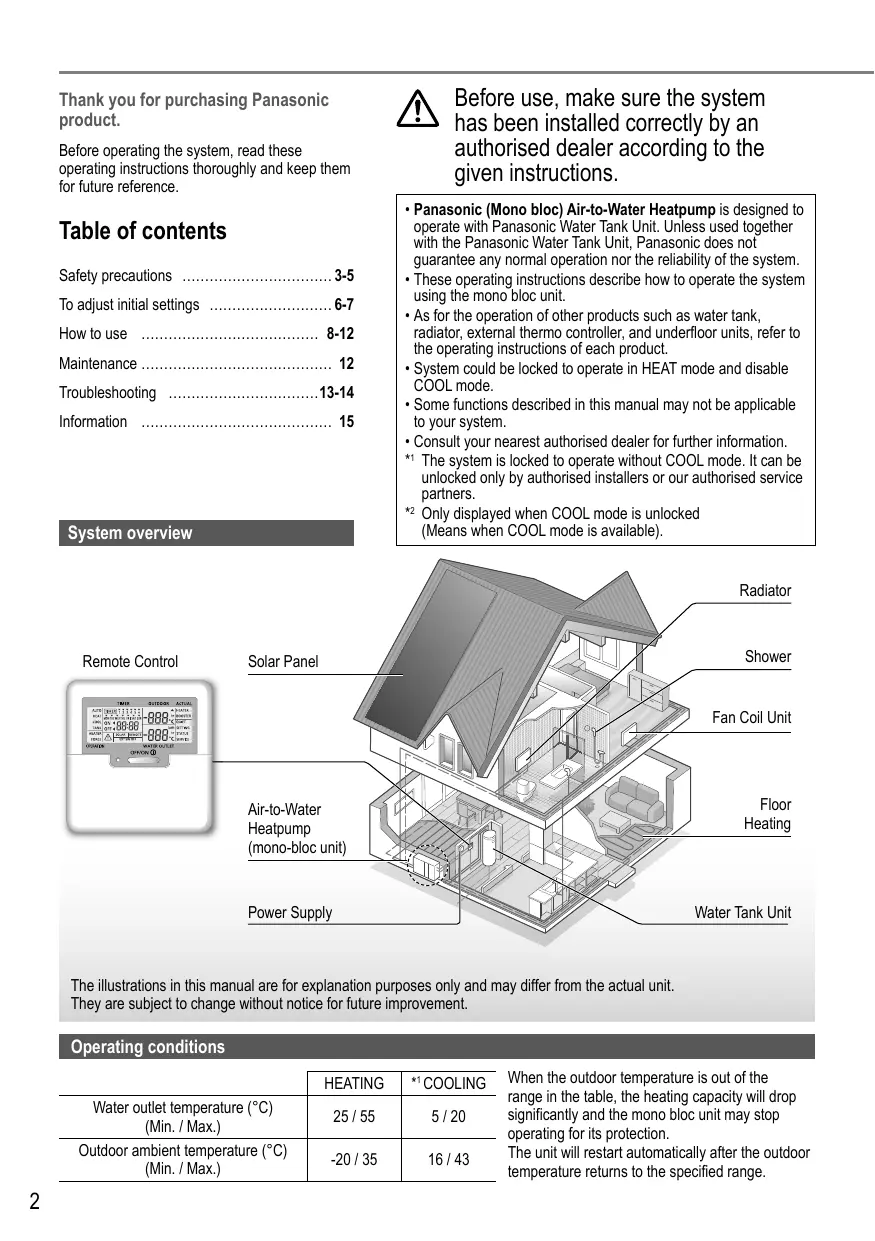

USER MANUAL WH-MDC16G6E5 PANASONIC

Operating Instructions (Mono bloc) Air-to-Water Heatpump Installation Instructions attached.

Air-to-Water Heatpump

Thank you for purchasing Panasonic product.

Before operating the system, read these operating instructions thoroughly and keep them for future reference.

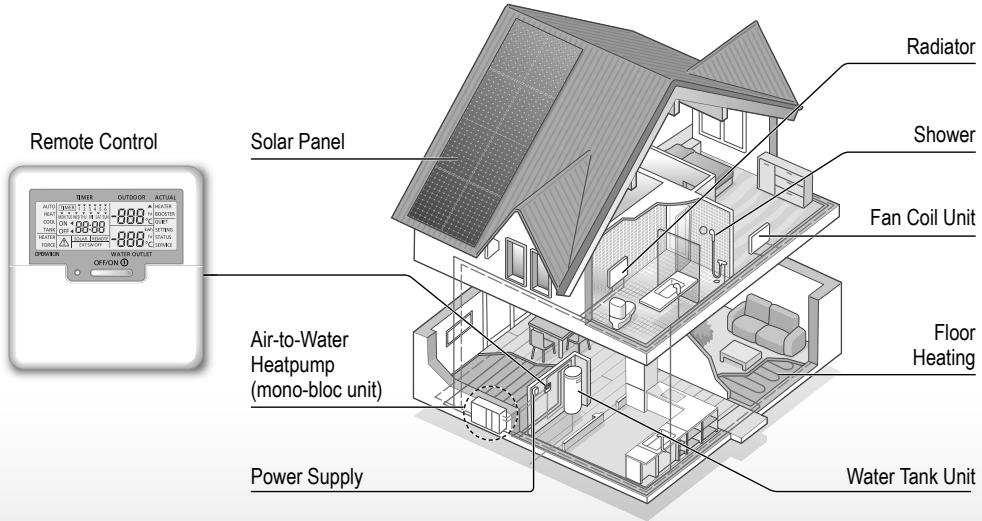

Before use, make sure the system has been installed correctly by an authorised dealer according to the given instructions.

• Panasonic (Mono bloc) Air-to-Water Heatpump is designed to operate with Panasonic Water Tank Unit. Unless used together with the Panasonic Water Tank Unit, Panasonic does not guarantee any normal operation nor the reliability of the system. • These operating instructions describe how to operate the system using the mono bloc unit. • As for the operation of other products such as water tank, radiator, external thermo controller, and underfloor units, refer to the operating instructions of each product. • System could be locked to operate in HEAT mode and disable COOL mode. • Some functions described in this manual may not be applicable to your system. • Consult your nearest authorised dealer for further information. *1 The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service partners. *2 Only displayed when COOL mode is unlocked (Means when COOL mode is available). Radiator

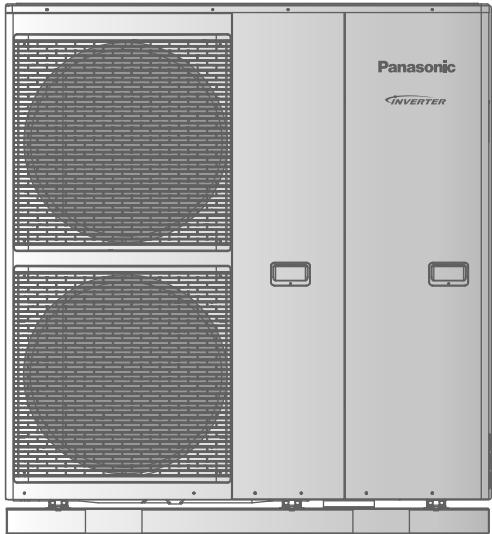

Heatpump (mono-bloc unit)

The illustrations in this manual are for explanation purposes only and may differ from the actual unit.

They are subject to change without notice for future improvement.

When the outdoor temperature is out of the range in the table, the heating capacity will drop significantly and the mono bloc unit may stop operating for its protection.

The unit will restart automatically after the outdoor temperature returns to the specified range.

CAUTION injury or damage to property. The instructions to be followed are classified by the following symbols: This symbol denotes an action that is PROHIBITED. These symbols denote actions COMPULSORY.

This appliance may be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please consult an authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire. Confirm with an authorised dealer or specialist on usage of any specified refrigerant type. Using refrigerant type other than the specified may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire. Do not insert your fingers or other objects into the mono bloc unit; the rotating parts may cause injury.

WARNING death or serious injury.

WARNING Safety precautions

To prevent personal injury, injury to others or property damage, please comply with the following:

Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

Do not touch the mono bloc unit during lightning, it may cause an electric shock. Do not sit or step on the unit, you may fall down accidentally. Power supply Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire. To prevent overheating, fire or electric shock: • Do not share the same power outlet with other equipment. • Do not operate with wet hands. • Do not bend or twist power supply cord. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard. This unit is equipped with Residue Current Circuit Breaker (RCCB). Ask an authorised dealer to check RCCB operation regularly, especially after installation, inspection, and maintenance. RCCB malfunction may result in electric shock and/ or fire. It is strongly recommended that Install Residual Current Device (RCD) on-site to prevent electric shock and/or fire. 4

Before obtaining access to terminals, all supply circuits must be disconnected.

Stop using the product if any abnormality/failure occurs and disconnect the power supply. (Risk of smoke/fire/electric shock) Examples of abnormality/failure • RCCB trips frequently. • Burning smell is observed. • Abnormal noise or vibration of the unit is observed. • Hot water leaks from the unit. Contact your local dealer immediately for maintenance/ repair. Wear gloves during inspection and maintenance. This equipment must be earthed to prevent electrical shock or fire. Prevent electric shock by disconnecting the power supply before cleaning or servicing. This appliance is for multiple uses. To avoid electric shock, burn and/or fatal injury, make sure to disconnect all power supplies before accessing any terminal in the unit.

Do not wet the remote control.

Failure to do so may result in electric shock and/or fire. Do not press the buttons on the remote control using hard and sharp objects. Failure to do so may cause damage to the unit. Do not wash the remote control using water, benzine, thinner or scouring powder. Do not inspect or maintain the remote control by yourself. Consult an authorised dealer in order to prevent personal injury caused by incorrect operation.

Do not wash the unit with water, benzine, thinner or scouring powder to avoid damage or corrosion on the unit. Do not install the unit close to any combustibles or at bathroom. Otherwise, it may cause electric shock and/or fire. Do not touch the water discharge pipe of the unit during operation. Do not place any material on the unit or under it. Do not touch the sharp aluminium fin; sharp parts may cause injury. Do not use the system during sterilisation in order to prevent scalding with hot water, or overheating of shower. Prevent water leakage by ensuring that the drainage pipe is connected properly. After a long period of use, make sure the installation rack is not deteriorated. The deteriorated rack may cause the unit to fall down. Ask an authorised dealer to determine the level of sterilisation function field settings according to the local laws and regulations.

To adjust initial settings

Select menus and determine settings according to the system available in the household. It is recommended that all alterations of settings are done by an authorised dealer or specialist.

• After initial installation, you may manually adjust the settings. The initial setting remains active until the user changes it. • The remote control can be used for multiple installations. • Ensure the operation LED is OFF before setting. • The system may not work properly if set wrongly. Please consult an authorised dealer.

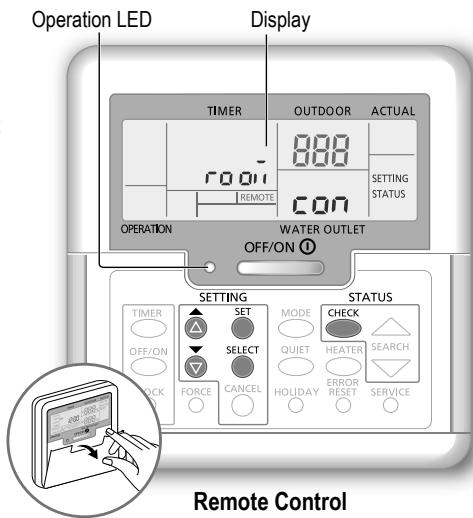

Operation LED Display

1 Press and simultaneously and hold for

5 seconds until the display shows SETTING STATUS. 2 Press 3 Press

4 Press or to select YES/NO, or other options.

YES: to enable the menu NO: to disable the menu 5 Press

Menu (1 ~ 20) 1 Room Thermostat Connection 2 3 4 5 6

To select whether or not to connect to the optional room thermostat.

Backup Heater Selection To reduce the heater power if unnecessary. *Options of kW vary depending on the model. Water System Freeze Prevention To activate or deactivate the water freeze prevention when the system is OFF. Tank Connection To select whether or not to connect to the optional water tank unit. Note: If NO is selected, menus 5 to 15 are skipped. Solar Priority To select the use of solar panel for heating up the water tank. *1, *2 Cooling Priority To choose the room cooling as priority during COOL + TANK mode. Note: If YES is selected, menus 8 and 9 are skipped for COOL + TANK mode. Heating Priority To select the room heating as priority during HEAT + TANK mode. Note: If YES is selected, menus 8 and 9 are skipped for HEAT + TANK mode. *1, *2 Cooling/Heating Operation Interval To set the interval for COOL or HEAT mode during COOL + TANK or HEAT + TANK mode. Note: If YES is selected in menus 6 and 7, this menu is skipped. *1 Tank Heat-up Interval To set the interval for the water tank during COOL + TANK or HEAT + TANK mode. Note: If YES is selected in menus 6 and 7, this menu is skipped.

Operation/settings to be done only by the authorised dealer/specialist.

Operation/settings to be done by the authorised dealer/specialist or user.

To adjust initial settings

YES YES NO To activate or deactivate the water tank’s booster heater.

Note: If NO is selected, menu 11 is skipped. 11 Booster Heater Delay Timer 20 minutes ~ 1 hour To delay time for the booster heater to activate while the system is 1 hour 35 minutes heating up the water tank. • Do not use the system during sterilisation in order to prevent scalding with hot water, or overheating of shower. • Ask an authorised dealer to determine the level of sterilisation function field settings according to the local laws and regulations. 12 Sterilisation YES YES NO To sterilise the water tank, if required. Note: If NO is selected, menus 13 to 15 are skipped. 13 Sterilisation Day & Time Monday Monday ~ Sunday To set timer for sterilisation. 12:00 0:00 ~ 23:50 (Only once a week. Operates even under a standby condition) 14 Sterilisation Temperature 70 °C 40 °C ~ 75 °C To set the temperature of sterilisation. 5 minutes ~ 15 Continuation of Sterilisation 10 minutes 1 hour To maintain heating temperature in order to complete the sterilisation. 16 Base Pan Heater NO YES NO To select whether or not to connect to the optional base pan heater. Note: If NO is selected, menu 17 is skipped. 17 Base Pan Heater type Type A - The base pan heater activates only during deice operation. A A B Type B - The base pan heater activates when outdoor ambient temperature is 5 °C or lower. 18 *1, *2 Cool Outdoor Temperature setting To set the outdoor ambient temperature for the AUTO mode to 15 °C 5 °C ~ 25 °C change from HEAT to COOL. 19 *1, *2 Heat Outdoor Temperature setting To set the outdoor ambient temperature for the AUTO mode to 10 °C 5 °C ~ 25 °C change from COOL to HEAT. 20 Dry Concrete During construction to dry the concrete under a preset temperature. 1 day ~ 99 days Do not use this menu for any other purposes and in period other than during construction (refer to information page).

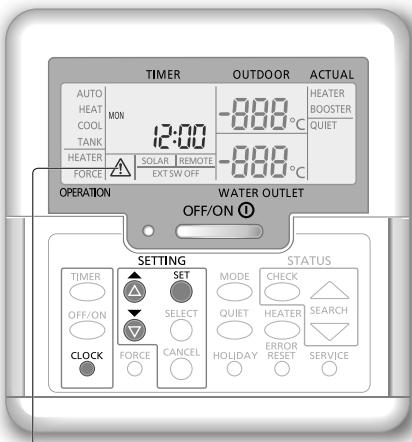

Remote control preparation

to set the current day.

4 Repeat steps 2 and 3 to set the current time.

• The current day and time need to be set in cases below:

- When the power is turned on for the first time. - A long time has elapsed since the power was turned on the last time. • The current time that has been set will be the standard time for all the timer operations. Caution Indicator (Tank Temperature above 60 °C) * The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service partners. *2 Only displayed when COOL mode is unlocked (Means when COOL mode is available). 1

The system is turned off by an external switch.

Turn on or off the system

When the system is ON, the operation LED is lit and the actual water outlet temperature and outdoor ambient temperature are shown on the display.

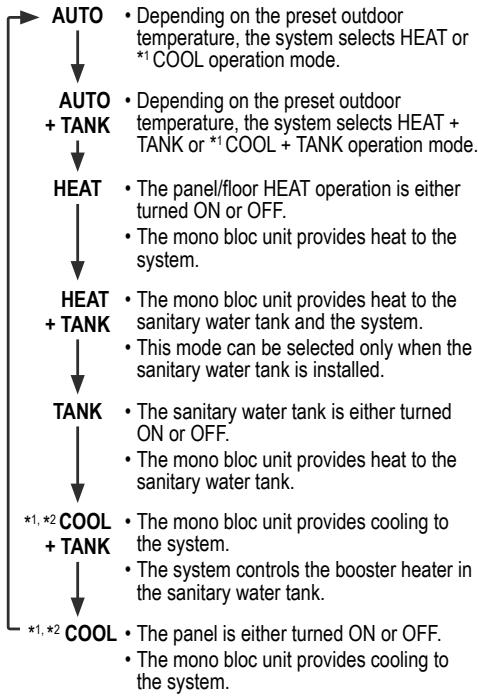

Select operation mode

to select operation mode.

AUTO • Depending on the preset outdoor temperature, the system selects HEAT or

*1 COOL operation mode. AUTO • Depending on the preset outdoor + TANK temperature, the system selects HEAT + TANK or *1 COOL + TANK operation mode. HEAT

• The panel/floor HEAT operation is either turned ON or OFF.

• The mono bloc unit provides heat to the system.

Enjoy quiet operation

HEAT • The mono bloc unit provides heat to the

+ TANK sanitary water tank and the system. • This mode can be selected only when the sanitary water tank is installed. TANK

• The sanitary water tank is either turned

ON or OFF. • The mono bloc unit provides heat to the sanitary water tank.

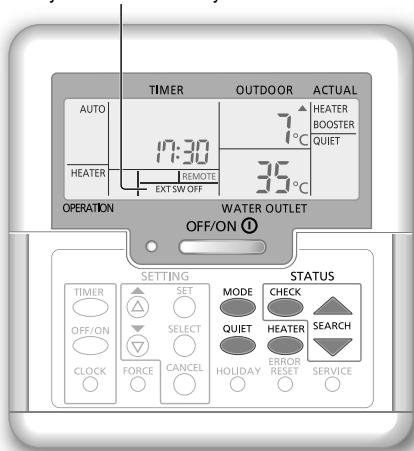

Initiate the backup heater

• To disable the backup heater, press

In normal operation, the

1 Press (The display shows STATUS.) or to check the selected mode. 2 Press • Dry concrete (does not show during normal operation) • The Water Inlet Temperature • Tank Temperature • Compressor Running Frequency • Error History • Heat mode total power consumption (Up to 999 days) • *1 Cool mode total power consumption (Up to 999 days) • Tank mode total power consumption (Up to 999 days) • Press

• The backup heater provides extra heat at low outdoor temperature. The backup heater is possible only in the heat mode.

• Once the backup heater is set, it is automatically operated when conditions are fulfilled.

• This operation reduces the noise of mono bloc unit.

The operation may cause heating/*1 cooling ability to decrease.

*1, *2 COOL • The mono bloc unit provides cooling to

+ TANK the system. • The system controls the booster heater in the sanitary water tank. *1, *2 COOL • The panel is either turned ON or OFF. • The mono bloc unit provides cooling to the system.

to exit the STATUS mode.

• Once the STATUS mode is entered, the display shows STATUS.

• The STATUS mode cannot be activated when the display shows SETTING. • The total power consumption is an estimated value based on AC 230 V and may differ from value measured by precise equipment.

buttons are not in use.

Operation/settings to be done only by the authorised dealer/specialist.

Operation/settings to be done by the authorised dealer/specialist or user. Display

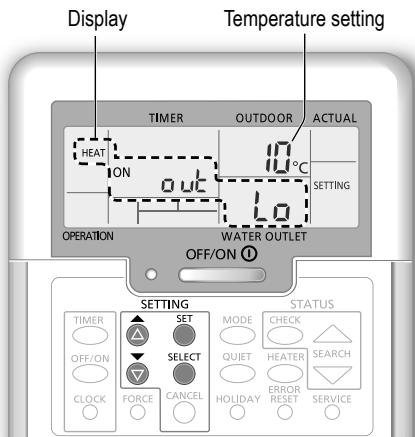

System temperature setting

The system controls the temperature for each menu based on the outdoor ambient temperature.

• To set or change the temperatures, make sure to contact your nearest authorised dealer. 1 Press and hold for 5 seconds to enter the temperature range setting mode. (The display shows SETTING.) 3 Press

to confirm the setting.

to set the desired temperature.

• Repeat steps 2 to 5 to set other menus.

Checking the temperature range

for 5 seconds to enter the temperature range setting mode.

Setting of low outdoor ambient temperature.

-15 °C ~ 15 °C Setting of high outdoor ambient temperature.

-15 °C ~ 15 °C Setting of water outlet temperature at low outdoor

55 °C ambient temperature. Setting of water outlet temperature at high outdoor 35 °C ambient temperature. During HEAT mode, the water outlet temperature is adjusted as <Water outlet is shown the diagram on the right. temperature> It is performed within the preset temperature range.

25 °C ~ 55 °C Display

<Outdoor ambient temperature>

Setting of outdoor ambient temperature to turn OFF heating operation during HEAT mode. Setting of outdoor ambient temperature to turn ON the backup heater. Setting of water outlet temperature during *1 COOL mode. Setting of sanitary water tank temperature.

-15 °C ~ 20 °C HEATER

40 °C ~ 75 °C TANK HEAT

*1 The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service partners.

*2 Only displayed when COOL mode is unlocked (Means when COOL mode is available).

Desired temperature setting

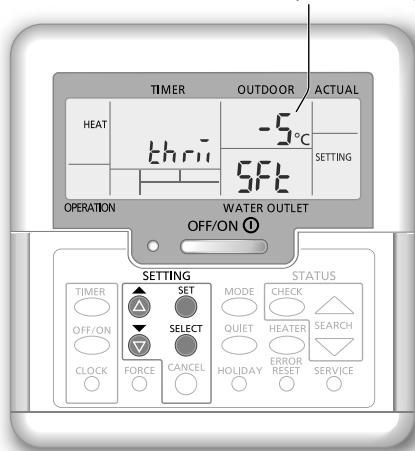

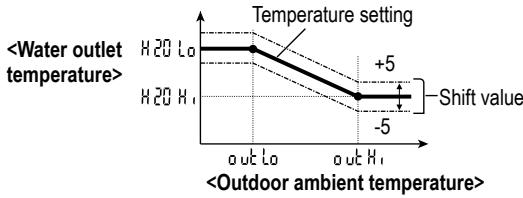

Shifting the water temperature

This easily shifts the water outlet temperature if the setting is undesirable. 1 Press

to enter the water temperature shifting mode.

3 Press or to set the desired temperature.

(temperature range: -5 °C ~ 5 °C) Temperature setting <Water outlet temperature>

to confirm the setting.

• Press or wait for 30 seconds to exit the SETTING mode. • The set temperature will be saved in the system once confirmed. • The SETTING mode cannot be activated when the SERVICE and STATUS indicators are ON. • The system will shift the temperature within water outlet temperature range.

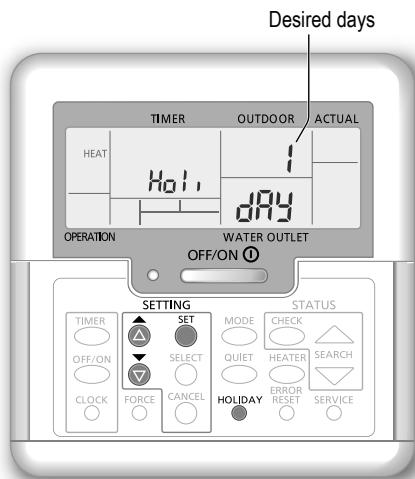

• By setting the day (s) in holiday mode, it promotes energy saving while you are on holiday, and enables the system to resume at the preset temperature after your holiday. • Ensure that the system is OFF before setting. • The system will resume operation automatically at 00:00 am after the holiday. • The day the HOLIDAY mode was set is counted as day 1. Example: Setting the holiday mode on June 21, 08:00 am. By setting 3 days, the system resumes operation on June 24, 00:00 am. 1 Press

to enter the HOLIDAY mode.

2 Press or to set the desired days.

(Setting range: 1 day ~ 999 days) 3 Press

to confirm the setting.

or wait 30 seconds to exit the HOLIDAY mode.

Operation/settings to be done only by the authorised dealer/specialist.

Operation/settings to be done by the authorised dealer/specialist or user.

Weekly timer setting

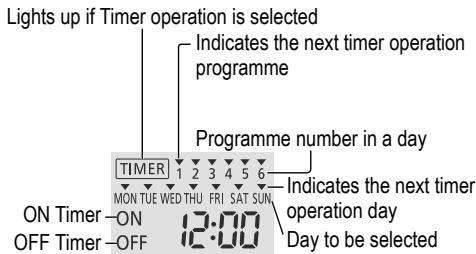

Promotes energy saving by allowing you to set up to 6 programmes in any given day. Lights up if Timer operation is selected Indicates the next timer operation programme Programme number in a day

to enter the timer setting mode. or

to select your desired day.

to confirm your selection.

4 “1” will be blinking, press programme 1.

to select ON or OFF timer. or

7 Press to confirm programme 1. The selected day will be highlighted with ▼.

• After 2 seconds, the display will move to the next programme. Repeat steps 4 to 7 to set programmes 2 to 6. • During timer setup, if no button is pressed within 30 seconds, or if the is pressed, the setting at that moment is confirmed and timer setup is ended.

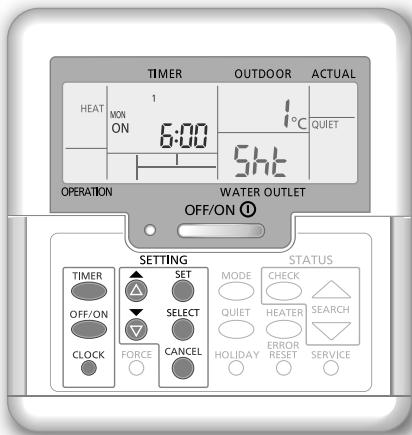

To check current timer programme

1 Press to enter timer mode and press to enter day setting.

until your desired day is shown,

to confirm your selection. or

1 Perform steps 1 to 7 of “Weekly timer setting” to modify existing timer programme, or add any timer programme.

to select your desired time.

, , and the Water Temperature Thermo Shift setting.

To modify current timer programme or add new timer programme

Indicates the next timer operation day

to check the set programmes.

To cancel current timer programme

until your desired day is shown,

to enter programme setting.

until your desired programme is

Press to cancel the programme and ▼ will disappear.

To disable/enable Weekly Timer

• To disable weekly timer setting, press press

• To enable previous weekly timer setting, press then press

Weekly timer setting

• You may set the timer for each day of the week (Monday to Sunday) with 6 programmes per day.

• When the system is switched on by the timer, it will use the previously set temperature to control the water outlet temperature. • The same timer programme cannot be set on the same day. • You may also select 2 or more days with the same timer setting.

Mono bloc Unit In case of a power supply failure or pump operating failure, drain the system (as suggested in the figure below). When water is idle inside the system, freezing up is very likely to happen which could damage the system. • Do not obstruct the air inlet and air outlet vents, it may cause low performance or breakdown. Please remove obstacles to assure the ventilation. • During winter, please clean and remove the snow near mono bloc unit so that the snow does not cover the air inlet and air outlet vents. H

• Clean the external filter at least once a year. Failure to do so may cause the filter to clog up, which may lead to system breakdown. Consult an authorised dealer.

• In order to ensure optimal performance of the units, seasonal inspections on the units, external filter and field wiring have to be carried out at regular intervals. Consult an authorised dealer about maintenance.

• Clear any obstruction on the air inlet and outlet vents of the mono bloc unit.

Disconnect the power supply then please consult an authorised dealer under the following conditions:

• Abnormal noise during operation. • Water/foreign particles have entered the remote control. • Circuit breaker switches off frequently. • Power cord becomes unnaturally warm.

For extended non-use

• Do not switch off the power supply. Switching off the power supply will stop the automatic water pump operation and will cause jamming in the water pump.

The following symptoms do not indicate malfunction. Symptom Cause

System is hard to heat up.

System does not heat up instantly.

• Condensation or evaporation occurring in the pipes.

• It is caused by defrost operation in the heat exchanger. • It is caused by the protection control of the system when outdoor temperature is out of the operating range. • It is caused by the protection control of the system. When the water inlet temperature is lower than 10 °C, the compressor stops and the backup heater power turns on. • When the panel and the floor are heated simultaneously, warm water temperature may decrease, which may reduce the heating ability of the system. • When the outdoor air temperature is low, the system may need longer time to heat up. • Discharge outlet or intake inlet in the mono bloc unit is blocked by some obstacle, such as a pile of snow. • When the preset water outlet temperature is low, the system may need longer time to heat up. • System will take some time to heat up the water if it starts to operate at cold water temperature. • It is caused by the protection control of the unit heat exchanger.

Backup heater is automatically turned

ON when it is disabled. Operation starts automatically when the • Sterilisation timer has been set. timer is not set. Display power consumption remains • Memory is saved on hourly basis. If a power failure occurs, the data kept from last hour will be displayed. as previous value. • Total power consumption has reached 999 days. Press to reset the counter. HEAT indicator blinks on the display. • System is performing deice operation. Loud refrigerant noise continue for a • It is caused by protection control during deice operation at outdoor ambient temperature lower than -10°C. few minutes. *1 COOL mode is unavailable. • System has locked to operate in HEAT mode only.

System operation switches off.

• Refrigerant flow inside the unit.

• The delay is a protection for the compressor.

How to use / Maintenance / Troubleshooting

Water flowing sound during operation.

Operation is delayed a few minutes after restarting. Mono bloc unit emits water/steam. Steam comes out of the mono bloc unit in the heating mode. Mono bloc unit does not operate.

Check the following before calling for servicing.

Symptom Check Operation in HEAT/ *1 COOL mode is not working efficiently. Noisy during operation. System does not work. Operation LED is not lit or nothing is displayed on the remote control.

• Set the temperature correctly.

• Close the panel heater/cooler valve. • Clear any obstruction in the air inlet and air outlet vents of the mono bloc unit. • Mono bloc unit has been installed at an incline. • Close the cover properly. • Circuit breaker has tripped/activated. • Check that the power supply is working correctly, or that a power failure has not occurred.

Force Heater Mode Button

• If a malfunction occurs in the system, the backup heater may be used to heat up the water. Press to switch on the backup heater. to switch off the backup heater. • Press • In the Force Heater mode, no other operation can be used. • This feature is only available to certain error codes. • Refer to dealer for more details. *1 The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service partners. *2 Only displayed when COOL mode is unlocked (Means when COOL mode is available).

The operation LED blinks and error code appears on the display. • Disconnect the power supply, and report the error code to an authorised dealer. • The timer operation will be cancelled when an error code is displayed.

Abnormality or Protection control works

Capacity mismatch Abnormal compressor temperature sensor Abnormal water pump Abnormal refrigerant 1 sensor Abnormal service valve Compressor low pressure protection Abnormal water flow Abnormal high pressure sensor Abnormal deice water circulation Abnormal back-up heater overload protector Abnormal tank temperature sensor Remote control communication error Abnormal indoor / outdoor communication Abnormal tank heater overload protector Abnormal voltage connection Outdoor high pressure protection Indoor heat exchanger freeze prevention

Abnormality or Protection control works

Pressure switch activated Poor compressor rotation Abnormal outdoor fan motor lock Comprehensive current protection Compressor temperature overload protection Transistor module temperature overload protection DC peak abnormal of operation Abnormal Refrigerant cycle Abnormal in a *1cooling / heating charge Abnormal pressure switch Abnormal water outlet sensor 2 Abnormal outdoor air temperature sensor Abnormal water inlet sensor Abnormal outdoor discharge sensor Abnormal power factor correction Abnormal outdoor heat exchanger sensor Abnormal outdoor defrost sensor Abnormal water outlet sensor Abnormalities in outdoor current transformer disconnection Abnormal evaporator outlet temperature sensor Abnormal bypass outlet temperature sensor Abnormal *1cooling high pressure

*1 The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service partners.

*2 Only displayed when COOL mode is unlocked (Means when COOL mode is available).

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Information for Users on Collection and Disposal of Old Equipment

Dry Concrete Function

• During construction to dry the concrete under a preset temperature. 1 Press

simultaneously and hold for 5 seconds until the display shows “

(The display shows “ 3 Press Press 4 Press

Operation/settings to be done only by the authorised dealer/specialist.

to set the desired temperature.

to confirm the selection.

5 Repeat step 3 and 4 to set other days and temperature.

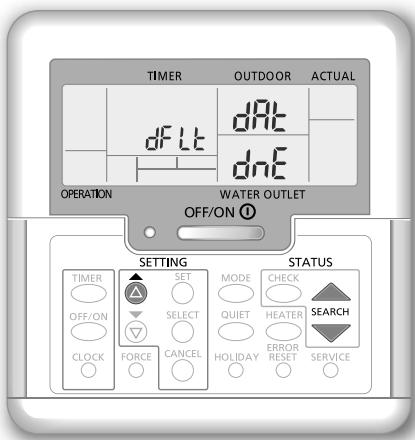

To Reset the Remote Control to Default

Setting 1 Press , , continuously for 5 seconds. The operation is off during this period. 2 The display shows “ , , ” for 2 seconds for confirmation. After 2 seconds, it goes to normal display.

Bulgaria Croatia France Germany, Austria, Switzerland Hungary Italy Netherlands, Belgium, Luxemburg

+359 (2) 971 2969 +385 (0) 800 777 986 +33 825 362 193 +49 800 200 2223 +36 402 0100 +39 026 707 2556 +31 (0) 6-4676 1041
