USER MANUAL VIT4T23 Infiniton

Four circular diagrams with curved arrows, arranged in a 2x2 grid, with a row of small icons below (no text or symbols on the diagrams themselves)

Placa vitrocerámica

Three identical cooking pots with crossed-out X marks, placed on a flat surface (no text or symbols)

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Two cooking pots with crossed arrows indicating opposing directions (no text or symbols)

Simple line drawing of a hand pointing upward with a circular icon on the index finger (no text or symbols)

Line drawing of a cooking pot with lid and stand (no text or symbols)

Simple line drawing of a hand pointing upward with a circular target on the index finger (no text or symbols)

Simple line drawing of a hand with a circular head and index finger (no text or symbols)

Simple line drawing of a hand with a circular symbol on the index finger (no text or labels)

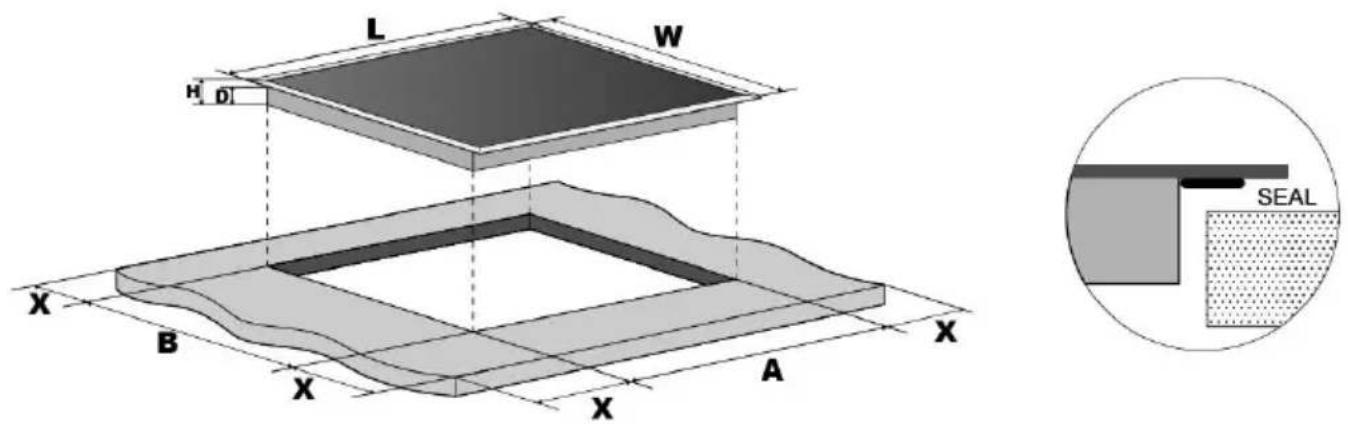

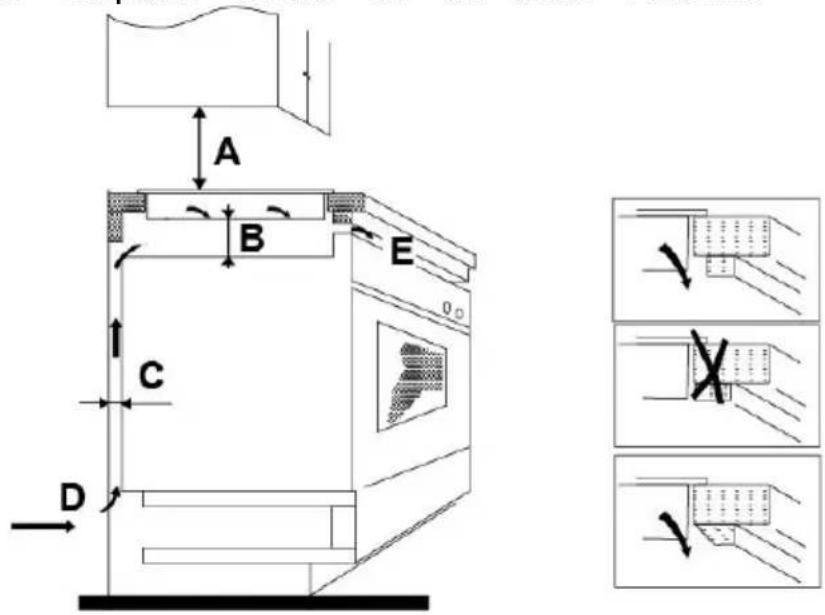

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 mini

Precaución:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Four circular diagrams with curved arrows, arranged in a 2x2 grid, with a row of small icons below (no text or symbols on the diagrams themselves)

Ceramic Hob

Instruction Manual / Installation Manual

MODEL: VIT4T23

Safety Warnings

Your safety is important to us. Please read information before using your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any or maintenance on it.
• Connection to a good earth wiring system essential and mandatory.
  • Alterations to the domestic wiring system only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in inju cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to person responsible for installing the applian

as it could reduce your installation costs.

• In order to avoid a hazard, this appliance be installed according to these instructions installation.
• This appliance is to be properly installed earthed only by a suitably qualified person
• This appliance should be connected to a which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly c invalidate any warranty or liability claims.

Operation and maintenance Electrical Shock Hazard

• Do not cook on a broken or cracked co the cooktop surface should break or crack, the appliance off immediately at the mains supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance complies with electromagnet safety standards.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any it than suitable cookware contact the Inductic glass until the surface is cool.
  • Metallic objects such as knives, forks, spots and lids should not be placed on the hob since they can get hot
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang or cooking zones that are on. Keep handles of reach of children.
• Failure to follow this advice could result burns and scalds.

Cut Hazard

- The razor-sharp blade of a cooktop scrap exposed when the safety cover is retracted. with extreme care and always store safely out of reach of children.

- Failure to use caution could result in inju cuts.

Important safety instructions

- Never leave the appliance unattended when use. Boilover causes smoking and greasy spillovers that may ignite.

- Never use your appliance as a work or surface.

• Never leave any objects or utensils on t appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zo and the cooktop as described in this manual by using the touch controls).
• Do not allow children to play with the car or sit, stand, or climb on it.
• Do not store items of interest to children cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should satisfied that they can use the appliance with danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in manual. All other servicing should be done qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on cooktop.
• Do not stand on your cooktop.

- Do not use pans with jagged edges or across the Induction glass surface as this scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your code as these can scratch the Induction glass.

- If the supply cord is damaged, it must replaced by the manufacturer, its service ag or similarly qualified persons in order to av hazard.

- This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and working environments; -farm houses; -by clients in hotels, motels and other resident type environments; -bed and breakfast ty environments.

- WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching head elements.

Children less than 8 years of age shall be away unless continuously supervised.

- This appliance can be used by children ag from 8 years and above and persons with reduced physical, sensory or mental capabiliti or lack of experience and knowledge if they been given supervision or instruction concern use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Unattended cooking on a hob w fat or oil can be dangerous and may resul NEVER try to extinguish a fire with water, switch off the appliance and then cover flar with a lid or a fire blanket.
• WARNING: Danger of fire: do not store it the cooking surfaces.
• Warning: If the surface is cracked, switch the appliance to avoid the possibility of ele shock, for hob surfaces of glass-ceramic or similar material which protect live parts
• A steam cleaner is not to be used.
• The appliance is not intended to be operational means of an external timer or separate remote-control system.

Congratulations on the purchase of your new Ceramic Hob.

We recommend that you spend some time to read this Instruction / Ins Manual in order to fully understand how to install correctly and operate For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction Manual for future reference.

Product Overview

Model: VIT4T23

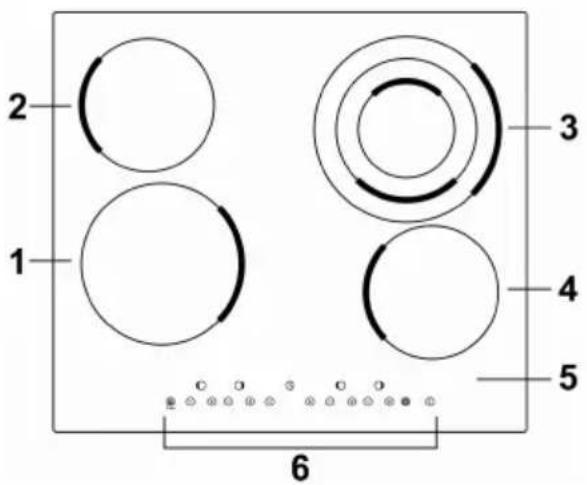

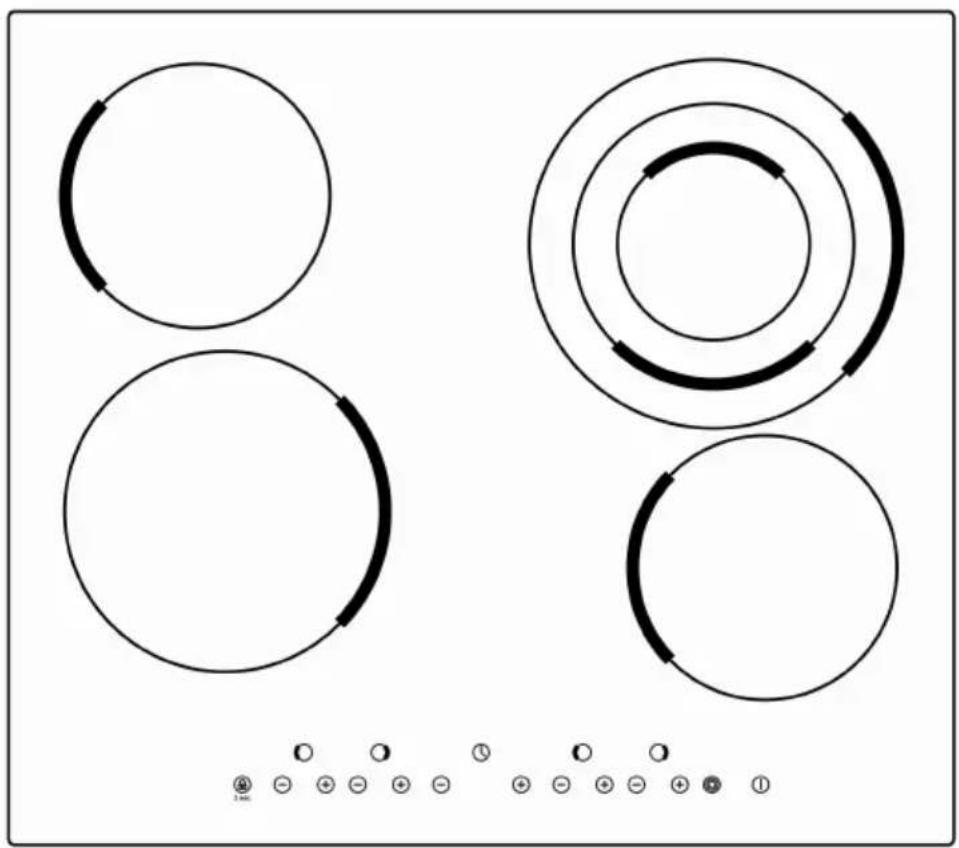

Top View

1. max. 1800 W zone
2. max. 1200 W zone
3. 2300/1600/800 W zon
4. max. 1200 W zone
5. Glass plate
6. Control panel

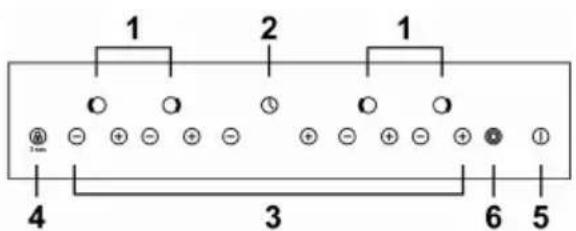

Control Panel

1. Heating zone selection control
2. Timer control
3. Power / Timer regulating con
4. keylock control
5. ON/OFF control
6. Triple zone selection control

Product Information

The microcomputer ceramic cooker hob can meet different kinds of cuisin demands because of resistance wire heating, micro-computerized control an multi-power selection, really the optimal choice for modern families.

The ceramic cooker hob centers on customers and adopts personalized de The hob has safe and reliable performances, making your life comfortable enabling to fully enjoy the pleasure from life.

Before using your New Ceramic Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your ceramic hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any press
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no utensil or a cloth) covering them. Even a thin film of water may ma controls difficult to operate.

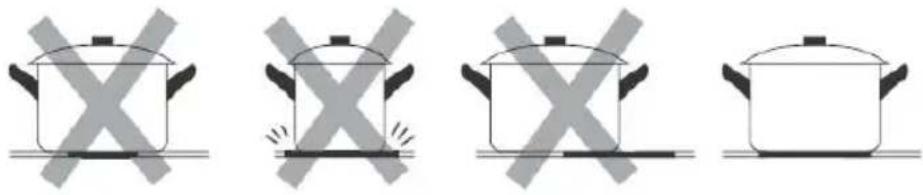

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed-out X symbols on their bases, no text or labels present

Make sure that the base of your pan is smooth, sits flat against the the same size as the cooking zone. Always centre your pan on the cook

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Always lift pans off the ceramic hob - do not slide, or they may scra

Two cooking pots with crossed arrows indicating opposing directions (no text or symbols)

Using your Ceramic Hob

To start cooking

- After power on, the buzzer beeps once, all the indicators light up for then go out, indicating that the ceramic hob has entered the state mode.

1. Touch the ON/OFF control, all the indicators show "-" or "-" -", indicating that the ceram hob has entered the state of standby mode.

Simple line drawing of a hand pointing upward with a circular icon on the index finger (no text or symbols)

1. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the Of the cooking zone are clean and dry.

Line drawing of a cooking pot with lid and stand (no text or symbols)

1. Touching the heating zone selection control, and a indicator next to the key will flash

1. Select a heat setting by touching the "-" or "+" control.

- If you don't choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

- By holding down either of these buttons, the value will adjust up or down.

1. When the zone with double ring is work

activating double zone by pressing ,

When double zone is working, you could

turn off double zone by pressing

Simple line drawing of a hand pointing upward with a circular target on top (no text or symbols)

When you have finished cooking

1. Touching the heating zone selection control that you wish to switch it

1. Turn the cooking zone off by touching the “-” and scrolling down to

Simple line drawing of a finger pointing downward with a minus sign on the index finger (no text or symbols beyond the mark)

1. Turn the whole cooktop off by touching the "control.

Simple line drawing of a hand pointing upward with a circular mark on the index finger (no text or symbols)

4. Beware of hot surfaces

“H” will show which cooking zone is hot to touch. It will disappear in surface has cooled down to a safe temperature. It can also be used as saving function if you want to heat further pans, use the hotplate that

Locking the Controls

• You can lock the controls to prevent unintended use (for example chi accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF con disabled.

To lock the controls

Touch and hold the keylock 3 sec for a while (3sec). The timer indicat will show "Lo".

To unlock the controls

1. Make sure the ceramic hob is turned on.
2. Touch and hold the keylock 3 sec for a while (3sec).
3. You can now start using your ceramic hob.

When the hob is in the lock mode, all the controls are disable except to ON/OFF (I) you can always turn the ceramic hob off with the ON/OFF

① control in an emergency, but you shall unlock the hob first in the n operation

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the chob. When an excessive temperature is monitored, the ceramic hob will operation automatically.

Residual Heat Warning

When the hob has been operating for some time, there will be some r heat. The letter "H" appears to warn you to keep away from it.

Auto Shutdown

Another safety feature of the hob is auto shut down. This occurs when forget to switch off a cooking zone. The default shutdown times are shot the table below:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hou)	8	8	8	4	4	4	2	2	2

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not cooking zone off when the set time is up.
• You can set it to turn one cooking zone off or more than one after up.
• You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting a zones.

1. Touch timer control, The minder indicator will start flashing and "30" will show in the timer display.

1. Adjust the timer setting by touch the "-" or "+"

controls. The minute minder indicator will sta flashing and will show in the timer display.

Hint: Touch the “-” or “+” control of the time once to decrease or increase by 1 minute

Touch and hold the “-” or “+” control of the timer to decrease increase by 10 minutes.

If the setting time exceeds 99 minutes, the timer will automatic return to 0 minute.

1. Touch the 'Timer', the timer is cancelled, and the "--" will show in display.

1. When the time is set, it will begin to count d immediately. The display will show the remaining time and the timer indicator will flash for 5 sec
2. Buzzer will beep for 30 seconds and the timer shows “- -” when the set time finished.

Setting the timer to turn one cooking zone off

1. Touching the heating zone selection control that you want to set the timer for. (e.g. zone 1#

1. Touch timer control, The minder indicator will start flashing and "30" will show in the timer display.

1. Set the time by touching the "-" or "+" control of the timer

Hint: Touch the "-" or "+" control of the timer once will decrease or increase by 1 minute.

Touch and hold the “-” or “+” control of the decrease or increase by 10 minutes.

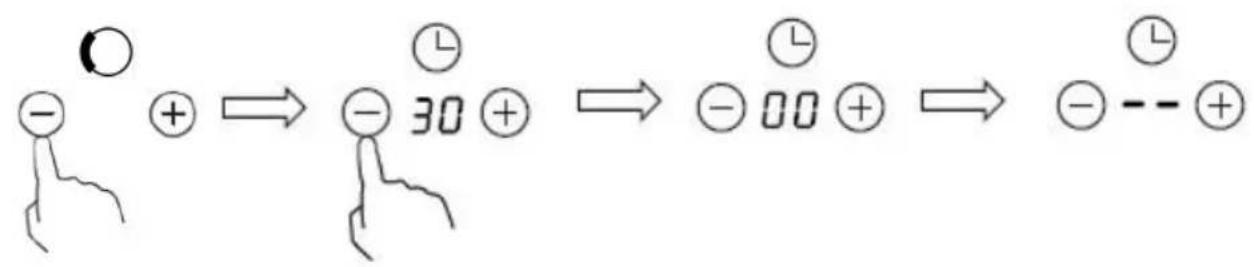

1. Touching the heating zone selection control, and then touch the "Time" timer is cancelled, and the"--" will show in the minute display.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicate will illuminate indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will be automatically switch off show "H".

Other cooking zone will keep operating if they are turned on pre

Setting the timer to turn more than one cooking off

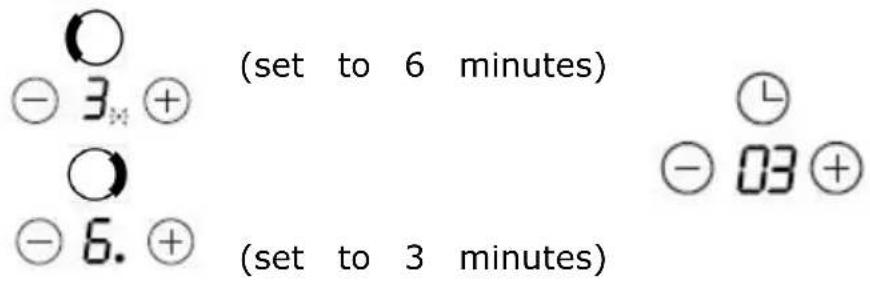

1. If more than one heating zone use this function, the timer indicator the shortest time.

(e.g. zone 1# setting time of 6 minutes, zone 2# setting time of : the timer indicator shows "3".)

NOTE: The flashing red dot next to power level indicator means the indicator is showing time of the heating zone.

If you want to check the set time of other heating zone, touch the zone selection control. The timer will indicate its set time.

1. When cooking timer expires, the corresponding cooking zone will be switch off automatically show "H".

NOTE: If you want to change the time after the timer is set, you h from step 1

Cooking Guidelines

Cooking Tips

• When food comes to the boil, reduce the power setting.
  • Using a lid will reduce cooking times and save energy by retaining the
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the foo through.

Simmering, cooking rice

- Simmering occurs below boiling point, at around 85^ C , when bubbles are rising occasionally to the surface of the cooking liquid. It is the key soups and tender stews because the flavours develop without overcooking food. You should also cook egg-based and fourththickened sauces below point.

- Some tasks, including cooking rice by the absorption method, may request setting higher than the lowest setting to ensure the food is cooked at the time recommended.

Searing steak

To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cc
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of o pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will on the thickness of the steak and how cooked you want it. Times from about 2 - 8 minutes per side. Press the steak to gauge how - the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow and become tender before serving.

For stir-frying

1. Choose an ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be q
   If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the c zone to a lower setting, return the meat to the pan and add your
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burrgentle simmering·slow warming
3 - 4	·reheating·rapid simmering·cooking rice
5 - 6	·pancakes
7 - 8	·sauteing·cooking pasta
9	·stir-frying·searing·bringing soup to the boil·boiling water

Care and Cleaning

What?	How?	Important!
Everyday soiling on gla (fingerprints, marks, stains left by food or non-sugary spillovers or the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still w (but not hot!)3. Rinse and wipe dry with clean cloth or paper tow4. Switch the power to the cooktop back on.	When the power to the cool switched off, there will be no surface' indication but the cooking zone may still be ho Take extreme care.Heavy-duty scourers, some my scourers and harsh/abrasive cleaning agents may scratch t glass. Always read the label check if your cleaner or scou suitable.Never leave cleaning residue the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette kr razor blade scraper suitable ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utens 30° angle and scrape the soiling or spill to a cool of the cooktop.3. Clean the soiling or spill with a dish cloth or pap towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	· Remove stains left by melts sugary food or spillovers as as possible. If left to cool o glass, they may be difficult t remove or even permanently damage the glass surface.· Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extre care and always store safely out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control with a clean damp spong cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	· The cooktop may beep and itself off, and the touch cont may not function while there liquid on them. Make sure yo wipe the touch control area before turning the cooktop ba on.

Hints and Tips

Problem	Possible causes	What to do
The cooktop cannot Be turned on.	No power.	Make sure the cooktop is connected to the power supply and that it switched on.Check whether there is a power outage in your home or area. I you've checked everything and the problem persists, call a qualified technician.
The touch controls a unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your ceramic cooktop' for instructions.
The touch controls a difficult to operate.	There may be a slight film water over the controls or may be using the tip of yo finger when touching the controls.	Make sure the touch control are dry and use the ball of your fi when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer c cleaning products being used.	Use cookware with flat and smo bases. See ‘Choosing the right cookware’.See ‘Care and cleaning’.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.

Technical Specification

Cooking Hob	VIT4T23
Cooking Zones	4 Zones
Supply Voltage	220-240V~/380-415V~,50-60Hz
Installed Electric Power	5947-7078W
Product Size L×W×H(mm)	590X520X52
Built-in Dimensions A×B (mm)	560X490

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without notice.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawin. For the purpose of installation and use, a minimum of 50mm space preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please heat-resistant work surface material to avoid larger deformation caused the heat radiation from the hotplate. As shown below:

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 mini

Under any circumstances, make sure the ceramic cooker hob is well ven and the air inlet and outlet are not blocked. Ensure the ceramic cooker good work state. As shown below

Note: The safety distance between the hotplate and the cupboard the hotplate should be at least 760mm.

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packag

apply force onto the controls protruding from the hob.

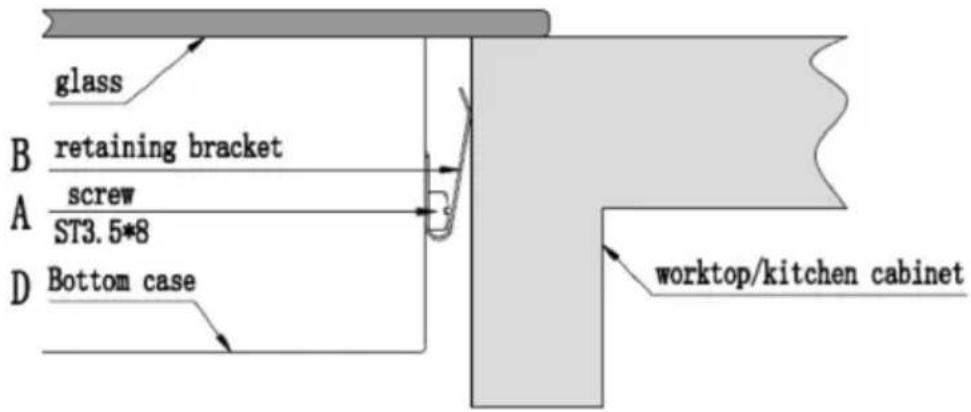

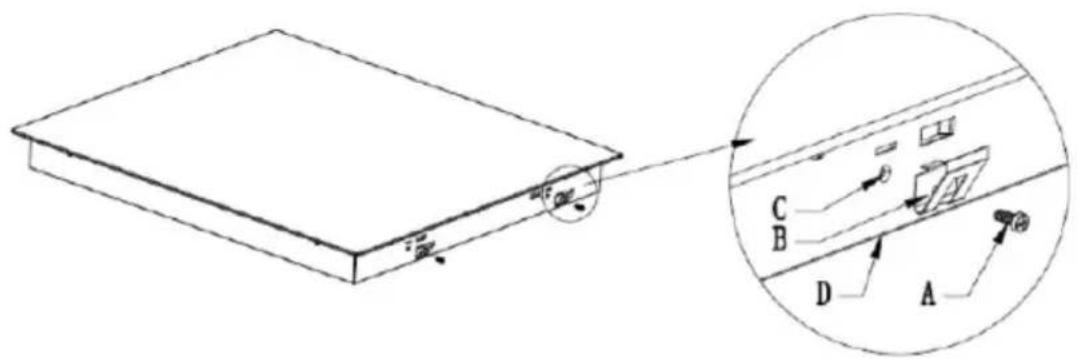

Fix the hob on the work surface by screw four brackets on the bottom picture) after installation.

A	B	C	D
screw	bracket	Screw hole	base

Cautions

1. The ceramic cooker hob must be installed by qualified personnel or t We have professionals at your service. Please never conduct the opera yourself.

2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.

3. The ceramic cooker hob shall be installed such that better heat radia ensured to enhance its reliability.

4. The wall and induced heating zone above the work surface shall with
5. To avoid any damage, the sandwich layer and adhesive must be resist heat.
6. A steam cleaner is not to be used.
7. This ceramic can be connected only to a supply with system impedance than 0.427 ohm. In case necessary, please consult your supply author system impedance information.

Connecting the hob to the mains power supply

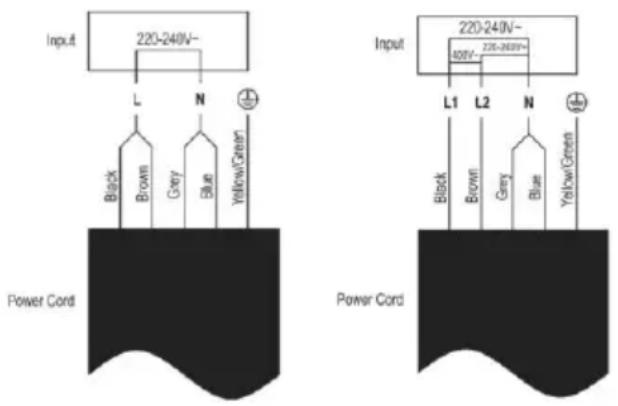

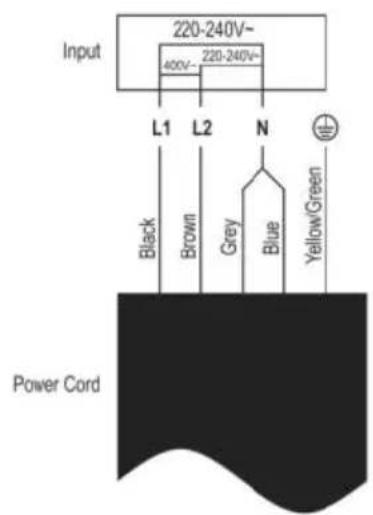

The power supply should be connected in compliance with the relevant s or a single-pole circuit breaker. The method of connection is shown belo

1. If the cable is damaged or needs replacing, this should be done by after-sales technician using the proper tools, so as to avoid any accide
2. If the appliance is being connected directly to the mains supply, an circuit breaker must be installed with a minimum gap of 3mm between contacts.
3. The installer must ensure that the correct electrical connection has been and that it complies with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly person.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment necessary.

This appliance is labeled in compliance with European direct 2012/19/EU for Waste Electrical and Electronic Equipment (V). By ensuring that this appliance is disposed of correctly, you prevent any possible damage to the environment and to h health, which might otherwise be caused if it were dispose wrong way.

The symbol on the product indicates that it may not be normal household waste. It should be taken to a collection the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of product please contact your local council, your household w disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city off household waste disposal service or the shop where you p the product.

INFINITON

Four circular diagrams with black arrows indicating direction, arranged in a 2x2 grid (no text or symbols)

Placa vitrocerâmica

- Failure to follow this advice may result in death.

Three identical cooking pots with crossed X marks placed on a flat surface, no text or symbols present.

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Two cooking pots with crossed arrows indicating opposing directions (no text or symbols)

Line drawings showing three different kitchen utensils: a finger pressing down, a cooking pot on a tray, and a hand touching the surface (no text or symbols)

1. Select a heat setting by touching the "-" or "+" control.

2. If you don't choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.

3. You can modify the heat setting at any time during cooking.
4. By holding down either of these buttons, the value will adjust up or down.

Simple line drawing of a hand pointing upward with a circular target on top (no text or symbols)

Simple line drawing of a finger pointing downward with a minus sign on the index finger (no text or symbols beyond the mark)

Simple line drawing of a hand with a circular head and index finger (no text or symbols)

(set to 6 minutes)

(set to 3 minutes)

Technical Specification

Cooking Hob

VIT4T23

Cooking Zones

4 Zones

Supply Voltage

220-240V\~/380-415V\~,50-60Hz

Installed Electric Power

5947-7078W

Product Size L×W×H(mm)

590X520X52

Built-in Dimensions A×B (mm) 560×490

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 mini

A	B	C	D
screw	bracket	Screw hole	base

Cuidado

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
