GFC IBP831-1ER - Security Camera Pelco - Free user manual and instructions

Product Type	Security Camera (Bullet)
Model Number	GFC IBP831-1ER
Brand	Pelco
Resolution	8 MP (4K)
Lens	Varifocal 3.5–10 mm, P-Iris, Autofocus
Day/Night	Mechanical IR Cut Filter
IR Illumination	Adaptive IR, up to 30 m (98 ft)
Power Supply	12VDC/24VAC or PoE (IEEE 802.3af/at, 48VDC, 0.6A)
Storage	microSD card slot (up to 256 GB, SanDisk Extreme PLUS recommended)
Network Interface	RJ-45 10/100/1000 Base-T with PoE
Audio	1 audio input, 1 audio output (line level, 2-position terminal blocks)
Alarm	1 alarm input, 1 alarm output (dry contact, 4-position terminal block)
Protocols	ONVIF Profile S, G, Q; Pelco API/SDK
Web Browser Support	Internet Explorer, Edge, Chrome, Firefox (latest versions)
Mounting Options	Surface mount, wall mount (IBEWLMT-E), pole mount (IBEPLMT-E)
Included Accessories	I/O terminal block, Torx T20 security bit, M4 screws, plastic anchors, installation manual
Compliance	FCC Part 15 Class A, ICES-3(A)/NMB-3(A)
Default IP Address	192.168.0.20 (DHCP enabled by default)
Reset	Press and hold Default button (under access cover) for 20 seconds
Warranty	Refer to www.pelco.com/warranty

Frequently Asked Questions - GFC IBP831-1ER Pelco

How do I reset the camera to factory defaults?

Locate the Default button under the internal cover near the microSD card slot. With the camera powered on, press and hold the button for at least 20 seconds using a proper tool. The camera will restore to factory settings.

What is the default IP address of the camera?

The default IP address is 192.168.0.20. If DHCP is enabled and a DHCP server is present, it will obtain an address from the server. Without DHCP, the camera also assigns itself a link-local address (169.254.x.x).

How do I access the camera via web browser?

Connect the camera to your network. Open a web browser (Internet Explorer, Edge, Chrome, or Firefox) and enter the camera’s IP address (default 192.168.0.20) in the address bar. Press Enter and log in. For first-time access, create an administrative user name and password.

What power options does the camera support?

The camera supports 12VDC, 24VAC, or Power over Ethernet (PoE) according to IEEE 802.3af/at (48VDC, 0.6A). PoE simplifies installation by combining power and data over a single Ethernet cable.

What type of microSD card is compatible?

The camera supports microSD cards up to 256 GB, specifically recommended is the SanDisk Extreme PLUS SDHC UHS-I microSD card. Insert the card into the slot under the bottom cover.

How do I mount the camera on a wall?

You can mount the camera directly on a wall using the integrated bracket and supplied screws, or use the optional IBEWLMT-E wall mount junction box. Drill holes for screws and cable entry, then secure the bracket. Adjust the camera direction and tighten set screws.

Does the camera support audio?

Yes, the camera has one audio input and one audio output (line level) via terminal blocks on the All-In-One cable. You can connect an external microphone or speaker.

What is the IR illumination range?

The camera features adaptive IR illumination with a range of up to 30 meters (98 feet). The IR LEDs are arranged around the lens and adjust automatically based on scene brightness.

Is the camera ONVIF compliant?

Yes, the camera conforms to ONVIF Profile S, Profile G, and Profile Q, allowing integration with third-party software and systems.

How do I contact Pelco for support?

For technical support, call Pelco Product Support at 1-800-289-9100 (USA/Canada) or [phone] (international). Have the camera’s serial number ready. Do not attempt to repair the unit yourself; leave maintenance to qualified personnel.

USER MANUAL GFC IBP831-1ER Pelco

GFC IBP Series Bullets

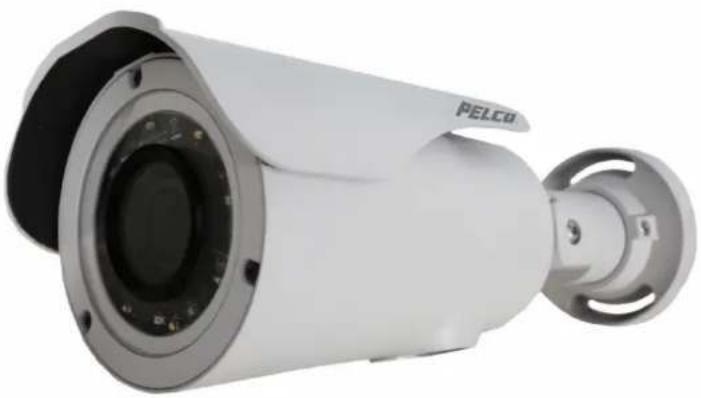

Exterior view of a white PELCO security camera with lens and mounting bracket (no text or symbols on body)

Bullet (IBP831-1ER) Model

C1370M (11/18)

Contents

Contents....3

Important Notices 5

Legal Notice 5

Regulatory Notices 5

Warranty Statement 5

Video Quality Caution 5

Open Source Software Notice 5

Description....6

System Model Numbers 6

Recommended mounts 6

Recommended Power Supplies 6

Getting Started....6

Bullet Camera Models 7

Supplied Parts List 7

User-Supplied Parts List 7

Product Label 7

Product Overview....8

Installation....9

MicroSD Card Slot and Default Button 9

All-In-One Cable....10

Camera Cabling 11

Mounting the Camera 12

Surface Mount: Ceiling or Wall....12

Installation Guide 12

Wall Mount: Installation with (IBEWLMT-E) Wall Mount 13

Parts List Supplied with the Mount 13

User-Supplied Parts List 13

Installation Guide 13

Pole Mount: Installation with Environmental (IBEPLMT-E) Pole Mount 15

Parts List Supplied with the Mount 15

User-Supplied Parts List 15

Installation Guide 15

Cable Terminations 16

Ethernet Wiring Requirement for PoE 16

Accessing the Camera 17

Pelco Troubleshooting contact information 17

LEGAL NOTICE

SOME PELCO EQUIPMENT CONTAINS, AND THE SOFTWARE ENABLES, AUDIO/VISUAL AND RECORDING CAPABILITIES, THE IMPROPER USE OF WHICH MAY SUBJECT YOU TO CIVIL AND CRIMINAL PENALTIES. APPLICABLE LAWS REGARDING THE USE OF SUCH CAPABILITIES VARY BETWEEN JURISDICTIONS AND MAY REQUIRE, AMONG OTHER THINGS, EXPRESS WRITTEN CONSENT FROM RECORDED SUBJECTS. YOU ARE SOLELY RESPONSIBLE FOR INSURING STRICT COMPLIANCE WITH SUCH LAWS AND FOR STRICT ADHERENCE TO ANY/ALL RIGHTS OF PRIVACY AND PERSONALTY. USE OF THIS EQUIPMENT AND/OR SOFTWARE FOR ILLEGAL SURVEILLANCE OR MONITORING SHALL BE DEEMED UNAUTHORIZED USE IN VIOLATION OF THE END USER SOFTWARE AGREEMENT AND RESULT IN THE IMMEDIATE TERMINATION OF YOUR LICENSE RIGHTS THEREUNDER.

REGULATORY NOTICES

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RADIO AND TELEVISION INTERFERENCE

This equipment has been tested and found to comply with the limits of a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes and Modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission's rules.

CAN ICES-3 (A)/NMB-3(A)

WARRANTY STATEMENT

For information about Pelco's product warranty and thereto related information, refer to www.pelco.com/warranty.

VIDEO QUALITY CAUTION

Frame Rate Notice Regarding User-Selected Options

Pelco systems are capable of providing high quality video for both live viewing and playback. However, the systems can be used in lower quality modes, which can degrade picture quality, to allow for a slower rate of data transfer and to reduce the amount of video data stored. The picture quality can be degraded by either lowering the resolution, reducing the picture rate, or both. A picture degraded by having a reduced resolution may result in an image that is less clear or even indiscernible. A picture degraded by reducing the picture rate has fewer frames per second, which can result in images that appear to jump or move more quickly than normal during playback. Lower frame rates may result in a key event not being recorded by the system.

Judgment as to the suitability of the products for users' purposes is solely the users' responsibility. Users shall determine the suitability of the products for their own intended application, picture rate and picture quality. In the event users intend to use the video for evidentiary purposes in a judicial proceeding or otherwise, users should consult with their attorney regarding any particular requirements for such use.

OPEN SOURCE SOFTWARE NOTICE

This product includes certain open source or other software originated from third parties that is subject to the GNU General Public License (GPL), GNU Library/Lesser General Public License (LGPL) and different and/or additional copyright licenses, disclaimers, and notices.

The exact terms of GPL, LGPL, and some other licenses are provided to you with this product. Please refer to the exact terms of the GPL and LGPL at http://www.fsf.org (Free Software Foundation) or http://www.opensource.org (Open Source Initiative) regarding your rights under said license. You may obtain a complete corresponding machine-readable copy of the source code of such software under the GPL or LGPL by sending your request to [e-mail]; the subject line should read Source Code Request. You will then receive an email with a link for you to download the source code.

This offer is valid for a period of three (3) years from the date of the distribution of this product by Pelco.

This camera is suggested to be installed at 3 meters high and at least 10 centimeters from eave.

NOTE: This product is intended to be supplied by a Listed Power Adapter or DC power source marked "L.P.S" (or "Limited Power Source"), rated 12VDC, 2A, 24VAC (50/60 Hz), 1.5A or POE 48 VDC, 0.6A, Tma = 60 degrees Celsius, and the altitude of operation = 2000m. If you need further assistance with purchasing the power source, please contact Pelco, Inc., for further information.

Description

The GFC IBP Series 4K bullets feature a P-Iris remote zoom lens for wide angle or long range surveillance needs. Autofocus capability ensures the camera can be automatically refocused when needed. Additionally, the GFC IBP Series features advanced color science, a mechanical IR cut filter, and advanced integrated adaptive IR illumination for increased sensitivity in low-light installations.

The GFC IBP Series bullet camera is easy to install, offers flexible mounting options, and uses a standard Web browser for easy remote setup and administration.

The GFC IBP Series bullet camera easily connects to Pelco IP and hybrid systems such as VideoXpert and Digital Sentry version 7.3 (or later). The camera also conforms with ONVIF Profile S, Profile G, and Profile Q for connection with third-party software. Pelco offers an Application Programming Interface (API) and Software Developer's Kit (SDK) for interfacing with Pelco's IP cameras.

This document describes the installation and initial setup procedures to begin operating the camera. For more information about operating your camera, refer to the operation manual specific to the product.

NOTE: For additional information about product documentation in English and other languages, go to www.pelco.com and navigate to the GFC IBP Series website.

SYSTEM MODEL NUMBERS

MPx Lens	Model Number	Description
8 MPx 3.5 to	10 mm IBP831-1ER	GFC 4K Environmental Bullet IR

RECOMMENDED MOUNTS

Mounts Description

IBEPLMT-E Pole mount, environmental, light gray

IBEWLMT-E Wall mount, environmental, light gray

RECOMMENDED POWER SUPPLIES

Power Supply Description
MCS Series Indoor, 24	VAC power supply
WCS Series	Outdoor, 24 VAC power supply
POE1AT-US	Single-port PoE+ midspan with US power cord
POE1AT-EU	Single-port PoE+ midspan with EU power cord
POE8ATN-US	8-port PoE+ midspan with US power cord
POE8ATN-EU	8-port PoE+ midspan with EU power cord
POE16ATN-US	16-port PoE+ midspan with US power cord
POE16ATN-EU	16-port PoE+ midspan with EU power cord

GETTING STARTED

Before installing your device, thoroughly familiarize yourself with the information in the installation section of this manual.

NOTES:

• Pelco recommends connecting the device to a network that uses a Dynamic Host Configuration Protocol (DHCP) server to address devices.
• Do not use a network hub when configuring the network settings for the device.
• To ensure secure access, place the device behind a firewall wen it is connected to a network.

SUPPLIED PARTS LIST

Qty Description

1 Bullet camera
1 I/O terminal block (optional)
2 M4 x 25 mm self-tapping screws
2 Plastic expansion anchors
1 Torx T20 security bit
1 Installation manual
1 Important Safety Instructions document

USER-SUPPLIED PARTS LIST

In addition to the standard tools and cables required for a video security installation, you will need to provide the following items:

Qty Description

1 Cat 5 (or higher) cable with RJ-45 connector; ensure that the cable is terminated for your application (PoE or non-PoE)
1 #2 Philips and flathead screwdriver
1 Power cable (This is necessary if PoE is not available.)
1 microSD card, up to 256 GB SanDisk Extreme ^® PLUS SDHC™ UHS-I microSD card
1 Driver for included security bit (1/4" hex drive)
1 Alarm cable (optional)
1 Audio cable (optional)
1 Tool for drilling

PRODUCT LABEL

The product label lists the model number, date code, serial number, and Media Access Control (MAC) address. This information might be required for setup. A product label is located on the bottom of the camera and on the side of the product box.

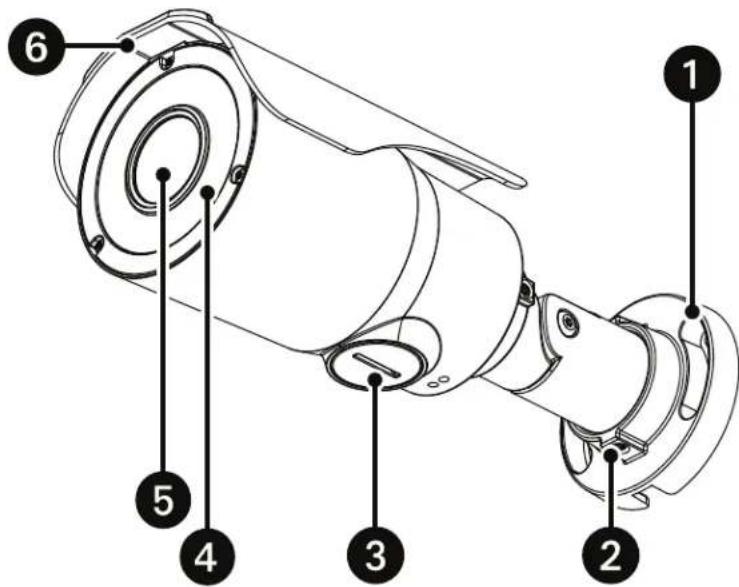

Figure 1. GFC IBP Series Bullet

1. Mounting Base: Use the mounting base to surface mount the camera or mount with one of the optional mounting accessories (pole mount or wall mount).
2. Set Screws: Two set screws to secure after aiming the camera.
3. SD Card Access: Onboard micro SD card storage up to 256 GB.
4. Infrared and Camera Status LEDs: Camera includes adaptive IR illumination up to 30 meters. There are LED lights in a circle along the outer edge of the camera. Camera also includes a Camera Status LED which appears red at power on, changes to flashing green through boot up, and then turns off when the camera is in normal operation.
5. Camera Lens: Built-in, varifocal, 3.5-10 mm.
6. Screws: One screw to fix the sun shield after adjustment.

MICROSD CARD SLOT AND DEFAULT BUTTON

Insert the microSD card into the card slot to store videos and snapshots. Do not remove the microSD card when the camera is powered on.

1. Use a flathead screwdriver to remove the round cover covering the access hole on the bottom of the camera.

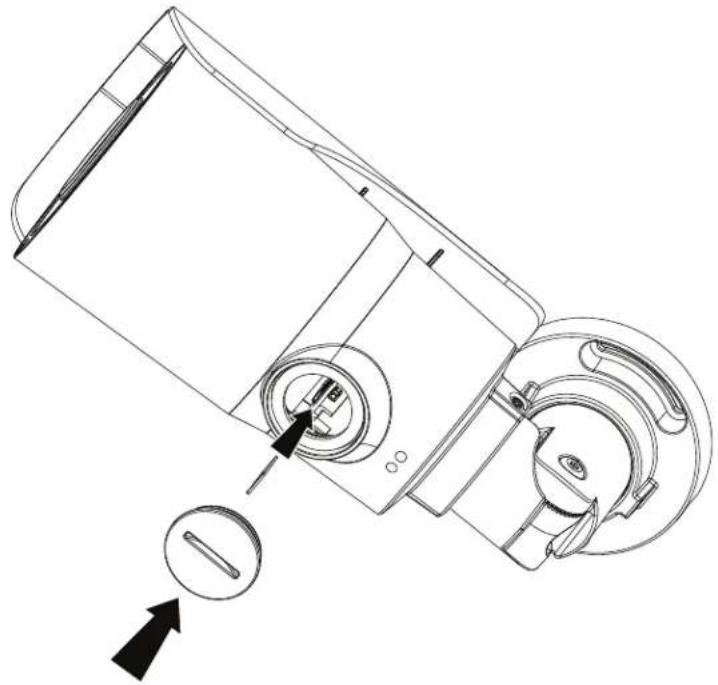

Technical line drawing of a device's internal components, showing a door, circular ports, and a knob (no text or symbols)

Figure 2. microSD Card Installation

NOTE: To record continuously with the microSD card, contact the manufacturer of the microSD card for information regarding its reliability and life expectancy.

The Default Button is located under the internal cover along with the microSD card slot. Use this button to reset the camera to factory defaults.

1. With the camera powered on, press and hold the Default Button with a proper tool for at least 20 seconds to restore the camera to factory default settings. Re-attach the internal metal cap and exterior round cap.

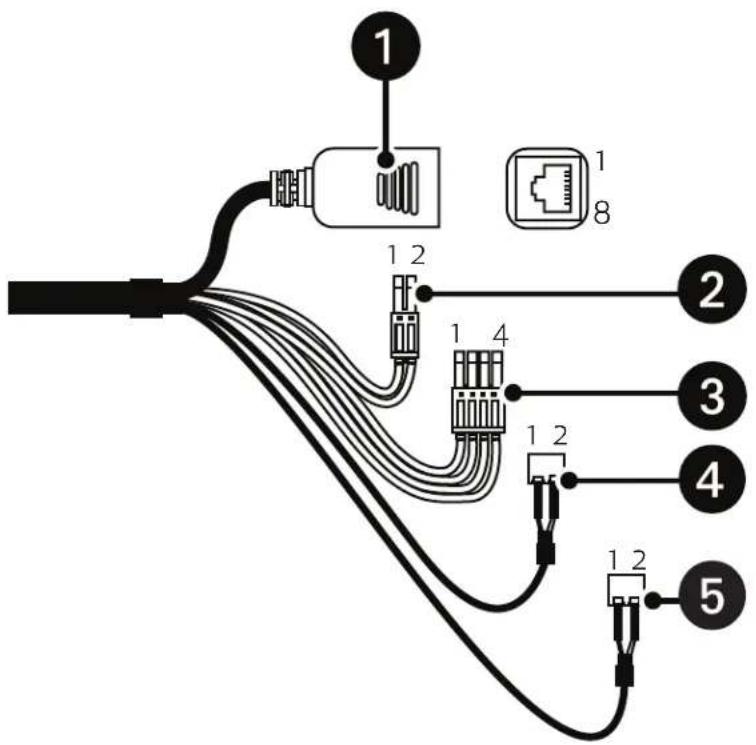

No Cable	Pin Definition

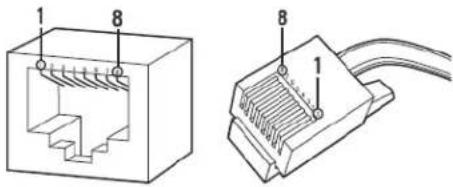

1	E t h	e r	n e t
2 Power (DC 12V/AC 24V) 1 DC 12V+/AC 24V
		2 DC 12V-/AC 24V
3	Alarm I/O(4-position Terminal Block)	1 Alarm Out +
		2 Alarm Out -
		3 Alarm In +
		4 Alarm In - (common)
4	Audio Out(2-position Terminal Block)	1 Audio Line Out (-)
		2 Audio Line Out (+)
5	Audio In(2-position Terminal Block)	1 Audio Line In (-)
		2 Audio Line (+)

Camera Cabling

Before connecting cables, make sure that all cables and the power adapter are placed in dry and well-waterproofed environments (e.g. waterproof boxes).

Power Connection:

Connect a DC 12V/AC 24 V adapter to the 2-pin terminal block of the All-In-One cable and the power outlet. Or, connect the Ethernet cable to the Ethernet connector of the All-In-One cable, and plug the other end of the cable into a PoE supply.

Ethernet Cable Connection:

Connect one end of the Ethernet cable to the Ethernet connector of the All-In-One cable, and plug the other end to POE Midspan, Ethernet Switch, or PC.

NOTE: When connecting the camera directly to a PC, you may need to use an Ethernet crossover cable.

Mounting the Camera

You can install the GFC IBP Series Bullet Cameras using one of the following mounting methods:

1. Camera can mount directly to the wall.

- Refer to the section Surface Mount: Ceiling or Wall.

1. Installation using a wall mount junction box (optional accessory).

- Refer to the section Install with Wall Mount (IBEWLMT-E).

1. Installation using a pole mount junction box (optional accessory).

- Refer to the section Pole Mount Accessory: Installation with Environmental Pole Mount (IBEPLMT-E).

Surface Mount: Ceiling or Wall

INSTALLATION GUIDE

The IBP Series Bullet Camera can be installed directly on a wall or ceiling with the integrated 2-axis adjustable bracket mount

1. Place the camera at the installation location. On the ceiling or wall, mark the position of the two screw holes of the camera.

a. If the screw holes are blocked by the camera body, loosen the three screws, but do not detach the screws. Then rotate the camera body to reach the screw holes.

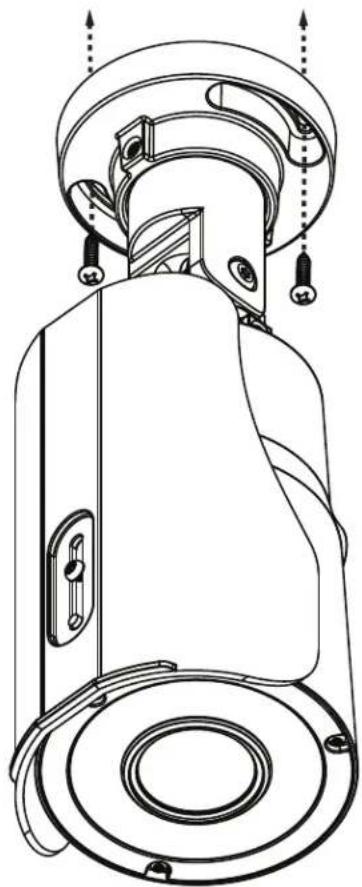

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

Figure 3. Ceiling Mount

1. At the center of the two marked holes, draw a cable entry hole with 30 mm diameter and drill the cable entry hole. Then drill a hole for the screw (or supplied plastic screw anchor if necessary).

PARTS LIST SUPPLIED WITH THE MOUNT

Qty Description

1 Wall mount junction box
3 Plastic screw anchors
3 M4 x 25 mm self-tapping screws
5 M4 x 12 mm machine screws
3 Waterproof washers

USER-SUPPLIED PARTS LIST

Qty Description

1 Bullet camera
1 Ethernet cable
1 Power cable (This is necessary if PoE is not available.)
2 Alarm cable (optional)
3 Audio cable (optional)
1 Torx T20 security bit (supplied with camera)
1 Tool for drilling
1 Philips and flathead screwdriver
1 Driver 1/4" hex for security bit

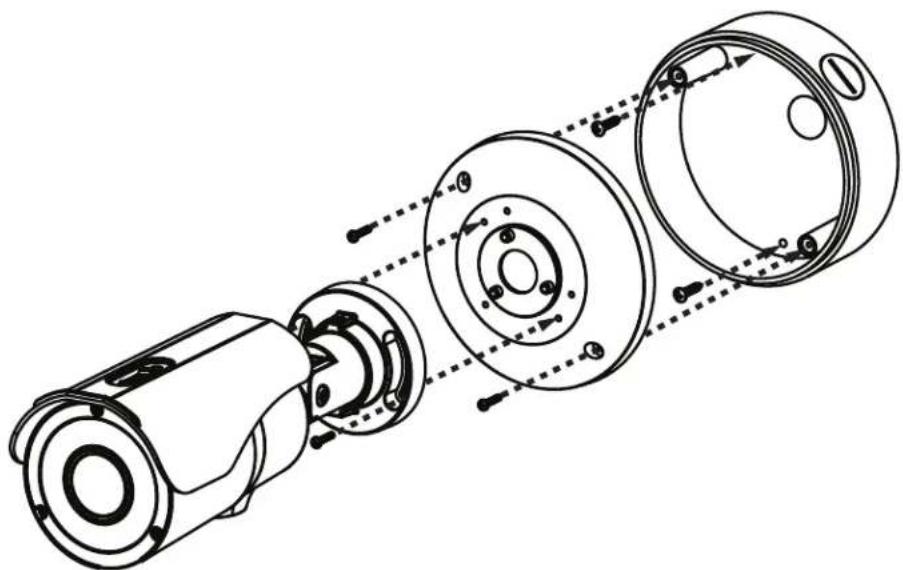

Technical line drawing of a mechanical assembly showing internal components and alignment (no text or symbols)

Figure 1. Installation with IBEWLMT-E

INSTALLATION GUIDE

1. Loosen the two screws with a screwdriver and detach the wall mount junction box (IBEWLMT-E) cover.
2. Place the wall mount junction box at the preferred installation location. On the wall, mark the position of the two screw holes. Drill a hole on each marked screw hole and insert the plastic screw anchors (if necessary) into the drilled holes.
3. Place the supplied waterproof washers on the two screw holes. Match the two screw holes on the wall mount junction box with the plastic screw anchors (if used) at the installation location. Then, fasten the wall mount junction box to the wall with the supplied M4 self-tapping screws.

4. Loosen the cable clamp slightly. Remove the internal portion of the rubber plug from the cable entry hole of the wall mount junction box cover.

5. Thread the connectors of the All-In-One cable of the camera one-by-one through the cable entry hole.

6. Open the rubber back plug. Place over the cable and insert the rubber plug back to the cable entry hole and use a flathead screwdriver to tighten the stainless steel clamp by turning the knob clockwise. Make sure there is no gap between the All-In-One cable and the cable entry hole.
7. Route the exterior cables into the box from the side or back conduit hole. If necessary, unscrew the coin plug to access a conduit hole. Move the plug to the unused conduit hole. Connect the cables.
8. Seal the conduit to the wall mount junction box cover.
9. Arrange the All-In-One cable neatly.
10. Adjust the position of the wall mount junction cover properly and fasten the two screws to tighten the cover.

NOTE: When securing the wall mount junction box cover, you must align the two arrow marks with each other to ensure the cover is properly aligned.

1. Align the two screw holes on the camera with the screw holes on the wall mount junction box cover and fasten the camera with the M4 machine screws. The drainage hole should point down when installing horizontally.

2. Rotate and point the camera to a desired direction and tighten the two set screws. The wall mount junction box installation is complete.

Pole Mount: Installation with Environmental (IBEPLMT-E) Pole Mount

PARTS LIST SUPPLIED WITH THE MOUNT

Qty Description

1 Pole mount junction box
5 M4 x 12 mm machine screws
2 Stainless steel rings (NOTE: The supplied stainless steel rings apply to poles with the diameter from 70 to 180 mm.)

USER-SUPPLIED PARTS LIST

Qty Description

1 Bullet camera
1 Ethernet cable
1 Power cable (This is necessary if PoE is not available.)
1 Alarm cable (optional)
1 Audio cable (optional)
1 Philips and flathead screwdriver

INSTALLATION GUIDE

1. Loosen the two screws and detach the pole mount junction box cover.
2. Remove the internal rubber plug from the cable entry hole of the pole mount junction box cover.
3. Thread the connectors of the All-In-One cable of the camera one by one through the cable entry hole.
4. Insert the rubber plug back to the cable entry hole and use a flathead screwdriver to tighten the stainless steel ring by turning the knob clockwise. Make sure there's no gap between the All-In-One cable and the cable entry hole.
5. Connect the required cables (e.g. Ethernet cable) to the connectors of the All-In-One cable.
6. Arrange the All-In-One cable neatly.
7. Adjust the position of the pole mount junction box cover properly and fasten the two screws to tighten the cover.

NOTE: When securing the pole mount junction box cover, you must align the two arrow marks with each other to ensure the cover is properly fixed.

1. Align the two screw holes of the camera with the screw holes on the pole mount junction box cover and fasten the camera with the M4 machine screws. The drainage hole should point down when installing horizontally.
2. Loosen the knobs on the stainless steel rings by turning them counterclockwise with a flathead screwdriver.
3. Insert the stainless steel rings into the holes on the back of the pole mount junction box.

NOTE: When installing the pole mount junction box on the pole, the cable entry hole must be at the bottom side to ensure it is waterproof.

1. Place the pole mount junction box at the preferred installation location. Circle around the pole with the stainless steel rings and turn the knobs clockwise with a flathead screwdriver until the stainless steel rings are firmly tightened.
2. Rotate and point the camera to a desired direction and tighten the screws. The pole mount junction box installation is completed.

ETHERNET WIRING REQUIREMENT FOR POE

Connect a Cat5 cable or higher (Cat5a, Cat 6) cable (not supplied) to the RJ-45 network connector. The 8-pin port includes video over Ethernet, and PoE for the camera. PoE injects power over the same cabling that carries the network data, eliminating the need for a separate power supply. This simplifies the installation and operation of the camera without affecting network performance.

	PoE Mode A (Mixed) PoE		Mode B (Spares)
Pin # Function Function
1 Tx-	DC+ Tx+ N/A
2	T	x -		D C
3	R	x +		D C
4	N/A	N/A	N/A	DC+
5	N/A	N/A	N/A	DC+
6	Rx-	DC-	Rx-	N/A
7	N/A	N/A	N/A	DC-
8	N/A	N/A	N/A	DC-

Anyone who access the camera can view live video. If you want to prevent users from viewing video without logging in, you must change the permissions for public users.

The recommended browsers for your camera are the latest version of Internet Explorer®, Microsoft™ Edge™, Google Chrome™ browser, or Mozilla® Firefox®. for supported browser versions, refer to the specification sheet.

1. Open a web browser.
2. Type the camera's IP address (192.168.0.20) or host name in your browser's address bar, and the press Enter.

NOTE: You can obtain your camera's IP address or access the camera using the Pelco Device Utility or VxToolbox software. If DHCP is enabled but a DHCP server is not on the network, the camera automatically assigns itself both an IPv4 link local address (169.254.x.x, where the lower two octets are random) and a 192.168.0.20 address. Additional cameras will assign themselves different IPv4 link local addresses and the next available 192.168.0xIP addresses in sequential order. For example, if three cameras are connected to a network without a DHCP server, the first camera to connect assigns itself the IP address 192.168.0.20, the second camera assigns itself 192.168.0.21, and the third camera assigns itself 192.168.0.22.

1. Click Login.

2. If needed, type your user name and password.

NOTE: For security purposes, it is recommended that you create a user account when you login to the camera for the first time.

• In its out-of-the-box configuration, the camera has no user name and password assigned. For security purposes, it is recommended that you set an administrative user name and password after initial configuration of the camera. Creation of an administrative user name changes the state of the camera to its "operational mode," where credentials must be provided in order to change its configuration.
• There is no provision for recovering a forgotten administrator user name or password. The camera can be restored to its out-of-the-box, no-password configuration by powering down, depressing the reset button with an object such as a paper clip, and holding the button down for at least five seconds while power the camera back up.

NOTE: The Reset button for the camera is located near the microSD card slot.

- If a user name and password exist, a Login link appears in the upper right area of your web browser.

1. Click Log In.

PELCO TROUBLESHOOTING CONTACT INFORMATION

If the instructions provided fail to solve your problem, contact Pelco Product Support at 1-800-289-9100 (USA and Canada) or [phone] (international) for assistance. Be sure to have the serial number available when calling.

Do not try to repair the unit yourself. Leave maintenance and repairs to qualified technical personnel only.

REVISION HISTORY

Manual # Date Comments

C1370M 11/18 Original version.

Pelco, the Pelco logo, and other trademarks associated with Pelco products referred to in this publication are trademarks of Pelco, Inc. or its affiliates.

ONVIF and the ONVIF logo are trademarks of ONVIF Inc. All other product names and services are the property of their respective companies.

Product specifications and availability are subject to change without notice.

© Copyright 2018, Pelco, Inc.

All rights reserved.

by Schneider Electric
