Product Type	Active PA Speaker
Brand	Samson
Model	Auro D1228
Speaker Type	2-way Active
Woofer Size	12 inches
Tweeter Type	1-inch Compression Driver
Amplifier Power (RMS)	400W
Peak Power	800W
Frequency Response	50 Hz – 20 kHz
Maximum SPL	120 dB
Inputs	2x XLR/Jack Combo, 1x RCA
Outputs	1x XLR Link
Controls	Volume, EQ Presets, Power Switch
Enclosure Material	Plywood with Carpet Covering
Dimensions (H x W x D)	600 mm x 400 mm x 400 mm
Weight	22 kg
Power Supply	110-240V AC, 50/60 Hz
Protection Features	Overload, Thermal, Short Circuit
Included Accessories	Power Cord, User Manual
Cleaning Instructions	Wipe with a Soft Dry Cloth
Safety Warnings	Do Not Expose to Rain or Moisture

Frequently Asked Questions - Auro D1228 SAMSON

How do I connect a microphone to the Auro D1228?

Use one of the XLR/Jack combo inputs on the rear panel. Connect your microphone with an XLR cable and adjust the volume control.

What is the power consumption of this speaker?

The maximum power consumption is approximately 500W at full output. It operates on standard AC mains (110-240V).

Can I use the Auro D1228 outdoors?

Yes, but ensure it is protected from rain, moisture, and direct sunlight. The enclosure is not waterproof.

How should I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use solvents or abrasive cleaners.

What should I do if there is no sound?

Check that the power cable is connected and the speaker is turned on. Verify the audio source and cable connections. Ensure the volume is not set to zero.

What is the warranty period?

Samson typically offers a 2-year warranty for manufacturing defects. Retain your proof of purchase.

Can I mount the speaker on a stand?

Yes, the Auro D1228 has a standard pole mount socket on the bottom. Use a compatible speaker stand rated for its weight.

Does this speaker have Bluetooth connectivity?

No, the Auro D1228 does not have Bluetooth. It only accepts wired inputs (XLR, Jack, RCA).

Can I daisy-chain multiple Auro D1228 speakers?

Yes, use the XLR Link output to connect to the next speaker's input. Ensure the total load does not exceed the amplifier's capability.

How do I adjust the EQ settings?

The speaker has built-in EQ presets accessible via the control panel. Refer to the user manual for detailed adjustments.

USER MANUAL Auro D1228 SAMSON

Two black audio equipment setups with speakers and a speaker block on tripod stands (no text or symbols visible)

Samson's Auro D1228 Performer Pack offers tremendous value in a single box, giving performers everything they need to establish a professional PA setup. Encompassing the key elements of power, portability and exceptional sound, the Auro D1228 features two Auro D208 2-Way Active Loudspeakers, an Auro D1200 Active Subwoofer, a pair of LS40 Speaker Stands and four Tourtek XLR Cables (2 x 10', 2 x 20'). It's the ideal performance package for DJs, bands, singer-songwriters and other live sound reinforcement applications in smaller venues, such as house parties and intimate concerts.

FE ATURES

AURO D1228 PERFORMER PACK

• Two Auro D208 2-Way Active Loudspeakers
  • Auro D1200 Active Subwoofer
• Two LS40 Speaker Stands
  • Tourtek XLR Cables (2 x 10', 2 x 20')

AURO D208

• Compact, lightweight Class D 2-way active loudspeaker
• 8" extended range low frequency driver
• 1" compression driver with 1" exit
  • 200 watts of output power
• Mic/Line input with Volume control and Clip LED
  • Additional Line output allows linking of multiple speakers
• Integrated 1 3/8" pole mount receptacle
  • Floor monitor positioning options

AURO D1200

• Lightweight, compact Class D active subwoofer, weighing just over 40 lb (18kg)
• 12" long excursion low frequency driver
• 700 watts of output power
  • Balanced XLR-1/4" combo inputs
• Parallel XLR outputs
  • Signal, Limiter and Protect LED indicators
• Variable low pass filter control
  • 3-position (Normal, Deep, Boost) DSP contour control
• Integrated 1 3/8" pole mount receptacle
• Two large ergonomic carry handles

Two black audio/video cables with red connector rings, shown against white background (no text or symbols visible)

Includes four Tourtek XLR Cables (2 x 10', 2 x 20')

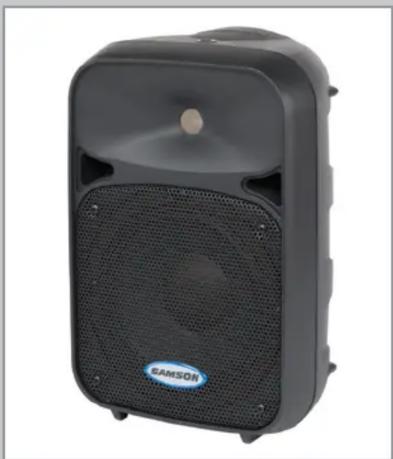

Black SAMSON audio amplifier speaker with visible sound waves and a logo (no text or symbols on body)

Auro D208 2-Way Active Loudspeaker

Black Samsung audio amplifier speaker with mesh grille and front vent (no visible text or symbols)

Auro D1200 Active Subwoofer

AURO D1228

UPC 809164016373

SKU SARODP1228

HEIGHT 34"

WIDTH 27"

DEPTH 19.25"

WEIGHT 104lb

MASTER CARTON QUANTITY: 1

* DIMENSIONS AND WEIGHT BOXED
