Product Type	Interactive Flat Panel Display
Screen Size	75 inches (diagonal)
Resolution	3840 x 2160 (4K UHD)
Brightness	350 cd/m² (typical)
Touch Technology	Infrared multi-touch (up to 20 touch points)
Built-in Operating System	Android 8.0
Processor	Quad-core ARM Cortex-A73 + A53
RAM	3 GB
Storage	32 GB
Dimensions (without stand)	1705 x 993 x 86 mm (W x H x D)
Weight (without stand)	Approximately 50.5 kg
Power Consumption (typical)	210 W (max 450 W)
Power Supply	100-240 V AC, 50/60 Hz
Input Ports	HDMI x3, USB x4 (2.0/3.0), VGA, Audio In, Microphone In
Output Ports	HDMI, Audio Out, SPDIF, RS-232
Built-in Speakers	2 x 10W
WiFi	802.11 a/b/g/n/ac
Bluetooth	4.2
Maintenance & Cleaning	Clean screen with a soft dry cloth. Do not use harsh chemicals.
Safety	VESA mount compliant (600x400 mm). Internal ventilation required.
Spare Parts & Repairability	Contact authorized ViewSonic service centers for replacement parts.

Frequently Asked Questions - IFP7550-M1 VIEWSONIC

How do I connect my laptop to the ViewSonic IFP7550-M1?

Use an HDMI cable to connect your laptop to one of the HDMI input ports on the back of the display. Ensure the display is set to the correct input source via the remote control or on-screen menu.

Can I use the interactive whiteboard without a computer?

Yes, the IFP7550-M1 has a built-in Android operating system, allowing you to run apps, browse the web, and annotate directly without an external computer.

How many touch points does the display support?

It supports up to 20 simultaneous touch points via infrared touch technology, enabling multi-user interactions.

What is the recommended way to clean the screen?

Use a soft, lint-free cloth slightly dampened with water. Avoid using abrasive cleaners or solvents that may damage the anti-glare coating.

How do I install the ViewSonic IFP7550-M1 on a wall?

The display is VESA compatible (600x400 mm). Use a VESA-rated wall mount capable of supporting the weight (approx. 50.5 kg). Follow the mounting instructions in the user manual.

Can I connect wireless devices like smartphones or tablets?

Yes, you can use Screen Share (Miracast) or optional ViewSonic wireless presentation solutions to cast content from mobile devices.

What is the power consumption of the display?

Typical power consumption is 210 watts, with a maximum of 450 watts. It has a built-in power supply supporting 100-240 V AC.

How do I update the firmware on the IFP7550-M1?

Go to Settings > Device Preferences > About > System Update to check for OTA updates. You can also download updates from the ViewSonic support website.

What warranty does the ViewSonic IFP7550-M1 come with?

ViewSonic typically offers a 3-year limited warranty for parts and labor. Check your region-specific warranty terms.

Can I use my own stylus or pen with the display?

The display works with passive styluses (any object that blocks infrared) or the included active pens. For best precision, use ViewSonic's recommended pens.

USER MANUAL IFP7550-M1 VIEWSONIC

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world's expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

> Safety Precautions

Please read the following Safety Precautions before you start using the device.

• Keep this user guide in a safe place for later reference.
• Read all warnings and follow all instructions.
• Do not use the device near water. To reduce the risk of fire or electric shock, do not expose the device to moisture.
• Never remove the rear cover. This display contains high-voltage parts. You may be seriously injured if you touch them.

- Avoid exposing the device to direct sunlight or other sources of sustained heat.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the device to dangerous levels.

- Use a soft, dry cloth to clean the external housing. For more information, refer to the "Maintenance" section on page 125.

- When moving the device, be careful not to drop or bump the device on anything.

- Do not place the device on an uneven or unstable surface. The device may fall over resulting in an injury or a malfunction.

- Do not place any heavy objects on the device or connection cables.

- If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device.

- The device is a monitor with an LED backlight intended for general office use.

- Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.

- When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.

- Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the equipment. Ensure that the power outlet is located near the equipment so that it is easily accessible.

- Only use attachments/accessories specified by the manufacturer. - When a cart is used, use with caution when moving the cart/equipment combination to avoid injury from tipping over.

- Disconnect the power plug from the AC outlet if the device is not being used for a long period of time.

- Place the device in a well-ventilated area. Do not place anything on the device that prevents heat dissipation. Also, avoid any direct lighting.

- Refer all servicing to qualified service personnel. Service will be required when the unit has been damaged in any way, such as:

» if the power supply cord or plug is damaged
» if liquid is spilled onto or objects fall in the unit
» if the unit is exposed to moisture
» if the unit does not operate normally or has been dropped

> Contents

Safety Precautions....3

Introduction 9

Package Contents 9

Wall Mount Kit Specifications (VESA)....10

Product Overview....11

Front Panel | Control Panel | Rear Panel.... 11

I/O Panel.... 13

Remote Control....15

Using Gestures 19

Select and Deselect an Object (Clicking) 19

Display Menu Options (Right-Clicking) 19

Double-Clicking 19

Moving an Object 20

Erasing Digital Ink 20

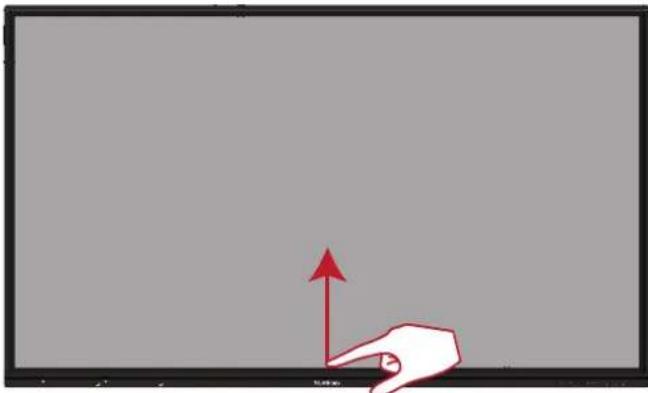

Swipe Up for General Settings....20

Making Connections....21

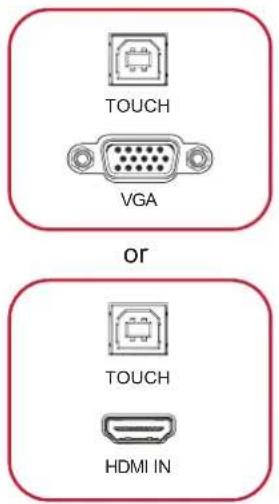

Connecting External Devices and Touch Connection 21

HDMI Connection.... 21

VGA Connection 21

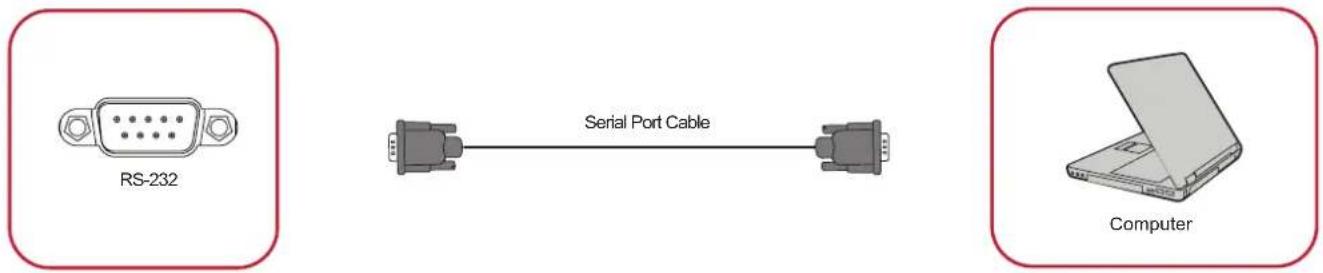

RS-232 Connection.... 22

USB and Networking Connections 23

Media Player Connection 24

SPDIF Connection 25

Using Your ViewBoard....26

Powering On/Off your ViewBoard....26

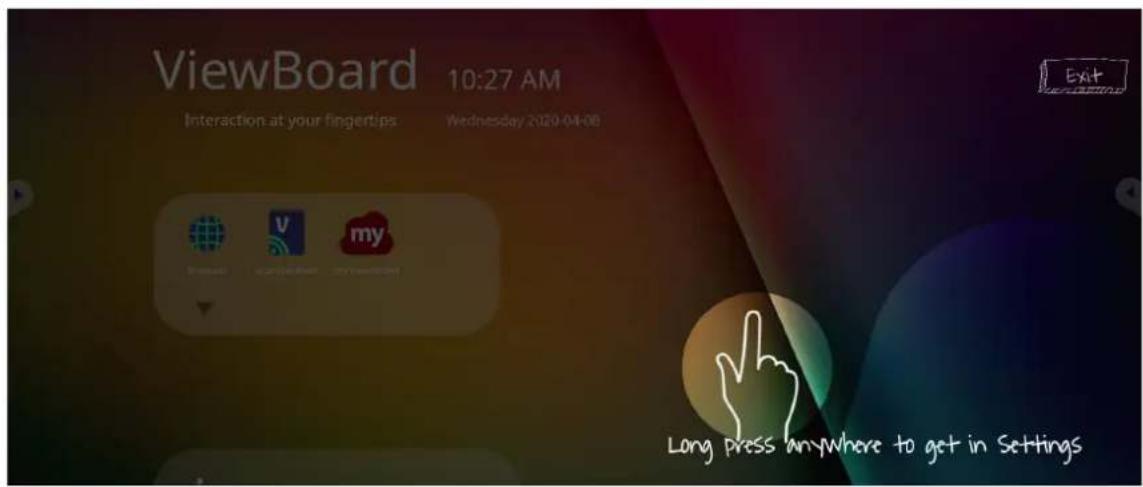

Initial Launch Setup 27

vLauncher - Customizable Welcome Screen....29

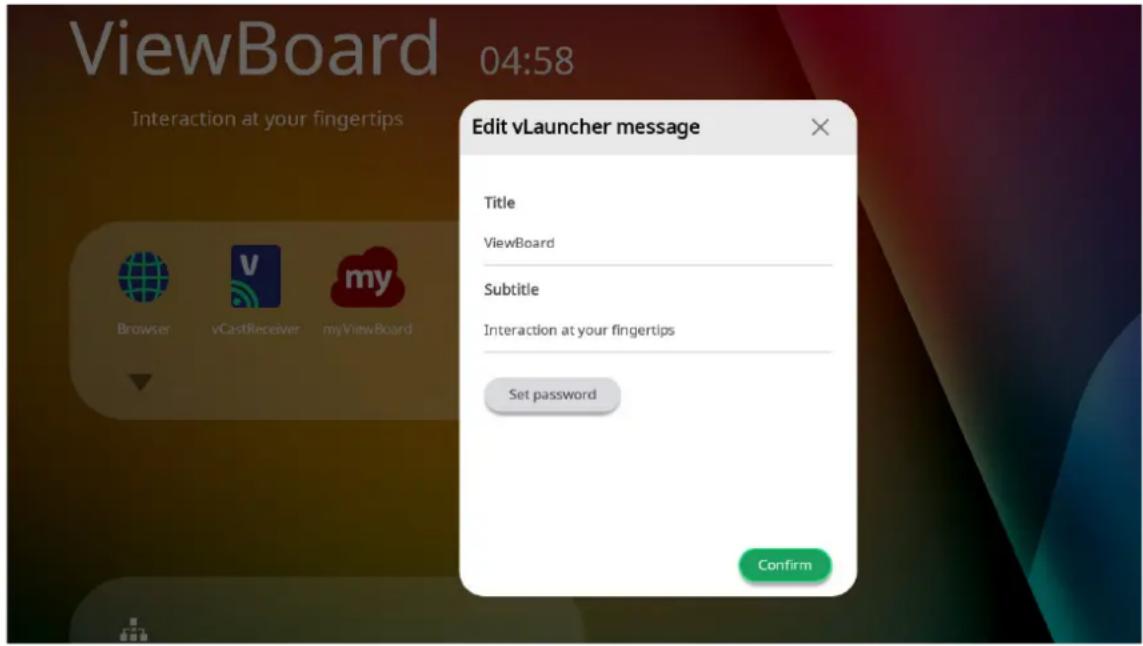

vLauncher Message.... 29

Applications.... 30

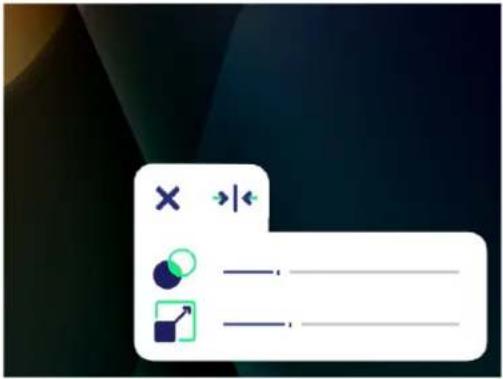

Toolbar 32

On-Screen Display (OSD) Menu 38

General Settings 39

Input Settings 40

Widget.... 41

Settings - HDMI & VGA Input Source....42

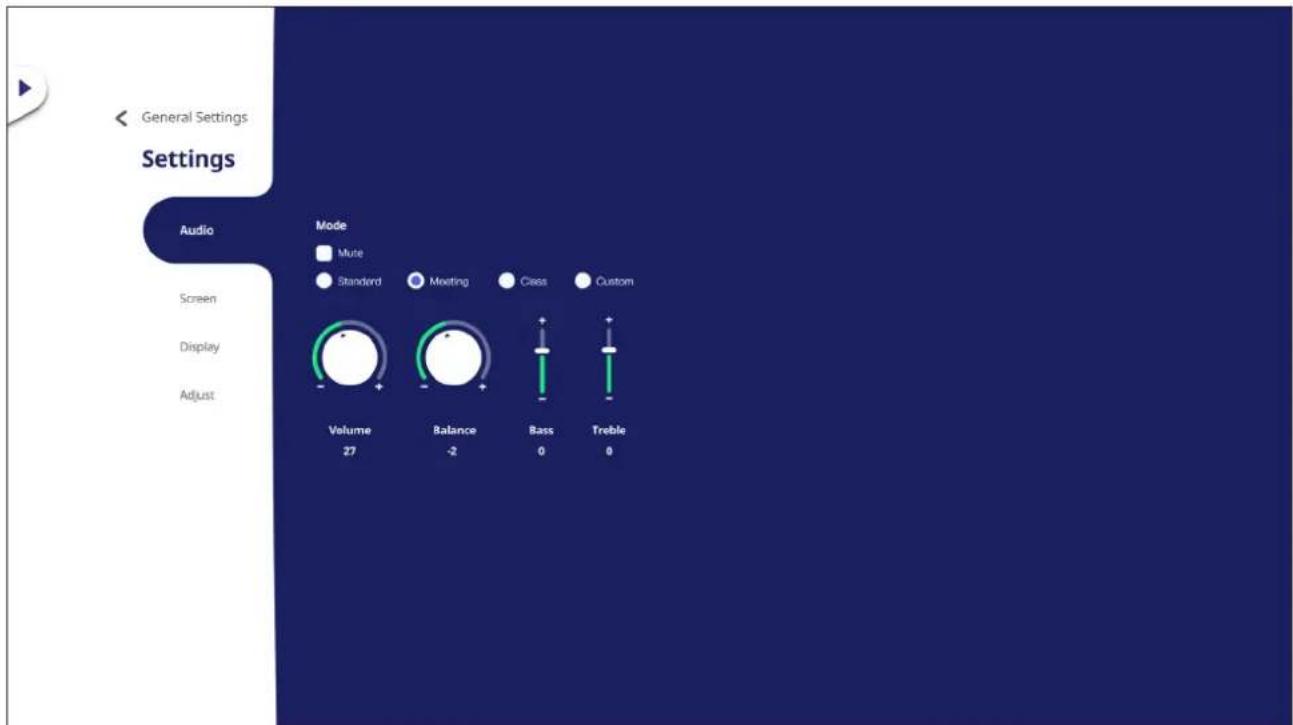

Audio Settings 42

Screen Settings 43

Display Settings 44

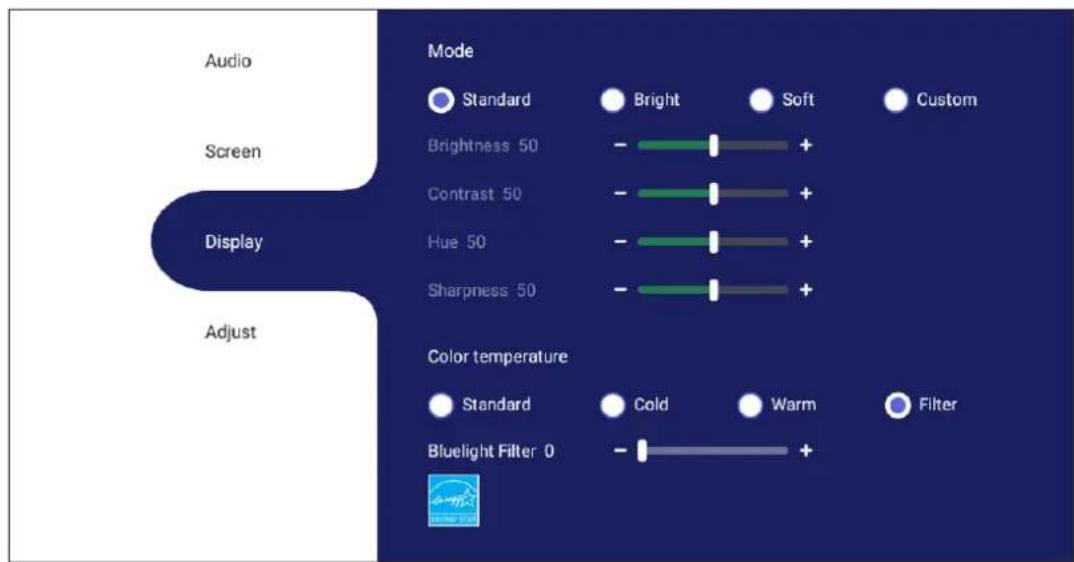

Low Blue Light Filter and Eye Health 45

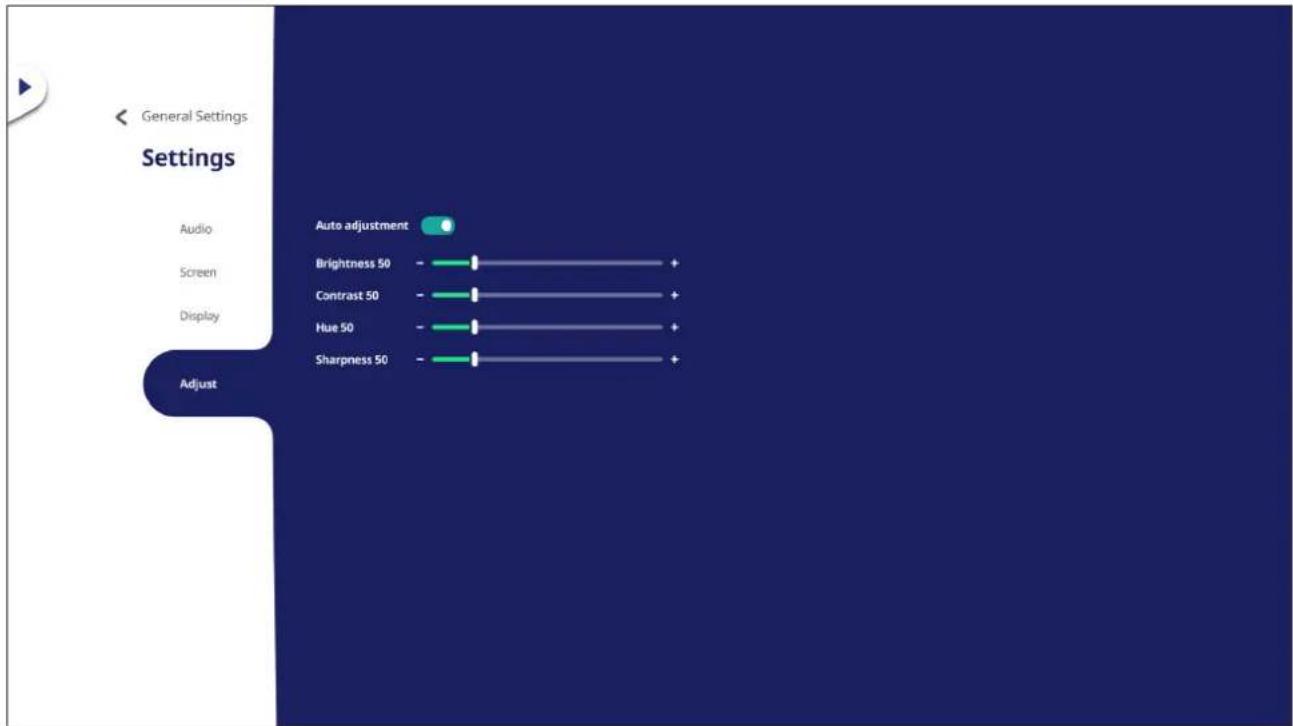

Adjust Settings - (VGA Only).... 47

Settings - Embedded Player....48

Wireless & Network 48

Wi-Fi 49

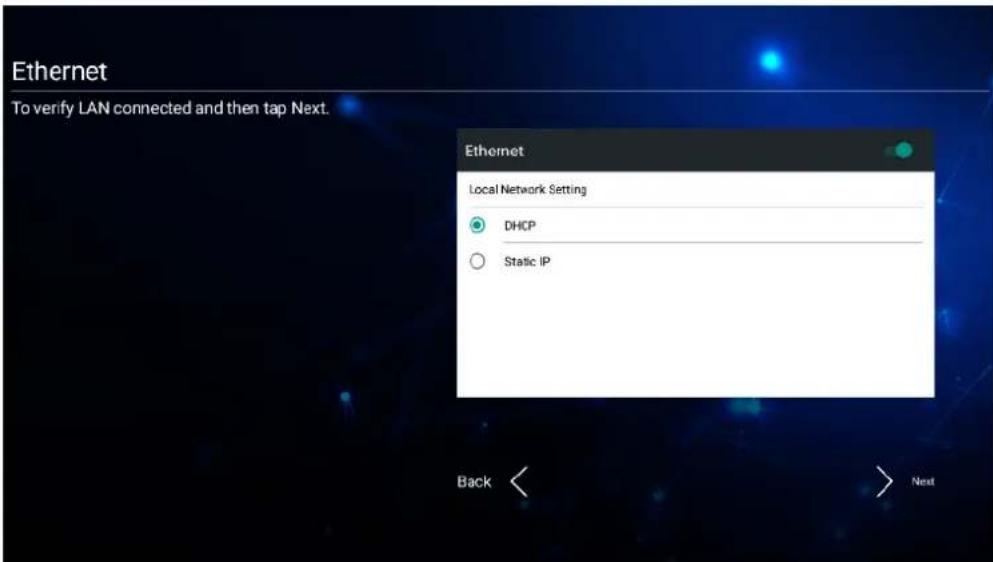

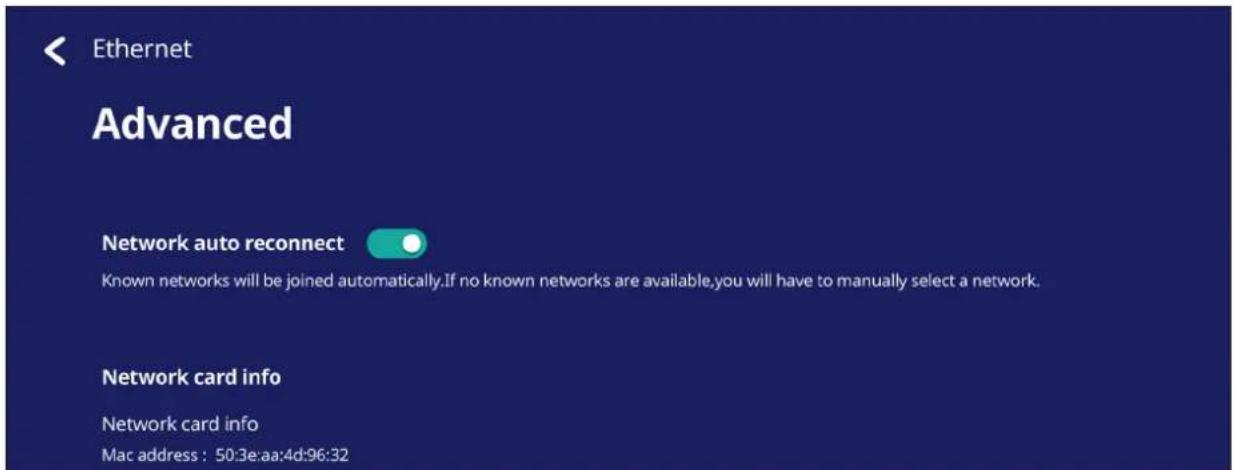

Ethernet 50

Wireless Hotspot....51

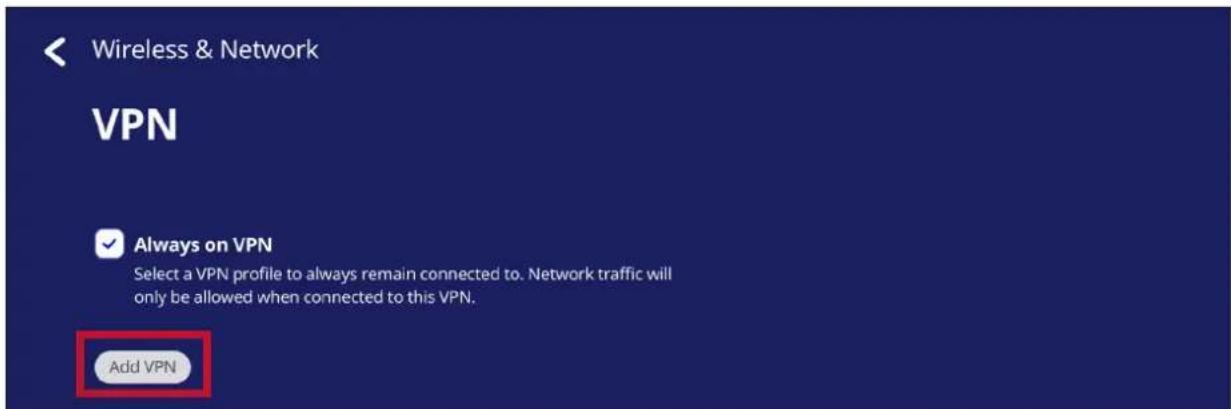

VPN....52

Share 54

SAMBA....54

Display 56

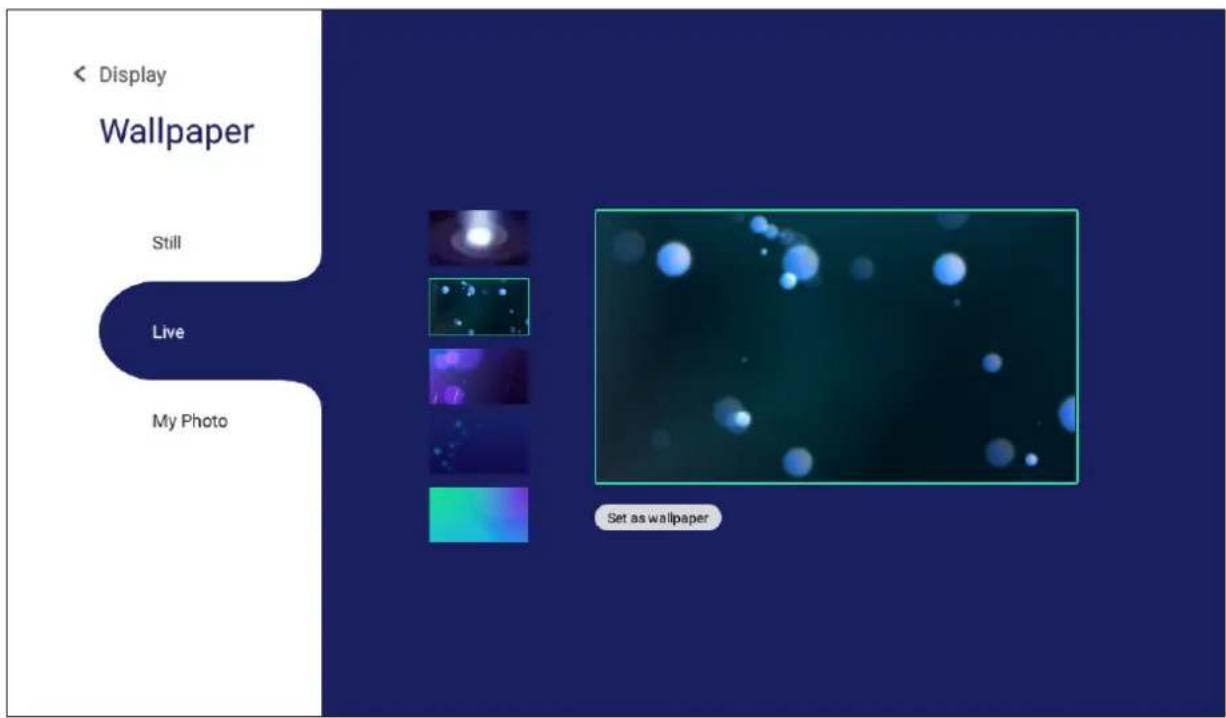

Wallpaper 57

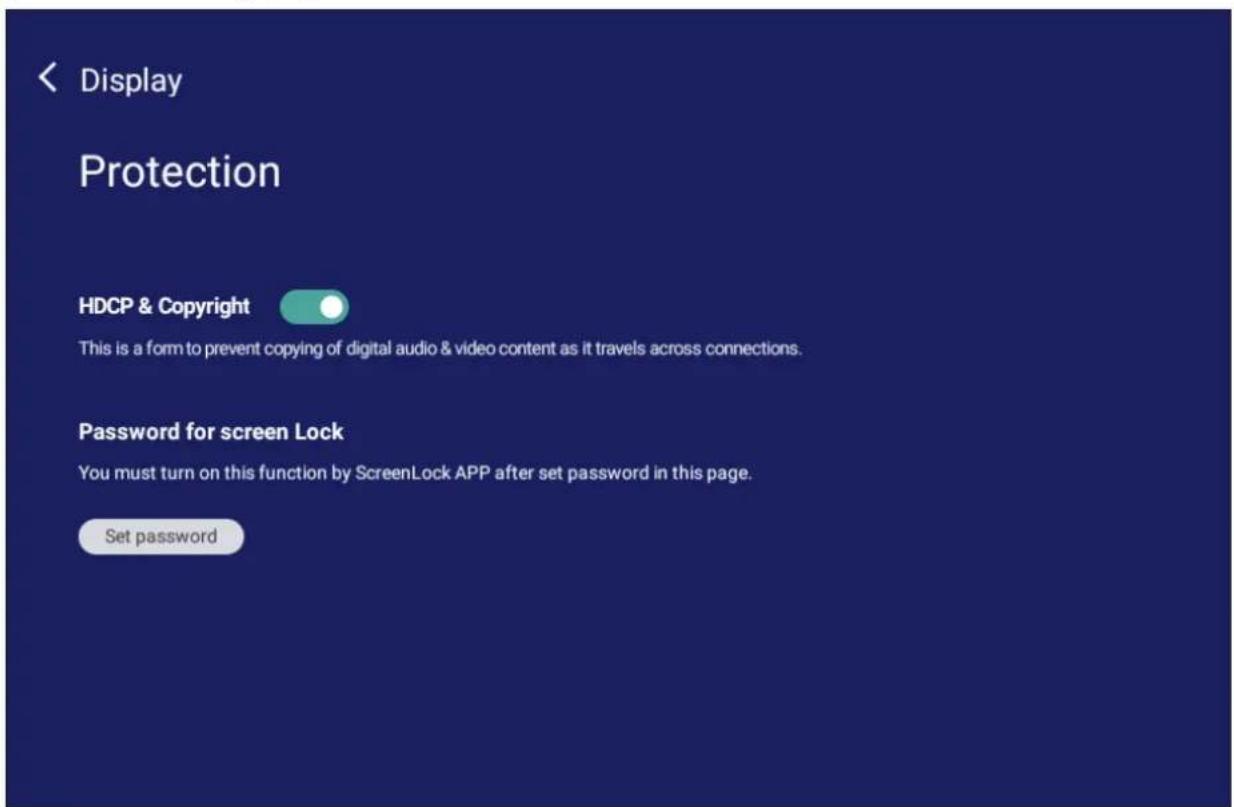

Protection....59

Preference....60

Touch 61

Language 61

Keyboard & Input Method 62

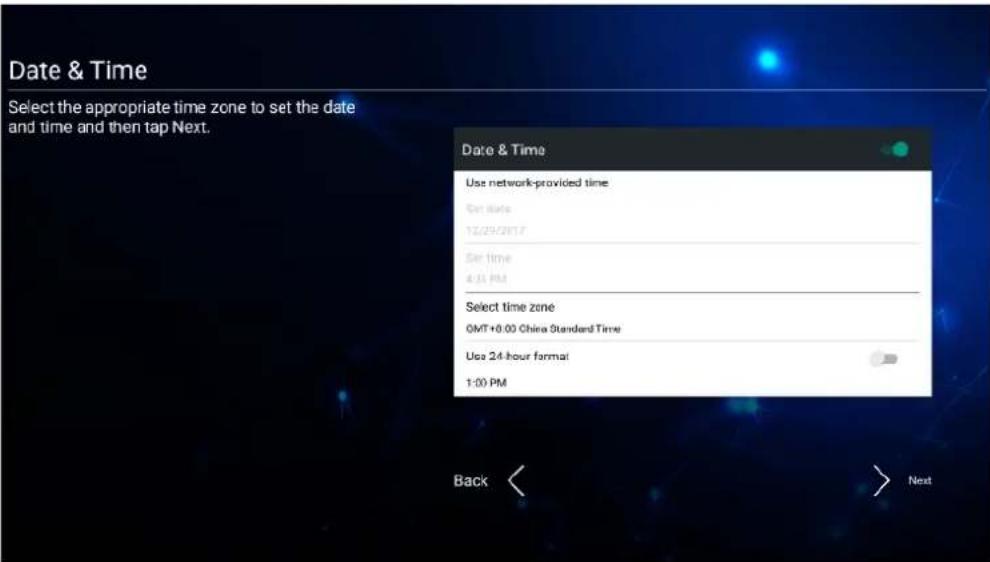

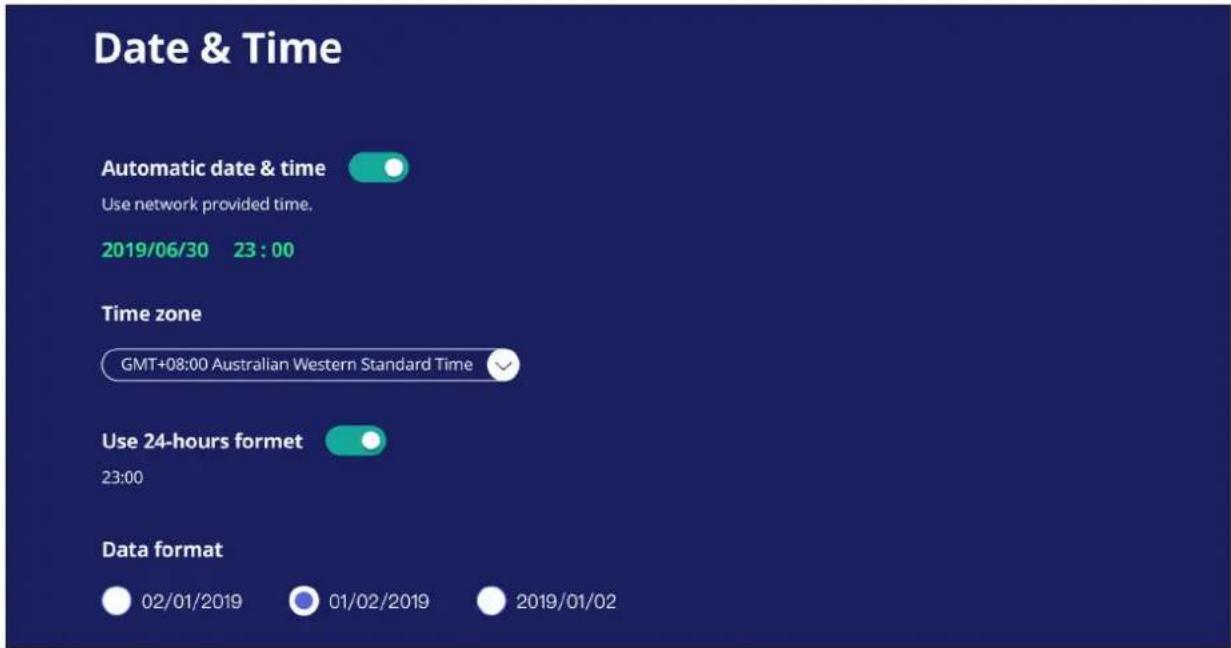

Date & Time 63

Boot Mode 64

Startup & Shutdown......65

Toolbar Setting 66

Input Source 67

Rename Input Source 68

Source....69

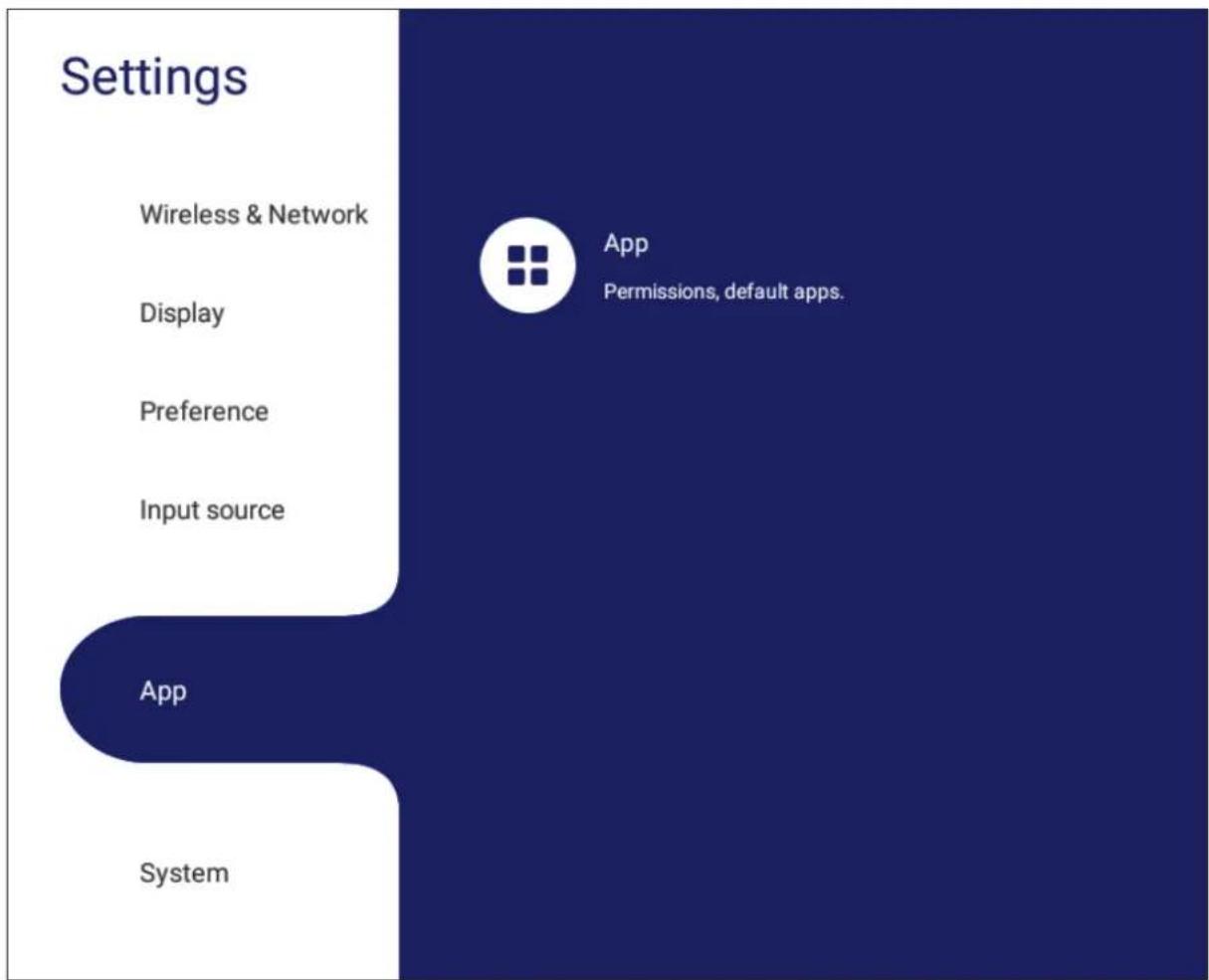

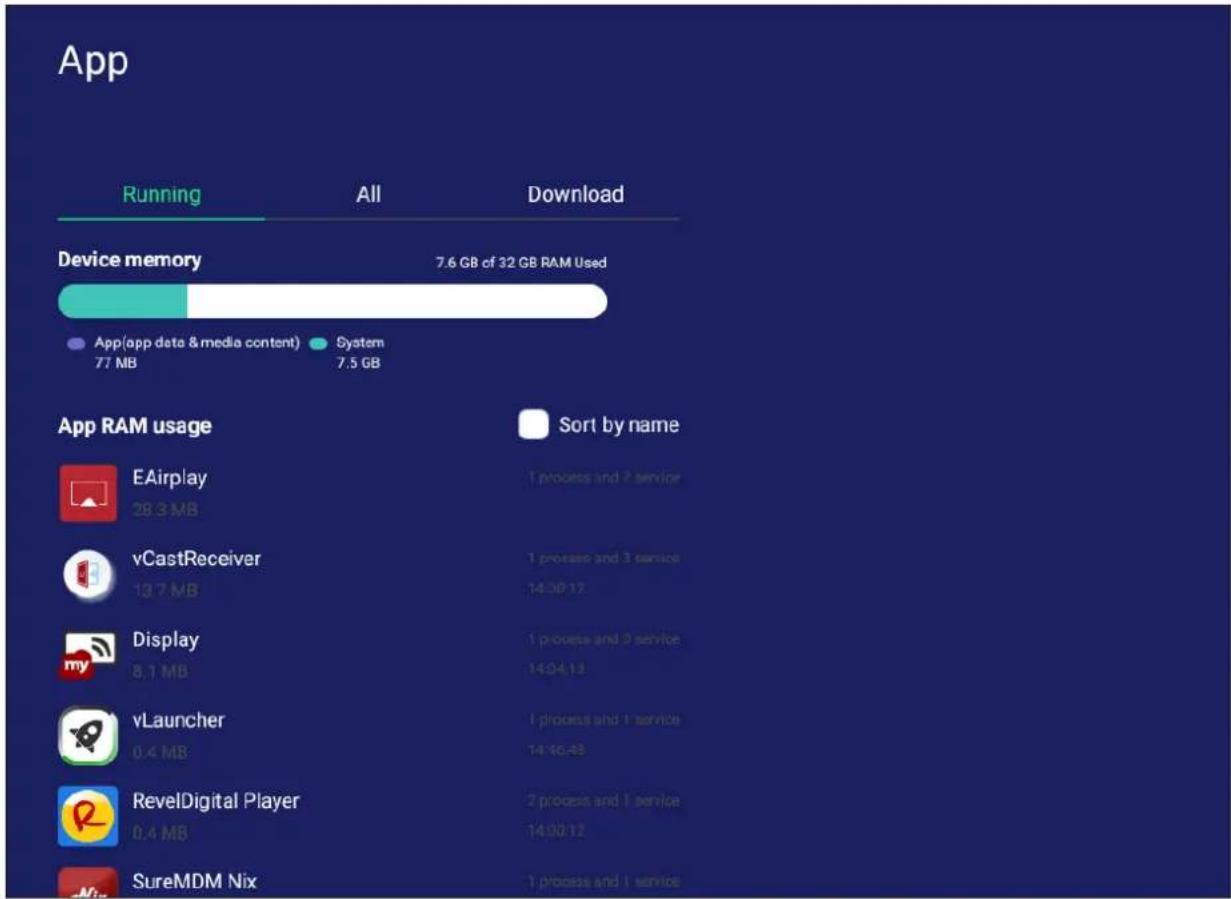

App 70

APP 71

System 73

Clone to USB....74

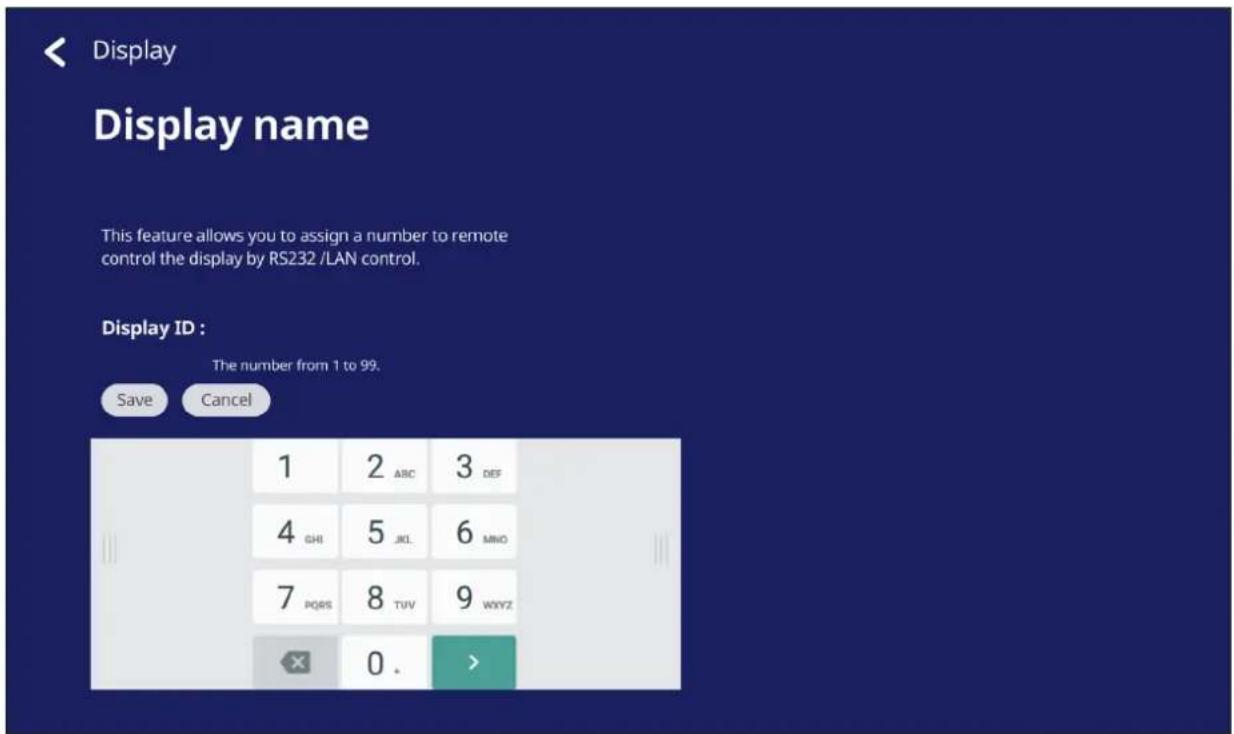

Display ID....75

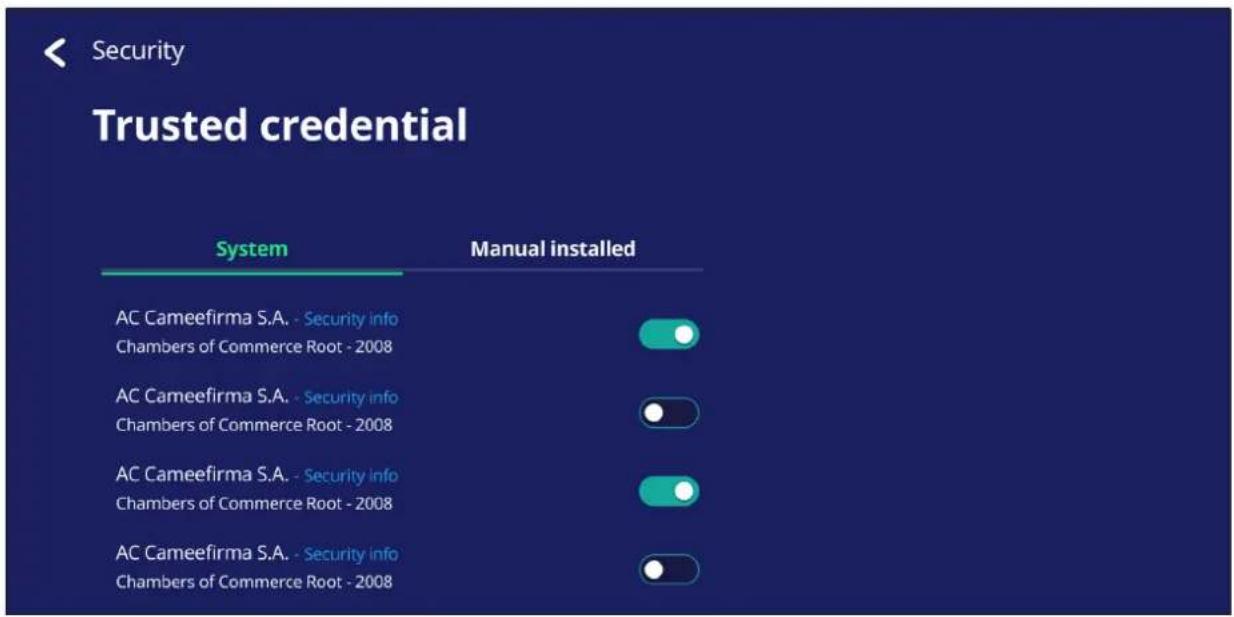

Security....76

System Update 79

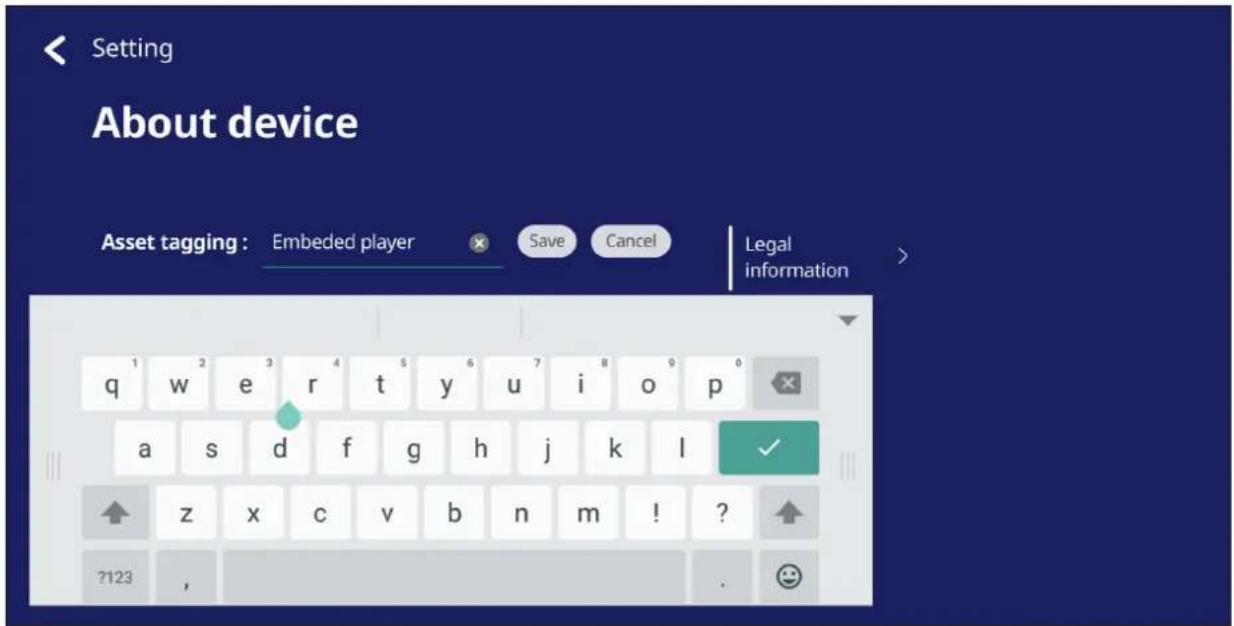

About Device 80

Embedded Applications and Settings......81

Embedded Digital Whiteboarding App....81

myViewBoard 81

ViewBoard Cast 83

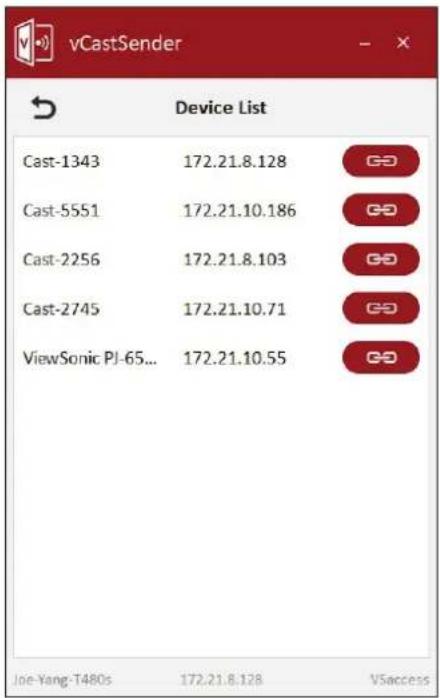

Cast Sender from Windows-based, Macbook, and Chrome devices....84

Cast Sender from Mobile Devices: iOS-based (iPhone, iPad) and Android OS based

phone/tablet. 85

Cast Out from a Mobile Device that Supports Annotation 86

Screen Recorder 87

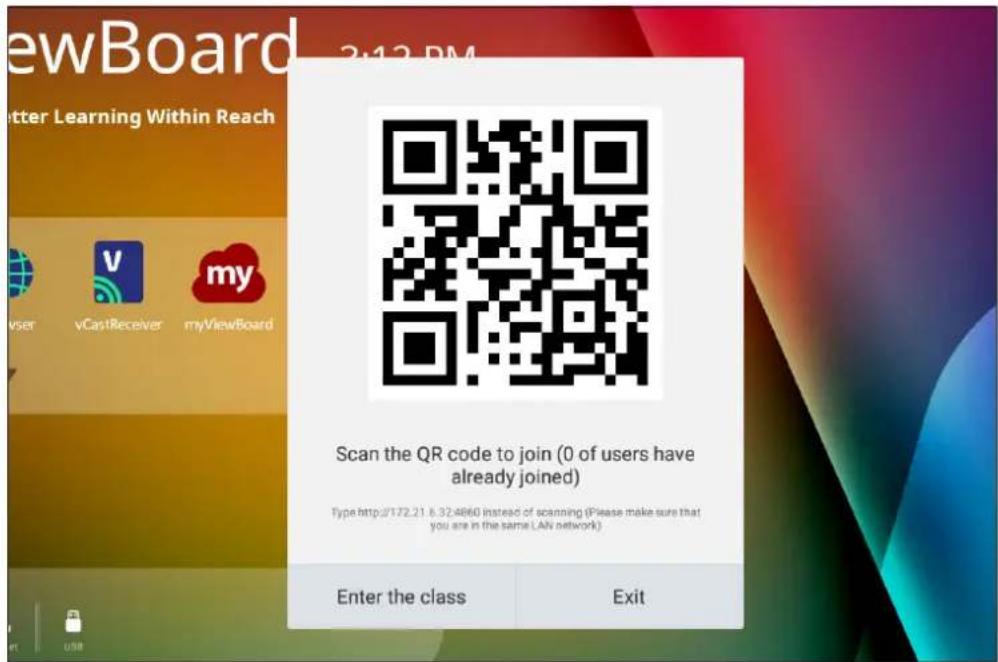

Air Class 88

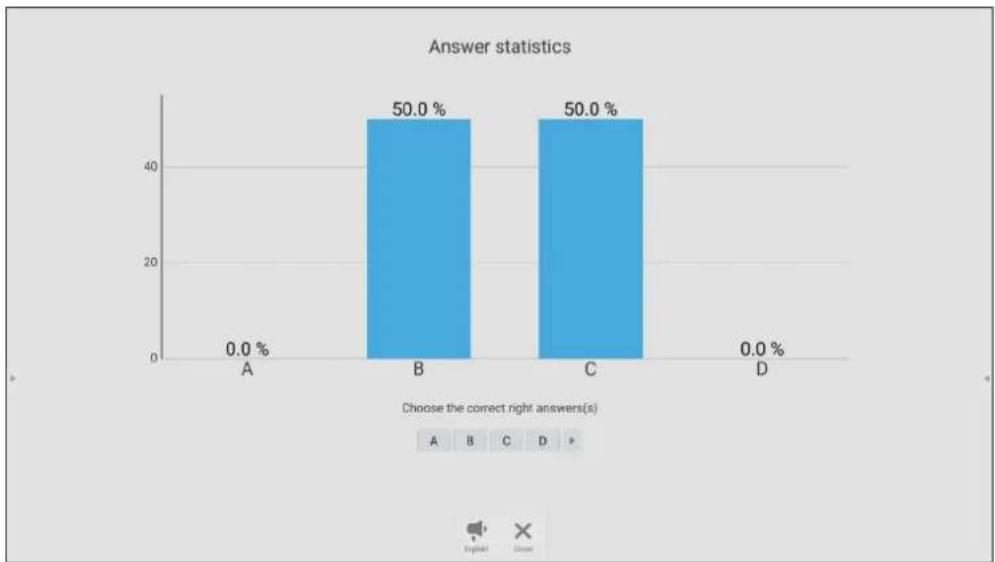

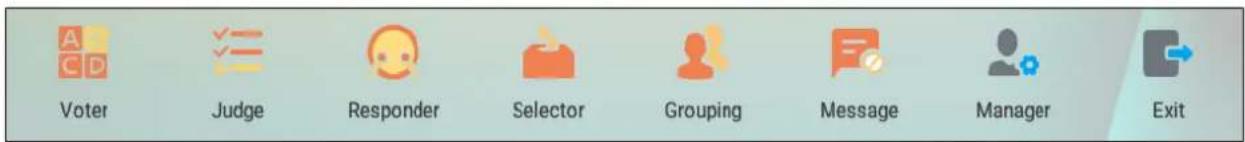

Voter 90

Judge 92

Responder 93

Selector 94

Grouping....94

Message 95

Manager 95

Exit....95

Other Default Applications 96

vSweeper....96

Screen Lock 97

Chromium....98

Folders....99

Miracast 101

RS-232 Protocol....102

Description 102

RS-232 Hardware Specification 102

LAN Hardware Specification.... 103

RS232 Communication Setting.... 103

LAN Communication Setting 103

Command Message Reference.... 103

Protocol 104

Set-Function Listing.... 104

Get-Function Listing 110

Remote Control Pass-through Mode 118

Appendix....121

Specifications....121

Display Modes 122

VGA Mode 122

HDMI Mode....122

Troubleshooting 123

Maintenance....125

General Precautions.... 125

Cleaning the Screen.... 125

Cleaning the Case.... 125

Regulatory and Service Information 126

Compliance Information....126

FCC Compliance Statement.... 126

Industry Canada Statement.... 126

CAN ICES-3 (B)/NMB-3(B).... 126

CE Conformity for European Countries 126

Declaration of RoHS2 Compliance.... 127

ENERGY STAR® statement.... 128

Indian Restriction of Hazardous Substances 128

Product Disposal at End of Product Life 128

Copyright Information....129

Customer Service 130

Limited Warranty 131

Mexico Limited Warranty.... 134

> Introduction

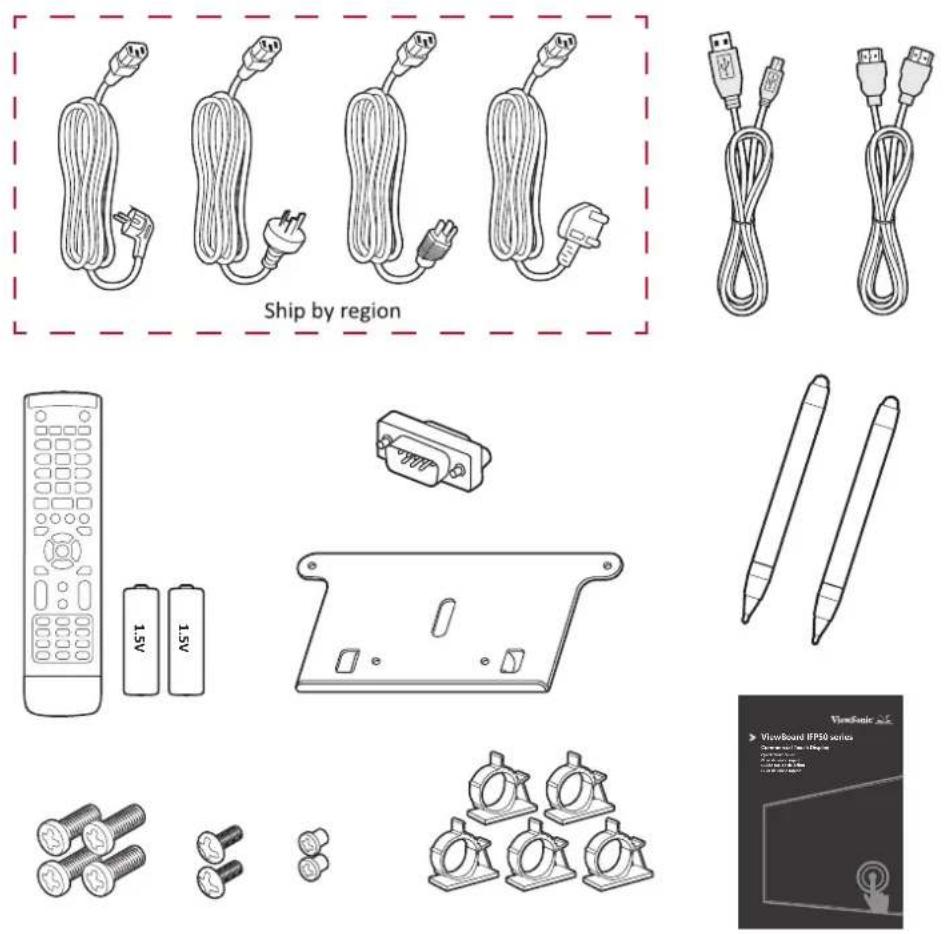

Package Contents

• HDMI cable (3m) • Touch Pen x 2
• Power cable • Quick Start Guide
- Remote control • RS-232 adapter
- AAA battery x 2 • Clamp x 5
- USB cable (3m) • Screw x 8
- Webcam Plate

NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.

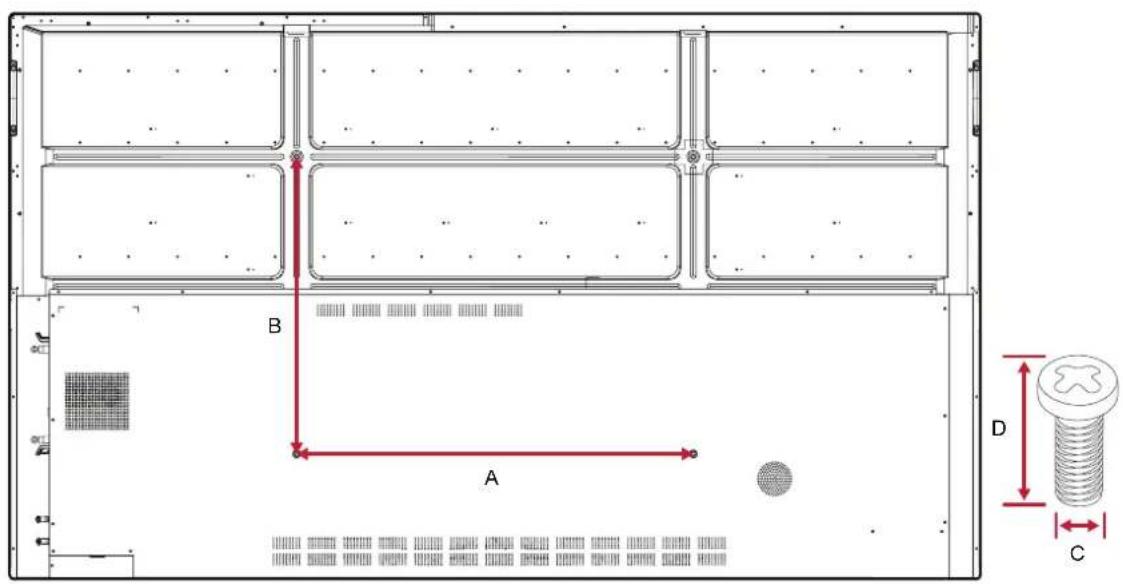

Wall Mount Kit Specifications (VESA)

NOTE: Please follow the instructions in the wall mount installation guide to install your wall mount or mobile mount bracket. If attaching to other building materials, please contact your nearest dealer.

B A D C

Model VESA Spec. (A x B) Standard Screw (C x D) Quantity
IFP5550-3/A/B - 55”	400 x 200 mm M8 x 25	mm 4
IFP6550-3/A/B - 65”	600 x 400 mm M8 x 25	mm 4
IFP7550-3/A/B - 75”	800 x 400 mm M8 x 25	mm 4
IFP8650-3/A/B - 86”	800 x 600 mm M8 x 25	mm 4

NOTE: Do not use screws that are longer than the standard dimension, as they may cause damage to the inside of the display.

Product Overview

Front Panel | Control Panel | Rear Panel

Blank white image with no visible content, text, or symbols

1 2 3 4 5 6 7 8 9 10 USB USB USB

11 12 11

Number Item Description
1	O	Power indicator light
2		Remote control receiver
3		Turn on/off the deviceTap to enter Energy Saving modePress and hold for at least two (2) seconds to enter Standby mode
4		Go to the Home screen
5		Return to the previous screen
6		Enter the Settings menuPress and hold for three (3) seconds to activate Screen Freeze
7		Decrease the Volume
8		Increase the Volume
9	USB	USB 3.0. Smart USB port for PC, HDMI, VGA, and Android input signals.
10	USB	USB 2.0. Smart USB port for PC, HDMI, VGA, and Android input signals.
11		Speaker
12		Subwoofer

I/O Panel

Lower Right Side

USB USB USB TOUCH 1 HDMI IN1(CEC) HDMI IN2(CEC) HDMI IN3(CEC) TOUCH 2 ① ② ③ ④ ⑤

Lower Front Right

7 8 9 10 11 12 VGA AUDIO IN SPDIF RS232 AUDIO OUT LAN USB

Bottom Left

14 15

NOTE:

• TOUCH, HDMI, and VGA are grouped by color; i.e. TOUCH 1 should be used with HDMI 1/2.
• Under Android, USB ports only support 2.0 file transfer speeds.

Number Port Description
1	USB 3.0	Connect USB devices such as hard disks, keyboard, mouse, etc. Automatically switches between PC and Android.
2	TOUCH 1	Touch signal output to external PC.
3	HDMI IN 1/2	High definition input; connect to PC with HDMI output, set-top box, or other video device.
4	HDMI IN 3	(See HDMI IN 1/2)
5	TOUCH 2	(See TOUCH 1)
6	Wi-Fi Module Slot	Slot for adding optional Wi-Fi module.
7	VGA	External computer video input.
8	AUDIO IN	External computer audio input.
9	SPDIF	Multichannel sound via optical signals.
10	RS-232	Serial interface; used for mutual transfer of data between devices.
11	AUDIO OUT	Audio output to an external speaker.
12	LAN	Standard RJ45 (10M/100M/1G for PC; 10M/100M for Android) Internet connection interface.NOTE: This network port is used for the Embedded Player and slot-in PC.
13	USB 2.0	Connect USB devices such as hard disks, keyboard, mouse, etc. [ 5V dc/0.5A ]

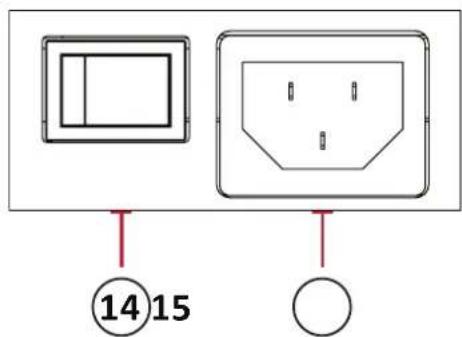

14	AC Switch	Turn on/off AC power supply“1” = Power on, “O” = Power off
15	AC IN	AC power input

Remote Control

1 2 3 6 4 SLEEP DISPLAY PMODE FREEZE 1 2 3 4 5 6 7 8 9 ALT+TAB ALT+F4 -/-- 0 8 9 11 INPUT ASPECT MENU 12 10 14 15 13 D.MENU TABALT DESKTOP 16 17 D.TITLE START ENTER 18 22 21 20 D.USB D.SETUP ESC/EXIT 23 24 BACK CH.+ PGUP EPG VOL+ CH.- PGDN SPACE FAV VOL- 25 26 27 F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 ViewSonic

Number Item Description
1	💡	Power on/off
2	💡	Mute/Unmute
3	SLEEP Sleep Mode
4	DISPLAY For Non-Android sources; display current input source information
5	P.MODE Blank	Screen
6	FREEZE Freeze	Screen
7		Numeric input buttons
8	ALT+TAB-/--	Slot-in computer space bar Alt+Tab
9	ALT+F4💡	Slot-in computer, close program window
10	INPUT Input source selection
11	ASPECT Back to slot-in system main interface
12	MENU	For Android, access Settings; for other sources, access Touch Menu settings
13	Red / ALT Screen capture
14	Green / TAB PC [Tab] button
15	Yellow / DESKTOP Switch to slot-in PC desktop
16	BLUE/✗	PC [Backspace] button
17	START / D.MENU PC [Windows] button
18	💡 / D.TITLE	PC [Menu] button
19	💡 / D.USB	Writing software setup
20	EPG/BACK	Return button
21	▲ / ▼ / ◀ / ▶	Scroll up, down, left, and right
22	ENTER	Confirm selection/state
23	ESC / EXIT /D.SETUP	Shortcut button to exit dialogue boxes
24	CH.+/PGUP/CH.-/PGDN	CH+: PC previous pageCH-: PC next page
25	VOL+ / VOL-	Increase/Decrease volume
26	FAV / SPACE	PC [Space] button
27	F1-F12	Built-in computer F1 - F12 function button

NOTE: All computer-related function keys are not available without a slot-in computer. 16

Inserting Remote Control Batteries

To insert batteries into the remote control:

1. Remove the cover on the rear of the remote control.

2. Insert two "AAA" batteries, ensuring the "+" symbol on the battery matches the "+" on the battery post.

3. Replace the cover by aligning it with the slot on the remote control and snapping the latch shut.

Illustration of hands holding a mobile phone with a small screen (no text or symbols visible)

(1)

Simple line drawing of a remote control device with handle and socket (no text or symbols)

(2)

Illustration of hands holding a handheld device with a small object inside (no text or symbols)

(3)

WARNING: There is a risk of explosion if batteries are replaced with the incorrect type.

NOTE:

• It is recommended that you do not mix battery types.
• Always dispose of old batteries in an environmentally friendly way. Contact your local government for more information on how to dispose of batteries safely.

Remote Control Receiver Range

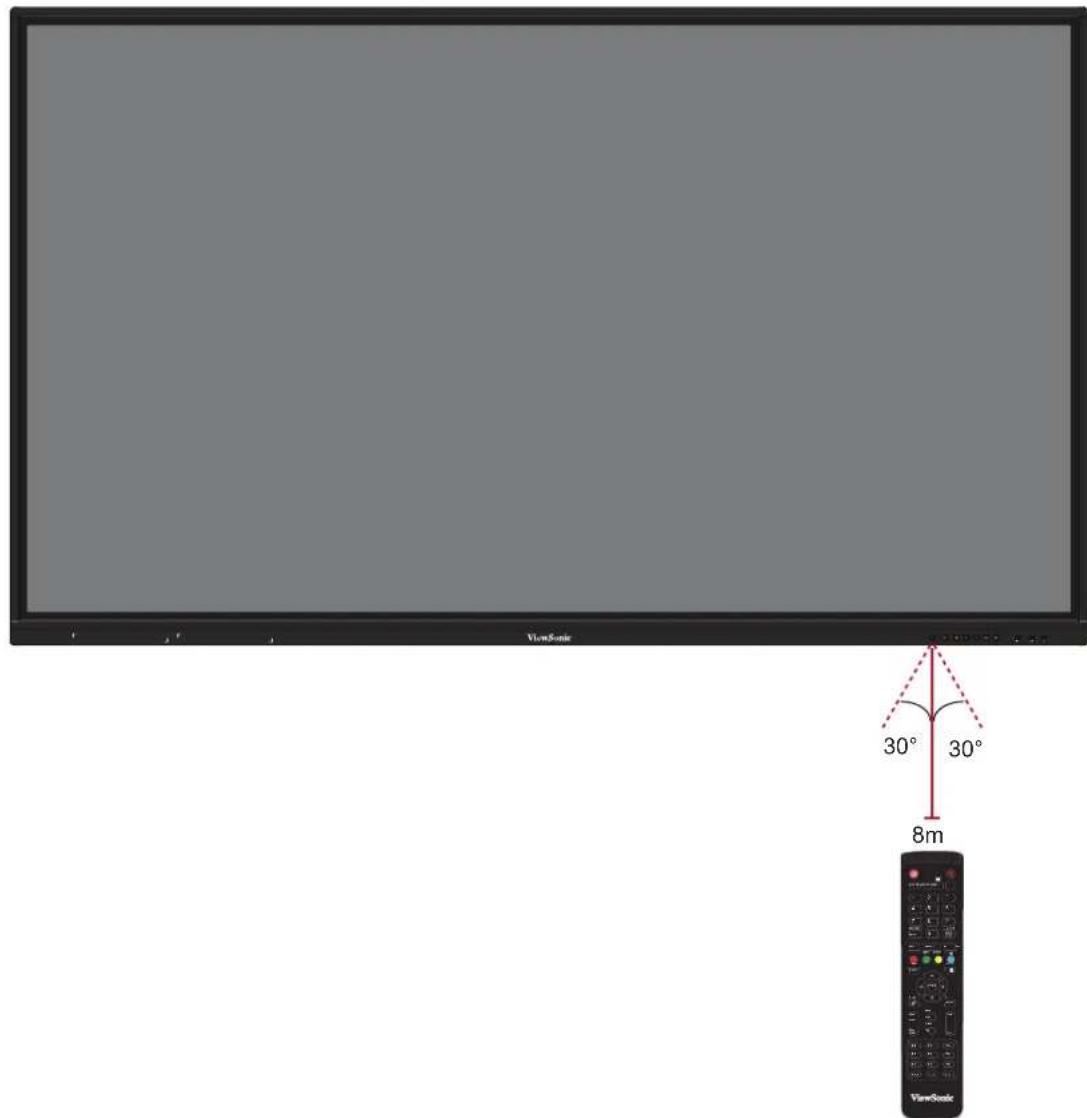

The working range of the remote control is shown here. It has an effective range of 8 meters, 30^ degrees left and right. Ensure there is nothing obstructing the remote control's signal to the receiver.

ViewSonic 30° 30° 8m ViewSonic

Using Gestures

Touch gestures allow the user to use pre-determined commands without using a keyboard or mouse. Using gestures on the Board, the user can select/deselect objects, change the location of an object, access settings, erase digital ink, and much more.

Select and Deselect an Object (Clicking)

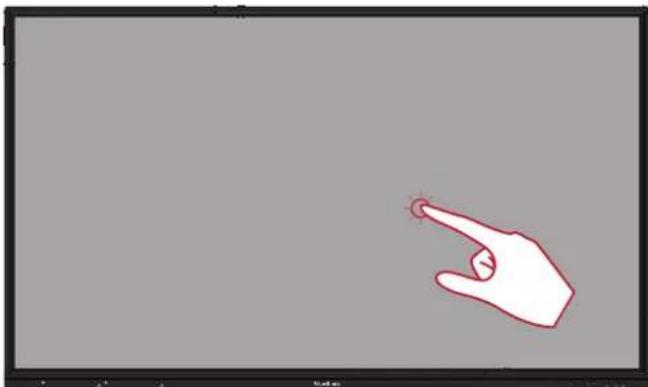

Press and release the viewsboard to select/deselect options or objects. This is like a single, standard left mouse click.

Simple line drawing of a pointing hand with a red outline (no text or symbols)

Display Menu Options (Right-Clicking)

Press and hold the viewsboard with your finger. This is like a single, standard right mouse click.

Simple hand icon pointing upward with a red outline, no text or symbols present

Double-Clicking

Quickly press and release twice in the same location on the viewsBoard. This is like a double, standard left mouse click.

2x

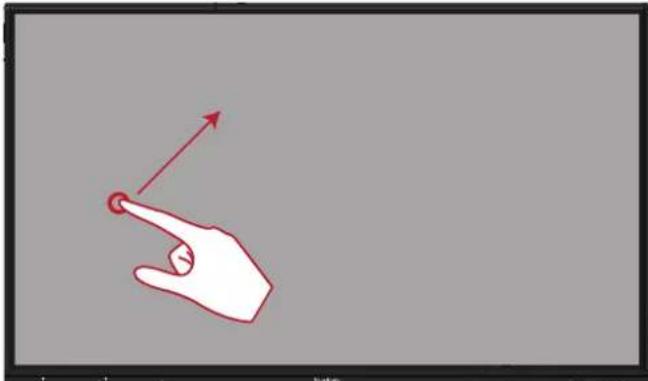

Moving an Object

Press and hold the object on the ViewBoard and slowly drag it with your finger to your desired location.

Hand icon pointing to a finger with a red arrow indicating motion (no text or symbols)

Erasing Digital Ink

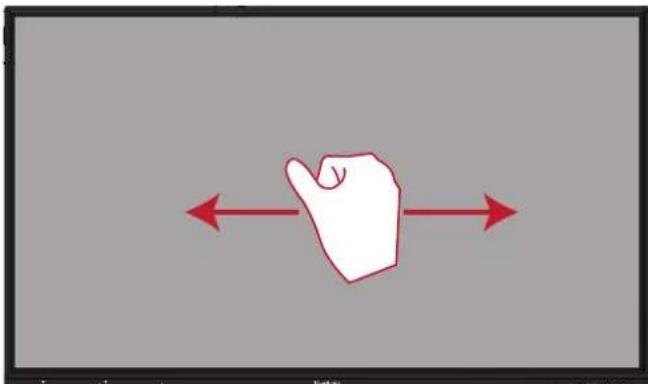

Use your flattened hand, palm, or fist on the ViewBoard and move your hand across the area which you wish to erase.

Simple line drawing of a hand with two red arrows pointing left and right (no text or symbols)

Swipe Up for General Settings

Swipe up from the bottom of the ViewBoard to launch the General Settings. To learn more, see page 37.

Simple illustration of a hand pointing upward with a red arrow, no text or symbols present

> Making Connections

Connecting External Devices and Touch Connection

TOUCH VGA or TOUCH HDMI IN

USB Cable VGA Cable USB Cable HDMI Cable

Illustration of a laptop with its open lid, labeled 'Computer' below (no other text or symbols)

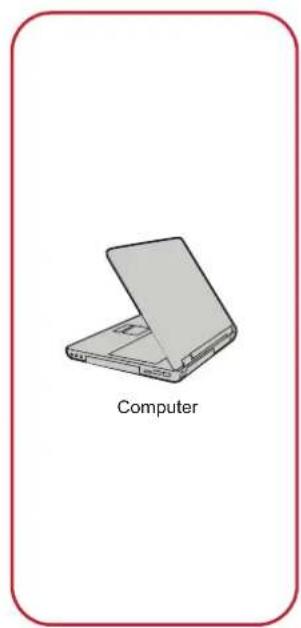

Your external device(s) can be connected in any of the following configurations:

HDMI Connection

To connect via HDMI:

1. Connect an HDMI cable from your external device to the HDMI IN port on the viewsBoard.
2. Connect a USB cable to the external device from the TOUCH 1 port of the viewsBoard.

VGA Connection

To connect via VGA:

1. Connect a VGA cable from your external device to the VGA port on the viewsboard.
2. Connect a USB cable to the external device from the TOUCH 2 port of the viewsBoard.

RS-232 Connection

RS-232 Serial Port Cable Computer

When you use a RS-232 serial port cable to connect your display to an external computer certain functions can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select, Brightness, and more.

USB and Networking Connections

Just like any PC, it is easy to connect various USB devices and other peripherals to your viewsboard.

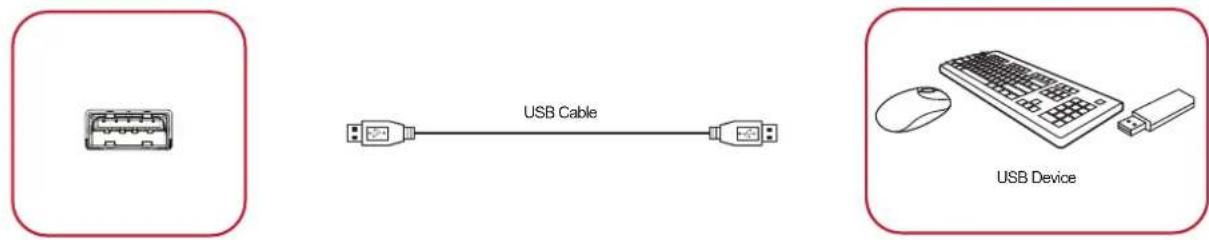

USB Peripherals

Plug the USB device cable into the USB port.

USB Cable USB Device

Networking and Modem cables

Plug the network cable into the LAN port.

LAN Network Cable Internet

Media Player Connection

HDMI IN HDMI Cable DVD

To connect to a media player:

1. Connect the HDMI cable to the HDMI ports on your viewsBoard and peripheral device.
2. Plug in the power cord of your ViewBoard, and turn on the power supply switch.
3. Press the ⏻ Power button on the right-hand side of the viewsBoard to turn the screen on.
4. Press the INPUT button on the remote control and switch to the "HDMI" input source.

SPDIF Connection

SPDIF Optical Cable Power amplifier / Stereo equipment

To connect to an external sound system:

1. Connect an optical cable from the SPDIF port to your sound system's optical connector.
2. Plug in the power cord of your viewsboard, and turn on the rear-panel power supply switch.
3. Press the ⏻ Power button on the right-hand side of the viewsboard to turn the screen on.

> Using Your ViewBoard

Powering On/Off your ViewBoard

1. Ensure the power cord is connected, plugged into a power outlet, and the power switch is in the "On" position.

The AC Power input and switch are located at the bottom of the unit.

1. Press the ⏻ Power button to turn on the viewsBoard.

2. To turn the viewsboard off, press and hold the ⏻ Power button.

Initial Launch Setup

When you first turn on your viewsBoard, an initial setup wizard will launch.

1. Select your Language:

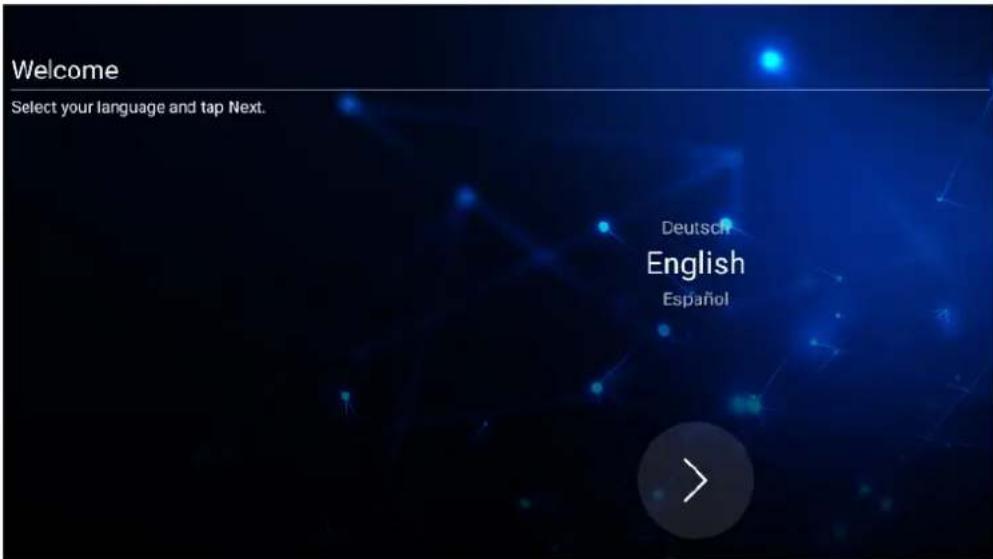

Welcome Select your language and tap Next. Deutsch English Español

2. Setup and verify your LAN connection:

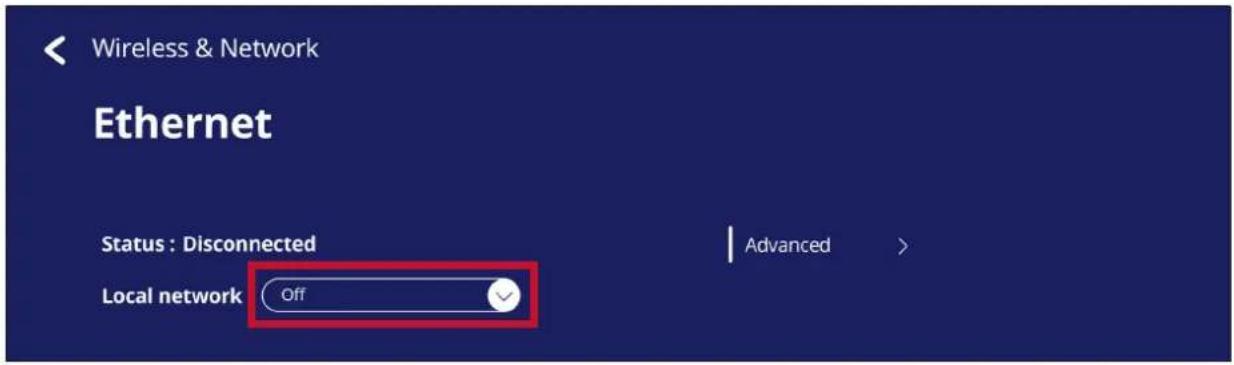

Ethernet To verify LAN connected and then tap Next. Ethernet Local Network Setting DHCP Static IP Back Next

1. Select your Time Zone to set the Date and Time:

Date & Time Select the appropriate time zone to set the date and time and then tap Next. Date & Time Use network-provided time Set date 12/29/2017 Set time 4:31 PM Select time zone GMT+0.00 China Standard Time Use 24-hour format 1:00 PM Back < > Next

1. Select your preferred System Mode:

Mode Select the system mode. Mode Normal mode Secured Mode(Remove embedded screen sharing Apps) Disable Embedded OS Back < > Next

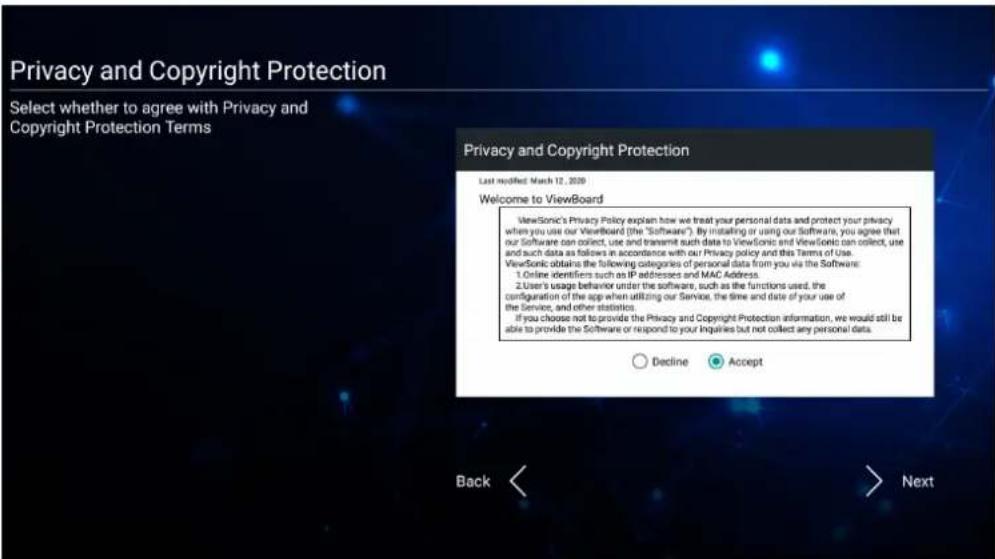

1. Accept or Decline the Privacy and Copyright Protection Terms.

Privacy and Copyright Protection Select whether to agree with Privacy and Copyright Protection Terms Privacy and Copyright Protection Last modified: March 12, 2020 Welcome to ViewBoard ViewSonic's Privacy Policy explain how we treat your personal data and protect your privacy when you use our ViewBoard (the "Software"). By installing or using our Software, you agree that our Software can collect, use and transmit such data to ViewSonic and ViewSonic can collect, use and such data as follows in accordance with our Privacy policy and this Terms of Use. ViewSonic obtains the following categories of personal data from you via the Software: 1. Online identifiers such as IP addresses and MAC Address. 2. User's usage behavior under the software, such as the functions used, the configuration of the app when utilizing our Service, the time and date of your use of the Service, and other statistics. If you choose not to provide the Privacy and Copyright Protection information, we would still be able to provide the Software or respond to your inquiries but not collect any personal data. Decline Accept Back < > Next

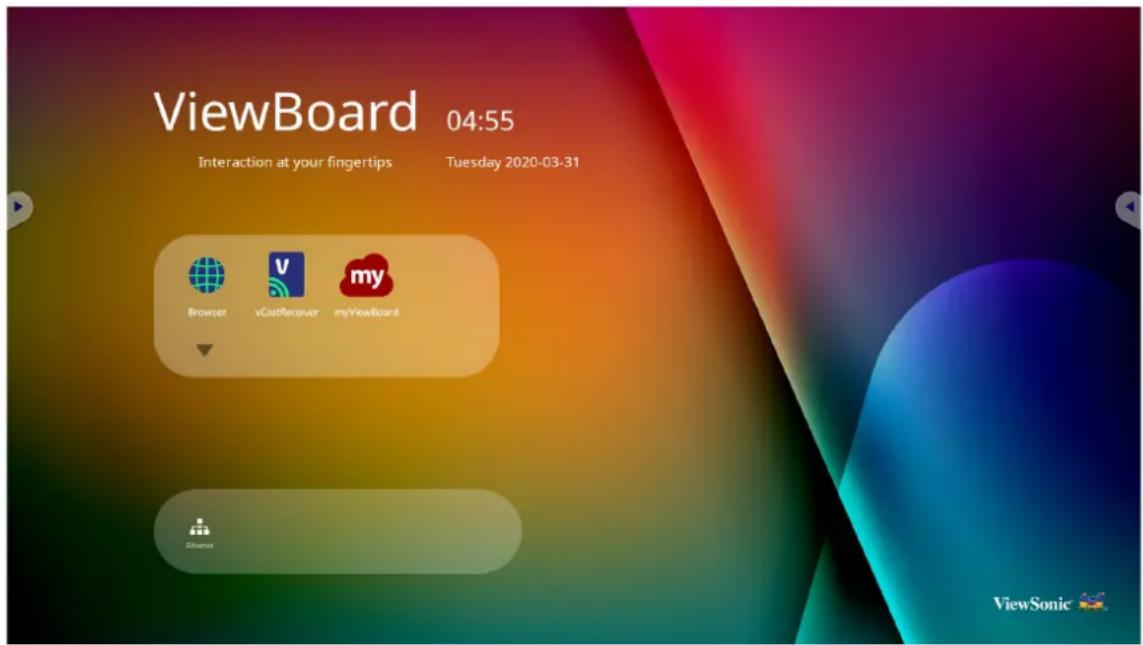

vLauncher - Customizable Welcome Screen

ViewBoard 04:55 Interaction at your fingertips Tuesday 2020-03-31 Browser vCastReceiver myViewBoard Share ViewSonic

vLauncher Message

Both the vLauncher Title and Subtitle can be customized by tapping on them.

ViewBoard Interaction at your fingertips 10:27 AM Wednesday 2020-04-08 1. Tap to edit the title 2. Set password for security

Additionally, a password can be set by tapping on Set Password.

ViewBoard 04:58 Interaction at your fingertips Edit vLauncher message Title ViewBoard Subtitle Interaction at your fingertips Set password Confirm

Applications

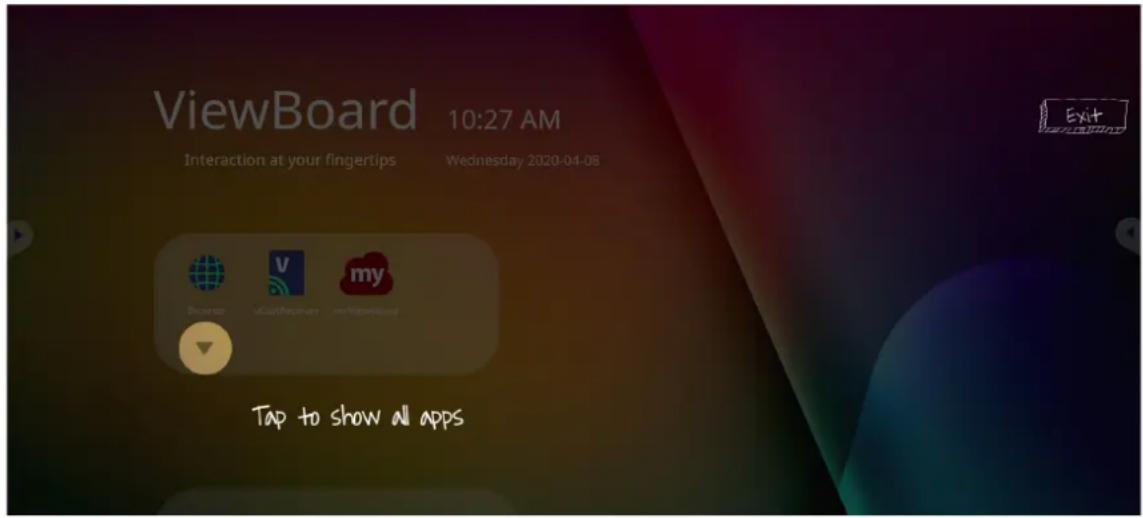

Installed applications can all be found on the welcome screen. To view all applications tap on the Down Arrow.

ViewBoard 10:27 AM Interaction at your fingertips Wednesday 2020-04-08 Tap to show all apps

To hide the application drawer tap the Up Arrow.

ViewBoard 10:27 AM Interaction at your fingertips Wednesday 2020-04-05 Tap to hide all apps

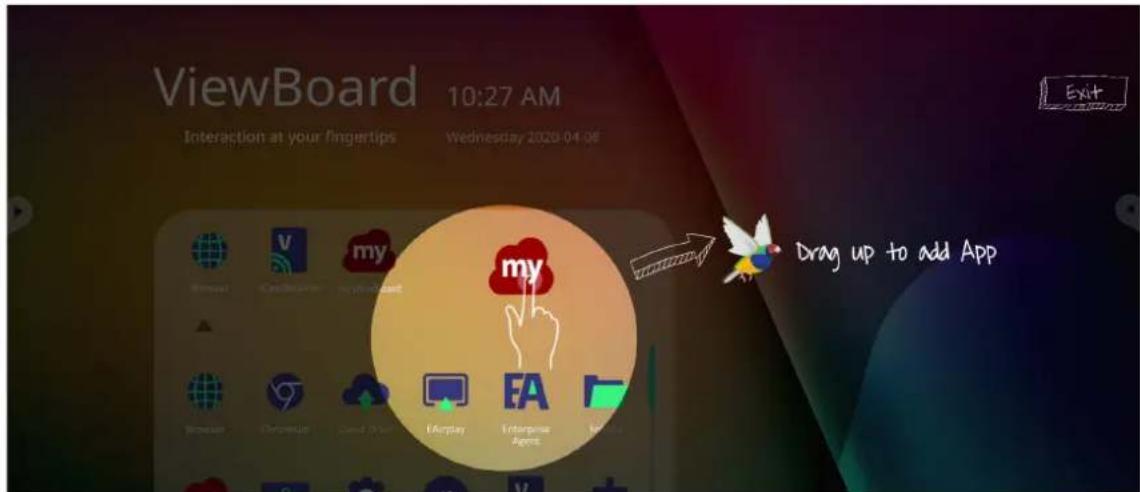

To add a shortcut to an application, tap, hold, and drag up the icon.

ViewBoard 10:27 AM Interaction at your fingertips Wednesday 2020 04 08 my My FAmpay Enterprise Agents Drag up to add App

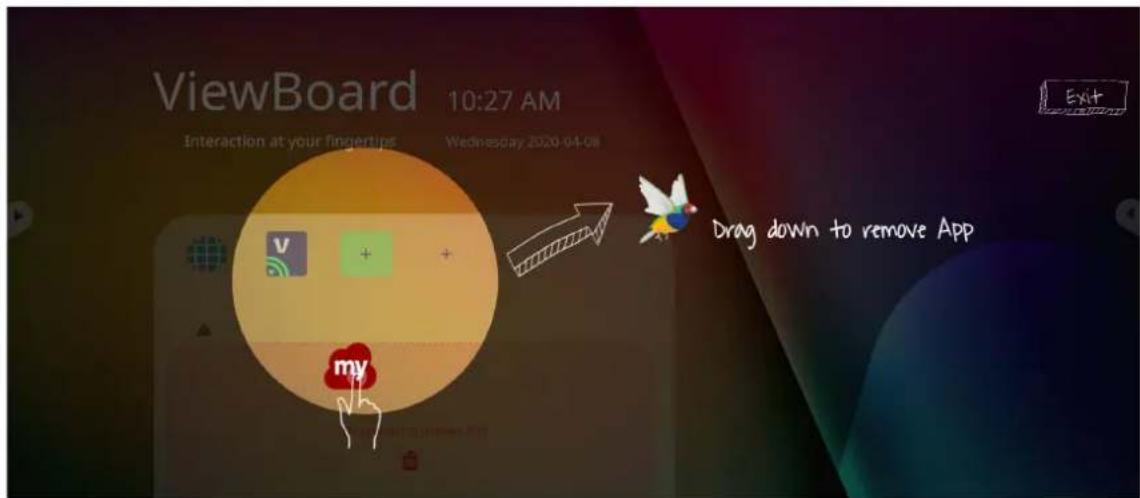

To remove an application shortcut, tap, hold, and drag the icon down.

ViewBoard 10:27 AM Interaction at your fingertips Wednesday 2020-04-08 v + my Drag down to remove App Exit

Toolbar

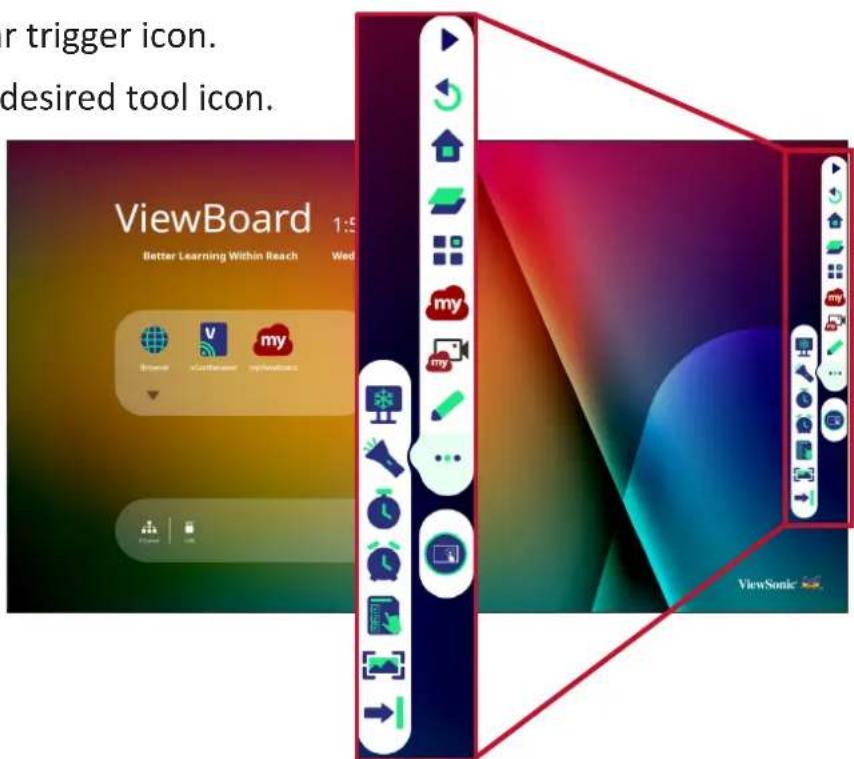

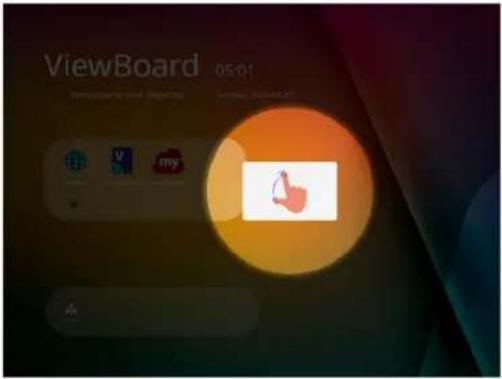

Toolbar trigger icons are on the edge of the viewsBoard launcher providing access to your tools.

ViewBoard 04:55 Interaction at your fingertips Tuesday 2020-03-31 Browser vCasReceiver myViewBoard Internet ViewSonic

To launch a tool:

1. Tap a Toolbar trigger icon.
2. Tap on your desired tool icon.

r trigger icon. desired tool icon. ViewBoard 1:5 Better Learning Within Reach Wed v my my ViewSonie

NOTE: The default toolbar setting is to be available for all input sources; however, users can go to: Settings > Preference > Toolbar setting to adjust the options: (1) available for all input sources, (2) hide the toolbar for all input sources.

Icon	Description
Back	Return to the previous operation screen.NOTE: Only for the Embedded Player source.
Home	Return to the Home Screen of the Embedded Player.
Recent	Display all embedded applications that are currently being used.
App	View all installed applications.
myViewBoard	Launch the myViewBoard software.

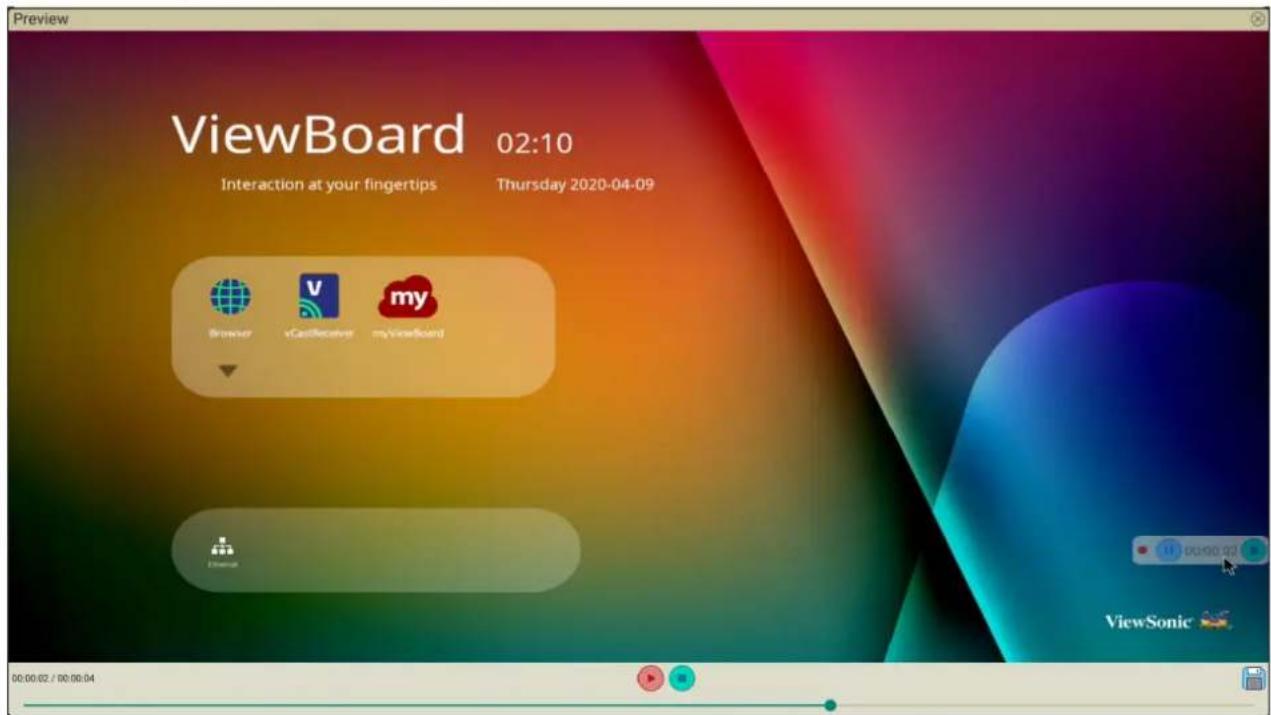

Recorder	Record, view, and save the on-screen content.
	Access the pen, highlighter, clear, and save options. [77A0] Pen Highlighter Eraser Undo[DC80] [3422] [446C] [K2XD]Redo Clean Save Exit
	PenAnnotate the overlay of any input source with black, white, yellow, orange, red, pink, green, or blue ink.NOTE: The default pen setting supports up to 10-point writing.
	HighlighterMark and highlight with yellow, grey, gold, orange, red, pink, green or blue ink.NOTE: The default highlighter setting supports up to 10-point marking.
	EraserSelectively remove the digital ink on the screen.
	UndoUndo the previous action.
	RedoRedo the previous action.
	CleanClears all the digital ink on the screen.
	SaveSave the screen image and any annotations.
	ExitClose the drawing tool.
	View more applications within the viewsBoard tool bar.
	Screen Freeze	Spotlight	Stopwatch Timer		Air Class	Hide/Unhide	Screen Capture
	Screen Freeze Convert the currently displayed content into a still image; then you can zoom in, zoom out, go back to full screen, and exit.
	Zoom in Zoom out Fullscreen Exit
	[HBDA]
	Highlight the focus content zone. Tap the Setting icon to adjust the spotlight size and alpha blending effect.

Icon	Description

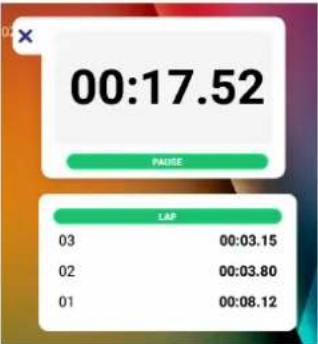

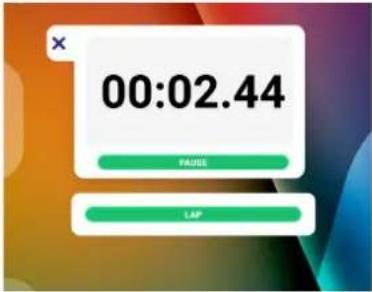

More	Stopwatch(DY03)Tapping Start will initiate the stopwatch.At any time, the stopwatch can be paused, resumed, split, or reset.Timer(3320)Access the countdown timer with an optional alarm setting. Touch and swipe to adjust the numeric values, then click Start.At any time, the countdown timer can be paused, resumed, or reset.Hide/Unhide← Hide or unhide the Tool bar trigger icons.
More	Air Class Interactive teaching tool for classroom usage.Screen CaptureTake a screenshot of the current screen.
Settings	Access the General Settings.

On-Screen Display (OSD) Menu

Access General Settings, Input Settings, and Widgets through the OSD Menu.

< Back General Widget Volume Backlight Flicker Free Off Flicker Free will reduce eyestrain and provide a more comfortable viewing experience, especially during longer periods of use.

ViewBoard has two options for opening the OSD Menu:

Option 1

Long press anywhere in the vLauncher background.

ViewBoard 10:27 AM Interaction at your fingertips Wednesday 2020-04-08 Long press anywhere to get in Settings

Option 2

Press the INPUT button on the remote control.

ALT+TAB -/-- 0 ALT+F4 INPUT ASPECT MENU TABALT DESKTOP D.MENU START D.TITLE

General Settings

< Back General Widget Volume Backlight Flicker Free On | Off Flicker Free will reduce eyestrain and provide a more comfortable viewing experience, especially during longer periods of use.

Backlight

Flicker Free On | Off

To adjust the Backlight and enable/disable Flicker Free:

1. Press INPUT on the remote control or long press the vLauncher background and touch General on-screen (if needed) to display the General Settings menu.
2. Drag the brightness slider directly to adjust the backlight value, and/or touch On or Off to enable/disable the function.
3. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

Volume

To adjust the Volume:

1. Press INPUT on the remote control or long press the vLauncher background and touch General on-screen (if needed) to display the General Settings menu.
2. Drag the volume slider directly to adjust the value.
3. Press ☐(Mute) on the remote control to enable or disable the mute function.
4. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

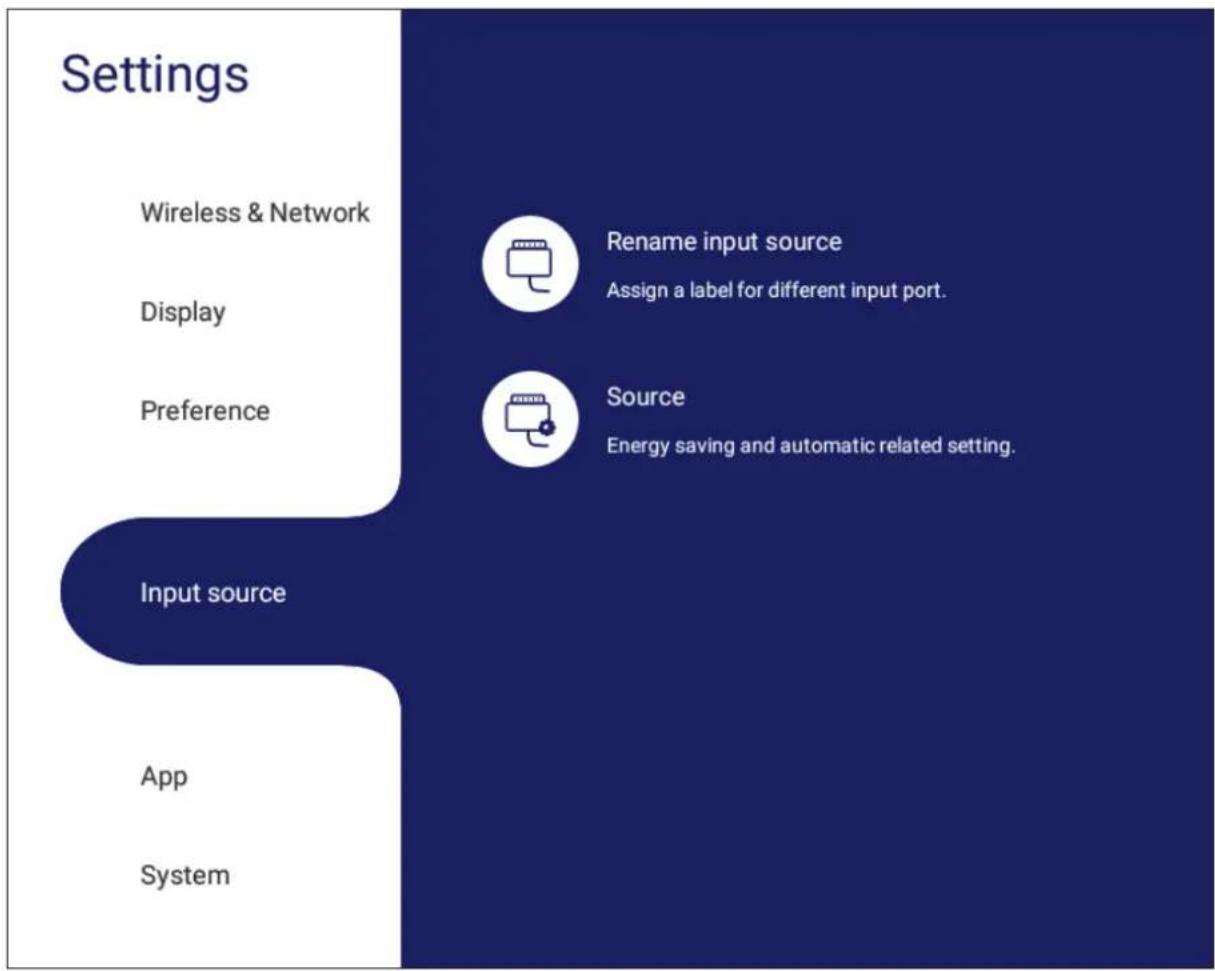

Input Settings

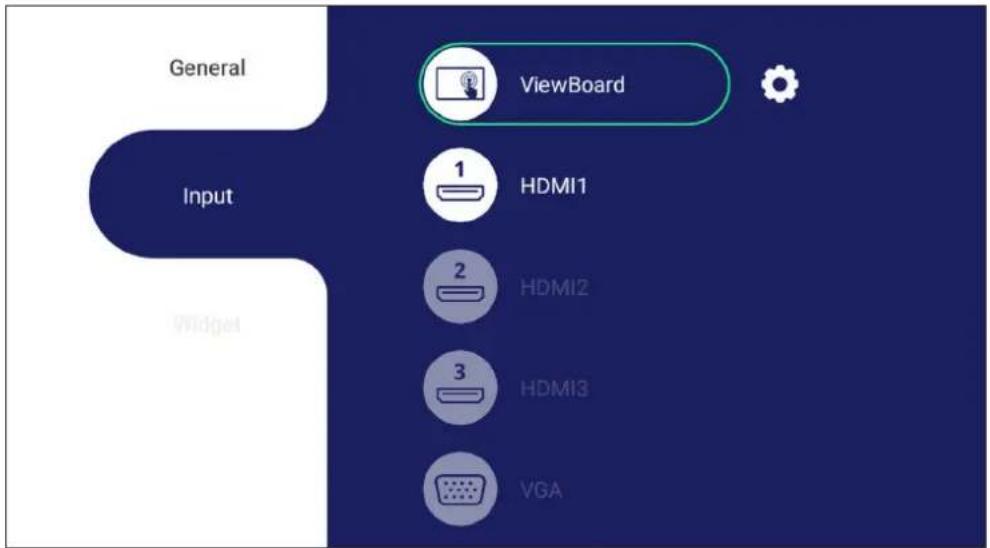

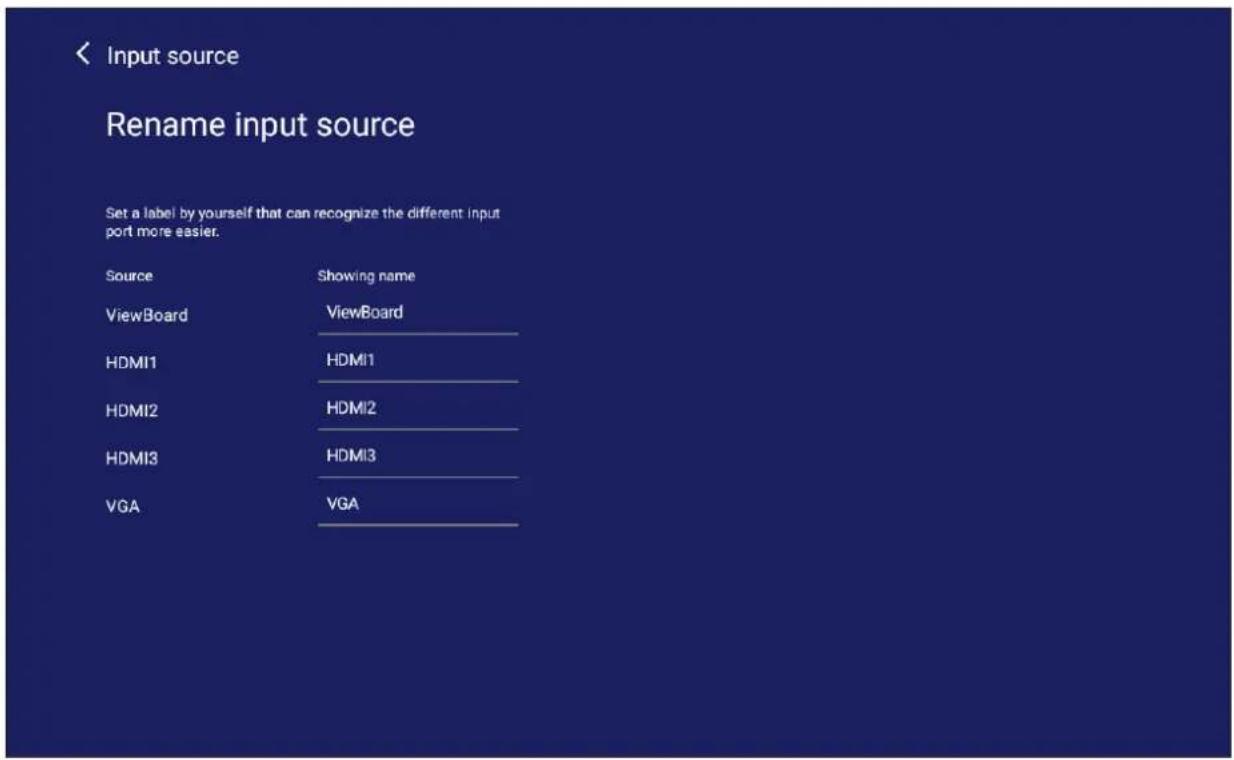

General Input Widget 1 HDMI1 2 HDMI2 3 HDMI3 VGA ViewBoard

To select an Input Source:

1. Press INPUT on the remote control, press the setting button Ⓞ on the front panel, or press the setting icon from the toolbar to display the Input Settings menu.
2. Press ▼/▲/◄/► to select the input source you want.

NOTE: PC source will only display when the slot-in computer is connected.

1. Press ENTER on the remote control, or touch the input source.
2. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

NOTE: To adjust the settings of an input source, touch the setting icon next to the highlighted input source.

ViewBoard

Widget

NOTE: Only available for the Embedded Player source.

General Widget Browser Bookmark 1 × 1 Bookmarks 2 × 2 Chromium Chromium bookmarks 2 × 2 Chromium search 3 × 1 Google Maps New York Times Yahoo ESPHS Searcher

To add a widget to the vLauncher welcome screen:

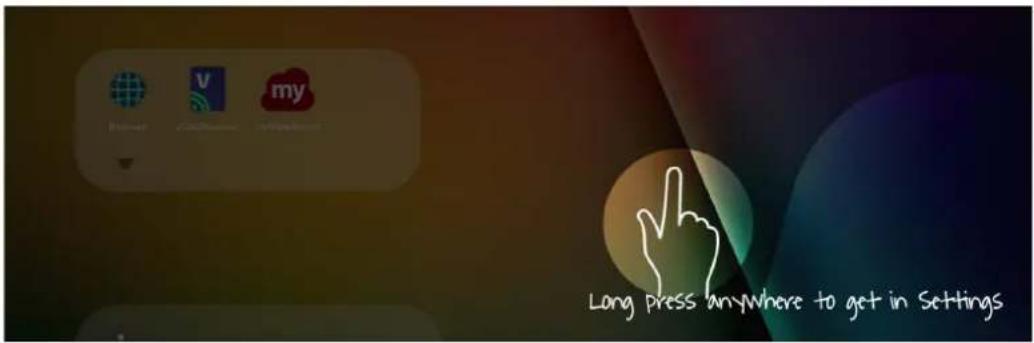

1. Long press the vLancher background via touch to launch the OSD Menu.

Long press anywhere to get in Settings

1. Select Widget.
2. Touch and hold the desired widget.

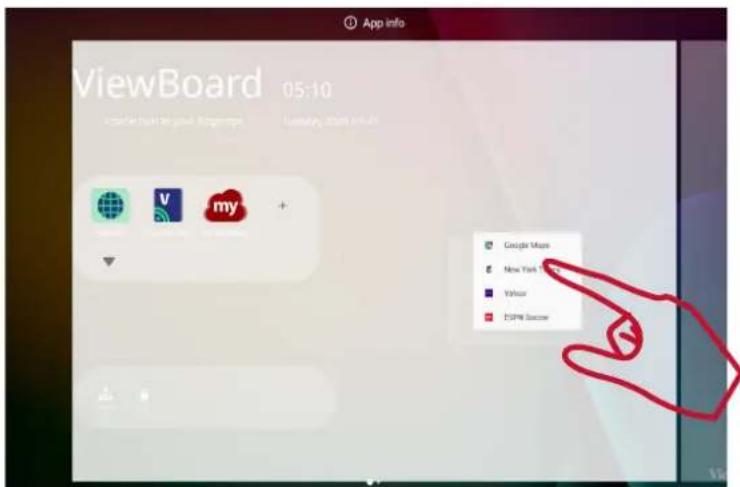

3. Drag the widget onto the vLauncher background.

ViewBoard 05:10 Google Maps New York Times Vitoon ESPN Soccer

Settings - HDMI & VGA Input Source

Press MENU on the remote control or select the setting icon next to the input source in Input Settings to launch the Settings menu. Settings include: Audio, Screen, Display, and Adjust.

Audio Settings

General Settings Settings Audio Mode Mute Standard Meeting Class Custom Screen Display Adjust Volume 27 Balance -2 Bass 0 Treble 0

1. Press ▼ on the remote control and select the Audio menu.
2. Press ▼/▲/◄/► on the remote control or directly touch the option to select it.
3. Adjust the Volume, Bass, Treble, and Balance directly by touching and adjusting each value, or with the remote control by pressing ENTER to adjust the option.
4. Touch the Mute slider directly to enable/disable mute, or press ⚫(Mute) on the remote control.
5. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

Screen Settings

General setting Settings Audio Screen Display Adjust Ratio 4:3 16:9 PTP An Amur Se

1. Press ▼ on the remote control and select the Screen menu.
2. Press ▼/▲/◄/► on the remote control or directly touch the option to select it.
3. Adjust your preference by touching each value directly, or with the remote control by pressing ENTER.
4. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

Display Settings

General Settings Settings Audio Screen Display Adjust Mode Standard Mooting Class Custom Brightness 50 - Contrast 50 - Hue 50 - Sharpness 50 - Color temperature Standard Cold Warm Filter Bluelight Filter

1. Press ▼ on the remote control and select the Display menu.
2. Press ▼/▲/◄/► on the remote control or directly touch the option to select it.
3. Adjust the Brightness, Contrast, Hue, and Sharpness directly by touching and adjusting each value, or with the remote control by pressing ENTER to adjust the option.
4. Drag the blue light slider directly to adjust the blue light value.

Bluelight Filter - +

1. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

Low Blue Light Filter and Eye Health

The Blue Light Filter blocks high-energy blue light for a more comfortable viewing experience.

Audio Screen Display Adjust Mode Standard Bright Soft Custom Brightness 50 - + Contrast 50 - + Hue 50 - + Sharpness 50 - + Color temperature Standard Cold Warm Filter Bluelight Filter 0 - +

NOTE: To meet TÜV Rheinland low blue light certification, the Display Settings must be:

• Mode: Standard (Brightness and Contrast are 50)
• Color Temperature: Filter
- Blue light Filter: 0

Calculating Breaks

When viewing screens for extended periods, it is recommended to take periodic breaks from viewing. Short breaks of at least 10 minutes are recommended after one (1) hour of continuous viewing.

Taking shorter, more frequent breaks are generally more beneficial than longer, less frequent breaks.

Focus Fatigue (20-20-20 Rule)

To reduce the risk of eye fatigue by constantly looking at the screen, look away from the screen at least every 20 minutes and gaze at a distant object (at least 20 feet away) for at least 20 seconds.

Looking at Distant Objects

While taking breaks, users can further reduce eye strain and dryness by focusing on objects that are further away from them for 10-15 seconds, then gaze at something up close for 10-15 seconds. Repeat this up to 10 times. This exercise reduces the risk of your eyes' focusing ability to "lock up" after prolonged computer work.

Eye and Neck Exercises

Eye Exercises

Eye exercises can help minimize eye strain. Slowly roll your eyes to the left, right, up, and down. Repeat as many times as needed.

Exercises for the eyes

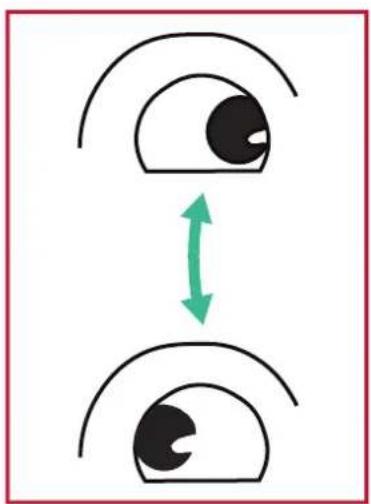

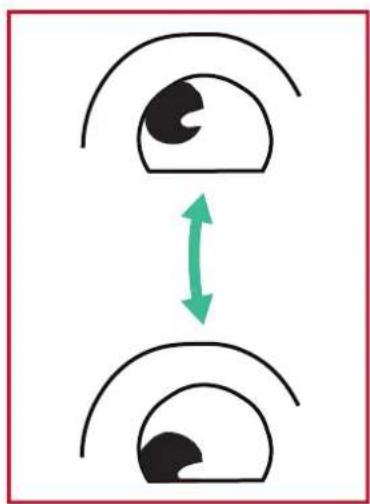

Diagram showing eye anatomy with two curved shapes and a double-headed arrow indicating rotation (no text or labels)

(1) Keep the body and the head upright. Move the eyes up to look at the ceiling, then turn down to look at the floor.

Diagram showing two eye shapes with curved lines and a double-headed arrow indicating rotation or alignment (no text or symbols)

(2) Move the eyes left and right slowly to look at objects on the two sides.

Diagram showing two eye shapes with curved lines and a double-headed arrow indicating rotation or alignment (no text or symbols)

(3) Move the eyes to look at objects at the right upper direction and then right lower direction. Repeat for the left upper and left lower directions.

Neck Exercises

Neck exercises can also help minimize eye strain. Relax your arms and let them hang at your sides, bend forward slightly to stretch the neck, turn your head to the right and to the left. Repeat as many times as needed.

Adjust Settings - (VGA Only)

General Settings Settings Audio Screen Display Adjust Auto adjustment Brightness 50 - Contrast 50 - Hue 50 - Sharpness 50 -

1. Press ▼ on the remote control and select the Adjust menu.
2. Press ▼/▲/◄/► on the remote control or directly touch the option to select it.
3. Adjust your preference by touching each value directly, or with the remote control by pressing ENTER.
4. Press EPG/BACK on the remote control, or touch a blank area outside of the menu to exit.

Settings - Embedded Player

When the viewsBoard is in the Embedded Player input source, press MENU on the remote control or tap the setting icon next to the input source in the On-Screen Display (OSD) Menu's Input Settings to enter the Settings menu.

Wireless & Network

Check current network connection status, set up and manage Wi-Fi, Ethernet, Bluetooth, and VPN, and establish a Wireless hotspot.

Settings Wireless & Network Display Preference Input source App System Wi-Fi Set up & manage wireless access points. To enable Wi-Fi function, you should plug Wi-Fi dongle. Ethernet Set the Local network and Proxy. Wireless hotspot Share and set my internet connection with other devices. To enable Wi-Fi function, you should plug Wi-Fi dongle. Bluetooth Manage connections, set device name & discoverability. To enable Wi-Fi function, you should plug Wi-Fi dongle.

NOTE:

• Wi-Fi, Wireless hotspot and Bluetooth settings will appear when LB-WIFI-001(optional) has been installed.
• Ethernet will disable automatically when Wi-Fi is enabled. Wi-Fi will disable automatically when Ethernet is enabled. Wi-Fi will disable when Wireless hotspot is enabled.
• The device cannot connect to the Internet when Wireless hotspot is enabled.

Wi-Fi

Setup and manage wireless access points.

- Tap the toggle button to turn Wi-Fi On or Off.

Wireless & Network Wi-Fi Status : Off To see available networks, turn Wi-Fi on. Saved network > Advanced >

- Once On, you can: Add a Network, view Saved Networks, Refresh the network list, or view Advanced settings.

Wireless & Network Wi-Fi Status : On Available networks Add network Saved network > Advance > Pilotfish stuff Pilotfish guest - Connecting

- In Advanced settings, you can toggle Network notifications On or Off and view Network card info.

Wi-Fi Advanced Network notification Notify whenever a public network is available. Network card info Mac address IP address

Ethernet

Set the local network and proxy.

- Tap the drop down menu to connect/disconnect the Ethernet.

Wireless & Network Ethernet Status: Disconnected Local network Off Advanced >

- You can adjust Local network and Proxy settings as well.

Wireless & Network Ethernet Status : Connected Local network Static IP DHCP Static IP Off DNS 1 192.168.0.30 DNS 2 168.95.1.1 Set up Proxy Proxy Auto-Config DHCP Manual Proxy Auto-Config Advanced >

- Tap Advanced to view Network card info and toggle Network auto reconnect.

Ethernet Advanced Network auto reconnect Known networks will be joined automatically.If no known networks are available,you will have to manually select a network. Network card info Network card info Mac address : 50:3e:aa:4d:96:32

Wireless Hotspot

Set and share my internet connection with other devices.

- Tap the toggle button to turn Wireless hotspot On or Off.

Wireless & Network Wireless hotspot Status : On Device : AndroidAP WPA2 PSK portable Wi-Fi hotspot Set up

- Tap Set up to set the Network name, Security, and Password.

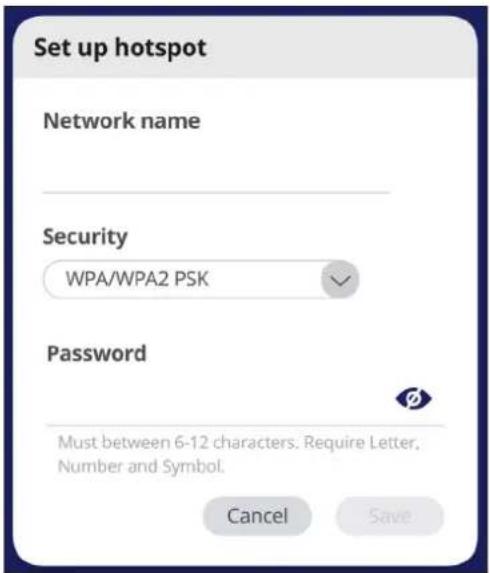

Set up hotspot Network name Security WPA/WPA2 PSK Password Must between 6-12 characters. Require Letter, Number and Symbol. Cancel Save

VPN

Setup and manage Virtual Private Networks.

Wireless & Network VPN Always on VPN Select a VPN profile to always remain connected to. Network traffic will only be allowed when connected to this VPN. Add VPN VPN name - Connected L2TP/IPSec PSK Disconnected VPN name L2TP/IPSec PSK Connect

To create a VPN profile:

1. Go to: Settings > Wireless & Network > VPN and tap Add VPN.

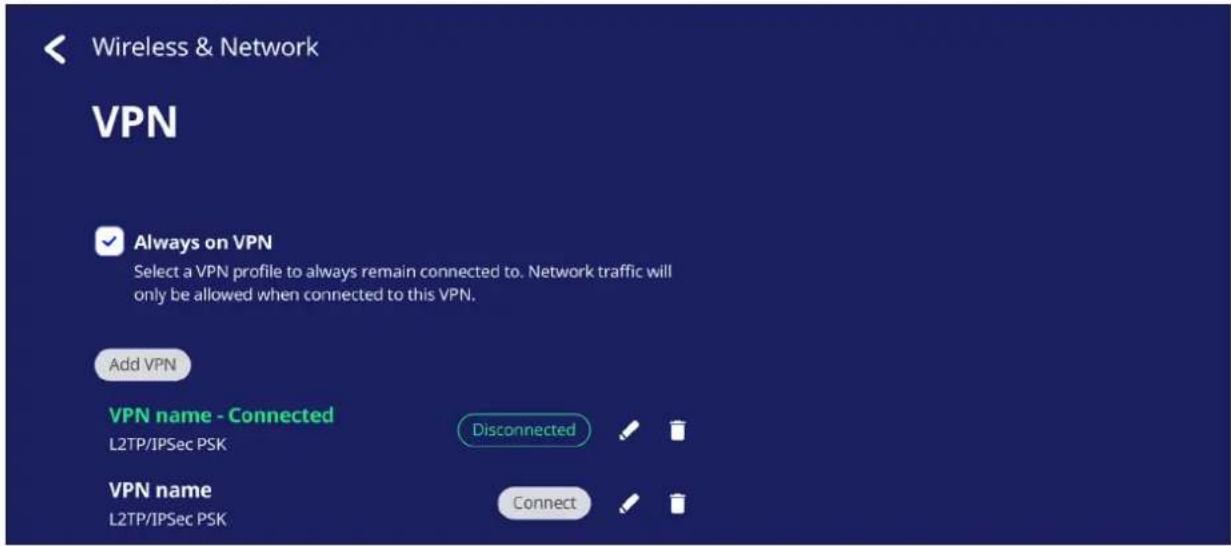

Wireless & Network VPN ✓ Always on VPN Select a VPN profile to always remain connected to. Network traffic will only be allowed when connected to this VPN. Add VPN

1. Key in the Name.

Add VPN profile Name Type

1. Select the VPN Type.

Add VPN profile Name Type PPTP PPTP L2TP/IPSec PSK L2TP/IPSec PSA IPSec Xauth PSK IPSec Xauth RSA IPSec Hybrid PSK Cancel save

1. Choose to enable/disable PPP encryption (MPPE) and/or show Advanced options.

Server address PPP enception(MPPE) Advanced options ^ DNS search domains DNS servers 0.0.0.0 Forwarding routes 0.0.0.0/0 Cancel Save

Share

SAMBA

The SAMBA Service provides file sharing via LAN. When the SAMBA Service is enabled, the user can explore the viewsBoard file system with a PC or mobile equipment.

1. To access, go to: Settings > Share > SAMBA.

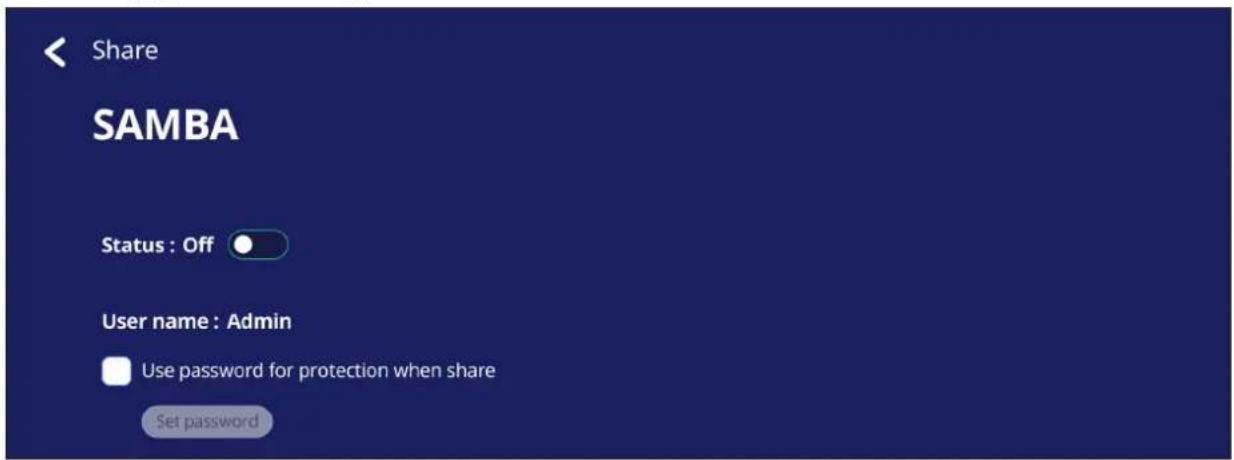

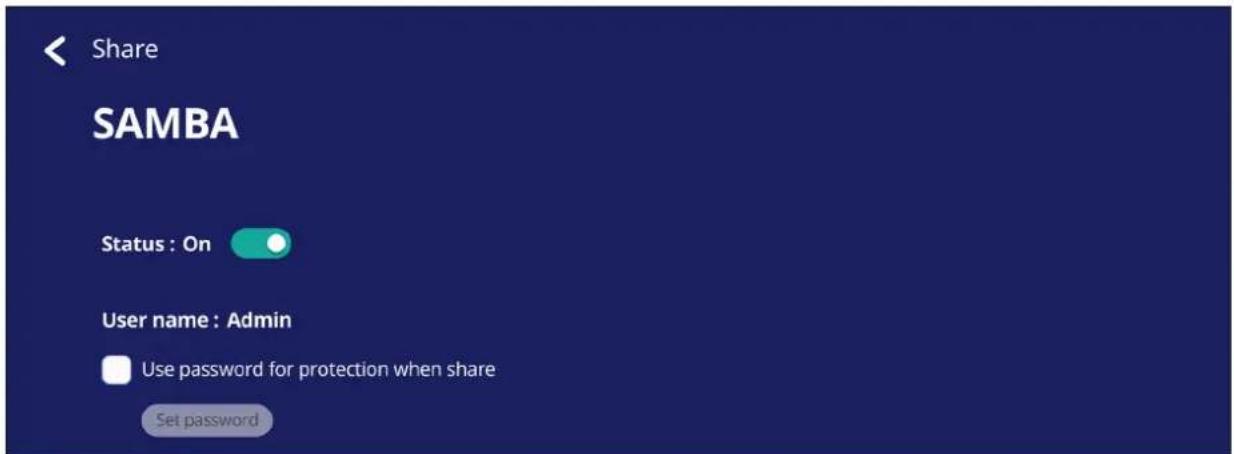

Share SAMBA Status : Off User name : Admin Use password for protection when share Set password

1. Tap the toggle button to enable the SAMBA Service, then set a password if needed.

Share SAMBA Status : On User name : Admin Use password for protection when share Set password

1. Ensure the ViewBoard and client equipment are connected to the same network.
2. Log in to the viewsBoard with the client equipment. Input the viewsBoard's IP address.

Run Type the name of a program, folder, document, or Internet resource, and Windows will open it for you. Open: 172.21.6.60 OK Cancel Browse...

1. Key in the user name and password, then select OK (if necessary).

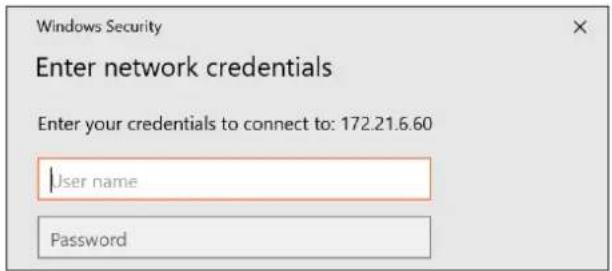

Windows Security Enter network credentials Enter your credentials to connect to: 172.21.6.60 |User name Password

1. After a successful log in, the ViewBoard files will be available.

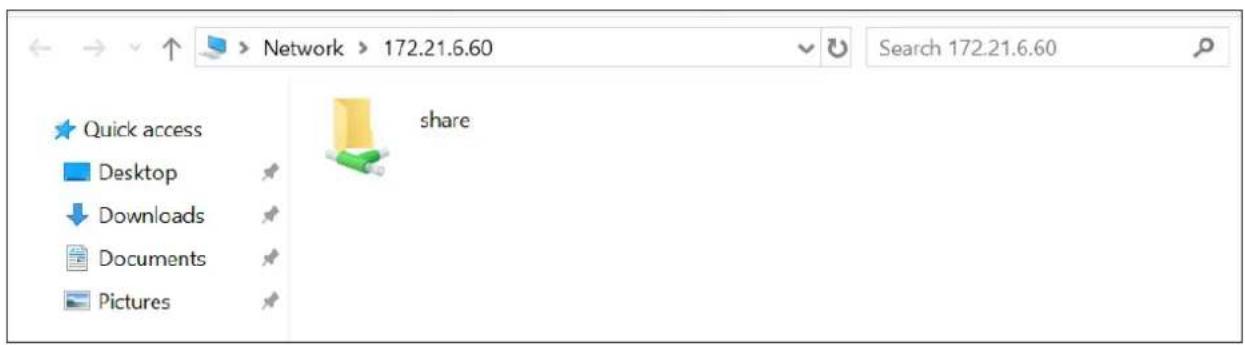

Network > 172.21.6.60 Search 172.21.6.60 Quick access Desktop Downloads Documents Pictures share

Display

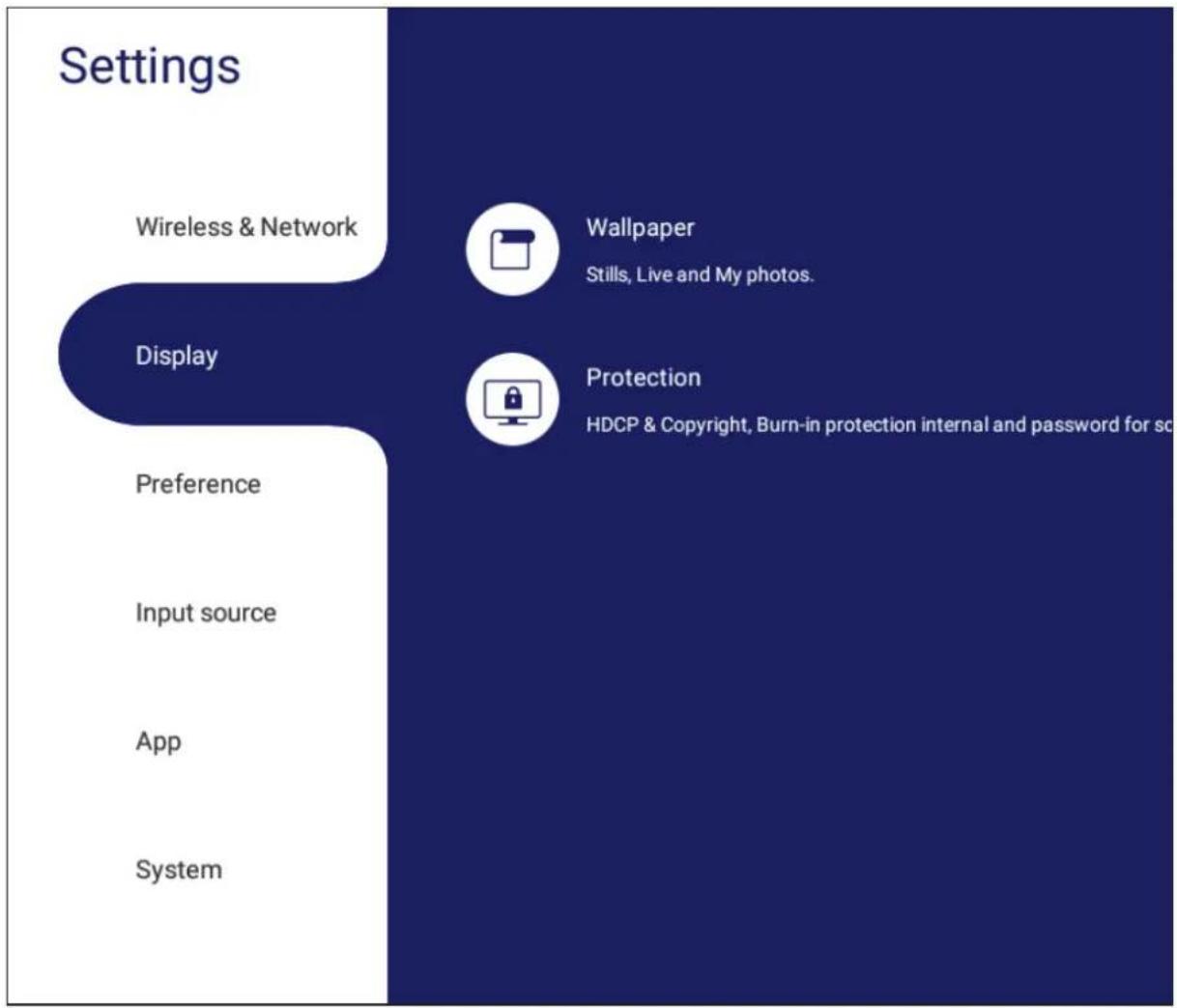

Adjust the Wallpaper, Theme, Display ID, and Protection settings.

Wallpaper

Users can change their wallpaper with default images (both still and live), or

< Display Wallpaper Still Live My Photo Set as wallpaper

< Display Wallpaper Still Live My Photo Set as wallpaper

use their own by tapping My Photo and selecting the image file.

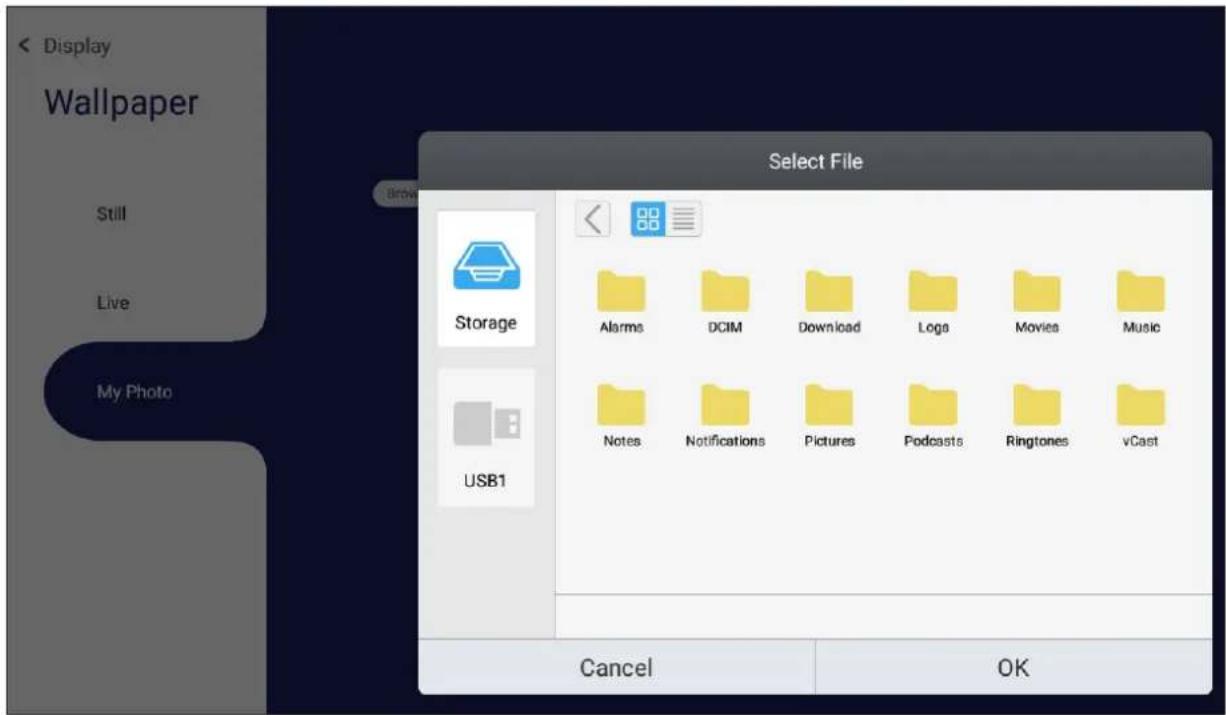

< Display Wallpaper Still Live My Photo Browse Select File Storage USB1 Alarms DCIM Download Logo Movies Music Notes Notifications Pictures Podcasts Ringtones vCast Cancel OK

Protection

Toggle HDCP & Copyright and set a Password for Screen Lock.

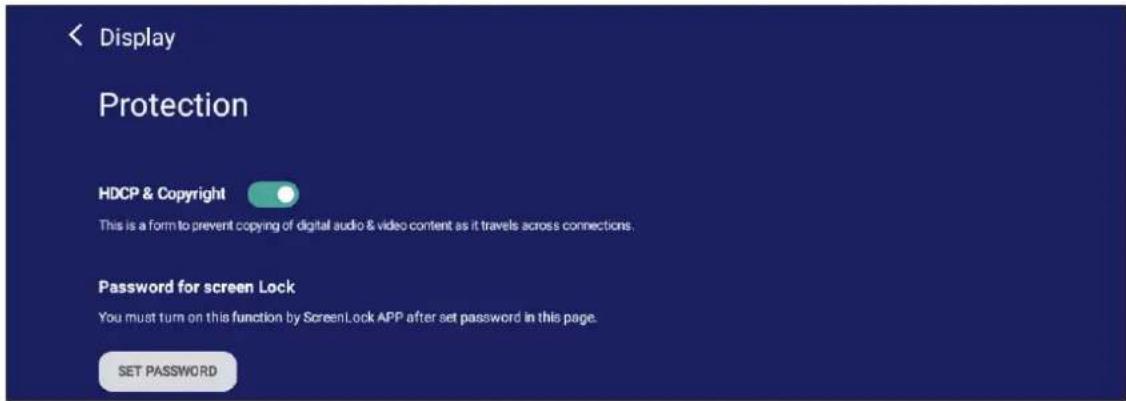

Display Protection HDCP & Copyright This is a form to prevent copying of digital audio & video content as it travels across connections. Password for screen Lock You must turn on this function by ScreenLock APP after set password in this page. Set password

- To set up a password for screen lock, tap Set Password and enter the desired password.

Set up password Confirm password Must between 6-12 characters. Require Letter, Number and Symbol. New password Cancel Confirm

Preference

View and adjust Touch, Language, Keyboard & Input, Date & Time, Boot, and Start up & Shut down settings.

Settings Wireless & Network Display Preference Input source App System Touch Touch sound and Windows Ink. Language Select your preferred language. Keyboard & input method Virtual and current keyboard. Date & time Set Time zone and format. Boot mode & Advanced setting Set the Boot mode, viewsBoard Settings Access Password and Loc Startup & shutdown Set the inputs, standby mode and schedule. Toolbar setting Toolbar setting

Touch

Adjust Touch Settings and toggle Touch Sounds and Windows Ink On/Off.

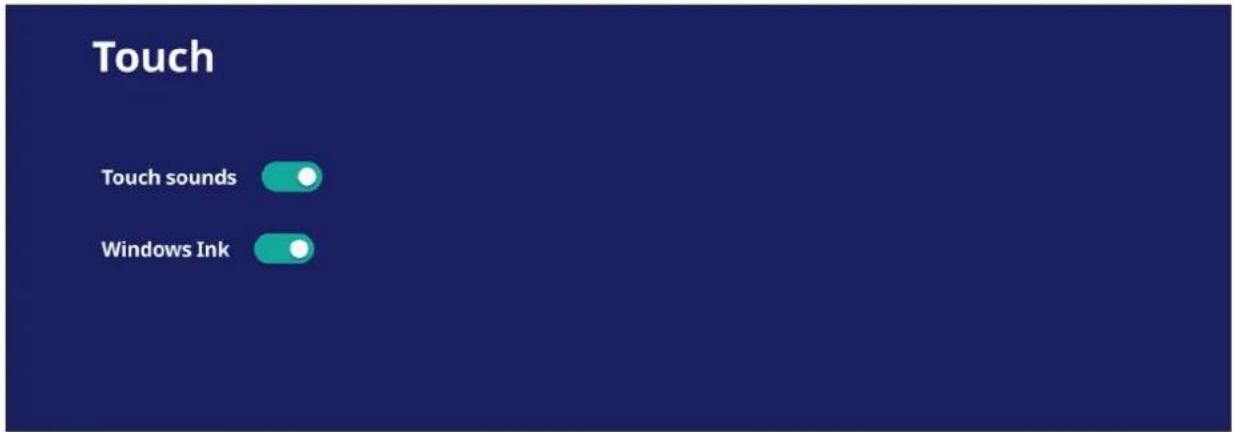

Touch Touch sounds Windows Ink

Language

Adjust and choose the preferred language from the available languages.

Language Choose your language Čeština Deutsch Español Bahasa Indonesia Polski Suomi Tiếng Việt Русский ไทย 中文 (简体) Dansk English Français Norsk bokmål Português Svenska Türkçe العربية 한국어 中文 (繁體)

Keyboard & Input Method

Enable/disable the visual keyboard and/or change the default input method.

Keyboard & input method Show visual keyboard Current keyboard Google Pinyin keyboard - Chinese Settings Player Keyboard (AOSP) Settings

- Tap on Settings to adjust the advanced keyboard settings.

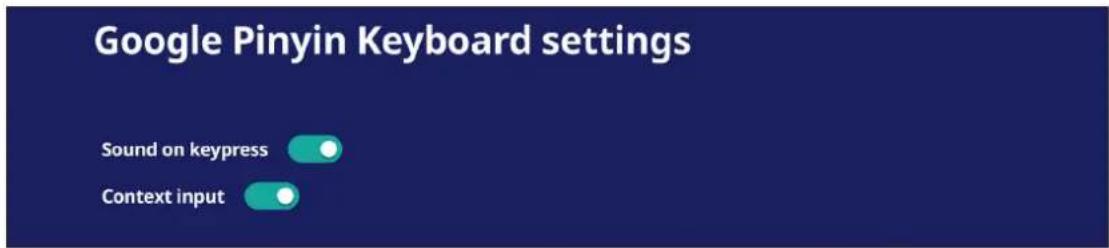

Google Pinyin Keyboard settings Sound on keypress Context input

Player Keyboard settings Language English(US) Preference Auto-capitalization Capitalize the first word of each sentence Sound of keypress Appearance & Layout Enable spilt keyboard Advanced Keypress sound volume Use default - + Key long press delay Use default - +

Date & Time

Set the system time and format.

Date & Time Automatic date & time Use network provided time, 2019/06/30 23:00 Time zone GMT+08:00 Australian Western Standard Time Use 24-hours format 23:00 Data format 02/01/2019 01/02/2019 2019/01/02

Item Description
Automatic Date & Time	When enabled, the viewsBoard will automatically synchronize the date and time via the Internet.
Time Zone	Select the appropriate time zone.
Time Format	Choose from 12-hour or 24-hour time format. Simply toggle 24-hour format On/Off.
Date Format	Select from the available date formats.

Boot Mode

Adjust the preferred boot up mode and set/reset a password.

Boot mode & Advanced setting Normal mode It launches startup programs, fires up all the services configured to start, and loads the hardware drivers you have installed. Secured mode It will remove embedded screen sharing Apps(EX:V-Cast,E-Airplay and Chrome Cast...etc) Disable embedded OS The Embedded OS will be disabled after reboot. ViewBoard Settings Access Password Allow look/unlock the ViewBoard Settings Password for protection Bootmode & Viewboard Settings app Reset password Local File Protections Policy For protect the personal file, the local storage file in Folder app will be deleted automatically that the time of your choice. Always keep file(s) Delete after 1 Day Delete after 1 Hour Delete immediately Color correction Monochromacy Deuteranomaly (red-green) Protanomaly (red-green) Tritanomaly (blue-yellow) Non-ViewBoard OS mode Side tool Bar Setting Set side tool bar on/off for non-ViewBoard OS mode Reset ViewBoard

Item Description
Normal Mode	The embedded screen sharing Apps will run normally.
Secured Mode	The embedded screen sharing Apps will be removed.
Disable Embedded OS	The system will automatically reboot, and then the Embedded OS will not appear.
ViewBoard Settings Access Password	Toggle to lock/unlock the viewsBoard Settings.
Password for Protection	Modify the Boot mode and viewsBoard Settings entry password.
Local File Protection Policy	Choose how long to keep local storage files in the Folder app.
Color Correction	Color correct the viewsBoard display screen.
Non-ViewBoard OS Mode Side Toolbar Setting	Enable the side toolbar for non-ViewBoard OS.
Reset viewsBoard	Rest the viewsBoard to its factory default settings.

Startup & Shutdown

Set the Startup Input, Standby Mode, EnergyStar Mode, Black Screen After Startup, Power off Reminder timer and Schedule settings.

Startup & shutdown Startup input Last shutdown input Default startup input PC Display setting when NO SIGNAL Power off display Turn off panel backlight Standby mode Hibernate Hibernate Mode would turn off panel and whole system. It is allowed to wake up ViewBoard by Power button, remote control and RS232. Sleep Sleep Mode would turn off panel and major function. The operation system is still running when set on Sleep mode. It is allowed to wake up ViewBoard by Power button, remote control ,RS-232 and LAN. EnergyStar mode If the screen idle for one hour, the system will active in Sleep Mode. Black screen after startup The back light will be closed after startup in order to saving power. Time switch Power off reminder Turn on /off Power off reminder Schedule Boot time Off time Add schedule 9:00 AM 6:00 PM Sun, Mon, Tue, Wed, Thu, Fri Every day 8:00 PM 11:00 AM Workday Sun, Mon, Tue, Wed, Thu, Fri 9:00 AM 6:00 PM Mon, Tue, Thu, Fri Every day 9:00 AM 6:00 PM Sun, Mon, Tue, Wed, Thu, Fri Sun, Mon, Tue, Wed, Thu, Fri

Item Description
Startup Input Adjust the	Startup Input preference.
Display Setting when No Signal	Decide what happens to the display when there is no signal for HDMI, PC, or VGA sources.
Standby Mode	Decide what happens when you press the Power button while the viewsBoard is On.
EnergyStar Mode	Enable to automatically initiate Sleep Mode when the screen is idle for one hour.
Black Screen After Startup	When enabled, the viewsBoard will turn off the backlight automatically after booting up.
Time Switch Power Off Reminder	When enabled, the viewsBoard will turn off without any reminder after the scheduled off time.
Schedule	Schedule a Boot and Shut off time.

Toolbar Setting

Adjust the Side toolbar settings.

External input port

Toolbar Setting

Side tool bar setting

Available in all input port sources

Hide in all input port sources

Input Source

Adjust the input source names and settings, as well as the side tool bar settings.

Rename Input Source

Set labels for each input source that will be easily recognized when displayed.

Input source Rename input source Set a label by yourself that can recognize the different input port more easier. Source Showing name ViewBoard ViewBoard HDMI1 HDMI1 HDMI2 HDMI2 HDMI3 HDMI3 VGA VGA

Source

Toggle Wake up by active source, Signal auto search, and HDMI CEC and select Input port auto switch.

Source Wake up by active source The screen will be turn on automatically after plugging in HDMI cable when the screen is turn off. Signal auto search The signal will be searched automatically after plugging in a cable. Input port auto switch The original signal will be switched automatically after plugging a new cable. On Off Manual selection Energy saving There is no signal within in set time,the power will be turned off. 5 Mins HDMI CEC It is a feature of HDMI designed to allow users to command and control devices connected through HDMI by using only one remote control. Player on then display on (Need to set Standby Mode to Sleep first) Display off then player off Player off then display off Display on then player on IR pass through

Item Description
Wake up by Active Source	The screen will turn on automatically after plugging in an HDMI cable when the screen is off.
Signal Auto Search	When enabled, if the current source does not have a signal, the ViewBoard will automatically search for an input source.
Input Port Auto Switch	The original signal will automatically switch to a new cable after it's plugged in.
Energy Saving	Set a time period to power off if no signal is detected.
HDMI CEC	Enable/disable HDMI CEC functions.

App

The user can view App information and force stop, uninstall, move to USB storage, clear data, clear cache, and clear defaults.

NOTE:

• Pre-loaded apps cannot be uninstalled.
• Not all apps support the move to USB storage feature.
  • Not all apps support Clear Defaults.

APP

View any running or installed applications. Tap on them for more detailed information and options.

- By tapping on a running application, you can see more information, stop, or report the application.

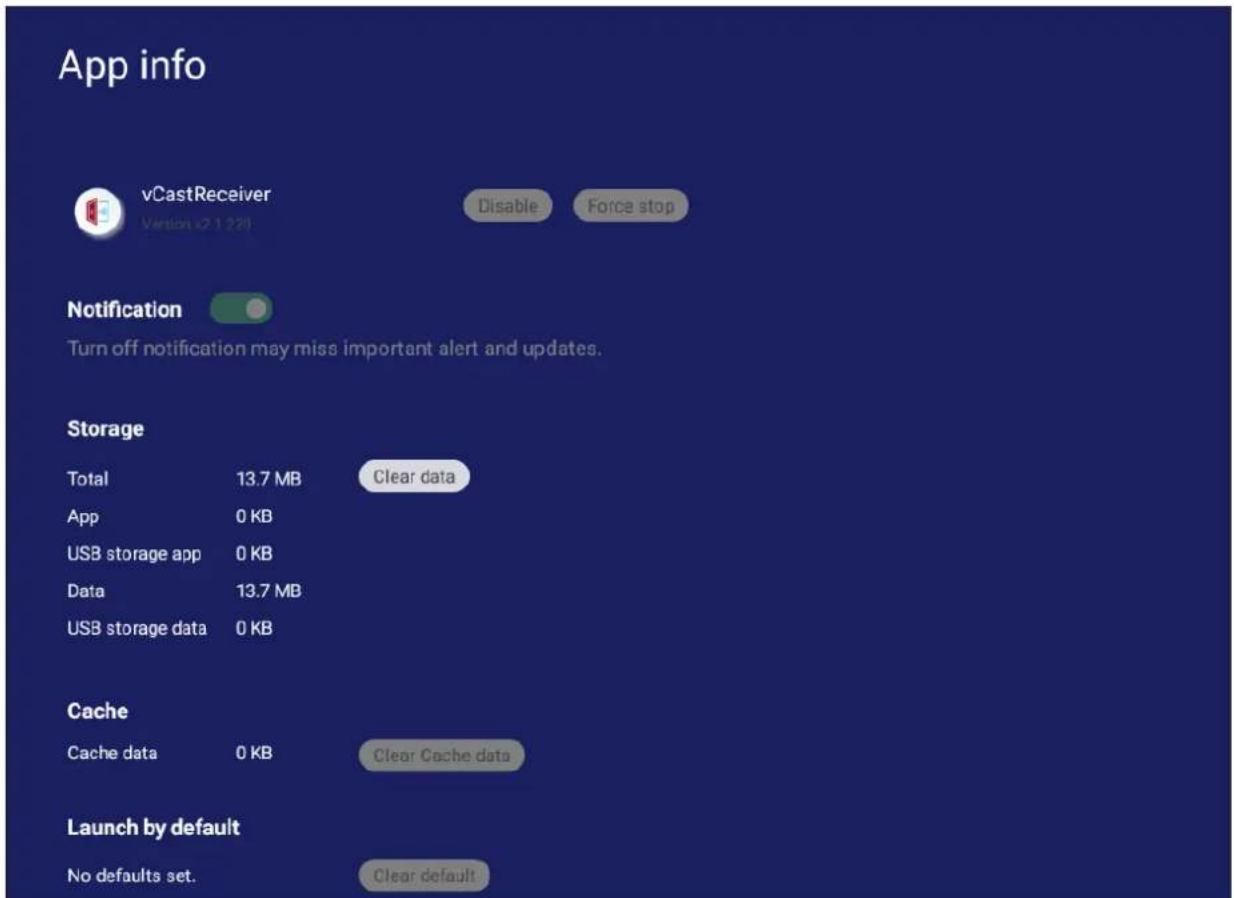

App info vCastReceiver Version v2.1.22# Disable Force stop Notification Turn off notification may miss important alert and updates. Storage Total 13.7 MB Clear data App 0 KB USB storage app 0 KB Data 13.7 MB USB storage data 0 KB

- Selecting All, Download, or USB storage will list all installed applications.

App Running All Download Reset app preferences Sort by name EAirplay 28.3 MB vCastReceiver 13.7 MB Display 8.1 MB CCast 2.2 MB v launcher

- Tapping on any application will display further information and options.

App info vCastReceiver Version v2.1.220 Disable Force stop Notification Turn off notification may miss important alert and updates. Storage Total 13.7 MB Clear data App 0 KB USB storage app 0 KB Data 13.7 MB USB storage data 0 KB Cache Cache data 0 KB Clear Cache data Launch by default No defaults set. Clear default

System

View and adjust Storage, Security, System Update, and About device settings.

Settings

Wireless & Network

Display

Preference

Input source

App

System

Clone to USB

Clone OSD/Setting/Debug menu to USB

Display ID

Set a number for this display.

Security

Set Certificate and unknown source security.

System update

Firmware update information.

About device

Clone to USB

Copy settings to an external USB drive.

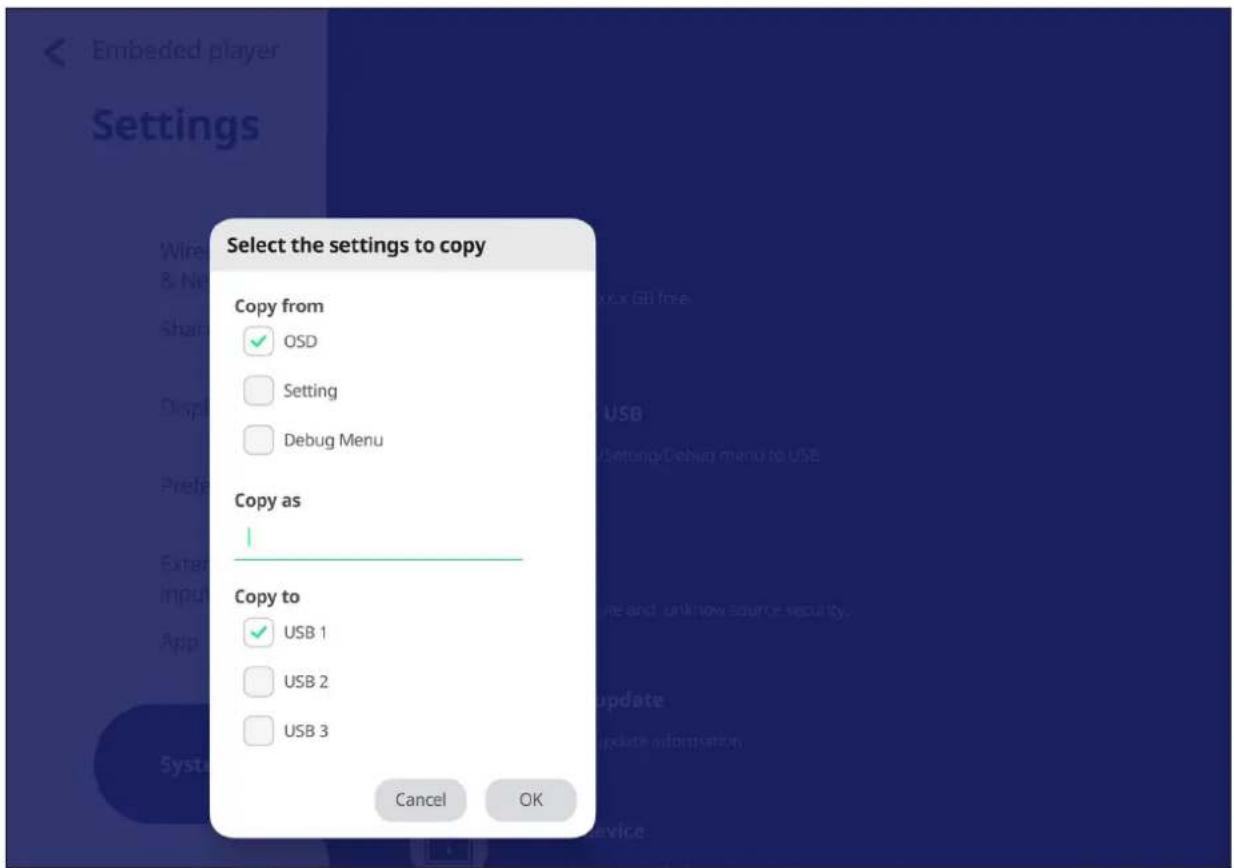

Select the settings to copy Copy from ✓ OSD Setting Debug Menu Copy as Copy to ✓ USB 1 USB 2 USB 3 Cancel OK

Display ID

Assign a number to remote control the display by RS-232/LAN.

Display Display name This feature allows you to assign a number to remote control the display by RS232 /LAN control. Display ID : 1 Change

- To assign or change the Display ID, tap Change and input a number.

Display Display name This feature allows you to assign a number to remote control the display by RS232 /LAN control. Display ID : The number from 1 to 99. Save Cancel 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 WXYZ 0 . >

NOTE: The Display ID is for RS-232 users, and the range is 01\~99.

Security

Review Certificate, Trusted Credential storage, and Unknown sources install settings.

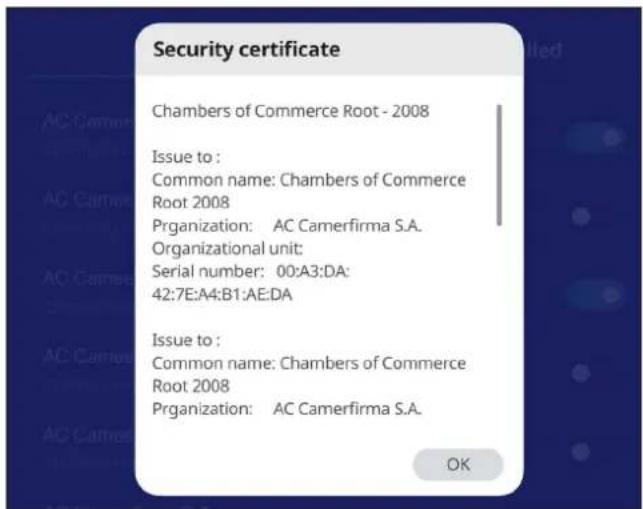

System Security Certificate Install certificate from storage Clear credential Trusted credential Unknown source security Allow installation of apps from unknown sources

- Tap on Install certificate from storage to add additional certificates.

System Security Select File Storage DISK_IMG 2019-03-26 2019-04-17 2019-04-25 1jVEo1...png Download Cancel OK

- Selecting Clear Credentials will remove all manually installed credentials.

Clear credentials This action will remove all credentials which are manual installed. Are you sure to remove all ? Cancel Confirm

NOTE: Pre-loaded credentials cannot be cleared.

• Under Trusted Credentials view and edit all trusted and installed CA certificates.

Security Trusted credential System Manual installed AC Cameefirma S.A. - Security info Chambers of Commerce Root - 2008 AC Cameefirma S.A. - Security info Chambers of Commerce Root - 2008 AC Cameefirma S.A. - Security info Chambers of Commerce Root - 2008 AC Cameefirma S.A. - Security info Chambers of Commerce Root - 2008

- Tapping on a credential will provide more detailed information.

Security certificate Chambers of Commerce Root - 2008 Issue to : Common name: Chambers of Commerce Root 2008 Organization: AC Camerfirma S.A. Organizational unit: Serial number: 00:A3:DA: 42:7E:A4:B1:AE:DA Issue to : Common name: Chambers of Commerce Root 2008 Organization: AC Camerfirma S.A. OK

- Allow the installation of applications from unknown sources by selecting the box under Unknown source security.

Unknown source security

Allow installation of apps from unknown sources

NOTE: Apps from unknown sources may not be compatible or work properly.

System Update

The viewsBoard automatically searches for software updates whenever connected to the Internet (OTA). With just one click, users can update their version of viewsBoard software.

System Update AUTO UPDATE Schedule SET SCHEDULE MANUAL UPDATE Check Update CHECK NOW

Item Description
Auto Update	When the display is off, the system will automatically check for a new version. If a new version is found, the system will automatically update. After the update is complete, the system will turn off.
Schedule	Set the update time.
Manual Update	Update the software manually.

About Device

Display Embedded Player information, Legal information, and Asset Tagging.

Setting About device Asset tagging : Pilotfish 00-372 Edit Legal information > Model number IFF8650 Player version 5.1.1 Kernel version 3.10.0_s5 rel@lip #1 Tue Dec 11 13:06:21 CST 2018 Build number LMY49J release-key

- By selecting Edit, the asset information can be adjusted.

Setting About device Asset tagging : Embedded player Save Cancel Legal information q w e r t y u i o p a s d f g h j k l ✓ z x c v b n m ! ? ?123 ,

- Tap on Legal information to check open source licenses.

About device Legal information Open source licenses > Open source licenses 2 >

> Embedded Applications and Settings

Embedded Digital Whiteboarding App

Within viewsBoard, ViewSonic offers the embedded digital whiteboarding app, myViewBoard.

myViewBoard

Floating Bar

	Move the Floating Bar.
	Switch between presentation and preparation modes.
	Paste from the clipboard onto the canvas.
	Click to open the web browser
	Go to the previous canvas.	1. New myViewBoard File2. Open File3. Save File
	Go to the next canvas.
	Add a new canvas.

Toolbar

	Full Screen Capture
	Toolbar Move Button	Select and hold to move the toolbar to the left side, right side, or bottom of the screen.
	File Button
	1. New myViewBoard File2. Open File3. Save File		4. Save as File5. Export6. Email
	Import resources (image, video, audio, etc.) to the whiteboard.
	Infinite Canvas Button	Select – Use two hands to zoom in/out on/of the working panel.
	Selection Button	Select objects, text, and pictures to get other tools.
	Pen Button	Writing tools, changing colors, transparency, thickness, etc.
	Eraser to erase objects or clear the page.
	Shape/Line Button	Create shapes, select shape colors, insert arrows.

	Text Box Creates a Text box.
	Undo Button Undo previous actions.
	Redo Button Redo previous actions.
	Page Toggle Button	Select pages, sort pages, delete pages.
	Show or hide the current host information.
	Whiteboard background management menu.

ViewBoard Cast

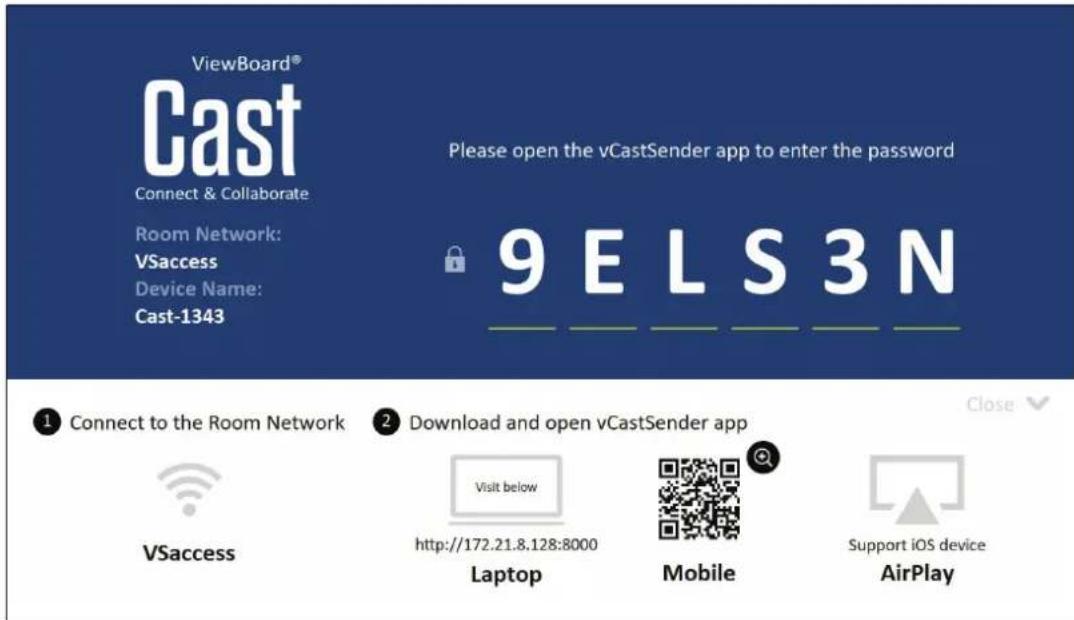

Working with viewsboard® Cast software, the vCastReceiver app, will allow the viewsboard® to receive vCastSender laptop screens (Windows/Mac/Chrome) and mobile (iOS/Android) users' screens, photos, videos, annotations, and camera(s).

ViewBoard® Cast® Connect & Collaborate Room Network: VSaccess Device Name: Cast-1343 Please open the vCastSender app to enter the password 9 E L S 3 N ① Connect to the Room Network ② Download and open vCastSender app Close ▼ VSaccess Visit below http://172.21.8.128:8000 Laptop Mobile Support iOS device AirPlay

Network Information

• ViewBoard® Cast software, laptops, and mobile devices can connect to both the same subnet and across the subnet network.
• Connected devices will show up under "Device List" on the same subnet connection.
• If the device does not show up under "Device List", users will need to key-in the on-screen PIN-code.

ViewBoard Cast is a wireless peer to peer data communication, therefore the below port settings are required:

Ports:

• CP: 56789, 25123, 8121, and 8000
• UDP: 48689 and 25123

Port and DNS activation:

• Port: 8001
  • DNS: h1.ee-share.com

Cast Sender from Windows-based, Macbook, and Chrome devices.

ViewBoard® Cast Connect & Collaborate Room Network: VSaccess Device Name: Cast-1343 Please open the vCastSender app to enter the password LULLUR ① Connect to the Room Network ② Download and open vCastSender app VSSaccess Visit below http://172.21.8.128:8000 Laptop Mobile Support iOS device AirPlay

Mac, Windows, Chrome Devices:

1. Make sure your device is connected to the same network as the viewsBoard.
2. Visit the address that is shown on the viewsBoard to download the application.
3. Launch the application and click the connect icon next to the Device Name.

vCastSender Device List Cast-1343 172.21.8.128 Cast-5551 172.21.10.186 Cast-2256 172.21.8.103 Cast-2745 172.21.10.71 ViewSonic PJ-65... 172.21.10.55 Joe-Yang-T480s 172.21.8.128 V5access

NOTE: If the device is not listed, click Connect with PIN-Code and input the pin-code displayed on the viewsBoard.

Cast Sender from Mobile Devices: iOS-based (iPhone, iPad) and Android OS based phone/tablet.

ViewBoard® Cast Connect & Collaborate Room Network: VSaccess Device Name: Cast-1343 Please open the vCastSender app to enter the password IULVK7 ① Connect to the Room Network ② Download and op VSaccess Visit below http://172.21.8.128:1 Laptop Mobile AirPlay Support iOS device

Android/iOS:

1. Make sure your device is connected to the same network as the viewsBoard.
2. Scan the QR Code that is shown on the viewsboard to download directly from the server, or download from the Google Play Store or the Apple Store.
3. Launch the application and select the correct Device Name and input the pin to connect. You can also directly input the pin-code displayed on the viewsBoard to connect.

Apple AirPlay®:

1. Make sure your device is connected to the same network as the viewsBoard.
2. Directly open AirPlay and select the Device Name to connect.

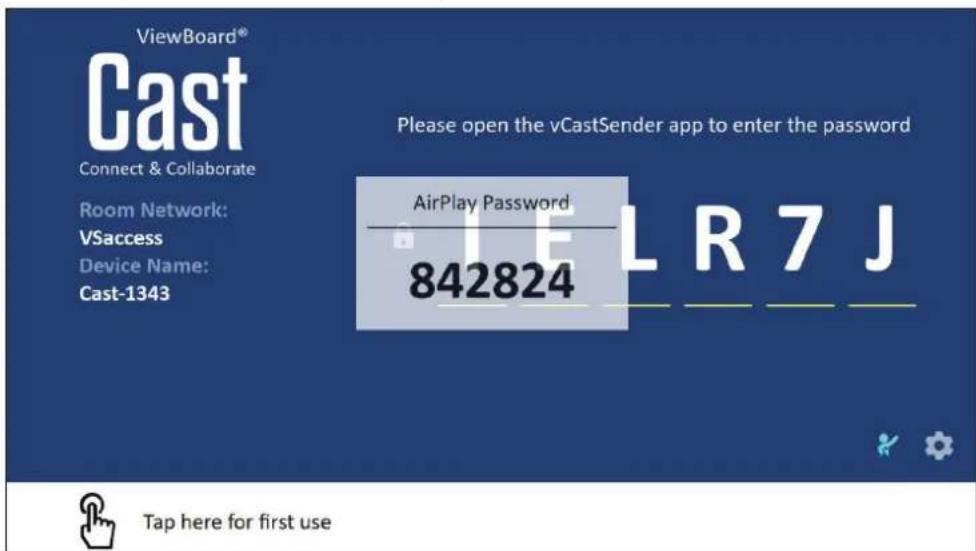

3. Another "AirPlay Password" will be generated on-screen for connection.

ViewBoard® Cast Connect & Collaborate Please open the vCastSender app to enter the password Room Network: VSaccess Device Name: Cast-1343 AirPlay Password 842824 L R 7 J Tap here for first use

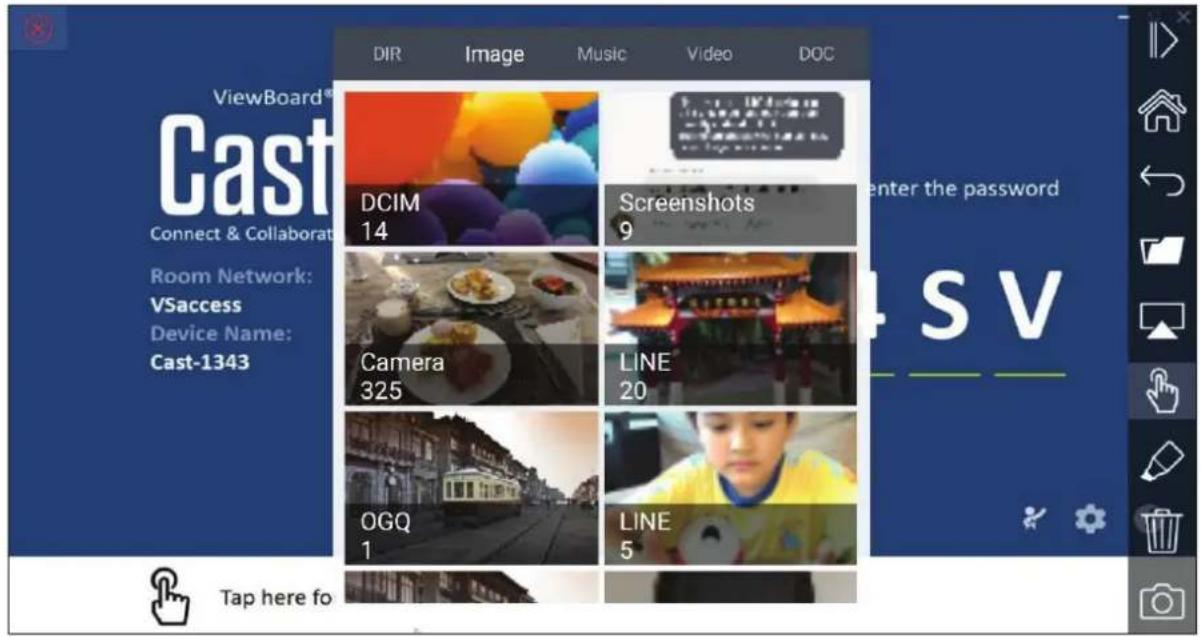

Cast Out from a Mobile Device that Supports Annotation

ViewBoard® Cast Connect & Collaborat Room Network: VSaccess Device Name: Cast-1343 DCIM 14 Screenshots 9 Camera 325 LINE 20 OGQ 1 LINE 5 Tap here fo enter the password SV

Item Description
	Toggle	Click to hide or display tool bar
	Home	Click to return to the Home interface
	Return	Click to return to previous operation interface
	Folder	Click to view or open the mobile device's internal file
	Screen sharing	Click to share screen(Android 5.0 and above supported)
	Touch	Click to change to touch mode
	Pen	Click to make annotations, and to change color and thickness
	Clear	Click to clear everything on the screen
	Camera	Click to use the camera and send the image to the viewsBoard

Screen Recorder

Capture everything that is displayed on screen in a video format.

Preview ViewBoard 02:10 Interaction at your fingertips Thursday 2020-04-09 Browser vCashReceiver myViewBoard ViewSonic

To launch the Screen Recorder application:

1. Select the Screen Recorder icon in the application drawer.
2. Tap the record icon 📄 and select the preferred recording configurations. Then tap the check mark.

Recording configurations Set your desired video resolution ● Current Screen Resolution (1920 x 1080) ● 1280x720(HD) Select a storage location for temporary files generated during recording. ● Internal Storage

1. Select Start Now and a three (3) second countdown will begin. Screen recording will begin immediately after the countdown.
2. After stopping the recording, you will be able to preview the video, save it, or discard it.

Air Class

Display quiz questions on the viewsBoard and allow up to 30 mobile users to submit answers remotely. Whether deploying single or multiple choice questions, the viewsBoard will record the results for each device being used.

Air Class

Network Information

• PC (Windows/Mac/Chromebook) and tablet/mobile (iOS/Android) devices, as well as the ViewBoard need to be linked to the same LAN network subnet.
• Ports: TCP 8080

To launch Air Class:

1. Tap the tool bar trigger icon and select the more tools icon. Then select the Air Class icon.
2. Select "Enter the class".

ViewBoard 2:12 PM Letter Learning Within Reach vset vCastReceiver myViewBoard Scan the QR code to join (0 of users have already joined) Type http://172.21.8.32:4860 instead of scanning (Please make sure that you are in the same LAN network) Enter the class Exit

1. Choose from the available interactive functions at the bottom of the screen.

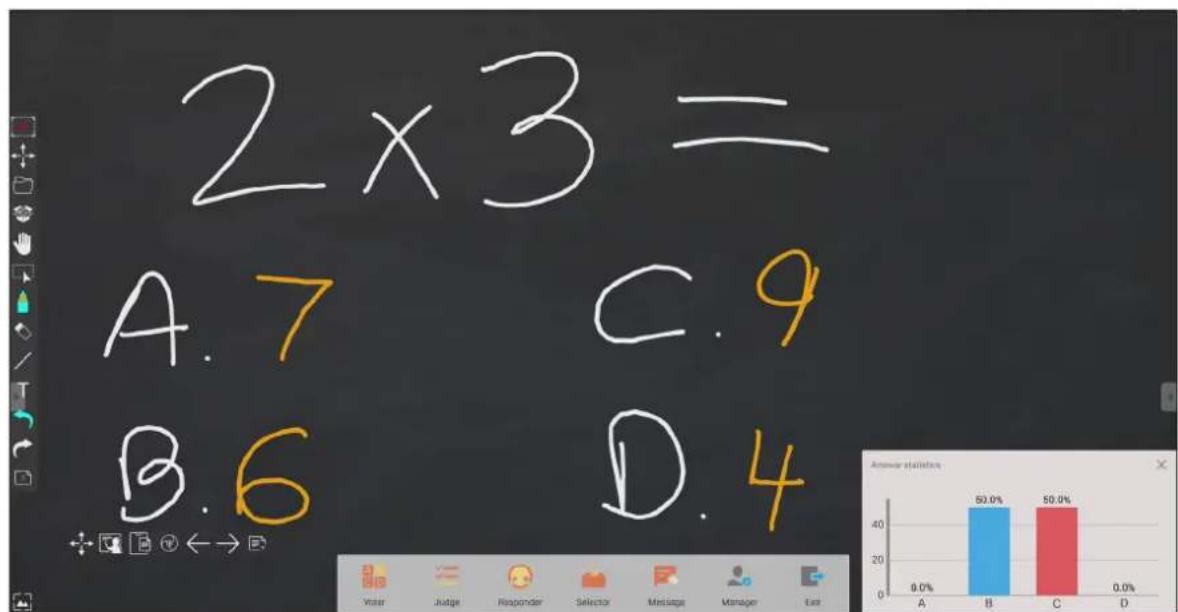

Voter Judge Responder Selector Grouping Message Manager Exit

Item Description
	Voter	Single and Multiple choice questions.
	Judge	True/False questions.
	Responder	Race to answer first.
	Selector	Randomly select a participant.
	Grouping	Assign participants to groups.
	Message	Allow/Deny participants to direct message the ViewBoard.
	Manager	Add participants.
	Exit	Exit Air Class.

Voter

1. Select the Single choice or Multiple choice icon to select the preferred answer type.

Single choice

Multiple choice

1. Tap BEGIN VOTING to let the participants start.

00:00

BEGIN VOTING

1. After the participants are finished and press OK, the viewsBoard will show the participant's name on screen.

2 / 2 Bob Jimmy

1. Tap FINISH VOTING to close the quiz.

00:24

FINISH VOTING

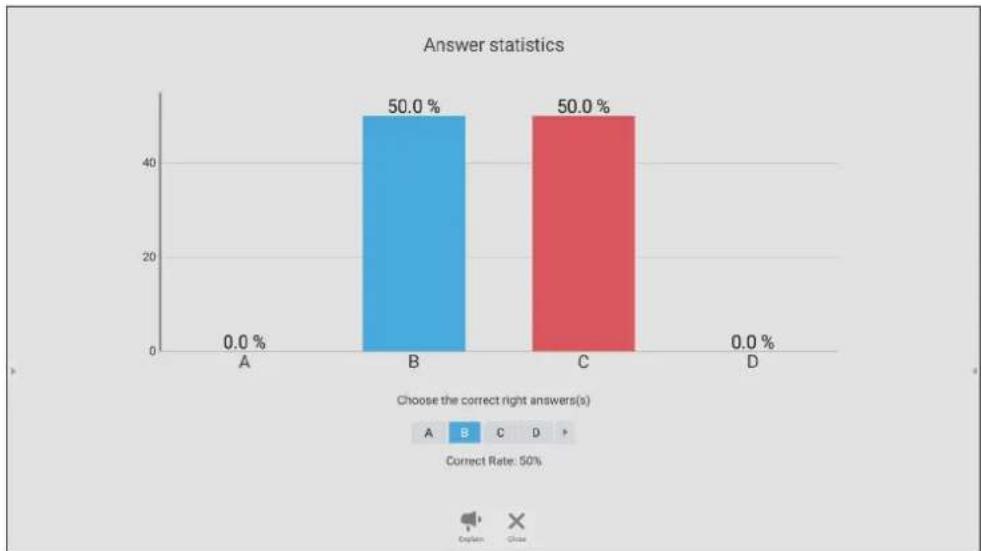

1. Then the participants' "Answer Statistics" will be displayed.

1. Choose the right answer to show the correct rate.

1. Click the Explain icon ( ) to further analyze the topic.

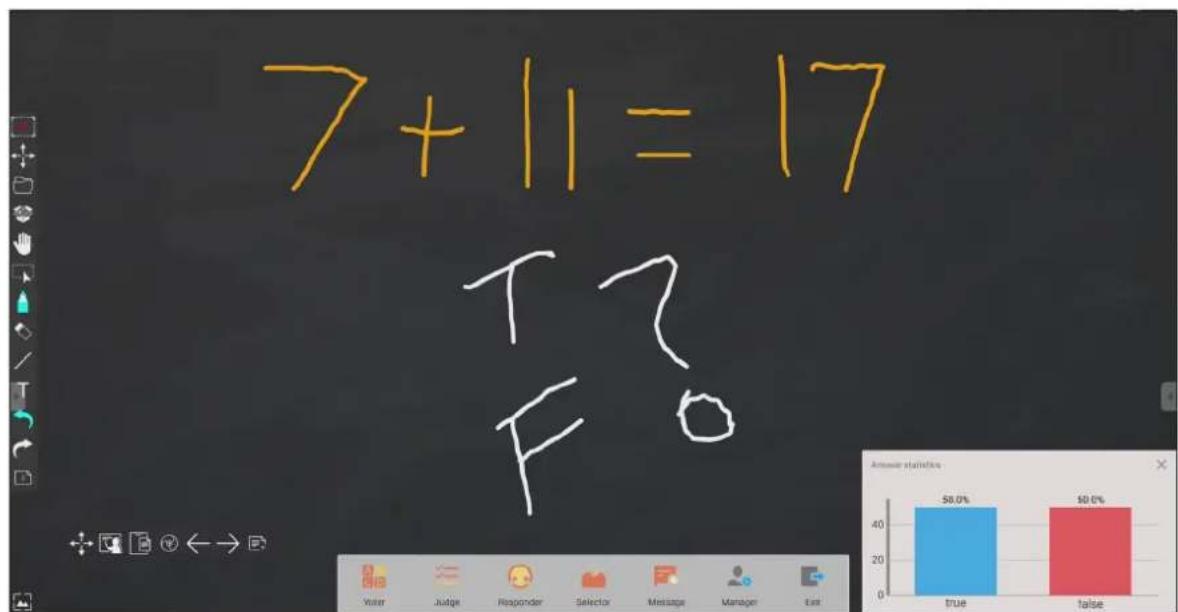

Judge

1. Tap BEGIN VOTING to let the participants start a True/False questionnaire.

00:00 BEGIN VOTING

1. After the participants are finished and press OK, the viewsBoard will show the participant's name on screen.

2 / 2 Bob Jimmy

1. Tap FINISH VOTING to close the quiz.

00:24 FINISH VOTING

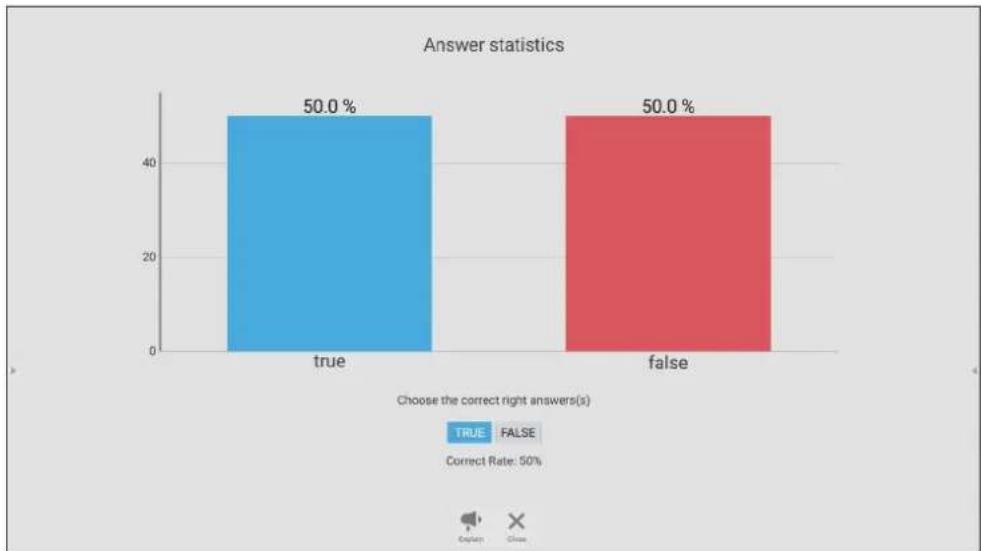

1. Then the participants' "Answer Statistics" will be displayed.

1. Choose the right answer to show the correct rate.

1. Click the Explain icon ( ) to further analyze the topic.

Responder

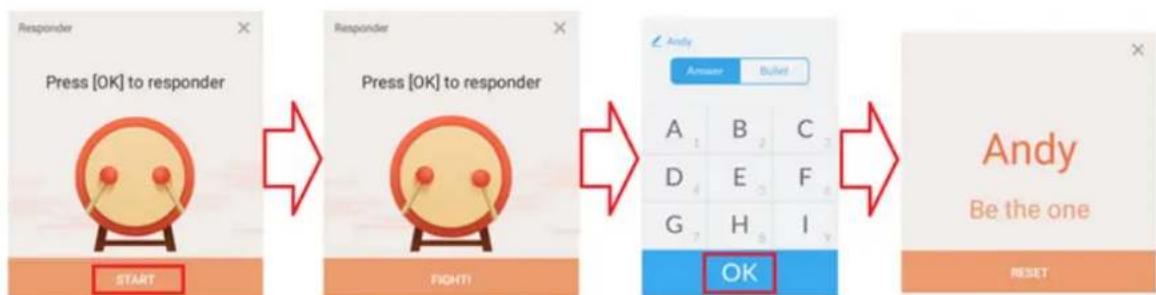

Participants race to select their answer and tap OK to submit their answer.

Selector

1. Select the "Selector" icon.
2. Set the number of participants to be selected.

Set person(s). Up to 2 - 2 + START

NOTE: The number of participants that can be selected will be based on the total number of participants.

1. Tap START to start the random selection.

Selector Selecting...

1. The selected participant's name will then be displayed.

Bob Selected Reset

Grouping

Select the icon to assign participants to groups.

Message

To allow messaging:

1. Tap the "Message" icon to enable the function.

2. Participants select "Message" to change to the message interface.

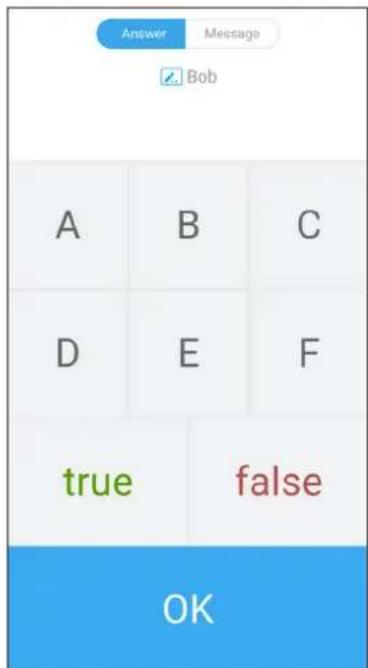

Answer Message Bob A B C D E F true false OK

Answer Message Bob You can only send messages if message function is turned on SEND

1. Participants key in their message then select SEND.

Hola SEND

1. The message will scroll across the top of the viewsboard.

Manager

Select the icon to let more participants join the class.

Exit

Select to exit the Air Class interface.

Other Default Applications

vSweeper

Clear unnecessary data and unwanted files.

Click to Sweep One click to clear memory and unwanted files Welcome to vSweeper

Advanced Settings can also be customized to the user's needs.

Main Preference Clear all Auto clear all junk files when the app starts Exit after clearing Exit after the clear button is clicked and the clean up has completed Auto Clear Auto clear interval Automatically clear all caches Auto clear on boot Automatically clear caches on system startup Auto Clear Interval No auto clear 1 day 1 hour 2 days 3 hours 1 week 6 hours 12 hours Advanced Settings

Screen Lock

Set a screen lock password and enable screen lock.

NOTE: If the user forgets the password, use the remote control and press INPUT-0-2-1-4 to restore the password to default.

To set a screen lock password:

1. Go to: Settings > Personal > Password for screen lock, or select the Screen Lock icon in the apps list.

NOTE: If you select the Screen Lock icon and no password has been set, the below prompt will appear:

Set password No password set, Would you like to set one now? Cancel Set password

1. Select Set Password, and input a new four (4) digit password. Then select OK.

Display Protection HDCP & Copyright This is a form to prevent copying of digital audio & video content as it travels across connections. Password for screen Lock You must turn on this function by ScreenLock APP after set password in this page. SET PASSWORD

1. Now when selecting the Screen Lock icon, the screen will be locked.

Please submit the backboard 1 2 3 4 5 6 7 8 9 0 OK

Chromium

Web browser for surfing the Internet.

New tab Search or type URL Google C The Chromium... Chromium Code Review... Git Repos- Stories on ch... G F Freemode G GitHub Page of the ... Chrome Flags G Chrome Open Service Pro... C C G C C Chrome Version

Folders

Folders 1 3 All Doc Note Picture Media Storage 2017-11-35.png 2017-11-01-16-27-35.png 2017-11-01-16-27-35.png Dimension: 1920x1083 Size: 324 x738 Time: 2017/1/01

1. Storage Device Display

Select the appropriate storage device.

2. Icons

Item Description
	Exit	Click to exit.
	Sort	Click to sort file.
	Thumbnail	Click to display file by thumbnail mode.
	List	Click to display file by list mode.
	Select	Click to select file.
	Add folder	Click to add folder.
	Copy	Click to copy file.
	Paste	Click to paste file.
	Cut	Click to cut file.
	Delete	Click to delete file.
[SCCS]	Rename	Click to rename file.
	More	Click to show more functions.

3. File Type Menu

Item Description
All	All types
Doc OFFICE files
Note	Image stored by myViewBoard, Side Tool Bar, and remote control Screen Capture button.
Picture Image files
Media Audio and	Video files

4. File Information

Preview the image, show the image's name, size, resolution, and creation date.

5. Main Display Area

Display files of corresponding type.

Miracast

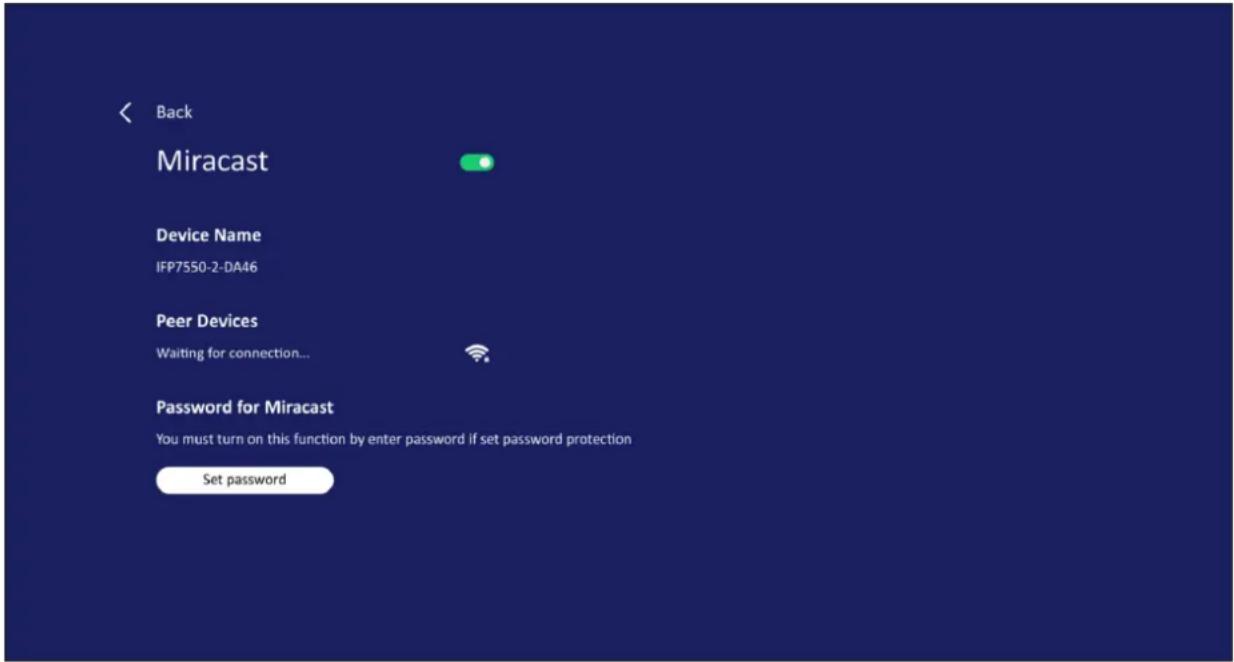

Miracast allows for wireless sharing of multimedia and screens of connected devices.

Back Miracast Device Name IFP7550-2-DA46 Peer Devices Waiting for connection... Password for Miracast You must turn on this function by enter password if set password protection Set password

NOTE: There may be some compatibility issues related to the sender's hardware driver and operating system (OS).

> RS-232 Protocol

This document describes the hardware interface spec and software protocols of RS-232 interface communication between ViewSonic LFD and PC or other control units with RS-232 protocol.

The protocol contains three command sections:

• Set-Function
• Get-Function
• Remote control pass-through mode

NOTE: Below, "PC" represents all the control units that can send or receive the RS-232 protocol command.

Description

RS-232 Hardware Specification

ViewSonic LFD communication port on the rear side:

1. Connector type: DSUB 9-Pin Male (or 3.5 mm barrel connector)
2. Use of crossover (null modem) cable for connection
3. Pin Assignment:

Female DSUB 9-Pin

54321

9876

Male DSUB 9-Pin

12345

6789

3.5 mm barrel connector (alternative for limited space)

Pin # Signal Remark
1 NC
2 RXD Input to Display
3 TXD Output from Display
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC	Provide +5V/2A power for external specific dongle *3.0
frame GND

Item	Signal	Remark
Tip	TXD	Output from Display
Ring	RXD	Input to Display
Sleeve	GND

LAN Hardware Specification

ViewSonic LFD communication port on the rear side:

1. Connector type: 8P8C RJ45
2. Pin Assignment:

Pair 4 Pair 1 Pair 2 Pair 3 1 2 3 4 5 6 7 8

Pin #	Signal	Remark
1	TX+	Output from Display
2	TX-	Output from Display
3	RX+	Input to Display
4	BI_D3+	For 1G case
5	BI_D3-	For 1G case
6	RX-	Input to Display
7	BI_D4+	For 1G case
8	BI_D4-	For 1G case
frame		GND

RS232 Communication Setting

• Baud Rate Select: 9600bps (fixed)
• Data bits: 8 bits (fixed)
• Parity: None (fixed)
• Stop Bits: 1(fixed)

LAN Communication Setting

• Type: Ethernet
• Protocol: TCP/IP
• Port: 5000 (fixed)
• Cross subnet: No
• Logon Credentials: No

Command Message Reference

PC sends to LFD command packet followed by "CR". Every time PC sends control command to Display, the Display shall respond as follows:

1. If the message is received correctly it will send “+” (02Bh) followed by “CR” (00Dh)
2. If the message is received incorrectly it will send “-” (02Dh) followed by “CR” (00Dh)

Protocol

Set-Function Listing

The PC can control the Display for specific actions. The Set-Function command allows you to control the Display behavior at a remote site through the RS-232 port. The Set-Function packet format consists of 9 bytes.

Set-Function Description:

Length: Total Byte of Message excluding "CR"

LFD ID Identification for each of Display (01\~98; default is 01) ID "99" means to apply the set command for all connected displays. Under such circumstances, only ID#1 display has to reply. The LFD ID can be set via the OSD menu for each Display.

Command Type Identify command type, "s" (0x73h): Set Command "+" (0x2Bh): Valid command Reply "-" (0x2Dh): Invalid command Reply

Command: Function command code: One byte ASCII code.

Value[1\~3]: Three bytes ASCII that defines the value.

CR 0x0D

Set-Function Format

Send: (Command Type="s")

Reply: (Command Type="+" or "-" )

NOTE: When PC applies command to all displays (ID=99), only the #1 set needs to reply by the name of ID=1.

Example 1: Set Brightness as 76 for Display (#02) and this command is valid Send (Hex Format)

Name	Length	ID	Command	Type	Command	Value1	Value2	Value3	CR
Hex	0x38		0x300x32		0x73	0x24	0x30	0x37	0x36	0x0D

Reply (Hex Format)

Name Length ID Command Type CR
Hex	0x34	0x300x32	0x2B	0x0D

Example 2: Set Brightness as 75 for Display (#02) and this command is NOT valid Send (Hex Format)

Name	Length	ID	Command Type	Command	Value1	Value2	Value3	CR
Hex 0	x38 0x30	0x32	0x73 0x24	0x30	0x37	0x35 0x0	D

Reply (Hex Format)

Name Length ID Command Type CR
Hex	0x34	0x300x32	0x2D	0x0D

Set-Function Table

A. Basic Function

Set Function	Length ID	Command	Command	Value Range	Comments
			Type (ASCII)	Code(ASCII)	Code(Hex)	(Three ASCIIbytes)
Power on/off(standby)	8 s ! 21	000:	STBY			001: ON
Input Select 8 s	" 22 000: TV					001: AV002: S-Video003: YPbPr004: HDMI1014: HDMI2024: HDMI3034: HDMI4005: DVI006: VGA1016: VGA2026: VGA3007: Slot-in PC(OPS/SDM)/HDBT008: Internalmemory009: DP00A: Embedded/Main (Android)
Brightness 8 s		$	24 000 ~ 100			900: Bright down(-1)901: Bright up (+1)*3.1.1
Backlight*3.2.0	8		A	B	42	000 ~ 100
Power lock	8		s	4	34	000: Unlock001: Lock
Volume	8 s		5	35 000 ~ 100		900: Volumedown(-1)901: Volume up(+1)
Mute	8		s	6	36	000: OFF001: ON (mute)
Button lock 8 s	8 38 000: Unlock				001: Lock	*See note in details
Menu lock 8 s >	3E 000: Unlock				001: Lock	*See note in details
Number *3.1.1 8 s	@ 40 000~009
Key Pad *3.1.1 8 s	A 41 000: UP				001: DOWN002: LEFT003: RIGHT004: ENTER005: INPUT006: MENU/(EXIT)007: EXIT
Remote Control	8 s B 42 000: Disable				001: Enable002: Pass through	Disable: RCU will be no functionEnabled: RCU controls normallyPass through:Display will bypass the RC code to connected device via the RS-232 port, but not react itself.
Restore default 8	s ~ 7E	000	Recover to factory			setting

NOTE:

1. Behavior at Lock Modes

Lock Mode	Behavior
Button Lock	1. Lock all buttons on the front panel and RCU, except for “Power”2. All the SET functions should be workable via RS-232, even the ones with according hot key in RCU like Mute,...etc.
MENU Lock	1. Lock “MENU’ key of front panel and RCU2. The Factory and Hospitality modes should not be blocked for the model using MENU-combined key to enter these two modes. Alternative approach will be indicated separately if any limitation by model.
POWER Lock	1. Lock “POWER” key on the front and RCU.2. The SET_POWER on/off should be workable via RS-232, but does not mean the POWER lock will be released under this case.3. Can not be unlocked by reset in OSD setting4. Will auto AC power-on in power-lock5. Under power-lock, the set will not enter power saving when no PC signal and neither not turn off when no other video signals after 15 minutes.
Remote control disable	Lock the RCU keys, but keep the front panel buttons workable.

2. Wake-on-LAN by MAC address as alternative for SET Power on

(Length=126 Bytes)

6 Bytes	6 Bytes (#1)	6 Bytes (#2)	...	6 Bytes (#16)	24 Bytes
0xFF FF ... FF	MAC address	MAC address	...	MAC address	0x00 00 ... 00

B. Optional Function

Set Function Length ID Command Command Value Range Comments
			Type (ASCII) Code (ASCII)	Code (Hex) (Three ASCII bytes)
Contrast 8 s #	23 000 ~ 100
Sharpness 8 s	% 25 000 ~ 100
Color 8 s	& 26 000 ~ 100
Tint	8 s		‘ 27 000 ~ 100
Backlight On_Off	8 s		( 29 000: Off		001: On
Color mode	8 s		) 29 000: Normal		001: Warm002: Cold003: Personal
Surround sound	8		s -	2D	000: OFF001: ON
Bass	8		s .	2E	000 ~ 100
Treble	8 s		/ 2F 000 ~ 100
Balance	8 s 0		30 000 ~ 100 050 is central
Picture Size 8 s	1	31	000: FULL (16:9)		001: NORMAL (4:3)002: REAL (1:1)*3.1.0
OSD language	8 s 2		32 000: English		001: French002: Spanish	Could be extended for more supported languages by model
PIP-Mode	8 s 9		39 000: OFF		001: PIP(POP)002: PBP
PIP-Sound select	8 s		: 3A 000: Main		001: Sub
PIP-Position	8		s ;	3B	000: Up001: Down002: Left003: Right
PIP-Input	8		s 7	37 *2.9	000: TV001: AV002: S-Video003: YPbPr004: HDMI1014: HDMI2024: HDMI3034: HDMI4005: DVI006: VGA1016: VGA2026: VGA3007: Slot-in PC (OPS/SDM)/HDBT008: Internal memory009: DP00A: Embedded/Main (Android)	Value range is same as SET-Input select

Tiling-Mode 8 s	P 50 000: OFF					001: ON	(for video wall)
Tiling-Compensation	8 s Q 51 000: OFF					001: ON	(for video wall)Bezel width compensation
Tiling-H by V Monitors	8 s R 52 01x~09x: H					0x1~0x9: V	(for video wall)1. 2nd digital for H monitors2. 3rd digital for V monitors
Tiling-Position 8 s	S 53 001~025 (for Video wall)						Copy the screen of Position# to identified display
Date: Year 8 s	V 56 Y17~Y99 Last 2 digits						(20)17~(20)99
Date: Month 8 s	V 56 M01~M12 2 digits
Date: Day 8 s	V 56 D01~D31 2 digits
Time: Hour	8	s	W	57	H00~H23	24-hr format. 2 digits.
Time: Min 8 s	W	57	M00~M59 2 digits
Time: Sec	8 s	W	57 S00~S59 2 digits

NOTE:

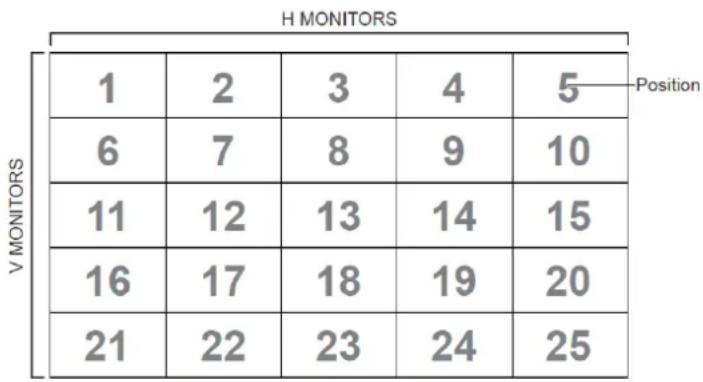

1. Tiling definition of H Monitors, V Monitors, and Position

2. Set Date example

Date: 2017-3/15

Send: 0x 38 30 31 73 56 59 31 37 0D ("Y17")

Send: 0x 38 30 31 73 56 4D 30 33 0D ("M03")

Send: 0x 38 30 31 73 56 44 31 35 0D ("D15")

3. Set Time example

Time: 16:27:59

Send: 0x 38 30 31 73 57 48 31 36 0D ("H16")

Send: 0x 38 30 31 73 57 4D 32 37 0D ("M27")

Send: 0x 38 30 31 73 57 53 35 39 0D ("S59")

Get-Function Listing

The PC can interrogate the LFD for specific information. The Get-Function packet format consists of 9 bytes which is similar to the Set-Function packet structure. Note that the "Value" byte is always = 000.

Get-Function Description:

Length: Total Byte of Message excluding "CR".

TV/DS ID Identification for each of TV/DS (01\~98; default is 01).

Command Type Identify command type, "g" (0x67h) : Get Command "r" (0x72h) : Valid command Reply "-" (0x2Dh) : Invalid command Reply

Command: Function command code: One byte ASCII code.

Value[1\~3]: Three bytes ASCII that defines the value.

CR 0x0D

Get-Function Format

Send: (Command Type="g")

Reply: (Command Type="r" or "-" )

If the Command is valid, Command Type = "r"

If the Command is NOT valid, Command Type = “-”

Example 1: Get Brightness from TV-05 and this command is valid. The Brightness value is 67.

Send (Hex Format)

Name	Length	ID	Command	Type	Command	Value1	Value2	Value3	CR
Hex	0x38		0x300x35		0x67	0x62	0x30	0x30	0x30	0x0D

Reply (Hex Format)

Name	Length	ID	Command	Type	Command	Value1	Value2	Value3	CR
Hex	0x38		0x300x35		0x72	0x62	0x30	0x36	0x37	0x0D

Example 2: Get Color from Display (#05), but the Color command is not supported by this model.

Send (Hex Format)

Name	Length	ID	Command Type	Command	Value1	Value2	Value3	CR
Hex 0x38		0x300x35	0x67 0x26	0x30	0x30	0x30 0x0D

Reply (Hex Format)

Name	Length	ID Command Type		CR
Hex	0x34	0x300x35	0x2D	0x0D

Get-Function Table

A. Basic Function

Get Function	Length ID	Command Command				Response Range	Comments
			Type (ASCII) Code (ASCII)	Code (Hex)	(Three ASCII bytes)
Get-Brightness 8	g b 62 000	~ 100
Get-Backlight*3.2.0	8 a B	42 000	~ 100 1. For Android				platform whose main mode is controlled by backlight and the other sources are controlled by brightness.2. Derived from Color calibration.*3.2.0
Get-Volume 8 g f		66 000	~ 100
Get-Mute	8 g g	67	000: Off			001: On (muted)
Get-Input select	8		g	j	6A	000~100~	1. 1st digit for signal detection: 0 means "no signal"; 1 means "signal detected"2. 2nd &3rd digit: See Set-function table
Get-Power status: ON/ STBY	8 g		I 6C	001: ON		000: STBY
Get-Remote control	S		g	n	6E	000: Disable001: Enable002: Pass through	Get RCU mode status
Get-Power lock	8 g o	6F	000: Unlock			001: Lock
Get-Button lock	8 g p	70 000: Unlock				001: Lock
Get-Menu lock	8 g		I 6C	000: Unlock		001: Lock
Get-ACK	8		g	z	7A	000	This command is used to test the communication link
Get-Thermal	8 g 0	30	000~100:			0~+100 deg C-01~-99:-1~-99 deg C
Get-Operation time*3.2.0	8 g 1	31	000	1. Accumulated			hours in 6-digit integer (000,001~999,999)*3.2.02. Can not be reset when FW update and Factory initiation*3.2.23. Reply in new 32-byte format*3.2.0
Get-Device name	8		g	4	34	000	Reply in new 32-byte format *3.2.0

Get-MAC address	8 g 5 35 000	(for the model with				LAN) Reply in new 32-byte format*3.2.0
Get-IP address *3.2.0	8 g 6 36 000	(for the model with				LAN) Reply in new 32-byte format*3.2.0
Get-Serial number *3.2.0	8 g 7 37 000	Reply in new 32-byte				format *3.2.0
Get-FW version *3.2.0	8 g 8 38 000	Reply in new 32-byte				format *3.2.0

NOTE:

1. Get Operation Hour example

Assumed the accumulated operation hour is 123,456 hrs

Send: 0x 38 30 31 67 31 30 30 30 0D (Get Operation hour)

Reply: 0x 32 30 31 72 31 31 32 33 34 35 36 00 00 ... 00 00 0D

2. Get Device Name example

Assumed the device name is CDE-5500

Send: 0x 38 30 31 67 34 30 30 30 0D (Get Device Name)

Reply: 0x 32 30 31 72 34 43 44 45 2D 35 35 30 30 00 00 ... 00 00 0D

Assumed the device name is "NMP-302#1"

Send: 0x 38 30 31 67 34 30 30 30 0D (Get Device Name)

Reply: 0x 32 30 31 72 34 4E 4D 50 2D 33 30 32 23 31 00 00 ...00 00 0D

3. Get MAC address example

Assumed the MAC address is 00:11:22:aa:bb:cc

Send: 0x 38 30 31 67 35 30 30 30 0D (Get MAC add)

Reply: 0x 32 30 31 72 35 30 30 31 31 32 32 61 61 62 62 63 63 00 00...00 00 0D

4. Get IP address example

Assumed the IP address is 192.168.100.2

Send: 0x 38 30 31 67 36 30 30 30 0D (Get IP address)

Reply: 0x 32 30 31 72 36 31 39 32 2E 31 36 38 2E 31 30 30 2E 32 00 00...00 00 0D

5. Get Serial number example

Assumed the Serial number is ABC180212345

Send: 0x 38 30 31 67 37 30 30 30 0D (Get Serial number)

Reply: 0x 32 30 31 72 37 41 42 43 31 38 30 32 31 32 33 34 35 00 00...00 00 0D

6. Get FW version example

Assumed the FW version is 3.02.001

Send: 0x 38 30 31 67 38 30 30 30 0D (Get FW version)

Reply: 0x 32 30 31 72 38 33 2E 30 32 2E 30 30 31 00 00...00 00 0D

B. Optional Function

Get Function	Length ID	Command	Response			Comments
						Range
			Type (ASCII) Code (ASCII)	Code (Hex)	(Three ASCII bytes)
Get-Contrast 8 g a 61 000 ~ 100
Get-Sharpness 8 g c 63 000 ~ 100
Get-Color 8 g d 64 000 ~ 100
Get-Tint 8 g e 65 000 ~ 100
Get-Backlight On_Off	8 g h 68 000: Off				001: On
Get-PIP mode	8		g	t	74	000: OFF001: PIP (POP)002: PBP
Get-PIP input	8		g	u	75	000 ~	See Set-input select
Get-Tiling Mode	8 g v 76		000: OFF			001: ON	(for Video wall)
Get-Tiling Compensation	8 g		w 77		000: OFF	001: ON	(for Video wall)Bezel width compensation
Get-Tiling H by V monitors	8 g x 78 01x~09x: H monitors					0x1~0x9: V monitors	(for Video wall)1. 2nd digital for H monitors2. 3rd digital for V monitors
Get-Tiling position	8 g y 79		000: OFF			001~025	(for Video wall)Copy the screen of Position# to identified display
Get-Date: Year	8		g	2	32	Y00~Y00	Last 2 digits(20)17~(20)99
Get-Date: Month	8 g 2 32 M00~M00 2 digits
Get-Date: Day	8 g 2 32		D00~M00 2 digits
Get-Time: Hour	8		g	3	33	H00~H00	24-hr format. 2 digits
Get-Time: Min	8 g 3 33 M00~M00 2 digits
Get-Time: Sec	8 g 3 33		S00~S00 2 digits

NOTE:

1. Get Date example

Assumed the current date of display#01 as below:

Date: 2017-3/15

Send: 0x 38 30 31 67 32 59 30 30 0D (Get Date:Year)

Reply: 0x 38 30 31 72 32 59 31 37 0D ("Y17")

Send: 0x 38 30 31 67 32 4D 30 30 0D (Get Date:Month)

Reply: 0x 38 30 31 72 32 4D 30 33 0D ("M03")

Send: 0x 38 30 31 67 32 44 30 30 0D (Get Date:Day)

Reply: 0x 38 30 31 72 32 44 31 35 0D ("D15")

2. Get Time example

Assumed the current time of display#01 as below:

Time: 16:27:59

Send: 0x 38 30 31 67 33 48 30 30 0D (Get Time:Hour)

Reply: 0x 38 30 31 72 33 48 31 36 0D ("H16")

Send: 0x 38 30 31 67 33 4D 30 30 0D (Get Time:Min)

Reply: 0x 38 30 31 72 33 4D 32 37 0D ("M27")

Send: 0x 38 30 31 67 33 53 30 30 0D (Get Time:Sec)

Reply: 0x 38 30 31 72 33 53 35 39 0D ("S59")

3. Get RS232 Version example

Assumed the version is 3.0.1

Send: 0x 38 30 31 67 36 30 30 30 0D (Get RS232 version)

Reply: 0x 38 30 31 72 36 33 30 31 0D ("301")

C. Auto Reply \*3.2.1

The display will send out the updated data/status automatically without getting a query from the host whenever the following data/status is changed by the user through any of the available ways like: remote control unit, front keys, or touch screen.

• PowerOn/Off
• InputSelect
• Brightness
• Backlight
  • Volume
• MuteOn/Off

Remote Control Pass-through Mode

When the PC sets the Display to Remote Control Pass through mode, the Display shall send a 7-byte packet (followed by "CR") in response to remote control unit (RCU) button activation. In this mode the remote control shall have no effect on the Display function. For example: "Volume+" will not change the volume of the Display, but instead only sends the "Volume+" code to the PC over the RS-232 port.

IR Pass Through-Function format

Reply: (Command Type="p")

Example 1: Remote Control Pass-through when "VOL+" key is pressed for Display (#5)

Send (Hex Format)

Name	Length ID	Command Type		RCU Code1 (MSB)	RCU Code2 (LSB)	CR
Hex	0x36	0x300x35	0x70	0x31	0x30	0x0D

Key	Code (HEX)	Basic *3.1.1	Optional *3.1.1
1	01	V
2	02	V
3	03	V
4	04	V
5	05	V
6	06	V
7	07	V
8	08	V
9	09	V
0	0A	V
-	0B		V
RECALL (LAST)	0C		V
INFO (DISPLAY)	0D		V
	0E
ASPECT (ZOOM, SIZE)	0F		V
VOLUME UP (+)	10	V
VOLUME DOWN (-) 11 V
MUTE 12 V
CHANNEL/PAGE UP (+)/BRIGHTNESS+	13		V
CHANNEL/PAGE DOWN (-)/BRIGHTNESS-	14		V
POWER 15 V
SOURCES (INPUTS) 16 V
	17
	18
SLEEP 19 V
MENU 1A V
UP 1B V
DOWN 1C V
LEFT (-) 1D V
RIGHT (+) 1E V
OK (ENTER, SET) 1F V
EXIT	20 V
	21
	22
	23
	24
	25
	26
	27
	28
	29
	2A
	2B
RED (F1)	2C
GREEN (F2)	2D
YELLOW (F3)	2E
BLUE (F4)	2F

NOTE:

1. This IR-pass-through code is different from the RCU key code.
2. Special control sequence for POWER key under IR-pass through mode.
   2-1. When Display is OFF and receives the IR POWER code: Display will turn itself on, then forward the POWER code to the host via RS-232.

2-2. When Display is ON and receives the IR POWER code: Display will forward the POWER code to the host via RS-232, then turn off itself.
2-3. When SET-POWER LOCK is enabled, the Display will not respond to POWER key pressing.
3. The VOLUME UP and VOLUME DOWN code will repeatedly output when you press and hold the keys.

> Appendix

Specifications

Item Category Specifications
Model P/N.	IFP5550-3	IFP5550-3AIFP5550-3B	IFP6550-3IFP6550-3AIFP6550-3B	IFP7550-3IFP7550-3AIFP7550-3B	IFP8650-3IFP8650-3AIFP8650-3B
	No.	VS18105 VS18106 VS17117 VS17118
Screen Size 54.5" 65.5" 74.5" 85.5"
Input Signal 3 x HDMI		1 x VGA1 x Audio In1 x LAN (RJ45)4 x USB Type A (3.0)3 x USB Type A (2.0)
Output Signal 1 x Audio Out		1 x SPDIF2 x USB Type B
Speaker Output	10W x 2, 15W Subwoofer x 1
RS-232		RS-232 Communication
Power	Voltage	100V-240V AC 50/60Hz
Operating Conditions	Temperature	32°F to 104°F (0°C to 40°C)
	Humidity	10%~90% non-condensing
	Altitude	≤ 2,000 m
Storage Conditions	Temperature	-4°F to 140°F (-20°C to 60°C)
	Humidity	10%~90% non-condensing
	Altitude	≤ 2,000 m
Dimensions	Physical (mm)	1268 x 773 x 85	1488 x 897 x 90	1710 x 1020 x 90	1958 x 1160 x 90
Weight	Physical (kg)	26.4	40	52.3	68
Power Consumption	On	80W	108W	138W	162W
	Off	<0.5W	<0.5W	<0.5W	<0.5W

NOTE: Product specifications are subject to change without notice.

Display Modes

VGA Mode

Resolution Refresh Rate (@)
640 x 480 60Hz, 72Hz, 75Hz
720 x 400 70Hz
800 x 600 56Hz, 60Hz, 72Hz, 75Hz
832 x 624 75Hz
1024 x 768 60Hz, 70Hz, 75Hz
1152 x 864 60Hz, 75Hz
1152 x 870 75Hz
1280 x 768 60Hz, 75Hz
1280 x 960 60Hz
1280 x 1024 60Hz, 75Hz
1360 x 768 60Hz
1366 x 768 60Hz
1400 x 1050 60Hz, 75Hz
1440 x 900 60Hz, 75Hz
1600 x 1200 60Hz
1680 x 1050 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz

HDMI Mode

Resolution Refresh Rate (@)
640 x 480 60Hz, 72Hz
720 x 400 70Hz
800 x 600 60Hz, 72Hz
1024x768 60Hz, 70Hz, 75Hz
1280x800 60Hz
1280x1024	60Hz
1360x768 60Hz
1440x900 60Hz
1680x1050	60Hz
1920x1080	60Hz
3840x2160	30Hz, 60Hz
480i	60Hz
480p	59Hz, 60Hz
576i	50Hz
576p	50Hz
720p	50Hz, 60Hz
1080i	50Hz, 60Hz
1080p	50Hz, 60Hz

Troubleshooting

This section describes some common problems that you may experience when using the viewsboard.

Problem or Issue Possible Solutions
Remote Control is not working	1. Check whether something is obstructing the display's remote control receiver.2. Check whether the batteries in the remote control are installed correctly.3. Check whether the batteries need to be replaced.
The unit turns off unexpectedly	1. Check whether Sleep mode is enabled.2. Check if there is a power outage in your area.3. Turn on the display and see if the problem is with the signal and control system.

PC Mode

Problem or Issue Possible Solutions

No PC signal 1. Check the display settings.2. Check the display resolution.3. Adjust the Hs &Vs (synchronization) settings using the OSD menu.

Background streaking 1. Choose auto adjust.2. Adjust clock and phase.

False color 1. Check the VGA connection.2. Adjust the chroma, brightness, and contrast settings.

Unsupported format 1. Choose auto adjust.2. Adjust clock and phase settings.

Touch Function

Problem or Issue Possible Solutions
Touch function does not work	1. Check that drivers are installed correctly.2. Reinstall driver(s).3. Check setup and align it.4. Check whether the touch pen is working properly.

Video Not Working Properly

Problem or Issue Possible Solutions
No picture/ No sound 1.	Check the Power status.2. Check the signal cable.3. Check that the internal PC is installed correctly.
Picture is unclear or cuts in and out	1. Check the signal cable.2. Check if other electronics are interrupting the signal.
Poor picture 1. Adjust ch	roma, brightness, and contrast settings in the menu.2. Check the signal cable.

Audio Not Working Properly

Problem or Issue Possible Solutions
No sound 1. Press the M	Mute/Unmute button.2. Adjust the volume.3. Check the audio cable.
One speaker only 1. Adjust	the sound balance in the menu.2. Check the sound control panel settings of the computer.3. Check the audio cable.NOTE: SPDIF and Audio Out only work in Embd Player, HDMI, and DisplayPort (DP) channels.

Maintenance

General Precautions

• Make sure the device is turned off and the power cable is unplugged from the power outlet.
• Never spray or pour any liquid directly onto the screen or case.
• Handle the device with care, as a darker-colored device, if scuffed, may show marks more clearly than a lighter-colored device.
• Do not use the system continuously for long periods of time.

Cleaning the Screen

• Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
• If the screen is still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth; then wipe the screen.

Cleaning the Case

• Use a soft, dry cloth.
• If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

Disclaimer

• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the device.
• ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

NOTE: If condensation appears between the glass and the panel, keep the display turned on until the moisture disappears.

> Regulatory and Service Information

Compliance Information

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

The following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium ( Cr6^+ ) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE)	0.1% < 0.1%
Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Butyl benzyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

• Copper alloy containing up to 4% lead by weight.
- Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
- Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.
- Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC or higher.

ENERGY STAR® statement

ENERGY STAR® is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency. Products that earn the ENERGY STAR® prevent greenhouse gas emissions by meeting strict energy efficiency criteria or requirements set by the U.S. Environmental Protection Agency.

As an ENERGY STAR ^® Partner, ViewSonic is determined to meet the ENERGY STAR ^® Guidelines and mark all certified models with the ENERGY STAR ^® logo.

The following logo appears on all ENERGY STAR ^® -certified models:

NOTE: The power management features significantly reduce energy consumption when the product is not in use. Power management allows the device to automatically enter a low power “sleep” mode after a defined period of inactivity. And the power management features also enter Sleep Mode or Off Mode within 5 minutes of being disconnected from a host computer. Please note any change in energy settings will increase energy consumption.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic ^® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic ^® website to learn more.

USA & Canada:

http://www.viewsonic.com/company/green/recycle-program/

Europe:

http://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan:

Copyright© ViewSonic® Corporation, 2020. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic ^® , the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic ^® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

Customer Service

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product's serial number.

Country/ Region Website Country/ Region Website
Asia Pacific & Africa
Australia	www.viewsonic.com/au/	Bangladesh	www.viewsonic.com/bd/
中国 (China)	www.viewsonic.com.cn	香港(繁體中文)	www.viewsonic.com/hk/
Hong Kong (English)	www.viewsonic.com/hk-en/	India	www.viewsonic.com/in/
Indonesia	www.viewsonic.com/id/	Israel	www.viewsonic.com/il/
日本 (Japan)	www.viewsonic.com/jp/	Korea	www.viewsonic.com/kr/
Malaysia	www.viewsonic.com/my/	Middle East	www.viewsonic.com/me/
Myanmar	www.viewsonic.com/mm/	Nepal	www.viewsonic.com/np/
New Zealand	www.viewsonic.com/nz/	Pakistan	www.viewsonic.com/pk/
Philippines	www.viewsonic.com/ph/	Singapore	www.viewsonic.com/sg/
臺灣 (Taiwan)	www.viewsonic.com/tw/	ประเทศไทย	www.viewsonic.com/th/
Việt Nam	www.viewsonic.com/vn/	South Africa & Mauritius	www.viewsonic.com/za/
Americas
United States	www.viewsonic.com/us	Canada	www.viewsonic.com/us
Latin America	www.viewsonic.com/la
Europe
Europe	www.viewsonic.com/eu/	France	www.viewsonic.com/fr/
Deutschland	www.viewsonic.com/de/	Қазақстан	www.viewsonic.com/kz/
Россия	www.viewsonic.com/ru/	España	www.viewsonic.com/es/
Türkiye	www.viewsonic.com/tr/	Україна	www.viewsonic.com/ua/
United Kingdom	www.viewsonic.com/uk/

Limited Warranty

ViewSonic® Smart White Board

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, and as your sole remedy, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components. The repair or replacement unit or parts or components will be covered by the balance of the time remaining on the customer's original limited warranty and the warranty period will not be extended. ViewSonic® provides no warranty for any third-party software whether included with the product or installed by the customer, installation of any unauthorized hardware parts or components (e.g. Projector Lamps). (Please refer to: "What the warranty excludes and does not cover" section).

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty excludes and does not cover:

• Any product on which the serial number has been defaced, modified, or removed.
• Damage, deterioration, or malfunction resulting from:

» Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

» Repair or attempted repair by anyone not authorized by ViewSonic®.

» Damage to or loss of any programs, data, or removable storage media.

» Normal wear and tear.
» Removal or installation of the product.

• Software or data loss occurring during repair or replacement.
• Any damage of the product due to shipment.
• Causes external to the product, such as electric power fluctuations or failure.
• Use of supplies or parts not meeting ViewSonic's specifications.
• Failure of owner to perform periodic product maintenance as stated in the User Guide.

• Any other cause which does not relate to a product defect.

• Damage caused by static (non-moving) images displayed for lengthy periods of time (also referred to as image burn-in).

• Software - Any third-party software included with the product or installed by the customer.
• Hardware/Accessories/Parts/Components – Installation of any unauthorized hardware, accessories, consumable parts or components (e.g. Projector Lamps).
• Damage to, or abuse of, the coating on the surface of the display through inappropriate cleaning as described in the product User Guide.
• Removal, installation, and set-up service charges, including wall-mounting of the product.

How to get service:

• For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the “Customer Service” page). You will need to provide your product’s serial number.
• To obtain warranty service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
• Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.
• For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

• Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
• Any other damages, whether incidental, consequential or otherwise.
• Any claim against the customer by any other party.
• Repair or attempted repair by anyone not authorized by ViewSonic®.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer.

The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found at: http://www.viewsonic.com/eu/ under "Support/Warranty Information".

Mexico Limited Warranty

ViewSonic® Smart White Board

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty excludes and does not cover:

• Any product on which the serial number has been defaced, modified or removed.
• Damage, deterioration, or malfunction resulting from:

» Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
» Causes external to the product, such as electrical power fluctuations or failure.
» Use of supplies or parts not meeting ViewSonic®'s specifications.
» Normal wear and tear.
» Any other cause which does not relate to a product defect.

- Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

- Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the attached “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

For Your Records

Product Name: Model Number:

Document Number: Serial Number:

Purchase Date: Extended Warranty Purchase? (Y/N)

If so, what date does warranty expire?

• To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
• Take or ship the product, in the original container packaging, to an authorized ViewSonic® service center.
• Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic®'s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

• Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
• Any other damages, whether incidental, consequential or otherwise.
• Any claim against the customer by any other party.
• Repair or attempted repair by anyone not authorized by ViewSonic®.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,Col. San Fernando Huixquilucan, Estado de MéxicoTel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:Distribuciones y Servicios Computacionales SA de CV.Calle Juarez 284 local 2Col. Bugambilias C.P: 83140Tel: [phone]E-Mail: [e-mail]	Villahermosa:Compumantenimietnos Garantizados, S.A. de C.V.AV. GREGORIO MENDEZ #1504COL, FLORIDA C.P. 86040Tel: [phone]E-Mail: [e-mail]
Puebla, Pue. (Matriz):RENTA Y DATOS, S.A. DE C.V. Domicilio:29 SUR 721 COL. LA PAZ72160 PUEBLA, PUE.Tel: [phone] CON 10 LINEASE-Mail: [e-mail]	Veracruz, Ver.:CONEXION Y DESARROLLO, S.A DE C.V. Av.Americas # 419ENTRE PINZÓN Y ALVARADOFracc. Reforma C.P. 91919Tel: [phone]E-Mail: [e-mail]
Chihuahua:Soluciones Globales en ComputaciónC. Magisterio # 3321 Col. MagisterialChihuahua, Chih.Tel: [phone]E-Mail: [e-mail]	Cuernavaca:Compusupport de Cuernavaca SA de CVFrancisco Leyva # 178 Col. Miguel HidalgoC.P. 62040, Cuernavaca MorelosTel: 01 777 3180579 / 01 777 3124014E-Mail: [e-mail]
Distrito Federal:QPLUS, S.A. de C.V.Av. Coyoacán 931Col. Del Valle 03100, México, D.F.Tel: [phone]E-Mail : [e-mail]	Guadalajara, Jal.:SERVICRECE, S.A. de C.V.Av. Niños Héroes # 2281Col. Arcos Sur, Sector Juárez44170, Guadalajara, JaliscoTel: 01(52)33-36-15-15-43E-Mail: [e-mail]
Guerrero Acapulco:GS Computación (Grupo Sesicomp)Progreso #6-A, Colo Centro39300 Acapulco, GuerreroTel: 744-48-32627	Monterrey:Global Product ServicesMar Caribe # 1987, Esquina con Golfo PérsicoFracc. Bernardo Reyes, CP 64280Monterrey N.L. MéxicoTel: 8129-5103E-Mail: [e-mail]
MERIDA:ELECTROSERAv Reforma No. 403Gx39 y 41Mérida, Yucatán, México CP97000Tel: [phone]E-Mail: [e-mail]	Oaxaca, Oax.:CENTRO DE DISTRIBUCION YSERVICIO, S.A. de C.V.Murguía # 708 P.A., Col. Centro, 68000, OaxacaTel: 01(52)95-15-15-22-22Fax: [phone]E-Mail. [e-mail]
Tijuana:STDAv Ferrocarril Sonora #3780 L-CCol 20 de NoviembrTijuana, Mexico	FOR USA SUPPORT:ViewSonic® Corporation381 Brea Canyon Road, Walnut, CA. 91789 USATel: 800-688-6688E-Mail: http://www.viewsonic.com

Illustration of three colorful birds perched on a green surface (no text or symbols)

ViewSonic®
