BDVD20H - DVD player BLAUPUNKT - Free user manual and instructions

Product Type	DVD Player
Brand	Blaupunkt
Model	BDVD20H
Dimensions (W x D x H)	360 x 240 x 45 mm
Weight	1.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	12W (standby <1W)
Disc Compatibility	DVD, DVD±R/RW, CD, CD-R/RW, VCD, SVCD, MP3, JPEG, DivX
Video Output	Composite (RCA), Component (Y/Pb/Pr)
Audio Output	Stereo RCA, Coaxial Digital
Playback Functions	Play, Pause, Stop, Skip, Search, Repeat, A-B Repeat, Zoom, Slow Motion
Remote Control	Included (batteries not included)
Display	LED indicators for power, disc loading, playback
Region Code	2 (Europe) – can be multiregion via remote code
Safety Features	Auto power off, overheat protection, child lock
Maintenance	Clean lens with blower; wipe exterior with soft dry cloth
Spare Parts Availability	Remote control, power adapter (if external), belt
Repairability	Moderate – accessible screws, but lens replacement requires professional skill

Frequently Asked Questions - BDVD20H BLAUPUNKT

How do I reset my Blaupunkt BDVD20H to factory settings?

With the player in standby mode, press and hold the STOP button on the front panel for 5 seconds. The unit will turn on and reset to default settings.

What audio formats does the BDVD20H support?

It supports MP3, WMA, and PCM audio from CDs and DVDs. It does not support AAC or FLAC.

Why is there no picture on my TV?

Ensure the TV is set to the correct input (e.g., AV or Component). Check that the video cables are securely connected. If using component, make sure to match the colors (Y, Pb, Pr). Also verify the player's video output mode matches your TV's input.

Can I play DVDs from other regions?

The player is region-locked to Region 2. To play discs from other regions, you may need to enter a multiregion code (available online) using the remote. Alternatively, consider a region-free player.

How do I clean the DVD lens?

Use a DVD lens cleaning disc with a soft brush. Insert the disc and press PLAY. Do not use liquid cleaners directly on the lens. If the problem persists, consult a professional.

What is the A-B Repeat function?

During playback, press A-B REPEAT on the remote at the start point (A), then again at the end point (B). The player will loop the segment continuously. Press again to cancel.

The remote control does not work. What should I do?

First, replace the batteries with fresh ones (2x AAA). Ensure no obstructions between remote and player. If still not working, try resetting the player (see FAQ 1). You can also use the front panel buttons as a temporary workaround.

Can I connect the BDVD20H to a modern TV via HDMI?

No, the BDVD20H does not have an HDMI output. It only provides composite (yellow RCA) and component (Y/Pb/Pr) video. For TVs with only HDMI ports, you may need an RCA-to-HDMI converter (sold separately).

How do I activate subtitles on a DVD?

Press the SUBTITLE button on the remote during playback. Each press cycles through available subtitle languages or turns them off. Not all discs have subtitles.

Where can I find a replacement remote control?

You can order a replacement remote directly from Blaupunkt customer service or through online retailers like Amazon. Use the model number BDVD20H or search for 'Blaupunkt DVD remote replacement'.

USER MANUAL BDVD20H BLAUPUNKT

CONTENTS

General	Safety
Product	Overview
Remote	Control
Setup		9
Troubleshooting		11
Specifications		11
Support

GENERAL SAFETY

Read this manual thoroughly before you start using the DVD Player.

Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduce the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

The cover (or back) of the unit should not be removed to prevent risk of electric shock.

This unit must be serviced by a qualified service personnel only.

The lightning flash with symbol within the triangle is intended to warn you of a non-insulated dangerous voltage in the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

The exclamation point within the triangle is intended to warn you to the presence of important operating and maintenance instructions in the documents included with the product.

IMPORTANT INFORMATION

The lightning flash symbol within the triangle is intended to warn you of non-insulated dangerous voltage the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

• Using Cabinets or stands recommended by the manufacturer of the television. - Only using furniture that can safely support the Products. - Ensure the Product is not overhanging the edge of the supporting furniture. - Do not place the product on a high furniture without securing both the furniture and the product to a stable support. - Do not place the product on cloth or other conductive materials. - Warn children of the dangers of climbing on furniture to reach the television or its controls and to call for an adult to assist.

GENERAL SAFETY (CONT.)

IMPORTANT INFORMATION

• Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard
• Do not tamper with, change, or modify the product in any way.
• Only use accessories outlined and recommended by the manufacturer.
• Do not expose the product to splashing or water contact.
• Do not place any object on top of the product, including objects filled with liquids such as vases.
• Danger of explosion if battery is incorrectly placed. Replace with the same or equivalent type.

This product must be positioned in a sufficiently stable location. It can be potentially hazardous due to falling when mounted and can cause injury, particularly to children, if it is positioned incorrectly.

• Do not use a damaged power cord, plug, or loose outlet. Doing so may cause an electric shock.
• Do not plug several devices into the same outlet. Doing so may cause the outlet to overheat and start a fire. Make sure the outlet is readily accessible during operation of the equipment.
• Do not bend, twist, or kink the power cord excessively.

- The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the product. Dry location use only.

- Do not run the power cord near heat-producing appliances such as radiators, stoves, or irons. The excessive heat could melt the insulation and expose live wires, resulting in fire or electric shock.

- No naked flame source, such as candles, should be placed on the product.

- Do not allow anything to rest on or roll over the power cord. Doing so may cause fire or electric shock.

- Do not run the power cord near heat-producing appliances such as radiators, stoves, or irons. The excessive heat could melt the insulation and expose live wires, resulting in fire or electric shock.

- Unplug this product during lightning storms or when unused for long periods of time. Not doing so may result in fire or electric shock.

- Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains, etc., or insert objects into the slots available on the product. This could result in the product temperature rising and could cause a fire.

GENERAL SAFETY (CONT.)

Please make sure upon positioning this product, the place is:

• Not wet or damp and well ventilated.
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not install the TV set near heat sources such as radiators, stoves, or other audio-visual equipment that produce heat.
• Do not place containers with liquids; if liquid falls inside the product, it may result in short-circuit, fire, or electric shock.
• Do not place small metallic objects on top of the unit. If metal objects fall inside the product, it may result in short-circuit, fire, or electric shock.
• Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes, or incense sticks, on top of the TV set.
• The antenna must be installed away from high-voltage power lines.
• Please contact an antenna professional installer to install the antenna to avoid incorrect installation, which could result in fire, electric shock, or serious injury. Install the unit at a reasonable distance from the wall to ensure sufficient ventilation.
• If the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

This symbol indicates that the appliance has double insulation between the dangerous mains voltage and the parts accessible to the user. In the event of repairs, use only identical spare parts.

LASER SAFETY

This set employs an optical laser beam system in the disc mechanism designed with built-in safeguards. Do not attempt to disassemble. Exposure to this invisible laser light beam may be harmful to the human eye.

This is a Class-1 laser product. Use of controls, adjustments, or procedures other than those specified herein may result in hazardous laser light beam exposure.

This DVD player should not be adjusted or repaired by anyone except qualified service personnel. The laser mechanism in the set corresponds to the stylus (needle) of a record player. Although this product uses a laser pick-up lens, it is completely safe when operated according to directions.

PRODUCT OVERVIEW

1. DVD Door
2. Display Window
3. Open/Close Button
4. Play/Pause Button
5. Stop Button
6. Standby Button
7. Remote Receiver Window
8. USB Port

1. HDMI Output
2. Audio Left Output
3. Video Output
4. Audio Right Output
5. Coaxial Output

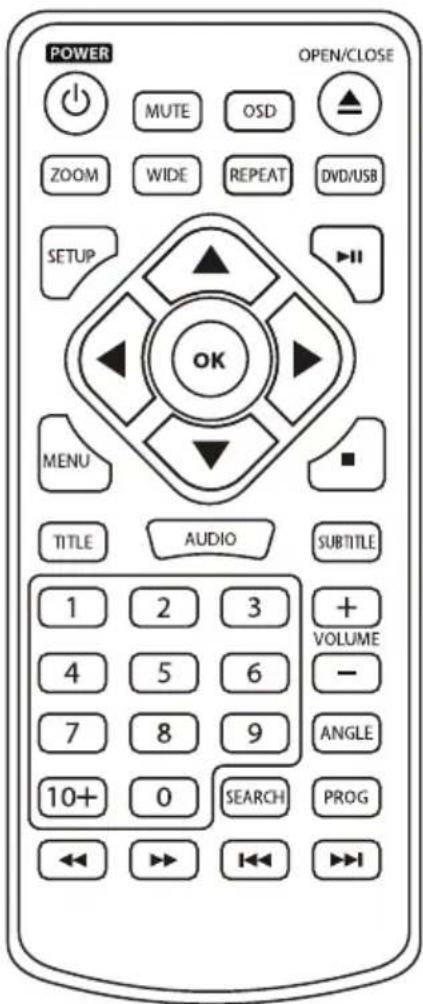

REMOTE CONTROL

Power

Mute

Press to mute the volume.

Zoom

Press to zoom in or out on a

loaded DVD.

Wide

Press to switch between different aspect ratio settings.

Setup

Press to access the setup menu.

Arrows/OK

Press to make selections in the on-screen or disc menus.

Menu

Press to access the loaded DVD's

menu.

Title

Press to access the title menu of a loaded DVD.

Audio

Press to adjust the current audio settings for the loaded DVD.

Rewind/F.Fwd

Press to search through an individual chapter or track.

Open/Close Disc Tray

OSD

Press to view the various On Screen Display modes.

Repeat

Press to repeat the current chapter or track.

DVD/USB

Press to select between DVD and USB.

Play/Pause

Stop

Subtitle

Toggle subtitles on or off.

NumberKeypad

Volume +/-

Angle

On supported DVDs, press and hold to view alternate angles.

Program

Press to program a loaded disc to play chapters or tracks in a specified order.

Search

Skip Back/Fwd

Press to skip between chapters or tracks.

Batteries

Requires 2 x AAA batteries (included)

SETUP

Connecting Video and Audio

Note: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet. Both video and audio connections must be made from the DVD Player to your television.

RCA Stereo Audio Output

1. Use the RCA Stereo Audio Output to send audio from the DVD player to a television.
2. Required an RCA audio cable (included).
3. Use the RCA audio cable to connect the RCA Stereo Audio Output to an RCA stereo audio input on a television.
4. Adjust the connected televisions input setting to match the input used in the previous step.

Coaxial Digital Audio Output

1. Use the Coaxial Digital Audio Output to send high quality audio from the DVD player to an audio system.
2. Requires an RCA audio cable (included).
3. Use the RCA audio cable to connect the Coaxial Digital Audio Output to a coaxial digital input on an audio system.
4. Adjust the connected audio system's input setting to match the input used in the previous step.
5. In the Digital Out portion of the setup menu, adjust to PCM, RAW or off.

Composite Video Output

1. Use the Composite Video Output to send video from the DVD player to a television.
2. Requires an RCA video cable (included).
3. Use the RCA video cable to connect the Composite Video Output to a composite video input on a television.
4. Adjust the connected television's input setting to match the input used in the previous step.

HDMI Output

Requires an HDMI cable (not included).

1. Use an HDMI cable to connect the HDMI Output to an HDMI input on a television.
2. Adjust the connected television's input setting to match the input used in the previous step.

SETUP (Cont.)

LOADING A DVD OR CD

Loading a Disc

1. Press the Open button to open the Disc Door.
2. Load a disc into the DVD player, label side facing up.
3. Manually close the Disc Door.

After a disc is loaded, it will begin playing automatically.

Playing a Loaded Disc

1. Follow the instructions for Loading a Disc.
2. If the disc does not begin playing automatically, press the Play/Pause button.

Programming a Loaded Disc

1. Follow the instructions for Loading a Disc and Playing a Loaded Disc.
2. While the loaded disc is playing, press the Program button on the remote.
3. Use the Number Keypad to enter in the titles and chapters in the order you want to view them. DVD Titles and chapters or CD tracks will play in the order they are programmed.
4. Repeat step 3 until the desired DVD titles and chapters or CD tracks are programmed.

USB PORT

Connecting a USB Thumb Drive

Connect a USB thumb drive to the USB port. Picture formats are supported (JPEG).

Accessing the Content on a USB Drive

1. Follow the instructions for connecting a USB thumb drive.
2. Press the DVD/USB button to enter DVD/USB mode.

TROUBLESHOOTING

Symptom	Correction
No power	Plug the power cord into the wall outlet securely
No picture	Selectt he appropriate video input mede on the TV so the picture from the DVD player appears on the screen.Connectt ba video cable into the jacks securely.Turn on the TV
No Sound	Check audio connections.If you are using a HiFi amplifier, try another sound source.
The playback picture is poor	Clean the disc.Connectt he TV/DVD player colour system.
The DVD player does not start playback	Insert a disc, if no disc inside the playerInsert a playable disc. (Check the disc type, colour system and Regional code.)Place the disc with the playback side down.Clean the disc.Cancel the Rating function or change the rating level.
Severe hum or noise is heard	Wipe them with a clot slightly moistened with alcohol.Clean the disc.Connectt he speakers and components securelyMove your TV away from the audio components.
The remot Control does not work properly	Pointt he remote control att he remote sensor oft he DVD receiver.Operate the remote control within about 5mRemove obstacle.Replace the batteries with new ones.
Completely distorted picture or no colour	Ift he picture is distorted completely or ift he picture rolls vertically make sure the NTSC/PAL setting att he DVD player matches the colour system of your television
The ⊙icon appears on screen	The DVD's software restricts it.The DVD's software doesn't supportt he feature (eg. Angles).The feature is not available att he moment.

SPECIFICATIONS

Power Supply 110-240V~50/60Hz
Compatible Disc Formats DVD/VCD/CD/MP3/Photo CD/SVCD/JPEG/MPEG-4
Signal System PAL/NTSC/AUTO
Frequency Response 20Hz to 20KHz

BLAUPUNKT

CUSTOMER HELPLINE:

1300 296 699

[e-mail]

DISTRIBUTED BY:

Ayonz Pty Ltd
