TWK861P4 - Kettle BOSCH - Free user manual and instructions

Product Type	Cordless Electric Kettle
Model	TWK861P4
Brand	Bosch
Capacity	1.7 L
Power Rating	2400 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x H x D)	Approx. 227 x 268 x 148 mm
Weight	Approx. 1.3 kg
Material	Stainless Steel & Plastic
Water Level Indicator	Yes, with min and max markings
Heating Element	Concealed stainless steel
Temperature Selection	Adjustable in 5°C steps (50-100°C)
Keep Warm Function	Up to 30 minutes
Filter	Removable scale filter
Lid Opening	Push-button opening with wide mouth
Base	360° swivel base with cord storage
Safety Features	Auto shut-off, boil-dry protection, overheat protection
Cleaning	Descaling recommended every 4-8 weeks
Spare Parts	Lid, base, filter (available separately)
Repairability Index	8.0 /10 (based on user ratings)

Frequently Asked Questions - TWK861P4 BOSCH

How do I descale the kettle?

Use a descaling solution or vinegar-water mixture. Fill to max, boil, let sit for 15 minutes, then rinse thoroughly. Repeat if needed.

Can I use the kettle without the filter?

It is not recommended as the filter prevents scale from entering your drink. Always use the filter.

Why does the kettle turn off before boiling?

Check if the lid is closed properly, or if there is scale build-up. Descaling may resolve the issue.

What is the maximum water capacity?

The maximum capacity is 1.7 liters, indicated on the water level window.

How do I set a specific temperature?

Press the temperature button repeatedly to select the desired temperature (50-100°C in 5°C steps). The kettle will heat and then keep warm for 30 minutes.

Is the kettle cordless?

Yes, the kettle lifts off the 360° swivel base for convenient pouring.

Can I open the lid while heating?

It is not recommended as steam may cause burns. Always wait for the kettle to cool down.

What type of warranty does the kettle have?

Bosch typically offers a 2-year warranty. Check your local terms for details.

How do I clean the exterior?

Wipe with a damp cloth. Do not use abrasive cleaners or immerse the base in water.

Where can I find spare parts?

Spare parts such as lid, filter, and base can be ordered from Bosch customer service or authorized dealers.

USER MANUAL TWK861P4 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/welcome

Cordless electric kettle

TWK861..RU

[en] Instruction manual

Cordless electric kettle 12

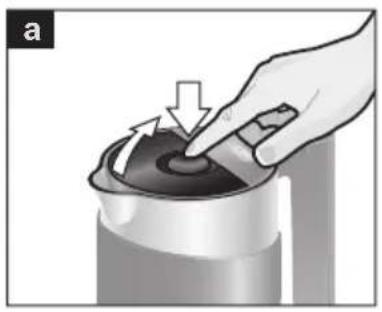

Hand pressing down on a cylindrical container with arrows indicating motion (no text or symbols)

Close-up of a metallic cylindrical container with a lid and handle, no visible text or symbols

Close-up of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols visible)

Illustration of a black and silver water heater with an hourglass beside it (no text or symbols)

Illustration of a kettle pouring liquid into a cup (no text or symbols)

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only.

⚠️Danger of electric shock!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Avoid spillage on the connector. Never immerse the appliance, base or mains cable in water.

Use the kettle only with the included base.

Use only if power cord and appliance show no signs of damage. Should a fault occur, pull the plug or disconnect from the mains immediately.

⚠️Risk of fire!

Do not place the base or kettle on or near hot surfaces, e.g. hobs.

Avoid spatters of grease as the plastic may be damaged.

⚠️Risk of scalding!

The appliance heats up during use. Make sure you only pick it up by the handle and do not open the lid until the appliance has cooled down. Only use the appliance when the lid is engaged.

If the appliance is filled above the “max” marking, there could be a risk from splashes of boiling water.

⚠️Risk of burns!

After the use the heating element surfaces can be subjected to residual heat.

WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

⚠️Risk of suffocation!

Do not allow children to play with packaging material.

⚠️Risk of injury!

A misuse of the appliance can potentially lead to injury.

Caution!

Cleaning surfaces which come into contact with foodstuffs!

Please note the special information on cleaning in the instructions.

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

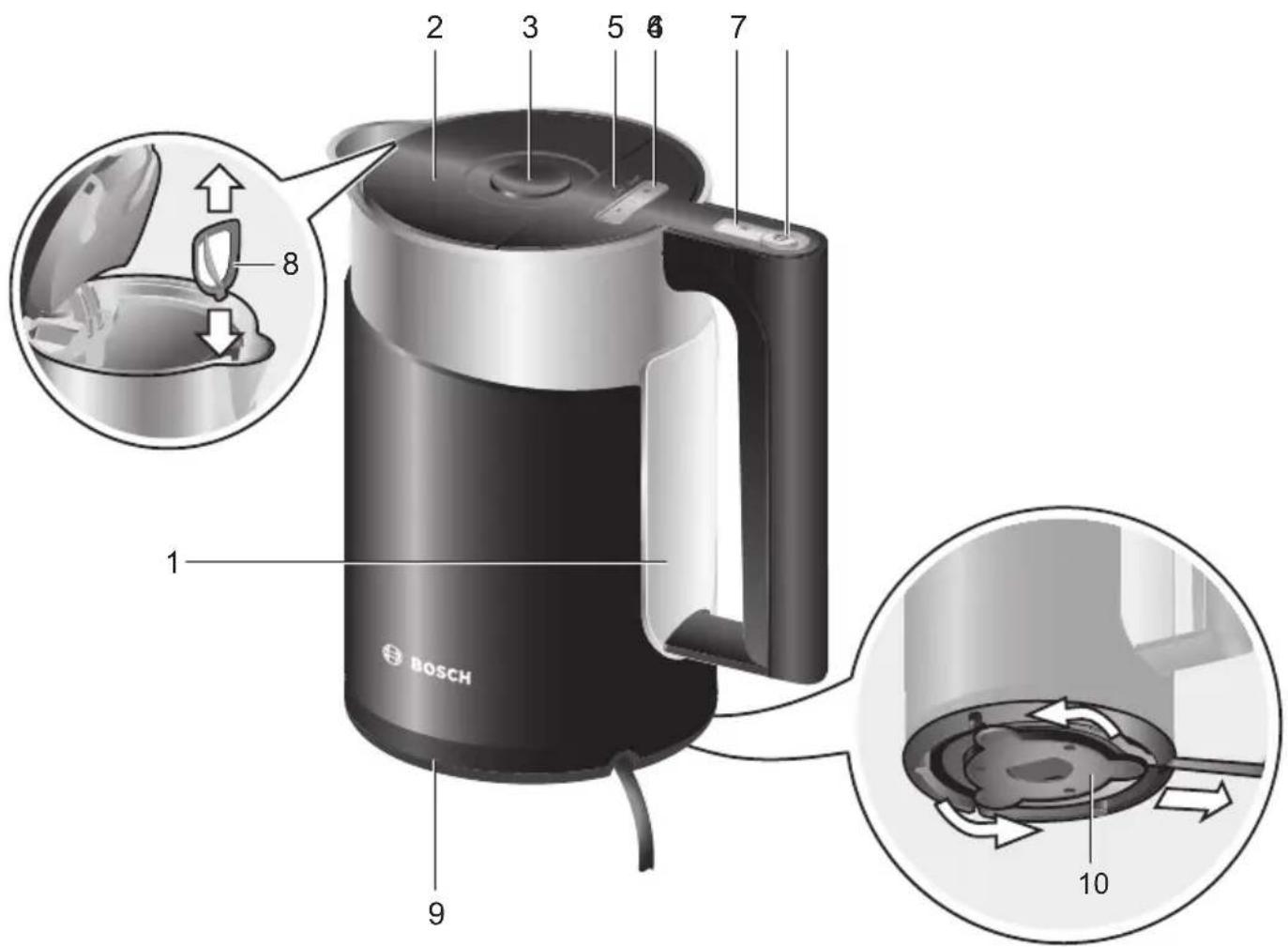

Parts and operating controls

1 Kettle (with water level indicator)
2 Lid
3 Lid release button
4 ① ON/OFF switch
5 Temperature indicator (illuminated)
6 + - button (temperature setting)
7 » button (keep warm)
8 Limescale filter (removable)
9 Base
10 Cable tidy

Important: Use the kettle only with its included base.

■ Only fill the kettle with water. Milk and instant beverages will burn and damage the appliance. Never operate the kettle without water and do not overfill it; observe the min and max markings. If the kettle is too full, the water will boil over!

Before using for the first time

■ Remove any stickers or film.
■ Unroll the right amount of cable from the cable tidy and plug it in.
■ Fill the kettle with water. Bring the water to a boil and discard it. Repeat the procedure. This will make sure that the kettle is clean for normal use.
■ When the water comes to a boil for the first time, add a tablespoon of white vinegar.

Boiling water

■ Fill the kettle with fresh water through the spout or the open lid (press lid release button).
■ Check the amount by reading the water level indicator markings (min and max).

■ Close the lid until it locks and place the kettle on the base.
■ Press the ① ON/OFF switch. The kettle emits a signal, and the factory-set temperature (100°C) lights up. The water is being heated.
■ By pressing button + or – you can set the temperature to ca. 70^ C, ca. 80^ C, ca. 90^ C or ca. 100^ C.
■ When the water has reached the selected temperature, the kettle will switch off automatically, the temperature indicator goes off, and a signal sounds.

Note: The selected temperature can be changed at any time while the kettle is heating up. While the kettle heats up, the current temperature lights up; the preset temperature flashes until it has been reached.

If the temperature cannot be set, this indicates that the water in the kettle is hotter than the desired temperature. The current temperature will light up.

You can turn off the kettle at any time by pressing the ① ON/OFF switch again.

Warning: If you remove the kettle from the base and replace it before the heating process is over, the kettle will not continue to heat the water. The selected settings will be lost (reset to factory setting).

N.B.: Use the kettle only while the lid is closed and the limescale filter is in place. For physical reasons, the base may collect some condensation water. This is normal; it does not mean that the kettle leaks.

When you set the temperature to 100^ C, the kettle will turn off only after the water has reached the boiling point, i.e. it will bubble for a short period of time.

After boiling, let the kettle cool down for 5 minutes before refilling it with water.

Do not turn on the appliance if the kettle is empty, otherwise the overheat control will engage and the appliance will switch itself off automatically.

Keep warm setting

You can turn on the keep warm with any temperature setting.

Press button », » lights up, and the function is activated.

To turn it off, press button » again.

The » indicator goes off.

Note: The keep warm feature switches off automatically after 30 minutes. The kettle emits a signal.

Cleaning and maintenance

⚠️ Risk of electric shock

Never immerse the device in water or place it in the dishwasher!

Do not steam-clean the appliance.

■ Before cleaning, unplug the appliance from the power outlet.
■ Clean the outside of the kettle and base with a damp cloth. Do not use strong or abrasive cleaning agents.
■ Remove the limescale filter, soak it in a little vinegar, then rinse clean with clear water.
■ Rinse the kettle and the limescale filter with clear water.

Tip: Clean the stainless steel surface with a commercial stainless steel care product.

Descaling

Regular descaling

■ makes your kettle last longer;
■ ensures proper function;
■ saves energy.

Descale the kettle with vinegar or a commercial descaling agent.

■ Fill the kettle with water up to the
1.5 mark and bring to a boil. Next, add a small amount of white vinegar and let it sit for several hours. You can also use a commercial descaling product and follow the manufacturer's instructions.

■ Rinse the kettle and the limescale filter with clear water.

Warning: Never use hard objects to remove limescale residue as this will damage the seal.

Tip: If you use the kettle daily, descale more frequently.

Troubleshooting

The kettle does not heat up; the temperature indicator does not light up.

– The overheat control has tripped.
■ Let the kettle cool down for some time so that the appliance can be switched on again.

The unit turns off before the water comes to a boil.

– The kettle contains too much scale.

■ Descale the kettle as per the instructions.

Technical data

Electrical connection 220-240 V~50/60 Hz
Output 2000-2400 W
Appliance height 245 mm
Appliance width 235 mm
Appliance depth 155 mm
Water capacity 1.50

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.
