USER MANUAL PN400 Geovision

Exterior view of a modern office building (no signage)

GeoVision Inc

© 2016 GeoVision, Inc. All rights reserved.

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein. Features and specifications are subject to change without notice. Note: no SD/SDHC card slot or local storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Trademarks used in this manual: GeoVision and the GeoVision logo are trademarks of GeoVision, Inc. Windows is registered trademark of Microsoft Corporation.

August 2016

Contents

Preface....x

Compatible Firmware and Software Versions....xii

Chapter 1 Introduction ...... 1

1.1 Features.... 1
1.2 Packing List.... 1

1.2.1 PN400 1
1.2.2 PN300 1
1.2.3 SQP133....2

1.3 Options 3

1.3.1 PN400 3
1.3.2 PN300/SQP133 4

1.4 Overview 5

2.1 Connecting the Device....13

2.1.1 Connecting the PN400....13
2.1.2 Connecting the PN300....15
2.1.3 Connecting the SQP133....16

2.2 Installing Wall Mount....17

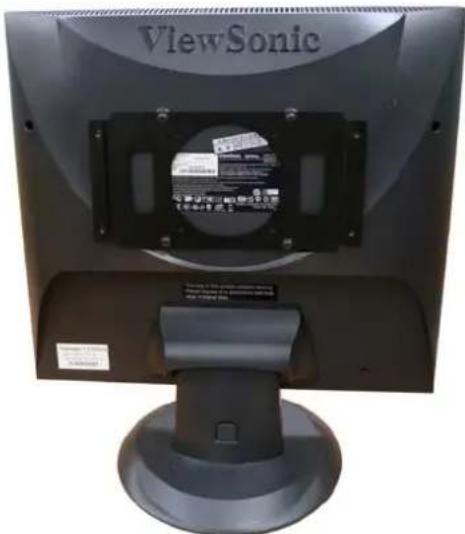

2.3 Installing VESA Monitor Mount 18
2.4 Playing the Slideshow....19

Chapter 3 System Setup for PN300 / SQP133....20

3.1 The Setup Menu....20
3.2 Setting Video Output and Resolution....21
3.3 Setting Slideshow Display Effect....22
3.4 Looking Up Device Information....23
3.5 Setting the Time 24

3.5.1 Setting the System Time....24
3.5.2 Setting the Time Zone....25

3.6 Setting the Network 26

3.6.1 Wired Network Connection 26
3.6.2 Wireless Network Connection....27

3.7 Setting the Device Name....28

3.8 Copying Files from the USB Storage Device 28
3.9 Upgrading the Firmware 29
3.10 Restoring to Factory Default Settings 30

Chapter 4 System Setup for PN400....31

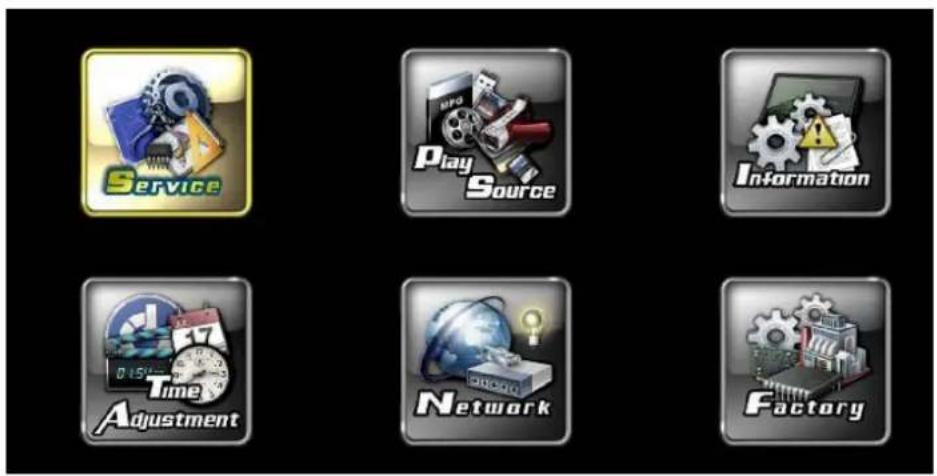

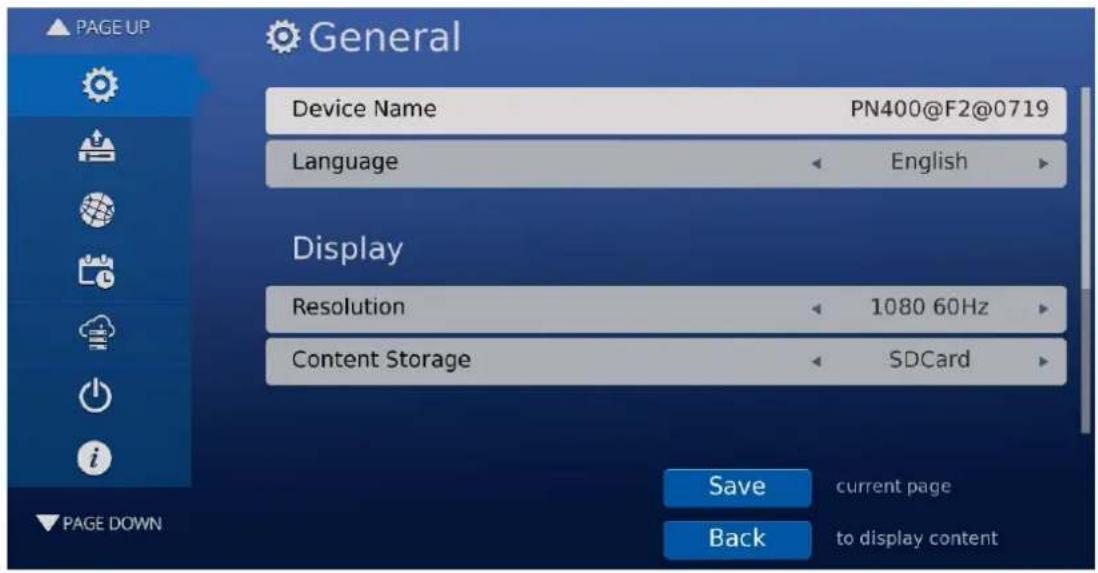

4.1 The Setup Menu....31
4.2 Configuring the General Settings....33
4.3 Upgrading the Firmware 35
4.4 Setting the Network 37
4.5 Setting the Time 38
4.6 Connecting to CMS 39

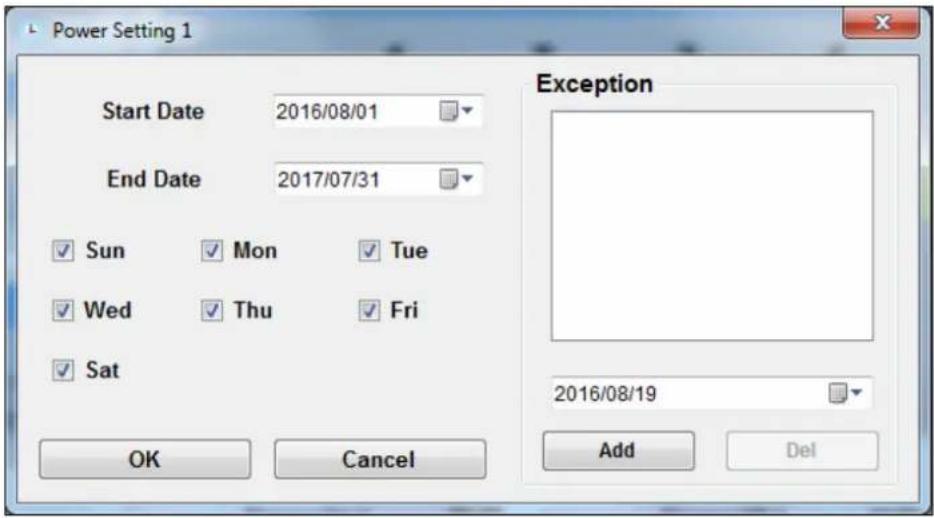

4.7 Scheduling the Power On and Off....40

Chapter 5 Content Designer....42

5.1 Minimum System Requirements....42

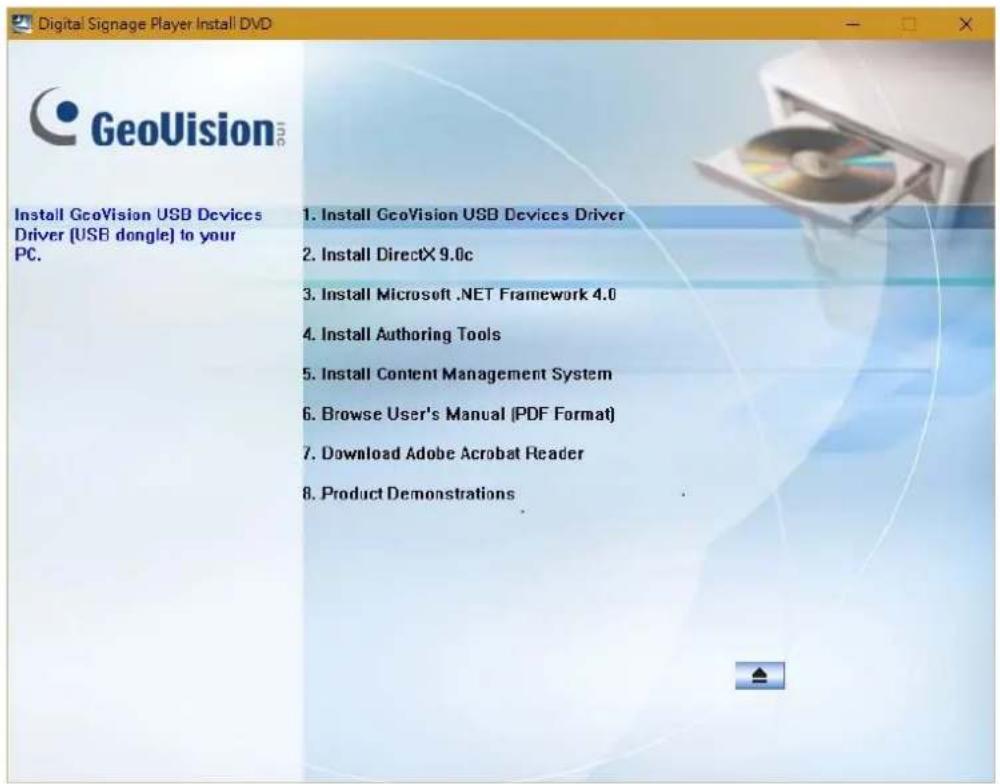

5.2 Installing the Content Designer....43
5.3 The Menu Bar....45
5.4 Creating a Project....46

5.4.1 Create a Screen Layout....46
5.4.2 The Main Screen 48

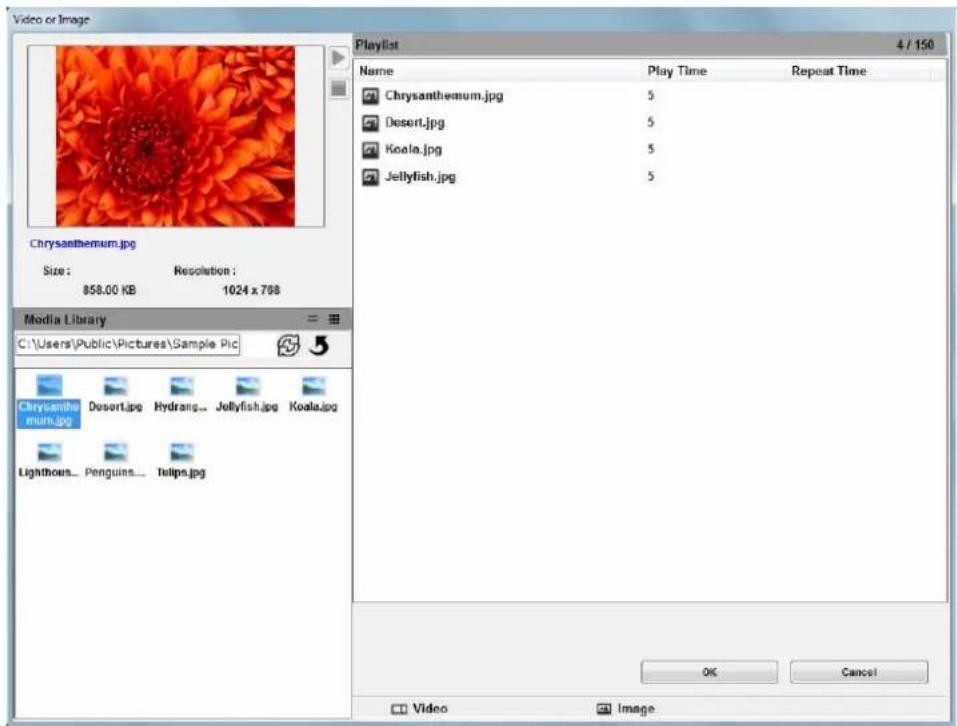

5.4.3 Assign Content to Zones....51
5.4.4 Preview and Save Screen Layout....57

5.5 Playing the Project on PN300, PN400 or SQP133....58

Chapter 6 Content Schedule....60

6.1 Minimum System Requirements....60
6.2 Installing the Content Schedule 60
6.3 Setting the Content Schedule 62

Chapter 7 CMS Lite....68

7.1 Minimum System Requirements....69
7.2 Software License....69
7.3 Installing the CMS Lite....70
7.4 Connecting the Devices to CMS Lite 72
7.5 The Main Screen....73
7.6 Uploading Video and Image Files....75
7.7 Uploading the Scenario or Loop Scenario....76
7.8 Uploading the Schedule....77
7.9 Uploading the Firmware....78

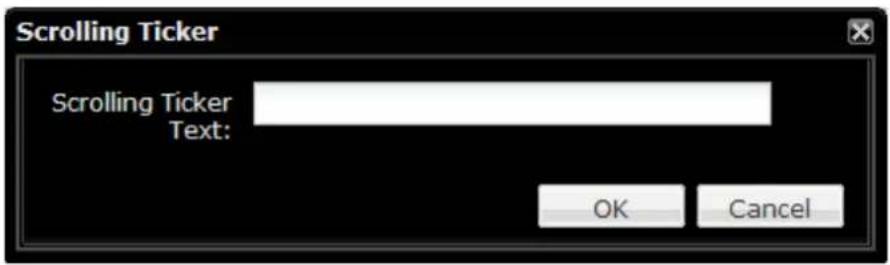

7.10 Uploading the Scrolling Ticker 79
7.11 Changing the Device Name....80

Chapter 8 CMS Server 81

8.1 System Requirements 82

8.1.1 Minimum System Requirements 82
8.1.2 Software License 83

8.2 Installing CMS Server 84

8.3 Connecting the Devices to CMS Server....86

8.4 Starting CMS Server....87

8.4.1 List of Menu Options....89

8.5 Getting Started....90
8.5 Getting Started 90

8.5.1 Preparing the Package 90

8.5.2 Transferring the Package....91

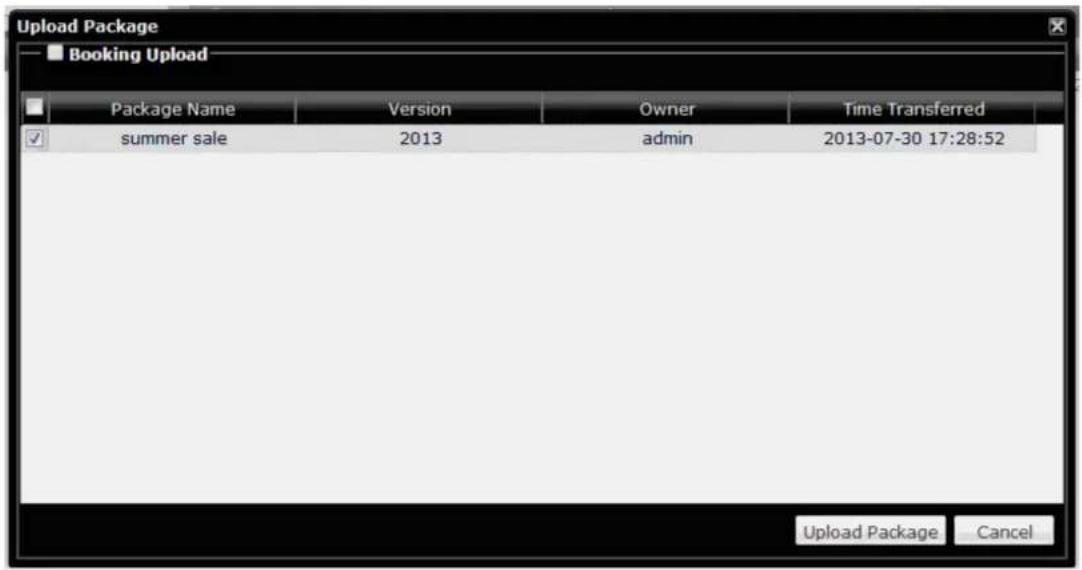

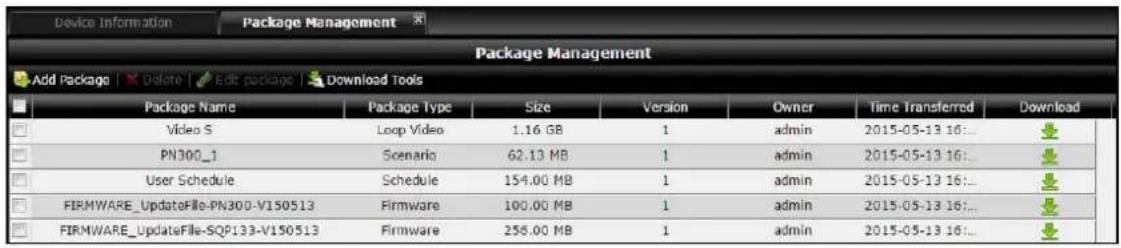

8.5.3 Uploading the Package....95
8.5.4 Revising the Package....97

8.6 Applying the Scrolling Ticker....98

8.7 Applying the RSS Feed 99

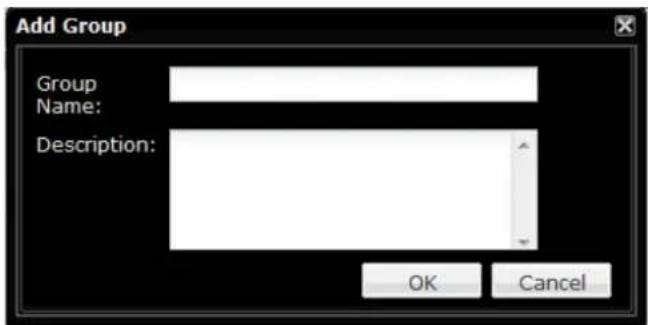

8.8 Planning Device Group....100
8.9 Arranging the Loop Video....102

8.10 Information 104

8.10.1 Device Information....104
8.10.2 System Information....106
8.10.3 User Information....106
8.10.4 Package Information....107

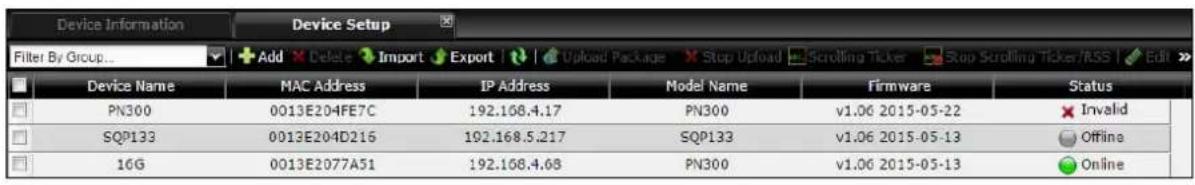

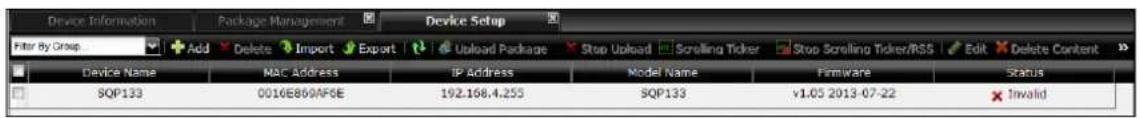

8.11 Device Setup....108

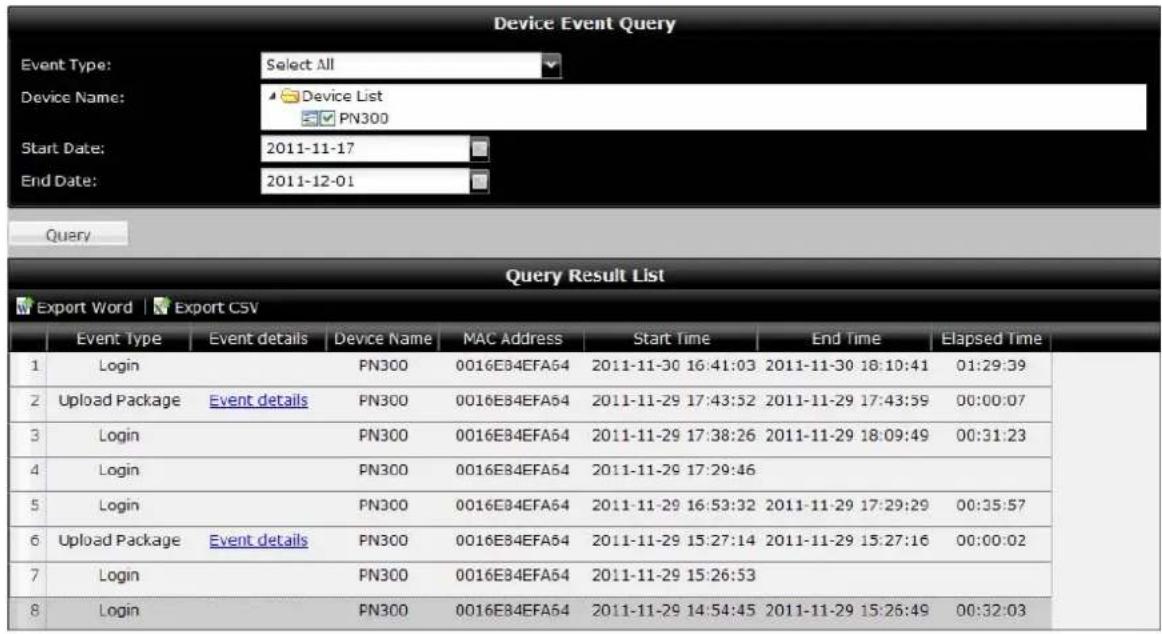

8.12 Event Query 110

8.12.1 Behavior Log Query....110

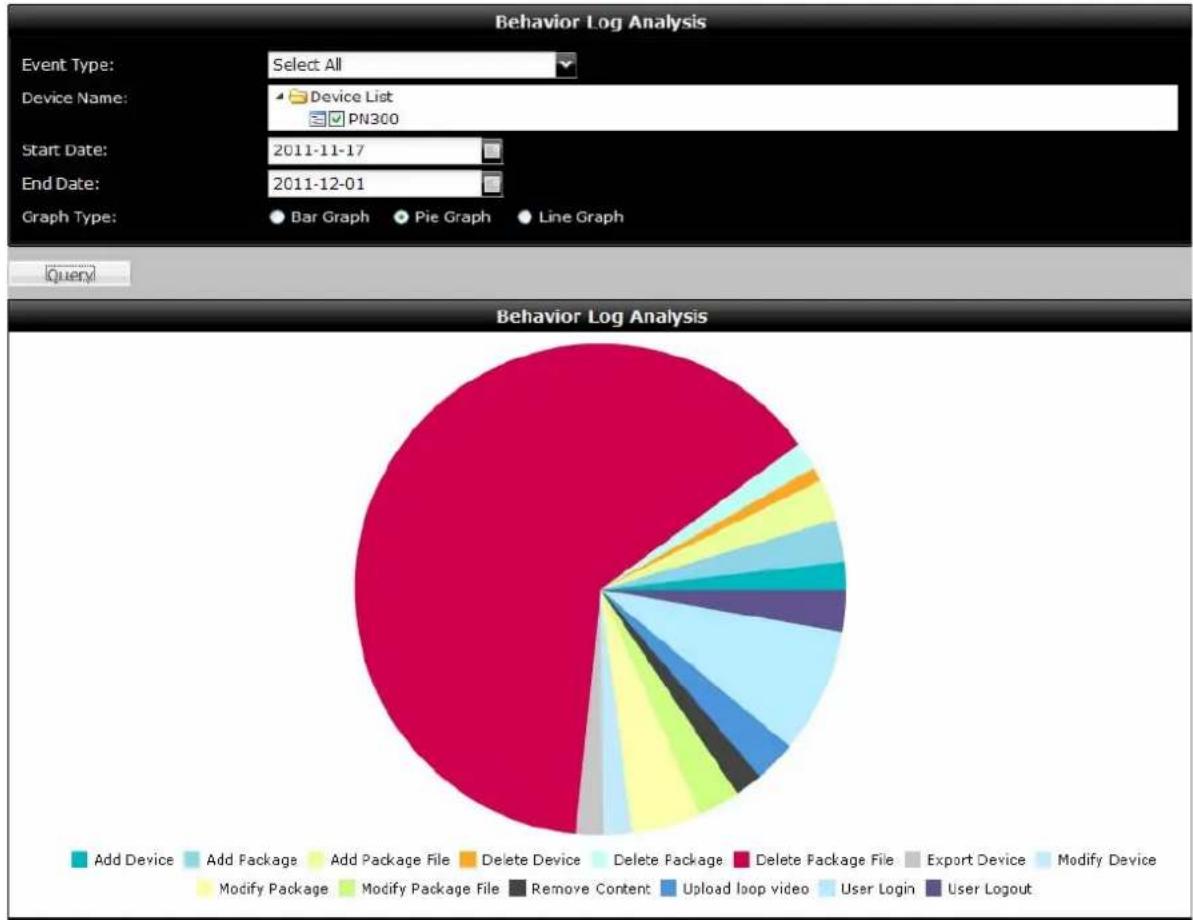

8.12.2 Behavior Log Analysis.... 111
8.12.3 Device Event Query....112
8.12.4 Device Event Analysis (Counts)....113
8.12.5 Device Event Analysis (Elapsed Time)....114

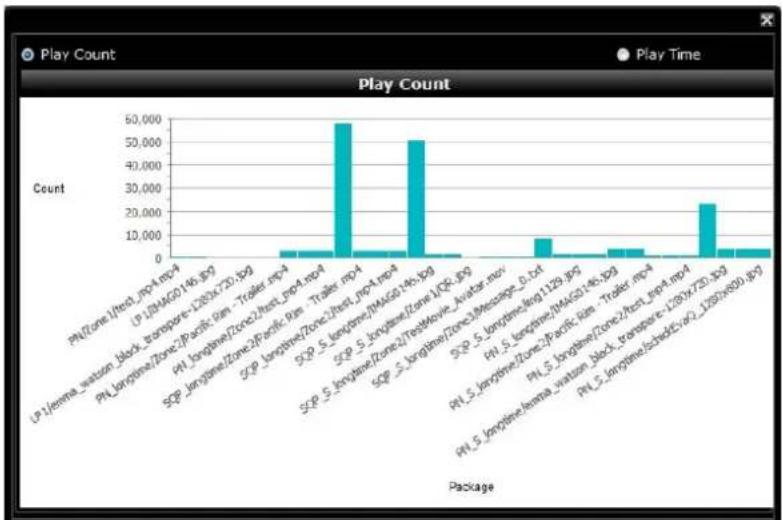

8.12.6 Play Count Analysis....115

8.13 Upload Management 117

8.14 Server Setting....118

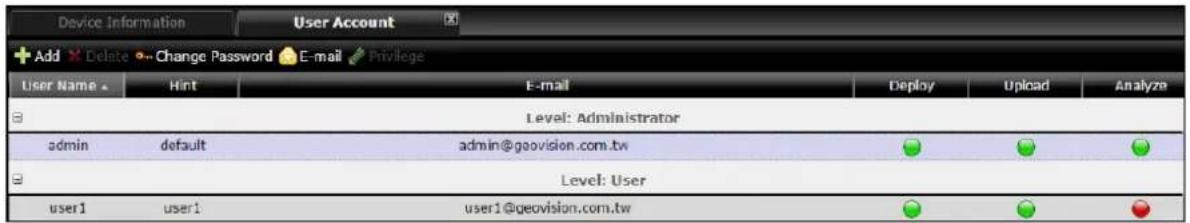

8.14.1 User Account 118
8.14.2 Network Setting 119
8.14.3 Email Service....120

8.15 Upgrading the Firmware 122

Chapter 9 Dynamic DNS....124

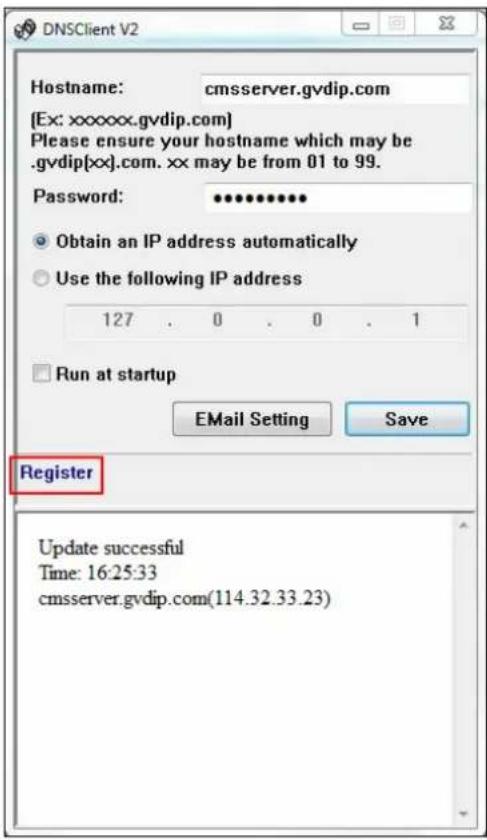

9.1 Installing the Dynamic DNS 124

9.2 Registering Domain Name....126
9.3 Starting Dynamic DNS....128

Specifications....129

PN400....129

PN300....130

SQP133....131

Appendix....132

A. Definitions of Folder Names....132
B. Definitions of Aspect Ratio Mode 133

Preface

Welcome to the PN400, PN300 & SQP133 User's Manual.

The PN400, PN300 & SQP133 are devices that play back slideshows edited or managed by GeoVision's software such as Content Designer, Content Schedule, CMS Lite and CMS Server. This Manual is designed for the following models, firmware, and software version:

Hardware

Model Firmware Version
PN400	1.00
PN300	1.06
SQP133	1.06

Software

Model Software Version
Content Designer 1.0.7.0
Content Schedule 1.0.4.0
CMS Lite 1.0.5.0
CMS Server 1.0.5.0

Compatible Firmware and Software Versions

The PN400 / PN300 / SQP133 / SQP110 Series are compatible with CMS Server / CMS Lite / Content Designer. See the following compatible versions.

	PN400	PN300 / SQP133	SQP110 Series
CMS Server / CMS Lite V1.0.5.0	V1.00	V1.06	N/A
CMS Server / CMS Lite V1.0.4.0	N/A	V1.06	N/A
CMS Server / CMS Lite V1.0.3.0	N/A	V1.05	N/A
CMS Server / CMS Lite V1.0.2.0 or earlier	N/A V1.04	or earlier V1.03 or earlier	earlier
Content Designer V1.0.7.0	V1.00	V1.05	N/A
Content Designer V1.0.5.0 / V1.0.6.0	N/A	V1.05	N/A
Content Designer V1.0.4.0 or earlier	N/A V1.04	or earlier N/A
Content Schedule V1.0.4.0 or later	V1.00 V1.05 or later N/A

Chapter 1 Introduction

The PN300, PN400 and SQP133 are digital media players designed to deliver uninterrupted playback of Digital Signage presentations.

1.1 Features

• Multimedia support
  • Video resolution up to 4K2K (PN400 only)
  • Support for HDMI in and out (PN400 only)
  • Video resolution up to 1080p and Video outputs of HDMI and VGA (PN300 only)
  • Panel resolution of 1280 x 800 (SQP133 only)
  • Built-in speaker (SQP133 only)
  • SD card and USB storage
• Content Schedule and Content Designer
• Content Management System (CMS Server and CMS Lite)
• IR remote control
  • USB mouse control (PN400 only)
• Wireless connectivity (GV-WiFi USB Adapter required)
  •

1.2 Packing List

1.2.1 PN400

1. PN400 Device x 1
2. IR Remote Control x 1
3. AC/DC Adapter x 1 (12 V, 3 A, 36 W)
4. Power Cord x 1
5. Software DVD x 1
6. Warranty Card x 1

1.2.2 PN300

1. PN300 Device x 1
2. IR Remote Control x 1
3. AC/DC Adapter x 1 (12 V, 3 A, 36 W)
4. Power Cord x 1
5. Software DVD x 1
6. Warranty Card x 1

1.2.3 SQP133

1. SQP133 Device × 1
2. IR Remote Control × 1
3. Magnetic Hinge x 1
4. Screw x 4
5. AC/DC Adapter × 1 (12 V, 3 A, 36 W)
6. Power Cord x 1
7. Software DVD x 1
8. Warranty Card x 1

1.3 Options

Optional devices can expand the capabilities and versatility of your PN300/SQP133/PN400. Contact your dealer for more information.

1.3.1 PN400

Options Details
Wall Mount Kit	The Wall Mount Kit is used to mount the PN400 to the wall.
	L-type brackets x 2Small screws x 4
VESA Monitor-Mount Kit	The VESA Monitor Mount Kit is used to mount the PN400 to the back of a VESA monitor.
	VESA monitor mount bracket x 1L-type brackets x 2Large screws x 4Small screws x 8
External GV-USB Dongle for CMS Server or CMS Lite	The USB dongle can provide the Hardware Watchdog function to the system by restarting the computer when Windows crashes. You need to connect the dongle internally on the motherboard.

Options Details
Wall Mount Kit	The Wall Mount Kit is used to mount the PN300 to the wall.
	L-type brackets x 2Small screws x 4
VESA Monitor-Mount Kit	The VESA Monitor Mount Kit is used to mount the PN300 to the back of a VESA monitor.
	VESA monitor mount bracket x 1L-type brackets x 2Large screws x 4Small screws x 8
GV-WiFi USB Adapter	The GV-WiFi USB adapter is a plug-and-play device that provides wireless connectivity to GeoVision IP devices. The GV-WiFi USB Adapter complies with IEEE802.11 b/g/n (Draft 3.0) standards for wireless networking.
Internal GV-USB Dongle for CMS Lite and CMS Server	The USB dongle can provide the Hardware Watchdog function to the system by restarting the computer when Windows crashes. You need to connect the dongle internally on the motherboard.
SD Card (4 GB, Class 4)	The SD Card is used for local storage and firmware upgrade.

1.4 Overview

This section identifies the components of the PN300 and SQP133.

1.4.1 PN400

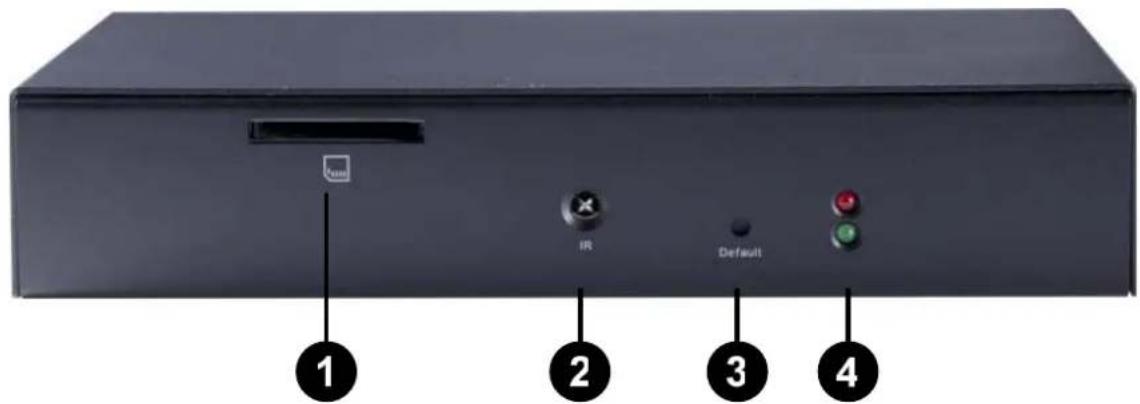

Front View

Figure 1-3

No.	Name Function
1	SD Card Slot Connect to an SD card for local storage and firmware upgrade.
2	IR	Built-in IR receiver to receive the IR signals from the IR remote control.
3	Default	Reset the PN400 to the default factory settings. See 3.10Restoring to Factory Default Settings for details.
4	LED Indicators	The green LED indicates the system is ready. The red LED indicates the power is supplied. When the green LED is off and the red LED is on, the device is in sleep mode.

Rear View

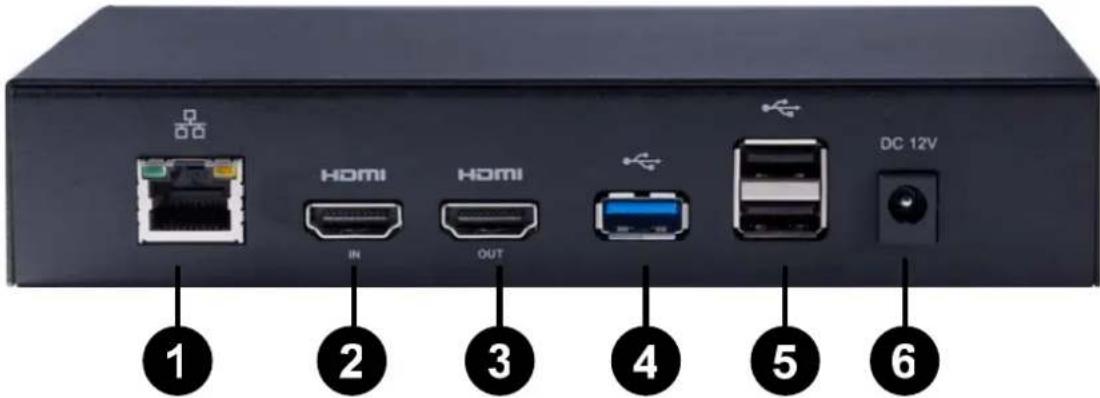

Figure 1-4

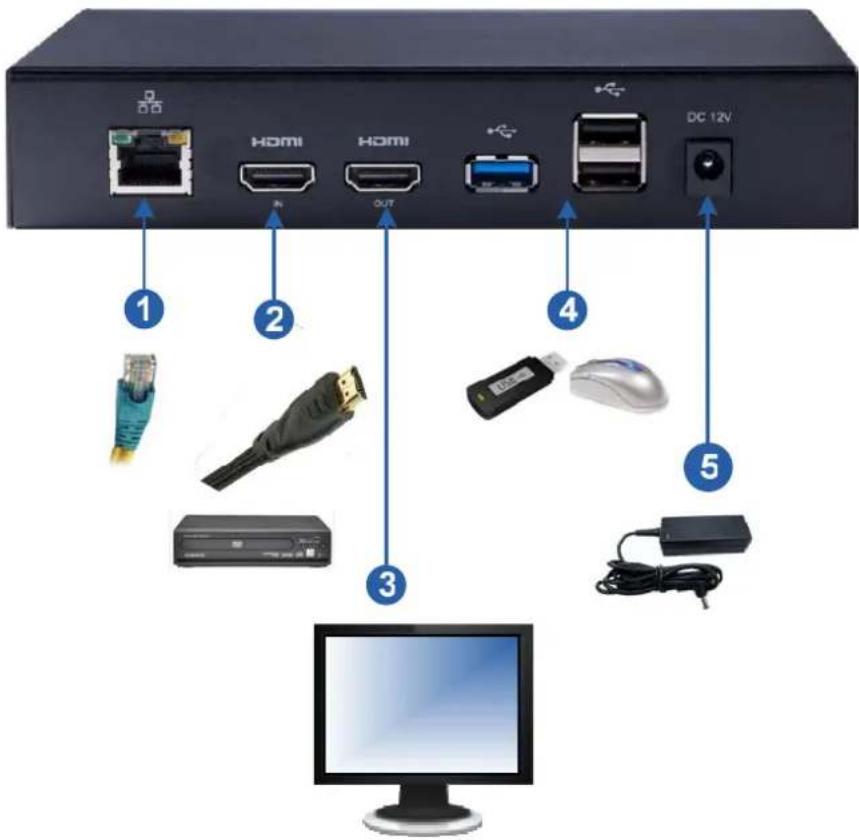

No.	Name Function
1	Ethernet Connect to an	Ethernet.
2	HDMI in	Connect to a HDMI-compliant source device, such as a DVD player and digital TV box.
3	HDMI out Connect to a	HDMI-compliant display device.
4	USB 3.0	Connect to a USB device for local storage of content, firmware upgrade and a USB mouse.
5	USB 2.0
6	DC 12V Connect to power by using the supplied power adapter.

1.4.2 PN300

Front View

Figure 1-1

No.	Name Function
1	LED Indicators	The green LED indicates the system is ready. The red LED indicates the power is supplied. When the green LED is off and the red LED is on, the device is in sleep mode.
2	USB	Connect to a USB device for local storage of content, firmware upgrade and GV-WiFi USB Adapter. Note the removal of the USB storage device will cause the PN300 to automatically reboot.
3	IR	Built-in IR receiver to receive the IR signals from the IR remote control.
4	Default	Reset the PN300 to the default factory settings. See 3.10 Restoring to Factory Default Settings.
5	SD Card Slot	Connect to an SD card for local storage and firmware upgrade. Note the removal of the SD card will cause the PN300 to automatically reboot.

Rear View

Figure 1-2

No.	Name Function
1	Ethernet Connect to an Ethernet.
2	SPDIF Reserved (not enabled).
3	HDMI Connect to an HDMI supported display device.
4	VGA Connect to a VGA monitor.
5	L/R Connect to a speaker.
6	Power OFF/ON Switch the power on or off.
7	DC 12V Connect to power by using the supplied power adapter.

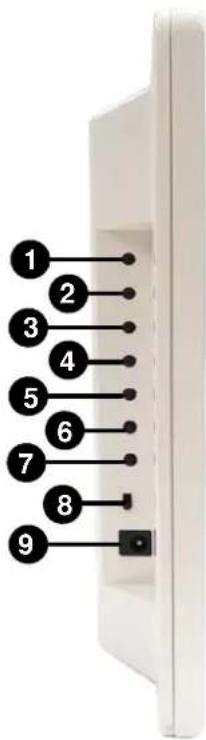

1.4.3 SQP133

Right Panel View

Figure 1-5

No.	Name Function
1 SD	Card Slot	Connect to an SD card for local storage of content and firmware upgrade.
2	USB	Connect to a USB device for local storage of content, firmware upgrade, and GV-WiFi USB Adapter. Note the removal of the USB storage device will cause the SQP133 to automatically reboot.
3	LED Indicators	The green LED indicates the system is ready. The red LED indicates the power is supplied. When the green LED is off and the red LED is on, the device is in sleep mode.
4	IR	Built-in IR receiver to receive the IR signals from the IR remote control.
5 Ethernet	Connect to an Ethernet.

Left Panel

Figure 1-6

No.	Name Function
1.	MENU	Switch to the setup menu.
2	ENTER	Enter the setup options or save the settings in the Setup Menu.
3	UP	Move the cursor up.
4	DOWN	Move the cursor down.
5	LEFT	Move the cursor left.
6	RIGHT	Move the cursor right.
7	STAND BY	Press to enter the Standby/Sleep mode. In the standby mode, the screen turns off to minimize power consumption. Press the key again to enter the ON mode.
8	Power OFF/ON	Switch the power on or off.
9	DC 12V	Connect to power using the supplied power adapter.

1.5 The IR Remote Control

Figure 1-7

No.	Name Function
1	Power	Press to enter the Standby/Sleep mode. In the standby mode, the screen turns off to minimize power consumption. Press the key again to enter the ON mode.
2	Numeric / Alphabetical / Punctuation Marks Buttons	Enter the numbers, alphabets or punctuation marks.
3	Back	● Back to the previous page in the Setup Menu. ● Play the media files.
4	Menu Control Move up, down, right and left in the Setup Menu.
5	Volume Control Increase or decrease the volume.
6	Mute Mute the volume.
7	Menu Switch to the setup menu.
8 OK	Enter the setup options	or save the settings in the Setup Menu.
9	Shift	Switch among different resolutions for PN300 / PN400. Once the button is pressed, the Green LED on the front panel of the device will flash. Press No. 0 ~ 7 for the desired resolution within 30 seconds.For PN300:Shift + 0 : VGA_640 x 480 Shift + 4 : HDMI_480pShift + 1 : VGA_1024 x 768 Shift + 5 : HDMI_720pShift + 2 : VGA_1280 x 768 Shift + 6 : HDMI_1080iShift + 3 : VGA_1366 x 768 Shift + 7 : HDMI_1080pFor PN400:Shift + 1 : 1080p at 30 HzShift + 2 : 1080p at 60 HzShift + 3 : 2160p at 24 HzShift + 4 : 2160p at 30 HzNote the resolution switch will cause the PN300 / PN400 to automatically reboot.
10	Search	Scan for available Access Points or wireless stations when wireless network is selected.

Chapter 2 Getting Started

2.1 Connecting the Device

2.1.1 Connecting the PN400

Figure 2-1

1. Connect to a standard network cable.
2. Optionally, connect a HDMI-compliant source device, such as a DVD player and digital TV box.
3. Connect a display device to HDMI connector for video and audio combined outputs.

4. Connect to a USB mouse, or an USB device for local storage of content or firmware upgrade.

5. Connect to power using the supplied power adapter.

Note:

1. The default video output is set to 1080p at 30 Hz. To change the default setting, see 4.2 Configuring the General Settings.
2. The HDMI input (for HDMI-compliant source devices) only supports the resolution of up to 1920 x 1080 at 30 Hz.

2.1.2 Connecting the PN300

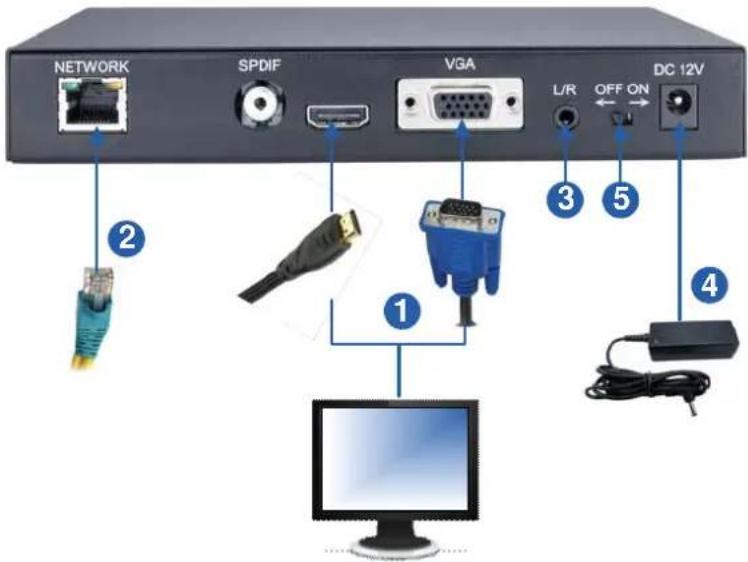

Figure 2-2

1. Connect a monitor to the VGA connector, or the HDMI connector for video and audio combined outputs.
2. Connect to a standard network cable.
3. If you use a VGA monitor, connect a speaker to L/R port for audio output.
4. Connect to power using the supplied power adapter.
5. Switch the Power button to ON.

Note:

1. You can only connect the PN300 / SQP133 to one display device through the HDMI or VGA connector. The video signal will be unstable if more than one display devices are connected.

2. The default video resolution is set to VGA with 1024 x 768. To change the default setting, see 3.2 Setting Video Output and Resolution.

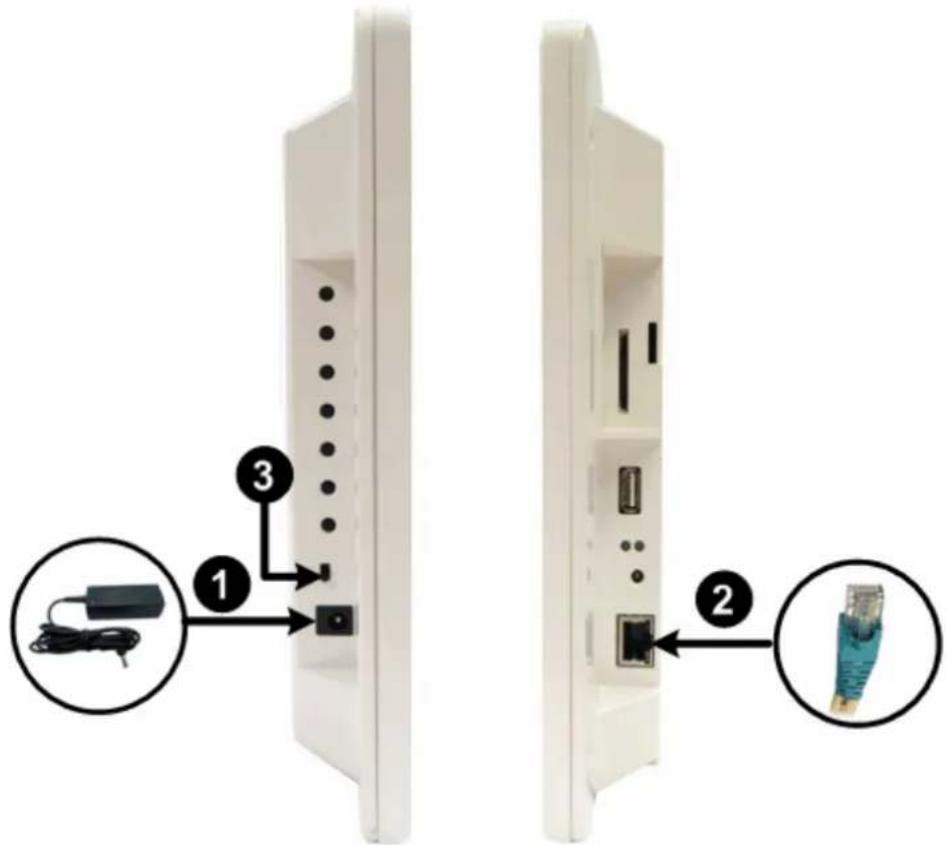

2.1.3 Connecting the SQP133

Follow the steps below to connect the SQP133:

Figure 2-3

1. Connect to power using the supplied power adapter.
2. Connect to a standard network cable.
3. Turn the Power switch to ON.

2.2 Installing Wall Mount

Optionally, you can purchase the mounting plates to mount PN300 or PN400 on a wall.

1. Unscrew the 4 screws on the back panel of the PN300 or PN400.

Back panel of a black electronic device with multiple slots and mounting holes, no visible text or symbols

Figure 2-4

1. Use the 4 screws in the package to tighten the L-type brackets on the PN300 or PN400.

Figure 2-5

2.3 Installing VESA Monitor Mount

Optionally, you can purchase VESA Monitor mount for installing PN300 or PN400.

1. Follow steps 1 and 2 in 2.2 Installing Wall Mount to tighten the L-type brackets on the back panel of the device.

2. Using the 4 large screws, tighten the VESA monitor mount bracket on the back of the computer monitor.

Figure 2-6

1. Use the 4 small screws to tighten the device and the VESA monitor mount bracket together.

Computer monitor with a central fan and a side-mounted drive, showing blue directional arrows indicating motion (no text or symbols visible)

Figure 2-7

2.4 Playing the Slideshow

Without any further settings, you can now play the slideshow made of video or image files.

1. Create a folder named Loop_Video in a USB storage device or an SD card.
2. Copy image or video files to the Loop_Video folder.
3. Connect the USB storage device or the SD card to the device.

4. Turn on the digital signage device.

5. For PN300 / SQP133:

6. The local storage is set to the SD card by default. If you are using an SD card, the device will repeatedly play the files at this step.

7. If you are using a USB storage device, select Play Source and select USB to be the storage.

8. For PN400:

The local storage is disabled by default. To select a storage device, select General and select SD or USB.

1. Press Back on the IR remote control to return the menu, and press Back again to start playing.

Note:

1. For the folder names workable on the device, see Definitions of Folder Names, Appendix.
2. By default, the image and video files are sorted by name, first in numerical and then alphabetical order. Only for PN300 / SQP133, you can change the sorting rule to by size or by random; see the Loop Mode option, 3.3 Setting Slideshow Display Effect.

Chapter 3 System Setup for PN300 / SQP133

You can customize the system settings of the PN300 / SQP133.

3.1 The Setup Menu

Turn on the PN300 / SQP133 and the connected display device. The setup menu with six setup options appears.

Figure 3-1

Name Description
Service	Set up the video output and resolution. See 3.2 Setting Video Output and Resolution.
Play Source	Select the local storage and set up the slideshow display effect. See 3.3 Setting Slideshow Display Effect.
Information	Display the network information, storage information and the device firmware version. See 3.4 Looking Up Device Information.
Time Adjustment	Set up the system time. See 3.5 Setting the System Time.
Network	Set up the network. See 3.6 Setting the Network.
Factory	Upgrade firmware or to copy files from the USB storage device to the SD card. Select Language and Time Zone settings. See 3.5.2 Setting the Time Zone, 3.8 Copying Files from the USB Storage Device and 3.9 Upgrading the Firmware.

3.2 Setting Video Output and Resolution

To set up the video output and resolution for PN300, select Service window appears.

The following

Figure 3-2
■ Output: Select a video output from VGA or HDMI which is supported by the display monitor.
■ Resolution: Select a screen resolution from the following options:

HDMI at 60 Hz	480p	720p	1080i	1080p
VGA at 60 Hz	640 x 480	1024 x 768	1280 x 768	1366 x 768

By default, the video output is set to VGA with the resolution of 1024 x 768.

Note:

1. The video output and resolution for SQP133 cannot be changed.
2. The resolution change will cause the PN300 to automatically reboot.

3.3 Setting Slideshow Display Effect

To set up slideshow display effect, select Play Source

The following window appears.

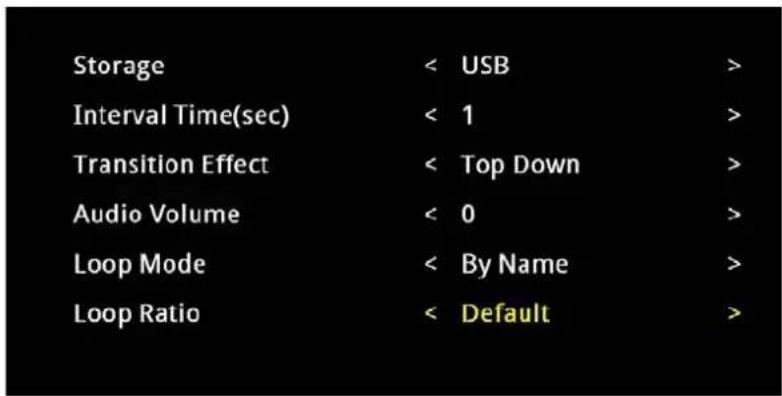

Figure 3-3

■ Storage: Select a local storage from USB or SD. By default, SD card is set as local storage.
■ Interval Time: Select the interval time to play the slideshow. The options include 1, 3, 5, 10, and 30 seconds.
■ Transition Effect: Select the transition effect for the slideshow from the nine options: Bevel, Shutters, Blind Top Down, Circle, None, Top Down, Bottom Up, Left to Right or Right to Left.
■ Audio Volume: Select an audio volume value. The larger the value, the louder the volume.
■ Loop Mode: Select a playback mode for the slideshow from the three options: By Size, Random or By Name.
■ Loop Ratio: Select Full to set the slideshow to full screen or select Default to use the setting of the slideshow.

3.4 Looking Up Device Information

To see the network information, storage information, current time and firmware version, select

Information

The following window appears.

Output	VGA_1366x768
Storage	USB (0 MB)
Network	No IP(LAN)
CMS IP	192.168.1.9(Offline)
Power ON/OFF	Power off
Current Time	2012/11/23/ 00:25:37
Version	V104_120912
[Back] Return

Figure 3-4

■ Output: Shows the video output and resolution.
■ Storage: Shows whether the local storage is set to SD or USB. The remaining storage space is shown in parenthesis.
■ Network: Shows the IP address of the device.
CMS IP: Shows the IP address of CMS Lite or CMS Server.
■ Power ON/OFF: Shows whether the Power ON/OFF function is enabled or not.
■ Current Time: Shows the current date and time.
■ Version: Shows the firmware version of the device.

3.5 Setting the Time

3.5.1 Setting the System Time

To set up the system time, select Time Adjustment

The following window appears.

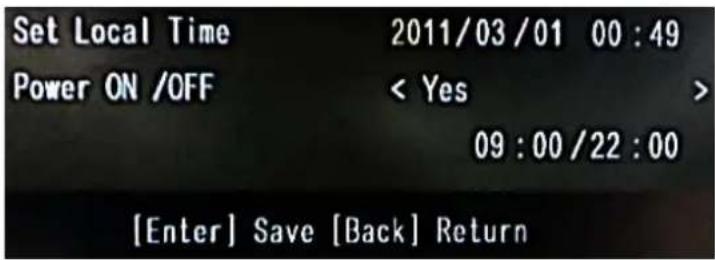

Figure 3-5

■ Set Local Time: Set up the date and time.
■ Power ON/OFF: Select Yes and set up the power on and off time. For example, if you set the power on/off to 09:00/22:00, the device will automatically turn on at 9 am and turn off at 10 pm daily.

3.5.2 Setting the Time Zone

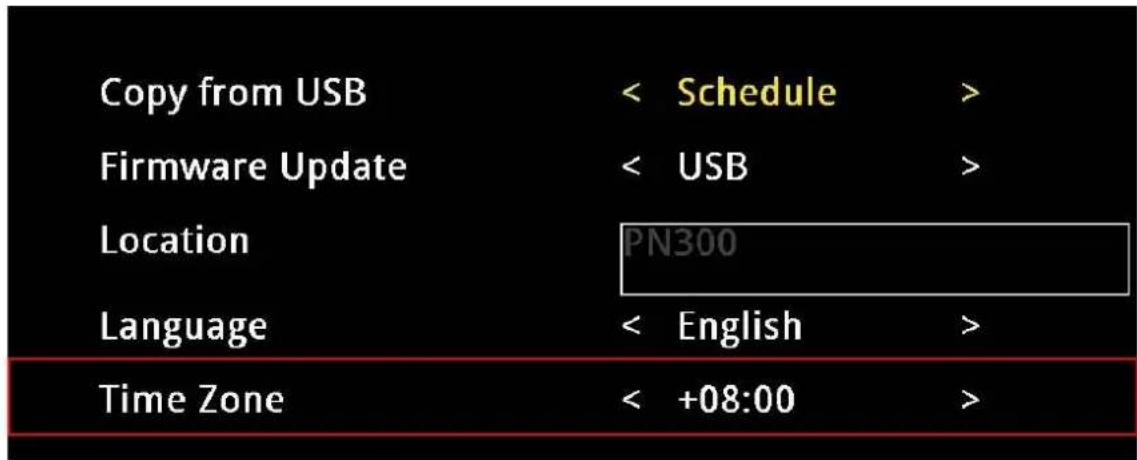

To set up the time zone, select Factory and use the arrow button from the remote control to define the time.

Figure 3-6

3.6 Setting the Network

You can configure the network settings of the device to establish a wired or a wireless network connection. The network connection allows you to manage the media files from a remote Content Management System (CMS). For details on CMS Lite or CMS Server, see Chapter 6 CMS Lite or Chapter 7 CMS Server.

By default, the device will be assigned an unused IP address automatically by the DHCP server when connected to the network.

3.6.1 Wired Network Connection

By default, the device will be assigned an unused IP address automatically by the DHCP server when connected to the network. If the device is installed in a LAN without the DHCP server, assign a fixed IP address for network access.

Figure 3-7

1. Select Network Network and select LAN Setting.
2. To specify a static IP address for the device, select NO in the DHCP section and enter a fixed IP address, subnet mask and DNS and gateway.
3. Press OK to save the settings and connect to the network.

3.6.2 Wireless Network Connection

A GV-WiFi USB Dongle is required to connect the device to the wireless network.

Figure 3-8

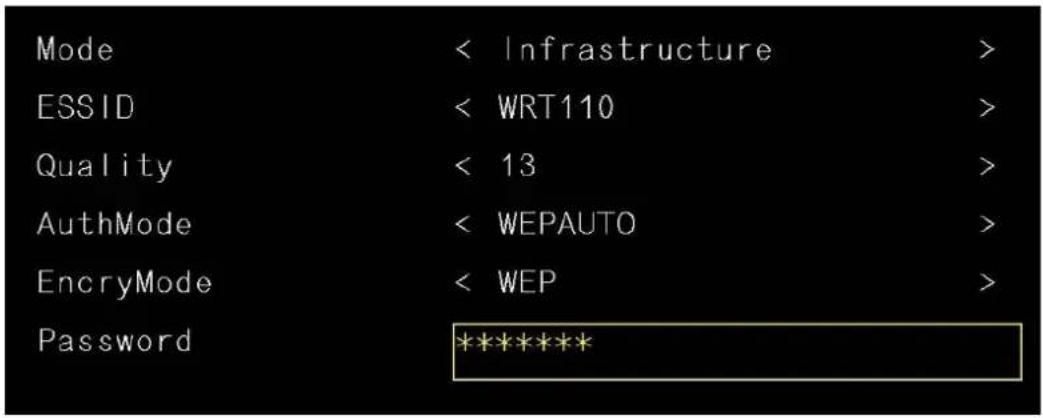

1. To establish a wireless network connection, select Network and select WLAN Setting.
2. Press the Search button to scan for available Access Points / wireless stations.
3. Select an Access Point / wireless station in the ESSID field and complete the settings below.

■ ESSID: Shows the name of the Access Point. Press the left and right button to select an Access Point.
■ Quality: Shows the connection quality on a scale of 1 to 100 with 100 being the highest quality.
■ AuthMode: Select WEP Auto or WPAPSK according to the encryption setting of the Access Point.
■ EncryMode: Select the Encryption Mode according to the encryption setting of the Access Point.
■ Password: Type a password to match the Access Point. You can type up to 26 characters.

1. Press OK to save the settings and connect to wireless LAN.

3.7 Setting the Device Name

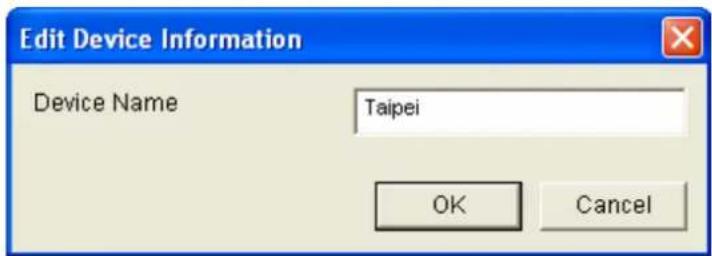

You can name the device by selecting Factory field.

and entering a name in the Location

Figure 3-9

3.8 Copying Files from the USB Storage Device

You can always insert the SD card on the PN300 / SQP133 and use a USB storage device to transfer media files to the SD card.

1. Copy the Schedule, Loop_Video or Scenario folders to the USB storage device.

2. Connect the USB storage device to the device.

3. On the setup menu, select Factory

1. In the Copy from USB field, select the folder you want to replace: Schedule, Loop_Video or Scenario.

Figure 3-10

1. Press OK. The files will be replaced after the file transfer is complete.

Note: For details on the Schedule, Loop_Video and Scenario folders, see Definitions of Folder Names, Appendix.

3.9 Upgrading the Firmware

The latest firmware can be downloaded from the GeoVision Website. Follow the steps below to upgrade the device firmware.

1. Download the latest firmware from the GeoVision Website http://www.geovision.com.tw/english/5_3_Signage.asp

2. Copy the firmware file to the root folder of a USB storage device or an SD card.

3. Connect the local storage.

4. On the setup menu, select Factory

1. In the Firmware Update field, select USB or SD storage that stores the firmware file.

Copy from USB	< Schedule >
Firmware Update	< USB >

Figure 3-11

1. Press OK. The firmware upgrade runs automatically, and the device will restart after the firmware upgrade is complete.

Note:

1. To upgrade the firmware through CMS Lite or CMS Server, see 7.9 Uploading the Firmware or 8.15 Upgrading the Firmware.

2. You need to allocate at least 100 MB in the device storage before upgrading the firmware.

3.10 Restoring to Factory Default Settings

To restore to default settings, follow the steps below.

Note: The power should always be on during the process of loading default value.

For PN300 / PN400, use the default button on the device to restore default settings.

1. Press and hold the Default button on the front panel. The green LED will turn off after 8 seconds. Then you can release the Default button.
2. Wait until the green LED turns on. This may take about 10 seconds.
3. The process of loading default values is complete.

For SQP133, use the setup menu to restore default settings.

1. On the setup menu, select Factory

1. In the Load Default field, select Yes and select OK to confirm.

Figure 3-12

Chapter 4 System Setup for PN400

You can customize the system settings of the PN400.

4.1 The Setup Menu

Turn on the PN400 and the connected monitor. The setup menu with seven setup options appears.

Figure 4-1

Name	Icon	Description
General		[6DXX]Configure general settings such as device name, language, resolution, storage device, audio volume or the size of the on-screen image. See 4.2 Configuring the General Settings.
Factory		Display the firmware version, upgrade the firmware or load the factory default settings. See 4.3 Upgrading the Firmware.
Name Icon	Description
Network		Set up the network. See 4.4 Setting the Network.
Time		Set up the system time. See 4.5 Setting the Time.
CMS		Set up the CMS settings to connect the device to CMS Lite or CMS Server. See 4.6 Connecting to CMS.
Power		Turn off the power, or set up a local schedule to turn on or off the power. See 4.7 Scheduling the Power On and Off.
Information		Display the network information, storage information and the device firmware version. See 4.8 Looking Up Device Information.

4.2 Configuring the General Settings

To set up the general settings for PN400, select General 📋. The following window appears.

Figure 4-2

■ Device Name: Click to change the name of the device.
■ Language: Select a language including English, French, German, Italian, Japanese, Portuguese, Russian, Spanish and Traditional Chinese.
■ Resolution: Select a screen resolution including 1080p at 30 Hz, 1080p at 60 Hz, 2160p at 24 Hz and 2160p at 30 Hz. The default is 1080p at 30 Hz. The resolution change will cause the PN400 to automatically reboot.
■ Content Storage: Select a local storage to be USB or SD. The selection tab appears once the storage device is connected.

Figure 4-3

■ Audio: Set the volume of audio.
■ Video: Set the aspect ratio of the video. You can choose from Letter Box, Scan and Pan, and Ignore.

Note: For details on Letter Box, Scan and Pan, and Ignore, see Definitions of Aspect Ratio Mode, Appendix.

4.3 Upgrading the Firmware

The latest firmware can be downloaded from the GeoVision Website. Follow the steps below to upgrade the device firmware.

Figure 4-4

1. Download the latest firmware from the GeoVision Website http://www.geovision.com.tw/english/5_3_Signage.asp
2. Copy the firmware file to the root folder of a USB storage device or an SD card.
3. Connect the local storage.
4. On the setup menu, select Factory
5. In the Firmware Storage field, select USB or SD storage that stores the firmware file.
6. In the Firmware image field, select the firmware file.
7. Press Save. The firmware upgrade runs automatically, and the device will restart after the firmware upgrade is complete.
8. The Firmware version shows the version number of the current Firmware.
9. To load default, select Enable and click Save.

Note:

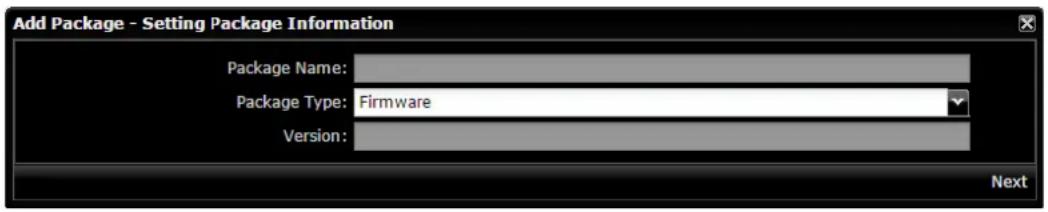

1. To upgrade the firmware through CMS Server or CMS Lite, see 7.9 Uploading the Firmware or 8.15 Upgrading the Firmware.
2. You need to allocate at least 100 MB in the device storage before upgrading the firmware.

4.4 Setting the Network

You can configure the network settings to manage the media files from a remote Content Management System (CMS). For details on CMS Lite or CMS Server, see Chapter 6 CMS Lite or Chapter 7 CMS Server.

By default, the device will be assigned an unused IP address automatically by the DHCP server when connected to the network. If the device is installed in a LAN without the DHCP server, assign a fixed IP address for network access.

DHCP OFF

MAC Address 00:87:51:82:58:F2

IP Address 192.168.0.100

Subnet Mask 255.255.255.0

Gateway 192.168.0.1

Figure 4-5

1. Select Network
2. To specify a static IP address for the device, select OFF in the DHCP field and enter a fixed IP address, subnet mask and gateway.
3. Press Save to save the settings and connect to the network.

4.5 Setting the Time

To set up the system time, select Time. The following window appears.

Figure 4-6

■ Time Zone: Use the arrow button to define the time.
■ NTP: select ON to synchronize the clock of PN400 over network.
■ NTP Server: Enter the URL of a network time server.
■ Date: Set up the date.
■ Time: Set up the time.

4.6 Connecting to CMS

To set up CMS settings for connection to CMS Lite or CMS Server, select CMS. The following window appears.

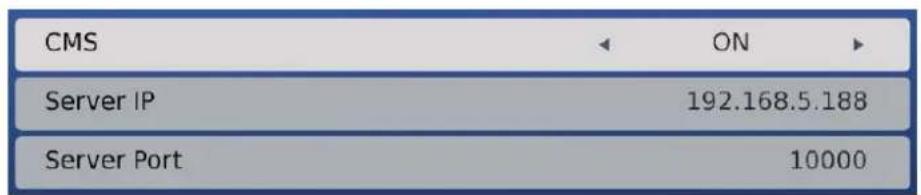

CMS	ON
Server IP	192.168.5.188
Server Port	10000

Figure 4-7

■ CMS: Select ON to connect the device to CMS Lite or CMS Server.
■ Server IP: Enter the IP address of CMS Lite or CMS server.
■ Server Port: The default port for connecting to CMS lite or CMS Server is 10000. Modify it if necessary to match the port on the server.

4.7 Scheduling the Power On and Off

To set up a period of time for PN400 to automatically turn on and off, or to turn off the power, select Power ⏻. The following window appears.

Figure 4-8

■ Local Schedule: Select ON to automatically turn PN400 on and off for a time period.
■ Start Time: Set the time for PN400 to turn on the power.
■ End Time: Set the time for PN400 to turn off the power.

Note: When you click the ⏻ button on the window (Figure 3-4), the power will be turned off. When you move the mouse or press any button on the IR remote control, the power will be turned on again.

4.8 Looking Up Device Information

To see the information of the device, select Information i. The following window appears.

Resolution	1080 60Hz
Storage	SDCard(1944/7531 MB)
Current Time	2016-07-19 07:17:16
Network	192.168.6.78
CMS State	192.168.5.188(Online)
Firmware Version	100160719

Figure 4-9

■ Resolution: Shows the video resolution.
■ Storage (Available/Total): Shows whether the local storage is set to SD or USB. The available and total storage space is shown in parenthesis.
■ Current Time: Shows the current date and time.
■ Network: Shows the IP address of the device.
■ CMS State: Shows the IP address of CMS Lite or CMS Server. Its connection status is shown in parenthesis.
■ Firmware Version: Shows the firmware version of the device.

Chapter 5 Content Designer

Using the Content Designer, you can design your own digital media content. You can create a project contained with images, videos, scrolling tickers, RSS feeds or QR code for digital signage presentations.

5.1 Minimum System Requirements

The minimum system requirements to install and run the Content Designer:

OS Supported	32-bit	Windows XP / 7 / 8 / 10
	64-bit	Windows XP / 7 / 8 / 10
CPU		4th generation Core i3-4130, 3.4 GHz
RAM		4 GB
HDD		80 GB
Graphic Card		AGP or PCI-Express, 1024 x 768 (1280 x 1024 recommended), 32-bit color
DirectX		9.0c
.NET Framework		4.0

5.2 Installing the Content Designer

Installing from Software DVD

1. Insert the Software DVD to your computer. It runs automatically and a window pops up.

Figure 5-1

1. Select Install DirectX 9.0c and follow the on-screen instructions.
2. Select Install Microsoft .NET Framework 4.0 and follow the on-screen instructions.
3. Select Install Authoring Tools and then select Install Authoring Tool-Content Designer (Only for PN300, PN400 & SQP133), and follow the on-screen instructions.

Downloading from GeoVision Website

1. Download and install the DirectX 9.0c and .Net Framework 4.0:

2. DirectX 9.0c
   http://www.microsoft.com/en-us/download/details.aspx?id=34429
   • Microsoft .Net Framework 4.0
   https://www.microsoft.com/en-us/download/details.aspx?id=17851

3. Go to the Software Download and Upgrading page of GeoVision Website:

http://www.geovision.com.tw/english/5_8.asp

1. Click the Digital Signage tab and click the Download icon DOWNLOAD of Content Designer.

Figure 5-2

5.3 The Menu Bar

Figure 5-3

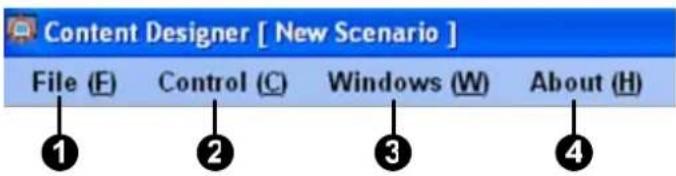

No.	Name Function
1	File Create, open or export	a scenario or a project.
2	Control	Select a transition mode for the displayed for the displayed images or set up the foreground effect.
3	Windows	Add gridlines and select the color of the grid line on the canvas to help edit the project, or change the language setting.
4	About Display the version	properties of the Content Designer.

Note: The Control tab is not available for PN400.

5.4 Creating a Project

Follow the instructions below to create a project.

5.4.1 Create a Screen Layout

1. To create a project, click File on the menu bar and select New Scenario.
2. Select PN300, SQP133, GV-3D People Counter or PN400 and a screen resolution.

Figure 5-4

Note: The Content Designer supports the following resolutions:

PN300

HDMI at 60 Hz	720 x 480(480p)	1280 x 720(720p)	1920 x 1080(1080i)	1920 x 1080(1080p)
VGA at 60 Hz	640 x 480 10	24 x 768 1280	x 768 1366 x 768

PN400

HDMI	1080p at 30 / 60 Hz 4K2K (2160p) at 24 / 30 Hz

1. Click the Rotation drop-down list to select 0° for the landscape display or 90° for the portrait display. Here we choose the landscape display to show you the following instructions.

Note: The Rotation function is not supported for PN400.

1. Select a desired template or select Null to create your own layout.

Figure 5-5

5.4.2 The Main Screen

After the screen layout is selected, the main screen appears.

Figure 5-6

No.	Name Function
1	Overview	Display the location of an object (or a zone) on the layout.
2	Object Menu	■ Eye 📋: Hide or show the layer of the selected object/zone.■ Lock 📋: Lock or unlock the object from being edited in the layout.■ Audio 📋: Disable or enable the audio of an object.
3	New Object	■ QR: Add an object (or a zone) to include QR code.■ Ticker: Add an object (or a zone) to include a scrolling ticker. You can only add up to 32 scrolling tickers to a project.■ Image: Add an object (or a zone) to include an image.■ Video: Add an object (or a zone) to include a video file. You can add up to two videos to a project.■ RSS feed: Add an object (or a zone) to include a RSS. You can only add one RSS to a project.■ HDMI In: Receives signals from a HDMI-compatible source device, e.g. a DVD player or digital TV box.■ 4K Video: Add a video with 4K resolution or H.265 codec.Note that it is an either-or option between the Ticker and the RSS feeds.
4	Object Type	Type figures in the Size and Position boxes to modify the size and the location of an object (or a zone).
5	Background Image	Add a background image in PNG, BMP or JPEG format by clicking Browse.
6	Size Enlarge or minimize the layout.
7	Layout	Select Layout to edit a project.
8	Preview	Select Preview to view the created project.
9	Object Colors	■ Blue: Image files■ Green: Video or image files■ Orange: Scrolling Ticker■ Red: RSS feeds■ Purple: QR code■ Light green: HDMI signal input■ Bright green: 4K or H.265 video files
10	Resolution	Display the screen resolution and rotation degree of the project.

5.4.3 Assign Content to Zones

You can add new objects (zones) to the layout by clicking the New Object button and then selecting Image, Video, Ticker, RSS feed, QR, HDMI in or 4K video. Up to seven objects (zones) can be included in a layout, with two video objects and one scrolling ticker/RSS feeds allowed.

Dragging the sides of the object (or zone) can change the position or size of objects (zones).

1. To add videos:

Note:

1. The objects HDMI in and 4K video are only available for PN400.
2. 4K video refers to a video with 4K resolution or H.265 video codec.
3. Up to 2 videos are allowed in a layout, including a combination of one HDMI in and one video, or one 4K video only.
4. For H.264 video, the max data rate supported is 10 Mbit/s. For H.265 video, that is 5 Mbit/s.

A. Double-click the Video or Image object (zone).
B. Click the Browse button to browse the folder containing video files.

Figure 5-7

C. Drag the desired videos to the playlist. Up to 50 video and image files, with 2 videos at the maximum, can be added. To change the order of files on the playlist, right-click the file and select Top, Up, Down or Bottom.
D. To define the repetition of a video:

- Only For PN400, right-click a file on the playlist, select Properties and specify the number of times to repeat the video (Repeat Time).

Figure 5-8

Note: The default of repeat shows "1" which means no repeat.

2. To add images:

Note:

1. The image formats supported are .PNG, .BMP and .JPEG.
2. For PN400, if you select the image of 1080p (1920 x 1080), the maximum file size supported is 2 MB and if you select 2160p (3480 x 2160), that is 4 MB.

A. Double-click the Image object (zone).
B. Click the Browse button to browse the folder containing image files.

Figure 5-9

C. Drag the desired images to the playlist. Up to 50 images can be added. To change the order of images on the playlist, right-click the image and select Top, Up, Down or Bottom.

GeoVision

D. To define the duration of an image:

• For PN300, specify the duration of an image in seconds (Interval) at the bottom of the dialog box.
• For PN400, right-click an image on the playlist, select Properties and specify the duration of the image in seconds (Play Time).

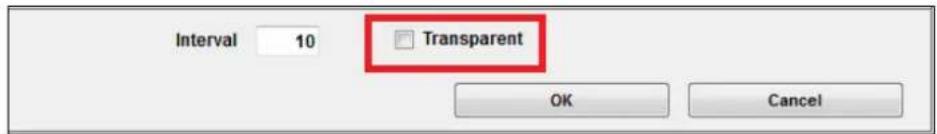

E. Only for PN300, to overlap the image on a video in semi-transparent form, select Transparent.

Figure 5-10

F. Click OK.

3. To add a scrolling ticker:

A. Double-click the Ticker object (zone). This dialog box appears.

Figure 5-11

B. Click Add to add the text to the text list. This dialog box appears.

Figure 5-12

C. Type the text you want to display for the ticker. Up to 32 tickers can be added. To edit, delete or change the display order, right-click a ticker to access these options.
D. Optionally, you can change the font, background color and font size of the text. You can also select the speed and scrolling direction to display the text.
E. Only for PN300, to overlap the tickers on a video in semi-transparent form, select Transparent.
F. Click OK.

Note: In the portrait mode, the ticker can solely be displayed on the bottom.

4. To add a QR code:

A. Double-click the QR object (zone).

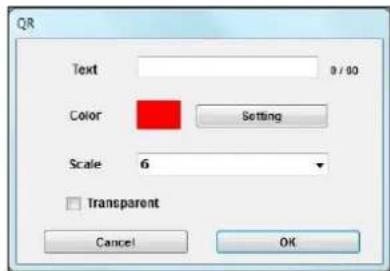

B. In the Text section, type the desired content you want to display in the QR code.

Figure 5-13

C. Optionally, you can change the QR code color by clicking the Setting button or the QR object size by clicking the Scale drop-down list.

D. Only for PN300, to overlap the QR codes on a video in semi-transparent form, select Transparent.

E. Click OK.

5. To add the RSS feeds:

A. Double-click the RSS feed object (zone).
B. In the Feed URL section, click the button and select a source of news headlines from the list.

Figure 5-14

C. Click the Connection button to test the selected Feed URL to find out if the news link is available.
D. In the Wait Message field, type the text message to display on the device before it receives the RSS feeds. This Wait Message solely appears at the first time this function being applied.
E. Optionally, you can change the font, background color and font size of the text. You can also select the speed and scrolling direction to display the text.
F. Only for PN300, to overlap the RSS feeds on a video in semi-transparent form, select Transparent.
G. In the Refresh Rate drop-down list, define how often you want to refresh the news headlines.
H. Click OK.

Note: It is an either-or option for the Ticker and the RSS feeds.

5.4.4 Preview and Save Screen Layout

1. To preview the created project, click Preview on the main screen.
2. To save the project, click File and select Output Scenario.
3. Name the project in the Scenario Name field, and choose its size. Click ☐ to browse the location to save the project.

Figure 5-15

Tip: You can create multiple Scenario projects and play them repeatedly with each for 5 minutes. See Loop Scenario in Appendix A. Definition of Folder Names.

Note:

1. Do not use space in the Scenario Name if you want to include the scenario in a content schedule.
2. Windows Media Player is required to preview the project you created.

5.5 Playing the Project on PN300, PN400 or SQP133

To play the project, created using the Content Designer, on the PN300 / PN400 / SQP133, follow the steps below:

To create a folder:

1. Create a folder named Scenario in a USB storage device or an SD card. If you like to play multiple projects repeatedly, create a folder named Loop_Scenario.
2. Copy the project files to the Scenario folder. Or copy multiple Scenario folders to the Loop_Scenario folder.

To turn on the device:

1. Connect the USB storage device or the SD card to the device.
2. Turn on the monitor and the device.

3. For PN300 / SQP133:

4. The local storage is set to the SD card by default. If you are using an SD card, the device will repeatedly play the files at this step.

5. If you are using a USB storage device, select Play Source and select USB to be the storage.

6. For PN400:

The local storage is disabled by default. To select a storage device, select General and select SD or USB.

1. Press Back on the IR remote control to return the menu, and press Back again to start playing.

Note:

1. You can only store one project in the Scenario folder. If multiple projects are saved in the Scenario folder, the device will only play the last project. To play multiple projects, you can create a Loop Scenario folder or set up a schedule by using the Content Schedule software. See Chapter 6 Content Schedule.

2. The device will only play the files stored in the Scenario folder if both the Scenario and Loop_Video folders are in the storage device.

3. You can also upload projects to the device using a central management system. See Chapter 7 CMS Lite or Chapter 8 CMS Server for more details.

Chapter 6 Content Schedule

The Content Schedule software allows you to create a weekly schedule to automatically start up the device and present media content at a specific date and time.

6.1 Minimum System Requirements

The minimum system requirements to install and run the Content Schedule:

OS Supported	32-bit	Windows XP / 7 / 8 / 10
	64-bit	Windows XP / 7 / 8 / 10
CPU		4th generation Core i3-4130, 3.4 GHz
RAM		4 GB
HDD		80 GB
Graphic Card		AGP or PCI-Express, 1024 x 768 (1280 x 1024 recommended), 32-bit color
.NET Framework		4.0

6.2 Installing the Content Schedule

Installing from Software DVD

1. Insert the Software DVD to your computer. It runs automatically and a window pops up.
2. Select Install Authoring Tools, and then select Install Authoring Tool-Content Schedule (Only for PN300, PN400 & SQP133), and follow the on-screen instructions.

Figure 6-1

Downloading from GeoVision Website

1. Download and install Microsoft .Net Framework 4.0:

https://www.microsoft.com/en-us/download/details.aspx?id=17851

1. Go to the Software Download and Upgrading page of GeoVision Website:

http://www.geovision.com.tw/english/5_8.asp

1. Select the Digital Signage tab and click the Download icon Schedule.

Figure 6-2

6.3 Setting the Content Schedule

1. Start the Content Schedule software, and this dialog box appears. You can create up to three content schedules by using three sets of Power On and Power Off settings.

Figure 6-3

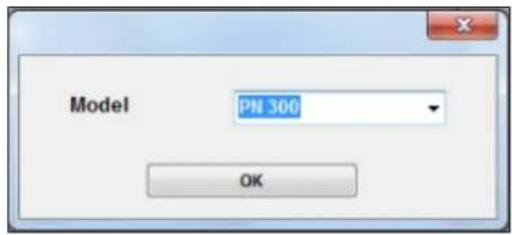

1. To create the first content schedule, click the New box on the template list, or click on the Fast Food or Shopping Mall box to use the readymade templates. Select the model from this dialog box.

Figure 6-4

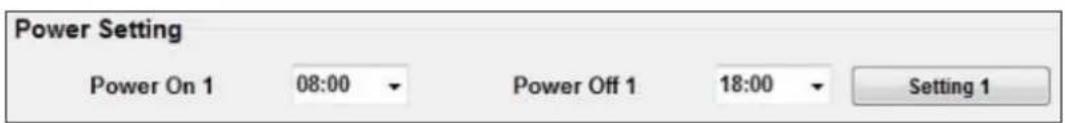

1. Specify the time for the device to automatically turn on and turn off in the Power On and Power Off drop-down lists.

Figure 6-5

1. Click the Setting 1 button to set up the first schedule. This dialog box appears.

Figure 6-6

1. Specify the date to play the media files in the Start Date and End Date drop-down lists.

Figure 6-7

1. Specify the day(s) to play the media files.

Figure 6-8

GeoVision

1. To exclude certain dates from the schedule, select the dates from the drop-down list, and click Add.

Figure 6-9

1. Click OK. This calendar appears. The scheduled dates are displayed in black color.

Figure 6-10

1. Double-click any of the scheduled dates in black. This setup box appears. You can further specify a period of time in a day to play the media files.

Figure 6-11

1. Click any time column. This dialog box appears. You can specify the type of media file and time to play.

Figure 6-12

GeoVision

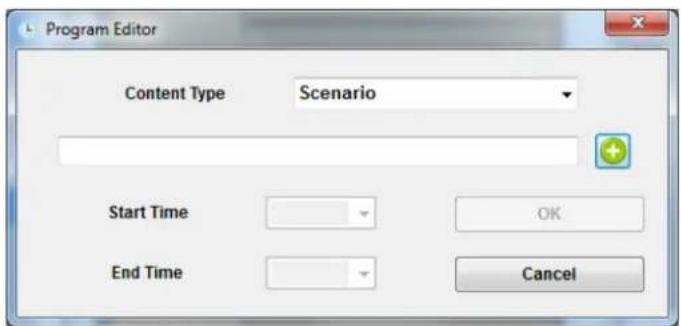

1. Select Scenario or Loop Scenario to play the project created using the Content Designer, or Loop Video to play some video and/or image files. If you select Scenario or Loop Scenario:

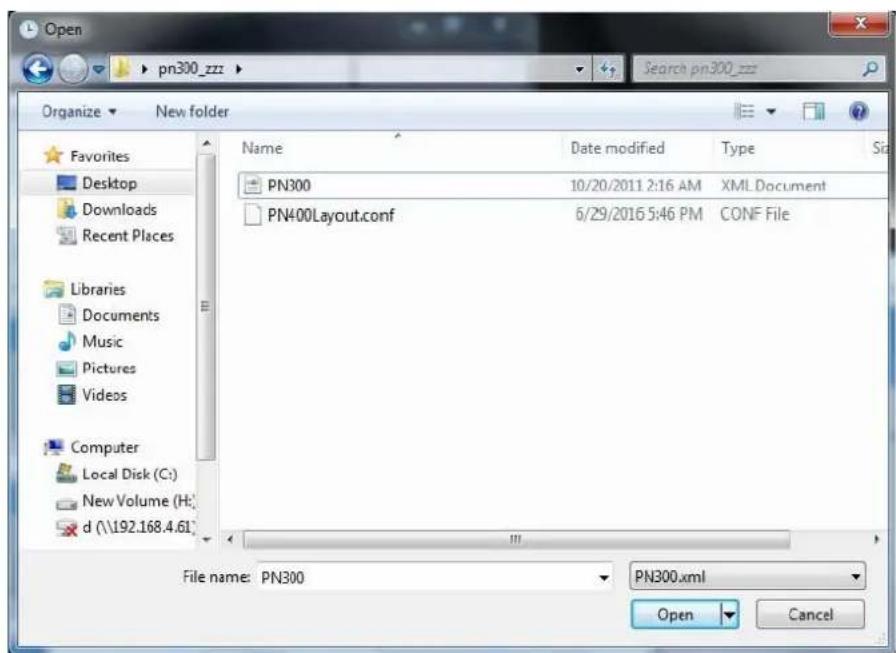

A. Click the button to locate the Scenario folder, select PN300.XML, PN400.CONF or SQP133.XML, and click Open.

Figure 6-13

B. Specify a period of time to play the Scenario files in the Start Time and End Time drop-down lists. Click OK.

1. You can create different periods of time to play different types of media files in a day by repeating steps 9 to 11.

2. Click OK in the Program Guide dialog box to apply the time settings to the selected date.

3. Repeat above steps to set up the second and the third content schedules, if necessary.
4. To save the schedule, click File and select Export on the main screen, name the schedule and click File Transfer Completes when this message box appears.

Figure 6-14

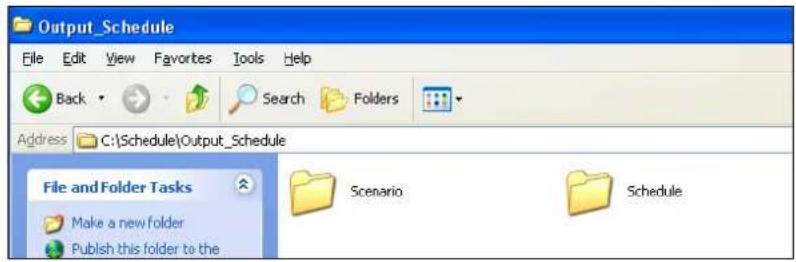

1. The schedule settings are exported to a folder. After opening the folder, you can find subfolders: Scenario, Schedule, Loop_Video and/or Loop_Scenario.

Figure 6-15

1. Store the subfolders folders in the storage device.
2. Connect the storage device to the device. It will automatically play the media files according to the schedule.

Note: Don't copy the exported folder directly to the local storage of the device. You need to copy the subfolders, such as Schedule, Scenario, Loop Scenario and/or Loop Video folders to it.

Chapter 7 CMS Lite

The CMS Lite is Content Management System, allowing you to remotely upload media files, scrolling tickers or firmware to multiple digital signage devices.

Figure 7-1

Note: For information on SQP110, refer to SQP110 Series User's Manual.

7.1 Minimum System Requirements

The minimum system requirements to install and run the CMS Lite:

OS Supported	32-bit	Windows XP / 7 / 8 / 10
	64-bit	Windows XP / 7 / 8 / 10
CPU		4th generation Core i3-4130, 3.4 GHz
RAM		4 GB
HDD		80 GB
Graphic Card		AGP or PCI-Express, 1024 x 768 (1280 x 1024 recommended), 32-bit color

7.2 Software License

The CMS Lite supports 50 units of digital signage devices for free. If you want to connect more devices to the CMS Lite, an additional dongle is required. Different number of connections is available for purchase, with 10 connections for every increment and up to 500 connections in maximum.

Free License	50 clients
Maximum License	500 clients
Increment for Each License	10 clients
Optional Combinations	N/A
Dongle Type	Internal or external

7.3 Installing the CMS Lite

To install the CMS Lite, follow the steps below.

Note: Before starting the CMS Lite, make sure you have inserted the dongle to the computer and installed the USB drivers for dongle; otherwise the additional number of connections will not be applied.

Installing from Software DVD

1. Insert the Software DVD to your computer. It runs automatically and a window pops up.
2. If you use a USB dongle, select Install GeoVision USB Devices Driver and follow the on-screen instructions.
3. Select Install Content Management System and then select Install CMS Lite, and follow the on-screen instructions.

Figure 7-2

Downloading from GeoVision Website

1. Go to the Software Download and Upgrading page of GeoVision Website: http://www.geovision.com.tw/english/5_8.asp
2. Select the Digital Signage tab and click the Download icon DOWNLORD of CMS Lite.

SOFTWARE DOWNLOAD & UPGRADING
IP Camera	Video Management Software	Access Control	License Plate Recognition
Digital Signage	Network Storage	SNVR System	Hardware Accessory
Others	Smartphone App	Video Server

Figure 7-3

7.4 Connecting the Devices to CMS Lite

To connect the device to CMS Lite, you have to set up the CMS settings. Make sure the device is already connected to the network. See 3.6 Setting the Network (for PN300 / SQP133) and see 4.4 Setting the Network (for PN400) for details.

1. To set up CMS settings:

- For PN300 / SQP133: On the setup menu, select Network and select CMS Setting. This window appears

Figure 7-4

- For PN400: Select CMS This window appears.

Figure 7-5

1. In the IP field, specify the IP address of CMS Lite.
2. Keep the Port value as 10000 or modify it to match the port on the CMS Lite.
3. Press OK to save the settings. For PN400, it will restart.

When the CMS Lite is started, the devices will be connected to the CMS Lite automatically, the connection information will be listed.

Figure 7-6

7.5 The Main Screen

Figure 7-7

No.	Name Function
1 File Exit the CMS Lite.
2	Tool	Configure: Configure the communication port between the CMS Lite and the devices. The available port number is between 1 and 65534. The default value is 10000.Version: Display the version of the CMS Lite.
3 Upload Loop Video		Upload the video or image files to the device. See 7.6 Uploading Video and Image Files.
4	Upload Scenario	Upload the Scenario project created using the Content Designer to the device. See 7.7 Uploading the Scenario or Loop Scenario.
5	Schedule	Upload the content schedule to the device. See 7.8 Uploading the Schedule.
6 Upload Loop Scenario		Upload the Loop Scenario files to the device. See 7.7 Uploading the Scenario or Loop Scenario.
7	Upload Firmware	Upload firmware to the device. See 7.9 Uploading the Firmware.
8 Cancel Uploading Cancel the process of uploading.
9 Edit Device Information		Change the device name. See 7.11 Changing the Device Name.
10	Ticker	Upload the scrolling ticker to the device. See 7.10 Uploading Scrolling Ticker.
11	Remove Content Remove	the files saved on the local storage of the device.
12	Reboot Reboot the device.
13	Reload Refresh the information.
14	Information	Display the information of connected devices, including device type, device name, IP address, MAC address, status, last update time, transfer status, file name, transfer speed, free space, resolution and firmware version.

7.6 Uploading Video and Image Files

You can upload some video and/or image files to the device. To upload the desired video and/or images files, you must save these files to a Loop_Video folder first.

1. On the CMS Lite, select the desired device(s) and click the Upload Loop Video button

Figure 7-8

1. Type a name in the Package Name field for the uploading folder.
2. Click Browse to locate the Loop_Video folder.
3. Click OK. The percentage of uploading process will be displayed in the Transfer Status column.

After the uploading process is complete, the CMS Lite will disconnect with the device and the previous folder (Loop_Video, Scenario, Loop_Scenario or Schedule) will be removed from the local storage of the device. After that, the CMS Lite will reconnect to the device again, and the device will automatically play the uploaded media files.

IMPORTANT: The upload action will remove previous Loop_Video, Scenario, Loop_Scenario or Schedule folder from the local storage of the device.

Note: For PN400, the CMS Lite will keep connected even after the uploading process is complete.

7.7 Uploading the Scenario or Loop Scenario

To upload the project created using the Content Designer to the device, follow the steps below.

1. On the CMS Lite, select the desired device(s) and click the Upload Scenario button

Figure 7-9

1. Type a name in the Package Name field for the uploading folder.
2. Click Browse to locate the Scenario or Loop_Scenario folder.
3. Click OK. The percentage of uploading process will be displayed in the Transfer Status column.

After the uploading process is complete, the CMS Lite will disconnect with the device, and the previous folder (Loop_Video, Scenario, Loop_Scenario or Schedule) will be removed from the local storage of the device. After that, the CMS Lite will reconnect to the device again, and the device will automatically play the uploaded media files.

IMPORTANT: The upload action will remove previous Loop_Video, Scenario, Loop_Scenario or Schedule folder from the local storage of the device.

Note: For PN400, the CMS Lite will keep connected even after the uploading process is complete.

7.8 Uploading the Schedule

To upload the content schedule, created using the Content Schedule software, to the device, follow the steps below.

1. On the CMS Lite, select the desired device(s) and click the Upload Schedule

Figure 7-10

1. Type a name in the Package Name field for the uploading folder.
2. Click Browse to locate the Output_Schedule folder.
3. Click OK. The percentage of uploading process will be displayed in the Transfer Status column.

After the uploading process is complete, the Schedule, Scenario and/or Loop_Video folders in the device will be updated.

IMPORTANT: The upload action will remove previous Loop Video, Scenario, Loop_Scenario or Schedule folder from the local storage of the device.

7.9 Uploading the Firmware

To upload the firmware to the device, follow the steps below.

1. On the CMS Lite, select the desired device(s) and click the Upload Firmware button

to locate the firmware file.

1. Click Open. The percentage of uploading process will be displayed in the Transfer Status column.

After the uploading process is complete, the device will automatically restart.

7.10 Uploading the Scrolling Ticker

To upload a scrolling ticker to the device, follow the steps below.

1. On the CMS Lite, select the desired device(s) and click the Ticker Setup button

Figure 7-11

1. Type the text in the Text field. You can type up to 200 characters in the Text filed.
2. Click OK. The scrolling ticker will be uploaded to the device and displayed on the bottom of the screen.

Note:

1. If the project, created using the Content Designer, already includes a scrolling ticker, the position of the uploaded scrolling ticker will be the same as your original design in the project. If there is no scrolling ticker in the project, the uploaded scrolling ticker will be displayed at the bottom of the screen.
2. When you upload the scrolling ticker, this ticker becomes the only ticker in the device; it replaces all the tickers existed in the device. The screen displays the newly uploaded ticker only.

7.11 Changing the Device Name

To change the device name, follow the steps below.

1. On the CMS Lite, select the desired device(s) and click the Edit Device Information

button

Figure 7-12

1. Type a name for the device.
2. Click OK. The CMS Lite will disconnect and then reconnect to the device automatically.

Note: You can find the device name in the Factory menu of the device. See 3.7 Setting the Device Name (for PN400 / SQP133) or see 4.2 Configuring the General Settings (for PN400).

Chapter 8 CMS Server

CMS Server is a Content Management System server that allows you to upload media files, scrolling tickers or firmware to up to 1000 digital signage devices using a Web interface. You can also look up records and analysis of user and device activities.

Figure 8-1

Note: For details on SQP110, see SQP110 Series User's Manual.

8.1 System Requirements

The system requirements for CMS Server are listed below.

Note: For the compatible firmware versions of PN300, PN400, SQP133 and SQP110 with the CMS Server, see Compatible Firmware and Software Versions at the beginning of the manual.

8.1.1 Minimum System Requirements

500 Devices or less	500 Devices or more
OS	32-bit and 64-bit Windows XP / Vista / 7 / 8.1 / 10 / Server 2012
CPU	4th generation i3-4130,3.4 GHz	4th generation i7-4770,3.4 GHz
Memory	4 GB 8 GB
Browser	Internet Explorer 11.0Firefox 4.7.0Google Chrome 51.0.2704.106
Hardware	External GV-USB Dongle
Note: It is recommended to use the external GV-USB Dongle to have the Hardware Watchdog function which restarts the PC when Windows crashes or freezes.

8.1.2 Software License

An USB dongle is required to connect CMS Server to devices. Starting from a minimum of 5 connections to a maximum of 1000 connections, different number of connections is available for purchase in increments of 5 connections.

Free License	N/A
Maximum License	1000 clients
Increment for Each License	5 to 1000 clients at an increment of 5
Optional Combinations	N/A
Dongle Type	External

8.2 Installing CMS Server

Installing from Software DVD

1. Insert the Software DVD to your computer. It runs automatically and a window pops up.
2. To install USB dongle driver, select Install GeoVision USB Devices Driver and follow the on-screen instructions.
3. To install the CMS Server, select Install Content Management System, select Install CMS Server, and follow the on-screen instructions.

Figure 8-2

Downloading from GeoVision Website

1. Go to the Software Download and Upgrading page of GeoVision Website: http://www.geovision.com.tw/english/5_8.asp
2. Select the Digital Signage tab and click the Download icon DOWNLORD of CMS Server.

SOFTWARE DOWNLOAD & UPGRADING
IP Camera	Video Management Software	Access Control	License Plate Recognition
Digital Signage	Network Storage	SNVR System	Hardware Accessory
Others	Smartphone App	Video Server

Figure 8-3

8.3 Connecting the Devices to CMS Server

To connect the device to CMS Server, you have to set up the CMS settings. Make sure the device is already connected to the network. See 3.6 Setting the Network (for PN300 / SQP133) and see 4.4 Setting the Network (for PN400) for details.

1. To set up CMS settings:

- For PN300 / SQP133: On the setup menu, select Network and select CMS Setting. This window appears

Figure 8-4

• For PN400: Select CMS This window appears.

CMS	ON
Server IP	192.168.5.188
Server Port	10000

Figure 8-5

1. In the IP field, specify the IP address of CMS Server.
2. Keep the Port value as 10000 or modify it to match the port on CMS Server.
3. Press OK to save the settings. For PN400, it will restart.

When CMS Server is started, the device will be listed in the Device Setup page as Invalid. Double-click the device to add the device to CMS Server.

Figure 8-6

8.4 Starting CMS Server

After installing CMS Server, the CMS Server icon will appear in the system

tray. Follow the steps below to configure general settings and access the Web interface of CMS Server.

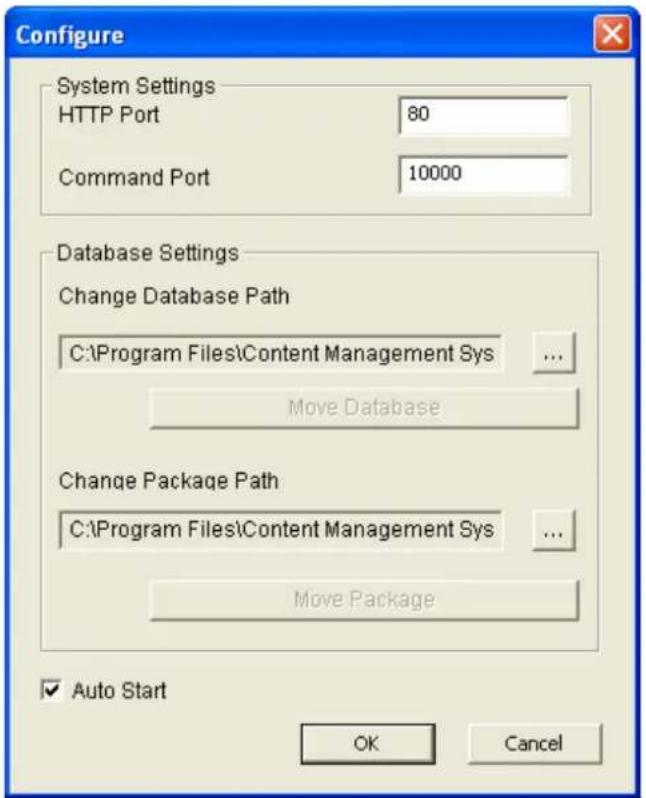

1. To configure the general settings, right-click the CMS Server icon 📄, click Stop Service, and click Configure to access the following options.

Figure 8-7

■ HTTP Port: The default HTTP port is 80.
■ Command Port: The Command port is used for communicating with digital signage devices. If other program is using the default port 10000, you may need to change the Command port value. The port range is 1 to 65534.
■ Change Database Path: Changes the storage path for event log and device information.
■ Change Package Path: Changes the storage path for content packages.
■ Auto Start: Automatically start CMS Server at system startup.

1. Click OK to apply the settings.

2. To access the Web interface of CMS Server, right-click the CMS Server icon, click Start Service and click Access Web Interface. The Web Interface login page appears.

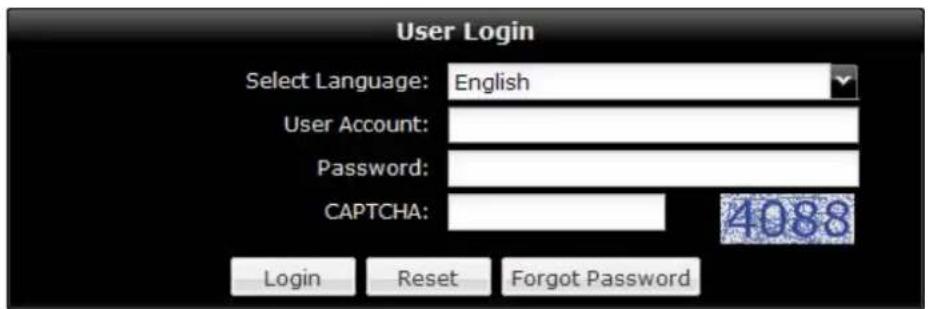

Figure 8-8

1. Type the User Account and Password. The default login name and password for the Administrator are admin.
2. Type the verification number shown in the image.
3. Click Login. The CMS Server Web interface is now displayed.
4. If you have forgotten your password, click the Forgot Password button and a new password will be sent to the email address of the user account.

To access the Web interface from a remote computer, start the Internet browser and type the IP address or the domain name of CMS Server in the Location/Address field. If the default HTTP port has been changed, type a colon and the port number after the IP address, for example, http://192.168.3.199:81. After the login page appears, follow steps 4 to 6 to log in the Web interface.

Note:

1. To enable the updating of images in Microsoft Internet Explorer, you must set your browser to allow ActiveX Controls and perform a one-time installation of GeoVision's ActiveX component onto your computer.
2. If CMS Server is installed behind a firewall or router, you may need to open these default ports: HTTP port 80 and command port 10000.
3. If you like to update the version of the CMS Server, right-click the CMS Server icon click Upgrade Database and click Start Service.

8.4.1 List of Menu Options

After logging in the Web interface, the following menu options are available in the left panel. Refer to the section number below to see more details on each menu option.

8.10 Information	8.10.1 Device Information8.10.2 System Information8.10.3 User Information8.10.4 Package Information
8.11 Device Setup
8.12 Event Query	8.12.1 Behavior Log Query8.12.2 Behavior Log Analysis8.12.3 Device Event Query8.12.4 Device Event Analysis (Counts)8.12.5 Device Event Analysis (Elapsed Time)8.12.6 Play Count Analysis
8.13 Upload Management
8.14 Server Setting	8.14.1 User Account8.14.2 Network Setting8.14.3 Email Service

8.5 Getting Started

After logging into the Web interface, you will need to first establish connection with the devices (see 8.3 Connecting the Devices to CMS Server). Next, prepare a content package, transfer the package to the designated storage path on the local PC, and then upload the package to the devices. You can also optionally plan your devices into groups for further management (see 8.8 Planning the Group) and arrange the playing orders of files for looping videos and/or images (see 8.9 Arranging the Loop Video).

8.5.1 Preparing the Package

There are 6 types of content packages you can upload to the device: Loop Video, Scenario, Loop Scenario, Firmware, Schedule and Customized Loop Video. For explanation on the concept of Schedule, Loop Video, Scenario and Loop Scenario, see Appendix. Definitions of Folder Names.

To prepare a content package, the Content Designer, Clip Design or Content Schedule tool is required. You can install them from the Software DVD or from the Upload Management section of the CMS Server. In the Upload Management section, select Package Management, click the Download Tools button and select the required tool.

Figure 8-9

For details on Content Designer, see Chapter 5. For details on Content Schedule, see Chapter 6.

8.5.2 Transferring the Package

Before uploading the content package to the device, you need to first transfer the content package to the designated storage path on the computer.

1. In the Upload Management section, click Package Management. This page appears.

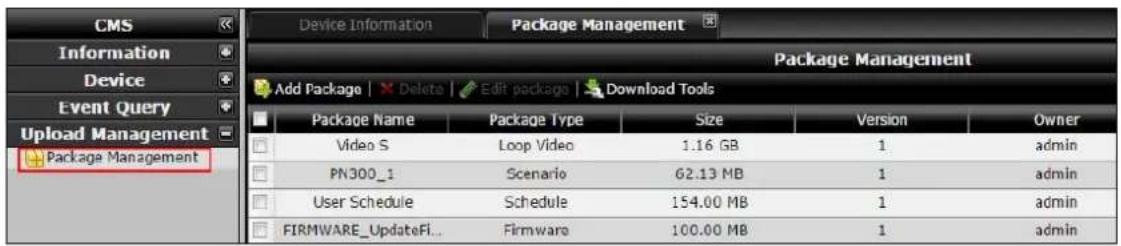

Figure 8-10

1. Click Add Package Add Package, type a Package Name and a Version number for your own reference. From the Package Type drop-down list, select whether the package is a Loop Video, Scenario, Loop Scenario, Schedule or a Customized Loop Video.

Figure 8-11

IMPORTANT: To upload a content package larger than 2 GB, it is required to upload the package from a remote storage link, e.g. https://www.dropbox.com/. At this step, select Loop Video or Loop Scenario and see Step 6 below.

Note: For how to customize a Loop Video, see 8.9 Arranging the Loop Video.

GeoVision

1. Click Next. This dialog box appears.

Figure 8-12

1. Select Compressed to transfer zipped files, or click Browse to locate the files for the package. You can press the Ctrl and Shift key to select multiple files.

Note:

1. The Scenario, Loop Scenario and Schedule files must be zipped before you can transfer to the local computer, while compressing files for Loop Video is optional. The compressed file must be in .zip format.

2. You can select up to 240 uncompressed files or select Compressed to include more than 240 zipped files.

3. Click the Start Transfer button. Click Next when the transfer is completed.

4. If you are uploading Loop Video or Loop Scenario, this dialog box will appear. To upload a media file larger than 2 GB, you need to upload the file from a remote storage link, e.g. https://www.dropbox.com/. You can add multiple URLs by using semicolons to separate addresses.

Figure 8-13

1. After the files are transferred, click Finish. This dialog box appears.

Figure 8-14

GeoVision

1. Click a media file to set it as the package cover and click OK. The cover will be shown on the Device Information page when this package is assigned. For example:

Figure 8-15

Note: For the package cover, if the selected item is a video file, its first frame will be used as the package cover.

8.5.3 Uploading the Package

After transferring the content package to the designated storage path, the content package can now be uploaded to the device. If the network settings on the device have not been set up, refer to 8.3 Connecting the Devices to CMS Server.

Instant Uploading

1. In the Device section, click Device Setup.
2. If the device is displayed as Invalid in the Status column, double-click the device name to add the device.

Figure 8-16

1. Select the device, click the Upload Package button and select Scenario, Loop Video, Loop Scenario or Schedule depending on the content of your package. This dialog box appears and the packages you transferred are listed.

Figure 8-17

1. Select a package and click Upload Package. The package is now uploaded and will replace any existing packages.

Scheduled Uploading

You can upload the packages based on your schedule. Using this function allows your device to play videos or images at the appointed time.

1. Select the Booking Upload option on the top left corner and the window expands as below.

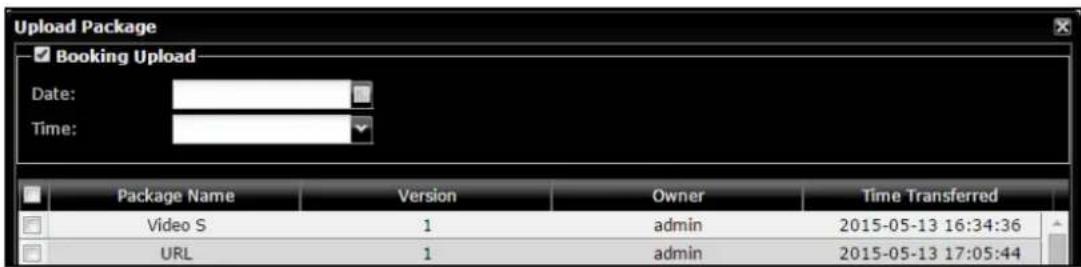

Figure 8-18

1. To upload the packages at the appointed time, select the Date by clicking the calendar button and select the Time by clicking the arrow button.

2. Select the listed package that you want to upload.

3. Click Upload Package.

Delayed Uploading

If you upload a package or firmware to a device that is not connected, the command will be stored in the Command List until the device is connected. The Command List can be accessed by double-clicking the IP address of the device.

Figure 8-19

8.5.4 Revising the Package

To add or delete files from an existing package, double-click the device's Package Type to access this page. To download the files, use the Download ↓ button.

Figure 8-20

8.6 Applying the Scrolling Ticker

You can apply the scrolling ticker to the uploaded package. The scrolling ticker will be applied to the package and any existing scrolling ticker will be replaced.

1. In the Device Setup, select the desired device.

Figure 8-21

1. Click the Scrolling Ticker button

and select Scrolling Ticker.

1. When the dialog box below appears, type up to 200 characters and click OK.

Figure 8-22

To disable scrolling ticker, click the Stop Strolling Ticker/RSS button in the Device Setup page.

Note:

1. Scrolling Ticker is not supported on SQP110 series.
2. It is an either-or option between the scrolling ticker and the RSS feeds.

8.7 Applying the RSS Feed

You can apply RSS feeds to the uploaded package. When you apply new RSS feeds, any existing scrolling ticker or RSS feeds will be replaced.

1. In the Device section, click Rss. This page appears.

Figure 8-23

1. Click the Add button. Type a description in the Name field and a designated RSS site in the URL field.

Figure 8-24

1. Select 30 mins or 1 hour for the device to update the RSS feeds every 30 minutes or 1 hour.
2. Select Yes or No to display the subtitle of the news.
3. Click Save.

Note: It is an either-or option between the scrolling ticker and the RSS feeds.

8.8 Planning Device Group

You can manage the devices by planning them into groups to avoid repetitive procedures when you upload the packages and upgrade the firmware.

1. In the Server Setting section, click Group. This page appears.

Figure 8-25

1. Click the Add button and type a group name and a description for your reference.

Figure 8-26

1. Select the newly added group and click the Management button. This page appears.

Figure 8-27

1. Click the device you want to add to the designated group from the Objects box. Move the selected devices by using arrow buttons.

2. Click OK.

8.9 Arranging the Loop Video

You can arrange the videos and images in a Loop Video folder to play on the device in any type of order.

1. In the Upload Management section, click Package Management. This page appears.

Figure 8-28

1. Click Add Package. Type the Package Name and Version for your references and select Customized Loop Video in the Package Type drop-down list.

Figure 8-29

1. Click Next.
2. Select a package from the Loop Video drop-down list.

Figure 8-30

1. Click and drag the files from the left box to the right box.

2. You can use the Move Up and Move Down buttons

you arrange the playing order. The top file is the first to play on the device.

1. When you finish arranging the order, click Finish.

8.10 Information

This section introduces how to look up device information, system information, user information and package information.

8.10.1 Device Information

The Device Information page shows device details such as device name, IP address, connection status, and the name of the package being played. After logging in CMS Server, the Device Information page is displayed by default and can later on be accessed by clicking the Device Information tab labeled in red.

Figure 8-31

Device Status

• Online: A device is connected to the CMS Server.
• Offline: A device is disconnected from the CMS Server.
- Connecting: A device is connecting to the CMS Server.
- Busy: A media package is uploading from CMS Server to a device.
- Formatting: An SD card or a USB storage device connected to a device is being formatted on the CMS Server.
- Sleep: During the off-schedule period, a device is indicated as Sleep Mode.

Note:

1. The Package Name column only shows the packages uploaded from the CMS Server.
2. Formatting the SD card or USB storage device is only available on CMS Server V1.0.4.0 with PN300 / SQP133 firmware V1.06 or later, and CMS Server V1.0.5.0 with PN400.

8.10.2 System Information

The System Information page shows the version information, system time, maximum number of devices allowed and number of devices currently connected.

Note: The CMS Server synchronizes the devices' time with the Network Time Server automatically each time it connects to the devices.

Figure 8-32

8.10.3 User Information

The User Information page shows the user accounts created, the password hint and the email address associated with the account.

Figure 8-33

8.10.4 Package Information

The Package Information page shows the name, type, size, version, owner and upload time of the content packages stored.

Package Name	Package Type	Size	Version	Owner	Time Transferred
Video S	Loop Video	1.16 GB	1	admin	2015-05-13 16:34:36
PN300_1	Scenario	62.13 MB	1	admin	2015-05-13 16:51:33
User Schedule	Schedule	154.00 MB	1	admin	2015-05-13 16:54:56
FIRMWARE_UpdateFile-PN300-V150513	Firmware	100.00 MB	1	admin	2015-05-13 16:55:50

Figure 8-34

8.11 Device Setup

The device setup page allows you to see the devices available, connect to devices, upload content to devices and apply scrolling ticker. After you connect the device to CMS server, the device will be listed as Invalid in the device list as shown below.

Figure 8-35

To add the invalid device, double-click the device name. The device will appear as Online after it is connected.

Figure 8-36

Note: You can change the device name for your reference by clicking the name.

The following buttons are available:

■ Add: Adds a device using the MAC address.
■ Delete: Deletes the selected devices.
■ Import: Imports a previously exported device list.
■ Export: Exports the current device list.
■ Refresh: Refreshes the device setup page.
■ Scrolling Ticker: Applies scrolling ticker to the device.
■ Edit: Edits the device name.
■ Delete Content: Deletes the content of the device.

■ Upload Package: Uploads scenario, loop video, schedule or firmware to the device.

■ Stop Upload: Stops the upload while content is being uploaded to the device.

■ Stop Scrolling Ticker/RSS: Disables the scrolling ticker/RSS applied.

■ Reboot: Reboots the device.
■ Format: Formats your USB storage device or SD card inserted to the device.
■ Email Alarm: Sets up an e-mail notification when the device is disconnected from the CMS Server. To establish an e-mail alarm, select a device, click >>, point to Email Alarm and select Email Alarm. Make sure you have enabled the e-mail service for the CMS Server. For details, see 8.14.3 Email Service.

8.12 Event Query

In the Event Query section, you can look up record of user activities and device activities.

8.12.1 Behavior Log Query

Using the Behavior Log Query, you can search user activities such as login, adding packages, adding devices and applying scrolling ticker.

Figure 8-37

1. Use the Event Type drop-down list to select the type of event to search.
2. Select the devices to include in the search results.
3. Specify the time period by selecting a Start Date and an End Date.
4. Click the Query button to see the search results.

You can export the search results in Word format and Excel format by clicking Export Word or Export CSV.

8.12.2 Behavior Log Analysis

Using the Behavior Log Query, you can see user activities displayed in bar graph, pie graph or line graph.

Figure 8-38

1. Use the Event Type drop-down list to select the type of event to search or click Select All.
2. Select the devices to include in the search results.
3. Specify the time period by selecting a Start Date and an End Date.
4. Select a type of graph to display the results.
5. Click the Query button to see the search results.

8.12.3 Device Event Query

Using the Device Event Query, you can search device events such as connection to devices and uploading packages to devices.

Figure 8-39

1. Use the Event Type drop-down list to select the type of event to search.
2. Select the devices to include in the search results.
3. Specify the time period by selecting a Start Date and an End Date.
4. Click the Query button to see the search results.

You can export the search results in Word format and Excel format by clicking Export Word or Export CSV.

8.12.4 Device Event Analysis (Counts)

Using the Device Event Analysis (Counts), you can see the number of connections made to devices and the number of packages uploaded in bar graph, pie graph or line graph.

Figure 8-40

1. Use the Event Type drop-down list to select the type of event to search or click Select All.
2. Select the devices to include in the search results.
3. Specify the time period by selecting a Start Date and an End Date.
4. Select a type of graph to display the results.
5. Click the Query button to see the search results.

8.12.5 Device Event Analysis (Elapsed Time)

Using the Device Event Analysis (Elapsed Time), you can see the total connection time and package upload time for each device in bar graph, pie graph or line graph.

Figure 8-41

1. Use the Event Type drop-down list to select the type of event. Select Logout to see the total connection time of each device or select Upload Package to see the total package upload time of each device.
2. Specify the time period by selecting a Start Date and an End Date.
3. Select a type of graph to display the results.
4. Click the Query button to see the search results.

8.12.6 Play Count Analysis

Using the Play Count Analysis, you can see the frequency or the length of the time of the designated file which have been played on the device and export the play count files.

Figure 8-42

To Show the Play History

1. When you open this window, all the devices connected to the server will be automatically selected from the Device Name field. You can unselect the devices that you do not wish to proceed with.

2. Click the calendar button to specify the Start Date and the End Date.

3. Click the Query button to display the list of the packages in the Play History section.

4. Double-click the desired File Name and click the Overview button.

5. To show the frequency of the designated file being played on the device, select Play Count from the top left corner. To see the length of time of the designated file being played on the device, select Play Time from the top right corner.

The following two figures show the count result of a Scenario package which includes images files (.jpg), video files (.mp4) and stickers or RSS (.txt).

Figure 8-43 Play Count

Figure 8-44 Play Time

To Export the Play History Files

1. Click the Query button to display the list of the files in the Play History section.
2. Click the Export CSV button to save or open a Windows Excel file to see the listed play time and play count of each played file. Or click the Export Detail CSV button to save or open a Windows Excel file to see the start time and stop time of each played file.

8.13 Upload Management

Before uploading video or image to the device, you need to transfer the content to the specified storage location in Package Management of the Upload Management section.

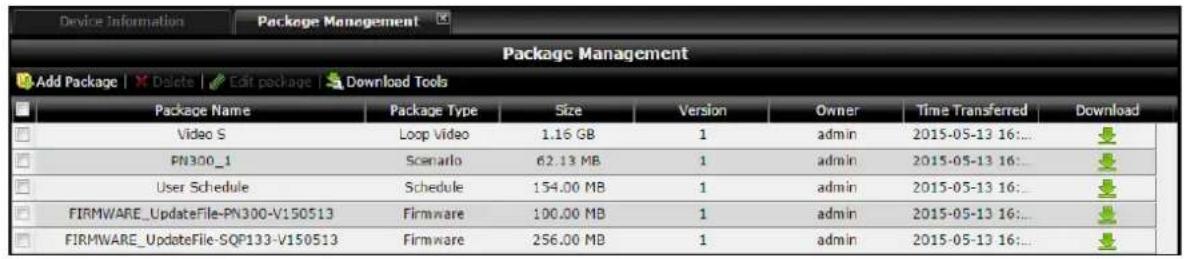

Figure 8-45

■ Add Package: Adds packages to the specified storage location. See 8.5.2 Transferring the Package for more details.
■ Delete: Deletes the package.
■ Edit Package: Edits the name and version number of the package. You can also click the package name or version to edit.
■ Download Tools: Click to download Content Design Tool, Clip Design Tool or Schedule Tool.
■ Download : You can use this button to download the uploaded package.

8.14 Server Setting

In the Server Setting section, you can create user accounts, configure network settings, set up mail server for password retrieval and manage packages. The Server Setting section is only available for the administrator.

8.14.1 User Account

You can create user accounts to access CMS Server.

Figure 8-46

1. Click the Add button. This dialog box appears.

Figure 8-47

1. Type a User Account name, Password and Hint for the account.

2. Type an E-mail address for the account. When you forget the password, a new password can be sent to your e-mail account using the Forget Password link in the login page. Make sure you have enabled the e-mail service for the CMS Server. For details, see 8.14.3 Email Service.

3. Select the privilege(s) allowed for the user.

4. Deploy allows access to the Device section.

5. Upload allows access to the Upload Management section.

- Analyze allows accessi to the Event Query section.

1. Click OK to return to the User Account List.
2. You can edit the account setting using the Change Password and E-Mail buttons.
3. To delete an account, select an account and click the Delete button.

8.14.2 Network Setting

In the Network Setting page, you can configure basic network settings as well as set up SSL protocol and Dynamic DNS.

Figure 8-48

[Setup]

■ HTTP Port: The default HTTP port is 80.
■ SSL: Enable the Secure Sockets Layer (SSL) protocol for a more secure Internet connection. To use your own Certificate File, Certificate Key File and Certificate Chain File, click the Browse buttons and select the files stored at your computer. The encryption strength depends on your SSL certificate.

[DDNS] Dynamic DNS allows you to register a domain name to easily access your CMS Server when using a dynamic IP address.

Enable: Select to enable DDNS.

Service Provider: Click the link below to register a GeoVision DDNS Server. The provider is GeoVision DDNS Server V2 by default.

User Name: Type the username used to enable the service from the GeoVision DDNS Server. For GeoVision DDNS Server V2, type the complete host name.

Password: Type the password used to enable the service from the DDNS.

Status: Shows whether the DDNS server is connected.

8.14.3 Email Service

You can configure the SMTP server settings to send password to the user's email address when the user forgot the password. An e-mail notification can also be sent when a device is disconnected from the CMS Server.

For details about the e-mail alarm setting, see 8.11 Device Setup.

Figure 8-49

[SMTP]

■ SMTP Server: Type your SMTP Server's URL address or IP address.
■ Port: The default port for most SMTP servers is 25. However webmail Yahoo and Hotmail generally use different SMTP port. In this case, check your e-mail provider for the SMTP port number.
■ Connection Type: For a more secure connection, use the drop-down list to select SSL or TLS/STARTTLS.
■ Authentication: If your mail server needs login authentication, select Allow and type your login account name and password.

[Email Test]

■ Subject: Type a subject for the password retrieval email.
■ Text Content: Type the content of the email.
■ Test Mail Account: Click this button to send a test e-mail to the assigned account.

8.15 Upgrading the Firmware

To upload firmware to the device, follow the steps below.

1. In the left menu, click Upload Management, select Package Management and click the Add Package button.
2. Select Firmware from the Package Type drop-down list. Click Next.

Figure 8-50

1. Select Compressed if the firmware is zipped or click Browse to locate the firmware file. This dialog box appears.

Figure 8-51

1. Click Start Transfer.
2. Click Finish after the file is transferred successfully.
3. In the left menu, click Device, select Device Setup and select the device you want to upgrade.
4. Click the Upload Package button and select Firmware.
5. Select the firmware you want to upload and click Upload Package.

After the uploading process is completed, the device will automatically restart.

Note: You need to allocate at least 100 MB in the device storage before upgrading the firmware.

Chapter 9 Dynamic DNS

Dynamic DNS (Domain Name System) provides a convenient way of accessing the CMS Lite when using a dynamic IP address. Dynamic DNS can direct the changing IP address of the CMS Lite to a same domain name, so that you don't need to go through the trouble of checking if the IP address assigned by the DHCP server or ISP has changed.

9.1 Installing the Dynamic DNS

Install the Dynamic DNS to the computer installed with the CMS Lite:

Downloading from the Software DVD

1. Insert the Software DVD to your computer. It runs automatically and a window pops up.
2. Select Install Content Management System and then select Install Dynamic DNS Service (Only for CMS Lite), and follow the on-screen instructions.

Figure 9-1

Downloading from GeoVision Website

1. Go to the Software Download and Upgrading page of GeoVision Website: http://www.geovision.com.tw/english/5_8.asp
2. Select the Digital Signage tab and click the Download icon DOWNLOAD of Dynamic DNS Service V2.

SOFTWARE DOWNLOAD & UPGRADING
IP Camera	Video Management Software	Access Control	License Plate Recognition
Digital Signage	Network Storage	SNVR System	Hardware Accessory
Others	Smartphone App	Video Server

Figure 9-2

9.2 Registering Domain Name

1. Start the DNS Client, and click Register.

Figure 9-3

2. The Register page of Dynamic DNS Server appears.

Figure 9-4

1. Type a username. The username can be up to 16 characters. The username accepts "a \~ z", "0\~9", and "-", but does not accept space or "-" as the first character.

2. Type a password. The password is case-sensitive and must be at least 6 characters. Re-type the password for confirmation.

3. In the Word Verification section, type the code within the box. In this example, the code you should enter is SiBiX6. Word verification is not case-sensitive.

4. Click the Send button. The following message appears.

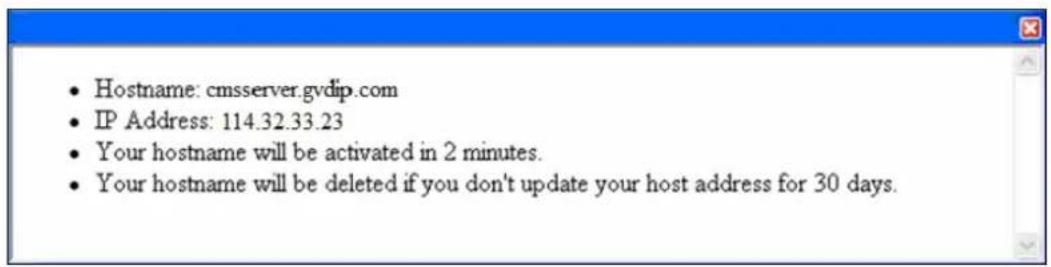

Figure 9-5

- Hostname: The hostname you created. Hostname is made by registered username and "gvdip.com". In this example the host name is "http://cmsserver.gvdip.com". This will be the domain name you use to log into the device.

■ IP Address: Your current IP address. This IP address is updated every 10 minutes.

9.3 Starting Dynamic DNS

After registering a domain name with DDNS service, you can now enable the DDNS function.

Figure 9-6

1. Run the DNS Client.
2. Type the Username and Password used to enable the service from the Dynamic DNS server.
3. If you router has more than one IP address:

■ Obtain an IP address automatically: The Dynamic DNS server will use any available IP address from the router.
■ Use the following IP address: If your router has more than one IP address, you can assign an IP address for the communication between the Dynamic DNS server and the CMS Lite. It is highly suggested to assign a fixed IP address. If the assigned IP address is dynamic, the Dynamic DNS server will not be able to access the CMS Lite when the IP address is changed.

1. Select Run at startup to automatically run the DDNS service at Windows startup.
2. After above settings, click Save. The connection information will be displayed.

Specifications

PN400

Model PN400
Video Format	Multimedia supportH.264 video: max 10 Mbit/sH.265 video: max 5 Mbit/s
Audio Format AAC
Photo Format	PNG / JPEG / BMP1080p (1920 x 1080): max 2 MB2160p (3840 x 2160): max 4 MB
Audio Output HDMI
Video Output (HDMI)	1080p at 30 / 60 Hz
	2160p at 24 / 30 Hz
Video Input (HDMI) 1080p at 30 Hz
TV Standard NTSC / PAL
SD Card Class 6 or above (FAT32 and NTFS formats)
USB	USB 2.0 backward compatible x 2USB 3.0 backward compatible x 1(FAT32 and NTFS formats)
IR Remote Control Yes
Operating Temperature 5°C ~ 40°C / 41 °F ~ 104 °F
Operating Humidity 20% ~ 80 % (with no condensation)
Dimensions (W x H x D)	173 × 34.2 × 117.6 mm / 6.81 × 1.35 × 4.63 in
Net Weight 615 g / 1.36 lb
Language	English / French / German / Italian / Japanese / Portuguese / Russian / Spanish / Traditional Chinese

All specifications are subject to change without prior notice.

PN300

Model PN300
Video Format Multimedia support
Audio Format AAC
Photo Format PNG / JPEG / BMP
Audio Output High Definition, 3.5 mm jack
Video Output at 60 Hz	HDMI VGA
	480p 640 x 480
	720p 1024 x 768
	1080i 1280 x 768
	1080p 1366 x 768
TV Standard NTSC / PAL
SD Card Class 4 or above (FAT32 and NTFS formats)
USB USB 2.0 backward compatible (FAT32 and NTFS formats)
IR Remote Control Yes
Operating Temperature	0°C ~ 40°C / 32 °F ~ 104 °F
Operating Humidity	20 % ~ 80 % (with no condensation)
Dimensions (W x H x D)	182.5 x 29 x 141.5 mm / 7.19 x 1.14 x 5.58 in
Net Weight	615 g / 1.36 lb
Language	English / French / German / Italian / Japanese / Portuguese / Russian / Spanish / Traditional Chinese
Note: NTFS format is only supported by PN300/SQP133 V1.06 or later on CMS Server V1.0.4.0.

All specifications are subject to change without prior notice.

SQP133

Model SQP133
Video Format Multimedia support
Audio Format AAC
Photo Format PNG / JPEG / BMP
Audio Output Built-in speakers (4 Ω / 1.5 W)
Video Output 1280 x 800
TV Standard NTSC / PAL
SD Card Class 4 or above (FAT32 and NTFS formats)
USB USB 2.0 backward compatible (FAT32 and NTFS formats)
IR Remote Control Yes
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Operating Humidity 20% ~ 80% (with no condensation)
Dimensions (W x H x D) 342.8 × 220.3 × 38.3 mm / 13.5 x 8.7 x 1.5 in
Net Weight	1160 g / 2.6 lb
Housing	Black / White
Language	English / French / German / Italian / Japanese / Portuguese / Russian / Spanish / Traditional Chinese
Note: NTFS format is only supported by PN300/SQP133 V1.06 or later on CMS Server V1.0.4.0.

All specifications are subject to change without prior notice.

Appendix

A. Definitions of Folder Names

The followings are the names and the descriptions of the folders workable with digital signage devices.

Folder Name Description
Loop_Video	The folder stores the image and/or video files, and is used for the slideshow to be played repeatedly on the device. See 2.4 Playing the Slideshow.
Scenario	The folder stores the media project created using the Content Designer software. See Chapter 5 Content Designer.
Schedule	The folder stores the schedule setting files created using the Content Schedule software. See Chapter 6 Content Schedule.
Loop_Scenario	The folder stores multiple Scenario projects. The Scenario projects will be played in alphabetic order and each project will be played 5 min at maximum. For how to create a Scenario, see Chapter 5 Content Designer.

B. Definitions of Aspect Ratio Mode

Letter Box	Set to display the video in its original proportions with black margins at the top and bottom of the video.
Pan and Scan	Set to display the video in its original proportions to fill the screen, often cutting off portions at the top and bottom or left and right sides of the video to focus on the prominent aspects of the video.
Ignore	Set to display the video to fill the screen by cutting off portions at the top and bottom or left and right sides of the video.
