USER MANUAL 42PH470U LG

Please read this manual carefully before operating your set and retain it for future reference.

PH47**

PH67**

PH66**

P/NO : MFL67714608 (1304-REV02)

Printed in Korea

www.lg.com

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand
A-4 Tidying cables

A-5 MAKING CONNECTIONS

A-5 Antenna Connection
A-6 Satellite dish Connection
A-7 HDMI Connection
A-9 DVI to HDMI Connection
A-10 Component Connection
A-11 Composite Connection
A-12 MHL Connection
A-13 Audio Connection - Digital optical audio connection
A-14 USB Connection
A-15 CI module Connection
A-16 Euro Scart Connection

COMMON

LANGUAGE LIST

English

Русский

Қазақша

Українська

LANGUAGE

B-1 SPECIFICATIONS

COMMON

SETTING UP THE TV

Image shown may differ from your TV.

Attaching the stand

1 Only 50PH47**, 50/60PH67**, 50/60PH66** 3 EA M5 x 16 Only 42PH47** 3 EA M4 x 14 Stand Body Front Stand Base

3 Only 50PH47**, 50/60PH67**, 50/60PH66** 4 EA M5 x 16 Only 42PH47** 4 EA M4 x 14

To detach the stand

(Only 50PH47**, 50PH67**, 50PH66**)

LG 42PH470U - Attaching the stand - 3

natural_image Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

1 4 EA M5 x 16

2 Protection cover 1 EA M5 x 16 2 ↓ 1

Tidying cables

Install the Power Cord Holder and Power Cord. It will help prevent the power cable from being removed by accident. Use Cable Holder to neatly secure and position cables together. Position the LAN Cable as shown to reduce the electromagnetic interference wave.

(Only 42PH47**)

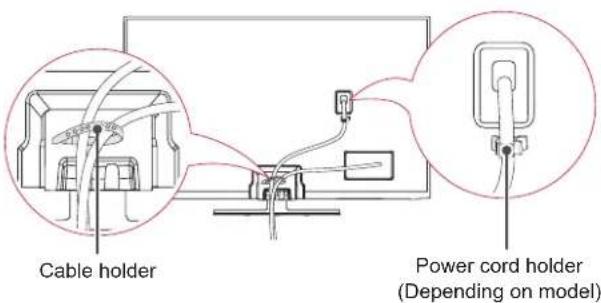

Cable holder Power cord holder (Depending on model)

LG 42PH470U - Tidying cables - 2

CAUTION

  • When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
  • Make sure that the screws are inserted correctly and fastened securely. If they are not fastened securely enough, the TV may tilt forward after being installed. Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

(Only 50PH47**, 50/60PH67**, 50/60PH66**)

Cable holder Power cord holder (Depending on model)

LG 42PH470U - CAUTION - 2

OTE

  • When installing the wall mounting bracket, use the Protection Cover.
    • This will protect the opening from accumulating dust and dirt.
  • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

LG 42PH470U - OTE - 1

CAUTION

- Do not move the TV by holding the cable holder and power cable holder, as the cable holders may break, and injuries and damage to the TV may occur.

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses diagrams for the 50/60PH67** models.

Antenna Connection

Antenna/ CABLE IN Wall Antenna Socket

English

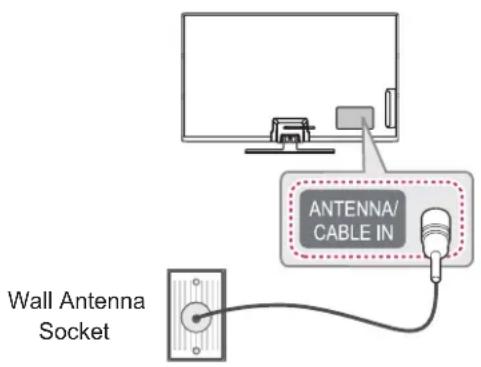

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE

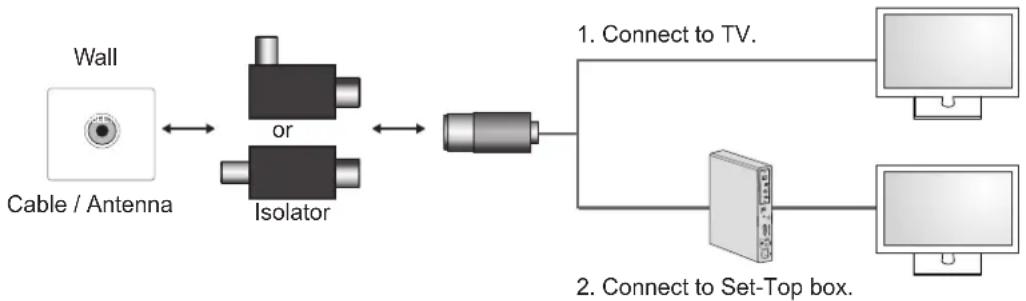

  • Use a signal splitter to use more than 2 TVs.
  • If the image quality is poor, install a signal amplifier properly to improve the image quality.
  • If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
  • An antenna cable and converter are not supplied.
  • Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Русский

Satellite dish Connection

(Only satellite models)

Satellite Dish LNB IN Satellite 13/18 V == 700 mA Max

English

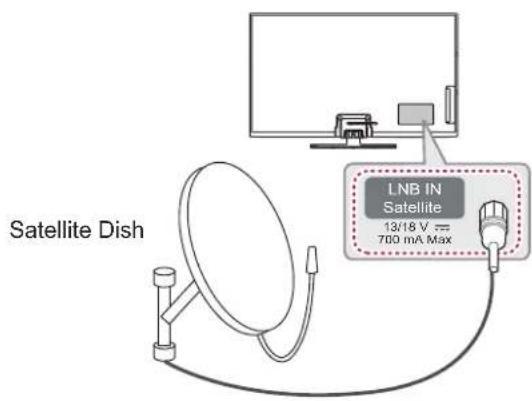

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Русский

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

  • It is recommended to use the TV with the HDMI connection for the best image quality.
  • Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
  • High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
  • Supported HDMI Audio format : Dolby Digital, DTS, PCM (Up to 192KHz, 32KHz/44.1KHz/48KHz/88KHz/96KHz/176KHz/192KHz)

ARC (Audio Return Channel)

An external audio device that supports SIMPLINK and ARC must be connected using HDMI IN(ARC)1 port.

When connected with a high-speed HDMI cable, the external audio device that supports ARC outputs optical SPDIF without additional optical audio cable and supports the SIMPLINK function.

Русский

ARC (Audio Return Channel)

ARC (Audio Return Channel)

ARC (Audio Return Channel)

DVI to HDMI Connection
LG 42PH470U - ARC (Audio Return Channel) - 1

DVD / Blu-Ray / HD Cable Box / PC

English

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable. Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

  • Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
  • When using the HDMI/DVI cable, only Single link is supported.

Русский

Component Connection

AUDIO IN (PC) VIDEO AV IN 2 L/MONO AUDIO COMPONENT Y P8 P9 L L R VISO AUDIO GREEN BLUE RED WHITE (*Not Provided) GREEN BLUE RED WHITE AUDIO R VIDEO AUDIO

DVD / Blu-Ray / HD Cable Box

English

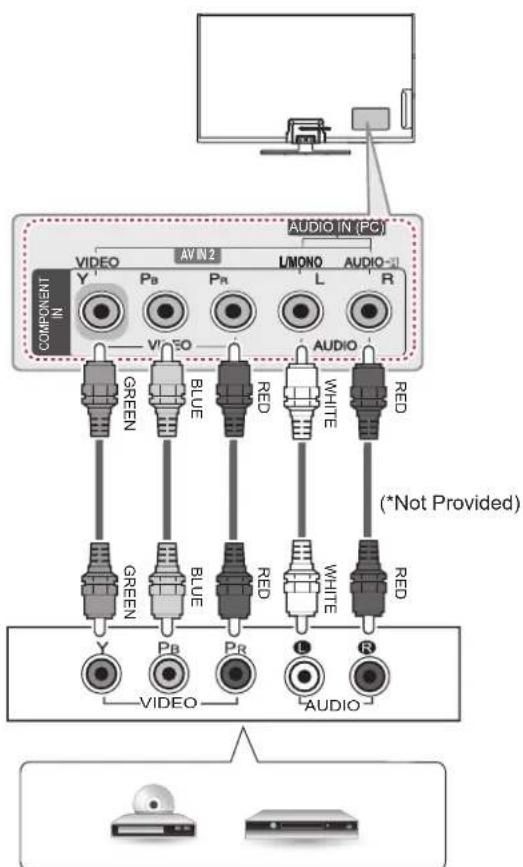

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

LG 42PH470U - English - 1

NOTE

- If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.

Русский

Composite Connection

COMPONENT IN AUDIO IN (PC) VIDEO AV IN 2 MONO AUDIO Y P0 P0 L R VIDEO AUDIO WHITE RED YELLOW YELLOW (*Not Provided) VIDEO - BLACK - AUDIO - R VIDEO - WHITE RED

VCR / DVD / Blu-Ray / HD Cable Box

Казакша

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.

Русский

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

LG 42PH470U - Русский - 1

NOTE

Connect the mobile phone to the HDMI IN 3 (MHL) port to view the phone screen on the TV.

The MHL passive cable is needed to connect the TV and a mobile phone.

This only works for the MHL-enabled phone.

Some applications can be operated by the remote control.

For some mobile phones supporting MHL, you can control with the magic remote control.

Русский

Digital Audio System

English

You may use an optional external audio system instead of the built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

LG 42PH470U - Digital optical audio connection - 1

NOTE

  • Do not look into the optical output port. Looking at the laser beam may damage your vision.
    • Audio with ACP (Audio Copy Protection) function may block digital audio output.

Русский

(Only 50/60PH67**, 50/60PH66**)

LG 42PH470U - Русский - 1

(Only 42/50PH47**)

LG 42PH470U - Русский - 2

English

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the Smart Share menu to use various multimedia files.

LG 42PH470U - English - 1

NOTE

  • Connect the external power source if your USB is needed.
  • Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the TV directly.

Русский

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

LG 42PH470U - Русский - 1

OTE

  • Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
  • If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

Русский

Euro Scart Connection

AV 1 IN / OUT (*Not Provided) AUDIO / VIDEO

English

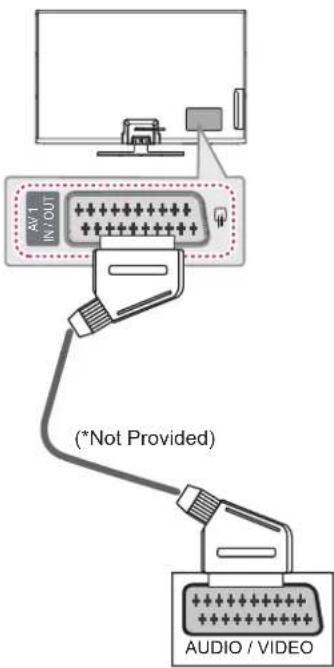

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.

Current input mode\Output TypeAV1(TV Out 1 )
Digital TV Digital TV
Analogue TV, AVAnalogue TVComponent
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

LG 42PH470U - English - 1

NOTE

  • Any Euro scart cable used must be signal shielded.
  • When watching digital TV in 3D imaging mode, only 2D out signals can be output through the SCART cable. (Only 3D models)

Русский

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

LG 42PH470U - Русский - 1

NOTE

  • The external device connection may differ from the model.
  • Connect external devices to the TV regardless of the order of the TV port.
  • If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
  • Refer to the external equipment's manual for operating instructions.
  • If you connect a gaming device to the TV, use the cable supplied with the gaming device.
  • In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
  • In PC mode, some resolution settings may not work properly depending on the graphics card.

Русский

Theorem 1.2. (Theorem of [3.6]). Let be a finite field and let (x) be the set of all elements of such that x (x) . Then

- -

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

|

| |

[Non-Text]

[Non-Text]

OWNER'S MANUAL

PLASMA TV

Please read this manual carefully before operating your set and retain it for future reference.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 - Viewing 3D Imaging (Only 3D models)

12 INSTALLATION PROCEDURE

12 ASSEMBLING AND PREPARING

12 Unpacking
16 Separate purchase
17 Parts and buttons
18 Lifting and moving the TV
19 Mounting on a table
20 Mounting on a wall

21 REMOTE CONTROL

23 MAGIC REMOTE CONTROL FUNCTIONS

24 Registering Magic Remote Control
24 How to use Magic Remote Control
24 Precautions to Take when Using the Magic Remote Control

25 USING THE USER GUIDE

26 MAINTENANCE

26 Cleaning your TV
26 - Screen, frame, cabinet and stand
26 - Power cord

26 TROUBLESHOOTING

27 EXTERNAL CONTROL DEVICE SETUP

27 SPECIFICATIONS

LG 42PH470U - SPECIFICATIONS - 1

WARNING

  • If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

LG 42PH470U - WARNING - 1

CAUTION

- If you ignore the caution message, you may be slightly injured or the product may be damaged.

LG 42PH470U - CAUTION - 1

NOTE

- The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

LG 42PH470U - LICENSES - 1

DOLBY

DIGITAL PLUS

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

LG 42PH470U - LICENSES - 2

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

LG 42PH470U - LICENSES - 3

HD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274"

LG 42PH470U - LICENSES - 4

dts

2.0+Digital Out

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

LG 42PH470U - SAFETY INSTRUCTIONS - 1

LG 42PH470U - SAFETY INSTRUCTIONS - 2

WARNING

LG 42PH470U - WARNING - 1

Do not place the TV and/or remote control in the following environments:

  • A location exposed to direct sunlight
  • An area with high humidity such as a bathroom
  • Near any heat source such as stoves and other devices that produce heat
  • Near kitchen counters or humidifiers where they can easily be exposed to steam or oil

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

LG 42PH470U - WARNING - 2

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

LG 42PH470U - WARNING - 3

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.

This plug must remain readily attached and operable when TV is in use.

LG 42PH470U - WARNING - 4

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

LG 42PH470U - WARNING - 5

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

LG 42PH470U - WARNING - 6

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

LG 42PH470U - WARNING - 7

Ensure the power cord does not come into contact with hot objects such as a heater.

LG 42PH470U - WARNING - 8

This may cause a fire or an electric shock hazard.

LG 42PH470U - WARNING - 9

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

LG 42PH470U - WARNING - 10

Bend antenna cable between inside and outside building to prevent rain from flowing in.

This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock /fire hazard.

LG 42PH470U - WARNING - 11Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.
LG 42PH470U - WARNING - 12Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
LG 42PH470U - WARNING - 13Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
LG 42PH470U - WARNING - 14Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
LG 42PH470U - WARNING - 15Dispose of used batteries carefully ensure that a small child does not consume them.Please seek Doctor- Medical Attention immediately if child consumes batteries.
LG 42PH470U - WARNING - 16Do not insert any metal objects/conductors (like a metal chopstick/cutlery/ screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal.You may be electrocuted.(Depending on model)
LG 42PH470U - WARNING - 17Do not put or store inflammable substances near the product.There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
LG 42PH470U - WARNING - 18Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention.Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
LG 42PH470U - WARNING - 19Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
LG 42PH470U - WARNING - 20Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.
LG 42PH470U - WARNING - 21Never touch this product or antenna during a thunder or lighting storm.You may be electrocuted.
LG 42PH470U - WARNING - 22Never touch the wall outlet when there is leakage of gas, open the windows and ventilate.It may cause a fire or a burn by a spark.
LG 42PH470U - WARNING - 23Do not disassemble, repair or modify the product at your own discretion.Fire or electric shock accident can occur.Contact the service centre for check, calibration or repair.
LG 42PH470U - WARNING - 24If any of the following occur, unplug the product immediately and contact your local service centre.- The product has been impacted by shock- The product has been damaged- Foreign objects have entered the product- The product produced smoke or a strange smellThis may result in fire or electric shock.
LG 42PH470U - WARNING - 25Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.
LG 42PH470U - WARNING - 26Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

LG 42PH470U - WARNING - 27

CAUTION

LG 42PH470U - CAUTION - 1

natural_image Illustration of three cartoon houses with different expressions, no text or symbols present

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

LG 42PH470U - CAUTION - 2

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

LG 42PH470U - CAUTION - 3

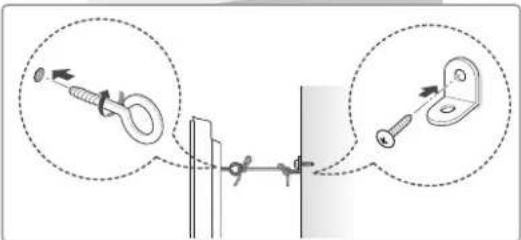

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

LG 42PH470U - CAUTION - 4

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

LG 42PH470U - CAUTION - 5

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

LG 42PH470U - CAUTION - 6

Only use the specified type of battery. This could cause damage to the remote control.

LG 42PH470U - CAUTION - 7

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

LG 42PH470U - CAUTION - 8

Make sure there are no objects between the remote control and its sensor.

LG 42PH470U - CAUTION - 9

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

LG 42PH470U - CAUTION - 10

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

LG 42PH470U - CAUTION - 11Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)It may cause mechanical failure or could give an electric shock.
LG 42PH470U - CAUTION - 12Please follow the installation instructions below to prevent the product from overheating.- The distance between the product and the wall should be more than 10 cm.- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).- Do not install the product on a carpet or cushion.- Make sure the air vent is not blocked by a tablecloth or curtain.Otherwise, this may result in fire.
LG 42PH470U - CAUTION - 13Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
LG 42PH470U - CAUTION - 14Prevent dust collecting on the power plug pins or outlet.This may cause a fire hazard.Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
LG 42PH470U - CAUTION - 15Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.
LG 42PH470U - CAUTION - 16Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.
LG 42PH470U - CAUTION - 17When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel.Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
LG 42PH470U - CAUTION - 18When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.
LG 42PH470U - CAUTION - 19When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
LG 42PH470U - CAUTION - 20When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
LG 42PH470U - CAUTION - 21Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
LG 42PH470U - CAUTION - 22Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
LG 42PH470U - CAUTION - 23If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
LG 42PH470U - CAUTION - 24The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
LG 42PH470U - CAUTION - 25You may find different brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

LG 42PH470U - CAUTION - 26

LG 42PH470U - CAUTION - 27

LG 42PH470U - CAUTION - 28

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Viewing 3D Imaging (Only 3D models)

LG 42PH470U - Viewing 3D Imaging (Only 3D models) - 1

WARNING

Viewing Environment

- Viewing Time - When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

  • Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.
  • Do not watch 3D videos if you feel nausea, are pregnant and/or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.
  • 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.
  • If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
  • If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

  • Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
  • When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.
  • Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

LG 42PH470U - Symptoms which require discontinuation or refraining from watching 3D contents - 1

CAUTION

Viewing Environment

- Viewing Distance

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

- Viewing Position

- Face the center of the screen at eye level with the head looking straight ahead. Otherwise, you may not be able to view 3D contents properly.

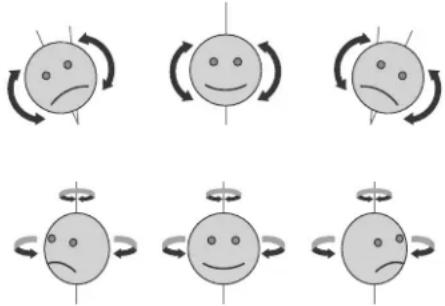

Six-panel diagram showing a sad face with rotation arrows and a neutral expression, likely illustrating emotional or psychological states.

Viewing Age

- Infants/Children

  • Usage/ Viewing 3D contents for children under the age of 6 are prohibited.
  • Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.
  • Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

- Teenagers

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

- Elderly

- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

  • Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
  • Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
  • Using modified 3D glasses may cause eye strain or image distortion.
  • Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
  • The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.
  • When watching 3D videos under fluorescent lights or with three wave length lamps, you may experience the screen blinking. When this occurs, turn the light off or turn it down.
  • Other electronic or communication devices should be turned off or put away from the TV because it can cause interference and prevent the 3D function from working properly.
  • When you watch TV lying down, 3D images may look darker or invisible.

LG 42PH470U - Cautions when using the 3D glasses - 1

NOTE

• Image shown may differ from your TV.
- Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.
- New features may be added to this TV in the future.
- The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
- The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made. (Only LAN PORT model)

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

LG 42PH470U - Unpacking - 1

CAUTION

  • Do not use any unapproved items to ensure the safety and product life span.
  • Any damage or injuries caused by using unapproved items are not covered by the warranty.
  • Some models have a thin film attached on to the screen and this must not be removed.

LG 42PH470U - CAUTION - 1
Remote Control, Batteries (AAA)

(Only 42/50PH47**,

50/60PH66**

50/60PH67**)

(Depending on model)

(See p. 21, 22)

LG 42PH470U - CAUTION - 2
Magic Remote
Control, Batteries

(AA)

(Only 50/60PH67**)

(See p. 23)

LG 42PH470U - CAUTION - 3
Owner's manual Ferrite core

LG 42PH470U - CAUTION - 4
(Depending on model)

(See p. 14)

LG 42PH470U - CAUTION - 5

Power Cord Power Cord Holder
LG 42PH470U - CAUTION - 6
(Depending on model)

(See p. A-4)

LG 42PH470U - CAUTION - 7
Protection Cover

(Only 50PH47**,

50PH67**, 50PH66**)

(See p. A-4)

LG 42PH470U - CAUTION - 8
Desk-mount Screw

1EA

(Only 42PH47**)

(See p. 19)

LG 42PH470U - CAUTION - 9
M4 × 14

LG 42PH470U - CAUTION - 10
M5 x 16

LG 42PH470U - CAUTION - 11

natural_image Technical line drawing of a mechanical component with a flanged base and top bracket (no text or symbols)

LG 42PH470U - CAUTION - 12

or
LG 42PH470U - CAUTION - 13
Screw for assembly

(Only 42PH47**)

(See p. A-3)

Screw for assembly

(Only 50PH47**,

50/60PH67**,

50/60PH66**)

(See p. A-3)

Stand Body / Stand

Base

(See p. A-3)

Isolator

(Depending on model)

(See p. 15)

LG 42PH470U - CAUTION - 14

NOTE

The items supplied with your product may vary depending on the model.

Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

How to use the ferrite core

1 Use the ferrite core to reduce the electromagnetic interference in the power cable. Wind the power cable on the ferrite core once.

Place the ferrite core close to a wall plug.

[to a wall plug] [to the

LG 42PH470U - How to use the ferrite core - 1

natural_image Pure diagram of a cable or connector with no text, numbers, or symbols

Place the ferrite core close to the TV and a wall plug.

[to a wall plug]

[to the TV]

[Figure 1-2]

LG 42PH470U - How to use the ferrite core - 3

(Black)

[Cross Section of Ferrite Core]

2 Use the ferrite core to reduce the electromagnetic interference in the cable. Place the ferrite core close to the TV.

Wind the component Y, Pb, Pr, L, R cableon the ferrite core once.

[to an External device]

LG 42PH470U - How to use the ferrite core - 4

natural_image Pure electrical connector diagram showing two coaxial connectors with 10 mm length specification (no text or symbols beyond basic specifications)

[Figure 2-1]

[to the TV]

Gather and bind the component Y, Pb, Pr, L, Rand scart cable with the ferrite core.

[to an External device]

LG 42PH470U - How to use the ferrite core - 5

natural_image Diagram of two coaxial cable connectors with 10 mm length specification (no text or symbols on components)

[Figure 2-2]

[to the TV]

LG 42PH470U - How to use the ferrite core - 6

(Black)

[Cross Section of Ferrite Core]

Wind the PC audio cable on the ferrite core once.

[to an External device]

LG 42PH470U - How to use the ferrite core - 7
[Figure 2-3]

[to the TV]

3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN cable once on the ferrite core B and thrice on the ferrite core A. Place the ferrite core close to the TV and an External device.

[to the TV]

B A A

[Figure 3]

[to an External device]

LG 42PH470U - How to use the ferrite core - 9
[Cross Section of Ferrite Core]

- If there are five ferrite cores, follow as shown in Figures 1-1, 2, and 3. - If there are six ferrite cores, follow as shown in Figures 1-2, 2, and 3.

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

LG 42PH470U - How to use the ferrite core - 10

LG 42PH470U - How to use the ferrite core - 11

*A 10 mm *B 18 mm

NOTE

- Antenna Isolator Installation Guide

  • Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.
    » If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.
  • You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
  • Before starting, be sure that the TV antenna is connected.

LG 42PH470U - NOTE - 1

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

"Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buy these items.

These devices only work with certain models.

LG 42PH470U - Separate purchase - 1
AG-S3**
3D Glasses

LG 42PH470U - Separate purchase - 2
AN-MR400
Magic Remote

LG 42PH470U - Separate purchase - 3
AN-VC4**
Video call camera

LG 42PH470U - Separate purchase - 4
AN-WF100
Wi-Fi Dongle

LG 42PH470U - Separate purchase - 5
AN-TP300
Touch Pen, Cradle

LG 42PH470U - Separate purchase - 6
AN-TD200
Touch Pen Dongle

LG 42PH470U - Separate purchase - 7
LG Audio Device AN-BL***

LG 42PH470U - Separate purchase - 8
Wireless IR Blaster

With the Touch Pen, you can use the TV as a touch monitor with or without connecting it to your PC.
You need to purchase the Touch Pen (including the cradle) together with the dongle.

CompatibilityPH47**, PH66** PH67**
AG-S3**3D Glasses..
AN-MR400Magic Remote..
AN-VC4**Video call camera..
AN-WF100Wi-Fi Dongle.
AN-TP300Touch Pen, Cradle..
AN-TD200Touch Pen Dongle..
LG Audio Device..
AN-BL***Wireless IR Blaster.(Depending on model).(Depending on model)

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

Parts and buttons

Screen Speakers Remote control sensor Power indicator Buttons

Button Description
∅Turns the power on or off.
√Selects the highlighted menu option or confirms an input
SAccesses the main menus, or saves your input and exits the menus.
↙Changes the input source
- +Adjusts the volume level.
√ ^Scrolls through the saved programmes.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

LG 42PH470U - Lifting and moving the TV - 1

CAUTION

- Avoid touching the screen at all times, as this may result in damage to the screen.

  • It is recommended to move the TV in the box or packing material that the TV originally came in.
  • Before moving or lifting the TV, disconnect the power cord and all cables.
  • When holding the TV, the screen should face away from you to avoid damage.

LG 42PH470U - CAUTION - 1

natural_image Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating how to press a screen, showing step-by-step states of hand positioning and confirmation.

  • When transporting a large TV, there should be at least 2 people.
  • When transporting the TV by hand, hold the TV as shown in the following illustration.

LG 42PH470U - CAUTION - 3

natural_image Silhouette of two people holding a large rectangular device with a monitor inside (no text or symbols visible)
  • When transporting the TV, do not expose the TV to jolts or excessive vibration.
  • When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
  • Do not apply excessive pressure to cause flexing /bending of frame chassis as it may damage screen.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

LG 42PH470U - Mounting on a table - 2

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward, damage, and potential injury.

Mount the TV on a table, and then insert and tighten the supplied screw on the rear of the stand. (Only 42PH47**)

LG 42PH470U - Securing the TV to a table - 1

natural_image Line drawing of a monitor setup with a small electronic device mounted on a stand (no text or symbols)

LG 42PH470U - Securing the TV to a table - 2

WARNING

• To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

Adjusting the angle of the TV to suit view

(This feature is not available for all models.) Adjusting the angle of the TV to suit view Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

20° 20°

LG 42PH470U - Adjusting the angle of the TV to suit view - 2

CAUTION

- When adjusting the angle of the product, watch out for your fingers.

- Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Securing the TV to a wall

(This feature is not available for all models.)

LG 42PH470U - Securing the TV to a wall - 1

natural_image Illustration of a computer monitor displaying multiple screens with one screen showing a dotted circle (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or force directions.

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

LG 42PH470U - Securing the TV to a wall - 3

CAUTION

• Make sure that children do not climb on or hang on the TV.

LG 42PH470U - CAUTION - 1

NOTE

  • Use a platform or cabinet that is strong and large enough to support the TV securely.
  • Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

10 cm 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model42/50PH47**50/60PH67**50/60PH66**
VESA (A x B) 400 x400
Standard screw M6
Number of screws4
Wall mount bracketPSW420BXLG 42PH470U - Mounting on a wall - 2

A B

LG 42PH470U - Mounting on a wall - 4

CAUTION

  • Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
  • If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
  • Do not over tighten the screws as this may cause damage to the TV and void your warranty.
  • Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer's warranty.

LG 42PH470U - CAUTION - 1

NOTE

  • Use the screws that are listed on the VESA standard screw specifications.
  • The wall mount kit includes an installation manual and necessary parts.
  • The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
  • The length of screws may differ depending on the wall mount. Make sure to use the proper length.
  • For more information, refer to the manual supplied with the wall mount.

REMOTE CONTROL

This item is not included for all models.

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

LG 42PH470U - REMOTE CONTROL - 1

LG 42PH470U - REMOTE CONTROL - 2

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

(Only PH47**, PH66**) (Depending on model)

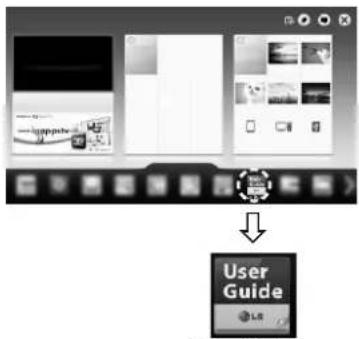

(User Guide) Sees user-guide. RATIO Resizes an image. INPUT Changes the input source. TV/RAD Selects Radio, TV and DTV programme. LIST Accesses the saved programme list. (Space) Opens an empty space on the screen keyboard. Q.VIEW Returns to the previously viewed programme. FAV Accesses your favourite programme list. Used for viewing 3D video. MUTE Mutes all sounds. + Adjusts the volume level. ^ Pv Scrolls through the saved programmes or channels. PAGE Moves to the previous or next screen. INFO Views the information of the current programme and screen. SMART Accesses the Smart Home menus. MY APPS Shows the list of Apps. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK Selects menus or options and confirms your input. BACK Returns to the previous level. GUIDE Shows programme guide. EXIT Clears all on-screen displays and return to TV viewing. 1 Colour buttons These access special functions in some menus. (C:Red, : Green, : Yellow, : Blue) SUBTITLE Recalls your preferred subtitle in digital mode. Q. MENU Accesses the quick menus. LIVE TV Return to LIVE TV. Control buttons (■, Control, the Premium contents, Time Machine or Smart Share menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine). II (FREEZE) Freezes the current frame while using the TV, AV, Component, or HDMI input source. REC ●Start to record and display record menu. SETTINGS Accesses the main menus. AD Switches the Audio Description On or Off. APP/* Select the MHP TV menu source. (Depending on model) 2 TELETEXT BUTTONS These buttons are used for teletext.

(Only PH67 ** )(Depending on model)

SUBTITLE Q.MENU GUIDE RATIO INPUT 1 2 3 4 5 6 7 8 9 LIST Q VIEW + FAV APP/° P PAGE MUTE TEXT INFO T.OPT SMART MY APPS OK BACK EXIT SETTINGS REC LIVE TV 2

TV/RAD Selects Radio, TV and DTV programme.SUBTITLE Recalls your preferred subtitle in digital mode.Q. MENU Accesses the quick menus.GUIDE Shows programme guide.RATIO Resizes an image.INPUT Changes the input source.
LIST Accesses the saved programme list.Q.VIEW Returns to the previously viewed programme.
FAV Accesses your favourite programme list.APP/∗ Select the MHP TV menu source. (Only Italy.) (Depending on model)MUTE □Mutes all sounds.+ □ Adjusts the volume level.^P▼ Scrolls through the saved programmes or channels.PAGE Moves to the previous or next screen.1 TELETEXT BUTTONS These buttons are used for teletext.INFO ➊ Views the information of the current programme and screen.
SMART ▲Accesses the Smart Home menus.■ My APPS Shows the list of Apps.Navigation buttons (up/down/left/right) Scrolls through menus or options.OK ⚫ Selects menus or options and confirms your input.⇨ BACK Returns to the previous level.EXIT Clears on-screen displays and return to TV viewing.
SETTINGS Accesses the main menus.REC ●Start to record and display record menu.LIVE TV Return to LIVE TV.Control buttons (■,Control, the Premium contents, Time Machine or Smart Share menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine).2 Colour buttons These access special functions in some menus.(●Red, : Green, : Yellow, : Blue) ▼□

MAGIC REMOTE CONTROL FUNCTIONS

This item is not included for all models.

When the message "Magic Remote Control battery is low. Change the battery." is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching and ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.

Diagram of a curved object with labeled parts 1 and 2, showing directional arrows indicating movement or orientation.

LG 42PH470U - MAGIC REMOTE CONTROL FUNCTIONS - 2

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

(POWER) Turns the TV on or off. BACK Returns to the previous level. Wheel(OK) Selects menus or options and confirms your input. Scrolls through the saved programmes. If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the Magic Remote Control works as a regular remote control. To display the pointer again, shake the Magic Remote Control from side to side. Used for viewing 3D video. Pointer (RF transmitter) Navigation buttons (up/down/left/right) Scrolls through menus or options. SMART Accesses the Smart Home menu. Voice recognition (Depending on model) 123/Q.MENU Accesses the quick menus. Accesses the Universal Control. (This feature is not available in all countries.) + Adjusts the volume level. ^P∨ Scrolls through the saved programmes or channels. (MUTE) Mutes all sounds.

Voice recognition (Depending on model)

Network connection is required to use the voice recognition function.

The recognition rate may vary depending on the user's characteristics (voice, pronunciation, intonation and speed) and the environment (noise and TV volume).

  1. Press the Voice recognition button.
  2. Speak when the voice display window appears on the left of the TV screen.
    • The voice recognition may fail when you speak too fast or too slow.
  3. Use the Magic remote control no further than 10 cm from your face.

Registering Magic Remote Control

It is necessary to 'pair' (register) the magic remote control to your TV before it will work.

How to register the Magic Remote Control

LG 42PH470U - Registering Magic Remote Control - 11 To register automatically, turn the TV on and press the Wheel(OK) button. When registration is completed, the completion message appears on the screen.2 If registration fails, turn the TV off and back on, then press the Wheel(OK) button to complete registration.

How to re-register the Magic Remote Control

BACKSMART1 Press and hold the BACKand SMARTbuttons together for 5 seconds to reset, then register it by following “How to register the Magic Remote Control” above.2 To re-register the Magic Remote Control, press and hold the BACKbutton for 5 seconds toward the TV. When registration is completed, the completion message appears on the screen.

How to use Magic Remote Control

LG 42PH470U - How to use Magic Remote Control - 1

1 If the pointer disappears, move the remote control slightly to left or right. Then, it will automatically appear on the screen.

» If the pointer has not been used for a certain period of time, it will disappear.

2 You can move the pointer by aiming the Pointer Receiver of the remote control at your TV then move it left, right, up or down.

» If the pointer does not work properly, leave the remote control for 10 seconds then use it again.

1If you press Wheel(OK) on the Magic Remote Control, the following screen appears. Shows information about the current programme and screen.
2You can select My Apps Menu.

Precautions to Take when Using the Magic Remote Control

Use the remote control within the maximum communication distance (10 m). Using the remote control beyond this distance, or with an object obstructing it, may cause a communication failure.

A communication failure may occur due to nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as these use the same bandwidth (2.4 GHz) as the Magic Remote Control.

The Magic Remote Control may be damaged or may malfunction if it is dropped or receives a heavy impact.

Take care not to bump into nearby furniture or other people when using the Magic Remote Control.

Manufacturer and installer cannot provide service related to human safety as the applicable wireless device has possibility of electric wave interference.

It is recommended that an Access Point (AP) be located more than 1 m away from the TV. If the AP is installed closer than 1 m, the Magic Remote Control may not perform as expected due to frequency interference.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press the SMART Button to access the Smart Home menu.
2 Select User Guide and press Wheel(OK).

User Guide

User Guide

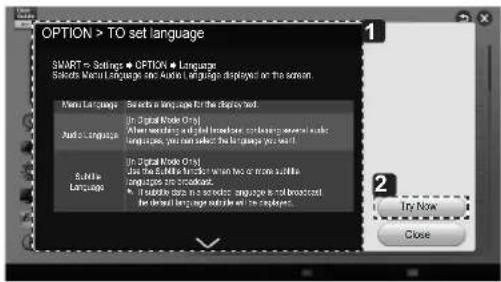

OPTION > TO set language SMART = Settings ● OPTION ● Language Selects Main Language and Audio Language displayed on the screen. Main Language Selects a language for the displayed. Audio Language (In- digital Node Only) When searching and displaying audio, they can select the main language. Subtral Language (In- digital Node Only) Use the main language when two or more audio languages are broadcast. ● In- digital node in audio, language is not broadcast for the main language outside it is employed. 1 2 Try Now Close

1 Shows the description of the selected menu. You can use ^/√ to move between pages.
2 Moves to the selected menu directly from the User Guide.

LG 42PH470U - USING THE USER GUIDE - 3

NOTE

- You can also access the User Guide by pressing [User Guide] in the remote control. (Only PH47**, PH66**)

User Guide 1 PROGRAMME Setting PICTURE SOUND Setting OPTION LG SMART Function Advanced Function Information To use input device To set time options To set TV lock options To set language To set country Disabled Assistance To set Magic Remote Control 2 3 4 5

1 Shows the current watching programme or input source screen.
2 Allows to select the category you want.
3 Allows to select the item you want. You can use ^/√ to move between pages.
4 Allows to browse the description of the function you want from the index.
5 Provides the detailed information on the functions of LG Smart TV when the Internet is connected. (It may not be available depending on the country/language).

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

LG 42PH470U - Cleaning your TV - 1

CAUTION

  • Make sure to turn the power off and disconnect the power cord and all other cables first.
  • When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

  • To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
  • To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

LG 42PH470U - Screen, frame, cabinet and stand - 1

CAUTION

  • Avoid touching the screen at all times, as this may result in damage to the screen.
  • Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
  • Do not use any chemicals as this may damage the product.
  • Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution
Cannot control the TV with the remote control.Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed (to, to).
No image display and no sound is produced.Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.Check the power control settings. The power supply may be interrupted.Check if the Auto sleep feature is activated in the Time settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI DVI), ‘No signal’ or ‘Invalid Format’ is displayed.Turn the TV off/on using the remote control.Reconnect the HDMI cable.Restart the PC with the TV on.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com

SPECIFICATIONS

(Only 50/60PH67**)

Wireless LAN module(TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
Frequency Range2400 to 2483.5 MHz5150 to 5250 MHz5725 to 5850 MHz (for Non EU)
Output Power(Max.)802.11a: 11 dBm802.11b: 14 dBm802.11g: 10.5 dBm802.11n - 2.4GHz: 11 dBm802.11n - 5GHz: 12.5 dBm
Bluetooth module (BM-LDS401) specification
Standard Bluetooth Version 3.0
Frequency Range 2400 ~ 2483.5 MHz
Output Power (Max.) 10 dBm or lower
Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.C€ 0197!

(Only 42/50PH47**, 50/60PH66**)

Bluetooth module (BM-LDS401) specification
Standard Bluetooth Version 3.0
Frequency Range 2400 ~ 2483.5 MHz
Output Power (Max.) 10 dBm or lower
CE 0197

|

| |

[Non-Text]

- -

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

- -

[Non-Text]

| |

|

[Non-Text]

[Non-Text]

[Non-Text]

7,295,673; 7,460,668; 7,515,710; 7,519,274»

natural_image Illustration of a house with a smiling computer monitor and a wind turbine, no text or symbols present.

Возраст зрителей

- Младенцы/дети

natural_image Line drawing of a kitchen sink with a handle and lid (no text or symbols)

LG 42PH470U - Возраст зрителей - 1

natural_image Pure electrical connector diagram showing two connectors connected to a central connector, with no text or symbols present.

[с телевизором]

[Рис. 2-2]

LG 42PH470U - Возраст зрителей - 2

(Черный)

natural_image Pure electrical circuit lines without any symbols

Аудиоустройство LG

natural_image Prohibition sign showing a person holding an open box, crossed out by a diagonal line (no text or symbols)
natural_image Silhouette of two people holding a large screen with a computer monitor (no text or symbols visible)
natural_image Line drawing of a monitor with a small electronic device mounted on top (no text or symbols)

LG 42PH470U - Возраст зрителей - 3

ПРЕДУПРЕЖДЕНИЕ!

natural_image Illustration of a computer monitor with abstract diagrammatic elements (no text or symbols)

Diagram showing two mechanical mounting or bracketing setups with labeled components and directional arrows indicating assembly steps.

LG 42PH470U - ПРЕДУПРЕЖДЕНИЕ! - 2

ВНИМАНИЕ!

Theorem 1.2. (Theorem of [3.6]). Let be a finite field and let (x) be the set of all elements of such that x (x) . Then

- -

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

|

| |

[Non-Text]

[Non-Text]

ИЕЛЕНУШЫ НУСКАУЛЫFЫ

ПЛАЗМАЛЫК ТЕЛЕДИДАР

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

LG 42PH470U - ПЛАЗМАЛЫК ТЕЛЕДИДАР - 1

HD

7,295,673; 7,460,668; 7,515,710; 7,519,274"

natural_image Illustration of a house with a smiling computer monitor and a smiling house with a wind turbine, both above a hillside with smoke and clouds (no text or symbols)
natural_image Three grayscale close-up photos showing vertical streaks against a cloudy sky (no text or symbols)

LG 42PH470U - ПЛАЗМАЛЫК ТЕЛЕДИДАР - 2

LG 42PH470U - ПЛАЗМАЛЫК ТЕЛЕДИДАР - 3

LG 42PH470U - ПЛАЗМАЛЫК ТЕЛЕДИДАР - 4

natural_image Line drawing of a kitchen sink with a hand holding a small object above it (no text or symbols)

LG 42PH470U - ПЛАЗМАЛЫК ТЕЛЕДИДАР - 5

Курастыру бурандасы (Тек 42РН47**) (А-3 бетті караңыз)

Курастыру бурандасы (Тек 50РН47**, 50/60РН67**, 50/60РН66**) (А-3 бетті караныз)

natural_image Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)
natural_image Silhouette of two people holding a large screen with a computer monitor (no text or symbols visible)
natural_image Line drawing of a monitor setup with a mounted device and stand (no text or symbols)

LG 42PH470U - ПЛАЗМАЛЫК ТЕЛЕДИДАР - 6

АБАЙЛАНЫЗ

natural_image Diagram of a computer monitor displaying multiple screens with one screen showing a highlighted area (no text or symbols present)

Diagram illustrating cable mounting technique with magnified insets showing pin installation and mounting details

ECKEPTY

1

natural_image Illustration of a house with a smiling face, wind turbine, and smoke (no text or symbols)

LG 42PH470U - ECKEPTY - 1

LG 42PH470U - ECKEPTY - 2

natural_image Three grayscale close-up photos showing vertical streaks against a cloudy sky (no text or symbols)

Вікова категорія

natural_image Line drawing of a kitchen appliance with a handle and tray (no text or symbols)

LG 42PH470U - Вікова категорія - 1

або

LG 42PH470U - Вікова категорія - 2

Гвинт для кріплення

natural_image Pure diagram of two connected electrical connectors with no text or symbols

[до телеві- зора]

[Малюнок 2-2]

LG 42PH470U - Вікова категорія - 3

(чорне)

natural_image Illustration of a sound sync device with three buttons and two cylindrical components (no text or symbols)
natural_image Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)
natural_image Silhouette of two people holding a large rectangular device with a monitor inside (no text or symbols visible)
natural_image Line drawing of a computer monitor with a mounted device on top (no text or symbols)

LG 42PH470U - Вікова категорія - 4

ПОПЕРЕДЖЕННЯ

natural_image Illustration of a computer monitor with multiple screen areas and a dotted circle highlighting a specific area (no text or symbols present)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or force directions.

LG 42PH470U - ПОПЕРЕДЖЕННЯ - 2

УВАГА

Вказівник

Product specifications may be changed without prior notice due to upgrade of product functions.

For the power supply and power consumption, refer to the label attached to the product.

MODELS42PH47** 50PH47**
42PH470U-ZD42PH470R-ZD42PH4707-ZD50PH470U-ZD50PH470R-ZD50PH4707-ZD
Dimensions(W x H x D)With stand (mm)983.6 x 650.3 x 250.0 1168.0 x 755.4 x 292.7
Without stand (mm)983.6 x 595.6 x 57.0 1168.0x 698.6 x 57.0
WeightWith stand (kg)19.6 25.4
Without stand (kg)18.4 24.0
MODELS50PH67**60PH67**
50PH670S-ZA50PH670S-ZD50PH670V-ZD50PH672V-ZA50PH672V-ZC50PH672V-ZD50PH6708-ZA50PH6708-ZD60PH670S-ZA60PH670S-ZD60PH670V-ZD60PH672V-ZA60PH672V-ZC50PH672V-ZD60PH6708-ZA60PH6708-ZD
Dimensions(W x H x D)With stand (mm)1168.0 x 755.4 x 292.7 1386.8x 874.0 x 340.0
Without stand (mm)1168.0 x 698.6 x 57.0 1386.8x 821.7 x 57.0
WeightWith stand (kg)26.1 37.7
Without stand (kg)24.7 34.5
MODELS50PH66** 60PH66**
50PH660S-ZA50PH660V-ZA50PH6608-ZA60PH660S-ZA60PH660V-ZA60PH6608-ZA
Dimensions(W x H x D)With stand (mm)1168.0 x 755.4 x 292.7 1386.8x 874.0 x 340.0
Without stand (mm)1168.0 x 698.6 x 57.0 1386.8x 8 21.7 x 57.0
WeightWith stand (kg)26.1 37.7
Without stand (kg)24.7 34.5

B-2 SPECIFICATIONS

CI Module Size(W x H x D)100.0 mm x 55.0 mm x 5.0 mm
Environment conditionOperating Temperature0 °C to 40 °C
Operating Humidity Less than 80 %
Storage Temperature-20 °C to 60 °C
Storage Humidity Less than 85 %
Digital TV Analogue TV
Television systemDVB-T(*DVB-T/T2)DVB-CDVB-S/S2PAL/SECAM B/G/I/D/KSECAM L/L'
Programme coverageVHF, UHFC-Band, Ku-BandVHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47
Maximum number of storable programmesDVB-S/S2 : 6,000DVB-T/T2/C & Analogue TV : 1,500
External antenna impedance75 Ω

* : Only DVB-T2 support models

HDMI/DVI-DTV supported mode Component port connecting information

ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)
720x48031.46959.94
31.560
720x576 31.25 50
1280x72037.550
44.9659.94
4560
1920x108033.7259.94
33.7560
28.12550
26.9723.97
2724
33.71629.976
33.7530.00
56.2550
67.4359.94
67.560
Component ports on the TVY PBPR
Video output ports on DVD playerY PBPR
Y B-YR-Y
Y CbCr
Y PbPr
Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080pO(50 Hz / 60 Hz only)

HDMI/DVI-PC supported mode

ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1360x768 47.712 60.015
1280x102463.98160.020
1920x1080 67.560.00

(Only 50/60PH67**, 50/60PH66**)

3D supported mode

  • Video, which is input as HDMI, USB, DLNA, is switched into the 3D screen automatically. (This function does not support all of the 3D video format. The specific 3D video format is not switched into the 3D screen automatically.)
  • The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched automatically into 3D, manually convert the settings to view 3D images.
3D supported mode automatically
Input SignalHorizontal Frequency (kHz)Vertical Frequency (Hz)Playable 3D video format
HDMI640 X 48031.469 / 31.559.94 / 60Top & Bottom, Side by Side(Half), Side by Side(Full)
62.938 / 63 FrameAlternative
480p31.469 / 31.5Top & Bottom, Side by Side(Half), Side by Side(Full)
62.938 / 63 FrameAlternative
576p31.2550Top & Bottom, Side by Side(Half), Side by Side(Full)
62.5 FrameAlternative
720p37.50 50Top & Bottom, Side by Side(Half), Side by Side(Full)
44.96 / 45 59.94 / 60
75 50Frame Packing, Line Alternative
89.91 / 90 59.94 / 60
1080i28.125 50Top & Bottom, Side by Side(Half), Side by Side(Full)
33.72 / 33.75 59.94 / 60
56.25 50Frame Packing, Field Alternative
67.432 / 67.5 59.94 / 60
1080p26.97 / 2723.97 / 24Top & Bottom, Side by Side(Half), Side by Side(Full)
28.125 25
33.176 / 33.7529.976 / 30
43.94 / 5423.97 / 24Frame Packing, Line Alternative
56.25 25
67.432 / 67.529.976 / 30
56.25 50Top & Bottom, Side by Side(Half)
67.432 / 67.5 59.94 / 60
USB1080p33.75 30Side by Side(Half), Top & Bottom, Checker Board, MPO(Photo), JPS(Photo)
DLNA1080p33.75 30
SignalPlayable 3D video format
DTVFrame CompatibleSide by Side(Half), Top & Bottom
3D supported mode manually
InputSignalPlayable 3D video format
ResolutionHorizontal Frequency (kHz)Verticla Frequency (Hz)
DTV HD / SD - -2D to 3D, Side by Side(Half), Top & Bottom
ATV(CVBS/SCART) SD - -
Component HD / SD - -
HDMI-PC1024X768 48.3660
1360X768 47.71
1920X1080 67.52D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving
Others - -2D to 3D, Side by Side(Half), Top & Bottom
HDMI-DTV480P 31.5 602D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving
576P 31.25 50
720p37.5 50
45 60
1080i28.12 502D to 3D, Side by Sied(Half), Top & Bottom
33.75 60
1080p27 242D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving
28.12 25
33.75 30
56.25 502D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving
67.5 60
USB ,DLNA (Movie)Under 704x480--2D to 3D
Over 704x480 interlaced--2D to 3D, Side by Side(Half), Top & Bottom
Over 704x480 progressive-50 / 602D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving, Frame Sequential
Over 704x480 progressive- others2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving
USB, DLNA (Photo)Under 320x240--2D to 3D
Over 320x240 - -2D to 3D, Side by Side(Half), Top & Bottom
Miracast/Widi1024X768p-30 / 602D to 3D, Side by Side(Half), Top & Bottom
1280x720p-30 / 60
1920X1080p-30 / 60
Others - -2D to 3D

|

(No text)

____ ____

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

- -

[Non-Text]

|

[Non-Text]

[Non-Text]

|

(No text)

____ ____

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

|

| |

[Non-Text]

[Non-Text]

LG 42PH470U - 3D supported mode - 1

LG

Life's Good

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB

Digital Video

Broadcasting

LG Customer Information Centre

CountryLG ServiceCountryLG Service
Österreich0 810 144 131 09Nederland 454
Belgie015 200 255 80Norge 40
Luxemburg0032 15 200255Petroka 54 5454
България07001 54 54 80Portugal 54
Česká Rep.810 555 810 031Ranaba 542
Danmark8088 5758 085Silvebako
Suomi0800 0 54 54 9Espaiko 234
France3220 dr64 LG ou tapezSverige0770 54 54 54
Deutschland01803 11 54 11 0Sriveta 543
Еллаба801 11 200 900,210 4800 564United Kingdom0844 847 5454
Россия8 800 200 7676
Magyarország06 40 54 54 54Веди 9990
Éire0818 27 6955 0Украина 3 000
Italia199600099Казахстан8 8000 805 805,2255(GSM)
Беларусь8 820 0071 1111
Latvija80200201 8 800Узбокстан
Lietuva880008081Кыргызстан8 0000 710 005

www.lg.com

OWNER'S MANUAL

EXTERNAL CONTROL DEVICE SETUP

Please read this manual carefully before operating the set and retain it for future reference.

KEY CODES

• This feature is not available for all models.

Code (Hexa)Function NoteCode (Hexa)Function Note
00CH +, PR + R/C Button45 Q.MenuR/C Button
01 CH-, PR -R/C Button4C List, - (ATSC Only)R/C Button
02 Volume +R/C Button53 ListR/C Button
03 Volume -R/C Button5B ExitR/C Button
06 >(Arrow Key / Right Key)R/C Button61 Blue R/C Button
07 <(Arrow Key / Left Key)R/C Button63 YellowR/C Button
08 PowerR/C Button71 GreenR/C Button
09 MuteR/C Button72 RedR/C Button
0B InputR/C Button79 Ratio / Aspect RatioR/C Button
0E SLEEPR/C Button91 AD (Audio Description)R/C Button
0F TV, TV/RADR/C Button7A User GuideR/C Button
10 - 19 *Number Key 0 - 9R/C Button7C Smart/ HomeR/C Button
1A Q. View / FlashbackR/C Button7E SimplinkR/C Button
1EFAV (Favorite Channel)R/C Button8E▶▶ (Forward) R/C Button
20 Text (Teletext)R/C Button8F◀◀ (Rewind) R/C Button
21 T. Opt (Teletext Option)R/C ButtonAA InfoR/C Button
28 Return (BACK)R/C ButtonAB Program GuideR/C Button
30 AV (Audio/ Video) ModeR/C ButtonB0 ▶ (Play)R/C Button
39 Caption/SubtitleR/C ButtonB1■ (Stop/ Live TV)R/C Button
40∧ (Arrow Key/ Cursor Up)R/C ButtonBAII (Freeze/Slow Play/Pause)R/C Button
41V (Arrow Key/ Cursor Down)R/C ButtonBD● (REC)R/C Button
42 My AppsR/C ButtonDC 3DR/C Button
43Menu / SettingsR/C Button9F App/ *R/C Button
44 OK / EnterR/C Button

* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel. (For South Korea, Japan, North America, Latin America except Colombia models)

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally.

Note: There are several ways to connect TV based on model's support port.

* Please be advised that not all models support these connectivity.
* Cable is not provided.

USB to Serial converter with USB Cable

USB Type

(PC) USB IN (TV)

  • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is not made nor provided by LG.
  • It can be purchased from computer stores that carry accessories for IT support professionals.

RS-232C with RS-232C Cable (Legacy)

Phone jack Type

  • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and the TV, which is specified in the manual.
    * For other models, connect to the USB port.

(PC) 3 1 2 SERVICE ONLY (TV)

- This connection can only be used for the following models: 55/47/39LN5450-UA, 55/50/47/42LN5400-UA, 42/39/32LN5300-UA, and 37/32LN530B-UA.

(PC) 3 1 2 RS-232C IN (CONTROL & SERVICE) (TV)

- This connection can only be used for the following models: 60PN6550-UA, 50/60PN6500-UA, 50/60PN5300-UF, and 42/50PN4500-UA.

Customer Computer RS-232C configurations

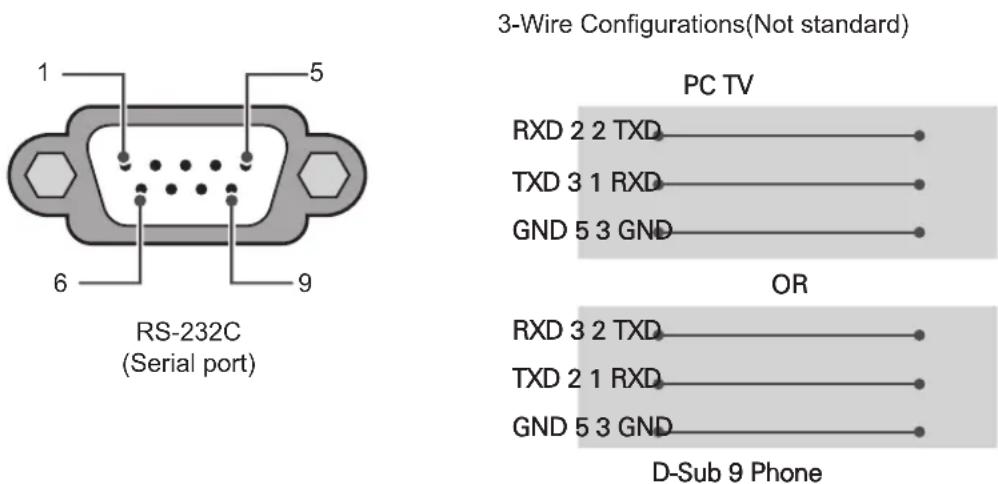

1 5 6 9 RS-232C (Serial port) 3-Wire Configurations(Not standard) PC TV RXD 2 2 TXD TXD 3 1 RXD GND 5 3 GND OR RXD 3 2 TXD TXD 2 1 RXD GND 5 3 GND D-Sub 9 Phone

Set ID

For Set ID number, see "Real Data Mapping" on p. 6

  1. Press SETTINGS to access the main menus.
  2. Press the Navigation buttons to scroll to OPTION and press OK.
  3. Press the Navigation buttons to scroll to SET ID and press OK.
  4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
  5. When you are finished, press EXIT.

Communication Parameters

• Baud rate : 9600 bps (UART)
• Data length : 8 bits
- Parity : None

  • Stop bit : 1 bit
  • Communication code : ASCII code
    • Use a crossed (reverse) cable.

Command reference list

(Depending on model)

COMMAND1COMMAND2DATA (Hexadecimal)COMMAND1COMMAND2DATA (Hexadecimal)
01. Power offk a 00 13. Balance k t 00 to 64
02. Aspect Ratiok c (See p.6)14. Color (Colour) Temperaturex u 00 to 64
03. Screen Mutek d (See p.6)15. ISM Method (Only Plasma TV)j p (See p.8)
04. Volume Mutek e 00 to 0116. Energy Savingj q 00 to 05
05. Volume Controlk f 00 to 6417. Tune Commandm a (See p.8)
06. Contrastk g 00 to 6418. Channel (Programme) Add/Del(Skip)m b 00 to 01
07. Brightnessk h 00 to 6419. Key m cKey Codes
08. Color/ Colourk i 00 to 6420. Control Back Light, Control Panel Lightm g 00 to 64
09. Tint k j 00 to 6421. Input select (Main)x b (See p.10)
10. Sharpnessk k 00 to 3222. 3D (Only 3D models)x t (See p.11)
11. OSD Selectk l 00 to 0123. Extended 3D (Only 3D models)x v (See p.11)
12. Remote Control Lock Modek m 00 to 01

* Note: During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are not executed and treated as NG.

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV. (j, k, m or x)

[Command 2] : Second command to control the TV.

[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. If [Set ID] value is selected to '0', every connected set can be controlled.

* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on transmission/receiving protocol.

[DATA] : To transmit command data (hexadecimal). Transmit 'FF' data to read status of command.

[Cr] : Carriage Return - ASCII code '0x0D'

[ ] : Space - ASCII code '0x20'

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal → Decimal)

* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

* Commands may work differently depending on model and signal.

01. Power (Command: k a)

▶ To control Power Off of the set.

Transmission[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

▶ To Show Power On. (Works TV is On Only)

Transmission [k][a][ ][Set ID][ ][FF][Cr]

Ack [a][ ][Set ID][ ][OK][01][x]

* Similarly, if other functions transmit 'FF' data based on this format, Acknowledgement feedback presents status about each function.

02. Aspect Ratio (Command: k c) (Main Picture Size)

▶ To adjust the screen format. (Main picture format) You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen (4:3)

07:14:9

02 : Wide screen (16:9)

(Europe, Colombia, Mid-East,

04 : Zoom

Asia except South Korea and Japan)

05:Zoom 2

09 : * Just Scan

(Latin America except Colombia Only)

0B : Full Wide

06 : Set by Program/Original

(Europe, Colombia, Mid-East, Asia except South Korea and Japan)

10 to 1F : Cinema Zoom 1 to 16

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

* Using the PC input, you select either 16:9 or 4:3 screen aspect ratio.

* In DTV/HDMI/Component mode (high-definition), Just Scan is available.

* Full wide mode may work differently based on model and is supported for DTV fully, and ATV, AV partially.

03. Screen Mute (Command: k d)

▶ To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on) Video mute off

01 : Screen mute on (Picture off)

10 : Video mute on

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

04. Volume Mute (Command: k e)

▶ To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

▶ To adjust volume.

You can also adjust volume with the volume buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

▶ To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

▶ To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [h][ ][Set ID][ ][OK/NG][Data][x]

08. Color/Colour (Command: k i)

▶ To adjust the screen Color(Colour).

You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [i][ ][Set ID][ ][OK/NG][Data][x]

  1. Tint (Command: k j)

▶ To adjust the screen tint. You can also adjust tint in the PICTURE menu. Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

Ack [j][ ][Set ID][ ][OK/NG][Data][x]

  1. Sharpness (Command: k k)

▶ To adjust the screen sharpness. You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

  1. OSD Select (Command: k l)

▶ To select OSD (On Screen Display) on/off when controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack [I][ ][Set ID][ ][OK/NG][Data][x]

  1. Remote control lock mode (Command: k m)

▶ To lock the front panel controls on the monitor and remote control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this mode.
When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock is released.
* In the standby mode (DC off by off timer or 'ka', 'mc' command), and if key lock is on, TV will not turn on by power on key of IR & Local Key.

  1. Balance (Command: k t)

▶ To adjust balance. You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

  1. Color(Colour) Temperature (Command: x u)

▶ To adjust colour temperature. You can also adjust Color(Colour) Temperature in the PICTURE menu. Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

  1. ISM Method (Command: j p) (Only Plasma TV)

▶ To control the ISM method. You can also adjust ISM Method in OPTION menu.

Transmission [j][p][ ][Set ID][ ][Data][Cr]

Data Min : 02: Orbiter

08: Normal

20: Color(Colour) Wash

Ack [p][ ][Set ID][ ][OK/NG][Data][x]

  1. Energy Saving (Command: j q)

▶ To reduce the power consumption of the TV. You can also adjust Energy Saving in PICTURE menu.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data

00 : Off

01: Minimum

02 : Medium

03 : Maximum

04 : Auto

05: Screen off

* (Depending on model)

Ack [q][ ][Set ID][ ][OK/NG][Data][x]

  1. Tune Command (Command: m a)

* This command may work differently depending on model and signal.

- For Europe, Mid-East, Colombia, Asia except South Korea and Japan Model

▶ Select channel to following physical number.

Transmission [m][a][ ][Set ID][ ][Data 00][ ][Data 01] [ ][Data 02][Cr]

* Analogue Terrestrial/Cable

[Data 00][Data 01] Channel Data

Data 00 : High byte channel data

Data 01 : Low byte channel data

- 00 00 \~ 00 C7 (Decimal : 0 \~ 199)

Data 02 : Input Source (Analogue)

- 00 : Terrestrial TV (ATV)

- 80 : Cable TV (CATV)

* Digital Terrestrial/Cable/Satellite

[Data 00][Data 01]: Channel Data

Data 00 : High Channel data

Data 01 : Low Channel data

- 00 00 \~ 27 0F (Decimal: 0 \~ 9999)

Data 02 : Input Source (Digital)

  • 10 : Terrestrial TV (DTV)
  • 20 : Terrestrial Radio (Radio)
  • 40 : Satellite TV (SDTV)
  • 50 : Satellite Radio (S-Radio)
  • 90 : Cable TV (CADTV)
  • a0 : Cable Radio (CA-Radio)

* Tune Command Examples:

  1. Tune to the analogue terrestrial (PAL) Channel 10.

Set ID = All = 00

Data 00 & 01 = Channel Data is 10 = 00 0a

Data 02 = Analogue Terrestrial TV = 00

Result = ma 00 00 0a 00

  1. Tune to the digital terrestrial (DVB-T) Channel 01.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1 = 00 01

Data 02 = Digital Terrestrial TV = 10

Result = ma 00 00 01 10

  1. Tune to the satellite (DVB-S) Channel 1000.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1000 = 03 E8

Data 02 = Digital Satellite TV = 40

Result = ma 00 03 E8 40

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01][Data 02][x]

[a][ ][Set ID][ ][NG][Data 00][x]

- For South Korea, North/Latin America except Colombia Model

▶ To tune channel to following physical/major/minor number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a command in Digital.

* Analogue Terrestrial/Cable

Data 00 : Physical Channel Number

  • Terrestrial (ATV) : 02\~45 (Decimal: 2 \~ 69)
  • Cable (CATV) : 01, 0E\~7D (Decimal : 1, 14\~125)

[Data 01 \~ 04]: Major/Minor Channel Number

Data 01 & 02: xx (Don't care)

Data 03 & 04: xx (Don't care)

Data 05: Input Source (Analogue)

  • 00 : Terrestrial TV (ATV)
  • 01 : Cable TV (CATV)

* Digital Terrestrial/Cable

Data 00 : xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01 : High byte Channel Data

Data 02 : Low byte Channel Data

00 01 \~ 27 0F (Decimal: 1 \~ 9999)

[Data 03][Data 04]: Minor Channel Number

Data 03 : High byte Channel Data

Data 04 : Low byte Channel Data

Data 05 : Input Source (Digital)

  • 02 : Terrestrial TV (DTV) – Use Physical Channel Number
  • 06 : Cable TV (CADTV) – Use Physical Channel Number
  • 22 : Terrestrial TV (DTV) – Don't Use Physical Channel Number
  • 26 : Cable TV (CADTV) - Don't Use Physical Channel Number
  • 46 : Cable TV (CADTV) – Use Major Channel Number Only (One Part Channel)

Two bytes are available for each major and minor channel data, but usually the low byte is used alone (high byte is 0).

* Tune Command Examples:

  1. Tune to the analogue cable (NTSC) channel 35.

Set ID = All = 00

Data 00 = Channel Data is 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = Analogue Cable TV = 01

Total = ma 00 23 00 00 00 00 01

  1. Tune to the digital terrestrial (ATSC) channel 30-3.

Set ID = All = 00

Data 00 = Don't know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = Digital Terrestrial TV = 22

Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

- For Japan Model

▶ To tune channel to following physical/major/minor number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

* Digital Terrestrial/Satellite

Data 00: xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01: High byte Channel Data

Data 02: Low byte Channel Data

- 00 01 \~ 27 0F (Decimal: 1 \~ 9999)

[Data 03][Data 04]: Minor/Branch Channel Number (Don't care in Satellite)

Data 03: High byte Channel Data

Data 04: Low byte Channel Data

Data 05 : Input Source (Digital/Satellite for Japan)

- 02 : Terrestrial TV (DTV)

- 07 : BS (Broadcasting Satellite)

- 08 : CS1 (Communication Satellite 1)

- 09 : CS2 (Communication Satellite 2)

* Tune Command Examples:

1 Tune to the digital terrestrial (ISDB-T) channel 17-1.

Set ID = All = 00

Data 00 = Don't know Physical = 00

Data 01 & 02 = Major is 17 = 00 11

Data 03 & 04 = Minor/Branch is 1 = 00 01

Data 05 = Digital Terrestrial TV = 02

Total = ma 00 00 00 11 00 01 02

  1. Tune to the BS (ISDB-BS) channel 30.

Set ID = All = 00

Data 00 = Don't know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Don't Care = 00 00

Data 05 = Digital BS TV = 07

Total = ma 00 00 00 1E 00 00 07

* This feature is varied based on the model.

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

  1. Channel(Programme) Add/Del(Skip)

(Command: m b)

▶ To skip current channel(programme) for next time.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* Set the saved channel status to del(ATSC, ISDB)/skip(DVB) or add.

  1. Key (Command: m c)

▶ To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code - See p.2.

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

  1. Control Back Light (Command: m g)

• For LCD TV / LED TV

▶ To control the back light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

Control Panel Light (Command: m g)

- For Plasma TV

▶ To control the panel light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

  1. Input select (Command: x b)

(Main Picture Input)

▶ To select input source for main picture.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data

00 : DTV 01 : CADTV

02: Satellite DTV 10: ATV

ISDB-BS (Japan)

03: ISDB-CS1 (Japan)

04: ISDB-CS2 (Japan)

11:CATV

* This function depends on model and signal.

  1. 3D(Command: x t) (only 3D models)

(Depending on model)

▶ To change 3D mode for TV.

Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01] [ ][Data 02][ ][Data 03][Cr]

Data Structure

[Data 00] 00 : 3D On

01:3D Off

02:3D to 2D

03:2D to 3D

[Data 01] 00 : Top and Bottom

01:Side by Side

02 : Checker Board

03 : Frame Sequential

04 : Column interleaving

05 : Row interleaving

[Data 02] 00 : Right to Left

01: Left to Right

[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14 (*transmit by Hexadecimal code)

* If [Data 00] is 00 (3D On), [Data 03] has no meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data 01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03(2D to 3D), [Data 01] and [Data 02] have no meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data 03] works when 3D Mode (Genre) is manual only
* All 3D pattern options ([Data 01]) may not be available according to broadcasting/video signal.

[Data 00] [Data 01] [Data 02] [Data 03]
00OO
01XX
02XX
03XO

X : don't care

Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]

[Data03][x]

[t][ ][Set ID][ ][NG][Data00][x]

  1. Extended 3D(Command: x v) (only 3D models) (Depending on model)

▶ To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data 00][ ]

[Data 01][Cr]

[Data 00] 3D option

00:3D Picture Correction
01:3D Depth (3D Mode is Manual Only)
02:3D Viewpoint
06 : 3D Color Correction

[Data 01] It has own range for each 3D option determined by [Data 00].

1) When [Data 00] is 00

00 : Right to Left
01 : Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by Hexadecimal code)

Data value range(0 - 20) converts Viewpoint range (-10 - +10) automatically (Depending on model)

* This option works when 3D Mode (Genre) is manual only.
3) When [Data 00] is 06, 07

00 : Off

01 : On

4) When [Data 00] is 08

00 : Revert to 3D video from 3D-to-2D converted 2D video
01 : Change 3D video to 2D video, except 2D-to-3D video

* If conversion condition doesn't meet, command is treated as NG.

5) When [Data 00] is 09

[Command1][Command2][ ][Set ID][ ][Data][Cr]

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Bcero = ma 00 23 00 00 00 00 01

Bcero = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01][Data 02][Data 03][Data 04] [Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

\* Для моделей ISDB

Bcero = ma 00 00 00 11 00 01 02

Bcero = ma 00 00 00 1E 00 00 07

A: War 10 (Set ID 10)

;

F: War 15 (Set ID 15)

10: War 16 (Set ID 16)

:

64:War 100

:

6E: War 110

:

73:War 115

74:War 116

:

CF: War 199

:

FE: War 254

FF: War 255

[Command1][Command2][ ][Set ID][ ][Data][Cr]

Transmission [k][k][ ][Set ID][ ][Data][Cr]

[Command1][Command2][ ][Set ID][ ][Data][Cr]

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data від 00 до 32

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : LG

Model : 42PH470U

Category : Television
