V765 - Keyboard Viper - Free user manual and instructions

Product Type	Mechanical Gaming Keyboard
Brand	Viper
Model	V765
Interface	USB Type-A
Switch Type	Mechanical (Blue/Red)
Key Layout	Full-size (104 keys)
Backlighting	RGB per-key backlighting
Polling Rate	1000 Hz
Cable Length	1.8 m
Dimensions	440 x 130 x 35 mm
Weight	1.1 kg
Material	Aluminum top plate, ABS keycaps
Compatibility	Windows, macOS, Linux
Power Supply	USB bus powered (5V, 500mA)
Maintenance	Clean with soft, dry cloth. Avoid liquids.
Safety	Keep away from water and extreme temperatures. Unplug before cleaning.
Spare Parts	Replaceable keycaps (available separately)
Repairability	Switch replacement requires soldering; professional assistance recommended.
Warranty	2 years
Included Items	Keyboard, user manual

Frequently Asked Questions - V765 Viper

Is the Viper V765 a mechanical keyboard?

Yes, the Viper V765 uses mechanical switches (blue or red) for tactile feedback and durability.

Does the keyboard have RGB backlighting?

Yes, it features per-key RGB backlighting with customizable effects via software.

Is the Viper V765 compatible with macOS?

Yes, it is compatible with Windows, macOS, and Linux. The dedicated software may have limited functionality on non-Windows systems.

Can I replace the keycaps?

Yes, the keycaps are Cherry MX compatible and can be replaced with standard aftermarket keycaps.

How do I clean the keyboard?

Use a soft brush or compressed air to remove debris. For stains, lightly dampen a cloth with water or isopropyl alcohol and gently wipe the surface. Avoid excess moisture.

Does it come with a wrist rest?

No, the Viper V765 does not include a wrist rest. You may use an aftermarket one if desired.

What is the warranty period?

The keyboard typically comes with a 2-year limited warranty. Check with your retailer for exact terms.

Is the keyboard water resistant?

No, it is not water resistant. Avoid spilling liquids on the keyboard as it may damage the electronics.

Can I program macros?

Yes, via the Viper software you can record and assign macros to any key.

How do I reset the keyboard to factory settings?

Press and hold Fn + Esc for 3 seconds, or unplug and replug the USB cable. This clears any custom settings.

USER MANUAL V765 Viper

3D rendering of a black computer keyboard with glowing keys and a colorful keyboard overlay (no text or symbols visible)

Thank you for purchasing the Viper V765 RGB mechanical gaming keyboard. The V765 uses Kailh White Box Switches for a tactile clicky feel and durability. The keyboard also features N-key rollover and anti-ghosting for an optimal gaming experience. Onboard memory allows you to create and save 5 specific lighting profiles. The onboard controls allow you to manage the LED Reaction Management system that allows you to switch between various lighting patterns, and control various multimedia functions.

The Viper software allows you to custom color each key up to 16.8 million LED colors, and program up to 103 keys with macros. The Viper software also allows you to create and save a multitude of custom profiles for specific game play and easily switch between them.

The V765 is built with a durable aluminum chassis and a magnetic detachable palm rest for comfort. Backed by Patriot's customer service and two year warranty the V765 is compatible with nearly every Windows® operating system, including Windows® 10, and Mac® OS X, or higher.

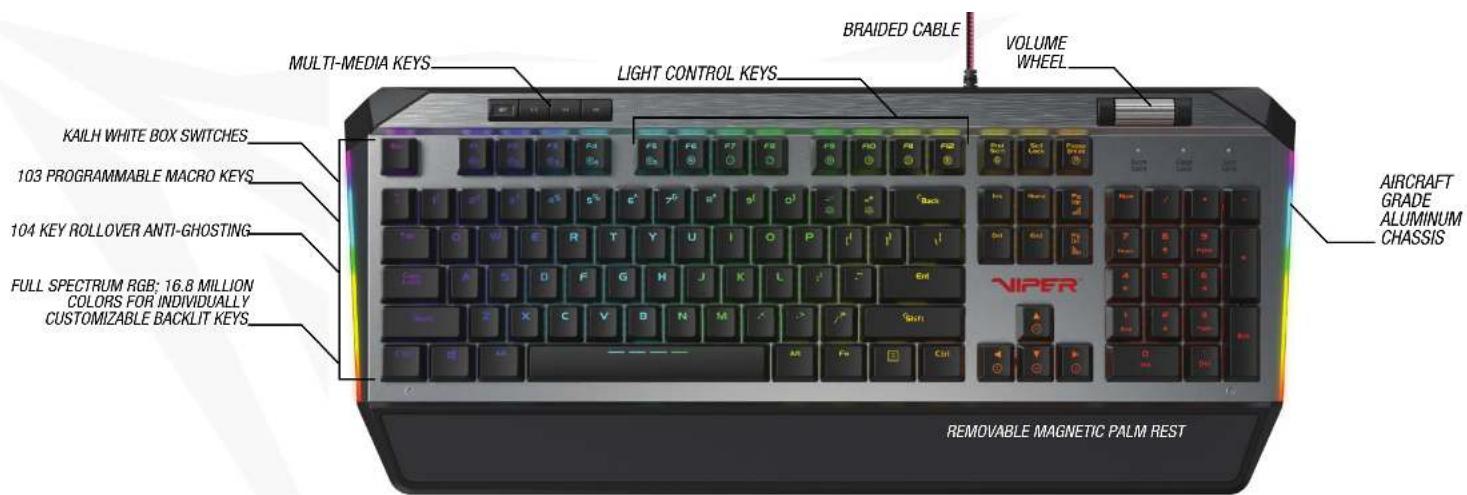

MULTI-MEDIA KEYS LIGHT CONTROL KEYS BRAIDED CABLE VOLUME WHEEL KAILH WHITE BOX SWITCHES 103 PROGRAMMABLE MACRO KEYS 104 KEY ROLLOVER ANTI-GHOSTING FULL SPECTRUM RGB: 16.8 MILLION COLORS FOR INDIVIDUALLY CUSTOMizable BACKLIT KEYS VIPER AIRCRAFT GRADE ALUMINUM CHASSIS REMOVABLE MAGNETIC PALM REST

KAILH WHITE BOX SWITCHES

WATER AND DUST RESISTANT

AL ^13 AIRCRAFT GRADE ALUMINUM CHASSIS

FEATURES & TECHNICAL SPECIFICATIONS

• Full Spectrum RGB
• Full size 104 key layout
- Removable magnetic palm rest
• N-key rollover, anti-ghosting
• Dedicated multi-media keys
- Scroll wheel for volume control, mute
- Aircraft grade aluminum chassis
• 1.8m braided cord
• Fully customizable with Viper Software

PACKAGE CONTENTS

• Viper V765 gaming keyboard
- Detachable magnetic palm rest
- Keycap remover
- Quick start guide
• Viper sticker

Close-up of a black USB connector with gold connectors and a red cord (no text or symbols visible)

Red shopping bag with a white downward arrow symbol (no text or labels)

INSTALLATION

HARDWARE INSTALLATION

Connect the keyboard to an available USB port. Wait 5-10 seconds for the keyboard to be recognized by the computer.

SOFTWARE INSTALLATION

Please download the keyboard software from the product page at viper.patriotmemory.com to change light effects, create and manage macros, manage profiles, adjust latency, response and more.

Once downloaded, double-click on the software to start the installation. Follow the onscreen instructions to finish the process.

KEYBOARD SHORTCUTS

Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Print Son Scroll Lock Pause Break Num Lock Caps Lock Solt Lock Tab Q W E R T Y U I O P [ ] - Ins Home Pc Up - Dvl End Pg On Intu 7 Home 8 ↑ 9 PgUp + Caps Lock A S D F G H J K L : - Ent 4 ← 5 — 6 → Shift Z X C V B N M :< > / Shift 1 End 2 ↓ 3 PgOn Ent Ctrl Alt Alt Ctrl

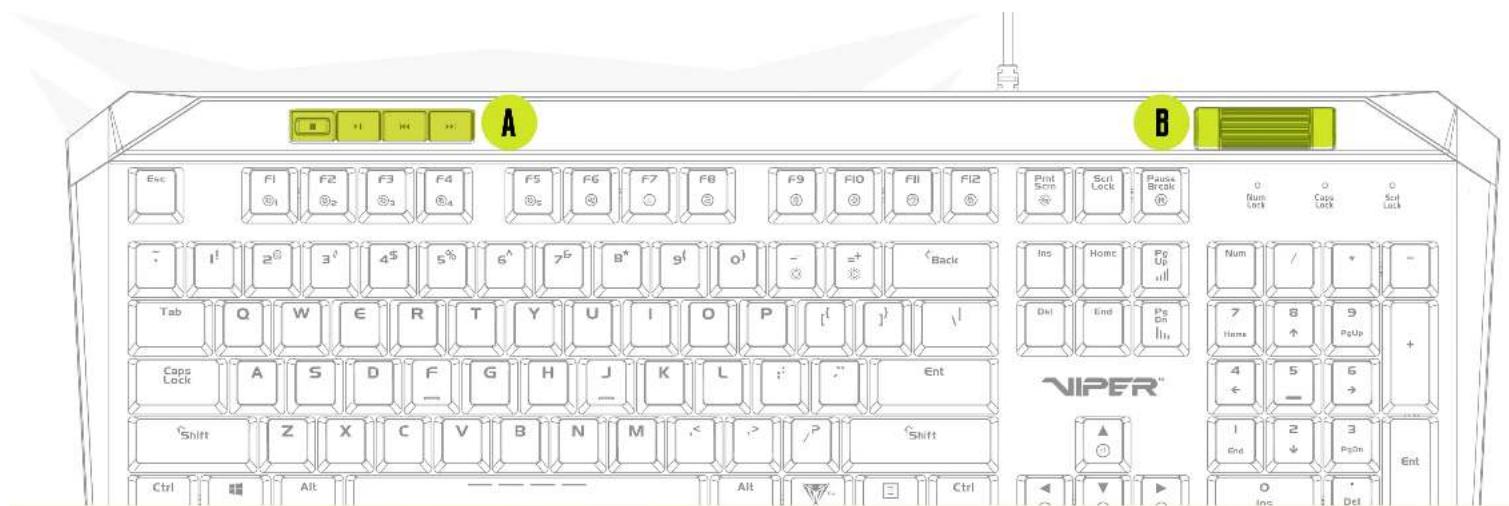

MULTI-MEDIA KEYS

A

STOP PLAY/ PAUSE PREVIOUS NEXT TRACK

B

Pure diagram of a rectangular container with horizontal lines inside, no text or symbols present

VOLUME WHEEL

Move wheel up and down

to adjust volume. Press

volume wheel to mute

VIPER A B C D E F G H I J K L M N O P Q R S T U U V W X Y Z S T U V W X Y Z S T U V W X Y Z S T U V W X Y Z S T U V W X Y Z S T U V W X Y Z S T U V W X Y Z S T U W X Y Z S T U V W X Y Z S T U V W

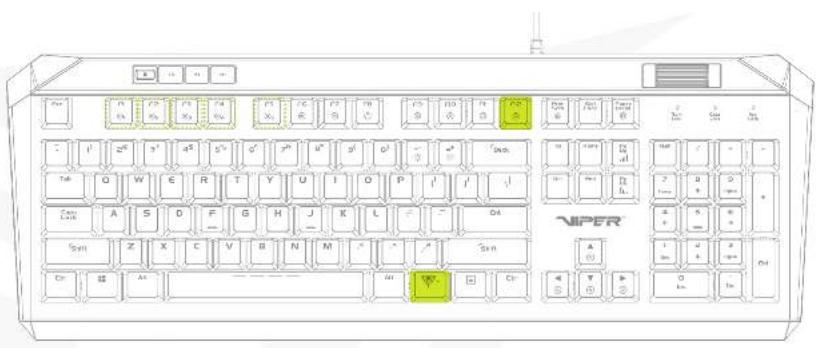

FN + F12

Record and Save custom key configurations

F1 F2 F3 F4 F5

Pressing FN+F12 -key causes F1-F5 to enter a blinking state in preparation to record a custom key configuration. Once in this blinking state, select any of the F1-F5 keys to assign a configuration.

Pressing any key in record mode will change the color of the key and pressing it again will cycle through preset colors.

Do this until keyboard is customized to preference.

i.e: if keys WASD were selected, WASD will be illuminated, indicating that these keys were recorded and assigned to the selected "F" key

Diagram showing a 3D cube with 'F12' logo and a file icon, likely representing a software version or storage interface.

When Recording is complete, press FN+F12 to save your customized configuration.

Repeat the previous steps as needed to complete the recording of other customized configurations

Press FN+F6 to continuously alternate between modes

SPOTLIGHT MODE

Keys light up on both sides of the keyboard, meet in the middle and then return

FN+PgUp

Increases Speed of Radar Mode

FN+PgDn

Decreases Speed of Radar Mode

FN+(-/+)

Increases/Decreases Brightness

RADAR MODE

Lighting travels along the edge of the keyboard covering a section of the keys at a time

FN+PgUp

Increases Speed of Radar Mode

FN+PgDn

Decreases Speed of Radar Mode

FN+ Any Arrow Key Alternates the direction of the radar clockwise or counter clockwise

FN+(-/+1)

Increases/Decreases Brightness

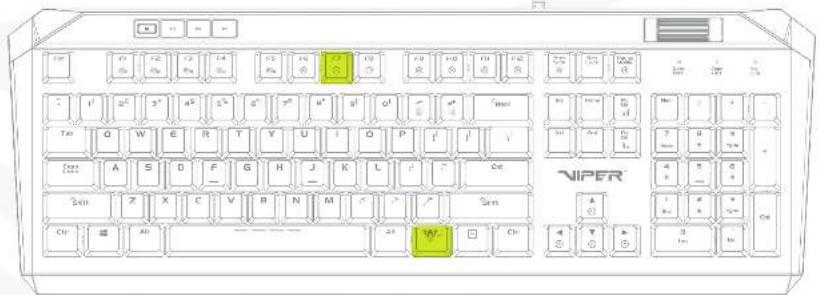

WAVES MODE

Color spectrum moves from one end of the keyboard to the other

FN+PgUp

Increases Speed of Wave Mode

FN+UpArrow

Increases Speed of Wave Mode

FN+UpArrow

Increases Speed of Wave Mode

FN+PgDn

Decreases Speed of Wave Mode

FN+DownArrow

Decreases Speed of Wave Mode

FN+DownArrow

Decreases Speed of Wave Mode

FN+ (-/+)

Increases/Decreases Brightness

NIPER Cir Ch Tyr A S D F G H J K L Cer 2010 2 X C V B R N M Sar Ch Tyr A S D F G H J K L Cer 2010 2 X C V B R N M Sar Ch

•

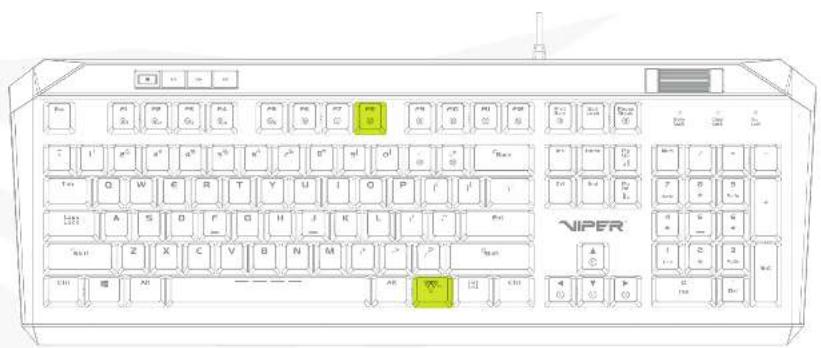

RIPPLE MODE

RIPPLE MODE

When pressing any key, the lighting will be spread in all directions; displaying a "ripple" effects

FN+PgUp

Increases Speed of Ripple Mode

FN+PgDn

Decreases Speed of Ripple Mode

FN+(-/+)

Increases/Decreases Brightness

VIPER

•

VORTEX/SIDEWINDER MODES

Press FN+F8 to continuously alternate between modes

VORTEX MODE

Entire keyboard lights up one key at a time from the top-left towards the center of the keyboard and then becomes unlit in the reverse of the pattern

FN+PoUp

Increases Speed of Vortex Mode

FN+PqDn

Decreases Speed of Vortex Mode

FN+ (-/+ )

Increases/Decreases Brightness

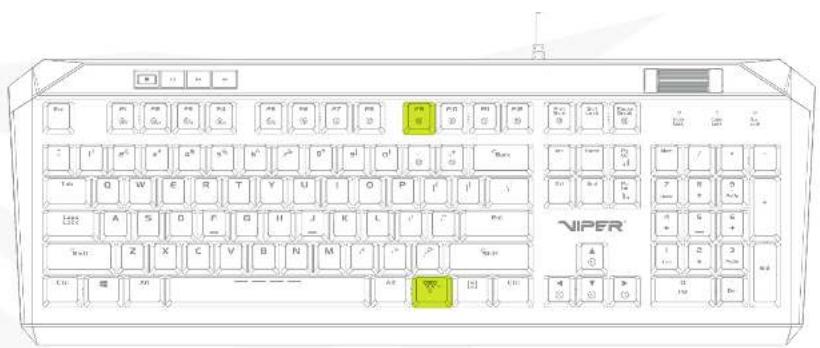

SIDEWINDER MODE

Lighting effect starts at the top and winds to side to side until it hits the bottom row

FN+PoUp

Increases Speed of Sidewinder Mode

FN+PgDn

Decreases Speed of Sidewinder Mode

FN+ (-/+)

Increases/Decreases Brightness

VIPER 4 7 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

•

RAINDROP/REACTIVE MODES

Press FN+F9 to continuously alternate between modes

RAINDROP MODE

Keys are randomly lit resembling the pattern of rainfall

FN+PoUp

Increases Speed of Vortex Mode

FN+PqDn

Decreases Speed of Vortex Mode

FN+ (-/+ )

Increases/Decreases Brightness

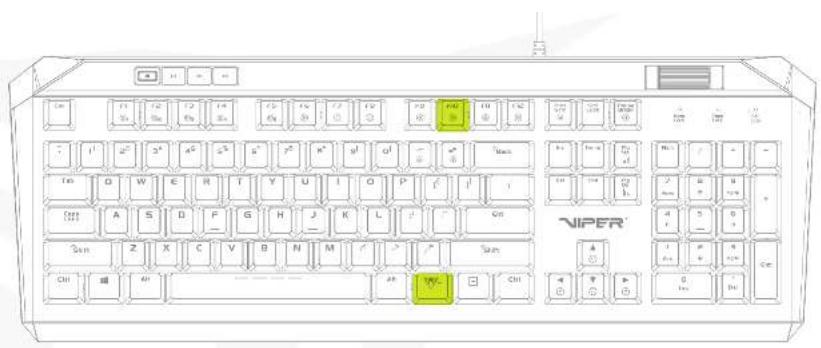

REACTIVE MODE

When pressing any key, the key will light up and fade

FN+PoUp

Increases Fading Speed of Reactive Mode

FN+PdDn

Decreases Fading Speed of Reactive Mode

FN+ (-/+ )

Increases/Decreases Brightness

VIPER Chl Chl Chl Chl Chl 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 NIPER

•

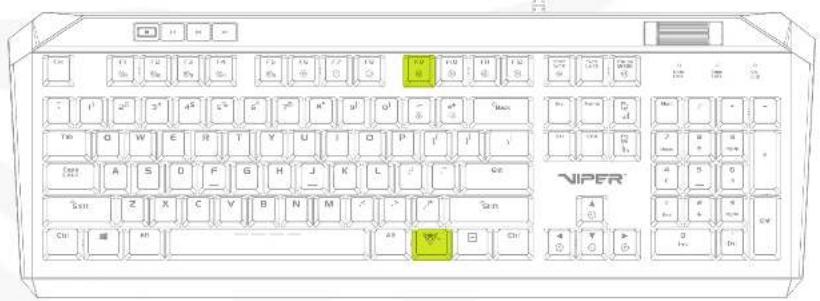

BREATHE

Press FN+F10 to continuously alternate between modes

BREATHE MODE

Selected color brightens and then fades

FN+PgUp

Increases Speed of Breathe Mode

FN+PgDn

Decreases Speed of Breathe Mode

FN+(-/+

Increases/Decreases Brightness

NIPER Cui A 4 P B D E F G H I J K L M N O P Q R S T U V W X Y Z A1 B3 C4 D5 E6 F7 G8 H9 L0 M1 N2 O3 P4 Q5 R6 S7 T8 U9 V10 W11 X12 Y13 Z14 C15 D16 E17 F18 G19 H20 I21 J22 K23 L24 M25 N26 O27 P28 Q29 R30 S31 T32 U33 V34 W35 X36 Y37 Z38 A39 B40 C41 D42 E43 F44 G45 H46 I47 J48 K49 L50 M51 N52 O53 P54 Q55 R56 S57 T58 U59 V60 W61 X62 Y63 Z64

FN + FII

STATIC/SPECTRUM

Press FN+F11 to continuously alternate between modes

STATIC MODE

All keys are illuminated with one specific color

SPECTRUM MODE

Keys cycles through colors of the rainbow

FN+PgUp

Increases Alternating Speed of Spectrum Mode

FN+PgDn

Decreases Fading Speed of Spectrum Mode

FN+ (-/+)

Increases/Decreases Brightness

KEYBOARD SOFTWARE

NIPER Lighting Light effects Show Light direction Brightness Noise High Speed Speed Fast RESPONSE TIME Response Time REFORT RATE GAVE MODE WINDOWS KEY LOCK Profile Macro Apply

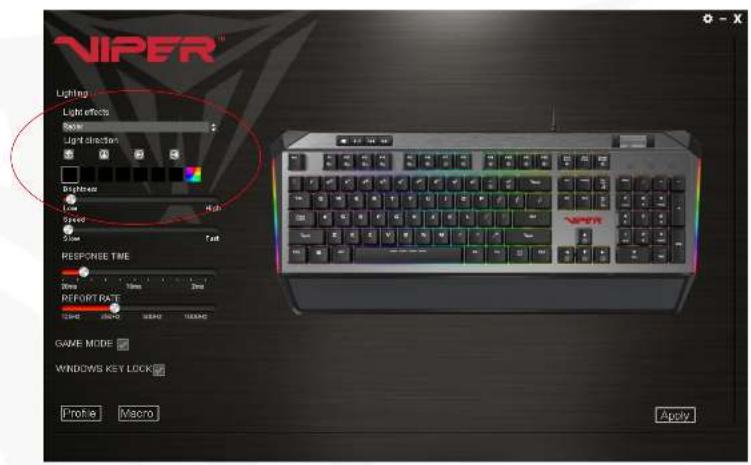

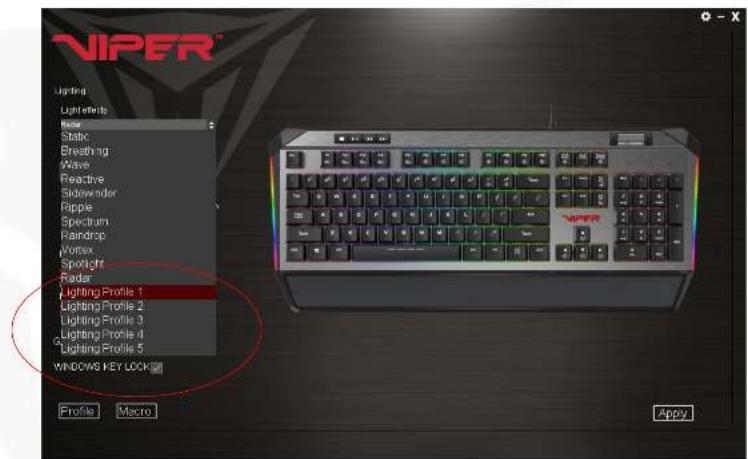

LIGHTING EFFECTS

Keyboard light effects

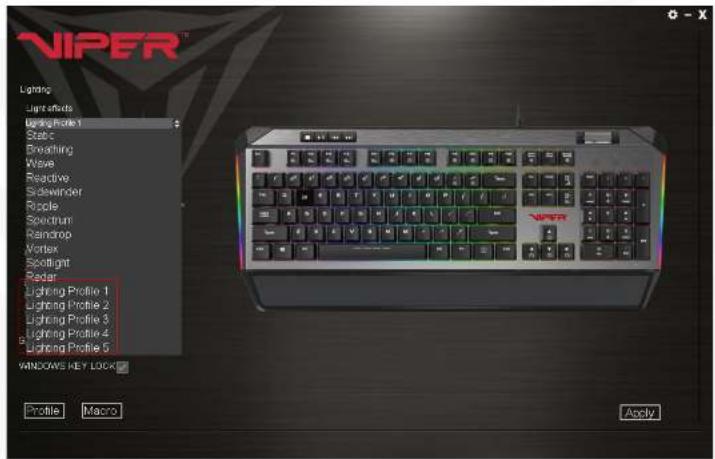

The V765's light effects can be set from the Viper software by selecting the effect from the drop down menu. Color selection, brightness, speed, and pattern direction can all be set, depending on the light effect, from the software. Click on Apply in the bottom right corner of the software to save settings.

VIPER Lighting Light Effects Radar Static Breathing Wave Reactive Sidewinder Ripple Spectrum Raindrop Vortex Spotlight Radar Lighting Profile 1 Lighting Profile 2 Lighting Profile 3 Lighting Profile 4 Lighting Profile 5 WINDOWS KEY LOCK Profile Macro Apply

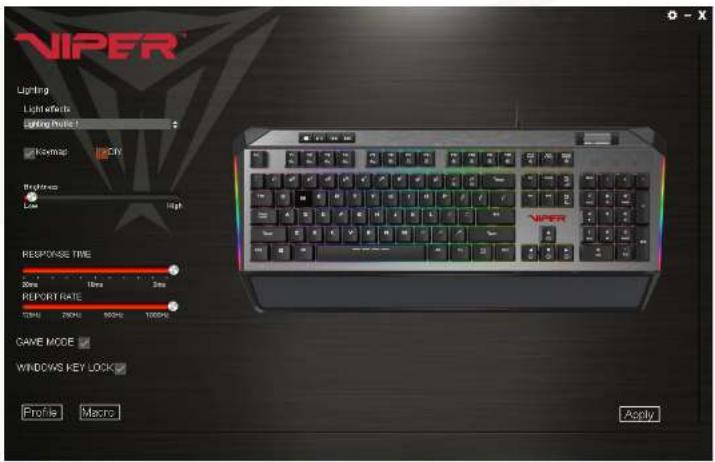

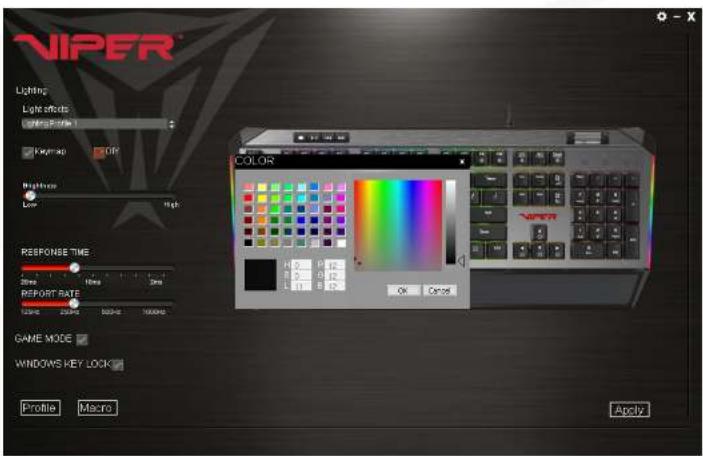

CUSTOM LIGHTING PROFILES

You may create custom lighting profiles by selecting one of the five Lighting Profiles from the drop down menu in Light Effects.

VIPER Lighting Light effects Light Profile 1 Keypersk STOP Brightness Low High RESPONSE TIME 30ms 40ms 50ms 60ms 70ms 80ms 90ms 100ms REPORT RATE TAPES 250Hz 50GHz 100MHz COLOR OK Cancel GAME MODE WINDOWS KEY LOCK Profile Macro Apply

Check the box next to DIY to access custom color mode.

Select a key or select a group of keys and choose a color from the color pallet. Click OK, and then Apply to change and save the key colors.

NIPER Lighting Light effects Lighting Notes! Rosmap City Refresh Low High RESPONSE TIME 20ms 10ms 5ms REPORT RATE 700Hz 250Hz 900Hz 1000Hz GAME MODE WINDOWS KEY LOCK Profile Macn Apply

Response Time and Report Rate

You may adjust the response time and report rate for the keyboard from the main menu. A lower response time will decrease reaction time, and a higher report rate also decreases reaction time.

VIPER Lighting Light effects #Pip Pioke 1 Keymas D1 Brightness Low 40 ns Macros Macro(s) Keystroke Input Options Start Recording Delay between keystrokes Loop New Delete OK Cancel Response TIME 30ms 20ms 3ms REPORT RATE 10.5ms 250ms 500ms 1000ms GAME MODE WINDOWS KEY LOOK Profile Macro Apply

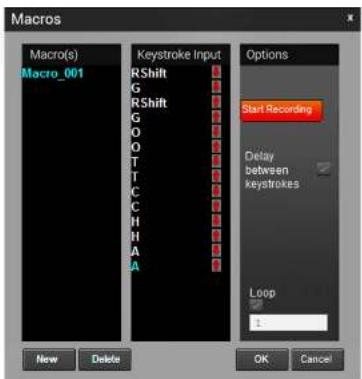

Macros Macro(s) Macro_001 Keystroke Input RShift G RShift G O O T T C C H H A A Options Start Recording Delay between keystrokes Loop 1- New Delete OK Cancel

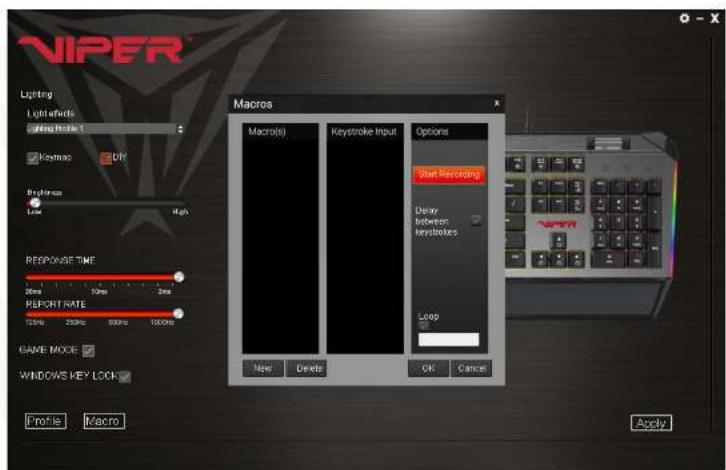

MACROS

You may create and save 32 different macro scripts, of 47 characters in length that can be assigned to any key (except the Windows® key) of the keyboard.

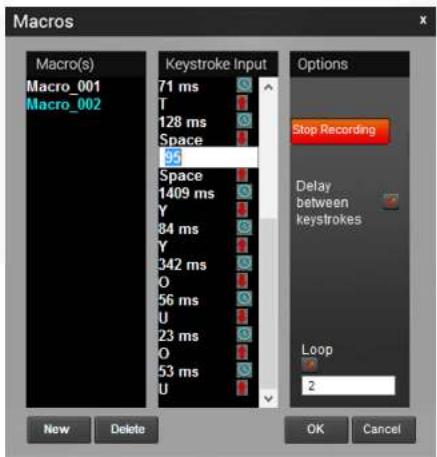

Creating a Macro

Click on the Macros button from the main menu to open the macro editor.

Click New to create a new macro. Double click on the macro to rename it. Click Start Recording to create your macro script. You may create scripts up to 47 characters long.

Macros Macro(s) Macro_001 Macro_002 Keystroke Input 71 ms T 128 ms Space 95 Space 1409 ms Y 84 ms Y 342 ms O 56 ms U 23 ms O 53 ms U Options Stop Recording Delay between keystrokes Loop 2 New Delete OK Cancel

Delay between keystrokes – You may add delays between script keystrokes by checking the box next to Delay between keystrokes. Once you stop recording, you may edit delay time manually by double clicking on it.

Loop - By checking the box under Loop, you may assign the number of times a macro script runs when you press macro key.

Saving a Macro

Once you have recorded a macro script, click OK to save and exit the macro editor.

Deleting a Macro

Open the macro editor, and select a macro from the macro list and click Delete.

KEY ASSIGNMENTS

Select a Lighting Profile and check the box on Keymap. This gives you access to the SELECTED KEY menu.

You may assign specific functions to each key through the SELECTED KEY menu.

• Single/Combine
• Macro
• Basic
• Advance

SINGLE/COMBINE

This allows you to change the output value of a single key or combine two output values into a single keystroke.

Click a key you wish to change the value of or combine two values into (except for the Windows® key).

Click the Single/Combine tab from the SELECTED KEY menu.

Change the value of the keystroke in the single row or combine two values in the combine row.

Click Save, enable GAME MODE, click Apply.

To restore original function disable GAME MODE, and click Apply.

MACRO

This allows you to assign macro scripts you have created and saved to specific keys.

Click a key you wish to assign a macro to on the keyboard image (except for the Windows® key).

Click on the Macro tab from the SELECTED KEY menu and choose the macro you wish to assign from the list.

Click Save, enable GAME MODE, click Apply.

To restore original function disable GAME MODE, and click Apply.

BASIC

This allows you to assign various Windows® functions to various keys making them hot keys, including opening multi-media functions, internet browser, file access, and more.

Click a key you wish to assign a basic function to on the keyboard image (except for the Windows® key).

Click on the Basic tab from the SELECTED KEY menu and choose the function you wish to assign from the list.

Click Save, enable GAME MODE, click Apply.

To restore original function disable GAME MODE, and click Apply.

NIPER Light effects Light profile 1 Static Breathing Wave Reactive Sedewinder Ripple Spectrum Raindrop Vortex Spotlight Radar Lighting Profile 1 Lighting Profile 2 Lighting Profile 3 Lighting Profile 4 Lighting Profile 5 WINDOWS KEY LOCK Profile Macro Apply

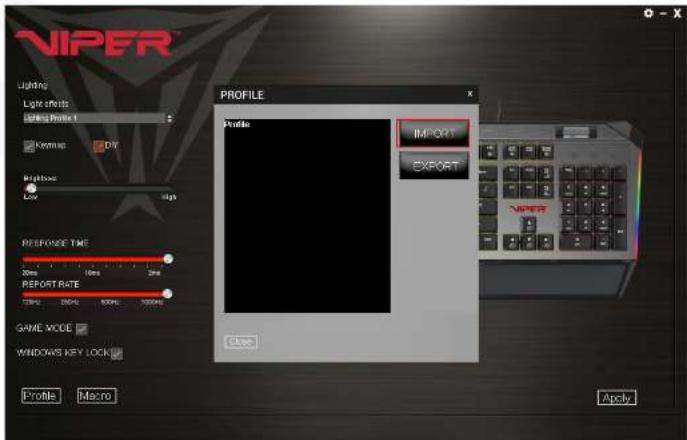

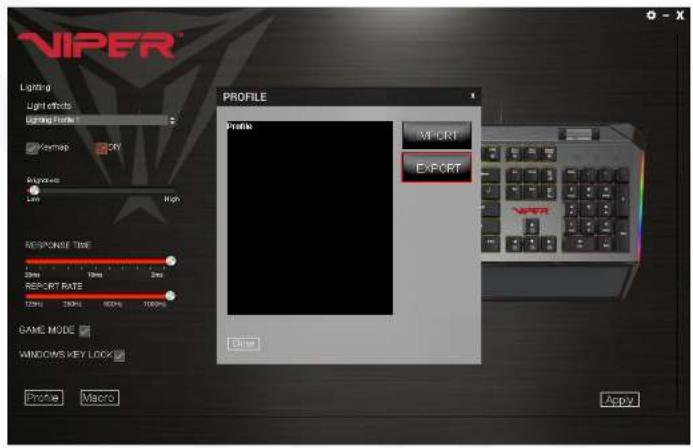

CREATING AND SAVING USER PROFILES

The Profiles function allows you to set up and save custom settings for different games, keyboard appearance, or performance, and access them easily.

You may create and save as many different user profiles as your hard disk space availability will allow. You will need one of the "Lighting Profile" buttons under the Lighting Effect menu to create and save specific user profiles. You may choose any one of the five "Lighting Profile" buttons for creating and saving user profiles.

VIPER Lighting Light effects Lighting Profile Kosmap GTY Responses Low High RESPONSE TIME 20ms 10ms 3ms REPORT RATE 100% 300% 900% 500% GAME MODE WINDOWS KEY LOCK Profile Macro PROFILE Profile IMPORT EXPORT Close Export Apply

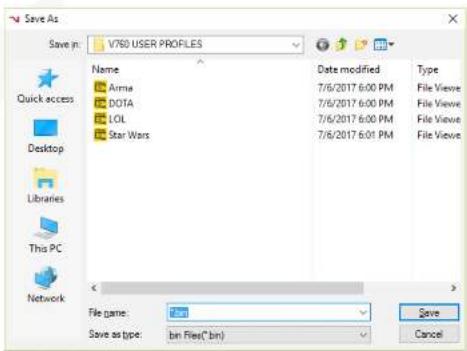

Save As Save in: V760 USER PROFILES Name Arma DOTA LOL Star Wars Date modified 7/6/2017 6:00 PM 7/6/2017 6:00 PM 7/6/2017 6:00 PM 7/6/2017 6:01 PM Type File Viewee File Viewee File Viewee File Viewee File Viewee Save Cancel Quick access Desktop Libraries This PC Network File game: Save as type: bin Files(*bin) Save

To create a user profile, follow the steps outlined above to custom color keys, and select and assign macro scripts. You may also adjust the report rate or response times to your preference. Click Apply to save them to the keyboard's memory.

To save a user profile, click on the Profiles button in the lower left corner, then click on the EXPORT button to access a folder you create on your PC's storage device.

Name the profile and Save.

NIPER Lighting Light effects Lighting Points 1 Keyping DY Lightbox Low Highs REFERENCE TIME 20ms 10ms 2ms REPORT RATE TIPS 2000L 800Hz 500MHz GAME WODE WINDOWS KEY LOCK Profile Macro PROFILE Profile IMPORT EXPORT Close IMPORT EXPORT NIPER Apply

Open Look in: V70 USER PROFILES Name Date modified Type Arma 7/6/2017 6:00 PM File Views DOTA 7/6/2017 6:00 PM File Views LOL 7/6/2017 6:00 PM File Views Star Wars 7/6/2017 6:01 PM File Views File name: Star Wars Files of type: (an Files(*bm)) Open as read-only Open Cancel

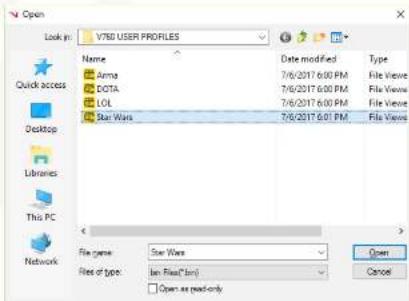

To load a saved profile to the keyboard, simply click on Profiles in the lower left corner, and click IMPORT.

Double click on the profile you wish to load from your user profile folder and hit Open.

Once the selected profile has loaded onto the PROFILE window of the IMPORT/EXPORT screen, hit Apply. The profile is now loaded onto the keyboard memory.

Abstract black and yellow geometric logo design on a bright yellow background (no text or symbols)

GENERAL SETTINGS

NIPER Light effects Dynamic Mode 1 Cermap UP Response Time Low High RESPONSE TIME 200ms 100ms 30ms 40ms 50ms 60ms 70ms 80ms 90ms 100ms GAME MODE WINDOWS KEY LOCK Profile Macro Apply Reset settings Firmware update Version 1.3 Factory Setting Confirms to return Factory Setting? OK Cancel

WINDOWS KEY LOCK

You may disable the Windows® key during game play by checking the box next to WINDOWS KEY LOCK, and then clicking Apply.

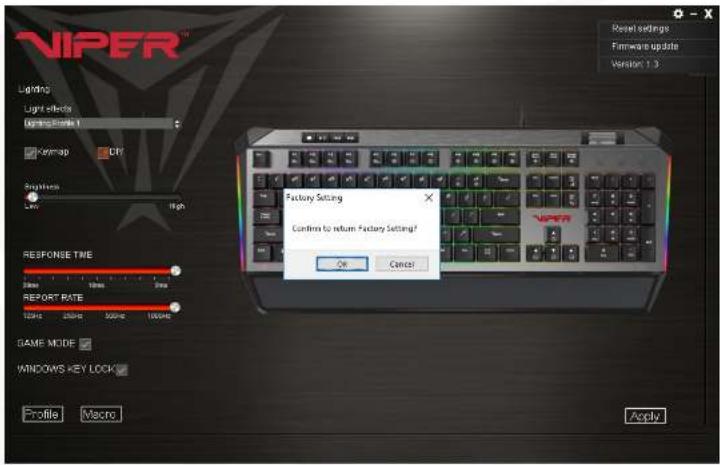

FACTORY RESET

To reset the keyboard to factory default settings, click on the setting icon in the upper right corner and then click Reset settings. The software will prompt you accordingly.

FCC and Legal:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC NOTICE:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION:

• Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
• This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

Abstract red geometric logo on a yellow-green background (no text or symbols)

VIPER GAMING

RoHS

COMPLIANT

FC

CE

The "P" logo is a Registered Trademark of Patriot Memory, LLC
