ACX5448 - Router Juniper - Free user manual and instructions

Product Type	Router
Brand	Juniper
Model	ACX5448
Form Factor	Rack-mountable, 1U
Dimensions (W x D x H)	17.4 x 16.5 x 1.7 inches
Weight	15.4 lbs
Power Supply	Dual redundant, AC or DC
Power Consumption	350 W typical
Operating Temperature	32°F to 104°F (0°C to 40°C)
Ports	48 x 10/100/1000BASE-T, 4 x 10 Gigabit SFP+
Throughput	148 Mpps
Switching Capacity	200 Gbps
Routing Protocols	OSPF, BGP, IS-IS, RIP, static routing
Management	CLI, SNMP, NetConf, Web interface (Junos Space)
Cooling	Redundant fans, front-to-back airflow
LED Indicators	Power, Status, Link/Activity per port
Maintenance	Regular firmware updates via CLI or J-Web
Cleaning	Use dry, lint-free cloth; no liquids
Safety Precautions	Use ESD wrist strap, disconnect power before servicing
Spare Parts	Power supplies, fan trays, SFP+ modules, cables
Repairability	Modular design; field-replaceable components
Warranty	1-year limited hardware warranty
Compliance	FCC Part 15, CE, RoHS

Frequently Asked Questions - ACX5448 Juniper

How do I reset the ACX5448 to factory defaults?

Press and hold the Config button on the front panel for 10 seconds while powering on. Alternatively, use the CLI command: request system zeroize.

What are the default login credentials?

Default username is root with no password. On first login, you are prompted to set a password.

How to upgrade the firmware on the Juniper ACX5448?

Download the Junos OS image from Juniper support. Use CLI command: request system software add force. Reboot after installation.

How to configure VLANs on the ACX5448?

Create VLANs using set vlans vlan-id . Assign interfaces with set interfaces ge-0/0/x unit 0 family ethernet-switching vlan members .

Troubleshoot: no connectivity on a port.

Check if the interface is up: show interfaces terse. Verify cable and transceiver. Ensure VLAN membership and no firewall filters blocking traffic.

How to back up the configuration?

Use the CLI command: show configuration | save /var/tmp/config.txt or request system configuration rescue save.

What transceivers are supported in the SFP+ ports?

Juniper qualified SFP+ optics (e.g., JNP-SFP-10GE-SR, JNP-SFP-10GE-LR) and passive direct-attach cables. Check the Juniper Hardware Compatibility Tool for details.

How to set up SNMP for monitoring?

Configure SNMP communities: set snmp community public authorization read-only. Set trap destinations and enable SNMP v3 for security.

How to monitor traffic on a specific interface?

Use monitor interface ge-0/0/0 in the CLI. For port mirroring, configure an analyzer session: set ethernet-switching-options analyzer input ingress interface ge-0/0/1.

How to enable SSH access?

Enable SSH service: set system services ssh. Optionally restrict to specific source addresses using firewall filters.

USER MANUAL ACX5448 Juniper

ACX5048 and ACX5096 Universal Metro Router Hardware Guide

Modified: 2019-04-01

Juniper Networks, Inc.

1133 Innovation Way

Sunnyvale, California 94089

USA

408-745-2000

www.juniper.net

Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the property of their respective owners.

Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice.

ACX5048 and ACX5096 Universal Metro Router Hardware Guide

Copyright © 2019 Juniper Networks, Inc. All rights reserved.

The information in this document is current as of the date on the title page.

YEAR 2000 NOTICE

Juniper Networks hardware and software products are Year 2000 compliant. Junos OS has no known time-related limitations through the year 2038. However, the NTP application is known to have some difficulty in the year 2036.

END USER LICENSE AGREEMENT

The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement ("EULA") posted at https://support.juniper.net/support/eula/. By downloading, installing or using such software, you agree to the terms and conditions of that EULA.

Table of Contents

About the Documentation ....

Documentation and Release Notes

Using the Examples in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . .

Merging a Full Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Merging a Snippet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Documentation Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Documentation Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Requesting Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Self-Help Online Tools and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Creating a Service Request with JTAC . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 1 Overview ...... 17

ACX5048 and ACX5096 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .

ACX5000 Universal Metro Router Overview . . . . . . . . . . . . . . . . . . . . . . . .

Benefits of the ACX5048 and ACX5096 Routers . . . . . . . . . . . . . . . . . .

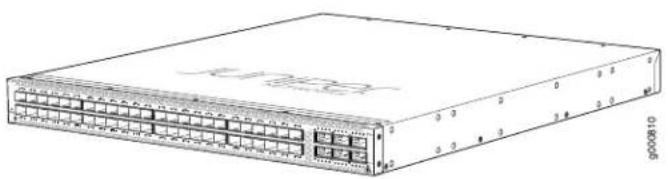

ACX5048 Router

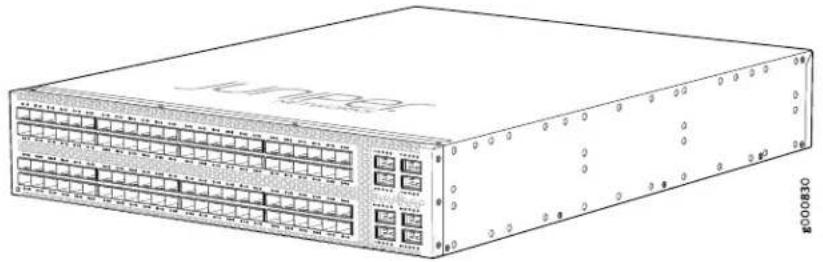

ACX5096 Router

ACX5000 Router Models . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Field-Replaceable Units in an ACX5000 Router . . . . . . . . . . . . . . . . . . . . .

UnderstandingHardware Redundancyof an ACX5000Router Components

and Functionality

ACX5000 Routers Hardware and CLI Terminology Mapping ..... 21

ACX5048 Router Hardware and CLI Terminology Mapping ..... 21

ACX5096 Router Hardware and CLI Terminology Mapping . . . . . . . . . . 23

Protocols and Applications Supported by ACX Series Routers . . . . . . . . . . . 24

ACX5048 and ACX5096 Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

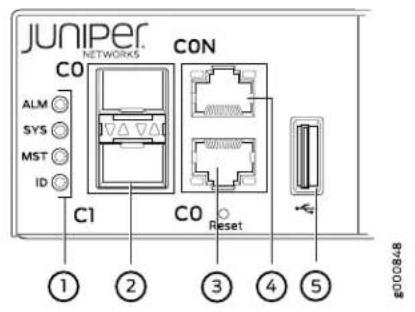

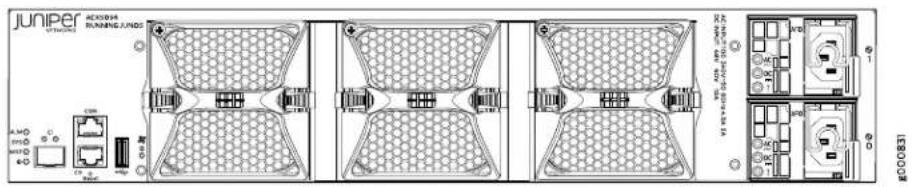

Management Panel of an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . . . . .

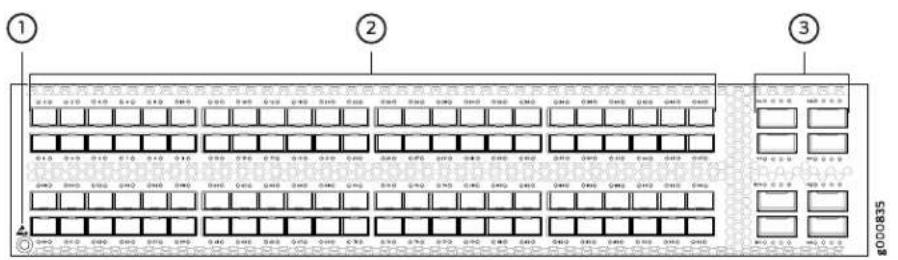

Port Panel of an ACX5048 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Port Panel of an ACX5096 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Router Ports

Channelizing Interfaces

Chassis Status LEDs on an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . .

Management Port LEDs on an ACX5000 Router . . . . . . . . . . . . . . . . . .

Access Port and Uplink Port LEDs on an ACX5000 Router . . . . . . . . . . . . . . 4

ACX5048 and ACX5096 Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . .

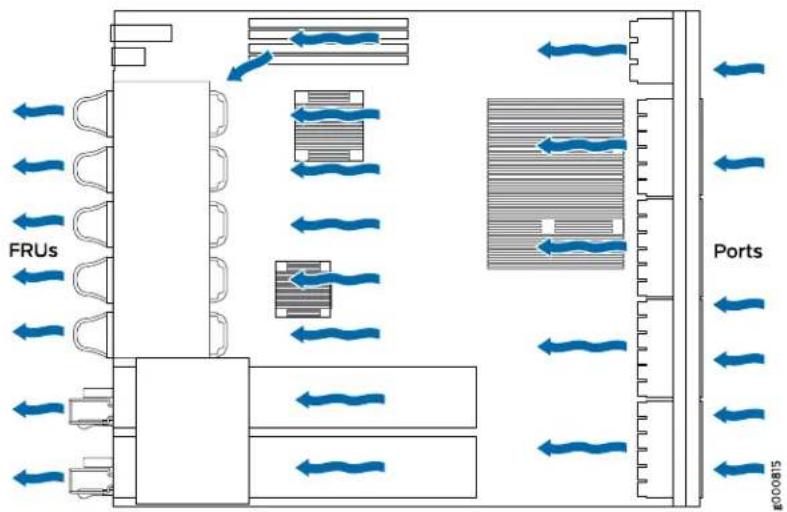

Cooling System and Airflow in an ACX5000 Router . . . . . . . . . . . . . . . . .

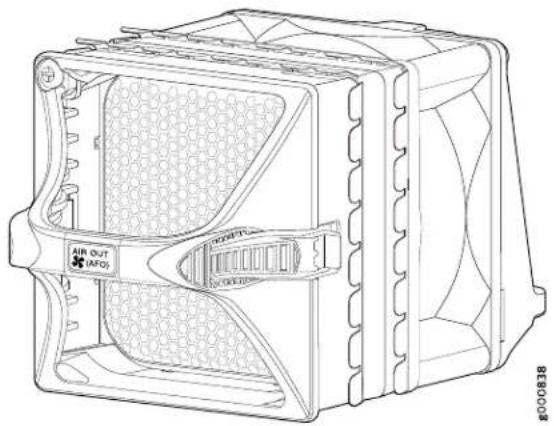

Fan Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fan Module Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fan Module LED on an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . . . .

ACX5048 and ACX5096 Power System . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AC Power Supply for an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . . .

AC Power Supply LEDs on an ACX5000 Router . . . . . . . . . . . . . . . . . .

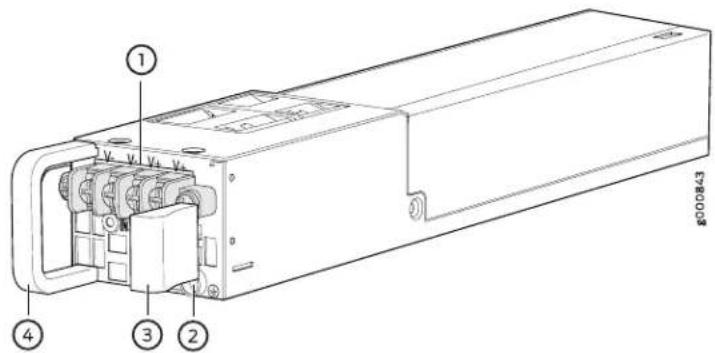

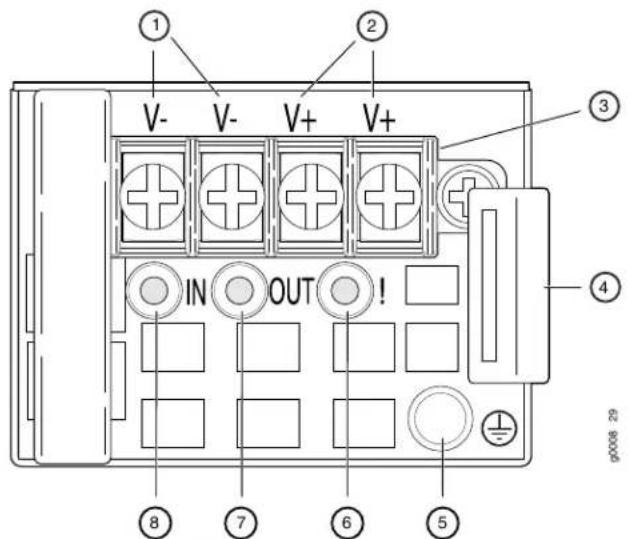

DC Power Supply for an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . .

DC Power Supply LEDs on an ACX5000 Router . . . . . . . . . . . . . . . . . . .

AC Power Specifications for an ACX5000 Router . . . . . . . . . . . . . . . . . . .

AC Power Cord Specifications for an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . . .

DC Power Specifications for an ACX5000 Router . . . . . . . . . . . . . . . . . . .

Chapter 2 Site Planning, Preparation, and Specifications ..... 6

Site Preparation Checklist for an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . .

ACX5048 and ACX5096 Site Guidelines and Requirements 66

General Site Guidelines

QFX5120 Site Electrical Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . .

Clearance Requirements for Airflow and Hardware Maintenance for an ACX5000 Router

Chassis Physical Specifications for an ACX5000 Router . . . . . . . . . . . . . . . . . . . 68

ACX5000 Router Environmental Specifications . . . . . . . . . . . . . . . . . . . .

ACX5000 Chassis Grounding Cable and Lug Specifications . . . . . . . . . . . . . . 70

Cabinet Requirements for an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . . .

Rack Requirements for an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . . .

ACX5048 and ACX5096 Network Cable and Transceiver Planning . . . . . . . . . . . 72

Determining Transceiver Support for the ACX5000 . . . . . . . . . . . . . . . . . . .

Cable Specifications for QSFP+ and QSFP28 Transceivers ..... 74

Calculating Power Budget and Power Margin for Fiber-Optic Cables ..... 76 Calculating Power Budget for Fiber-Optic Cable ..... 7

Calculating Power Margin for Fiber-Optic Cable 7

Understanding Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion

Signal Loss in Multimode and Single-Mode Fiber-Optic Cable . . . . . . . . 78 Attenuation and Dispersion in Fiber-Optic Cable . . . . . . . . . . . .

ACX5048 and ACX5096 Management Cable Specifications and Pinouts . . . . . . 79

Cable Specifications for Console and Management Connections for an ACX5000 Router

Management Port Connector Pinouts for an ACX5000 Router . . . . . . . . . . . 80

Console Port Connector Pinouts for an ACX5000 Router 80

USB Port Specifications for an ACX5000 Router . . . . . . . . . . . . . . . . . . . .

Chapter 3 Initial Installation and Configuration .....

ACX5048 and ACX5096 Installation Overview . . . . . . . . . . . . . . . . . . . . . . .

Unpacking and Mounting the ACX5048 and ACX5096 Routers 84

Unpacking an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . . . . . . .

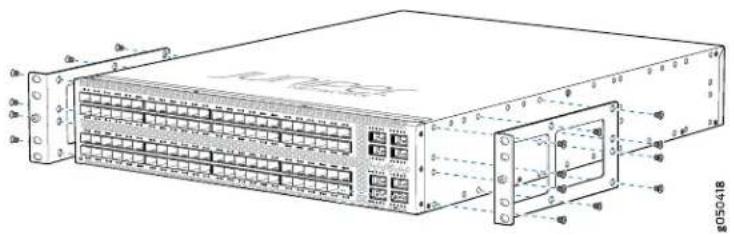

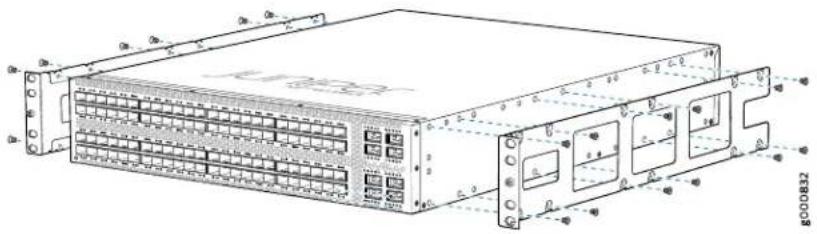

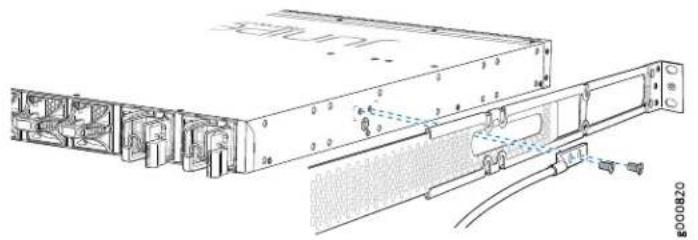

Mounting an ACX5000 Router in a Rack or Cabinet ..... Before You Begin Rack Installation ....

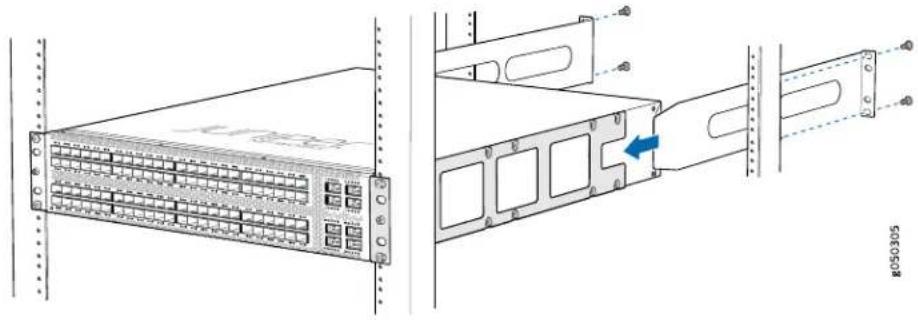

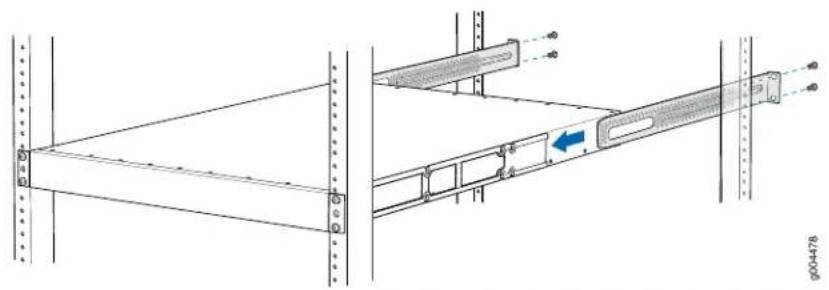

Four Post Procedure ....

Two Post Procedure ....

Connecting the ACX5048 and ACX5096 to Power . . . . . . . . . . . . . . . . . . . . .

Connecting the ACX5000 Router to Earth Ground . . . . . . . . . . . . . . . . . . . . .

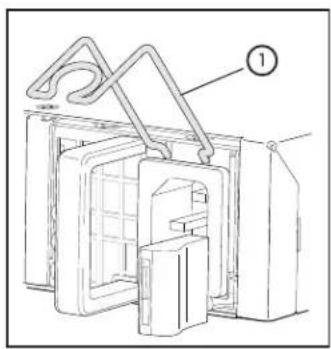

Connecting AC Power to an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . .

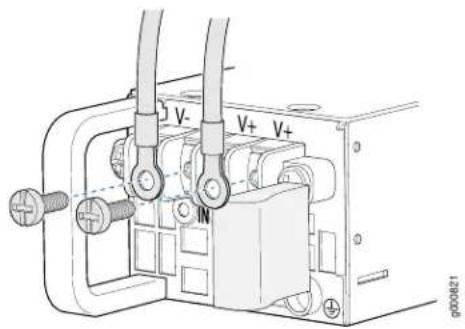

Connecting DC Power to an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . .

Connecting the ACX5048 and ACX5096 to External Devices ..... 10

Connecting an ACX5000 Router to a Management Console ..... 100

Connecting an ACX5000 Router to a Network for Out-of-Band Management

Initially Configuring the ACX5000 Router

Chapter 4 Removing, Installing, and Maintaining Components ..... 105

Maintaining ACX5048 and ACX5096 Components

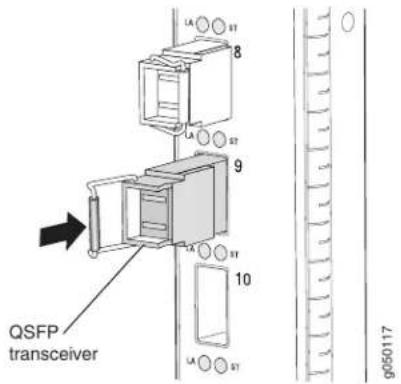

Removing a Transceiver from an ACX5000 Router

Installing a Transceiver in an ACX5000 Router

Disconnecting a Fiber-Optic Cable from an ACX5000 Router ..... 109

Connecting a Fiber-Optic Cable to an ACX5000 Router 109

Maintaining Fiber-Optic Cables in an ACX5000 Router ..... 11

Removing a Fan Module from an ACX5000 Router

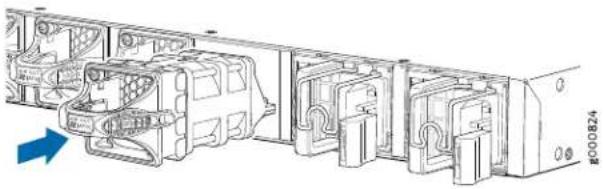

Installing a Fan Module in an ACX5000 Router

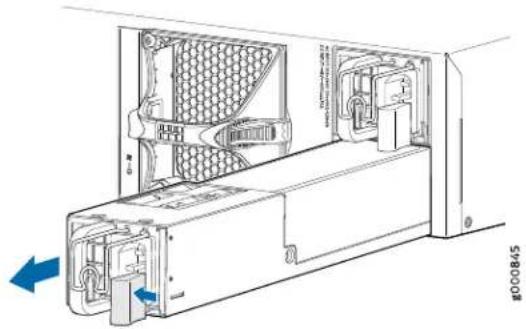

Removing a Power Supply from an ACX5000 Router

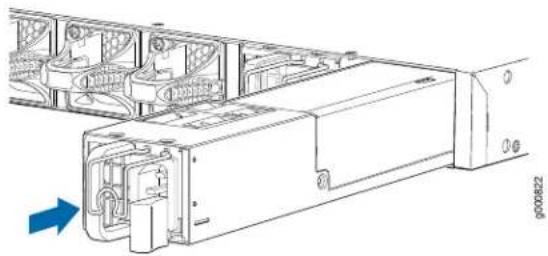

Installing a Power Supply in an ACX5000 Router

Powering Off an ACX5000 Router

Removing an ACX5000 Router from a Rack or Cabinet

Chapter 5 Troubleshooting Hardware

Troubleshooting ACX5048 and ACX5096

Understanding the ACX5000 Router Alarms

ACX5000 Router Interface Alarm Messages

Chapter 6 Contacting Customer Support

Contacting Customer Support and Returning the Chassis or Components ..... 125

Contacting Customer Support

Returning an ACX5000 Router or Component for Repair or Replacement

Locating the Serial Number on an ACX5000 Router or Component ..... 126

Listing the Chassis and Component Details Using the CLI 127

Locating the Chassis Serial Number ID Label on an ACX5000 Router

Locating the Serial Number ID Labels on FRU Components ..... 128

Packing an ACX5000 Router or Component for Shipping ..... 12

Packing an ACX5000 Router for Shipping

Packing an ACX5000 Router Components for Shipping ..... 130

Chapter 7 Safety and Compliance Information

General Safety Guidelines and Warnings

Definitions of Safety Warning Levels

Qualified Personnel Warning

Warning Statement for Norway and Sweden

Fire Safety Requirements

Fire Suppression

Fire Suppression Equipment

Installation Instructions Warning

Chassis and Component Lifting Guidelines

Restricted Access Warning

Ramp Warning

Rack-Mounting and Cabinet-Mounting Warnings . . . . . . . . . . . . . . . . . . . . . . . . .

Grounded Equipment Warning

Radiation from Open Port Apertures Warning . . . . . . . . . . . . . . . . . . . . . . . . . .

Laser and LED Safety Guidelines and Warnings for the ACX5000 Router . . . . 144

General Laser Safety Guidelines

Class 1M Laser Product Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Class 1M Laser Radiation Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Class 1 Laser Product Warning

Class 1 LED Product Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Laser Beam Warning

Unterminated Fiber-Optic Cable Warning . . . . . . . . . . . . . . . . . . . . . . . . . .

Maintenance and Operational Safety Guidelines and Warnings ..... 149

Battery Handling Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Jewelry Removal Warning

Lightning Activity Warning

Operating Temperature Warning

Product Disposal Warning

General Electrical Safety Guidelines and Warnings . . . . . . . . . . . . . . . . . . . . . .

Action to Take After an Electrical Accident . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prevention of Electrostatic Discharge Damage . . . . . . . . . . . . . . . . . . . . . . . . . .

AC Power Electrical Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . .

AC Power Disconnection Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ACX5000 DC Power Electrical Safety Guidelines and Warnings ..... 158

DC Power Copper Conductors Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DC Power Disconnection Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DC Power Grounding Requirements and Warning . . . . . . . . . . . . . . . . . . . . . . .

DC Power Wiring Sequence Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DC Power Wiring Terminations Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Multiple Power Supplies Disconnection Warning . . . . . . . . . . . . . . . . . . . . . . . . . .

TN Power Warning

Agency Approvals for an ACX5000 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Compliance Statements for EMC Requirements for the ACX5000 Router . . . . 166

Canada

European Community

Israel 167

Japan 167

Korea 168

United States

Nonregulatory Environmental Standards ....

List of Figures

Chapter 1

Overview 17

Figure 1: ACX5048 Port Panel
Figure 2: ACX5096 Port Panel
Figure 3: ACX5048 Interface Port Mapping . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 4: ACX5096 Interface Port Mapping . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 5: ACX5048, FRU End 1 U Product SKU . . . . . . . . . . . . . . . . . . . . . .
Figure 6: ACX5096, FRU End 2 U Product SKU . . . . . . . . . . . . . . . . . . . . .
Figure 7: Management Panel Components on ACX5048 .....
Figure 8: Management Panel Components on ACX5096 . . . . . . . . . . . . . . . . . .
Figure 9: ACX5048 Router Port Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 10: ACX5096 Router Port Panel
Figure 11: Chassis Status LEDs on an ACX5000 Routers . . . . . . . . . . . . . . . . .
Figure 12: Management Port LEDs on an ACX5000 Router . . . . . . . . . . . . . . . .
Figure 13: 1 U Fan Module Used in ACX5048 . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 14: 2 U Fan Module Used in ACX5096 . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 15: Air Out Airflow Through 1 U ACX5048 Chassis . . . . . . . . . . . . . . . .
Figure 16: Air Out Airflow Through 2 U ACX5096 Chassis . . . . . . . . . . . . . . . .
Figure 17: Fan Module LED in an ACX5000 Router . . . . . . . . . . . . . . . . . .
Figure 18: 1 U AC Power Supply in an ACX5048 . . . . . . . . . . . . . . . . . . . . .
Figure 19: 2 U AC Power Supply in an ACX5096 . . . . . . . . . . . . . . . . . . . . .
Figure 20: Power Supply Handle Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 21: AC Power Supply LEDs on an ACX5000 Router . . . . . . . . . . . . . . .
Figure 22: DC Power Supply in ACX5048 Routers .....
Figure 23: DC Power Supply for an ACX5096
Figure 24: DC Power Supply Faceplate in ACX5000 Routers .....
Figure 25: DC Power Supply Faceplate on an ACX5000 Router . . . . . . . . . . . .

Chapter 2 Site Planning, Preparation, and Specifications ..... 6

Figure 26: Clearance Requirements for Airflow and Hardware Maintenance for an ACX5000 Router

Figure 27: Port Panel ACX5096

Figure 28: Port Panel ACX5048

Chapter 3 Initial Installation and Configuration .....

Figure 29: Attaching Mounting Rails to the ACX5048 Router .....

Figure 30: Attaching Mounting Rails to the ACX5096 Router . . . . . . . . . . . . . . . . .

Figure 31: Attach 1 U Router to Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 32: Slide Mounting Rail onto the ACX5096 Rear Mounting Blade ..... 89

Figure 33: Slide Mounting Blades into 1 U Mounting Rail . . . . . . . . . . . . . . . . . .

Figure 34: Attaching a Two-Post Mounting Bracket to ACX5096 Router ..... 90

Figure 35: Connecting a Grounding Cable to a 1 U ACX5048 . . . . . . . . . . . . . .

Figure 36: Connecting a Grounding Cable to the 2 U ACX5096 . . . . . . . . . . . .

Figure 37: Connecting an AC Power Cord to an AC Power Supply in a 1 U ACX5048

Figure 38: Connecting an AC Power Cord to an AC Power Supply in a 2 U ACX5096

Figure 39: DC Power Supply Faceplate for a ACX5000 Router . . . . . . . . . . . .

Figure 40: Securing Ring Lugs to the Terminals on the ACX5000 DC Power Supply 99

Figure 41: Connecting the ACX Router to a Management Console Through a Console Server ....

Figure 42: Connecting the ACX Router Directly to a Management Console . . . . . 101

Figure 43: Connecting a ACX5000 Router to a Network for Out-of-Band Management

Chapter 4 Removing, Installing, and Maintaining Components ..... 105

Figure 44: Installing an SFP Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 45: Installing a QSFP+ Transceiver—Vertical Orientation ..... 108

Figure 46: Installing a QSFP+ Transceiver—Horizontal Orientation ..... 108

Figure 47: Removing a Fan Module from a 1 U ACX5048 . . . . . . . . . . . . . . . .

Figure 48: Removing a Fan Module from a 2 U ACX5096 . . . . . . . . . . . . . . . .

Figure 49: Installing a Fan Module in a 1 U ACX5048 . . . . . . . . . . . . . . . . . .

Figure 50: Installing a Fan Module in a 2 U ACX5096 . . . . . . . . . . . . . . . . .

Figure 51: Removing Power Supply from an ACX5048 . . . . . . . . . . . . . . . . . .

Figure 52: Removing Power Supply from an ACX5096 . . . . . . . . . . . . . . . . . .

Figure 53: Installing Power Supply in an ACX5048 . . . . . . . . . . . . . . . . . . .

Figure 54: Installing Power Supply in an ACX5096 . . . . . . . . . . . . . . . . . . . .

Chapter 6 Contacting Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 55: Location of the Serial Number ID Label on a ACX5096 ..... 1

Figure 56: Location of the Serial Number ID Label on a ACX5048 ..... 1

Chapter 7 Safety and Compliance Information ....

Figure 57: Placing a Component into an Antistatic Bag . . . . . . . . . . . . . . . . . .

List of Tables

About the Documentation ....

Table 1: Notice Icons .... xiii

Table 2: Text and Syntax Conventions

Chapter 1 Overview ...... 17

Table 3: ACX5000 Router Model Numbers and Description . . . . . . . . . . . . . .

Table 4: FRUs in ACX5000 Routers and Action Required Before Removing Them....20

Table 5: CLI Equivalents of Terms Used in Documentation for an ACX5048 Router 22

Table 6: CLI Equivalents of Terms Used in Documentation for an ACX5096 Router 23

Table 7: Protocols and Applications Supported by ACX Series Routers ..... 24

Table 8: Chassis Status LEDs on an ACX5000 Router . . . . . . . . . . . . . . . . .

Table 9: Management Port LEDs on an ACX5000 Router . . . . . . . . . . . . . . . .

Table 10: ACX5000 Access Port and Uplink LED Locations . . . . . . . . . . . . . . .

Table 11: Network Port LEDs on SFP+ Ports on an ACX5000 Router . . . . . . . . . . . 49

Table 12: Network Port LEDs on QSFP+ Ports on an ACX5000 Router . . . . . . . . 50

Table 13: Fan Module in ACX5000 Routers

Table 14: Fan Module LED

Table 15: Fan Tray LED in an ACX5000 Router . . . . . . . . . . . . . . . . . . . .

Table 16: Airflow Direction in an ACX5000 AC Power Supplies . . . . . . . . . . . .

Table 17: AC Power Supply LEDs on an ACX5000 Router . . . . . . . . . . . . . . .

Table 18: Airflow Direction in ACX5000 DC Power Supplies . . . . . . . . . . . . . .

Table 19: DC Power Supply LEDs on an ACX5000 Router . . . . . . . . . . . . . . . .

Table 20: AC Power Specifications for an ACX5000 Router . . . . . . . . . . . . . .

Table 21: AC Power Cord Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 22: DC Power Specifications for an ACX5000 Router . . . . . . . . . . . . . .

Chapter 2 Site Planning, Preparation, and Specifications ..... 6

Table 23: Site Preparation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 24: Site Electrical Wiring Guidelines .....

Table 25: Physical Specifications for an ACX5000 Router Chassis ..... 68

Table 26: ACX5000 Router Environmental Tolerances . . . . . . . . . . . . . . . . . . .

Table 27: Cabinet Requirements for an ACX5000 Router . . . . . . . . . . . . . . . . .

Table 28: Rack Requirements for an ACX5000 Router . . . . . . . . . . . . . . . . . .

Table 29: QSFP+ MPO Cable Signals . . . . . . . . . . . . . . . . . . . . . . . . .

Table 30: QSFP+ MPO Fiber-Optic Crossover Cable Pinouts ..... 7

Table 31: Estimated Values for Factors Causing Link Loss . . . . . . . . . . . . . . . . .

Table 32: Cable Specifications for Console and Management Connections for the ACX5000 Router ....

Table 33: RJ-45 Management Port Connector Pinouts for an ACX5000

Router 80

Table 34: Console Port Connector Pinouts for an ACX5000 Router ..... 81

Chapter 3 Initial Installation and Configuration .....

Table 35: Inventory of Components Supplied with an ACX5000 Router ..... 85

Chapter 5 Troubleshooting Hardware .....

Table 36: Alarm Terms and Definitions .....

About the Documentation

• Documentation and Release Notes on page xi
  • Using the Examples in This Manual on page xi
  • Documentation Conventions on page xiii
  • Documentation Feedback on page xv
• Requesting Technical Support on page xv

Documentation and Release Notes

To obtain the most current version of all Juniper Networksal documentation, see the product documentation page on the Juniper Networks website at https://www.juniper.net/documentation/.

If the information in the latest release notes differs from the information in the documentation, follow the product Release Notes.

Juniper Networks Books publishes books by Juniper Networks engineers and subject matter experts. These books go beyond the technical documentation to explore the nuances of network architecture, deployment, and administration. The current list can be viewed at https://www.juniper.net/books.

Using the Examples in This Manual

If you want to use the examples in this manual, you can use the load merge or the load merge relative command. These commands cause the software to merge the incoming configuration into the current candidate configuration. The example does not become active until you commit the candidate configuration.

If the example configuration contains the top level of the hierarchy (or multiple hierarchies), the example is a full example. In this case, use the load merge command.

If the example configuration does not start at the top level of the hierarchy, the example is a snippet. In this case, use the load merge relative command. These procedures are described in the following sections.

Merging a Full Example

To merge a full example, follow these steps:

1. From the HTML or PDF version of the manual, copy a configuration example into a text file, save the file with a name, and copy the file to a directory on your routing platform.

For example, copy the following configuration to a file and name the file ex-script.conf. Copy the ex-script.conf file to the /var/tmp directory on your routing platform.

system {
    scripts {
    commit {
    file ex-script.xsl;
    }
    }
}
interfaces {
    fxp0 {
    disable;
    unit 0 {
    family inet {
    address 10.0.0.1/24;
    }
    }
    }
}

1. Merge the contents of the file into your routing platform configuration by issuing the load merge configuration mode command:

[edit]
user@host# load merge /var/tmp/ex-script.conf
load complete

Merging a Snippet

To merge a snippet, follow these steps:

1. From the HTML or PDF version of the manual, copy a configuration snippet into a text file, save the file with a name, and copy the file to a directory on your routing platform For example, copy the following snippet to a file and name the file ex-script-snippet.conf. Copy the ex-script-snippet.conf file to the /var/tmp directory on your routing platform.

commit {
    file ex-script-snippet.xsl; }

1. Move to the hierarchy level that is relevant for this snippet by issuing the following configuration mode command:

[edit]
user@host# edit system scripts
[edit system scripts]

1. Merge the contents of the file into your routing platform configuration by issuing the load merge relative configuration mode command:

[edit system scripts]
user@host# load merge relative /var/tmp/ex-script-snippet.conf
load complete

For more information about the load command, see CLI Explorer.

Documentation Conventions

Table 1 on page xiii defines notice icons used in this guide.
Table 1: Notice Icons

		DescriptionMeaningIcon
		Indicates important features or instructions.Informational note
		Indicates a situation that might result in loss of data or hardware damage.Caution
		Alerts you to the risk of personal injury or death.Warning
		Alerts you to the risk of personal injury from a laser.Laser warning
		Indicates helpful information.Tip
		Alerts you to a recommended use or implementation.Best practice

Table 2 on page xiv defines the text and syntax conventions used in this guide.

Table 2: Text and Syntax Conventions

		ExamplesDescriptionConvention
	Represents text that you type.Bold text like this configuration mode, type the configure command:user@host>configure
Fixed-width text like this	Represents output that appears on the user@host>show chassis alarms terminal screen.No alarms currently active
Italic text like this	Introduces or emphasizes important new terms.Identifies guide names.Identifies RFC and Internet draft titles.	A policy term is a named structure that defines match conditions and actions.Junos OS CLI User GuideRFC 1997, BGP Communities Attribute
Italic text like this	Represents variables (options for which you substitute a value) in commands or configuration statements.	Configure the machine's domain name:[edit]root@# set system domain-name domain-name
Text like this	Represents names of configuration statements, commands, files, and directories; configuration hierarchy levels; or labels on routing platform components.	To configure a stub area, include the stub statement at the [edit protocols ospf area area-id] hierarchy level.The console port is labeled CONSOLE.
<>(angle brackets)	Encloses optional keywords or variables.	stub;
|(pipe symbol)	Indicates a choice between the mutually broadcast | multicast exclusive keywords or variables on either side of the symbol. The set of choices(string1 | string2 | string3) often enclosed in parentheses for clarity.
# (pound sign)	same line as the configuration statement to which it applies.	rsvp { # Required for dynamic MPLS only indicates a c
[ ] (square brackets)	Encloses a variable for which you can community name members [substitute one or more values. community-ids ]
Indention and braces ( { } )	Identifies a level in the configuration hierarchy.	[edit]routing-options {static {route default {nexthop address; retain;}]}
;(semicolon)	Identifies a leaf statement at a configuration hierarchy level.
GUI Conventions

Table 2: Text and Syntax Conventions (continued)

		ExamplesDescriptionConvention
Bold text like this	Representsgraphical user interface (GUI)• In the Logical Interfaces box, select items you click or select.	All Interfaces.• To cancel the configuration, click Cancel.
> (bold right angle bracket)	Separates levels in a hierarchy of men to the configuration editor hierarchy, selections.	select Protocols>Ospf.

Documentation Feedback

We encourage you to provide feedback so that we can improve our documentation. You can use either of the following methods:

- Online feedback system—Click TechLibrary Feedback, on the lower right of any page on the Juniper Networks TechLibrary site, and do one of the following:

• Click the thumbs-up icon if the information on the page was helpful to you.
• Click the thumbs-down icon if the information on the page was not helpful to you or if you have suggestions for improvement, and use the pop-up form to provide feedback.
• E-mail—Send your comments to [e-mail]. Include the document or topic name, URL or page number, and software version (if applicable).

Requesting Technical Support

Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active Juniper Care or Partner Support Services support contract, or are covered under warranty, and need post-sales technical support, you can access our tools and resources online or open a case with JTAC.

• JTAC policies—For a complete understanding of our JTAC procedures and policies, review the JTAC User Guide located at https://www.juniper.net/us/en/local/pdf/resource-guides/7100059-en.pdf.
• Product warranties—For product warranty information, visit https://www.juniper.net/support/warranty/.
• JTAC hours of operation—The JTAC centers have resources available 24 hours a day, 7 days a week, 365 days a year.

Self-Help Online Tools and Resources

For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features:

• Find CSC offerings: https://www.juniper.net/customers/support/
- Search for known bugs: https://prsearch.juniper.net/
• Find product documentation: https://www.juniper.net/documentation/
• Find solutions and answer questions using our Knowledge Base: https://kb.juniper.net/
- Download the latest versions of software and review release notes: https://www.juniper.net/customers/csc/software/
- Search technical bulletins for relevant hardware and software notifications: https://kb.juniper.net/InfoCenter/
- Join and participate in the Juniper Networks Community Forum: https://www.juniper.net/company/communities/
- Create a service request online: https://myjuniper.juniper.net

To verify service entitlement by product serial number, use our Serial Number Entitlement (SNE) Tool: https://entitlementsearch.juniper.net/entitlementsearch/

Creating a Service Request with JTAC

You can create a service request with JTAC on the Web or by telephone.

• Visit https://myjuniper.juniper.net.
• Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico).

For international or direct-dial options in countries without toll-free numbers, see https://support.juniper.net/support/requesting-support/.

CHAPTER 1

Overview

• ACX5048 and ACX5096 System Overview on page 17
  • ACX5048 and ACX5096 Chassis on page 39
• ACX5048 and ACX5096 Cooling System on page 51
• ACX5048 and ACX5096 Power System on page 55

ACX5048 and ACX5096 System Overview

• ACX5000 Universal Metro Router Overview on page 17
• ACX5000 Router Models on page 19
- Field-Replaceable Units in an ACX5000 Router on page 20
- Understanding Hardware Redundancy of an ACX5000 Router Components and Functionality on page 21
- ACX5000 Routers Hardware and CLI Terminology Mapping on page 21
- Protocols and Applications Supported by ACX Series Routers on page 24

ACX5000 Universal Metro Router Overview

The ACX5000 Universal Metro Routers are Juniper Networks' top-of-rack router solutions for data centers and campus distribution or aggregation environments. The ACX5000 router portfolio consists of high-performance fixed-configuration routers that add higher port densities, additional scalability, and improved latency to the ACX Series. The ACX5000 routers are available in two models—ACX5048 and ACX5096. See "ACX5000 Router Models" on page 19.

ACX5000 routers offer a compact 1 U model and a 2 U model that provide wire-speed packet performance, very low latency, and a rich set of Layer 2 and Layer 3 features. These routers have a high-throughput Packet Forwarding Engine, and the performance of the control plane running on ACX5000 routers is enhanced by the 1.5 Ghz dual-core Intel CPU with 8 GB of memory and 32 GB of solid-state drive (SSD) storage.

The ACX5000 routers include both 10-Gigabit Ethernet and 40-Gigabit Ethernet fixed configurations.

For more information about which features are supported on an ACX5000 routers, see "Protocols and Applications Supported by ACX Series Routers" on page 24.

ACX5000 routers use the Junos operating system (OS), which provides Layer 2 and Layer 3 switching, routing, and security services. Junos OS is installed on an ACX5000 router's 32-gigabyte (GB) internal solid state flash drive. The same Junos OS code base that runs on an ACX5000 routers also runs on all Juniper Networks QFX and EX Series switches, and J Series, M Series, MX Series, ACX Series and T Series routers.

You manage the router using the Junos OS command-line interface (CLI), accessible through the console and out-of-band management ports on the router.

• Benefits of the ACX5048 and ACX5096 Routers on page 18
• ACX5048 Router on page 18
• ACX5096 Router on page 18

Benefits of the ACX5048 and ACX5096 Routers

- Performance—ACX5000 routers provide wire-speed packet performance, very low latency, and a rich set of Layer 2 and Layer 3 features.

- Service virtualization—ACX5000 routers offer service virtualization on a dedicated and customizable KVM-compliant virtual machine that enables you to execute operational scripts and programs for network performance monitoring and analysis.

ACX5048 Router

As shown in Figure 1 on page 18, the ACX5048 is a 10-Gigabit Ethernet enhanced small form-factor pluggable (SFP+) top-of-rack router with 48 SFP+ ports and 6 quad SFP+ (QSFP+) ports. Each SFP+ port can operate as a native 10-Gigabit Ethernet port or as a 1-Gigabit Ethernet port when 1-gigabit optics are inserted. Each QSFP+ port (48 through 53) can operate as a 40-Gigabit Ethernet port or be channelized to operate as four independent 10-Gigabit Ethernet ports (a total of 24 10-Gigabit Ethernet ports). The 6 QSFP+ ports can be used as either access ports or uplink ports. The ACX5048 provides full duplex throughput of 1.44 Tbps. The ACX5048 has a 1 U form factor and is shipped with redundant fans and redundant power supplies. The router can be ordered with front-to-back airflow (air out or AFO) and with AC or DC power supplies.

Figure 1: ACX5048 Port Panel

Line drawing of a network switch device with ports and connectors (no text or symbols)

ACX5048 can be used only as a standalone router.

ACX5096 Router

As shown in Figure 2 on page 19, the ACX5096 is a 10-Gigabit Ethernet enhanced small form-factor pluggable (SFP+) top-of-rack router with 96 SFP+ ports and 8 quad SFP+ (QSFP+) ports. Each SFP+ port can operate as a native 10-Gbps port or as a 1-Gbps port. The QSFP+ ports 96 and 100 can operate at native 40 Gbps speed or can be channelized to 4 independent 10 Gbps port speeds. The 8 QSFP+ ports can be used as

either access ports or as uplinks. The ACX5096 has a 2 U form factor and is shipped with redundant fans and redundant power supplies. The router can be ordered with front-to-back airflow (air out or AFO) and with AC or DC power supplies.

Figure 2: ACX5096 Port Panel

Line drawing of a multi-chamber network switch device (no text or labels visible)

ACX5096 can be used only as a standalone router.

See Also • Chassis Physical Specifications for an ACX5000 Router on page 68

ACX5000 Router Models

Table 3 on page 19 lists the ACX5000 router models. The ACX5000 routers are available in 48 port or 96 port configurations. The routers are available with either AC or DC power supply and with airflow-out (AFO) cooling.

Table 3: ACX5000 Router Model Numbers and Description

		Power Supply	Number of Management Model Number	Airflow
ACX5048-AC	transceivers			Air Out (front-to-back)3AC48 SFP+ anc
ACX5048-DC	transceivers			Air Out (front-to-back)3DC48 SFP+ anc
ACX5096-AC	transceivers			Air Out (front-to-back)2AC96 SFP+ anc
ACX5096-DC	transceivers			Air Out (front-to-back)2DC96 SFP+ anc

CAUTION: Do not mix different types (AC and DC) of power supplies in the same chassis.

See Also • Determining Transceiver Support for the ACX5000 on page 73

Field-Replaceable Units in an ACX5000 Router

Field-replaceable units (FRUs) are components that you can replace at your site. The ACX5000 FRUs are hot-insertable and hot-removable: you can remove and replace them without powering off the router or disrupting the routing function.

The following are the ACX5000 FRUs:

• Power supplies
• Fan modules

Table 4 on page 20 lists the FRUs for the ACX5000 and actions to take before removing them.
Table 4: FRUs in ACX5000 Routers and Action Required Before Removing Them

	Required ActionFRUs
	NonePower supplies
	NoneFan modules

CAUTION: Replace a failed power supply with a blank panel or new power supply within one minute of removal to prevent chassis overheating. The router continues to operate with only one power supply running. Replace a failed fan module with a new fan module within one minute of removal to prevent chassis overheating. Do not operate the router with missing FRUs for longer than one minute.

NOTE: If you have a Juniper J-Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/csc/management/updateinstallbase.jsp. Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace existing components with the same type of component.

NOTE: Before removing the optical transceivers, we recommend that you disable the interface using the set interfaces interface-name disable command. See "Disconnecting aFiber-OpticCable fromanACX5000Router" on page 109.

See Also

• Installing a Power Supply in an ACX5000 Router on page 116
•Removing a Power Supply from an ACX5000 Router on page 114

•Installing a Fan Module in an ACX5000 Router on page 113
-Removing a Fan Module from an ACX5000 Router on page 111

Understanding Hardware Redundancy of an ACX5000 Router Components and Functionality

The following hardware components provide redundancy on an ACX5000 router:

- Power supplies—The ACX5000 router has one or two power supplies. Each power supply provides power to all components in the router. If two power supplies are installed, the two power supplies provide full power redundancy to the device. If one power supply fails or is removed, the second power supply balances the electrical load without interruption.

To provide power redundancy to the system both power supplies must be installed. Connect power source feed A to one power supply and power source feed B to the second power supply.

CAUTION: Do not connect feed A and feed B to the same power supply input terminal.

- Cooling system—The 1 U ACX5048 router has five fan modules; the 2 U ACX5096 router has three fan modules. If a fan module fails and is unable to keep the ACX5000 router within the desired temperature thresholds, chassis alarms occur and the ACX5000 router can shut down.

See Also AC Power Supply for an ACX5000 Router on page 55.

•DC Power Supply for an ACX5000 Router on page 58
•Cooling System and Airflow in an ACX5000 Router on page 51

ACX5000 Routers Hardware and CLI Terminology Mapping

• ACX5048 Router Hardware and CLI Terminology Mapping on page 21
  • ACX5096 Router Hardware and CLI Terminology Mapping on page 23

ACX5048 Router Hardware and CLI Terminology Mapping

Table 5 on page 22 describes the hardware terms used in an ACX5048 router documentation and the corresponding terms used in the Junos OS command line interface (CLI). Figure 3 on page 22 shows the port locations of the interfaces.

Table 5: CLI Equivalents of Terms Used in Documentation for an ACX5048 Router

Hardware Item (as displayed in the CLI)	Description (as displayed in the CLI)	Value (as displayed in the CLI)		Additional InformationItem In
			Router chassis-ACX5048Chassis Physical Specifications for an ACX5000 Router" on page 68
FPC (n)	Abbreviated name of value of n is always the Flexible PIC 0.Concentrator (FPC)	The router does not haveInterface Naming Conventions actual FPCs. In this case,Used in the Junos OS Operational FPC refers to the router Commands itself.
PIC (n)	Abbreviated name of Value of n is always the Physical Interface 0.Card (PIC)	The router does not haveInterface Naming Conventions actual PIC devices; see entries for PIC 0 for the equivalent item on the router.
		PIC 048x10G-6x40G	Built-in network ports on the front panel of the router	"ACX5000 Universal Metro Router Overview" on page 17
Xcvr (n)	Abbreviated name of the transceiver	n is a value equivalent to the number of the port in which the transceiver is installed.	Optical transceivers	Port and Interface Specifications
supply (n)	Power supplyPower	n is a value in the range of 0-1.	AC power supplyDC power supply	"AC Power Supply for an ACX5000 Router" on page 55"DC Power Supply for an ACX5000 Router" on page 58
	FanFan	range of 0-4.	Fann is a value in the	"Cooling System and Airflow in an ACX5000 Router" on page 51

Figure 3: ACX5048 Interface Port Mapping

1—Electrostatic Discharge (ESD) terminal	3—40 Gigabit Ethernet ports (6)
2—10 Gigabit Ethernet ports (48)

ACX5096 Router Hardware and CLI Terminology Mapping

Table 6 on page 23 describes the hardware terms used in an ACX5096 router documentation and the corresponding terms used in the JunosOScommand line interface (CLI). Figure 4 on page 24 shows the port locations of the interfaces.

Table 6: CLI Equivalents of Terms Used in Documentation for an ACX5096 Router

Hardware Item (as displayed in the CLI)	Description (as displayed in the CLI)	Value (as displayed in the CLI)		Additional Information Item In
			Router chassis-ACX5096Chassis Physical Specifications for an ACX5000 Router" on page 68
FPC (n)	the Flexible PIC Concentrator (FPC)	Value of n is always	The Absolute ddesame have Interface Naming Conventions actual FPCs. In this case,Used in the Junos OS Operational FPC refers to the router Commands itself.
PIC (n)	the Physical Interface Card (PIC)	Value of n is always	The Absolute ddesame have Interface Naming Conventions actual PIC devices; see entries for PIC 0 for the Commands equivalent item on the router.
		PIC 096x10G-8x40G	Built-in network ports on the front panel of the router	"ACX5000 Universal Metro Router Overview" on page 17
Xcvr (n)	Abbreviated name of the transceiver	n is a value equivalent to the number of the port in which the transceiver is installed.	Optical transceivers	Port and Interface Specifications
Power supply (n)	Built-in power supply	n is a value in the range of 0-1.	AC power supplyDC power supply	"AC Power Supply for an ACX5000 Router" on page 55"DC Power Supply for an ACX5000 Router" on page 58
Fan	Fan	n is a value in the range of 0-2 for ACX5096	Fan	"Cooling System and Airflow in an ACX5000 Router" on page 51

Figure 4: ACX5096 Interface Port Mapping

3-1-40 Gigabit Ethernet ports (8)Electrostatic Discharge (
2—10 Gigabit Ethernet ports (96)

Protocols and Applications Supported by ACX Series Routers

Table 7 on page 24 contains the first Junos OS Release support for protocols and applications on ACX Series routers. A dash indicates that the protocol or application is not supported.

NOTE:

• The [edit logical-systems logical-system-name] hierarchy level is not supported on ACX Series routers.
• TheACXSeriesrouters does not support per-family maximum transmission unit (MTU) configuration. The MTU applied to family inet gets applied to other families as well, even though it can be configured through CLI and visible in show Interface extensive output. The only way to use higher MTU for a family is to manipulate the MTU, apply at interface or family inet levels, and let it calculate for each familyautomatically. MTU valuesarenot limited to 1500 but can range between 256 to 9216.

For more information, see the Knowledge Base (KB) article KB28179 at: https://kb.juniper.net/InfoCenter/index?page=content&id=KB28179.

Table 7: Protocols and Applications Supported by ACX Series Routers

Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX400	ACX508	ACX506	ACX500	ACX548
Interface and Encapsulation Types
Ethernet interfaces-1G, 10G	12.2	12.2R2	12.2	12.2R2	12.3X54-D15	12.3x51-D10	15.1X54-D20	15.1X54-D20	18.2R112.3X54
									(Indoor)
									12.3X54-D25(Outdoor)
Ethernet interfaces-40G	-	-	-	-	-	-	15.1X54-D20	-	15.1X542R1-
ATM Interfaces (IMA only)	12.2	-	12.2	12.2R2	-	-	-	-	-

Table 7: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application	AOX000	AOX100	AOX200	AOX200	AOX200	AOX400	AOX508	AOX506	AOX500	AOX548
								EI interfaces		----1212.2R212.2
								T1 interfaces		----1212.2R212.2
Circuit emulation interfaces (SAToP, CESoP)	12.2	-	12.2	12.2R2	-	-D10				----12.3x51
			SONET/SDH interfaces----			-D10 (requires a MIC)				----12.3x51
Layer 3
	Static routes		12.2F22B212.2123X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	-D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.3X54
	OSPF		12.2F22B212.2123X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	-D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.3X34
	IS-IS		12.2F22B212.2123X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	-D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.3X4
	BGP		12.2F22B212.2123X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	-D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.3X24
Protocol (ICMP)	Internet Control Message				12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	-D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.3X54
Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX606	ACX500	ACX548
Protocol (ARP)				12.2R212.2T23X54- D15		12.2Dx55- D10	15.1X54- D20	15.1X54- D20	- D20(Indoor)12.3X54- D25(Outdoor)	18.2R112.3X54
Detection (BFD) protocol				12.2R212.2T23X54- D15		12.2Dx55- D10	15.1X54- D20	15.1X54- D20	- D20(Indoor)12.3X54- D25(Outdoor)	18.2R112.3X5
Configuration Protocol(DHCP)				12.2R212.2T23X54- D15		12.2Dx55- D10	15.1X54- D20	15.1X54- D20	- D20(Indoor)12.3X54- D25(Outdoor)	18.2R112.3X
(OSPF, IS-IS)				12.2R212.2T23X54- D15		12.2Dx55- D10	15.1X54- D20	(FBRX54- D20	- D20(Indoor)12.3X54- D25(Outdoor)	18.2R112.3X54
(MTU) range (256 to 9192)				12.2R212.2T23X54- D15		12.2Dx55- D10	15.1X54- D20	15.1X54- D20	- D20(Indoor)12.3X54- D25(Outdoor)	18.2R112.3X 54
				12.3R112.3T23X54- D15		12.2Dx55- D10	15.1X54- D20	15.1X54- D20	- D20(Indoor)12.3X54- D25(Outdoor)	18.2R112.3X54
				12.2R212.2T23X54- D15		12.2Dx55- D10	15.1X54- D20	15.1X54- D20	- D20(Indoor)12.3X54- D25(Outdoor)	18.2R112.3X5 4
Protocol or Application	AO000	AO100	AO200	AO200	AO200	AO400	AO508	AO6095	AO500	AO548
				12.2R212.2T23X54- D15	12.2T23X54- D10	12.2T23X54-targeted and 15.1X54			18.2R112.3X54
						D20	-D20	-D20(Indoor)
								12.3X54-D25(Outdoor)
MPLS, VPLS, VPNs
(LSP)				12.2R212.2T23X54- D15	12.2T23X54- D10	12.2T23X54-labelX54 switch path			18.2R112.3X54
						-D20	-D20	-D20(Indoor)
								12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15	12.2T23X54- D10	15.1X54-D20	15.1X54-D20	15.1X54-D20(Indoor)		18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15	12.2T23X54- D10	15.1X54-D20	15.1X54-D20	15.1X54-D20(Indoor)		18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15	12.2T23X54- D10	15.1X54-D20	15.1X54-D20	15.1X54-D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15	12.2T23X54- D10	15.1X54-D20	15.1X54-D20	15.1X54-D10(Indoor)		18.2R112.3X54
									12.3X54-D25(Outdoor)
Edge to Edge (PWE3 [signaled])				12.2R212.2T23X54- D15	12.2T23X54- D10	15.1X54-D20	15.1X54-D20	15.1X54-D20(Indoor)		18.2R1-15.1X54
				12.2R212.2T23X54- D15	12.2T23X54- D10	15.1X54-D20	15.1X54-D20	15.1X54-D20(Indoor)		18.2R112.3X54
									12.3X54-D25(Outdoor)
Protocol or Application	AC000	AC100	AC200	AC200	AC200	AC400	AC508	AC606	AC500	AC548
				12.2R212.2123X5212.2123x512-D15	-12.2R212.2123X5212.2123x512-D10	15.1X54	15.1X54	-15.1X54	-15.1X54	18.2R112.3X54
							-15.1X54	-15.1X54
								-15.1X54
								-15.1X54
								-15.1X54
on active and standby pseudowires				12.2R212.2123X5212.2123x512-D15	-12.2R212.2123X5212.2123x512-D10	15.1X54	15.1X54	-15.1X54	-15.1X59	18.2R112.3X54
							-15.1X54	-15.1X54
								-15.1X54
								-15.1X54
				VPLS	----	15.1X54	-15.1X54	-15.1X54		18.2R1-15.1X54
						-15.1X54	-15.1X54	-15.1X54
Ethernet Layer 2
(EFM 802.3ah)				12.2R212.2123X5212.2123x512-D15	-12.2R212.2123X5212.2123x512-D10	15.1X54	15.1X54	-15.1X54	-15.1X56	18.2R112.3X54
						-15.1X54	-15.1X54	-15.1X54
								-15.1X54
								-15.1X54
								-15.1X54
management (CFM)				12.2R212.2123X5212.2123x512-D15	-12.2R212.2123X5212.2123x512-D10	15.1X54	15.1X54	-15.1X54	-15.1X64	18.2R112.3X54
						-15.1X54	-15.1X54	-15.1X54
								-15.1X54
								-15.1X54
type, length, and value(TLV)				12.2R212.2123X5212.2123x512-D15	-12.2R212.2123X5212.2123x512-D10	15.1X54	15.1X54	-15.1X54	-15.1X74	18.2R112.3X54
						-15.1X54	-15.1X54	-15.1X54
								-15.1X54
QoS
control lists-ACLs)-family inet				12.2R212.2123X5212.2123x512-D15	-12.2R212.2123X5212.2123x512-D10	15.1X54	15.1X54	-15.1X54	-15.1X55	18.2R112.3X54
						-15.1X54	-15.1X54	-15.1X54
							-15.1X54	-15.1X54
							-15.1X54	-15.1X54
							-15.1X54	-15.1X54
Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX5096	ACX500	ACX548
match conditions for MPLStraffic				12.2R212.2T23X5212.2Standard 15x15x4wall 15x15x4-D15 -D10 -D20 -D20						18.2R112.3X54
									- D20(Indoor)
									12.3X54-D25(Outbor)
ccc/any				12.2R212.2T23X5212.2Standard 15x15x4-familyX54-D15 -D10 -D20 -D20						18.2R112.3X54
									- D20(Indoor)
									12.3X54-D25(Outbor)
			Firewall - 12.2R212.2T23X5212.2R1-D15 -D10							18.2R3X571R117.1R1
interface				12.2R212.2T23X5212.2Standard - 15x15x4logic 11X54-D15 -D10 -D20 -D20						18.2R112.3X54
									- D20(Indoor)
									12.3X54-D25(Outbor)
interface				12.2R212.2T23X5212.2Standard - 15x15x4phys 16x15x4-D15 -D10 -D20 -D20						18.2R112.3X54
									- D20(Indoor)
									12.3X54-D25(Outbor)
				12.2R212.2T23X5212.2Standard - 15x15x4family 16.1X54-D15 -D10 -D20 -D20						18.2R112.3X54
									- D20(Indoor)
									12.3X54-D25(Outbor)
blind)				12.2R212.2T23X5212.2Standard - 15x15x4awa 16x15x4Color-D15 -D10 -D20 -D20						18.2R112.3X54
									- D20(Indoor)
									12.3X54-D25(Outbor)
Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX606	ACX500	ACX548
blind)				12.2R212.2T23X5412.2T63X5M(D15	- D15	- D10	(5x1x54aw4x54x54or-D20	- D20	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X5412.2T63x5Iprotex5m-D15	- D15	- D10	- D20	15.1X54-D20	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X5412.2T63x5Iquex5per15x54-D15	- D15	- D10	- D20	- D20	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X5412.2T63x5Iqde6fing-D15	- D15	- D10	- D20	15.1X54-D20	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X412.2T63x5Icon15x54-D15	- D15	- D10	- D20	15.1X54-D20	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
different priorities				12.2R212.2T23X5412.2T63x5Iouling15x54H-D15	- D15	- D10	- D20	- D20	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X5412.2Tx54Slatency15x54ueu15x54O-D15	- D15	- D10	- D20	- D20	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX606	ACX500	ACX648
detection (WRED) drop profile (DP)				12.2R212.2T23X54- D15		12.2Wghted 15x54	15x54	15x54	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15		12.2Classifical 15x54	DS1X54	DS1X54	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15		12.2Classifical 15x54	MPLS1X54	MPLS1X54	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15		12.2Classifical 15x54	EEB5X54	EEB5X54	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15		12.2Write- D10	D3X54	15.1X54	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15		12.2Write- D10	MRX54	EXP3.1X54	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
				12.2R212.2T23X54- D15		12.2Write- D10	850X54	15.1X54	- D20(Indoor)	18.2R112.3X54
									12.3X54-D25(Outdoor)
Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX5095	ACX500	ACX548
different values				12.2R212.2T23X54- D15	12.2R212.2T23X54- D10	12.2R212.2T23X54- D20	12.2R212.2T23X54- D20	12.2R212.2T23X54- D20	12.2R212.2T23X54- D20(Indoor)	18.2R112.3X54
									12.3X54- D25(Outdoor)
Timing
1588-2008-backup clock				12.2R212.2T23X54- D15	12.2Timing-1588-3x51- D10	12.2Timing-1588-3x51- D10	--			18.2R112.3X54
									- D20(Indoor)
									12.3X54- D25(Outdoor)
				12.2R212.2T23X54- D15	12.2Synchronol- 12.3Ethernet- D10	12.2Synchronol- 12.3Ethernet- D10				18.2R112.3X54
									- D20(Indoor)
									12.3X54- D25(Outdoor)
supply (BITS)				12.2R212.2T23X54- D15	12.2Building-in- 12.2Gated-timing- D10	12.2Building-in- 12.2Gated-timing- D10			12.3X54- D20(Indoor)	-
									12.3X54- D25(Outdoor)
				12.2R212.2T23X54- D15	12.2Clock synd2.6x5ation- D10	Synd2.6x5ation			12.3X54- D20(Indoor)	-
									12.3X54- D25(Outdoor)
Redundant clock (multiple 1588 masters)	-	-	-	-	-	-	-	-	-	-
Transparent clock	-	-	-	-	-	-	15.1X54- D20	-	15.1X542R1-
Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX606	ACX500	ACX48
								----Grand -D20 and 17.3R1 (Indoor) 12.3X54 -D25 (Outdoor)		M2.3X54Clock
OAM, Troubleshooting, Manageability, Lawful Intercept
(NTP)	Network Time Protocol		12.2T22R212.212.3X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	- D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.3X54
	SNMP		12.2T22R212.212.3X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	- D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.3x54
	802.1ag CFM		12.2T22R212.212.3X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	- D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.3×54
	802.3ah LFM		12.2T22R212.212.3X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	- D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.33X54
Performance Management	Y.1731 Fault and		12.2T22R212.212.3X54 -D15		12.3x51 -D10	15.1X54 -D20	15.1X54 -D20	- D20 (Indoor) 12.3X54 -D25 (Outdoor)		18.2R112.35X54
Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX6095	ACX500	ACX648
				12.2R212.2T23X54- D15	12.2T28k51 -D10	OAMX54 -D20	15.1X54 -D20		- D20 (Indoor)	18.2R112.3X54
									12.3X54 -D25 (Outdoor)
				12.2R212.2T23X54- D15	12.2T28k51 -D10	15.1X54 -D20	15.1X54 -D20		- D20 (Indoor)	18.2R112.3X54
									12.3X54 -D25 (Outdoor)
				12.2R212.2T23X54- D15	15.2T28k51 -D10	15.1X54 -D20	15.1X54 -D20		- D20 (Indoor)	18.2R112.3X54
									12.3X54 -D25 (Outdoor)
				12.2R12.2T23X54- D15	12.2T28k51 -D10	15.1X54 -D20	15.1X54 -D20		- D20 (Indoor)	18.2R112.3X54
									12.3X54 -D2S (Outdoor)
downloads				12.2R212.2T23X54- D15	12.2T28k51 -D10	for 5x software -D20	15.1X54 -D20		- D20 (Indoor)	18.2R112.3X54
									12.3X54 -D2S (Outdoor)
mirroring)				12.2R212.2T23X54- D15	12.2Port -D10	mirroring (local 12x 5x)			- D20 (Indoor)	18.2R112.3X54
									12.3X54 -D2S (Outdoor)
				12.2R212.2T23X54- D15	12.2T28k51 -D10	15.1X54 -D20	15.1X54 -D20		- D20 (Indoor)	18.2R112.3X54
									12.3X54 -D2S (Outdoor)
Protocol or Application	ACX000	ACX100	ACX200	ACX300	ACX400	ACX508	ACX606	ACX700	ACX848
			Ethernet loop	12.212.212.212.2-D15	- D10		--12.3x51	- D20(Indoor)	-12.3X54
								12.3X54-D25(Outdoor)
stats			Interface byte	12.212.212.212.212.212.3x51-D15	- D10	15.1X54-D20	15.1X54-D20	- D20(Indoor)	18.2R112.3X54
								12.3X54-D25(Outdoor)
			Interface queue	12.212.212.212.212.3x51-D15	- D10	15.1X54-D20	15.1X54-D20	- D20(Indoor)	18.2R112.3X54
								12.3X54-D25(Outdoor
			Drop packet	12.212.212.212.212.3x51-D15	- D10	15.1X54-D20	15.1X54-D20	- D20(Indoor)	18.2R112.3X54
								12.3X54-D25( Outdoor)
connection by VLAN-ID			Distinguish	12.212.212.212.212.3x51-D15	- D10	15.1X54-D20	15.1X54-D20	- D20(Indoor)	18.2R112.3X54
								12.3X54-D25(Outdoor)
passive-monitor-mode			Interface	12.2R212.212.212.3x51-D15	- D10	15.1X54-D20	15.1X54-D20	- D20(Indoor)	18.2R112.3X54
								12.3X54-D25(Outdoor)
						Multipacket mirror			-12.3X54
								- D20(Indoor)
								12.3X54-D25(Outdoor)

Table 7: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX606	ACX500	ACX548
Security
				12.2R212.2T23X54- D15	12.2T23X54- D10	13.1X54- D20	15.1X54- D20	-	18.2R112.3X54
								- D20(Indoor)
								12.3X54- D25(Outdoor)
				12.2R212.2T23X54- D15	12.2T23X54- D10	16.1X54- D20	18.1X54- D20	-	18.2R112.3X54
								- D20(Indoor)
								12.3X54- D25(Outdoor)
prevention				12.2R212.2T23X54- D15	12.2T23X54- D10	16.1X54- D20	15.1X54- D20	-	18.2R112.3X54
								- D20(Indoor)
								12.3X54- D25(Outdoor)
High Availability
				12.2R212.2T23X54- D15	12.2T23X54- D10	FR1X54- D20	15.1X54- D20	-	18.2R112.3X54
								- D20(Indoor)
								12.3X54- D25(Outdoor)
				12.2R2I2.2T23X54- D15	12.2T23X54- D10	15.1X54- D20	15.1X54- D20	-	18.2R112.3X54
								- D20(Indoor)
								12.3X54- D25(Outdoor)
ATM Transport
				12.2R2T23X54- D15	12.2T23X54- D10		12.3X51	-	---
encapsulation: S6.1 ATM N to one cell mode (required as per standard)				12.2R212.2T23X54- D15	12.2T23X54- D10	-			-12.3X54
								- D20(Indoor)
								12.3X54- D25(Outdoor)

Table 7: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application	AC000	AC100	AC200	AC300	AC400	AC508	AC606	AC500	AC548
SDU encapsulation (optional)		RFC4717: S613-2R,ATM 2X25X5212.2-D15 -D10					--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
dynamic labels		ATM PWE3 120R,ATM 2X25X5212.2-D15 -D10					--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
		ATM PWE3 120R,ATM 2X25X5212.2-D15 -D10					--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
suppression		ATM VPI/VC12 SWAP2P,ATM 2X25X5212.2-D15 -D10					--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
		ATM idle/unis,IP,ATM 2X25X5212.2-D15 -D10					--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
promiscuous mode: 1 PWper port and 1 PW per VPI		ATM support2.0R,ATM 2X25X5212.2-D15 -D10					--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
Cell concatenation (1 to 30 cells per packet)	12.2	12.2R2	12.2	12.2R2	12.3X54-D15 -D10		--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX400	ACX508	ACX6095	ACX500	ACX548
VP and VC			Packet/byte 12.3X54-20212.2-D15 -D10				--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
ATM (IMA)			Inverse multi-Linking 2023X5412.2-D15 -D10				--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
ATM Encapsulation
relay)			AAL5 SDU (12.3X212.2023X5412.2-D15 -D10				--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
ATM Queuing
(CBR, nrt-VBR, UBR) to the UNI			ATM service12.3X542023X5412.2-D15 -D10				--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
categories to PW EXP bits			MAP ATM service12.20212.2023X5412.2-D15 -D10				--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54
			Input policing 2.7x212.2023X5412.2-D15 -D10				--12.3x51-D20(Indoor)12.3X54-D25(Outdoor)		-12.3X54

Table 7: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application	ACX000	ACX100	ACX200	ACX200	ACX200	ACX400	ACX508	ACX606	ACX500	ACX548
			VC output step 2.2D23X5212.2-D15 -D10					--12.3x51-D20(Indoor)12.3X54-D25(Outbor)		-12.3X54
			Early packet12.3X5212.2-D15 -D10					--12.3x51-D20(Indoor)12.3X54-D25(Outbor)		-12.3X54
MIBs
			Standard SNMR12.3X5212.2D23X5212.2-D15 -D10				15.1X54-D20	15.1X54-D20	-18.2R112.3X54-D20(Indoor)12.3X54-D25(Outbor)
enterprise-specific MIBs			Juniper Network12.3X5212.2D23X5212.2-D15 -D10				15.1X54-D20	15.1X54-D20	-18.2R112.3X54-D20(Indoor)12.3X54-D25(Outbor)

See Also

• ACX Series Universal Metro Routers

ACX5048 and ACX5096 Chassis

• Management Panel of an ACX5000 Router on page 40
  • Port Panel of an ACX5048 Router on page 42
• Port Panel of an ACX5096 Router on page 43
• Chassis Status LEDs on an ACX5000 Router on page 44
• Management Port LEDs on an ACX5000 Router on page 46
• Access Port and Uplink Port LEDs on an ACX5000 Router on page 48

Management Panel of an ACX5000 Router

The management panel of the ACX5000 router is found on the Field Replaceable Unit (FRU) end of the router as shown in Figure 5 on page 40 for 1 U ACX5048 router and Figure 6 on page 40 for the 2 U ACX5096 router.

See Figure 7 on page 40 and Figure 8 on page 41 for FRUs and management panel detail.

Figure 5: ACX5048, FRU End 1 U Product SKU

Figure 6: ACX5096, FRU End 2 U Product SKU

Figure 7: Management Panel Components on ACX5048

Status LEDs	4-RJ-45 console port (CON)
ern1-SFP management Ethernet port (C1)5-2- USB port Cage (socket for either 1 GbE copper SFP or fiber SFP)
3-em0-RJ-45 (1000 Base-T) management Ethernet port (C0) Some SKUs have an additional SFP management Ethernet port (second C0)

Figure 8: Management Panel Components on ACX5096

Status LEDs	4-RJ-45 console port (CON)
em1-SFP management Ethernet port (C1)5-2- USB port Cage (socket for either 1 GbE copper SFP or fiber SFP)
3-em0-RJ-45 (1000 Base-T) management Ethernet port (CO)

The management panel consists of the following components:

- Status LEDs

- ALM-Alarm

• Unlit indicates the router is halted or that there is no alarm.
• Red indicates a hardware fault, such as a power failure or a system shutdown due to system over-heating.
• Amber indicates a major or minor alarm.

- SYS-System

• Unlit indicates the router is powered off or halted.
• Solid green indicates that Junos OS for ACX Series is loaded on the router.
  • ID-Identification or beacon
• Unlit indicates the beacon feature is not enabled.

• Blinking blue indicates the beacon feature is enabled. This feature is enabled using the request chassis beacon command.

• Router product number
  • Management Ports CO and C1

• CO-Use the RJ-45connectors for 10/100/1000 BaseT. See "Connecting an ACX5000 Router to a Network for Out-of-Band Management" on page 101.

• Cl-Use the SFP connector for 1000 BaseX.
• USB port for image updates.
• Console port (RJ-45) to support RS-232 serial ports.

See Also

• USB Port Specifications for an ACX5000 Router on page 81
- Connecting an ACX5000 Router to a Management Console on page 100
- Connecting an ACX5000 Routerto a Network for Out-of-Band Managementpage101

Port Panel of an ACX5048 Router

The port panel of the ACX5048 supports up to a maximum of 72 logical 10 GbE ports when operating as a standalone router. Forty-eight physical ports(0 through 47) support 10 Gbps small form-factor pluggable plus (SFP+) transceivers. These ports can be configured as access ports. All 48 of these ports can be used for SFP+ transceivers or SFP+ direct attach copper (DAC) cables. You can use 1-Gigabit Ethernet SFP, 10-Gigabit Ethernet SFP+ transceivers and SFP+ direct attach copper cables in any access port.

The remaining 24 logical ports are available for six 40 GbE ports (48 through 53) that support up to six quad small-form factor pluggable plus (QSFP+) transceivers or QSFP+. Each QSFP+ socket can operate either as a single 40 Gbps port or as a set of 4 independent 10 Ggps ports using QSFP+ breakout cables. The 40 GbE ports can be configured as either access ports or as uplinks.

CAUTION: Do not place a copper transceiver in an access port directly above or below another copper transceiver. Internal damage to the access ports and router can occur. We recommend either using the topportrow exclusively, or bottom port row exclusively, for copper transceivers.

Figure 9 on page 42 shows the port panel of a ACX5048 router.
Figure 9: ACX5048 Router Port Panel

1—Electrostatic Discharge (ESD) terminal	3—40 Gigabit Ethernet ports (6)
2—10 Gigabit Ethernet ports (48)

Port Panel of an ACX5096 Router

The port panel of the ACX5096 router consists of 96 small form-factor pluggable plus (SFP+) and 8 quad small-form factor pluggable plus (QSFP+) ports. Physical ports(0 through 95) support 10 Gbps SFP+ transceivers and normally are configured as access ports. The eight 40-Gigabit ports (96 through 103) support QSFP+ transceivers and are normally configured as uplinks or Virtual Chassis ports (VCPs). Although the 104 physical ports of the ACX5096 would map to 128 logical ports using channelization, only 104 logical ports are supported.

Figure 10 on page 43 shows the port panel of a ACX5096 router.

Figure 10: ACX5096 Router Port Panel

3-1-40 Gigabit Ethernet ports (8)Electrostatic Discharge (

2-10 Gigabit Ethernet ports (96)

This topic describes:

• Router Ports on page 43
  • Channelizing Interfaces on page 44

Router Ports

The ACX5096 ports, (0 through 95) support:

• 1 Gbps SFP transceivers
• 10 Gbps SFP+ transceivers
• 10 Gbps direct attach copper (DAC) cables

Ports 96 through 104 support:

• 40 Gbps QSFP+ transceivers

Additionally ports 96 and 100 support:

• QSFP+ direct attach copper (DAC) cables
- QSFP+ to SFP+ direct attach copper break out (DACBO) cables
• QSFP+ to SFP+ fiber break out cables

All 96 of these ports can be used for SFP+ transceivers or SFP+ direct attach copper (DAC) cables. You can use 1-Gigabit EthernetSFP+, 10-Gigabit Ethernet SFP+ transceivers and SFP+ direct attach copper cables in any access port.

CAUTION: Do not place a copper transceiver in an access port directly above or below another copper transceiver. Internal damage to the access ports and router can occur. Were recommend either using the top port row exclusively, or bottom port row exclusively, for copper transceivers.

Channelizing Interfaces

The port panel of an ACX5096 supports up to a maximum of 104 logical 10 GbE ports that can be distributed over 96 small form-factor pluggable plus (SFP+) and 8 quad small-formfactor pluggable plus (QSFP+) transceivers. Because of an 104 port restriction, only two of the eight QSFP+ can be channelized. Depending on how you set the system mode for channelization, the behavior of channelization for the QSFP+ changes. The following system modes are available for the ACX5096 router:

• Non-oversubscribed

All 96 SFP+ ports on the router (PIC 0) are supported. In this mode, the eight QSFP+ ports are not supported and cannot be channelized. There is no packet loss for packets of any size in this mode.

- Default mode

All 96 SFP+ ports on the router (PIC 0) are supported. QSFP+ ports 96 and 100 can be channelized. If ports 96 and 100 are channelized, the interfaces on ports 97, 98, 99, 101, 102, and 103 are disabled.

Chassis Status LEDs on an ACX5000 Router

The ACX5000 routers has four status LEDs on the FRU side of the chassis, next to the management ports (see Figure 11 on page 45).

Figure 11: Chassis Status LEDs on an ACX5000 Routers

Status LEDs	4-RJ-45 console port (CON)
em1-SFP management Ethernet port (C1)5-2- USB port Cage (socket foreither 10/100/1000 Base-T RJ45 SFP or 1GbE fiber SFP)
3-em0-RJ-45 (10/100/1000 Base-T) management Ethernet port (CO)

Table 8 on page 45 describes the chassis status LEDs on an ACX5000 router, their colors and states, and the status they indicate. You can view the colors of the three LEDs remotely through the CLI by issuing the operational mode command show chassis lcd.

Table 8: Chassis Status LEDs on an ACX5000 Router

			DescriptionStateColorName
ALM-Alarm or beacon	Unlit	Off	The router is halted or there is no alarm.
	Red	On steadily	A major hardware faulthas occurred, such as a temperature alarm or power failure, and the router has halted. Power off the ACX5000 router by setting the AC power source outlet to the OFF (O) position, or unplugging the AC power cords. Correct any voltage or site temperature issues, and allow the router to cool down. Power on the ACX5000 router and monitor the power supply and fan LEDs to help determine where the error is occurring.
	Amber	On steadily	A minor alarm has occurred, such as a software error. Power off the ACX5000 router by setting the AC power source outlet to the OFF (O) position, or unplugging the AC power cords. Power on the ACX5000 router and monitor the status LEDs to ensure that Junos OS boots properly.
SYS-System	Unlit	Off	The router is powered off or halted.
	Green	On steadily	Junos OS for ACX Series is loaded on the router.
		DescriptionStateColorName
		The router is a linecard member.OffUnlitMST-Master
		The router is a standalone router.On steadilyGreen
	OffUnlitID-Identification	The beacon feature is not enabled on the router. This feature is enabled using the request chassis beacon command.
	BlinkingBlue	The beacon feature is enabled on the router. This feature is enabled using the request chassis beacon command.

See Also show chassis alarms.

- request chassis beacon

Management Port LEDs on an ACX5000 Router

The management ports (labeled C0 for 10/100/1000 Base-T and C1 for 10/100/1000 Base-T and SFP 1000 Base-X connections) on an ACX5000 router have two LEDs that indicate link status and link activity (see Figure 12 on page 47). The left LED indicates status; the right LED indicates link/activity.

Figure 12: Management Port LEDs on an ACX5000 Router

Status LEDs	4-RJ-45 console port (CON)
em1-SFP management Ethernet port (C1)5-2-USB port Cage (socket foreither10/100/1000 Base-T RJ45 SFP or 1GbE fiber SFP)
3-em0-RJ-45 (10/100/1000 Base-T) management Ethernet port (CO)

Table 9 on page 47 describes the management port LEDs.

Table 9: Management Port LEDs on an ACX5000 Router

			DescriptionStateColorLED
Link/Activity	Unlit	Off	No link is established, there is a fault, or the link is down.
	Green	On steadily	A link is established, but there is no link activity.
		Blinking or flickering	A link is established, and there is link activity.

Table 9: Management Port LEDs on an ACX5000 Router (continued)

			DescriptionStateColorLED
			Either the port speed is 10 M or the link is down.OffUnlitStatus
			The port speed is 1000 M.On steadilyGreen
			The port speed is 100 M.On steadilyAmber

See Also • Connecting an ACX5000 Router to a Network for Out-of-Band Management on page 101

Access Port and Uplink Port LEDs on an ACX5000 Router

The Link/Activity and Status LED configuration for ACX5000 routers use bi-colored LEDs. The link LED indicates link activity or a fault. The status LED indicates transceiver presence. See Table 10 on page 49 to locate the position and type of LED for your ACX5000 model.

Table 10: ACX5000 Access Port and Uplink LED Locations

			LocationIndicatorsPort TypeModel
	SFP+ACX5048	Link Status
	SFP+ACX5096	Link Status	Link/Activity LED	Status LED

Table 11 on page 49 describes how to interpret the SFP+ port LEDs.

Table 11: Network Port LEDs on SFP+ Ports on an ACX5000 Router

			DescriptionStateColorLED
		OffUnlitLink/Activity	The port is administratively disabled, there is no power, the link is down, or there is a fault.
			A link is established, but there is no link activity.On steadilyGreen
			A link is established, and there is link activity.Blinking
	Amber	Blinking	The beacon is enabled on the port.

Table 11: Network Port LEDs on SFP+ Ports on an ACX5000 Router (continued)

		DescriptionStateColorLED
		The link is down.OffUnlitStatus
		The beacon function is enabled on the port.BlinkingAmber
	BlinkingGreen	A 1-Gigabit Ethernet transceiver is installed in the port and the link is established.
	On steadilyGreen	A 10-Gigabit Ethernet transceiver is installed in the port and link is established.

As shown in Table 10 on page 49, there are four bi-color LEDs for each QSFP+ port. The first LED is used and the remaining LEDs are not used when the interface is configured for 40-Gigabit Ethernet and connected to a QSFP+ transceiver. All four LEDs are used when the interface is configured for 10-Gigabit Ethernet and the port is connected using an optical split cable or a copper DACBO cable. Table 12 on page 50 describes how to interpret the QSFP+ LEDs.

Table 12: Network Port LEDs on QSFP+ Ports on an ACX5000 Router

		DescriptionStateColor
Unlit	Off	The port is administratively disabled, there is no power, the link is down, or there is a fault.NOTE: When configured for 10-Gigabit Ethernet, the LED remains unlit only if all four of the 10-Gigabit Ethernet SFP+ breakout links are down.
Green	On steadily	A link is established, but there is no link activity.NOTE: When configured for 10-Gigabit Ethernet, the LED is lit green when at least one of the four 10-Gigabit Ethernet SFP+ breakout links is established.
	Blinking	A link is established, and there is link activity.NOTE: When configured for 10-Gigabit Ethernet, the LED is lit green when at least one of the four 10-Gigabit Ethernet SFP+ breakout links is established.
Amber	Blinking	All four LEDs blink to indicate the beacon function was enabled on the port.

See Also • Installing a Transceiver in an ACX5000 Router on page 107

- Connecting a Fiber-Optic Cable to an ACX5000 Router on page 109

ACX5048 and ACX5096 Cooling System

• Cooling System and Airflow in an ACX5000 Router on page 51
• Fan Module LED on an ACX5000 Router on page 54

Cooling System and Airflow in an ACX5000 Router

The cooling system in ACX5000 routers consists of fan modules and a single fan in each power supply. The number of fan modules vary depending whether the size of the router is 1 U or 2 U high. All routers can be set up to work in the following airflow direction:

• Airflow Out (AFO)—Air comes into the router through the vents in the front panel.

This topic describes:

• Fan Modules on page 51
• Fan Module Status on page 53

Fan Modules

The fan modules in ACX5000 routers are hot-insertable and hot-removable field-replaceable units (FRUs). These fan modules are designed for air to enter from the ports to the FRU-Airflow Out. The fan modules are installed in the fan module slots on the management panel of the router next to the power supplies.

Both the 1 U and 2 U versions of ACX5000 fan modules have a similar design with different dimensions. The 1 U ACX5000 routers have 5 fan modules numbered 0 through 4 from left to right, where the 2 U, ACX5096 has 3 fan modules numbered 0 through 2. On all ACX5000 routers, each fan module slot has a fan icon next to it.

Figure 13 on page 51 shows the 1 U fan module and Figure 14 on page 52 shows the 2 U fan module.

Figure 13: 1 U Fan Module Used in ACX5048

Technical line drawing of an air vent assembly (no text or symbols)

Figure 14: 2 U Fan Module Used in ACX5096

Technical line drawing of a mechanical device with labeled components (AIR OUT, AFO), no readable text or symbols beyond labels

You remove and replace a fan module from the FRU end of the chassis. The router continues to operate for a limited period of time (30 seconds) during the replacement of the fan module without thermal shutdown.

NOTE: All fan modules must be installed for optimal operation of the router.

The fan module airflow direction (port-to-FRU, AFO) is indicated by either a gold color or the label AIR OUT. Table 13 on page 52 lists the fan module product SKUs and the direction of airflow in them:

Table 13: Fan Module in ACX5000 Routers

ACX5000RouterSupportedFan

Module

Label on the FanModuleAir

Color of FanModuleDiagram

Direction of Airflow in the Fan Module

Power Supplies

AIR OUT Figure on Parto-FCX5048Q6X5FAN-AFO Gold that is, air comes install only

Figure 16 on page 53ACX5096QFX5100-96S-PANAFG In through vents power on the end with supplies ports; air that have exhausts out the AIR OUT end with the fans labels in (also known as routers in front-to-back which the airflow). fan modules have AIR OUT labels.

In data center deployments, position the router in such a manner that the AIR OUT labels on router components are next to the hot aisle.

Figure 15: Air Out Airflow Through 1 U ACX5048 Chassis

Figure 16: Air Out Airflow Through 2 U ACX5096 Chassis

Fan Module Status

You can check the status of fan modules through the show system alarms command or by looking at the LEDs next to each fan module.

Each router has a Status LED (labeled ST) for each fan module on the left side of the corresponding fan module slot. It indicates the status of all the fan modules.

Table 14 on page 54 describes the Status LED on the fan module in an ACX5000 router.

Table 14: Fan Module LED

	DescriptionLED State
Solid Green	The individual fan module is present. After the hardware senses the fan module, software ensures the airflow is consistent with the other fan modules and that it is functioning correctly.
Blinking Amber	Indicates one of the following:· The fan module is not present.· The fan module is not functioning normally.

Under normal operating conditions, the fan modules operate at a moderate speed. Temperature sensors in the chassis monitor the temperature within the chassis.

The system raises an alarm if a fan module fails or if the ambient temperature inside the chassis rises above the acceptable range. If the temperature inside the chassis rises above the threshold temperature, the system shuts down automatically.

See Also

• Prevention of Electrostatic Discharge Damage on page 155
•Installing a Fan Module in an ACX5000 Router on page 113
- Removing a Fan Module from an ACX5000 Router on page 111

Fan Module LED on an ACX5000 Router

Figure 17 on page 54 shows the location of the LED next to the fan module.

Figure 17: Fan Module LED in an ACX5000 Router

1— Fan LED
Table 15 on page 55 describes the function of the fan tray LED.

Table 15: Fan Tray LED in an ACX5000 Router

		DescriptionStateColorName
	On steadilyGreenFan	The fan module is operating normally. The system has verified that the module is engaged, that the airflow is in the correct direction, and that the fan is operating correctly.
	BlinkingAmber	An error has been detected in the fan module. Replace the fan module as soon as possible. Either the fan has failed or it is seated incorrectly. To maintain proper airflow through the chassis, leave the fan module installed in the chassis until you are ready to replace it.

See Also

• Installing a Fan Module in an ACX5000 Router on page 113
- Removing a Fan Module from an ACX5000 Router on page 111

ACX5048 and ACX5096 Power System

• AC Power Supply for an ACX5000 Router on page 55
• AC Power Supply LEDs on an ACX5000 Router on page 57
• DC Power Supply for an ACX5000 Router on page 58
- DC Power Supply LEDs on an ACX5000 Router on page 60
• AC Power Specifications for an ACX5000 Router on page 61
• AC Power Cord Specifications for an ACX5000 Router on page 62
- DC Power Specifications for an ACX5000 Router on page 63

AC Power Supply for an ACX5000 Router

The two power supplies in ACX5000 routers are hot-removable and hot-insertable field-replaceable units (FRUs). The power supplies are installed in the router at the factory. You can install replacement power supplies from the management panel without powering off the router or disrupting the router function.

The AC power supply in 1 U ACX5048 is 650 W; the AC power supply in the 2 U ACX50 is 850 W. Both power supplies look identical. Be sure to use the correct power supply for your chassis product SKU (see Table 16 on page 57).

CAUTION: Do not mix power supplies with different wattage. The system raises an alarm when a power supply having a different wattage is inserted into the chassis.

See Figure 18 on page 56 for an example of the 1 U design and Figure 19 on page 56 for an example of the 2 U power supply.

Figure 18: 1 U AC Power Supply in an ACX5048

Figure 19: 2 U AC Power Supply in an ACX5096

The power supply provides port-to-FRU airflow depending on the product SKU you purchase. The power supplies either have labels on the handles that indicate the direction of airflow or they have color-coded handles with a fan icon. See Figure 20 on page 56 for an example of the power supply. A power supply with the label AFO or a gold-colored handle denotes port-to-FRU airflow.

Figure 20: Power Supply Handle Detail

CAUTION: Verify that the airflow direction on the power supply handle matches the direction of airflow in the chassis. Ensure that each powersupply you install in the chassis has the same airflow direction.

To avoid electrical injury, carefully follow instructions in "Connecting AC Power to an ACX5000 Router" on page 93.

Table 16 on page 57 shows the different power supplies and their direction of airflow.

Table 16: Airflow Direction in an ACX5000 AC Power Supplies

ACX5000Product SKUs

Color of PowerSupply HandleDirec

Juniper GoldPort-to-FRUJPSU-650W-A(

JPSU-850W-AC-AFO850 WACX5096

See Also • Connecting AC Power to an ACX5000 Router on page 93

AC Power Supply LEDs on an ACX5000 Router

Figure 21 on page 57 shows the location of the LEDs on the power supply.

Figure 21: AC Power Supply LEDs on an ACX5000 Router

Table 17 on page 58 describes the LEDs on the AC power supplies.

Table 17: AC Power Supply LEDs on an ACX5000 Router

		DescriptionStateColorLED
	OffUnlitAC OK	The power supply is disconnected from power, or power is not coming into the power supply.
		Power is coming into the power supply.On steadilyGreen
	OffUnlitDC OK	The power supply is disconnected from power, or the power supply is not sending out power correctly.
		The power supply is sending out power correctly.On steadilyGreen
	On steadilyAmberFault	An error has been detected in the power supply. Replace the power supply as soon as possible. To maintain proper airflow through the chassis, leave the power supply installed in the chassis until you are ready to replace it.

NOTE: If the AC OK LED and the DC OK LED are unlit, either the AC power cord is not installed properly or the power supply fuse has failed. If the AC OK LED is lit and the DC OK LED is unlit, the AC power supply is installed properly, but the power supply has an internal failure.

See Also • Connecting AC Power to an ACX5000 Router on page 93

DC Power Supply for an ACX5000 Router

The power supplies in ACX5000 routers (see Figure 22 on page 59) are hot-removable and hot-insertable field-replaceable units (FRUs) that you can install in 1U DC ACX5048 SKUs of ACX5000 routers without powering off the router or disrupting the routing function.

The DC power supply in 1 U ACX5048 is 650 W with dual feeds for power resiliency. The DC power supply in the 2 U ACX5096 is 850 W with dual feeds for power resiliency. Both power supplies have a similar design and look identical. Be sure to use the correct power supply for your chassis product SKU (see Table 18 on page 60). See Figure 22 on page 59 for an example of the 1 U design and Figure 23 on page 59 for an example of the 2 U power supply.

Figure 22: DC Power Supply in ACX5048 Routers

	3-1-Ejector leverTerminal block
	4-2-HandleESD grounding point

Figure 23: DC Power Supply for an ACX5096

	3-1-Ejector leverTerminal block
	4-2-HandleESD grounding point

NOTE: The DC power supply in the router has four terminals labeled V-, V-, V+, and V+ (see Figure 24 on page 60) for connecting DC power source cables labeled positive (+) and negative(-). The V+ terminals are shunted internally together, as are the V- terminals.

Figure 24: DC Power Supply Faceplate in ACX5000 Routers

	5—1— ESD grounding pointShunt negative input terminals (+
	6—2— Fault LEDShunt positive input terminals (-48V)
	7—3— Output LEDTerminal block
	8—4— Input LEDEjector lever

To avoid electrical injury, carefully follow instructions in "Installing a Power Supply in an ACX5000 Router" on page 116 and "Removing a Power Supply from an ACX5000 Router" on page 114.

Table 18 on page 60 shows the different power supplies and their direction of airflow.

Table 18: Airflow Direction in ACX5000 DC Power Supplies

Router Model	Wattage	Product Number	Direction of Airflow	Color of Power Supply Handle
ACX5048	650 W	JPSU-650W-DC-AFO	Port-to-FRU	Juniper Gold
ACX5096	850 W	JPSU-850W-DC-AFO

See Also • Connecting DC Power to an ACX5000 Router on page 96

DC Power Supply LEDs on an ACX5000 Router

Figure 25 on page 61 shows the location of the LEDs on the DC power supply.

Figure 25: DC Power Supply Faceplate on an ACX5000 Router

	3—1— Fault LEDInput LED
2—Output LED

CAUTION: The V+ terminals are shunted internally together, as are the V- terminals. The same polarity terminal can be wired together from the same source to provide an additional current path in a higher power chassis. Do not connect the terminals to different sources.

Table 19 on page 61 describes the LEDs on the DC power supplies.
Table 19: DC Power Supply LEDs on an ACX5000 Router

			DescriptionStateColorName
		OffUnlitInput	The power supply is disconnected from power, or power is not coming into the power supply.
	Green	On steadily	Power is coming into the power supply.
		OffUnlitOutput	The power supply is disconnected from power, or the power supply is not sending out power correctly.
	Green	On steadily	The power supply is sending out power correctly.
Fault	Amber	On steadily	An error has been detected in the power supply. Replace the power supply as soon as possible. To maintain proper airflow through the chassis, leave the power supply installed in the chassis until you are ready to replace it.

AC Power Specifications for an ACX5000 Router

Table 20 on page 62 describes the AC power specifications for an ACX5000 router.

Table 20: AC Power Specifications for an ACX5000 Router

	SpecificationItem
AC input voltage	Operating range:100 / 240 VAC
	50–60 Hz (all product SKUs)AC input line frequency
AC input current rating	4.5 A at 100–120 VAC2.0 A at 200–240 VAC
Typical power consumption
	230 WACX5048
	315 WACX5096
Maximum power consumption
	365 WACX5048
	470 WACX5096

See Also • General Safety Guidelines and Warnings on page 132

•General Electrical Safety Guidelines and Warnings on page 154

AC Power Cord Specifications for an ACX5000 Router

Detachable AC power cords are shipped with the chassis, if you include them as part of your order. The coupler is type C13 as described by International Electrotechnical Commission (IEC) standard 60320. The plug at the male end of the power cord fits into the power source outlet that is standard for your geographical location.

NOTE: In North America, AC power cords must not exceed 14.75 feet (approximately 4.5 meters) in length, to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52 and Canadian Electrical Code (CEC) Section 4-010(3). The cords that can be ordered for the ACX Series routers are in compliance.

Table 21 on page63 lists AC power cord specifications provided for each country or region.

Table 21: AC Power Cord Specifications

				GraphicJ
			CBL-GP-PWR-C13-AUAS/NZ 3109-1996250 VAC, 10 A, 1
			CBL-GP-PWR-C13-CHGB 1002-1996250 VAC, 10 A, 50
Switzerland, and United Kingdom)			CBL-GP-PWR-C13-EUCEE (7) VII250 VAC, 10 A, 50 Hz

		250 VACCBL-GRP-PWRH216AHTCEI 23-16/VII
Japan	125 VAC, 12 A, 50 Hz or 60 Hz	JIS C8303	CBL-GP-PWR-C13-JP
North America	125 VAC, 13 A, 60 Hz	CAN/CSA No. 49-92	CBL-GP-PWR-C13-US
South Korea	250 VAC, 10 A, 60 Hz	KSC 8305; K60884-1	CBL-GP-PWR-C13-KR
	250 VAC, 10 A, 50 HzSwitzerland60320 C13		CBL-GP-PWR-C13-SZSEV 1011 SEV-1991; EN
United Kingdom	250 VAC, 10 A, 50 Hz	BS 1363/A	CBL-GP-PWR-C13-UK

See Also

• General Safety Guidelines and Warnings on page 132
- General Electrical Safety Guidelines and Warnings on page 154
• Prevention of Electrostatic Discharge Damage on page 155

DC Power Specifications for an ACX5000 Router

Table 22 on page 63 describes the DC power specifications for DC variant of an ACX5000 router.

Table 22: DC Power Specifications for an ACX5000 Router

Item	Router Model	Specifications
DC input voltage	ACX5048	Rated operating voltage: -48 VDC to -60 VDCOperating voltage range: -40 VDC through -72 VDC
	ACX5096	Rated operating voltage: VDC -48 VDC to -60 VDCOperating voltage range: -40 VDC through -72 VDC
		SpecificationsRouter ModellItem
DC input current rating	ACX5096	10 A maximumACX5048
		300 WACX5048Typical power consumption
		315 WACX5096
consumption		385 WACX5048Maximum power
		470 WACX5096

CHAPTER 2

Site Planning, Preparation, and Specifications

• Site Preparation Checklist for an ACX5000 Router on page 65
• ACX5048 and ACX5096 Site Guidelines and Requirements on page 66
• ACX5048 and ACX5096 Network Cable and Transceiver Planning on page 72
• ACX5048 and ACX5096 Management Cable Specifications and Pinouts on page 79

Site Preparation Checklist for an ACX5000 Router

The checklist in Table 23 on page 65 summarizes the tasks you need to perform when preparing a site for an ACX5000 router installation.

Table 23: Site Preparation Checklist

			DatePerform
Environment
Verify that environmental factors such as temperature and humiditydonotexceedrouter tolerances.	“ACX5000 Router Environmental Specifications” on page 69
Power
Measure the distance between external powersources and router installation site.
Calculate the power consumption and requirements.	“AC Power Specifications for an ACX5000 Router” on page 61
Rack or Cabinet
Verify that your rack or cabinet meets the minimum requirements for the installation of the router.	“RackRequirementsfor an ACX5000 Router” on page 71“Cabinet Requirements for an ACX5000 Router” on page 71
Planrack or cabinet location, including required space clearances.	clearance Requirements for Airflow and Hardware Maintenance for an ACX5000 Router” on page 67

Secure the rack or cabinet to the floor and building structure.

Cables

Acquire cables and connectors:

"DeterminingTransceiver Support for the ACX5000" on page 73

- Determine the number of cables needed based on your planned configuration.

"Cable Specifications for QSFP+ and QSFP28 Transceivers" on page 74

- Review the maximum distance allowed for each cable. Choose the length of cable based on the distance between the hardware components being connected.

Plan the cable routing and management.

Related General Safety Guidelines and Warnings on page 132. Documentation

ACX5048 and ACX5096 Site Guidelines and Requirements

• General Site Guidelines on page 66
  • QFX5120 Site Electrical Wiring Guidelines on page 67
• Clearance Requirements for Airflow and Hardware Maintenance for an ACX5000 Router on page 67
• Chassis Physical Specifications for an ACX5000 Router on page 68
  • ACX5000 Router Environmental Specifications on page 69
• ACX5000 Chassis Grounding Cable and Lug Specifications on page 70
• Cabinet Requirements for an ACX5000 Router on page 71
• Rack Requirements for an ACX5000 Router on page 71

General Site Guidelines

Efficient device operation requires proper site planning and maintenance and proper layout of the equipment, rack or cabinet (if used), and wiring closet.

To plan and create an acceptable operating environment for your device and prevent environmentally caused equipment failures:

• Keep the area around the chassis free from dust and conductive material, such as metal flakes.

• Follow prescribed airflow guidelines to ensure that the cooling system functions properly and that exhaust from other equipment does not blow into the intake vents of the device.

• Follow the prescribed electrostatic discharge (ESD) prevention procedures to prevent damaging the equipment. Static discharge can cause components to fail completely or intermittently over time.

• Install the device in a secure area, so that only authorized personnel can access the device.

QFX5120 Site Electrical Wiring Guidelines

Table 24 on page 67 describes the factors you must consider while planning the electrical wiring at your site.

WARNING: It is particularly important to provide a properly grounded and shielded environment and to use electrical surge-suppression devices.

Table 24: Site Electrical Wiring Guidelines

	GuidelinesSite Wiring Factor
Signaling limitations	If your site experiences any of the following problems, consult experts in electrical surge suppression and shielding:Improperly installed wires cause radio frequency interference (RFI).Damage from lightning strikes occurs when wires exceed recommended distances or pass between buildings.Electromagnetic pulses (EMPs) caused by lightning damage unshielded conductors and electronic devices.
Radio frequency interference	To reduce or eliminate RFI from your site wiring, do the following:Use a twisted-pair cable with a good distribution of grounding conductors.If you must exceed the recommended distances, use a high-quality twisted-pair cable with one ground conductor for each data signal when applicable.
Electromagnetic compatibility	If your site is susceptible to problems with electromagnetic compatibility (EMC), particularly from lightning or radio transmitters, seek expert advice.Some of the problems caused by strong sources of electromagnetic interference (EMI) are:Destruction of the signal drivers and receivers in the deviceElectrical hazards as a result of power surges conducted over the lines into the equipment

Clearance Requirements for Airflow and Hardware Maintenance for an ACX5000 Router

When planning the site for installing an ACX5000 router, you must allow sufficient clearance around the installed chassis (see Figure 26 on page 68).

Figure 26: Clearance Requirements for Airflow and Hardware Maintenance for an ACX5000 Router

• For the cooling system to function properly, the airflow around the chassis must be unrestricted. See "Cooling System and Airflow in an ACX5000 Router" on page 51 for more information about the airflow through the chassis.
• If you are mounting an ACX5000 router in a rack or cabinet with other equipment, ensure that the exhaust from other equipment does not blow into the intake vents of the chassis.
• Leave atleast 24in. (61 cm) both in front of and behind the ACX5000 router. For service personnel to remove and install hardware components, you must leave adequate space at the front and back of the router. NEBS GR-63 recommends that you allow at least 30 in. (76.2 cm) in front of the rack or cabinet and 24 in. (61 cm) behind the rack or cabinet.

See Also • Rack-Mounting and Cabinet-Mounting Warnings on page 139

Chassis Physical Specifications for an ACX5000 Router

The ACX5000 router chassis is a rigid sheet-metal structure that houses the hardware components. Table 25 on page 68 summarizes the physical specifications of an ACX5000 router.

Table 25: Physical Specifications for an ACX5000 Router Chassis

				WeightDepthWidthHeightR
			20.48 in. (52 cm)17.36 in. (With FRUs installed: 2hADx5048 (9.8 kg)
		17.36×50.94.1 cm)3.28.44. in(8.657cm) (not including handles for Fans and PSUs)	With FRUs installed: 32 lbs (14.5 kg)

See Also

• Mounting an ACX5000 Router in a Rack or Cabinet on page 85
• ACX5048 and ACX5096 Installation Overview on page 83
• Removing an ACX5000 Router from a Rack or Cabinet on page 120

ACX5000 Router Environmental Specifications

The router must be installed in a rack or cabinet. It must be housed in a dry, clean, well-ventilated, and temperature-controlled environment.

Follow these environmental guidelines:

• The site must be as dust-free as possible, because dust can clog air intake vents and filters, reducing the efficiency of the router cooling system.
• Maintain ambient airflow for normal router operation. If the airflow is blocked or restricted, or if the intake air is too warm, the router might overheat, leading to the router temperature monitor shutting down the device to protect the hardware components.

Table 26 on page 69 provides the required environmental conditions for normal router operation.
Table 26: ACX5000 Router Environmental Tolerances

	ToleranceDescription
	No performance degradation to 6,562 feet (2000 meters)Altitude
Relative humidity	Normal operation ensured in relative humidity range of 5% through 90%, noncondensingShort-term operation ensured in relative humidity range of 5% through 93%, noncondensingNOTE: As defined in NEBS GR-63-CORE, Issue 3, short-term events can be up to 96 hours in duration but not more than 15 days per year.
Temperature	Normal operation ensured in temperature range of 32^ F through 104^ F ( 0^ C through 40^ C)Non-operating storage temperature in shipping container: -40^ F through 158^ F ( -40^ C through 70^ C)
Seismic	Designed to comply with Zone4 earthquake requirements per NEBS GR-63-CORE, Issue 3.

NOTE: Install ACX Series devices only in restricted areas, such as dedicated equipment rooms and equipment closets, in accordance with Articles 110-16, 110-17, and 110-18 of the National Electrical Code, ANSI/NFPA 70.

See Also • ACX5048 and ACX5096 Installation Overview on page 83

ACX5000 Chassis Grounding Cable and Lug Specifications

For installations that require a separate grounding conductor to the chassis, the router must be adequately grounded before power is connected to ensure proper operation and to meet safety and electromagnetic interference (EMI) requirements. To ground a ACX5000 router, connect a grounding cable to earth ground and then attach it to the chassis grounding points.

WARNING: The router is pluggable type A equipment installed in a restricted-access location. It has a separate protective earthing terminal provided on the chassis in addition to the grounding pin of the power supply cord. This separate protective earthing terminal must be permanently connected to earth ground for installations that require a separate grounding conductor to the chassis.

WARNING: To comply with GR-1089 requirements, all intra-building copper cabling used for SFP+ and QSFP+ ports must be shielded and grounded at both ends.

CAUTION: Before router installation begins, a licensed electrician must attach a cable lug to the grounding cables that you supply. See "Connecting the ACX5000 Router to Earth Ground" on page 92. A cable with an incorrectly attached lug can damage the router.

Before connecting the router to earth ground, review the following information:

• A protective earthing terminal bracket is provided in the accessory kit for connecting the router to earth ground. This L-shaped bracket attaches to a post on the ACX5000 router left front mounting bracket, providing a protective earthing terminal for the router. The grounding points are studs sized for M4 hex nuts. The grounding points are spaced at 0.625 in. (15.86 mm). M4 hex nuts with integrated washers are provided in the accessory kit.
• The grounding lug required is a Panduit LCD10-10A-L or equivalent. This grounding lug is provided in the accessory kit. The grounding lug provided accommodates 14–10 AWG (2–5.3 mm ^2 ) stranded wire.
• The grounding cable that you provide for a ACX5000 router must be 14 AWG (2 mm ^2 ), minimum 60° C wire, or as permitted by the local code.

Cabinet Requirements for an ACX5000 Router

You can mount an ACX5000 router in an enclosure or cabinet that contains a four-post 19-in. open rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) published by the Electronics Industry Association.

Cabinet requirements consist of:

• Cabinet size and clearance
• Cabinet airflow requirements

Table 27 on page 71 provides the cabinet requirements and specifications for an ACX5000 router.
Table 27: Cabinet Requirements for an ACX5000 Router

	GuidelinesCabinet Requirement
Cabinet size and clearance	ThemInimum cabinet size for accommodatinga ACX5000router is 36in. (91.4cm) deep. Large cabinets improve airflow and reduce the chance of overheating.
Cabinet airflow requirements	When you mount the router in a cabinet, ensurethatventilationthrough the cabinet is sufficient to prevent overheating.Ensure that the cool air supply you provide through the cabinet adequately dissipates the thermal output of the router (or routers).Ensure that the cabinet allows the chassis hot exhaust air to exit the cabinet without recirculating into the router. An open cabinet (without a top or doors) that employs hot air exhaust extraction from the top allows the best airflow through the chassis. If the cabinet contains a top or doors, perforations in these elements assist with removing the hot air exhaust.The ACX5000 router fans exhaust hot air either through the vents on the port panel or through the fans and power supplies. Install the router in the cabinet in a way that maximizes the open space on the FRU side of the chassis. This maximizes the clearance for critical airflow.Route and dress all cables to minimize the blockage of airflow to and from the chassis.Ensure that the spacing of rails and adjacent cabinets allows for the proper clearance around the router and cabinet.

See Also • Mounting an ACX5000 Router in a Rack or Cabinet on page 85

Rack Requirements for an ACX5000 Router

All ACX5000 routers are designed to be installed on four-post racks. The ACX5096 can also be installed on two-post racks.

Rack requirements consist of:

• Rack type
• Mounting bracket hole spacing

- Rack size and strength

Table 28 on page 72 provides the rack requirements and specifications for an ACX5000 router.

Table 28: Rack Requirements for an ACX5000 Router

	GuidelinesRack Requirement
Rack type (all router models)	Use a four-post rack that provides bracket holes or hole patterns spaced at 1 U (1.75 in. or 4.45 cm) increments and that meets the size and strength requirements to support the weight.A U is the standard rack unit defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) published by the Electronics Industry Association.
Rack type (ACX5096 only)	Use a two-post or four-post rack that provides bracketholes or hole patternsspacedat 1 U (1.75 in. or 4.45 cm) increments and that meets the size and strength requirements to support the weight.
Mounting bracket hole spacing (all router models)	The holes in the mounting brackets are spaced at 1 U (1.75 in. or 4.45 cm), so that the router can be mounted in any rack that provides holes spaced at that distance.
Rack size and strength (all router models)	Ensure that the rack complies with the standards for a 19-in. or 23-in. rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) published by the Electronics Industry Association.A 600-mm rack as defined in the four-part Equipment Engineering (EE); European telecommunications standard for equipment practice (document numbers ETS300 119-1 through 119-4) published by the European Telecommunications Standards Institute (http://www.etsi.org).The horizontal spacing between the rails in a rack that complies with this standard is usually wider than the device's mounting brackets, which measure 19 in. (48.26 cm) from outer edge to outer edge. Use approved wing devices to narrow the opening between the rails as required.Ensure that the rack rails are spaced widely enough to accommodate the router chassis' external dimensions. The outer edges of the front-mounting brackets extend the width to 19 in. (48.26 cm).For four-post installations, the front and rear rack rails must be spaced between 23.6 in. (60 cm) and 36 in. (91.4 cm) front-to-back.The rack must be strong enough to support the weight of the router.Ensure that the spacing of rails and adjacent racks allows for proper clearance around the router and rack.
Rack connection to building structure	Secure the rack to the building structure.If earthquakes are a possibility in your geographical area, secure the rack to the floor.Secure the rack to the ceiling brackets as well as wall or floor brackets for maximum stability.

See Also • Mounting an ACX5000 Router in a Rack or Cabinet on page 85

ACX5048 and ACX5096 Network Cable and Transceiver Planning

• Determining Transceiver Support for the ACX5000 on page 73
- Cable Specifications for QSFP+ and QSFP28 Transceivers on page 74

• Calculating Power Budget and Power Margin for Fiber-Optic Cables on page 76
• Understanding Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion on page 78

Determining Transceiver Support for the ACX5000

All the router models of the ACX5000 router supply quad small form-factor pluggable plus (QSFP+) ports for use as uplinks or as access ports. These 40 GbE ports support QSFP+ transceivers, QSFP+ direct-attach copper (DAC) cables, and DAC breakout cables (DACBO). The ACX5048 has 6 QSFP+ ports; the ACX5096 has 8 QSFP+ ports that can all be used as uplinks.

On all ACX5000 routers, the ports are enabled by default.

Downlink ports are product SKU-specific:

• ACX5096—has 96 SFP+ ports that support SFP and SFP+ transceivers, as well as DAC cables.
• ACX5048—has 48 SFP+ ports that support SFP and SFP+ transceivers, as well as DAC cables.

You can find information about the pluggable transceivers supported on your Juniper Networks device by using the Hardware Compatibility Tool. In addition to transceiver and connector type, the optical and cable characteristics—where applicable—are documented for each transceiver. The Hardware Compatibility Tool enables you to search by product, displaying all the transceivers supported on that device, or category, by interface speed or type. The list of supported transceivers for the ACX5000 is located at https://pathfinder.juniper.net/hct/product/#prd=ACX5000.

CAUTION: If you face a problem running a Juniper Networks device that uses a third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

Figure 27 on page 74 shows the location of SFP+ and QSFP+ ports for the ACX5096, Figure 28 on page 74 shows these ports for the ACX5048.

Figure 27: Port Panel ACX5096

Figure 28: Port Panel ACX5048

Cable Specifications for QSFP+ and QSFP28 Transceivers

The 40-Gigabit Ethernet QSFP+ and 100-Gigabit Ethernet QSFP28 transceivers that are used in ACX routers use 12-ribbon multimode fiber crossover cables with female MPO connectors (SR4 optics only). The fiber can be either OM3 or OM4. These cables are not sold by Juniper Networks.

CAUTION: To maintain agency approvals, use only a properly constructed, shielded cable.

TIP: Ensure that you order cables with the correct polarity. Vendors refer to these crossover cables as key up to key up, latch up to latch up, Type B, or Method B. If you are using patch panels between two QSFP+ or QSFP28 transceivers, ensure that the proper polarity is maintained through the cable plant.

Table 29 on page 74 describes the signals on each fiber. Table 30 on page 75 shows the pin to pin connections for proper polarity.

Table 29: QSFP+ MPO Cable Signals

	SignalFiber
	Tx0 (Transmit)1
	Tx1 (Transmit)2
	Tx2 (Transmit)3
	Tx3 (Transmit)4
	Unused5
	Unused6
	Unused7
	Unused8
	Rx3 (Receive)9
	Rx2 (Receive)10
	Rx1 (Receive)11
	Rx0 (Receive)12

Table 30: QSFP+ MPO Fiber-Optic Crossover Cable Pinouts

	PinPin
1	12
2	11
3	10
4	9
5	8
6	7
7	6
8	5
9	4
10	3
11	2
12	1

Calculating Power Budget and Power Margin for Fiber-Optic Cables

Use the information in this topic and the specifications for your optical interface to calculate the power budget and power margin for fiber-optic cables.

TIP: You can use the Hardware Compatibility Tool to find information about the pluggable transceivers supported on your Juniper Networks device.

To calculate the power budget and power margin, perform the following tasks:

1. Calculating Power Budget for Fiber-Optic Cable on page 76
2. Calculating Power Margin for Fiber-Optic Cable on page 76

Calculating Power Budget for Fiber-Optic Cable

To ensure that fiber-optic connections have sufficient power for correct operation, you need to calculate the link's power budget, which is the maximum amount of power it can transmit. When you calculate the power budget, you use a worst-case analysis to provide a margin of error, even though all the parts of an actual system do not operate at the worst-case levels. To calculate the worst-case estimate of power budget (P you assume minimum transmitter power) (and minimum receiver sensitivity):(P

$$ P _ {B} = P _ {T} - P _ {R} $$

The following hypothetical power budget equation uses values measured in decibels (dB) and decibels referred to one milliwatt (dBm):

$$ P _ {B} = P _ {T} - P _ {R} $$

$$ P _ {B} = - 1 5 \mathrm{dBm} - (- 2 8 \mathrm{dBm}) $$

$$ P _ {B} = 1 3 \mathrm{dB} $$

Calculating Power Margin for Fiber-Optic Cable

After calculating a link's power budget, you can calculate the power margin (P represents the amount of power available after subtracting attenuation or link loss (LL) from the power budget _B ) (PA worst-case estimate of assumes maximum LL:

$$ P _ {M} = P _ {B} - L L $$

P_M greater than zero indicates that the power budget is sufficient to operate the receiver.

Factors that can cause link loss include higher-order mode losses, modal and chromatic dispersion, connectors, splices, and fiber attenuation. Table 31 on page 77 lists an

estimated amount of loss for the factors used in the following sample calculations. For information about the actual amount of signal loss caused by equipment and other factors, refer to vendor documentation.

Table 31: Estimated Values for Factors Causing Link Loss

	Estimated Link-Loss ValueLink-Loss Factor
Higher-order mode losses	Single-mode—NoneMultimode—0.5 dB
Modal and chromatic dispersion	Single-mode—NoneMultimode—None, if product of bandwidth and distance is less than 500 MHz-km
	0.5 dBConnector
	0.5 dBSplice
Fiber attenuation	Single-mode—0.5 dB/kmMultimode—1 dB/km

The following sample calculation for a 2-km-long multimode link with a power budget ( P_B ) of 13 dB uses the estimated values from Table 31 on page 77 to calculate link loss (LL) asthesumoffiberattenuation (2 km @ 1 dB/km, or 2 dB) and loss for fiveconnectors (0.5 dB per connector, or 2.5 dB) and two splices (0.5 dB per splice, or 1 dB) as well as higher-order mode losses (0.5 dB). The power margins (Calculated as follows:

$$ P _ {M} = P _ {B} - L L $$

$$ P _ {M} = 1 3 \mathrm{dB} - 2 \mathrm{km} (1 \mathrm{dB/km}) - 5 (0. 5 \mathrm{dB}) - 2 (0. 5 \mathrm{dB}) - 0. 5 \mathrm{dB} $$

$$ P _ {M} = 1 3 \mathrm{dB} - 2 \mathrm{dB} - 2. 5 \mathrm{dB} - 1 \mathrm{dB} - 0. 5 \mathrm{dB} $$

$$ P _ {M} = 7 \mathrm{dB} $$

The following sample calculation for an 8-km-long single-mode link with a power budget ( P_B ) of 13 dB uses the estimated values from Table 31 on page 77 to calculate link loss (LL) as the sum of fiber attenuation (8 km @ 0.5 dB/km, or 4 dB) and loss for seven connectors (0.5 dB per connector, or 3.5 dB). The power marginal calculated as follows:

$$ P _ {M} = P _ {B} - L L $$

$$ P _ {M} = 1 3 \mathrm{dB} - 8 \mathrm{km} (0. 5 \mathrm{dB/km}) - 7 (0. 5 \mathrm{dB}) $$

$$ P _ {M} = 1 3 \mathrm{dB} - 4 \mathrm{dB} - 3. 5 \mathrm{dB} $$

$$ P _ {M} = 5. 5 \mathrm{dB} $$

In both examples, the calculated power margin is greater than zero, indicating that the link has sufficient power for transmission and does not exceed the maximum receiver input power.

Understanding Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion

This topic describes signal loss, attenuation, and dispersion in fiber-optic cable.

• Signal Loss in Multimode and Single-Mode Fiber-Optic Cable on page 78
- Attenuation and Dispersion in Fiber-Optic Cable on page 78

Signal Loss in Multimode and Single-Mode Fiber-Optic Cable

Multimode fiber is large enough in diameter to allow rays of light to reflect internally (bounce off the walls of the fiber). Interfaces with multimode optics typically use LEDs as light sources. However, LEDs are not coherent sources. They spray varying wavelengths of light into the multimode fiber, which reflects the light at different angles. Light rays travel in jagged lines through a multimode fiber, causing signal dispersion. When light traveling in the fiber core radiates into the fiber cladding, higher-order mode loss results. Together these factors limit the transmission distance of multimode fiber compared with single-mode fiber.

Single-mode fiber is so small in diameter that rays of light can reflect internally through one layer only. Interfaces with single-mode optics use lasers as light sources. Lasers generate a single wavelength of light, which travels in a straight line through the single-mode fiber. Compared with multimode fiber, single-mode fiber has higher bandwidth and can carry signals for longer distances.

Exceeding the maximum transmission distances can result in significant signal loss, which causes unreliable transmission.

Attenuation and Dispersion in Fiber-Optic Cable

Correct functioning of an optical data link depends on modulated light reaching the receiver with enough power to be demodulated correctly. Attenuation is the reduction in power of the light signal as it is transmitted. Attenuation is caused by passive media components, such as cables, cable splices, and connectors. Although attenuation is significantly lower for optical fiber than for other media, it still occurs in both multimode and single-mode transmission. An efficient optical data link must have enough light available to overcome attenuation.

Dispersion is the spreading of the signal over time. The following two types of dispersion can affect an optical data link:

• Chromatic dispersion—Spreading of the signal over time resulting from the different speeds of light rays.
• Modal dispersion—Spreading of the signal over time resulting from the different propagation modes in the fiber.

For multimode transmission, modal dispersion, rather than chromatic dispersion or attenuation, usually limits the maximum bit rate and link length. For single-mode

transmission, modal dispersion is not a factor. However, at higher bit rates and over longer distances, chromatic dispersion rather than modal dispersion limits maximum link length.

An efficient optical data link must have enough light to exceed the minimum power that the receiver requires to operate within its specifications. In addition, the total dispersion must be less than the limits specified for the type of link in Telcordia Technologies document GR-253-CORE (Section 4.3) and International Telecommunications Union (ITU) document G.957.

When chromatic dispersion is at the maximum allowed, its effect can be considered as a power penalty in the power budget. The optical power budget must allow for the sum of component attenuation, power penalties (including those from dispersion), and a safety margin for unexpected losses.

ACX5048 and ACX5096 Management Cable Specifications and Pinouts

• Cable Specifications for Console and Management Connections for an ACX5000 Router on page 79
• Management Port Connector Pinouts for an ACX5000 Router on page 80
• Console Port Connector Pinouts for an ACX5000 Router on page 80
  • USB Port Specifications for an ACX5000 Router on page 81

Cable Specifications for Console and Management Connections for an ACX5000 Router

Table 32 on page 79 lists the specifications for the cables that connect the ACX5000 routers to a management device.

NOTE: The ACX5000 router management port can be configured with a small form-factor pluggable (SFP) transceivers. See the Hardware Compatibility Tool for more information:

https://pathfinder.juniper.net/hct/product/#prd=ACX5000

Table 32: Cable Specifications for Console and Management Connections for the ACX5000 Router

Port on ACX5000 Routers				Device ReceptacleMa
	RS-232(EIA-232)serialcableConsole portRJ-45 patch cable and RJ-45 to DB-9 adapter			RJ-457 feet (2.13 meters)One 7
Management port	Category 5 cable or equivalent suitable for 1000BASE-T operation	One 7-foot (2.13-meter) longRJ-45 patch cable	(100 meters)	RJ-45328 feet

Management Port Connector Pinouts for an ACX5000 Router

The 1000BASE-T RJ-45 management ports use an RJ-45 connector to connect to a management device for out-of-band management.

Table 33 on page 80 provides the pinout information of the RJ-45 management port connector. An RJ-45 cable is supplied with an ACX5000 router.

Table 33: RJ-45 Management Port Connector Pinouts for an ACX5000 Router

	DescriptionSignalPin
	Transmit/receive data pair 1TRP1+1
	Transmit/receive data pair 1TRP1-2
	Transmit/receive data pair 2TRP2+3
	Transmit/receive data pair 3TRP3+4
	Transmit/receive data pair 3TRP3-5
	Transmit/receive data pair 2TRP2-6
	Transmit/receive data pair 4TRP4+7
	Transmit/receive data pair 4TRP4-8

See Also • Management Port LEDs on an ACX5000 Router on page 46

Console Port Connector Pinouts for an ACX5000 Router

The console port (labeled CON, C1, or CONSOLE) is an RS-232 serial interface that uses an RJ-45 connector to connect to a console management device. The default baud rate for the console port is 9600 baud.

Table 34 on page 81 provides the pinout information for the RJ-45 console connector. An RJ-45 cable and RJ-45 to DB-9 adapter are supplied with the ACX5000 router.

NOTE: If your laptop or PC does not have a DB-9 male connector pin and you want to connect your laptop or PC directly to an ACX5000 router, use a combination of the RJ-45 cable and RJ-45 to DB-9 adapter supplied with the router and a USB to DB-9 male adapter. You must provide the USB to DB-9 male adapter.

Table 34: Console Port Connector Pinouts for an ACX5000 Router

		DescriptionSignalPin
		Request to sendRTS Output1
		Data terminal readyDTR Output2
		Transmit dataTxD Output3
		Signal groundSignal Ground4
		Signal groundSignal Ground5
		Receive dataRxD Input6
7	DCD Input	Data carrier detect
8	CTS Input	Clear to send

See Also

- Connecting an ACX5000 Router to a Management Console on page 100

USB Port Specifications for an ACX5000 Router

The following Juniper Networks USB flash drives have been tested and are officially supported for the USB port in the ACX5000 routers:

• RE-USB-1G-S—1-gigabyte (GB) USB flash drive
• RE-USB-2G-S—2-GB USB flash drive
• RE-USB-4G-S—4-GB USB flash drive

CAUTION: Any USB memory product not listed as supported for the ACX5000 routers has not been tested by Juniper Networks. The use of any unsupported USB memory product could expose your device to unpredictable behavior. Juniper Networks Technical Assistance Center (JTAC) can provide only limited support for issues related to unsupported hardware. We strongly recommend that you use only supported USB flash drives.

CAUTION: Remove the USB flash drive before upgrading Junos OS or rebooting a ACX5000 routers. Failure to do so could expose your device to unpredictable behavior.

NOTE: USB flash drives used with the ACX5000 router must support USB 2.0 or later.

CHAPTER 3

Initial Installation and Configuration

• ACX5048 and ACX5096 Installation Overview on page 83
• Unpacking and Mounting the ACX5048 and ACX5096 Routers on page 84
• Connecting the ACX5048 and ACX5096 to Power on page 91
• Connecting the ACX5048 and ACX5096 to External Devices on page 100
• Initially Configuring the ACX5000 Router on page 102

ACX5048 and ACX5096 Installation Overview

You can mount an ACX5000 router:

• Flush with the front of a 19-in. four-post rack. Use the standard mounting brackets provided with the router for this configuration.
• Recessed 2 in. (5 cm) from the front of a 19-in. four-post rack. Use the extension bracket provided in the standard mounting kit for this configuration. Recessed mounting is primarily used in enclosed cabinets.

To install and connect an ACX5000 router:

1. Follow the instructions in "Unpacking an ACX5000 Router" on page 84.
2. Determine how the device is to be mounted.

Flush or recessed mounted in a rack or cabinet, see "Mounting an ACX5000 Router in a Rack or Cabinet" on page 85.

1. Follow the instructions in:

a. Connecting the ACX5000 Router to Earth Ground on page 92

b. "Connecting AC Power to an ACX5000 Router" on page 93 or "Connecting DC Power to an ACX5000 Router" on page 96 as required

c. Registering Products—Mandatory for Validating SLAs

1. Configure the ACX5000 router. See "Initially Configuring the ACX5000 Router" on page 102.

Related • Clearance Requirements for Airflow and Hardware Maintenance for an ACX5000 Documentation Router on page 67

Unpacking and Mounting the ACX5048 and ACX5096 Routers

• Unpacking an ACX5000 Router on page 84
• Mounting an ACX5000 Router in a Rack or Cabinet on page 85

Unpacking an ACX5000 Router

The ACX5000 router chassis is a rigid sheet-metal structure that houses the hardware components. An ACX5000 router is shipped in a cardboard carton, secured with foam packing material. The carton also contains an accessory box and quick start instructions.

CAUTION: ACX5000 routers are maximally protected inside the shipping carton. Do not unpack the router until you are ready to begin installation.

To unpack an ACX5000 router:

1. Move the shipping carton to a staging area as close to the installation site as possible, but where you have enough room to remove the system components.
2. Position the carton so that the arrows are pointing up.
3. Open the top flaps on the shipping carton.
4. Remove the accessory box and verify the contents against the inventory included in the box. Table 35 on page 85 lists the inventory of components supplied with an ACX5000 router.

5. Pull out the packing material holding the router in place.

6. Verify the chassis components received:

7. Two power supplies

8. Fan modules:

9. Five fan modules for ACX5048
   • Three fan modules for ACX5096

10. Save the shipping carton and packing materials in case you need to move or ship the router later.

Table 35: Inventory of Components Supplied with an ACX5000 Router

	QuantityComponent
	1Chassis with five fan modules and tv
	2AC power cord (AC-powered ACX50C)
	2Rear mounting blades
	2Front mounting brackets
	2Extension brackets
	1RJ-45 cable and RJ-45 to DB-9 adap
	1Quick Start installation instructions

Mounting an ACX5000 Router in a Rack or Cabinet

You can mount all ACX5000 routers on a four post 19-in. rack or cabinet using the mounting kit provided with the device. The ACX5096 router can also be installed on a two-post rack or cabinet. The mounting kit for the two-post installation is not provided with the router.

For four post rack or cabinet installations, the mounting kit contains two front mounting rails with two matching rear mounting blades. This configuration allows either end of the router to be mounted flush with the rack and still be adjustable for racks with different depths.

The mounting kit for the ACX5096 has mounting rails, blades, and brackets for the four-post configuration.

The front and rear rack rails must be spaced between 28 in. (71.1 cm) and 36 in. (91.4 cm) front to back.

This topic describes:

• Before You Begin Rack Installation on page 86
• Four Post Procedure on page 88
- Two Post Procedure on page 90

Before You Begin Rack Installation

Before you begin mounting a ACX5000 router in the rack or cabinet:

1. Ensure that you understand how to prevent electrostatic discharge (ESD) damage. See "Prevention of Electrostatic Discharge Damage" on page 155.
2. Verify that the site meets the requirements described in "Site Preparation Checklist for an ACX5000 Router" on page 65.
3. Place the rack in its permanent location, allowing adequate clearance for airflow and maintenance, and secure it to the building structure.
4. Read "General Site Guidelines" on page 66, with particular attention to "Chassis and Component Lifting Guidelines" on page 137.
5. Remove the router from the shipping carton. See "Unpacking an ACX5000 Router" on page 84.
6. Ensure that you have the following parts and tools available to mount the router in a rack:

NOTE: The ACX5000 routers can be installed on a four-post rack or cabinet. The mounting blades, rails, and the respective screws for the four-post installation comes with the ACX5000 routers.

The ACX5096 router can also be installed on a two-post rack or cabinet. The mounting brackets and the respective screws for the two-post installationdoes not comewith the ACX5096 router. You need topurchase it separately.

• ESD grounding strap (not provided).

• Blades, rails, or brackets (provided).
  • For four-post installations:

• One pair of rear mounting blades. These mounting blades support the rear of the chassis and must be installed (provided).

• One pair of front mounting rails. The mounting blades slide into the mounting rails to support the router (provided).
• Screws to secure the mounting rails to the chassis (provided).
  • Twelve screws for ACX5048
  • Twenty-four screws for ACX5096
• Eight screws to secure the chassis and rear installation blades to the rack (not provided).
  • For two-post installations (ACX5096 only):
  • One pair of mounting brackets (not provided).
• Sixteen screens for attaching the brackets to the chassis (not provided).
• Four screws to secure the mounting brackets and chassis to the post (not provided).
• Appropriate screwdriver for the mounting screws (not provided).
• Two power cords with plugs appropriate to your geographical location (provided).
• RJ-45 cable and RJ-45 to DB-9 serial port adapter (provided).
• Management host, such as a PC laptop, with a serial port (not provided).

Optional equipment: Grounding cable kit with bracket, lug, and three nuts with integrated washers.

WARNING: The1U ACX5048must besupportedatall fourcorners.Mounting the chassis using only the front brackets will damage the chassis and can result in serious bodily injury.

CAUTION: All ACX5000 routers require two people for installation, one person to lift the router into place, and another person to attach the router to the rack. If you are installing the ACX5000 routers above 60 in. (152.4 cm) from the floor, you can remove the power supplies and fan modules to minimize the weight before attempting to install the router.

CAUTION: If you are mounting multiple routers on a rack, mount the router in the lowest position of the rack first. Proceed to mount the rest of the routers from the bottom to the top of the rack to minimize the risk of the rack toppling.

Four Post Procedure

To mount the router on four posts in a rack using the provided mounting kit:

1. Attach the ESD grounding strap to your bare wrist and to a site ESD point.
2. Decide whether the Field Replaceable Unit (FRU) end of the router or the port end is to be placed at the front of the rack. Position the router in such a manner that the All OUT labels on components are next to the hot aisle.
3. Align the holes in the mounting rail with the holes on the side of the chassis. See Figure 29 on page 88 for the alignment for the ACX5048, and Figure 30 on page 88 for the ACX5096 router.

Figure 29: Attaching Mounting Rails to the ACX5048 Router

Figure 30: Attaching Mounting Rails to the ACX5096 Router

1. Attach the mounting rail to the router using the mounting screws (and cage nuts and washers if your rack requires them). Tighten the screws.
2. Repeats steps 4 and 5 on the opposite side of the router.
3. Have one person grasp both sides of the router, lift it, and position it in the rack so that the front bracket is aligned with the rack holes.
4. Have a second person secure the front of the router to the rack using four mounting screws (and cage nuts and washers if your rack requires them.) Tighten the screws.. See Figure 31 on page 89 and Figure 32 on page 89 for examples of connecting the mounting rails and blades.

Figure 31: Attach 1 U Router to Rack

Technical line drawing of a server rack with mounting holes and a blue arrow indicating a component (no text or symbols present)

Figure 32: Slide Mounting Rail onto the ACX5096 Rear Mounting Blade

Technical line drawing of a server rack with front panel and side panel, showing internal components and mounting points (no text or symbols)

1. Continue to support the router while sliding the rearmounting-blades into the channel of the side mounting-rails and securing the blades to the rack. Use the four mounting screws (and cage nuts and washers if your rack requires them) to attach each blade to the rack. Use eight front-mounting screws for the ACX5096. Tighten the screws. See Figure 33 on page 89.

Figure 33: Slide Mounting Blades into 1 U Mounting Rail

Technical diagram of a mechanical assembly with two parallel plates and a central bracket, showing alignment and spacing (no text or symbols)

	3-1- Router chassisRearmounting-blades
2-Side mounting-rails

1. Ensure that the router chassis is level by verifying that all the screws on the front of the rack are aligned with the screws at the back of the rack.

Two Post Procedure

You can center mount a ACX5096 on two posts of a 19-in. rack or cabinet by using the short mounting brackets provided with the router. Other product SKUs of the ACX5000 are not recommended for two post installation.

To mount the router on two posts in a rack using the provided mounting kit:

1. Attach the ESD grounding strap to your bare wrist and to a site ESD point.
2. Decide whether the Field Replaceable Unit (FRU) end of the router or the port end is to be placed at the front of the rack. Position the router in such a manner that the All OUT labels on components are next to the hot aisle.
3. Align the tenmounting holes on the short mounting bracket with one of the three sets of corresponding holes along the side of the router chassis. See Figure 34 on page 90.

Figure 34: Attaching a Two-Post Mounting Bracket to ACX5096 Router

1. Attach the mounting bracket to the ACX5096 using eight mounting screws (and cage nuts and washers if your rack requires them).
2. Repeat this procedure for the mounting bracket on the opposite side of the router. Tighten all screws.
3. Use two people to attach the brackets to the posts.

a. Have one person grasp both sides of the router and lift it into place.
b. Ensure the router is level.
c. Have the second person use the four mounting screws (and cage nuts and washers if your rack requires them) to screw the mounting bracket to the rack.

1. Attach a ground cable to earth ground and then attach it to the chassis grounding points, as described in "Connecting the ACX5000 Router to Earth Ground" on page 92.

See Also • Rack-Mounting and Cabinet-Mounting Warnings on page 139

Connecting the ACX5048 and ACX5096 to Power

• Connecting the ACX5000 Router to Earth Ground on page 92
• Connecting AC Power to an ACX5000 Router on page 93
• Connecting DC Power to an ACX5000 Router on page 96

Connecting the ACX5000 Router to Earth Ground

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must connect the ACX5000 router to earth ground before you connect it to power.

For installations that require a separate grounding conductor to the chassis, you must attach a protective earthing terminal bracket on the ACX5000 router left front mounting bracket to connect to the earth ground (see Figure 35 on page 93).

Before you connect earth ground to the protective earthing terminal of a ACX5000 router, ensure that a licensed electrician has attached an appropriate grounding lug to the grounding cable.

CAUTION: Using a grounding cable with an incorrectly attached lug can damage the router.

NOTE: Mount your router in the rackor cabinetbeforeattaching the grounding lug to the router. See "Mounting an ACX5000 Router in a Rack or Cabinet" on page 85.

Ensure that you have the following parts and tools available:

• Protective earthing terminal bracket—This bracket attaches to the router chassis through the left front mounting bracket, providing a protective earthing terminal for the router.
• Grounding cable for your router—The grounding cable must be 14 AWG (2 mm ^2 ), minimum 90° C wire, or as permitted by the local code.
• Grounding lug for your grounding cable—The grounding lug required is a Panduit LCD10-10A-L or equivalent.
• Two M4 hex nuts with integrated washers—Two nuts and washers are used to secure the grounding lug to the grounding lug bracket protective earthing terminal. Four nuts are provided in the accessory kit.
• 7-mm wrench or socket with driver to attach the two nuts.

An AC-powered ACX5000 router chassis gains additional grounding when you plug the power supply in the router into a grounded AC power outlet by using an AC power cord appropriate for your geographical location. See “AC Power Cord Specifications for an ACX5000 Router” on page 62.

To connect earth ground to a ACX5000 router:

1. Secure the provided protective earthing terminal bracket through the ACX5000 router mounting bracket to the chassis with the nut provided. The posts on the protective earthing terminal bracket should point to the left. See Figure 35 on page 93 and Figure 36 on page 93.

Figure 35: Connecting a Grounding Cable to a 1 U ACX5048

Figure 36: Connecting a Grounding Cable to the 2 U ACX5096

Technical line drawing of an electronic device chassis with connectors and ports (no text or symbols)

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the router is mounted.
2. Place the grounding lug attached to the grounding cable over the protective earthing terminal on the protective earthing terminal bracket.
3. Secure the grounding lug to the protective earthing terminal with two nuts.
4. Dress the grounding cable and ensure that it does not touch or block access to other device components and that it does not drape where people could trip over it.

See Also • General Safety Guidelines and Warnings on page 132

Connecting AC Power to an ACX5000 Router

The power supply in an ACX5000 router is a hot-removable and hot-insertable field-replaceable unit (FRU). You can remove and replace it without powering off the router or disrupting routing functions.

Ensure that you have a power cord appropriate for your geographical location available to connect AC power to the router.

Before you begin connecting AC power to the router:

• Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see “Prevention of Electrostatic Discharge Damage” on page 155).
• Ensure that you have connected the router chassis to earth ground.

CAUTION: Before you connect power to the router, a licensed electrician must attach a cable lug to the grounding and power cables that you supply. A cable with an incorrectly attached lug can damage the router (for example, by causing a short circuit).

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must connect the chassis to earth ground before you connect it to power. For installations that require a separate grounding conductor to the chassis, use the protective earthing terminal on the router chassis to connect to the earth ground. For instructions on connecting earth ground, see "Connecting the ACX5000 Router to Earth Ground" on page 92. The router gains additional grounding when you plug the power supply in the router into a grounded AC power outlet by using the AC power cord appropriate for your geographical location (see "AC Power Supply for an ACX5000 Router" on page 55).

- Install the power supply in the chassis. For instructions on installing a power supply in a ACX5000 router, see “Installing a Power Supply in an ACX5000 Router” on page 116.

NOTE: Each power supply must be connected to a dedicated power source outlet.

To connect AC power to an ACX5000 router:

1. Attach the grounding strap to your bare wrist and to a site ESD point.
2. Ensure that the power supplies are fully inserted in the chassis and the latches are secure. If only one powersupply is installed, ensure a that blankcover panel is installed over the second power supply slot.
3. Locate the power cord or cords shipped with the router; the cords have plugs appropriate for your geographical location. See "AC Power Cord Specifications for an ACX5000 Router" on page 62.

WARNING: Ensure that the power cord does not block access to device components or drape where people can trip on it.

1. Connect each power supply to the power sources. Insert the coupler end of the power cord into the AC power cord inlet on the AC power supply faceplate.
2. Push the power cord retainer onto the power cord (see Figure 37 on page 95 and Figure 38 on page 95).

Figure 37: Connecting an AC Power Cord to an AC Power Supply in a 1 U ACX5048

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols present)

2000828
1— Power cord retainer

Figure 38: Connecting an AC Power Cord to an AC Power Supply in a 2 U ACX5096

Technical diagram of a server rack with ventilation duct and cable (no text or symbols)

1. If the AC power source outlet has a power router, set it to the OFF (O) position.

NOTE: The router powers on as soon as power is provided to the power supply. There is no power router on the device.

1. Insert the power cord plug into an AC power source outlet.
2. If the AC power source outlet has a power router, set it to the ON (I) position.
3. Verify that the AC and DC LEDs on each power supply are lit green.

If the amber fault LED is lit, remove power from the power supply, and replace the power supply (see "Removing a Power Supply from an ACX5000 Router" on page 114).

Do not remove the power supply until you have a replacement power supply ready:

the power supplies or a blank cover panel must be installed in the router to ensure proper airflow.

CAUTION: Replace a failed power supply with a blank panel or new power supply within 1 minute of removal to prevent chassis overheating.

CAUTION: A system reboot with Routing Engine FPGA version 7.1 might not successfully boot the Junos OS software. In case of a system reboot failure, you need to power cycle the router. To check the current FPGA version, issue the show chassis firmware command.

See Also AC Power Supply for an ACX5000 Router on page 55.

•AC Power Supply LEDs on an ACX5000 Router on page 57

Connecting DC Power to an ACX5000 Router

The power supply in an ACX5000 router is a hot-removable and hot-insertable field-replaceable unit (FRU). You can remove and replace it without powering off the router or disrupting routing functions.

WARNING: DC-powered ACX5000 routers are intended for installation only in a restricted access location.

NOTE: The battery returns of the DC power supply must be connected as an isolated DC return (DC-I).

Before you begin connecting DC power to the router:

• Ensure that you havetaken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic Discharge Damage" on page 155).
• Ensure that you have connected the router chassis to earth ground.

CAUTION: Before you connect power to the router, a licensed electrician must attach a cable lug to the grounding and power cables that you supply. A cable with an incorrectly attached lug can damage the router (for example, by causing a short circuit).

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must connect the chassis to earth ground before you connect it to power. For installations that require a separate grounding conductor to the chassis, use the protective earthing terminal

on the router chassis to connect to the earth ground. For instructions on connecting earth ground, see “Connecting the ACX5000 Router to Earth Ground” on page 92.

- Install the power supply in the chassis. For instructions on installing a power supply in a ACX5000 router, see "Installing a Power Supply in an ACX5000 Router" on page 116.

Ensure that you have the following parts and tools available:

• DC power source cables (14–16 AWG) with ring lug (Molex 190700069 or equivalent) (not provided)
  • Phillips (+) screwdriver, number 2 (not provided)
• Multimeter (not provided)

To connect DC power to an ACX5000 router:

1. Attach the grounding strap to your bare wrist and to a site ESD point.
2. Verify that the DC power cables are correctly labeled before making connections to the power supply. In a typical power distribution scheme where the return is connected to chassis ground at the battery plant, you can use a multimeter to verify the resistance of the -48V and RTN DC cables to chassis ground:

- The cable with very low resistance (indicating a closed circuit) to chassis ground is positive (+) and will be installed on the V+ (return) DC power input terminal.

- The cable with very high resistance (indicating an open circuit) to chassis ground is negative (−) and will be installed on the V− (input) DC power input terminal.

CAUTION: You must ensure that power connections maintain the proper polarity. The power source cables might be labeled (+) and (−) to indicate their polarity. There is no standard color coding for DC power cables. The color coding used by the external DC power source at your site determines the color coding for the leads on the power cables that attach to the DC power input terminals on each power supply.

1. Ensure that the input circuit breaker is open so that the voltage across the DC power source cable leads is 0 V and that the cable leads do not become active while you are connecting DC power.

NOTE: The V+ terminals are referred to as +RTN, and V- terminals are referred to as -48 V in "DC Power Wiring Sequence Warning" on page 161 and "ACX5000 DC Power Electrical Safety Guidelines and Warnings" on page 158.

1. Ensure that the power supplies are fully inserted in the chassis.

2. Remove the terminal block cover. The terminal block cover is a piece of clear plastic that snaps into place over the terminal block (see Figure 39 on page 99).

3. Remove the screws on the terminals using the screwdriver. Save the screws.

WARNING: Ensure that the power cables do not block access to device components or drape where people can trip on them.

1. Connect each power supply to the power sources. Secure power source cables to the power supplies by screwing the ring lugs attached to the cables to the appropriate terminals by using the screw from the terminals (see Figure 39 on page 99 and Figure 40 on page 99).

The ACX5000 is designed to operate with a DC power supply that has a single, non-redundant, feed input. For source redundancy, two DC power supplies must be installed in ACX5000; connect source (A) to one power supply and connect source (B) to the second power supply. This configuration provides the commonly deployed A/B feed redundancy for the system.

The terminal block of the power supply has four terminals labeled V+, V+, V−, and V− for connecting DC power source cables labeled positive (+) and negative (−). The V+ terminals are shunted internally together, as are the V- terminals.

CAUTION: The connection between each powersource and power supply must include a circuit breaker.

Do not connect two sources to a single power supply because doing so can potentially cause circulating current in feed wires whenever there is any difference in the voltage of the two sources.

a. Secure the ring lug of the positive (+) DC power source cable to the V+ terminal on the DC power supply.
b. Secure the ring lug of the negative (−) DC power source cable to the V− terminal on the DC power supply.
c. Tighten the screws on the power supply terminals until snug using the screwdriver. Do not overtighten—apply between 5 in-lb (0.56 Nm) and 6 in-lb (0.68 Nm) of torque to the screws.

Figure 39: DC Power Supply Faceplate for a ACX5000 Router

	5-1- ESD grounding pointShunt negative input terminals (+
	6-2- Fault LEDShunt positive input terminals (-48V)
	7-3- Output LEDTerminal block
	8-4- Input LEDEjector lever

CAUTION: The V+ terminals are shunted internally together, as are the V- terminals. The same polarity terminal can be wired together from the same source to provide an additional current path in a higher power chassis. Do not connect the terminals to different sources.

Figure 40: Securing Ring Lugs to the Terminals on the ACX5000 DC Power Supply

1. Replace the terminal block cover.
2. Close the input circuit breaker.

NOTE: The switch powers on as soon as power is provided to the power supply. There is no power switch on the device.

1. Verify that the IN and OUT LEDs on the power supply are lit green and are on steadily.

CAUTION: A system reboot with Routing Engine FPGA version 7.1 might not successfully boot the Junos OS software. In case of a system reboot failure, you need to power cycle the switch. To check the current FPGA version, issue the show chassis firmware command.

See Also DC Power Supply for an ACX5000 Router on page 58.

•DC Power Supply LEDs on an ACX5000 Router on page 60

Connecting the ACX5048 and ACX5096 to External Devices

• Connecting an ACX5000 Router to a Management Console on page 100
• Connecting an ACX5000 Router to a NetworkforOut-of-Band Managementon page 101

Connecting an ACX5000 Router to a Management Console

The ACX routers has a console port with an RJ-45 connector. Use the console port to connect the device to a management console or to a console server.

Ensure that you have an RJ-45 to DB-9 rollover cable available. An RJ-45 cable with an RJ-45 to DB-9 adapter is provided with the device.

NOTE: If your laptop or PC does not have a DB-9 male connector pin and you want to connect your laptop or PC directly to the ACX routers, use a combination of the RJ-45 cable and RJ-45 to DB-9 adapter supplied with the device and a USB to DB-9 male adapter. You must provide the USB to DB-9 male adapter.

To connect the ACX router to a management console (see Figure 41 on page 101 and Figure 42 on page 101):

1. Connect one end of the Ethernet cable to the console port (labeled CON).
2. Connect the other end of the Ethernet cable into the console server (see Figure 41 on page 101) or management console (see Figure 42 on page 101).

Figure 41: Connecting the ACX Router to a Management Console Through a Console Server

Figure 42: Connecting the ACX Router Directly to a Management Console

See Also • Console Port Connector Pinouts for an ACX5000 Router on page 80

Connecting an ACX5000 Router to a Network for Out-of-Band Management

You can monitor and manage the ACX5000 router using a dedicated management channel. ACX5000 routers have a minimum of two management ports:

a 10/100/1000BASE-T RJ-45 port and a 1-Gbps SFP ports. Some product SKUs have an additional 1-Gbps SFP port that can be used either for fiber or copper connections. Use the management ports to connect the ACX5000 router to a network for out-of-band management.

CAUTION: Configuring the two management interfaces within the same subnet is not supported.

NOTE: You cannot use the management ports to perform the initial configuration of the ACX5000 router. You must configure the management ports before you can successfully connect to the ACX5000 router using these ports. See "Initially Configuring the ACX5000 Router" on page 102.

Ensure that you have an appropriate cable available. See "Cable Specifications for Console and Management Connections for an ACX5000 Router" on page 79.

To connect a ACX5000 router to a network for out-of-band management (see Figure 43 on page 102):

1. Connect one end of the cable to one of the management ports (labeled C0 and C1) on the ACX5000 router.

2. Connect the other end of the cable to the management router (see Figure 43 on page 102).

Figure 43: Connecting a ACX5000 Router to a Network for Out-of-Band Management

See Also Management Panel of an ACX5000 Router on page 40.

• Management Port Connector Pinouts for an ACX5000 Router on page 80

Initially Configuring the ACX5000 Router

You must perform the initial configuration of the ACX5000 router through the console port using the command-line interface (CLI).

Before you begin connecting and configuring an ACX5000 router, set the following parameter values on the console server or PC:

• Baud Rate—9600
• Flow Control—None
• Data—8
• Parity—None
• Stop Bits—1
• DCD State—Disregard

To connect and configure the router from the console:

1. Connect the console port to a laptop or PC using the supplied RJ-45 cable and RJ-45 to DB-9 adapter. The console (CON) port is located on the management panel of the router.

2. Log in as root. There is no password. If the software booted before you connected to the console port, you might need to press the Enter key for the prompt to appear.

login: root

1. Start the CLI.

root@% cli

1. Enter configuration mode.

root> configure

1. Add a password to the root administration user account.

[edit] root@# set system root-authentication plain-text-password New password: password Retype new password: password

1. (Optional) Configure the name of the router. If the name includes spaces, enclose the name in quotation marks ("").

[edit] root@# set system host-name host-name

1. Configure the default gateway.

[edit] root@# set routing-options static route default next-hop address

1. Configure the IP address and prefix length for the router management interface.

[edit] root@# set Interfaces em0 unit 0 family Inet address address/prefix-length

CAUTION: Although the CLI permits you to configure two management Ethernet interfaces within the same subnet, only one interface is usable and supported.

NOTE: The management ports, em0 (C0) and em1 (C1) are found on the FRU end of the ACX5000 router.

1. (Optional) Configure the static routes to remote prefixes with access to the management port.

[edit]
root@# set routing-options static route remote-prefix next-hop destination-ip retain no-readvertise

1. Enable telnet service.

[edit]
root@# set system services telnet

NOTE: When Telnet is enabled, you cannot log in to a ACX5000 router through Telnet using root credentials. Root login is allowed only for SSH access.

1. Commit the configuration to activate it on the router.

[edit]
root@# commit

Related •ACX5048 and ACX5096 Installation Overview on page 83 Documentation

CHAPTER 4

Removing, Installing, and Maintaining Components

• Maintaining ACX5048 and ACX5096 Components on page 105
• Removing an ACX5000 Router from a Rack or Cabinet on page 120

Maintaining ACX5048 and ACX5096 Components

• Removing a Transceiver from an ACX5000 Router on page 105
  • Installing a Transceiver in an ACX5000 Router on page 107
• Disconnecting a Fiber-Optic Cable from an ACX5000 Router on page 109
• Connecting a Fiber-Optic Cable to an ACX5000 Router on page 109
• Maintaining Fiber-Optic Cables in an ACX5000 Router on page 110
• Removing a Fan Module from an ACX5000 Router on page 111
• Installing a Fan Module in an ACX5000 Router on page 113
• Removing a Power Supply from an ACX5000 Router on page 114
  • Installing a Power Supply in an ACX5000 Router on page 116
  • Powering Off an ACX5000 Router on page 118

Removing a Transceiver from an ACX5000 Router

The transceivers for the ACX routers are hot-removable and hot-insertable field-replaceable units (FRUs). You can remove and replace them without powering off the router or disrupting routing functions.

Before you begin removing a transceiver from the ACX routers, ensure that you have taken the necessary precautions for safe handling of lasers (see "Laser and LED Safety Guidelines and Warnings for the ACX5000 Router" on page 144).

Ensure that you have the following parts and tools available:

• Antistatic bag or an antistatic mat

• Needle-nose pliers

• Rubber safety caps to cover the transceiver and fiber-optic cable connector

• Dust cover to cover the port

To remove a transceiver from an ACX5000 router:

1. Place the antistatic bag or antistatic mat on a flat, stable surface.

2. Label the cable connected to the transceiver so that you can reconnect it correctly.

WARNING: Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected to transceivers emit laser light that can damage your eyes.

WARNING: Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable. The rubber safety cap keeps the port clean and prevents accidental exposure to laser light.

CAUTION: Do not bend fiber-optic cables beyond their minimum bend radius. Bending the cables beyond their minimum bend radius and cause problems that are difficult to diagnose.

1. Remove the cable connected to the transceiver (see "Disconnecting a Fiber-Optic Cable from an ACX5000 Router" on page 109). Cover the transceiver and the end of each fiber-optic cable connector with a rubber safety cap immediately after disconnecting the fiber-optic cables.

2. Using your fingers, pull the ejector lever away from the transceiver to unlock the transceiver.

CAUTION: Before removing the transceiver, makesure you open the ejector lever completely until you hear it click. This prevents damage to the transceiver.

1. Grasp the transceiver ejector lever and gently slide the transceiver approximately 0.5 in. (1.3 cm) straight out of the port.

CAUTION: To avoid electrostatic discharge (ESD) damage to the transceiver, do not touch the connector pins at the end of the transceiver.

1. Using your fingers, grasp the body of the transceiver and pull it straight out of the port.

2. Place the transceiver in the antistatic bag or on the antistatic mat placed on a flat, stable surface.

3. Place the dust cover over the empty port.

Installing a Transceiver in an ACX5000 Router

The transceivers for the ACX routers are hot-removable and hot-insertable field-replaceable units (FRUs). You can remove and replace them without powering off the device or disrupting device functions.

Before you begin installing a transceiver in an ACX router, ensure that you have taken the necessary precautions for safe handling of lasers (see "Laser and LED Safety Guidelines and Warnings for the ACX5000 Router" on page 144).

Ensure that you have a rubber safety cap available to cover the transceiver.

To install a transceiver in an ACX5000 router:

CAUTION: To avoid electrostatic discharge (ESD) damage to the transceiver, do not touch the connector pins at the end of the transceiver.

1. Remove the transceiver from its bag.

2. Check to see whether the transceiver is covered by a rubber safety cap. If it is not, cover the transceiver with a rubber safety cap.

WARNING: Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable. The rubber safety cap keeps the port clean and prevents accidental exposure to laser light.

1. If the port in which you want to install the transceiver is covered with a dust cover, remove the dust cover and save it in case you need to cover the port later.

2. Using both hands, carefully place the transceiver in the empty port. The connectors must face the device chassis.

CAUTION: Before you slide the transceiver into the port, ensure that the transceiver is aligned correctly. Misalignment might cause the pins to bend, making the transceiver unusable. See Figure 44 on page 108 through Figure 46 on page 108 for the correct orientation for your router.

1. Slide the transceiver in gently until it is fully seated. See Figure 44 on page 108 for an example of inserting an SFP transceiver. Figure 45 on page 108, and Figure 46 on page 108 are examples of inserting QSFP+ transceivers into different ACX5000 router product SKU devices.

2. Remove the rubber safety cap when you are ready to connect the cable to the transceiver.

WARNING: Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected to transceivers emit laser light that can damage your eyes.

Figure 44: Installing an SFP Transceiver

Figure 45: Installing a QSFP+ Transceiver—Vertical Orientation

Figure 46: Installing a QSFP+ Transceiver—Horizontal Orientation

Disconnecting a Fiber-Optic Cable from an ACX5000 Router

The ACX routers has field-replaceable unit (FRU) optical transceivers to which you can connect fiber-optic cables.

Before you disconnect a fiber-optic cable from an optical transceiver installed in an ACX router, ensure that you have taken the necessary precautions for safe handling of lasers (see "Laser and LED Safety Guidelines and Warnings for the ACX5000 Router" on page 144).

Ensure that you have the following parts and tools available:

• Rubber safety cap to cover the transceiver
• Rubber safety cap to cover the fiber-optic cable connector

To disconnect a fiber-optic cable from an optical transceiver installed in an ACX5000 router:

1. (Recommended) Disable the port in which the transceiver is installed by including the disable statement at the [edit interfaces] hierarchy level for the specific interface.

WARNING: Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected to transceivers emit laser light that can damage your eyes.

WARNING: Do not stare into the laser beam or view it directly with optical instruments even if the interface has been disabled.

1. Carefully unplug the fiber-optic cable connector from the transceiver.

2. Cover the transceiver with a rubber safety cap.

WARNING: Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable. The rubber safety cap keeps the port clean and prevents accidental exposure to laser light.

1. Cover the fiber-optic cable connector with the rubber safety cap.

Connecting a Fiber-Optic Cable to an ACX5000 Router

The ACX routers has field-replaceable unit (FRU) optical transceivers to which you can connect fiber-optic cables.

Before you connect a fiber-optic cable to an optical transceiver installed in an ACX router, ensure that you have taken the necessary precautions for safe handling of lasers (see "Laser and LED Safety Guidelines and Warnings for the ACX5000 Router" on page 144).

To connect a fiber-optic cable to an optical transceiver installed in an ACX5000 router:

WARNING: Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected to transceivers emit laser light that can damage your eyes.

WARNING: Do not stare into the laser beam or view it directly with optical instruments even if the interface has been disabled.

1. If the fiber-optic cable connector is covered by a rubber safety cap, remove the cap. Save the cap.
2. If the optical transceiver is covered by a rubber safety cap, remove the cap. Save the cap.
3. Insert the cable connector into the optical transceiver.
4. Secure the cables so that they are not supporting their own weight. Place excess cable out of the way in a neatly coiled loop. Placing fasteners on a loop helps cables maintain their shape.

CAUTION: Do not bend fiber-optic cables beyond their minimum bend radius. Bending the cables beyond their minimum bend radius candamage the cables and cause problems that are difficult to diagnose.

CAUTION: Do not let fiber-optic cables hang free from the connector. Do not allow fastened loops of cables to dangle, which stresses the cables at the fastening point.

Maintaining Fiber-Optic Cables in an ACX5000 Router

To maintain fiber-optic cables in an ACX5000 router:

• When you unplug a fiber-optic cable from a transceiver, place rubber safety caps over the transceiver and on the end of the cable.
• Anchor fiber-optic cable to avoid stress on the connectors. When attaching a fiber-optic cable to a transceiver, be sure to secure the fiber-optic cable so that it is not supporting

its own weight as it hangs to the floor. Never let a fiber-optic cable hang free from the connector.

- Do not bend fiber-optic cables beyond their minimum bend radius. Bending the cables beyond their minimum bend radius can damage the cables and cause problems that are difficult to diagnose.

- Frequent plugging and unplugging of fiber-optic cables in and out of optical instruments can damage the instruments, which are expensive to repair. Attach a short fiber extension to the optical equipment. Any wear and tear due to frequent plugging and unplugging is then absorbed by the short fiber extension, which is easier and less expensive to replace than the instruments.

- Keep fiber-optic cable connections clean. Microdeposits of oil and dust in the canal of the transceiver or cable connector can cause loss of light, reduction in signal power, and possibly intermittent problems with the optical connection.

To clean the transceiver canal, use an appropriate fiber-cleaning device such as RIFOCS Fiber Optic Adaptor Cleaning Wands (part number 946). Follow the directions in the cleaning kit you use.

After cleaning the transceiver, make sure that the connector tip of the fiber-optic cable is clean. Use only an approved alcohol-free fiber-optic cable cleaning kit such as the Cletop-S® Fiber Cleaner. Follow the directions in the cleaning kit you use.

Removing a Fan Module from an ACX5000 Router

The fan modules in ACX5000 routers are hot-removable and hot-insertable field replaceable units (FRUs): you can remove and replace them without powering off the router or disrupting routing functions.

CAUTION: Replace a failed fan module with a new fan module within 1 minute of removal to prevent chassis overheating. Before removing the fan module, ensure you have a replacement fan module at hand.

Before you remove a fan module from a ACX5000 router, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic Discharge Damage" on page 155).

Ensure that you have the following parts and tools available to remove a fan module from a ACX5000 router:

• ESD grounding strap
• Antistatic bag or an antistatic mat

To remove a fan module from an ACX5000 router (see Figure 47 on page 112 and Figure 48 on page 112):

1. Place the antistatic bag or the antistatic mat on a flat, stable surface.
2. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

3. Using a Phillips screwdriver, loosen the locking screw (3 or 4 turns).

4. Grasp the handle on the fan module and squeeze the outside of the handle to release the module.

WARNING: To avoid injury, do not touch the fan with your hands or any tools as you slide the fan module out of the chassis—the fan might still be running.

1. Pull firmly to slide the fan module halfway out of the chassis.
2. When the fan stop spinning, slide the fan module completely out of the chassis.
3. Place the fan module in the antistatic bag or on the antistatic mat placed on a flat, stable surface.

Figure 47: Removing a Fan Module from a 1 U ACX5048

Technical line drawing of a vehicle chassis with internal components and a blue arrow indicating direction (no text or symbols)

Figure 48: Removing a Fan Module from a 2 U ACX5096

Technical line drawing of a mechanical device with internal components and a blue arrow indicating direction (no text or symbols)

NOTE: When a fan module is removed, the CLI message Fan/Blower is Absent is logged in the system log, and the system raises a minor alarm.

See Also

• Cooling System and Airflow in an ACX5000 Router on page 51
•Field-Replaceable Units in an ACX5000 Router on page 20
•Management Panel of an ACX5000 Router on page 40

Installing a Fan Module in an ACX5000 Router

The fan modules in an ACX5000 router are hot-removable and hot-insertable field replaceable units (FRUs): you can remove and replace them without powering off the router or disrupting routing functions.

CAUTION: Replace a failed fan module with a new fan module within 1 minute of removal to prevent chassis overheating. Before removing the fan module, ensure you have a replacement fan module at hand.

NOTE: The fan module provides port-to-FRU airflow (AFO).

Before you install a fan module in a ACX5000 router, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic Discharge Damage" on page 155).

To install a fan module in an ACX5000 router (see Figure 49 on page 114 and Figure 50 on page 114):

1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.
2. Taking care not to touch the connectors, remove the fan module from its bag.
3. Align the module with the open slot on the management panel of the chassis and slide it in until it is fully seated.

CAUTION: Damage can occur if you attempt to install a fan module into a chassis with a different airflow direction. Compare the router product SKU with the airflowmarking on the handletoensure that you are installing a fan module with the same airflow direction as the chassis. The fan modules are designed so that they can only be inserted into the ACX5000 product SKU that supports the same airflow type. See “Cooling System and Airflow in an ACX5000 Router” on page 51 for more information.

1. Using a Phillips screwdriver, turn the locking screw until it is tight.

Figure 49: Installing a Fan Module in a 1 U ACX5048

Technical line drawing of a vehicle chassis frame with no visible text or symbols

Figure 50: Installing a Fan Module in a 2 U ACX5096

Technical line drawing of a computer tower with internal components and a blue arrow indicating direction (no text or symbols)

See Also

• Cooling System and Airflow in an ACX5000 Router on page 51

•Field-Replaceable Units in an ACX5000 Router on page 20

• Management Panel of an ACX5000 Router on page 40

Removing a Power Supply from an ACX5000 Router

The power supplies in an ACX5000 router are hot-removable and hot-insertable field-replaceable units (FRUs): you can remove and replace them without powering off the router or disrupting routing functions.

Before you remove a power supply from a ACX5000 router, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic Discharge Damage" on page 155).

Ensure that you have the following parts and tools available to remove a power supply from a ACX5000 router:

• ESD grounding strap
• Antistatic bag or an antistatic mat
  • Phillips (+) screwdriver, number 2 (DC power supply)

CAUTION: Replacethe powersupply with a new power supply within 1 minute of removal to prevent chassis overheating.

To remove a power supply from an ACX5000 router (see Figure 51 on page 116 and Figure 52 on page 116):

1. Place the antistatic bag or the antistatic mat on a flat, stable surface.

2. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

NOTE: If only one power supply is installed in your ACX5000 router, you need to power off the router before removing the power supply. See "Powering Off an ACX5000 Router" on page 118.

1. Disconnect power to the router:

- AC power supply—If the AC power source outlet has a power switch, set it to the OFF (O) position. If the AC power source outlet does not have a power switch, gently pull out the male end of the power cord connected to the power source outlet.

- DC power supply—Switch the circuit breaker on the panel board that services the DC circuit to the OFF position.

1. Remove the power source cable from the power supply faceplate:

- AC power supply—Remove the power cord from the power supply faceplate by detaching the power cord retainer and gently pulling out the female end of the power cord connected to the power supply faceplate.

- DC power supply—Remove the screws securing the ring lugs attached to the power source cables to the power supply using the screwdriver, and remove the power source cables from the power supply. Replace the screws on the terminals and tighten them.

1. Slide the locking lever toward the handle until it stops.

2. Grasp the power supply handle and pull firmly to slide the power supply halfway out of the chassis.

3. Place one hand under the power supply to support it and slide it completely out of the chassis. Take care not to touch power supply components, pins, leads, or solder connections.

4. Place the power supply in the antistatic bag or on the antistatic mat placed on a flat, stable surface.

Figure 51: Removing Power Supply from an ACX5048

Technical line drawing of a server rack with internal components and directional arrows indicating movement (no text or symbols)

Figure 52: Removing Power Supply from an ACX5096

Technical line drawing of an internal server or rack unit with no visible text or symbols

See Also AC Power Supply for an ACX5000 Router on page 55.
•DC Power Supply for an ACX5000 Router on page 58

Installing a Power Supply in an ACX5000 Router

The power supplies in an ACX5000 router are hot-removable and hot-insertable field-replaceable units (FRUs): you can remove and replace them without powering off the router or disrupting routing functions.

• Before you install a power supply in a ACX5000 router, ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage (see "Prevention of Electrostatic Discharge Damage" on page 155).
• Ensure that the airflow direction of the power supply is the same as the chassis. Labels on the power supply handle indicate the direction of airflow. See "Cooling System and Airflow in an ACX5000 Router" on page 51 for more information.

To install a power supply in an ACX5000 router (see Figure 53 on page 117 and

1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.
2. Taking care not to touch power supply components, pins, leads, or solder connections, remove the power supply from its bag.

CAUTION: Verify that the direction of the arrow on the power supply handle matches the direction of airflow in the chassis. Ensure that each power supply you install in the chassis has the same airflow direction. If you install power supplies with two different airflow directions, Junos OS raises an alarm, and the status (ALM) LED blinks amber.

1. Using both hands, place the power supply in the power supply slot on the FRU panel of the router and slide it in until it is fully seated and the locking lever slides into place

Figure 53: Installing Power Supply in an ACX5048

Technical line drawing of a server rack with internal components and a blue arrow indicating direction (no text or symbols)

Figure 54: Installing Power Supply in an ACX5096

Technical line drawing of an internal device with labeled ports and a blue arrow indicating direction (no text or symbols present)

NOTE: Each power supply must be connected to a dedicated power source outlet.

NOTE: If you have a Juniper J-Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/csc/management/updateinstallbase.jsp . Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace components with the same type of component.

See Also AC Power Supply for an ACX5000 Router on page 55.

•DC Power Supply for an ACX5000 Router on page 58

Powering Off an ACX5000 Router

Before you power off an ACX5000 router:

- Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage. See "Prevention of Electrostatic Discharge Damage" on page 155.

- Ensure that you do not need to forward traffic through the router.

Ensure that you have the following parts and tools available to power off the router:

• An ESD grounding strap

- An external management device such as a PC

- An RJ-45 to DB-9 rollover cable to connect the external management device to the console port

To power off an ACX5000 router:

1. Connect to the router using one of the following methods:

- Connect a management device to the console (CON) port on an ACX5000 router. For instructions about connecting a management device to the console (CON) port, see "Connecting an ACX5000 Router to a Management Console" on page 100.

- You can shut down the ACX5000 router from a management device on your out-of-band management network. For instructions about connecting a management device to the management (CO or CI) port, see “Connecting an ACX5000 Router to a Network for Out-of-Band Management” on page 101.

1. Shut down Junos OS from the external management device by issuing the request system halt operational mode CLI command. This command shuts down the router gracefully and preserves system state information. A message appears on the console, confirming that the operating system has halted.

You see the following output (or something similar, depending on the hardware being shut down) after entering the command:

request system halt
warning: This command will halt all the members.
If planning to halt only one member use the member option
Halt the system ? [yes, no] (no) yes
Shutdown at Thu Jul 30 21:20:07 2015.
[pid 2434]
{master:0}
*** System shutdown message from root@acx5k11-ac ***
System going down in 1 minute
root@>
*** System shutdown message from root@acx5k11-ac ***

System going down in 30 seconds

*** FINAL System shutdown message from root@acx5k11-ac ***

System going down IMMEDIATELY

Terminated

Hangup

Jul 30 21:20:23 init: event-processing (PID 1030) exited with status=0 Normal Exit

Waiting (max 60 seconds) for system process 'vnlru' to stop...done

Waiting (max 60 seconds) for system process 'vnlru_mem' to stop...done

Waiting (max 60 seconds) for system process 'bufdaemon' to stop...done

Waiting (max 60 seconds) for system process 'syncer' to stop...

Syncing disks, vnodes remaining...3 3 0 0 0 done

syncing disks... All buffers synced.

Uptime: 10h20m10s

recorded reboot as normal shutdown

unloading fpga driver

Shutting down ACPI

Rebooting.

Stopping crond: [ OK ]

Running guests on default URI: no running guests.

Stopping libvirtd daemon: [ OK ]

Shutting down ntpd: [ OK ]

Shutting down system logger: [ OK ]

Shutting down sntpc: [ OK ]

Stopping sshd: [ OK ]

Stopping vehostd: [ OK ]

Stopping watchdog: [OK]

Stopping xinetd: [ OK ]

Sending all processes the TERM signal... [ OK ]

Sending all processes the KILL signal... [ OK ]

Saving random seed: [OK]

Syncing hardware clock to system time [ OK ]

Unmounting file systems: [ OK ]

init: Re-executiRE-FPGA-DRV: reboot notifier called with 0x0003

ng /sbin/init

tmc-fpga: TMC FPGA driver shutdown called.

Halting system...

Power down.

CAUTION: The final output of any version of the request system halt command is the "The operating system has halted." Wait at least 60 seconds after first seeing this message before following the instructions in Step 4 and Step 5 to power off the router.

1. Attach the grounding strap to your bare wrist and to a site ESD point.

2. Disconnect power to the router by performing one of the following tasks:

3. AC power supply—If the AC power source outlet has a power router, set it to the OFF (O) position. If the AC power source outlet does not have a power router, gently pull out the male end of the power cord connected to the power source outlet.

4. DC power supply—router the circuit breaker on the panel board that services the DC circuit to the OFF position.

5. Remove the power source cable from the power supply faceplate:

6. AC power supply—Remove the power cord from the power supply faceplate by detaching the power cord retainer and gently pulling out the female end of the power cord connected to the power supply faceplate.

7. DC power supply—Remove the screws securing the ring lugs attached to the power source cables to the power supply using the screwdriver, and remove the power source cables from the power supply. Replace the screws on the terminals and tighten them.

8. Uncable the router before removing it from the rack or cabinet.

See Also • Connecting AC Power to an ACX5000 Router on page 93

•Connecting DC Power to an ACX5000 Router on page 96

Removing an ACX5000 Router from a Rack or Cabinet

If you need to relocate an installed ACX5000 router, use the procedure described in this topic.

NOTE: When you remove multiple devices from a rack, remove the device in the top of the rack first and proceed to remove the rest of the devices from top to bottom.

Before removing an ACX5000 router from a rack:

• Ensure that the rack is stable and secured to the building.
• Ensure that there is enough space to place the removed ACX5000 router in its new location and along the path to the new location.
• Read "General Safety Guidelines and Warnings" on page 132.
• Use the appropriate power off sequence to safely powered off the device. See "Powering Off an ACX5000 Router" on page 118.
• Disconnect the power cords.
• Ensure that you have disconnected any cables or wires attached to the ACX5000 router ports.

Ensure that you have the following parts and tools available:

- A Phillips (+) screwdriver, number 2 or number 3, depending on the size of your rack mounting screws, for mounting the ACX5000 router on the rack.

To remove an ACX5000 router from a rack or cabinet:

1. Have one person support the weight of the router while another person uses the screwdriver to remove the front mounting screws that attach the chassis mounting brackets to the rack or cabinet.
2. Remove the router from the rack or cabinet.
3. Use the screwdriver to remove the mounting screws that attach the mounting blades attached to the rear of the rack or cabinet.
4. Place the removed screws and mounting blades in a labeled bag. You will need them when you reinstall the chassis.
5. Transport the router to your desired new location.

Related Documentation

•Mounting an ACX5000 Router in a Rack or Cabinet on page 85

CHAPTER 5

Troubleshooting Hardware

- Troubleshooting ACX5048 and ACX5096 on page 123

Troubleshooting ACX5048 and ACX5096

• Understanding the ACX5000 Router Alarms on page 123
- ACX5000 Router Interface Alarm Messages on page 124

Understanding the ACX5000 Router Alarms

The ACX5000 router support different alarm types and severity levels.

Table 36 on page 123 provides a list of alarm terms and definitions that may help you in monitoring the device.

Table 36: Alarm Terms and Definitions

	DefinitionTerm
Alarm	Signal alertingyou to conditionsthat might prevent normal operation. On the device, alarm indicators might include the LCD panel and LEDs on the device. The LCD panel (if present on the device) displays the chassis alarm message count. Blinking amber LEDs indicate yellow alarm conditions for chassis components.
	Failure event that triggers an alarm.Alarm condition
Alarm severity levels	Seriousness of the alarm. The level of severity can be either major (red) or minor (yellow).Major (red)—Indicates a critical situation on the device that has resulted from one of the following conditions. A red alarm condition requires immediate action.One or more hardware components have failed.One or more hardware components have exceeded temperature thresholds.An alarm condition configured on an interface has triggered a critical warning.Minor (yellow or amber)—Indicates a noncritical condition on the device that, if left unchecked, might cause an interruption in service or degradation in performance. A yellow alarm condition requires monitoring or maintenance. For example, a missing rescue configuration generates a yellow system alarm.

Table 36: Alarm Terms and Definitions (continued)

DefinitionTerm

Alarm types

Alarms include the following types:Chassis alarm—Predefined alarm triggered by a physical condition on the device such as a failure or excessive component temperature.Interface alarm—Alarm you configure to alert you when an interface link is down. Applies to ethernet, fibre-channel, and management-ethernet interfaces. You can configure a red (major) or yellow (minor) alarm for the link-down condition, or have the condition ignored.System alarm—Predefined alarm that might be triggered by a missing rescue configuration, install a license for a licensed software feature, or high disk usage.

See Also Interface Alarm Messages.

•show chassis alarms

•show system alarms

ACX5000 Router Interface Alarm Messages

Interface alarms are alarms that you configure to alert you when an interface is down.

To configure an interface link-down condition to trigger a red or yellow alarm, or to configure the link-down condition to be ignored, use the alarm statement at the [edit chassis] hierarchy level. You can specify the ethernet, fibre-channel, or management-ethernet interface type.

NOTE: When red alarms or major alarms are issued on an ACX5000 router, the alarm LED glows amber instead of red.

CHAPTER 6

Contacting Customer Support

- Contacting Customer Support and Returning the Chassis or Components on page 125

Contacting Customer Support and Returning the Chassis or Components

• Contacting Customer Support on page 125
• Returning an ACX5000 Router or Component for Repair or Replacement on page 126
• Locating the Serial Number on an ACX5000 Router or Component on page 126
• Packing an ACX5000 Router or Component for Shipping on page 129

Contacting Customer Support

You can contact Juniper Networks Technical Assistance Center (JTAC) 24 hours a day, 7 days a week in one of the following ways:

- On the Web, using the Service Request Manager link at:

https://support.juniper.net/support/

- By telephone:

• From the US and Canada: 1-888-314-JTAC
• From all other locations: 1-408-745-9500

NOTE: If contacting JTACby telephone, enter your12-digitservice request number followed by the pound (#) key if this is an existing case, or press the star (*) key to be routed to the next available support engineer.

When requesting support from JTAC by telephone, be prepared to provide the following information:

• Your existing service request number, if you have one
  • Details of the failure or problem

• Type of activity being performed on the device when the problem occurred

• Configuration data displayed by one or more show commands

• Your name, organization name, telephone number, fax number, and shipping address

The support representative validates your request and issues an RMA number for return of the component.

Returning an ACX5000 Router or Component for Repair or Replacement

If you need to return an ACX5000 router or component to Juniper Networks for repair or replacement, follow this procedure:

1. Determine the serial number of the component. For instructions, see "Locating the Serial Number on an ACX5000 Router or Component" on page 126.
2. Obtain a Return Materials Authorization (RMA) number from the Juniper Technical Assistance Center (JTAC) contacting the Juniper Customer Care, as described in "Contacting Customer Support" on page 125.

NOTE: Do not return any component to Juniper Networks unless you have first obtained an RMA number. Juniper Networks reserves the right to refuse shipments that do not have an RMA. Refused shipments are returned to the customer through collect freight.

1. Pack the router or component for shipping as described in "Packing an ACX5000 Router or Component for Shipping" on page 129.

For more information about return and repair policies, see the customer support page at https://www.juniper.net/support/guidelines.html.

See Also • ACX5000 Universal Metro Router Overview on page 17

Locating the Serial Number on an ACX5000 Router or Component

If you are returning a router or component to Juniper Networks for repair or replacement, you must locate the serial number of the router or component. You must provide the serial number to the Juniper Networks Technical Assistance Center (JTAC) when you contact them to obtain Return Materials Authorization (RMA). See "Contacting Customer Support" on page 125.

If the router is operational and you can access the command-line interface (CLI), you can list serial numbers for the router and for some components with a CLI command. If you do not have access to the CLI or if the serial number for the component does not appear in the command output, you can locate the serial number ID label on the router or component.

NOTE: If you want to find the serial number ID label on a component, you need to remove the component from the router chassis, for which you must have the required parts and tools available.

• Listing the Chassis and Component Details Using the CLI on page 127
• Locating the Chassis Serial Number ID Label on an ACX5000 Router on page 128
• Locating the Serial Number ID Labels on FRU Components on page 128

Listing the Chassis and Component Details Using the CLI

To list the ACX5000 router and components and their serial numbers, use the show chassis hardware CLI operational mode command.

user@device> show chassis hardware

Hardware inventory:
Item	Version	Part number	Serial number	Description
Chassis			VF3714190019	ACX5048
Pseudo CB 0
Routing Engine 0		BUILTIN	BUILTIN	ACX5K Routing Engine
FPC 0	REV 05	650-056267	VF3714190019	ACX5048
CPU		BUILTIN	BUILTIN	FPC CPU
PIC 0		BUILTIN	BUILTIN	48x10G-6x40G
Xcvr 0	REV 01	740-011613	PD63CUT	SFP-SX
Xcvr 9	REV 01	740-021308	ARS17R5	SFP+-10G-SR
Xcvr 12	REV 01	740-011782	P92080R	SFP-SX
Xcvr 14	REV 01	740-031851	AM1229SY9ZX	SFP-SX
Xcvr 20	REV 01	740-031851	PN340SM	SFP-SX
Xcvr 24	REV 02	740-011613	PJ215BU	SFP-SX
Xcvr 29	REV 01	740-013111	7161618	SFP-T
Xcvr 32	REV 01	740-021308	ARS1778	SFP+-10G-SR
Xcvr 34	REV 01	740-021308	ARR3RM2	SFP+-10G-SR
Xcvr 37	REV 01	740-021308	ARS1769	SFP+-10G-SR
Xcvr 39	REV 01	740-021308	ARR3WHU	SFP+-10G-SR
Xcvr 40	REV 02	740-011613	PJ216BK	SFP-SX
Xcvr 41	REV 01	740-031851	PM734F3	SFP-SX
Xcvr 46	REV 01	740-021308	ARR41L8	SFP+-10G-SR
Xcvr 47	REV 02	740-011613	AM0943SEMZ5	SFP-SX
Xcvr 48	REV 01	740-032986	QD417082	QSFP+-40G-SR4
Xcvr 49	REV 01	740-032986	QD416522	QSFP+-40G-SR4
Xcvr 52	REV 01	740-032986	QE120433	QSFP+-40G-SR4
Power Supply 0	REV 03	740-043886	1GA44090680	JPSU-650W-DC-AFO
Power Supply 1	REV 03	740-043886	1GA44090685	JPSU-650W-DC-AFO
Fan Tray 0to Back Airflow - AFO				ACX5K Fan Tray 0, Front
Fan Tray 1to Back Airflow - AFO				ACX5K Fan Tray 1, Front
Fan Tray 2to Back Airflow - AFO				ACX5K Fan Tray 2, Front
Fan Tray 3to Back Airflow - AFO				ACX5K Fan Tray 3, Front
Fan Tray 4to Back Airflow - AFO				ACX5K Fan Tray 4, Front

NOTE: You must remove the fan module to read the fan serial number from the serial number ID label. The fan module serial number cannot be viewed through the CLI. Fan Tray 2 refers to the third module from the left, counting from 0.

Locating the Chassis Serial Number ID Label on an ACX5000 Router

The location for the chassis serial number ID label is product SKU-dependent. On the ACX5000 router product SKUs, the serial number ID label is located on the left side of the port panel. See Figure 55 on page 128 and Figure 56 on page 128 for examples of where to find the serial number ID.

Figure 55: Location of the Serial Number ID Label on a ACX5096

Figure 56: Location of the Serial Number ID Label on a ACX5048

Locating the Serial Number ID Labels on FRU Components

The power supplies, fan module, and expansion modules installed in ACX5000 routers are field-replaceable units (FRUs). For each FRU, you must remove the FRU from the router chassis to see the FRU serial number ID label.

- AC power supply—The serial number ID label is on the top of the AC power supply.

- Fan module—The serial number ID label is on the top of the fan module.

- Expansion module—The serial number ID label is in the middle of the printed circuit board (PCB).

Packing an ACX5000 Router or Component for Shipping

If you are returning an ACX5000 router or component to Juniper Networks for repair or replacement, pack the item as described in this topic.

Before you pack a ACX5000 router or component:

• Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage. See “Prevention of Electrostatic Discharge Damage” on page 155.
• Retrieve the original shipping carton and packing materials. Contact your JTAC representative if you do not have these materials, to learn about approved packing materials. See “Contacting Customer Support” on page 125.

Ensure that you have the following parts and tools available:

• ESD grounding strap.
• Antistatic bag, one for each component.
• If you are returning the chassis, an appropriate screwdriver for the mounting screws used on your rack or cabinet.

This topic describes:

• Packing an ACX5000 Router for Shipping on page 129
• Packing an ACX5000 Router Components for Shipping on page 130

Packing an ACX5000 Router for Shipping

To pack a ACX5000 router for shipping:

1. Power down the router and remove the power cables. See "Powering Off an ACX5000 Router" on page 118.
2. Remove the cables that connect the ACX5000 router to all external devices.
3. Remove all field-replaceable units (FRUs) from the router.
4. Have one person support the weight of the router while another person unscrews and removes the mounting screws.
5. Remove the router from the rack or cabinet (see "Chassis and Component Lifting Guidelines" on page 137) and place the router in an antistatic bag.
6. Place the router in the shipping carton.

7. Place the packing foam on top of and around the router.

8. If you are returning accessories or FRUs with the router, pack them as instructed in "Packing an ACX5000 Router Components for Shipping" on page 130.

9. Replace the accessory box on top of the packing foam.
10. Close the top of the cardboard shipping box and seal it with packing tape.
11. Write the RMA number on the exterior of the box to ensure proper tracking.

Packing an ACX5000 Router Components for Shipping

CAUTION: Do not stack router components. Return individual components in separate boxes if they do not fit together on one level in the shipping box.

To pack and ship ACX5000 router components:

• Place individual FRUs in antistatic bags.
• Ensure that the components are adequately protected with packing materials and packed so that the pieces are prevented from moving around inside the carton.
• Close the top of the cardboard shipping box and seal it with packing tape.
• Write the RMA number on the exterior of the box to ensure proper tracking.

CHAPTER 7

Safety and Compliance Information

• General Safety Guidelines and Warnings on page 132
• Definitions of Safety Warning Levels on page 133
  • Qualified Personnel Warning on page 134
• Warning Statement for Norway and Sweden on page 135
  • Fire Safety Requirements on page 135
  • Installation Instructions Warning on page 136
• Chassis and Component Lifting Guidelines on page 137
• Restricted Access Warning on page 137
  • Ramp Warning on page 138
• Rack-Mounting and Cabinet-Mounting Warnings on page 139
  • Grounded Equipment Warning on page 143
• Radiation from Open Port Apertures Warning on page 143
• Laser and LED Safety Guidelines and Warnings for the ACX5000 Router on page 144
• Maintenance and Operational Safety Guidelines and Warnings on page 149
• General Electrical Safety Guidelines and Warnings on page 154
  • Action to Take After an Electrical Accident on page 155
  • Prevention of Electrostatic Discharge Damage on page 155
  • AC Power Electrical Safety Guidelines on page 156
  • AC Power Disconnection Warning on page 157
  • ACX5000 DC Power Electrical Safety Guidelines and Warnings on page 158
  • DC Power Copper Conductors Warning on page 159
  • DC Power Disconnection Warning on page 159
  • DC Power Grounding Requirements and Warning on page 161
  • DC Power Wiring Sequence Warning on page 161
  • DC Power Wiring Terminations Warning on page 163
• Multiple Power Supplies Disconnection Warning on page 164
  • TN Power Warning on page 165

• Agency Approvals for an ACX5000 Router on page 165
• Compliance Statements for EMC Requirements for the ACX5000 Router on page 166

General Safety Guidelines and Warnings

The following guidelines help ensure your safety and protect the device from damage. The list of guidelines might not address all potentially hazardous situations in your working environment, so be alert and exercise good judgment at all times.

• Perform only the procedures explicitly described in the hardware documentation for this device. Make sure that only authorized service personnel perform other system services.
• Keep the area around the device clear and free from dust before, during, and after installation.
• Keep tools away from areas where people could trip over them while walking.
• Do not wear loose clothing or jewelry, such as rings, bracelets, or chains, which could become caught in the device.
• Wear safety glasses if you are working under any conditions that could be hazardous to your eyes.
• Do not perform any actions that create a potential hazard to people or make the equipment unsafe.
• Never attempt to lift an object that is too heavy for one person to handle.
• Never install or manipulate wiring during electrical storms.
• Never install electrical jacks in wet locations unless the jacks are specifically designed for wet environments.
• Operate the device only when it is properly grounded.
• Ensure that the separate protective earthing terminal provided on this device is permanently connected to earth.
• Replace fuses only with fuses of the same type and rating.
• Do not open or remove chassis covers or sheet-metal parts unless instructions are provided in the hardware documentation for this device. Such an action could cause severe electrical shock.
• Do not push or force any objects through any opening in the chassis frame. Such an action could result in electrical shock or fire.
• Avoid spilling liquid onto the chassis or onto any device component. Such an action could cause electrical shock or damage the device.
• Avoid touching uninsulated electrical wires or terminals that have not been disconnected from their power source. Such an action could cause electrical shock.
• Some parts of the chassis, including AC and DC power supply surfaces, power supply unit handles, SFB card handles, and fan tray handles might become hot. The following label provides the warning of the hot surfaces on the chassis:

• Always ensure that all modules, power supplies, and cover panels are fully inserted and that the installation screws are fully tightened.

Definitions of Safety Warning Levels

The documentation uses the following levels of safety warnings (there are two Warning formats):

NOTE: You might find this information helpful in a particular situation, or you might overlook this important information if it was not highlighted in a Note.

CAUTION: You need to observe the specified guidelines to prevent minor injury or discomfort to you or severe damage to the device.

WARNING: This symbol alerts you to the risk of personal injury from a laser.

WARNING: Thissymbolmeans danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

Qualified Personnel Warning

WARNING: Only trained and qualified personnel should install or replace the device.

Warning Statement for Norway and Sweden

WARNING: The equipment must be connected to an earthed mains socket-outlet.

Fire Safety Requirements

In the event of a fire emergency, the safety of people is the primary concern. You should establish procedures for protecting people in the event of a fire emergency, provide safety training, and properly provision fire-control equipment and fire extinguishers.

In addition, you should establish procedures to protect your equipment in the event of a fire emergency. Juniper Networks products should be installed in an environment suitable for electronic equipment. We recommend that fire suppression equipment be available in the event of a fire in the vicinity of the equipment and that all local fire, safety, and electrical codes and ordinances be observed when you install and operate your equipment.

Fire Suppression

In the event of an electrical hazard or an electrical fire, you should first turn power off to the equipment at the source. Then use a Type C fire extinguisher, which uses noncorrosive fire retardants, to extinguish the fire.

Fire Suppression Equipment

Type C fire extinguishers, which use noncorrosive fire retardants such as carbon dioxide and Halotron™, are most effective for suppressing electrical fires. Type C fire extinguishers displace oxygen from the point of combustion to eliminate the fire. For extinguishing fire on or around equipment that draws air from the environment for cooling, you should use

this type of inert oxygen displacement extinguisher instead of an extinguisher that leaves residues on equipment.

Do not use multipurpose Type ABC chemical fire extinguishers (dry chemical fire extinguishers). The primary ingredient in these fire extinguishers is monoammonium phosphate, which is very sticky and difficult to clean. In addition, in the presence of minute amounts of moisture, monoammonium phosphate can become highly corrosive and corrodes most metals.

Any equipment in a room in which a chemical fire extinguisher has been discharged is subject to premature failure and unreliable operation. The equipment is considered to be irreparably damaged.

NOTE: Tokeep warranties effective, donotusea dry chemicalfire extinguisher to control a fire at or near a Juniper Networks device. If a dry chemical fire extinguisher is used, the unit is no longer eligible for coverage under a service agreement.

We recommend that you dispose of any irreparably damaged equipment in an environmentally responsible manner.

Installation Instructions Warning

WARNING: Read the installation instructions before you connect the device to a power source.

Chassis and Component Lifting Guidelines

• Before moving the device to a site, ensure that the site meets the power, environmental, and clearance requirements.
• Before lifting or moving the device, disconnect all external cables and wires.
• As when lifting any heavy object, ensure that most of the weight is borne by your legs rather than your back. Keep your knees bent and your back relatively straight. Do not twist your body as you lift. Balance the load evenly and be sure that your footing is firm
• Use the following lifting guidelines to lift devices and components:
  • Up to 39.7 lb (18 kg): One person.
  • 39.7 lb (18 kg) to 70.5 lb (32 kg): Two or more people.
• 70.5 lb (32 kg) to 121.2 lb (55 kg): Three or more people.
• Above 121.2 lbs (55 kg): Material handling systems (such as levers, slings, lifts and so on) must be used. When this is not practical, specially trained persons or systems must be used (riggers or movers).

Restricted Access Warning

WARNING: This unit is intended for installation in restricted access areas. A restricted accessareaisanareatowhichaccesscan be gainedonly by service personnel through the use of a special tool, lock and key, or other means of security, and which is controlled by the authority responsible for the location.

WARNING: When installing the device, do not use a ramp inclined at more than 10 degrees.

Rack-Mounting and Cabinet-Mounting Warnings

Ensure that the rack or cabinet in which the device is installed is evenly and securely supported. Uneven mechanical loading could lead to a hazardous condition.

WARNING: To prevent bodily injury when mounting or servicing the device in a rack, take the following precautions to ensure that the system remains stable. The following directives help maintain your safety:

• The device must be installed in a rack that is secured to the building structure.
• The device should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting the device on a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing equipment, install the stabilizers before mounting or servicing the device in the rack.

Grounded Equipment Warning

WARNING: The device is intended to be grounded. During normal use, ensure that you have connected earth ground to the chassis.

Radiation from Open Port Apertures Warning

WARNING: Because invisible radiation might be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures.

Laser and LED Safety Guidelines and Warnings for the ACX5000 Router

ACX5000 routers are equipped with laser transmitters:

• SFP and SFP+ transceivers are classified as Class 1 Laser Products (complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice 50, dated July 26, 2001) or Class 1 LED Products.
• QSFP+ and QSFP28 transceivers are classified as Class 1M Laser Products (IEC 60825-1 2001–01).

Observe the following guidelines and warnings:

• General Laser Safety Guidelines on page 145
  • Class 1M Laser Product Warning on page 145
  • Class 1M Laser Radiation Warning on page 145
  • Class 1 Laser Product Warning on page 146
  • Class 1 LED Product Warning on page 146

• Laser Beam Warning on page 146
• Unterminated Fiber-Optic Cable Warning on page 147

General Laser Safety Guidelines

When working around ports that support optical transceivers, observe the following safety guidelines to prevent eye injury:

• Do not look into unterminated ports or at fibers that connect to unknown sources.
• Do not examine unterminated optical ports with optical instruments.
• Avoid direct exposure to the beam.

WARNING: Unterminated optical connectors can emit invisible laser radiation. The lens in the human eye focuses all the laser power on the retina, so focusing the eye directly on a laser source—even a low-power laser—could permanently damage the eye.

Class 1M Laser Product Warning

WARNING: Class 1M laser product.

Class 1M Laser Radiation Warning

WARNING: Class 1M laser radiation when open. Do not view directly with optical instruments.

Class 1 Laser Product Warning

WARNING: Class 1 laser product.

Waarschuwing Klasse-1 laser produkt.

Class 1 LED Product Warning

WARNING: Class 1 LED product.

WARNING: Do not stare into the laser beam or view it directly with optical instruments.

Unterminated Fiber-Optic Cable Warning

WARNING: Invisible laser radiation might be emitted from the unterminated connector of a fiber-optic cable. To avoid injury to your eye, do not view the fiber optics with a magnifying optical device, such as a loupe, within 100 mm.

Related Documentation

General Safety Guidelines and Warnings on page 132.

• Radiation from Open Port Apertures Warning on page 143

• Installation Instructions Warning on page 136

•Grounded Equipment Warning on page 143

Maintenance and Operational Safety Guidelines and Warnings

While performing the maintenance activities for devices, observe the following guidelines and warnings:

• Battery Handling Warning on page 149
• Jewelry Removal Warning on page 150
• Lightning Activity Warning on page 151
- Operating Temperature Warning on page 152
• Product Disposal Warning on page 153

Battery Handling Warning

WARNING: Replacing a battery incorrectly might result in an explosion.

Replace a battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Jewelry Removal Warning

WARNING: Before working on equipment that is connected to power lines, remove jewelry, including rings, necklaces, and watches. Metal objects heat up when connected to power and ground and can cause serious burns or can be welded to the terminals.

WARNING: Do not work on the system or connect or disconnect cables during periods of lightning activity.

Operating Temperature Warning

WARNING: To prevent the device from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature. To prevent airflow restriction, allow at least 6 in. (15.2 cm) of clearance around the ventilation openings.

Product Disposal Warning

WARNING: Disposal of this device must be handled according to all national laws and regulations.

General Electrical Safety Guidelines and Warnings

WARNING: Certain ports on the device are designed for use as intrabuilding (within-the-building) interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed outside plant (OSP) cabling. To comply with NEBS requirements and protect against lightning surges and commercial power disturbances, the intrabuilding ports must not be metallically connected to interfaces that connect to the OSP or its wiring. The intrabuilding ports on the device are suitable for connection to intrabuilding or unexposed wiring or cabling only. The addition of primary protectors is not sufficient protection for connecting these interfaces metallically to OSP wiring.

CAUTION: Before removing or installing components of a device, connect an electrostatic discharge (ESD) grounding strap to an ESD point and wrap and fasten the other end of the strap around your bare wrist. Failure to use an ESD grounding strap could result in damage to the device.

• Install the device in compliance with the following local, national, and international electrical codes:
• United States—National Fire Protection Association (NFPA 70), United States National Electrical Code.
• Other countries—International Electromechanical Commission (IEC) 60364, Part 1 through Part 7.
• Evaluated to the TN power system.
  • Canada—Canadian Electrical Code, Part 1, CSA C22.1.
• Locate the emergency power-off switch for the room in which you are working so that if an electrical accident occurs, you can quickly turn off the power.
• Make sure that grounding surfaces are cleaned and brought to a bright finish before grounding connections are made.
• Do not work alone if potentially hazardous conditions exist anywhere in your workspace.
• Never assume that power is disconnected from a circuit. Always check the circuit before starting to work.
• Carefully look for possible hazards in your work area, such as moist floors, ungrounded power extension cords, and missing safety grounds.
• Operate the device within marked electrical ratings and product usage instructions.
• To ensure that the device and peripheral equipment function safely and correctly, use the cables and connectors specified for the attached peripheral equipment, and make certain they are in good condition.

You can remove and replace many device components without powering off or disconnecting power tothedevice, as detailedelsewhereinthe hardwaredocumentation for this device. Never install equipment that appears to be damaged.

Action to Take After an Electrical Accident

If an electrical accident results in an injury, take the following actions in this order:

1. Use caution. Be aware of potentially hazardous conditions that could cause further injury.
2. Disconnect power from the device.
3. If possible, send another person to get medical aid. Otherwise, assess the condition of the victim, then call for help.

Prevention of Electrostatic Discharge Damage

Device components that are shipped in antistatic bags are sensitive to damage from static electricity. Some components can be impaired by voltages as low as 30 V. You can easily generate potentially damaging static voltages whenever you handle plastic or foam packing material or if you move components across plastic or carpets. Observe the following guidelines to minimize the potential for electrostatic discharge (ESD) damage, which can cause intermittent or complete component failures:

- Always use an ESD wrist strap when you are handling components that are subject to ESD damage, and make sure that it is in direct contact with your skin.

If a grounding strap is not available, hold the component in its antistatic bag (see Figure 57 on page 156) in one hand and touch the exposed, bare metal of the device with the other hand immediately before inserting the component into the device.

WARNING: For safety, periodically check the resistance value of the ESD grounding strap. The measurement must be in the range 1 through 10 Mohms.

• When handling any component that is subject to ESD damage and that is removed from the device, make sure the equipment end of your ESD wrist strap is attached to the ESD point on the chassis.
  If no grounding strap is available, touch the exposed, bare metal of the device to ground yourself before handling the component.
• Avoid contact between the component that is subject to ESD damage and your clothing. ESD voltages emitted from clothing can damage components.
• When removing or installing a component that is subject to ESD damage, always place it component-side up on an antistatic surface, in an antistatic card rack, or in an

antistatic bag (see Figure 57 on page 156). If you are returning a component, place it in an antistatic bag before packing it.

Figure 57: Placing a Component into an Antistatic Bag

CAUTION: ANSI/TIA/EIA-568 cables such as Category 5e and Category 6 can get electrostatically charged. To dissipate this charge, always ground the cables to a suitable and safe earth ground before connecting them to the system.

AC Power Electrical Safety Guidelines

CAUTION: For devices with AC power supplies, an external surge protective device (SPD) must be used at the AC power source.

The following electrical safety guidelines apply to AC-powered devices:

- Note the following warnings printed on the device:

"CAUTION: THIS UNIT HAS MORE THAN ONE POWER SUPPLY CORD. DISCONNECT ALL POWER SUPPLY CORDS BEFORE SERVICING TO AVOID ELECTRIC SHOCK."

"ATTENTION: CET APPAREIL COMPORTE PLUS D'UN CORDON D'ALIMENTATION. AFIN DE PRÉVENIR LES CHOCS ÉLECTRIQUES, DÉBRANCHER TOUT CORDON D'ALIMENTATION AVANT DE FAIRE LE DÉPANNAGE."

- AC-powered devices are shipped with a three-wire electrical cord with a grounding-type plug that fits only a grounding-type power outlet. Do not circumvent this safety feature. Equipment grounding must comply with local and national electrical codes.

- You must provide an external certified circuit breaker (2-pole circuit breaker or 4-pole circuit breaker based on your device) rated minimum 20 A in the building installation.

• The power cord serves as the main disconnecting device for the AC-powered device. The socket outlet must be near the AC-powered device and be easily accessible.
• For devices that have more than one power supply connection, you must ensure that all power connections are fully disconnected so that power to the device is completely removed to prevent electric shock. To disconnect power, unplug all power cords (one for each power supply).

Power Cable Warning (Japanese)

WARNING: The attached power cable is only for this product. Do not use the cable for another product.

注意

AC Power Disconnection Warning

WARNING: Before working on the device or near power supplies, unplug all the power cords from an AC-powered device.

ACX5000 DC Power Electrical Safety Guidelines and Warnings

The following electrical safety guidelines apply to a DC-powered router:

- A DC-powered device is equipped with a DC terminal block that is rated for the power requirements of a maximally configured device.

NOTE: To supply sufficient power, terminate the DC input wiring on a facility DC source that is capable of supplying:

• Minimum of 7 A at -48 VDC for ACX5000 router

Incorporate an easily accessible disconnect device into the facility wiring. Be sure to connect the ground wire or conduit to a solid office earth ground. A closed loop ring is recommended for terminating the ground conductor at the ground stud.

- Run two wires from the circuit breaker box to a source of 48 VDC.

- A DC-powered device that is equipped with a DC terminal block is intended only for installation in a restricted access location. In the United States, a restricted access area is one in accordance with Articles 110-16, 110-17, and 110-18 of the National Electrical Code ANSI/NFPA 70.

NOTE: Primary overcurrent protection is provided by the building circuit breaker. This breaker must protect against excess currents, short circuits, and earth grounding faults in accordance with NEC ANSI/NFPA 70.

- Ensure that the polarity of the DC input wiring is correct. Under certain conditions, connections with reversed polarity might trip the primary circuit breaker or damage the equipment.

- For personal safety, connect the green and yellow wire to safety (earth) ground at both the device and the supply side of the DC wiring.

- The marked input voltage of -48 VDC for a DC-powered device is the nominal voltage associated with the battery circuit, and any higher voltages are only to be associated with float voltages for the charging function.

- Because the device is a positive ground system, you must connect the positive lead to the terminal labeled RTN, the negative lead to the terminal labeled -48 VDC, and the earth ground to the device grounding points.

Related Documentation

DC Power Copper Conductors Warning on page 159.

•DC Power Disconnection Warning on page 159
•DC Power Grounding Requirements and Warning on page 161
•DC Power Wiring Sequence Warning on page 161
•DC Power Wiring Terminations Warning on page 163

DC Power Copper Conductors Warning

WARNING: Use copper conductors only.

DC Power Disconnection Warning

WARNING: Before performing any of the DC power procedures, ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the device handle of the circuit breaker in the OFF position.

DC Power Grounding Requirements and Warning

An insulated grounding conductor that is identical in size to the grounded and ungrounded branch circuit supply conductors but is identifiable by green and yellow stripes is installed as part of the branch circuit that supplies the device. The grounding conductor is a separately derived system at the supply transformer or motor generator set.

WARNING: When you install the device, the ground connection must always be made first and disconnected last.

DC Power Wiring Sequence Warning

WARNING: Wire the DC power supply using the appropriate lugs. When connecting power, the proper wiring sequence is ground to ground, +RTN to +RTN, then -48 V to -48 V. When disconnecting power, the proper wiring sequence is -48 V to -48 V, +RTN to +RTN, then ground to ground. Note that the ground wire must always be connected first and disconnected last.

DC Power Wiring Terminations Warning

WARNING: When stranded wiring is required, use approved wiring terminations, such as closed-loop or spade-type with upturned lugs. These terminations must be the appropriatesize for the wires and must clamp both the insulation and conductor.

Multiple Power Supplies Disconnection Warning

WARNING: The network device has more than one power supply connection. All connections must be removed completely to remove power from the unit completely.

WARNING: The device is designed to work with a TN power system.

Agency Approvals for an ACX5000 Router

The ACX5000 router complies with the following standards:

- Safety

• CAN/CSA-C22.2 No. 60950-1 Information Technology Equipment - Safety

• EN 60950-1 Information Technology Equipment - Safety

- IEC 60825-1

• IEC 60950-1 Information Technology Equipment - Safety CB Scheme report

• UL 60950-1 Information Technology Equipment - Safety

• EMC

• EN 55022, Class A

• CISPR 22, Class A

• Australian Communications and Media Authority (ACMA) AS/NZS CISPR 22: Class A

• FCC Part 15, Subpart B, for Class A digital devices

• Industry Canada ICES 003, Class A
• VCCI Regulations for Voluntary Control Measures of Radio Interference Generated by Information Technology Equipment, (Class A).
• EN 300 386, Class A
• EN 61000-3-2 Power Line Harmonics
• EN 61000-3-3 Voltage Fluctuations and Flicker
• EN 55024
• CISPR 24

Related Documentation

Compliance Statements for EMC Requirements for the ACX5000 Router on page 166.

Compliance Statements for EMC Requirements for the ACX5000 Router

This topic describes the EMC requirements for the ACX5000 router for:

• Canada on page 166
• European Community on page 167
• Israel on page 167
- Japan on page 167
- Korea on page 168
• United States on page 168

• Nonregulatory Environmental Standards on page 168

Canada

This Class A digital apparatus complies with Canadian ICES-003.

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and safety requirements. Industry Canada does not guarantee the equipment will operate to the users' satisfaction.

Before installing this equipment, users should ensure that it is permissible to connect the equipment to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this

equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

CAUTION: Users should not attempt to make electrical ground connections by themselves, but should contact the appropriate inspection authority or an electrician, as appropriate.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

European Community

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Israel

הַרְשָׁה

Translation from Hebrew-Warning: This product is Class A. In residential environments, the product may cause radio interference, and in such a situation, the user may be required to take adequate measures.

Japan

The preceding translates as follows:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

VCCI-A

Korea

Korean Class A Warning

040913

The preceding translates as follows:

This equipment is Industrial (Class A) electromagnetic wave suitability equipment and seller or user should take notice of it, and this equipment is to be used in the places except for home.

United States

Therouter has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Nonregulatory Environmental Standards

ACX5000 routers are designed to be Network Equipment Building System (NEBS) compliant.

Those device product SKUs are designed to meet the following NEBS compliance standards:

• SR-3580 NEBS Criteria Levels (Level 3 Compliance)
- GR-1089-CORE, Issue 6: EMC and Electrical Safety—Generic Criteria for Network Telecommunications Equipment
- The equipment is suitable for installation in locations where the National Electrical Code (NEC) applies.
- The battery return connection is to be treated as an Isolated DC return (DC-I), as defined in GR-1089-CORE.

• GR-63-CORE: NEBS, Physical Protection

- The equipment is suitable for installation as part of the Common Bonding Network (CBN).

• The equipment is suitable for installation in a central office (CO).

Related •Agency Approvals for an ACX5000 Router on page 165 Documentation
