GC-A207CVBA - Freezer LG - Free user manual and instructions

Product type	Freezer
Brand	LG
Model	GC-A207CVBA
Energy efficiency class	A+
Total net capacity	200 L (approx.)
Height	169 cm
Width	54.5 cm
Depth	61.6 cm
Weight	58 kg
Power supply	220-240 V, 50 Hz
Annual energy consumption	~280 kWh
Noise level	42 dB
Climate class	SN-T
Freezing capacity	12 kg/24h
Storage time during power failure	12 hours
Refrigerant	R600a
Functions	Fast freeze, temperature alarm, child lock
Display	Digital LED
Number of drawers	4
Defrosting	Manual
Installation	Freestanding
Warranty	2 years (limited)

Frequently Asked Questions - GC-A207CVBA LG

How do I set the temperature on my LG GC-A207CVBA freezer?

Press the temperature control button on the display panel repeatedly until the desired temperature appears. The recommended setting is -18°C.

How often should I defrost the freezer?

Defrost when the frost layer reaches about 5 mm. For manual defrost models, unplug the unit and remove all food, then let the frost melt. Clean and dry before restarting.

What does the alarm light mean?

The alarm lights up if the interior temperature rises too high, e.g., after a door left open or a power failure. Check the door seal and close properly. If persistent, contact service.

Can I change the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions. You will need a screwdriver and maybe assistance.

How do I clean the freezer?

Unplug the appliance and remove all food. Wipe interior with a mild detergent solution and warm water. Avoid abrasive cleaners. Rinse and dry thoroughly before restarting.

Why is my freezer making unusual noises?

Normal noises include humming, gurgling, or clicking from the compressor and refrigerant flow. If it sounds like banging or rattling, check if it is level and items are not touching the back.

What is the 'Fast Freeze' function?

Fast Freeze runs the compressor continuously to rapidly lower temperature, ideal for freezing fresh food. Activate it 24 hours before adding a large load. It switches off automatically.

How long does food stay frozen during a power failure?

The storage time is approximately 12 hours if the door remains closed. Avoid opening the door to preserve cold air.

Where can I find spare parts for my LG freezer?

Authorized LG service centers and online parts retailers carry original spare parts. Check the manual for part numbers and contact LG support.

How do I save energy with my freezer?

Place the freezer away from heat sources, ensure proper ventilation around the appliance, keep the door closed, and set the temperature to -18°C. Defrost regularly.

USER MANUAL GC-A207CVBA LG

Please read this guide thoroughly before operating and keep it handy for reference at all times.

FRIGORÍFICO SXS

Guía de usuario

Important safety instruction 3

Identification of parts 4

Installation

Where to locate 5

Door removal 6

Door replacement 7

Height adjustment 7

Operation

Starting 8

Adjusting the temperatures and functions 8

Ice making 11

Wine holder (Applicable to some models only) 12

Egg box (Applicable to some models only) 13

Humidity control in the vegetable compartment 13

Deodorizer (Applicable to some models only) 13

Suggestion on food storage

Location of foods 14

Storing foods 15

Care and maintenance

How to dismantle parts 16

General information 17

Cleaning 17

Trouble shooting 18

Entry

The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of purchase	:
Dealer purchased from	:
Dealer address	:
Dealer phone no.	:
Model no.	:
Serial no.	:

Important safety instruction

This refrigerator must be properly installed and located in accordance with the installation instructions before it is used.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

When moving your appliance away from the wall, be careful not to roll over or damage the power cord.

After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.

Unplug the power cord from the power plug for cleaning or other cares. Never touch it with wet hands because you can get an electric shock or be hurt.

Never damage, process, severely bend, pull out, or twist power cord because power cord damage may cause a fire or electric shock. You have doubts on whether the appliance is properly grounded.

Never place glass products in the freezer because they may be broken when their inner matters are frozen.

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Do not modify or extend the Power Cord length. - It will cause electric shock or fire.

Don't use an extension cord

Accessibility of Supply Plug Supply Cord Replacement Warning

Child entrapment warning

Don't store

Grounding (Earthing)

DANGER: Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

Take off the doors

Leave the shelves in place so that children may not easily climb inside.

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Don't store or use gasoline or other flammable vapor and liquids in the vicinity of this or any other appliance.

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

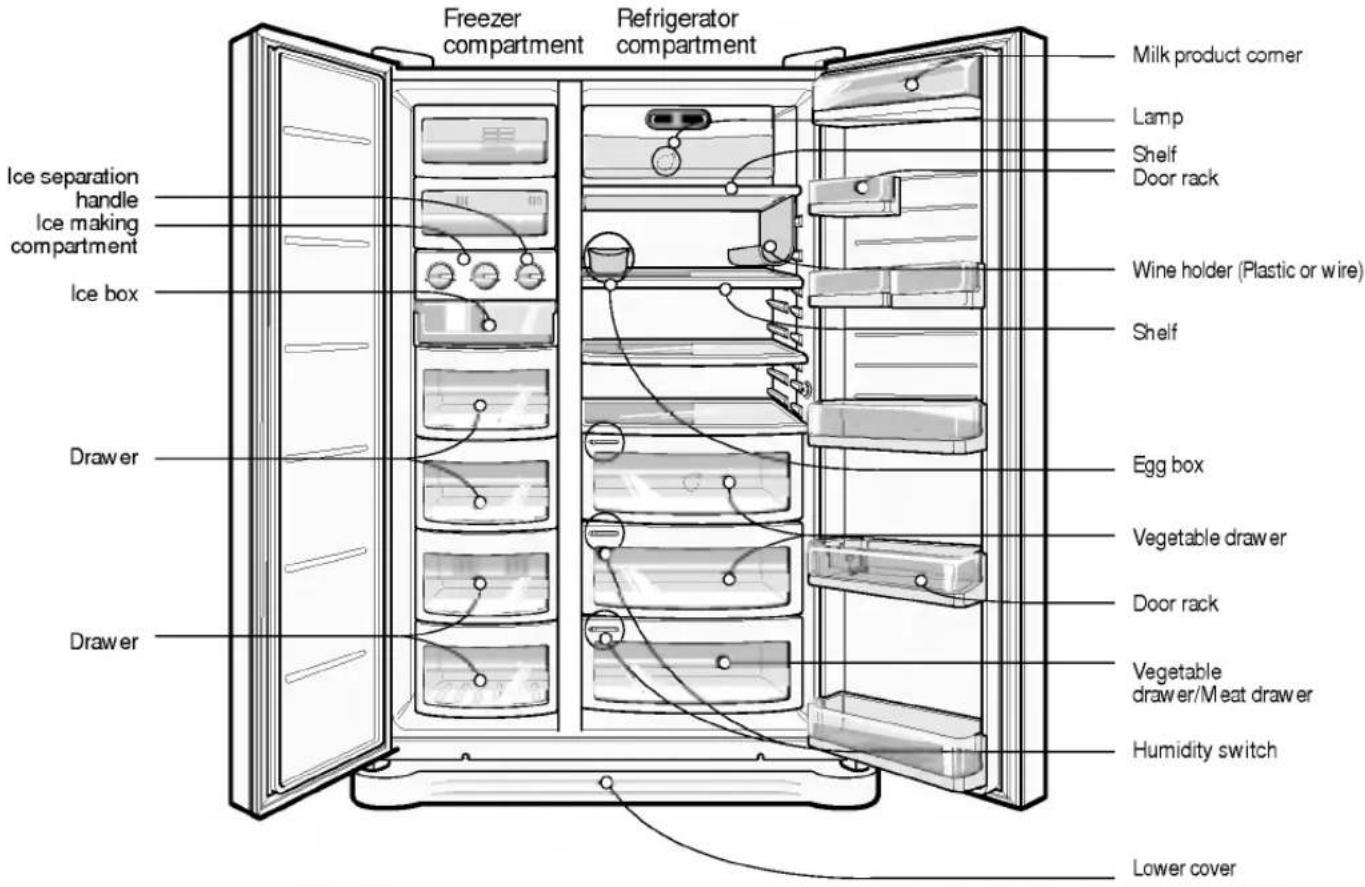

Identification of parts

Freezer compartment Refrigerator compartment Ice separation handle Ice making compartment Ice box Drawer Drawer Milk product corner Lamp Shelf Door rack Wine holder (Plastic or wire) Shelf Egg box Vegetable drawer Door rack Vegetable drawer/M eat drawer Humidity switch Lower cover

NOTE

- If you find some parts missing from your unit, they may be parts only used in other models.

Select a good location

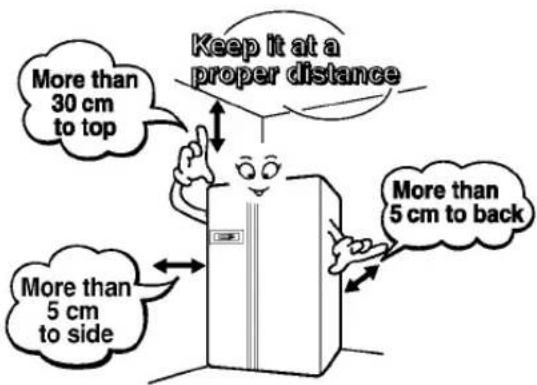

Where to locate

1. Place your appliance where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. Air must circulate properly around your appliance to ensure efficient operation. If your appliance is placed in a recessed area in the wall, allow at least a 12 inches (30 cm) or greater clearance above the appliance and 2 inches (5 cm) or more from the wall. The appliance should be elevated 1 inch (2.5 cm) from the floor, especially if it is carpeted.
4. To avoid vibrations, the appliance must be leveled.
5. Don't install the appliance below 5°C. It may cause affect the performance.

More than 30 cm to top Keep it at a proper distance More than 5 cm to back More than 5 cm to side

Warning

Remove lower cover

Remove the freezer compartment door

Door removal

Electric Shock Hazard

Disconnect electrical supply to refrigerator before installing.

Failure to do so could result in death or serious injury.

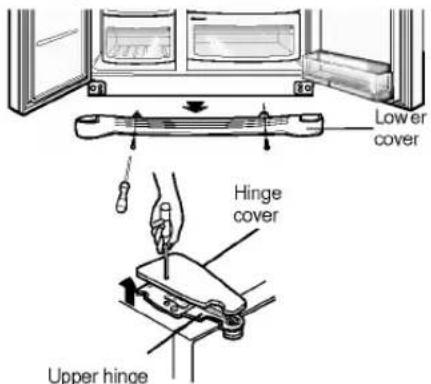

If your access door is too narrow for the refrigerator remove the refrigerator door and pass the refrigerator laterally.

Remove the lower cover by lifting upward.

1) Removing the hinge cover by loosening the screws. Separate all connection wires except for the earth line after.
2) Remove the keeper by rotating it to counter clockwise (①) and then lifting the upper hinge up (②).

Lower cover Hinge cover Upper hinge

Keeper Upper hinge ① ②

NOTE

- When removing the upper hinge, be careful that the door does not fall forwards.

3) Remove the freezer compartment door by lifting it upward.

Lower hinge

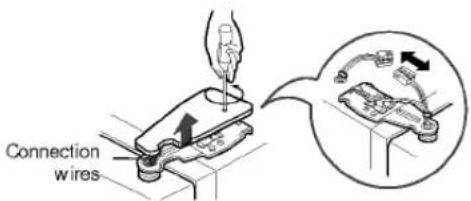

Remove the refrigerator door

1) Loosen the hinge cover screws and remove the cover. Remove connection wire if any, except for the earth line.
2) Remove keeper by rotating it clockwise (①) and then remove upper hinge by lifting it up (②).
3) Remove refrigerator compartment door by lifting up.

Connection wires

Upper hinge Keeper ① ②

Pass the refrigerator

Pass the refrigerator laterally through access door as shown in the right figure.

Illustration of a kitchen scene with a person standing beside an open refrigerator (no text or symbols visible)

If the freezer compartment door is lower than the refrigerator compartment door

If the freezer compartment door is higher than the refrigerator compartment door

After leveling the door height

Next

Door replacement

Mount them in the reverse sequence of removal after they pass through the access door.

Height adjustment

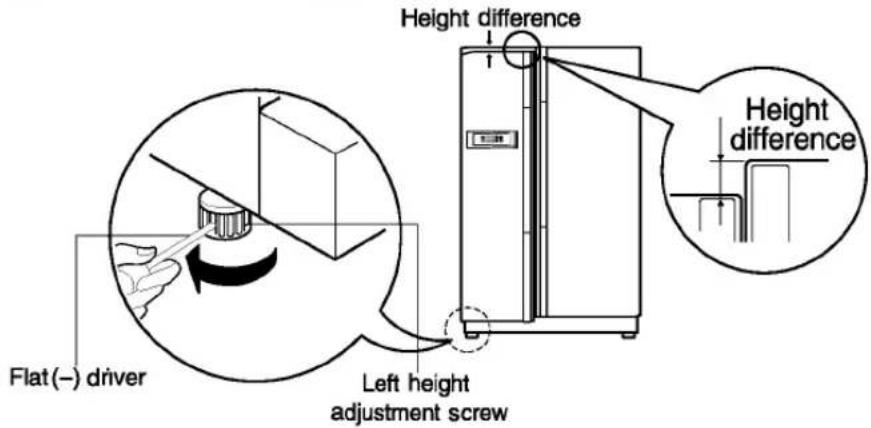

Level the door by inserting flat (- type) driver into the groove of the left height adjusting screw and rotate it to the arrow direction (←).

Height difference Height difference Flat (−) driver Left height adjustment screw

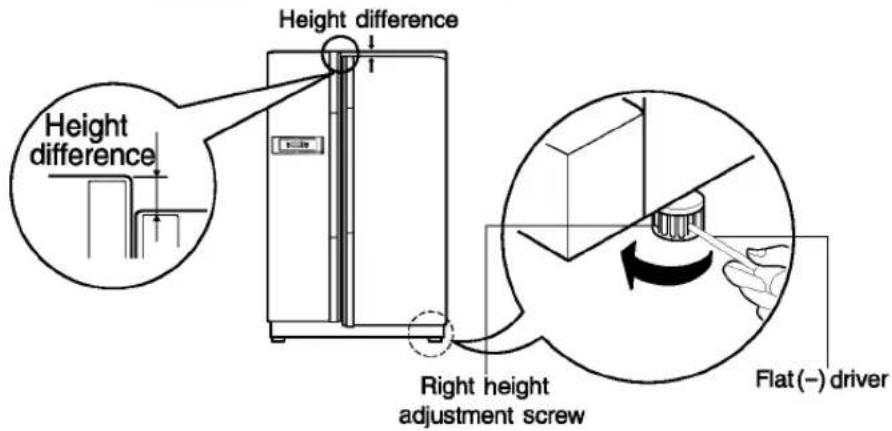

Level the door by inserting flat (- type) driver into the groove of the right height adjusting screw and rotate it to the arrow direction (←).

Height difference Height difference Right height adjustment screw Flat(-) driver

The refrigerator doors will close smoothly by heightening the front side by adjusting the height adjusting screw. If the doors do not close correctly, performance may be affected.

1. Wipe off all dust accumulated during shipping and clean your appliance thoroughly.
2. Install accessories such as the wine corner, cover evaporating tray, etc., in their proper places. They are packed together to prevent possible damage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to use, let the appliance run for 2-3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling has taken place. Your appliance is now ready for use.

Starting

When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting.

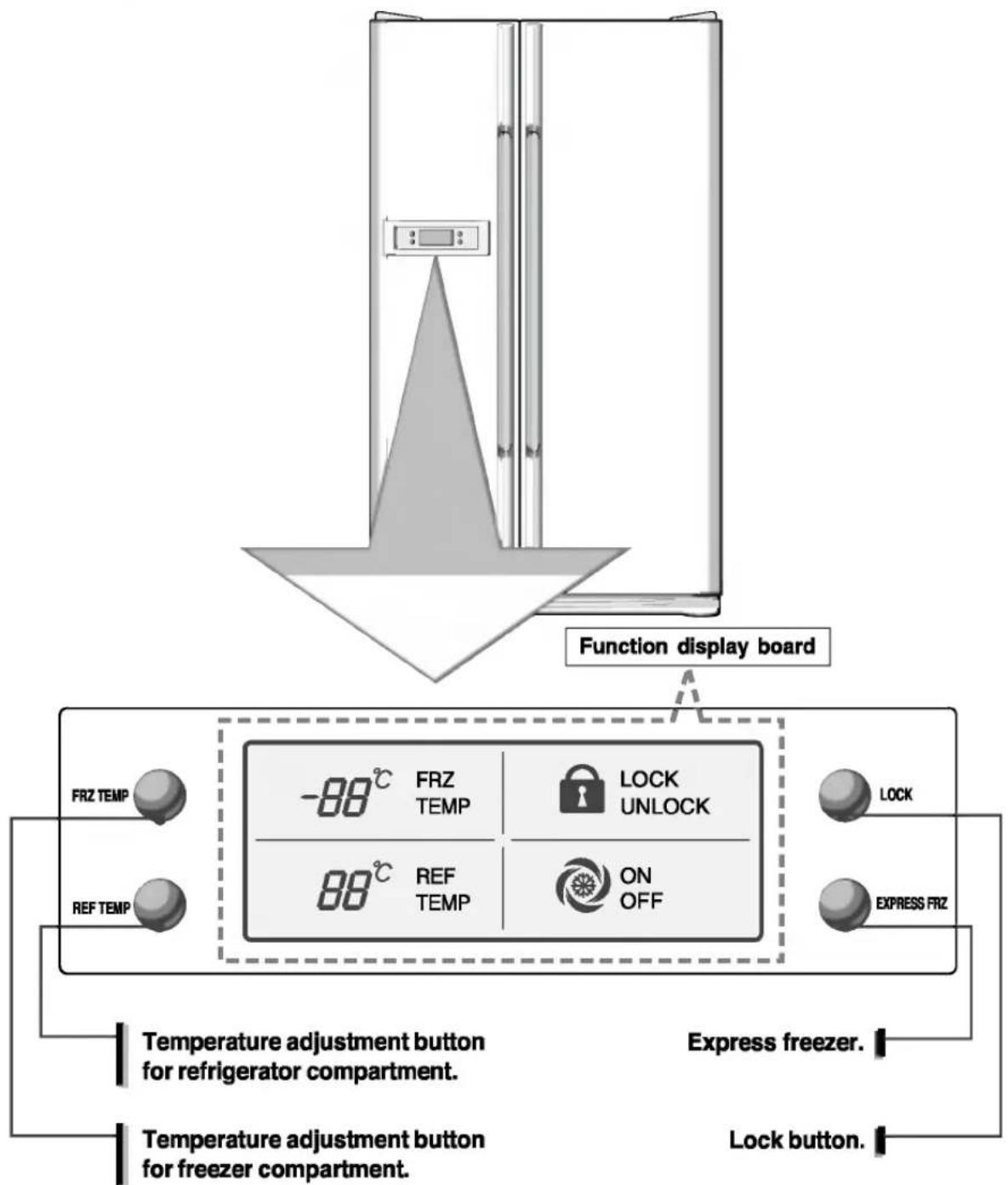

Adjusting the temperatures and functions

Function display board FRZ TEMP FRZ TEMP LOCK UNLOCK REF TEMP 88°C REF TEMP ON OFF LOCK EXPRESS FRZ Temperature adjustment button for refrigerator compartment. Express freezer. Temperature adjustment button for freezer compartment. Lock button.

How to adjust the temperature in the freezer compartment

How to adjust the temperature in the refrigerator compartment

Express freezer

Lock

You can adjust temperature of and freezer room and refrigerator room.

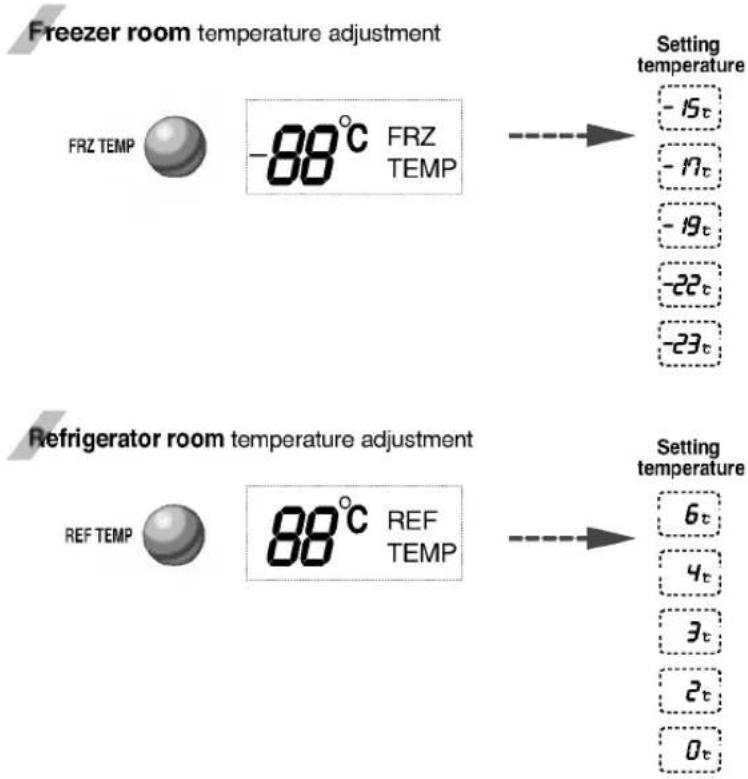

Freezer room temperature adjustment FRZ TEMP -88°C FRZ TEMP Setting temperature -15t -17t -19t -22t -23t Refrigerator room temperature adjustment REF TEMP 88°C REF TEMP Setting temperature 6t 4t 3t 2t 0t

* Whenever pressing button, setting is repeated in the order of (Middle) → (Middle Strong) → (Strong) → (Weak) → (Middle Weak).

- The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator.

- Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2\~3 days.

Please select this function for prompt freezer.

• "On" or "Off" is repeated whenever pressing button.
• The arrow mark graphic remains at the On status when selecting Special Refrigeration "On".
• Super freezer function automatically turns off if a fixed time passes.

This button stops operation of different button.

• Locking or Release is repeated whenever pressing the LOCK.
• Pressing the other button when selecting 'LOCK', the button(3 sec.) does not operate.

EXPRESS FIZ

ON

OFF

EXPRESS FRZ

ON-

ON

Ex) In selecting "On"

Ex) In selecting "Off"

LOCK

UNLOCK

LOCK

-lock-

UNLOCK

LOCK

- UNLOCK -

Ex) In selecting "LOCK"

Ex) In selecting "LOCK" again

The other functions

Door open warning

• 3 times of warning sounds at the interval of 30 seconds if a minute passes with the door of refrigerator and the hombar door opened or completely closed.
• Please contact with the local service center if warning continue to sound even after closing the door.

Diagnosis (failure detection) function

• Diagnosis function automatically detects failure when failure is found in product during the use of refrigerator.
• If failure occurs at product, it does not operate though pressing any button and normal indication is not done. In this case, do not turn power off but immediately contact with the local service center. A lot of time are need for service engineer to detect the failed part if turning it off.

Door open alarm

An alarm will sound 3 times when the refrigerator door is left open for more than 1 minute. This alarm will be rung at an intervals of 30 sec. and stop at the close of the door. If the alarm sound does not stop even after the freezer and refrigerator compartment doors are closed, contact the service center.

Self-diagnosis (fault detection) function

Self-diagnosis function operates when a problem occurs in the unit. When an error occurs in the unit. Immediately contact the service center without turning the power OFF. If the power is OFF, it will take the engineer longer to find out where the fault occurs.

The pressing of any function buttons will not alter the temperature setting when a fault occurs.

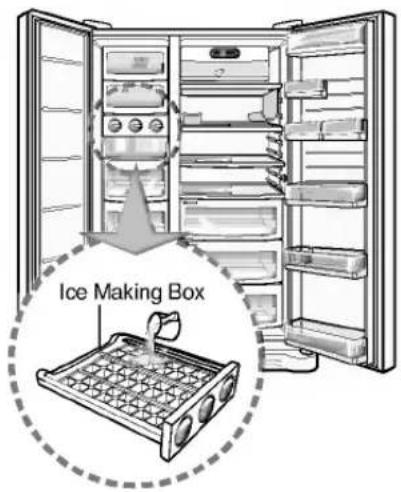

When making Ice

Ice Making

- Fill water in ice making box of the ice making corner. If water is fully filled the ice will not be separated well and water can be dropped to make ice lumped.

Ice Making Box

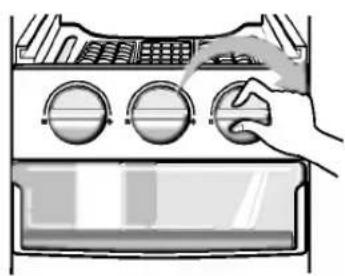

- Ice will be dropped into the ice storage bin by rotating ice separation handle of ice making compartment.

Illustration of a hand pressing down on a front-loading air conditioner unit (no text or symbols visible)

NOTE

- Rotating the ice separation handle before ice is fully frozen may cause the remaining water drop into the ice storage bin to lump the ice together.

Wine holder adjustment (Type 1)

Wine holder (Applicable to some models only)

Bottles can be stored laterally with this wine corner.

This can be attached to any shelf.

Diagram of a multi-tiered vertical platform with a curved arrow indicating rotation or movement (no text or symbols)

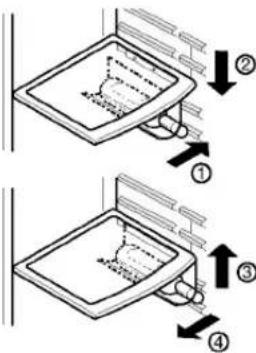

In case of inserting the wine holder :

Pull the wine holder downward as in ② after inserting it into the side anchoring part of the shelf as in ① by catching it upward as in ①.

Diagram illustrating four steps of a device or cleaning process with labeled arrows and components

In case of separating the wine holder :

Pull the wine holder inward as in ④ after holding it upward as in ③ by catching it.

(Type 2)

Bottles can be stored laterally with this wine rack.

Egg box (Applicable to some models only)

You can move the egg box to wherever you want.

Line drawing of a rectangular container filled with eggs (no text or symbols)

[Type-1]

[Type-2]

NOTE

• Never use the egg box as an ice storage bin. It can be broken.
• Never store the egg box in the freezer compartment or fresh compartment.

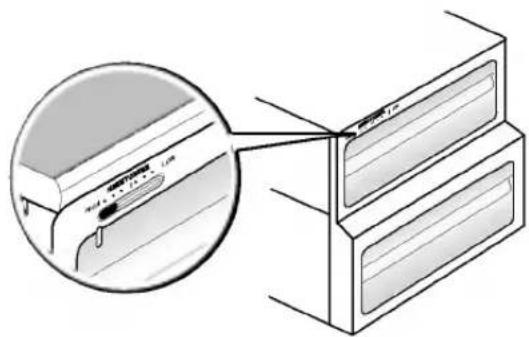

Humidity control in the vegetable compartment

The humidity can be controlled by adjusting the humidity control switch to the left/right when storing vegetables or fruits.

High humidity

HUMIDITY CONTROL HIGH •••••• | •••••• LOW

Diagram showing a device with a switch and labeled ports, including an inset magnified view of the switch's internal structure.

Low humidity

HUMIDITY CONTROL HIGH ••••• ••••• LOW

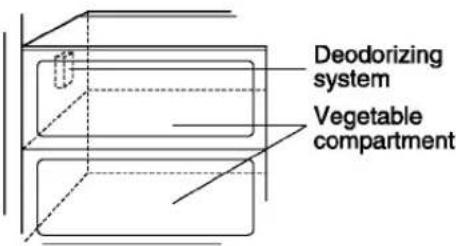

Deodorizer (Applicable to some models only)

This system efficiently absorbs strong odors by using the optical catalyst. This system does hot have any affect on stored food.

Deodorizing system Vegetable compartment

How to use the deodorizing system

• Since it is installed already installed onto the cool air intake duct from the from the refrigerator compartment, you need no separate installation.
• Please use closed containers to store food with pungent odors. Otherwise, this oder can be absorbed by other food in the compartment.

Location of foods

(Refer to identification of parts)

Wine holder

Freezer compartment drawer

Milk product corner

Egg box

Refrigerator compartment shelf

Refrigerator compartment door rack

Vegetable drawer

Store wine.

• Store meat, fish, chicken, etc.. after wrapping them with thin foil.
  ■ Store dry.

Store milk products such as butter, cheese, etc..

Place this egg box in the proper location.

Store side dishes or other foods at a proper distance.

Store small packed food or beverages such as milk, juice, beer, etc..

Store vegetables or fruits.

Illustration of various food items including a breakfast, lunch box, eggs, storage bin, bottle, fruits, and vegetables (no text or labels)

Refrigerator compartment

Storing foods

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, and melons.
• Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher electric bills.
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.
• Never keep too many foods in door rack because they may be interrupted by inner racks so that the door cannot be fully closed.
• Avoid placing moist food upmost refrigerator shelves, it could freeze upon direct contact with chilled air.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer.

NOTE

- If you keep the refrigerator in a hot and humid place, frequent opening of the door or storing a lot of vegetables in it may cause dew to form which has no effect on its performance. Remove the dew with dust cloth free from care.

How to dismantle parts

NOTE

- Dismantling is done in the reverse sequence of assembly. Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged.

Lamp in refrigerator compartment

To remove the lamp cover, press the protrusion under the lamp cover to the front and then pull the lamp cover out. Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be purchased at a service center.

Illustration of hands pressing down on a device panel with a curved arrow indicating rotation (no text or symbols)

Vegetable compartment cover

- To remove the vegetable compartment cover, pull out the vegetable compartment a bit to the front ①, lift the front part of the vegetable compartment cover as shown by ②, and take it out.

Diagram showing two labeled steps of a document handling with arrows indicating movement or flow direction.

Vacation time

Power failure

If you move

Anti condensation pipe

Exterior

Interior

After cleaning

Warning

General information

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life.

When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off.

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the height adjusting screws, turn them all the way into the base.

The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation.

Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerator to prevent "sweating" on the outer cabinet wall.

Cleaning

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator.

Wipe with a clean damp cloth and then dry.

Regular cleaning is recommended. Wash all compartments a baking soda solution or a mild detergent and warm water. Rinse and dry.

Please verify that the power cord is not damaged, power plug is not overheated, or power plug is well inserted into the power consent.

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock.

Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface.

Do not touch frozen surfaces with wet or damp hands, because damp object will stick or adhere to extremely cold surfaces.

Trouble shooting

Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Occurrence	Possible cause	Solution
Running of refrigerator
Refrigerator compressor does not run.	Refrigerator control is off.	Set refrigerator control. See setting the controls.
	Refrigerator is in defrost cycle.	This is normal for a fully automatic defrosting refrigerator. The defrost cycle occurs periodically.
	Plug at wall outlet is disconnected.	Make sure plug is tightly pushed into outlet.
	Power outage. Check house lights.	Call local electric company.
Refrigerator runs too much or too long	Refrigerator is larger than the previous one you owned.	This is normal. Larger, more efficient units run longer in these conditions.
	Room or outside weather is hot.	It is normal for the refrigerator to work longer under these conditions.
	Refrigerator has recently been disconnected for a period of time.	It takes some hours for the refrigerator to cool down completely.
	Large amounts of warm or hot food may have been stored recently.	Warm food will cause the refrigerator to run longer until the desired temperature is reached.
	Doors are opened too frequently or too long.	Warm air entering the refrigerator causes it to run longer. Open the door less often.
	Refrigerator or freezer door may be slightly open.	Make sure the refrigerator is level. Keep food and containers from blocking door. See problem section. OPENING/CLOSING of doors.
	Refrigerator control is set too cold.	Set the refrigerator control to a warmer setting until the refrigerator temperature is satisfactory.
	Refrigerator or freezer gasket is dirty, worn, cracked, or poorly fitted.	Clean or change gasket. Leaks in the door seal will cause refrigerator to run longer in order to maintain desired temperatures.
	Thermostat is keeping the refrigerator at a constant temperature.	This is normal. Refrigerator goes on and off to keep the temperature constant.
Temperatures are too cold
Temperature in the freezer is too cold and the refrigerator temperature is satisfactory.	Freezer control is set too cold	Set the freezer control to a warmer setting until the freezer temperature is satisfactory.
Temperature in the refrigerator is too cold and the freezer temperature is satisfactory.	Refrigerator control is set too cold.	Set the refrigerator control to a warmer setting
Food stored in drawers freezes.	Refrigerator control is set too cold.	See above solution.
Meat stored in fresh meat drawer freezes.	Meat should be stored at temperature just below the freezing point of water (32°F, 0°C) for maximum fresh storage time.	It is normal for ice crystals to form due to the moisture content of meat.
Temperatures are too warm
Temperatures in the freezer is too warm.	Freezer control is set too warm.	Set the freezer control to a colder setting until the freezer temperature is satisfactory.
	Refrigerator control is set too warm. Refrigerator control has some effect on freezer temperature.	Set the freezer control to a colder setting until the freezer temperature is satisfactory.
Temperatures in the refrigerator or freezer is too warm.	Doors are opened too frequently or too long.	Warm air enters the refrigerator/ freezer whenever the door is opened. Open the door less often.
	Door is open slightly.	Close the door completely.
	Large amounts of warm of hot food may have been stored recently.	Wait until the refrigerator or freezer has had a chance to reach its selected temperature.
	Refrigerator has recently been disconnected for a period of time.	A refrigerator requires some hours to cool down completely.
Temperature in the refrigerator is too warm and the freezer temperature is satisfactory.	Refrigerator control is set too warm.	Set the refrigerator control to a colder setting.
Sound and noise
Louder sound levels when refrigerator is on.	Today's refrigerators have increased storage capacity and maintain more even temperatures.	It is normal for sound levels to be higher.
Louder sound levels when compressor comes on.	Refrigerator operates at higher pressures during the start of the ON cycle.	This is normal. Sound will level off as refrigerator continues to run.
Vibrating or rattling noise.	Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly.	Be sure floor is level and solid and can adequately support refrigerator.
	Items placed on the top of refrigerator are vibrating.	Remove items.
	Dishes are vibrating on the shelves in the refrigerator.	It is normal for dishes to vibrate slightly. Move dishes slightly. Make sure refrigerator is level and solidly set on floor.
	Refrigerator is touching wall or cabinets.	Relieve or move refrigerator
Water/Moisture /Ice inside refrigerator
Moisture collects on inside of refrigerator walls.	Weather is hot and humid which increases rate of frost buildup and internal sweating.	This is normal.
	Door is slightly open.	See problem section opening/closing of doors.
	Door is opened too often or too long.	Open the door less often.
Water/Moisture /Ice outside refrigerator
Moisture forms on outside of refrigerator or between doors.	Weather is humid.	This is normal in humid weather. When humidity is lower, the moisture should disappear.
	Door is slightly open, causing cold air from the inside the refrigerator to meet warm air from the outside.	This time, close the door completely.
Odors in refrigerator
	Interior needs to be cleaned.	Clean interior with sponge, warm water and baking soda.
	Food with strong odor is in refrigerator.	Cover food completely.
	Some containers and wrapping paper produce odors.	Use a different container or brand of wrapping paper.
Opening/Closing of doors/Drawers
Door(s) will not close.	Food package is keeping door open.	Move packages that keep door from closing.
Door(s) will not close. (Continued)	Door was closed too hard, causing other door to open slightly.	Close both doors gently.
	Refrigerator is not level. It rocks on the floor when it is moved slightly.	Adjust the height adjusting screw.
	Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly.	Be sure floor is level and can adequately support refrigerator. Contact carpenter to correct sagging or sloping floor.
	Refrigerator is touching wall or cabinets.	Relieve or move refrigerator..
Drawers are difficult to move.	Food is touching shelf on top of drawer	Keep less food in drawer.
	Track that drawer slides on is dirty.	Clean drawer and track.
Other	Please thoroughly read this manual.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Contenidos

Introducció

Datos Preliminares 23

Illustration of a person standing beside an open refrigerator in a kitchen setting (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a kitchen appliance with three circular gauges (no text or symbols visible)

NOTA

Diagram of two stacked square chambers with a curved arrow indicating rotation or movement (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or control mechanism.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or system.

(Tipo 2)

Simple line drawing of a rectangular container filled with eggs (no text or symbols)

[Tipo-1]

[Tipo-2]

NOTA

Diagram showing a device with labeled ports and an inset magnified view of the main component.

Illustration of various food items including chicken, bread, eggs, cooking pot, bottle, vegetables, and radish (no text or labels)

Frigorífico

Guardar alimentos

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

Tapa del compartimento de verduras

Diagram showing a mechanical or electronic component with labeled parts and directional arrows indicating movement or force.

Vacaciones

Fallo de corriente

Si se traslada

Symbol of a trash bin with crossed x-marks and a horizontal bar below (no text or labels)

CÓMO DESHACERSE DE APARATOS ELÉCTRICOS Y ELECTRÓNICOS VIEJOS

Life's Good LG

TARJETA DE GARANTÍA

Illustration of a hand pressing down on a three-cylinder air conditioner oven (no text or symbols)

OBSERVAÇÃO:

Diagram of a multi-tiered storage unit with a curved arrow indicating rotation (no text or symbols)

Para inserir o suporte para garrafa de vinho :

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating movement or force.

Para retirar o suporte para garrafa de vinho :

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly.

(Tipo 2)

Line drawing of a rectangular container filled with eggs (no text or symbols)

[Tipo-1]

[Tipo-2]

OBSERVAÇÃO

Diagram showing a device with labeled ports and a magnified inset highlighting the port's internal structure.

Illustration of various food items including breakfast, eggs, cooking pot, milk bottle, vegetables, and radish (no text or labels)

Compartimento do frigorífico

Illustration of hands pressing down on a device with a curved arrow indicating rotation (no text or symbols)

Tampa do compartimento das verduras

Diagram showing two labeled steps of a document handling or folding, with arrows indicating movement direction.

Período de férias

Symbol of a trash bin crossed with diagonal lines, no text or numbers present
