Brand	Insignia
Model	NS-2V17R
Product Type	Media Player
Dimensions (HxWxD)	100 x 60 x 20 mm
Weight	150 g
Power Supply	5V 1A via USB or AC adapter
Video Playback	AVI, MKV, MP4, WMV, MOV, VOB
Audio Playback	MP3, WMA, WAV, AAC, FLAC
Image Viewer	JPEG, BMP, PNG, GIF
Media Support	USB flash drive, SD/MMC card (up to 32GB)
Output Interface	HDMI, Composite AV, USB 2.0
Video Resolution	720p, 1080p up to 30fps
Audio Output	Stereo analog, HDMI digital
Remote Control	Infrared, included
Subtitle Support	SRT, SUB, SMI
File System	FAT32, NTFS
Cleaning	Wipe with dry soft cloth; avoid liquids
Safety Precautions	Do not expose to moisture; keep away from heat sources
Spare Parts & Repairability	Replacement remote available; contact Insignia support

Frequently Asked Questions - NS-2V17R INSIGNIA

How do I connect the media player to my TV?

Use the included HDMI cable to connect the player to your TV's HDMI port. Alternatively, use the composite AV cables (red/white/yellow) if your TV supports them.

What file formats are supported for video playback?

The player supports AVI, MKV, MP4, WMV, MOV, and VOB formats up to 1080p resolution.

Can I play music from my USB drive?

Yes, insert a USB flash drive formatted as FAT32 or NTFS with music files in MP3, WMA, WAV, AAC, or FLAC format.

Why is my media player not turning on?

Ensure the power adapter is securely connected and the player is receiving power. Try a different USB port or adapter. If still not working, contact support.

How do I navigate the menu without a remote?

The player has control buttons on the unit itself: Play/Pause, Next, Previous, Volume, and Menu. Use these to navigate if remote is lost.

Can I use an SD card with this device?

Yes, insert an SD or MMC card (up to 32GB) into the slot. The player will recognize it as a media source.

How do I update the firmware?

Firmware updates are rarely provided. Check the Insignia website for any updates. If available, download to a USB drive and follow the update instructions.

What should I do if the video has no sound?

Check the audio output settings in the menu. Ensure the TV is set to the correct input. Try a different audio cable or HDMI port.

Can I play media over a network?

No, the NS-2V17R does not support network streaming. It only plays media from local storage (USB/SD).

How do I clean the device?

Use a soft, dry cloth to wipe the exterior. Do not use liquids or abrasive cleaners. Unplug before cleaning.

USER MANUAL NS-2V17R INSIGNIA

System requirements 4

Controls and connections....5

Setting up your MP3 player 8

Charging the battery....8

Connecting headphones 9

Installing the included software 9

Using your MP3 player....10

Turning your player on and off 10

Navigating the on-screen menus 10

Changing the volume 10

Locking the buttons 11

Getting more music 11

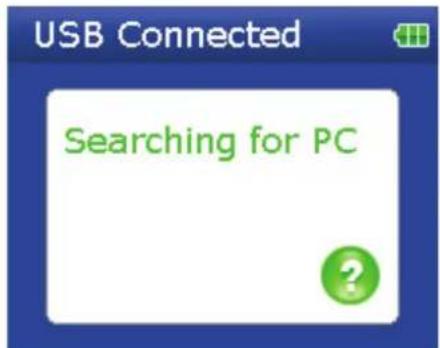

Transferring music files to your player 13

Playing music files 15

Viewing photos....19

Watching videos....20

Deleting files....22

Disconnecting the player 23

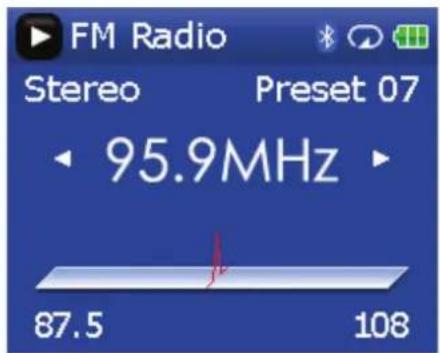

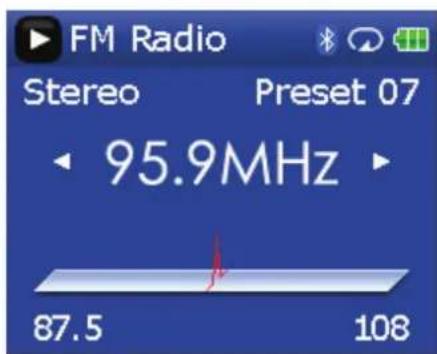

Listening to FM radio 23

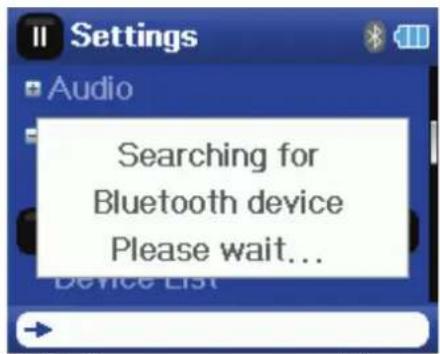

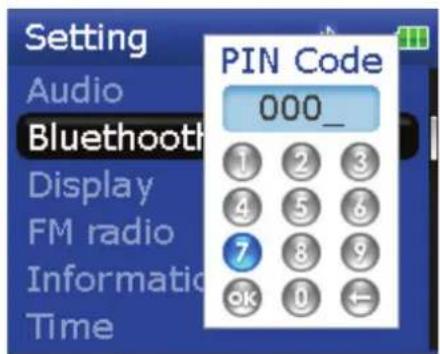

Connecting to Bluetooth headphones 25

Changing settings....27

Maintaining your MP3 player 30

Care and cleaning 30

Updating the firmware 30

Buying a new battery 30

FAQ 30

Getting help 31

Learn more....31

Specifications....31

Legal notices 32

Warranty....33

Español....34

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your NS-2V17 or NS-4V17 represents the state of the art in digital media players and is designed for reliable and trouble-free performance. You can use your MP3 player to play digital video and music files, play audiobooks from Audible.com, and listen to FM radio. And the best part is that you can carry it with you anywhere.

DIGITALMUSICSTORE BEST BUY For The Perfect Sync!

Your new player works with most subscription services and is optimized for use with the Best Buy Digital Music Store. For more details, see the Quick Start Guide. Your new player also features Bluetooth technology which allows you to listen to music wirelessly. See the Bluetooth section for optional recommended headphones.

Safety information

• Read, keep, and follow all instructions. Heed all warnings.
• Only use attachments and accessories for Insignia products or universal accessories.
• Turn down the volume before turning on your MP3 player and avoid using it at a high volume. Permanent hearing loss may occur if earphones or headphones are used at high volume. Reducing the volume also extends the battery life.
• Do not use headphones or earphones while driving, cycling, or operating any motorized vehicle. This may create a traffic hazard and may be illegal in your area.

• To reduce the chance of electrical shock, do not use or operate this device near moist environments.

• Unplug the player during lightning storms or when unused for long periods of time.

• Risk of explosion, damage, or battery leakage if the battery is replaced incorrectly or replaced by an incorrect type. Dispose of used batteries according to local regulations.
• Clean only with a dry cloth.
• Do not disassemble the player to access internal components (except for the battery) under any circumstances.

Features

• Plays MP3, OGG, WMA, secure WMA, WMAlossless, WMAPro, WAV, and Audible audio file formats.
• Plays MPEG-4 video file format.
• Displays JPEG photos.
  • Supports .PLA and .M3U playlists.
• Backlit LCD supports several languages and displays album art and song information.
• Digital FM radio tuner allows you to access local radio stations. The radio also memorizes up to 20 of your favorite radio stations.
• FM tuner features RDS technology which allows you to see the name and artist of the song being broadcast.

Note

Not all radio stations elect to transmit RDS.

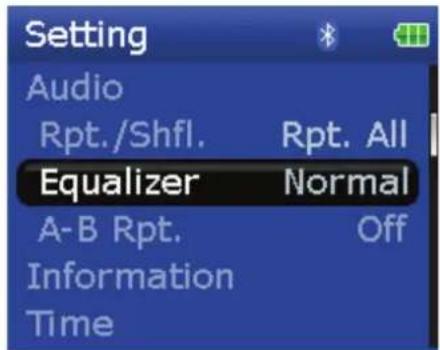

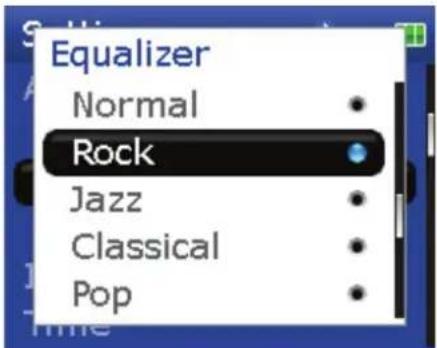

• Five preset equalizer settings to optimize playback for normal, rock, jazz, classical, and pop music. You can also set a custom equalizer setting for a total of six to choose from.
• Sophisticated music library sorting lets you browse the music in your player by artist, album, song title, genre, and playlist.
• A-B Repeat lets you select any start and end points during playback, so you can repeatedly play that segment. This feature is especially helpful while learning languages and words to songs.
• High-speed mini USB 2.0 port for fast and easy file transfers.
  • Supports Microsoft WMDRM 10 technology.
• Fully compatible with the Best Buy Digital Music Store (BBDMS) and other Microsoft PlaysforSure music services like Napster and Yahoo.
• Easy-to-use menus.
• Mechanical wheel controls with Select, Menu, and Power buttons.
• Audio headphone jack.
• Support for external memory (MicroSD card).
• Upgradeable firmware to keep your MP3 player up to date.
• Replaceable and rechargeable lithium ion battery for up to 25 hours of music playback time and a 3-hour recharge time.
• Ratings button to mark your music tastes. These ratings are automatically synchronized to BDDMS and other Microsoft PlaysforSure music services.
• Supports Rhapsody Channels for endless hours of new music customized to your tastes.
• License information feature tells you when your player requires synchronizing.
• Bluetooth A2DP support allows use of any stereo Bluetooth headphones.

Package contents

• Insignia MP3 player
• Earbuds (Bluetooth headphones sold separately)
• Mini USB 2.0 cable
• Quick Start Guide
• CD (contains Best Buy Digital Music Store software and this online user guide)
• Audible offer card

System requirements

To transfer music from your computer to your MP3 player, your computer must have the following minimum system requirements:

• Windows 98 or later
  • Mac OS8.6 (requires software update) or later
  • One available USB port
• CD Rom Drive

Note

Windows 98 users: Visit the Insignia website at www.insignia-products.com/t-nusb24.aspx for the Windows 98 driver. This driver makes the player appear to your computer like a mass storage device. You can drag and drop files to the player. This driver will not allow you to use subscription-based services with your player.

Controls and connections

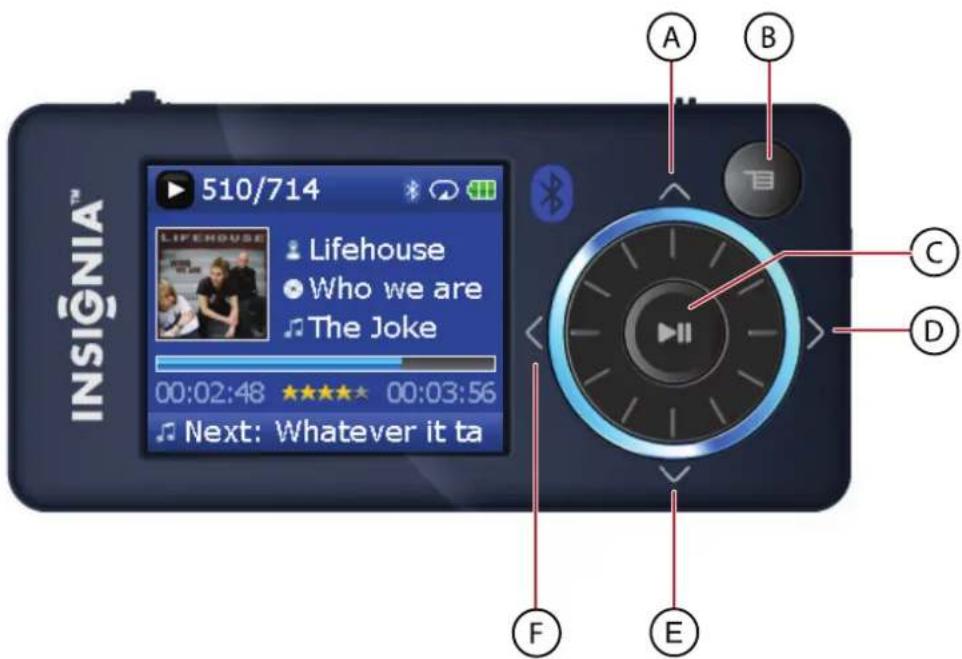

Front

INSIGNIA™ 510/714 LIFERHOUSE Lifehouse Who we are The Joke 00:02:48 ★★★★ 00:03:56 Next: Whatever it ta A B C D F E

ItemIconFunction
A	^	UpPress to go up through menus or change radio frequency presets.Press and hold to increase the volume level when using an armband.
B	¬	M e n uPress to open the on-screen menu for selecting songs and changing settings.Press to go back to the previous menu setting.
C Play/Pause/Select/RecordPress to play or pause playback.In menus, press to select.In FM radio mode, press to memorize presets or to record.Press and hold to start recording.
D Fast Forward/Skip/NextPress to skip to the next track.Press and hold to fast forward.In menus, press to open the next submenu or setting.In FM radio mode, press to change frequencies.In Menu mode, press to scroll forwards through the menu headings.
E	√	D o w nPress to go down through menus or change radio frequency presets.Press and hold to decrease the volume level when using an armband.
F Rewind/Skip	Back/PreviousPress to restart the current track.Press repeatedly to skip to previous tracks.Press and hold to rewind.In FM radio mode, press to change frequencies.In Menu mode, press to scroll backwards through the menu headings.
		Scroll wheelPress to adjust the volume in Now Playing mode.Press to move up and down in Menu mode.

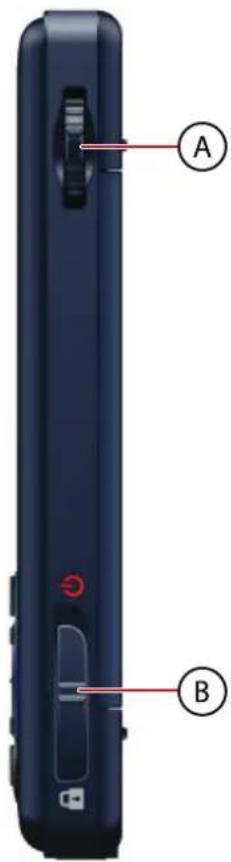

Right side

A B

ItemFunction

A Rating buttonPress to open the Bookmark and Audio option menus.Move left to remove stars from a rating.Move right to add stars to a rating.

B Power/HOLD switchSlide to the right and hold for five seconds to turn on or turn off the player.Slide to the right and hold for ten seconds to reset the player.Slide to the left to disable all buttons. See “Manually changing the USB mode”” on page 28.

Bottom

A B

ItemIconFunction

A Mini USB 2.0 port—Connect the USB cable to this port and your computer to manage content with your computer and charge the player's battery.

B Earphone jack—Connect headphones to this jack to listen to sound from the player.

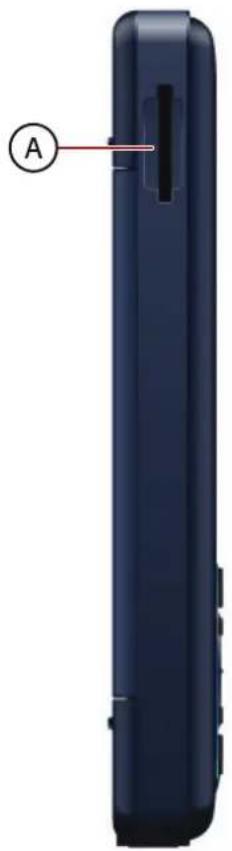

Bottom

Side view of a dark blue cylindrical device with a labeled component 'A' pointing to its side (no text or symbols on the device itself)

ItemFunction

A MicroSD card slot—Insert a MicroSD card into this slot to increase the memory capacity of your player.

Back

INSIGNIA™ NS-DXXG Made in China FE CE ( SERIAL No )

ItemFunction

A Battery cover—Remove the battery cover to change the battery.

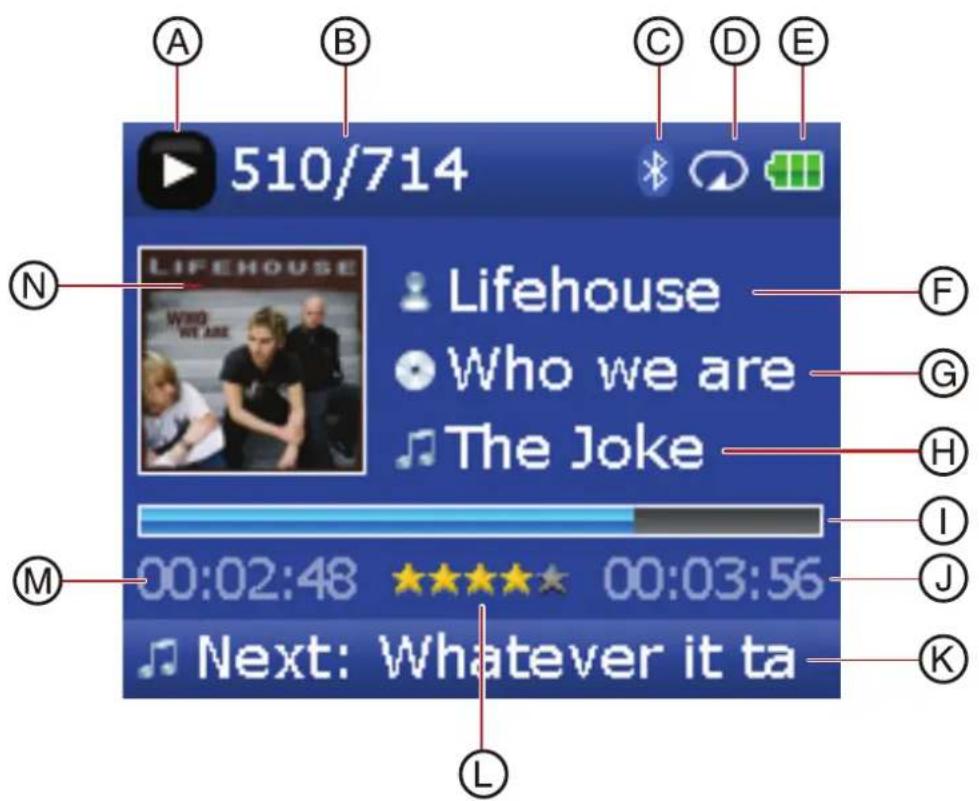

Display

510/714 LIFEOHUSE WIND WE ARE Who we are The Joke 00:02:48 ★★★★ 00:03:56 Next: Whatever it ta

ItemFunction

A Mode icon—Displays whether a track is playing or paused.

B Track number/Total number—Lists the track number currently playing and the number of tracks in the queue.

C Bluetooth status—Shows the current Bluetooth status.

D Repeat/Shuffle icon—Indicates the current Repeat setting.

E Battery icon—Indicates the battery's power level.

F Artist name—Displays the artist name of the current track.

G Album name—Displays the album name of the current track.

H Track name—Displays the track title of the current track.

I Progress bar—Displays the progress of the song.

J Total time—Displays the length of the current track.

K Next track—Displays the next track.

L Rating—Displays the track rating.

M Play time—Displays the elapsed time of the current track.

N Album Art—Shows the album art for the track, if available.

Setting up your MP3 player

Charging the battery

Charge the battery whenever you aren't using the player to make sure it's always fully charged. The battery charges in about three hours. A fully charged battery provides up to 25 hours of continuous music playback, depending on the brightness and display time of the backlight, and the volume levels.

Note

The player ships from the factory partially charged. However, we recommend you fully charge it prior to using it.

To charge the battery:

1 Turn on your computer.

2 Connect the supplied mini USB 2.0 cable to the mini USB jack on the player and a standard USB jack on your computer. When the cable is connected correctly, the player begins recharging its battery using the USB connection, and the message OK to disconnect appears on the player.

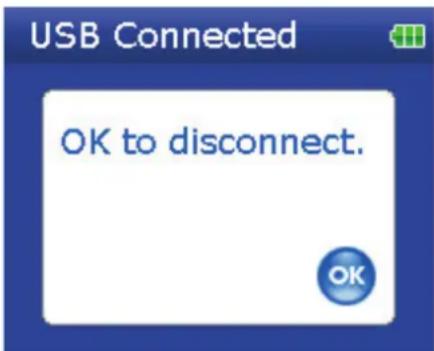

USB Connected OK to disconnect.

As the battery charges, the blue battery icon shows an animation of being filled from right to left, to illustrate that the battery is charging.

After the player is fully charged, the battery icon turns green, indicating a full charge.

Note

Most AC USB chargers will charge the player as long as they output 5 V and can provide at least 500 mA of current.

Connecting headphones

You can use any headphones with a standard 3.5mm stereo audio plug.

Note

To use Bluetooth headphones instead of standard wired headphones, see "Connecting to Bluetooth headphones" on page 25.

To connect headphones:

- Plug headphones or the provided earphones into the earphone/headphone jacks on the player.

Note

To use the FM radio, you must have the provided earphones connected, because they act as the FM antenna. You can use any headphones with unshielded wires.

Installing the included software

The instructions in this guide require installation of both the Best Buy Digital Music Store Media Manager Software and the ArcSoft Media Converter.

Note

Attention Apple Users (OS 8.6 and higher):

• Do not install the software.
• Connect your player to your computer.

To install the software:

1 Insert the Insignia software CD into your computer's CD drive. The software installation program starts. -OR-

If the installation program doesn't start automatically, double-click My Computer on your desktop, double-click the CD drive that contains the Insignia CD, then double-click the file Setup.exe. The software installation program starts.

2 Follow the on-screen instructions to finish the installation.

Tip

For iTunes Drag and Drop support, File & Folder (MSC) USB mode is automatically enabled when you connect the player. Your Insignia MP3 player will only play iTunes MP3 files that you drag and drop from iTunes. For information on changing USB modes, see "Manually changing the USB mode" on page 28.

Using your MP3 player

Turning your player on and off

To turn your player on or off:

- Press and hold (Bower).

Navigating the on-screen menus

Use the on-screen menu to play music and change settings.

To navigate the on-screen menu:

1 Press ☐ (Menu). The Main Menu opens.

Main Menu a Now Playing

2 Use the scroll wheel to highlight one of the following menu items:

• Now Playing—display the track currently playing.
  • Music Library—access your stored tracks.
• Audible Books—access your stored Audible files.
  • Video—access your stored video files.
  • Photo—access your stored photo files.
  • FM Radio—access the built-in FM radio.
• Rhapsody Channel—access your Rhapsody channels.
• Settings—access your MP3 player settings.

3 Press (Play/Pause) to select an item.

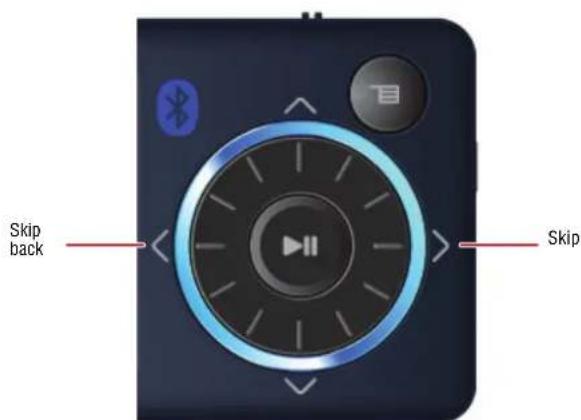

In the Music Library and Settings menus press the < (Previous) and >(Next) buttons to select a heading, then use the scroll wheel to highlight an item.

In the Music Library, press the ∨ (Down) button to open the submenu and the ∧ (Up) button to return up from a submenu.

You can press ▶(Play/Pause) to show the playing options in the Music Library.

In the Settings menu, press either > (Next) or ▶(Play/Pause) to select an item.

Changing the volume

To change the volume:

- Turn the wheel to the right or left to change the volume.

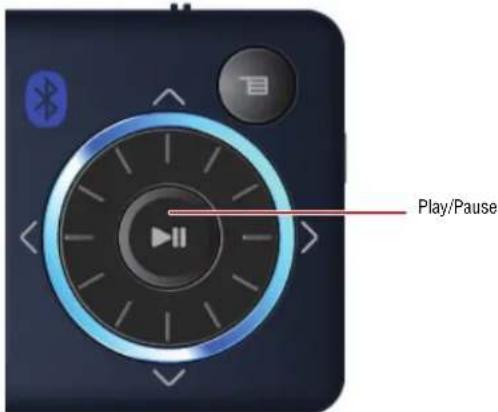

Circular media control interface with playback controls and directional arrows (no text or symbols)

Locking the buttons

You can prevent accidental button operation by locking the buttons.

To lock the buttons:

1 Slide the HOLD switch in the direction of the arrow. An image of the lock symbol in the HOLD position appears on the screen.

2 To unlock the buttons, slide the HOLD switch away from the arrow.

Note

To use File & Folder (MSC) USB mode (UMS), see "Manually changing the USB mode" on page 28.

Getting more music

Your MP3 player already contains some music files, but you can get more music from your own music CDs and from the Internet.

Getting music from CDs and the Internet to your MP3 player involves two steps:

1 Rip a CD (create files of the music on the CD) or download music files from the Internet.

2 Select the files to copy and copy them to your player.

Getting music from CDs

To rip a CD:

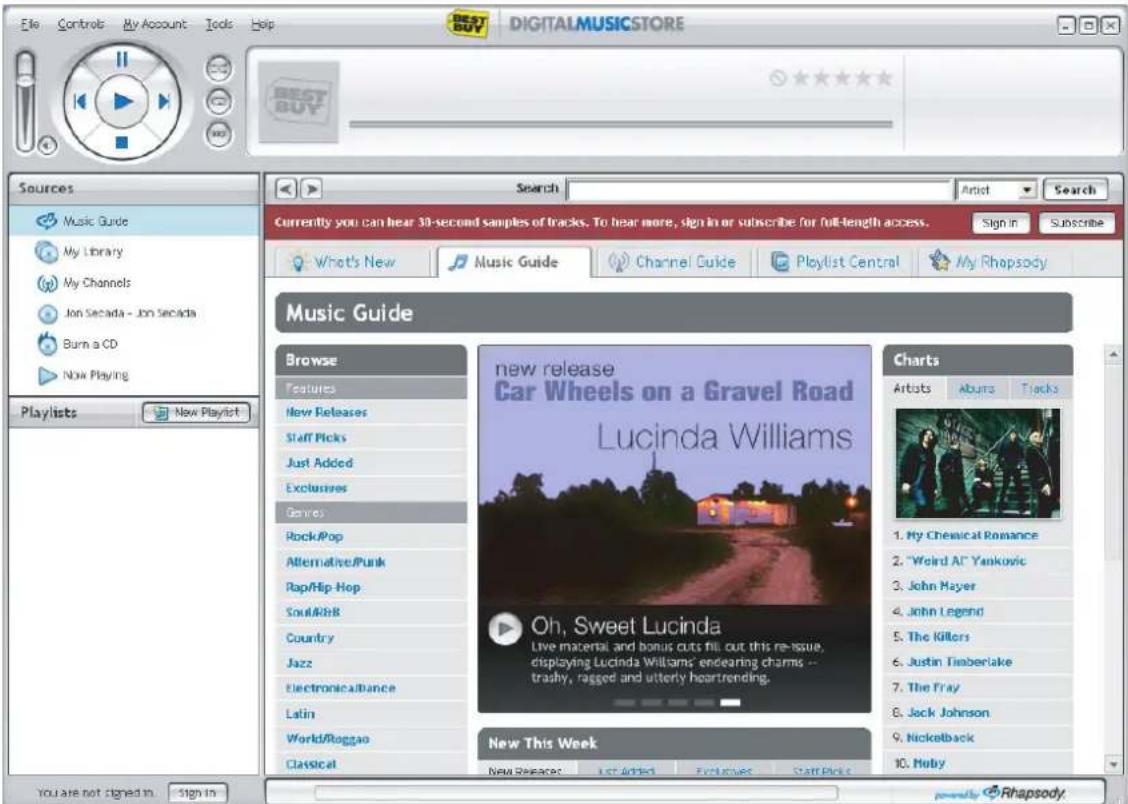

1 Click Start, All Programs, Best Buy Digital Music Store, Best Buy Digital Music Store. Best Buy Digital Music Store opens.

File Controls My Account Tools Help DIGITALMUSICSTORE BEST BUY SOURCES Music Guide My Library My Channels Jon Secada - Jon Secada Burn a CD Now Playing Playlists New Playlist Search Currenty you can hear 30-second samples of tracks. To hear more, sign in or subscribe for full-length access. Sign in Subscribe What's New Music Guide Channel Guide Playlist Central My Rhapsody Music Guide Browse Features New Releases Staff Picks Just Added Exclusives Genres Rock/Pop Alternative/Punk Rap/Hip-Hop Soul/Ath/B Country Jazz Electronic/Bance Latin World/Roggao Classical new release Car Wheels on a Gravel Road Lucinda Williams Oh, Sweet Lucinda Live material, and bonus cuts fill, cut this re-issue, displaying Lucinda Williams' endearing charms -- trashy, ragged and utterly heartrending. Charts Artists Albums Tracks 1. My Chemical Romance 2. "Weird Al" Yankovic 3. John Mayer 4. John Legend 5. The Killers 6. Justin Timberlake 7. The Fray 8. Jack Johnson 9. Nickelback 10. Huby New This Week You are not signed in Sign in

2 Put a music CD in the CD drive, then close any dialog boxes that may open. Best Buy Digital Music Store lists the tracks on the right side of the screen. If you are connected to the Internet, the list shows the track names.

3 Click the check boxes in front of the songs you want to copy.

4 Click Import CD. Best Buy Digital Music Store creates MP3 files from the music tracks on the CD and lists them under the My Library folder.

File Controls My Account Tools Help BEST BUY DIGITALMUSICSTORE 4 Music Trivia Sources Jon Secada - Jon Secada Import: CD CD Options Eject Music Guide My Library My Channels Jon Secada - Jon Secada Burn a CD Now Playing Playlists New Playlist Track Artist Album Genre Time 1. Just Another Day Jon Secada Jon Secada Soft Rock 05 2. Dreams That I Carry Jon Secada Jon Secada Soft Rock 04 3. Angel Jon Secada Jon Secada Soft Rock 04 4. Do You Believe in Us Jon Secada Jon Secada Soft Rock 03 5. One Of A Kind Jon Secada Jon Secada Soft Rock 04 6. Time Heals Jon Secada Jon Secada Soft Rock 04 7. Do You Really Want Me Jon Secada Jon Secada Soft Rock 04 8. Misunderstood Jon Secada Jon Secada Soft Rock 04 9. Always Something Jon Secada Jon Secada Soft Rock 04 10. I'm Free Jon Secada Jon Secada Soft Rock 04 11. Otro Dia Mes Sin Verte (Spanish) Jon Secada Jon Secada Soft Rock 05 12. Angel (Spanish) Jon Secada Jon Secada Soft Rock 04 Check All / Lncnec All 12 Tracks 1 53.0 Mins 1 544.4 MB You are not signed in. Sign In powered by Rhapsody.

For information on transferring your music files to your MP3 player, see "Transferring music files to your player" on page 13.

Getting music from the Digital Music Store

To buy and download music files from the Internet:

1 Click Start, All Programs, Best Buy Digital Music Store, Best Buy Digital Music Store. Best Buy Digital Music Store opens.
2 In the Search box, type the name of the artist or album you want to download music for, then click Go. Any matches that Digital Music Store finds are displayed on the screen.
3 Decide which tracks or albums you want to buy, then click BUY next to the music you want.
4 Follow the on-screen directions to finish the purchase. The music files are added to your Digital Music Store music library.

Tips

You can also use other digital music management programs to get music files from CDs and the Internet. See the program's online help for more information.

For iTunes Drag and Drop support, File & Folder (MSC) USB mode is automatically enabled when you connect the player. Your Insignia MP3 player will only play iTunes MP3 files that you drag and drop from iTunes. For information on changing USB modes, see "Manually changing the USB mode" on page 28.

Transferring music files to your player

Copying files using Best Buy Digital Music Store

To copy files from your computer to the MP3 player using Best Buy Digital Music Store:

1 Connect the USB cable to a USB port on your computer and the mini USB port on your player. The message Searching for PC appears on the player.

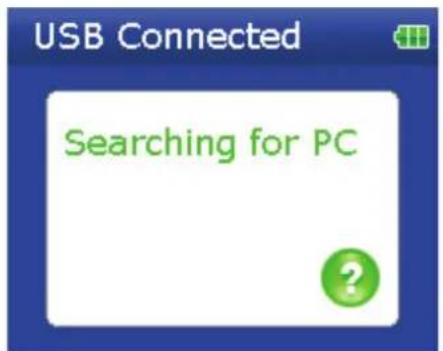

USB Connected Searching for PC

Your computer detects the player, then adds the player as a new device called Insignia Sport in the Portable Devices section of My Computer.

Note

If you change the USB mode to File and Folder (MSC mode), the device appears in the Removable Drive section of My Computer.

2 Click Start, All Programs, Best Buy Digital Music Store, Best Buy Digital Music Store. Best Buy Digital Music Store opens.
3 Close any popup windows that open.
4 Click My Library in the list of content types. Your entire library of digital music appears in the right side of the screen.
5 Click and drag the music files from your library list to the Insignia Sport item in the Sources list. As the songs are copied to your player, the message Syncing! Do not disconnect device appears on the player.

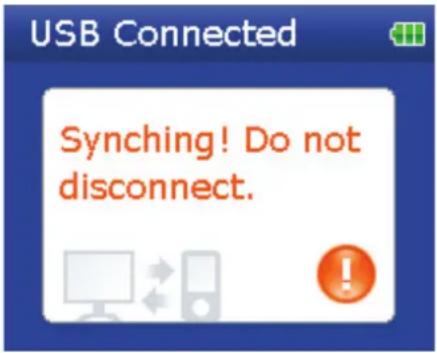

USB Connected Synching! Do not disconnect.

6 When you have finished transferring all of the files you want to copy to your Insignia Sport, you can click Insignia Sport in the list of sources to view the updated list of tracks on your player.

DigitalMUSICSTORE Sources Music Guide My Library My Channels Insignia Video Player Tracks Insignia Video Player - Tracks 05 Carried by the Wind Holly Brook Like Blood Like... Rock New Found Glory Coming Bound Coming Bound New Found Unity Rock Holly Brook Like Blood Like... Rock Ready To Fall Rise Against The Sufferer A... Hardcover/Punk I'm Not Leaving U Robin Thistle The Evolution o... Unknown ... 04 Pacific Wind Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unknown Artist> Unisignia Video Player Playlists New Playlist 8 Tracks | 30.1 Mins | 35.6 MB Used: 233.5 #B Available: 3.5 GB You are not signed in. Sign in

When the transferring is complete, the message OK to disconnect appears on the player.

USB Connected OK to disconnect.

7 Unplug the USB cable from your computer and your player.

Transferring files using Windows Explorer

For Windows Vista, Windows XP, and Windows 2000 users, the player automatically connects in Media Manager (MTP) mode to copy WMA and MP3 files to the Media folder, and any other file formats to the Data folder (you cannot see the Data folder using the player's display).

Depending on which media manager software (such as BBDMS and Windows Media Player) you use, the names of the subfolders may be different than Media and Data.

For all other operating system users, the player automatically connects in File &Folder (MSC) mode to copy folders and any format of files to the player's root folder. The player only plays MP3, Vorbis, and WMA files.

To copy music files from your computer to your player using Windows Explorer:

1 Connect your player to the computer using the provided USB cable. The message Searching for PC appears on the player.

USB Connected Searching for PC

2 On your computer, click Start, My Computer, then double-click the folder where your music files are.
3 Open My Computer again to open another window, then open the Insignia Sport drive. (When your computer detects the player, it added the player as a new device called Insignia Sport in the My Computer list of drives in Windows.)

4 Double-click the device and the internal storage icon until you see a list of files and folders.

5 Click and drag the music files from your computer to the player:

- If your player is in Media Manager (MTP) mode, copy them to the Media folder on the player.

Note

Windows may display a warning message. In general, you can close this message and transfer the files and they will play correctly. For video files, the formats are more specific. We recommend you use the included conversion software.

- If your player is in File & Folder (MSC) mode, copy them to the root folder on the player.

Tip

To select multiple files, press and hold Ctrl on your keyboard while clicking the files with your mouse.

To select an entire range of files, click the file at the top of the range, press and hold Shift on your keyboard, then click the file at the bottom of the range.

When the transferring is complete, the message OK to disconnect appears on the player.

USB Connected OK to disconnect.

6 Unplug the USB cable from your computer and your player.

Tip

Vorbis and M3U files will only be recognized in File and Folder (MSC) mode. See "Manually changing the USB mode" on page 28.

Playing music files

To play music:

1 Press ☐ (Menu). The main menu opens.

2 Use the scroll wheel to highlight Music Library, then press ▶ (Play/Pause). The music library opens.

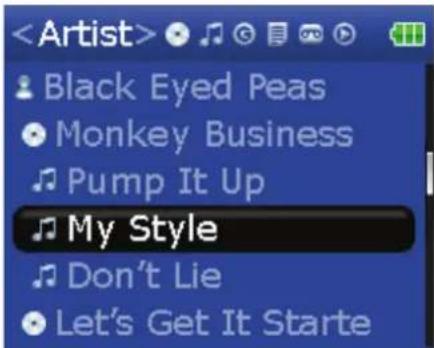

Black Eyed Peas Monkey Business Pump It Up My Style Don't Lie Let's Get It Starte

3 Highlight one of the following tabs across the top of the screen using the < (Previous) and >(Next) buttons:

• Play all—Plays all tracks.
  • Artists—Lists all artists transferred to the player.
• Albums—Lists all albums transferred to the player. Even if you copied only one track from an album to your player, that album name will appear in this list.
  • Tracks—Lists all tracks arranged alphabetically by track title.
• Genres—Lists all music genres transferred to the player.
• Playlists—Lists all playlists transferred to the player.
  • Rhapsody—Lists all Rhapsody channels.
• Bookmark—Lists all bookmarks.

Tip

To navigate backwards from a submenu, press ^.

4 Use the scroll wheel to highlight an item in the list. To go down to a submenu, use the ∨ (Down) button. To return up from a submenu, use the ∧ (Up) button.

5 Select the content to play by pressing the ▼ (Down) button on a particular track or the ▶ (Play/Pause) button to bring up the Play Option menu.

Black Eyed Pears Monkey Pump It My Style Don't Li Let's Get It Starte Play Add Play All Add All Delete

A pop-up menu shows the options you have for playing the music. Play and Play All start playing the music immediately. Add and Add All queues the music behind the tracks that are currently playing. Select Play All to play all the tracks. The player switches to the Now Playing view, which displays information on the track currently playing.

The album art appears on the left of the display. Press ∧ (Up) to view full-screen album art. Press (Up) again to see the list of songs selected for playback. Pressing ∧ (Up) toggles through the various screens.

6 If your selection does not begin to play, press ▶ (Play/Pause).

Play/Pause

The track begins playing, and the play status icon ( appears in the upper left corner of the display.

- To pause playback, press ▶ (Play/Pause). The pause status icon (Ⅱ) appears in the upper left corner of the screen.

- To skip to the next track, press > (Skip/Fast Forward). To skip to a previous track, press < (Skip Back/Rewind) repeatedly.

Skip back Skip

- To fast forward the current track, press and hold > (Skip/Fast Forward). To rewind the current track, press and hold < (Skip Back/Rewind).

- To restart the current track, press < (Skip Back/Rewind) once.

Tip

If you are using a subscription music service, your player will play a short tone between tracks when your content's subscription is about to expire. A message also appears on the screen telling you how many days are left before your content expires.

Note

WMAlossless playback is only supported on the wired headphone output. Bluetooth is automatically turned off during playback of WMAlossless.

Rating songs

Using your player, you can rate songs you like and build improved playlists from your Music Manager software, which can save the ratings into your library. BBDMS includes this feature, and it can build channels which are optimized for your personal listening pleasure.

To use ratings:

• To add a star to the current rating of a song on the screen, slide the rating button to the right.
• To remove a star from the current rating of a song on the screen, slide the rating button to the left.

Repeating and shuffling playback

You can set the player to repeat or shuffle tracks using the Repeat/Shuffle menu.

To shuffle the playback order:

1 In the Settings menu, select Audio, then press > (Next) or ▶(Play/Pause).
2 In the Audio menu, select Repeat/Shuffle Playback, then press > (Next) or ▶(Play/Pause).
3 Use the scroll wheel to select the repeat mode, then press > (Next). The shuffle icon appears in the Now Playing screen when you select a mode other than Off.

You can select from the following modes:

• Repeat single track
• Shuffle tracks/No repeat
• Repeat all tracks
• Repeat all tracks with shuffle

Repeating segments of a track

You can use A-B repeat to repeatedly play a segment of a track. You must first enable A-B repeat.

To enable A-B repeat:

1 Press ☐ (Menu). The main menu opens.
2 Use the scroll wheel to highlight Settings, then press > (Next) or ▶(Play/Pause).
3 Use the scroll wheel to highlight Audio, then press > (Next) or ▶(Play/Pause).
4 Use the scroll wheel to highlight A-B repeat, then press > (Next) or ▶(Play/Pause).
5 Use the scroll wheel to highlight On or Off, then press > (Next) to select. The message Use the down button to activate A-B appears, then the Audio Setting menu opens again.
6 Press ☐ (Menu) to return to the Now Playing screen.

To repeat an audio segment:

1 During playback, press ▼ (Down) to mark the start of the playback loop. The Repeat icon on the display shows an A.
2 Press ▼ (Down) again to mark the end of the playback loop. The Repeat icon on the display shows an AB and the player repeats that audio segment indefinitely.
3 Press (Down) again to cancel the repeating loop.

Using the equalizer

Six equalizer settings are available, and five are preprogrammed: Normal, Rock, Jazz, Classic, and Pop. The User setting lets you customize the equalizer to your preference.

To select a pre-programmed equalizer setting:

1 In the Settings menu, select Audio, then press > (Next) or ▶(Play/Pause).

2 In the Audio menu, select Equalizer, then press > (Next) or ▶ (Play/Pause).

Setting Audio Rpt./Shfl. Rpt. All Equalizer Normal A-B Rpt. Off Information Time

3 Use the scroll wheel to select the equalizer setting you want.

Equalizer Normal Rock Jazz Classical Pop

4 Press > (Next) or ▶(Play/Pause) to save your new settings.

Note

As you scroll through the equalizer settings, the setting will be applied to your currently playing music in real time. If you like the setting, press >(Next) or (Play/Pause) to keep the setting. If you press (Menu) without pressing >(Next) or ▶(Play/Pause), you exit out of the menu and the newly selected effect is cancelled.

To change the equalizer's custom setting:

1 In the Settings menu, select Audio, then press > (Next) or ▶(Play/Pause).
2 In the Audio menu, select Equalizer, then press > (Next) or ▶(Play/Pause).
3 Use the scroll wheel to select the Custom setting.

4 Press ▶ (Play/Pause) to move the cursor to the first equalizer setting slider.
5 Press ∧ (Up) or ∨ (Down) to adjust the setting. Repeat this step to adjust each remaining slider.
6 Press ▶ (Play/Pause) to save your new settings.

Playing Rhapsody Channels

Your Insignia player supports Rhapsody Channels downloaded from the Best Buy Digital Music Store.

To play Rhapsody channels:

1 Select Rhapsody Channels from the main menu.
2 Use the scroll wheel to select your Rhapsody channel.
3 Press play to play the channel on your player.

For information on channels, see the help information in the Best Buy Digital Music Store.

Playing Audible files

You can listen to Audible audio books on your player.

To play Audible files:

1 Press ☐ (Menu).
2 Use the scroll wheel to highlight Audible, then press ▶ (Play/Pause).
3 Use the scroll wheel to select the Audible file, then press (Play/Pause).
4 Press < (Previous) or (Next) to play the previous or next Audible file.

Moving between chapters in an Audible audio book

To move between chapters in Audible files:

1 Press ∧(Up) while playing an Audible file to turn on the chapter feature.
2 Press < (Previous) or (Next) to move to the previous or next Audible chapter.
3 Press ∧(Up) to turn off the chapter feature.

Tip

For more information about Audible, visit the Audible website at www.audible.com.

Bookmarking

Audio files can be marked so you can start listening from where you left off during your previous session.

To activate the bookmark feature:

1 Press the Rating button (see "Right side" on page 6). The quick menu opens.
2 Select Save Bookmark to mark your position.

To retrieve the bookmark:

1 Press the Rating button. The quick menu opens.
2 Select Load Bookmark.
3 Select the bookmark you want to start from.
4 Press (Play/Pause). Your selection starts from the saved bookmark.

Tip

You can also open an audio file at a bookmark in the Music Library by selecting the heading Bookmarks.

Viewing photos

Your player can display JPG and JPEG photos. No other photo formats are supported. To display non-JPG/JPEG photos, you must first convert them to JPG or JPEG using the MediaCoverter software found on the enclosed CD or another program that can create JPEGs. We recommend that you compress the JPEGs to a 220×176 resolution to maximize your memory space on the player. Using the included Media Converter significantly reduces the file size and allows you to store may more photos on the player.

To view photos:

1 Press ≡ (Menu). The main menu opens.
2 Select Photo, then press ▶ (Play/Pause). A list of available photos appears.
3 Use the scroll wheel to select the photo to display, then press ▶ (Play/Pause). The photo displays full screen.

• Press (Down) to rotate the image.
• Press (Up) to go back to the photo list.

Transferring photos to your player

The method you use to copy photos from your computer to your player depends on the USB mode your player is set to. When you connect your player to your computer, the player automatically selects the mode that is best suited to your operating system. The player shows the mode in the bottom of the display.

Tip

You can also use the ArcSoft Media Converter software to convert and transfer all images to your player.

To copy photos from your computer to your player using File & Folder (MSC) USB mode:

1 Connect your player to the computer using the provided USB cable. The message Searching for PC appears on the player.
2 On your computer, click Start, My Computer, then double-click the folder where your photo files are.
3 Open My Computer again to open another window, then open the Insignia Sport drive.

4 Click and drag the photo files from your computer to the player's root folder.

Tip

To select multiple files, press and hold Ctrl on your keyboard while clicking the files with your mouse. To select an entire range of files, click the file at the top of the range, press and hold Shift on your keyboard, then click the file at the bottom of the range.

When transferring is complete, the message OK to disconnect appears on the player.

5 Unplug the USB cable from your computer and your player.

To copy photos from your computer to your player using Media Manager (MTP) USB mode:

1 Connect your player to the computer using the provided USB cable. The message Searching for PC appears on the player.
2 On your computer, click Start, My Computer, then double-click the folder where your photo files are.
3 Open My Computer again to open another window, then open the Insignia Sport player.
4 Open the Internal Storage icon.
5 Click and drag the photo files from their current location to the Media folder or the root folder on your Insignia Sport player.

Note

Different media player software applications create different file structures. You can place your photos in any folder and they will be found automatically.

Tip

To select multiple files, press and hold Ctrl on your keyboard while clicking the files with your mouse. To select an entire range of files, click the file at the top of the range, press and hold Shift on your keyboard, then click the file at the bottom of the range.

When transferring is complete, the message OK to disconnect appears on the player.

6 Unplug the USB cable from your computer and your player.

Tip

You can also use the ArcSoft Media Converter software to convert and transfer all images to your player.

Deleting photos

To delete photos, see "Deleting files" on page 22.

Watching videos

Converting and transferring videos or pictures to your player

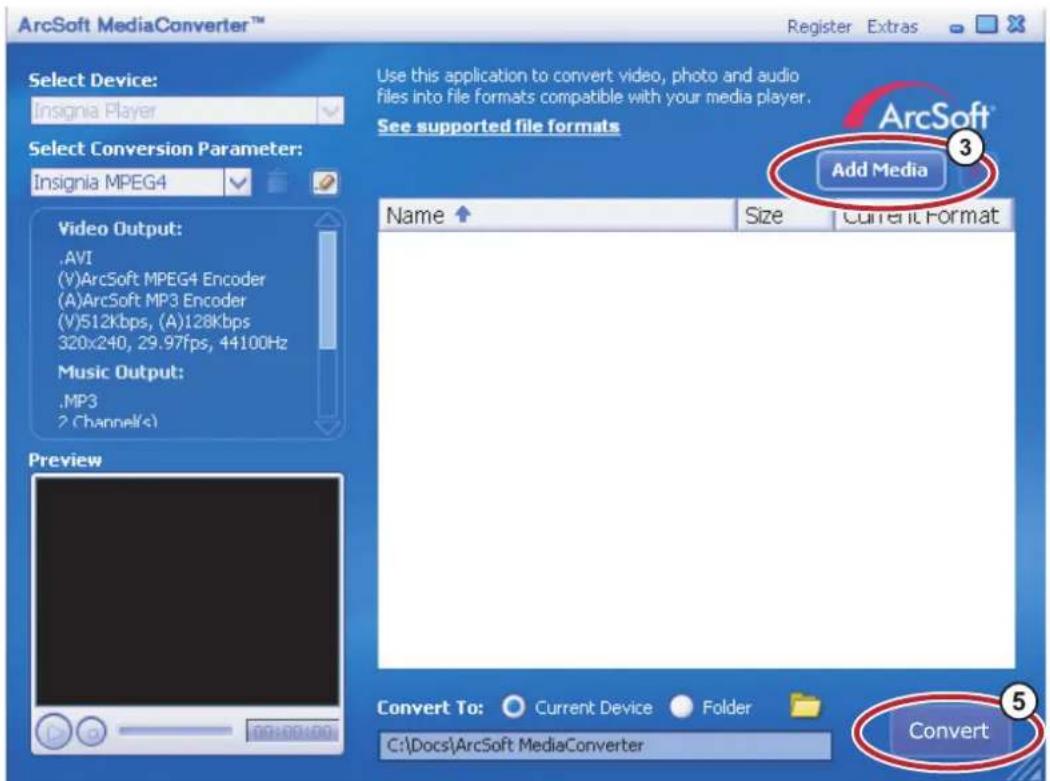

To copy videos from your computer to your player using ArcSoft Media Converter:

1 Connect your player to the computer using the provided USB cable. The message Searching for PC appears on the player.

USB Connected Searching for PC

2 Open the ArcSoft Media Converter on your computer.

ArcSoft MediaConverter™ Register Extras Select Device: Insignia Player Select Conversion Parameter: Insignia MPEG4 Video Output: .AVI (V)ArcSoft MPEG4 Encoder (A)ArcSoft MP3 Encoder (V)512Kbps, (A)128Kbps 320x240, 29.97fps, 44100Hz Music Output: .MP3 2 Channel(s) Preview Use this application to convert video, photo and audio files into file formats compatible with your media player. See supported file formats ArcSoft® Add Media Name ↑ Size Current Format Convert To: ○ Current Device ○ Folder C:\Docs\ArcSoft MediaConverter Convert ③ ⑤

3 Click Add Media.
4 Click the file you want to convert, then click Open.
5 Select the file, then click Convert. The file is automatically transferred to your player.

Tip

You can also create the file in any folder you choose by using the Convert to Folder option. Enter the location you want to place the file, then click Convert. You can then place this file directly on the player by dragging and dropping the file or by using Windows Media Player. Windows Media Player can also be used to convert most files. It will automatically convert them when you move them to the player.

Watching videos

Your player can show MPEG-4 videos. No other video formats are supported. To watch videos in other formats, you must first convert them to MPEG-4 using ArcSoft Media Converter that is included on the enclosed CD.

To watch videos:

1 Press ☐ (Menu). The main menu opens.
2 Select Video, then press ▶ (Play/Pause). A list of available videos appears.
3 Use the scroll wheel to select the select the video to watch, then press ▶ (Play/Pause). The video plays.

- Press < (Previous) or >(Next) to select a different video to watch.

Navigating through videos

Your player can move throughout the video quickly and has two features for this purpose:

- To move forward or backward in the video, press and hold down either the < (Previous) or >(Next) buttons. The player starts fast forwarding or rewinding through the video.

Note

In the Audio Settings menu you can set the Video Scan mode to either mute the sound or allow you to hear it as you move through a video.

- The player also supports an advanced seek option. This this option on by pressing and holding (Play/Pause). A counter appears showing you the elapsed time in the video. Use the scroll wheel to advance or rewind to the appropriate time indicator in the counter. Press (Play/Pause) to resume playback at that point.

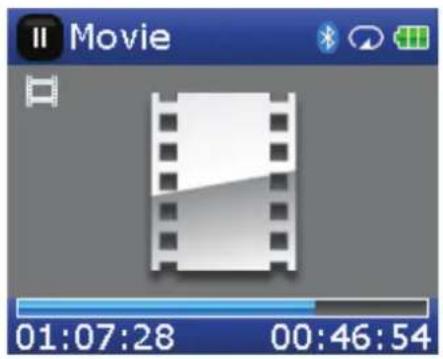

Movie 01:07:28 00:46:54

Note

Video playback is only supported with the wired headphones. Bluetooth headphones are not supported and will automatically be turned off during video playback.

Deleting videos

To delete videos, see "Deleting files" on page 22.

Deleting files

To delete specific files:

1 Use the Music Library to navigate to the file or files you want to delete.
2 Press (Play/Pause) on the selection you want to delete. A pop-up appears.
3 Select Delete.
4 Select Yes in the confirmation pop-up. The file is deleted.

To delete all files from your player using the on-screen menu:

1 Press ☐ (Menu). The main menu opens.
2 Select Settings, then press ▶ (Play/Pause).
3 Select System, then press > (Next) or ▶(Play/Pause).
4 Select Internal Memory (remove All), then press > (Next).
5 Select Yes, then press > (Next) or ▶(Play/Pause). All media files are deleted.

To delete files from your player using your computer:

1 Connect the USB cable to a USB port on your computer and the mini USB port on your player. The message Searching for PC appears on the player.

USB Connected Searching for PC

Your computer detects the player, then adds the player as a new device Insignia Sport in the My Computerlist of drives in Windows.

2 Click Start, then click My Computer.
3 Double-click the Insignia Sport device, then open the Media folder.

4 Find the files you want to delete, click to select them, then press Delete on your keyboard. The files are deleted.

Tip

To select multiple files, press and hold Ctrl on your keyboard while clicking the files with your mouse. To select an entire range of files, click the file at the top of the range, press and hold Shift on your keyboard, then click the file at the bottom of the range.

Disconnecting the player

After you have connected the player to a computer for recharging or music transfer, you need to safely disconnect the player.

To safely disconnect the player from your computer:

- When the player displays the message OK to disconnect, unplug the USB cable from the player and the computer.

USB Connected OK to disconnect.

Listening to FM radio

You can listen to FM radio broadcasts on your player.

Note

To use the FM radio, you must have the provided earphones connected, because they act as the FM antenna. To substitute for the earphones you can use any headphones with unshielded wires.

Tuning the radio

To tune to an FM radio station:

1 Plug your earphones into the earphone jack.
2 Press ☐ (Menu). The main menu opens.
3 Select FM Radio, then press ▶ (Play/Pause).
4 Press < (Previous) or >(Next) to scan to the next station.
5 Press the Rating button to open the FM option menu. This menu allows you to:

• Toggle between Mono and Stereo.
• Turn RBDS on and off.
  • Auto scan for FM stations.
• Save RBDS information.

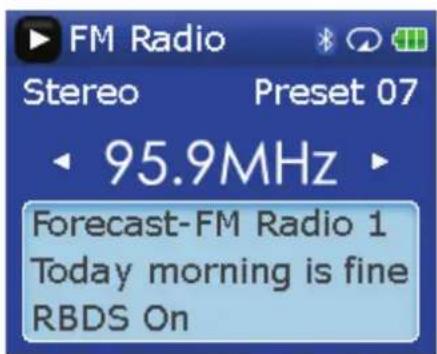

FM Radio Stereo Preset 07 95.9MHz Forecast-FM Radio 1 Today morning is fine RBDS On

RBDS turned on

FM Radio Stereo Preset 07 95.9MHz 87.5 108

RBDS turned off

Tip

Mono mode can help reduce static when listening to stations that have a weak signal. You can change to Mono mode using the Settings: FM Radio: Stereo menu.

Setting station presets

Station presets let you quickly access your favorite frequencies.

To set station presets manually:

1 Tune to an FM radio station frequency.
2 Press and release ▶ (Play/Pause). The Preset Add menu opens.
3 Scroll down the list until you find the preset you want to save with the currently tuned station, then press ▶ (Play/Pause).

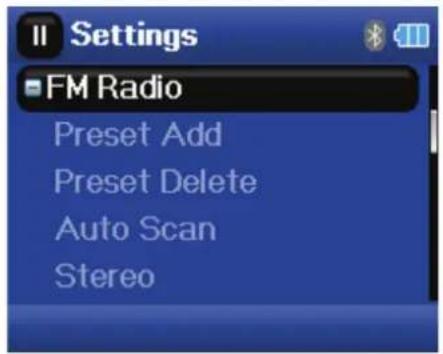

Settings FM Radio Preset Add Preset Delete Auto Scan Stereo

To set station presets automatically:

1 Press ☐ (Menu). The main menu opens.
2 Select FM Settings, then press ▶ (Play/Pause).
3 Select Auto Scanning, then press > (Next) or ▶(Play/Pause). The player scans the radio range and flashes the message Auto Scanning.

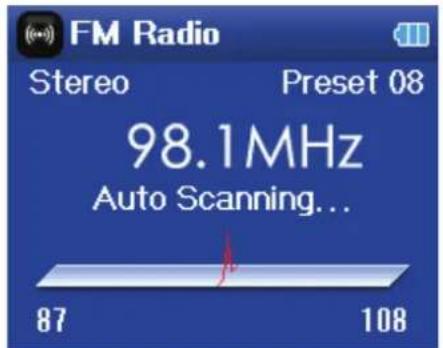

FM Radio Stereo Preset 08 98.1MHz Auto Scanning... 87 108

While scanning, the player automatically adds a preset for any local strong stations until all 20 preset channels have been set.

To delete station presets:

1 Press ☐ (Menu). The main menu opens.
2 Select FM Settings, then press > (Next) or ▶(Play/Pause).
3 Select Preset Delete, then press > (Next) or ▶ (Play/Pause). Press ∧ (Up) or ∨ (Down) or use the scroll wheel to select the preset to delete, then press > (Next) or ▶ (Play/Pause). The preset is deleted.

Accessing station presets

To access station presets:

1 Press ☐ (Menu). The main menu opens.
2 Select FM Radio, then press ▶ (Play/Pause).
3 Press ∧ (Up) to access the previous preset channel, or press ∨ (Down) to access the next preset channel.

Saving and retrieving RDS data

Your player allows you to save the RDS information so that you can look up songs and artists at a later time.

To save RDS data:

- When in FM mode, press the Rating button to save the RDS information.

To retrieve the RDS data:

1 Connect your MP3 player to your computer.
2 Locate the file called RDSinfo.txt in the \service\Rhapsody directory on the player.

3 Open this file in any text editor.

Connecting to Bluetooth headphones

Your Insignia player supports stereo headsets for listening to your player. Your headset must support Advanced Audio Distribution Profile (A2DP) and, optionally, Audio/Video Remote Control Profile (AVRCP), which allows you to skip between tracks and adjust the volume.

Note

If your Bluetooth headphones support AVRCP (Audio/Video Remote Control Profile), your headphones can control Play/Pause, Skip Forward, Skip Backward, and Frequency Up/Down. The volume control on the headphones adjusts the volume on your headphones, but does not adjust the volume on the player.

Your player contains a Bluetooth radio which must be turned on to connect to your stereo Bluetooth headphones. If you are not using the Bluetooth feature, you should turn off your Bluetooth radio to maximize battery life when listening through the wired headphones.

Your headphones must be paired with your player. This is done by entering a PIN code (just like an ATM machine) into your player. The pin code is contained in the instruction manual for your Bluetooth headphones (many manufacturers use '0000'). Once paired, your headphones automatically connect with your player if you have them turned on before turning on the player.

To connect your headphones to your player:

1 Turn on the Bluetooth radio.
2 Search for a headset.
3 Connect to the headset.
4 Pair with a headset using a PIN.

Note

Bluetooth headphones will not work when using line-in recording.

Turning Bluetooth on or off

To turn Bluetooth on or off:

1 Press (Menu). The main menu opens.
2 Select Settings, then press ▶ (Play/Pause).
3 Select Bluetooth, then press > (Next) or ▶ (Play/Pause). The Bluetooth menu opens.

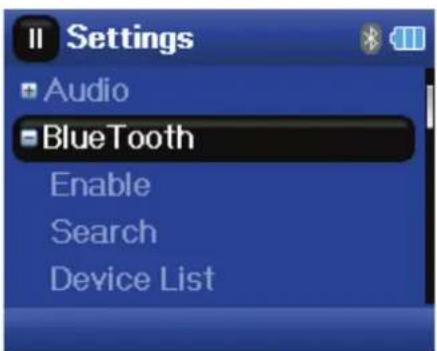

Settings Audio BlueTooth Enable Search Device List

4 Select Enable, then press > (Next) or ▶ (Play/Pause).

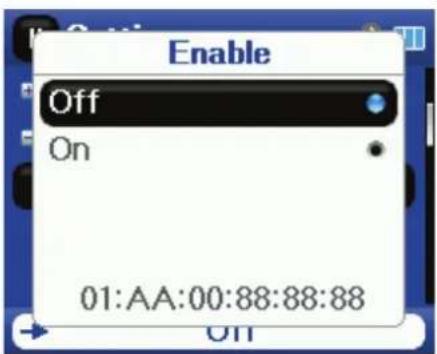

Enable Off On 01:AA:00:88:88:88

5 Select one of the following:

• Disable to turn off Bluetooth.
• Enable to turn off Bluetooth.

Searching for new Bluetooth headphones

If the set of headphones you want to connect to is not listed in the Device List, you must search for the new headphones.

To search for new headphones:

1 Press (Menu). The main menu opens.
2 Select Settings, then press ▶ (Play/Pause).
3 Select Bluetooth, then press > (Next) or ▶ (Play/Pause). The Bluetooth menu opens.

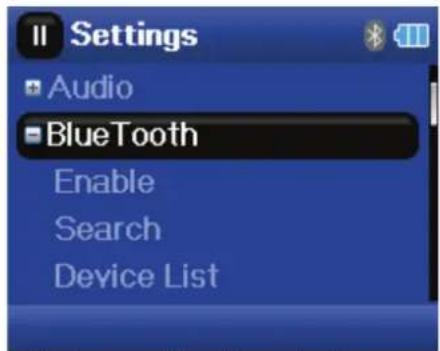

Settings Audio BlueTooth Enable Search Device List

4 Select Search, then press > (Next) or ▶ (Play/Pause). The message Searching bluetooth device. Please wait appears on the screen.

Settings Audio Searching for Bluetooth device Please wait...

Any new headphones are added to the Bluetooth Device list.

5 Select the device you want to connect with, then press (Next) or (Play/Pause).
6 Select one of the following:

• Connect to connect to the headphones. If you select Connect and this is the first time connecting to these headphones, go to Step 7.
• Disconnect to disconnect from the headphones.
• Delete to delete the headphones from the list.

7 Enter the PIN code for the headphones. Headphones must be paired with the player. Each set of headphones have a four digit PIN code (often headphone suppliers use '0000'). Refer to your headphone instruction manual for more information.

Enter the PIN code by scrolling through the numbers with the scroll wheel, then pressing the
▶II (Play/Pause) button to select each number. When complete, scroll to the OK button, then press
▶(Play/Pause). The player then attempts to pair to the headphones, and you see a status message with the result of the pairing function. If the pairing is successful, you will hear audio through your headphones after you press ▶(Play/Pause) on the Now Playing screen.

Setting Audio Bluetooth Display FM radio Information Time PIN Code 000_

Using the Bluetooth status icons

IconDescription
SERVICE	Bluetooth Disabled—Bluetooth is turned off.
DATAID	Bluetooth Disconnected—Bluetooth is turned on, but is not connected to headphones.
DATAID	Bluetooth Connected—Bluetooth is turned on and connected to headphones.

Viewing your Bluetooth headphones

To view a list of Bluetooth headphones:

1 Press (Menu). The main menu opens.
2 Select Settings, then press ▶ (Play/Pause).
3 Select Bluetooth, then press > (Next) or ▶ (Play/Pause). The Bluetooth menu opens.

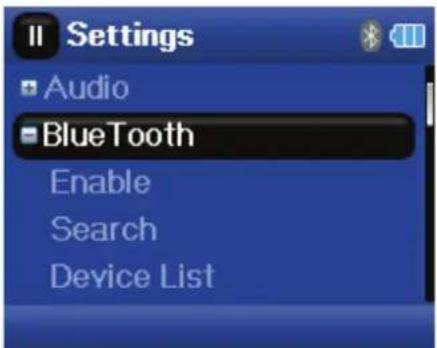

Settings Audio BlueTooth Enable Search Device List

4 Select Device List, then press > (Next) or ▶ (Play/Pause).

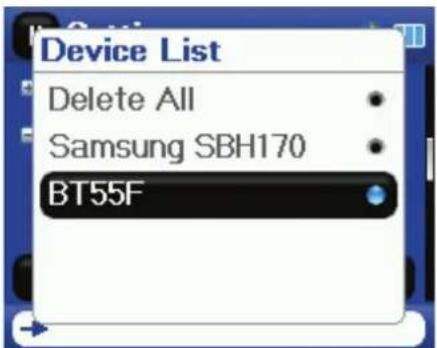

Device List Delete All Samsung SBH170 BT55F

5 Select the device you want to manage, then press (Next) or (Play/Pause).

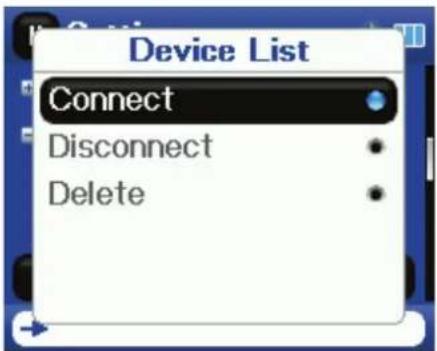

Device List Connect Disconnect Delete

Changing settings

Changing brightness, rotation, LCD, and backlight settings

To change the brightness, rotation, and backlight settings:

1 Press ☐ (Menu). The main menu opens.
2 Select Settings, then press > (Next) or ▶(Play/Pause).
3 Select Display, then press > (Next) or ▶ (Play/Pause). The Display menu opens.

4 Change any of the following settings:

- Brightness—Changes the brightness of the backlit screen.

• Rotation—Rotates the screen and flips the button functions to make left-handed use of the player easier. Default is Right Handed.
• Backlight—Changes the length of time that the backlight stays on after you press a button. The backlight may noticeably decrease battery life if it is left on for long periods of time.
• On Standby (LCD mode)—Determines if the LCD completely turns off when the device goes into idle mode (playing, but you haven't pressed a key). If this selection is On, then the LCD is dimly lit.

Changing power off and sleep settings

To change the power off and sleep settings:

1 Press ☐ (Menu). The main menu opens.
2 Select Settings, then press ▶ (Play/Pause).
3 Select Time, then press > (Next) or ▶ (Play/Pause). The Time menu opens.
4 Change any of the following settings:

• Auto Power Off—Adjusts the length of time without any button presses that the player waits before automatically turning off. You can select Off or a time up to ten minutes.
• Sleep—Changes the length of time the player waits before automatically turning off, regardless of button presses or other activity. You can select 30-minute time increments up to 120 minutes.
• Set Time—Sets the correct time. This is viewable on the Main Menu screen.

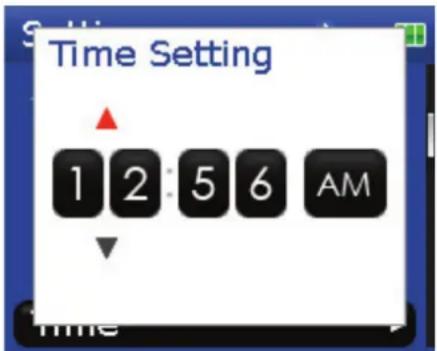

Time Setting 1 2 5 6 AM

- Slideshow—Sets the duration of each image on the display.

Erasing all files and restoring factory defaults

To erase all files and change all settings to factory defaults:

1 Press ☐ (Menu). The main menu opens.
2 Select Settings, then press > (Next) or ▶(Play/Pause).
3 Select System, then press > (Next) or ▶(Play/Pause). The System menu opens.
4 Change any of the following settings:

• Erase Internal Memory—Erases music files from Internal storage.
• Erase External Memory—Erases music files from External storage.
• Reset Settings—Resets all player settings to the factory defaults.

Manually changing the USB mode

The MP3 player can use two USB modes, Media Manager (MTP, the default) mode and File & Folder (MSC) mode. The player automatically detects which mode is best suited for your computer. During normal operation, you are not required to change modes manually. If you want to override the automatic setting and make the player start in File and Folder (MSC) mode, complete the following procedure.

To temporarily change the USB mode:

1 Turn off the player.
2 Move the Hold switch to the Hold position.
3 Connect the USB cable to the player. The player turns on in File and Folder (MSC) mode.

After you disconnect the player, slide the Hold button to the off position for normal operation.

• Media Manager (MTP)—Optimum setting for using the player as a MP3 player on Windows Vista, Windows XP, and Windows 2000.
• File & Folder (MSC)—Optimum setting for using the player as a file storage device, and required for using iTunes Drag and Drop Support.

To change the mode permanently to file and folder (MSC) mode:

1 Select Settings, then press > (Next) or ▶(Play/Pause).
2 Select USB Mode, then press > (Next) or ▶(Play/Pause).
3 Select the USB connection type.
4 Select the File and Folder mode and select ▶ (Play/Pause) to make it permanent. You can revert back to Automatic mode by following the same steps above, but selecting Automatic instead of File and Folder.

Viewing system information

Your player can display its total memory, used memory, available memory, and other system information.

To view system information:

1 Press ☐ (Menu). The main menu opens.
2 Select Settings, then press ▶ (Play/Pause).
3 Select Information, then press > (Next) or ▶(Play/Pause). The Information screen opens, displaying memory use, firmware version, and date. Use the scroll wheel to access the second and third information screens.

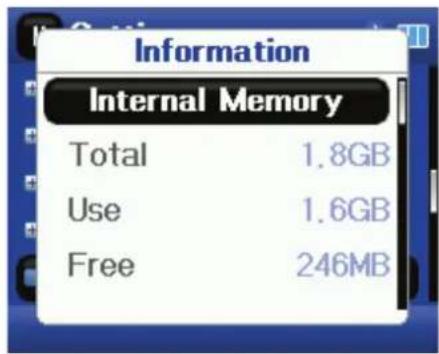

Information Internal Memory Total 1.8GB Use 1.6GB Free 246MB

Information External Memory Total 0MB Use 0MB Free 0MB

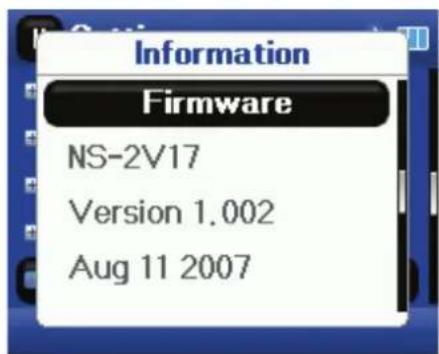

Information Firmware NS-2V17 Version 1.002 Aug 11 2007

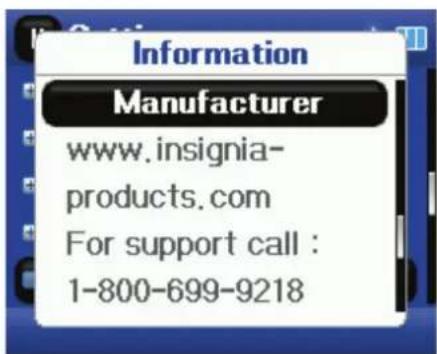

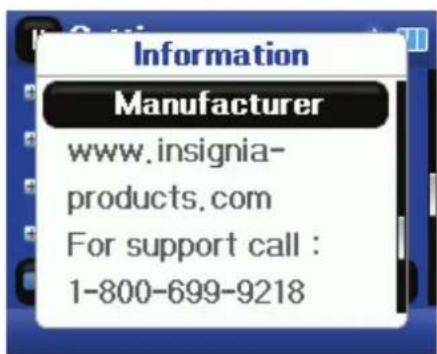

Information Manufacturer www.insignia- products.com For support call : 1-800-699-9218

Information Account Information User ID Renewed 1/1/1970 Expires 1/1/1970 Renew your subscription- on within 0 days

Note

The third screen contains account status information and is only relevant when using the Best Buy Digital Music Store.

Increasing capacity with a MicroSD flash card

If you are using a MicroSD card, you will see a second device appear in either MTP mode or File & Folder (MSC) USB mode. You can use this second device in the same way as your primary device. You can copy, delete, and synchronize files to it. In addition, if you insert a card with preloaded files, the files will be added to your device's database (labeled as External storage) if the content is clear from any DRM restrictions.

Maintaining your MP3 player

Care and cleaning

• Periodically clean your player by using a damp washcloth dampened with only water, or lens cleaning papers dampened with water or isopropyl (rubbing) alcohol.
• Make sure that you don't get the player wet.
• Keep your player away from hot environments, such as on top of a vehicle dashboard, a window sill, or a heat register.
• Avoid carrying your player in a pocket that contains metallic items, which can scratch and damage the player.
• Avoid carrying your player in a pocket or compartment that is dirty. Dirt, dust, and lint can damage the player.
• As much as possible, keep your player in its protective carrying case.
• Update the firmware occasionally to make sure that you have the latest version and product features.

Updating the firmware

To update the firmware:

1 On the Internet, connect your Web browser to www.insignia-products.com, then search for the MP3 player firmware update.
2 Follow the online instructions to download the updated firmware files. Make sure that you take note of where the file is saved to.
3 Double-click the file you saved in Step 2, then follow the on-screen instructions.

Warning

Installing new firmware will automatically delete all content from the device.

Buying a new battery

To order batteries or other accessories, visit the PartSearch Website: bestbuy.partsearch.com.

FAQ

How do I copy files to the player?

In File & Folder (MSC) mode, you can copy files to the player the same way you copy files to a hard drive or flash memory drive. In Media Manager (MTP) mode, you can use BBDMS, Windows Media Player, or other digital music managers to transfer files to your player. For more information, see "Transferring music files to your player" on page 13 and "Manually changing the USB mode" on page 28.

How do I use my player with a Mac OS?

Set the player in File and Folder mode, then connect it to your Macintosh. For systems using OS 8.6, see the Apple support site for instructions on downloading the necessary software to add USB support to your system.

How do I use my player with iTunes?

After the player is in File and Folder mode, all music ripped in MP3 format can be dragged and dropped from iTunes directly onto the player.

Where can I buy a new battery?

Go to bestbuy.partsearch.com and follow the instructions to find the correct part for your player. Full instructions on changing the battery are included with the spare battery.

What is MSC?

MSC stands for Mass Storage Compliant. The USB mass storage device class is a set of computing communications protocols, defined by the USB Implementers Forum, that run on the Universal Serial Bus. The standard provides an interface to a variety of storage devices. Vorbis files will only be recognized in File and Folder (MSC) mode.

Do I have to fully charge my battery before using it?

No, you can partially charge it, but it is recommended you charge it fully within the first week of purchase.

Which file formats does the player support?

This player supports MP3, WMA, WMAPro, Vorbis, Audible, and secure WMA audio formats, and JPG and JPEG photo formats. Any other formats must be converted to a supported format before being copied to your player.

What is MTP?

Media Transfer Protocol (MTP, or Media Manager mode) is a protocol for connecting portable devices to a Windows XP computer and synchronizing digital media content between those devices.

When I copy files to the player using Windows Explorer, what folder should I copy them to?

In Media Manager (MTP) mode, copy them to the Media folder or root directory on the player. In File & Folder (MSC) mode, you can copy them to the root directory. On some operating systems, you may see separate folders for video and photos. Copy your files into the appropriate folder.

Some of my music files are on my player, but cannot be played. When I select them, a different song begins to play. What is wrong?

You may not have purchased the rights to play the song on an additional device. To test this, try to play a song that you have copied from an older CD and converted to MP3 format. If you can play that song but not the song that doesn't play, then you need to purchase the rights to play the song.

Why should I update the firmware?

You should always update the player to the latest firmware to make sure that it works correctly and has the latest features. For more information, see "Updating the firmware" on page 30.

How do I copy a CD to my player?

First you must rip the CD using a digital music manager like Best Buy Digital Music Store or Windows Media Player. After the songs are on your computer, copy the songs to the player using Windows Explorer or a digital music manager. For more information, see "Transferring music files to your player" on page 13.

Why does my player display a message that says "Unknown artist/album"?

This message usually appears when the music file doesn't contain artist or album information (incomplete ID3 tags). See the documentation or online help of your digital music manager for instructions on adding that information to your music files.

Getting help

Contacting technical support

Before you contact technical support, review the FAQ section to see if your question is already answered there.

If you have questions about the use or features of your player, call Technical Support at [phone] or [phone], or fill out an online support request at:

www.bestbuy.com/support.asp

Get additional online help at:

www.insignia-products.com

www.bestbuy.com/mp3help

www.geeksquad.com

Learn more

For more information on using your Insignia player, visit: www.insignia-products.com/mp3info On the Internet, you can use a Web search site to find information on the following topics*:

- Ripping CDs

- Downloading music

- Downloading MP3s

• M P 3 m u s i c

- MP3 copyright law

*Best Buy Enterprise Services, Inc. does not maintain and is not responsible for the content of Web pages you find using these search terms.

Specifications

Specifications and features are subject to change without notice or obligation.

Ports and connections	Mini USB 2.0Headphone jackMicro SDHC slot
Bluetooth Supports Bluetooth with A2DP profile
Display LCD	262,000 colorsQCIF+LCD (220×176)
Battery Replaceable, rechargeable lithium ion
Supported formats	Audio: MP3, WMA, WMAPro, WMAlossless, Secure WMA, Audible, OGG (tracks will only be recognized in File and Folder (MSC) mode)Photo: JPG/JPEGVideo: WMV
Radio FM tuner	with RDS support (works only with FM broadcasts which support RDS)
Line in recording formats	WMA (all sampling rates are 44.1 KHz)Highest 128 kbpsHigh 96 kbpsMedium 80 kbpsLow 64 kbpsPCMHighest 1536 kbps (48 KHz)High 1411 kbps (44.1 KHz)Medium 1024 kbps (32 KHz)
Dimensions 0.43 × 1.6 × 3.3 inches ( 11 × 40 × 83 mm)
Weight .64 oz. (40 g)

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.

FCC warning

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

DHHS and FDA safety certification

This product is made and tested to meet safety standards of the FCC, requirements and compliance with safety performance of the U.S. Department of Health and Human Services, and also with FDA Radiation Performance Standards 21 CFR Subchapter J.

Canada ICES-003 statement

This Class B digital apparatus complies with Canadian ICES-003.

RSS 310 statement

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

Copyright

© 2007 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.

For service and support call [phone].

Warranty

1-year limited warranty

Insignia Products ("Insignia") warrants to you, the original purchaser of this new NS-2V17/NS-4V17 ("Product"), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). This Product must be purchased from an authorized dealer of Insignia brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Insignia during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. The purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the product in the United States and Canada.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
• Misuse
• A b u s e
• Negligence
• Commercial use
• Modification of any part of the Product, including the antenna

This warranty also does not cover:

• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Insignia to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Insignia NS-2V17/NS-4V17 Reproductor de MP3 deportivo

Contenido

Introducción 34

INSIGNIA™ 510/714 LIFERHOUSE Lifehouse Who we are The Joke 00:02:48 ★★★★ 00:03:56 Next: Whatever it ta A B C D F E

Close-up of a dark blue cylindrical device with a labeled component 'A' pointing to its side (no text or symbols on the device itself)

ElementoFunción

510/714 LIFEOHUSE Who we are The Joke 00:02:48 ★★★★ 00:03:56 Next: Whatever it ta N F G H I J K L

ElementoFunción

USB Connected OK to disconnect.

Main Menu Now Playing

Circular media control interface with playback controls and directional arrows (no text or symbols)

File Controls My Account Tools Help BEST BUY DIGITALMUSICSTORE BEST BUY Sources Music Guide My Library My Channels Jon Secada - Jon Secada Burn a CD Now Playing Playlists New Playlist Search Currently you can hear 30-second samples of tracks. To hear more, sign in or subscribe for full-length access. Sign in Subscribe What's New Music Guide Channel Guide Playlist Central My Rhapsody Music Guide Browse Features New Releases Staff Picks Just Added Exclusives Desires Rock/Pop Alternative/Punk Rap/Hip Hop Soul/R&B Country Jazz Electronic/Dance Latin World/Roggae Classical new release Car Wheels on a Gravel Road Lucinda Williams Oh, Sweet Lucinda Live material and bonus cuts fill out this re-issue, displaying Lucinda Williams' endearing charms -- trashy, ragged and utterly heartrending. New This Week Charts Artists Aburs Tracks 1. My Chemical Romance 2. "Weird AI" Yankovic 3. John Mayer 4. John Legend 5. The Killers 6. Justin Timberlake 7. The Fray 8. Jack Johnson 9. Nickelback 10. Moby You are not signed in Sign In

USB Connected Searching for PC

USB Connected Synching! Do not disconnect.

DigitalMUSICSTORE Best Buy Sources Music Guide My Library My Channels Insignia Video Player Tracks Insignia Video Player - Tracks Out Carried by the Wind Carina Bound Living Is Up for You Not Your Fault Ready To Fall I'm Not Loving U. D4 Pacific Wind 00 Titans Playlists New Playlist AT&T Carina Bound Holly Brook New Found Glory Rise Against Robin Thickie At&T Carina Bound Like Blood Like... Coming Home The Sufferer A... The Evolution o... Rock Rock Hardware/Punk 8 Tracks | 30.1 Mina | 35.6 MB Used: 223.5 MB Available: 3.5 GB You are not signed in. Sign in

USB Connected OK to disconnect.

USB Connected Searching for PC

USB Connected OK to disconnect.

Black Eyed Peas Monkey Business Pump It Up My Style Don't Lie Let's Get It Starte

Black Eyed Pops Monkey Pump It My Style Play Add Play All Add All Delete

Setting Audio Rpt./Shfl. Rpt. All Equalizer Normal A-B Rpt. Off Information Time

Equalizer Normal Rock Jazz Classical Pop

USB Connected Searching for PC

ArcSoft MediaConverter™ Register Extras Select Device: Insignia Player Select Conversion Parameter: Insignia MPEG4 Video Output: .AVI (V)ArcSoft MPEG4 Encoder (A)ArcSoft MP3 Encoder (V)512Kbps, (A)128Kbps 320x240, 29.97fps, 44100Hz Music Output: .MP3 ? Channel(s) Preview Use this application to convert video, photo and audio files into file formats compatible with your media player. See supported file formats Add Media Name ↑ Size Current Format Convert To: Current Device Folder C:\Docs\ArcSoft MediaConverter Convert

USB Connected Searching for PC

USB Connected OK to disconnect.

FM Radio Stereo Preset 07 95.9MHz Forecast-FM Radio 1 Today morning is fine RBDS On

RBDS activado

FM Radio Stereo Preset 07 95.9MHz 87.5 108

RBDS desactivado

Consejo

Settings ■FM Radio Preset Add Preset Delete Auto Scan Stereo

Para configurar automáticamente emisoras predefinidas:

Settings Audio BlueTooth Enable Search Device List

Enable Off On 01:AA:00:88:88:88 Off

Settings Audio BlueTooth Enable Search Device List

Settings Audio Searching for Bluetooth device Please wait...

Settings Audio BlueTooth Enable Search Device List

Device List Delete All Samsung SBH170 BT55F

Device List Connect Disconnect Delete

Time Setting 1 2 5 6 AM

Information Firmware NS-2V17 Version 1.002 Aug 11 2007

Information Manufacturer www.insignia- products.com For support call : 1-800-699-9218

Information Account Information User ID Renewed 1/1/1970 Expires 1/1/1970 Renew your subscription- on within 0 days

Nota

www.bestbuy.com/support.asp

www.bestbuy.com/mp3help

www.geeksquad.com

Aprenda más

www.insignia-products.com/mp3info

Distributed by Best Buy Purchasing, LLC

7601 Penn Avenue South, Richfield, MN USA 55423-3645

© 2007 Best Buy Enterprise Services, Inc.

All rights reserved. INSIGNIA is a registered trademark of Best Buy Enterprise Services, Inc.

All other products and brand names are trademarks of their respective owners.

Distribuido por Best Buy Purchasing, LLC

7601 Penn Avenue South, Richfield, MN USA 55423-3645

© 2007 Best Buy Enterprise Services, Inc.
