Product Type	Coaxial Car Speaker
Brand	Sony
Model	XS-GTF1625B
Speaker Type	2-Way Coaxial
Woofer Size	16 cm (6.3 in)
Tweeter Size	3.5 cm (1.4 in)
Peak Power	190 W
Rated Power	40 W
Impedance	4 Ω
Sensitivity	90 ±2 dB (1 W, 1 m)
Frequency Response	35 Hz – 25,000 Hz
Weight (per speaker)	Approx. 650 g
Mounting Depth	Minimum 44 mm
Supplied Accessories	Installation parts (screws, brackets)
Safety Precautions	Do not exceed peak power; keep magnetic media away.
Maintenance	Clean with soft dry cloth; avoid solvents.

Frequently Asked Questions - XS-GTF1625B SONY

What is the peak power handling of the Sony XS-GTF1625B?

The peak power is 190 W, while the rated power is 40 W. Continuous use above rated power may damage the speakers.

What is the impedance of these speakers?

The impedance is 4 Ω, compatible with most car audio systems.

What is the sensitivity rating?

The sensitivity is 90 ±2 dB (1 W, 1 m), indicating moderate efficiency.

What is the frequency response?

Frequency response ranges from 35 Hz to 25,000 Hz, covering deep bass to high treble.

What is the mounting depth required?

A minimum mounting depth of 44 mm is required for flush mounting. Ensure no obstructions.

Will the magnet affect credit cards or tapes?

Yes, the speakers contain strong magnets. Keep magnetic media and sensitive devices at a safe distance.

Are these speakers coaxial?

Yes, they are a 2-way coaxial design with a 16 cm woofer and a 3.5 cm tweeter.

What is the weight of each speaker?

Each speaker weighs approximately 650 g.

What accessories are included?

Installation parts are supplied, likely including screws and mounting brackets.

How should I clean the speakers?

Clean with a soft, dry cloth. Avoid using solvents or abrasive materials.

USER MANUAL XS-GTF1625B SONY

• Do not continuously use the speaker system beyond the peak power handling capacity.
• Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.

If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony dealer before mounting.

Precautions before use

Speaker Coaxial 2-way:

	Woofer 16 cm, HOP, cone typeTweeter 3.5 cm,B.D. type 1
Peak power 190 W*
Rated power 40 W*	1
Impedance 4 Ω*	1
Sensitivity 90	±2 dB (1 W, 1 m)* 2
Frequency response 35 Hz – 25,000 Hz* 1
Mass Approx. 650 g per speaker
Supplied accessory Parts for installation

Design and specifications are subject to change without notice.

*1 Testing Condition: IEC60268-5 (2003-05) *2 Testing Condition: EIAJ RC-8124A

Specifications

Speaker

16cm Coaxial 2-way Speaker

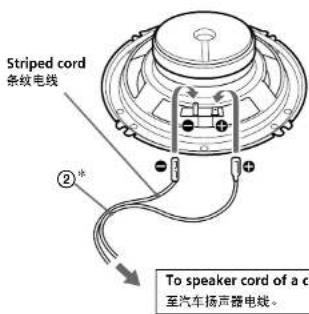

Installation/Connections

Installation/Connections

XS-GTF1625B

© 2007 Sony Corporation Printed in China

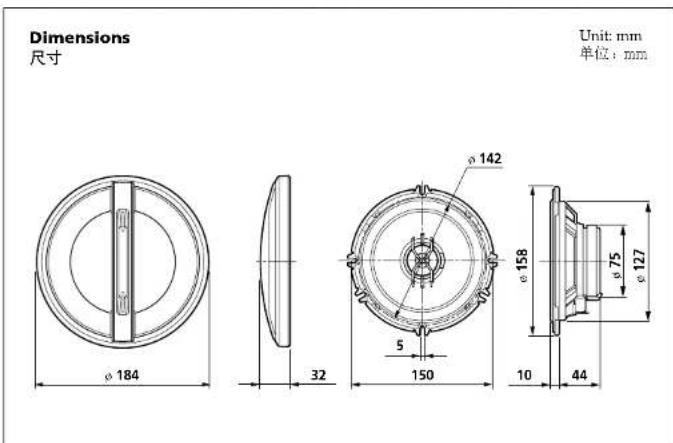

Dimensions

Dimensions

Unit: mm

Unit: mm

(○: does not contain, ×: contains)

Names and contents of hazardous substances or elements in the product

Mounting from the car interior

Before Mounting

A depth of at least 44 mm is required for flush mounting. Measure the depth of the area where you are to mount the speaker, and ensure that the speaker is not obstructing any other components of the car. Keep the following in mind when choosing a mounting location:

• Make sure that nothing is obstructing around the mounting location of the door (front or rear) where you are to mount the speaker.
• A hole for mounting may already be cut out of the inner panel of the door (front or rear). In this case, you need to modify the board only.
• If you are to mount this speaker system in the door (front or rear), make sure that the speaker terminals, frame or magnet do not interfere with any inner parts, such as the window mechanism in the door (when you open or close the window), etc. Also make sure that the speaker grille does not touch any inner fittings, such as the window cranks, door handles, arm rests, door pockets, lamps or seats etc.

Before Mounting

2

Remove the grille net.

5

Press and insert the edges of the grille net.
