XS-V6930 - Haut-parleur auto SONY - Free user manual and instructions

Product Type	Car Speaker (6x9-inch)
Brand	Sony
Model	XS-V6930
Speaker Size	6 x 9 inches
Overall Diameter	245 mm
Mounting Depth	75 mm
Cutout Diameter	210 x 290 mm
Weight	1.5 kg per speaker
Impedance	4 ohms
Sensitivity	92 dB
Frequency Response	28 Hz - 25 kHz
Power Handling (RMS)	45 W
Power Handling (Peak)	200 W
Magnet Material	Ferrite
Cone Material	Polypropylene
Tweeter Type	Balanced dome
Grille Included	Yes
Mounting Hardware Included	Screws and brackets
Installation Location	Rear deck or doors
Cleaning Instructions	Wipe with dry cloth; avoid liquids
Safety Precautions	Disconnect battery before installation; avoid sharp objects near cone
Spare Parts Availability	Contact Sony service center for replacement grilles or hardware

Frequently Asked Questions - XS-V6930 SONY

What is the size of the Sony XS-V6930 speaker?

The Sony XS-V6930 is a 6x9-inch speaker, commonly used in rear decks or doors.

What is the power handling of the XS-V6930?

The RMS power handling is 45 watts, with a peak power of 200 watts.

What is the impedance of the XS-V6930?

The speaker has an impedance of 4 ohms.

Does the XS-V6930 come with a grille?

Yes, the speaker includes a grille and mounting hardware.

How do I clean the Sony XS-V6930?

Clean the speaker with a soft, dry cloth. Do not use any liquids or chemicals.

Can I install the XS-V6930 in the front doors?

Yes, if the mounting depth and cutout size match your vehicle. The mounting depth is 75 mm and cutout is 210 x 290 mm.

What is the frequency response of the XS-V6930?

The frequency response ranges from 28 Hz to 25 kHz.

Is the XS-V6930 compatible with a factory stereo?

Yes, it can be used with factory stereos, but for best performance, pair with an external amplifier.

What type of magnet does the XS-V6930 use?

It uses a ferrite magnet.

Where can I find spare parts for the XS-V6930?

Contact Sony customer support or authorized service centers for replacement parts.

USER MANUAL XS-V6930 SONY

3-way Speaker 4-way Speaker

Instructions

Mode d'emploi

Instrucciones

使用説明書

XS-V6930

XS-V6940

Sony Corporation © 1999 Printed in Thailand

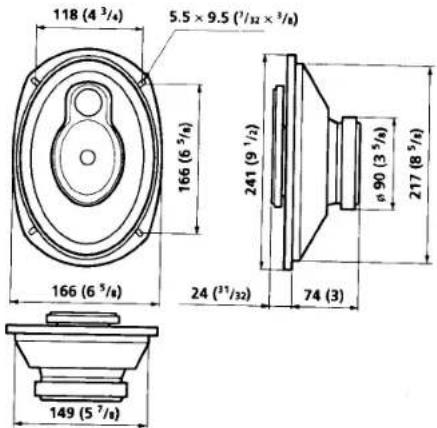

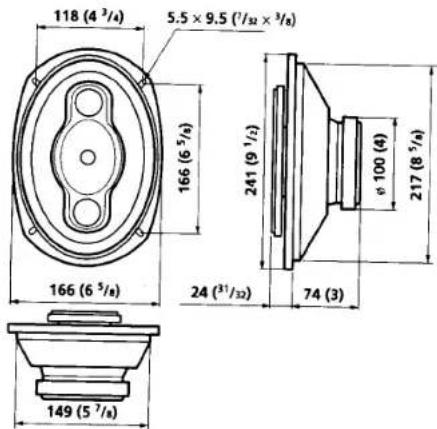

Dimensions

Dimensiones

尺寸

Unit: mm (in.)

Unité: mm (po.)

Unidad: mm

单位：mm

X5-V6930
(3 way speaker)

XS-V6940
(4 way speaker)

Mounting depthProfondeur de montageInbouwdiepte安装深度	74 (3)
	88 ( 3^1/2 )bottom mountingmontage inférieurmontaje inferior向上安装

Mounting Montage

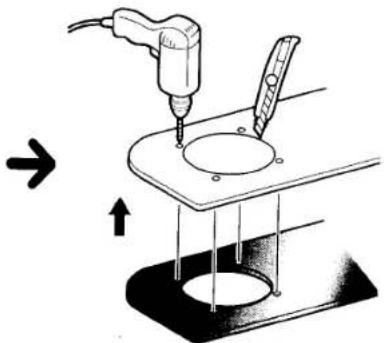

Before mounting

• A depth of at least 74 mm (3 in.) is required for flush mounting. Keep the following in mind when choosing a mounting location.
  • A hole may already be cut out of the metal frame of the front door.
• Nothing should interfere with the speaker inside the door.
  • The speaker inside the door must not come into contact with the window when it is open.
• Be careful that the speakers are out of the way of the window cranks, door handles and arm rests.
  • Make sure that the speaker does not hinder the movement of torsion bar springs etc. of the trunk lid.

If you cannot find an appropriate mounting location, check with your car dealer or consult the nearest Sony dealer.

Avant le montage

Rear deck
Plage arrière
Tablero trasero
車後平台

Diagram of a drill using a tool on a workbench, showing mechanical components and directional arrows (no text or symbols)

2

* White cord — Left speaker Gray cord — Right speaker
* Cordon blanc — Haut-parleur gauche Cordon gris — Haut-parleur droit
* Cable blanco — Altavoz izquierdo Cable gris — Altavoz derecho
*白色電線一左揚聲器 灰色電線一右揚聲器

Black-striped cord

Cordon rayé noir

4

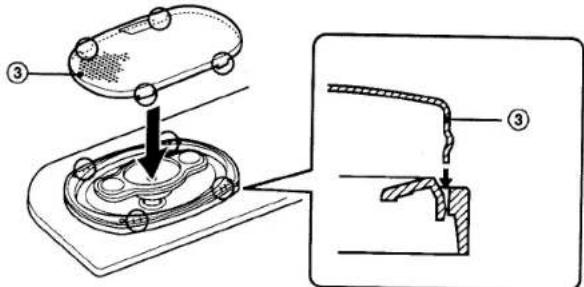

Press and insert the edges of the grille net. Pousser et insérer les bords du filet de la grille. Presione e inserte los extremos de la red de la rejilla. 按下並插入格柵網罩的邊緣。

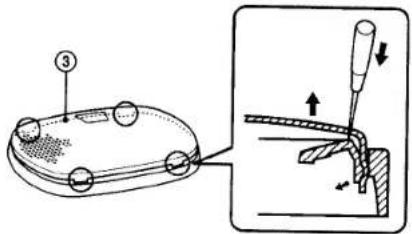

How to remove the grille net Comment retirer le filet de la grille Cómo extraer la red de la rejilla 如何取下格栅網罩

Specifications

XS-V6930

Speaker	Coaxial 3-way:Woofer 16 × 24 cm( 6 × 9 in.) cone typeMidrange 6 × 8 cm( 2^1/2 × 3^1/8 in.) cone typeTweeter 2.2 cm ( ^29/_x in.)dome type
Maximum input power	220 watts
Rated input power	60 watts
Impedance	4 ohms
Sensitivity	91 dB/W/m
Frequency response	28 - 26,000 Hz
Mass	Approx. 1.55 kg(3 lb. 7 oz.) per speaker

XS-V6940

Speaker	Coaxial 4-way:
	Woofer 16 × 24 cm(6 × 9 in.) cone type
	Midrange 6 × 8 cm(2 ^1 /2 × 3 ^3 /8 in.) cone type
	Tweeter 3.2 cm (1 ^5 /16 in.)cone type
	Super tweeter 2.2 cm(2 ^9 /32 in.) dome type
Maximum input power	230 watts
Rated input power	60 watts
Impedance	4 ohms
Sensitivity	92 dB/W/m
Frequency response	28 – 28,000 Hz
Mass	Approx. 1.85 kg(4 lb. 1 oz.) per speaker

Design and specifications are subject to change without notice.

Especificaciones

XS-V6930

• Do not continuously use the speaker system beyond the maximum power handling capacity.
• Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.

If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony dealer before mounting.

Précautions
