| Type | 3-way component speaker system |
| Woofer size | 6.5 inches (165 mm) |
| Midrange size | 3 inches (75 mm) |
| Tweeter size | 1 inch (25 mm) soft dome |
| Impedance | 4 ohms |
| Sensitivity | 91 dB (2.83V/1m) |
| Frequency response | 40 Hz - 25 kHz |
| Power handling (RMS) | 150 watts |
| Power handling (peak) | 300 watts |
| Recommended crossover frequency | 2.5 kHz (between woofer and midrange) |
| Crossover type | External passive crossover (included) |
| Mounting depth (woofer) | 2.56 inches (65 mm) |
| Weight (complete set) | Approx. 2.5 kg |
| Magnet material | Neodymium (midrange and tweeter) |
| Diaphragm material | MSP (Magnesium Silicate Polymer) for woofer and midrange |
| Maintenance | Clean with a soft dry cloth. Avoid liquid cleaners. |
| Safety | Ensure proper installation and secure mounting. Do not exceed power ratings. |
| Spare parts | Contact Dynaudio authorized dealers for replacement parts. |
| General information | High-end car audio component system designed for accurate sound reproduction. |
Frequently Asked Questions - Esotec 362 DYNAUDIO
User questions about Esotec 362 DYNAUDIO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pregnant in PDF format for free! Find your manual Esotec 362 - DYNAUDIO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Esotec 362 by DYNAUDIO.
USER MANUAL Esotec 362 DYNAUDIO
Thank you for your decision to acquire Dynaudio Automotive loudspeakers for aftermarket installation. The Dynaudio Esotec and Esotar ^2 Systems have been developed to the same high standard as the company's renowned home audio, professional studio and multimedia loudspeaker products. The Dynaudio Automotive Esotec and Esotar ^2 ranges are specifically engineered for optimum performance in a vehicle to ensure the most precise in-car music reproduction possible. Dynaudio's advanced technology is the result of many years of intense research and development mated to the highest quality standards in production and the company's enduring passion for musical truth.
We wish you many years of enjoying and experiencing music at the highest level of performance,
Dynaudio
About this installation manual
This installation manual provides all technical specifications, installation dimensions and crossover connection instructions for the Dynaudio Esotec and Esotar ^2 series. To realize the full potential of Dynaudio Automotive systems, some areas should be addressed, as touched upon in the following pages.
Due to the great variety of installation conditions it will not offer specific instructions how to install the systems into your car. Please refer to the operating manual of your vehicle or ask your local automotive dealer for further assistance. To observe all relevant matters and thus maximize the tremendous performance potential of your Dynaudio in-car loudspeaker system, consult your authorized Dynaudio Automotive loudspeaker dealer for assistance. Your dealer has the knowledge and expertise to perform a high quality aftermarket installation.
Safety information
As all Dynaudio Esotec and Esotar ^2 Series components are passive (in that they rely on external amplification), the components themselves can not cause any damage.
However, the components can be damaged beyond repair unless a few ground rules are observed:
▶ Insure all components are properly installed and wired correctly.
▶ Observe the technical specifications.
▶ Always use high-quality cabling and amplification.
CAUTION
HIGH SOUND PRESSURE LEVELS
Listening to high sound pressure levels over a prolonged period of time may harm your hearing.
▶ To avoid auditory effects do not listen to high sound levels over a long period of time.
Warranty
Dynaudio provides a limited manufacturer's warranty on Dynaudio Automotive aftermarket products. Please check with your local distributor for warranty conditions.
The warranty is valid only if the product is purchased from an authorized Dynaudio Automotive aftermarket dealer. All warranty claims must be accompanied by a copy of the original purchase invoice and warranties are only valid in the country or market of original origin or distribution. Should warranty service be required, it must be arranged for in the country of purchase by an authorized Dynaudio dealer.
Technical specifications
Tweeters/Midrange
| MD 102 MD 142 Esotar | ^2 110 | ||
| Nominal impedance | 8 Ω | 8 Ω | 6 Ω |
| Recommended frequency range 2200 – 30000 Hz 700 – 6000 Hz 2000 – 30000 Hz | |||
| Power handling | |||
| • Nominal long term IEC | 100 W | 100 W | 150 W |
| • Transient | 500 W | 1000 W | 1000 W |
| Net weight 0.126 kg 0.75 kg 0.50 kg | |||
| Overall dimensions (∅ x D) | 62.2 x 43 mm | 121 x 66 mm | 111 x 41 mm |
| MW 152 | MW 162 | MW 162 GT | MW 172 | MW 182 | Esotar^2 650 | Esotar^2 1200 | |
| Nominal impedance | 4 Ω | 4 Ω | 4 Ω | 4 Ω | 4 Ω | 4 Ω | 4 Ω |
| Recommended frequency range | 55 – 3500 Hz | 40 – 4000 Hz | 40 – 4000 Hz | 35 – 3500 Hz | 30 – 2000 Hz | 50 – 4000 Hz | 18 – 300 Hz |
| Power handling | |||||||
| • Nominal long term IEC | 100 W | 120 W | 120 W | 150 W | 180 W | 200 W | 400 W |
| • Transient | 1000 W | 1000 W | 1000 W | 1000 W | 1000 W | 1000 W | 1500 W |
| Net weight | 1.1 kg | 1.2 kg | 1.1 kg | 1.3 kg | 1.85 kg | 1.25 kg | 8.8 kg |
| Overall dimensions (∅ x D) | 146 x 70 mm | 175 x 77 mm | 166 x 71 mm | 200 x 88 mm | 239 x 86 mm | 169 x 78 mm | 297 x 162 mm |
Esotec / Esotar ^2 Series 5
Esotec crossovers
| X 252 X 362 | ||
| Crossover frequencies 2200 Hz | 900 Hz / 3500 Hz | |
| Nominal impedance 4 Ω 4 Ω | ||
| Power handling | ||
| • MW 152 | 100 W | - |
| • MW 162/162 GT | 120 W | 200 W |
| • MW 172 | 150 W | 200 W |
| • MW 182 | - | 200 W |
| Dimensions 38 x 84 x 145 mm | 43 x 104 x 175 mm | |
| Net weight 0.33 kg 0.60 kg | ||
| MD 102 MD 142 Esotar | ^2 110 | |||
 |  |  | ||
| 1 max. ∅ 62.2 mm max. ∅ 121 mm ∅ 111 mm | ||||
| 2 | Mounting hole: ∅ 52.1 – 55.5 mm | 3 holes: ∅ 4 mm on ∅ 110.9 mm | 6 holes: ∅ 4.3 mm on ∅ 101 mm | |
| 3 29.1 mm Mounting hole ∅ 96 mm (add cut-outs for terminals) | Mounting hole ∅ 86 mm | |||
| 4 3 mm max. 37.5 mm | 27 mm | |||
| 5 | 13.86 mm | 7.5 mm | max. 4.5 mm | |
| 6 | - | max. 30 mm | max. 16 mm | |
| MW 152 | MW 162 | MW 162 GT | MW 172 | MW 182 | |
 |  |  |  |  | |
| 1 | max. ∅ 145.5 mm | max. ∅ 175 mm | max. ∅ 166 mm | max. ∅ 200 mm | max. ∅ 239 mm |
| 2 6 | holes: ∅ 4.3 mmon ∅ 134.5 mm | 6 holes: ∅ 4.3 mmon ∅ 158 mm | 4 holes: ∅ 7.5 mmon ∅ 155 mm | 6 holes: ∅ 4.2 mmon ∅ 185.75 mm | 6 holes: ∅ 4.5 mmon ∅ 219 mm |
| 3 | 3 mm | 3 mm | ∅ 88 mm | 4.2 mm | ∅ 113 mm |
| 4 Mounting holemin. ∅ 124.5 mm | Mounting holemin. ∅ 136 mm | Baffle holemin. ∅ 134 mm | Mounting holemin. ∅ 172 mm | Mounting holemin. ∅ 195 mm | |
| 5 | 63 mm | 67 mm | 62 mm | 77.9 mm | 75 mm |
| 6 | 4.3 mm | 5 mm | 1.5 mm | 5.4 mm | 5.9 mm |
| 7 13 mm(at max. cone excursion) | 15 mm(at max. cone excursion) | 15 mm(at max. cone excursion) | 17 mm(at max. cone excursion) | 16 mm(at max. cone excursion) | |
Woofers Esotar ^2
| Esotar ^2 650 Esotar | ^2 1200 | ||
| [IMAGE] | [IMAGE] | ||
| 1 | 169 mm | 297 mm | |
| 2 6 | holes: 4.3 mmon 158 mm | 8 holes: 5.3 mmon 285 mm | |
| 3 | Mounting holemin. 136 mm | Mounting holemin. 260 mm | |
| 4 67 | mm 143 mm | ||
| 5 | max. 5.2 mm max. 7.5 mm | ||
| 6 15 | mm(at max. cone excursion) | 35.5 mm(at max. cone excursion) | |
Tweeters/Midrange
| MD 102 MD 142 Esotar | ^2 110 | ||
| C | 1.2 μF | 1.2 μF | 1.2 μF |
| R | 8.2 Ω | 8.2 Ω | 8.2 Ω |
Woofers
| MW 152 | MW 162 | MW 162 GT | MW 172 | MW 182 | Esotar^2 650 Esotar | ^2 1200 | |
| C | 22 μF | 22 μF | 22 μF | 33 μF | 47 μF | 22 μF | 82 μF |
| R | 4.7 Ω | 4.7 Ω | 4.7 Ω | 4.7 Ω | 4.7 Ω | 4.7 Ω | 4.7 Ω |
Esotar ^2 crossover recommendations
Since the Esotar ^2 speakers are meant to use active filtering, Dynaudio recommends following crossover frequencies:
| Esotar^2 110 Esotar | ^2 650 Esotar | ^2 1200 | |
| Filter type high-pass band-pass low-pass | |||
| Slew rate | -6 dB | -6 dB | -6 dB |
| Cut-off frequency | 2000 Hz | 100 Hz and 2000 Hz | 100 Hz |

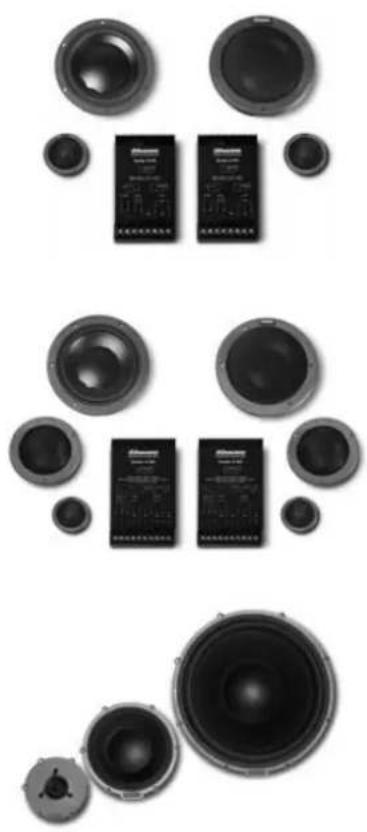

Systems overview
Esotec two-way systems
| Bass Mid High Crossover | |
| System 222 MW | 152 – MD 102 X 252 |
| System 242 MW | 162 – MD 102 X 252 |
| System 242 GT MW | 162 GT – MD 102 X 252 |
Esotec three-way systems
| Bass Mid High Crossover | |
| System 342 MW | 162 MD 142 MD 102 X 362 |
| System 362 MW | 172 MD 142 MD 102 X 362 |
Esotar ^2 components
| Subwoofer Mid / Bass High Crossover | 1) | ||||
| Components Esotar | ^2 1200 | Esotar ^2 650 | Esotar ^2 110 | Active filtering recommended | |
1) Please contact your authorized Dynaudio Automotive aftermarket dealer for further information.
Connecting the Esotec crossovers
2-way crossover X 252
| Terminal label Connections | ||
  | Amplifier TweeterWoofer | 1 To power amplifier: + terminal2 To power amplifier: - terminal3 To woofer: + terminal4 To woofer: - terminal5 To tweeter: + terminal, +2dB6 To tweeter: + terminal, ±0dB7 To tweeter: + terminal, -2dB8 To tweeter: - terminal |
1. To connect the woofer
▶ Connect terminal 3 to the + terminal of the woofer.
▶ Connect terminal 4 to the – terminal of the woofer.
2. To connect the tweeter
The terminals 5, 6 and 7 offer the ability to fine-tune the sound level. This makes it possible to adjust the level according to the placement of the speaker in the car and to your personal preference.
▶ Connect terminal 5 or 6 or 7 to the + terminal of the tweeter:
- just use one of the terminals 5, 6 or 7
- start with terminal 6 for the first setup
- use terminal 5 to increase the sound pressure level by 2 dB
- use terminal 7 to decrease the sound pressure level by 2 dB
▶ Connect terminal 8 to the – terminal of the tweeter.
3. To connect the power amplifier
▶ Connect terminal 1 to the + terminal of the power amplifier.
▶ Connect terminal 2 to the – terminal of the power amplifier.

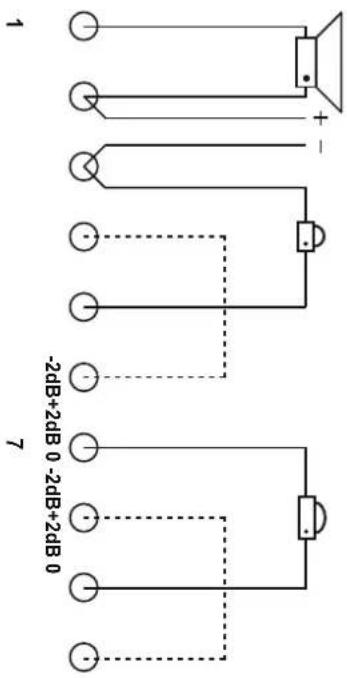

3-way crossover X 362
| Terminal label Connections | ||
 | Amp Tweeter MidrangeWoofer | 1 To woofer: - terminal2 To woofer: + terminalTo power amplifier: + terminal3 To power amplifier: - terminalTo tweeter: - terminal4 To tweeter: + terminal, +2dB5 To tweeter: + terminal, ±0dB6 To tweeter: + terminal, -2dB7 To midrange: - terminal8 To midrange: + terminal, +2dB9 To midrange: + terminal, ±0dB10 To midrange: + terminal, -2dB |
1. To connect the woofer
▶ Connect terminal 1 to the – terminal of the woofer.
▶ Connect terminal 2 to the + terminal of the woofer.
2. To connect the tweeter
The terminals 4, 5 and 6 offer the ability to fine-tune the sound level. This makes it possible to adjust the level according to the placement of the speaker in the car and to your personal preference.
▶ Connect terminal 3 to the – terminal of the tweeter.
▶ Connect terminal 4 or 5 or 6 to the + terminal of the tweeter.
- just use one of the terminals 4, 5 or 6
- start with terminal 5 for the first setup
- use terminal 4 to increase the sound pressure level by 2 dB
- use terminal 6 to decrease the sound pressure level by 2 dB
3. To connect the midrange
The terminals 8, 9 and 10 offer the ability to fine-tune the sound level. This makes it possible to adjust the level according to the placement of the speaker in the car and to your personal preference.
▶ Connect terminal 7 to the – terminal of the midrange.
▶ Connect terminal 8 or 9 or 10 to the + terminal of the midrange.
- just use one of the terminals 8, 9 or 10
- start with terminal 9 for the first setup
- use terminal 8 to increase the sound pressure level by 2 dB
- use terminal 10 to decrease the sound pressure level by 2 dB
4. To connect the power amplifier
▶ Connect terminal 2 to the + terminal of the power amplifier.
▶ Connect terminal 3 to the – terminal of the power amplifier.
Sales & Marketing
Dynaudio International GmbH, Ohepark 2, 21224 Rosengarten, Germany, Phone +49 - 4108 - 4180 - 0
www.dynaudio.com
© Dynaudio International GmbH, Esotec/Esolar® Manual 0208, Item Nr. 455616. All text and image copyrights reserved. Subject to change without notice.
